Article

Correction of Light and Heavy Hydrocarbons and Their Application in a Shale Oil Reservoir in Gaoyou Sag, Subei Basin—A Case Study from Well SX84

by
Qi Zhi
1,
Shuangfang Lu
2,3,*,
Pengfei Zhang
4,
Hongsheng Huang
1,
Junjie Wang
1 and
Zizhi Lin
1
1
School of Geoscience, China University of Petroleum (East China), Qingdao 266580, China
2
Sanya Offshore Oil & Gas Research Institute, Northeast Petroleum University, Sanya 572025, China
3
Key Laboratory of Continental Shale Hydrocarbon Accumulation and Efficient Development, Ministry of Education, Northeast Petroleum University, Daqing 163318, China
4
College of Earth Science and Engineering, Shandong University of Science and Technology, Qingdao 266590, China
*
Author to whom correspondence should be addressed.
Processes 2023, 11(2), 572; https://doi.org/10.3390/pr11020572
Submission received: 23 December 2022 / Revised: 25 January 2023 / Accepted: 7 February 2023 / Published: 13 February 2023
(This article belongs to the Special Issue Shale Oil and Gas Production Technologies: Analysis, Modeling and Application)
Browse Figures
Review Reports Versions Notes

Abstract

:
To accurately evaluate the shale oil resources in the Funing Formation of the Gaoyou Sag, Subei Basin, light and heavy hydrocarbon correction models of S1 were developed based on the rock pyrolysis of liquefrozen, conventional, and oil-washed shales. The improved ΔlogR technique was applied to establish the TOC, S1, and S2 logging evaluation methods. The results showed that the S2 values after oil washing were significantly lower than before. The difference between these two S2 (ΔS2) values is the heavy hydrocarbon correction amount of S1, which is about 0.69 S2. There was almost no loss of light hydrocarbons during liquefrozen shales’ pyrolysis tests; the ratio of liquefrozen to conventional S1 values is the light hydrocarbon correction factor, which is about 1.67. The corrected S1 is about 3.2 times greater than the conventional shale-tested value. The S1 and TOC are obviously “trichotomous”; a TOC greater than 1.5% and corrected S1 larger than 4.0 mg/g corresponds to the enriched resource. The logging estimated results show that the total shale oil resources in the E1f2 of the Gaoyou Sag are about 572 million tons, of which the enriched resource is about 170 million tons.

1. Introduction

Unconventional oil and gas have been of worldwide concern for oil and gas exploration. Based on the “thermal triangle” theory, conventional and unconventional resources in the 25 basins in North America were evaluated, showing that the recoverable resources of unconventional resources far exceeded the conventional resources [1]. Although this method is imprecise, it can be seen that unconventional oil and gas resources have excellent prospects. Meanwhile, shale oil has received more attention for unconventional energy exploration in the world.
Shale oil refers to the oil contained in a shale series dominated by shale, including the oil in shale pores and fractures, as well as the oil in the adjacent layers and interlayers of tight carbonate or clastic rocks [2,3]. Shale oil is the hydrocarbon resource formed in a mature shale series (including mudstone and shale), mainly occurring in the free and adsorbed states, but with few dissolved states. It is characterized by continuous distribution, considerable resources, and a long production cycle [4,5].
In recent years, shale oil exploration in North America has developed rapidly and commercial production of shale oil has been achieved in the United States. There have been significant shale oil discoveries in central Alberta and southern Texas, as well as other favorable areas such as the Los Angeles region, the south of the Gulf of Mexico, and eastern Canada Shale oil development has significantly increased oil production in the United States and Canada [6]. According to the U.S. EIA, shale oil production will increase to 7.1 × 106 barrels per day by 2040 [7]. Moreover, shale oil shows huge exploitation potential in China, such as in the Ordos, Sichuan, Songliao, Subei, and Bohai Bay basins [8,9,10,11].
Resource assessment is essential in shale oil exploitation. The organic matter in shale consists of two parts: extractable organic matter (shale oil) and non-extractable organic matter (kerogen). Shale oil includes hydrocarbon and non-hydrocarbon NSO compounds. Chloroform-extractable bitumen “A” is most similar to shale oil in composition, with hydrocarbons and NSO compounds. However, most of the C6–13 light hydrocarbons are vaporized during the volatilization of chloroform in the chloroform-extractable progress.
S1 represents the fraction of the hydrocarbons in shale oil and is a standard parameter used to evaluate the shale oil content. S1 refers to the volatilized hydrocarbons during the rock pyrolysis analysis when temperatures are less than 300 °C, which are C7–33 hydrocarbons. However, shale light hydrocarbons (C6–13) have primarily dissipated due to the long placement time [12]. S2 represents the generated hydrocarbons from kerogen when the temperature gradually rises from 300 °C to 600 °C during the rock pyrolysis. However, some heavy hydrocarbons already present in the shale have boiling points much higher than 300 °C. Moreover, the adsorption and swelling of kerogen cause it to be impossible for the residual hydrocarbons to be completely volatilized before 300 °C [13], corresponding to this residual hydrocarbon being detected as S2. Therefore, due to the storage conditions of the cores and experimental testing techniques, S1 lost some light and heavy hydrocarbons, resulting in S1 being significantly lower than the actual in situ shale oil content. Thus, the light and heavy hydrocarbon correction for S1 is required to evaluate the total shale oil content.
Shales exhibit low porosity and permeability, causing shale oil development to be difficult, and not all resources can be extracted efficiently [14,15,16,17]. Under the current economic and technological conditions, only part of the shale oil resources can be effectively exploited [18]. Therefore, it is necessary to conduct a graded evaluation of shale oil resources to clarify the enriched resource distribution and guide shale oil exploration and development. Lu et al. indicated that the shale oil content (S1 or “A”) showed “trichotomy” with the increase in TOC [19]. Specifically, when the TOC is large, S1 is characterized by relatively stable large values, corresponding to the enriched resources or saturated resources; however, if TOC is lower, S1 locates in the low value-region, associated with the dispersed or saturated resources; if TOC is between these two regions, S1 increases significantly and is intermediate, which is called low-efficiency or undersaturated resources. However, the current shale oil resource classification criteria are mainly for residual shale hydrocarbons and resource classification evaluation criteria based on the total shale oil content have not been established.
The logging evaluation method has the advantages of a shorter cycle, higher resolution, and more visual and continuous characteristics. There is a certain response relationship between various logging parameters and TOC, S1, and S2. Therefore, the prediction model of TOC, S1, and S2 quantitative prediction can be established. Domestic and foreign scholars have proposed a variety of methods to predict the TOC of hydrocarbon source rocks based on logging data, such as the multiple linear regression method, ΔLogR method, BP neural network method, etc. Different methods have different principles, advantages, and disadvantages. They are applicable to different geological conditions and data conditions.
The shale oil and gas resource evaluation methods mainly include analogous, statistical, genesis, comprehensive analysis, and volumetric techniques. Due to the low degree of shale oil exploration in China, the analogous method is unsuitable [20] because of the lack of connection with the actual geological conditions of oil and gas fields. The statistical approach is only suitable for evaluating and predicting oil and gas reservoirs or basin areas in the middle and late stages of exploration and development [21]. The genetic method cannot obtain the residual hydrocarbon occurrence mechanism and enrichment pattern and has parameter dependence in the calculation process, resulting in the accuracy of the calculation results being constrained [22]. Therefore, the genesis method may not be suitable for resource evaluation of shale reservoirs with low moveability. The integrated analysis method must be based on specific development history information within the exploration study area. This method is challenging to apply in a shale oil and gas exploration area lacking drilling and production data. The volumetric method divides the rocks into unit masses based on a spatial model of hydrocarbon source rocks for the target area of shale oil exploration. The oil content per unit mass is then used to quantitatively evaluate the shale oil resources of the entire hydrocarbon-bearing region [23].
In this paper, the corrected amount of heavy hydrocarbon was obtained by comparing the difference of S2 before and after oil washing based on the room-temperature samples. The cores were treated combined with liquid nitrogen freezing to prevent light hydrocarbon loss. The correction amount of light hydrocarbon was determined by comparing it with the pyrolysis parameters of the room-temperature samples. Based on the characteristic of triple-division between the total oil content and TOC, the shale oil resource grading evaluation criteria in the study area were determined. In addition, the volumetric method was used to calculate the total enriched shale oil resources in the E1f2 of Gaoyou Sag. This study is helpful for the shale oil exploration and development in Gaoyou Sag, Subei Basin.

2. Geology Setting

The Subei Basin is the onshore part of the Subei South Yellow Sea Basin, which is bounded to the north and south by the South Jiangsu Uplift and the Lusu Ancient Land, respectively, west to the Tanlu Fault and east to the South Yellow Sea Basin, with an area of 3.8 × 104 km2 (Figure 1) [24]. The Subei Basin is divided into two depressions in the north and south by the Jianhu Uplift, namely the Dongtai and Yanfu Depressions. The Dongtai Depression is divided into six sags (Jinhu, Linze, Gaoyou, Baiju, Qintong, and Haian) and eight salients (Lintangqiao, Liubao, Tuoduo, Wubao, Yuhua, Xiaohai, Taizhou, and Liangduo). The Gaoyou Sag is located in the central part of the Dongtai Depression and the Cenozoic strata, such as the Taizhou (K2t), Funing (E1f), and Dainan (E2d) Formations, are deposited from the bottom up. The shale in E1f2 is the most developed and the primary exploration area for shale oil in the Subei Basin [25].

3. Methodology

3.1. Samples and Experiments

In this study, a total of 119 shale samples were collected from Well SX84 in the Gaoyou Sag. Additionally, 92 samples were collected for the liquefrozen Rock-Eval measurements, which means that the sample pretreatments were conducted at the temperature of liquid nitrogen—at about −196 °C. The TOC and Rock-Eval tests were carried out using the Leco-SC 230 and Rock-Eval VI instruments. Furthermore, the Rock-Eval experiments were performed on the as-received and oil-washed shale samples. This study adopted the mixed solvent of dichloromethane and acetone (3:1 in volume) to eliminate the residual oil in shales under the temperature of 80 °C and the pressure of 0.2 MPa. These samples were then dried in a vacuum oven at 110 °C for 24 h.

3.2. Correction of Light and Heavy Hydrocarbon Loss for S1

S2 represents the generated hydrocarbons from kerogen when the temperature gradually rises from 300 °C to 600 °C during rock pyrolysis. However, some heavy hydrocarbons already present in the shale have boiling points much higher than 300 °C. Moreover, the adsorption and swelling of kerogen cause it to be impossible for the residual hydrocarbons to be completely volatilized before 300 °C, corresponding to this residual hydrocarbon being detected as S2. If there is no heavy hydrocarbon loss from the shale, S2 (from room-temperature tests) the values are nearly equal to the S2L (from liquefrozen tests). If the hydrocarbon in the room-temperature sample after being oil-washed is basically removed, the hydrocarbon in S2′ is all from kerogen pyrolysis. Therefore, the difference between S2 and S2′ is the corrected amount of heavy hydrocarbon for S1. The corrected amount of heavy hydrocarbon can be written as follows:
ΔS2 = k2 · S2,
where k2 is the heavy hydrocarbon correction index.
S1 refers to the volatilized hydrocarbons during the rock pyrolysis analysis when temperatures are less than 300 °C, which are C7–33 hydrocarbons. However, shale light hydrocarbons (C6–13) have primarily dissipated due to the long placement time. The liquefrozen technology is the most effective and straightforward method to correct light hydrocarbons [26]. Since the shale samples were cored on site and then processed at liquid nitrogen temperatures, the light hydrocarbon losses are negligible (the temperature of liquid nitrogen is about −196 °C and the melting point of methane is about −182.6 °C). Subsequently, the S1L was measured from the liquefrozen shale. The light hydrocarbon correction equation can be obtained by establishing a linear relationship between S1 and S1L. Therefore, the S1 light hydrocarbon correction model can be determined as follows:
S1L = k1 · S1,
where k1 is the light hydrocarbon correction factor. Then, the total shale oil content (S1O) can be obtained.
S1O = k1 · S1 + k2 · S2.

3.3. ΔlogR Method

The logging evaluation method has the advantages of a shorter cycle, higher resolution, and more visual and continuous characteristics [27]. The ΔlogR method was widely used to estimate organic matter (TOC) or oil (S1 or “A”) contents in shales based on the acoustic interval transit time (AC) and resistivity (Rt) logging curves. However, using a fixed empirical formula or coefficient to estimate the TOC of source rocks is not objective because the properties and well-logging response characteristics of source rocks in different areas are obviously different. Therefore, these methods have been improved in three aspects: the value of the superposition coefficient, the determination of the baseline value, and the control of the influence of maturity. The improved superposition coefficient is determined based on the log data in the study area and the baseline value is automatically identified. [28,29]. The model equation is as follows:
ΔlogR = lgR + lg(Rmax/Rmin)/(Δtmax − Δtmin) · (Δt − Δtmax) − lgRmin
TOC = a · ΔlogR + b,
where R is the value of the resistivity curve, Ω·m; Δt is the value of acoustic time difference, μs/ft; Rmin/max is the maximum/minimum value of resistivity, Ω·m; Δtmin/max is the maximum/minimum value of acoustic time difference, μs/ft; and a and b are the coefficients in the fitted equation, corresponding to the maturity parameter and background value of TOC content, respectively. The organic matter of the E1f2 in the study area has high heterogeneity. Therefore, the improved ΔlogR method was used in this study to estimate the TOC, S1, and S2 of the shale.

4. Results and Discussion

4.1. Shale Organic Geochemical Characteristics

The TOC contents of the selected shales range from 0.19% to 3.4%, with a mean of 1.02%, mainly in the range of 0–2% (Figure 2). The S1 is between 0.03 mg/g and 2.67 mg/g (mean 0.76 mg/g) and is primarily distributed in a range of 0–1.5 mg/g (Figure 3a). The S2 ranges from 0.15 to 4.9 mg/g, with an average of 1.87 mg/g, mainly in the 1–4 mg/g (Figure 3b).
The S1′, obtained from the oil-washing samples, range from 0.08 mg/g to 0.19 mg/g, with an average of 0.13 mg/g, which is significantly lower than S1 (Figure 3a,e). The results mean that the residual oil was removed by the oil washing. The S2′ (related to oil-washing shales) varies from 0.24 mg/g to 0.81 mg/g, with an average of 0.59 mg/g, which is lower than S2 (Figure 3b,f), implying that there is a part of heavy hydrocarbons that could not be detected in S1 but calculated to S2. The S1L associated with liquefrozen shale varies from 0.05 mg/g to 4.64 mg/g (mean 1.22 mg/g) and is primarily distributed in a range of 0–3 mg/g (Figure 3c). S1L is greater than S1, indicating the light–medium hydrocarbon loss in the room-temperature sample. The corresponding S2L is between 0.21 and 5.24 mg/g, mainly in the 1–4 mg/g range, with an average of 2.23 mg/g (Figure 3d).

4.2. Correction Model of Heavy and Light Hydrocarbon Loss for S1

As illustrated in Figure 4a, values of S1′ are commonly lower than those of S1, indicating that the residual oil was almost completely removed. However, S2 agrees well with the S2L, with a large correlation coefficient (R2 = 0.82) (Figure 4b), implying that almost no heavy hydrocarbons were lost. Therefore, the room-temperature shales can be used to determine the heavy hydrocarbon correction model. The difference (ΔS2) between S2 and S2′ correlates well with S2 with a slope of 0.69 (R2 = 0.9), as exhibited in Figure 5a. Thus, the S1 heavy hydrocarbon correction amount can be determined as about 0.69·S2.
Figure 5b shows that S1L obtained from the liquefrozen shales correlates linearly with S1 received from the room-temperature shales, with a slope of 1.67. Thus, the shale S1 light hydrocarbon correction factor is 1.67 and the light hydrocarbon compensation is 0.67·S1. Additionally, the total shale oil content (S1O) is:
S1O = 1.67 · S1 + 0.69 · S2.

4.3. Classification of Shale Oil Resource

According to the heavy and light hydrocarbon correction models, the total oil contents in shales were determined. The total shale oil contents range from 0.15 mg/g to 7.63 mg/g (mean 2.55 mg/g), which is about 3.2 times that of tested S1.
As displayed in Figure 6, the shale oil resource classification can be established according to the “trichotomy” between TOC and S1O. When the TOC is low (<0.6%), S1O shows a lower value (<1.8 mg/g), corresponding to the ineffective resource. When the TOC increases from 0.6% to 1.5%, S1O gradually increases, corresponding to the low-efficiency resources. However, if the TOC is larger than 1.5%, S1O is characterized by a high value corresponding to the enriched resource. Therefore, the shale oil resource classification of the E1f2 in the Gaoyou Sag was evaluated as follows: enriched resource (TOC ≥ 1.5%, S1O ≥ 4.0 mg/g), low-efficiency resource (0.6% ≤ TOC < 1.5%, 1.8 mg/g ≤ S1O < 4.0 mg/g), and ineffective resource (TOC < 0.6%, S1O < 1.8 mg/g) (Figure 6).
According to the resource classification criteria established above, the main type of shale oil in the Gaoyou Sag is inefficient resources.

4.4. Estimation of Shale Oil Resource

4.4.1. Calculations of TOC, S1, and S2 by ΔlogR

The improved ΔlogR model was used to estimate the TOC, S1, and S2 of the E1f2 and the estimated models were determined based on the tested values from the Well SX84 located in the Gaoyou Sag. The reliability of the logging data of the shale section with a thickness of less than 1 m was carefully studied. As exhibited in Figure 7a, the TOC shows a significant positive correlation with amplitude difference (R2 = 0.85). The TOC can be calculated as follows:
TOC = 0.62 · ΔlogR − 0.27.
The estimated TOC agrees well with the tested TOC (R2 = 0.82), indicating that the calculation values are reliable. The estimated models of S1 and S2 were obtained using the same method. Additionally, the calculated S1 and S2 values show good positive correlations with magnitude differences. Moreover, the calculated S1 values correspond well with tested S1 and so do the calculated and tested S2, as displayed in Figure 7d,f. The S1 and S2 estimated models are as follows.
S1 = 0.99 · ΔlogR − 0.28.
S2 = 1.39 · ΔlogR − 0.49.
The established models were applied to estimate the TOC, S1, and S2 of the E1f2 in the Gaoyou Sag. In this study, a total of 17 wells were assessed (Figure 1) and the Wells SX84 and HY1 are shown in Figure 8 and Figure 9. The total shale oil contents of Well HY1 are mainly larger than those of Well SX84. The total shale oil contents of Well HY1 range from 2.32 mg/g to 12.78 mg/g (mean 5.39 mg/g), while the average total shale oil contents in the Well SX84 is 2.46 mg/g (1.12–8.30 mg/g). More resource-rich shale oil occurs in Well HY1.

4.4.2. Shale Oil Resource in Gaoyou Sag

The total shale oil and enriched resources were calculated using the volumetric method based on the recovered S1 of the E1f2 in the Gaoyou Sag. The volumetric method of calculating shale oil resources is provided by the following formula:
Q = ∑10−1 × S × H × ρ × S1,
where Q is the single-well shale oil resource, 104 t/km2; S is the shale area, km2; H is the shale thickness, m; and ρ is the shale density, g/cm3. The calculation results show that the total shale oil resources in the study area are about 5.72 × 108 t, of which the enriched resource is about 1.70 × 108 t. According to the contour map of shale oil resources in the Gaoyou Sag (Figure 10), enriched resource areas are mainly in the deep sag, especially near Well HX28.

5. Conclusions

The light and heavy hydrocarbon correction models of S1 were developed based on the rock pyrolysis of liquefrozen, conventional, and oil-washed shales. The shale S1 heavy hydrocarbon correction content is about 0.69·S2 and the light hydrocarbon compensation is 0.67·S1. The corrected S1 is about 3.2 times more than the conventional shale-tested value.
The shale oil enriched resource classification of the E1f2 in the Gaoyou Sag was TOC ≥ 1.5% and S1O ≥ 4.0 mg/g, the low-efficiency resource was 0.6% ≤ TOC < 1.5% and 1.8 mg/g ≤ S1O < 4.0 mg/g, and the ineffective resource was TOC < 0.6% and S1O < 1.8 mg/g.
The total shale oil and enriched resources were calculated using the volumetric method. The total shale oil resource in the Gaoyou Sag is about 5.72 × 108 t, of which the enriched resource is about 1.70 × 108 t. The enrichment areas are mainly in the deep sag, especially near Well HX28.

Author Contributions

Conceptualization, Q.Z. and S.L.; methodology, Q.Z.; software, Q.Z.; validation, Q.Z., P.Z. and H.H.; formal analysis, Q.Z.; investigation, J.W.; resources, J.W.; data curation, Z.L.; writing—original draft preparation, Q.Z.; writing—review and editing, Q.Z.; visualization, Q.Z.; supervision, P.Z.; project administration, S.L.; funding acquisition, S.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Natural Science Foundation of Shandong Province (ZR2020QD036). And The APC was funded by S.L.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Informed consent was obtained from all sub-jects involved in the study.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

Nomenclature

S1residual hydrocarbon obtained from room-temperature shale using rock pyrolysis, mg/g;
S2hydrocarbon from kerogen pyrolysis obtained from room-temperature shale using rock pyrolysis, mg/g;
S1Lresidual hydrocarbon obtained from liquefrozen shale using rock pyrolysis, mg/g;
S2Lhydrocarbon from kerogen pyrolysis obtained from liquefrozen shale using rock pyrolysis, mg/g;
S1′residual hydrocarbon obtained from room-temperature shale after oil-washed using rock pyrolysis, mg/g;
S2′hydrocarbon from kerogen pyrolysis obtained from oil-washed shale using rock pyrolysis, mg/g;
ΔS2difference between S2 and S2′, mg/g;
S1Ototal oil, mg/g.

References

  1. Cheng, K.; Wu, W.; Holditch, S.; Walter, A.; Duane, M. Assessment of the Distribution of Technically Recoverable Resources in North American Basins. In Proceedings of the Canadian Unconventional Resources and International Petroleum Conference, Calgary, AB, Canada, 19–21 October 2010. [Google Scholar]
  2. Zhang, J.; Lin, L.; Li, Y.; Tang, X.; Zhu, L.; Xing, Y.; Jiang, S.; Jing, T.; Yang, S. Classification and evaluation of shale oil. Earth Sci. Front. 2021, 19, 322–331. [Google Scholar]
  3. Liu, B.; Lu, Y.; Zhao, R.; Tu, X.; Guo, X.; Shen, Y. Formation overpressure and shale oil enrichment in the shale system of Lucaogou Formation, Malang Sag, Santanghu Basin, NW China. Pet. Explor. Dev. 2012, 39, 744–750. [Google Scholar] [CrossRef]
  4. Zhang, W.; Liu, X.; Zhang, Y. Worldwide Tight Oil and Its Current Exploration & Development Conditions. Oil Forum 2013, 13, 2812–2822. [Google Scholar]
  5. Zou, C.; Yang, Z.; Cui, J.; Zhu, R.; Hou, L.; Tao, S.; Yuan, X.; Wu, S.; Lin, S.; Wang, L.; et al. Formation mechanism, geological characteristics and development strategy of nonmarine shale oil in China. Pet. Explor. Dev. 2013, 40, 15–27. [Google Scholar] [CrossRef]
  6. Zhang, T.; Peng, Z.; Yang, W.; Ma, Y.; Zhang, J. Enlightenments of American shale oil research towards China. Lithol. Reserv. 2015, 27, 1–10. [Google Scholar]
  7. U.S. Energy Information Administration (EIA). Technically Recoverable Shale Oil and Shale Gas Resources: An Assessment of 137 Shale Formations in 41 Countries; U.S. Energy Information Administration (EIA): Washington, DC, USA, 2013.
  8. Fu, S.; Jin, Z.; Fu, J.; Li, S.; Yang, W. Transformation of understanding from tight oil to shale oil in the Member 7 of Yanchang Formation in Ordos Basin and its significance of exploration and development. Acta Pet. Sin. 2021, 42, 561–569. [Google Scholar]
  9. He, W.; Bai, X.; Meng, Q.; Li, J.; Zhang, D.; Wang, Y. Accumulation geological characteristics and major discoveries of lacustrine shale oil in Sichuan Basin. Acta Pet. Sin. 2022, 43, 885–898. [Google Scholar]
  10. Sun, L.; Liu, H.; He, W.; Li, G.; Zhang, S.; Zhu, R.; Jin, X.; Meng, S.; Jiang, H. An analysis of major scientific problems and research paths of Gulong shale oil in Daqing Oilfield, NE China. Pet. Explor. Dev. 2021, 48, 453–463. [Google Scholar] [CrossRef]
  11. Liu, H.; Hu, S.; Li, J.; Wang, J.; Wang, Q.; Jiang, Y.; Jiang, T.; Zhao, C.; Zhang, C.; Wu, F. Controlling factors of shale oil enrichment and exploration potential in lacustrine Bohai Bay Basin. Nat. Gas Geosci. 2019, 30, 1190–1198. [Google Scholar]
  12. Xue, H.; Tian, S.; Wang, W.; Zhang, W.; Du, T.; Mu, G. Correction of oil content-one key parameter in shale oil resource assessment. Oil Gas Geol. 2016, 37, 15–22. [Google Scholar]
  13. Li, J.; Lu, S.; Cai, J.; Zhang, P.; Xue, H.; Zhao, X. Adsorbed and Free Oil in Lacustrine Nanoporous Shale: A Theoretical Model and a Case Study. Energy Fuels 2018, 32, 12247–12258. [Google Scholar] [CrossRef]
  14. Lu, S.; Chen, G.; Wang, M.; Li, J.; Wang, X.; Shan, J.; Hu, Y.; Mao, J. Potential evaluation of enriched shale oil resource of Member 4 of the Shahejie Formation in the Damintun Sag, Liaohe Depression. Oil Gas Geol. 2016, 37, 8–14. [Google Scholar]
  15. Jarvie, D.M. Shale Resource Systems for Oil and Gas: Part 1—Shale-gas Resource Systems. AAPG Mem. 2012, 97, 69–87. [Google Scholar]
  16. Jarvie, D.M. Shale Resource Systems for Oil and Gas: Part 2—Shale-gas Resource Systems. AAPG Mem. 2012, 97, 89–119. [Google Scholar]
  17. Lin, Z.; Wang, M.; Zhang, P.; Lu, S.; Zhi, Q.; Wang, J.; Huang, H. Organic fluid migration in low permeability reservoirs restricted by pore structure parameters. J. Pet. Sci. Eng. 2022, 218, 111028. [Google Scholar] [CrossRef]
  18. Li, J.; Wang, S.; Lu, S.; Zhang, P.; Zhao, J.; Cai, J.; Li, W. Microdistribution and mobility of water in gas shale: A theoretical and experimental study. Mar. Pet. Geol. 2019, 102, 496–507. [Google Scholar] [CrossRef]
  19. Lu, S.; Huang, W.; Chen, F.; Li, J.; Wang, M.; Xue, H.; Wang, W.; Cai, X. Classification and evaluation criteria of shale oil and gas resources: Discussion and application. Pet. Explor. Dev. 2012, 39, 268–276. [Google Scholar] [CrossRef]
  20. Mcglade, C.; Speirs, J.; Sorrell, S. Methods of estimating shale gas resources—Comparison, evaluation and implications. Energy 2013, 59, 116–125. [Google Scholar] [CrossRef]
  21. Zhang, L.; Li, Z.; Kong, X.; Xu, X.; Liu, Q.; Liu, H.; Wang, R. Study on evaluation method of petroleum resources in mature exploration area: Taking Niuzhuang Sag of bohaiwan basin as an example. Nat. Gas Geosci. 2014, 25, 477–489. [Google Scholar]
  22. Zhao, Y.; Zhao, Y. Classification, Content and Extension of Evaluation Methods for Oil and Gas Resources. J. Southwest Pet. Univ. (Sci. Technol. Ed.) 2019, 41, 64–74. [Google Scholar]
  23. Guo, Q.; Bai, X.; He, W.; Fan, L.; Wang, J.; Jiang, Y.; Liu, Z.; Chen, N. Shale oil resource assessment methods, parameter standards and typical case studies. China Pet. Explor. 2022, 27, 27–41. [Google Scholar]
  24. Chen, Q.; Zhang, M.; Li, H. Anomalous distribution of steranes in deep lacustrine facies low maturity-maturity source rocks and oil of Funing formation in Subei Basin. J. Pet. Sci. Eng. 2019, 181, 106190. [Google Scholar] [CrossRef]
  25. Liu, S.; Duan, H.; Zhang, Y.; Wang, H.; Gao, J. Analysis of Oil and Gas Exploration Potential in F2 Member Continental Shale of Subei Basin. Offshore Oil 2014, 34, 27–33. [Google Scholar]
  26. Zhang, P.; Lu, S.; Lin, Z.; Duan, H.; Chang, X.; Qiu, Y.; Fu, Q.; Zhi, Q.; Wang, J.; Huang, H. Key Oil Content Parameter Correction of Shale Oil Resources: A Case Study of the Paleogene Funing Formation, Subei Basin, China. Energy Fuels 2022, 36, 5316–5326. [Google Scholar] [CrossRef]
  27. Passey, Q.R.; Creaney, S.; Kulla, J.B.; Moretti, F.J.; Stroud, J.D. A practical model for organic richness from porosity and resistivity logs. AAPG Bull. 1990, 74, 1777–1794. [Google Scholar]
  28. Liu, C.; Lu, S.; Xue, H. Variable-coefficient ΔlogR model and its application in shale organic evaluation. Prog. Geophys. 2014, 29, 312–317. [Google Scholar]
  29. Huang, W.; Deng, S.; Lu, S.; Yu, L.; Hu, S.; Zhang, J. Shale organic heterogeneity evaluation method and its application to shale oil resource evaluation—A case study from Qingshankou Formation, southern Songliao Basin. Oil Gas Geol. 2014, 35, 704–711. [Google Scholar]
Processes 11 00572 g001 550

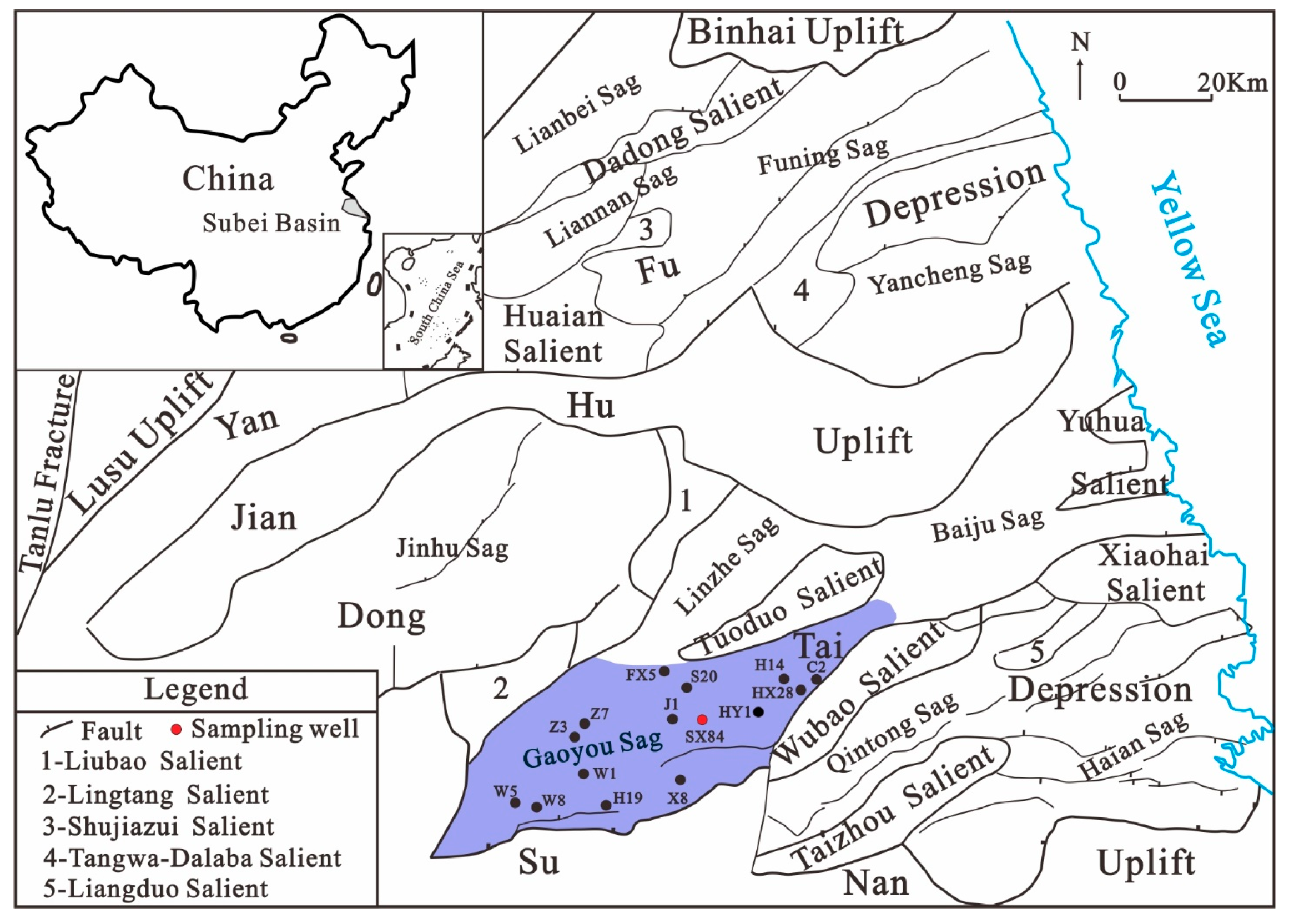

Figure 1. Geological setting of the study area [26].
Figure 1. Geological setting of the study area [26].
Processes 11 00572 g001
Processes 11 00572 g002 550

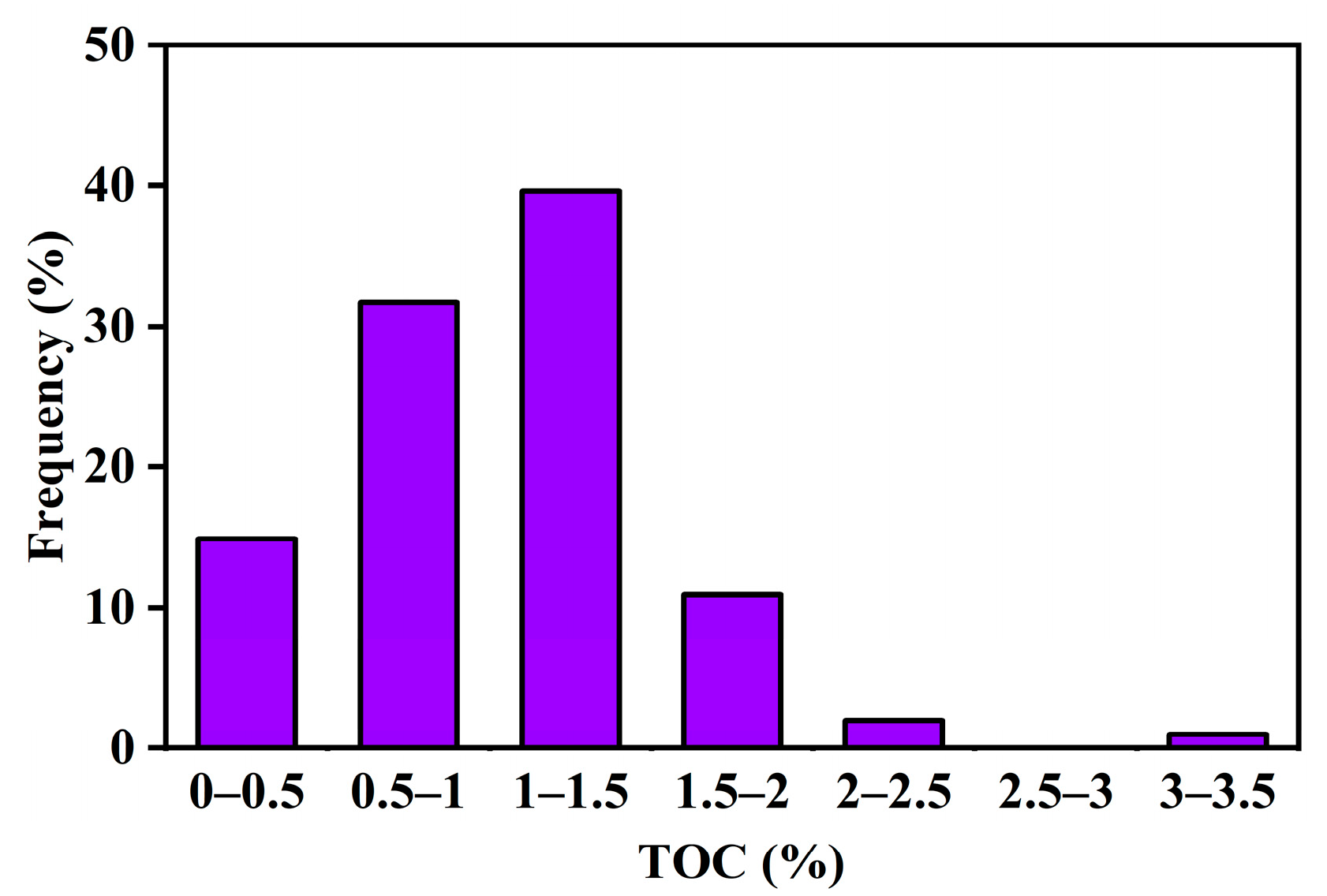

Figure 2. Distribution of TOC content.
Figure 2. Distribution of TOC content.
Processes 11 00572 g002
Processes 11 00572 g003a 550Processes 11 00572 g003b 550
Figure 3. Rock-Eval parameters obtained from the liquefrozen, as-received, and oil-washing shales. (a) Distribution of S1 content. (b) Distribution of S2 content. (c) Distribution of S1L content. (d) Distribution of S2L content. (e) Distribution of S2′ content. (f) Distribution of S1′ content.
Figure 3. Rock-Eval parameters obtained from the liquefrozen, as-received, and oil-washing shales. (a) Distribution of S1 content. (b) Distribution of S2 content. (c) Distribution of S1L content. (d) Distribution of S2L content. (e) Distribution of S2′ content. (f) Distribution of S1′ content.
Processes 11 00572 g003aProcesses 11 00572 g003b
Processes 11 00572 g004 550
Figure 4. Relationships between room-temperature and liquefrozen shales values of S2 (a) and relationships between before and after oil washing values of S1 (b).
Figure 4. Relationships between room-temperature and liquefrozen shales values of S2 (a) and relationships between before and after oil washing values of S1 (b).
Processes 11 00572 g004
Processes 11 00572 g005 550
Figure 5. Heavy (a) and light (b) hydrocarbon correction models.
Figure 5. Heavy (a) and light (b) hydrocarbon correction models.
Processes 11 00572 g005
Processes 11 00572 g006 550

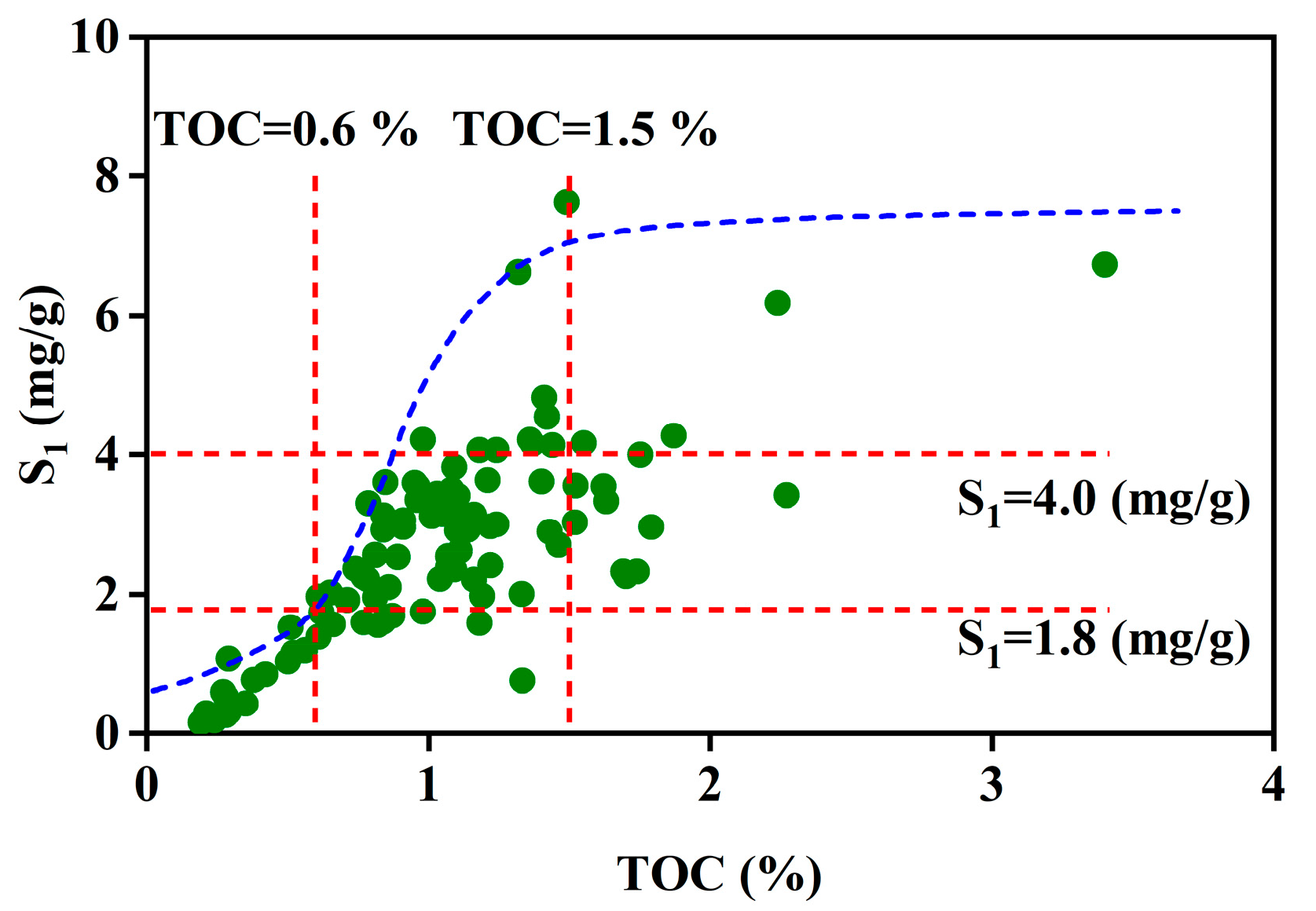

Figure 6. Relationship between TOC and S1O.
Figure 6. Relationship between TOC and S1O.
Processes 11 00572 g006
Processes 11 00572 g007a 550Processes 11 00572 g007b 550

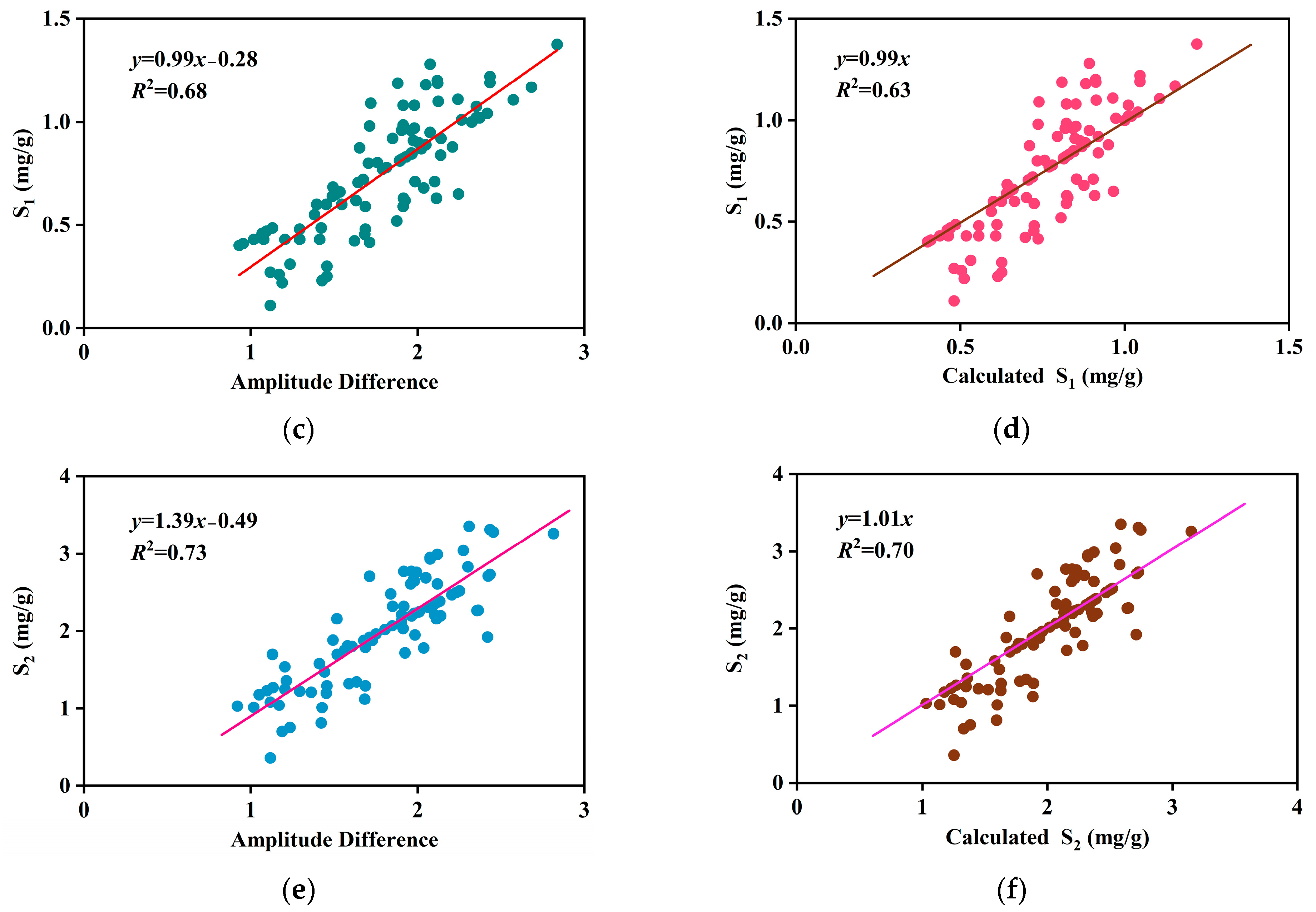

Figure 7. Relationships between calculated and measured TOC, S1, and S2 (b,d,f). Relationship between amplitude difference and TOC, S1, and S2 (a,c,e).
Figure 7. Relationships between calculated and measured TOC, S1, and S2 (b,d,f). Relationship between amplitude difference and TOC, S1, and S2 (a,c,e).
Processes 11 00572 g007aProcesses 11 00572 g007b
Processes 11 00572 g008 550

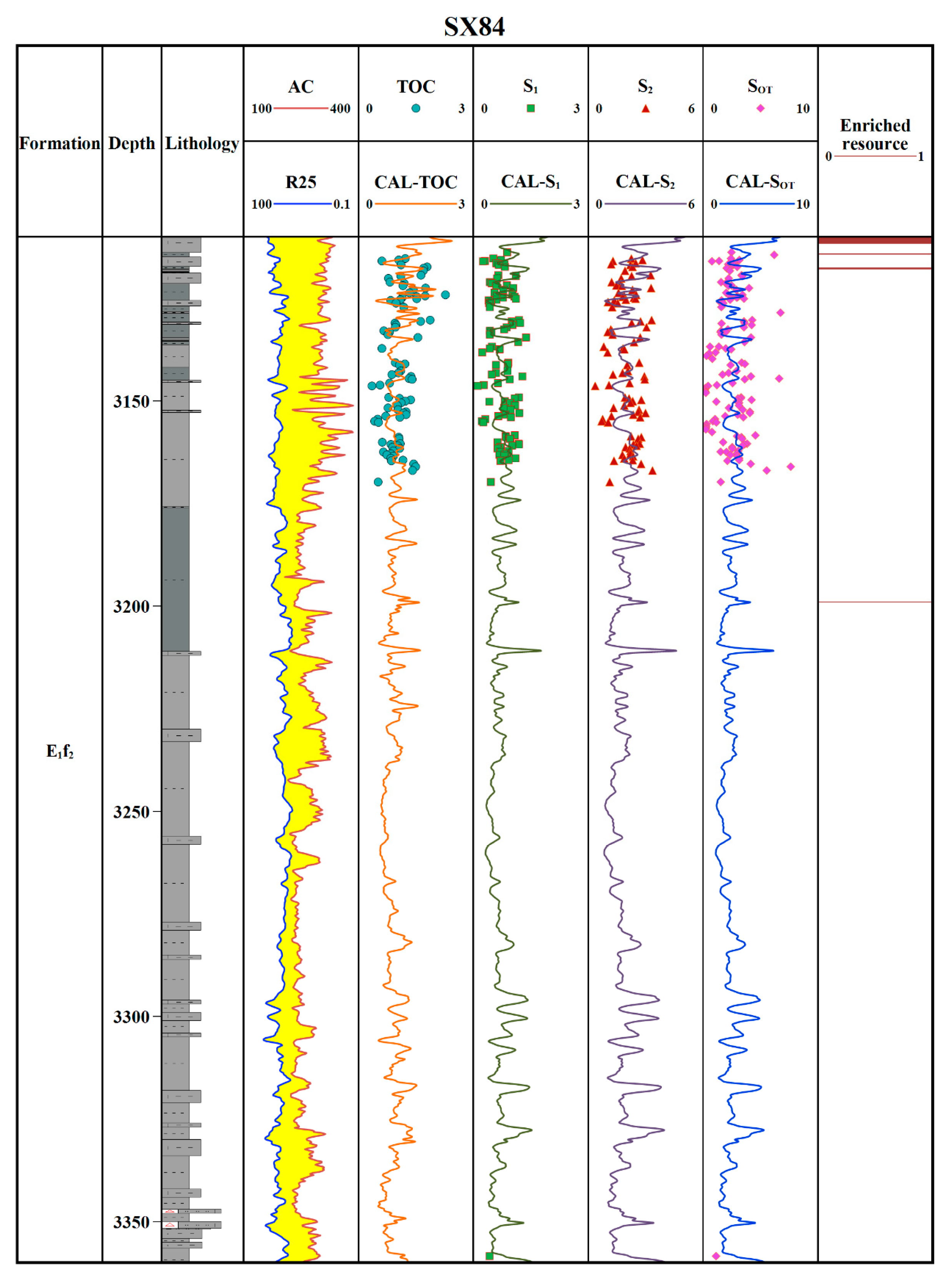

Figure 8. Results calculated using the ΔlogR method of Well SX84.
Figure 8. Results calculated using the ΔlogR method of Well SX84.
Processes 11 00572 g008
Processes 11 00572 g009 550
Figure 9. Results calculated using the ΔlogR method of Well HY1. (The red triangles in Lithologic series mean oil immersion).
Figure 9. Results calculated using the ΔlogR method of Well HY1. (The red triangles in Lithologic series mean oil immersion).
Processes 11 00572 g009
Processes 11 00572 g010 550
Figure 10. Contour map of the oil resource in Gaoyou Sag.
Figure 10. Contour map of the oil resource in Gaoyou Sag.
Processes 11 00572 g010
