Experimental Investigation of the Characteristics and Transformation Mechanism of Jimsar Oil Shale and Derived Shale Oil
Abstract
:1. Introduction
2. Experimental
2.1. Samples
2.2. Pyrolysis Experiments
2.3. FT-IR Experiments
2.4. Ultimate Analysis
2.5. GC MS Experiments
2.6. NMR Experiments
3. Results and Discussion
3.1. Solid Analysis
3.1.1. 13C NMR Analysis

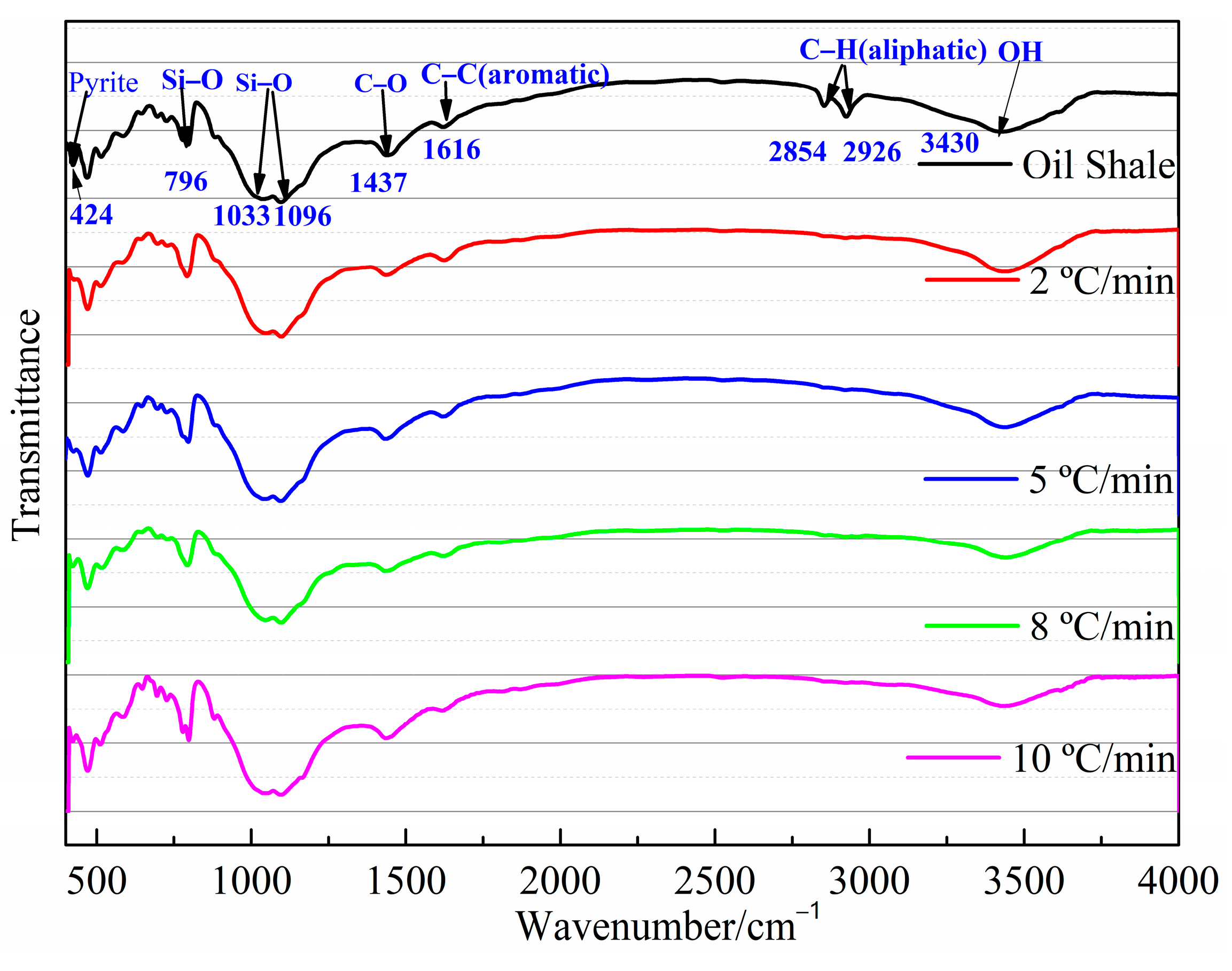

3.1.2. FT-IR Analysis
3.2. Shale Oil Analysis
3.2.1. Yield of Shale Oil
3.2.2. Ultimate Analysis of Shale Oil
3.2.3. 1H NMR Analysis of Shale Oil
3.2.4. Shale Oil GC-MS Analysis
Effect of Heating Rate on Aliphatics

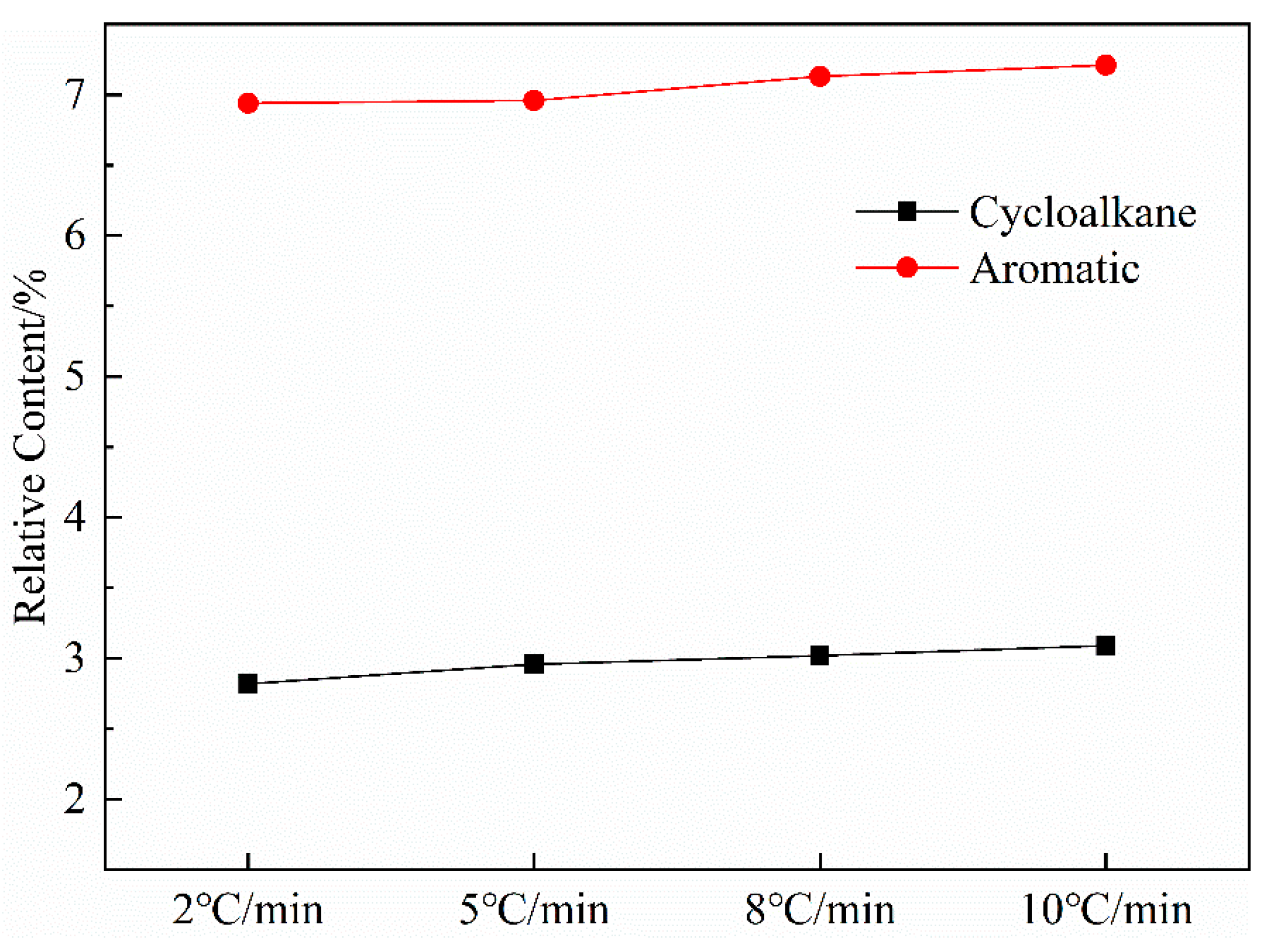

3.2.5. Effect of Heating Rate on Aromatics
4. Conclusions
Author Contributions
Funding
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Baird, Z.S.; Listak, M.; Mozaffari, P.; Oja, V. Vapor pressures of narrow gasoline fractions of oil from industrial retorting of Kukersite oil shale. Oil Shale 2020, 37, 288. [Google Scholar]
- Ding, H.; Ma, Y.; Li, S.; Wang, Q.; Hong, W.; Jiang, H.; Li, H.; Jiang, M. Pyrolytic characteristics of Fushun oil shale and its by-products. J. Therm. Anal. Calorim. 2021, 147, 5255–5267. [Google Scholar] [CrossRef]
- Guo, W.; Yang, Q.; Sun, Y.; Xu, S.; Kang, S.; Lai, C.; Guo, M. Characteristics of low temperature co-current oxidizing pyrolysis of Huadian oil shale. J. Anal. Appl. Pyrolysis 2020, 146, 104759. [Google Scholar] [CrossRef]
- Amer, M.W.; Alhesan, J.S.A.; Marshall, M.; Al-Ayed, O.S.; Awwad, A.M. Low temperature retorting of Jordanian oil shales using semi-continuous apparatus. J. Anal. Appl. Pyrolysis 2019, 142, 104639. [Google Scholar] [CrossRef]
- Hotta, A.; Parkkonen, R.; Hiltunen, M.; Arro, H.; Tiikma, T. Experience of Estonian oil shale combustion based on CFB technology at Narva Power Plants. Oil Shale 2005, 22, 381–397. [Google Scholar] [CrossRef]
- Sidorkin, V.T.; Tugov, A.N.; Vereshchetin, V.A.; Mel’Nikov, D.A. Assessment of combustion of oil shale refinery by-products in a TP-101 boiler. Therm. Eng. 2015, 62, 271–277. [Google Scholar] [CrossRef]
- Kairbekov, Z.K.; Masuda, N.; Ohshima, M.A.; Myltykbaeva, Z.K.; Miura, H. Preliminary Analysis of Oil Shale Obtained from Kalynkara in Kazakhstan. J. Jpn. Pet. Inst. 2014, 57, 192–195. [Google Scholar] [CrossRef] [Green Version]
- Yuan, Z.Y. Comprehensive Utilization of Oil Shale with Analysis of Material Properties. Adv. Mater. Res. 2013, 625, 247–250. [Google Scholar] [CrossRef]
- Amer, M.W.; Alhesan, J.S.A.; Marshall, M.; Awwad, A.M.; Al-Ayed, O.S. Characterization of Jordanian oil shale and variation in oil properties with pyrolysis temperature. J. Anal. Appl. Pyrolysis 2019, 140, 219–226. [Google Scholar] [CrossRef]
- Guo, W.; Zhang, X.; Deng, S.H.; Sun, Y.H.; Han, J.; Bai, F.T.; Kang, S.J.; He, W.T. Enhanced pyrolysis of Huadian oil shale at high temperature in the presence of water and air atmosphere. J. Pet. Sci. Eng. 2022, 215, 110623. [Google Scholar] [CrossRef]
- Wu, Z.H.; Xu, Z.G. Experimental and molecular dynamics investigation on the pyrolysis mechanism of Chang 7 type-II oil shale kerogen. J. Pet. Sci. Eng. 2022, 209, 109878. [Google Scholar] [CrossRef]
- You, Y.; Han, X.; Liu, J.; Jiang, X. Structural characteristics and pyrolysis behaviors of huadian oil shale kerogens using solid-state 13C NMR, Py-GCMS and TG. J. Therm. Anal. Calorim. 2018, 131, 1845–1855. [Google Scholar] [CrossRef]
- Bouamoud, R.; Mulongo-Masamba, R.; El Hamidi, A.; Halim, M.; Arsalane, S. Structural assessments of kerogen-rich oil shale from the Central Kongo formation by solid-state 13C nuclear magnetic resonance and thermal processes. J. Pet. Sci. Eng. 2022, 147, 3483–3494. [Google Scholar] [CrossRef]
- Zou, Y.R.; Sun, J.N.; Li, Z.; Xu, X.Y.; Li, M.W.; Peng, P.A. Evaluating shale oil in the Dongying Depression, Bohai Bay Basin, China, using the oversaturation zone method. J. Pet. Sci. Eng. 2018, 161, 291–301. [Google Scholar] [CrossRef]
- Zhao, S.; Sun, Y.H.; Lu, X.S.; Li, Q. Energy consumption and product release characteristics evaluation of oil shale non-isothermal pyrolysis based on TG-DSC. J. Pet. Sci. Eng. 2020, 187, 106812. [Google Scholar] [CrossRef]
- Xu, Y.; Lun, Z.M.; Pan, Z.J.; Wang, H.T.; Zhou, X.; Zhao, C.P.; Zhang, D.F. Occurrence space and state of shale oil: A review. J. Pet. Sci. Eng. 2022, 211, 110183. [Google Scholar] [CrossRef]
- Yang, D.; Wang, L.; Zhao, Y.S.; Kang, Z.Q. Investigating pilot test of oil shale pyrolysis and oil and gas upgrading by water vapor injection. J. Pet. Sci. Eng. 2021, 196, 108101. [Google Scholar] [CrossRef]
- You, Y.; Han, X.; Wang, X.; Jiang, X. Evolution of gas and shale oil during oil shale kerogen pyrolysis based on structural characteristics. J. Anal. Appl. Pyrolysis 2019, 138, 203–210. [Google Scholar] [CrossRef]
- Wang, Q.; Cui, D.; Wang, P.; Bai, J.; Wang, Z.; Liu, B. A comparison of the structures of >300 °C fractions in six Chinese shale oils obtained from different locations using 1H NMR, 13C NMR and FT-IR analyses. Fuel 2018, 211, 341–352. [Google Scholar] [CrossRef]
- Wang, S.; Liu, J.X.; Jiang, X.M.; Han, X.X.; Tong, J.H. Effect of heating rate on products yield and characteristics of non-condensable gases anf shale oil obtained by retoring dachengzi Oil Shale. Oil Shale 2013, 30, 27–47. [Google Scholar] [CrossRef] [Green Version]
- Al-Harahsheh, A.; Al-Ayed, O.; Al-Harahsheh, M.; Abu-El-Halawah, R. Heating rate effect on fractional yield and composition of oil retorted from El-lajjun oil shale. J. Anal. Appl. Pyrolysis 2010, 89, 239–243. [Google Scholar] [CrossRef]
- Lu, H.; Pan, L.W.; Guo, Y.; Dai, F.Q.; Pei, S.H.; Huang, J.N.; Liu, S. The effect of pyrolysis conditions on the composition of Chinese Jimsar shale oil using FT-IR, 1H-NMR and 13C-NMR techniques. Oil Shale 2022, 39, 37–60. [Google Scholar] [CrossRef]
- Wang, Q.; Ye, J.-b.; Yang, H.-y.; Liu, Q. Chemical Composition and Structural Characteristics of Oil Shales and Their Kerogens Using Fourier Transform Infrared (FTIR) Spectroscopy and Solid-State 13C Nuclear Magnetic Resonance (NMR). Energy Fuels 2016, 30, 6271–6280. [Google Scholar] [CrossRef]
- Tong, J.; Han, X.; Sha, W.; Jiang, X. Evaluation of Structural Characteristics of Huadian Oil Shale Kerogen Using Direct Techniques (Solid-State 13C NMR, XPS, FT-IR, and XRD). Energy Fuels 2011, 25, 4006–4013. [Google Scholar] [CrossRef]
- Solum, M.S.; Mayne, C.L.; Orendt, A.M.; Pugmire, R.J.; Adams, J.; Fletcher, T.H. Characterization of Macromolecular Structure Elements from a Green River Oil Shale, I. Extracts. Energy Fuels 2014, 28, 453–465. [Google Scholar] [CrossRef]
- Fletcher, T.H.; Gillis, R.; Adams, J.; Hall, T.; Mayne, C.L.; Solum, M.S.; Pugmire, R.J. Characterization of Macromolecular Structure Elements from a Green River Oil Shale, II. Characterization of Pyrolysis Products by 13C NMR, GC/MS, and FTIR. Energy Fuels 2014, 28, 2959–2970. [Google Scholar] [CrossRef]
- Yürüm, Y.; Dror, Y.; Levy, M. Effect of acid dissolution on the mineral matrix and organic matter of Zefa EFE oil shale. Fuel Process. Technol. 1985, 11, 71–86. [Google Scholar] [CrossRef]
- Alstadt, K.N.; Katti, D.R.; Katti, K.S. An in situ FTIR step-scan photoacoustic investigation of kerogen and minerals in oil shale. Spectrochim. Acta Part A Mol. Biomol. Spectrosc. 2012, 89, 105–113. [Google Scholar] [CrossRef]
- Washburn, K.E.; Birdwell, J.E. Multivariate analysis of ATR-FTIR spectra for assessment of oil shale organic geochemical properties. Org. Geochem. 2013, 63, 1–7. [Google Scholar] [CrossRef]
- Chen, B.; Han, X.; Jiang, X. In Situ FTIR Analysis of the Evolution of Functional Groups of Oil Shale During Pyrolysis. Energy Fuels 2016, 30, 5611–5616. [Google Scholar] [CrossRef]
- Chen, Y.; Furmann, A.; Mastalerz, M.; Schimmelmann, A. Quantitative analysis of shales by KBr-FTIR and micro-FTIR. Fuel 2014, 116, 538–549. [Google Scholar] [CrossRef]
- Nazzal, J.M. Influence of heating rate on the pyrolysis of Jordan oil shale. J. Anal. Appl. Pyrolysis 2002, 62, 225–238. [Google Scholar] [CrossRef]
- Chi, M.S.; Wang, Q.; Shi, J.X.; Liu, Q.; Cui, D.; Pan, S. 1H Nuclear Magnetic Resonance-Based Chemical Structure Characteristics Analysis of Huadian Shale Oil. Sci. Technol. Eng. 2018, 11, 82–87. (in Chinese). [Google Scholar]
- Huang, Y.-R.; Han, X.X.; Jiang, X.M. Comparison of fast pyrolysis characteristics of Huadian oil shales from different mines using Curie-point pyrolysis-GC/MS. Fuel Process. Technol. 2014, 128, 456–460. [Google Scholar] [CrossRef]
- Huang, Y.; Han, X.; Jiang, X.M. Characterization of Dachengzi Oil Shale fast pyrolysis by Curie-point pyrolysis-GC-MS. Oil Shale 2016, 32, 134. [Google Scholar] [CrossRef] [Green Version]
- Campbell, J.; Koskinas, G.H.; Coburn, T.T.; Stout, N.D. Oil shale retorting—Effects of particle size and heating rate on oil evolution and intraparticle oil degradation. Situ 1977, 2, 1–43. [Google Scholar]
- Campbell, J.H.; Koskinas, G.J.; Gallegos, G.; Gregg, M. Gas evolution during oil shale pyrolysis. 1. Nonisothermal rate measurements. Fuel 1980, 59, 718–726. [Google Scholar] [CrossRef]
- Williams, P.T.; Taylor, D.T. The molecular weight range of pyrolytic oils derived from tyre waste. J. Anal. Appl. Pyrolysis 1994, 29, 111–128. [Google Scholar] [CrossRef]
- Tiwari, P.; Deo, M. Compositional and kinetic analysis of oil shale pyrolysis using TGA–MS. Fuel 2012, 94, 333–341. [Google Scholar] [CrossRef]
- Williams, P.T.; Nazzal, J.M. Polycyclic aromatic compounds in oils derived from the fluidised bed pyrolysis of oil shale. J. Anal. Appl. Pyrolysis 1995, 35, 181–197. [Google Scholar] [CrossRef]
- Burnham, A. Chemistry of Shale Oil Cracking. In Oil Shale, Tar Sands, and Related Materials; American Chemical Society: Washington, DC, USA, 1981; 163.39-60. [Google Scholar]
- Cypres, R. Aromatic hydrocarbons formation during coal pyrolysis. Fuel Process. Technol. 1987, 15, 1–15. [Google Scholar] [CrossRef]
- Fairburn, J.A.; Behie, L.A.; Svrcek, W.Y. Ultrapyrolysis of n-hexadecane in a novel micro-reactor. Fuel 1990, 69, 1537–1545. [Google Scholar] [CrossRef]
- Depeyre, D.; Flicoteaux, C.; Chardaire, C. Pure n-hexadecane thermal steam cracking. Ind. Eng. Chem. Process Des. Dev. 1985, 24, 1251–1258. [Google Scholar] [CrossRef]
Proximate analysis | Ash (ad) | 81.12 |
Volatile matter (ad) | 17.48 | |
Moisture (ad) | 0.50 | |
Fixed carbon (ad) | 0.90 | |
Ultimate analysis | Cd | 11.46 |
Hd | 1.70 | |
Od | 8.35 | |
Nd | 0.61 | |
Sd | 0.51 |

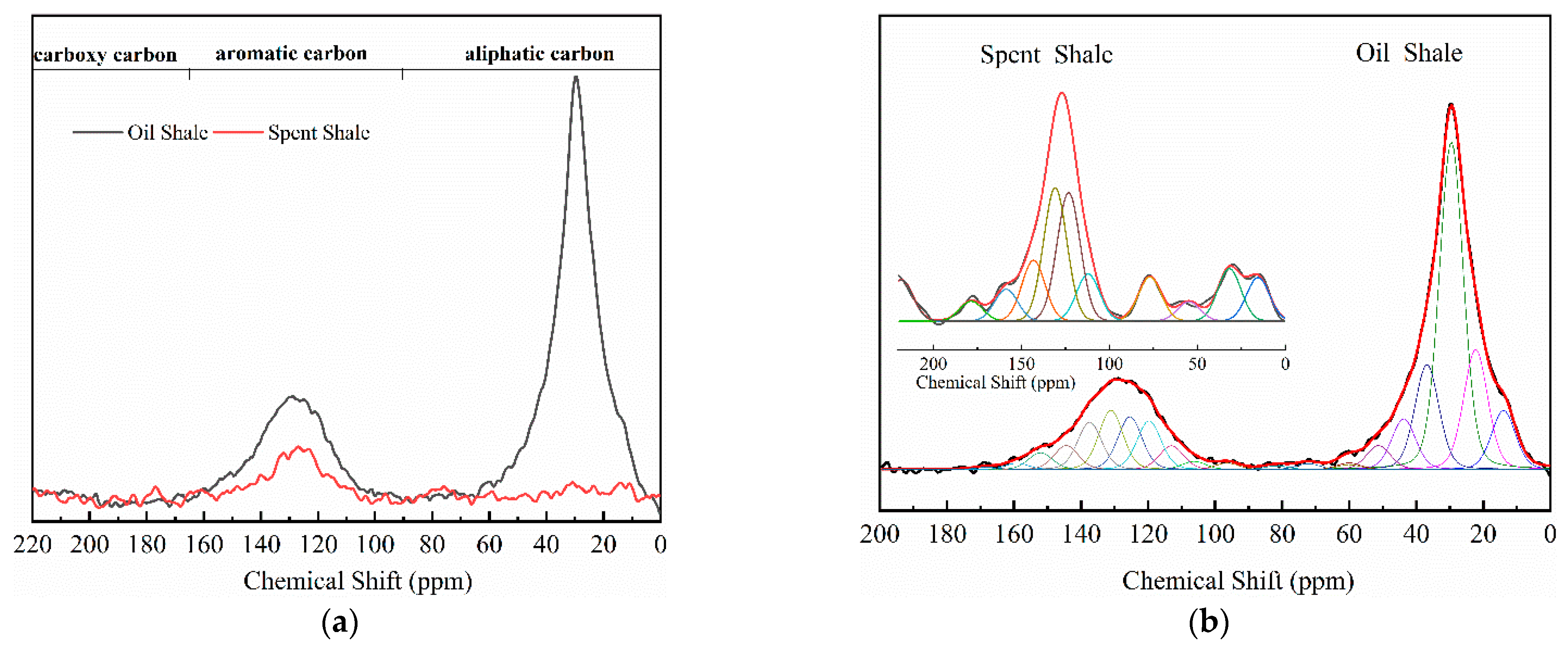

Carbon Structure | Carbon Location | Symbol | Chemical Shifts (10−6) | Relative Area (%) | ||||
---|---|---|---|---|---|---|---|---|
Oil Shale | Spent Shale (°C/min) | |||||||
2 | 5 | 8 | 10 | |||||
Terminal methyl | falA1 | 14–16 | 5.89 | 0 | 0 | 0 | 0 | |
Aromatic methyl | falA2 | 16–22 | 0 | 6.89 | 6.9 | 6.47 | 6.03 | |
Methylene | falH | 22–36 | 44.61 | 9.52 | 7.93 | 9.37 | 5.88 | |
Methine and Quaternary | falD | 36–50 | 15.5 | 0 | 0 | 0 | 0 | |
Oxy-methylene | falO1 | 50–60 | 2.39 | 7.78 | 1.95 | 6.2 | 8.1 | |
Oxy-methine | falO2 | 60–70 | 1.15 | 0 | 0 | 5.26 | 5.94 | |
Oxy-quaternary | falO3 | 70–90 | 0.96 | 7.53 | 8.09 | 3.98 | 2.81 | |
Ortho-oxyaromatic protonated | farA | 104–120 | 3.85 | 7.16 | 10.57 | 0 | 6.62 | |
Aromatic protonated | farH | 120–129 | 10.12 | 21.01 | 23.25 | 19.95 | 20.67 | |
Bridging aromatic carbon | farB | 129–137 | 5.91 | 17.16 | 23.15 | 23.59 | 28.47 | |
Aromatic branched | farC | 137–148 | 7.12 | 6.06 | 7.22 | 11.75 | 7.7 | |
Oxy-aromatic carbon | farO | 148–165 | 2.31 | 9.9 | 6.34 | 9.32 | 0 | |
Carboxyl and Carbonyl | farCC | 165–200 | 0.23 | 6.96 | 4.6 | 4.1 | 7.87 |
Structural Parameter | Symbol | Formula | Value (%) | ||||
---|---|---|---|---|---|---|---|
Oil Shale | Spent Shale (°C/min) | ||||||
2 | 5 | 8 | 10 | ||||
Aliphatic carbon | fal | falA1+ falA2+ falH + falD+ falO1+ falO2+ falO3 | 70.50 | 31.72 | 24.87 | 31.28 | 28.76 |
Aromatic carbon | far | farA+farH+ farB+ farC+ farO | 29.31 | 61.29 | 70.53 | 64.61 | 63.46 |
Average chain length | Cn | falH/ farC | 6.27 | 1.57 | 1.10 | 0.80 | 0.76 |
Substitutive degree of aromatic ring | δ | (farA+ farB+ farC+ farO)/far | 0.65 | 0.66 | 0.67 | 0.69 | 0.67 |

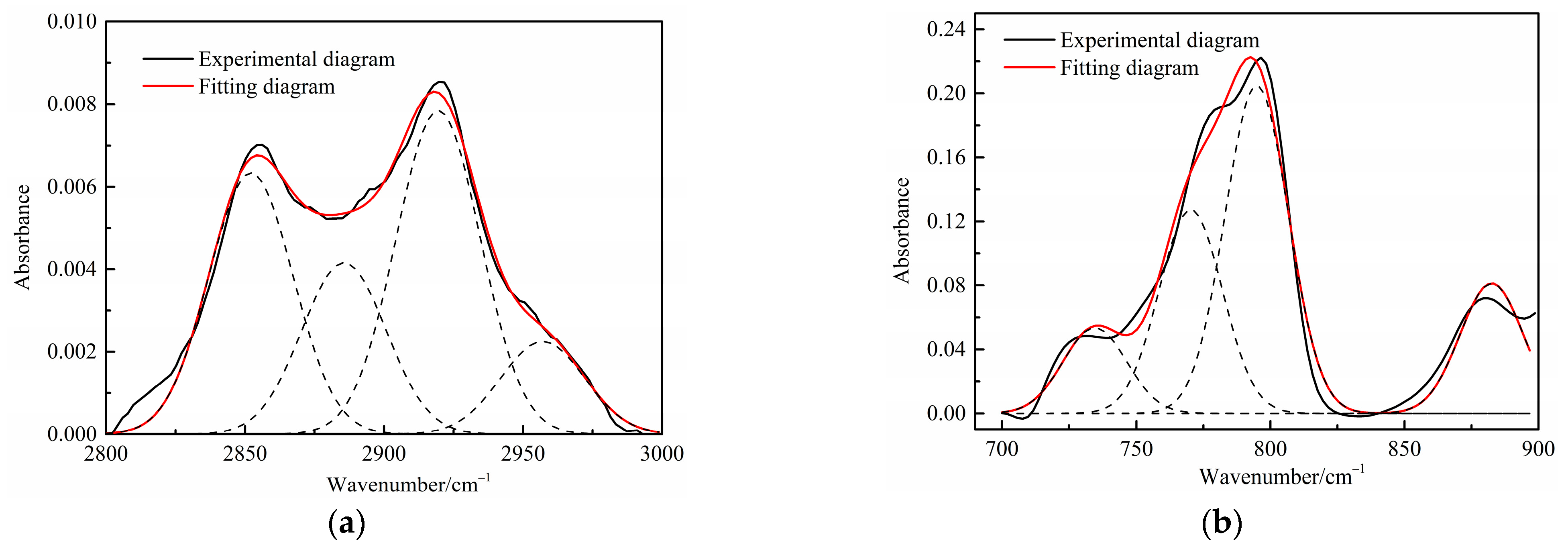

Number | Position/cm−1 | Assignment | Area Percentage/% | ||||
---|---|---|---|---|---|---|---|
Oil Shale | Spent Shale (°C/min) | ||||||
2 | 5 | 8 | 10 | ||||
1 | 2852–2855 | Symmetric R2CH2 | 27.03 | 28.94 | 30.76 | 26.10 | 29.77 |
2 | 2885–2896 | -R2CH | 24.67 | 20.74 | 20.21 | 16.50 | 21.27 |
3 | 2920–2922 | Anti-symmetric R2CH2 | 43.83 | 33.16 | 38.11 | 33.49 | 34.48 |
4 | 2953–2958 | Anti-symmetric R2CH3 | 13.35 | 17.16 | 10.91 | 23.91 | 14.48 |
All Area | 6.21 | 0.79 | 0.78 | 0.66 | 0.50 |
Number | Position/cm−1 | Assignment | Area Percentage/% | ||||
---|---|---|---|---|---|---|---|
Oil Shale | Spent Shale (°C/min) | ||||||
2 | 5 | 8 | 10 | ||||
1 | 733–735 | 4H | 13.29 | 9.12 | 11.44 | 13.61 | 9.62 |
2 | 754.57 | 3H | 0 | 0.00 | 0.00 | 0.00 | 14.02 |
3 | 770–776 | 3H | 30.29 | 25.75 | 27.24 | 30.00 | 31.78 |
4 | 794–799 | 3H | 44.53 | 47.67 | 43.92 | 45.55 | 37.67 |
5 | 876–884 | 1H | 11.89 | 17.47 | 17.41 | 10.83 | 6.91 |
All Area | 12.99 | 10.53 | 13.41 | 13.85 | 15.70 |
Element | Heating Rate/°C/min | |||
---|---|---|---|---|
2 | 5 | 8 | 10 | |
C | 84.06 | 84.70 | 83.78 | 80.21 |
H | 11.00 | 11.10 | 11.02 | 10.68 |
O * | 2.53 | 1.60 | 2.75 | 6.74 |
N | 1.97 | 2.19 | 2.08 | 2.03 |
S | 0.44 | 0.41 | 0.37 | 0.34 |
H/C | 1.57 | 1.57 | 1.58 | 1.60 |

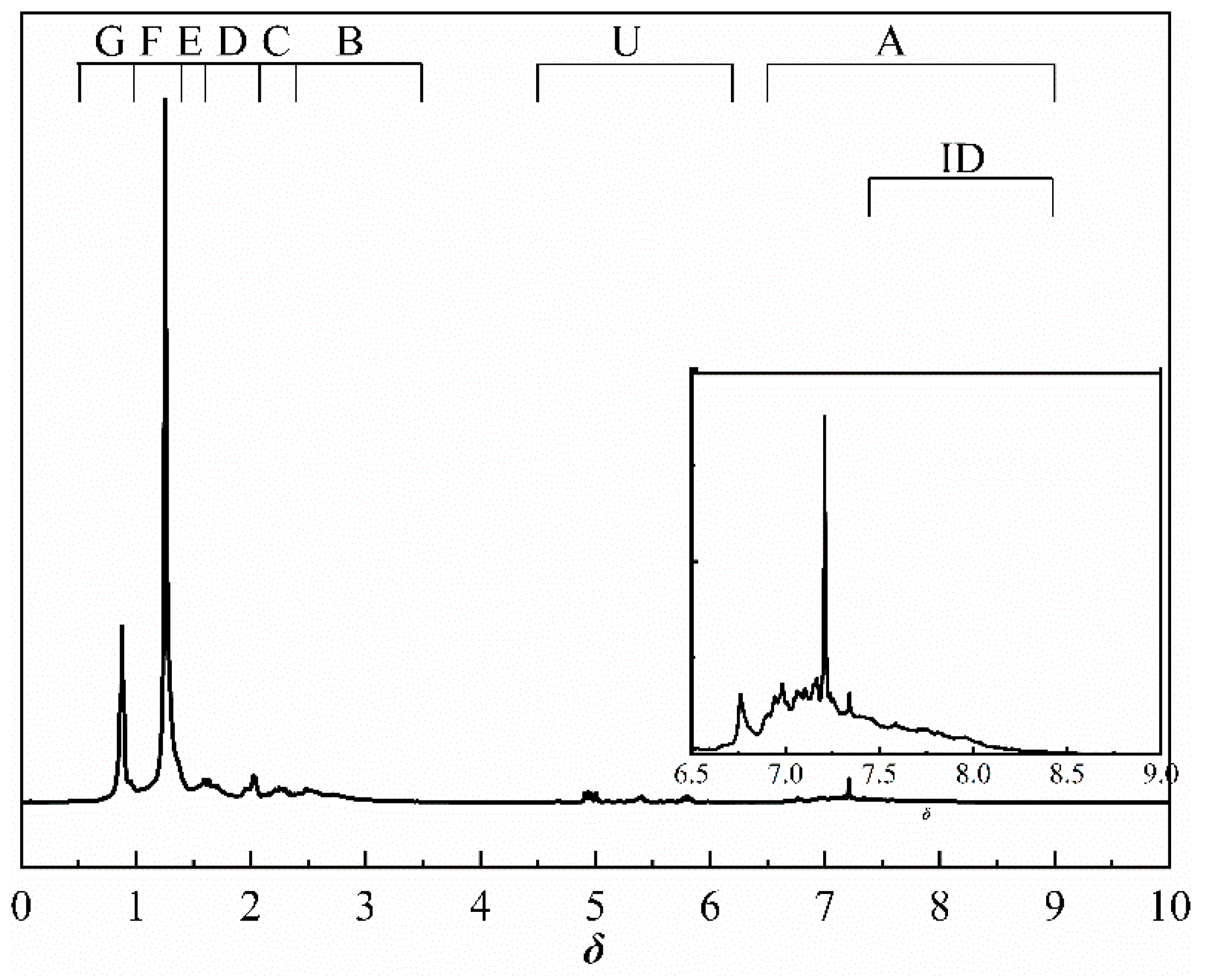

Symbol | Chemical Shift (δ) | Types of Hydrogens | Relative Content/% | |||
---|---|---|---|---|---|---|
2 °C/min | 5 °C/min | 8 °C/min | 10 °C/min | |||
A | 6.50~9.00 | Aromatic ring proton | 5.91 | 6.09 | 6.58 | 6.67 |
Id | 7.40~9.00 | Polynuclear aromatics | 1.91 | 2.52 | 2.66 | 2.69 |
U | 4.50~6.20 | Olefinic proton | 2.90 | 3.19 | 3.32 | 3.53 |
B | 2.40~3.50 | Aromatic ring α-CH2 alkyl proton | 7.11 | 7.85 | 8.31 | 8.51 |
C | 2.05~2.40 | Aromatic ring α-CH3 alkyl proton | 4.84 | 5.57 | 6.22 | 6.43 |
D | 1.60~2.05 | CH2 in cycloalkanes | 8.78 | 9.14 | 8.79 | 8.94 |
E | 1.40~1.60 | CH2 in cycloalkanes (Removal of CH peaks) | 3.66 | 4.13 | 5.23 | 5.12 |
F | 1.00~1.40 | Methylene groups of longer alkyl chains | 49.29 | 47.55 | 45.94 | 45.35 |
G | 0.50~1.00 | CH3 in aromatics, cycloalkanes, alkanes | 15.92 | 14.97 | 14.20 | 14.04 |
H | 1.40~1.60 | Isomeric alkane CH (10% of the regional G content) | 1.59 | 1.50 | 1.42 | 1.40 |
Carbon Number | Relative Content (Area%) | |||||||
---|---|---|---|---|---|---|---|---|
2 °C/min | 5 °C/min | 8 °C/min | 10 °C/min | |||||
n-Alkane | Alkene | n-Alkane | Alkene | n-Alkane | Alkene | n-Alkane | Alkene | |
C5-C10 | 10.11 | 8.16 | 9.25 | 9.13 | 8.67 | 9.53 | 8.78 | 9.6 |
C11-C15 | 12.78 | 10.21 | 12.35 | 11.03 | 11.84 | 11.5 | 11.96 | 12.14 |
C16-C20 | 14.57 | 3.83 | 13.82 | 4.4 | 13.66 | 4.77 | 13.86 | 5.11 |
C20+ | 13.53 | 1.06 | 13.22 | 1.06 | 13.17 | 0.88 | 11.24 | 0.8 |
Sum | 50.99 | 23.26 | 48.64 | 25.61 | 47.34 | 26.68 | 45.84 | 27.65 |
Aliphatic | 74.25 | 74.25 | 74.02 | 73.49 |
