Electrochemical Performance of Al-1Zn-0.1In-0.1Sn-0.5Mg-xMn (x = 0, 0.1, 0.2, 0.3) Alloys Used as the Anode of an Al-Air Battery

Abstract

In this work, Al-1Zn-0.1In-0.1Sn-0.5Mg-xMn (x = 0, 0.1, 0.2, 0.3) alloys are prepared and used as the anode of an Al-air battery (AAB). We use scanning electron microscopy (SEM) with energy-dispersive X-ray spectroscopy (EDS) and optical microscopy (OM) to analyze the microstructures of the alloys. The hydrogen evolution rate, electrochemical performance (including polarization curves), electrochemical impedance spectroscopy (EIS), and battery performance of the samples are examined in the 4 M NaOH electrolyte. The experimental data display that the average grain size is significantly refined after adding manganese into the Al-1Zn-0.1In-0.1Sn-0.5Mg alloy, with a decrease in grain size from over 100 μm to about 10 μm. The improved activity of the aluminum anode in the AAB can be attributed to the introduction of manganese. The Al-1Zn-0.1In-0.1Sn-0.5Mg-0.1Mn alloy possesses the optimal overall performance with a lower self-corrosion rate (0.128 mL∙cm⁻²∙min⁻¹), the highest working potential (1.630 V) and energy density (2415 mWh·g⁻¹), a higher capacity (1481 mAh·g⁻¹) and anodic utilization (49.75%).

1. Introduction

Environmental contamination and conventional fossil energy shortage have gradually become serious obstacles to the sustainable development of the economy and society. Therefore, searching for clean energy to replace traditional fossil fuels has become more and more important in the world. With the unique advantages of high efficiency and low pollution, the fuel cell has become the focus of clean energy research in recent years. Particularly, as a new type of fuel cell, the metal-air battery (MAB), with the advantages of high specific capacity, flat discharge voltage, and low manufacturing cost, are of great commercial value in the fields of civil and military power supply [1,2,3,4,5]. Owing to higher theoretical capacity (2.98 Ah·g⁻¹) and lower cost compared to other metal anode materials, for instance, Mg (2.20 Ah·g⁻¹) and Zn (0.82 Ah·g⁻¹), the second-highest energy density (8.1 kWh·kg⁻¹) after Li (13.3 kWh·kg⁻¹), and its low negative electrochemical potential (−1.66 V vs. NHE), aluminum shows great potential for its application in MAB as the negative electrode material. The additional advantages of aluminum include its abundance, rapid mechanical rechargeability, environmental friendliness, and ease of recycling [6,7,8,9].

While in neutral solutions, a passive film is easily formed on the surface of pure aluminum, causing the activation of aluminum to be significantly slowed down. In addition, aluminum is prone to self-corrosion in alkaline electrolytes, which leads to the degradation of the energy density of AAB and a reduction in anode utilization efficiency, along with an increase in fuel loss during battery standby. The above phenomenon indicates that pure aluminum is not directly suitable as the anode of the MAB [10,11,12].

Alloying has been widely used to overcome the above problems, and the known additive elements are indium, germanium, zinc, magnesium, thallium, tin, etc. [13,14,15,16,17,18]. The elements currently used to form alloys with aluminum are mainly Mg, Zn, Sn, and In, since they have higher hydrogen evolution potentials in an alkaline solution and lower melting points compared with aluminum [19,20,21]. More specifically, adding a small amount of magnesium to aluminum can improve its mechanical tensile strength and impurity tolerance [22]. The presence of Zn can increase the surface defects of the aluminum anodized film and reduce the hydrogen evolution rate of the aluminum anode [23,24]. The addition of In can reduce the rate of pitting of the aluminum anode, resulting in uniform surface corrosion and a negative shift in the potential of the aluminum anode [25]. Synergies have been found between In and Zn in the activation of aluminum anodes [26]. The addition of Sn not only breaks the passive layer and reduces the potential of aluminum, but also refines the grain and reduces the intergranular segregation phase [27]. Previous studies have shown that the addition of Mn to the matrix alloy facilitates the refinement of the grain size through the formation of fine dispersions [28,29,30,31,32]. In addition, the corrosion resistance of the alloy can be improved by reducing the grain size [33,34,35,36]. However, the refinement of aluminum anode grains by doping with Mn has rarely been reported in AABs.

In this paper, we used the vacuum induction melting method to synthesize the multi-component Al-1Zn-0.1In-0.1Sn-0.5Mg-xMn (x = 0, 0.1, 0.2, 0.3) alloys, aiming to study the effect of the addition of manganese on the structural and electrochemical performances of Al-Zn-In-Sn-Mg anode alloys for AAB.

2. Experimental

2.1. Sample Preparation and Structural Characterizations

The raw materials used are tin particles (99.99 wt.%, Aladdin, Shanghai, China), indium particles (99.99 wt.%, Aladdin, Shanghai, China), zinc particles (99.99 wt.%, Aladdin, Shanghai), Al-50 wt.% Mg, Al-20 wt.% Mn master alloy (China New Metal Materials Technology Co., Ltd., Beijing), and pure aluminum ingots (>99.9 wt.%, Huaxiahuiying Technology Development Co., Beijing, China). The theoretical design compositions of the alloys are Al-1Zn-0.1In-0.1Sn-0.5Mg-xMn (x = 0, 0.1, 0.2, 0.3) (wt.%). The alloys were melted in cold crucible vacuum induction melting equipment under an argon atmosphere. Each sample was melted repeatedly for not less than four times to obtain a homogeneous composition. We then processed the as-cast alloys into 1 cm² cylindrical pieces using wire cut electrical discharge machining (WEDM). The actual compositions of the fabricated samples were examined by X-ray fluorescence analysis (XRF, ARL ADV ANT’XP).

Table 1. The element compositions of the as-cast Al-1Zn-0.1In-0.1Sn-0.5Mg-xMn (x = 0, 0.1, 0.2, 0.3) (wt.%) alloys.

Samples	Al	Zn	In	Sn	Mg	Mn	Fe	Si
x = 0	Bal.	1.050	0.098	0.101	0.511	-	0.007	0.001
x = 0.1	Bal.	1.003	0.102	0.105	0.506	0.110	0.006	0.003
x = 0.2	Bal.	1.011	0.106	0.096	0.504	0.191	0.006	0.001
x = 0.3	Bal.	1.008	0.099	0.095	0.508	0.283	0.005	0.004

shows that the differences between the actual and theoretical compositions of the samples are small, indicating that the designed alloys were successfully prepared. Moreover, we used an SEM with EDS (JSM-6360LV) and an OM (Scope.A1) to analyze the microstructures and phase compositions of the samples.

2.2. Electrochemical Measurements

The electrochemical characterization of the samples was carried out by the CHI660E Electrochemical Workstation (Chenhua, Shanghai, China) using a three-electrode system. The prepared aluminum alloys (0.54 g), a Pt sheet (15 × 15 mm), and an Hg/HgO electrode were used as the working electrode, counter electrode, and reference electrode, respectively. The open circuit potential (OCP) of the anode was measured after immersing the three-electrode system in a 4M NaOH electrolyte for one hour to ensure stability. The potentiodynamic polarization measurements were performed at a scan rate of 1 mV/s between −1.0 to 1.0 V vs. OCP. The electrochemical impedance spectroscopy (EIS) was obtained at OCP with 5 mV perturbation and 100 kHz to 0.01 Hz frequency range. ZSimpWin EIS software was used to fit and analyze the data.

2.3. Self-Corrosion

The self-corrosion rate of the alloys in the 4 M NaOH electrolyte was measured via the hydrogen gas collection method. The test alloys were fixed with PVC hose and epoxy resin, and only a 1 cm² circular plane was exposed as the working surface. We used emery paper (800–2000 grade) to grind the working surface of the samples in turn, and then polished the surface of the samples to a mirror surface with carborundum paste. Finally, the samples were immersed in the electrolyte for one hour. The hydrogen evolution rate of the samples is obtained as follows:

$$\mathrm{Hydrogen}\mathrm{evolution}\mathrm{rate}=\mathrm{hydrogen}\mathrm{volume}/\mathrm{surface}\mathrm{area}/\mathrm{time}\mathrm{of}\mathrm{immersion}$$

(1)

2.4. Battery Performance

An AAB unit similar to that in the literature study [37] was assembled for the battery performance test. The 4M NaOH solution, as-cast alloy (0.54 g), and commercial air cathode with MnO₂ (70 mg) as catalyst were used as the electrolyte, the anode, and the air cathode, respectively. Galvanostatic discharge tests of the AABs were collected and analyzed using a battery test system (Landt CT2001A) under the current density of 20 mA·cm⁻² for 4 h. The weight difference of the anode alloy before and after the discharge was measured as the anode consumption. The anode utilization, energy density, and capacity were obtained according to the following formulas:

$$\eta =It/\left(\mathsf{\Delta }mF/9\right)$$

(2)

$$Energy density=UIt/\mathsf{\Delta }m$$

(3)

$$Capacity=It/\mathsf{\Delta }m$$

(4)

where η is the anode utilization, %; t is the time, s; I is the current, A; Δm the weight loss of the alloy, g; F the Faraday constant; U the average voltage, V.

To ensure the reproducibility of the experimental results, all the above tests were repeated at least three times.

3. Results and Discussion

3.1. Microstructure

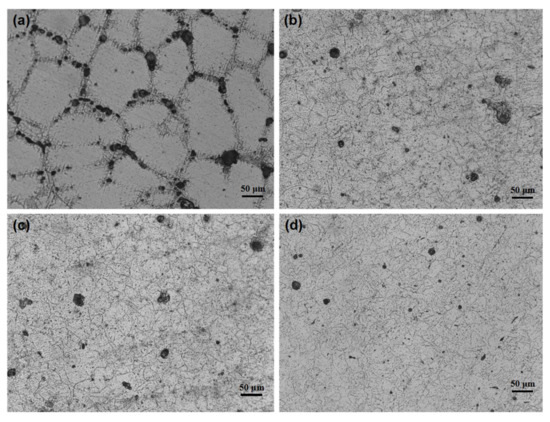

The microstructures of the Al-1Zn-0.1In-0.1Sn-0.5Mg-xMn (x = 0, 0.1, 0.2, 0.3) alloys are displayed in Figure 1. The crystal grain of x = 0 alloy is coarse and its average size is above 100 μm. The crystal grain is obviously refined after the addition of Mn (Figure 1b–d), in which the average size is about 10 μm. The reason for the grain refinement is that Mn and Al formed intermetallic MnAl₆; in addition, the impurity of Fe decreased the solid solubility of Mn in Al and formed the (Mn, Fe)Al₆ compound. The segregation of fine MnAl₆ and (Mn, Fe)Al₆ may hinder the grain growth by pinning the grain boundaries [29,31]. The refined grain can not only facilitate the homogeneous dissolution of the alloy, but also may change the distribution of the segregation phase.

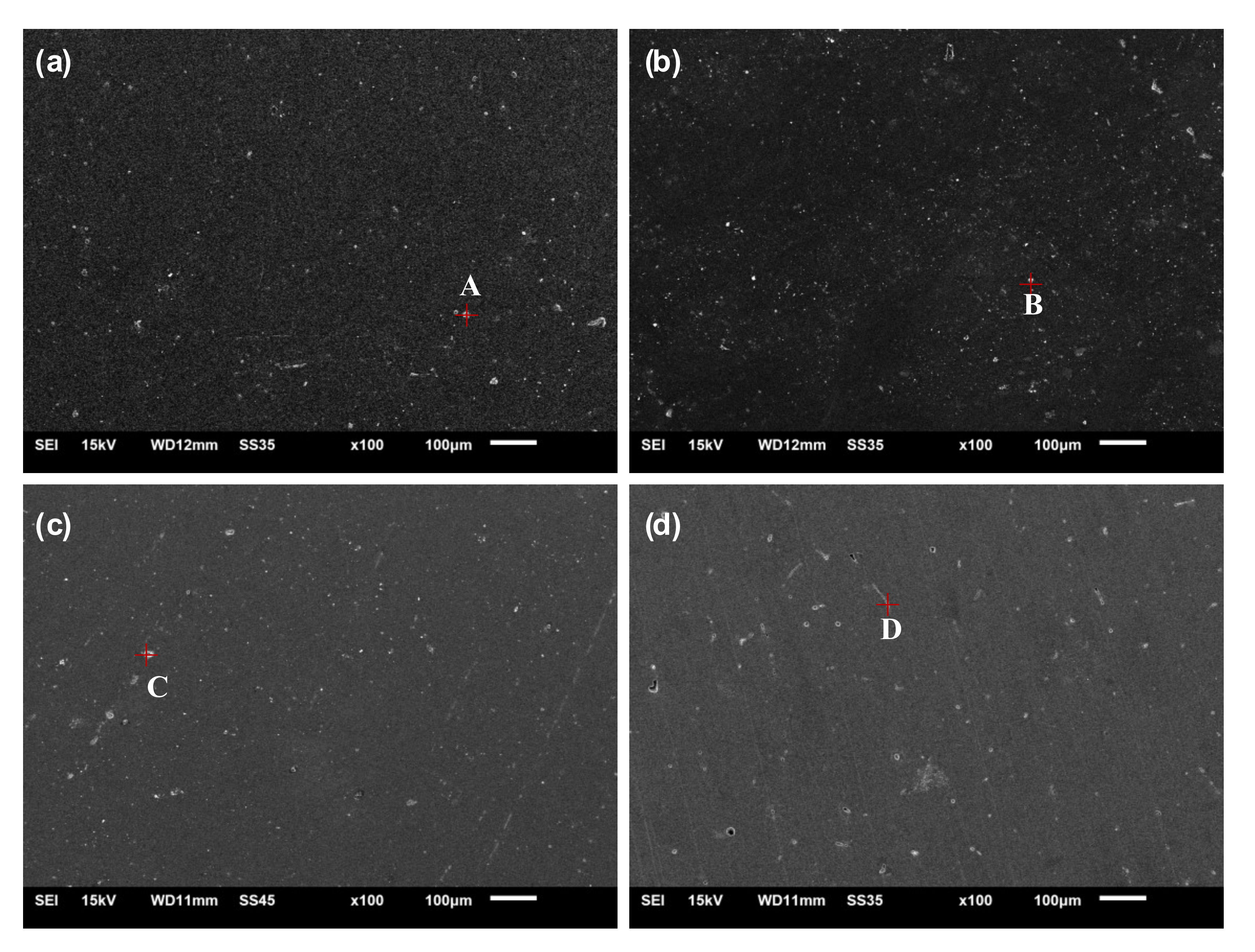

Figure 2 shows the SEM images of the Al-1Zn-0.1In-0.1Sn-0.5Mg-xMn (x = 0, 0.1, 0.2, 0.3) alloys and

Table 2. The composition measurements of the segregated phases of the as-cast Al-1Zn-0.1In-0.1Sn-0.5Mg-xMn (x = 0, 0.1, 0.2, 0.3) (wt.%) alloys.

Point	Al-K	Mg-K	Zn-K	In-L	Sn-L	Mn-K
A	82.94	1.02	11.47	0.44	4.13	-
B	95.47	0.53	3.13	0.48	0.18	0.21
C	93.87	0.92	3.14	1.1	0.66	0.31
D	94.31	0.95	2.58	0.6	1.15	0.41

summarizes the results of the EDS analysis. All the as-cast samples include a main alpha (Al) phase and a minor segregation phase. The number of segregated phases in aluminum alloys increases and the shape transforms gradually from nearly circle-like to rod-like with an increase in the addition of Mn. For aluminum alloy anodes in AAB, the segregated phases are both active points and hydrogen evolution points [23]. On one hand, the segregated phase can further activate the alloy; on the other hand, an excessive segregated phase may precipitate along the grain boundaries, leading to the aggravation of intergranular corrosion and a higher self-corrosion rate. In particular, the rod-shaped precipitates can aggravate corrosion along the grain boundaries and reduce the current efficiency [38]. The EDS results show that the Zn and Sn contents of the segregated phase in the alloy of x = 0 are larger than other alloys with the Mn addition, indicating that Mn facilitates the homogeneous dispersion of Zn and Sn in the alloys. The homogeneous dispersion of Zn in the alloy is favorable to the homogeneous dissolution of the aluminum alloy, because Zn can increase the surface defects of the oxide film [22]. The homogeneous distribution of Sn in the alloy will lead to better corrosion resistance [39].

3.2. Hydrogen Evolution Test

The hydrogen evolution rate of the Al-1Zn-0.1In-0.1Sn-0.5Mg-xMn (x = 0, 0.1, 0.2, 0.3) alloys in the 4 M NaOH solution is displayed in

Table 3. The corrosion parameters of the Al-1Zn-0.1In-0.1Sn-0.5Mg-xMn (x = 0, 0.1, 0.2, 0.3) (wt.%) alloy anodes in the 4 M NaOH solution.

Samples	Ecorr (V vs. Hg/HgO)	Icorr (A∙cm−2)	Rp (Ω∙cm2)	H2 Evolution Rate (mL∙cm−2∙min−1)
x = 0	−1.603	9.39 × 10−4	33	0.083
x = 0.1	−1.776	3.203 × 10−3	5	0.128
x = 0.2	−1.707	1.077 × 10−2	4	0.227
x = 0.3	−1.653	1.534 × 10−2	3	0.313

. The results show that the self-corrosion rate of the aluminum alloy anodes increases continuously with the increase in Mn content, which can be attributed to the increase in the activation point of the hydrogen evolution caused by the precipitate phase forming corrosion micro cells with its surrounding Al. Moreover, the addition of Mn to the alloy leads to the grain refinement and an increase in grain boundaries, which also increases the hydrogen evolution rate. The increase in the corrosion rate means that the self-discharge is intensified, so the utilization ratio of the anode will decrease.

3.3. Potentiodynamic Polarization

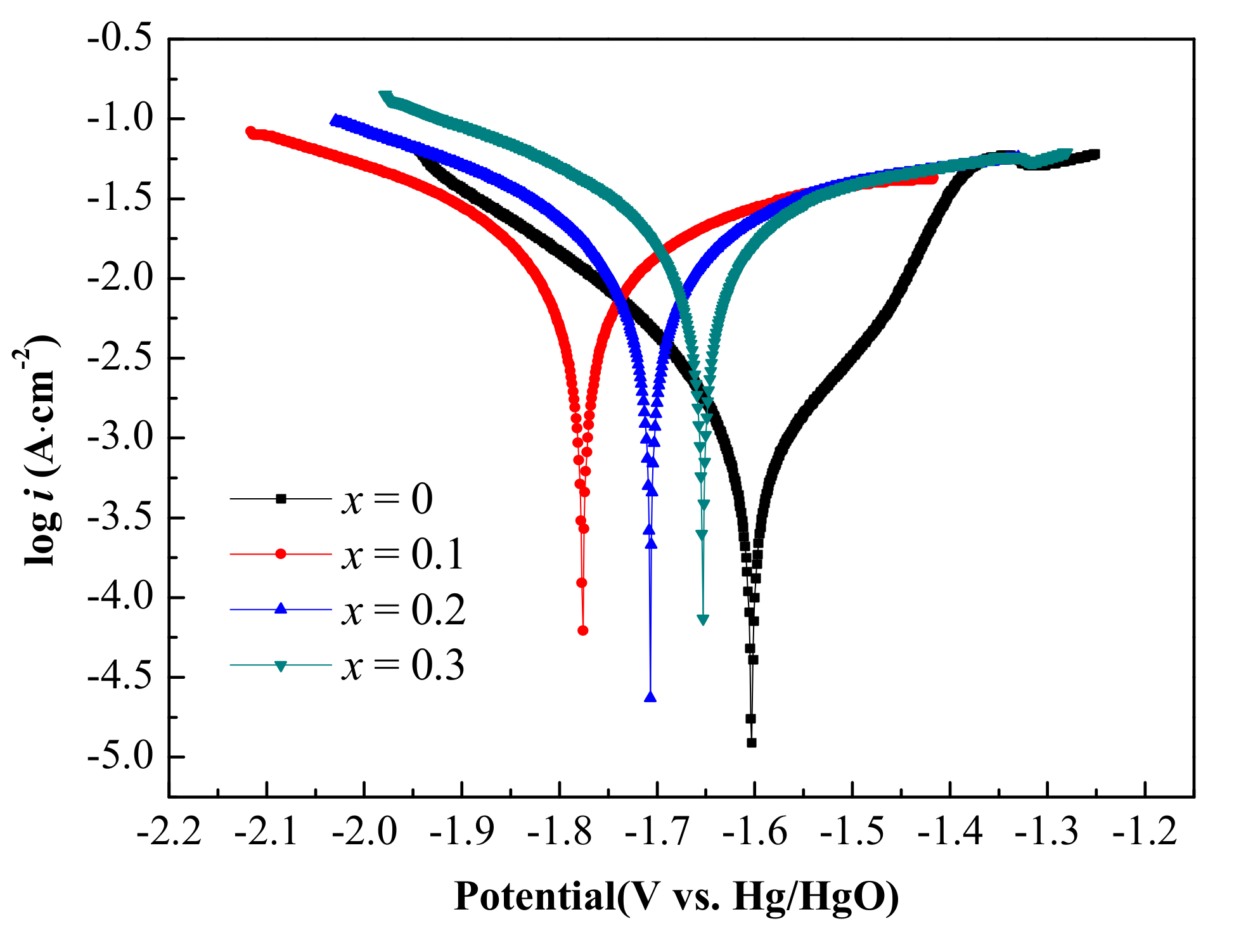

The potentiodynamic polarization curves of the Al-1Zn-0.1In-0.1Sn-0.5Mg-xMn (x = 0, 0.1, 0.2, 0.3) alloy anodes in the 4 M NaOH solution is shown in Figure 3; Table 3 is the summary of the corrosion parameters of the corresponding alloy anodes. Compared with the alloy of x = 0, the corrosion potential (E_corr) shifts negatively after the addition of Mn and the alloy of x = 0.1 shows the most negative value of −1.776 V, which indicates that the Mn addition may increase the activity of the aluminum alloy. The corrosion current (I_corr) of the alloy increases continuously with the increase in the Mn content, which is similar to the influence of the Mn content on the corrosion rate of the alloy. The R_p of the x = 0 alloy is the largest, which is unfavorable for the aluminum alloy anode, while it is decreased sharply after adding Mn, contributing to higher surface activity and better anodic solubility. This is due to the fact that the Mn-added alloy has much smaller grain size and a large number of grain boundaries, with more crystal defects acting as channels for the anode reaction [40].

3.4. EIS Measurement

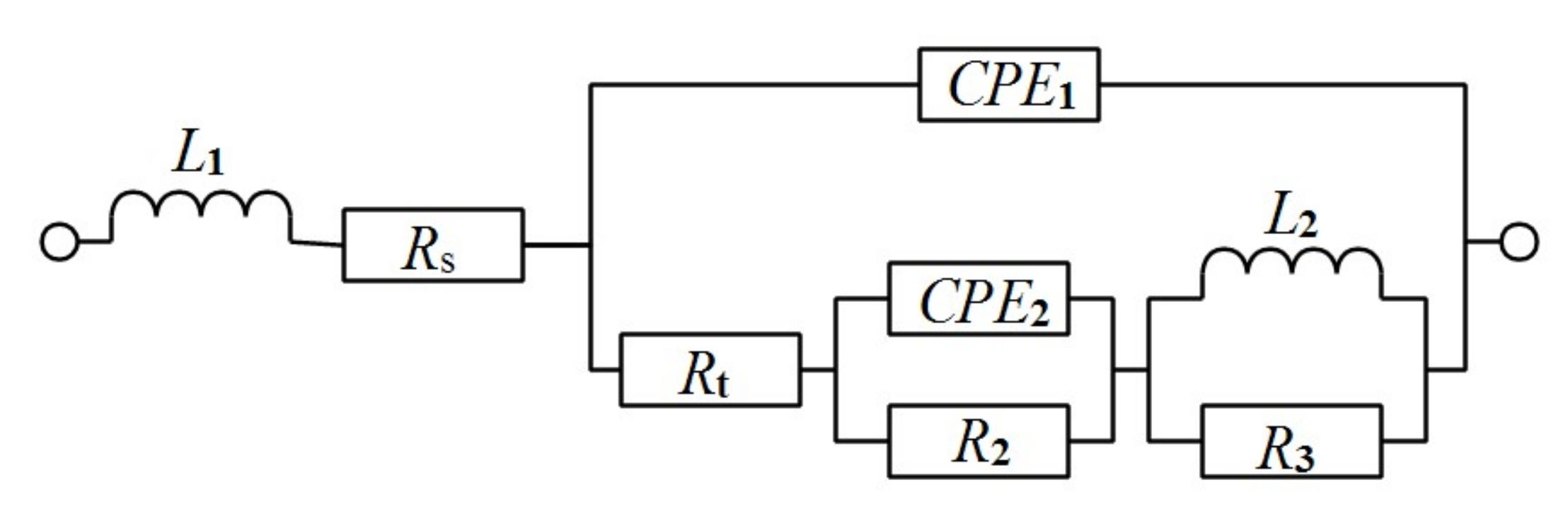

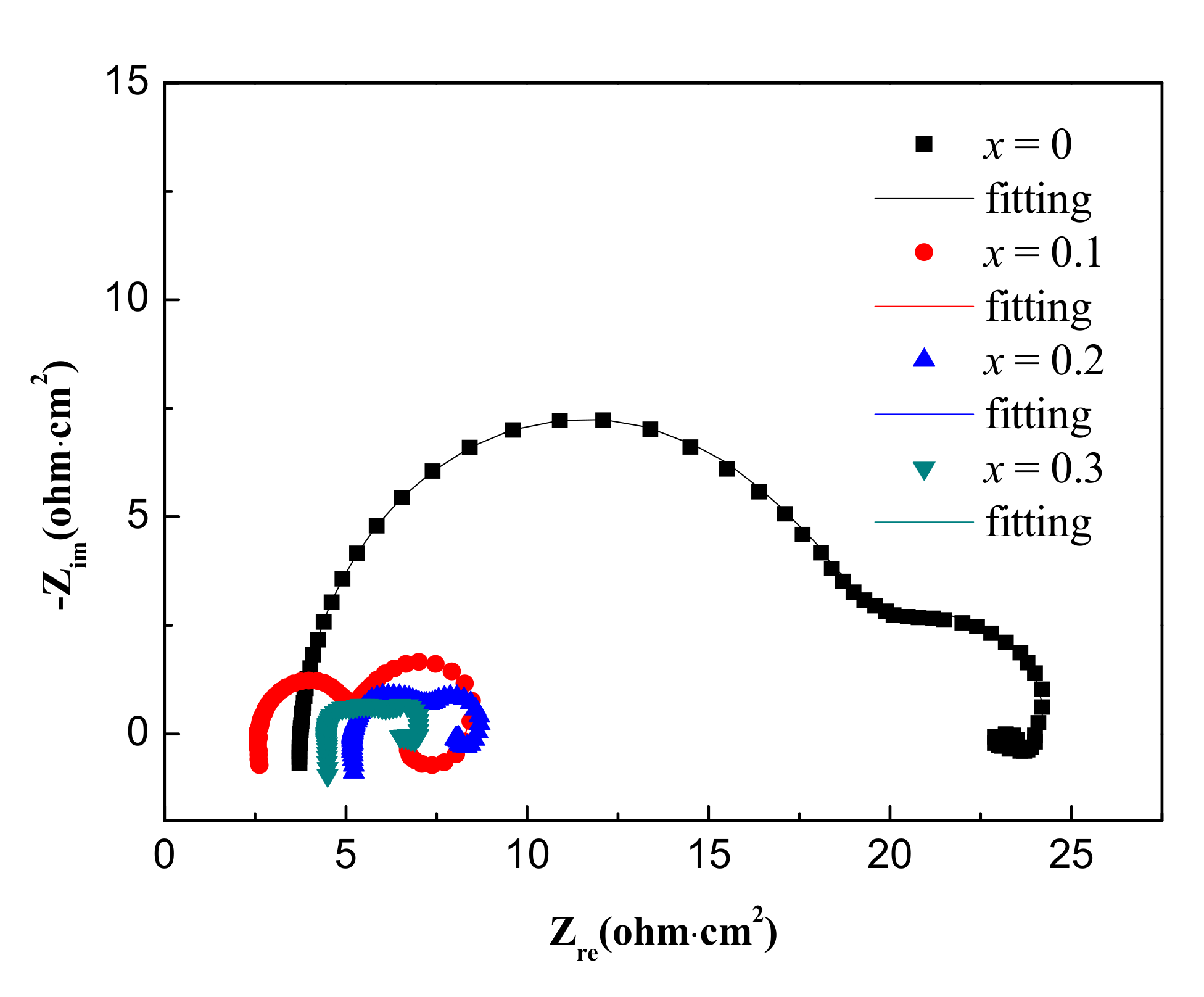

The EIS curves of the Al-1Zn-0.1In-0.1Sn-0.5Mg-xMn (x = 0, 0.1, 0.2, 0.3) alloy anodes in the 4 M NaOH solution are presented in Figure 4. Figure 5 shows the equivalent circuits for simulating the EIS curve. Among them, Rs represents the solution resistance. It has been reported that the induction loops in the EIS curves reflect the hydrogen adsorption process in the hydrogen evolution reaction caused by the corrosion of the alloy, and the L₁ in the equivalent circuit corresponds to the hydrogen evolution reaction parameter [41]. In addition, the high frequency capacitance loops in the EIS curves reflect the charge transfer reaction that occurs in an electric double layer formed between the corrosive medium generated during the etching process and the surface of the alloy. Similarly, the equivalent components reflected in the equivalent circuit are the constant phase component (CPE₁) and the parallel charge transfer resistor (R_t). Furthermore, the dissolution-deposition of In and Sn ions during the alloy corrosion process is reflected in the low frequency capacitive loops. The corresponding dissolution-deposition parameters are CPE₂ and R₂ in the equivalent circuit. The intergranular corrosion is reflected in the low-frequency induction loop, and L₂, R₃ are the corresponding parameters [42,43].

The fitting values of EIS are listed in

Table 4. The EIS simulated values of the Al-1Zn-0.1In-0.1Sn-0.5Mg-xMn (x = 0, 0.1, 0.2, 0.3) (wt.%) alloy anodes in the 4 M NaOH solution.

Samples	x = 0	x = 0.1	x = 0.2	x = 0.3
L1 (×10−6 H·cm2)	1.702	1.731	3.035	3.331
Rs (Ω·cm2)	3.742	2.585	5.203	4.512
CPE1 (×10−5 Ω−1·cm−2·s−1)	8.501	5.312	7.121	3.522
n1 (0 < n < 1)	0.956	0.926	0.912	0.896
Rt (Ω·cm2)	12.424	1.451	1.012	0.441
CPE2 (Ω−1·cm−2·s−1)	0.014	0.015	0.025	0.033
n2 (0 < n < 1)	0.7815	0.992	0.982	0.950
R2 (Ω·cm2)	7.073	4.018	2.827	1.727
L2 (H·cm2)	1.077	0.857	0.341	0.172
R3 (Ω·cm2)	3.018	2.829	2.156	1.241
x2 (×10−5)	3.81	4.35	4.84	2.11

. Among them, x² represents the accuracy of the fitted data; the smaller the x² value, the more accurate the fit. Table 4 shows that the x² values of all the samples are less than 5 × 10⁻⁵, indicating that the fitted data are highly consistent with the real data. In addition, R_t is a very important factor in the dissolution of aluminum alloy anodes. The bigger the R_t value, the smaller the exchange current and the slower the corrosion rate. Table 4 shows that R_t decreases with the increasing Mn content in the alloy. The data indicate that the corrosion resistance of the sample decreases with the increasing Mn content, which is consistent with the results of hydrogen evolution and potentiodynamic polarization.

3.5. Battery Performance

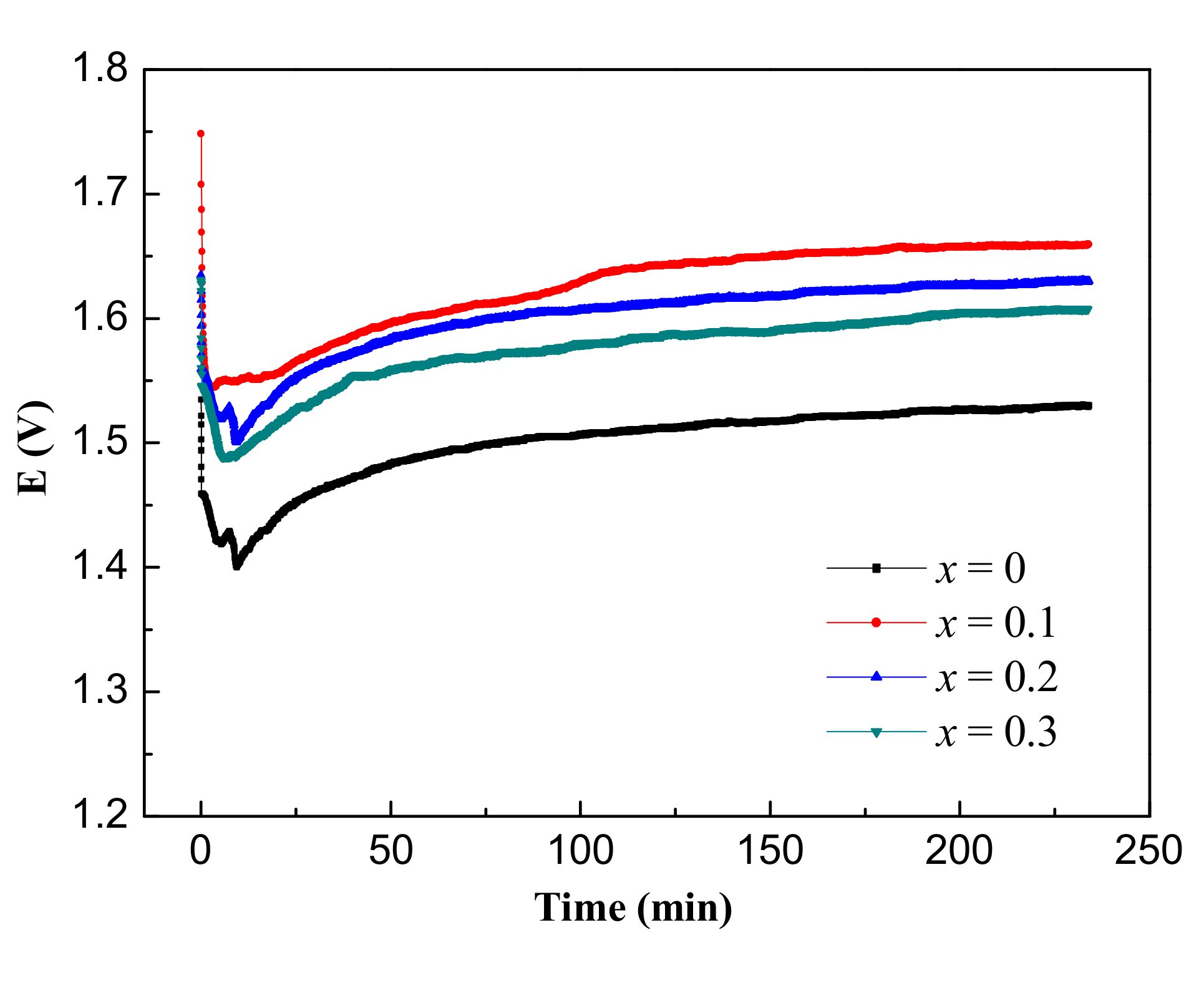

The discharge curves of the prepared AAB in the 4M NaOH electrolyte at 20 mA·cm⁻² current density for 4 h are shown in Figure 6. Owing to the internal resistance of the battery, the discharge voltage drops rapidly at first [44], gradually rising to an almost constant discharge voltage as the discharge time increases. All the alloy anodes exhibit a stable discharge process. The electrochemical parameters of the constant current discharge of the AABs using different Al alloy anodes are summarized in

Table 5. The electrochemical parameters of the AABs using the Al-1Zn-0.1In-0.1Sn-0.5Mg-xMn (x = 0, 0.1, 0.2, 0.3) (wt.%) alloy anodes discharged at 20 mA·cm⁻² current density for 4 h in the 4 M NaOH solution.

Samples	Average Voltage (V)	η (%)	Capacity (mAh·g−1)	Energy Density (mWh·g−1)
x = 0	1.550	51.66	1538	2385
x = 0.1	1.630	49.75	1481	2415
x = 0.2	1.606	45.23	1347	2163
x = 0.3	1.581	40.70	1212	1916

. It shows that the operating voltage of the x = 0 alloy is the lowest, while the alloys with Mn addition provide higher operating voltage, and the alloy of x = 0.1 shows the highest average voltage of 1.630 V. The anodic utilization (η) of the alloys reduces with the increasing Mn content. Compared with the alloy of x = 0, the anodic utilization of alloys of x = 0.1, 0.2 and 0.3 is reduced by 1.91%, 6.43%, and 10.96%, respectively. The capacity of the alloy anodes presents a similar variation with the anodic utilization. The energy densities of the alloy anodes are 2385, 2415, 2163, and 1916 mWh·g⁻¹, respectively. The highest energy density of the x = 0.1 alloy is due to the highest average voltage and a relatively higher capacity.

Table 6. The comparison of the battery performance with that reported in the literature.

Samples	Current Density (mA g−1)	Electrolyte	Discharge Voltage (V)	Reference
Al-Mg-Sn	20	4 M KOH	1.42	[45]
Al-Sn	20	4 M KOH	1.41	[45]
Al-Mg	20	4 M KOH	1.33	[45]
Al-Zn	-	4M NaOH	1.45	[46]
Al-Zn-In	-	4M NaOH	1.46	[46]
8011 Al alloy	10	4 M KOH	1.30	[47]
Al-0.6Mg-0.05Ga-0.1Sn-0.1In	30	4 M KOH	1.55	[13]
Al-0.5Mg-0.07Sn	30	4 M KOH	1.25	[13]
Al-1Zn-0.1In-0.1Sn-0.5Mg-0.1Mn	20	4M NaOH	1.63	This work

shows the comparison of the battery performance with that reported in the literatures. The battery assembled using the Al-1Zn-0.1In-0.1Sn-0.5Mg-0.1Mn alloy has a higher discharge voltage.

3.6. Surface Analysis after Discharge

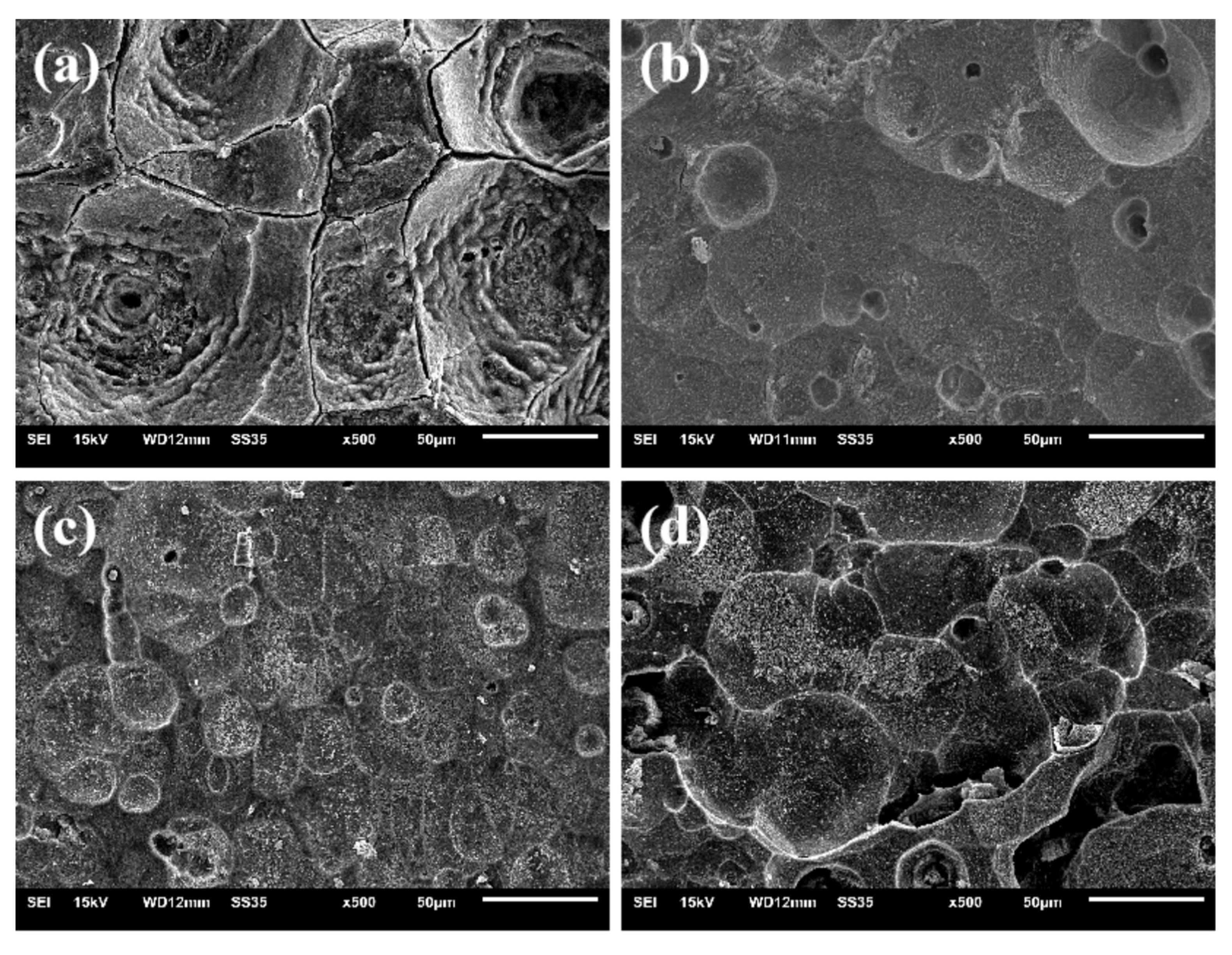

The surface morphologies of the samples after discharge are shown in Figure 7. It shows the typical crystalline corrosion of Al alloys in an alkaline electrolyte. The morphology of the alloys shows intense corrosion on the entire surface. The corrosion morphology of the x = 0 alloy is coarse with reticulate crack structures and pitting pores due to the corrosion along the grain boundaries and the segregation phase, while the alloy of x = 0.1 presents a relatively flat morphology owing to the homogeneous distribution of the segregation phase and an increase in the anodic reaction channels derived from the additional grain boundaries. However, the alloys of x = 0.2 and 0.3 both display a large-pore surface structure formed via galvanic corrosion between aluminum and the segregation phases or shed grains.

4. Conclusions

(1)

By doping Mn in the Al-1Zn-0.1In-0.1Sn-0.5Mg alloy, the average grain size is significantly refined, showing a decrease in size from over 100 μm to about 10 μm. The segregated phases in the as-cast alloys increase with the increasing content of Mn; meanwhile, the shape of the segregation phases transforms from nearly circle-like to rod-like.

(2)

After Mn doping, the alloy corrosion potential shifts negatively, while the hydrogen evolution rate and corrosion current of the alloy both increase continuously.

(3)

The Al-1Zn-0.1In-0.1Sn-0.5Mg-0.1Mn alloy possesses the optimal overall performance, with a lower self-corrosion rate (0.128 mL∙cm⁻²∙min⁻¹), the highest working voltage (1.630 V) and energy density (2415 mWh·g⁻¹), and higher capacity (1481 mAh·g⁻¹) and anodic utilization (49.75%) in the 4 M NaOH solution.
