Review

Wood Ash Based Treatment of Anaerobic Digestate: State-of-the-Art and Possibilities

Department of Engineering, Lancaster University, Lancaster LA1 4YW, UK
*
Author to whom correspondence should be addressed.
Academic Editor: Yingnan Yang
Processes 2022, 10(1), 147; https://doi.org/10.3390/pr10010147
Received: 15 December 2021 / Revised: 30 December 2021 / Accepted: 6 January 2022 / Published: 11 January 2022

Abstract

The problem of current agricultural practices is not limited to land management but also to the unsustainable consumption of essential nutrients for plants, such as phosphorus. This article focuses on the valorization of wood ash and anaerobic digestate for the preparation of a slow-release fertilizer. The underlying chemistry of the blend of these two materials is elucidated by analyzing the applications of the mixture. First, the feasibility of employing low doses (≤1 g total solids (TS) ash/g TS digestate) of wood ash is explained as a way to improve the composition of the feedstock of anaerobic digestion and enhance biogas production. Secondly, a detailed description concerning high doses of wood ash and their uses in the downstream processing of the anaerobic digestate to further enhance its stability is offered. Among all the physico-chemical phenomena involved, sorption processes are meticulously depicted, since they are responsible for nutrient recovery, dewatering, and self-hardening in preparing a granular fertilizer. Simple activation procedures (e.g., carbonization, carbonation, calcination, acidification, wash, milling, and sieving) are proposed to promote immobilization of the nutrients. Due to the limited information on the combined processing of wood ash and the anaerobic digestate, transformations of similar residues are additionally considered. Considering all the possible synergies in the anaerobic digestion and the downstream stages, a dose of ash of 5 g TS ash/g TS digestate is proposed for future experiments.
Keywords: anaerobic digestion; greenhouse gas mitigation; phosphate leaching; ammonia stripping; sorption activation; acid surfactants; dewatering; self-hardening; maturation; biofertilizer anaerobic digestion; greenhouse gas mitigation; phosphate leaching; ammonia stripping; sorption activation; acid surfactants; dewatering; self-hardening; maturation; biofertilizer

1. Introduction

The growth of the human population and the change in their diet (e.g., more consumption of animal products) imply devoting more land to food production at an alarming rate [1]. The problem of our current agricultural practices is not limited to land management but also to the unsustainable consumption of essential nutrients for plants, such as phosphorus [2,3]. The fluctuation in prices helps preserve the long-term availability of these mineral resources [4]. In the present situation, the development of profitable strategies for utilizing the waste materials is the only way to achieve sustainable development of the society [5]. Once a material is regarded as waste, its utilization is constrained by regulations [6]. In Europe, all waste-derived products must comply with Directive 2018/851, but there are shortcuts to achieve end-of-waste (EoW) status. Generally, when a residue is produced in large amounts and has a composition suitable for a particular application, the European parliament applies EoW regulations that do not need to be transposed by the governments of each member state [7].
The production of digestate was around 180 million tons per year in the EU28, before the UK withdrawal in 2020 [8]. In the UK, 7.5 million tons of anaerobic digestate and 2.7 million tons of compost were produced in 2018 [9]. A common policy is being developed to improve the management of all nitrogenous materials employed as soil amendments [10,11]. In 2009 [12], the EU27 produced 256 million tons of municipal solid waste (MSW). Much more animal manure is applied to land as a soil amendment than anaerobic digestate because of the high CAPEX and OPEX associated with implementing anaerobic digestion (AD) in the farms [13]. The biological treatment of organic residues via AD is a promising technology for energy recovery in the form of biogas and the production of fertilizers [14]. The AD was first applied to deal with the sewage sludge (SS) produced during the primary and secondary treatment of wastewater, but its use to deal with agro-waste and the MSW with around 70% of organic material has been subsequently encouraged [15,16]. The AD technology fits with the current trends of using the biorefinery to sustainably satisfy the needs of society, which used to be covered by the petrochemical industry [17].
Vassilev et al. [18] estimated that approximately 476 million tons of biomass ash could be generated worldwide annually if the average ash content is 6.8% and the burned biomass is assumed to be 7 billion tons. This amount resembles the 780 million tonnes of coal ash generated every year [18]. According to Pitman [19], the wood ash (WA) production could be estimated by considering that 1% of the wood incinerated is left as ash. According to the UK Forestry Commission [20], 2.68 million tons of wood fuel were used in 2016. Even considering the combustion of other types of biomass, the amount of biomass ash currently produced in the UK is lower than that coming from the coal power plants. In 2016, the amount of coal ash produced in the UK was around 6 million tons [21]. However, this scenario is changing, and by 2025 the amount of biomass ash is expected to be greater than that of coal ash [22]. In 2007, Sweden produced 0.3 million tons of WA, and most of this material was disposed of in landfills [23]. The preparation of a blend of organic manure and ash to enhance the circular economy has been addressed in the literature from several points of view:
  • To enhance the AD process [24].
  • To improve the properties of the soil [25].
  • To promote crop growth [26].
  • To control the release of the nutrients [27].
  • To achieve better dewatering of the digestate [28].
  • To promote the self-hardening and granulation of the digestate [29].
The anaerobic digestates, animal manures, and slurries are appreciated by the farmers as organic soil amendments. Improving the nutrient profile of the digestate might be a way of increasing its value and decreasing the cost of transportation. Moreover, there are more urgent challenges that need to be addressed, such as the pollution associated with the use of these materials [10]. It is necessary to optimize the conditions of the WA-based treatment of the anaerobic digestate to improve the stability of the soil organic amendment, improve the nutrient use efficiency, and reduce the contamination of the environment. The objectives of this review are (a) to discuss the underlying chemistry of the blends of anaerobic digestates and WA, and (b) to design a process that only requires affordable and widely available resources to prepare the novel fertilizer.

2. Upstream Processing

2.1. State-of-the-Art of AD

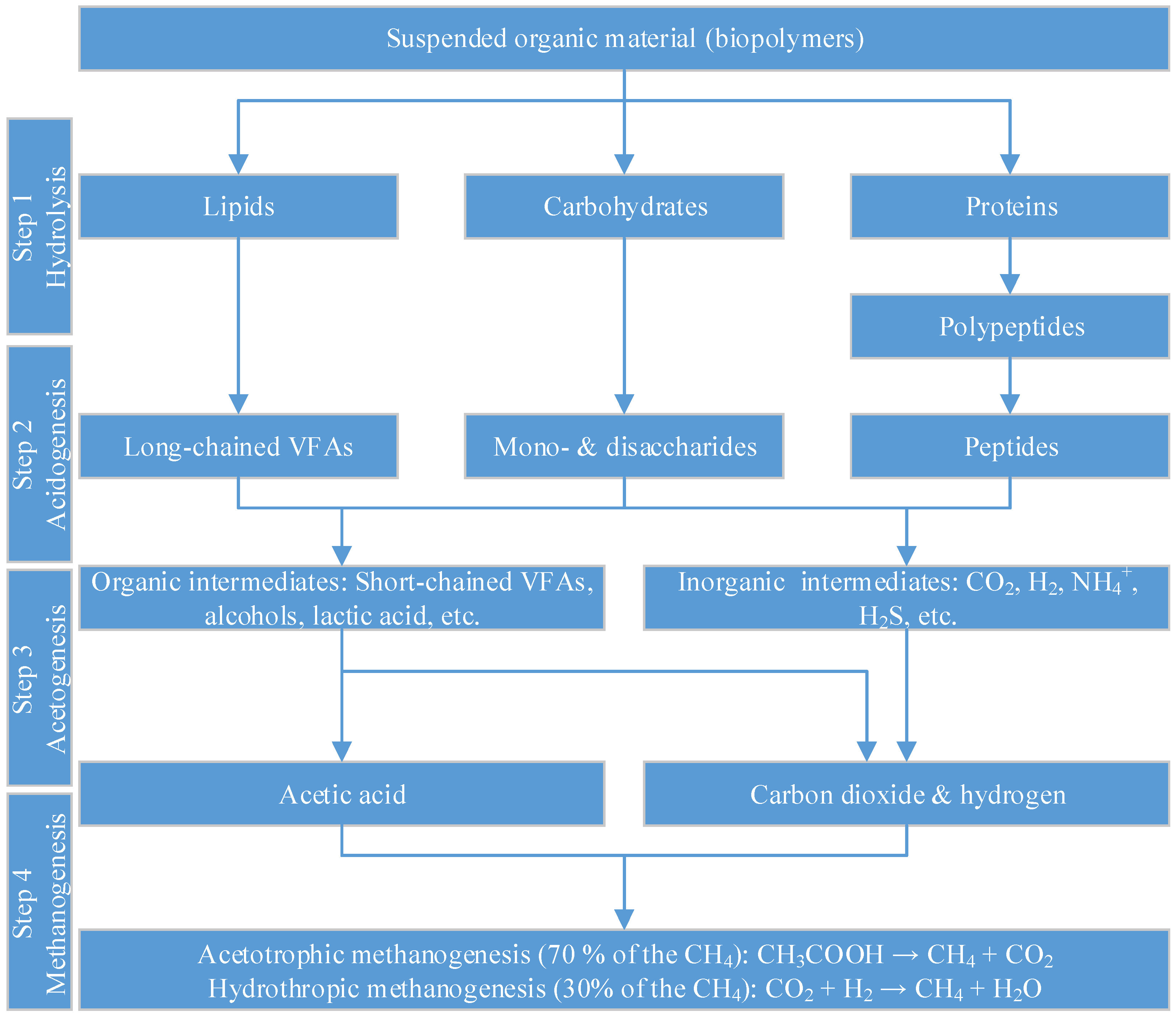

The AD process is also known as bio gasification due to the intervention of microorganisms to convert the components of the organic matter to methane and carbon dioxide. The most accepted model, on how the reactions occur in the anaerobic digester in the absence of oxygen, describes 4 different stages: hydrolysis, acidogenesis, acetogenesis, and methanogenesis (Figure 1). The limiting step is hydrolysis, while the methanogenesis is quick, preventing the accumulation of volatile fatty acids (VFA) in the system. In this way, the concentration of VFA in the anaerobic digest ester could be used as an indicator of the correct stationary operation of the bioreactor [17].

2.2. Use of WA as an Additive for Enhancing the AD

The addition of WA to the feedstock of AD can be understood as a way of promoting the stabilization of the anaerobic digestate because the greater the biogas production during the AD, the lower the emission of methane and carbon dioxide occurrence during storage and land application of the soil organic amendments [30]. Concerning the use of WA as an additive for AD, to the authors’ knowledge, 6 experimental studies have been reported so far on this topic (Table 1). Furthermore, Alavi-Borazjani et al. [31,32] provided an insight into the feasibility of the utilization of biomass ashes in AD and biogas upgrading. According to Alavi-Borazjani et al. (2020), biomass ashes are cheap sources of alkali suitable for controlling the excessive acidification of anaerobic digesters. Biogas production is also enhanced due to the supplementation with the macro and micronutrient present in biomass ashes, which are required for the anaerobic microbes, and only a reference of WA was mentioned in relation to the biogas upgrading. Raw biogas of approximately 60% methane does not have enough quality for its introduction into the natural gas grid. Most frequently used purification technologies (water/amine scrubbing, pressure swing adsorption, cryogenic distillation, and membrane) require an excessive amount of energy and chemicals. The main targeted compounds to be removed from the biogas are CO2 and H2S. Given the complexity of the WA, there is a knowledge gap on the absorption capacity of bulk WA, and gathering more information to fully appreciate the valorization opportunities of this material is required [31,32].

2.3. Stability and Maturity of the WA Amended Anaerobic Digestate

In some UK and European regulations, the terms stability and maturity are used indistinctly to describe the properties of a soil organic amendment [8,40,41]. Stability is related to reactions affecting the fate of carbon, which is the most abundant element in organic materials, and the maturity focuses on all the other elements (Figure 2). Some are nutrients necessary for plant growth (e.g., N, P, K, etc.), while others are phytotoxic compounds (e.g., Cd, Hg, Pb, etc.) that limit seed germination and root development. It is important to mention that the excess of any type of nutrients has a detrimental effect on the soil biota. Because nitrogen is the most abundant of these nutrients, its mineralized form, NH4+-N, could measure maturity [42,43,44].
The aim of determining the stability is to determine the fate of the carbon present in the labile and stable organic matter, since the inert organic matter will not suffer any degradation [45]. As displayed in Figure 2, the carbon could be (a) assimilated by the microorganisms for their growth, (b) lost via respiration, also known as carbon mineralization, and to a lesser extent, (c) lost due to leaching of the low organic molecular weight compounds. The carbon use efficiency (CUE) only accounts for the C used for the microbial growth, hence this parameter could be used to directly measure the stability of an organic amendment for more efficient nutrient management. However, the most common way of determining the stability is by measuring the losses via respiration [8,41,46,47,48], although the test is not carried out in similar conditions to the land application but in AD conditions as per the BMP protocol.
Figure 2. Evaluation of the quality of an organic amendment in terms of stability and maturity [42,49,50,51,52,53].
Figure 2. Evaluation of the quality of an organic amendment in terms of stability and maturity [42,49,50,51,52,53].
Processes 10 00147 g002

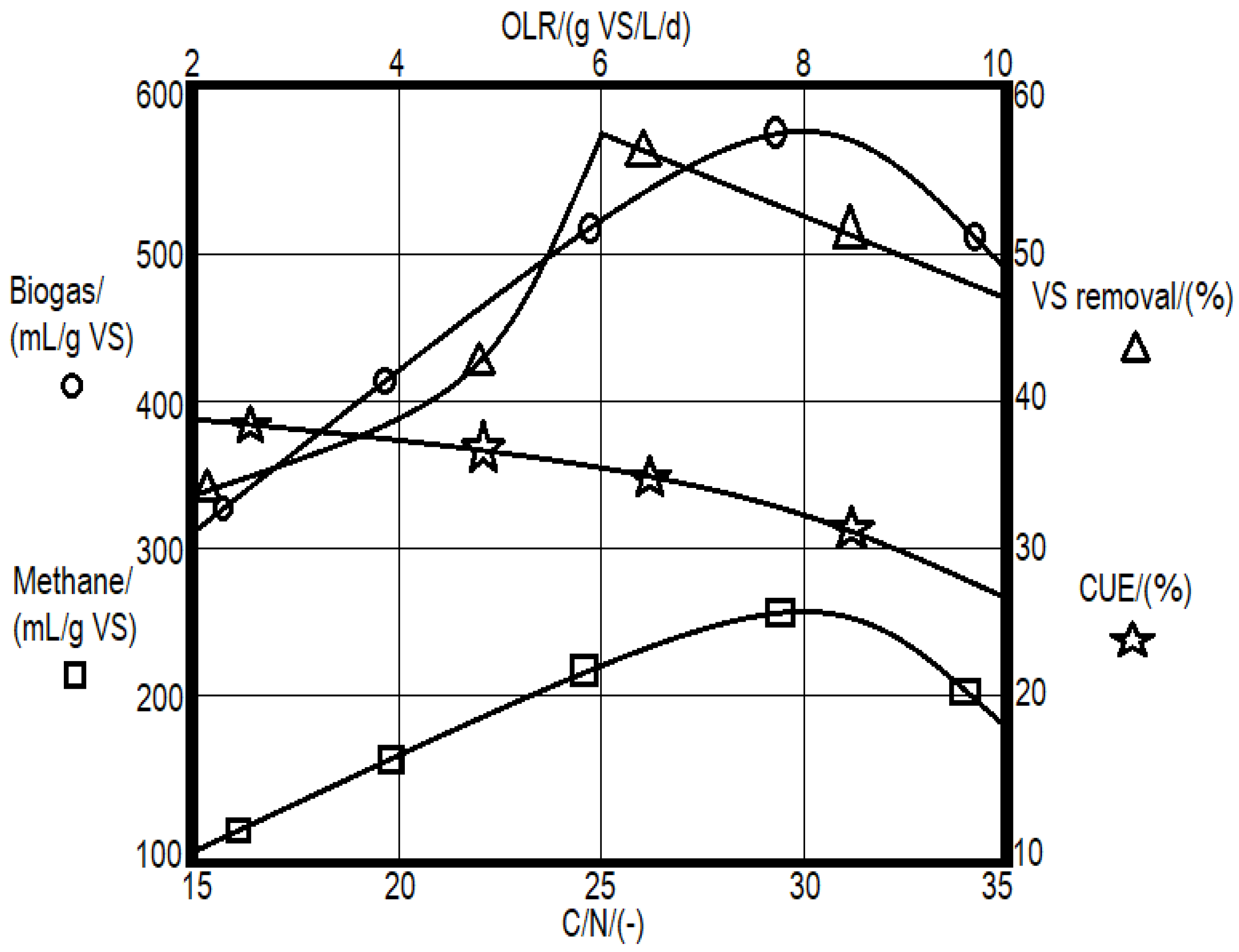

In a BMP test of an organic amendment (Figure 3), the release of biogas due to microbial activity depended on the composition expressed as the C/N and the relative amount of this material with respect to the microbial biomass (i.e., substrate-to-inoculum ratio, S/I), expressed as organic loading rate (OLR) in a continuous reactor. Together with the HRT, the OLR (Equation (1)) is one of the most important parameters in the operation of an anaerobic reactor, and both parameters are used for the design of the anaerobic digester [54,55]. The scale of the OLR for the operation of a continuous reactor, equivalent to the S/I in a batch reactor. Figure 3 included the OLR in the X axis based on the Figures 4 and 5 of Rincón et al. [56], who reported similar trends of biogas release and vs. removal. Reproduced with the permission of Biochemical Engineering Journal (Elsevier). In their original manuscript, the OLR was expressed on chemical oxygen demand (COD) basis, however, it is recommended to use the vs. instead [57].
OLR ( kg VS m 3 day ) = Input ( kg   substrate day ) × Labile   matter   ( kg   VS kg   substrate ) Net   digester   volume   ( m 3 )
The highest CUE, and therefore the highest stability of the organic amendment, were obtained at the lowest C/N (Figure 3) because the microbes have all the nutrients that they need to build their cell structures and do not need to get rid of excess carbon. On the other hand, when a low amount of substrate is available (OLR < 6), the microbes are in starvation mode, and they assimilate the carbon for their growth more efficiently, compared to higher OLR conditions under which more carbon is lost in microbial respiration due to excessive microbial activity (Figure 2). Since less carbon ends up in the microbial biomass, which is measured as part of the VS, the CUE decreases. Despite the different physiology of the terrestrial microorganisms from the consortium of the AD, the trend of CUE measured in an aerobic environment is useful to explain the fate of the carbon during batch and continuous AD operations (Figure 3). There are similar processes involved in the nutrient turnover in the AD and once the soil organic amendment is applied to land. The maturity profile is offered in the Supplementary Material (Figure S4).
Theorem 1.
Microbes get rid of any nutrient in excess available in the medium (e.g., anaerobic digester, soil solution, etc.), hence the composition of the organic amendment should be as similar as possible to the composition of the microbes.
If carbon is in excess (C/N ≥ 35), the microbes cast aside this element via respiration or extracellular polymeric substances (EPS) segregation [59]. The composition of the AD feedstock has been traditionally measured using the C/N, and this parameter has been employed for other types of fermentations, such as composting and land application of the organic soil amendment [60]. Möller & Müller [61,62] emphasized that a more representative ratio to express the composition of the organic soil amendment would be organic carbon (Corg) to organic nitrogen. Some researchers reported carbon as the main component of the wood ashes [62,63]. According to Forbes et al. [64], the continuum of combustion products such as char, ash, and charcoal are referred to as black carbon. This feature makes the properties of the wood ashes more suitable to be employed as a land amendment, to restore the soil as a carbon sink, maintain an adequate microbial activity in the soil, appropriate management of the nutrients to boost crop growth, and prevent pollution via leaching and gaseous emissions [65]:
Proof of Theorem 1.
According to the British Standards Institution’s Publicly Available Specification (BSI PAS 110:2014) for anaerobic digestate [46], the upper limit for a stable organic amendment in the 28-day test is 450 mL biogas/g VS, which is in agreement with Figure 3. It should be noted that this threshold value was established in the conditions of no inhibition of the test, which could be related to an inappropriate S/I (i.e., OLR > 10 g VS/L/d) and/or low nutrient content (i.e., C/N > 35). Profiles of biogas production indicating inhibitory conditions of the BMP test are displayed in the Supplementary Materials (Figures S5–S7). It is important to highlight that nitrogen plays a role in enhancing biogas production but supplementing the organic amendment with other nutrients is advised [66], which is the reason for seeding the AD feedstock with ashes [67]. Equation (2) represents how the heterotrophic microbial biomass (C5H7NO2) is chemically built from glucose (C6H12O6), as a source of carbon, and NH3, as a source of nitrogen:
3 C 6 H 12 O 6 ( s ) + 8 O 2 ( g ) + 2 NH 3 ( g ) 2 C 5 H 7 NO 2 ( s ) + 8 CO 2 ( g ) + 14 H 2 O ( l )
The maximum theoretical CUE is approximately 56% (2 × 5/3/6 × 100) in aerobic fermentation [68], in agreement with Figure 3. The reason for measuring the stability as a release of biogas could be the fact that there is no accurate quantification of the microbial biomass available in the biodigester, and this is often measured as suspended vs. [69]. The polymerase chain reaction to quantify only the active cells in the anaerobic digester is in the development stage and requires equipment advances [70]. The CUE measured in soil science is a more straightforward technique that relies on the extraction of the microbial carbon with a solution of 0.5 M K2SO4 after fumigation with chloroform [71].□

3. Downstream Processing

As in the previous section about upstream processing, this section of downstream processing explains the possible synergistic effects found by adding the WA to the anaerobic digestate. The WA can be added to the anaerobic digestate after the biodigester to ease the management of the organic material by developing a process complying with green chemistry principles [72], such as minimum input of energy and resources, due to all the synergies involved. The role of the WA as sorbent is essential to produce a controlled-release fertilizer derived from the anaerobic digestate. It should be noted that there are other materials (e.g., ion exchange resins) that could also be employed for the same purpose [73]. The sorption (adsorption and/or absorption; [62]) will take place from the moment in which the wood ash touches the anaerobic digestate; thereby this phenomenon is implicitly involved in each step of the process of Figure 4.
The dose of WA depends on the intended properties of the fertilizer to be manufactured. The following are some of the considerations that were taken into account to establish the blending ratio of 5 g TS WA/g TS anaerobic digestate (Figure 4):
  • Enhancement of AD could be achieved by preparing the feedstock with coal fly ash (CFA) using a dose as high as 2% (w/w) [76].
  • Precipitation of struvite and adsorption of phosphate achieved by preparing a suspension with up to 3% (v/w) ash in swine wastewater [77].
  • Application to land of both raw materials following a blending of up to 5% (w/w) of ash [78].
  • Mitigation of CH4, CO2, NH3, N2O associated with the storage of cattle slurry with 4.6% TS content by adding charcoal or biochar at a rate of 4.5% (w/v) [79] and around 11% (w/w) [80].
  • Adjustment of the pH to 5.5 of untreated pig slurry and co-digested pig slurry by adding 2% and 3.5% (w/w) of powdered aluminium sulfate (Al2(SO4)3), respectively [81,82]
  • Supplementation of the anaerobic digestate by means of a WA dose up to 9.99% (w/w) or 3.09 g TS ash/g TS digestate to improve the nutrient ratio (C:N:P), the availability of phosphorus, and the microbial activity in the soil [60].
  • Agreement with the regulations regarding the maximum content of heavy metals present in the anaerobic digestate [46,83]. The share of WA should not be greater than 15.51% (w/w) relative to the anaerobic digestate or 1.47 g TS WA/g TS AD. These results were obtained by considering the maximum content of heavy metals in the WA values established in the UK Quality Protocol of PL ash [84]. The content of Zn was found to be the limiting factor. The assumption of these calculations (Tables S1 and S2) are described in the Supplementary Material.
  • Prevention of a large volume of dewatered digestate obtained via filtration by using as much CFA as the dry matter of the digestate (i.e., 1 g TS CFA/g TS digestate) to assist the dewatering process [28].
  • Moure Abelenda et al. [85,86,87,88] tested alkaline and acid conditions to minimize the volatilization of NH3, and carbon and PO43− solubilization. They obtained better results (i.e., lower availability of nitrogen, carbon, and phosphorus) under acid conditions (4.39 g TS WA/g TS digestate) than under alkaline conditions (5.51 g TS WA/g TS digestate).
  • Alkaline stabilization of sewage sludge via liming with a dose of CaO as high as 40% (w/w) or 8 g TS CaO/g TS sewage sludge to decrease the pathogens (Méndez et al., 2002). A dose of 3.82 g TS CaO/g TS digestate or 224.5 g CaO/L digestate (5.88% TS) was required for reaching a pH 12 and removing 51.2% of the NH4+-N due to NH3 volatilization [74]. Limoli et al. [74] reported that a low dose of 45 g/L increased the TS content of the manure digestate by 42.7%. When the organic material had higher dry matter (25.4% TS content), a dose of 50 g CaO/kg SS represented an increase in the TS content of approximately 30% and just 2 units of pH. This liming effect reduced the availability of heavy metals in the SS [89].
  • Reducing phosphate availability by adding 5.6 kg of CFA to each kilogram of dairy slurry [90] could present a dose of greater than 110 g TS CFA/g TS slurry if the moisture content of the organic manure is 95%.
  • Preparation of granules prepared with 100% (w/w) biomass ash showed the best mechanical properties. Decreasing the content to 80% bio ash and 20% dewatered SS (45% moisture) significantly affected the compressive strength of the pellets [29]. The lowest dose of bio ash and Ca(OH)2 that Pesonen et al. [29] tested corresponded to a 5.19 g TS bio ash + Ca(OH)2/g TS hygienized SS.

3.1. Pasteurization and Sterilization

According to the animal by-product regulations for biogas plants in the UK [91], unless the AD is done in the conditions of Table 2, pasteurization (70 °C for 1 h) of the digestate is required before using the digestate for any application [46]. A considerable reduction in the number of pathogens can be achieved during fermentation, especially if it is done in thermophilic conditions [17]. Also, the best control of the digester was obtained in the one-stage non-mixing thermophilic reactor [92].
Greater doses of WA than that used to improve the performance of the AD can be employed with pasteurization and sterilization purposes. While sterilization implies the destruction of all life forms in the anaerobic digestate, the pasteurized material might contain beneficial or harmless microorganisms [46]. The aim is to keep the pH of the organic manure above 12 for at least 2 h [93,94]. This is often achieved using a rate of application of WA to organic material of 0.1 g Ca(OH)2 per g TS [93,95]. It should be noted that calcium represents approximately 18% of the total weight of the WA [96], thus this element is one of the main components of this material [97]. This alkaline treatment, similar to the use of lime, reduces the storage time of organic manures by 3 months while still preventing the contamination of the crops by pathogens [98,99]. The shares of the calcium as oxide, hydroxide, and carbonate in the wood ashes are mainly determined by the temperature of incineration and storage conditions. Under 500 °C, carbonates and bicarbonates predominate, while oxides require temperatures around 1000 °C [96]. During storage, the reaction with the moisture and the CO2 in the atmosphere leads to the formation of hydroxides and carbonates, although converting to CaO is possible via calcination of the ashes at temperatures over 500 °C [100,101].

3.2. Nitrogen Recovery Technologies

In this subsection, only the processes of NH3 stripping, manufacturing of (NH4)2CO3, and struvite (MgNH4PO4·6 H2O) precipitation and sorption of the nitrogen in the soil organic amendments are described for the exploitation of this element as fertilizer because these technologies are the most convenient for the implementation with wood ashes [102]:

3.2.1. NH3 Stripping Processes from the WA Anaerobic Digestate

Limoli et al. [74] tested the addition of the CaO to the anaerobic digestate to increase the pH and promote the volatilization of NH3. Less than 1% of the NH4+ & NH3 is volatilized as part of the biogas released during the AD [61]. Limoli et al. [74] described a stepwise mechanism involving the ammonium dissociation (NH4+ → NH3 + H+) and the mass transfer in the water-air interface. Since the WA primarily consists of calcium and other alkaline elements, this material can be used to increase the pH of the anaerobic digestate and promote the volatilization of NH3. Limoli et al. [74] did not consider how much of this nitrogen ends up in a trap containing a sulfuric acid (hereinafter H2SO4 trap). The resulting 40–60% ammonium sulfate ((NH4)2SO4) solution used can be as commercial-grade fertilizer (Equation (3)), although this will depend on the organic contamination of the liquid fertilizer [103]. If the gas-liquid contact system employs a high volume of air to strip the NH3 from the anaerobic digestate, the cost of the process increases since the absorption in the H2SO4 solutions is hindered. It should be noted that the recovery of the NH3 from the gaseous stream has complications, and often the H2SO4 traps require calibration to determine the efficiency of this technology [104].
2 NH 3 ( g ) + H 2 SO 4 ( aq ) 2 NH 4 ( aq ) + + SO 4 ( aq ) 2 ( NH 4 ) 2 SO 4 ( s )
The reason for the costly amount of alkali required to basify the anaerobic digestate is the fact that there are 3 buffer equilibria (Equations (4)–(6)) responsible for the pH in the anaerobic digestate [61]:
NH 4 + ( aq ) H + ( aq ) + NH 3 ( aq )
CO 2 ( aq ) + H 2 O ( l ) H 2 CO 3 ( aq ) H + ( aq ) + HCO 3 ( aq ) 2 H + ( aq ) + CO 3 2 ( s )
CH 3 COOH ( aq ) 2 H + ( aq ) + CH 3 COO ( aq )
Since oxides, hydroxides, and carbonates are the most common forms of metals in wood ashes [96], the reactions of the WA in an aqueous solution, involving the alkali and alkaline metals, should be (Equations (7) and (8)):
K 2 O ( s ) + H 2 O ( l ) 2 K ( aq ) + + O ( aq ) 2 + H 2 O ( l ) 2 K ( aq ) + + 2 OH ( aq )
CaO ( s ) + H 2 O ( l ) Ca ( aq ) 2 + + O ( aq ) 2 + H 2 O ( l ) Ca ( aq ) 2 + + 2 OH ( aq )
After the dissociation of the alkaline oxide, the oxide anion (O2−) rapidly reacts with water [105,106], leading to the formation of a hydroxide anion (OH). Also, basic cations (e.g., Ca2+ and K+) increase the pH because the electric charge of the liquid digestate needs to be neutral, thus the concentration of H+ is lower [61].
K 2 CO 3 ( s ) + H 2 O ( l ) 2 K ( aq ) + + CO 3   ( aq ) 2 + H 2 O ( l ) 2 K ( aq ) + + CO 2   ( g ) + 2 OH ( aq )
CaCO 3 ( s ) + H 2 O ( l ) Ca ( aq ) 2 + + CO 3   ( aq ) 2 + H 2 O ( l ) Ca ( aq ) 2 + + CO 2   ( g ) + 2 OH ( aq )

3.2.2. Manufacturing of (NH4)2CO3

It is worth mentioning that Equations (4) and (5) are connected by the precipitation of (NH4)2CO3, which naturally increases the pH of the anaerobic digestate. This is, in fact, another route to recover the NH4+ contained in the anaerobic digestate. The NH4HCO3 is a marketable fertilizer that contains 18% of nitrogen and minimizes the losses of nitrogen during the processing of the anaerobic digestate. Unlike in the stripping of NH3 by increasing the pH of the anaerobic digestate and subsequent reaction with the H2SO4, raising the pH of the digestate by adding WA is not useful because the high pH prevents the release of the CO2. It should be noted, however, that the WA could be, though as a source of CO32−-C to increase the share of inorganic carbon in the anaerobic digestate. In the process designed by Drapanauskaite et al. [107], the simulated liquid fraction of the anaerobic digestate contained 20 times more HCO3 than NH4+. The CO32−-C content is usually not reported in AD studies [55] but the total alkalinity [49] (expressed as a concentration of CaCO3), although this parameter includes the buffer effect of the VFA (e.g., acetic acid represented in Equation (6)) and the NH4+-N as well [108]. Astals et al. [49] reported that the mass ratio CO32−-C/NH4+-N was lower than 10 in the anaerobic digestate of pig manure and glycerol. In the case of studies focused on using the anaerobic digestate as an organic soil amendment, most studies only report the amount of Corg, and they consider the amount of CO32−-C negligible (Theorem 1) for the calculation of the C/N [109,110,111]. Otherwise, they directly calculate the Corg/N without recognizing any role for the CO32−-C [42,112]. Considering that the biogas is approximately 40% v/v and the alkaline pH of the anaerobic digestate [61], a considerable amount of CO2 needs to remain dissociated in the form of CO32−-C. The quantification of CO32−-C is interesting from the point of view of controlling the removal of NH4+-N, because to achieve the formation of NH3(aq) in a stripping process, a significant amount of alkaline reagent needs to be spent on shifting the equilibria described in Equations (4)–(6) [113]. However, experimental studies developing process for the recovery of the NH4+-N via stripping do not clearly stablish the content of CO32−-C in the anaerobic digestate [74,114,115].
In the novel process simulation performed by Drapanauskaite et al. [107], the anaerobic digestate was subjected to distillation at 3.3 bar with the condenser operating at 49 °C to produce a liquid stream rich in HCO3 and NH4+. The solid NH4HCO3 was obtained in a crystallizer at 12 °C and was finally recovered via drying [107]. According to Drapanauskaite et al. [107], approximately 100% of the NH4+-N was used to manufacture the NH4HCO3. Drapanauskaite et al. [107] compared the open-loop process of (NH4)2SO3, which implies using H2SO4 as an external chemical, with the NH4HCO3 process where both reagents (HCO3 and NH4+) are initially present in the anaerobic digestate. In addition to the lower capital cost of the manufacturing of NH4HCO3, the operating cost was also lower due to the lower consumption of utilities.

3.2.3. Struvite Isolation Using WA as a Source of Magnesium

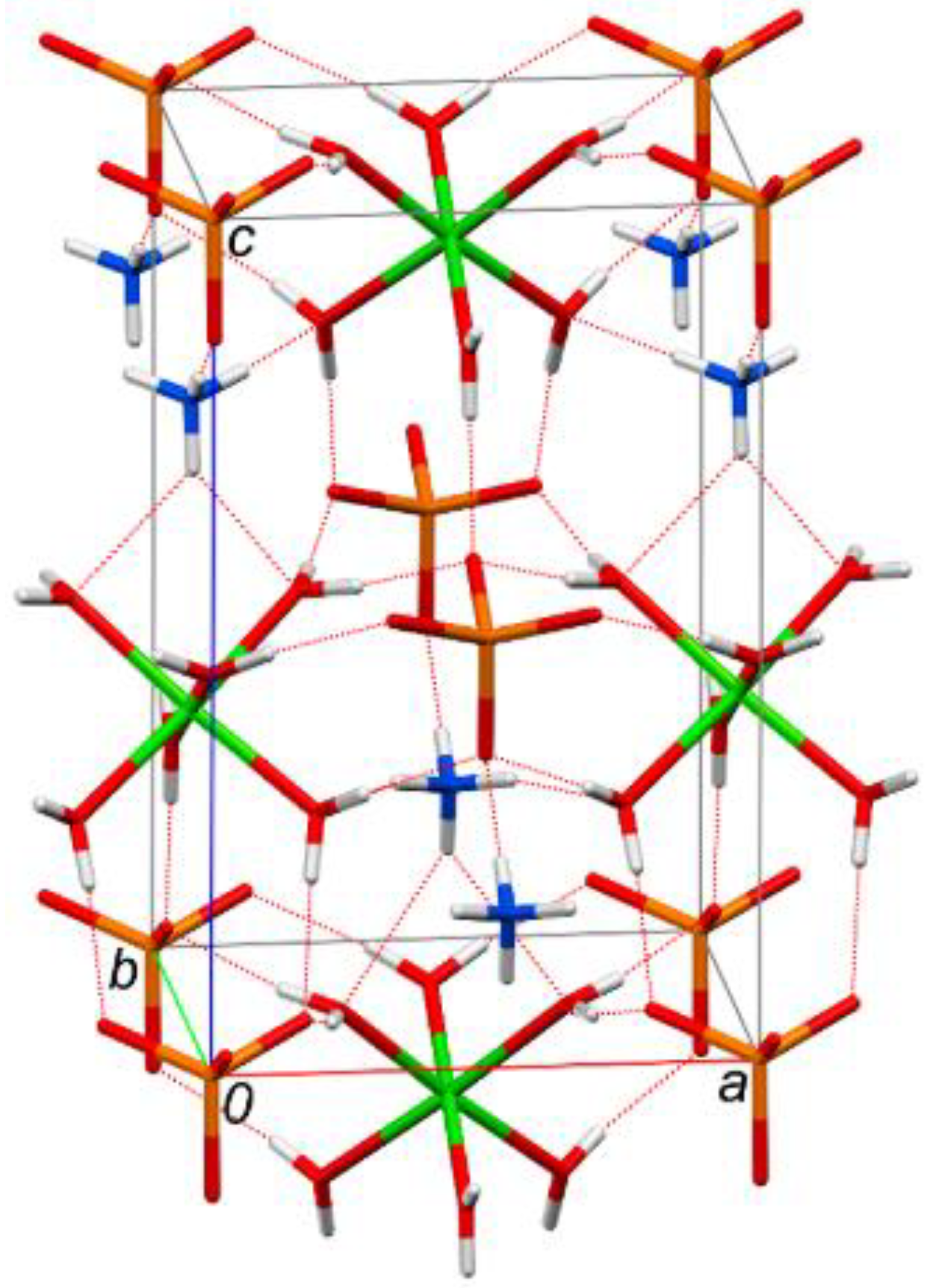

Another strategy to remove the excess of NH4+-N from the anaerobic digestate using the WA is via isolation of struvite [116]. However, the production of this slow-release fertilizer is expensive due to the cost of the source of magnesium and the alkaline agent needed to reach the target pH for the crystallization of this material [77,100,101]. Huang et al. [77] reported that 0.31 US Dollar/kg PO43−-P can be saved if straw ash is employed instead of NaOH. Both Sakthivel et al. [101] and Huang et al. [77] recovered more than 96% of the phosphate in the ureolysis urine and swine wastewater, respectively, using different doses of WA. While Sakthivel et al. [101] employed 2.7 mol Mg/mol P; Huang et al. [77] used 1.2 mol Mg/mol P. This might be related to the fact that only 50% of the magnesium in the WA of Sakthivel et al. [101] was water-soluble (WS), thus only this amount was available for the formation of struvite. It would be possible to increase the availability of the magnesium via calcination of the WA at temperatures higher than 600 °C [101]. Another option would be to perform aeration when adding the WA to the anaerobic digestate to remove the CO32−-C [77]. Drosg et al. [116] explained that the magnesium should be added in excess, according to the molar ratio 1.3:1:0.9 for Mg:N:P. This also agrees with the dose of magnesium proposed by Miles & Ellis [117] (1.25:1:1), and both nutrient ratios recommended for the precipitation of struvite are slightly different from the stoichiometry of the chemical reaction (Equation (11)). It should be noted that Equation (11) implies the release of H+ [61,118], but other authors prefer to represent the drop of the pH as consumption of OH [116].
NH 4 + ( aq ) + Mg 2 + ( aq ) + H n PO 4 n 3 ( aq ) + 6 H 2 O ( l ) MgNH 4 PO 4 · 6 H 2 O ( s ) + nH + ( aq )
According to Drosg et al. [116], materials such as anaerobic digestate contain more NH4+ & NH3, hence the addition of orthophosphoric acid (H3PO4) is necessary to reach the target nutrient ratio. Escudero et al. [119] studied how the removal of NH4+-N from anaerobically treated effluents was affected by the source of orthophosphate PO43−-P and Mg2+ and the nutrient ratio. They found an NH4+ removal of 95% in 30 s when using the best sources of magnesium (e.g., MgCl2·6H2O and MgSO4·7H2O) and a molar ration Mg:N:P of 1:1:1 [119]. Sakthivel et al. [101] reported that the solid precipitate was not pure struvite due to the high content of CaCO3 in the WA. They found a phosphorus content of 3% in the precipitate that is lower than the struvite (13%) or the diammonium phosphate (46%). Although the phosphorus content in the precipitate was greater than that in the initial WA, the estimated value of the precipitate was lower than the WA because 60% of the potassium initially present in the WA remained undissolved in the phosphate-depleted ureolysed urine [101]. Huang et al. [77] reported the competition reaction between struvite (Figure 4) and K-struvite (MgKPO4·6H2O). These authors reported a greater share of K-struvite at pH 10, which was higher than the optimum pH range (7.5 to 9) for the precipitation of struvite [118]. According to Huang et al. [77], at pH 9.5, and with a dose of plant ash of 6 mol K/mol NH4+-N, the amounts of struvite and K-struvite are the same. In the structure of the struvite (Figure 5), the Mg2+ can coordinate with the PO43− and the NH4+ despite being surrounded by six water molecules arranged according to an octahedral geometry.
Theorem 2.
The optimum pH for the precipitation of struvite is the pH of zero point charge (pHzpc), at which the surface charge of the source of magnesium (e.g., WA) is neutralized, thus the magnesium is able to sorb WS NH4+ and WS PO43− simultaneously.
The pHzpc could be identified by plotting Q (Equation (12)) versus the pH, a second-order fitting calculated (generic form: Q = a(pH)2 + b(pH) + c), and the minimum value of the quadratic regression determined (Figure 6). Unlike the measurement of the zeta potential, the pHzpc is a simpler technique that does not require specialized equipment. Nevertheless, both parameters can be used interchangeably since the zeta potential is the electrical voltage at the interface that separates mobile fluid from the fluid that remains attached to the particle surface [121].
Q = 1 W ( C a [ H + ] + [ OH ] )
  • Q (mol/L/g dry adsorbent), surface charge.
  • W (g/L), dry mass of WBA-based adsorbent in the aqueous system (i.e., analyte).
  • Ca (mol/L), concentration of the acid titrant in the aqueous system.
  • [H+] & [OH], concentration of H+ and OH resulting from the direct measurement of the pH in the aqueous system (pH = −log([H+]); [H+]·[OH] = 10−14).

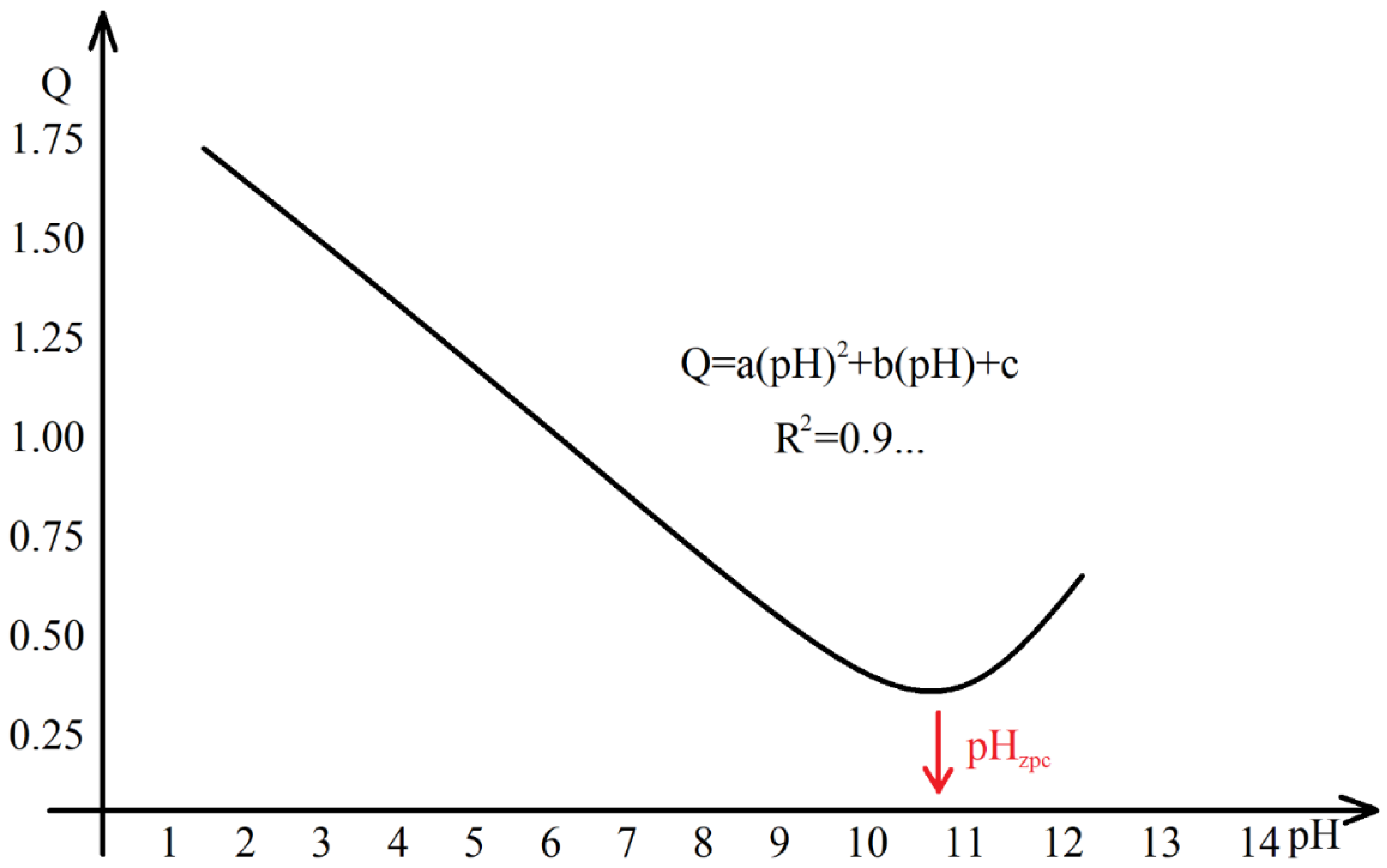

Figure 6. Determination of the pHzpc of the WBA representing the surface charge of the WBA adsorbent, Q, as a function of the titrate aqueous solution. Elaborated from the description provided by Leechart et al. [63] and Shah et al. [122].
Figure 6. Determination of the pHzpc of the WBA representing the surface charge of the WBA adsorbent, Q, as a function of the titrate aqueous solution. Elaborated from the description provided by Leechart et al. [63] and Shah et al. [122].
Processes 10 00147 g006
Proof of Theorem 2.
While the systems had a lower pH than the pHzpc, the surface of the WA-based adsorbents became positively charged (Equation (13)), favoring the adsorption of anionic species.
Surface ( n 1 ) + + OH + H + Surface n 0 ( s ) pH zpc + OH + H + Surface ( n + 1 )
source: [63].
Furthermore, since the pH of minimum solubility of CaO and MgO are 11.0 and 12.4, respectively, the surface of CaO and MgO could support the adsorption of the dye when the pH of the system was greater than pHzpc (Equations (14) and (15)).
5 Ca 2 + ( aq ) + 4 OH ( aq ) + 3 HPO 4 2 ( aq ) Ca 5 ( OH ) ( PO 4 ) 3 ( s ) + 3 H 2 O ( l )
5 Mg 2 + ( aq ) + 4 OH ( aq ) + 3 HPO 4 2 ( aq ) Mg 5 ( OH ) ( PO 4 ) 3 ( s ) + 3 H 2 O ( l )
The sorption and precipitation processes are investigated as a way of reducing the cost of the purification of the water and preventing the eutrophication of underground water. Yagi & Fukushi [123] studied the mechanisms of adsorption and precipitation of calcium phosphate onto monohydrocalcite (CaCO3·H2O). According to Yagi & Fukushi [123], the sorption behavior was determined mainly by concentrating phosphate in the wastewater. The CaCO3·H2O is known to be more reactive than the conventional CaCO3 [123]. The clean effluent obtained by Yagi & Fukushi [123] could be coupled with air or CO2 bubbling to remove any trace of Ca2+ ion via precipitation of CaCO3 [124]. Similarly, Brennan et al. [80] tested whether the addition of lime to the cattle slurry minimized the emission of NH3, N2O, CH4, and CO2 and the leaching of WS PO43−.

3.3. Acidification of the Blend of WA and Anaerobic Digestate to Improve the Nutrient Management

The commercial acids, such as H2SO4, HCl, HNO3, and H3PO4, or easily fermentable compounds which ultimately lead to the formation of organic acids due to the microbial metabolism, such as the acetic acid (C6H12O6 → 3 CH3COOH), represent the most obvious choices to reduce the pH of the organic manures [125,126,127]. However, better stabilizations have been reported with the use of salts such as Al2(SO4)3 [82], FeCl2 [80] and FeCl3 [128], and CaCl2 [129,130]. The CaCl2 does not necessarily need to be produced with quicklime (CaO; Equation (16)) but with slaked lime (consisting mainly in Ca(OH)2), limestone (CaCO3), or a mixture of these compounds that might be present in the WA. Similarly, the Al2(SO4)3 (Equation (17)) or the Fe2(SO4)3 could be produced from CFA [131]. It is noteworthy to mention that the Al2(SO4)3, FeCl2, and FeCl3 (Equation (18)) are among the best acidifying additives for the stabilization of animal slurry anaerobic digestate [115,131,132]. These salts are widely employed in wastewater treatment for coagulation and precipitation of compounds [82,116]. This use is in line with the properties of WA as sorbent [133,134,135,136]. The activation of raw materials (e.g., ores and ashes) for the manufacturing of the salts might be why they are able to decrease the pH of the organic manures.
CaO ( s ) + 2 HCl ( aq ) CaCl 2 ( aq ) + H 2 O ( l )
2 Al ( OH ) 3 ( s ) + 3 H 2 SO 4 ( aq ) Al 2 ( SO 4 ) 3 ( s ) + 6 H 2 O ( l )
Fe 3 O 4 ( s ) + 8 HCl ( aq ) FeCl 2 ( s ) + 2 FeCl 3 ( s ) + 4 H 2 O ( l )
The CaCl2 is one of the key components of the specially formulated products to stabilize the organic manures [137], and this compound is also widely used as an extracting agent for soil analysis. A solution of 0.01 M of CaCl2 provides the same ionic strength [138] as the average salt concentration in many soil solutions (i.e., the medium in which surface and aqueous solution reactions occur in the soil). The rationale of solubilizing the elements to minimize the gaseous emissions agrees with the higher stability of the organic manures with higher moisture content [132]. On the other hand, when manures are diluted with water, most of the H+ ions tend to remain attracted to the solid particles and are not released to the aqueous fraction. The simple dilution of manure with water reduces the emissions [132] but does not acidify the medium. Small amounts of CaCl2 provide Ca2+ ions that replace some of the H+ ions adsorbed in the solid particles, thus decreasing the pH of the medium. The stabilization of the organic slurry via the addition of CaCl2 is explained by the solubilization of nutrients in the moisture of the organic slurry, ion exchange capacity of Ca2+, H+ release from the surface of the solid particles, and pH drop. The acid effect of these salts once dissolved in the aqueous phase of the organic slurries can be explained by a number of mechanisms. For example, the addition of FeCl3 acidifies the aqueous solution by removing the sulfide and the phosphate, according to Equations (19)–(21) [61].
FeCl 3 ( s ) Fe 3 + ( aq ) + 3 Cl ( aq )
H 2 S ( aq ) + 2 Fe 3 + ( aq ) S ( s ) + 2 Fe 2 + ( aq ) + 2 H + ( aq )
H n PO 4 n 3 ( aq ) + Fe 3 + ( aq ) FePO 4 ( s ) + nH + ( aq )

3.3.1. Activation of the WA as Sorbent to Improve the Properties of the Blend with the Anaerobic Digestate as Slow-Released Fertilizer

Commercial acids are also employed to activate the ash and to prepare a cheap and sustainable sorbent. For example, Mor et al. [139], who used the calcination at 500 °C and HCl to activate the rice husk ash, reported an increase in the adsorption of the WS PO43− with a maximum removal (91.7%) of WS PO43− at pH 2 and the lowest removal at pH 10. According to Mor et al. [139], because at high pH, there are more OH interacting with the surface, thus decreasing the WS PO43− adsorption. It is necessary to bear in mind that the removal of PO43− [140] and the NH4+ [119] from the WS phase via struvite crystallization is not promoted at acidic pH. The dose of acid needs to be as much as it is required to reach the pHzpc without a further decrease (Figure 5). Leechart et al. [63] found that the pHzpc for the WBA employed was 10.8. When a pretreatment was applied to the WBA with distilled water (WBA-H2O) or sulfuric acid (WBA-H2SO4), the pHzpc was 10.9 in both cases [63].
Unlike acidification, carbonation uses CO2 rather than commercial acids to decrease the pH of the adsorbent. In addition to the reagents, the suitability of each activation treatment depends on the origin of the adsorbent and the primary mechanism for capturing the nutrients (Table 3). Janiszewska et al. [141] employed the carbonation at 800 °C by putting it in touch with the biochar, which had been prepared at 400 °C in an N2 atmosphere, with a constant flow of CO2 (150 mL/min) for 180 min. According to Janiszewska et al. [141], the CO2 activation employed aimed to increase the porosity of the carbonized wastes. The mechanism relies on the volatilization of a significant part of the carbon content to enable the formation of a microporous structure in the biochar [141]. Leechart et al. [63] used the Brunauer, Emmett, and Teller (BET) isotherm to determine the sorptive surface area. It should be noted that the BET isotherm considers the possibility that the monolayer in the Langmuir adsorption isotherm could act as support for further adsorption. The nitrogen adsorption-desorption isotherm, employed for the BET study of these adsorbents, was characterized by clear hysteresis loops due to the capillary condensation occurring in the mesopore range [63]. The H2O treatment removed some tars and led to a higher development of porosity and surface area than the treatment with 0.1 N H2SO4. The WBA-H2O still had a lower surface area than AC. The average pore diameter of WBA, WBA-H2O, and WBA-H2SO4 was of mesoporous size (i.e., 2–50 nm) while the activated carbon had micropores (<2 nm).
Ma et al. [142] described a more complicated activation procedure for producing an adsorbent based on wheat straw. They reported how the pH and the level of swelling (i.e., hydration) affect the adsorption of WS NH4+ and WS PO43− [142]. According to the results of Ma et al. [142], the optimum pH for the adsorption of these ions is between 4 and 8. The explanation that Ma et al. [142] provided for the trend of the WS NH4+ is that at acidic pH, the H+ ions will compete with the WS NH4+ for the anionic groups in the wheat straw derived adsorbent. On the other hand, at alkaline pH, more WS NH4+ will be in the form of WS NH3 that will subsequently escape from the aqueous solution. According to Ma et al. [142], the adsorption of WS PO43− showed less dependence on the pH. Ma et al. [142] described the impact of the pH and the swelling capacity (i.e., hydration) of the performance of the wheat straw-derived adsorbent. The high swelling of the wheat straw-derived adsorbent obtained at pH 3 and above was associated with the high diffusion of water molecules and ions into the pores and through the internal skeleton of the adsorbent. The highest swelling was obtained at a pH 7 because acidic and alkaline solutions have H+ and OH ions, respectively, that reduce the difference in osmotic pressure between inside and outside the porous structure of the wheat straw derived adsorbent [142]. As described by Awad et al. [143], the swelling phenomenon is often associated with an increase in the adsorption of the organic materials in the WS phase. This can also be seen in the structure of the struvite (Figure 5), in which the nutrients NH4+ and PO43− remain attached to the magnesium hexaaqua (Mg2+(H2O)6).

3.3.2. Dewatering of the Blend of WA and Anaerobic Digestate

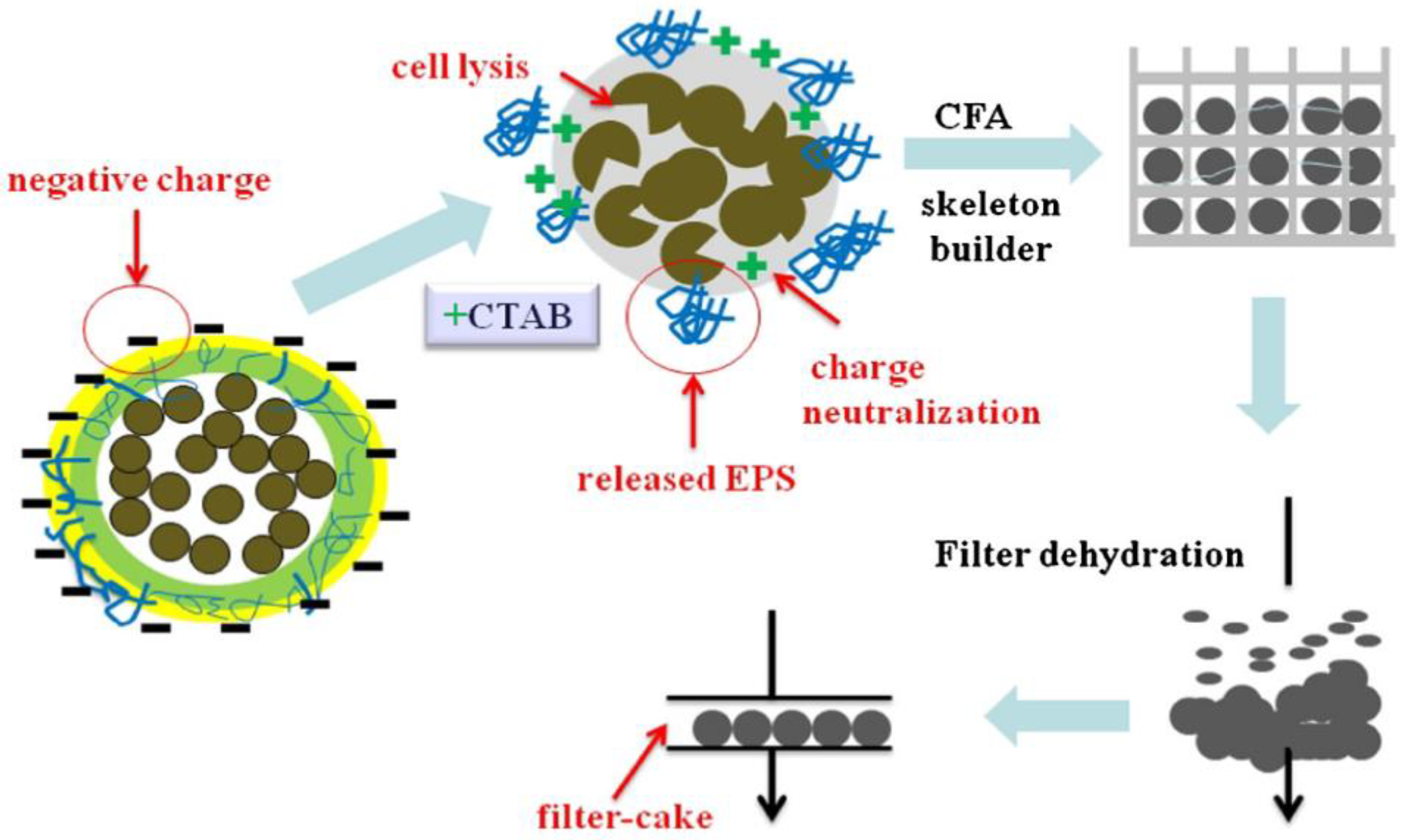

The studies of Ma et al. [142] and Mor et al. [139] provided contrary results regarding how the pH and the level of swelling/hydration affect the adsorption. The dehydration without acidification was tested by Zheng et al. [28]. They used a cationic surfactant (cetyltrimethylammonium bromide; CTAB) together with CFA to ease the filtration of the anaerobic digestate (Figure 7). The CTAB neutralized the negative charges on the surface of the flocs of the anaerobic digestates, reduced the electrostatic repulsion between the flocs, and promoted coagulation-flocculation. Moreover, the neutralization of the charges allowed the release of the extracellular polymeric EPS of the cells and fiber of the digestates and bound water molecules. The proteins and polysaccharides are components of the EPS that largely contributed to enhance the binding ability of water to the flocs of the digestate. Award et al. [143] divided the EPS into subgroups of main sources of carbon, nitrogen, and phosphorus. An example of EPS-phosphorus moieties would be nucleic acids [144]. After the release of the hydrated EPS from the flocs surface, the bound water that was coordinated with the EPS became free water [28]. On top of that, the CFA acted as a rigid lattice to reduce the filter cake compressibility and to provide drainage pathways for water to exit the filter cake [28].
The dewatering of the anaerobic digestate is required to reduce the cost of storage, transportation, and land application [9,10]. Although the AD plants are located in strategic sites, usually with several farms around and with plenty of nearby areas to apply the anaerobic digestate to land, the transportation of this material to remote locations is still required once the nutrient quotas are reached in the fields around the plants [107,144]. The most common approach for the solid and the liquid fractions obtained after the separation is their use as fertilizer. There is particular concern about the emission from the resulting solid fraction [145,146,147,148,149,150] due to the higher area for gas exchange compared to the liquid fraction (Figure 8). While the gaseous emitting area of the slurry is the horizontal cross-section of the storage tank, the shape of the pile of dried organic manure was described by Dinuccio et al. [146,147] as a truncated cone heap with a greater area to volume ratio.
Regueiro et al. [82] concluded that the Al2(SO4)3 was able to reduce the gaseous emissions (NH3, CO2, CH4, and N2O) even after the solid-liquid separation (i.e., dewatering of the solid fraction) of raw and co-digested pig slurries. The Al2(SO4)3 increased the TS in the liquid fraction but had the opposite effect on the solid fraction obtained after the solid-liquid separation. Regueiro et al. [82] attributed this fact to the role of the sulfate [150], and explained that the increase of the TS in the liquid fraction via the formation of low molecular weight carbohydrates derived from the acid hydrolysis of cellulose or hemicellulose. The acid pH provided by the Al2(SO4)3 enhanced the retention of nutrients in the liquid fraction, minimizing the gaseous emissions from the solid fraction. It should be noted that the nutrients are more stable in the liquid fraction than in the solid fraction, due to the high moisture content (i.e., lower concentration) and lower surface area. Kavanagh et al. [132] explained that a slurry with 4% TS is more stable than the undiluted slurry with 7% TS. Thereby, the lower amount of TS in the solid fraction, the lesser the gaseous emissions. Regueiro et al. [82] found that the gaseous emissions were also minimized in the liquid fraction, due to its lower pH, compared to the liquid fraction obtained from the solid-liquid separation without acidification. It should be noted that the content of nitrogen, expressed in grams of nitrogen per gram of TS, decreased in the solid and the liquid fractions due to the increase of the TS, which resulted from the addition of Al2(SO4)3 [82].

3.4. Commercial Processes for Manufacturing of a Granular Fertilizer based on Blends of Ash and Organic Manures

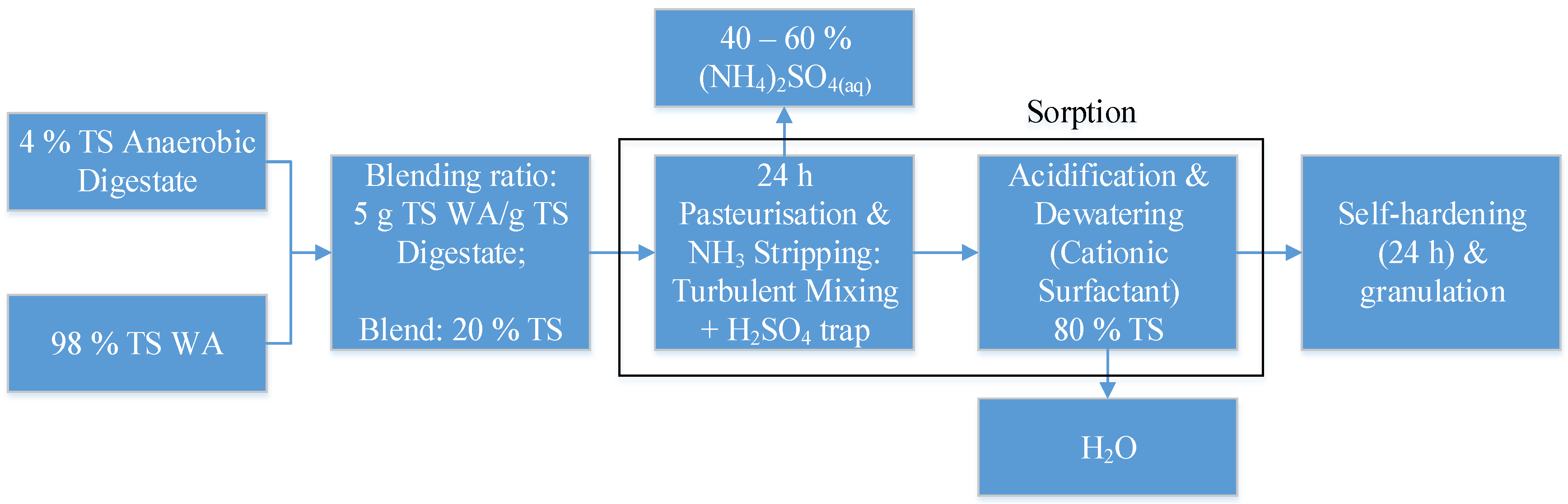

The features of the process of Limoli et al. [74] employing CaO and H2SO4 and the process of Zheng et al. [28] using CFA and CTAB were compared against processes implementing the granulation, as this step could improve the aesthetic properties of the blended fertilizer of WA and anaerobic digestate to be retailed (Table 4). There is a lack of holistic approach in the processes described below as none of them entirely complies with the following objectives:
  • Use of the most cost-efficient way of achieving solid-liquid separation.
  • Find the optimum carbon and nutrient profile of the main stream coming out of the process, intended to be used as an organic amendment.
  • Self-hardening to provide this material with the best mechanical properties before and after the granulation.
  • Minimize any waste streams with valuable nutrients or other pollutants that need to be removed before disposal.
The RecoPhos P 38 fertilizer is produced from SS following the same manufacturing procedure of the triple superphosphate (Ca(H2PO4)2) from the phosphate rock [153]. This process aligns with the management strategy proposed by Chojnacka et al. [156] for organic wastes. Firstly, the valorization is carried out via complete dehydration and subsequent incineration to reduce the organic pollutants and to obtain ash with similar characteristics to the phosphate ores. Secondly, the solubility of the phosphorus contained in the ash is enhanced via reaction with H3PO4 (Equation (22)), prior to the preparation of the granular fertilizer. This technology could be improved since carbon and nitrogen are lost during the fluidized bed incineration. Furthermore, the isolation of the phosphorus contained in the ash only can be done via solubilization with phosphoric acid and subsequent drying. The RecoPhos might not be an energy-intensive process if, for instance, the drying of the SS prior to the incineration is done with the heat released in the combustion.
Ca 4 Mg 5 ( PO 4 ) 6 ( s ) + 12 H 3 PO 4 ( ac ) 4 Ca ( H 2 PO 4 ) 2 ( s ) + 5 Mg ( H 2 PO 4 ) 2 ( s )
The ADFerTech process of Fivelman [154] is an energy-intensive process because, in addition to the preliminary solid-liquid separation, the subsequent processing of the liquid fraction involves drying (a) after the adsorption to enable the self-hardening and (b) after the agglomeration to have a 3% moisture content in the final granules. In this way, Fivelman [154] employed the adsorption technology to enhance the solid-liquid separation of the liquid fraction of the digestate. The granular fertilizer was produced with the TS remaining in the liquid fraction after adding organic polymer binders (e.g., carboxymethyl cellulose) to promote the aggregation of the nutrient-laden particles of the adsorbent. Fivelman [154] claimed that the amount of nutrients that remain in the liquid stream after the adsorption is low enough to be discharged directly to the local water bodies without further treatment. The main powder adsorbent that they used was dolomite in doses ranging from 10 to 200 g/L (mixed for 5 min at 20 °C), which was able to retain around 250 mg nitrogen and 300 mg phosphorus per gram of dolomite.
Steenari and Lindqvist [157] explained that the self-hardening or solidification of a gram of WA, when adding between 0.3 and 0.5 g of water, depends on a number of ongoing reactions which can last from days to months. It should be noted the importance of the (moisture) adsorption capacity of the WA to promote self-hardening [158]. The hydration of CaO to produce Ca(OH)2 is faster than the subsequent formation of CaCO3 due to the mass transfer resistance, limiting the diffusion of CO2 from the atmosphere. However, the CaCO3 is more stable due to its lower solubility and alkalinity, providing the ash with better properties for cementation and for being used as a long-lasting liming agent. Pellets predominantly made with organic matter such as cattle manure rely less on these reactions to obtain appropriate durability (i.e., percentage of the mass of the pellet that remains after tumbling [159]). Due to the fact that organic matter can retain more water [157], Zafari et al. [159] obtained the highest durability (~97%) in the cattle manure pellets when these were prepared with the open-end die method at 50% (w/w) moisture content, 40 °C, and 6 MPa. According to Alemi et al. [160], both the density and porosity increased when the pellets of cattle manure and urea were prepared with higher moisture content (from 11 to 24% w/w) and a higher compressive force (from 2000 to 5000 N). Even after the preparation, Alemi et al. [160] reported an increase of up to 8% (w/w) in the moisture content due to the absorption of the water in the surrounding environment with a relative humidity of up to 80%.
Pesonen et al. [29] studied the production of fertilizer based on biomass ash which was obtained from the combustion of a mixture of 65% wood and 35% peat. As a nitrogen source, they used SS, which had been previously sanitized and dewatered (until a 45% moisture) in a resource-intensive process. Pesonen et al. [29] included Ca(OH)2 in the fertilizer as well, with the main purpose of promoting self-hardening and increasing the compressible load that the granules can hold. Nevertheless, this material did not increase the compressible strength to prevent the deformation of the granules. They carried out the granulation in a rotary drum, after which the granules were left in a fume hood for 28 days at 21 °C. This allowed to reach 3% of moisture due to the loss of free water, since the compounds responsible for the self-hardening require higher temperatures to decompose. Pesonen et al. [29] concluded that the solidification was not enhanced because the main reason for this phenomenon was the reaction of CaO with the water supplying Ca(OH)2, and, to a lesser extent, the subsequent formation of CaCO3 due to the absorption of the CO2 in the atmosphere, which is a much slower reaction.
According to Steenari and Lindqvist [157], ashes with a content of combustible matter greater than 10% are not suitable for self-hardening, which could explain why the organic waste was not a good binder for the curing process and the solidification of the ash was hindered in the study of Pesonen et al. [29]. The acidification could be useful to promote dehydration [74] and mechanical properties (e.g., durability and compressive strength) of the solid obtained after the self-hardening. Based on the study of Steenari and Lindqvist [157], from the point of view of the self-hardening of the blend, a greater amount of ash would be desirable since this would minimize the organic binder. This agrees with the results of Rao et al. [161], who investigated the preparation of organo-mineral fertilizers with the compost of pig waste solids (20% w/w), PL (26% w/w), spent mushroom compost (26% w/w), cocoa husks (18% w/w), and moistened shredded paper (10% w/w). The additives that they tested were feather meal (≤29% w/w), dried blood (≤29% w/w), (NH4)2SO4 (≤27% w/w), nitro-chalk or 5Ca(NO3)2·NH4NO3·10H2O (≤27% w/w), phosphate rock (≤15% w/w), Ca(H2PO4)2 (≤21% w/w), and K2SO4 (≤21% w/w). Only when the share of compost in the mixture was greater than 50% (w/w), pelletization was not possible. On the other hand, Pampuro et al. [152] reported that none of the woody bulking agents they tested (woody biochar and wood chips) improved the compression resistance of the pellets made with composted pig solid fraction. However, they found that the pellets made with woody biochar and composted pig waste had higher durability than those made only with composted pig waste. According to Pampuro et al. [152], the greater durability of the woody biochar amended pellets was due to the low particle size of this material (<0.5 mm). The greater surface area of smaller particle promote sorption processes during the compaction for densification. Pampuro et al. [152] concluded that smaller particles enable the manufacturing of pellets of higher quality. Based on the results of Mudryk et al. [162], Jewiarz et al. [155] proposed the entire process for the production of this granular fertilizer. Although initial dewatering of the digestate was required, the greatest reduction of the moisture content, from 70% to 25%, was achieved in a direct contact drum dryer which employed the flue gases produced in the combustion of the biomass as a drying agent [155]. The process took advantage of the ash produced in the incineration but also it could employ the drying step to sanitize the digestate and to produce a pathogen-free material (i.e., biological stabilization). If the digestate contains a lot of fibrous material, the fragmentation is performed with a hammer mill after the drying. The process could be improved by blending the digestate with the biomass ash before the drying of the digestate. In this way, the absorption of the CO2 and other components of the flue gases in contact with the liquid blend with high pH could be possible, given the high alkalinity of the wood ashes and that this material represented up to 75% of the final product. According to the description of the process provided by Jewiarz et al. [155], the blend should solidify for 3 h before the granulation. Steenari & Lindqvist [157] explained that curing the WA is necessary because the reactive oxides and soluble salts might negatively affect plants (e.g., pH shock and burning tissues) if the untreated WA is applied directly to land. Additionally, Jewiarz et al. [155] suggested inoculating the fungi Trichoderm to enhance nitrogen assimilation by the plants, although this biofertilizer cannot be in the same blend containing the ash because it would not survive at a high pH.

3.5. Inoculation of Biofertilizers in the Blended Fertilizer Prepared with Anaerobic Digestate and WA

After the removal of the pathogens by processing the anaerobic digestate with WA [163], it is possible to inoculate microbial species [164], which enhances the fertilizing effect of the blended fertilizer [155]. These microbes regarded as biofertilizers are divided into four categories [165]. The following are some examples of microbial species that can improve the fertilization in the rhizosphere:
  • Vascular Arbuscular Mycorrhiza fungus:
    Glomus mosseae [165,166].
    Glomus intraradices [165].
    Glomus fasciculatum [166].
  • N-fixer bacterias can be symbiotic and non-symbiotic:
    Azotobacter chroococcum [165,167].
    Azospirillum lipoferum [167].
    Azospirillum brasilense [166,167].
  • Phosphate-solubilizing bacteria:
    Bacillus megatherium [165,167].
  • Potassium-solubilizing bacteria:
    Bacillus mucilaginous [165].
Mahfouz & Shamf-Eldin [167] concluded that the growth of the plant Fennel (Foeniculum vulgare Mill.) was greater when using half the recommended dose of the NPK mineral fertilizer (i.e., synthetic material containing nitrogen, phosphorus, and potassium) and a mixture of Azotobacter chroococcum, Azospirillum lipoferum, and Bacillus megatherium, compared to the full NPK dose. The total carbohydrates in the dry plant material were impacted by the use of the mixture of biofertilizers. Similarly, the biofertilizers also increase the yield of essential oil in the plant [167]. According to Brar et al. [168], the best physical properties of the soil (e.g., water infiltration) and highest crop yield in maize-wheat rotation were obtained using a balanced application of mineral fertilizers and organic farmyard manure [168]. In addition to greater crop growth, better fertilization is also associated with less greenhouse gas emissions since the nutrients are employed more efficiently once the organic material is applied to the soil [169].

4. Conclusions

There are many possibilities for employing the WA as an anaerobic digestate additive. The treatments described in this manuscript ranged from enhancing anaerobic fermentation in order to reach the correct levels of stability and maturity to improving the properties of organic amendment as a controlled-release fertilizer, with additional processing steps after the biodigester. It remains to completely link the WA dose employed for the AD (up to 1 g TS ash/g TS digestate) with the purpose of the subsequent processing stage. Considering all the possible synergies that could surge from treating the anaerobic digestate with the WA, an approximate dose of 5 g TS WA/g TS anaerobic digestate is proposed for future experiments on the manufacturing of a granular fertilizer with the best mechanical properties (e.g., compressibility strength, durability, etc.).

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/pr10010147/s1, Figure S1: Setup employed by Lo et al. [35]; Figure S2: Process flow diagram of the study of Bauer at el. [38]; Figure S3: Process flow diagram of the study of Cimon et al. [39]; Figure S4: Profile of maturity of anaerobic digestate as per the results of Wang et al. [58]; Figure S5: Inhibited BMP test due to high COD described by Banks et al. [47,48]; Figure S6: Inhibited BMP test due to low S/I described by Banks et al. [47,48]; Figure S7: Summary of the BMP results with biochar and WA reported by of Cimon et al. [39]; Table S1: Upper limit of heavy metals for anaerobic digestate and PLA established in UK regulations [46,84]; Table S2: Blending ration of WA and anaerobic digestate as per the UK regulations.

Author Contributions

Conceptualization, A.M.A. and F.A.; resources, F.A.; data curation, A.M.A.; writing—original draft preparation, A.M.A.; writing—review and editing, F.A.; funding acquisition, F.A. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Engineering and Physical Sciences Research Council (EPSRC), grant number EP/N509504/1, and the Natural Environment Research Council (NERC), grant number NE/L014122/1, of the United Kingdom.

Institutional Review Board Statement

Not appilable.

Informed Consent Statement

Not appilable.

Data Availability Statement

Not appilable.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in designing the study; with the collection, analyses, or interpretation of data; with the writing of the manuscript, or in the decision to publish the results.

Abbreviations

NH4+-Nammoniacal nitrogen
ADanaerobic digestion
BETBrunauer, Emmett, and Teller
BMPbiochemical methane potential
CUEcarbon use efficiency
C/Ncarbon-to-nitrogen mas ratio
CTABcetyltrimethylammonium bromide
CODchemical oxygen demand
EoWend-of-waste
CFAcoal fly ash
EPSextracellular polymeric substances
HRThydraulic retention time
MSWmunicipal solid waste
OLRorganic loading rate
Corgorganic carbon
SSsewage sludge
S/Isubstrate to inoculum ration
TStotal solids
VFAvolatile fatty acids
VSvolatile solids
WSwater-soluble
WAwood ash
WBAwood bottom ash
WBA-H2Owood bottom ash treated with de-ionized water
WBA-H2SO4wood bottom ash treated with sulfuric acid
WWTPwastewater treatment plant

References

  1. Banwart, S. Save our soils. Nature 2011, 474, 151–152. [Google Scholar] [CrossRef][Green Version]
  2. Elser, J.; Bennett, E. A broken biogeochemical cycle. Nature 2011, 478, 29–31. [Google Scholar] [CrossRef]
  3. Vaccari, D.A. Phosphorus: A Looming Crisis. Sci. Am. 2009, 300, 54–59. [Google Scholar] [CrossRef] [PubMed]
  4. Cordell, D.; Drangert, J.O.; White, S. The story of phosphorus: Global food security and food for thought. Glob. Environ. Chang. 2009, 19, 292–305. [Google Scholar] [CrossRef]
  5. Hsu, E. Cost-benefit analysis for recycling of agricultural wastes in Taiwan. Waste Manag. 2021, 120, 424–432. [Google Scholar] [CrossRef]
  6. European Parliament. Directive 2018/851 Amending Directive 2008/98/EC on Waste Framework. Available online: https://eur-lex.europa.eu/legal-content/EN/TXT/?uri=uriserv:OJ.L.2018.150.01.0109.01.ENG (accessed on 14 December 2021).
  7. Corden, C.; Bougas, K.; Cunningham, E.; Tyrer, D.; Kreißig, J.; Zetti, E.; Gamero, E.; Wildey, R.; Crookes, M. Digestate and Compost as Fertilisers: Risk Assessment and Risk Management Options. Available online: https://ec.europa.eu/environment/chemicals/reach/pdf/40039%20Digestate%20and%20Compost%20RMOA%20-%20Final%20report%20i2_20190208.pdf (accessed on 14 December 2021).
  8. Saveyn, H.; Eder, P. End-of-Waste Criteria for Biodegradable Waste Subjected to Biological Treatment (Compost & Digestate): Technical Proposals. Available online: https://publications.jrc.ec.europa.eu/repository/handle/JRC87124 (accessed on 14 December 2021).
  9. Victor, L. AD and Composting Industry Market Survey Report 2020. Available online: https://wrap.org.uk/sites/default/files/2021-01/AD%20%26%20Composting%20Market%20Survey%20Report.pdf (accessed on 14 December 2021).
  10. Wood, E.; James, K.; Barker, E. Comparison of the Environmental Impacts of Nitrogenous Materials. Available online: https://wrap.org.uk/sites/default/files/2021-01/Nitrogenous%20Materials%20Report%202020.pdf (accessed on 14 December 2021).
  11. Klages, S.; Heidecke, C.; Osterburg, B.; Bailey, J.; Calciu, I.; Casey, C.; Dalgaard, T.; Frick, H.; Glavan, M.; D’Haene, K.; et al. Nitrogen Surplus—A Unified Indicator for Water Pollution in Europe? Water 2020, 12, 1197. [Google Scholar] [CrossRef][Green Version]
  12. Blumenthal, K. Generation and Treatment of Municipal Waste. Available online: https://op.europa.eu/en/publication-detail/-/publication/bd8a43dc-8076-4134-987d-c3081c8311e8 (accessed on 14 December 2021).
  13. Hou, Y.; Velthof, G.L.; Case, S.D.C.; Oelofse, M.; Grignani, C.; Balsari, P.; Zavattaro, L.; Gioelli, F.; Bernal, M.P.; Fangueiro, D.; et al. Stakeholder perceptions of manure treatment technologies in Denmark, Italy, the Netherlands and Spain. J. Clean. Prod. 2018, 172, 1620–1630. [Google Scholar] [CrossRef]
  14. Holm-Nielsen, J.B.; Al Seadi, T.; Oleskowicz-Popiel, P. The future of anaerobic digestion and biogas utilization. Bioresour. Technol. 2009, 100, 5478–5484. [Google Scholar] [CrossRef] [PubMed]
  15. Bond, T.; Templeton, M.R. History and future of domestic biogas plants in the developing world. Energy Sustain. Dev. 2011, 15, 347–354. [Google Scholar] [CrossRef]
  16. Dagnall, S. UK strategy for centralised anaerobic digestion. Bioresour. Technol. 1995, 52, 275–280. [Google Scholar] [CrossRef]
  17. Madsen, M.; Holm-Nielsen, J.B.; Esbensen, K.H. Monitoring of anaerobic digestion processes: A review perspective. Renew. Sustain. Energy Rev. 2011, 15, 3141–3155. [Google Scholar] [CrossRef][Green Version]
  18. Vassilev, S.V.; Baxter, D.; Vassileva, C.G. An overview of the behaviour of biomass during combustion: Part I. Phase-mineral transformations of organic and inorganic matter. Fuel 2013, 112, 391–449. [Google Scholar] [CrossRef]
  19. Pitman, R.M. Wood ash use in forestry—A review of the environmental impacts. Forestry 2006, 79, 563–588. [Google Scholar] [CrossRef][Green Version]
  20. UK Forestry Commission. Forestry Statistics. Available online: https://www.forestresearch.gov.uk/tools-and-resources/statistics/forestry-statistics/forestry-statistics-2016-introduction/ (accessed on 14 December 2021).
  21. UK Quality Ash Association. UKQAA Ash Availability Report. Available online: http://www.ukqaa.org.uk/information/statistics/ (accessed on 14 December 2021).
  22. UK Quality Ash Association. About Us. Available online: http://www.ukqaa.org.uk/about/ (accessed on 14 December 2021).
  23. Andersson, L. Regular Recycling of Wood Ash to Prevent Waste Production. RecAsh. Available online: https://www.osti.gov/etdeweb/servlets/purl/20886561 (accessed on 14 December 2021).
  24. Guerrero, L.; Da Silva, C.; Barahona, A.; Montalvo, S.; Huiliñir, C.; Borja, R.; Peirano, C.; Toledo, M.; Carvajal, A. Fly ash as stimulant for anaerobic digestion: Effect over hydrolytic stage and methane generation rate. Water Sci. Technol. 2019, 80, 1384–1391. [Google Scholar] [CrossRef]
  25. Fernández-Delgado Juárez, M.; Waldhuber, S.; Knapp, A.; Partl, C.; Gómez-Brandón, M.; Insam, H. Wood ash effects on chemical and microbiological properties of digestate- and manure-amended soils. Biol. Fertil. Soils 2013, 49, 575–585. [Google Scholar] [CrossRef]
  26. Ibeto, C.N.; Lag-Brotons, A.J.; Marshall, R.; Semple, K.T. The Nutritional Effects of Digested and Undigested Organic Wastes Combined with Wood Ash Amendments on Carrot Plants. J. Soil Sci. Plant Nutr. 2020, 20, 460–472. [Google Scholar] [CrossRef]
  27. Fenton, O. Chemical Amendment of Slurry to Control Phosphorus Losses in Runoff. Available online: https://www.teagasc.ie/media/website/publications/2011/5669-Chemical-Amendment-of-Slurry.pdf (accessed on 14 December 2021).
  28. Zheng, Y.; Ke, L.; Xia, D.; Zheng, Y.; Wang, Y.; Li, H.; Li, Q. Enhancement of digestates dewaterability by CTAB combined with CFA pretreatment. Sep. Purif. Technol. 2016, 163, 282–289. [Google Scholar] [CrossRef]
  29. Pesonen, J.; Kuokkanen, V.; Kuokkanen, T.; Illikainen, M. Co-granulation of bio-ash with sewage sludge and lime for fertilizer use. J. Environ. Chem. Eng. 2016, 4, 4817–4821. [Google Scholar] [CrossRef]
  30. Appels, L.; Lauwers, J.; Degrve, J.; Helsen, L.; Lievens, B.; Willems, K.; Van Impe, J.; Dewil, R. Anaerobic digestion in global bio-energy production: Potential and research challenges. Renew. Sustain. Energy Rev. 2011, 15, 4295–4301. [Google Scholar] [CrossRef]
  31. Alavi-Borazjani, S.A.; Capela, I.; Tarelho, L.A.C. Valorization of biomass ash in biogas technology: Opportunities and challenges. Energy Rep. 2020, 6, 472–476. [Google Scholar] [CrossRef]
  32. Alavi-Borazjani, S.A.; Tarelho, L.A.C.; Capela, I. A Brief Overview on the Utilization of Biomass Ash in Biogas Production and Purification. Waste Biomass Valorization 2021, 12, 6375–6388. [Google Scholar] [CrossRef]
  33. Adeyanju, A.A. Effect of seeding of wood-ash on biogas production using pig waste and cassava peels. J. Eng. Appl. Sci. 2008, 3, 242–245. [Google Scholar]
  34. Onwosi, C.O.; Okereke, G.U. Effect of water dilution and nutrient supplements (wood ash, urea and poultry droppings) on biogas production from brewers spent grain. In Current Research Topics in Applied Microbiology and Microbial Biotechnology; World Scientific: Seville, Spain, 2009; pp. 232–235. [Google Scholar] [CrossRef]
  35. Lo, H.M.; Liu, M.H.; Pai, T.Y.; Liu, W.F.; Lin, C.Y.; Wang, S.C.; Banks, C.J.; Hung, C.H.; Chiang, C.F.; Lin, K.C.; et al. Biostabilization assessment of MSW co-disposed with MSWI fly ash in anaerobic bioreactors. J. Hazard. Mater. 2009, 162, 1233–1242. [Google Scholar] [CrossRef] [PubMed]
  36. Lo, H.M.; Kurniawan, T.A.; Sillanpää, M.E.T.; Pai, T.Y.; Chiang, C.F.; Chao, K.P.; Liu, M.H.; Chuang, S.H.; Banks, C.J.; Wang, S.C.; et al. Modeling biogas production from organic fraction of MSW co-digested with MSWI ashes in anaerobic bioreactors. Bioresour. Technol. 2010, 101, 6329–6335. [Google Scholar] [CrossRef] [PubMed]
  37. Podmirseg, S.M.; Seewald, M.S.A.; Knapp, B.A.; Bouzid, O.; Biderre-Petit, C.; Peyret, P.; Insam, H. Wood ash amendment to biogas reactors as an alternative to landfilling? A preliminary study on changes in process chemistry and biology. Waste Manag. Res. 2013, 31, 829–842. [Google Scholar] [CrossRef] [PubMed]
  38. Bauer, T.; Pelkonen, M.; Lagerkvist, A. Co-digestion of sewage sludge and wood fly ash. Environ. Technol. 2020, 9, 106564. [Google Scholar] [CrossRef] [PubMed]
  39. Cimon, C.; Kadota, P.; Eskicioglu, C. Effect of biochar and wood ash amendment on biochemical methane production of wastewater sludge from a temperature phase anaerobic digestion process. Bioresour. Technol. 2020, 297, 122440. [Google Scholar] [CrossRef]
  40. Bachmann, N. Design and engineering of biogas plants. In The Biogas Handbook: Science, Production, and Applications; Elsevier: Amsterdam, The Netherlands, 2013; pp. 191–211. [Google Scholar] [CrossRef]
  41. Linke, B. Kinetic study of thermophilic anaerobic digestion of solid wastes from potato processing. Biomass Bioenergy 2006, 30, 892–896. [Google Scholar] [CrossRef]
  42. Alburquerque, J.A.; de la Fuente, C.; Bernal, M.P. Chemical properties of anaerobic digestates affecting C and N dynamics in amended soils. Agric. Ecosyst. Environ. 2012, 160, 15–22. [Google Scholar] [CrossRef]
  43. Astals, S.; Nolla-Ardèvol, V.; Mata-Alvarez, J. Thermophilic co-digestion of pig manure and crude glycerol: Process performance and digestate stability. J. Biotechnol. 2013, 166, 97–104. [Google Scholar] [CrossRef]
  44. Bernal, M.P.; Alburquerque, J.A.; Moral, R. Composting of animal manures and chemical criteria for compost maturity assessment. A review. Bioresour. Technol. 2009, 100, 5444–5453. [Google Scholar] [CrossRef]
  45. Strosser, E. Methods for determination of labile soil organic matter: An overview. J. Agrobiol. 2011, 27, 49–60. [Google Scholar] [CrossRef]
  46. WRAP. BSI PAS 110:2014 Specification for Whole Digestate, Separated Liquor and Separated Fibre Derived from the Anaerobic Digestion of Source-Segregated Biodegradable Materials. 2014. Available online: https://wrap.org.uk/resources/guide/bsi-pas-110-producing-quality-anaerobic-digestate (accessed on 5 January 2022).
  47. Banks, C.J.; Haeven, S.; Zhang, Y.; Sapp, M. Review of the Application of the Residual Biogas Potential Test. Available online: http://www.organics-recycling.org.uk/uploads/article2652/PAS110%20digestate%20stability%20review.pdf (accessed on 14 December 2021).
  48. Walker, M.; Banks, C.; Heaven, S.; Frederickson, J. Residual Biogas Potential Test for Digestates. Available online: https://www.wrap.org.uk/sites/files/wrap/Residual%20Biogas%20Potential.pdf (accessed on 28 February 2017).
  49. Astals, S.; Nolla-Ardèvol, V.; Mata-Alvarez, J. Anaerobic co-digestion of pig manure and crude glycerol at mesophilic conditions: Biogas and digestate. Bioresour. Technol. 2012, 110, 63–70. [Google Scholar] [CrossRef]
  50. Dijkstra, P.; Salpas, E.; Fairbanks, D.; Miller, E.B.; Hagerty, S.B.; Jan, K.; Groenigen, V.; Hungate, B.A.; Marks, J.C.; Koch, G.W.; et al. High carbon use efficiency in soil microbial communities is related to balanced growth, not storage compound synthesis. Soil Biol. Biochem. 2015, 89, 35–43. [Google Scholar] [CrossRef][Green Version]
  51. Geyer, K.M.; Kyker-Snowman, E.; Grandy, A.S.; Frey, S.D. Microbial carbon use efficiency: Accounting for population, community, and ecosystem-scale controls over the fate of metabolized organic matter. Biogeochemistry 2016, 127, 173–188. [Google Scholar] [CrossRef][Green Version]
  52. Manzoni, S.; Taylor, P.; Richter, A.; Porporato, A. Environmental and stoichiometric controls on microbial carbon-use efficiency in soils. New Phytol. 2012, 196, 79–91. [Google Scholar] [CrossRef]
  53. Sinsabaugh, R.L.; Manzoni, S.; Moorhead, D.L.; Richter, A. Carbon use efficiency of microbial communities: Stoichiometry, methodology and modelling. Ecol. Lett. 2013, 16, 930–939. [Google Scholar] [CrossRef]
  54. UK Government. Quality Protocol: Compost—End of Waste Criteria for the Production and Use of Quality Compost from Source-Segregated Biodegradable Waste. Available online: https://www.gov.uk/government/publications/quality-protocol-for-the-production-and-use-of-compost-from-waste (accessed on 14 December 2021).
  55. WRAP. PAS 100:2011 Specification for Composted Materials. Available online: http://www.organics-recycling.org.uk/page.php?article=3483#:~:text=PAS%20100%3A2018%20requires%20producers%20to%20set%20up%20a,also%20relates%20to%20the%20new%20%C3%82%C2%91compost%20quality%C3%82%C2%92%20clause (accessed on 15 December 2021).
  56. Wang, X.; Yang, G.; Feng, Y.; Ren, G.; Han, X. Optimizing feeding composition and carbon—nitrogen ratios for improved methane yield during anaerobic co-digestion of dairy, chicken manure and wheat straw. Bioresour. Technol. 2012, 120, 78–83. [Google Scholar] [CrossRef]
  57. Rincón, B.; Borja, R.; González, J.M.; Portillo, M.C.; Sáiz-Jiménez, C. Influence of organic loading rate and hydraulic retention time on the performance, stability and microbial communities of one-stage anaerobic digestion of two-phase olive mill solid residue. Biochem. Eng. J. 2008, 40, 253–261. [Google Scholar] [CrossRef]
  58. Angelidaki, I.; Alves, M.; Bolzonella, D.; Borzacconi, L.; Campos, J.L.; Guwy, A.J.; Kalyuzhnyi, S.; Jenicek, P.; Van Lier, J.B. Defining the biomethane potential (BMP) of solid organic wastes and energy crops: A proposed protocol for batch assays. Water Sci. Technol. 2009, 59, 927–934. [Google Scholar] [CrossRef] [PubMed][Green Version]
  59. Mannina, G.; Presti, D.; Montiel-Jarillo, G.; Carrera, J.; Suárez-Ojeda, M.E. Recovery of polyhydroxyalkanoates (PHAs) from wastewater: A review. Bioresour. Technol. 2020, 297, 122478. [Google Scholar] [CrossRef] [PubMed]
  60. Richards, S.; Marshall, R.; Lag-Brotons, A.J.; Semple, K.T.; Stutter, M. Phosphorus solubility changes following additions of bioenergy wastes to an agricultural soil: Implications for crop availability and environmental mobility. Geoderma 2021, 401, 115150. [Google Scholar] [CrossRef]
  61. Möller, K.; Müller, T. Effects of anaerobic digestion on digestate nutrient availability and crop growth: A review. Eng. Life Sci. 2012, 12, 242–257. [Google Scholar] [CrossRef]
  62. Laohaprapanon, S.; Marques, M.; Hogland, W. Removal of organic pollutants from wastewater using wood fly ash as a low-cost sorbent. Clean—Soil Air Water 2010, 38, 1055–1061. [Google Scholar] [CrossRef]
  63. Leechart, P.; Nakbanpote, W.; Thiravetyan, P. Application of ‘waste’ wood-shaving bottom ash for adsorption of azo reactive dye. J. Environ. Manag. 2009, 90, 912–920. [Google Scholar] [CrossRef]
  64. Forbes, M.S.; Raison, R.J.; Skjemstad, J.O. Formation, transformation and transport of black carbon (charcoal) in terrestrial and aquatic ecosystems. Sci. Total Environ. 2006, 370, 190–206. [Google Scholar] [CrossRef] [PubMed]
  65. Zimmerman, A.R.; Gao, B.; Ahn, M.Y. Positive and negative carbon mineralization priming effects among a variety of biochar-amended soils. Soil Biol. Biochem. 2011, 43, 1169–1179. [Google Scholar] [CrossRef]
  66. Menon, A.; Wang, J.Y.; Giannis, A. Optimization of micronutrient supplement for enhancing biogas production from food waste in two-phase thermophilic anaerobic digestion. Waste Manag. 2017, 59, 465–475. [Google Scholar] [CrossRef]
  67. Romero-Güiza, M.S.; Vila, J.; Mata-Alvarez, J.; Chimenos, J.M.; Astals, S. The role of additives on anaerobic digestion: A review. Renew. Sustain. Energy Rev. 2016, 58, 1486–1499. [Google Scholar] [CrossRef]
  68. AECOM Inc.; Metcal & Eddy Inc. Fundamentals of biological treatment. In Wastewater Engineering: Treatment and Resource Recovery, 5th ed.; Tchobanoglous, G., Stensel, H.D., Tsuchihashi, R., Burton, F., Eds.; Mc Graw Hill: New York, NY, USA, 2014; p. 576. [Google Scholar]
  69. Shanmugam, P.; Horan, N.J. Simple and rapid methods to evaluate methane potential and biomass yield for a range of mixed solid wastes. Bioresour. Technol. 2009, 100, 471–474. [Google Scholar] [CrossRef]
  70. Traversi, D.; Villa, S.; Lorenzi, E.; Degan, R.; Gilli, G. Application of a real-time qPCR method to measure the methanogen concentration during anaerobic digestion as an indicator of biogas production capacity. J. Environ. Manag. 2012, 111, 173–177. [Google Scholar] [CrossRef] [PubMed]
  71. Vance, E.D.; Brookes, P.C.; Jenkinson, D.S. An extraction method for measuring soil microbial biomass C. Soil Biol. Biochem. 1987, 19, 703–707. [Google Scholar] [CrossRef]
  72. Seadon, J.K. Sustainable waste management systems. J. Clean. Prod. 2010, 18, 1639–1651. [Google Scholar] [CrossRef]
  73. Zhang, Q.; Liu, Z.; Petracchini, F.; Lu, C.; Li, Y.; Zhang, Z.; Paolini, V.; Zhang, H. Preparation of Slow-Release Insecticides from Biogas Slurry: Effectiveness of Ion Exchange Resin in the Adsorption and Release of Ammonia Nitrogen. Processes 2021, 9, 1461. [Google Scholar] [CrossRef]
  74. Limoli, A.; Langone, M.; Andreottola, G. Ammonia removal from raw manure digestate by means of a turbulent mixing stripping process. J. Environ. Manag. 2016, 176, 1–10. [Google Scholar] [CrossRef] [PubMed]
  75. Vaneeckhaute, C.; Lebuf, V.; Michels, E.; Belia, E.; Vanrolleghem, P.A.; Tack, F.M.G.; Meers, E. Nutrient Recovery from Digestate: Systematic Technology Review and Product Classification. Waste Biomass Valorization 2017, 8, 21–40. [Google Scholar] [CrossRef][Green Version]
  76. Abbas, Y.; Yun, S.; Wang, K.; Ali Shah, F.; Xing, T.; Li, B. Static-magnetic-field coupled with fly-ash accelerant: A powerful strategy to significantly enhance the mesophilic anaerobic-co-digestion. Bioresour. Technol. 2021, 327, 124793. [Google Scholar] [CrossRef] [PubMed]
  77. Huang, H.; Zhang, D.D.; Li, J.; Guo, G.; Tang, S. Phosphate recovery from swine wastewater using plant ash in chemical crystallization. J. Clean. Prod. 2017, 168, 338–345. [Google Scholar] [CrossRef]
  78. Bougnom, B.P.; Niederkofler, C.; Knapp, B.A.; Stimpfl, E.; Insam, H. Residues from renewable energy production: Their value for fertilizing pastures. Biomass Bioenergy 2012, 39, 290–295. [Google Scholar] [CrossRef]
  79. Miranda, C.; Soares, A.S.; Coelho, A.C.; Trindade, H.; Teixeira, C.A. Environmental implications of stored cattle slurry treatment with sulphuric acid and biochar: A life cycle assessment approach. Environ. Res. 2021, 194, 110640. [Google Scholar] [CrossRef]
  80. Brennan, R.B.; Healy, M.G.; Fenton, O.; Lanigan, G.J. The effect of chemical amendments used for phosphorus abatement on greenhouse gas and ammonia emissions from dairy cattle slurry: Synergies and pollution swapping. PLoS ONE 2015, 10, e0111965. [Google Scholar] [CrossRef][Green Version]
  81. Regueiro, I.; Coutinho, J.; Fangueiro, D. Alternatives to sulfuric acid for slurry acidification: Impact on slurry composition and ammonia emissions during storage. J. Clean. Prod. 2016, 131, 296–307. [Google Scholar] [CrossRef]
  82. Regueiro, I.; Coutinho, J.; Gioelli, F.; Balsari, P.; Dinuccio, E.; Fangueiro, D. Acidification of raw and co-digested pig slurries with alum before mechanical separation reduces gaseous emission during storage of solid and liquid fractions. Agric. Ecosyst. Environ. 2016, 227, 42–51. [Google Scholar] [CrossRef]
  83. UK Government. Quality Protocol of Anaerobic Digestate. End of Waste Criteria for the Production and Use of Quality Outputs from Anaerobic Digestion of Source-Segregated Biodegradable Waste. Available online: https://www.gov.uk/government/publications/quality-protocol-anaerobic-digestate (accessed on 14 December 2021).
  84. UK Government. Quality Protocol Poultry Litter Ash. End of Waste Criteria for the Production and Use of Treated Ash from the Incineration of Poultry Litter, Feathers and Straw. Available online: https://www.gov.uk/government/publications/quality-protocol-poultry-litter-ash (accessed on 14 December 2021).
  85. Moure Abelenda, A.; Semple, K.T.; Lag-Brotons, A.J.; Herbert, B.M.J.; Aggidis, G.; Aiouache, F. Effects of Wood Ash-Based Alkaline Treatment on Nitrogen, Carbon, and Phosphorus Availability in Food Waste and Agro-Industrial Waste Digestates. Waste Biomass Valorization 2020, 12, 3355–3370. [Google Scholar] [CrossRef]
  86. Moure Abelenda, A.; Semple, K.T.; Lag-Brotons, A.J.; Herbert, B.M.J.; Aggidis, G.; Aiouache, F. Kinetic study of the stabilization of an agro-industrial digestate by adding wood fly ash. Chem. Eng. J. Adv. 2021, 7, 100127. [Google Scholar] [CrossRef]
  87. Moure Abelenda, A.; Semple, K.T.; Lag-Brotons, A.J.; Herbert, B.M.J.; Aggidis, G.; Aiouache, F. Impact of sulphuric, hydrochloric, nitric, and lactic acids in the preparation of a blend of agro-industrial digestate and wood ash to produce a novel fertiliser. J. Environ. Chem. Eng. 2021, 9, 105021. [Google Scholar] [CrossRef]
  88. Moure Abelenda, A.; Semple, K.T.; Lag-Brotons, A.J.; Herbert, B.M.; Aggidis, G.; Aiouache, F. Alkaline Wood Ash, Turbulence, and Traps with Excess of Sulfuric Acid Do Not Strip Completely the Ammonia off an Agro-waste Digestate. Edelweiss Chem. Sci. J. 2021, 4, 19–24. [Google Scholar] [CrossRef]
  89. Jamali, M.K.; Kazi, T.G.; Arain, M.B.; Afridi, H.I.; Memon, A.R.; Jalbani, N.; SHAH, A. Use of Sewage Sludge After Liming as Fertilizer for Maize Growth. Pedosphere 2008, 18, 203–213. [Google Scholar] [CrossRef]
  90. Brennan, R.B.; Fenton, O.; Rodgers, M.; Healy, M.G. Evaluation of chemical amendments to control phosphorus losses from dairy slurry. Soil Use Manag. 2011, 27, 238–246. [Google Scholar] [CrossRef][Green Version]
  91. UK Government. Using Animal by-Products at Compost and Biogas Sites. Available online: https://www.gov.uk/guidance/using-animal-by-products-at-compost-and-biogas-sites (accessed on 14 December 2021).
  92. Kim, M.; Ahn, Y.H.; Speece, R.E. Comparative process stability and efficiency of anaerobic digestion; mesophilic vs. thermophilic. Water Res. 2002, 36, 4369–4385. [Google Scholar] [CrossRef]
  93. AECOM Inc.; Metcalf & Eddy Inc. Advanced alkaline stabilisation technologies. In Wastewater Engineering: Treatment and Resource Recovery, 5th ed.; Tchobanoglous, G., Stensel, H.D., Tsuchihashi, R., Burton, F., Eds.; Mc Graw Hill: New York, NY, USA, 2014; pp. 1501–1502. [Google Scholar]
  94. UK Government. Sewage Sludge in Agriculture: Code of Practice for England, Wales and Northern Ireland. Available online: https://www.gov.uk/government/publications/sewage-sludge-in-agriculture-code-of-practice/sewage-sludge-in-agriculture-code-of-practice-for-england-wales-and-northern-ireland (accessed on 14 December 2021).
  95. Kim, J.S.; Lee, Y.Y.; Kim, T.H. A review on alkaline pretreatment technology for bioconversion of lignocellulosic biomass. Bioresour. Technol. 2016, 199, 42–48. [Google Scholar] [CrossRef]
  96. Demeyer, A.; Voundi Nkana, J.C.; Verloo, M.G. Characteristics of wood ash and influence on soil properties and nutrient uptake: An overview. Bioresour. Technol. 2001, 77, 287–295. [Google Scholar] [CrossRef]
  97. Ribbing, C. Environmentally friendly use of non-coal ashes in Sweden. Waste Manag. 2007, 27, 1428–1435. [Google Scholar] [CrossRef] [PubMed]
  98. Nag, R.; Auer, A.; Nolan, S.; Russell, L.; Markey, B.K.; Whyte, P.; O’Flaherty, V.; Bolton, D.; Fenton, O.; Richards, K.G.; et al. Evaluation of pathogen concentration in anaerobic digestate using a predictive modelling approach (ADRISK). Sci. Total Environ. 2021, 800, 149574. [Google Scholar] [CrossRef] [PubMed]
  99. UK Government. Handling of Manure and Slurry to Reduce Antibiotic Resistance. Available online: https://www.gov.uk/guidance/handling-of-manure-and-slurry-to-reduce-antibiotic-resistance (accessed on 14 December 2021).
  100. Al-Mallahi, J.; Sürmeli, R.Ö.; Çalli, B. Recovery of phosphorus from liquid digestate using waste magnesite dust. J. Clean. Prod. 2020, 272, 122616. [Google Scholar] [CrossRef]
  101. Sakthivel, S.R.; Tilley, E.; Udert, K.M. Wood ash as a magnesium source for phosphorus recovery from source-separated urine. Sci. Total Environ. 2012, 419, 68–75. [Google Scholar] [CrossRef] [PubMed]
  102. Numviyimana, C.; Warchoł, J.; Ligas, B.; Chojnacka, K. Nutrients Recovery from Dairy Wastewater by Struvite Precipitation Combined with Ammonium Sorption on Clinoptilolite. Materials 2021, 14, 5822. [Google Scholar] [CrossRef]
  103. Laureni, M.; Palatsi, J.; Llovera, M.; Bonmatí, A. Influence of pig slurry characteristics on ammonia stripping efficiencies and quality of the recovered ammonium-sulfate solution. J. Chem. Technol. Biotechnol. 2013, 88, 1654–1662. [Google Scholar] [CrossRef]
  104. Ndegwa, P.M.; Vaddella, V.K.; Hristov, A.N.; Joo, H.S. Measuring Concentrations of Ammonia in Ambient Air or Exhaust Air Stream using Acid Traps. J. Environ. Qual. 2009, 38, 647–653. [Google Scholar] [CrossRef]
  105. Barrett, J. Periodicity of aqueous chemistry I: S- and p-block chemistry. In Inorganic Chemistry in Aqueous Solution; Barrett, J., Ed.; Royal Society of Chemistry: Cambridge, UK, 2003; pp. 98–123. [Google Scholar]
  106. Zumdahl, S.S. Peroxide Ion. Available online: https://www.britannica.com/science/peroxide-ion (accessed on 5 January 2022).
  107. Drapanauskaite, D.; Handler, R.M.; Fox, N.; Baltrusaitis, J. Transformation of Liquid Digestate from the Solid-Separated Biogas Digestion Reactor Effluent into a Solid NH4HCO3 Fertilizer: Sustainable Process Engineering and Life Cycle Assessment. ACS Sustain. Chem. Eng. 2021, 9, 580–588. [Google Scholar] [CrossRef]
  108. Jantsch, T.G.; Mattiasson, B. A simple spectrophotometric method based on pH-indicators for monitoring partial and total alkalinity in anaerobic processes. Environ. Technol. 2003, 24, 1061–1067. [Google Scholar] [CrossRef]
  109. Alburquerque, J.A.; de la Fuente, C.; Campoy, M.; Carrasco, L.; Nájera, I.; Baixauli, C.; Caravaca, F.; Roldán, A.; Cegarra, J.; Bernal, M.P. Agricultural use of digestate for horticultural crop production and improvement of soil properties. Eur. J. Agron. 2012, 43, 119–128. [Google Scholar] [CrossRef]
  110. Owamah, H.I.; Dahunsi, S.O.; Oranusi, U.S.; Alfa, M.I. Fertilizer and sanitary quality of digestate biofertilizer from the co-digestion of food waste and human excreta. Waste Manag. 2014, 34, 747–752. [Google Scholar] [CrossRef] [PubMed][Green Version]
  111. Tambone, F.; Scaglia, B.; D’Imporzano, G.; Schievano, A.; Orzi, V.; Salati, S.; Adani, F. Assessing amendment and fertilizing properties of digestates from anaerobic digestion through a comparative study with digested sludge and compost. Chemosphere 2010, 81, 577–583. [Google Scholar] [CrossRef]
  112. Alburquerque, J.A.; de la Fuente, C.; Ferrer-Costa, A.; Carrasco, L.; Cegarra, J.; Abad, M.; Bernal, M.P. Assessment of the fertiliser potential of digestates from farm and agroindustrial residues. Biomass Bioenergy 2012, 40, 181–189. [Google Scholar] [CrossRef]
  113. Mu, Z.X.; He, C.S.; Jiang, J.K.; Zhang, J.; Yang, H.Y.; Mu, Y. A modified two-point titration method for the determination of volatile fatty acids in anaerobic systems. Chemosphere 2018, 204, 251–256. [Google Scholar] [CrossRef]
  114. Guštin, S.; Marinšek-Logar, R. Effect of pH, temperature and air flow rate on the continuous ammonia stripping of the anaerobic digestion effluent. Process Saf. Environ. Prot. 2011, 89, 61–66. [Google Scholar] [CrossRef]
  115. Liu, L.; Pang, C.; Wu, S.; Dong, R. Optimization and evaluation of an air-recirculated stripping for ammonia removal from the anaerobic digestate of pig manure. Process Saf. Environ. Prot. 2015, 94, 350–357. [Google Scholar] [CrossRef]
  116. Drosg, B.; Fuchs, W.; Al Seadi, T.; Madsen, M.; Linke, B. Nutrient Recovery by Biogas Digestate Processing. Available online: http://task37.ieabioenergy.com/technical-brochures.html#form (accessed on 14 December 2021).
  117. Miles, A.; Ellis, T.G. Struvite precipitation potential for nutrient recovery from anaerobically treated wastes. Water Sci. Technol. 2001, 43, 259–266. [Google Scholar] [CrossRef]
  118. Campos, J.L.; Crutchik, D.; Franchi, Ó.; Pavissich, J.P.; Belmonte, M.; Pedrouso, A.; Mosquera-Corral, A.; Val del Río, Á. Nitrogen and Phosphorus Recovery from Anaerobically Pretreated Agro-Food Wastes: A Review. Front. Sustain. Food Syst. 2019, 2, 91. [Google Scholar] [CrossRef][Green Version]
  119. Escudero, A.; Blanco, F.; Lacalle, A.; Pinto, M. Struvite precipitation for ammonium removal from anaerobically treated effluents. J. Environ. Chem. Eng. 2015, 3, 413–419. [Google Scholar] [CrossRef]
  120. Prywer, J.; Sieroń, L.; Czylkowska, A. Struvite Grown in Gel, Its Crystal Structure at 90 K and Thermoanalytical Study. Crystals 2019, 9, 89. [Google Scholar] [CrossRef][Green Version]
  121. Schwarz, S.; Lunkwitz, K.; Keßler, B.; Spiegler, U.; Killmann, E.; Jaeger, W. Adsorption and stability of colloidal silica. Colloids Surf. A Physicochem. Eng. Asp. 2000, 163, 17–27. [Google Scholar] [CrossRef]
  122. Shah, I.; Adnan, R.; Ngah, W.S.W.; Mohamed, N. Iron impregnated activated carbon as an efficient adsorbent for the removal of methylene blue: Regeneration and kinetics studies. PLoS ONE 2015, 10, e0122603. [Google Scholar] [CrossRef] [PubMed][Green Version]
  123. Yagi, S.; Fukushi, K. Removal of phosphate from solution by adsorption and precipitation of calcium phosphate onto monohydrocalcite. J. Colloid Interface Sci. 2012, 384, 128–136. [Google Scholar] [CrossRef] [PubMed]
  124. Courtney, C.; Brison, A.; Randall, D.G. Calcium removal from stabilized human urine by air and CO2 bubbling. Water Res. 2021, 202, 117467. [Google Scholar] [CrossRef]
  125. Anukam, A.; Mohammadi, A.; Naqvi, M.; Granström, K. Methods of accelerating and optimizing process efficiency. Processes 2019, 7, 504. [Google Scholar] [CrossRef][Green Version]
  126. Fangueiro, D.; Hjorth, M.; Gioelli, F. Acidification of animal slurry—A review. J. Environ. Manag. 2015, 149, 46–56. [Google Scholar] [CrossRef]
  127. Mao, C.; Feng, Y.; Wang, X.; Ren, G. Review on research achievements of biogas from anaerobic digestion. Renew. Sustain. Energy Rev. 2015, 45, 540–555. [Google Scholar] [CrossRef]
  128. Hjorth, M.; Christensen, K.V.; Christensen, M.L.; Sommer, S.G. Solid-liquid separation of animal slurry in theory and practice. Sustain. Agric. 2009, 2, 953–986. [Google Scholar] [CrossRef]
  129. Shi, Y.; Parker, D.B.; Cole, N.A.; Auvermann, B.W.; Mehlhorn, J.E. Surface amendments to minimize ammonia emissions from beef cattle feedlots. Trans. Am. Soc. Agric. Eng. 2001, 44, 677–682. [Google Scholar] [CrossRef][Green Version]
  130. Vandré, R.; Clemens, J. Studies on the relationship between slurry pH, volatilization processes and the influence of acidifying additives. Nutr. Cycl. Agroecosyst. 1996, 47, 157–165. [Google Scholar] [CrossRef]
  131. Fan, M.; Brown, R.C.; Wheelock, T.D.; Cooper, A.T.; Nomura, M.; Zhuang, Y. Production of a complex coagulant from fly ash. Chem. Eng. J. 2005, 106, 269–277. [Google Scholar] [CrossRef]
  132. Kavanagh, I.; Burchill, W.; Healy, M.G.; Fenton, O.; Krol, D.J.; Lanigan, G.J. Mitigation of ammonia and greenhouse gas emissions from stored cattle slurry using acidifiers and chemical amendments. J. Clean. Prod. 2019, 237, 117822. [Google Scholar] [CrossRef]
  133. Fomenko, A.I.; Sokolov, L.I. A study of sorption of phosphate ions from aqueous solutions by wood ash. Russ. J. Appl. Chem. 2015, 88, 652–656. [Google Scholar] [CrossRef]
  134. Hamidi, N.H.; Ahmed, O.H.; Omar, L.; Ch’ng, H.Y. Soil Nitrogen Sorption Using Charcoal and Wood Ash. Agronomy 2021, 11, 1801. [Google Scholar] [CrossRef]
  135. Mosoarca, G.; Vancea, C.; Popa, S.; Boran, S.; Tanasie, C. A green approach for treatment of wastewater with manganese using wood ash. J. Chem. Technol. Biotechnol. 2020, 95, 1781–1789. [Google Scholar] [CrossRef]
  136. Rosenfeld, P.E.; Henry, C.L. Activated Carbon and Wood Ash Sorption of Wastewater, Compost, and Biosolids Odorants. Water Environ. Res. 2001, 73, 388–393. [Google Scholar] [CrossRef]
  137. Kavanagh, I.; Fenton, O.; Healy, M.G.; Burchill, W.; Lanigan, G.J.; Krol, D.J. Mitigating ammonia and greenhouse gas emissions from stored cattle slurry using agricultural waste, commercially available products and a chemical acidifier. J. Clean. Prod. 2021, 294, 126251. [Google Scholar] [CrossRef]
  138. Houba, V.J.G.; Temminghoff, E.J.M.; Gaikhorst, G.A.; van Vark, W. Soil analysis procedures using 0.01 M calcium chloride as extraction reagent. Commun. Soil Sci. Plant Anal. 2000, 31, 1299–1396. [Google Scholar] [CrossRef]
  139. Mor, S.; Chhoden, K.; Ravindra, K. Application of agro-waste rice husk ash for the removal of phosphate from the wastewater. J. Clean. Prod. 2016, 129, 673–680. [Google Scholar] [CrossRef]
  140. Park, N.D.; Michael Rutherford, P.; Thring, R.W.; Helle, S.S. Wood pellet fly ash and bottom ash as an effective liming agent and nutrient source for rye grass (Lolium perenne L.) and oats (Avena sativa). Chemosphere 2012, 86, 427–432. [Google Scholar] [CrossRef]
  141. Janiszewska, D.; Olchowski, R.; Nowicka, A.; Zborowska, M.; Marszałkiewicz, K.; Shams, M.; Giannakoudakis, D.A.; Anastopoulos, I.; Barczak, M. Activated biochars derived from wood biomass liquefaction residues for effective removal of hazardous hexavalent chromium from aquatic environments. GCB Bioenergy 2021, 13, 1247–1259. [Google Scholar] [CrossRef]
  142. Ma, Z.; Li, Q.; Yue, Q.; Gao, B.; Li, W.; Xu, X.; Zhong, Q. Adsorption removal of ammonium and phosphate from water by fertilizer controlled release agent prepared from wheat straw. Chem. Eng. J. 2011, 171, 1209–1217. [Google Scholar] [CrossRef]
  143. Awad, A.M.; Shaikh, S.M.R.; Jalab, R.; Gulied, M.H.; Nasser, M.S.; Benamor, A.; Adham, S. Adsorption of organic pollutants by natural and modified clays: A comprehensive review. Sep. Purif. Technol. 2019, 228, 115719. [Google Scholar] [CrossRef]
  144. Ronga, D.; Mantovi, P.; Pacchioli, M.T.; Pulvirenti, A.; Bigi, F.; Allesina, G.; Pedrazzi, S.; Tava, A.; Dal Prà, A. Combined effects of dewatering, composting and pelleting to valorize and delocalize livestock manure, improving agricultural sustainability. Agronomy 2020, 10, 661. [Google Scholar] [CrossRef]
  145. Dinuccio, E.; Balsari, P.; Berg, W. GHG emissions during the storage of rough pig slurry and the fractions obtained by mechanical separation. Aust. J. Exp. Agric. 2008, 48, 93–95. [Google Scholar] [CrossRef]
  146. Dinuccio, E.; Gioelli, F.; Balsari, P.; Dorno, N. Ammonia losses from the storage and application of raw and chemo-mechanically separated slurry. Agric. Ecosyst. Environ. 2012, 153, 16–23. [Google Scholar] [CrossRef][Green Version]
  147. Dinuccio, E.; Berg, W.; Balsari, P. Gaseous emissions from the storage of untreated slurries and the fractions obtained after mechanical separation. Atmos. Environ. 2008, 42, 2448–2459. [Google Scholar] [CrossRef][Green Version]
  148. Dinuccio, E.; Biagini, D.; Rosato, R.; Balsari, P.; Lazzaroni, C. Organic matter and nitrogen balance in rabbit fattening and gaseous emissions during manure storage and simulated land application. Agric. Ecosyst. Environ. 2019, 269, 30–38. [Google Scholar] [CrossRef]
  149. Gioelli, F.; Dinuccio, E.; Balsari, P. Residual biogas potential from the storage tanks of non-separated digestate and digested liquid fraction. Bioresour. Technol. 2011, 102, 10248–10251. [Google Scholar] [CrossRef] [PubMed]
  150. Gioelli, F.; Dinuccio, E.; Cuk, D.; Rollè, L.; Balsari, P. Acidification with sulfur of the separated solid fraction of raw and co-digested pig slurry: Effect on greenhouse gas and ammonia emissions during storage. Anim. Prod. Sci. 2016, 56, 343–349. [Google Scholar] [CrossRef]
  151. Balsari, P.; Airoldi, G.; Dinuccio, E.; Gioelli, F. Ammonia emissions from farmyard manure heaps and slurry stores-Effect of environmental conditions and measuring methods. Biosyst. Eng. 2007, 97, 456–463. [Google Scholar] [CrossRef]
  152. Pampuro, N.; Bagagiolo, G.; Priarone, P.C.; Cavallo, E. Effects of pelletizing pressure and the addition of woody bulking agents on the physical and mechanical properties of pellets made from composted pig solid fraction. Powder Technol. 2017, 311, 112–119. [Google Scholar] [CrossRef]
  153. Weigand, H.; Bertau, M.; Hübner, W.; Bohndick, F.; Bruckert, A. RecoPhos: Full-scale fertilizer production from sewage sludge ash. Waste Manag. 2013, 33, 540–544. [Google Scholar] [CrossRef]
  154. Fivelman, Q. ADFerTech: Granular Fertiliser from Anaerobic Digestate Liquor. Available online: http://www.adfertech.com/ (accessed on 14 December 2021).
  155. Jewiarz, M.; Wróbel, M.; Fraczek, J.; Mudryk, K.; Dziedzic, K. Digestate, ash and Trichoderm based fertilizer-production line concept design. MATEC Web Conf. 2018, 168, 04004. [Google Scholar] [CrossRef][Green Version]
  156. Chojnacka, K.; Moustakas, K.; Witek-Krowiak, A. Bio-based fertilizers: A practical approach towards circular economy. Bioresour. Technol. 2020, 295, 122223. [Google Scholar] [CrossRef] [PubMed]
  157. Steenari, B.M.; Lindqvist, O. Stabilisation of biofuel ashes for recycling to forest soil. Biomass Bioenergy 1997, 13, 39–50. [Google Scholar] [CrossRef]
  158. Illikainen, M.; Tanskanen, P.; Kinnunen, P.; Körkkö, M.; Peltosaari, O.; Wigren, V.; Österbacka, J.; Talling, B.; Niinimäki, J. Reactivity and self-hardening of fly ash from the fluidized bed combustion of wood and peat. Fuel 2014, 135, 69–75. [Google Scholar] [CrossRef]
  159. Zafari, A.; Hosein Kianmehr, M. Effect of Temperature, Pressure and Moisture Content on Durability of Cattle Manure Pellet in Open-end Die Method. J. Agric. Sci. 2012, 4, 203–208. [Google Scholar] [CrossRef]
  160. Alemi, H.; Kianmehr, M.H.; Borghaee, A.M. Effect of Pellet Processing of Fertilizer on Slow-Release Nitrogen in Soil. Asian J. Plant Sci. 2010, 9, 74–80. [Google Scholar] [CrossRef][Green Version]
  161. Rao, J.R.; Watabe, M.; Stewart, T.A.; Millar, B.C.; Moore, J.E. Pelleted organo-mineral fertilisers from composted pig slurry solids, animal wastes and spent mushroom compost for amenity grasslands. Waste Manag. 2007, 27, 1117–1128. [Google Scholar] [CrossRef] [PubMed]
  162. Mudryk, K.; Frączek, J.; Wróbel, M.; Jewiarz, M.; Dziedzic, K. Agglomeration of Ash-Based Fertilizer Mixtures from Biomass Combustion and Digestate. In Renewable Energy Sources: Engineering, Technology, Innovation; Krzysztof, M., Sebastian, W., Eds.; Springer: Cham, Switzerland, 2018; pp. 823–834. [Google Scholar]
  163. US EPA. Alkaline Stabilization of Biosolids. Available online: https://www.epa.gov/biosolids/fact-sheet-alkaline-stabilization-biosolids (accessed on 14 December 2021).
  164. Rajendran, K.; Devaraj, P. Biomass and nutrient distribution and their return of Casuarina equisetifolia inoculated with biofertilizers in farm land. Biomass Bioenergy 2004, 26, 235–249. [Google Scholar] [CrossRef]
  165. Wu, S.C.; Cao, Z.H.; Li, Z.G.; Cheung, K.C.; Wong, M.H. Effects of biofertilizer containing N-fixer, P and K solubilizers and AM fungi on maize growth: A greenhouse trial. Geoderma 2005, 125, 155–166. [Google Scholar] [CrossRef]
  166. Aseri, G.K.; Jain, N.; Panwar, J.; Rao, A.V.; Meghwal, P.R. Biofertilizers improve plant growth, fruit yield, nutrition, metabolism and rhizosphere enzyme activities of Pomegranate (Punica granatum L.) in Indian Thar Desert. Sci. Hortic. 2008, 117, 130–135. [Google Scholar] [CrossRef]
  167. Mahfouz, S.A.; Shamf-Eldin, M.A. Effect of mineral vs. biofertilizer on growth, yield, and essential oil content of fennel (Foeniculum vulgare Mill.). Int. Agrophysics 2007, 21, 361–366. [Google Scholar] [CrossRef][Green Version]
  168. Singh Brar, B.; Singh, J.; Singh, G.; Kaur, G. Effects of Long Term Application of Inorganic and Organic Fertilizers on Soil Organic Carbon and Physical Properties in Maize–Wheat Rotation. Agronomy 2015, 5, 220–238. [Google Scholar] [CrossRef]
  169. Johansen, A.; Carter, M.S.; Jensen, E.S.; Hauggard-Nielsen, H.; Ambus, P. Effects of digestate from anaerobically digested cattle slurry and plant materials on soil microbial community and emission of CO2 and N2O. Appl. Soil Ecol. 2013, 63, 36–44. [Google Scholar] [CrossRef]
Figure 1. Breakdown of the AD process. Modified from Madsen et al. [17]. Reproduced with permission of Renewable and Sustainable Energy Reviews (Elsevier).
Figure 1. Breakdown of the AD process. Modified from Madsen et al. [17]. Reproduced with permission of Renewable and Sustainable Energy Reviews (Elsevier).
Processes 10 00147 g001
Figure 3. Application of the concept of CUE from soil science to the AD process. The relation between the CUE and the C/N for terrestrial decomposers was taken from the Figure 1a of Sinsabaugh et al. [53]. Reproduced with the permission of Ecology Letters (John Wiley & Sons). The relation between the biogas yield, the methane yield, and the vs. removal with the C/N for the operation of a discontinuous reactor was taken from Figure 3 of Wang et al. [58], who carried out 30-day AD experiments with a S/I of 0.5 (expressed in terms of VS). Reproduced with the permission of Bioresource Technology (Elsevier).
Figure 3. Application of the concept of CUE from soil science to the AD process. The relation between the CUE and the C/N for terrestrial decomposers was taken from the Figure 1a of Sinsabaugh et al. [53]. Reproduced with the permission of Ecology Letters (John Wiley & Sons). The relation between the biogas yield, the methane yield, and the vs. removal with the C/N for the operation of a discontinuous reactor was taken from Figure 3 of Wang et al. [58], who carried out 30-day AD experiments with a S/I of 0.5 (expressed in terms of VS). Reproduced with the permission of Bioresource Technology (Elsevier).
Processes 10 00147 g003
Figure 4. Schematic block flow diagram of the proposed downstream processing of the anaerobic digestate with WA to produce a granular organic fertilizer (%TS = percentage of total solids). Elaborated considering the different treatments, synergies, and technologies that can be implemented with a blend of WA and anaerobic digestate [28,29,35,37,38,39,74,75].
Figure 4. Schematic block flow diagram of the proposed downstream processing of the anaerobic digestate with WA to produce a granular organic fertilizer (%TS = percentage of total solids). Elaborated considering the different treatments, synergies, and technologies that can be implemented with a blend of WA and anaerobic digestate [28,29,35,37,38,39,74,75].
Processes 10 00147 g004
Figure 5. Structure of the struvite represented by Prywer et al. [120]: the magnesium (green) is surrounded by 6 molecules of water (oxygen in red and hydrogen in white) and the nitrogen (blue) and the phosphorus (yellow). Using the coordinate system adopted by Prywer et al. [120] and the hydrogen-bond network marked with dotted lines. Reproduced with the permission of Crystals (MDPI).
Figure 5. Structure of the struvite represented by Prywer et al. [120]: the magnesium (green) is surrounded by 6 molecules of water (oxygen in red and hydrogen in white) and the nitrogen (blue) and the phosphorus (yellow). Using the coordinate system adopted by Prywer et al. [120] and the hydrogen-bond network marked with dotted lines. Reproduced with the permission of Crystals (MDPI).
Processes 10 00147 g005
Figure 7. Mechanism proposed by Zheng et al. [28] for the flocculation of the anaerobic digestate by adding a cationic surfactant (CTAB) and subsequent filtration using CFA to improve the drainage of the filter cake to achieve the dewatering. The CTAB neutralized the surface charges of the flocs of the anaerobic digestate and enabled the release of the hydrated extracellular polymeric substances (EPS). The CFA acted as a skeleton builder of the filter cake and enhanced the physical solid-liquid separation by decreasing the compressibility of the filter cake. Reprinted with the permission of Separation and Purification Technology (Elsevier).
Figure 7. Mechanism proposed by Zheng et al. [28] for the flocculation of the anaerobic digestate by adding a cationic surfactant (CTAB) and subsequent filtration using CFA to improve the drainage of the filter cake to achieve the dewatering. The CTAB neutralized the surface charges of the flocs of the anaerobic digestate and enabled the release of the hydrated extracellular polymeric substances (EPS). The CFA acted as a skeleton builder of the filter cake and enhanced the physical solid-liquid separation by decreasing the compressibility of the filter cake. Reprinted with the permission of Separation and Purification Technology (Elsevier).
Processes 10 00147 g007

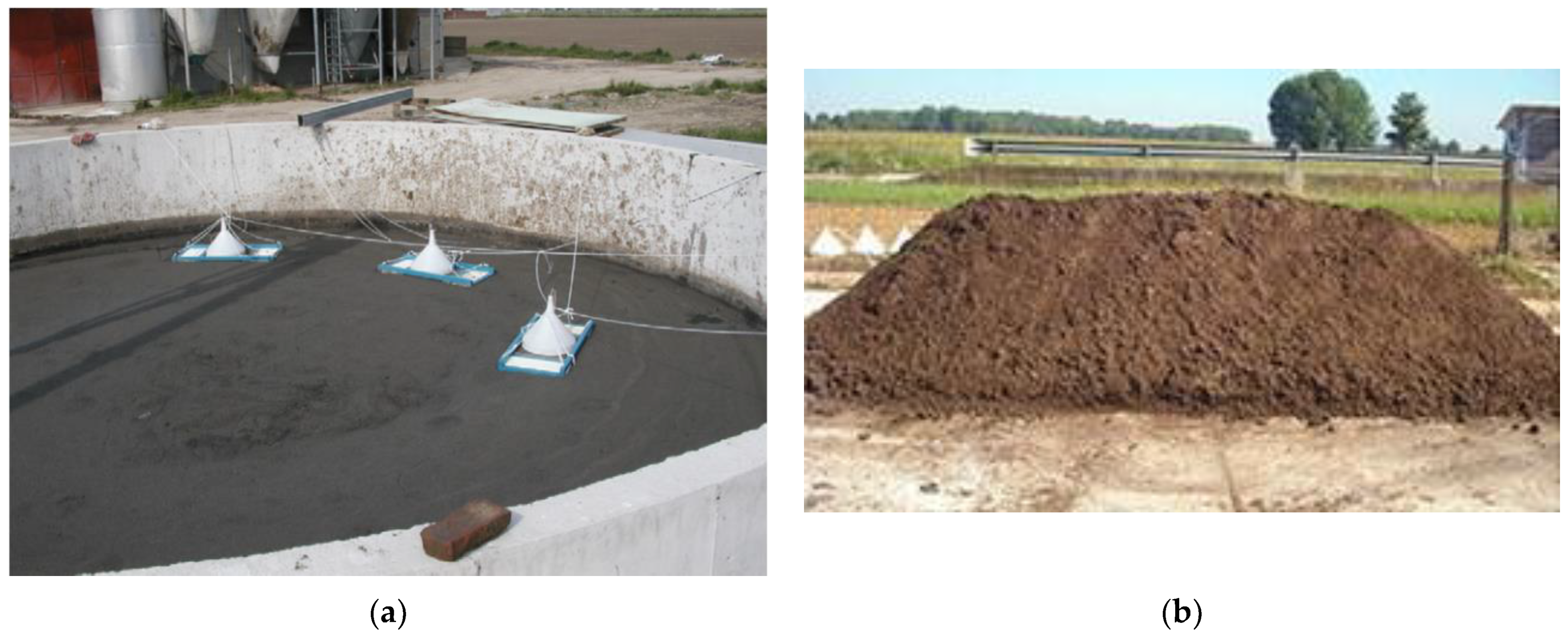

Figure 8. (a) Surface area of the liquid pig slurry (3.9% TS) in an open storage pond [151]. Reprinted with the permission of Biosystems Engineering (Elsevier). (b) Surface area of dewatered pig slurry (65.4% TS after composting without a bulking agent) [152]. Reprinted with the permission of Powder Technology (Elsevier).
Figure 8. (a) Surface area of the liquid pig slurry (3.9% TS) in an open storage pond [151]. Reprinted with the permission of Biosystems Engineering (Elsevier). (b) Surface area of dewatered pig slurry (65.4% TS after composting without a bulking agent) [152]. Reprinted with the permission of Powder Technology (Elsevier).
Processes 10 00147 g008
Table 1. Summary of the experimental studies on the use of WA in the AD.
Table 1. Summary of the experimental studies on the use of WA in the AD.
Reference
  • Type of Ash and Incinerator
  • Type of Substrate
  • Type of Anaerobic Digester
  • Ash Dose
  • Biogas Production
  • Composition of Anaerobic Digestate
[33]
  • Bauhina monandrina plant ash
  • Pig waste and cassava peel waste (25% w/v) and distilled water (75% w/v)
  • 45-day biochemical methane potential (BMP) experiment conducted in 2.8 L digesters
  • Ash seeding rate not specified
  • Ash-amended digester provided more than twice the biogas production during the 45-day incubation (2345 mL)
  • The pH of the digester sown with WA was 4.40, but the methanogen archaea were able to adapt to the acidic conditions of the digester media
[34]
  • Not specified type of WA
  • Brewery spent grains with rumen liquor
  • 1 L conical flasks with 100 g spent grains of 14 days of hydraulic retention time (HRT)
  • Ash to grains ratios 0:1, 1:5, 1:4, and 1:3. Several dilution ratios of the feedstock with water were tested (1:4, 1:6, 1:8, and 1:10 w/v)
  • Greatest release of biogas obtained with the lower feedstock to water ratio (1:4 w/v). Enhancement of biogas production: WA > poultry litter (PL) > urea
  • WA led to an initial increase in the carbon content, due to the accumulation of the VFA. Once the methanogenesis reached a stationary state, the carbon-to-nitrogen mass ratio (C/N) decreased, and an organic manure with better fertilizing properties than the initial feedstock of AD was obtained
[35]
Cited by the 3 articles below employing WA in AD
  • MSW fly ash from industrial incinerator 850–1050 °C. The flue gases were treated with semi-dry scrubber using Ca(OH)2 as a flushing agent, powdered carbon, and filter bag
  • Synthetic MSW substrate and anaerobic sludge seeding
  • 35 °C leaching/percolate (100 mL/day) bed reactor. A schematic diagram can be found in the Supplementary Material (Figure S1)
  • 0, 10 and 20 g MSW fly ash/L MSW (equivalent to 0.2 and 0.4 g/g vs. or 0.17 and 0.33 g/g TS, respectively)
  • Lo et al. [36] tested 100 g MSW bottom ash/L MSW, 2 g MSW bottom ash/g vs. or 1.67 g MSW bottom ash/g TS
  • Biogas production rate in ash-added digesters was higher than in control experiment (i.e., unamended BMP) but total yield followed the trend: 20 g/L > 0 g/L/ > 10 g/L > 100 g/L [36]
  • Drop in the pH due enhancement of the hydrolytic and acidogenic processes. After the 84 days of operation, a decrease of volatile solids (VS) and accumulation of the VFA due to a decrease of methanogenic activity
[37]
  • Wood bottom ash (WBA) 2 mm sieved and 105 °C dried
  • 2 mm sieved cattle slurry (5 weeks AD)
  • 1 L; 37 °C; 50 rpm; 20 day retention time.
  • 0 and 0.5 g ash/g total solids (TS), which is equivalent to 0.96 g WA/g vs. or 9.65 g WBA/L digested cattle slurry
  • Biogas stopped after the addition of ash, and higher production rates were found when the doe of ash decreased down to 0.25 g/g TS (0.48 g/g vs. or 4.83 g/L digested cattle slurry). The biogas increased the content of CH4
  • The ammoniacal nitrogen (NH4+-N) was not affected by the ash amendment but increased. With excessive ash dose, C/N increased due to the accumulation of VFA.
[38]
  • Wood fly ash from combined heat and power plant using wood residues as a fuel of a fluidized bed incinerator.
  • Thickened wastewater treatment plant (WWTP) sludge
  • 37 °C for 4 weeks. Schematic of the setup in the Supplementary Material (Figure S2)
  • 0, 0.4, 0.7 and 1 g ash/g vs. or 0, 0.28, 0.49, and 0.70 g ash/g TS or 0, 0.008, 0.015, 0.022 g ash/L, respectively
  • After 3 to 5 days, the production of biogas is comparable to the control experiment because the accumulation of VFA decreases the pH
  • The elevated pH at the beginning of the AD was responsible for the longer lag phase when adding the WA to the digester
[39]
  • Boiler ash granular (0.85–4.75 mm) and powdered (<0.075 mm): Conventional fixed grate biomass combustion system fueled by pine, spruce, and fir bark and some dry wood shavings
  • Fermented WWTP sludge
  • BMP at mesophilic conditions (38 °C). Schematic can be found in the Supplementary Material (Figure S3)
  • WA doses ranging from 0.16 to 3.7 g/g vs. fermented WWTP sludge, which is equivalent to 0.14 and 3.2 g ash/g TS or 5.72 and 133.94 g ash/L, respectively
  • WA increased the lag phase of AD and decreased the total biogas produced
  • WA accelerated the biodegradation of propionic and butyric acids. Even at a rate of 2.2 g ash/g VSsubstrate the WA poorly contributed to the total alkalinity; thus, the authors recommend using a buffer (e.g., 20 mmol/L Na2CO3 & KHCO3 even when adding the ash). The authors found that the granular WA was able to remove NH4+-N from the liquid phase due to adsorption via cation exchange
Table 2. Conditions to produce a sanitized digestate when using animal by-products (e.g., manure and slurry) as feedstock in AD [91].
Table 2. Conditions to produce a sanitized digestate when using animal by-products (e.g., manure and slurry) as feedstock in AD [91].
Minimum TemperatureMinimum TimeMaximum
57 °C5 h50 mm
Table 3. Implications of the activation treatments that affect the suitability for a particular application (e.g., preparation of a slow-release fertilizer, liming agent, recovery of nutrients from wastewater, etc.). Elaborated by considering the information of [62,63,100,122,140].
Table 3. Implications of the activation treatments that affect the suitability for a particular application (e.g., preparation of a slow-release fertilizer, liming agent, recovery of nutrients from wastewater, etc.). Elaborated by considering the information of [62,63,100,122,140].
Activation ProcedureCarbon ContentpHReactivity
CarbonizationIncreased, due to loss of volatile compounds containing H, O, S, and NSlightly increased, due to the accumulation of ash with alkali and alkaline elementsDecreased. Mainly charred materials and recalcitrant compounds
CarbonationIncrease, in the form of inorganic carbonDecrease, due to the neutralization of the alkaline element with carbonic acidDecreased because carbonates are less soluble than oxides.
CalcinationDecrease, since all volatile compounds have already been lost in the carbonizationIncrease, due to the release of CO2Increase, due to the formation of oxides
AcidificationDecrease, due to the dissociation of the CO3
-C and subsequent CO2 emissions
Decrease, due to the dissociation of the commercial acidsSlightly increase 1
WashSlightly decrease, due to the removal of impuritiesSlightly decreased due to the solubilization of alkalisSlightly decrease, due to extraction of oxides
Milling and sievingSlightly increase. Might enhance carbonation reactions during storageSlightly increase. Might enhance the reaction for acidic and alkaline saltsIncrease, due to greater availability of the elements
1 The oxides of the alkaline elements are more soluble and reactive than the carbonates. It is considered that the acidification of the alkaline oxides (e.g., CaO) with commercial acids, rather than with CO2, surpasses the preparation of adsorbents (e.g., CaCO3) and lead to the formation of coagulants and flocculants (e.g., CaCl2; Equation (16)).
Table 4. Identification of the synergies and possibilities in the process involving the mixture of anaerobic digestate or sewage sludge with WA or alike materials.
Table 4. Identification of the synergies and possibilities in the process involving the mixture of anaerobic digestate or sewage sludge with WA or alike materials.
ProcessRaw MaterialsBlending RatioAdvantagesDisadvantages
RecoPhos
[153].
Sewage sludge and H3PO4.Incineration to produce SS ash.
Reaction of the SS ash with the H3PO4 using phosphorus molar ratio 1:12 of sewage sludge ash: H3PO4
Marketable granular product with similar properties to the triple superphosphateThe NH3 volatilized during the drying is not recovered.
Emission of nitrogen oxides during incineration.
ADFerTech [154].Anaerobic digestate, dolomite (CaMg(CO3)2), organic binders and coating.Dolomite was added to the liquid fraction (>91% moisture) in a dose ranging from 10 to 200 g/L.Improve the aesthetic properties of the liquid fraction of anaerobic digestate.
Decrease the cost of transportation and storage.
Additives of the liquid fraction of the anaerobic digestate are suitable for land application.
Limoli et al. [74].Anaerobic digestate, CaO, and H2SO4.>95% moisture of anaerobic digestate.
Dose of CaO to operate the stripping at pH 10.
Recovery of the NH3 volatilized.
Enable the self-hardening and granulation of the NH3-depleted organic amendment.
Low fluency to be employed in a traditional stripping column (i.e., packed tower).
High COD content of the filtrate.
Zhengh et al. [28].Anaerobic digestate, CFA, and CTAB.>93% moisture of anaerobic digestate
Mass of CTAB up to half of the TS of the digestate
Mass of CFA up to the TS of the digestate
Reduce the energy consumption of the filtration of anaerobic digestate.
Possible to enhance the mechanical separation with adsorption.
Presence of CTAB and heavy metals of the CFA in the filtrate.
High COD content in the filtrate.
Pesonen et al. [29]Sewage sludge, wood-peat ash, and Ca(OH)2.Up to 40% of SS (45% moisture) and up to 30% Ca(OH)2. The dose of ash can go up to 100%.No need to include Ca(OH)2 to have high compressive strength.
Low presence of heavy metals
Dewatering and sanitation
The NH3 released is not captured
Jewiarz et al. [155].Anaerobic digestate and woody biomass.18–20% moisture of the anaerobic digestate.
Up to 75% WA.
Save in energy for drying the anaerobic digestate by thermal drying in fueling the drum drier with the biomass to produce the ash.The NH3 released is not captured.
Not possible to include the biofertilizer together with the ash due to the high pH.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Back to TopTop
