# Modeling the Future Value Distribution of a Life Insurance Portfolio

^{1}

^{2}

^{3}

^{*}

^{†}

## Abstract

**:**

## 1. Introduction

- Select a subset of representative policies by means of conditional Latin hypercube sampling;
- Project the risk factors from the evaluation date to the risk horizon by means of outer simulations;
- Compute a rough estimate of each representative policy by means of a very limited (say two) number of inner simulations;
- Create a regression model to approximate the distribution of the value of representative policies;
- Use the regression model to estimate the future value distribution of the entire portfolio.

## 2. The Evaluation Framework

## 3. Problem and Methodology

**Proposition**

**1.**

**Proposition**

**2.**

#### 3.1. The LSMC Method

#### 3.2. The GB2 Model

## 4. Numerical Results

`R`on a computer equipped with an Intel

^{®}Core(TM) i7-1065G7 CPU 1.50 GHz processor with 12 GB of RAM and Windows 10 Home operating system.

#### Full LSMC

## 5. Conclusions

## Author Contributions

## Funding

## Conflicts of Interest

## Appendix A. Parameter Values

**Table A1.**Parameters of the reference asset value process, S, and interest rate stochastic process, r.

${\mathit{S}}_{0}$ | ${\mathit{\sigma}}_{\mathit{S}}$ | $\mathit{\lambda}$ | ${\mathit{r}}_{0}$ | $\mathit{\alpha}$ | $\mathit{\theta}$ | ${\mathit{\sigma}}_{\mathit{r}}$ | $\mathit{\gamma}$ | $\mathit{\rho}$ |
---|---|---|---|---|---|---|---|---|

100 | 0.20 | 0.00 | 0.04 | 0.10 | 0.02 | 0.02 | 0.00 | 0.00 |

**Table A2.**Estimated parameters of the stochastic mortality model for Italian male (left) and female (right) aged $x\in \left(\right)open="\{"\; close="\}">55,\cdots ,65$ in 2016.

Age | Male | Female | ||||
---|---|---|---|---|---|---|

$\widehat{\mathit{a}}$ | $\widehat{\mathit{b}}$ | ${\widehat{\mathit{\sigma}}}_{\mathit{\mu}}$ | $\widehat{\mathit{a}}$ | $\widehat{\mathit{b}}$ | ${\widehat{\mathit{\sigma}}}_{\mathit{\mu}}$ | |

55 | 0.00040 | 0.0881 | 0.00157 | 0.00010 | 0.10017 | 0.00100 |

56 | 0.00700 | 0.0705 | 0.00262 | 0.00001 | 0.11110 | 0.00100 |

57 | 0.00001 | 0.1051 | 0.00100 | 0.00001 | 0.11060 | 0.00100 |

58 | 0.00001 | 0.1045 | 0.00390 | 0.00009 | 0.10740 | 0.00850 |

59 | 0.00040 | 0.0832 | 0.00100 | 0.00001 | 0.11570 | 0.00100 |

60 | 0.00060 | 0.0743 | 0.00100 | 0.00042 | 0.08362 | 0.00669 |

61 | 0.00030 | 0.0907 | 0.00100 | 0.00044 | 0.08505 | 0.00100 |

62 | 0.00010 | 0.1033 | 0.00710 | 0.00001 | 0.11990 | 0.00100 |

63 | 0.00012 | 0.1063 | 0.00750 | 0.00040 | 0.09704 | 0.00182 |

64 | 0.00008 | 0.1112 | 0.00810 | 0.00039 | 0.09860 | 0.00376 |

65 | 0.00020 | 0.1075 | 0.00123 | 0.00049 | 0.09558 | 0.00720 |

## Appendix B. Further Results

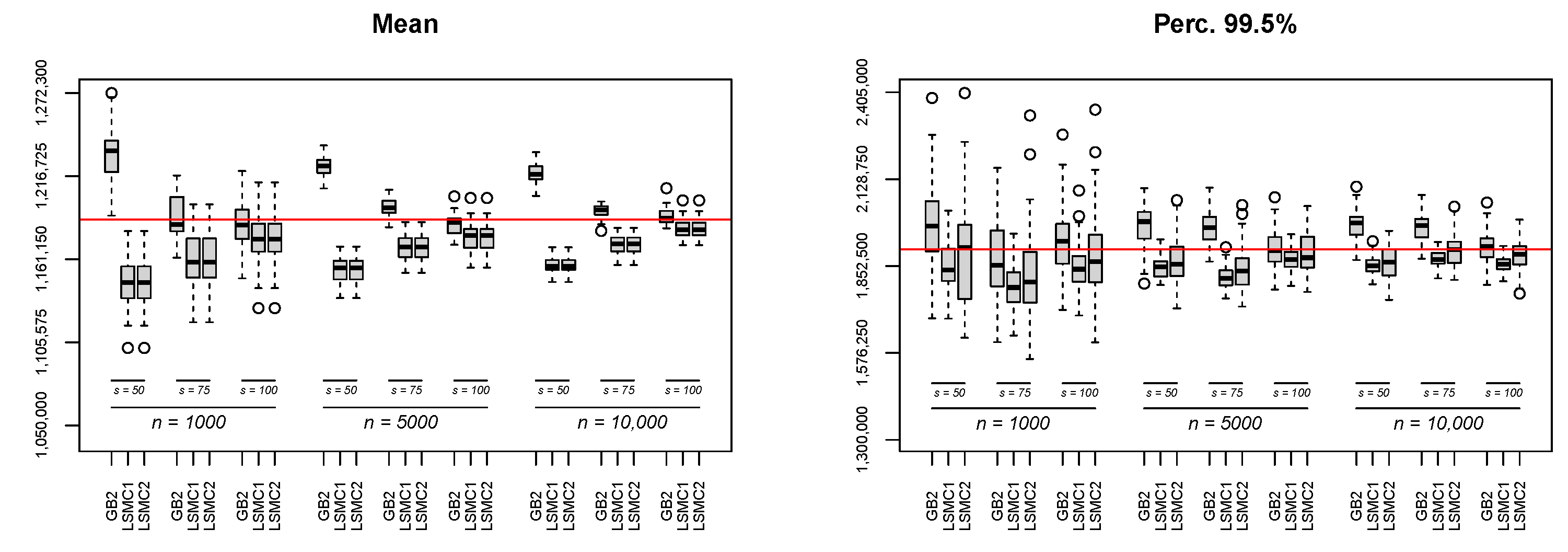

**Figure A1.**Boxplots relative to the mean (

**left**) and the 99.5th percentile (

**right**) estimates obtained by running the GB2 and LSMC methods 50 times and varying the number of outer simulations n and that of representative contracts s. The red line refers to the benchmark value based on a nested simulations algorithm with 10,000 × 2500 trajectories applied to the entire portfolio.

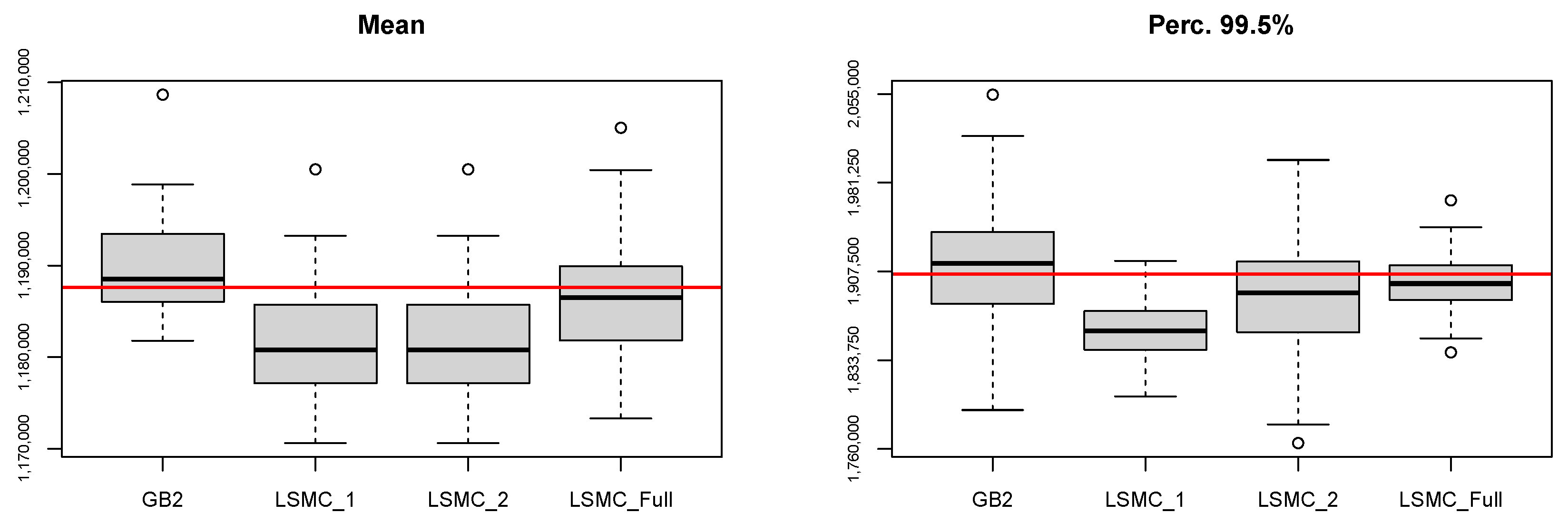

**Figure A2.**Boxplots relative to the mean and the 99.5th percentile estimates obtained by running the proposed methodologies 50 times. GB2 stands for the GB2 regression model based on 10,000 outer scenarios and $s=100$ representative policies; LSMC_1 refers to the LSMC method based on 10,000 outer scenarios and $s=100$ representative policies with Hermite polynomials of order 1; LSMC_2 refers to the LSMC method based on 10,000 outer scenarios and $s=100$ representative policies with Hermite polynomials of order 2; LSMC_Full refers to the LSMC method based on 10,000 outer scenarios and constructed on each contract in the insurance portfolio. The red line refers to the benchmark value based on a nested simulations algorithm with 10,000 × 2500 trajectories applied to the entire portfolio.

## References

- Allemang, Dean, and Jim Hendler. 2011. Semantic Web for the Working Ontologist: Effective Modeling in RDFS and OWL, 2nd ed. San Francisco: Morgan Kaufmann Publishers Inc. [Google Scholar]
- Barton, Russel R. 2015. Tutorial: Simulation metamodeling. Paper presented at 2015 Winter Simulation Conference (WSC), Huntington Beach, CA, USA, December 6–9. [Google Scholar]
- Bauer, Daniel, Daniela Bergmann, and Andreas Reuss. 2010. Solvency II and Nested Simulations-a Least-Squares Monte Carlo Approach. Working Paper. Georgia State University and Ulm University. Available online: http://citeseerx.ist.psu.edu/viewdoc/summary?doi=10.1.1.466.1983 (accessed on 17 August 2021).
- Beirlant, Jan, Yuri Goegebeur, Johan Segers, and Jozef L. Teugels. 2004. Statistics of Extremes: Theory and Applications. Chichester: Wiley. [Google Scholar]
- Biffis, Enrico. 2005. Affine processes for dynamic mortality and actuarial valuations. Insurance: Mathematics and Economics 37: 443–68. [Google Scholar] [CrossRef]
- Boyer, M. Martin, and Lars Stentoft. 2013. If we can simulate it, we can insure it: An application to longevity risk management. Insurance: Mathematics and Economics 52: 35–45. [Google Scholar] [CrossRef] [Green Version]
- Carrière, Jacques F. 1996. Valuation of the early-exercise price for options using simulations and nonparametric regression. Insurance: Mathematics and Economics 19: 19–30. [Google Scholar] [CrossRef]
- Cathcart, Mark, and Steven Morrison. 2009. Variable annuity economic capital: The least-squares Monte Carlo approach. Life & Pensions 2: 44–48. [Google Scholar]
- European Parliament, European Council. 2009. Directive 2009/138/EC on the Taking-Up and Pursuit of the Business of Insurance and Reinsurance (Solvency II). Brussels: European Council. [Google Scholar]
- Floryszczak, Anthony, Olivier Le Courtois, and Mohamed Majri. 2016. Inside the Solvency II black box: Net Asset Values and Solvency Capital Requirements with a least-squares Monte-Carlo approach. Insurance: Mathematics and Economics 71: 15–26. [Google Scholar]
- Frees, Edward W., and Emiliano A. Valdez. 2008. Hierarchical Insurance Claims Modeling. Journal of the American Statistical Association 103: 1457–69. [Google Scholar] [CrossRef] [Green Version]
- Frees, Edward W., Gee Lee, and Lu Yang. 2016. Multivariate Frequency-Severity Regression Models in Insurance. Risks 4: 4. [Google Scholar] [CrossRef] [Green Version]
- Fung, Man Chung, Katja Ignatieva, and Michael Sherris. 2014. Systematic mortality risk: An analysis of guaranteed lifetime withdrawal benefits in variable annuities. Insurance: Mathematics and Economics 58: 103–15. [Google Scholar] [CrossRef]
- Gan, Guojun, and Emiliano A. Valdez. 2018. Regression modeling for the valuation of large variable annuity portfolios. North American Actuarial Journal 22: 40–54. [Google Scholar] [CrossRef]
- Gan, Guojun, and X. Sheldon Lin. 2015. Valuation of large variable annuity portfolios under nested simulation: A functional data approach. Insurance: Mathematics and Economics 62: 138–50. [Google Scholar] [CrossRef]
- Gan, Guojun. 2013. Application of data clustering and machine learning in variable annuity valuation. Insurance: Mathematics and Economics 53: 795–801. [Google Scholar]
- Gan, Guojun. 2015. Application of metamodeling to the valuation of large variable annuity portfolios. Paper presented at 2015 Winter Simulation Conference (WSC), Huntington Beach, CA, USA, December 6–9. [Google Scholar]
- Krah, Anne-Sophie, Zoran Nikolić, and Ralf Korn. 2018. A least-squares Monte Carlo framework in proxy modeling of life insurance companies. Risks 2: 62. [Google Scholar] [CrossRef] [Green Version]
- Loeppky, Jason L., Jerome Sacks, and William J. Welch. 2009. Choosing the sample size of a computer experiment: A practical guide. Technometrics 51: 366–76. [Google Scholar] [CrossRef] [Green Version]
- Longstaff, Francis A., and Eduardo S. Schwartz. 2001. Valuing American options by simulations: A simple least-squares approach. The Review of Financial Studies 1: 113–47. [Google Scholar] [CrossRef] [Green Version]
- McDonald, James B. 1984. Some generalized functions for the size distribution of income. Econometrica 52: 647–63. [Google Scholar] [CrossRef]
- Minasny, Budiman, and Alex B. McBratney. 2006. A conditioned Latin hypercube method for sampling in the presence of ancillary information. Computers & Geosciences 32: 1378–88. [Google Scholar]
- Sun, Jiafeng, Edward W. Frees, and Marjorie A. Rosenberg. 2008. Heavy-tailed longitudinal data modeling using copulas. Insurance: Mathematics and Economics 42: 817–30. [Google Scholar] [CrossRef]
- Tilley, James A. 1993. Valuing American options in a path simulation model. Transactions of Society of Actuaries 45: 499–520. [Google Scholar]

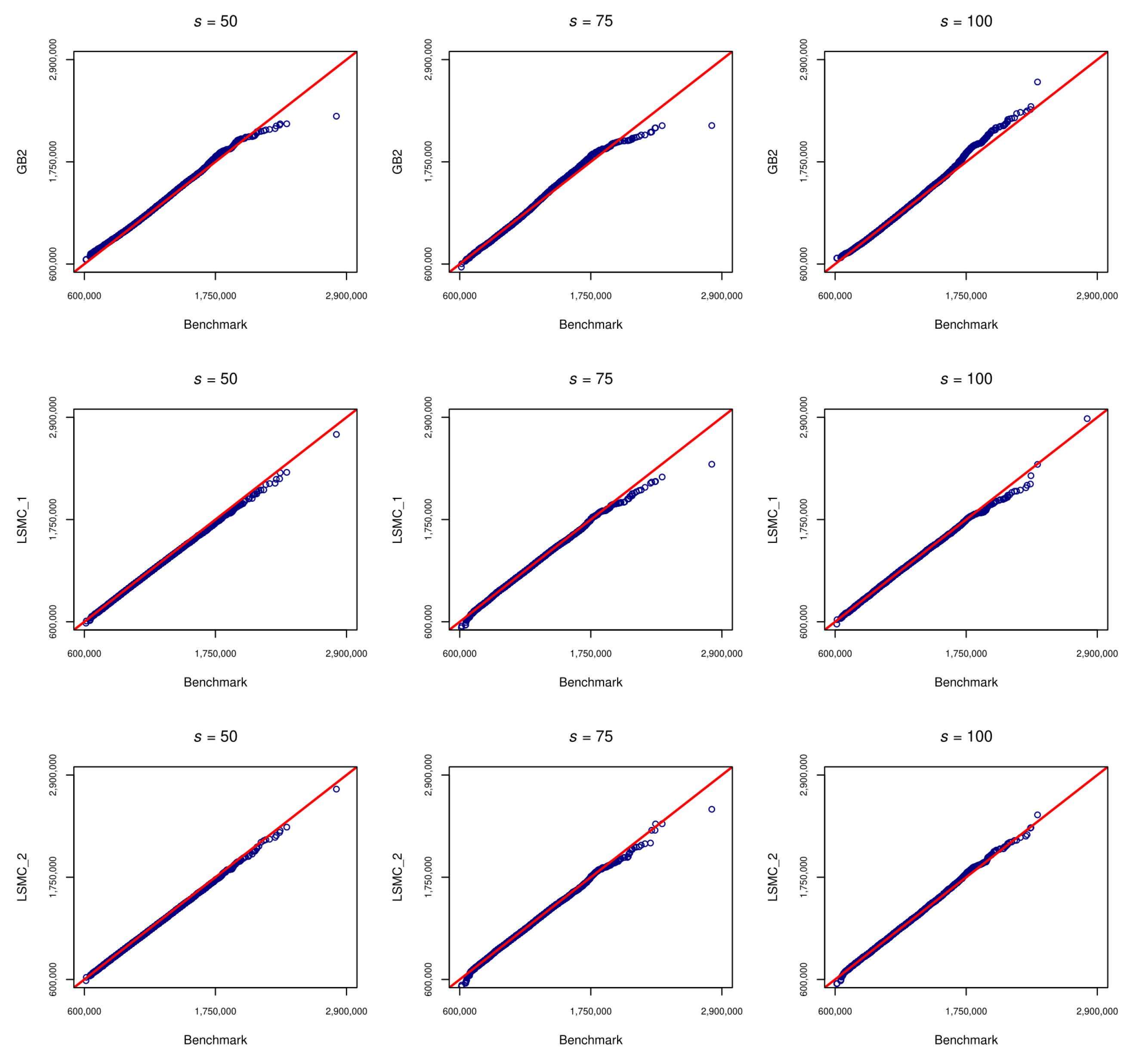

**Figure 1.**Q-Q plots relative to the future value distribution of the insurance portfolio. The theoretical distribution is assumed to be the one obtained by nested simulations based on 10,000 × 2500 trajectories. The first row refers to the GB2 regression model based on 10,000 outer scenarios and by varying the number of representative contracts, $s\in \{50,75,100\}$. The second and third rows refer to the LSMC method with Hermite polynomials of orders 1 and 2 based on 10,000 outer scenarios and by varying the number of representative contracts, $s\in \{50,75,100\}$.

Feature | Value |
---|---|

Policyholder age | {55, …, 65} |

Sex | {Male, Female} |

Maturity | {10, 15, 20, 25, 30} |

Product type | {Unit-linked, Term Insurance, Life Annuity} |

**Table 2.**This table reports the MAPE of the estimates obtained by running 50 times the GB2 and LSMC methods with n = 10,000 and $s=50$. The benchmark values are based on a nested simulations algorithm with 10,000 $\times 2500$ trajectories applied to the entire portfolio.

5th Perc. | 10th Perc. | Median | Mean | 90th Perc. | 95th Perc. | 99th Perc. | 99.5th Perc. | |
---|---|---|---|---|---|---|---|---|

GB2 | 2.812% | 2.180% | 1.798% | 2.594% | 3.832% | 4.016% | 6.154% | 4.375% |

LSMC_1 | 3.238% | 3.000% | 2.399% | 2.557% | 2.398% | 2.174% | 2.436% | 2.722% |

LSMC_2 | 2.762% | 2.754% | 2.567% | 2.557% | 2.436% | 2.114% | 2.356% | 2.841% |

**Table 3.**This table reports the MAPE of the estimates obtained by running 50 times the GB2 and LSMC methods with n = 10,000 and $s=75$. The benchmark values are based on a nested simulations algorithm with 10,000 × 2500 trajectories applied to the entire portfolio.

5th Perc. | 10th Perc. | Median | Mean | 90th Perc. | 95th Perc. | 99th Perc. | 99.5th Perc. | |
---|---|---|---|---|---|---|---|---|

GB2 | 1.971% | 1.782% | 0.806% | 0.542% | 3.605% | 3.949% | 6.094% | 3.867% |

LSMC_1 | 2.500% | 1.338% | 1.530% | 1.392% | 1.251% | 1.657% | 0.941% | 1.678% |

LSMC_2 | 1.828% | 1.047% | 1.756% | 1.392% | 1.307% | 1.485% | 1.842% | 2.142% |

**Table 4.**This table reports the MAPE of the estimates obtained by running 50 times the GB2 and LSMC methods with n = 10,000 and $s=100$. The benchmark values are based on a nested simulations algorithm with 10,000 × 2500 trajectories applied to the entire portfolio.

5th Perc. | 10th Perc. | Median | Mean | 90th Perc. | 95th Perc. | 99th Perc. | 99.5th Perc. | |
---|---|---|---|---|---|---|---|---|

GB2 | 1.986% | 1.745% | 0.519% | 0.347% | 1.129% | 1.313% | 2.856% | 1.944% |

LSMC_1 | 1.629% | 1.504% | 0.440% | 0.627% | 0.764% | 0.824% | 0.958% | 2.561% |

LSMC_2 | 1.148% | 1.145% | 0.578% | 0.627% | 0.762% | 0.986% | 2.101% | 2.334% |

**Table 5.**This table reports the MPE and MAPE of the mean estimates obtained by running 50 times the GB2 and LSMC methods and varying the number of outer simulations (Outer) and that of representative contracts s. The benchmark value is based on a nested simulations algorithm with 10,000 × 2500 trajectories applied to the entire portfolio.

s = 50 | s = 75 | s = 100 | |||||
---|---|---|---|---|---|---|---|

Outer | Method | MPE | MAPE | MPE | MAPE | MPE | MAPE |

GB2 | 3.612% | 3.612% | 0.163% | 0.983% | −0.240% | 0.923% | |

1000 | LSMC_1 | −3.475% | 3.475% | −2.104% | 2.221% | −1.017% | 1.364% |

LSMC_2 | −3.475% | 3.475% | −2.104% | 2.221% | −1.017% | 1.364% | |

GB2 | 2.981% | 2.981% | 0.715% | 0.747% | −0.301% | 0.474% | |

5000 | LSMC_1 | −2.840% | 2.840% | −1.533% | 1.533% | −1.029% | 1.092% |

LSMC_2 | −2.840% | 2.840% | −1.533% | 1.533% | −1.029% | 1.092% | |

GB2 | 2.594% | 2.594% | 0.491% | 0.542% | 0.179% | 0.347% | |

10,000 | LSMC_1 | −2.557% | 2.557% | −1.392% | 1.392% | −0.490% | 0.627% |

LSMC_2 | −2.557% | 2.557% | −1.392% | 1.392% | −0.490% | 0.627% |

**Table 6.**This table reports the MPE and MAPE of the 99.5th percentile estimates obtained by running the GB2 and LSMC methods 50 times and varying the number of outer simulations (Outer) and that of representative contracts s. The benchmark value is based on a nested simulations algorithm with 10,000 × 2500 trajectories applied to the entire portfolio.

s = 50 | s = 75 | s = 100 | |||||
---|---|---|---|---|---|---|---|

Outer | Method | MPE | MAPE | MPE | MAPE | MPE | MAPE |

GB2 | 3.936% | 6.570% | −1.512% | 5.453% | 1.410% | 4.494% | |

1000 | LSMC_1 | −2.664% | 3.715% | −6.308% | 6.478% | −2.961% | 4.253% |

LSMC_2 | −0.252% | 6.487% | −4.211% | 7.150% | −1.438% | 5.517% | |

GB2 | 4.110% | 4.723% | 3.813% | 4.018% | 0.081% | 2.653% | |

5000 | LSMC | −2.908% | 3.001% | −4.708% | 4.722% | −1.659% | 2.006% |

LSMC_2 | −1.787% | 3.484% | −3.118% | 4.017% | −0.462% | 3.110% | |

GB2 | 4.157% | 4.375% | 3.737% | 3.867% | 0.421% | 1.944% | |

10,000 | LSMC_1 | −2.643% | 2.722% | −1.560% | 1.678% | −2.522% | 2.561% |

LSMC_2 | −2.259% | 2.841% | −0.131% | 2.142% | −1.007% | 2.334% |

**Table 7.**Percentage of the runtime required by the GB2 and LSMC methods with respect to the nested simulations approach. Note that the computational demand to construct the benchmark with a nested simulations approach based on 10,000 × 2500 scenarios applied to the entire portfolio is about 187,200 s.

Method | $\mathit{n}=1000$ | $\mathit{n}=5000$ | n = 10,000 | ||||||
---|---|---|---|---|---|---|---|---|---|

$\mathit{s}=50$ | $\mathit{s}=75$ | $\mathit{s}=100$ | $\mathit{s}=50$ | $\mathit{s}=75$ | $\mathit{s}=100$ | $\mathit{s}=50$ | $\mathit{s}=75$ | $\mathit{s}=100$ | |

GB2 | 0.069% | 0.078% | 0.098% | 0.337% | 0.380% | 0.501% | 0.660% | 0.832% | 1.021% |

LSMC_1 | 0.005% | 0.006% | 0.007% | 0.012% | 0.018% | 0.019% | 0.036% | 0.045% | 0.047% |

LSMC_2 | 0.005% | 0.006% | 0.007% | 0.013% | 0.019% | 0.020% | 0.037% | 0.046% | 0.047% |

**Table 8.**This table reports the MPE and MAPE relative to the 5th percentile, the mean, and the 99.5th percentile estimates obtained by applying different methodologies. GB2 stands for the GB2 regression model based on n = 10,000 outer scenarios and $s=100$ representative policies; LSMC_1 refers to the LSMC method based on n = 10,000 outer scenarios and $s=100$ representative policies with Hermite polynomials of order 1; LSMC_2 refers to the LSMC method based on n = 10,000 outer scenarios and $s=100$ representative policies with Hermite polynomials of order 2; LSMC_Full refers to the LSMC method based on n = 10,000 outer scenarios and constructed on each contract in the insurance portfolio. The results are compared with the corresponding benchmark value based on nested simulations with $10000\times 2500$ trajectories applied to the entire portfolio.

Method | 5th Perc. | Mean | 99.5th Perc. | |||
---|---|---|---|---|---|---|

MPE | MAPE | MPE | MAPE | MPE | MAPE | |

GB2 | −1.986% | 1.986% | 0.179% | 0.347% | 0.421% | 1.944% |

LSMC_1 | −1.472% | 1.629% | −0.490% | 0.627% | −2.522% | 2.561% |

LSMC_2 | −0.742% | 1.148% | −0.490% | 0.627% | −1.007% | 2.334% |

LSMC_Full | −0.501% | 1.032% | −0.084% | 0.461% | −0.420% | 1.070% |

**Table 9.**Runtime, in seconds, of GB2 model and LSMC methods based on 10,000 × 2 simulations and $s=100$ representative contracts (GB2, LSMC_1, LSMC_2). LSMC_Full refers to the LSMC method applied to each contract in the insurance portfolio.

Method | Time |
---|---|

GB2 | 1911.445 |

LSMC_1 | 87.824 |

LSMC_2 | 88.290 |

LSMC_Full | 7847.960 |
