1. Introduction
Accurately measuring physical activity (PA) is necessary to determine if children acquire sufficient moderate-to-vigorous PA (MVPA) to promote healthy growth patterns and lifestyles. Obtaining true measures of MVPA in children is challenging due to the unpredictable and intermittent nature of play behavior [
1]. Objective monitors, such as accelerometers and pedometers, have continued to advance in terms of technology and interpretation, especially over the past decade. Currently, numerous accelerometer-based (counts/min) prediction equations and cut-points are available for estimating children’s PA energy expenditure (PAEE) and PA intensity [
2,
3,
4]. However, the inconsistency in the literature (i.e., correlations between cut-points and measured PAEE and PA intensity range from
r = 0.36 to
r = 0.92), is attributed to both the nature of children’s play and the use of constrained (i.e., treadmill walking/running) rather than unconstrained play [
5,
6]. While researchers continue to explore valid methods for interpreting accelerometer signals to accurately measure PA, the use of research-grade activity monitors is not practical for measuring and tracking daily PA by non-researchers.
Alternatively, pedometers are activity monitors that simply measure steps, a unit of PA measure that is easier to interpret by the general population. Pedometers have shifted from spring-lever mechanisms to uniaxial or triaxial accelerometry, technology that improves the sensitivity to movement at slower paces and provides a time-stamp to produce data in shorter epoch lengths (i.e., steps/min, instead of steps/days). Combining this simple PA measure with the ease of use, low cost, PA-promoting capacity of the digital feedback, and improved technology, it is no wonder pedometers continue to rise in popularity and everyday use by the general population and practitioners. Additionally, there is a great deal of evidence on the reliability and validity for the use of pedometers in PA research [
7,
8].
Based on the current research, step recommendations for children range from 11,000–12,000 steps/day for girls and 13,000–15,000 steps/day for boys [
9,
10,
11,
12]. While these recommendations provide children with daily step goals, it has been reported that children who acquire these goals have an increased likelihood of meeting the daily 60-min MVPA recommendation [
13]. One of the first cadence-calibration studies by Harrington et al. (2012) argued against the use of steps/day to estimate time spent in MVPA, stating it did not confirm actual bouts of MVPA throughout the day [
14]. Although new pedometers have potential, there is little research on the development of steps/min (i.e., cadence) cut-points for measuring children’s daily MVPA [
14,
15,
16,
17,
18,
19]. Providing a means of classifying children’s cadence, rather than total daily steps, may allow practitioners, physical education teachers, and even parents to more accurately assess children’s daily MVPA.
From the limited available research, cadence cut-points for children range from 102 to 140 steps/min for MVPA [
14,
15,
16,
17,
18,
19]. For example, Saunders et al. (2014) used an accelerometer-based pedometer (Walk4Life MVP; Walk4Life, Inc, Oswego, IL, USA) and a cut-point of ≥100 steps/min for estimating time spent in MVPA during treadmill walking [
16]. Using this same cut-point, there was a strong relationship between estimated and measured PA intensity (R
2 = 0.69) with high sensitivity (97.7%) and specificity (87.7%). Another study by Harrington et al. (2012) used an accelerometer-based activity monitor (ActivPAL; PAL Technologies, Glasgow, Scotland, UK) to measure children’s repetitive or rhythmic movements patterns (e.g., treadmill or over-ground walking and jogging) [
14]. This study also used a cut-point of ≥100 steps/min for MVPA, which was used in the interpretation of the 2005–2006 National Health and Nutrition Examination Study (NHANES) PA data to reveal that youth (
n = 2610) spent only ~12 min/day in MVPA [
20]. More recently, using a constrained treadmill protocol of varying speeds in 6–20 year old youths, the threshold for MVPA derived from direct observation, rather than from an activity monitor, ranged from 128 steps/min in the youngest youth (6-8 years) to 101 steps/min in older youth (15–17 years) [
19].
From these studies, a range of 100–128 steps/min is considered to be valid for estimating children’s constrained MVPA. Research needs to expand on these studies to determine accelerometer-based cadence cut-points for interpreting children’s unconstrained play behavior [
14,
16]. Children’s play is complex and difficult to interpret, especially when using cut-points that were developed from and tested on repetitive-stepping movement patterns observed during constrained (treadmill) walking or running. Therefore, the primary purpose of this study was to assess the accuracy of established accelerometer-based cadence cut-points for correctly classifying children’s free-play MVPA. The secondary purpose was to compare the relationship between measured and estimated PA intensity using cadence and vertical (V) and vector-magnitude (VM) counts/min cut-points of children’s play behavior.
2. Materials and Methods
2.1. Recruitment
Third- through fifth-grade children (8–13 years) from five elementary schools in Athens County, Ohio, were recruited for this study over a 2-year period from 2011–2013. Upon arrival at the lab, height and weight were measured to determine body mass index (BMI). Recruitment was stratified by sex and BMI in attempts to enroll equal samples of boys and girls and healthy weight (HW = BMI <85th percentile) and overweight or obese (OW = BMI ≥85th percentile) children. Eligible children were free from cardiorespiratory, metabolic, neurological, or physical impairments and were not taking any medications that would either prevent them from being physically active or affect metabolism (e.g., Concerta, Ritalin, etc.). Each eligible child and related parent/guardian signed the approved informed assent/consent documents in accordance with the Declaration of Helsinki and Ohio University’s Institutional Review Board regulations (IRB# 11F018).
2.2. Testing Protocol
A detailed description of the testing protocol has been previously published [
21]. Briefly, a menu of 30 games was selected by a focus group of local physical education teachers based on their overall activity level, age-appropriateness, enjoyment, and feasibility for inclusion in the study. The children reported to the lab following a 3-h fast at which time their stature (m) and weight (kg) were measured to determine weight status using age- and sex-specific BMI growth charts [
22]. Resting metabolic rate (RMR) was measured with the MedGem
® analyzer (MicroLife USA, Clearwater, FL, USA) to determine baseline energy expenditure (EE) following standard procedures [
23]. Following RMR measurements, each child ate a small snack (~150 kcal) prior to playing up to 10 children’s games for six minutes each in a large gymnasium. From the menu of 30 proposed moderate-vigorous intensity games, an online random number-generator was used to select 10 games in random order for each child. The testing protocol, including resting and exercise measures, lasted approximately 2.5 to 3.0 h.
During the study visit, each child was accompanied by a sibling or friend of similar age for social support and to simulate a more natural play environment during the games. To ensure a sufficient number of players for each game or activity, undergraduate students, who were extensively trained to match children’s PA intensity and skill-level, joined the children in playing games that required more than two players (i.e., tag, sharks and minnows, soccer, etc.). Games were played in random order for 6 min, with 4 min rest between games. An elongated rest period (15–30 min) was provided after game five to ensure the child had adequate rest and to recalibrate the metabolic cart. Data from the first minute of each game, during which the children were becoming comfortable playing the game, were not included in the analyses. The final 10 s of each game were also omitted due to obvious changes in behavior during the countdown to stopping each game. After these omissions, 4:50 of data for each game were used in the analyses. Similar protocols have been used previously in measuring children’s play. Due to the intermittent nature of children’s play, during which children will not necessarily reach steady state, average PAEE and intensity was calculated rather than “steady state” values for each game [
24,
25]. Children were encouraged to play as they would naturally play in the school gymnasium or playground, allowing them to stop and start throughout the game at will.
The children played an average of 9.5 games (range: 6–10 games). One child volunteered for only 6 games, while 11 other children participated in fewer than 10 games because of time constraints or equipment failures. Only games with all 6 min of data were included in the analyses. This resulted in a total of 380 game sessions played with each game played an average of 13 times (range: 11 to 17 times) by different children.
2.3. Criterion Measure
During the games, children wore a portable metabolic analyzer (Oxycon™ Mobile, Vyaire Medical, Mettawa, IL, USA) for breath-by-breath gas analysis [
26,
27]. A POLAR heart rate monitor strap was secured to the child’s chest to monitor heart rate throughout the activities. PAEE, the amount of PA-related EE above RMR, was calculated as total EE minus individually measured RMR. Average PAEE (kcal/min) was computed for each game using the previously described 4:50 of breath-by-breath data. Measured PA intensity of the games, expressed as a multiple of individually-measured RMR (Youth-MET), was classified using three METs as the cut-point for MVPA [
28].
2.4. Physical Activity Measurements
The GT3X
+ (ActiGraph, Pensacola, FL, USA) worn on the right hip was used to assess PA intensity in steps/min. GT3X
+ has been validated for use in children for both V and VM counts/min [
4,
29,
30,
31]. Using ActiLife software (version 6.5.3; ActiGraph, Pensacola, FL, USA), GT3X
+ monitors were initialized to record activity at a sampling rate of 30 Hz and downloaded using a 1 s epoch. A second POLAR heart rate watch was synchronized with the same laptop computer as the GT3X

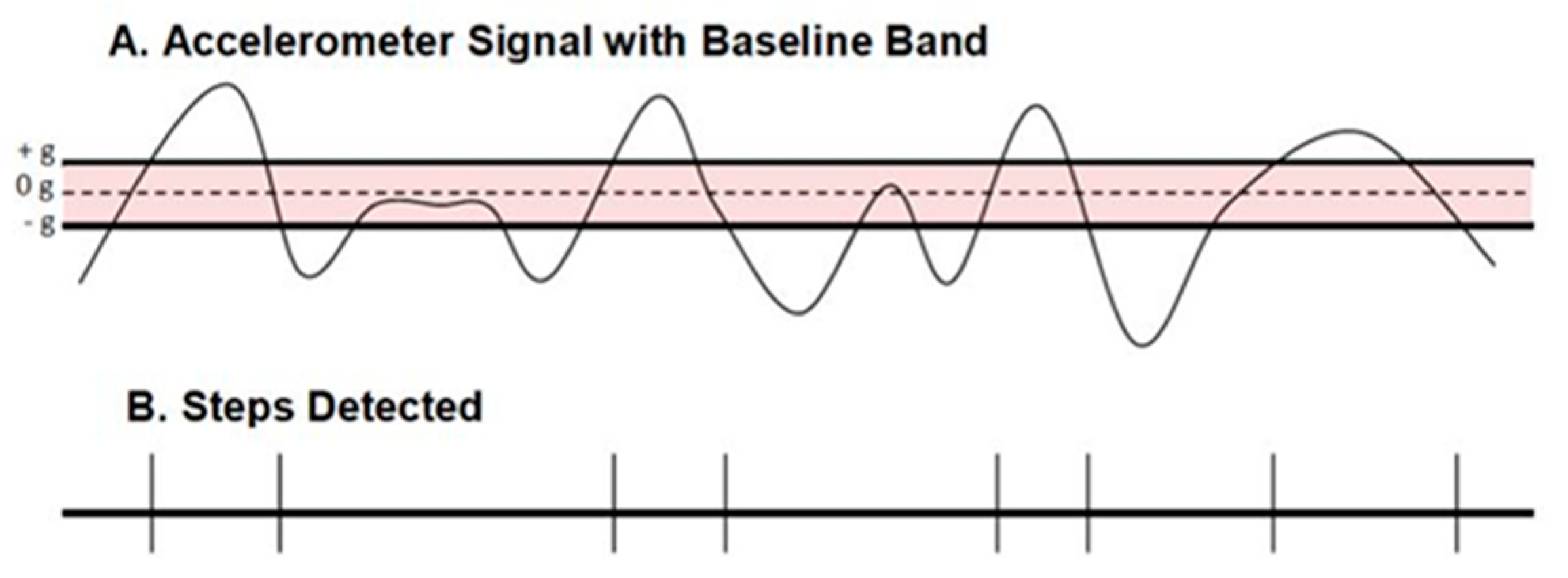

+ and was used to time the activities to allow for time-synchronization of Oxycon and ActiGraph data. Using the crossing threshold mode, a step was registered by the GT3X
+ as the sigmoidal curve of the accelerometer signal that crosses through the midline (0 gravity; g) and then outside of either the +g or −g baseline reference bands (
Figure 1; ActiGraph, LLC
©). This method of determining steps using the GT3X
+ has not been validated for estimating children’s PAEE or PA intensity.
GT3X
+ accelerometer data were recorded for both V and VM in counts/sec. Average V and VM counts/sec and cadence (steps/min) were calculated for each game using the same time period as the metabolic data (described above) and established cut-points were used for classifying PA intensity [
4,
29,
30,
31]. Freedson’s (age- and sex-specific) and Evenson’s counts/min (converted from counts/15 s) cut-points were recommended for this population to classify PA intensity from V counts/min [
3,
32]. The available cut-points for classifying PA intensity from VM counts/min in this population were published by Zhu et al. (2013) and Hanggi et al. (2013) [
30,
31]. Available cadence cut-points (range: 100–109 steps/min) for classifying children’s MVPA from pedometer studies were published by Saunders et al. (2014) and Harrington et al. (2012) [
14,
16]. Based on the consensus of this previous research and the lack of validated cadence cut-points, conservative MVPA cut-points of 100 and 109 steps/min were selected to assess accuracy in classifying MVPA. The accelerometer counts/min and cadence cut-points used are listed in
Table 1.
2.5. Statistics
A mixed-model ANOVA was used to assess differences in PAEE (kcal/min), PA intensity (METs), V and VM counts/min, and steps/min with sex, weight status, and game as main effects. Child, embedded within game, was included in the model as a random factor to account for inter- and intra-individual variability, avoiding inflation of Type 1 error in analyzing 380 outcomes from a smaller sample size. The accuracy of estimated PA intensity classification (MVPA or not) from V and VM counts/min and steps/min, compared to the measured PA intensity classification was tested using Cohen’s Kappa coefficients, as well as the sensitivity (Se%) and specificity (Sp%). The Pearson correlation coefficient (r) was used to assess the relationship between PAEE (kcal/min) and PA intensity (METs) and V and VM counts/min and steps/min. A significance level of p < 0.05 was used in all analyses, adjusted for multiple comparisons using the Bonferroni correction (Statistical package: SAS, version 9.4).
4. Discussion
This study assessed the accuracy of established accelerometer-based cadence cut-points for estimating children’s PAEE and PA intensity and compared these cadence cut-points to established accelerometer-based counts/min cut-points for accurately classifying the intensity of children’s MVPA. Based on the age-specific Freedson V counts/min cut-points [
2], 371 (97.6%) of the 377 games were correctly classified as MVPA, whereas based on the Evenson cut-point [
4], only 298 (78.4%) of the games were correctly classified as MVPA with 78 (20.5%) of the games misclassified as light-intensity PA. However, Zhu’s and Hanggi’s VM counts/min cut-points resulted in 367 (96.6%) and 26 (6.8%) of the games being classified as MVPA, respectfully [
30,
31]. Finally, Harrington’s and Saunders’ cadence cut-points resulted in only 43 (11.3%) and 15 (4.0%) of the games classified as MVPA, respectively [
14,
16].
Using common unconstrained play activities proposed to be moderate-vigorous intensity, a modest relationship (
r = 0.50) was found among cadence (≥100 steps/min) and measured PAEE and PA intensity. However, using the ≥100 steps/min MVPA cut-point, albeit the lowest available cut-point in the literature (range: 100–140 steps/min) [
14,
16,
19], resulted in all but 1 of the games being misclassified as light intensity PA, instead of MVPA. If we had incorporated higher cadence cut-points, as available in the literature (e.g., 140 steps/min), this would have increased the error in classifying MVPA intensity.
In examining the accuracy of published V and VM counts/min cut-points for classifying children’s PA intensity, the Freedson [
29] and Zhu [
30] cut-points were superior over cut-points developed by Evenson [
4] and Hanggi [
31]. The discrepancies in accuracy of activity monitors is often blamed on a mismatch between the activities used to develop the cut-points and the activities the cut-points are being used to measure. However, Alhassan et al. (2012) found the Freedson age- and sex-specific cut-points, which were developed using primarily constrained treadmill activities, accurately estimated the PAEE of five self-paced activities (walking, bicycling, basketball, crafts, and Wii tennis) of varying intensities in 8–12-year-old children using the ActiGraph GT1M [
34]. Conversely, the Evenson cut-points, which were developed using a wide range of activities types and intensities (coloring, basketball, jumping jacks, running, bicycling, etc.), did poorly in classifying children’s PA intensity in the current study, which was primarily MVPA. Yet Trost et al. (2011) found that both Evenson (κ = 0.68, Se% = 89.9%, Sp% = 89.2%, receiver operating characteristics (ROC) = 0.90), and Freedson (κ = 0.66, Se% = 88.3%, Sp% = 91.7%, ROC = 0.90) cut-points demonstrated significantly better agreement with measured PA intensity and better accuracy in classifying MVPA compared to other established cut-points (i.e., Puyau, Trueth, and Mattocks) across 12 standardized sedentary, lifestyle, and ambulatory activities [
3]. The research is clear that counts/min cut-point accuracy and agreement varies across studies, indicating that no single set of cut-points will accurately measure all PA types and intensities, especially in children. That being said, care should be taken to use cut-points that were developed using similar activities as those being measured because, as observed in the current study, using accelerometer cut-points that were developed on activities with a greater range in PA intensity increases the opportunity for misclassifications when tested on MVPA alone. Furthermore, the comparison of previous research is limited because studies cited herein have also used a variety of methodologies, including different activity monitors and epochs (i.e., time lengths measured) to study activity. Varying devices also leads to different algorithms for converting the acceleration signal into counts and steps, while varying epoch lengths can alter the capacity to detect short bursts of high intensity PA [
35].
While many prediction equations and cut-points exist to estimate and classify children’s PAEE and PA intensity from accelerometer-based counts/min, none of them do well in a free-play setting [
36,
37]. Even fewer cadence cut-points exist in the literature, especially those developed on accelerometer-based activity monitors and there is little evidence of their accuracy [
14,
16,
18]. This study demonstrates that new accelerometry-based pedometers are moderately correlated with measured play intensity, indicating that they may have the potential to accurately measure children’s play behavior, although further study is required to support this conclusion. Specifically, more research needs to incorporate children’s unconstrained play behavior in future validation studies to identify a more accurate cadence cut-point to correctly classify MVPA during play. This study used activities proposed to be MVPA, which limits the PA intensity range to develop new cut-points for these devices. Replicating the current study to include larger sample sizes of children of all ages completing a wide variety of unconstrained play activities is needed to produce these cut-points.
Another limitation of the current study and the potential for developing a single set of cut-points to accurately measure children’s play behavior is the variability in the methods used to determining a step from the accelerometer signals. The ActiGraph GT3X
+ used in the current study uses the “crossing threshold mode” to determine a step. The raw acceleration signal must cross this seemingly arbitrary value on either side of zero g to register as a step, using the same threshold across all populations. In referencing the work of Freedson’s lab, they created a prediction equation that uses different count values, a representation of the magnitude of the raw acceleration signal, for children relative to their age [
29]. This means that younger children generate lower acceleration signal patterns than older children and adults. Future studies are needed to determine if adjusting this threshold by age, or perhaps other factors such as sex, weight and height, might improve the accuracy in detecting steps during children’s play.
