Systematic Review

MPFL Reconstruction in Skeletally Immature Patients: Comparison Between Anatomic and Non-Anatomic Femoral Fixation—Systematic Review

by
Georgios Kalinterakis
1,*,
Iakovos Vlastos
1,
Elina Gianzina
1,
Savvas Dimitriadis
1,
Konstantinos Mastrantonakis
1,
Efstathios Chronopoulos
2 and
Christos K. Yiannakopoulos
1
1
School of Physical Education and Sport Science, National and Kapodistrian University of Athens, 17237 Athens, Greece
2
Laboratory for Research of the Musculoskeletal System “Th. Garofalidis”, Medical School, National and Kapodistrian University of Athens, KAT General Hospital, Kifissia, 14561 Athens, Greece
*
Author to whom correspondence should be addressed.
Children 2024, 11(11), 1275; https://doi.org/10.3390/children11111275
Submission received: 19 September 2024 / Revised: 16 October 2024 / Accepted: 16 October 2024 / Published: 22 October 2024
(This article belongs to the Special Issue Research in Paediatric Orthopaedic Surgery (2nd Edition))

Abstract

:
Background: MPFL reconstruction in children with open physis may be challenging, as a major concern during the surgery is to preserve the distal femoral physis. The purpose of this study was to compare the complication rate and the patient-reported outcomes in skeletally immature patients who underwent MPFL reconstruction using an anatomic (A) or non- anatomic (NA) surgical technique. Methods: For this systematic review, the authors adhered to the PRISMA guidelines. The literature search was conducted from inception to 31 May 2024. Three databases were used: Pubmed, Scopus and Cochrane library. We included skeletally immature patients who underwent MPFL reconstruction for chronic or recurrent patellar instability. The included studies should describe the surgical technique, report clinical outcomes and complications. Patients with closed physis, prior ipsilateral knee surgery, concomitant surgical procedures except for lateral retinacular release, multiligament knee injury, congenital or acute patellofemoral instability, hyperlaxity or less than 12 months follow up were excluded. Risk of bias was assessed using ROBINS-I, MINORS and MCMS scores. Results: Data from 304 procedures were collected, of which 208 were performed using an anatomic technique and 96 using a non-anatomic technique. Patient age at the time of surgery ranged from 8 to 17 years. The follow-up time ranged between 12 and 116.4 months. Postoperative Kujala (−0.73, p = 0.55) and Tegner (−0.70, p = 0.80) scores were better in the anatomic group compared to the non-anatomic one. Higher rates of recurrent instability (OR 0.91; 95%CI 0.44–1.86, p = 0.85), redislocation (OR 1.21; 95%CI 0.42–3.51, p = 0.8), subluxation (OR 0.73; 95%CI 0.29–1.83, p = 0.62), a positive apprehension test (OR 0.92; 95%CI 0.27–3.13, p = 0.89), stiffness (decreased ROM) (OR 1.63; 95%CI 0.33–1.72, p = 0.54) and reoperation (OR 1.16; 95%CI 0.35–3.80, p = 0.8) were reported in papers using the anatomic technique. Conclusions: The findings of this systematic review reveal that there is no significant difference between anatomic and non-anatomic MPFL reconstruction techniques in terms of patient-reported outcomes and complications. Thus, the choice of surgical technique might be left up to surgeon’s preference. Further high-quality, pediatric-oriented studies with long-term follow–up are needed to better guide clinical decision-making.

1. Introduction

Recurrent lateral patella dislocation is a common injury in skeletally immature patients, with an annual incidence of 29 per 100,000 among individuals aged 10 to 17, and the peak occurrence of first-time dislocation at age 15 [1,2,3,4]. In patients under the age of 14, the recurrence rate can reach up to 60%, highlighting the elevated risk in young, active individuals [5]. The medial patellofemoral ligament (MPFL) is essential as one of the main stabilizers of the patella, providing 50–60% of the medial restraining force against lateral displacement, especially during the first 30° of knee flexion [6]. MPFL reconstruction has gained significant popularity in the past decade, becoming the leading surgical technique for stabilizing recurrent patellar instability, replacing less anatomic procedures [7]. A major concern during MPFL reconstruction in adolescents is to preserve the distal femoral physis. For this reason, non-anatomic reconstruction techniques have been employed at first, which use the femoral insertion points of the medial collateral ligament (MCL) or the adductor magnus tendon as reference markers for placing the MPFL’s femoral insertion. These anatomic structures act as a pulley for the graft and, thereby, the creation of a bone tunnel, which can damage the distal femoral physis, is avoided. However, in the last decade, several authors have highlighted the significance of anatomic repairs, introducing physeal-sparing anatomic reconstruction techniques with promising results [8,9,10]. Anatomic MPFL reconstruction is considered as that which is distal to the physis. The anatomic area corresponds to radiographic landmarks, as established by Schottle and Redfern [11,12].
The objective of this study was to investigate which surgical technique is more favorable in pediatric patients with open physis who underwent medial patellofemoral ligament (MPFL) reconstruction, whether anatomic (A) or non-anatomic (NA). We focused on patient-reported outcomes and the complications.

2. Materials and Methods

2.1. Study Selection

According to the Declaration of Helsinki, the study received approval from our Institutional Review Board (approval number 1652-12/06/2024) and adhered to the 2020 PRISMA guidelines. The PICO framework was applied as follows:
  • P (Population/Pathology): patellar instability/skeletally immature patients;
  • I (Intervention): MPFL reconstruction;
  • C (Comparison): anatomic versus non-anatomic technique;
  • O(Outcomes): patient-reported outcome measures (PROMs), return to sport rates and complication rates;
  • S (Studies): human studies with >12 months follow-up and involving >10 patients.
A comprehensive literature search was conducted using PubMed, Cochrane Library and Scopus databases (Figure 1). The search was performed from inception to 31 May 2024. The search keywords employed were as follows: patellofemoral, dislocation or instability, open physis or adolescent or skeletally immature, MPFL or medial patellofemoral ligament, surgery or reconstruction.
Through this search, all related studies were identified. Moreover, the bibliographies of all included studies were reviewed to identify any further relevant studies. This review protocol was registered on the International Prospective Register of Systematic Reviews.

2.2. Inclusion and Exclusion Criteria

This systematic review includes studies that involved skeletally immature patients who underwent MPFL reconstruction for chronic or recurrent patellar instability using either an anatomic or non-anatomic technique. To be included, studies had to describe the surgical technique and report clinical outcomes and complications. The exclusion criteria during screening were as follows:
  • Patients with a closed physis;
  • Animal studies;
  • Cadaveric studies;
  • Patients with prior ipsilateral knee surgery;
  • Studies involving patients with congenital or acute patellofemoral instability;
  • Studies focusing solely on patients with hyperlaxity or multiligament injury;
  • Level of evidence V studies and reviews;
  • Non-English studies;
  • Studies with fewer than 12 months of clinical follow-up;
  • Case series involving fewer than 10 patients;
  • Concomitant surgical procedures other than lateral retinacular release.
In studies that included patients with both open and closed physis, we only included those that provided sufficient detail on the endpoints of interest to allow stratification based on skeletal maturity.

2.3. Assessment of Methodological Quality

For the methodology quality assessment, the Modified Coleman Methodology Score (MCMS) was used. This tool operates on a scale from 0 to 100. Scores of 85 to 100 were classified as excellent; 70 to 84, as good; 55 to 69, as fair; and <55, as poor. The MCMS was developed to evaluate outcomes related to surgery for patellar tendinopathy, making it suitable for assessing patellar stabilization procedures [13]. The risk of bias in the included studies was assessed using the Methodological Index for Nonrandomized Studies (MINORS) score and the Risk Of Bias In Non-randomized Studies of Interventions (ROBINS-I) tool. MINORS is a validated scoring system with 12 items for comparative studies and 8 items for case series. It evaluates various aspects, such as the study’s objective, patient inclusion criteria, data collection, endpoints, follow-up, rate of loss during follow-up, sample size calculation, the inclusion of a control group, group equivalence and the adequacy of statistical analysis. It has a potential range of 0 to 16 for non-comparative studies and 0 to 24 for comparative studies [14]. ROBINS-I tool rates studies as “Low”, “Moderate”, “Serious” and “Critical” risk of bias by analyzing 7 domains: confounding bias, selection bias, bias in classification of interventions, deviation bias, missing data bias, measurement bias and reporting bias [15]. Two investigators, G.K. and K.M., calculated the scores, resolving any disagreements through discussion and consensus. The results of these evaluations are shown in Table 1.

2.4. Data Collection and Analysis

Two authors (G.K. and K.M.) independently assessed the data. The process of extracting data began with the organized documentation of the information from the studies being analyzed. This entailed constructing a detailed table in which various important elements were carefully recorded. Disagreements between the authors were discussed and resolved collaboratively. Particular emphasis was given to the method of femoral graft fixation in each surgical technique. Anatomic techniques were described as those employing the radiographic signs identified by Schottle [12]. In contrast, non-anatomic techniques utilized the femoral insertion of either the medial collateral ligament (MCL) or the tubercle of the adductor magnus tendon as reference landmarks for MPFL insertion [26]. Information collected included authorship, year of publication, the study’s level of evidence, number of patients, mean age of the sample at the time of surgery, number of procedures and mean follow-up duration. Patient-reported outcome measures (PROMs) at baseline and final follow-up were the Kujala score [27] and the Tegner Activity Scale score [28]. The following complications were assessed: recurrent patella instability, further re-dislocations or subluxations, positive apprehension tests, patella fractures, and revision surgeries.
Numerical demographic data are summarized using descriptive statistics, while categorical variables (e.g., patellar fractures, redislocations) are expressed as percentages. Because the available data were heterogeneous and of low quality, a subjective synthesis was performed, and the range of outcome measure values is reported. Binary data were analyzed using odds ratios (OR) with corresponding confidence intervals (CI). All analyses were conducted using SPSS version 29.0 (IBM Corporation, Somers, New York, NY, USA).

3. Results

3.1. Search Results

The literature search yielded a total of 999 papers: 655 articles from PubMed, 303 articles from Scopus and 41 articles from the Cochrane Library. After the removal of duplicate studies, 693 studies remained. Non-English studies with unavailable full texts and non-human studies were excluded, reducing the number to 495 articles. A manual review of the abstracts was then conducted, and 484 articles were excluded for the following reasons: not being relevant to the study’s purpose (n = 415), study type and design (n = 25), small sample size (n = 4), acute patellofemoral instability and severe dysplasia (n = 8) and skeletally mature patients (n = 32). Full texts of the remaining articles were retrieved and assessed for inclusion. Finally, 11 studies fulfilled the criteria for our review (Figure 1).

3.2. Quality of the Included Studies

The MCMS scores for the 11 included studies are summarized in Table 1. The average MCMS score was 57.45, ranging from 48 to 68. None of the studies achieved an excellent or good rating, with six studies receiving a fair rating and five classified as poor. Overall, the quality of the studies was fair. The results of MINORS score and ROBINS-I tool are also presented in Table 1. The average MINORS score was 9.45, with scores ranging from 7 to 12. In terms of ROBINS-I tool, all 12 studies showed a moderate risk of bias due to confounding, as there were no prognostic variables that predicted baseline intervention. All the studies included participants who were eligible for the target trial (low risk of bias). Bias in classification of interventions was low in all studies as intervention status was well defined. No studies deviated from the intended intervention (low risk of bias). Overall, 10 studies did not show bias due to missing data (low risk of bias), and in two studies, only 80–90% completed the final follow-up (moderate risk of bias). The vast majority of the studies had a retrospective nature (10 out of 12), so in this case, the risk of bias was high. Finally, bias due to selective reporting was not observed in any of the studies (low risk of bias). A detailed description of the ROBINS-I tool can be found in the supplemental section.

3.3. Patient Demographic

This systematic review includes 288 patients with open physis who underwent MPFL reconstruction between 2008 and 2020. The patients’ ages at the time of surgery ranged from 8 to 17 years. The follow-up period varied between 12 and 116.4 months. Overall, 304 MPFL reconstructions were included, with 208 performed using an anatomic technique and 96 using a non-anatomic technique. Only 20% of the knees (69 out of 304) had severe trochlea dysplasia (Dejour type C and D), 25 in the non-anatomic group and 44 in the anatomic group, respectively. The patella height was evaluated with the Insall–Salvati (IS) and the Caton–Deschamps (CD) ratio. The mean IS and CD scores were 1.24. The mean tibial tubercle–trochlear groove distance (TT-TG) was 1.56 (1.51 for the anatomic group and 1.65 for the non-anatomic group). The characteristics of each study are presented in Table 2 and Table 3.

3.4. Clinical Outcomes

All studies, except two [20,21], provided postoperative data using the most commonly used Kujala score, and nearly half of them (5) did not state any pre-operative data [19,20,21,22,23]. In the anatomic reconstruction group, the mean postoperative Kujala scores ranged from 80.3 to 97.9, while in the non-anatomic reconstruction group, the mean postoperative Kujala scores ranged from 71 to 100. The Tegner score was reported in fewer studies. Specifically, the mean Tegner scores were evaluated in four studies using the anatomic technique [8,18,22,25] and in one study using the non-anatomic technique [17]. The mean postoperative score ranged between 3 and 6.3. There were no statistically significant differences in Kujala or Tegner scores between the two techniques, either preoperatively or postoperatively, as depicted in Table 4.

3.5. Complications

Table 5 summarizes the complications of each study. In the anatomic group, the majority of the studies used an interference screw for graft fixation in the distal femoral epiphysis [8,18,19,20,22]. Notably, no hardware-related complications were reported in any of the included studies.
No complications were reported in three studies, two of them using a non-anatomic and one the anatomic technique. Recurrent instability was the most frequently reported complication and defined as recurrent dislocation or subluxation events, as reported by the patient. Higher rates of recurrent instability (OR 0.91; 95%CI 0.44–1.86, p = 0.85), redislocation (OR 1.21; 95%CI 0.42–3.51, p = 0.8), subluxation (OR 0.73; 95%CI 0.29–1.83, p = 0.62), stiffness (decreased ROM) (OR 1.63; 95%CI 0.33–1.72, p = 0.54) and reoperation (OR 1.16; 95%CI 0.35–3.80, p = 0.8) were reported in papers using the anatomic technique. Additionally, more patients in the anatomic technique group stated that they had experienced a positive apprehension test compared to the non-anatomic one (OR 0.92; 95%CI 0.27–3.13, p = 0.89).
Overall, a total of 74 (24.3%) complications were reported: 18 (5.9%) redislocations, 21(6.9%) subluxations, 14 (4.6%) reoperations, 12 patients (3.9%) with positive apprehension tests and 9 patients (3%) with postoperative stiffness. Three studies mentioned no relationship between high trochlea dysplasia (Dejour type C and D) and postoperative complications [16,17,22] and one reported more complications in patients without bone abnormality [19].

3.6. Return to Sport

The mean time to return to sport was 5.85 ± 1.01 months in the anatomic technique group. Regarding the non-anatomic technique group, none of the included studies reported this outcome measure. For those who did not return to sport (9.8%), the most common causes were the fear for re-injury and lack of interest. Approximately, 90% of the patients returned to sports at a higher or at least at the same level than pre-operatively.

4. Discussion

In this systematic review, the outcomes and complications of MPFL reconstruction in skeletally immature patients was examined. Anatomic and non-anatomic MPFL reconstruction techniques did not show statistically significant differences in all examined variables. The included studies were of low-quality and showed substantial heterogeneity. This may be considered a paradox given the relatively high rate of patella dislocation in adolescent patients.
Over the last two decades, the interest around MPFL reconstruction has shown a significant increase [29]. Compared to adults, surgical treatment in young patients involves significant and technically demanding considerations. Proper anatomical placement of femoral and patellar tunnels is essential for accurately reconstructing the MPFL anatomy. Technically, correct femoral graft placement is critical for a successful outcome. In skeletally immature patients, bone tunnel drilling, particularly in the femur, is avoided to reduce the risk of injuring the distal femoral physis. Instead, the femoral attachment of the MPFL is guided by the insertion points of either the posterior portion of the medial collateral ligament (MCL) or the adductor tendon. These anatomic structures are used as a pulley where the graft can be looped. So, the latter allows a more “dynamic” soft tissue fixation rather than a stable bone fixation. However, these “sling procedures” are not considered anatomic. Lind et al. [16], in their cohort, reported a troubling revision rate of 21% using a non–anatomic MPFL reconstruction technique. Another similar study reported good clinical outcomes with a redislocation rate of 2.85% [17], while two other authors did not mention any complications at all [23,24]. In our study, the total recurrence rate in the non-anatomic MPFL reconstruction group was 4.2%, including 1.6% dislocations and 2.6% subluxations. These findings are in accordance with previous reviews, which found a recurrence rate ranging from 5% to 7% [30,31].
MPFL reconstruction is considered a more anatomic procedure and, thus, bony fixation that preserves the femoral origin of the ligament is advocated [16,18]. Although most current evidence indicates that MPFL’s femoral insertion point in pediatric patients is located at or just below the physis, this topic still sparks controversy [22]. Various studies have shown that the average proximity of the Schottle point to the physis is between 3.2 and 8.5 mm [32,33,34]. Intraoperative X-ray guidance is essential to prevent physeal injury and to ensure proper tunnel placement. In adults, a perfect lateral radiograph suffices to establishing the femoral insertion point [35]. In skeletally immature patients, due to the fact that the distal femoral physis is concave in some parts, identification based only on the lateral X-ray might be fallacious. Thus, the surgeon should firstly pinpoint Schottle’s point on the lateral radiograph and then verify on the anteroposterior radiograph that the point of interest is located distal to physis [36,37,38,39]. Apart from that, Nguyen et al. pointed out that the trajectory of the tunnel also plays an important role in minimizing possible damage to the physis and they recommend distal and posterior angulation of 15 to 20 degrees [40]. Notably, the results of our systematic review did not reveal any growth plate injury or growth disturbance in the included studies that used the anatomic technique.
Regarding the patient-reported outcome measures (PROMs), both techniques were associated with significant improvement, without a statistically significant difference. Although most of the studies used the Kujala score, there was no consistency and standardization in PROMs reporting. Apart from this, in pediatric clinical settings, patient-centered care includes family caregivers, as the medical team usually directs questions to them. These caregivers act as the primary agents in providing care for the patient. However, PROMs completed by caregivers do not genuinely represent “patient-reported” outcomes, as they involve caregivers or healthcare providers reporting on the child’s experiences. Furthermore, the evidence indicating agreement between self-reported outcomes from pediatric patients and proxy-reported outcomes from caregivers is weak [40]. It is essential that future studies focus on developing pediatric-specific PROMs. A recent systematic review also stated that there is a need for more pediatric-specific outcome studies regarding operatively managed traumatic patellofemoral instability for safer interpretation of the results [41]. In our review, no study reported age-specific treatment outcomes.
Recent systematic reviews have shown that MPFL reconstruction for addressing patellar instability in young patients is a reliable and safe procedure, with only minor complications [30,42]. The main outcome measure in our study was recurrent patella instability, with a rate of 12.8%. The latter is in agreement with previous papers, which stated an overall recurrent instability rate from 5% to 13.8% [30,31,43,44]. No significant statistical differences were observed between the compared techniques regarding recurrent instability, as well as non-stability-related complications. Hence, our results did not confirm the current belief that the strictly anatomic technique when it comes to femoral fixation is more successful than the non-anatomic technique [8,16,18,45]. From this perspective, the selection of a specific technique for a given patient is at the discretion of the attending physician.
This systematic review has several limitations that should be acknowledged. Firstly, most of the included studies were retrospective case series, offering a low level of evidence with a lack of randomization and blinding; only four studies incorporated a control group [16,21,24,25]. Additionally, no studies in the literature specifically compare the anatomic and non-anatomic techniques regarding femoral fixation. The number of patients in the anatomic group was significantly higher than those in the non-anatomic group. Furthermore, the analysis did not consider variations in the type and location of patellar fixation. Another limitation of this review is the inconsistency in demographic data presentation and, more critically, in the reporting of complications. The lack of a consistent definition for postoperative complications across the included studies affects the reliability of the reported complication rates. What is more, only one study [20] utilized full-length lower limb X-rays to evaluate leg lengths and coronal angular alignment, which is essential for detecting potential growth arrest that could lead to limb-length discrepancies or angular deformities. Moreover, the patient-reported outcome measures (PROMs) used in the studies are not specifically validated for pediatric populations, potentially impacting the accuracy and relevance of the outcomes. What is more, since most studies reported only mid-term follow-up, there is a possibility that some cases of physeal arrest might be underreported.
Lastly, publication bias should be taken into account. This may favor studies with positive or statistically significant results, distorting the conclusions. That being said, statistical significance does not always imply clinical importance. Small sample sizes and large variability could make it harder to detect an effect, even if one exists. As a result, if there were larger sample sizes, a difference between the two techniques would be easier to be found. From this perspective, modern physicians must not base their practice only on one study, but take into account the broader context of the evidence for their daily surgical practice. For the aforementioned reasons, we cannot indicate which technique is more favorable. Decisions should be made according to surgeon’s skills and patient characteristics. For instance, it would be more prudent to choose the anatomic technique in children near to skeletal maturity. Moreover, anatomic reconstruction may not be as dangerous and risky a procedure as initially thought given that none of the included studies revealed any growth plate disturbance. Another deduction is that “sling procedures“ are safe and effective options, even if they do not follow strictly anatomic rules. In order to confirm the current trend for a more anatomic reconstruction, we need randomized controlled trials with long-term follow-up comparing the two techniques.

5. Conclusions

The findings of this systematic review indicate that there is no significant difference between anatomic and non-anatomic MPFL reconstruction techniques concerning patient-reported outcomes and complication rates. Thus, for the time being, the choice of surgical technique might be left up to surgeon’s preference. To identify the optimal clinical decision-making, further high-quality, pediatric-oriented research is needed. Specifically, randomized controlled trials with long-term follow-up should be the gold standard for demonstrating any potential superiority of one technique over the other.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/children11111275/s1, Figure S1: A detailed description of the ROBINS-I tool.

Author Contributions

All authors contributed to the study conception and design. Material preparation, data collection and analysis were performed by G.K., I.V., K.M. and E.G. The first draft of the manuscript was written by G.K. and I.V. All authors have read and agreed to the published version of the manuscript.

Funding

The authors declare that no funds, grants or other support were received during the preparation of this manuscript.

Institutional Review Board Statement

This study was performed in line with the principles of the Declaration of Helsinki. Approval was granted by the Ethics Committee of the University (approval number 1652-12/06/2024).

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are contained within the article.

Conflicts of Interest

The authors have no relevant financial or non-financial interests to disclose.

References

  1. Hennrikus, W.; Pylawka, T. Patellofemoral instability in skeletally immature athletes. Instr. Course Lect. 2013, 62, 445–453. [Google Scholar] [PubMed]
  2. Fithian, D.C.; Paxton, E.W.; Stone, M.L.; Silva, P.; Davis, D.K.; Elias, D.A.; White, L.M. Epidemiology and natural history of acute patellar dislocation. Am. J. Sports Med. 2004, 32, 1114–1121. [Google Scholar] [CrossRef] [PubMed]
  3. Dewan, V.; Webb, M.; Prakash, D.; Malik, A.; Gella, S.; Kipps, C. When does the patella dislocate? A systematic review of biomechanical & kinematic studies. J. Orthop. 2020, 20, 70–77. [Google Scholar] [CrossRef]
  4. Nietosvaara, Y.; Aalto, K.; Kallio, P.E. Acute patellar dislocation in children: Incidence and associated osteochondral fractures. J. Pediatr. Orthop. 1994, 14, 513–515. [Google Scholar] [CrossRef]
  5. Cash, J.D.; Hughston, J.C. Treatment of acute patellar dislocation. Am. J. Sports Med. 1988, 16, 244–249. [Google Scholar] [CrossRef]
  6. Koh, J.L.; Stewart, C. Patellar instability. Orthop. Clin. N. Am. 2015, 46, 147–157. [Google Scholar] [CrossRef]
  7. Chrisman, O.D.; Snook, G.A.; Wilson, T.C. A long-term prospective study of the Hauser and Roux-Goldthwait procedures for recurrent patellar dislocation. Clin. Orthop. Relat. Res. 1979, 144, 27–30. [Google Scholar] [CrossRef]
  8. Nelitz, M.; Dreyhaupt, J.; Reichel, H.; Woelfle, J.; Lippacher, S. Anatomic reconstruction of the medial patellofemoral ligament in children and adolescents with open growth plates: Surgical technique and clinical outcome. Am. J. Sports Med. 2013, 41, 58–63. [Google Scholar] [CrossRef] [PubMed]
  9. Brown, G.D.; Ahmad, C.S. Combined medial patellofemoral ligament and medial patellotibial ligament reconstruction in skeletally immature patients. J. Knee Surg. 2008, 21, 328–332. [Google Scholar] [CrossRef]
  10. Deie, M.; Ochi, M.; Sumen, Y.; Yasumoto, M.; Kobayashi, K.; Kimura, H. Reconstruction of the medial patellofemoral ligament for the treatment of habitual or recurrent dislocation of the patella in children. J. Bone Jt. Surg. Br. 2003, 85, 887–890. [Google Scholar] [CrossRef]
  11. Redfern, J.; Kamath, G.; Burks, R. Anatomical confirmation of the use of radiographic landmarks in medial patellofemoral ligament reconstruction. Am. J. Sports Med. 2010, 38, 293–297. [Google Scholar] [CrossRef] [PubMed]
  12. Schöttle, P.B.; Schmeling, A.; Rosenstiel, N.; Weiler, A. Radiographic landmarks for femoral tunnel placement in medial patellofemoral ligament reconstruction. Am. J. Sports Med. 2007, 35, 801–804. [Google Scholar] [CrossRef] [PubMed]
  13. Coleman, B.D.; Khan, K.M.; Maffulli, N.; Cook, J.L.; Wark, J.D. Studies of surgical outcome after patellar tendinopathy: Clinical significance of methodological deficiencies and guidelines for future studies. Victorian Institute of Sport Tendon Study Group. Scand. J. Med. Sci. Sports 2000, 10, 2–11. [Google Scholar] [CrossRef] [PubMed]
  14. Slim, K.; Nini, E.; Forestier, D.; Kwiatkowski, F.; Panis, Y.; Chipponi, J. Methodological index for non-randomized studies (minors): Development and validation of a new instrument. ANZ J. Surg. 2003, 73, 712–716. [Google Scholar] [CrossRef]
  15. Sterne, J.A.C.; Hernán, M.A.; Reeves, B.C.; Savović, J.; Berkman, N.D.; Viswanathan, M.; Henry, D.; Altman, D.G.; Ansari, M.T.; Boutron, I.; et al. ROBINS-I: A tool for assessing risk of bias in non-randomised studies of interventions. BMJ 2016, 355, i4919. [Google Scholar] [CrossRef]
  16. Lind, M.; Enderlein, D.; Nielsen, T.; Christiansen, S.E.; Faunø, P. Clinical outcome after reconstruction of the medial patellofemoral ligament in paediatric patients with recurrent patella instability. Knee Surg. Sports Traumatol. Arthrosc. 2016, 24, 666–671. [Google Scholar] [CrossRef]
  17. Machado, S.A.F.; Pinto, R.A.P.; Antunes, A.J.A.M.; de Oliveira, P.A.R. Patellofemoral instability in skeletally immature patients. Porto Biomed. J. 2017, 2, 120–123. [Google Scholar] [CrossRef]
  18. Nelitz, M.; Dreyhaupt, J.; Williams, S.R.M. Anatomic reconstruction of the medial patellofemoral ligament in children and adolescents using a pedicled quadriceps tendon graft shows favourable results at a minimum of 2-year follow-up. Knee Surg Sports Traumatol. Arthrosc. 2018, 26, 1210–1215. [Google Scholar] [CrossRef]
  19. Pesenti, S.; Ollivier, M.; Escudier, J.-C.; Cermolacce, M.; Baud, A.; Launay, F.; Jouve, J.-L.; Choufani, E. Medial patellofemoral ligament reconstruction in children: Do osseous abnormalities matter? Int. Orthop. 2018, 42, 1357–1362. [Google Scholar] [CrossRef]
  20. Uppstrom, T.J.; Price, M.; Black, S.; Gausden, E.; Haskel, J.; Green, D.W. Medial patellofemoral ligament (MPFL) reconstruction technique using an epiphyseal femoral socket with fluoroscopic guidance helps avoid physeal injury in skeletally immature patients. Knee Surg. Sports Traumatol. Arthrosc. 2019, 27, 3536–3542. [Google Scholar] [CrossRef]
  21. Quinlan, N.J.; Tomasevich, K.M.; Mortensen, A.J.; Hobson, T.E.; Adeyemi, T.; Metz, A.K.; Aoki, S.K. Medial Patellofemoral Ligament Reconstruction in the Pediatric Population: Skeletal Immaturity Does Not Affect Functional Outcomes but Demonstrates Increased Rate of Subsequent Knee Injury. Arthrosc. Sports Med. Rehabil. 2022, 4, e1589–e1599. [Google Scholar] [CrossRef] [PubMed]
  22. Schlumberger, M.; Schuster, P.; Hofmann, S.; Mayer, P.; Immendörfer, M.; Mayr, R.; Richter, J. Midterm Results After Isolated Medial Patellofemoral Ligament Reconstruction as First-Line Surgical Treatment in Skeletally Immature Patients Irrespective of Patellar Height and Trochlear Dysplasia. Am. J. Sports. Med. 2021, 49, 3859–3866. [Google Scholar] [CrossRef] [PubMed]
  23. Wang, Y.; Zhao, Y.; Huang, X.; Lei, Z.; Cao, H. Reconstruction of medial patellofemoral ligament with adductor magnus tendon for recurrent patellar dislocation in children: A retrospective comparative cohort study. J. Orthop. Surg. Res. 2023, 18, 733. [Google Scholar] [CrossRef]
  24. Zhang, Q.; Ying, L.; Han, D.; Ye, L.; Tung, T.-H.; Liang, J.; Liu, P.; Zhou, X. Arthroscopic reconstruction of the medial patellofemoral ligament in skeletally immature patients using the modified sling procedure: A novel technique for MPFL reconstruction. J. Orthop. Surg Res. 2023, 18, 334. [Google Scholar] [CrossRef] [PubMed]
  25. Leite, C.B.G.; Hinckel, B.B.; Ribeiro, G.F.; Giglio, P.N.; Santos, T.P.; Bonadio, M.B.; Arendt, E.; Gobbi, R.G. Medial patellofemoral ligament reconstruction in skeletally immature patients without correction of bony risk factors leads to acceptable outcomes but higher failure rates. J. ISAKOS 2023, 8, 189–196. [Google Scholar] [CrossRef]
  26. Baldwin, J.L. The anatomy of the medial patellofemoral ligament. Am. J. Sports Med. 2009, 37, 2355–2361. [Google Scholar] [CrossRef] [PubMed]
  27. Kujala, U.M.; Kvist, M.; Aalto, T.; Friberg, O.; Österman, K. Factors predisposing to patellar chondropathy and patellar apicitis in athletes. Int. Orthop. 1986, 10, 195–200. [Google Scholar] [CrossRef]
  28. Collins, N.J.; Misra, D.; Felson, D.T.; Crossley, K.M.; Roos, E.M. Measures of knee function: International Knee Documentation Committee (IKDC) Subjective Knee Evaluation Form, Knee Injury and Osteoarthritis Outcome Score (KOOS), Knee Injury and Osteoarthritis Outcome Score Physical Function Short Form (KOOS-PS), Knee Outcome Survey Activities of Daily Living Scale (KOS-ADL), Lysholm Knee Scoring Scale, Oxford Knee Score (OKS), Western Ontario and McMaster Universities Osteoarthritis Index (WOMAC), Activity Rating Scale (ARS), and Tegner Activity Score (TAS). Arthritis Care Res. 2011, 63 (Suppl. 11), S208–S228. [Google Scholar] [CrossRef]
  29. Ellera Gomes, J.L. Medial patellofemoral ligament reconstruction for recurrent dislocation of the patella: A preliminary report. Arthroscopy 1992, 8, 335–340. [Google Scholar] [CrossRef]
  30. D’ambrosi, R.; Corona, K.; Capitani, P.; Coccioli, G.; Ursino, N.; Peretti, G.M. Complications and Recurrence of Patellar Instability after Medial Patellofemoral Ligament Reconstruction in Children and Adolescents: A Systematic Review. Children 2021, 8, 434. [Google Scholar] [CrossRef]
  31. Migliorini, F.; Maffulli, N.; Bell, A.; Betsch, M. Outcomes, Return to Sport, and Failures of MPFL Reconstruction Using Autografts in Children and Adolescents with Recurrent Patellofemoral Instability: A Systematic Review. Children 2022, 9, 1892. [Google Scholar] [CrossRef] [PubMed]
  32. Shea, K.G.; Grimm, N.L.; Belzer, J.; Burks, R.T.; Pfeiffer, R. The relation of the femoral physis and the medial patellofemoral ligament. Arthroscopy 2010, 26, 1083–1087. [Google Scholar] [CrossRef] [PubMed]
  33. Farrow, L.D.; Alentado, V.J.; Abdulnabi, Z.; Gilmore, A.; Liu, R.W. The relationship of the medial patellofemoral ligament attachment to the distal femoral physis. Am. J. Sports Med. 2014, 42, 2214–2218. [Google Scholar] [CrossRef] [PubMed]
  34. Kepler, C.K.; Bogner, E.A.; Hammoud, S.; Malcolmson, G.; Potter, H.G.; Green, D.W. Zone of injury of the medial patellofemoral ligament after acute patellar dislocation in children and adolescents. Am. J. Sports Med. 2011, 39, 1444–1449. [Google Scholar] [CrossRef]
  35. Loeb, A.E.; Tanaka, M.J. The medial patellofemoral complex. Curr. Rev. Musculoskelet. Med. 2018, 11, 201–208. [Google Scholar] [CrossRef]
  36. Nelitz, M.; Dornacher, D.; Dreyhaupt, J.; Reichel, H.; Lippacher, S. The relation of the distal femoral physis and the medial patellofemoral ligament. Knee Surg Sports Traumatol. Arthrosc. 2011, 19, 2067–2071. [Google Scholar] [CrossRef]
  37. Shamrock, A.G.; Day, M.A.; Duchman, K.R.; Glass, N.; Westermann, R.W. Medial Patellofemoral Ligament Reconstruction in Skeletally Immature Patients: A Systematic Review and Meta-analysis. Orthop. J. Sports Med. 2019, 7, 2325967119855023. [Google Scholar] [CrossRef]
  38. Popkin, C.A.; Bayomy, A.F.; Trupia, E.P.; Chan, C.M.; Redler, L.H. Patellar Instability in the Skeletally Immature. Curr. Rev. Musculoskelet. Med. 2018, 11, 172–181. [Google Scholar] [CrossRef]
  39. Sidharthan, S.; Wang, G.; Schlichte, L.M.; Fulkerson, J.P.; Green, D.W. Medial Patellofemoral Ligament Reconstruction in Skeletally Immature Patients. JBJS Essent. Surg. Tech. 2020, 10, e0110. [Google Scholar] [CrossRef]
  40. Nguyen, T.; Kalish, J.; Woodson, J. Management of civilian and military vascular trauma: Lessons learned. Semin. Vasc. Surg. 2010, 23, 235–242. [Google Scholar] [CrossRef]
  41. Gao, B.; Dwivedi, S.; Fabricant, P.D.; Cruz, A.I. Patterns in Outcomes Reporting of Operatively Managed Pediatric Patellofemoral Instability: A Systematic Review and Meta-analysis. Am. J. Sports Med. 2019, 47, 1516–1524. [Google Scholar] [CrossRef] [PubMed]
  42. Migliorini, F.; Rath, B.; Tingart, M.; Meisen, N.; Eschweiler, J. Surgical management for recurrent patellar dislocations in skeletally immature patients. Eur. J. Orthop. Surg. Traumatol. 2019, 29, 1815–1822. [Google Scholar] [CrossRef] [PubMed]
  43. Panni, A.S.; Alam, M.; Cerciello, S.; Vasso, M.; Maffulli, N. Medial patellofemoral ligament reconstruction with a divergent patellar transverse 2-tunnel technique. Am. J. Sports Med. 2011, 39, 2647–2655. [Google Scholar] [CrossRef] [PubMed]
  44. Wilkens, O.E.; Hannink, G.; van de Groes, S.A.W. Recurrent patellofemoral instability rates after MPFL reconstruction techniques are in the range of instability rates after other soft tissue realignment techniques. Knee Surg. Sports Traumatol. Arthrosc. 2020, 28, 1919–1931. [Google Scholar] [CrossRef]
  45. Vavken, P.; Wimmer, M.D.; Camathias, C.; Quidde, J.; Valderrabano, V.; Pagenstert, G. Treating patella instability in skeletally immature patients. Arthroscopy 2013, 29, 1410–1422. [Google Scholar] [CrossRef]

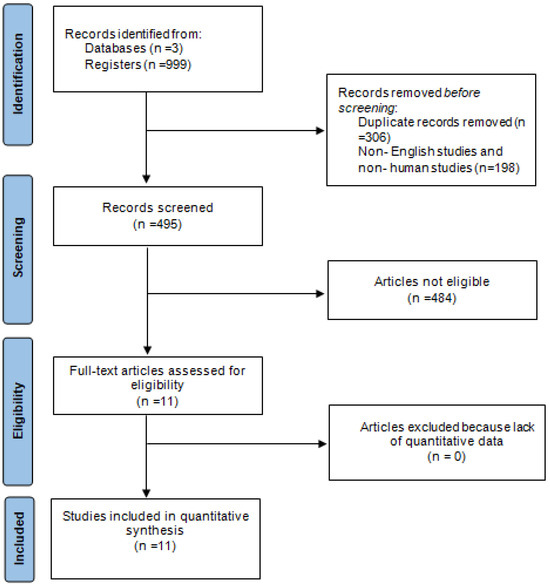

Figure 1. Search strategy flow chart.
Figure 1. Search strategy flow chart.
Children 11 01275 g001
Table 1. Results of MINORS, Modified Coleman Methodology score and ROBINS-I tool.
Table 1. Results of MINORS, Modified Coleman Methodology score and ROBINS-I tool.
AuthorsMINORS Score Average MCMS Score
Average
ROBINS-I
Tool (Overall)
Level of EvidenceType of Study
1Nelitz et al., 2012 [8]1263Serious risk of biasIVCase series
2Lind et al., 2014 [16]956Serious risk of biasIIICase-control study
3Machado et al., 2017 [17]1068Moderate risk of biasIIIProspective cohort study
4Nelitz et al., 2017 [18]1066Moderate risk of biasIIIProspective cohort study
5Pesenti et al., 2017 [19]748Serious risk of biasIVCase series
6Uppstrom et al., 2019 [20]851Serious risk of biasIVCase series
7Quinlan et al., 2021 [21]852Serious risk of biasIIICase-control study
8Schlumberger et al., 2021 [22]1165Serious risk of biasIVCase series
9Wang et al., 2023 [23]1052Serious risk of biasIVRetrospective cohort study
10Zhang et al., 2023 [24]851Serious risk of biasIVCase series
11Leite et al., 2023 [25]1160Serious risk of biasIVRetrospective cohort study
Average Score9.4557.45
Table 2. This summary reflects the general characteristics and outcomes reported in the studies included in the review.
Table 2. This summary reflects the general characteristics and outcomes reported in the studies included in the review.
Authors, YearPatientsKnees
(n)
Meanage
(Range, Years)
Mean Follow-Up
(Range, Months)
Type of
Graft
Technique Return to Sport (Months)Complications, Number of Cases
1Nelitz et al., 2012 [8]21
(15 M/6 W)
2112.2 (10.3–13.9)33.6 (24–43.2)GracilisAnatomic5.3 (4–12)Stiffness: 1
2Lind et al., 2104 [16]20
(9 M/11 F)
2412.539 (17–72)GracilisNon-anatomicNot reportedRedislocation: 4
Subluxation: 5
Stiffness: 2
Reoperation: 4
Apprehension: 1
3Machado et al., 2017 [17]35
(11 M/24 W)
3515.9 (14–17)116.4GracilisNon-anatomicNot reportedRedislocation: 1
Subluxation: 3
Superficial Infection: 1
Anterior knee pain: 5
Donor site pain: 3
Apprehension: 3
4Nelitz et al., 2017 [18]25
(9 M/16 F)
2512.8 (9.5–14.7)31.2 (24–40.8)QuadricepsAnatomic4.8 (3–11)No complications
5Peseni et al., 2017 [19]25
(19 M/6 W)
2713.8 ± 2.541.1 ± 13.5Gracilis (19)/
Semitendinosus (8)
Anatomic 7.1 ± 3.5Redislocation: 1
Wound complications: 5
6Uppstrom et al., 2019 [20]49
(30 M/19 W)
5413.3 ± 1.626.4 (12–68.4)Gracilis/
Semitendinosus
AnatomicNot reportedRedislocation: 5
Reoperation: 4
7Quinlan et al., 2021 [21]16
(9 M/7 F)
1713.5 ± 1.049.2 ± 19.2AllograftAnatomicNot reportedRedislocation: 2
Subluxation: 4
Reoperation: 3
Stiffness: 5
8Schlumberger et al., 2021 [22]41
(33 M/8 F)
4513.8 ± 1.151.6 ± 20.4GracilisAnatomic 6.2 ± 3.0Redislocation: 3
Subluxation: 1
Stiffness: 1
Reoperation: 3
9Wang et al., 2023 [23]16
(8 M/8 W)
1611.56 ± 1.1525.81 ± 1.42Adductor magnus tendonNon-anatomicNot reportedNo complications
10Zhang et al., 2023 [24]21
(9 M/12 F)
2110.7 (8–13)24–42Peroneus longusNon-anatomicNot reportedNo complications
11Leite et al., 2023 [25]191914 (11–17) 69.6 ± 20.4Gracilis AnatomicNot reportedRedislocation: 5
Apprehension: 8
Subluxation: 8
Table 3. Radiological characteristics of the patients of the included studies. TT-TG: tibial tuberosity–trochlear groove distance, N/A: not available, M: mean, SD: standard deviation.
Table 3. Radiological characteristics of the patients of the included studies. TT-TG: tibial tuberosity–trochlear groove distance, N/A: not available, M: mean, SD: standard deviation.
Radiological ParametersTotalAnatomic GroupNon-Anatomic Groupp-Value
Severe trochlea dysplasia
(Dejour C/D)-n%
6944250.344 a
TT-TG, M ± SD1.56 (0.43)1.51 (0.21)1.65 (0.73)0.507 b
Caton–Deschamps ratio, M ± SD1.24 (0.09)1.28 (0.02)1.100.157 b
Insall–Salvati ratio, M ± SD1.24 (0.08)1.24 (0.08)N/A-
a Chi-square test, b Mann–Whitney test, p significant at <0.05.
Table 4. Analysis of scores according to the employed technique. M: mean, SD: standard deviation.
Table 4. Analysis of scores according to the employed technique. M: mean, SD: standard deviation.
Anatomic TechniqueNon-Anatomic Techniquez-Valuep-Value a
M (SD)M (SD)
Kujala Preoperatively62.66 (10.40)47 (10.40)−1.090.40
Kujala Postoperatively91.06 (6.85)85.31 (13.19)−0.730.55
Tegner Preoperatively4 (2)7 (2)−1.340.50
Tegner Postoperatively5.02 (1.45)4 (3)−0.700.80
a p significant at <0.05 (Mann–Whitney test).
Table 5. Analysis of complications according to the employed technique.
Table 5. Analysis of complications according to the employed technique.
Complications Total (n1+2/N1+2)Anatomic Group (n1/N1)Non-Anatomic Group (n2/N2)p-Value a
Recurrent instability39/30426/20813/960.85
Redislocation 18/30413/2085/960.8
Subluxation 21/30413/2088/960.62
Positive Apprehension test12/3048/2082/960.89
Stiffness 9/3047/2082/960.54
Reoperation 14/30410/2084/960.8
a Chi-square test, p significant at <0.05, n1 = number of cases in the anatomic group, N1 = total number of patients in the anatomic group, n2 = number of cases in the non-anatomic group, N2 = total number of patients in the non-anatomic group.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Kalinterakis, G.; Vlastos, I.; Gianzina, E.; Dimitriadis, S.; Mastrantonakis, K.; Chronopoulos, E.; Yiannakopoulos, C.K. MPFL Reconstruction in Skeletally Immature Patients: Comparison Between Anatomic and Non-Anatomic Femoral Fixation—Systematic Review. Children 2024, 11, 1275. https://doi.org/10.3390/children11111275

AMA Style

Kalinterakis G, Vlastos I, Gianzina E, Dimitriadis S, Mastrantonakis K, Chronopoulos E, Yiannakopoulos CK. MPFL Reconstruction in Skeletally Immature Patients: Comparison Between Anatomic and Non-Anatomic Femoral Fixation—Systematic Review. Children. 2024; 11(11):1275. https://doi.org/10.3390/children11111275

Chicago/Turabian Style

Kalinterakis, Georgios, Iakovos Vlastos, Elina Gianzina, Savvas Dimitriadis, Konstantinos Mastrantonakis, Efstathios Chronopoulos, and Christos K. Yiannakopoulos. 2024. "MPFL Reconstruction in Skeletally Immature Patients: Comparison Between Anatomic and Non-Anatomic Femoral Fixation—Systematic Review" Children 11, no. 11: 1275. https://doi.org/10.3390/children11111275

APA Style

Kalinterakis, G., Vlastos, I., Gianzina, E., Dimitriadis, S., Mastrantonakis, K., Chronopoulos, E., & Yiannakopoulos, C. K. (2024). MPFL Reconstruction in Skeletally Immature Patients: Comparison Between Anatomic and Non-Anatomic Femoral Fixation—Systematic Review. Children, 11(11), 1275. https://doi.org/10.3390/children11111275

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
