Synthesis and Biomedical Potential of Azapeptide Modulators of the Cluster of Differentiation 36 Receptor (CD36)

Department of Chemistry, North Carolina State University, Raleigh, NC 27695, USA
Innovative Drug Research Centre, Chongqing Key Laboratory of Natural Product Synthesis and Drug Research, School of Pharmaceutical Sciences, Chongqing University, Chongqing 401331, China
Department of Chemistry and Biochemistry, Seton Hall University, 400 South Orange Ave, South Orange, NJ 07079, USA
Département d’Ophtalmologie, Université de Montréal, C.P. 6128, Succursale Centre-Ville, Montréal, QC H3C3J7, Canada
Faculté de Pharmacie, Université de Montréal, C.P. 6128, Succursale Centre-Ville, Montréal, QC H3C3J7, Canada
Département de Chimie, Université de Montréal, C.P. 6128, Succursale Centre-Ville, Montréal, QC H3C3J7, Canada
Author to whom correspondence should be addressed.
Biomedicines 2020, 8(8), 241;
Submission received: 11 June 2020 / Revised: 15 July 2020 / Accepted: 17 July 2020 / Published: 23 July 2020
(This article belongs to the Special Issue Peptide-Based Drug Development)


The innovative development of azapeptide analogues of growth hormone releasing peptide-6 (GHRP-6) has produced selective modulators of the cluster of differentiation 36 receptor (CD36). The azapeptide CD36 modulators curb macrophage-driven inflammation and mitigate atherosclerotic and angiogenic pathology. In macrophages activated with Toll-like receptor-2 heterodimer agonist, they reduced nitric oxide production and proinflammatory cytokine release. In a mouse choroidal explant microvascular sprouting model, they inhibited neovascularization. In murine models of cardiovascular injury, CD36-selective azapeptide modulators exhibited cardioprotective and anti-atherosclerotic effects. In subretinal inflammation models, they altered activated mononuclear phagocyte metabolism and decreased immune responses to alleviate subsequent inflammation-dependent neuronal injury associated with retinitis pigmentosa, diabetic retinopathy and age-related macular degeneration. The translation of GHRP-6 to potent and selective linear and cyclic azapeptide modulators of CD36 is outlined in this review which highlights the relevance of turn geometry for activity and the biomedical potential of prototypes for the beneficial treatment of a wide range of cardiovascular, metabolic and immunological disorders.

Graphical Abstract

1. Introduction

In modern biomedical science, the transformation of biologically active peptides into potent and selective therapeutic prototypes is a challenge requiring an interplay of chemical synthesis and biological analysis. Over more than a decade of such collaborative research, unselective peptide hits exhibiting binding affinity for the cluster of differentiation 36 receptor (CD36) were transformed into potent and selective azapeptide leads with promising medicinal potential. In the absence of structural data for CD36 alone nor in complex with small molecules, lead optimization relied on structure–activity relationship data obtained from different assays designed to assess the pleiotropic effects of the receptor. During this research novel methods were conceived for the synthesis of linear and cyclic azapeptides. Certain azapeptides were shown to reduce inflammation by a mechanism featuring binding of CD36 and disruption of its interaction with the Toll-like receptor (TLR)-2/6 heterodimer to subsequently perturb downstream signaling and attenuate the pro-inflammatory cascade. In choroidal explant models, some azapeptides reduced neovascularization mediated by the TLR-2 heterodimer. Other CD36-selective azapeptides exhibited cardioprotective effects associated with an increase in circulating adiponectin levels. This review focuses on the chemistry leading to a better understanding of the topological requirements for binding and regulating CD36 activity towards the discovery of novel prototypes for treating cardiovascular, metabolic and immunological conditions.

2. Discussion

2.1. The Cluster of Differentiation 36 Receptor (CD36) Is a Medicinally Relevant Target

CD36 is a transmembrane glycoprotein expressed on platelets, monocytes, macrophages, hepatocytes, endothelial and several other cell types [1,2,3]. CD36 is comprised of a single 472-amino acid chain cross-linked by three disulfide bonds and post-translationally modified by significant glycosylation and phosphorylation [4]. The extracellular loop of CD36 is relatively large, binds diverse circulating ligands and is flanked by two transmembrane spanning regions at the N- and C-termini with short cytosolic domains that are anchored into the membrane by four palmitoylation sites. Functioning as a class B scavenger receptor, CD36 is involved in the regulation of inflammatory processes, inhibition of microvascular angiogenesis, transport of oxidized lipoproteins and phospholipids, phagocytosis of microorganisms and cells, and autophagy [1,2,3,4,5,6,7]. CD36 binds to multiple endogenous ligands, including long chain fatty acids, the extracellular matrix protein thrombospondin 1 (TSP1), oxidative low-density lipoprotein (oxLDL), apoptotic cells and photoreceptor outer segments. Ligand engagement by CD36 has important implications in cardiovascular biology, including events leading to atherosclerosis, angiogenesis, diabetic retinopathy and age-related macular degeneration (AMD) [1,2,3,5,6,7].
As a translocator of long chain fatty acids, CD36 plays a critical role in cardiac metabolism. During ischemia-reperfusion injury, myocardial function is altered with increased uptake and oxidation of fatty acid at the expense of glucose resulting in contractile dysfunction. Myocardial damage can be mitigated, and cardiomyocyte function ameliorated by inhibition of fatty acid uptake and mitochondrial oxidation in the myocytes [8,9]. Myocardial ischemia and reperfusion activate the sympathoadrenal system and catecholamine-induced lipolysis causing increases in the availability of circulating levels of non-esterified fatty acids driving myocardial fatty acid uptake and oxidation, which may hinder glucose metabolism, a requirement for normal cardiac function [10]. Implicated in regulating myocardial non-esterified fatty acid uptake, CD36 regulates both circulating and myocardial levels of adiponectin, a major cardioprotective adipokine, that interplays with the transcription factor peroxisome proliferator-activated receptor-γ (PPARγ), which is a key regulator of adiponectin gene expression [11]. Adiponectin elicits antilipolytic effects and reduces circulating non-esterified fatty acids [12], which in turn regulates myocardial anti-apoptotic, antioxidant and metabolic functions.
In addition to activity in cardiovascular biology, CD36 displays major roles in innate immunity, in eliciting reactive oxygen species production and in modulating metabolic homeostasis in immune cells [13]. As a co-receptor of the Toll-like receptor (TLR)-2/6 heterodimer assembly, CD36 regulates TLR-2-dependent macrophage-driven inflammation by sustaining TLR-2/6 signaling on the surface of membranes of mononuclear phagocytes [14,15,16]. The CD36-TLR-2/6 protein–protein interaction appears as a promising target for therapeutic intervention to treat retinal inflammation associated with accumulated mononuclear phagocyte activation, and photoreceptor degeneration neurotoxicity induced by photo-oxidative stress. In consideration of these pleiotropic biological effects, binding ligands that dissociated CD36 interaction with the TLR-2 heterodimer offer interesting therapeutic potential.

2.2. Growth Hormone Releasing Peptide-6 (GHRP-6) Analogues as Lead CD36 Binding Ligands

Several CD36 ligands have demonstrated the capacity to protect and preserve normal cardiac function [11,12,17]. Synthetic analogues of growth hormone releasing peptide-6 (GHRP-6, H-His-D-Trp-Ala-Trp-D-Phe-Lys-NH2, 1, CD36 IC50 1.82 μM) have shown promising cardioprotective effects by binding and regulating CD36 in a mouse model of myocardial ischemia and reperfusion [9]. For example, the GHRP-6 analogue EP80317 (Haic-D-Trp(2-Me)-D-Lys-Trp-D-Phe-Lys-NH2, 2, CD36 IC50 1.11 μM, Haic = 5-amino-1,2,4,5,6,7-hexahydroazepino[3,2,1-hi]indol-4-one-2-carboxylic acid) exhibited cardioprotective activity, reduced myocardial fatty acid uptake and prevented non-esterified fatty acid mobilization from adipose tissue [9]. The potential for ligands based on the GHRP-6 structure to target ischemic cardiomyopathy was however limited due to their lack of receptor selectivity, binding to both CD36 and the growth hormone secretagogue receptor (so-called ghrelin receptor, GHS-R1a). Certain azapeptide GHRP-6 analogues have surmounted this limitation, retaining high binding affinity for CD36 without exhibiting significant GHS-R1a binding affinity (vide infra) [18].
Topographical mapping of the binding hotspot domains of CD36 with a benzophenone alaninyl (Bpa) hexarelin derivative [Tyr-Bpa-Ala-His-D-(2-Me)Trp-Ala-Trp-D-Phe-Lys-NH2, 3, CD36 IC50 2.08 μM] revealed that the lysine-rich Asn132-Gln177 extracellular domain which interacted with GHRP-6 ligands overlapped with the oxLDL binding site [19]. Within this region, the positively-charged side chains of Lys164 and Lys166 have been found to directly contribute to oxLDL ligand binding to CD36 [20]. Considering the structures of GHRP-6 peptide ligands and the Lys-rich binding domain of CD36, aromatic–cation interactions were hypothesized to contribute to ligand-receptor binding affinity [21].
The binding affinity measurements (IC50 values) of peptide ligands for CD36 and the GHS-R1a receptor (GHS-R1a) were respectively determined by competitive binding assays using [125I]-radiolabeled photoactivatable Bpa-GHRP-6 derivative 3 as tracer and by a ghrelin binding assay with [125I]-ghrelin as radiotracer [18,21]. CD36 ligand binding affinity (EC50 and Kd values) has also been measured using surface plasmon resonance (SPR) analysis on a surface consisting of a peptide-based self-assembled monolayer (SAM) containing a recombinant His-tagged receptor [22]. Gold-surface-coated peptide monolayers consisting of 3-mercaptopropionyl-leucinyl-histidinyl-aspartyl-leucinyl-histidinyl-aspartic acid were functionalized with N′,N′-bis(carboxymethyl)-L-lysine using 1-ethyl-3-(3-dimethylaminopropyl)carbodiimide (EDC) and N-hydroxysuccinimide (HOSu) peptide-based coupling chemistry. The peptide-functionalized surface enabled immobilization of nitrilotriacetic acid for copper chelation and binding to recombinant histidine-tagged CD36, which could be reversed with imidazole treatment. The immobilization of CD36 onto the peptide monolayer provided a SPR means for screening binding ligands, such as GHRP-6 (1), EP80317 (2), and selected GHRP-6 azapeptides. The relative binding affinity measurements (EC50 values) of the peptide analogues correlated with CD36-dependent phosphorylation of sarcoma, src-kinases (Lyn/Fyn) in CD36 expressing J774 macrophages [5]. Moreover, the apparent binding affinity measurements (Kd values) were found to be consistent (1 μM–70 μM) with those derived from the previously established competitive binding assays [18,21]. The SPR biosensor platform for studying surface immobilized receptor–ligand binding interactions may provide additional insight into requirements for selective ligand binding affinity and downstream biological responses.

2.3. Conception of Azapeptide GHRP-6 Ligands Exhibiting CD36-Selective Binding Affinity

Exhibiting promising cardioprotective activity, the GHRP-6 peptides suffered from a lack of receptor selectivity. The parent peptide GHRP-6 (1) bound respectively to CD36 and the GHS-R1a receptor in the low micro- and nanomolar ranges (EC50 values, Table 1). Peptide 1 has been characterized to adopt a random coil conformation in solution based on circular dichroism spectroscopic analysis (vide infra) [18], in spite the central D-Trp-L-Ala-L-Trp-D-Phe sequence possessing alternating L- and D-amino acid pairs, which are commonly found at the central resides of β-turns [23]. Considering that a preferred turn geometry may be adopted on receptor binding, GHRP-6 analogues that discriminate between CD36 and the GHS-R1a receptor were pursued by employing semicarbazide residues as amino amide surrogates to favor such conformers and improve selective binding affinity. In azapeptides, semicarbazide residues can favor backbone β-turn geometry and improve metabolic stability [24]. Azapeptide GHRP-6 analogues served to elucidate structural requirements for selective CD36 binding affinity. Certain azapeptides retained low micromolar CD36 binding affinity, but lost significant (102-104-fold) binding affinity for the GHS-R1a receptor (Table 1).
Aza-GHRP-6 analogues were identified which bound effectively CD36 without any binding affinity for the GHS-R1a receptor. An aza-amino acid scan was initially performed in which each residue of the central D-Trp2-Ala3-Trp4 region of GHRP-6 was replaced by aza-residues [18]. Fifteen azapeptides were synthesized, in which the D-Trp2 and Trp4 residues were respectively substituted with aromatic aza-amino acids (azaPhe, azaTyr, azaBip, azahPhe and azaNal-1, Bip = p-phenyl-Phe, hPhe = homo-Phe, Nal = naphthylalanine), and the Ala3 residue was replaced with azaGly and azaLeu (Figure 1). Although azaTrp analogues were synthesized in solution, the indol-3-yl methyl side chain was labile under acidic conditions, such that azaGly peptides resulted from exposure of the azaTrp counterparts to the trifluoroacetic acid (TFA) conditions used for resin cleavage [25]. Examination of their respective binding affinities revealed that four of the fifteen azapeptide GHRP-6 analogues (e.g., 5-8) retained micromolar binding affinity for CD36 but exhibited 102-104-fold losses in GHS-R1a receptor binding (Table 1).
A deeper understanding of the structural requirements for CD36 binding selectivity and affinity was obtained by performing an alanine scan on five azapeptides (48). In the Ala-scan of the GHRP-6 azapeptides, selective substitutions of L- and D-alanine residues throughout the sequence except the aza-residues enabled study of the importance of side chains on biological activity. So-called IRORI Kans™ technology was used to prepare twenty-two analogues by split-and-mix parallel combinatorial synthesis (vide infra). Six aza-GHRP-6 analogues were subsequently identified with improved CD36 selectivity and micromolar range binding affinity (Table 2). Notably, replacement of the N-terminal His by Ala resulted typically in a >104-fold loss of binding affinity for the GHRS-R1a receptor without perturbing CD36 engagement (e.g., 1012 and 15). Moreover, respective substitutions of L- and D-Ala for the His1, Trp4 and D-Phe5 residues of [azaLeu3]GHRP-6 (6) provided analogues which maintained CD36 binding affinity with improved selectivity (e.g., 1214). Although micromolar affinity to both the CD36 and GHSR-1a receptors was conserved upon deletion of Lys6 from [azaLeu3]GHRP-6 (6), further truncation was unfruitful, and replacement of His1 for proline, propionic acid, glycine and D-alanine, all reduced binding affinity by ~103 for the GHSR-1a receptor, but did not improve CD36 binding affinity (data not shown) [18].

2.4. Expanding Aza-GHRP-6 Analogue Diversity by azaGly Alkylation

In the synthesis of the aza-GHRP-6 analogues, the application of N-Fmoc-aza-amino acid chlorides in split-and-mix chemistry was initially used to prepare azapeptide libraries [18]. The activation of N’-alkyl 9-fluorenylmethyl carbazates with phosgene gave reactive N-Fmoc-aza-amino acid chlorides (e.g., 19, Scheme 1) for introduction into peptides linked to solid support [25]. Employing resin separated into solvent permeable plastic mesh containers (IRORI Kans™), the N-Fmoc-aza-amino acid chlorides were reacted in parallel to synthesize azapeptides in sufficient purities and yields for biological studies. Using Fmoc-based solid-phase peptide synthesis (SPPS) and a combinatorial split-and-mix approach [26], a library of about fifty aza-GHRP-6 derivatives was prepared to examine CD36 binding affinity, selectivity and activity [18].
Application of N-Fmoc-aza-amino acid chlorides necessitated solution-phase synthesis of the N’-alkyl fluoren-9-ylmethyl carbazates (e.g., 18) [25], typically by reductive amination procedures using Fmoc-hydrazide (17) and various carbonyl compounds. This synthetic chemistry denied access to certain aza-residues, such as aza-propargylglycine (azaPra), which would offer potential for synthesizing azapeptide “libraries from libraries” using, for example, the copper-catalyzed azide alkyne cycloaddition reaction (“click chemistry”). The installation of a broader diversity of aza-residues was subsequently achieved using a “submonomer” method featuring the alkylation and arylation of an aza-glycine semicarbazone [27], as reviewed elsewhere [28]. Strides in the discovery of selective CD36 azapeptide ligands were made employing this method to construct analogues for deciphering the structural and conformational requirements for activity.
In an example of the “submonomer” method (Scheme 2) [27], benzaldehyde hydrazone was activated with p-nitrophenyl chloroformate as a carbonyl donor and coupled to the resin-bound peptide to provide aza-glycine semicarbazone 26. The significant pKa differences of the semicarbazone, urea, amide and carbamate NH in the azaGly-peptide sequence (e.g., 26) permitted chemoselective deprotonation and alkylation of the aza-residue semicarbazone to add various side chains, such as benzyl to give azaPhe-peptide 27. Azapeptides (e.g., 8) were isolated by HPLC after a sequence featuring orthogonal deprotection of the semicarbazone (e.g., 27) using hydroxylamine hydrochloride in pyridine, amino acylation of the semicarbazide (e.g., 22), peptide elongation, followed by resin cleavage and deprotection. Employing such methods, [azaPhe4]GHRP-6 derivatives were synthesized using a variety of substituted benzyl halides in the semicarbazone alkylation step and their structure–activity relationships (SAR) were examined in vitro. Moreover, the submonomer approach gave access to a broader diversity of azapeptides by arylation, Michael addition and conjugate addition-elimination chemistries (vide infra) [28].

2.5. Divergent Effects of Aza-GHRP-6 Analogues on Microvascular Sprouting Reveals the Relevance of azaPhe4 Ring Substitution

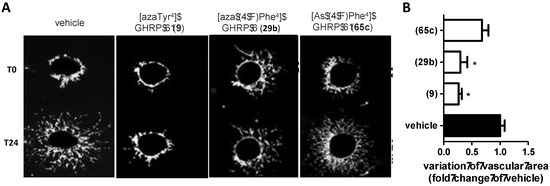

Divergent effects of aza-GHRP-6 analogues on choroidal neovascularization were observed in an ex vivo microvascular sprouting assay using mouse choroid explants. For example, although [azaTyr4]GHRP-6 (9) and [Ala1, azaPhe4]GHRP-6 (15) displayed similar receptor binding affinities and CD spectra with curve shapes indicative of β-turn conformations [18], aza-tyrosine analogue 9 exhibited anti-angiogenic activity and aza-phenylalanine analogue 15 had limited if not a slightly pro-angiogenic effect on the choroidal explants. Quantification of microvascular sprouting after 4-day treatment with [azaTyr4]GHRP-6 (9) revealed 17% choroid sprouting, validating its antiangiogenic properties compared to the control, vehicle condition which produced 53% neovascularization. On the other hand, [Ala1, azaPhe4]-GHRP-6 (15), which exhibited high binding affinity and CD36 selectivity, increased slightly neovascularization compared to the control, likely due to the activation of Src kinase recruitment and a vascular endothelial growth factor (VEGF)-driven protein kinase B (Akt) phosphorylation pathway [7]. Azapeptide ligands of CD36 which lacked GHS-R1a receptor binding affinity were shown to induce different biological responses, contingent upon the structure and location of the aza-amino acid residue. The divergent effects on angiogenesis were investigated further using [azaPhe4]-GHRP-6 analogues possessing the parent His1 residue, an Ala1 substitution, and diverse side-chain modifications at the azaPhe4 residue [29].

2.6. Effect of His1 and azaPhe4 Substitutions on GHRP-6 Derivative Binding Affinity and Bioactivity

Intrigued by the similar β-turn CD spectra and divergent effects on angiogenesis of lead azaPhe4-GHRP-6 analogues, we synthesized a library of derivatives using the submonomer approach to explore further the importance of the aromatic ring of the aza-residue [29]. Aromatic substituents were installed to study the influences of electronic density and χ-dihedral angle side chain geometry on activity (Figure 2). A subset of the substituted aza-Phe4 analogues were synthesized with alanine {e.g., [Ala1, azaPhe4]GHRP-6 (15) series 28} in lieu of histidine {e.g., [azaPhe4]GHRP-6 (8) series 29} to examine the influence of the N-terminal residue.
Nitric oxide (NO) production by immune cells such as monocytes and macrophages has been considered an index of the inflammatory process in response to stimuli such as TLR agonists, proinflammatory cytokines and interferon γ. Azapeptide analogues were examined for their ability to reduce NO production in macrophages activated with the TLR-2 agonist (R)-fibroblast-stimulating lipopeptide (R-FSL-1). The physiological mediator NO is a marker of inflammation that can be readily trapped to provide a measurable fluorescent adduct [30]. The reduction of NO release from activated macrophages was considered a prerequisite indicator of CD36-mediated activity and used to select lead candidates for receptor binding affinity and angiogenesis studies in a microvascular sprouting assay using choroid explants. Among the twenty-five azaPhe analogues tested, sixteen decreased NO production and the remaining exhibited no significant effect. Notably, [azaPhe4]-GHRP-6 (8) and [Ala1, azaPhe4]-GHRP-6 (15) showed respectively no effect and the most significant ability to decrease NO production, but neither influenced vascular growth in the angiogenesis assay [29]. The CD36 binding affinities of the sixteen relatively similar azaPhe4 analogues that decreased NO production differed by about 17-fold (1.65 μM–28.2 μM); however, contingent on aromatic substituent the [azaPhe4]-GHRP-6 analogues exhibited divergent effects on choroidal neovascularization.
Anti-angiogenic activity was demonstrated by [azaTyr4]- and [aza(4-F)Phe4]-GHRP-6 (9 and 29b). Moreover, anti-angiogenic trends were exhibited by analogues with other 4-position electronegative groups [29d (4-Br) and 29f (4-MeO)]. In contrast, [aza(4-n-PrO)Phe4]-GHRP-6 (29h) increased neovascularization. The subtle effects of the N-terminal residue were indicated further by the anti- and pro-angiogenic trends exhibited respectively by [Ala1, aza(4-Cl)Phe4]-GHRP-6 (28c) and [aza(4-Cl)Phe4]-GHRP-6 (29c). In contrast to the relatively high binding affinity and anti-angiogenic effects of [azaTyr4]GHRP-6 (9), [aza(3-HO)Phe4]GHRP-6 (29n) exhibited about 15-fold lower CD36 binding affinity and no effect on microvascular growth.

2.7. Further Probing of the azaPhe4 Residue Using aza-arylGly4- and aza-1,2,3-triazole-3-Ala4-GHRP-6 Analogues

Side chain diversity was expanded beyond the benzyl substituents in the [azaPhe4]GHRP-6 analogues by synthetic approaches that delivered respectively aza-arylglycine and aza-1-aryl-2,3-triazole-3-alanine residues (e.g., 3034). This chemistry featured respectively Cu-catalyzed N-arylation of azaGly semicarbazones [31], and azide-alkyne cycloadditions of aza-propargylglycine (azaPra) residues (Figure 3) [32]. In contrast to azaTrp residues which were acid labile and decomposed to azaGly peptides (vide supra) [25], aza-indolylglycine 31 was stable to the TFA conditions used to cleave azapeptides from the Rink amide resin. The CD36 binding affinities of the aza-arylglycine and aza-1-aryl-2,3-triazole-3-alanine GHRP-6 analogues were comparable to GHRP-6 (1) in the surface plasmon resonance (SPR) binding assay [22]. For example, [aza-1-aryl-2,3-triazole-3-alanine4]GHRP-6 analogues 33 and 34 exhibited Kd values around 2-10-fold lower than GHRP-6 (1) in the SPR binding assay (unpublished results).

2.8. Exploring Potential Salt–Bridge Interactions Between CD36 and azaGlu-GHRP-6 Analogues

On engagement of CD36, GHRP-6 analogues such as hexarelin (38, His-d-(2-Me)Trp-Ala-Trp-d-Phe-Lys-NH2) and azapeptide derivatives bind the Asn132–Glu177 sequence, which overlaps with the binding site for oxLDL [19]. In this region, three conserved lysine residues (Lys163, Lys164 and Lys166) contribute to binding of oxLDL [20]. Hypothesizing that the same lysine residues may participate in GHRP-6 binding by cationic-π interactions with the d-Trp2, Trp4, d-Phe5 aromatic residues, a series of aza-glutamate analogues were synthesized to examine the potential of salt–bridge interactions to improve receptor binding [21]. Conjugate and SN2’ additions of azaGly semicarbazone peptides (e.g., 26) onto Michael acceptors and allylic acetates were respectively achieved using tert-butyliminotri-(pyrrolidino)phospharane (BTPP) as base to install different azaGlu analogues at the Ala3 (e.g., 35) and Trp4 (e.g., 36 and 37) positions of GHRP-6 (Figure 4).
At the Ala3 position, comparable CD36 binding affinities to the GHRP-6 analogue standard hexarelin (38, 2.3 μM) were demonstrated by [aza-(cyanoethyl)Gly3]GHRP-6 (35b) and [aza-(ethyl diethylphosphoryl)Gly3]GHRP-6 (35e). In contrast, [azaGlu3]GHRP-6 (35a) and [aza-(ethyl methylphosphoryl)Gly3]GHRP-6 (35c) bound with ~10-fold lower affinity, and [aza-(ethyl dimethylphosphoryl)Gly3]GHRP-6 (35d) exhibited > 500-lower CD36 binding affinity. At the Trp4 position, compared to hexarelin (38), less significant decreases in CD36 binding affinity were exhibited by azaGlu analogues {e.g., [azaGlu4]GHRP-6 (36a, ~5-fold) and [aza-(E/Z)-(2-carboxy-p-nitrocinnamyl)Gly4]GHRP-6 (37a, ~8-fold)} compared to non-ionic aliphatic aza-residues: [aza-(ethyl methylphosphoryl)Gly4]- (36b), [aza-(ethyl diethylphosphoryl)Gly4]- (36d) and [aza-(E/Z)-(2-cyano-p-methoxycinnamyl)Gly4]GHRP-6 (37b) all showing >103-fold drops in binding affinity. The relatively better binding affinity of the azaGlu4 analogues may be due to potential to engage in salt bridges with CD36 [21].

2.9. Aza-Lysine GHRP-6 Analogues

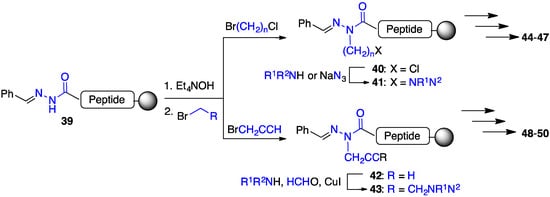

Azapeptides with basic side chains were pursued with an interest to replace the C-terminal Lys residue in GHRP-6 (Scheme 3). Aza-lysine GHRP-6 analogues were synthesized using two different submonomer procedures. Alkylation of semicarbazones (e.g., 39) was used to install aza-amino acids with chloroalkyl and propargyl side chains [33,34,35]. Chloride 40 was employed in different SN2 displacement reactions with a variety of amines and sodium azide to prepare various aza-ornithine, aza-arginine and aza-lysine derivatives (e.g., 4447) [33,34]. Alternatively, aza-propargylglycine (azaPra) residues 42 were employed in copper-catalyzed A3-coupling reactions, between alkyne, aldehyde, and amine components, to prepare aminobutynylglycine peptides (e.g., 4850) [35]. In the A3-coupling, the amine and aldehyde components combine to form an imine, which is attacked by a metal acetylide nucleophile formed from the activation of the alkyne by the copper catalyst [36].

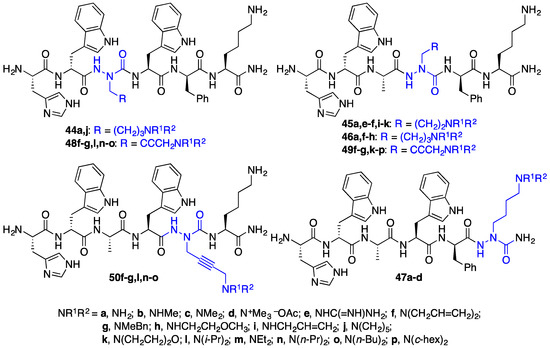

Combined, these two methods provided over thirty [azaLys]GHRP-6 analogues with various substituents on the amino group, different degrees of side chain saturation and chain length, as well as azaLys residues placed respectively at the Ala3, Trp4, d-Phe5, and Lys6 positions (Figure 5). Analysis by SPR of select members of the series revealed that [azaLys4]GHRP-6 analogues (e.g., 49fg,kp) exhibited micromolar CD36 binding affinities (unpublished results). Notably, [azaLys6]GHRP-6 (47a) was found to be inactive and used subsequently as a negative control in studies of azapeptide CD36 modulator activity [29]. Moreover, [aza-(N,N-diallylaminobut-2-ynyl)Gly4]-GHRP-6 (49f) exhibited therapeutic potential in a model of atherosclerosis (vide infra). In addition, intramolecular variations of the A3-coupling reaction were developed to access cyclic azapeptide derivatives of GHRP-6 with promising results [37,38,39].

2.10. Unprecedented Binding Affinity and Activity Achieved by Azacyclopeptide-GHRP-6 Analogue Synthesis by A3-Macrocyclization

Macrocyclization has been widely employed for enhancing the metabolic stability and increasing receptor binding affinity of peptide ligands, due in part to the stabilization of active conformers [40]. Considering the relevance of an active β-turn conformer in linear azapeptide CD36 modulators such as [azaTyr4]GHRP-6 (9) [18], cyclic analogues were pursued to increase conformational rigidity and improve binding affinity by minimizing the energy of folding for target engagement [40]. Macrocyclic aza-GHRP-6 analogues were synthesized using an intramolecular variation of the A3-coupling reaction [37]. The cyclic aza-GHRP-6 analogues were cross-linked using formaldehyde as a linchpin in a copper-catalyzed macrocyclization between the side chains of azaPra and Nε-(alkyl)Lys residues. The so-called A3-macrocyclization was performed following azaPra introduction as well as after azapeptide linear sequence completion (Scheme 4).

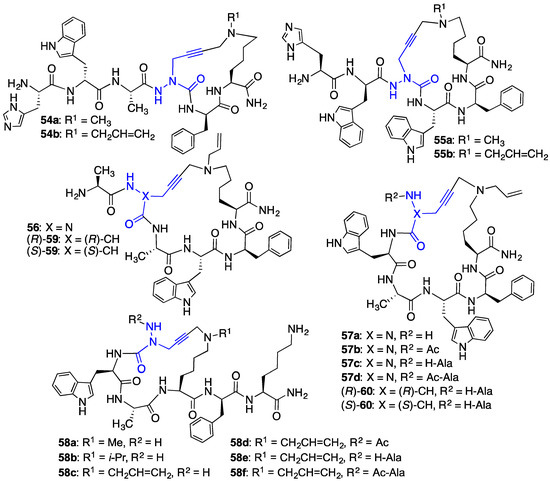

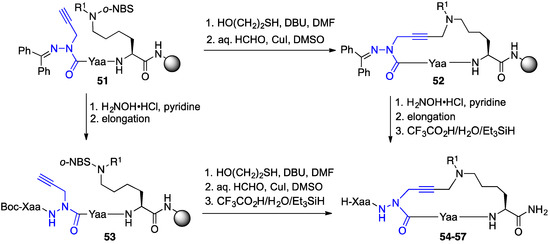

Different ring-sized aza-GHRP-6 macrocycles (e.g., 5457, Figure 6) were synthesized by confining the N ε-(alkyl)Lys to the C-terminus and moving the azaPra residue systematically towards the N-terminus of the peptide sequence. Diverse azacyclopeptides (e.g., 58af) were synthesized by A3-macrocyclizations on linear substrates with the N ε-(alkyl)Lys residue in other locations, as well as with different alkyl groups on the Nε-amine. A systematic replacement of key residues in azacyclopeptide 57c by alanine was accomplished by an approach featuring installation of the azaPra residue using the corresponding Fmoc-aza-propargylglycine acid chloride [38]. Moreover, replacement of the azaPra residue in azacyclopeptides 56 and 57c with R- and S-propargylglycine residues was achieved using the A3-macrocyclization to provide configurationally stable cyclic peptides (R)- and (S)-59 and 60 [39].
Biological screening demonstrated that azacyclopeptide GHRP-6 analogues 56 and 57ad and cyclic peptide counterparts (R)- and (S)-59 and 60, all could modulate NO overproduction in murine RAW-264.7 macrophage cells activated with R-FSL-1 as a TLR-2 agonist. Relative to linear analogues [aza-Tyr4]-GHRP-6 (9) [18] and [N-Ala-azaPra1, Ne-(allyl)Lys6]-GHRP-6, which exhibited respectively similar and no influence at 10–6 M and 10–7 M, cyclic azapeptides 57bd caused significant inhibition of R-FSL-1-induced NO production at 10–7 M [37]. Cyclic peptides 59 and 60 reduced NO overproduction with less than half the activity as azapeptide counterparts 56 and 57c with the (S)-isomers exhibiting a stronger influence than the (R)-counterparts [39].

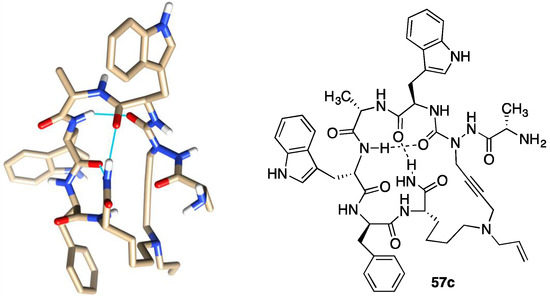

Azacyclopeptide GHRP-6 analogue 57c exhibited unprecedented CD36 binding affinity (IC50 0.08 μM) in the competitive binding assay against photoactivatable [125I]-Tyr-Bpa-Ala-hexarelin (3) as radiotracer [37]. Azacyclopeptides 56, 57b and 57d also exhibited relatively high CD36 binding affinities (IC50 0.24 μM, 1.03 μM, 0.49 μM). Relative to their azapeptide counterparts 56 and 57c, (S)-cyclic peptides (S)-59 and (S)-60 exhibited respectively > 6- and 8-fold reduced binding affinities, and (R)-cyclic peptides (R)-59 and (R)-60 had > 13-fold lower binding affinities.
In sum, cyclization provided azacyclopeptide GHRP-6 analogues with greater potency in reducing TLR-2 agonist-induced NO overproduction and higher binding affinities than linear counterparts reinforcing the hypothesis of an active turn geometry. Azacyclopeptides such as 56 and 57c are currently under investigation in in vivo models. Moreover, cyclic azapeptides and their cyclic peptide counterparts have served as tools for understanding the biologically active conformer as discussed in detail below.

2.11. Exploration of Differences between Semicarbazides and N-Aminosulfamides Using Azasulfurylpeptides

Azasulfurylpeptides feature an N-aminosulfamide residue as an amino amide surrogate with potentially greater metabolic stability. N-Aminosulfamide residues differ from their semicarbazide counterparts by the presence of a sulfuryl (SO2) group which adopts tetrahedral geometry and offers two Lewis base sites in contrast to the planar carbonyl group (CO). Compared to azapeptides in which the semicarbazide situates at the central residues of β-turns, model azasulfurylpeptides have been observed to adopt γ-turn conformers in X-ray crystallographic analyses [41]. The replacement of a semicarbazide residue by an N-aminosulfamide counterpart was performed to examine subtle structural and conformational differences on activity.

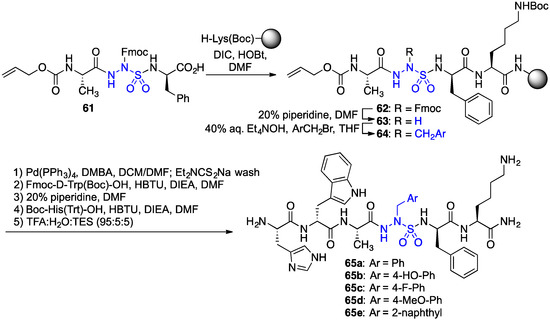

A diversity-oriented synthesis of azasulfurylpeptide GHRP-6 analogues 65 was conceived to prepare a set of novel CD36 modulators (Scheme 5) [42]. Protection of the sulfamide nitrogen with an Fmoc group enabled coupling of azasulfurylglycine (AsG) tripeptide 61 onto resin. After Fmoc removal, the azasulfurylglycine (AsG) residue of resin 63 was alkylated with various arylmethyl bromides using tetraethylammonium hydroxide as base in THF. Elongation of azasulfurylpeptides 64 and resin cleavage gave four azasulfurylphenylalanine4-GHRP-6 analogues (e.g., 65ad) and azasulfuryl-2-naphthylalanine4-GHRP-6 65e.
In TLR-2 agonist-stimulated macrophage cells, [(4-fluoro)azasulfurylphenylalaninyl4]-GHRP-6 {[(4-F)AsF4]-GHRP-6, 65c} exhibited significant ability to reduce NO overproduction [42]. Moreover, in the competition binding assay against [125I]-Tyr-Bpa-Ala-hexarelin (3), [(4-F)AsF4]-GHRP-6 (65c, IC50 2.53 μM) had respectively 1.3-fold lower and 2.4-fold higher CD36 binding affinities relative to the semicarbazide counterparts, [azaTyr4]- and [aza(4-F)Phe4]-GHRP-6 (9 and 29b). The subtle switch from a carbonyl group to a sulfuryl moiety caused relatively little change on ability to mediate a TLR-2-triggered inflammatory response and on binding affinity; however, as seen earlier with [azaPhe4]-GHRP-6 analogues possessing different aromatic substituents [29], the switch from an azapeptide to an azasulfurylpeptide had a significant influence on neovascularization. In the mouse choroidal explant model in which [azaTyr4]- and [aza(4-F)Phe4]-GHRP-6 (9 and 29b) had exhibited significant anti-angiogenic activity, azasulfuryl-GHRP-6 analogue 65c featured no anti-angiogenic activity (Figure 7). [42].

2.12. Probing for Turn Conformations Using Aza-Proline and Aza-Pipecolic Acid Mimics

Application of aza-residues had revealed the likelihood of an active turn conformer for the biological activity of the GHRP-6 analogues [18]. Moreover, the subtle change of a semicarbazide to an N-aminosulfamide residue indicated that turn geometry may influence angiogenic activity [42]. Attempting to probe the turn conformation in more detail, a series of analogues were prepared using covalent constraint by way of aza-proline, aza-pipecolate, lactam and aza-lactam residues.

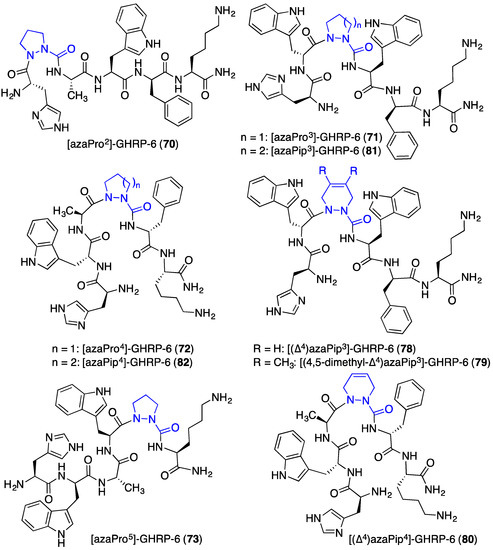

Aza-proline (azaPro) and aza-pipecolic acid (azaPip) analogues were introduced into GHRP-6 in the search for selective CD36 receptor ligands [18,43]. In contrast to proline and pipecolate residues, which often exist in peptides with their N-terminal amide in an equilibrium between cis- and trans-isomers and a typically favored trans amide, electrostatic repulsion between the aza-residue nitrogen and the amide carbonyl oxygen disfavor the trans-isomer to afford a dominant cis-isomer, as observed by NMR spectroscopy and X-ray crystallography [44,45,46,47,48,49,50,51]. The combination of the covalent and electronic constraints of the azaPro and azaPip residues can induce type VI β-turn geometry [44,45,46,47,48,49,50,51]. The azaPro analogues were introduced by acylation of peptide on resin using the corresponding Fmoc protected aza-amino acid chloride 68, which was synthesized by a route featuring a series of protecting group manipulations and alkylation of N-Boc-N’-Cbz-hydrazine (66) with 1,3-dibromopropane (Scheme 6) [52].

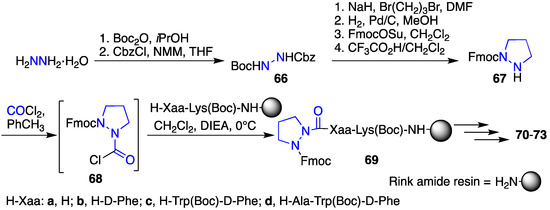

Systematic replacement of each residue in the d-Trp2-Ala3-Trp4-d-Phe5 region of GHRP-6 by aza-proline (azaPro scan) afforded azapeptides 7073. Among the four, only replacement of the Ala residue with azaPro gave an analogue that retained micromolar CD36 receptor binding affinity. In the competition assay against [125I]-Tyr-Bpa-Ala-hexarelin (3), [azaPro3]-GHRP-6 (71, Figure 8) exhibited CD36 binding affinity (IC50 9.81 μM) [18]. In addition, azaPro3-peptide 71 was CD36 selective and had no binding affinity for the GHS-R1a receptor.

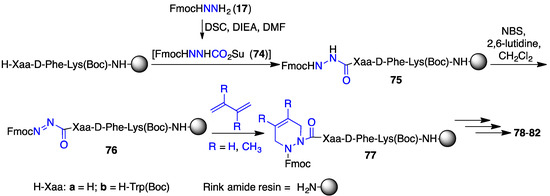

The related aza-pipecolic acid derivatives were synthesized by a route featuring pericyclic chemistry on azopeptides (e.g., 76a and 76b, Scheme 7) [43]. Aza-pipecolate peptides 77 were prepared by coupling N-Fmoc-aza-glycine N-hydroxysuccinimide ester (74) to peptide resin, oxidation of the azaGly residue using N-bromosuccinimide (NBS) to give the corresponding azo-glycine-peptide 76, followed by [4 + 2] cycloaddition reactions with butadiene and 2,3-dimethylbutadiene [43]. After elongation of 77 and resin cleavage with concomitant protecting group removal, ∆4-dehydro-azaPip derivatives 7880 were isolated. Hydrogenation of 78 and 80 with palladium-on-carbon provided access to the corresponding saturated azaPip analogues 81 and 82. After treatment with a TLR-2 agonist, four of the five [azaPip3]- and [azaPip4]GHRP-6 derivatives (78 and 8082) decreased NO production in macrophages with activities similar to that of [azaTyr4]GHRP-6 (9). On the other hand, [(4,5-dimethyl-Δ4)azaPip3]GHRP-6 (79) was inactive [43] indicating that the steric bulk of the additional methyl groups interfered likely with receptor engagement.

2.13. Probing for Turn Conformations Using Lactam and Aza-Lactam Residues

The application of a covalent bridge between the N-terminal residue side chain and the amine of the neighboring C-terminal residue in a lactam has been used with success in constraining peptides into rigid geometry, such as β-turn conformations, since the pioneering studies of the Merck laboratory [53,54,55]. Inspired by such studies, lactam analogues of GHRP-6 were prepared to restrict conformational mobility and increase CD36 selectivity and binding affinity. α-Amino and β-amino γ-lactams (Agl and Bgl) of both R- and S-configuration were introduced into the GHRP-6 peptide sequence by approaches featuring N-alkylation of peptide on resin using six- and five-membered cyclic sulfamidates 83 and 84, respectively, followed by annulation under microwave heating (Scheme 8) [56].

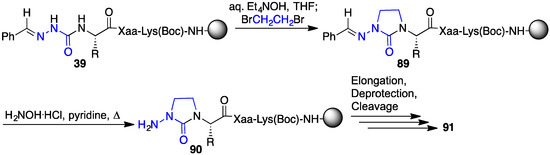

Furthermore, the aza-variants of the α-amino γ-lactam, so called N-amino-imidazolidin-2-one (Aid) residues were introduced into GHPR-6 analogues (e.g., 91d, Figure 9) by a sequence featuring alkylation of semicarbazone 39 with 1,2-dibromoethane, liberation of semicarbazide 90 with hydroxylamine in pyridine, peptide elongation and resin cleavage (Scheme 9) [57]. In model peptides, Aid residues have been shown by NMR spectroscopy and X-ray crystallography to adopt the i + 1 position of well-defined, compact β-turns possessing intramolecular ten-member hydrogen bonds within types II and II’ geometry contingent on ring puckering [58].

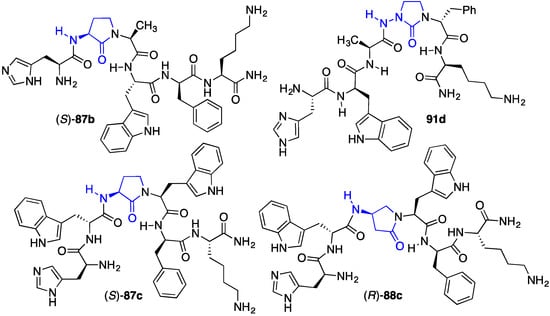

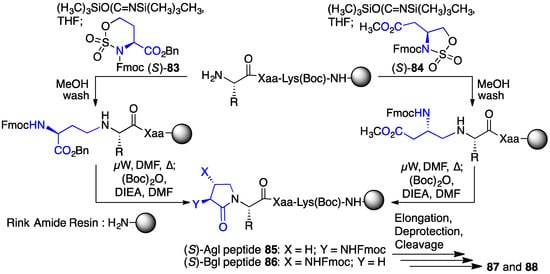

Systematic replacement of the first five amino acids of the GHRP-6 sequence with (R)- and (S)-Agl and Bgl, as well as Aid residues provided a total of twenty-six (aza-)lactam analogues [e.g., (S)- 87b, (S)-87c, (R)-88 and 91d, Figure 9] [56,57]. Examination of CD36 and GHS-R1a binding affinities revealed a number of structure–activity relationships [56]. For example, except for the case of [(S)-Agl2]-GHRP-6 [(S)- 87b] which retained CD36 selectivity (13.4 μM), replacements of the D- and L-Trp residues with lactams diminished significantly binding affinity especially for the ghrelin receptor, likely due to the loss of the aromatic side chain. Among the selective CD36 ligands, the notable binding affinity of [(S)-Agl3]-GHRP-6 [(S)-87c, 7.45 μM] and [(R)-Bgl3]-GHRP-6 [(R)- 88c, 21.1 μM] indicated that a turn conformer about the Ala3 residue may favor receptor engagement, because complementary bent structures may be achieved by Agl and Bgl residues of opposite stereochemistry. Finally, replacement of D-Phe5 with (S)-Agl and (R)- and (S)-Bgl provided GHRP-6 analogues which bound selectively CD36 (21.4 μM–94.0 μM) [56].
In summary, the application of covalent constraint employing azaPro, azaPip, Agl, Bgl and Aid residues added support to conclude that an active turn conformer existed within the central residues of the hexapeptide. In general, replacement of Ala3 by these covalent constraining residues gave GHRP-6 analogues that retained some activity and binding affinity. The loss of aromatic side chains upon incorporation at the D-Trp, Trp and D-Phe residues may have likely mitigated beneficial conformational effects.

2.14. Cardioprotective Effects of [Ala1, azaPhe4]-GHRP-6 (15)

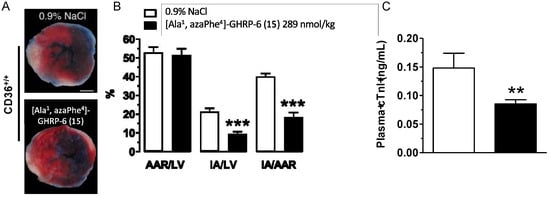

The biomedical potential of specific azapeptide analogues has been further examined in mouse models featuring both myocardial and subretinal inflammation. Examples of these ongoing studies are presented using [azaTyr4]-GHRP-6 (9) and [Ala1, azaPhe4]-GHRP-6 (15). Azapeptides 9 and 15 have been respectively examined in models of ischemia-reperfusion injury and subretinal inflammation induced by exposure to blue-light.
CD36-selective aza-GHRP-6 ligands have exhibited beneficial cardioprotective effects in decreasing myocardial injury [59,60]. In an examination of the release of adiponectin promoted by CD36 ligands during myocardial ischemia and reperfusion, [Ala1, azaPhe4]-GHRP-6 (15) was found to exert cardioprotective effects against myocardial damage and dysfunction following transient left coronary artery ligation in mice [60]. Pretreatment of mice with azapeptide 15 reduced myocardial damage and plasma cardiac troponin I levels 48 h after reperfusion relative to untreated animals. A single dose of aza-phenylalanine analogue 15 before reperfusion resulted in reduction in injury due to myocardial ischemia and reperfusion (Figure 10).
The effects of 15 were shown to be CD36 dependent; azapeptide treatment did not reduce injury in CD36-deficient mice. Treatment with azapeptide 15 improved myocardial function without significant change of heart rate as determined by real-time volume conductance and pressure-recording analyses. Moreover, plasma levels of adiponectin were transiently elevated and myocardial fatty acid uptake and non-esterified fatty acid mobilization were reduced by treatment with azapeptide 15. Increases in adipose mRNA levels of PPARγ targeted genes (e.g., fatty acid transporter protein 1 (Fatp1) and phosphoenolpyruvate carboxykinase 1 (Pck1)) were observed following treatment with azapeptide 15 in CD36+/+ mice. Mice treated with azapeptide 15 and subjected to myocardial ischemia and reperfusion exhibited a small but significant reduction of mitochondrial-derived reactive oxygen species in saponin-permeabilized cardiomyocyte bundles, preservation of aconitase activity, augmented cyclooxygenase-2 (COX-2) expression and increased AMP-activated protein kinase (AMPK), Akt, and acetyl-CoA carboxylase (ACC) phosphorylation, as well as reduced cytosolic cytochrome c release and caspase 3 activity. The role of adiponectin in sustaining the cardioprotective effect of azapeptide 15 after myocardial ischemia and reperfusion was further delineated by the annulation of restorative effects in the presence of an anti-adiponectin neutralizing antibody. In sum, treatment with [Ala1, azaPhe4]-GHRP-6 (15) enhanced the cardioprotective effect of adiponectin in a CD36-dependent manner to prevent injury in induced murine models [60]. Selective azapeptide CD36 ligands offer beneficial means for treating myocardial ischemia and reperfusion induced injury and related cardiometabolic and immunological disorders.
In the course of review, a publication in press was reported in which [aza-(N,N-diallylaminobut-2-ynyl)Gly4]-GHRP-6 (49f) was shown to diminish aortic lesion progression and reduce lesions in the aortic sinus of atherosclerotic mice below pre-existing levels [61]. Moreover, the effects of azapeptide 49f were associated with a relative increase of M2-like macrophages in lesions and reduced systemic inflammation [61].

2.15. Mitigation of Subretinal Macrophage-Driven Inflammation Using [azaTyr4]GHRP-6 (9)

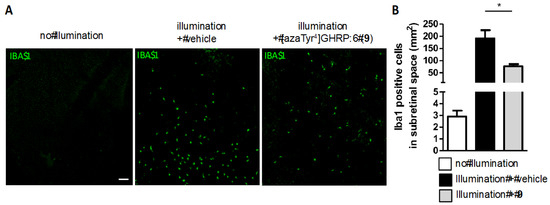

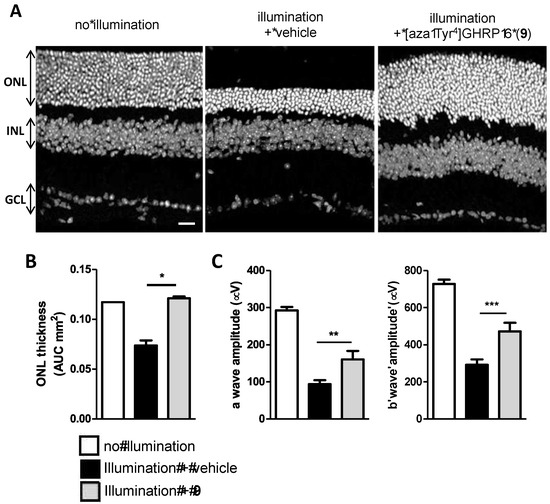

The CD36-selective modulator [azaTyr4]GHRP-6 (9) exhibited cytoprotective effects and preserved retinal function under photooxidative stress conditions simulating chronic inflammation [62]. Azapeptide 9 reduced proinflammatory cytokine levels and mononuclear phagocyte recruitment in wild-type (WT, C57BL6) mice exposed to blue LED-light for five days at an illuminance of 6000 lux (Figure 11). A mechanistic study of the modulation of the immune response was performed using fluorescent antibody for ionized calcium binding adapter molecule 1 (IBA-1) and revealed that subretinal-activated mononuclear phagocyte accumulation was reduced by azapeptide 9 in WT mice [62].
Azapeptide 9 mitigated the activation of the CD36-TLR-2/6 complex after induction by R-FSL as diacyl peptide TLR-2-agonist. The influence of [azaTyr4]GHRP-6 (9) on the CD36-TLR-2 complex was ascertained by measuring Förster resonance energy transfer (FRET) efficiency using antibodies for the respective proteins coupled to energy donor and acceptor Cy3 and Cy5 dyes. The TLR-2 agonist R-FSL1 induced an increase in FRET indicating a rapid association between CD36 and TLR-2 on the membranes of cultured mononuclear phagocytes. Aza-tyrosine analogue 9 attenuated the R-FSL1-induced energy transfer efficiency between Cy3 and Cy5 indicating the dissociation of the CD36-TLR-2/6 heterodimer complex at the mononuclear phagocyte cell membrane. Disruption of the heterodimer complex by azapeptide 9 resulted in alteration of the downstream signaling of the activated TLR-2 heterodimer as observed in the photo-oxidative stress-triggered pro-inflammatory cascade [62,63]. Consequently, western blot analysis indicated that treatment with 9 altered the TLR-2-signaling pathway with reduction of the phosphorylation of TLR-2-induced downstream signals (e.g., interleukin-1 receptor-associated kinase-4 (IRAK4), nuclear factor-kappa B (NF-κB), c-Jun N-terminal kinase (JNK) and the P38 mitogen-activated protein kinase (P38 MAPK)).
As a co-receptor of TLR-2, CD36 contributes in the activation of activator protein 1 (AP-1) triggering gene transcription of proinflammatory cytokines, primarily by stimulating JNK and P38 activity. In isolated bone marrow-derived mononuclear phagocytes, which were isolated from femurs and tibias of 8-12-week-old C57BL/6 mice, azapeptide 9 decreased AP-1 activation by inhibiting JNK and P38 MAPK phosphorylation. Abrogation of inflammation was found to result in down-regulation of NF-κB and Nod-like receptor (NLR) family pyrin domain containing-3 (NLRP3) inflammasome assembly with decrease of interleukin-1β (IL-1β) secretion as observed using confocal microscopy of retinal pigment epithelium (RPE) flat mounts from illuminated CD36+/+ mice using fluorescent antibody staining. In addition, [azaTyr4]GHRP-6 (9) modulated the metabolic homeostasis of the macrophages by activating peroxisome proliferator-activated receptor-γ (PPAR-γ). Selective allosteric modulation of the interaction between CD36 and TLR-2 by azapeptide 9 decreased the immune response and reduced inflammation. Within the retina, the decreased inflammatory response caused by azapeptide 9 correlated with the preservation of neuronal cells [62], the loss of which is characteristic of retinal inflammation conditions such as retinitis pigmentosa, diabetic retinopathy and AMD (Figure 12) [63].

2.16. Implications of aza-GHRP-6 Conformation on Activity

In the development of therapeutic prototypes from linear peptides leads, dynamic fluctuation between multiple conformers of similar energy can inhibit conformational analysis. For example, GHRP-6 exhibits a CD spectrum in water characteristic of a disordered random coil with a characteristic sharp negative band around 190 nm. The application of electronic and covalent constraints can limit the conformational flexibility of the peptide to favor populations with preferred geometry. Notably, the CD curves of certain linear azapeptide CD36 modulators, such as the [aza-Phe4]GHRP-6 analogues (e.g., 9 and 15), exhibit typically curve shapes indicative of β-turn conformations with negative maxima centered at around 190 and 230 nm and a positive maximum band at 215 nm [64]. Assessment of linear azapeptide GHRP-6 derivatives by CD and nuclear magnetic resonance (NMR) spectroscopy have illustrated the importance of aromatic character and β-turn secondary structure of [aza-Phe4]GHRP-6 derivatives for CD36 binding [18,21].
Cyclization of linear peptides has been commonly employed to provide less conformationally flexible analogues [40]. In the case of the linear peptide ligands, A3-macrocyclization provided respectively azacyclopeptide CD36 ligands (e.g., 56 and 57) and their cyclic peptide counterparts (e.g., 59 and 60) to study the conformational requirements for binding affinity, modulation of CD36-TLR-2/6 complex signaling pathways and reduction of macrophage-driven inflammation [39]. The configurationally stable (R)- and (S)-cyclic peptides were compared with their azacyclopeptide counterparts to investigate the importance of semicarbazide sp2 and sp3 hybridizations for CD36 binding affinity and downstream proinflammatory responses. Conformational analysis was performed using NMR spectroscopy and computational analysis, which revealed the conformational dynamics of the cyclic analogues and indicated an active conformer featuring a type II’ β-turn geometry for azacyclopeptide 57c (Figure 13) [39]. The semicarbazide sp2-configuration provided the best representation of the aza-residue geometry in the active macrocycles with a descending preference for pseudo-sp3 (S)- and (R)-hybridization. In this respect, although typically less active than their respective azacyclopeptides, the (S)-cyclic peptides exhibited greater CD36 binding affinities, were typically more potent at reducing TLR-2 agonist induced NO production, and enhanced cholesterol efflux from macrophages more effectively than the (R)-counterparts [39]. The azacyclopeptide counterparts exhibited typically better CD36 binding affinity and ability to reduce NO and increase cholesterol efflux in macrophages. The active structure of azacyclopeptide 57c was suggested to adopt a compact conformer featuring a type II’ β-turn geometry centered about the d-Trp-Ala dipeptide possessing an additional bridging hydrogen bond from the C-terminal amine NH and the d-Trp carbonyl oxygen [39]. Spectroscopic and computational analysis of azacyclopeptides such as 57c have provided new food for thought for the future design of improved CD36 modulators.

3. Conclusions and Future Outlook

CD36 is involved in a wide range of biological processes including the regulation of inflammation, microvascular angiogenesis, and transport of oxidized lipoproteins and phospholipids. Moreover, CD36 is implicated in microorganism and cell phagocytosis, and autophagic cell cycle events. As a clinically relevant biological marker, CD36 is associated with cardiovascular biology (e.g., atherosclerosis, angiogenesis, and ischemia-reperfusion injury), cardiac metabolism in the uptake of free fatty acids, and inflammatory related pathologies. Regulatory ligands of CD36 offer promise for various biomedical applications. Although unselective, peptide ligands related to the synthetic growth hormone releasing peptide-6 (GHRP-6) demonstrated interesting CD36 modulatory activity. Azapeptide GHRP-6 analogues bind selectively CD36 presumably due to the stabilization of β-turn conformers. The structure–activity relationship studies of CD36-selective azapeptides provided ligands exhibiting divergent effects on angiogenesis. Moreover, azapeptides can curb neovascularization, reduce nitric oxide production, and decrease immune responses mediated by mononuclear phagocytes, therefore mitigating potential neuronal injury associated with outer- and sub-retinal disorders such as retinitis pigmentosa, diabetic retinopathy and AMD. Azapeptides also exhibited cardioprotective effects and anti-atherosclerotic activity in a CD36-dependent manner. With proven beneficial activity in models of a wide range of cardiovascular, metabolic and immunological disorders, CD36-selective azapeptides are valuable for the development of peptide-based drugs. The translation of CD36 ligands into therapeutic agents is an on-going focus of our research program which is also investigating pharmacokinetic properties towards the design of optimal prototypes. Considering the challenges of conceiving drug-like ligands of receptors for which structural characterization is lacking, the synthetic methods described in this review offer pathways for the development of various peptidomimetics with selective properties for different specific indications.

Author Contributions

All authors contributed to the writing and editing of the manuscript. H.O., S.C. and W.D.L. contributed to the procurement of funding for the described research. All authors have read and agreed to the published version of the manuscript.


This project was supported by funding from the Natural Sciences and Engineering Research Council (NSERC) of Canada (Discovery Research Project #04079), the Canadian Institutes of Health Research (CIHR; MOP89716 and PPP-90157), the NSERC-CIHR for funding the Collaborative Health Research Project "Azacyclopeptide Modulators of Immuno-metabolism to Treat Age-Related Macular Degeneration" No. 163973, the Ministère du Développement Économique, de l’Innovation et de l’Exportation du Gouvernement provincial du Québec (PSVT3-21396) in partnership with Amorchem Holdings Inc., and Mperia Therapeutics Inc.


We thank Samy Omri and Sylvie Marleau for help in preparing Figures.

Conflicts of Interest

H.O. is the Chief Scientific Officer of Mperia Therapeutics Inc. W.D.L. has served as chemistry consultant for Mperia Therapeutics Inc. The other authors report no conflict of interest.


  1. Endemann, G.; Stanton, L.W.; Madden, K.S.; Bryant, C.M.; White, R.T.; Protter, A.A. CD36 is a receptor for oxidized low density lipoproteins. J. Biol. Chem. 1993, 268, 11811–11816. [Google Scholar] [PubMed]
  2. Febbraio, M.; Hajjar, D.P.; Silverstein, R.L.J. CD36: A class B scavenger receptor involved in angiogenesis, athersosclerosis, inflammation and lipid metabolism. Clin. Investig. 2001, 108, 785–791. [Google Scholar] [CrossRef] [PubMed]
  3. Avallone, R.; Demers, A.; Rodrigue-Way, A.; Bujold, K.; Harb, D.; Anghel, S.; Wahli, W.; Marleau, S.; Ong, H.; Tremblay, A. A growth hormone-releasing peptide that binds scavenger receptor CD36 and ghrelin receptor up-regulates sterol transporters and cholesterol efflux in macrophages through a peroxisome proliferator-activated receptor gamma-dependent pathway. Mol. Endocrinol. 2006, 20, 3165–3178. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Hoosdally, S.J.; Andress, E.J.; Wooding, C.; Martin, C.A.; Linton, K.J. The Human Scavenger Receptor CD36. J. Biol. Chem. 2009, 284, 16277–16288. [Google Scholar] [CrossRef] [Green Version]
  5. Febbraio, M.; Silverstein, R.L. CD36: Implications in Cardiovascular Disease. Int. J. Biochem. Cell Biol. 2007, 39, 2012–2030. [Google Scholar] [CrossRef] [Green Version]
  6. Jimenez, B.; Volpert, O.V.; Crawford, S.E.; Febbraio, M.; Silverstein, R.L.; Bouck, N. Signals leading to apoptosis-dependent inhibition of neovascularization by thrombospondin-1. Nat. Med. 2000, 6, 41–48. [Google Scholar] [CrossRef]
  7. Sun, J.; Hopkins, B.D.; Tsujikawa, K.; Perruzi, C.; Adini, I.; Swerlick, R.; Bornstein, P.; Lawler, J.; Benjamin, L.E. Thrombospondin-1 modulates VEGF-A mediated Akt signaling and capillary survival in the developing retina. Am. J. Physiol. 2009, 296, H1344–H1351. [Google Scholar] [CrossRef] [Green Version]
  8. Nagendran, J.; Pulinilkunnil, T.; Kienesberger, P.C.; Sung, M.M.; Fung, D.; Febbraio, M.; Dyck, J.R. Cardiomyocyte-specific ablation of CD36 improves post-ischemic functional recovery. J. Mol. Cell. Cardiol. 2013, 63, 180–188. [Google Scholar] [CrossRef]
  9. Bessi, V.L.; Labbe, S.M.; Huynh, D.N.; Menard, L.; Jossart, C.; Febbraio, M.; Guerin, B.; Bentourkia, M.; Lecomte, R.; Carpentier, A.C.; et al. EP 80317, a selective CD36 ligand, shows cardioprotective effects against post-ischaemic myocardial damage in mice. Cardiovasc. Res. 2012, 96, 99–108. [Google Scholar] [CrossRef] [Green Version]
  10. Lopaschuk, G.D.; Ussher, J.R.; Folmes, C.D.; Jaswal, J.S.; Stanley, W.C. Myocardial fatty acid metabolism in health and disease. Physiol. Rev. 2010, 90, 207–258. [Google Scholar] [CrossRef]
  11. Hajri, T.; Hall, A.M.; Jensen, D.R.; Pietka, T.A.; Drover, V.A.; Tao, H.; Eckel, R.; Abumrad, N.A. CD36-facilitated fatty acid uptake inhibits leptin production and signaling in adipose tissue. Diabetes 2007, 56, 1872–1880. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Qiao, L.; Kinney, B.; Schaack, J.; Shao, J. Adiponectin inhibits lipolysis in mouse adipocytes. Diabetes 2011, 60, 1519–1527. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Silverstein, R.L.; Febbraio, M. CD36, a scavenger receptor involved in immunity, metabolism, angiogenesis, and behavior. Sci. Signal. 2009, 2, re3. [Google Scholar] [CrossRef] [Green Version]
  14. Reis, A.; Mateus, C.; Melo, P.; Figueira, J.; Cunha-Vaz, J.; Castelo-Branco, M. Neuroretinal dysfunction with intact blood-retinal barrier and absent vasculopathy in type 1 diabetes. Diabetes 2014, 63, 3926–3937. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Abe, T.; Shimamura, M.; Jackman, K.; Kurinami, H.; Anrather, J.; Zhou, P.; Iadecola, C. Key role of CD36 in Toll-like receptor 2 signaling in cerebral ischemia. Stroke 2010, 41, 898–904. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Beutler, B.; Jiang, Z.; Georgel, P.; Crozat, K.; Croker, B.; Rutschmann, S.; Du, X.; Hoebe, K. Genetic analysis of host resistance: Toll-like receptor signaling and immunity at large. Annu. Rev. Immunol. 2006, 24, 353–389. [Google Scholar] [CrossRef] [Green Version]
  17. Shibata, R.; Sato, K.; Pimentel, D.R.; Takemura, Y.; Kihara, S.; Ohashi, K.; Funahashi, T.; Ouchi, N.; Walsh, K. Adiponectin protects against myocardial ischemia-reperfusion injury through AMPK- and COX-2-dependent mechanisms. Nat. Med. 2005, 11, 1096–1103. [Google Scholar] [CrossRef]
  18. Proulx, C.; Picard, E.; Boeglin, D.; Pohankova, P.; Chemtob, S.; Ong, H.; Lubell, W.D. Azapeptide analogues of the growth hormone releasing peptide-6 as cluster of differentiation 36 receptor ligands with reduced affinity for the growth hormone secretagogue receptor 1a. J. Med. Chem. 2012, 55, 6502–6511. [Google Scholar] [CrossRef]
  19. Demers, A.; McNicoll, N.; Febbraio, M.; Servant, M.; Marleau, S.; Silverstein, R.; Ong, H. Identification of the growth hormone releasing peptide binding site in CD36: A photoaffinity cross-linking study. Biochem. J. 2004, 382, 417–424. [Google Scholar] [CrossRef] [Green Version]
  20. Kar, N.S.; Ashraf, M.Z.; Valiyaveettil, M.; Podrez, E.A. Mapping and characterization of the binding site for specific oxidized phospholipids and oxidized low density lipoproteins of scavenger receptor CD36. J. Biol. Chem. 2008, 283, 8765–8771. [Google Scholar] [CrossRef] [Green Version]
  21. Sabatino, D.; Proulx, C.; Pohankova, P.; Ong, H.; Lubell, W.D. Structure-activity relationships of GHRP-6 azapeptide ligands of the CD36 scavenger receptor by solid phase submonomer azapeptide synthesis. J. Am. Chem. Soc. 2011, 133, 12493–12506. [Google Scholar] [CrossRef] [PubMed]
  22. Bolduc, O.R.; Lambert-Lanteigne, P.; Colin, D.Y.; Zhao, S.S.; Proulx, C.; Boeglin, D.; Lubell, W.D.; Pelletier, J.N.; Féthière, J.; Ong, H.; et al. Modified peptide monolayer binding His-tagged biomolecules for small ligand screening with SPR biosensors. Analyst 2011, 136, 3142–3148. [Google Scholar] [CrossRef] [PubMed]
  23. Lubell, W.D.; Beauregard, K.S.; Polyak, F. Peptides and chirality effects on the conformation and the synthesis of medicinally relevant peptides. In Comprehensive Chirality; Carreira, E.M., Yamamoto, H., Eds.; Elsevier: Amsterdam, The Netherlands, 2014; pp. 86–104. [Google Scholar]
  24. Proulx, C.; Sabatino, D.; Hopewell, R.; Spiegel, J.; Ramos, Y.G.; Lubell, W.D. Azapeptides and their therapeutic potential. Future Med. Chem. 2011, 3, 1139–1164. [Google Scholar] [CrossRef] [PubMed]
  25. Boeglin, D.; Lubell, W.D. Aza-amino acid scanning of secondary structure suited for solid-phase peptide synthesis with Fmoc chemistry and aza-amino acids with heteroatomic side chains. J. Comb. Chem. 2005, 7, 864–878. [Google Scholar] [CrossRef]
  26. Weinberger, H.; Lichte, E.; Griesinger, C.; Kutscher, B. Small peptide libraries: Combinatorial split-mix synthesis followed by combinatorial amino acid analysis of selected variants. Arch. Pharm. 1997, 330, 109–111. [Google Scholar] [CrossRef] [PubMed]
  27. Sabatino, D.; Proulx, C.; Bourguet, C.; Klocek, S.; Boeglin, D.; Ong, H.; Lubell, W.D. Exploring side chain diversity by submonomer solid phase azapeptide synthesis. Org. Lett. 2009, 11, 3650–3653. [Google Scholar] [CrossRef]
  28. Chingle, R.; Proulx, C.; Lubell, W.D. Azapeptide Synthesis Methods for Expanding Side-Chain Diversity for Biomedical Applications. Acc. Chem. Res. 2017, 50, 1541–1556. [Google Scholar] [CrossRef]
  29. Possi, K.C.; Mulumba, M.; Omri, S.; Garcia-Ramos, Y.; Tahiri, H.; Chemtob, S.; Ong, H.; Lubell, W.D. Influences of Histidine-1 and Azaphenylalanine-4 on the Affinity, Anti-inflammatory, and Antiangiogenic Activities of Azapeptide Cluster of Differentiation 36 Receptor Modulators. J. Med. Chem. 2017, 60, 9263–9274. [Google Scholar] [CrossRef]
  30. Möller, M.N.; Rios, N.; Trujillo, M.; Radi, R.; Denicola, A.; Alvarez, B. Detection and quantification of nitric oxide-derived oxidants in biological systems. J. Biol. Chem. 2019, 294, 14776–14802. [Google Scholar] [CrossRef] [Green Version]
  31. Proulx, C.; Lubell, W.D. Copper-catalyzed N-arylation of semicarbazones for the synthesis of aza-arylglycine-containing aza-peptides. Org. Lett. 2010, 12, 2916–2919. [Google Scholar] [CrossRef]
  32. Proulx, C.; Lubell, W.D. Aza-1,2,3-triazole-3-alanine synthesis via copper-catalyzed 1,3-dipolar cycloaddition on aza-progargylglycine. J. Org. Chem. 2010, 75, 5385–5387. [Google Scholar] [CrossRef] [PubMed]
  33. Traoré, M.; Doan, N.-D.; Lubell, W.D. Diversity-Oriented Synthesis of Azapeptides with Basic Amino Acid Residues: Aza-Lysine, Aza-Ornithine and Aza-Arginine. Org. Lett. 2014, 16, 3588–3591. [Google Scholar] [CrossRef] [PubMed]
  34. Doan, N.; Zhang, J.; Traoré, M.; Kamdem, W.; Lubell, W.D. Solid-phase synthesis of C-terminal azapeptides. J. Pept. Sci. 2015, 21, 387–391. [Google Scholar] [CrossRef] [PubMed]
  35. Zhang, J.; Proulx, C.; Tomberg, A.; Lubell, W.D. Multicomponent diversity-oriented synthesis of aza-lysine-peptide mimics. Org. Lett. 2014, 16, 298–301. [Google Scholar] [CrossRef]
  36. Wei, C.; Li, C.-J. Enantioselective Direct-Addition of Terminal Alkynes to Imines Catalyzed by Copper(I)pybox Complex in Water and in Toluene. J. Am. Chem. Soc. 2002, 124, 5638–5639. [Google Scholar] [CrossRef]
  37. Zhang, J.; Mulumba, M.; Ong, H.; Lubell, W.D. Diversity-Oriented Synthesis of Cyclic Azapeptides by A3-Macrocyclization Provides High-Affinity CD36-Modulating Peptidomimetics. Angew. Chem. Int. Ed. 2017, 56, 6284–6288. [Google Scholar] [CrossRef]
  38. Ahsanullah; Chingle, R.; Ohm, R.G.; Chauhan, P.S.; Lubell, W.D. Aza-propargylglycine installation by aza-amino acylation: Synthesis and Ala-scan of an azacyclopeptide CD36 modulator. Pept. Sci. 2019, 111, e24102. [Google Scholar]
  39. Danelius, E.; Ohm, R.G.; Ahsanullah, A.; Mulumba, M.; Ong, H.; Chemtob, S.; Erdelyi, M.; Lubell, W.D. Dynamic chirality in the mechanism of action of allosteric CD36 modulators of macrophage driven inflammation. J. Med. Chem. 2019, 62, 11071–11079. [Google Scholar] [CrossRef]
  40. Vinogradov, A.A.; Yin, Y.; Suga, H. Macrocyclic Peptides as Drug Candidates: Recent Progress and Remaining Challenges. J. Am. Chem. Soc. 2019, 141, 4167–4181. [Google Scholar] [CrossRef]
  41. Turcotte, S.; Lubell, W.D. Crystal structure analyses of azasulfuryltripeptides reveal potential for γ-turn mimicry. Pept. Sci. 2015, 104, 622–628. [Google Scholar] [CrossRef]
  42. Turcotte, S.; Mellal, K.; Chingle, R.; Mulumba, M.; Omri, S.; Dif-Yaiche, L.; Chemtob, S.; Ong, H.; Lubell, W.D. Azasulfurylpeptide Modulation of CD-36 Mediated Inflammation Without Effect on Neovascularization. Biomedicines 2018, 6, 98. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Chingle, R.; Mulumba, M.; Chung, N.N.; Nguyen, T.M.; Ong, H.; Ballet, S.; Schiller, P.W.; Lubell, W.D. Solid-Phase Azopeptide Diels–Alder Chemistry for Aza-pipecolyl Residue Synthesis to Study Peptide Conformation. J. Org. Chem. 2019, 84, 6006–6016. [Google Scholar] [CrossRef] [PubMed]
  44. Che, Y.; Marshall, G.R. Engineering cyclic tetrapeptides containing chimeric amino acids as preferred reverse-turn scaffolds. J. Med. Chem. 2006, 49, 111–124. [Google Scholar] [CrossRef] [PubMed]
  45. Che, Y.; Marshall, G.R. Impact of azaproline on peptide conformation. J. Org. Chem. 2004, 69, 9030–9042. [Google Scholar] [CrossRef] [PubMed]
  46. Zhang, W.-J.; Berglund, A.; Kao, J.L.-F.; Couty, J.-P.; Gershengorn, M.C.; Marshall, G.R. Impact of azaproline on amide cis−trans isomerism: Conformational analyses and NMR studies of model peptides including TRH analogues. J. Am. Chem. Soc. 2003, 125, 1221–1235. [Google Scholar] [CrossRef] [PubMed]
  47. Hemmerlin, C.; Cung, M.T.; Boussard, G. Synthesis and conformational preferences in solution and crystalline states of an aza-tripeptide. Tetrahedron Lett. 2001, 42, 5009–5012. [Google Scholar] [CrossRef]
  48. Didierjean, C.; Aubry, A.; Wyckaert, F.; Boussard, G. Structural features of the Pip/AzPip couple in the crystalline state: Influence of the relative AzPip location in an aza dipeptide sequence upon the induced chirality and conformational characteristics. J. Pept. Res. 2000, 55, 308–317. [Google Scholar] [CrossRef]
  49. Lecoq, A.; Boussard, G.; Marraud, M.; Aubry, A. Crystal state conformation of three azapeptides containing the azaproline residue, a β-turn regulator. Biopolymers 1993, 33, 1051–1059. [Google Scholar] [CrossRef]
  50. Lecoq, A.; Boussard, G.; Marraud, M.; Aubry, A. The couple Pro/AzaPro: A means of β-turn formation control synthesis and conformation of two azapro-containing dipeptides. Tetrahedron Lett. 1992, 33, 5209–5212. [Google Scholar] [CrossRef]
  51. Zouikri, M.; Vicherat, A.; Aubry, A.; Marraud, M.; Boussard, G. Azaproline as a β-turn-inducer residue opposed to proline. J. Pept. Res. 1998, 52, 19–26. [Google Scholar] [CrossRef]
  52. Proulx, C.; Lubell, W.D. Solid-Phase Synthesis of Aza-Proline Analogues of GHRP-6. In Peptides: Breaking Away, Proceedings of the 21st American Peptide Symposium, Bloomington, IN, USA, 7–12 June 2009; Lebl, M., Ed.; Prompt Scientific Publishing: San Diego, CA, USA, 2009; pp. 56–57. [Google Scholar]
  53. Freidinger, R.M.; Veber, D.F.; Perlow, D.S.; Brooks, J.R.; Saperstein, R. Bioactive conformation of luteinizing hormone-releasing hormone: Evidence from a conformationally constrained analog. Science 1980, 210, 656–658. [Google Scholar] [CrossRef] [PubMed]
  54. Freidinger, R.M. Design and synthesis of novel bioactive peptides and peptidomimetics. J. Med. Chem. 2003, 46, 5553–5566. [Google Scholar] [CrossRef] [PubMed]
  55. St-Cyr, D.J.; García-Ramos, Y.; Doan, N.D.; Lubell, W.D. Aminolactam, N-Aminoimidazolone, and N-Aminoimdazolidinone Peptide Mimics. In Peptidomimetics I; Springer: Cham, Switzerland, 2017; pp. 125–175. [Google Scholar]
  56. Boutard, N.; Jamieson, A.G.; Ong, H.; Lubell, W.D. Structure-Activity Analysis of the Growth Hormone Secretagogue GHRP-6 by α− and β−Amino γ−Lactam Positional Scanning. Chem. Biol. Drug Des. 2010, 75, 40–50. [Google Scholar] [CrossRef] [PubMed]
  57. Doan, N.-D.; Hopewell, R.; Lubell, W.D. N-Aminoimidazolidin-2-one Peptidomimetics. Org. Lett. 2014, 16, 2232–2235. [Google Scholar] [CrossRef] [PubMed]
  58. Doan, N.-D.; Lubell, W.D. X-ray Structure Analysis Reveals β-Turn Mimicry by N-amino-imidazolidin-2-ones. Biopolymers 2015, 104, 629–635. [Google Scholar] [CrossRef]
  59. Picard, E.; Houssier, M.; Bujold, K.; Sapieha, P.; Lubell, W.; Dorfman, A.; Racine, J.; Hardy, P.; Febbraio, M.; Lachapelle, P.; et al. CD36 plays an important role in the clearance of oxLDL and associated age-dependent sub-retinal deposits. Aging (Albany NY) 2010, 2, 981–989. [Google Scholar] [CrossRef] [Green Version]
  60. Huynh, D.N.; Bessi, V.L.; Ménard, L.; Piquereau, J.; Proulx, C.; Febbraio, M.; Lubell, W.D.; Carpentier, A.C.; Burelle, Y.; Ong, H.; et al. Adiponectin has a pivotal role in the cardioprotective effects of CP-3(iv), a selective CD36 azapeptide ligand, after transient coronary artery occlusion in mice. FASEB J. 2018, 32, 807–818. [Google Scholar] [CrossRef] [Green Version]
  61. Frégeau, G.; Sarduy, R.; Elimam, H.; Esposito, C.L.; Mellal, K.; Ménard, L.; Leitãoda Graça, S.D.; Proulx, C.; Zhang, J.; Febbraio, M.; et al. Atheroprotective and atheroregressive potential of azapeptide derivatives of GHRP-6 as selective CD36 ligands in apolipoprotein E-deficient mice. Atherosclerosis 2020, in press. [Google Scholar] [CrossRef]
  62. Mellal, K.; Omri, S.; Mulumba, M.; Tahiri, H.; Fortin, C.; Dorion, M.F.; Pham, H.; Garcia Ramos, Y.; Zhang, J.; Pundir, S.; et al. Immunometabolic modulation of retinal inflammation by CD36 ligand. Sci. Rep. 2019, 9, 12903. [Google Scholar] [CrossRef] [Green Version]
  63. Suzuki, M.; Tsujikawa, M.; Itabe, H.; Du, Z.J.; Xie, P.; Matsumura, N.; Fu, X.; Zhang, R.; Sonoda, K.H.; Egashira, K.; et al. Chronic photo-oxidative stress and subsequent MCP-1 activation as causative factors for age-related macular degeneration. J. Cell Sci. 2012, 125, 2407–2415. [Google Scholar] [CrossRef] [Green Version]
  64. Bush, C.A.; Sarkar, S.K.; Kopple, K.D. Circular dichroism of β turns in peptides and proteins. Biochemistry 1978, 17, 4951–4954. [Google Scholar] [CrossRef] [PubMed]

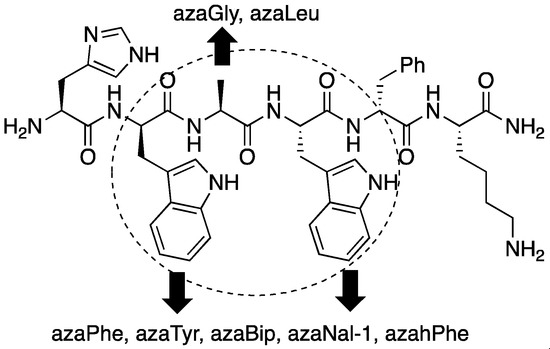

Figure 1. Aza-scan of GHRP-6
Figure 1. Aza-scan of GHRP-6
Biomedicines 08 00241 g001

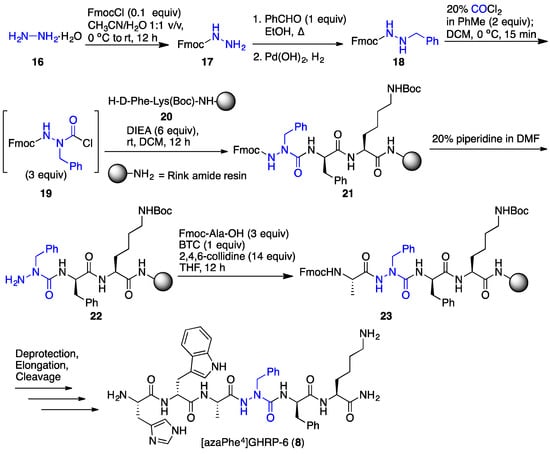

Scheme 1. [azaPhe4]GHRP-6 (8) synthesis using aza-phenylalanine acid chloride.
Scheme 1. [azaPhe4]GHRP-6 (8) synthesis using aza-phenylalanine acid chloride.
Biomedicines 08 00241 sch001

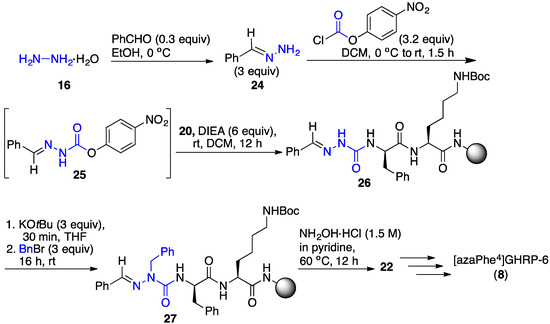

Scheme 2. Synthesis of [azaPhe4]GHRP-6 (8) by aza-glycine alkylation with benzyl bromide.
Scheme 2. Synthesis of [azaPhe4]GHRP-6 (8) by aza-glycine alkylation with benzyl bromide.
Biomedicines 08 00241 sch002

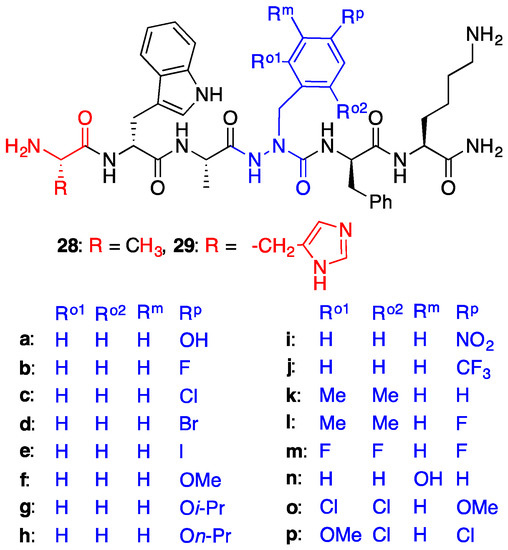

Figure 2. [Ala1, azaPhe4]- and [azaPhe4]GHRP-6 analogues (note, 29a = 9).
Figure 2. [Ala1, azaPhe4]- and [azaPhe4]GHRP-6 analogues (note, 29a = 9).
Biomedicines 08 00241 g002

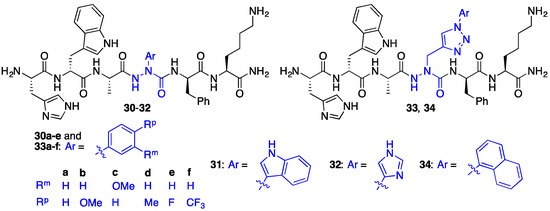

Figure 3. [aza-arylGly4]GHRP-6 analogues 3032 and [aza-1,2,3-triazole-3-alanine4]GHRP-6 analogues 33 and 34.
Figure 3. [aza-arylGly4]GHRP-6 analogues 3032 and [aza-1,2,3-triazole-3-alanine4]GHRP-6 analogues 33 and 34.
Biomedicines 08 00241 g003

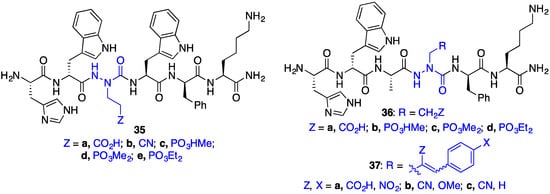

Figure 4. [azaGlu]GHRP-6 analogues 3537.
Figure 4. [azaGlu]GHRP-6 analogues 3537.
Biomedicines 08 00241 g004
Scheme 3. [azaLys]GHRP-6 analogue synthesis by SN2 displacement on chloroalkyl and A3-coupling on propargyl side chains.
Scheme 3. [azaLys]GHRP-6 analogue synthesis by SN2 displacement on chloroalkyl and A3-coupling on propargyl side chains.
Biomedicines 08 00241 sch003
Figure 5. Representative [azaLys]GHRP-6 analogues 4450.
Figure 5. Representative [azaLys]GHRP-6 analogues 4450.
Biomedicines 08 00241 g005
Scheme 4. Synthesis of cyclic aza-GHRP-6 analogues 5457 by A3-macrocyclization on Rink amide resin (Xaa and Yaa = peptide fragments).
Scheme 4. Synthesis of cyclic aza-GHRP-6 analogues 5457 by A3-macrocyclization on Rink amide resin (Xaa and Yaa = peptide fragments).
Biomedicines 08 00241 sch004
Figure 6. Cyclic aza-GHPR-6 analogues 5458 and cyclic GHPR-6 analogues (R)- and (S)-59 and 60 were respectively prepared with azaPra, and (R)- and (S)-Pra residues by A3-macrocyclization.
Figure 6. Cyclic aza-GHPR-6 analogues 5458 and cyclic GHPR-6 analogues (R)- and (S)-59 and 60 were respectively prepared with azaPra, and (R)- and (S)-Pra residues by A3-macrocyclization.
Biomedicines 08 00241 g006
Scheme 5. Synthesis of azasulfuryl-GHRP-6 analogues 65ae.
Scheme 5. Synthesis of azasulfuryl-GHRP-6 analogues 65ae.
Biomedicines 08 00241 sch005
Figure 7. Angiogenic effects of cluster of differentiation 36 receptor (CD36) ligands in mouse choroidal explant model. (A): Representative microvascular sprouting from Matrigel-embedded choroidal explants treated 24h with CD36 ligands (10-6 M). (B): Histogram represents the quantification of the variation of choroidal sprouting areas according to the ratio (T24-T0)/T0. * p < 0.05 vs. vehicle.
Figure 7. Angiogenic effects of cluster of differentiation 36 receptor (CD36) ligands in mouse choroidal explant model. (A): Representative microvascular sprouting from Matrigel-embedded choroidal explants treated 24h with CD36 ligands (10-6 M). (B): Histogram represents the quantification of the variation of choroidal sprouting areas according to the ratio (T24-T0)/T0. * p < 0.05 vs. vehicle.
Biomedicines 08 00241 g007
Scheme 6. Synthesis of azaproline-GHRP-6 analogues 7073.
Scheme 6. Synthesis of azaproline-GHRP-6 analogues 7073.
Biomedicines 08 00241 sch006
Scheme 7. Synthesis of aza-pipecolate-GHRP-6 analogues 78-82.
Scheme 7. Synthesis of aza-pipecolate-GHRP-6 analogues 78-82.
Biomedicines 08 00241 sch007
Scheme 8. Synthesis of α- and β-amino γ-lactam (Agl and Bgl)-GHRP-6 analogues 87 and 88.
Scheme 8. Synthesis of α- and β-amino γ-lactam (Agl and Bgl)-GHRP-6 analogues 87 and 88.
Biomedicines 08 00241 sch008
Figure 8. Aza-proline and aza-pipecolate GHPR-6 analogues 7073 and 7882.
Figure 8. Aza-proline and aza-pipecolate GHPR-6 analogues 7073 and 7882.
Biomedicines 08 00241 g008
Scheme 9. Synthesis of Aid-GHRP-6 analogues 91.
Scheme 9. Synthesis of Aid-GHRP-6 analogues 91.
Biomedicines 08 00241 sch009
Figure 9. Representative Agl, Bgl and Aid-GHRP-6 analogues.
Figure 9. Representative Agl, Bgl and Aid-GHRP-6 analogues.
Biomedicines 08 00241 g009
Figure 10. (A) Representative photomicrographs of midventricular left ventricle (LV) sections of a triphenyltetrazolium chloride–stained slice from the LV of CD36+/+ mice showing the infarct area (IA) on the anterior section. Scale bars, 1 mm. (B) Bar graphs of the percentages of area at risk (AAR)/LV, IA/LV, and IA/AAR in CD36+/+ mice after 48 h of reperfusion. (C) Plasma cardiac troponin I (cTnI) levels in CD36+/+ mice (n = 8–12). Data are means ± SEM of 6–8 mice/treatment group. ** p < 0.01, *** p < 0.001 vs. vehicle.
Figure 10. (A) Representative photomicrographs of midventricular left ventricle (LV) sections of a triphenyltetrazolium chloride–stained slice from the LV of CD36+/+ mice showing the infarct area (IA) on the anterior section. Scale bars, 1 mm. (B) Bar graphs of the percentages of area at risk (AAR)/LV, IA/LV, and IA/AAR in CD36+/+ mice after 48 h of reperfusion. (C) Plasma cardiac troponin I (cTnI) levels in CD36+/+ mice (n = 8–12). Data are means ± SEM of 6–8 mice/treatment group. ** p < 0.01, *** p < 0.001 vs. vehicle.
Biomedicines 08 00241 g010
Figure 11. Anti-inflammatory effect of CD36 ligand in a mouse model of light-induced retinal damage. (A): Representative images of the accumulation of mononuclear phagocyte cells positively stained with ionized calcium binding adapter molecule 1 (IBA-1, green) in the sub-retinal space of WT (C57BL6) mice illuminated and treated or not with [azaTyr4]GHRP-6 (9). (B): Quantification of ionized calcium binding adapter molecule 1 (IBA-1)-positive cells in the sub-retinal space. * p <0.05 illumination vs. illumination + [azaTyr4]GHRP-6 (9). Scale bar = 25 μm.
Figure 11. Anti-inflammatory effect of CD36 ligand in a mouse model of light-induced retinal damage. (A): Representative images of the accumulation of mononuclear phagocyte cells positively stained with ionized calcium binding adapter molecule 1 (IBA-1, green) in the sub-retinal space of WT (C57BL6) mice illuminated and treated or not with [azaTyr4]GHRP-6 (9). (B): Quantification of ionized calcium binding adapter molecule 1 (IBA-1)-positive cells in the sub-retinal space. * p <0.05 illumination vs. illumination + [azaTyr4]GHRP-6 (9). Scale bar = 25 μm.
Biomedicines 08 00241 g011
Figure 12. Cytoprotective effect of CD36 ligand in a mouse model of light-induced retinal damage. (A): Representative images of retinal cryosection from wild-type (WT) (C57BL6) mice exposed or not to illumination and treated or not with [aza-Tyr4]GHRP-6 (9). ONL: Outer Nuclear Layer, INL: Inner Nuclear Layer, GCL: Ganglion Cell Layer. Scale bar = 25 μm. (B): Area under the curves (AUC) from ONL thickness measurement from WT mice no illumination or exposed to illumination and treated or not with [aza-Tyr4]GHRP-6 (9). * p <0.05 illumination vs. illumination + [azaTyr4]GHRP-6 (9). (C): Quantification of a and b wave amplitudes in the electroretinogram (ERG) from WT mice at a light intensity of 3.0 cd-s/m². ** p < 0.01 and *** p < 0.001 illumination vs. illumination + [azaTyr4]GHRP-6 (9).
Figure 12. Cytoprotective effect of CD36 ligand in a mouse model of light-induced retinal damage. (A): Representative images of retinal cryosection from wild-type (WT) (C57BL6) mice exposed or not to illumination and treated or not with [aza-Tyr4]GHRP-6 (9). ONL: Outer Nuclear Layer, INL: Inner Nuclear Layer, GCL: Ganglion Cell Layer. Scale bar = 25 μm. (B): Area under the curves (AUC) from ONL thickness measurement from WT mice no illumination or exposed to illumination and treated or not with [aza-Tyr4]GHRP-6 (9). * p <0.05 illumination vs. illumination + [azaTyr4]GHRP-6 (9). (C): Quantification of a and b wave amplitudes in the electroretinogram (ERG) from WT mice at a light intensity of 3.0 cd-s/m². ** p < 0.01 and *** p < 0.001 illumination vs. illumination + [azaTyr4]GHRP-6 (9).
Biomedicines 08 00241 g012
Figure 13. Representative conformer from computational analysis of azacyclopeptide 57c (key N, O and H atoms are depicted in blue, red and white, respectively).
Figure 13. Representative conformer from computational analysis of azacyclopeptide 57c (key N, O and H atoms are depicted in blue, red and white, respectively).
Biomedicines 08 00241 g013
Table 1. First generation aza-Growth Hormone Releasing Peptide-6 (GHRP-6) analogues from aza-amino acid scanning.
Table 1. First generation aza-Growth Hormone Releasing Peptide-6 (GHRP-6) analogues from aza-amino acid scanning.
CompoundGHS-R1a EC50 (M)CD36
EC50 (M)
GHRP-6 (1) 6.08 × 10−9 1.82 × 10−6
[azaPhe2]GHRP-6 (4)1.61 × 10−57.24 × 10−5
[azaTyr2]GHRP-6 (5)8.53 × 10−6 1.80 × 10−6
[azaLeu3]GHRP-6 (6) 1.20 × 10−62.89 × 10−6
[azaGly3]GHRP-6 (7)8.08 × 10−79.61 × 10−6
[azaPhe4]GHRP-6 (8)2.77 × 10−6 1.34 × 10−6
[azaTyr4]GHRP-6 (9)1.57 × 10−52.80 × 10−5
Table 2. Second-generation aza-GHRP-6 analogues from alanine scanning.
Table 2. Second-generation aza-GHRP-6 analogues from alanine scanning.
CompoundGHS-R1a EC50 (M)CD36 EC50 (M)
[Ala1, azaPhe2]GHRP-6 (10) » 10−5 4.27 × 10−5
[Ala1, azaTyr2]GHRP-6 (11) » 10−5 3.69 × 10−5
[Ala1, azaLeu3]GHRP-6 (12) 1.2×10−5 6.66 × 10−6
[azaLeu3, Ala4]GHRP-6 (13) » 10−5 2.59 × 10−5
[azaLeu3, d-Ala5]GHRP-6 (14) » 10−59.48 × 10−6
[Ala1, azaPhe4]GHRP-6 (15) » 10−5 7.58 × 10−6

Share and Cite

MDPI and ACS Style

Proulx, C.; Zhang, J.; Sabatino, D.; Chemtob, S.; Ong, H.; Lubell, W.D. Synthesis and Biomedical Potential of Azapeptide Modulators of the Cluster of Differentiation 36 Receptor (CD36). Biomedicines 2020, 8, 241.

AMA Style

Proulx C, Zhang J, Sabatino D, Chemtob S, Ong H, Lubell WD. Synthesis and Biomedical Potential of Azapeptide Modulators of the Cluster of Differentiation 36 Receptor (CD36). Biomedicines. 2020; 8(8):241.

Chicago/Turabian Style

Proulx, Caroline, Jinqiang Zhang, David Sabatino, Sylvain Chemtob, Huy Ong, and William D. Lubell. 2020. "Synthesis and Biomedical Potential of Azapeptide Modulators of the Cluster of Differentiation 36 Receptor (CD36)" Biomedicines 8, no. 8: 241.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
