Article

Mutations and Copy Number Alterations in IDH Wild-Type Glioblastomas Are Shaped by Different Oncogenic Mechanisms

1
Department of Biostatistics and Medical Informatics, School of Medicine, Acibadem Mehmet Ali Aydinlar University, Istanbul 34752, Turkey
2
Department of Medical Engineering, Faculty of Engineering, Acibadem Mehmet Ali Aydinlar University, Istanbul 34752, Turkey
3
Department of Genetics, School of Medicine, Yale University, New Haven, CT 06520, USA
4
Yale Center for Genome Analysis, West Haven, CT 06516, USA
5
Izmir Biomedicine and Genome Center (IBG), Izmir 35340, Turkey
6
Department of Medical Biology, Faculty of Medicine, Dokuz Eylül University, Izmir 35340, Turkey
7
Department of Medical Biology, School of Medicine, Acibadem Mehmet Ali Aydinlar University, Istanbul 34752, Turkey
8
Department of Pathology, School of Medicine, Acibadem Mehmet Ali Aydinlar University, Istanbul 34752, Turkey
9
Neuropathology Division, Department of Pathology, School of Medicine, University of California San Fransisco (UCSF), San Francisco, CA 94143, USA
10
Department of Molecular Biology, School of Arts and Sciences, Acibadem Mehmet Ali Aydinlar University, Istanbul 34752, Turkey
11
Department of Neurosurgery, School of Medicine, Acibadem Mehmet Ali Aydinlar University, Istanbul 34752, Turkey
*
Author to whom correspondence should be addressed.
Biomedicines 2020, 8(12), 574; https://doi.org/10.3390/biomedicines8120574
Received: 29 September 2020 / Revised: 27 October 2020 / Accepted: 3 November 2020 / Published: 7 December 2020
(This article belongs to the Special Issue Molecular and Pathological Mechanisms of Adult Gliomas)

Abstract

:
Little is known about the mutational processes that shape the genetic landscape of gliomas. Numerous mutational processes leave marks on the genome in the form of mutations, copy number alterations, rearrangements or their combinations. To explore gliomagenesis, we hypothesized that gliomas with different underlying oncogenic mechanisms would have differences in the burden of various forms of these genomic alterations. This was an analysis on adult diffuse gliomas, but IDH-mutant gliomas as well as diffuse midline gliomas H3-K27M were excluded to search for the possible presence of new entities among the very heterogenous group of IDH-WT glioblastomas. The cohort was divided into two molecular subsets: (1) Molecularly-defined GBM (mGBM) as those that carried molecular features of glioblastomas (including TERT promoter mutations, 7/10 pattern, or EGFR-amplification), and (2) those who did not (others). Whole exome sequencing was performed for 37 primary tumors and matched blood samples as well as 8 recurrences. Single nucleotide variations (SNV), short insertion or deletions (indels) and copy number alterations (CNA) were quantified using 5 quantitative metrics (SNV burden, indel burden, copy number alteration frequency-wGII, chromosomal arm event ratio-CAER, copy number amplitude) as well as 4 parameters that explored underlying oncogenic mechanisms (chromothripsis, double minutes, microsatellite instability and mutational signatures). Findings were validated in the TCGA pan-glioma cohort. mGBM and “Others” differed significantly in their SNV (only in the TCGA cohort) and CNA metrics but not indel burden. SNV burden increased with increasing age at diagnosis and at recurrences and was driven by mismatch repair deficiency. On the contrary, indel and CNA metrics remained stable over increasing age at diagnosis and with recurrences. Copy number alteration frequency (wGII) correlated significantly with chromothripsis while CAER and CN amplitude correlated significantly with the presence of double minutes, suggesting separate underlying mechanisms for different forms of CNA.

1. Introduction

Gliomas vary considerably in their phenotype, biology, clinical behavior and response to treatment [1]. Various distinct tumor entities, including astrocytoma, oligodendroglioma and glioblastoma (GBM), were initially defined by morphological criteria and further characterized by large-scale molecular and genetic studies [2,3,4,5]. Each tumor type has a specific molecular landscape with distinctive methylation profiles indicating their cell of origin and genomic alterations defining oncogenic programs [6,7]. Such divergent molecular-genetic landscapes imply that the causative mechanisms may be different, but little is known on the subject [8]. Large-scale genomics analyses exploring mutational signatures indicated that clock-like mutational processes (spontaneous deamination of methylcytosine) and temozolomide-related signatures were the predominant mechanisms in gliomas [9]. Other studies have also provided evidence that DNA repair deficiency was a central theme in gliomagenesis [10,11].
Variations in the nucleotide sequence are not the only form of genetic alterations. Other forms like alteration in chromosome number (aneuoploidy) and structure (copy-number alterations, inversions and re-arrangements) also play major roles in shaping the cancer genome. These alterations are caused by a different spectrum of mechanisms acting at different stages of gliomagenesis in distinct glioma entities [12,13,14,15].
Isocitrate dehydrogenase (IDH) enzymes participate in a variety of metabolic mechanisms, such as Krebs cycle, glutamine metabolism, lipogenesis, redox regulation, and cellular homeostasis, by catalyzing the oxidative decarboxylation of isocitrate. Previous studies revealed that mutations of IDH genes are frequently observed in several human malignancies, including gliomas, and that they play a potential role in oncogenesis [16]. IDH mutations are recognized in the majority of the lower-grade gliomas and they are associated with more favorable outcome than IDH wild-type. H3-K27M mutations were first recognized in pediatric diffuse intrinsic pontine gliomas, but thereafter, they have been observed in midline gliomas in adults [17]. Studies on H3-K27M-mutant tumors indicate that H3-K27M mutant gliomas were diagnosed at an earlier age and have poor prognosis [18,19,20].
In this study, we chose to analyze the heterogenous group of IDH-WT diffuse gliomas, which are probably made up of many different entities. Other well-characterized diffuse gliomas such as “IDH-mutant gliomas” (astrocytomas and oligodendrogliomas) and “diffuse midline gliomas H3-K27M mutant” were deliberately excluded [1]. We studied the oncogenic processes of the cohort indirectly by quantifying the corresponding genetic alterations that they cause and subsequently correlating these findings with direct measurements of several oncogenic processes. The aim of this study was to analyze the burden of genetic alterations in different IDH-WT entities. Our hypothesis was that the burden of various genetic alterations in these different IDH-WT glioma entities would reflect variations in driving genomic alterations which acted upon them.

2. Materials and Methods

2.1. Patients and Tumor Samples

Thirty-nine adult patients (24 male and 15 female, median age = 51 (range = 28–76)) who were operated on or underwent stereotactic biopsy for diffuse gliomas were included. IDH-mutant gliomas (astrocytomas and oligodendrogliomas) as well as diffuse midline gliomas H3-K27M mutant were excluded. 45 tumor samples from 39 patients were studied, including 37 primary tumors and 8 recurrences after radiochemotherapy (radiotherapy and temozolomide). Characteristics of patients and tumors are presented in Table 1. All patients were informed about whole exome sequencing (WES) testing and provided written consent. The study was approved by Acıbadem Mehmet Ali Aydınlar University institutional review board (ATADEK-2018/7, 17.05.2018).

2.2. Pathology and Molecular Subsets

All pathological specimens were retrospectively reviewed by a single neuropathologist (A.E.D.). Molecular markers (including TERT promoter mutations) were determined using WES and/or Sanger sequencing and/or fluorescent in situ hybridization. Molecular subsets were determined as follows: IDH-wild-type gliomas with “TERT promoter mutations” and/or “EGFR amplifications” and/or “chromosome 7 amplifications and chromosome 10 loss” were classified as “molecularly-defined glioblastoma (mGBM)” [21,22]. Other less common and less well-defined IDH-WT gliomas were grouped as “other diffuse gliomas” (“Others”), including 4 hemispheric high-grade gliomas which were SETD2-mutant, 1 diffuse glioma which was H3-G34-mutant and 1 anaplastic astrocytoma with piloid features (as confirmed by methylation profiling, Data not provided) (Table 1) [23].
IDH-WT gliomas are a very heterogeneous group of tumors, likely containing entities which remain to be identified. Therefore, we classified IDH-WT gliomas which carried the generally accepted molecular markers of glioblastoma as mGBM [21] and the remaining as “Others”. This grouping of IDH-WT gliomas was performed as these are different entities with different molecular features as well as different clinical characteristics. Because we only included IDH-WT gliomas in this study, we do not report any comparison between primary versus secondary GBM.

2.3. Whole Exome Sequencing, Pre-Processing and Variant Calling

DNA was extracted from snap-frozen tumor and peripheral venous blood samples using the DNeasy Blood and Tissue Kit (QIAGEN, Hilden, Germany). Sequencing of the libraries were performed on Illumina (San Diego, California, USA) HiSeq instruments using paired-end reads. FASTQ data are available under the European Genome-Phenome Archive (https://ega-archive.org) accession EGAD00001004144. We achieved mean target coverage of 207.27 and 126.25, for tumors and matching blood samples, respectively. Detailed sequencing quality information, including exome capture kit information, is provided in Supplementary Table S1.
The reads were aligned to the reference genome (UCSC hg19 assembly) using BWA-MEM (version 0.7.17-r1188) [24]. The mapped reads were cleaned with Picard-CleanSam (Picard version 2.21.6-SNAPSHOT http://broadinstitute.github.io/picard/; Cambridge, Massachusetts, USA). Cleaned reads were sorted and mate information was fixed using Picard-FixMateInformation. PCR-Duplicates were marked using Picard-MarkDuplicates. Base quality scores were recalibrated using the Genome Analysis Toolkit (GATK, version 4.1.4.0; Cambridge, Massachusetts, USA). Somatic Single Nucleotide Variation (SNV) and insertion/deletion (indel) calling was performed using GATK-MuTect2. Somatic copy number alterations (SCNAs) were identified using ExomeCNV [25]. Somatic structural variations were detected using DELLY [26].

2.4. Metrics

A summary of the 5 quantitative metrics and 4 parameters that explored underlying oncogenic mechanisms are presented in Table 2. Analyses were performed using R (https://www.R-project.org/, Vienna, Austria).
1. SNV burden was defined as the number of somatic SNVs in the coding region per megabase. After (a) keeping variants with variant allele frequency (VAF) > 5% and (b) keeping variants with a sequence depth > 20X in the tumor and > 10X in the normal sample, somatic SNV burden was calculated as:
  #   S N V s e x o m e   l e n g t h ( M b )
2. Indel burden was defined as the number of somatic indels in the coding region per megabase. After filtering using the same criteria for SNVs, somatic indel burden was calculated as:
  #   i n d e l s e x o m e   l e n g t h ( M b )
3. The weighted Genome Instability Index (wGII) was used to determine the fraction of the exome exhibiting copy number alterations [15]. The fractions of altered (defined as |log2 ratio| > 0.25) segments over the total size of the regions captured by the exome kit were calculated for each autosomal chromosome and aggregated via the overall average to eliminate the bias induced by variation in chromosomal sizes.
4. Chromosomal Arm Event Ratio (CAER) was used to determine chromosomal-arm-level SCNAs. For each chromosomal arm, the weighted arithmetic mean of the Tumor/Normal ratios of all segments within the arm was calculated and log2-transformed. If an arm had a |weighted-mean-log2-ratio| > 0.25, a chromosomal-arm-level SCNA was determined (Supplementary Figure S1). CAER was determined as the ratio:
  #   a r m s   w i t h   S C N A #   a l l   a u t o s o m a l   a r m s
5. Copy-number amplitude was defined as the highest copy-number observed [27].
6. Chromothripsis events were determined using CTLPScanner which detects the copy-number change clusters via sliding windows, calculating a likelihood ratio for each window [28]. Only autosomal chromosomes were used for assessment.
7. Double minutes (DMs) were detected as previously described [29]. Firstly, high-level copy-number segments with Tumor/Normal ratio ≥ 5 were determined. Possible double minutes were determined if (a) the sample contained multiple distinct high-level copy-number segments, at least one of which was overlapping an oncogene or (b) there was one distinct high-level copy-number segment containing ≥ 1 oncogene, with length > 1 Mb and with an associated structural variation.
8. Microsatellite Instability (MSI) status of each tumor was predicted using the tool MSIpred, which uses 22 somatic mutational features to predict MSI via a support vector machine model [30].
9. Brain tumor-specific mutational signatures within each tumor were determined using a web-based tool (https://signal.mutationalsignatures.com/) [11]. For high confidence, only signatures with contribution ≥ 10% were accepted.
There was no significant difference in any metrics between Formalin-Fixed Paraffin-Embedded (FFPE) and fresh-frozen tumor samples (LiN2) (Supplementary Figure S2).

2.5. The Cancer Genome Atlas Pan-Glioma Data

The current cohort consisted of cases where WES was performed with clinical intent, introducing a selection bias. Therefore, the findings were validated using The Cancer Genome Atlas (TCGA) pan-glioma study [7]. Only cases with known TERT promoter mutation status were used to yield comparable findings.

2.6. Association of Somatically Mutated Genes with Metrics and Pathway Enrichment Analyses

An SNV/indel was defined as “high-impact” if its VAF > 5% and its classification was one of: “Frame_Shift_Del”, “Frame_Shift_Ins”, “Splice_Site”, “Translation_Start_Site”, “Nonsense_Mutation”, “Nonstop_Mutation”, “In_Frame_Del”, “In_Frame_Ins”, “Missense_Mutation”. For each gene with a high-impact somatic SNV/indel, Wilcoxon rank-sum test was performed to detect any difference of metrics between mutated and non-mutated tumors. Hence, genes associated with each metric were obtained. Next, pathway enrichment analyses of the associated genes were conducted using pathfindR [31].

3. Results

For analyses, 45 IDH-WT diffuse glioma tumor specimens from 39 patients were used, classified as mGBM (n = 37, 82.22%) or “Others” (n = 8, 17.78%) (Table 1). There were 37 (82.22%) primary and 8 (17.78%) recurrent tumors. When only primary cases were considered (n = 37), 31 were mGBMs and 6 were “Others”.
For validation, we analyzed the TCGA pan-glioma cohort [7]. The IDH-WT diffuse gliomas in the TCGA pan-glioma cohort (with known TERT promoter mutation status) consisted of 83 cases, 71 mGBMs (85.54%) and 12 others (14.46%), all primary tumors.
For primary gliomas, the median SNV burden was 3.38 (range = 0.48–55.53), the median indel burden was 0.38 (range = 0.09–2.55), the median wGII, measuring SCNA frequency, was 0.28 (range = 0.02–0.88), the median CAER, measuring aneuploidy degree, was 0.16 (range = 0–0.68) and the median copy-number (CN) amplitude was 15 (range = 4–149). Fifteen primary cases (40.54%) had CT events, and sixteen primary samples contained putative DMs (43.24%). A total of 44 oncogenes were detected in putative DMs across the 16 samples with at least one oncogene identified in every DM. EGFR and SEC61G (both observed in n = 8, 50%) were the most frequent, followed by VOPP1 (n = 4, 25%), MDM2, CDK4 and AGAP2 (each n = 3, 18.75%) (Supplementary Table S2). No kataegis event was observed in the current cohort nor the TCGA cohort. The MSI prevalence was low (n = 4, 8.89% in the current and n = 2, 2.41% in the TCGA cohort).

3.1. Comparison of Metrics between Molecular Subsets

We compared the metrics between the molecular subsets in primary tumors. In the current cohort, the median SNV burden values of mGBM (3.38/Mb) and “Others” (3.59/Mb) were similar (p = 0.89, Figure 1A). In the TCGA cohort, mGBM (1.34/Mb) had higher SNV burden compared to “Others” (0.1/Mb, p < 0.001). There was no significant difference in indel burden of different molecular subsets in neither the current nor the TCGA cohort (p = 0.77 and p = 0.48 respectively, Figure 1B). In the current cohort, mGBM had higher median wGII (0.29) compared to “Others” (0.13, p = 0.035, Figure 1C). The same was observed in the TCGA cohort: mGBM had higher median wGII (0.19) than “Others” (0.01, p < 0.001). In the current cohort, there was no significant difference in median CAER between the subsets (p = 0.086, Figure 1D). In the TCGA cohort, mGBM had higher median CAER (0.41) compared to “Others” (0.33, p = 0.011). In the current cohort, mGBM had higher median CN amplitude (29) compared to “Others” (4, p = 0.0016, Figure 1E). In the TCGA cohort, again, mGBM had higher median CN amplitude (17) compared to “Others” (5, p < 0.001).
Although it may be expected to observe higher SCNA-associated metric levels in mGBMs (due to chr7 gains and chr10 losses), it is important to keep in mind that these metrics are global, assessing all autosomal SCNA events. Therefore, they are expected to be affected little by the canonical chr7 gains and chr10 losses.
We next investigated the correlations between the metrics (Figure 2). Hierarchical clustering based on the correlations yielded 2 clusters: (1) SNV burden and indel burden, associated with mutational processes, i.e., metrics/processes associated with changes in nucleotide sequence, and (2) CN amplitude, DM, CT, wGII and CAER, associated with SCNA-related mechanisms, i.e., metrics/processes associated with changes in chromosomal copy-number/structure.

3.2. Pathway Enrichment Analysis of Metric-Associated Somatic Variants

To investigate the possible mechanisms underlying each metric, we firstly examined the genes associated with each metric. Through Wilcoxon rank-sum tests, 1050, 886, 92, 36 and 19 genes with somatic SNV/indels were found to be significantly associated with SNV burden, indel burden, wGII, CAER and CN amplitude, respectively (Supplementary Material 1). Next, pathway enrichment analyses were performed using the associated genes for each metric. As a result, 72, 60, 7, 1 and 4 pathways were found to be enriched for SNV burden, indel burden, wGII, CAER and CN amplitude, respectively. Pathways distinct to each metric and those at each intersection of the enrichment results are presented in Figure 3. There were 19 enriched pathways specific to SNV burden, 10 were specific to indel burden and 4 were specific to wGII. SNV burden and indel burden shared 45 common enriched pathways. SNV burden and wGII had 2 common enriched pathways. SNV burden and CAER shared 1 pathway. SNV burden, indel burden and CN amplitude shared 4 common enriched pathways. SNV burden, indel burden and wGII had 1 common enriched pathway. Of note, the “Mismatch repair” pathway was significantly enriched only for the SNV burden metric.

3.3. Correlation of Metrics with Chromothripsis and Double Minutes

In primary tumors, CT events were most frequently observed within chr17 (n = 11, 19.3% of total events), followed by chr1 (n = 8, 14.04%) and chr16 (n = 6, 10.53%), while DM events were most frequent in chr7 (n = 9 DMs, 50% of total), chr12 (n = 3, 16.67%) and chr1 (n = 2, 11.11%) (Figure 4A). CT was associated with higher wGII (p = 0.0014) (Figure 4B). The proportion of cases with at least one putative double minute chromosome was not different between cases harboring CT and not harboring CT (p = 1). Harboring a DM was associated with higher CAER (p = 0.021) and CN amplitude (p < 0.001) (Figure 4C).

3.4. Associations of Metrics with Age and with Recurrences

Next, correlation of each metric with age at diagnosis was investigated. To remove any confounding effects of molecular class and recurrence, only primary mGBMs were analyzed for both the current and TCGA cohorts (Figure 5). This analysis yielded that SNV burden was positively correlated with age at diagnosis (R = 0.32, p = 0.079 for the current cohort, R = 0.25, p = 0.037 for the TCGA cohort, Figure 5A). Indel burden, wGII, CAER and CN amplitude displayed no significant correlation with age at diagnosis (Figure 5B–E). In both the current and TCGA cohorts, there was no significant difference in age at diagnosis between cases with CT and without (p = 0.48 and p = 0.5 for the current and TCGA cohorts, respectively). There was no difference in age at diagnosis between cases with DMs and without (p = 0.75).
To evaluate how metrics differ in primary vs. recurrent tumors, first, we compared primary tumors (n = 37) and recurrent tumors (n = 8). SNV and indel burden were significantly higher in recurrent tumors (p = 0.0066 and p = 0.0057, respectively), whereas wGII, CAER and CN amplitude displayed no significant difference (Figure 6A). There was no significant difference between the proportions of primary and recurrent tumors with and without CT (χ2 p = 0.67, Figure 6B), 43.24% of primary tumors had DMs compared to 25% of recurrent tumors (χ 2 p = 0.58, Figure 6C) and 2 primary tumors (5.71%) and 2 recurrent tumors (25%) were predicted to have MSI (χ 2 p = 0.28, Figure 5D).

3.5. Correlation of the Metrics with Mutational Signatures

The most frequent detected central nervous system (CNS)-associated mutational signature in primary tumors was the clock-like signature CNS_B, associated with the deamination of 5-methylcytosine to thymine (n = 33, 88.19%, Figure 7A). There was no association of any signatures with molecular subsets or metrics (Supplementary Material 2). When signature contributions were compared between all primary and recurrent tumors, CNS_B, the clock-like signature, was found to be lower in recurrent tumors, whereas CNS_E, associated with mismatch repair, was found to be significantly higher in recurrent tumors (p < 0.001, Figure 7B).

4. Discussion

4.1. Rationale for the Study

Gliomas are a heterogeneous tumor group, consisting of various entities such as “IDH-mutant astrocytomas”, “IDH-mutant, 1p/19q-co-deleted oligodendrogliomas”, “IDH-wild-type GBM” and “diffuse midline gliomas H3 K27M mutant”, which are being characterized in ever increasing detail [1]. These entities differ in demographics, histopathology, molecular markers, clinical behavior, treatment response and outcome [1,7,32,33]. Genetic and epigenetic landscapes are also divergent [6,7]. Even determinants of genetic inheritance are dissimilar [34,35]. Therefore, it would not be irrational to think that each tumor type is formed by different oncogenic processes. Oncogenic processes leading to the observed genetic alterations in gliomas are not well-characterized, but the consequent alterations can be readily quantified. Various forms of genetic alterations exist [14,15]: some affect the genetic sequence (e.g., mutations), others affect the karyotype, with some events resulting in abnormal number of chromosomes (aneuploidy) and others changing the structure of chromosomes (e.g., copy-number alterations, re-arrangements or loss of heterozygosity). These genetic alterations differ in underlying mechanisms [14]. To evaluate the effect of mechanisms underlying molecular subsets of adult diffuse gliomas, we quantified the burden of various genetic alterations. Correlations among metrics indicated that SNV and indel burdens clustered together, whereas metrics of chromosome number/structure formed another cluster (Figure 2). SNV burden increased significantly with advancing age in both the current and TCGA cohorts (Figure 5). No significant correlation with age was noted for the chromosome number/structure-related metrics. Together, these findings may indicate that mutations and alterations of chromosome number/structure are caused by different mechanisms and have different dynamics in gliomas.

4.2. Molecular Subsets of IDH-WT Glioblastomas Differ in Genomic Alteration Burden

Molecularly-defined glioblastomas (mGBM) and “Others”, which consisted of diffuse gliomas with no commonly accepted canonical markers, were significantly different in all SNV (only in the TCGA validation cohort) and CNA metrics but the indel burden was comparable (Figure 1). Some discrepancies between our cohort and the TCGA for some metrics may have resulted from selection bias or the size of the cohort.

4.3. Chromothripsis and Double Minute Events May Be Drivers of Copy-Number Alterations in IDH-WT Glioblastoma

Little is known about the mechanisms that alter chromosome number/structure in gliomas. Some copy number gains (chr7, chr19, chr20) are early, clonal events in GBM [12]. In addition to the canonical chr7 gains and chr10 losses, other chromosomal arm events were observed scattered throughout the genome in GBMs (Supplementary Figure S1).
In this study, chromothripsis was found to be a mechanism associated with altered chromosome number and structure. It is characterized by rapid and massive but localized accumulation of chromosomal re-arrangements resulting from nondisjunction events during mitosis [36]. Previously, chromothripsis was reported in 84% of GBM cases [13]. In the current study, chromothripsis events were observed in over one-third of primary tumors (Figure 4). Copy-number alteration frequency (wGII) was significantly higher in cases exhibiting chromothripsis, but SNV or indel burden values were comparable. This may indicate that chromothripsis is a driver of structural variations but not mutations in gliomas. The chromothripsis events were most commonly observed in chr17, chr1 and chr16 (but not in chr7 or in chr10) (Figure 4). These findings together hint that there are multiple mechanisms leading to aneuploidy in GBM and that chromothripsis is a late event.
Double minutes (DM) are small fragments of extrachromosomal DNA, formed via the circularization of highly amplified, double-stranded DNA mostly containing oncogenes [37]. DM was observed in over one-third of cases and the oncogenes contained herein (EGFR, MDM2, CDK4) were consistent with previous reports [29,38]. Tumors with DM displayed higher CAER and CN amplitude, hinting to a role in driving structural variations (Figure 4).
Other possible mechanisms driving structural variations may include chromosomal instability (CIN), break-fusion-bridge (BFB) cycles or kataegis. In this cohort, the frequency of copy-number alterations (wGII), the degree of aneuploidy (CAER) and copy-number amplitude remained fairly constant over increasing age at diagnosis and at recurrences (Figure 5 and Figure 6), which is not consistent with CIN, a continuous process that would result in ever-increasing extent and complexity of copy-number events. Kataegis events, which are associated with APOBEC mutagenesis, were not observed in our cohort nor the TCGA. Another mechanism of interest in TERT promoter mutant gliomas is occurrence of BFB cycles, which create chromosomal instability until the acquisition of telomerase activity, however the current study was limited due to lack of a reliable bioinformatics tool for its detection from WES data [32].

4.4. Mismatch Repair Deficiency Is Likely a Major Driver of Mutational Burden in Gliomas

A pathway enrichment analysis based on the 5 quantitative genomic alteration metrics indicated that genes associated with SNV burden were enriched for mismatch repair (MMR) deficiency. MMR is a highly conserved biological pathway that plays a key role in maintaining genomic stability and MMR-deficiency is a known topic in gliomas. We previously showed that diffuse gliomas had a high incidence of both familial-inherited and somatically gained MMR-deficiency [10]. Several studies also indicated that MMR-deficiency results in an increase in mutational burden [10,39,40,41]. We also observed substantial increases in SNV burden and indel burden at recurrence after radiochemotherapy (Figure 6). In parallel with previous studies, this substantial increase in mutational burden was associated with significantly higher weight of MMR-deficiency-associated mutational signature CNS_E (Figure 7) and with a trend towards higher incidence of MSI (Figure 6). Newly acquired MMR gene mutations were shown to lead to temozolomide resistance [42,43,44]. Temozolomide-induced damage in cells with MMR-deficiency were shown to be the mechanism leading to a post-treatment hypermutated phenotype [45]. In contrast, similar levels of copy-number-related metrics and no signs of chromosomal instability were noted at recurrence after radiochemotherapy (Figure 6). The prevalence of chromothripsis or DM were also not significantly different in post-treatment recurrences. These indicate that MMR is a major driver of new mutations over time and with recurrences after radiochemotherapy.

4.5. Limitations and Future Prospects

The cancer genome has a complex nature and the current findings represent most likely only a detail in the gliomagenesis. Furthermore, being a pure bioinformatic analysis, the current work points to associations but does not provide mechanistic analysis of underlying mechanisms. Also, as it is a whole-exome analysis-based work; therefore, various other forms of genetic alterations including rearrangements, intratumoral heterogeneity or epigenetic changes were not addressed. The current analysis is also limited by small sample sizes (resulting in some singular entities), decreasing statistical power. More comprehensive analyses on larger cohorts can advance our understanding of gliomagenesis and point to tumor vulnerabilities. The associations identified in this study should be further investigated to identify and experimentally prove any underlying cause–effect relationship.

5. Conclusions

Taken together, these findings support the notion that single nucleotide variations and copy number alterations are driven by separate mechanisms and that the cancer genome in different molecular subsets of IDH-WT glioblastomas diverge in the composition of distinct genetic alterations. We hope that this work contributes to the deeper understanding of the tumor biology underlying IDH-WT tumor entities and will allow for better characterization of these tumors to better understand clinical behavior and eventually for developing novel treatment strategies.

Supplementary Materials

The following are available online at https://www.mdpi.com/2227-9059/8/12/574/s1, Figure S1: Tile plot of chromosomal arm-level somatic copy-number alteration events in each tumor, Figure S2: Distributions of the metrics in the FFPE and fresh-frozen tumor samples in the mGBM (top) and “Others” (bottom) diffuse gliomas, Table S1: Coverage statistics for all samples analyzed in the study, Table S2: Putative double minute chromosomes detected in the study, Supplementary Material 1: Results of Wilcoxon rank-sum tests performed for each metric, Supplementary Material 2: Associations of contributions of the given signatures with (A) SNV burden, (B) indel burden, (C) wGII, (D) CAER, (E) copy-number amplitude, and comparison of the contributions (F) by chromothripsis status, (G) by double minute status and (H) by molecular subset (each page displays the results for a mutational signature).

Author Contributions

Conceptualization, K.Ö. and E.Ü.; neurosurgical operations, K.Ö. and M.N.P.; pathological analysis, A.E.D.; whole-exome sequencing, K.B., C.B.A. and Ş.K.Y.; bioinformatics analyses E.Ü., S.K. and U.G.; interpretation of findings, E.Ü., K.Ö., T.T., Ö.C., Y.O., C.B.A., M.C.Y. and O.U.S.; writing—original draft preparation, K.Ö., E.Ü., S.K. and U.G.; writing—review and editing, all authors. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding. E.U. and U.G. receive scholarships from TUBITAK under the grants 118C039 and 117S013, respectively.

Acknowledgments

We are grateful to our patients who endure with courage. We also thank Umut Toprak, for his critical review and useful suggestions.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Louis, D.N.; Perry, A.; Reifenberger, G.; Von Deimling, A.; Figarella-Branger, D.; Cavenee, W.K.; Ohgaki, H.; Wiestler, O.D.; Kleihues, P.; Ellison, D.W. The 2016 World Health Organization Classification of Tumors of the Central Nervous System: A summary. Acta Neuropathol. 2016, 131, 803–820. [Google Scholar] [CrossRef] [PubMed][Green Version]
  2. Cancer Genome Atlas Research Network. Comprehensive genomic characterization defines human glioblastoma genes and core pathways. Nature 2008, 455, 1061–1068. [Google Scholar] [CrossRef] [PubMed]
  3. Rogan, P.K.; Cancer Genome Atlas Research Network. Faculty Opinions recommendation of Comprehensive, Integrative Genomic Analysis of Diffuse Lower-Grade Gliomas. N. Engl. J. Med. 2015, 372, 2481–2498. [Google Scholar] [CrossRef]
  4. Frattini, V.; Trifonov, V.; Chan, J.M.; Castano, A.; Lia, M.; Abate, F.; Keir, S.T.; Ji, A.X.; Zoppoli, P.; Niola, F.; et al. The integrated landscape of driver genomic alterations in glioblastoma. Nat. Genet. 2013, 45, 1141–1149. [Google Scholar] [CrossRef][Green Version]
  5. Suzuki, H.; Aoki, K.; Chiba, K.; Sato, Y.; Shiozawa, Y.; Shiraishi, Y.; Shimamura, T.; Niida, A.; Motomura, K.; Ohka, F.; et al. Mutational landscape and clonal architecture in grade II and III gliomas. Nat. Genet. 2015, 47, 458–468. [Google Scholar] [CrossRef]
  6. Capper, D.; Jones, D.T.W.; Sill, M.; Hovestadt, V.; Schrimpf, D.; Sturm, D.; Koelsche, C.; Sahm, F.; Chavez, L.; Reuss, D.E.; et al. DNA methylation-based classification of central nervous system tumours. Nature 2018, 555, 469–474. [Google Scholar] [CrossRef]
  7. Ceccarelli, M.; Barthel, F.P.; Malta, T.M.; Sabedot, T.S.; Salama, S.R.; Murray, B.A.; Morozova, O.; Newton, Y.; Radenbaugh, A.; Pagnotta, S.M.; et al. Molecular Profiling Reveals Biologically Discrete Subsets and Pathways of Progression in Diffuse Glioma. Cell 2016, 164, 550–563. [Google Scholar] [CrossRef]
  8. Turcan, Ş.; Cahill, D.P. Origin of Gliomas. Semin. Neurol. 2018, 38, 5–10. [Google Scholar] [CrossRef][Green Version]
  9. Alexandrov, L.B.; Initiative, A.P.C.G.; Nik-Zainal, S.; Wedge, D.C.; Aparicio, S.A.J.R.; Behjati, S.; Biankin, A.V.; Bignell, G.R.; Bolli, N.; Borg, A.; et al. Signatures of mutational processes in human cancer. Nat. Cell Biol. 2013, 500, 415–421. [Google Scholar] [CrossRef][Green Version]
  10. Ülgen, E.; Can, Ö.; Bilguvar, K.; Oktay, Y.; Akyerli, C.B.; Danyeli, A.E.; Yakıcıer, M.C.; Sezerman, O.U.; Pamir, M.N.; Özduman, K. Whole exome sequencing–based analysis to identify DNA damage repair deficiency as a major contributor to gliomagenesis in adult diffuse gliomas. J. Neurosurg. 2019, 132, 1435–1446. [Google Scholar] [CrossRef]
  11. Degasperi, A.; Amarante, T.D.; Czarnecki, J.; Shooter, S.; Zou, X.; Glodzik, D.; Morganella, S.; Nanda, A.S.; Badja, C.; Koh, G.; et al. A practical framework and online tool for mutational signature analyses show inter-tissue variation and driver dependencies. Nat. Cancer 2020, 1, 249–263. [Google Scholar] [CrossRef]
  12. Gerstung, M.; Van Loo, P.; Jolly, C.; Leshchiner, I.; Dentro, S.C.; Gonzalez, S.; Rosebrock, D.; Mitchell, T.J.; Rubanova, Y.; Anur, P.; et al. The evolutionary history of 2658 cancers. Nat. Cell Biol. 2020, 578, 122–128. [Google Scholar] [CrossRef][Green Version]
  13. Cortés-Ciriano, I.; Lee, J.J.-K.; Xi, R.; Jain, D.; Jung, Y.L.; Yang, L.; Gordenin, D.; Klimczak, L.J.; Zhang, C.-Z.; Park, P.J.; et al. Comprehensive analysis of chromothripsis in 2658 human cancers using whole-genome sequencing. Nat. Genet. 2020, 52, 331–341. [Google Scholar] [CrossRef] [PubMed][Green Version]
  14. Burrell, R.A.; McGranahan, N.; Bartkova, J.; Swanton, C. The causes and consequences of genetic heterogeneity in cancer evolution. Nat. Cell Biol. 2013, 501, 338–345. [Google Scholar] [CrossRef] [PubMed]
  15. Burrell, R.A.; McClelland, S.E.; Endesfelder, D.; Groth, P.; Weller, M.-C.; Shaikh, N.; Domingo, E.; Kanu, N.; Dewhurst, S.M.; Gronroos, E.; et al. Replication stress links structural and numerical cancer chromosomal instability. Nat. Cell Biol. 2013, 494, 492–496. [Google Scholar] [CrossRef][Green Version]
  16. Han, S.; Liu, Y.; Cai, S.J.; Qian, M.; Ding, J.; Larion, M.; Gilbert, M.R.; Yang, C. IDH mutation in glioma: Molecular mechanisms and potential therapeutic targets. Br. J. Cancer 2020, 122, 1580–1589. [Google Scholar] [CrossRef] [PubMed]
  17. Kleinschmidt-DeMasters, B.K.; Levy, J.M.M. H3 K27M-mutant gliomas in adults vs. children share similar histological features and adverse prognosis. Clin. Neuropathol. 2018, 37, 53–63. [Google Scholar] [CrossRef][Green Version]
  18. Schreck, K.C.; Ranjan, S.; Skorupan, N.; Bettegowda, C.; Eberhart, C.G.; Ames, H.M.; Holdhoff, M. Incidence and clinicopathologic features of H3 K27M mutations in adults with radiographically-determined midline gliomas. J. Neuro Oncol. 2019, 143, 87–93. [Google Scholar] [CrossRef][Green Version]
  19. Buczkowicz, P.; Bartels, U.; Bouffet, E.; Becher, O.; Hawkins, C. Histopathological spectrum of paediatric diffuse intrinsic pontine glioma: Diagnostic and therapeutic implications. Acta Neuropathol. 2014, 128, 573–581. [Google Scholar] [CrossRef][Green Version]
  20. Khuong-Quang, D.-A.; Buczkowicz, P.; Rakopoulos, P.; Liu, X.-Y.; Fontebasso, A.M.; Bouffet, E.; Bartels, U.; Albrecht, S.; Schwartzentruber, J.; Letourneau, L.; et al. K27M mutation in histone H3.3 defines clinically and biologically distinct subgroups of pediatric diffuse intrinsic pontine gliomas. Acta Neuropathol. 2012, 124, 439–447. [Google Scholar] [CrossRef][Green Version]
  21. Brat, D.J.; Aldape, K.; Colman, H.; Holland, E.C.; Louis, D.N.; Jenkins, R.B.; Kleinschmidt-DeMasters, B.K.; Perry, A.; Reifenberger, G.; Stupp, R.; et al. cIMPACT-NOW update 3: Recommended diagnostic criteria for “Diffuse astrocytic glioma, IDH wild-type, with molecular features of glioblastoma, WHO grade IV”. Acta Neuropathol. 2018, 136, 805–810. [Google Scholar] [CrossRef][Green Version]
  22. Stichel, D.; Ebrahimi, A.; Reuss, D.; Schrimpf, D.; Ono, T.; Shirahata, M.; Reifenberger, G.; Weller, M.; Hänggi, D.; Wick, W.; et al. Distribution of EGFR amplification, combined chromosome 7 gain and chromosome 10 loss, and TERT promoter mutation in brain tumors and their potential for the reclassification of IDHwt astrocytoma to glioblastoma. Acta Neuropathol. 2018, 136, 793–803. [Google Scholar] [CrossRef] [PubMed][Green Version]
  23. Louis, D.N.; Wesseling, P.; Aldape, K.; Brat, D.J.; Capper, D.; Cree, I.A.; Eberhart, C.; Figarella-Branger, D.; Fouladi, M.; Fuller, G.N.; et al. cIMPACT-NOW update 6: New entity and diagnostic principle recommendations of the cIMPACT-Utrecht meeting on future CNS tumor classification and grading. Brain Pathol. 2020, 30, 844–856. [Google Scholar] [CrossRef] [PubMed]
  24. Li, H.; Durbin, R. Fast and accurate short read alignment with Burrows-Wheeler transform. Bioinformatics 2009, 25, 1754–1760. [Google Scholar] [CrossRef][Green Version]
  25. Sathirapongsasuti, J.F.; Lee, H.; Horst, B.A.J.; Brunner, G.; Cochran, A.J.; Binder, S.; Quackenbush, J.; Nelson, S.F. Exome sequencing-based copy-number variation and loss of heterozygosity detection: ExomeCNV. Bioinformatics 2011, 27, 2648–2654. [Google Scholar] [CrossRef][Green Version]
  26. Rausch, T.; Zichner, T.; Schlattl, A.; Stütz, A.M.; Benes, V.; Korbel, J.O. DELLY: Structural variant discovery by integrated paired-end and split-read analysis. Bioinformatics 2012, 28, i333–i339. [Google Scholar] [CrossRef]
  27. Pladsen, A.V.; Nilsen, G.; Rueda, O.M.; Aure, M.R.; Borgan, Ø.; Liestøl, K.; Vitelli, V.; Frigessi, A.; Langerød, A.; Mathelier, A.; et al. DNA copy number motifs are strong and independent predictors of survival in breast cancer. Commun. Biol. 2020, 3, 153–159. [Google Scholar] [CrossRef]
  28. Yang, J.; Liu, J.; Ouyang, L.; Chen, Y.; Liu, B.; Cai, H. CTLPScanner: A web server for chromothripsis-like pattern detection. Nucleic Acids Res. 2016, 44, W252–W258. [Google Scholar] [CrossRef][Green Version]
  29. Sanborn, J.Z.; Salama, S.R.; Grifford, M.; Brennan, C.W.; Mikkelsen, T.; Jhanwar, S.; Katzman, S.; Chin, L.; Haussler, D. Double Minute Chromosomes in Glioblastoma Multiforme Are Revealed by Precise Reconstruction of Oncogenic Amplicons. Cancer Res. 2013, 73, 6036–6045. [Google Scholar] [CrossRef][Green Version]
  30. Wang, C.; Liang, C. MSIpred: A python package for tumor microsatellite instability classification from tumor mutation annotation data using a support vector machine. Sci. Rep. 2018, 8, 1–10. [Google Scholar] [CrossRef][Green Version]
  31. Ülgen, E.; Ozisik, O.; Sezerman, O.U. pathfindR: An R Package for Comprehensive Identification of Enriched Pathways in Omics Data through Active Subnetworks. Front. Genet. 2019, 10, 858. [Google Scholar] [CrossRef]
  32. Akyerli, C.B.; Yüksel, Ş.; Can, Ö.; Erson-Omay, E.Z.; Oktay, Y.; Coşgun, E.; Ülgen, E.; Erdemgil, Y.; Sav, A.; Von Deimling, A.; et al. Use of telomerase promoter mutations to mark specific molecular subsets with reciprocal clinical behavior in IDH mutant and IDH wild-type diffuse gliomas. J. Neurosurg. 2018, 128, 1102–1114. [Google Scholar] [CrossRef][Green Version]
  33. Eckel-Passow, J.E.; Lachance, D.H.; Molinaro, A.M.; Walsh, K.M.; Decker, P.A.; Sicotte, H.; Pekmezci, M.; Rice, T.W.; Kosel, M.L.; Smirnov, I.V.; et al. Glioma Groups Based on 1p/19q, IDH, andTERTPromoter Mutations in Tumors. N. Engl. J. Med. 2015, 372, 2499–2508. [Google Scholar] [CrossRef][Green Version]
  34. Melin, B.S.; GliomaScan, C.; Barnholtz-Sloan, J.S.; Wrensch, M.R.; Johansen, C.; Il’Yasova, D.; Kinnersley, B.; Ostrom, Q.T.; LaBreche, K.; Chen, Y.; et al. Genome-wide association study of glioma subtypes identifies specific differences in genetic susceptibility to glioblastoma and non-glioblastoma tumors. Nat. Genet. 2017, 49, 789–794. [Google Scholar] [CrossRef]
  35. Oktay, Y.; Ülgen, E.; Can, Ö.; Akyerli, C.B.; Yüksel, Ş.; Erdemgil, Y.; Durası, İ.M.; Henegariu, O.I.; Nanni, P.; Selevsek, N.; et al. IDH-mutant glioma specific association of rs55705857 located at 8q24.21 involves MYC deregulation. Sci. Rep. 2016, 6, 27569. [Google Scholar] [CrossRef] [PubMed][Green Version]
  36. Korbel, J.O.; Campbell, P.J. Criteria for Inference of Chromothripsis in Cancer Genomes. Cell 2013, 152, 1226–1236. [Google Scholar] [CrossRef] [PubMed][Green Version]
  37. Barker, P. Double minutes in human tumor cells. Cancer Genet. Cytogenet. 1982, 5, 81–94. [Google Scholar] [CrossRef]
  38. Bigner, S.H.; Mark, J.; Bigner, D.D. Cytogenetics of human brain tumors. Cancer Genet. Cytogenet. 1990, 47, 141–154. [Google Scholar] [CrossRef]
  39. Hodges, T.R.; Ott, M.; Xiu, J.; Gatalica, Z.; Swensen, J.; Zhou, S.; Huse, J.T.; De Groot, J.; Li, S.; Overwijk, W.W.; et al. Mutational burden, immune checkpoint expression, and mismatch repair in glioma: Implications for immune checkpoint immunotherapy. Neuro Oncol. 2017, 19, 1047–1057. [Google Scholar] [CrossRef][Green Version]
  40. Barresi, V.; Simbolo, M.; Mafficini, A.; Piredda, M.L.; Caffo, M.; Cardali, S.M.; Germanò, A.; Cingarlini, S.; Ghimenton, C.; Scarpa, A. Ultra-Mutation in IDH Wild-Type Glioblastomas of Patients Younger than 55 Years is Associated with Defective Mismatch Repair, Microsatellite Instability, and Giant Cell Enrichment. Cancers 2019, 11, 1279. [Google Scholar] [CrossRef][Green Version]
  41. Erson-Omay, E.Z.; Caglayan, A.O.; Schultz, N.; Weinhold, N.; Omay, S.B.; Özduman, K.; Köksal, Y.; Li, J.; Harmancı, A.S.; Clark, V.; et al. Somatic POLE mutations cause an ultramutated giant cell high-grade glioma subtype with better prognosis. Neuro Oncol. 2015, 17, 1356–1364. [Google Scholar] [CrossRef][Green Version]
  42. Erson-Omay, E.Z.; Henegariu, O.; Omay, S.B.; Harmancı, A.S.; Youngblood, M.W.; Mishra-Gorur, K.; Li, J.; Özduman, K.; Carrión-Grant, G.; Clark, V.E.; et al. Longitudinal analysis of treatment-induced genomic alterations in gliomas. Genome Med. 2017, 9, 12. [Google Scholar] [CrossRef][Green Version]
  43. Nguyen, S.A.; Stechishin, O.D.; Luchman, H.A.; Lun, X.Q.; Senger, D.L.; Robbins, S.M.; Cairncross, J.G.; Weiss, S. Novel MSH6 Mutations in Treatment-Naive Glioblastoma and Anaplastic Oligodendroglioma Contribute to Temozolomide Resistance Independently of MGMT Promoter Methylation. Clin. Cancer Res. 2014, 20, 4894–4903. [Google Scholar] [CrossRef][Green Version]
  44. Van Thuijl, H.F.; Mazor, T.; Johnson, B.E.; Fouse, S.D.; Aihara, K.; Hong, C.; Malmström, A.; Hallbeck, M.; Heimans, J.J.; Kloezeman, J.J.; et al. Evolution of DNA repair defects during malignant progression of low-grade gliomas after temozolomide treatment. Acta Neuropathol. 2015, 129, 597–607. [Google Scholar] [CrossRef][Green Version]
  45. Touat, M.; Li, Y.Y.; Boynton, A.N.; Spurr, L.F.; Iorgulescu, J.B.; Bohrson, C.L.; Cortes-Ciriano, I.; Birzu, C.; Geduldig, J.E.; Pelton, K.; et al. Mechanisms and therapeutic implications of hypermutation in gliomas. Nat. Cell Biol. 2020, 580, 517–523. [Google Scholar] [CrossRef] [PubMed]

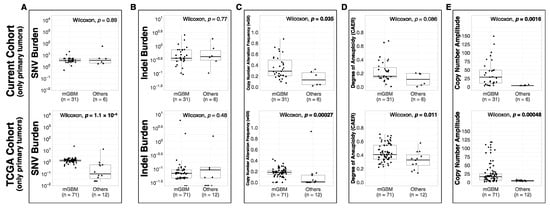

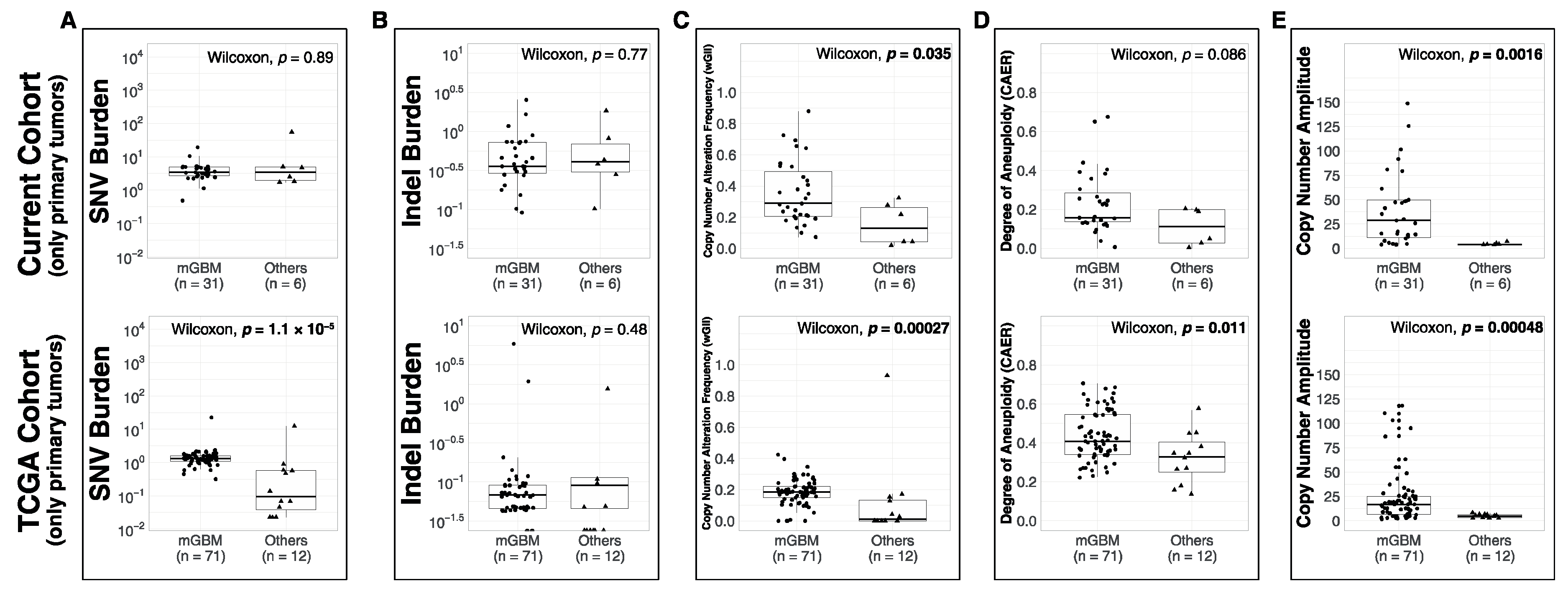

Figure 1. Molecular subsets of IDH-WT gliomas differ significantly in their SNV burden, wGII (copy number alteration frequency), CAER (degree of aneuploidy) and copy-number amplitude but not for indel burden. (A–E) Distributions of the 5 quantitative metrics in the 2 molecular subsets. The upper row displays findings in only primary cases of this cohort and the lower row displays findings in the TCGA pan-glioma cohort. Bold p values indicate statistical significance (p < 0.05).
Figure 1. Molecular subsets of IDH-WT gliomas differ significantly in their SNV burden, wGII (copy number alteration frequency), CAER (degree of aneuploidy) and copy-number amplitude but not for indel burden. (A–E) Distributions of the 5 quantitative metrics in the 2 molecular subsets. The upper row displays findings in only primary cases of this cohort and the lower row displays findings in the TCGA pan-glioma cohort. Bold p values indicate statistical significance (p < 0.05).
Biomedicines 08 00574 g001

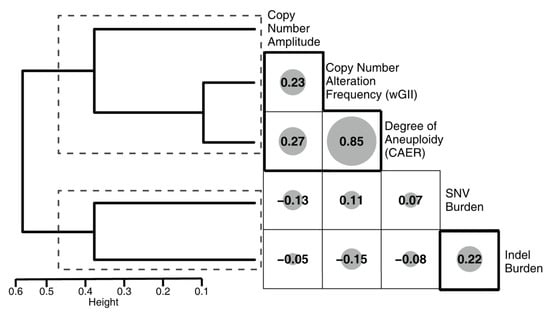

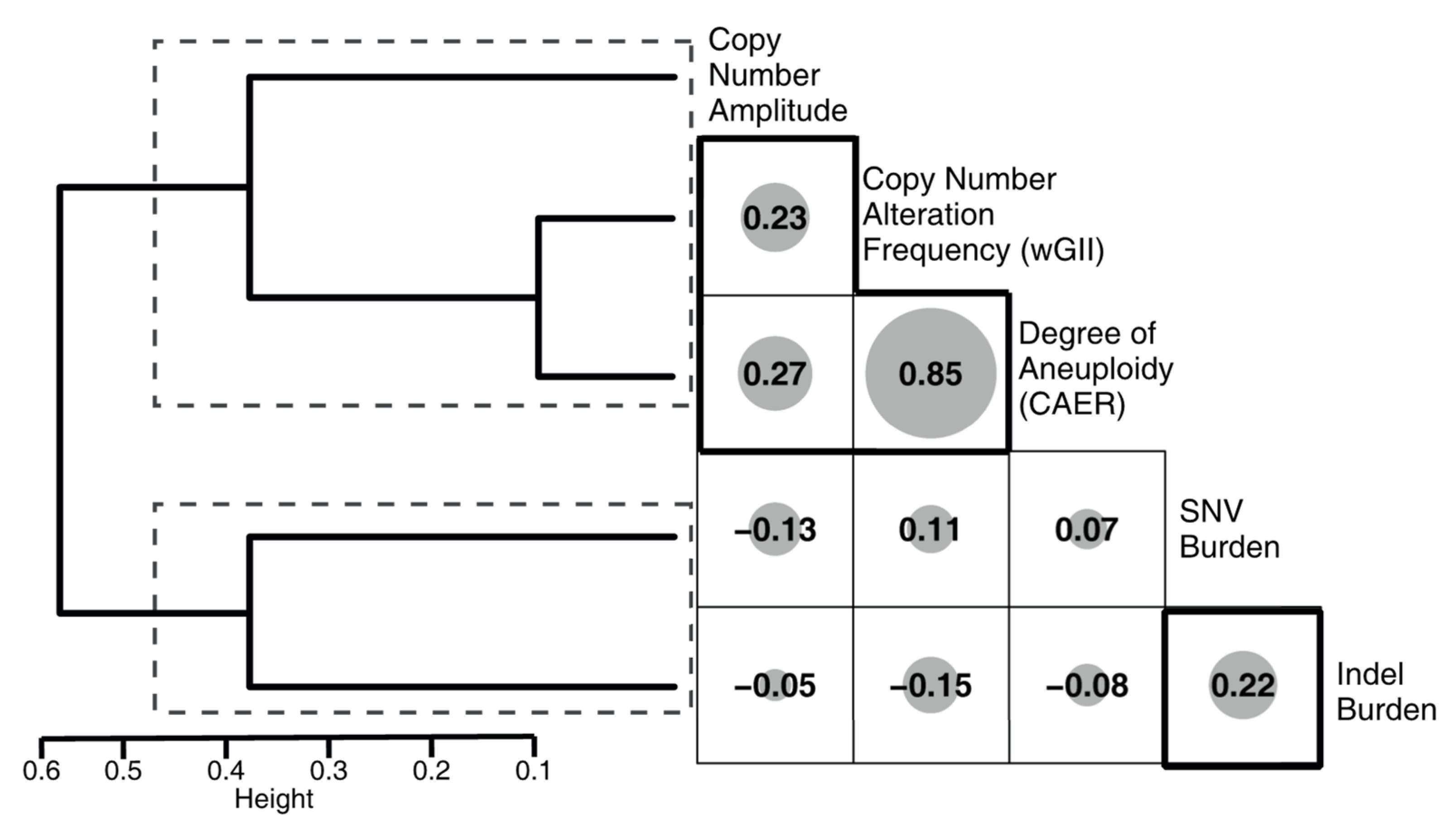

Figure 2. Metrics associated with mutational processes and copy-number-associated processes for 2 distinct clusters. Correlogram of both quantitative and qualitative metric, sizes indicate the |correlation coefficient|. The hierarchical clustering dendrogram is displayed on the left, the identified clusters are indicated by dashed rectangles.
Figure 2. Metrics associated with mutational processes and copy-number-associated processes for 2 distinct clusters. Correlogram of both quantitative and qualitative metric, sizes indicate the |correlation coefficient|. The hierarchical clustering dendrogram is displayed on the left, the identified clusters are indicated by dashed rectangles.
Biomedicines 08 00574 g002

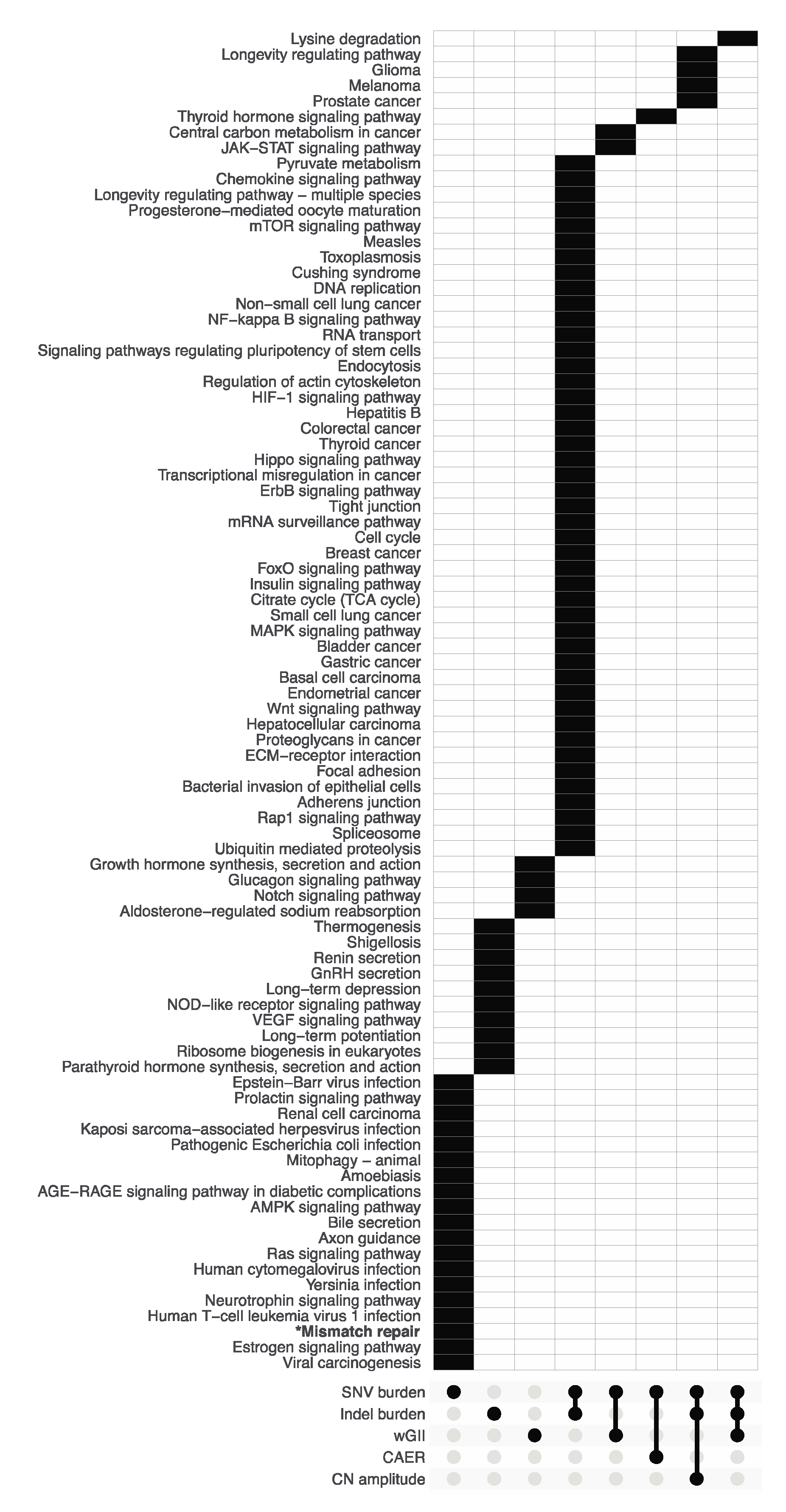

Figure 3. “Mismatch repair” is significantly associated with SNV burden. The UpSet plot displaying the sets of results of pathway enrichment analyses on genes associated with each of the 5 quantitative metrics.
Figure 3. “Mismatch repair” is significantly associated with SNV burden. The UpSet plot displaying the sets of results of pathway enrichment analyses on genes associated with each of the 5 quantitative metrics.
Biomedicines 08 00574 g003

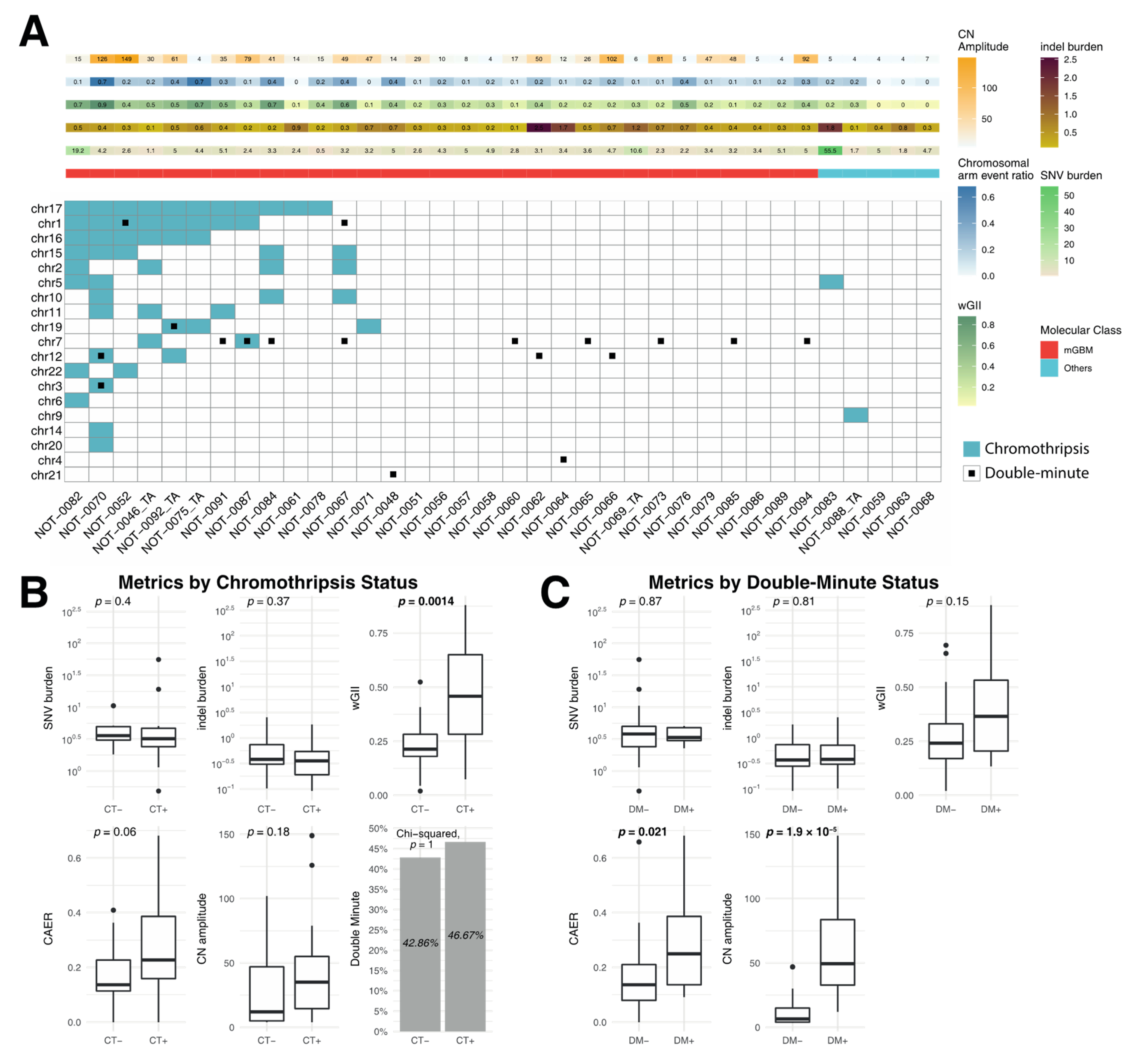

Figure 4. Chromothripsis and double minute events are associated with copy-number alteration. (A) A waterfall plot displaying the overview of chromothripsis and double minute events in primary tumors. (B) Comparison of metrics according to chromothripsis status. Cases with chromothripsis had significantly higher frequency of copy-number alterations (wGII). (C) Comparison of metrics according to double minute status. Cases with double minutes had significantly higher copy-number amplitudes and chromosomal arm event ratios. Bold p values indicate statistical significance (p < 0.05).
Figure 4. Chromothripsis and double minute events are associated with copy-number alteration. (A) A waterfall plot displaying the overview of chromothripsis and double minute events in primary tumors. (B) Comparison of metrics according to chromothripsis status. Cases with chromothripsis had significantly higher frequency of copy-number alterations (wGII). (C) Comparison of metrics according to double minute status. Cases with double minutes had significantly higher copy-number amplitudes and chromosomal arm event ratios. Bold p values indicate statistical significance (p < 0.05).
Biomedicines 08 00574 g004

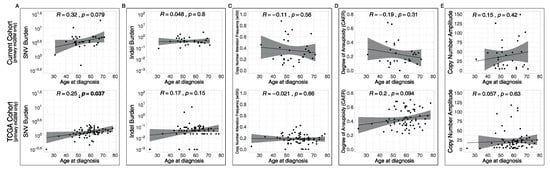

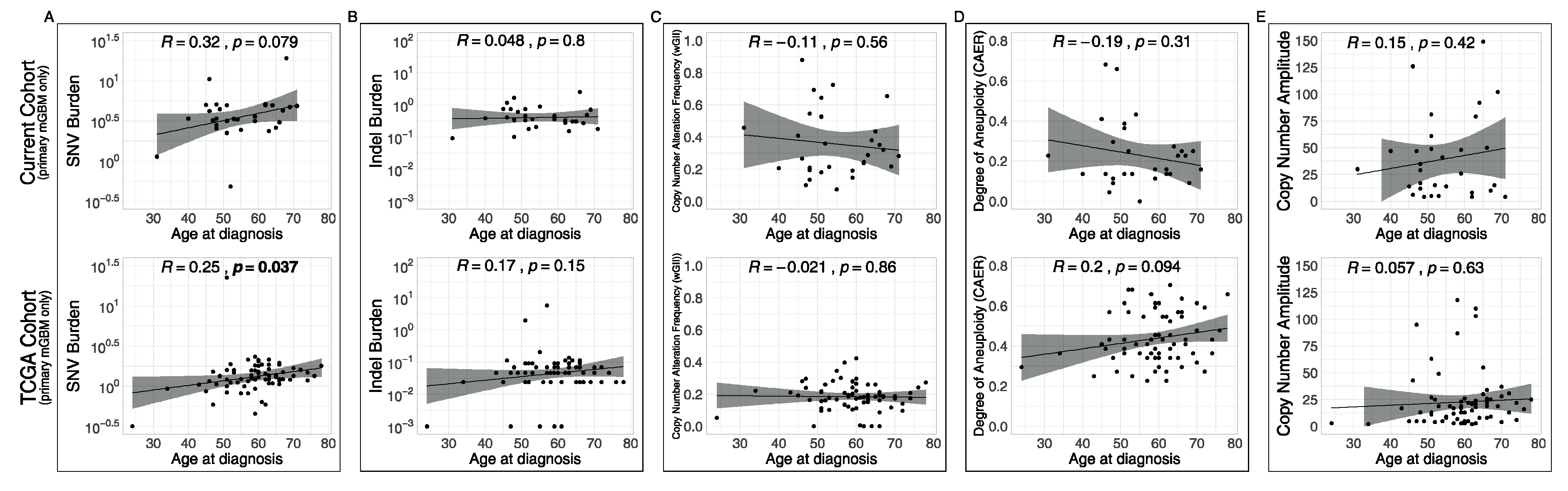

Figure 5. Only SNV burden correlates with age. (AE) Scatter plots between age at diagnosis and SNV burden (A), indel burden (B), wGII (C), CAER (D) and CN amplitude (E) in the current cohort (upper) and the TCGA cohort (lower). Bold p value indicates statistical significance (p < 0.05).
Figure 5. Only SNV burden correlates with age. (AE) Scatter plots between age at diagnosis and SNV burden (A), indel burden (B), wGII (C), CAER (D) and CN amplitude (E) in the current cohort (upper) and the TCGA cohort (lower). Bold p value indicates statistical significance (p < 0.05).
Biomedicines 08 00574 g005

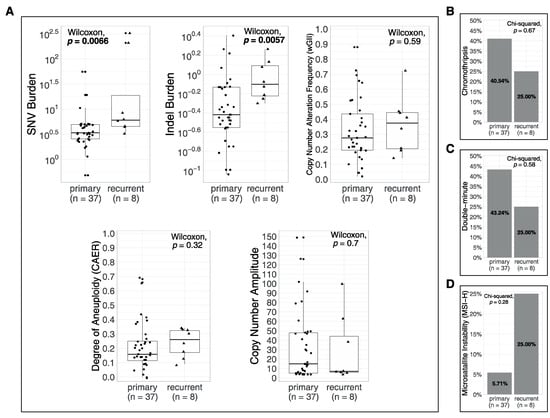

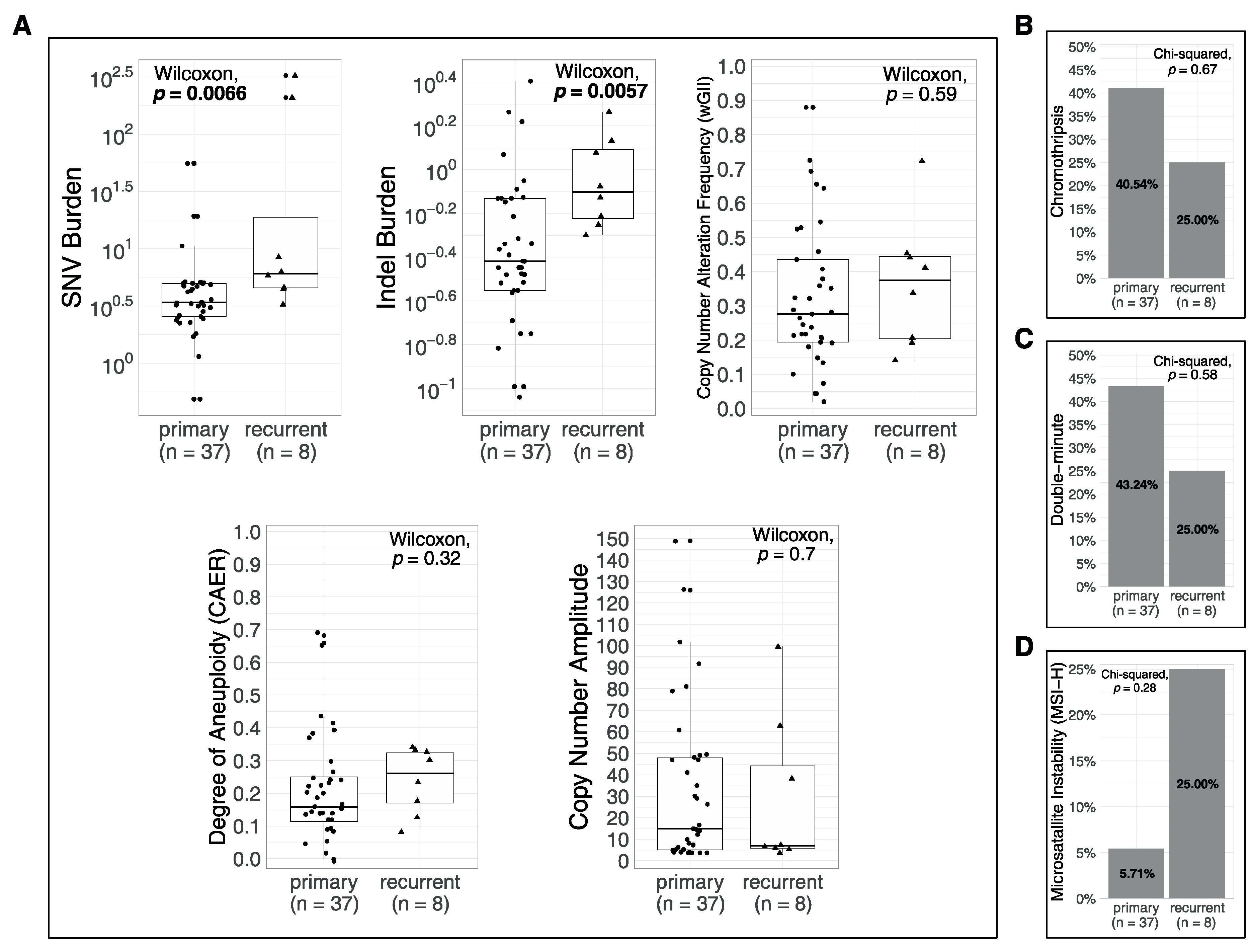

Figure 6. Only SNV burden and indel burden increase with recurrences. (A) Comparison of quantitative metrics between all primary and all recurrent cases. (B) Comparison of chromothripsis prevalence between primary and recurrent cases. (C) Comparison of double minute prevalence between primary and recurrent cases. (D) Comparison of MSI prevalence between primary and recurrent cases. Bold p values indicate statistical significance (p < 0.05).
Figure 6. Only SNV burden and indel burden increase with recurrences. (A) Comparison of quantitative metrics between all primary and all recurrent cases. (B) Comparison of chromothripsis prevalence between primary and recurrent cases. (C) Comparison of double minute prevalence between primary and recurrent cases. (D) Comparison of MSI prevalence between primary and recurrent cases. Bold p values indicate statistical significance (p < 0.05).
Biomedicines 08 00574 g006

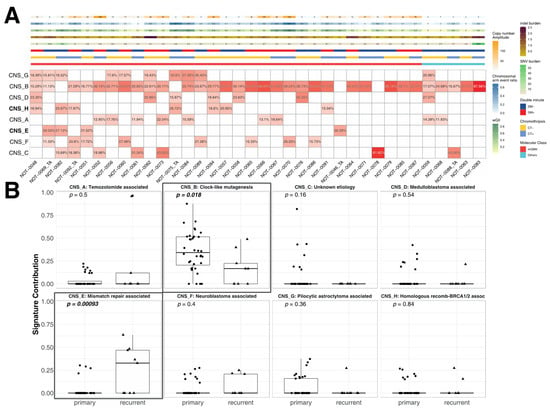

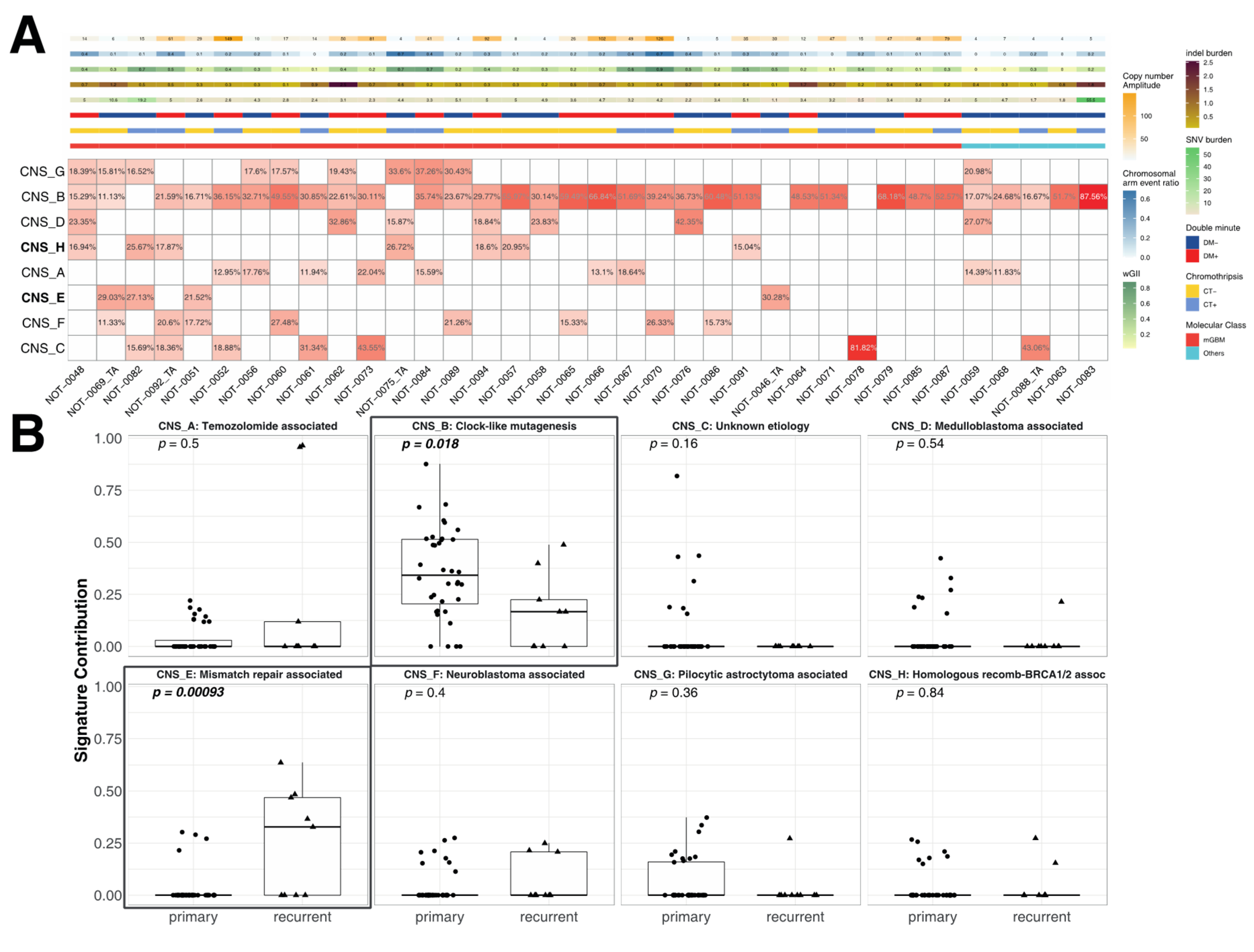

Figure 7. Contributions of clock-like and mismatch repair deficiency-associated signatures differ between primary and recurrent tumors. (A) A heatmap of central nervous system (CNS)-associated mutational signatures in primary tumors (mismatch-repair-associated signature CNS-E and homologous-recombination-associated signature CNS-H are marked in bold). Clock-like signature CNS-B was the most common signature. (B) Comparison of signature contributions between primary and recurrent tumors. Mismatch-repair-associated signature CNS-E was significantly higher in recurrent tumors. Bold p values indicate statistical significance (p < 0.05).
Figure 7. Contributions of clock-like and mismatch repair deficiency-associated signatures differ between primary and recurrent tumors. (A) A heatmap of central nervous system (CNS)-associated mutational signatures in primary tumors (mismatch-repair-associated signature CNS-E and homologous-recombination-associated signature CNS-H are marked in bold). Clock-like signature CNS-B was the most common signature. (B) Comparison of signature contributions between primary and recurrent tumors. Mismatch-repair-associated signature CNS-E was significantly higher in recurrent tumors. Bold p values indicate statistical significance (p < 0.05).
Biomedicines 08 00574 g007
Table 1. Characteristics of the patients and tumors analyzed in the study. “Primary status” indicates whether the tumor is a “primary” tumor or a “recurrent” tumor. “Gender” indicates the gender of the patient: “M” for male and “F” for female”. “Sample type” indicates whether the tumor sample is a fresh frozen tissue sample (LiN2) or Formalin-Fixed Paraffin-Embedded (FFPE) sample. “ATRX” indicates the presence of a somatic mutation in the gene ATRX, “WT” indicates wild-type, whereas “MUT” indicates mutated ATRX. “TERT” indicates the TERT promoter mutation status, “WT” indicates wild-type, “C228” and “C250” indicate somatic mutations at the given genomic positions. “H3” indicates any somatic mutations in the gene H3F3A, “WT” indicates wild-type, otherwise the protein alteration is presented. “EGFR amplification” indicates whether the gene EGFR is amplified (“amplification”) or not (“copy neutral”). “7+/10−” indicates whether both whole chromosome 7 amplification and whole chromosome 10 deletion is observed (TRUE) or not (FALSE). “Molecular Subset” indicates the molecular subset of the tumor: either molecularly-defined Glioblastoma (“mGBM”) or “Others”.
Table 1. Characteristics of the patients and tumors analyzed in the study. “Primary status” indicates whether the tumor is a “primary” tumor or a “recurrent” tumor. “Gender” indicates the gender of the patient: “M” for male and “F” for female”. “Sample type” indicates whether the tumor sample is a fresh frozen tissue sample (LiN2) or Formalin-Fixed Paraffin-Embedded (FFPE) sample. “ATRX” indicates the presence of a somatic mutation in the gene ATRX, “WT” indicates wild-type, whereas “MUT” indicates mutated ATRX. “TERT” indicates the TERT promoter mutation status, “WT” indicates wild-type, “C228” and “C250” indicate somatic mutations at the given genomic positions. “H3” indicates any somatic mutations in the gene H3F3A, “WT” indicates wild-type, otherwise the protein alteration is presented. “EGFR amplification” indicates whether the gene EGFR is amplified (“amplification”) or not (“copy neutral”). “7+/10−” indicates whether both whole chromosome 7 amplification and whole chromosome 10 deletion is observed (TRUE) or not (FALSE). “Molecular Subset” indicates the molecular subset of the tumor: either molecularly-defined Glioblastoma (“mGBM”) or “Others”.
Patient IDAnalysis IDPrimary StatusGenderAge at Initial PresentationPredominant LocalizationSample TypePathological DiagnosisGradeATRXTERTH3EGFR Amplification7+/10−Other Putative DriversMolecular Subset
NOT-0046NOT-0046_TAprimaryM31thalamicFFPEGlioblastoma, IDH wild-typeIVMUTWTWTamplificationFALSE mGBM
NOT-0046_TBrecurrentM31thalamicLiN2Glioblastoma, IDH wild-typeIVMUTWTWTamplificationTRUE mGBM
NOT-0047NOT-0047recurrentM49parietalLiN2Glioblastoma, IDH wild-typeIVWTWTWTamplificationTRUE mGBM
NOT-0048NOT-0048primaryF45frontalLiN2Glioblastoma, IDH wild-typeIVWTWTWTamplificationTRUE mGBM
NOT-0051NOT-0051primaryM48temporalFFPEGlioblastoma, IDH wild-typeIVWTC228WTamplificationTRUE mGBM
NOT-0052NOT-0052primaryF65hippocampusFFPEAnaplastic astrocytoma, IDH wild-typeIIIWTC228WTamplificationTRUE mGBM
NOT-0054NOT-0054recurrentF40frontalLiN2Glioblastoma, IDH wild-typeIVWTC250WTamplificationTRUE mGBM
NOT-0056NOT-0056primaryF67hippocampusLiN2Glioblastoma, IDH wild-typeIVWTC228WTamplificationTRUE mGBM
NOT-0057NOT-0057primaryF62temporalLiN2Glioblastoma, IDH wild-typeIVWTC228WTamplificationTRUE mGBM
NOT-0058NOT-0058primaryF71frontalFFPEGlioblastoma, IDH wild-typeIVWTC228WTamplificationTRUE mGBM
NOT-0060NOT-0060primaryM48hippocampusFFPEGlioblastoma, IDH wild-typeIVWTC250WTamplificationTRUE mGBM
NOT-0061NOT-0061primaryM55occipitalFFPEGlioblastoma, IDH wild-typeIVWTC250WTcopy neutralFALSE mGBM
NOT-0062NOT-0062primaryM66frontalFFPEGlioblastoma, IDH wild-typeIVWTC250WTamplificationTRUE mGBM
NOT-0064NOT-0064primaryF48frontalLiN2Glioblastoma, IDH wild-typeIVWTC228WTamplificationTRUE mGBM
NOT-0065NOT-0065primaryM59occipitalLiN2Glioblastoma, IDH wild-typeIVWTC228WTamplificationFALSE mGBM
NOT-0066NOT-0066primaryF69frontalLiN2Glioblastoma, IDH wild-typeIVWTC228WTamplificationTRUE mGBM
NOT-0067NOT-0067primaryF51parietalLiN2Glioblastoma, IDH wild-typeIVWTWTWTamplificationTRUE mGBM
NOT-0069NOT-0069_TAprimaryM46parietalFFPEGlioblastoma, IDH wild-typeIVWTC228WTamplificationTRUE mGBM
NOT-0069_TBrecurrentM46parietalLiN2Glioblastoma, IDH wild-typeIVWTC228WTamplificationTRUE mGBM
NOT-0070NOT-0070primaryM46temporalFFPEGlioblastoma, IDH wild-typeIVWTC250WTcopy neutralTRUE mGBM
NOT-0071NOT-0071primaryM47multifocalLiN2Glioblastoma, IDH wild-typeIVWTWTWTamplificationFALSE mGBM
NOT-0073NOT-0073primaryM51frontalLiN2Glioblastoma, IDH wild-typeIVWTC228WTamplificationTRUE mGBM
NOT-0076NOT-0076primaryM51thalamusLiN2Glioblastoma, IDH wild-typeIVWTC228WTamplificationTRUE mGBM
NOT-0078NOT-0078primaryF52frontalLiN2Diffuse astrocytoma, WHO grade II, IDH wild-typeIIMUTWTWTamplificationFALSE mGBM
NOT-0079NOT-0079primaryM40parietalLiN2Glioblastoma, IDH wild-typeIVWTC228WTamplificationTRUE mGBM
NOT-0082NOT-0082primaryM68gliomatosisFFPEAnaplastic astrocytoma, WHO grade III, IDH wild-typeIIIWTC228WTamplificationFALSE mGBM
NOT-0084NOT-0084primaryM54parietalLiN2Glioblastoma, IDH wild-typeIVWTWTWTamplificationFALSE mGBM
NOT-0085NOT-0085primaryM59frontalLiN2Glioblastoma, IDH wild-typeIVWTC250WTamplificationTRUE mGBM
NOT-0086NOT-0086primaryM53temporalFFPEGlioblastoma, IDH wild-typeIVWTC250WTamplificationTRUE mGBM
NOT-0087NOT-0087primaryM63frontalFFPEGlioblastoma, IDH wild-typeIVWTC250WTamplificationTRUE mGBM
NOT-0089NOT-0089primaryM62parietalLiN2Glioblastoma, IDH wild-typeIVWTC228WTcopy neutralFALSE mGBM
NOT-0091NOT-0091primaryF48frontalFFPEGlioblastoma, IDH wild-typeIVWTC228WTamplificationTRUE mGBM
NOT-0092NOT-0092_TAprimaryM51frontalLiN2Glioblastoma, IDH wild-typeIVWTWTWTamplificationFALSE mGBM
NOT-0092_TBrecurrentM51frontalFFPEGlioblastoma, IDH wild-typeIVWTWTWTamplificationFALSE mGBM
NOT-0094NOT-0094primaryM64frontalFFPEGlioblastoma, IDH wild-typeIVWTC228WTamplificationTRUE mGBM
NOT-0075NOT-0075_TAprimaryF49cerebellarLiN2Anaplastic astrocytoma, IDH wild-typeIIIMUTWTWTamplificationTRUE mGBM
NOT-0075_TBrecurrentF49cerebellarLiN2Glioblastoma, IDH wild-typeIVMUTWTWTcopy neutralFALSE mGBM
NOT-0059NOT-0059primaryF76frontalFFPEGlioblastoma, IDH wild-typeIVWTWTWTcopy neutralFALSESETD2 (Y2523)Others
NOT-0063NOT-0063primaryM37gliomatosisLiN2Glioblastoma, IDH wild-typeIVMUTWTG34Rcopy neutralFALSE Others
NOT-0068NOT-0068primaryM64gliomatosisLiN2Diffuse astrocytoma, IDH wild-typeIIMUTWTWTcopy neutralFALSESETD2 (A2553T)Others
NOT-0083NOT-0083primaryF41corpus callosumFFPEGlioblastoma, IDH wild-typeIVMUTWTWTcopy neutralFALSESETD2 (R2040*; R2510H)Others
NOT-0088NOT-0088_TAprimaryF34cerebellarLiN2Anaplastic astrocytoma with piloid features, IDH wild-type*IIIWTWTWTcopy neutralTRUEFGFR1 (K567E; V742M)Others
NOT-0088_TBrecurrentF34cerebellarLiN2Glioblastoma, IDH wild-typeIVWTWTWTcopy neutralFALSEFGFR1 (K567E; V742M)Others
NOT-0090NOT-0090_TAprimaryM28frontalLiN2Glioblastoma, IDH wild-typeIVMUTWTWTcopy neutralFALSESETD2 (KQ583fs)Others
NOT-0090_TBrecurrentM28frontalLiN2Glioblastoma, IDH wild-typeIVMUTWTWTcopy neutralFALSE Others
Table 2. Characteristics of the metrics analyzed in this study. “CNS” indicates central nervous system. “CNS_“ “A”, “B”, “C”, “D”, “E”, “F”, “G” and “H” indicate different CNS-related mutational signatures.
Table 2. Characteristics of the metrics analyzed in this study. “CNS” indicates central nervous system. “CNS_“ “A”, “B”, “C”, “D”, “E”, “F”, “G” and “H” indicate different CNS-related mutational signatures.
MetricAssessed Genomic AlterationPossible Mechanisms
SNV BurdenFrequency of single nucleotide variations (SNV)DNA damage repair deficiency, Polymerase errors, APOBEC mutagenesis in hypermutated/ultra-mutated tumors
Indel BurdenFrequency of short insertion deletions (indels)Polymerase slippage, Non-homologous End Joining (NHEJ), hairpin loops
Weighted Genome Instability Index (wGII)Frequency of copy number variation (CNV) eventsDouble stand breaks, NHEJ, Mitotic nondisjunction, Chromosomal instability, Break-Fusion Bridge (BFB) cycles, Chromothripsis
Chromosomal Arm Event Ratio (CAER)Number of chromosomal arm amplifications or deletions (excludes X, Y): AneuploidyMitotic nondisjunction, Chromothripsis
Copy number amplitudeMaximum number of amplificationsExtrachromosomal minutes and chromothripsis in cases with high level amplification (>10)
ChromothripsisMassive, clustered, single chromosomal rearrangementsMitotic nondisjunction
Double Minutescircularization of double-stranded DNA, resulting in highly amplified genesChromothripsis, gene amplification, NHEJ
Microsatellite instability (MSI)Length variation in microsatellite repeatsMismatch Repair (MMR) deficiency
Mutational SignaturesMechanisms underlying single nucleotide variationsCNS_A: Temozolomide-associated
CNS_B: Clock-like mutagenesis
CNS_C: Unknown etiology
CNS_D: Medulloblastoma-associated
CNS_E: Mismatch-repair-associated
CNS_F: Neuroblastoma-associated
CNS_G: Pilocytic astrocytoma-associated
CNS_H: Homologous recombination-BRCA1/2-associated
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Ülgen, E.; Karacan, S.; Gerlevik, U.; Can, Ö.; Bilguvar, K.; Oktay, Y.; B. Akyerli, C.; K. Yüksel, Ş.; E. Danyeli, A.; Tihan, T.; Sezerman, O.U.; Yakıcıer, M.C.; Pamir, M.N.; Özduman, K. Mutations and Copy Number Alterations in IDH Wild-Type Glioblastomas Are Shaped by Different Oncogenic Mechanisms. Biomedicines 2020, 8, 574. https://doi.org/10.3390/biomedicines8120574

AMA Style

Ülgen E, Karacan S, Gerlevik U, Can Ö, Bilguvar K, Oktay Y, B. Akyerli C, K. Yüksel Ş, E. Danyeli A, Tihan T, Sezerman OU, Yakıcıer MC, Pamir MN, Özduman K. Mutations and Copy Number Alterations in IDH Wild-Type Glioblastomas Are Shaped by Different Oncogenic Mechanisms. Biomedicines. 2020; 8(12):574. https://doi.org/10.3390/biomedicines8120574

Chicago/Turabian Style

Ülgen, Ege, Sıla Karacan, Umut Gerlevik, Özge Can, Kaya Bilguvar, Yavuz Oktay, Cemaliye B. Akyerli, Şirin K. Yüksel, Ayça E. Danyeli, Tarık Tihan, O. Uğur Sezerman, M. Cengiz Yakıcıer, M. Necmettin Pamir, and Koray Özduman. 2020. "Mutations and Copy Number Alterations in IDH Wild-Type Glioblastomas Are Shaped by Different Oncogenic Mechanisms" Biomedicines 8, no. 12: 574. https://doi.org/10.3390/biomedicines8120574

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
