Article

Reduced Lipid Peroxidation Predicts Unfavorable Prognosis in Hepatocellular Carcinoma, but Not Intrahepatic Cholangiocarcinoma

1
Institute of Pathology, University Medical Center of the Johannes Gutenberg University, 55131 Mainz, Germany
2
Department of Internal Medicine, University Medical Center of the Johannes Gutenberg University, 55131 Mainz, Germany
3
Department of General, Visceral and Transplant Surgery, University Medical Center of the Johannes Gutenberg University, 55131 Mainz, Germany
4
Tissue Biobank, University Medical Center of the Johannes Gutenberg University, 55131 Mainz, Germany
*
Author to whom correspondence should be addressed.
These authors contributed equally to this work.
Biomedicines 2023, 11(9), 2471; https://doi.org/10.3390/biomedicines11092471
Submission received: 28 July 2023 / Revised: 31 August 2023 / Accepted: 4 September 2023 / Published: 6 September 2023

Abstract

:
Primary liver cancer, including hepatocellular carcinoma (HCC) and intrahepatic cholangiocarcinoma (iCCA), remains a significant contributor to cancer-related mortality worldwide. Oxidative stress and lipid peroxidation play a key role in chronic liver diseases and have been shown to be pivotal for tumor initiation and progression. 4-hydroxy-nonenal (4-HNE), one of the major mediators of oxidative stress and a well-established biomarker for lipid peroxidation, can act as a signal transducer, inducing inflammation and exerting carcinogenic effects. However, the role of 4-HNE in primary liver cancer remains poorly explored. In this study, we investigated 4-HNE levels in 797 liver carcinomas, including 561 HCC and 236 iCCA, by immunohistochemistry. We then correlated 4-HNE levels with comprehensive clinical data and survival outcomes. In HCC, lower expression levels of 4-HNE were associated with vascular invasion, a high tumor grade, a macrotrabecular-massive HCC subtype, and poor overall survival. Concerning iCCA, large duct iCCA showed significantly higher 4-HNE levels when compared to small duct iCCA. Yet, in iCCA, 4-HNE levels did not correlate with known prognostic parameters or survival outcomes. To conclude, in HCC but not in iCCA, low amounts of 4-HNE predict unfavorable survival outcomes and are associated with aggressive tumor behavior. These findings provide insights into the role of 4-HNE in liver cancer progression and may enable novel therapeutic strategies.

1. Introduction

Liver cancer is the fourth most common cause of cancer-related death worldwide, with hepatocellular carcinoma (HCC) being the most frequent tumor type, followed by intrahepatic cholangiocarcinoma (iCCA) [1]. Both HCC and iCCA are evaluated using the Union for International Cancer Control (UICC) staging system. For HCC, clinical decision-making and prognosis assessment are performed using supplementary tumor staging systems. such as the Barcelona Clinic Liver Cancer (BCLC), Hong Kong Liver Cancer (HKLC), or Japan Integrated Staging (JIS) staging system. These staging systems allow robust stratification into distinct prognostic groups. Nonetheless, the inherent variability observed in the clinical course of individual HCC patients underscores the need for further improvement in the evaluation of prognosis [2]. Unlike for HCC, no generally accepted staging systems have been tailored for iCCA.
Oxidative stress, characterized by an imbalance between the production of reactive oxygen species (ROS) and antioxidant systems, can lead to ROS interaction with cellular macromolecules, particularly DNA, membrane phospholipids, and proteins, thereby causing cellular damage and dysfunction [3]. ROS, generated during normal cellular processes like mitochondrial metabolism, also serves as a signaling molecule, promoting cell proliferation and activating survival pathways at low levels. Furthermore, high ROS levels can cause DNA damage, promoting mutagenesis, and have therefore been implicated in tumor initiation and progression [4]. On the other hand, high levels of ROS may also result in cell death and senescence [5]. Tumor cells are therefore thought to equilibrate ROS levels to avoid the detrimental effects of oxidative stress. In this line, it has recently been demonstrated that not only ROS but also antioxidant pathways may be involved in cancer initiation and progression [6].
Lipid peroxidation is one of the cellular consequences of uncontrolled ROS elevation. Among the aldehydes produced during lipid peroxidation, 4-hydroxy-nonenal (4-HNE) is one of the best-studied molecules [7,8]. It is considered the major biomarker of lipid peroxidation and is a signaling molecule involved in the regulation of transcription factors associated with oxidative stress [9]. 4-HNE becomes apparent as a pivotal pathological target in various diseases, capable of inducing both inflammation and apoptosis while also deactivating key proteins. Consequently, 4-HNE is regarded as a molecule of substantial concern. The authors of [10] report that 4-HNE not only mediates oxidative stress but has also been implied as a signaling molecule exerting several biological effects upon high ROS levels. The study conducted by Podszun et al. exemplifies the reliability and robustness of immunohistochemical evaluation of 4-HNE protein adducts as an approach for visualizing and assessing lipid peroxidation in liver tissue [11]. Recently, it has been demonstrated that there are characteristic changes in the lipid profile of HCC cells that are paralleled by decreases in 4-HNE levels, which may be beneficial for tumor growth and progression [12]. Additionally, 4-HNE has been implicated in tumor initiation in HCC, both in animal models and in humans [13].
ROS generated under inflammatory conditions play a crucial role in iCCA as well, contributing to the formation of oxidative DNA adducts and promoting inflammation-mediated carcinogenesis [14]. While the effects of ROS on iCCA have been extensively investigated, there is currently no available data regarding the correlation between 4-HNE and iCCA.
The present immunohistochemical study investigates 4-HNE levels in a large cohort of patients with intrahepatic cholangiocarcinoma and hepatocellular carcinoma and correlates 4-HNE expression with clinical data and survival outcomes.

2. Materials and Methods

2.1. Patient Cohort

A total of 294 paraffin-embedded formalin-fixed (FFPE) samples from 236 iCCA patients and 871 FFPE samples from 561 HCC patients were collected from routine histopathology cases seen at the Institutes of Pathology, University Medical Center Mainz, between 2006 and 2020. Tissue microarrays (TMAs) with cores of 1–2 mm were constructed. Each patients‘ set of samples encompassed the primary tumor, additional tumor foci, corresponding normal tissue, precursor lesions, relapse tumors, and lymph node or distant metastases, if present.

2.2. Immunohistochemistry

Immunohistochemistry (IHC) was carried out on 4 µm-thick histological sections. Antigen retrieval was undertaken with Tris/EDTA buffer, pH 9 (Dako, Santa Clara, California, #8024), and cell conditioning solution 1 (Roche, Mannheim, Germany, #950-124). TMA slides were incubated with a mouse monoclonal anti-4-hydroxynonenal antibody (Abcam, Berlin, Germany; ab48506) and a monoclonal anti-glutamine synthetase antibody (Roche, Mannheim, Germany; 760–4898). Immunohistochemistry was undertaken with an automated staining system (DAKO Autostainer Plus, Agilent Technologies, Santa Clara, CA, USA) with the Dako EnVision FLEX staining method (Agilent Technologies). Staining procedures were performed as indicated by the manufacturers’ guidelines. Stained slides were digitized using a whole slide scanner set at 40× magnification (Nanozoomer, Hamamatsu Photonics, Hamamatsu, Japan). Evaluation of staining intensity involved the application of the semiquantitative immunoreactivity score (IRS), calculated by multiplying the staining intensity (ranging from 0 to 3) by the extent of tumor involvement (ranging from 0 to 4), resulting in score values spanning from 0 to 12 [15]. Glutamine synthetase (GS) overexpression has been defined as a uniform staining pattern of similar intensity as observed in zone 3 hepatocytes of non-neoplastic liver tissue. The immunohistochemical evaluation was executed by experienced pathologists (T.S.G. and D.A.R.) and supervised by an expert hepatopathologist (B.K.S.).

2.3. Statistical Analysis

All statistical analyses were carried out using the R environment for statistical computing (version 4.3.0) [16]. The non-parametric Mann–Whitney U test was employed to compare two independent groups characterized by non-normally distributed continuous variables or ordinal data. When examining the concordance of distributions within two dependent samples, the Wilcoxon signed-rank test was employed to assess whether they were drawn from populations exhibiting identical distributions. To mitigate the impact of multiple testing and curtail the risk of false positives or Type I errors, corrections according to the Benjamini–Hochberg method were implemented. Dichotomization of 4-HNE and AFP protein expression was conducted utilizing the Charité cut-off finder functions, which enabled the establishment of a significant demarcation between high and low protein expression levels predicated on survival outcome [17]. The assessment of overall survival entailed the calculation of the time span between initial diagnosis and death, irrespective of etiology or the last follow-up, analyzed through the Kaplan–Meier method, with disparities evaluated using the log-rank test. Uni- and multivariate Cox regression analyses were executed using the function coxph from the R package survival [18,19]. Adjusted p values were reported exclusively if divergent from the non-adjusted values to ensure clarity in the presentation. To examine associations between pairs of variables, the Spearman rank-order correlation coefficient was computed for non-metric and non-normally distributed data, while the Pearson correlation coefficient was employed for metric and normally distributed data.

3. Results

3.1. Association of Low Intratumoral Amounts of 4-HNE with Increased Vascular Invasion and Poor Tumor Differentiation in HCC Patients

To analyze the effects of 4-HNE protein expression on HCC progression and outcome, we used a well-characterized tissue microarray with 871 HCC from 561 patients with detailed clinical data [20,21,22]. 4-HNE immunohistochemistry was performed to evaluate 4-HNE staining using the IRS score. In normal liver tissue (n = 536), 4-HNE was strongly detected in the cytoplasm of hepatocytes, displaying a granular staining pattern. However, in cells with primary HCC, 4-HNE levels were significantly lower (Figure 1a–c). Relapse tumors (n = 39) showed a further reduction of 4-HNE compared to the respective primary HCC (Figure 1d). Moreover, there was a trend towards lower 4-HNE levels in lymph nodes (n = 11) and distant metastases (n = 28) compared to primary HCC (n = 536), although this trend did not reach statistical significance (Figure 1e,f). Survival analyses revealed that the subgroup with low 4-HNE expression levels exhibited significantly worse survival outcomes than the group with high 4-HNE levels (Figure 1g).

3.2. Association of Low Intratumoral Amounts of 4-HNE with Increased Vascular Invasion and Poor Tumor Differentiation in HCC Patients

To evaluate the relationship of 4-HNE with different established prognostic factors, low and high 4-HNE levels were correlated with the BCLC staging system [23], vascular invasion [24,25], larger tumor diameter [26], Child–Pugh Score [27], and macrotrabecular-massive growth pattern [28]. The patient group with lower intratumoral amounts of 4-HNE showed significantly higher patient age and larger tumor diameter, more frequent vascular invasion, and a more frequent macrotrabecular-massive growth pattern, but less frequent liver cirrhosis and, if cirrhosis was present, a lower Child–Pugh score (Table 1, Figure 2a,b).
In line with these findings, further analysis also demonstrated a significant reduction of intratumoral 4-HNE levels in HCC with vascular invasion, a higher tumor grade, GS overexpression, and a macrotrabecular-massive subtype (Figure 2c–f). Age at diagnosis and 4-HNE IRS of non-neoplastic liver tissue were not significantly correlated, rs (534) = 0.118, p = 0.785.

3.3. Multivariate Analysis Confirms Lower 4-HNE Levels as an Independent Predictor of Adverse Outcomes in HCC

To demonstrate the correlation between different prognostic factors, we performed a Cox regression analysis for overall survival (Figure 3). Multivariate analysis confirmed the prognostic significance of 4-HNE in HCC. Patients with low 4-HNE levels demonstrated poorer outcomes, in parallel with established factors such as the presence of vascular invasion, higher BCLC stage, and a higher serum AFP. No evidence of reliable collinearity between BCLC stage and vascular invasion was detected in our analysis, with the highest variance inflation factor observed being 3.18.
In conclusion, our findings indicate that 4-HNE immunohistochemistry may independently predict overall survival, with low 4-HNE expression being associated with poorer survival outcomes.

3.4. No Significant Association between 4-HNE Levels and Patient Survival in iCCA

The strong correlation of 4-HNE levels, as tested by immunohistochemistry, with survival in HCC patients prompted the investigation of whether this relationship is a fundamental characteristic of primary liver carcinomas or a specific feature limited to HCC. To address this, we conducted a study on 294 iCCA cases from 236 patients within a clinically established cohort [29], examining their 4-HNE expression (Figure 4). No significant association was found between 4-HNE levels and the overall survival of iCCA patients (Figure 5e). Subgroup analysis did not reveal any significant difference in survival between small and large duct iCCA, although the large duct iCCA showed slightly higher 4-HNE amounts than the small duct iCCA (Figure 5a; for further details, see Supplementary Figure S1).

4. Discussion

The present study aimed to investigate the prognostic role of 4-HNE in liver cancer within a large cohort of 797 primary liver cancers, including 561 HCC and 236 iCCA. Our findings revealed distinct associations and prognostic implications of 4-HNE expression in HCC, while no significant correlations were found in iCCA.
We observed a significant decrease in 4-HNE levels during hepatocarcinogenesis, from non-neoplastic liver tissue to primary HCC, relapse tumors, as well as lymph node and distant metastases. This indicates the potential role of 4-HNE in HCC progression and metastasis. In this line, our survival analysis demonstrated that patients with low 4-HNE levels had significantly worse overall survival compared to those with high intratumoral 4-HNE adducts, highlighting the prognostic significance of 4-HNE in HCC. Further exploration of prognostic factors in HCC revealed intriguing correlations with 4-HNE levels. HCC with low intratumoral 4-HNE levels exhibited characteristics associated with aggressive tumor behavior, such as increased vascular invasion and poor tumor differentiation. However, these correlations may also represent dependent variables. To investigate this issue, i.e., to determine whether 4-HNE expression negatively affects patient outcomes independent of other prognostic factors, we performed a multivariate regression analysis. This analysis confirmed the independent prognostic significance of 4-HNE in HCC, paralleling established factors such as vascular invasion [30], BCLC stage [31], and serum alpha-fetoprotein (AFP) levels [32]. These data support the hypothesis that reduced lipid peroxidation, indicated by reduced 4-HNE levels, is associated with increased aggressiveness in HCC. In addition, a trend towards increased apoptosis as tested by caspase 3 was observed in HCC with higher 4-HNE levels, which reached no significance. Moreover, lower amounts of 4-HNE were detected in macrotrabecular-massive HCC, which constitutes an HCC subtype with known unfavorable outcomes [28], associated with cellular proliferation, activation of anti-apoptotic proteins, and an angiogenesis activation-related carcinogenesis pathway. These findings are noteworthy, as they may guide the development of distinct therapy regimes beneficial to patients suffering from macrotrabecular-massive HCC [33].
4-HNE originates from mitochondria through the process of lipid peroxidation, forming adducts with proteins, DNA, and lipids. Due to the crucial role of ROS, manipulating its mitochondrial generation has been proposed as a potential target for cancer prevention and therapy [34]. For example, doxorubicin, one of the most effective anticancer drugs, acts via ROS [35]. Other therapeutic targets under discussion include 4-HNE and the antioxidant MitoQ, which interferes with the regulation of ROS production and has implications for liver fibrosis development [36]. Elevated 4-HNE levels interact with mitochondrial proteins, contributing to the mutagenic and carcinogenic effects of lipid peroxidation [34]. Consequently, a promising therapeutic strategy involves targeting 4-HNE through the activation of the ALDH2 enzyme using Alda-1, which enhances its activity [37]. ALDH2 is known for its role in ethanol metabolism but also plays a key role in oxidizing lipid peroxidation products, like 4-HNE [38]. Inhibition of ALDH2 is a well-known pharmacological intervention as a treatment for alcohol abuse [39]. ALDH2 is activated by Alda-1, resulting in enhanced catalytic activity, and protects from nucleophilic attacks of reactive aldehydes, such as 4-HNE [40]. Hence, increased detoxification of 4-HNE by Alda-1 offers significant potential for altering ROS-mediated cellular damage and is thus a potential therapeutic agent to prevent ROS-associated diseases. Preliminary studies have shown promising results utilizing Alda-1 to augment 4-HNE detoxification in Alzheimer’s disease progression. The study demonstrated that treatment with Alda-1 effectively prevented the impairment of angiogenesis in cultured endothelial cells induced by amyloid β peptide, which is known to induce oxidative stress [41]. However, intriguingly, our study revealed that despite its association with cellular and DNA damage, lower levels of 4-HNE were paradoxically linked to a subgroup of HCC patients with a worse prognosis, raising questions about the underlying mechanisms driving this observation.
Furthermore, we observed a lower frequency of liver cirrhosis and, when present, a lower Child–Pugh score in the HCC group with lower intratumoral 4-HNE expression. It is important to note that our patient cohort consisted of resected HCC with available histology, as per treatment guidelines [42]. As a result, advanced HCC in palliative settings and patients with worse liver function were excluded from the study, which could potentially influence the generalizability of our findings.
Oxidative stress induced by ROS is a major mechanism leading to nonalcoholic fatty liver disease (NAFLD) [43]. Additionally, ROS also plays a pivotal role in alcoholic-induced steatosis (alcoholic fatty liver disease; AFLD) through impaired hepatic lipid metabolism [44]. However, the adaptive mechanisms involved in carcinogenesis and dedifferentiation also include oxidative stress mitigation, such as the metabolism of ROS and 4-HNE [45]. This detoxification occurs through reactions into less reactive products with glutathione, reduction to 1,4-dihydroxy-2-nonene, and oxidation to 4-hydroxy-2-nonenoic acid [34]. These mechanisms may explain the reduced levels of 4-HNE in patients with a worse outcome. Additionally, some tumors use ROS scavenging techniques to keep ROS levels low, enter a quiescent state, and thus resist systemic therapy more effectively [46,47]. Furthermore, cancer stem cells can produce vast amounts of glutathione to enhance the metabolism of ROS, reducing the levels of 4-HNE and improving their survivability against radio- and chemotherapy [45,48,49]. Sorafenib, one of the therapeutic options for advanced HCC, generates ROS, exacerbating oxidative stress within cancer cells. In sorafenib-resistant cells, increased UBQLN1 expression leads to the degradation of PGC1β through a ubiquitination-independent mechanism, resulting in reduced mitochondrial biogenesis and decreased ROS production [50]. These findings suggest that low 4-HNE levels characterize a specific subgroup of HCC with enhanced 4-HNE metabolism, a byproduct of systemic therapy, potentially leading to increased detoxification of lipid peroxidation intermediates. HCC with low levels of 4-HNE may, therefore, represent a subgroup of HCC that may be specifically resistant to treatment with sorafenib. Further studies are needed to corroborate this assumption.
Our study reveals an association between decreased levels of 4-HNE and unfavorable survival outcomes in HCC patients, which is in accordance with previous studies conducted on various types of cancer. For instance, in prostate cancer, decreased levels of 4-HNE have been linked to disease progression [51]. Similarly, decreased 4-HNE levels have been associated with breast cancer [52], gastric cancer [53], urothelial carcinoma [54], ovarian cancer [55], or with a worse prognosis, e.g., in lung squamous cell carcinoma [56]. Reduced levels of 4-HNE may therefore have implications for cancer development and progression. The decrease in intratumoral 4-HNE as tested by immunohistochemistry is paralleled by increased tumor growth and aggressiveness; however, further investigation is warranted to unravel the precise mechanisms through which 4-HNE influences tumor behavior and to explore its therapeutic implications for improving patient outcomes.
In a parallel study of mouse HCC induced by the potent hepatocarcinogen diethylnitrosamine, 4-HNE localized to frequent eosinophilic globules, which may correspond to so-called pale bodies/hyalin-like globules [57] in dysplastic foci, nodules, and small HCC, which were frequently found in mice but only to a minor percentage in human hepatocarcinogenesis. Yet, this finding may partially explain the higher levels of 4-HNE present in specific subtypes and less advanced HCC. The significance of pale bodies is currently unknown. In aged hepatocytes in zone 3, lipofuscin, a lipid degradation product, may be partially stained with antibodies against 4-HNE; however, we did not observe a significant correlation between 4-HNE staining and the age of the respective patient.
In contrast to HCC, in iCCA, our analysis did not reveal any significant association between 4-HNE expression levels and overall survival. While large duct iCCA exhibited slightly higher 4-HNE expression compared to small duct iCCA, this difference was not statistically significant. The association between 4-HNE and patient survival observed in HCC may be specific to HCC rather than a universal characteristic of primary liver carcinomas.

5. Conclusions

In this study, we investigated 4-hydroxy-nonenal (4-HNE) in a large, clinically well-characterized patient cohort with primary liver carcinomas, including 561 hepatocellular carcinomas (HCC) and 236 intrahepatic cholangiocarcinomas (iCCA), using immunohistochemistry. 4-HNE is a key molecule in the complex molecular processes of cellular oxidative stress regulation and may act as a signal transducer, inducing inflammation. Both HCC and iCCA demonstrated differential 4-HNE expression in different tumor subtypes. We found a significant adverse association between low 4-HNE levels and overall survival in HCC but not in iCCA patients. This suggests that reduced lipid peroxidation in HCC may contribute to increased invasiveness and dedifferentiation or indicate the potential for tumor evasion of therapeutic approaches. Interestingly, we also observed that low levels of 4-HNE expression were associated with a higher number of vascular invasions, lower tumor differentiation, and a macrotrabecular-massive HCC subtype. These findings underscore the importance of elucidating the role of 4-HNE in HCC and investigating 4-HNE modulating agents as therapeutic agents, emphasizing the need for further comprehensive and mechanistic studies in this area.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/biomedicines11092471/s1. Figure S1: Box plot analysis of 4-HNE IRS and clinicopathological features in intrahepatic cholangiocarcinoma (iCCA).

Author Contributions

Conceptualization, T.S.G., D.A.R. and B.K.S.; data curation, T.S.G., A.W., F.B., D.A.R. and B.K.S.; formal analysis, T.S.G. and D.A.R.; funding acquisition, W.R., B.K.S., T.S.G., D.A.R. and B.K.S.; methodology, T.S.G., D.A.R. and B.K.S.; project administration, W.R. and B.K.S.; resources, H.R.W., P.R.G., H.L., D.A.R. and B.K.S.; software, T.S.G. and M.S.; supervision, W.R. and B.K.S.; validation, T.S.G. and D.A.R.; visualization, T.S.G., M.S. and D.A.R.; writing—original draft, T.S.G. and D.A.R.; writing—review and editing, D.A.R. and B.K.S. All authors have read and agreed to the published version of the manuscript.

Funding

T.S.G. and D.A.R. are supported by the Clinician Scientist Fellowship “Else Kröner Research College: 2018_Kolleg.05”. Additionally, D.A.R. received funding from the Level I Program of the University Medical Center Mainz.

Institutional Review Board Statement

All procedures performed in studies involving human tissue were in accordance with the ethical standards of the institutional and regional ethics committees and with the 1964 Helsinki Declaration and its later amendments or comparable ethical standards. The study was approved by the ethics committee of the Landesärztekammer of Rhineland-Palatinate (837.146.17 (10980), as well as addendum 2018-13857_1 to D.A.R. and B.K.S., and 837.280.17 (11114) and 2021-15819).

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study.

Data Availability Statement

The datasets generated during and/or analyzed during the current study are available from the corresponding author upon reasonable request.

Acknowledgments

We thank Bonny Adami and Silke Mitschke for their excellent technical assistance. We especially thank the Else-Kröner-Fresenius-Research College “From chronic inflammation to carcinogenesis: importance of the liver micromilieu for development and progression of liver tumors” Mainz for their support.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Bray, F.; Ferlay, J.; Soerjomataram, I.; Siegel, R.L.; Torre, L.A.; Jemal, A. Global cancer statistics 2018: GLOBOCAN estimates of incidence and mortality worldwide for 36 cancers in 185 countries. CA Cancer J. Clin. 2018, 68, 394–424. [Google Scholar] [CrossRef]
  2. EASL Clinical Practice Guidelines: Management of hepatocellular carcinoma. J. Hepatol. 2018, 69, 182–236. [CrossRef] [PubMed]
  3. Juan, C.A.; Pérez de la Lastra, J.M.; Plou, F.J.; Pérez-Lebeña, E. The Chemistry of Reactive Oxygen Species (ROS) Revisited: Outlining Their Role in Biological Macromolecules (DNA, Lipids and Proteins) and Induced Pathologies. Int. J. Mol. Sci. 2021, 22, 4642. [Google Scholar] [CrossRef] [PubMed]
  4. Sena, L.A.; Chandel, N.S. Physiological roles of mitochondrial reactive oxygen species. Mol. Cell 2012, 48, 158–167. [Google Scholar] [CrossRef]
  5. Trachootham, D.; Alexandre, J.; Huang, P. Targeting cancer cells by ROS-mediated mechanisms: A radical therapeutic approach? Nat. Rev. Drug Discov. 2009, 8, 579–591. [Google Scholar] [CrossRef] [PubMed]
  6. Harris, I.S.; Treloar, A.E.; Inoue, S.; Sasaki, M.; Gorrini, C.; Lee, K.C.; Yung, K.Y.; Brenner, D.; Knobbe-Thomsen, C.B.; Cox, M.A.; et al. Glutathione and thioredoxin antioxidant pathways synergize to drive cancer initiation and progression. Cancer Cell 2015, 27, 211–222. [Google Scholar] [CrossRef] [PubMed]
  7. Ayala, A.; Muñoz, M.F.; Argüelles, S. Lipid peroxidation: Production, metabolism, and signaling mechanisms of malondialdehyde and 4-hydroxy-2-nonenal. Oxid. Med. Cell. Longev. 2014, 2014, 360438. [Google Scholar] [CrossRef] [PubMed]
  8. Kang, Q.; Yang, C. Oxidative stress and diabetic retinopathy: Molecular mechanisms, pathogenetic role and therapeutic implications. Redox Biol. 2020, 37, 101799. [Google Scholar] [CrossRef]
  9. Zarkovic, N. 4-hydroxynonenal as a bioactive marker of pathophysiological processes. Mol. Asp. Med. 2003, 24, 281–291. [Google Scholar] [CrossRef]
  10. Breitzig, M.; Bhimineni, C.; Lockey, R.; Kolliputi, N. 4-Hydroxy-2-nonenal: A critical target in oxidative stress? Am. J. Physiol. Cell Physiol. 2016, 311, C537–C543. [Google Scholar] [CrossRef]
  11. Podszun, M.C.; Chung, J.Y.; Ylaya, K.; Kleiner, D.E.; Hewitt, S.M.; Rotman, Y. 4-HNE Immunohistochemistry and Image Analysis for Detection of Lipid Peroxidation in Human Liver Samples Using Vitamin E Treatment in NAFLD as a Proof of Concept. J. Histochem. Cytochem. 2020, 68, 635–643. [Google Scholar] [CrossRef] [PubMed]
  12. Zhong, H.; Xiao, M.; Zarkovic, K.; Zhu, M.; Sa, R.; Lu, J.; Tao, Y.; Chen, Q.; Xia, L.; Cheng, S.; et al. Mitochondrial control of apoptosis through modulation of cardiolipin oxidation in hepatocellular carcinoma: A novel link between oxidative stress and cancer. Free Radic. Biol. Med. 2017, 102, 67–76. [Google Scholar] [CrossRef] [PubMed]
  13. Chang, B.; Nishikawa, M.; Nishiguchi, S.; Inoue, M. L-carnitine inhibits hepatocarcinogenesis via protection of mitochondria. Int. J. Cancer 2005, 113, 719–729. [Google Scholar] [CrossRef] [PubMed]
  14. Kawanishi, S.; Ohnishi, S.; Ma, N.; Hiraku, Y.; Oikawa, S.; Murata, M. Nitrative and oxidative DNA damage in infection-related carcinogenesis in relation to cancer stem cells. Genes Environ. 2016, 38, 26. [Google Scholar] [CrossRef] [PubMed]
  15. Remmele, W.; Stegner, H.E. Recommendation for uniform definition of an immunoreactive score (IRS) for immunohistochemical estrogen receptor detection (ER-ICA) in breast cancer tissue. Pathologe 1987, 8, 138–140. [Google Scholar] [PubMed]
  16. R Core Team. A Language and Environment for Statistical Computing; R Core Team: Vienna, Austria, 2023. [Google Scholar]
  17. Budczies, J.; Klauschen, F.; Sinn, B.V.; Győrffy, B.; Schmitt, W.D.; Darb-Esfahani, S.; Denkert, C. Cutoff Finder: A comprehensive and straightforward Web application enabling rapid biomarker cutoff optimization. PLoS ONE 2012, 7, e51862. [Google Scholar] [CrossRef]
  18. Therneau, T.M. A Package for Survival Analysis in R. 2023. Available online: https://CRAN.R-project.org/package=survival (accessed on 1 February 2023).
  19. Therneau, T.M.; Grambsch, P.M. Modeling Survival Data: Extending the {C}ox Model; Springer: New York, NY, USA, 2000. [Google Scholar]
  20. Ridder, D.A.; Schindeldecker, M.; Weinmann, A.; Berndt, K.; Urbansky, L.; Witzel, H.R.; Heinrich, S.; Roth, W.; Straub, B.K. Key Enzymes in Pyrimidine Synthesis, CAD and CPS1, Predict Prognosis in Hepatocellular Carcinoma. Cancers 2021, 13, 744. [Google Scholar] [CrossRef]
  21. Ridder, D.A.; Weinmann, A.; Schindeldecker, M.; Urbansky, L.L.; Berndt, K.; Gerber, T.S.; Lang, H.; Lotz, J.; Lackner, K.J.; Roth, W.; et al. Comprehensive clinicopathologic study of alpha fetoprotein-expression in a large cohort of patients with hepatocellular carcinoma. Int. J. Cancer 2022, 150, 1053–1066. [Google Scholar] [CrossRef]
  22. Ridder, D.A.; Urbansky, L.L.; Witzel, H.R.; Schindeldecker, M.; Weinmann, A.; Berndt, K.; Gerber, T.S.; Köhler, B.C.; Nichetti, F.; Ludt, A.; et al. Transforming Growth Factor-β Activated Kinase 1 (Tak1) Is Activated in Hepatocellular Carcinoma, Mediates Tumor Progression, and Predicts Unfavorable Outcome. Cancers 2022, 14, 430. [Google Scholar] [CrossRef]
  23. Llovet, J.M.; Brú, C.; Bruix, J. Prognosis of hepatocellular carcinoma: The BCLC staging classification. Semin. Liver Dis. 1999, 19, 329–338. [Google Scholar] [CrossRef]
  24. Predictive factors for long term prognosis after partial hepatectomy for patients with hepatocellular carcinoma in Japan. The Liver Cancer Study Group of Japan. Cancer 1994, 74, 2772–2780. [CrossRef]
  25. Ohnishi, K.; Tanabe, Y.; Ryu, M.; Isono, K.; Yamamoto, Y.; Usui, S.; Hiyama, Y.; Goto, N.; Iwama, S.; Sugita, S.; et al. Prognosis of hepatocellular carcinoma smaller than 5 cm in relation to treatment: Study of 100 patients. Hepatology 1987, 7, 1285–1290. [Google Scholar] [CrossRef] [PubMed]
  26. Livraghi, T.; Giorgio, A.; Marin, G.; Salmi, A.; de Sio, I.; Bolondi, L.; Pompili, M.; Brunello, F.; Lazzaroni, S.; Torzilli, G.; et al. Hepatocellular carcinoma and cirrhosis in 746 patients: Long-term results of percutaneous ethanol injection. Radiology 1995, 197, 101–108. [Google Scholar] [CrossRef] [PubMed]
  27. A new prognostic system for hepatocellular carcinoma: A retrospective study of 435 patients: The Cancer of the Liver Italian Program (CLIP) investigators. Hepatology 1998, 28, 751–755. [CrossRef] [PubMed]
  28. Ziol, M.; Poté, N.; Amaddeo, G.; Laurent, A.; Nault, J.C.; Oberti, F.; Costentin, C.; Michalak, S.; Bouattour, M.; Francoz, C.; et al. Macrotrabecular-massive hepatocellular carcinoma: A distinctive histological subtype with clinical relevance. Hepatology 2018, 68, 103–112. [Google Scholar] [CrossRef]
  29. Gerber, T.S.; Goeppert, B.; Hausen, A.; Witzel, H.R.; Bartsch, F.; Schindeldecker, M.; Gröger, L.K.; Ridder, D.A.; Cahyadi, O.; Esposito, I.; et al. N-Cadherin Distinguishes Intrahepatic Cholangiocarcinoma from Liver Metastases of Ductal Adenocarcinoma of the Pancreas. Cancers 2022, 14, 3091. [Google Scholar] [CrossRef]
  30. Imamura, H.; Matsuyama, Y.; Tanaka, E.; Ohkubo, T.; Hasegawa, K.; Miyagawa, S.; Sugawara, Y.; Minagawa, M.; Takayama, T.; Kawasaki, S.; et al. Risk factors contributing to early and late phase intrahepatic recurrence of hepatocellular carcinoma after hepatectomy. J. Hepatol. 2003, 38, 200–207. [Google Scholar] [CrossRef]
  31. Reig, M.; Forner, A.; Rimola, J.; Ferrer-Fàbrega, J.; Burrel, M.; Garcia-Criado, Á.; Kelley, R.K.; Galle, P.R.; Mazzaferro, V.; Salem, R.; et al. BCLC strategy for prognosis prediction and treatment recommendation: The 2022 update. J. Hepatol. 2022, 76, 681–693. [Google Scholar] [CrossRef]
  32. Galle, P.R.; Foerster, F.; Kudo, M.; Chan, S.L.; Llovet, J.M.; Qin, S.; Schelman, W.R.; Chintharlapalli, S.; Abada, P.B.; Sherman, M.; et al. Biology and significance of alpha-fetoprotein in hepatocellular carcinoma. Liver Int. 2019, 39, 2214–2229. [Google Scholar] [CrossRef]
  33. Li, X.; Yao, Q.; Liu, C.; Wang, J.; Zhang, H.; Li, S.; Cai, P. Macrotrabecular-Massive Hepatocellular Carcinoma: What Should We Know? J. Hepatocell. Carcinoma 2022, 9, 379–387. [Google Scholar] [CrossRef]
  34. Zhong, H.; Yin, H. Role of lipid peroxidation derived 4-hydroxynonenal (4-HNE) in cancer: Focusing on mitochondria. Redox Biol. 2015, 4, 193–199. [Google Scholar] [CrossRef]
  35. Antonucci, S.; Di Sante, M.; Tonolo, F.; Pontarollo, L.; Scalcon, V.; Alanova, P.; Menabò, R.; Carpi, A.; Bindoli, A.; Rigobello, M.P.; et al. The Determining Role of Mitochondrial Reactive Oxygen Species Generation and Monoamine Oxidase Activity in Doxorubicin-Induced Cardiotoxicity. Antioxid. Redox Signal. 2021, 34, 531–550. [Google Scholar] [CrossRef]
  36. Rehman, H.; Liu, Q.; Krishnasamy, Y.; Shi, Z.; Ramshesh, V.K.; Haque, K.; Schnellmann, R.G.; Murphy, M.P.; Lemasters, J.J.; Rockey, D.C.; et al. The mitochondria-targeted antioxidant MitoQ attenuates liver fibrosis in mice. Int. J. Physiol. Pathophysiol. Pharmacol. 2016, 8, 14–27. [Google Scholar]
  37. Perez-Miller, S.; Younus, H.; Vanam, R.; Chen, C.H.; Mochly-Rosen, D.; Hurley, T.D. Alda-1 is an agonist and chemical chaperone for the common human aldehyde dehydrogenase 2 variant. Nat. Struct. Mol. Biol. 2010, 17, 159–164. [Google Scholar] [CrossRef]
  38. Yoval-Sánchez, B.; Rodríguez-Zavala, J.S. Differences in susceptibility to inactivation of human aldehyde dehydrogenases by lipid peroxidation byproducts. Chem. Res. Toxicol. 2012, 25, 722–729. [Google Scholar] [CrossRef]
  39. Lipsky, J.J.; Shen, M.L.; Naylor, S. In vivo inhibition of aldehyde dehydrogenase by disulfiram. Chem. Biol. Interact. 2001, 130–132, 93–102. [Google Scholar] [CrossRef]
  40. Chen, C.H.; Ferreira, J.C.; Gross, E.R.; Mochly-Rosen, D. Targeting aldehyde dehydrogenase 2: New therapeutic opportunities. Physiol. Rev. 2014, 94, 1–34. [Google Scholar] [CrossRef]
  41. Solito, R.; Corti, F.; Chen, C.H.; Mochly-Rosen, D.; Giachetti, A.; Ziche, M.; Donnini, S. Mitochondrial aldehyde dehydrogenase-2 activation prevents β-amyloid-induced endothelial cell dysfunction and restores angiogenesis. J. Cell Sci. 2013, 126, 1952–1961. [Google Scholar] [CrossRef]
  42. Benson, A.B.; D’Angelica, M.I.; Abbott, D.E.; Anaya, D.A.; Anders, R.; Are, C.; Bachini, M.; Borad, M.; Brown, D.; Burgoyne, A.; et al. Hepatobiliary Cancers, Version 2.2021, NCCN Clinical Practice Guidelines in Oncology. J. Natl. Compr. Canc. Netw. 2021, 19, 541–565. [Google Scholar] [CrossRef]
  43. Farzanegi, P.; Dana, A.; Ebrahimpoor, Z.; Asadi, M.; Azarbayjani, M.A. Mechanisms of beneficial effects of exercise training on non-alcoholic fatty liver disease (NAFLD): Roles of oxidative stress and inflammation. Eur. J. Sport Sci. 2019, 19, 994–1003. [Google Scholar] [CrossRef]
  44. Cioarca-Nedelcu, R.; Atanasiu, V.; Stoian, I. Alcoholic liver disease-from steatosis to cirrhosis—A biochemistry approach. J. Med. Life 2021, 14, 594–599. [Google Scholar] [CrossRef] [PubMed]
  45. Najafi, M.; Mortezaee, K.; Majidpoor, J. Cancer stem cell (CSC) resistance drivers. Life Sci. 2019, 234, 116781. [Google Scholar] [CrossRef] [PubMed]
  46. Diehn, M.; Cho, R.W.; Lobo, N.A.; Kalisky, T.; Dorie, M.J.; Kulp, A.N.; Qian, D.; Lam, J.S.; Ailles, L.E.; Wong, M.; et al. Association of reactive oxygen species levels and radioresistance in cancer stem cells. Nature 2009, 458, 780–783. [Google Scholar] [CrossRef]
  47. Visvader, J.E.; Lindeman, G.J. Cancer stem cells in solid tumours: Accumulating evidence and unresolved questions. Nat. Rev. Cancer 2008, 8, 755–768. [Google Scholar] [CrossRef] [PubMed]
  48. Lytle, N.K.; Ferguson, L.P.; Rajbhandari, N.; Gilroy, K.; Fox, R.G.; Deshpande, A.; Schürch, C.M.; Hamilton, M.; Robertson, N.; Lin, W.; et al. A Multiscale Map of the Stem Cell State in Pancreatic Adenocarcinoma. Cell 2019, 177, 572–586.e522. [Google Scholar] [CrossRef] [PubMed]
  49. Lu, H.; Samanta, D.; Xiang, L.; Zhang, H.; Hu, H.; Chen, I.; Bullen, J.W.; Semenza, G.L. Chemotherapy triggers HIF-1-dependent glutathione synthesis and copper chelation that induces the breast cancer stem cell phenotype. Proc. Natl. Acad. Sci. USA 2015, 112, E4600–E4609. [Google Scholar] [CrossRef]
  50. Coriat, R.; Nicco, C.; Chéreau, C.; Mir, O.; Alexandre, J.; Ropert, S.; Weill, B.; Chaussade, S.; Goldwasser, F.; Batteux, F. Sorafenib-Induced Hepatocellular Carcinoma Cell Death Depends on Reactive Oxygen Species Production In Vitro and In Vivo. Mol. Cancer Ther. 2012, 11, 2284–2293. [Google Scholar] [CrossRef]
  51. Perkovic, M.N.; Jaganjac, M.; Milkovic, L.; Horvat, T.; Rojo, D.; Zarkovic, K.; Ćorić, M.; Hudolin, T.; Waeg, G.; Orehovec, B.; et al. Relationship between 4-Hydroxynonenal (4-HNE) as Systemic Biomarker of Lipid Peroxidation and Metabolomic Profiling of Patients with Prostate Cancer. Biomolecules 2023, 13, 145. [Google Scholar] [CrossRef]
  52. Bose, C.; Hindle, A.; Lee, J.; Kopel, J.; Tonk, S.; Palade, P.T.; Singhal, S.S.; Awasthi, S.; Singh, S.P. Anticancer Activity of Ω-6 Fatty Acids through Increased 4-HNE in Breast Cancer Cells. Cancers 2021, 13, 6377. [Google Scholar] [CrossRef]
  53. Ma, Y.; Zhang, L.; Rong, S.; Qu, H.; Zhang, Y.; Chang, D.; Pan, H.; Wang, W. Relation between gastric cancer and protein oxidation, DNA damage, and lipid peroxidation. Oxid. Med. Cell. Longev. 2013, 2013, 543760. [Google Scholar] [CrossRef]
  54. Li, X.; Xiong, W.; Wang, Y.; Li, Y.; Cheng, X.; Liu, W. p53 Activates the Lipoxygenase Activity of ALOX15B via Inhibiting SLC7A11 to Induce Ferroptosis in Bladder Cancer Cells. Lab. Investig. 2023, 103, 100058. [Google Scholar] [CrossRef] [PubMed]
  55. Zhang, Q.; Li, N.; Deng, L.; Jiang, X.; Zhang, Y.; Lee, L.T.O.; Zhang, H. ACSL1-induced ferroptosis and platinum resistance in ovarian cancer by increasing FSP1 N-myristylation and stability. Cell Death Discov. 2023, 9, 83. [Google Scholar] [CrossRef] [PubMed]
  56. Asakawa, A.; Kawade, G.; Kurata, M.; Fukuda, S.; Onishi, I.; Kinowaki, Y.; Ishibashi, S.; Ikeda, M.; Watabe, S.; Kobayashi, M.; et al. Stratification of lung squamous cell carcinoma based on ferroptosis regulators: Potential for new therapeutic strategies involving ferroptosis induction. Lung. Cancer 2022, 165, 82–90. [Google Scholar] [CrossRef] [PubMed]
  57. Nakashima, O.; Sugihara, S.; Eguchi, A.; Taguchi, J.; Watanabe, J.; Kojiro, M. Pathomorphologic study of pale bodies in hepatocellular carcinoma. Acta Pathol. Jpn. 1992, 42, 414–418. [Google Scholar] [CrossRef]

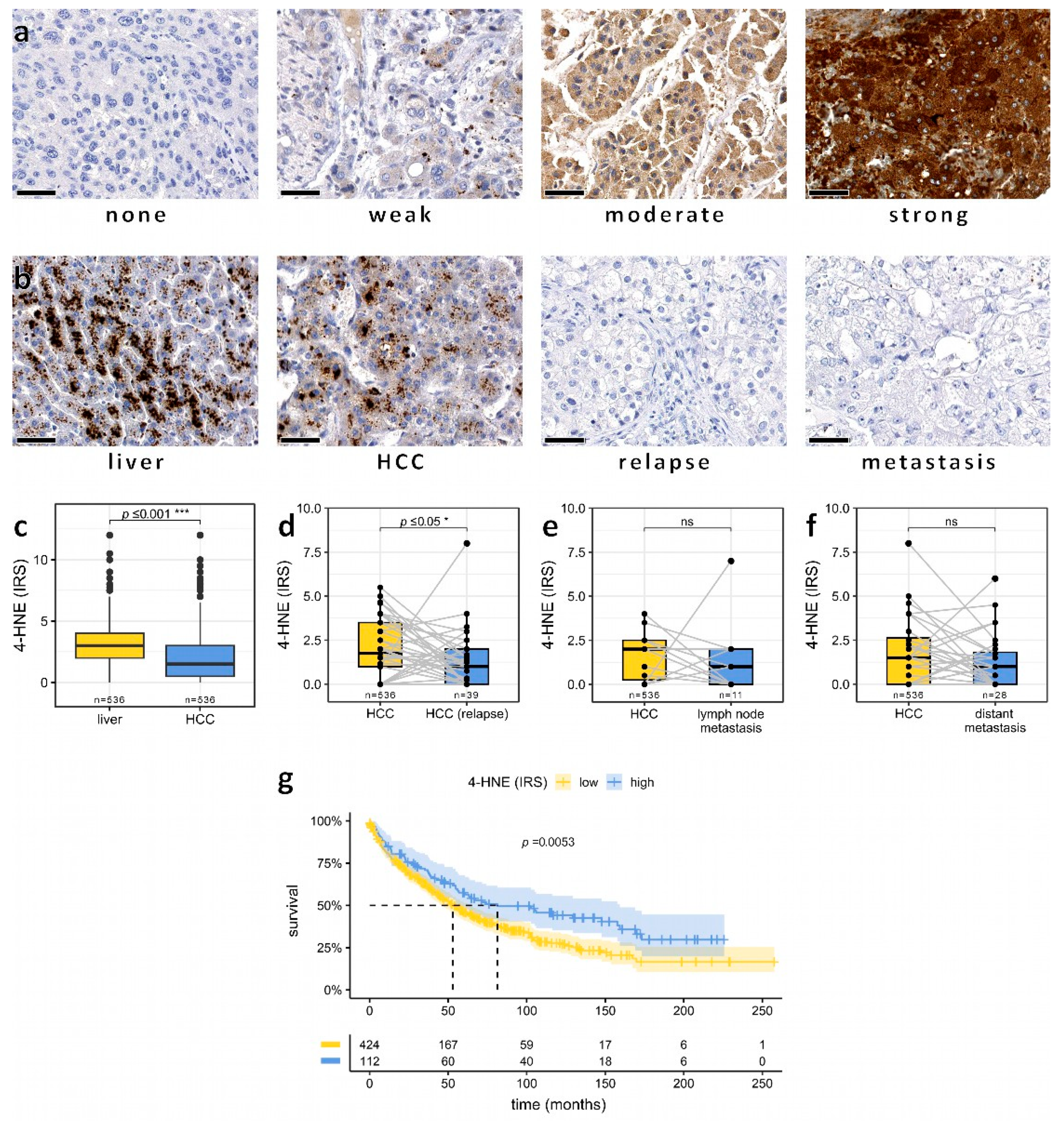

Figure 1. Low intratumoral amounts of 4-HNE predict unfavorable outcomes in HCC patients. (a) Representative immunohistochemistry images demonstrating 4-HNE staining levels categorized as none, weak, moderate, and strong. Bars: 50 µm. (b) Examples of representative 4-HNE staining patterns in normal hepatocytes, hepatocellular carcinoma (HCC), relapsed HCC, and HCC metastasis. Boxplot illustrating the reduction of the 4-HNE immunoreactive score (IRS) from (c) surrounding liver tissue to primary HCC, (d) primary HCC to HCC relapses, (e) HCC to lymph node metastasis, and (f) HCC to distant metastases. (g) Kaplan–Meier plot of overall survival in HCC patients stratified by 4-HNE IRS levels. If a p value is less than 0.05, it is flagged with one star (*). If a p value is less than 0.001, it is flagged with three stars (***). No significance is labeled as “ns”.
Figure 1. Low intratumoral amounts of 4-HNE predict unfavorable outcomes in HCC patients. (a) Representative immunohistochemistry images demonstrating 4-HNE staining levels categorized as none, weak, moderate, and strong. Bars: 50 µm. (b) Examples of representative 4-HNE staining patterns in normal hepatocytes, hepatocellular carcinoma (HCC), relapsed HCC, and HCC metastasis. Boxplot illustrating the reduction of the 4-HNE immunoreactive score (IRS) from (c) surrounding liver tissue to primary HCC, (d) primary HCC to HCC relapses, (e) HCC to lymph node metastasis, and (f) HCC to distant metastases. (g) Kaplan–Meier plot of overall survival in HCC patients stratified by 4-HNE IRS levels. If a p value is less than 0.05, it is flagged with one star (*). If a p value is less than 0.001, it is flagged with three stars (***). No significance is labeled as “ns”.
Biomedicines 11 02471 g001

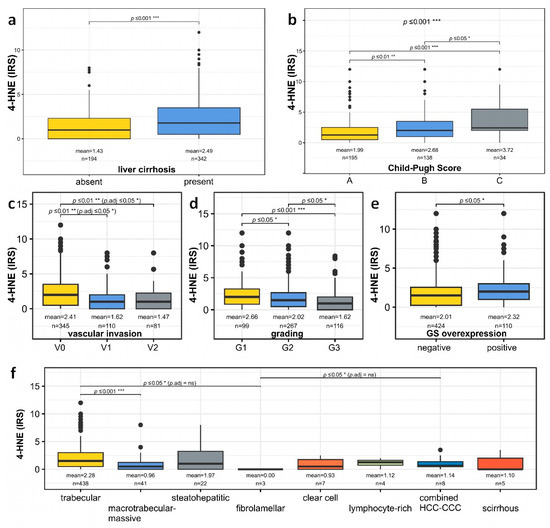

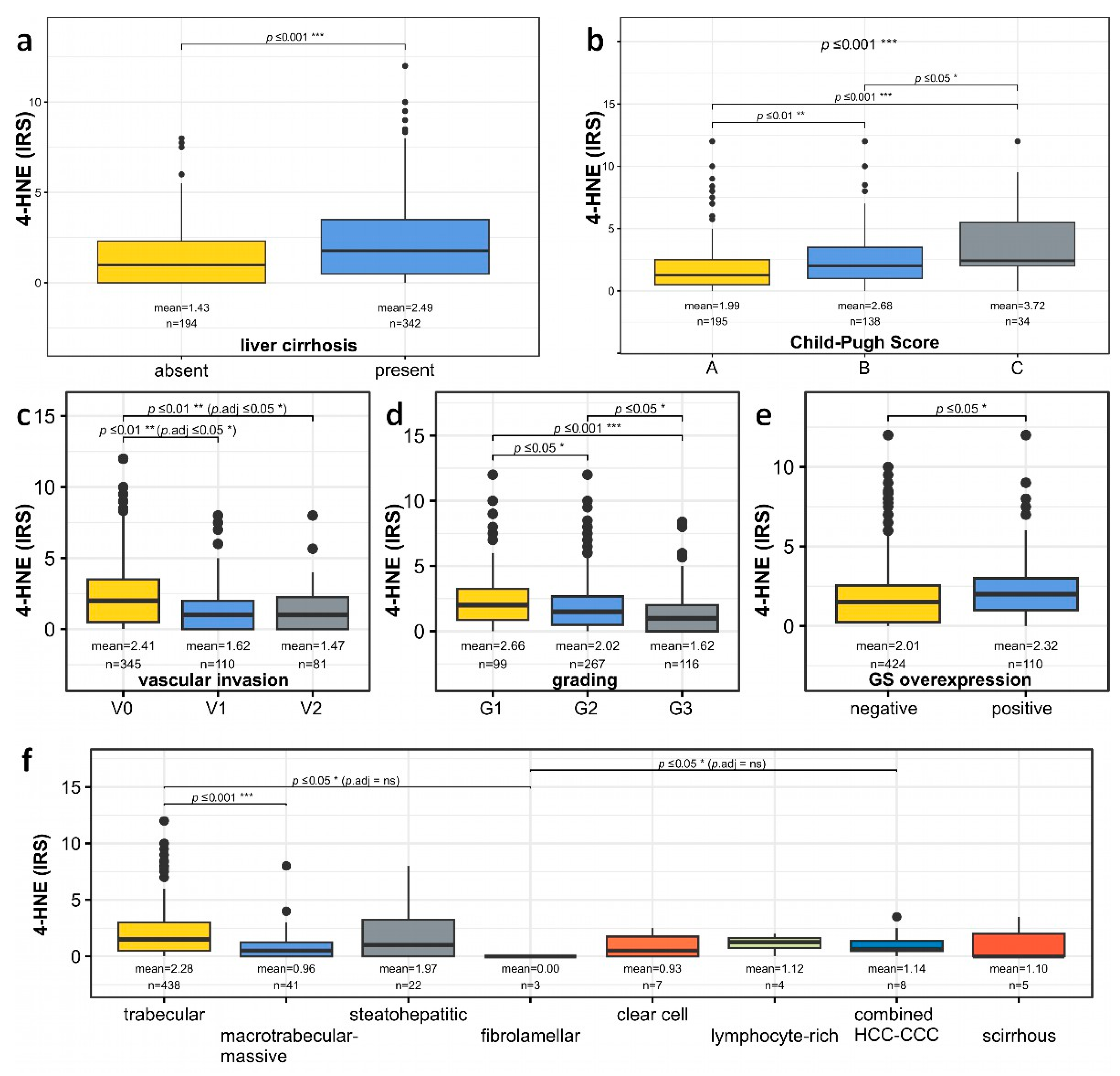

Figure 2. Boxplots comparing 4-HNE levels in different HCCs. 4-HNE levels in (a) patients with and without liver cirrhosis and, if present, in (b) patients with different Child–Pugh scores. (c) Distribution of 4-HNE levels in HCC patients with no (V0), microscopic (V1), or macroscopic (V2) vascular invasion. (d) HCC patients are categorized based on tumor differentiation (G1: well differentiated, G2: moderately differentiated, G3: poorly differentiated). (e) HCC patients with and without glutamine synthetase (GS) overexpression. (f) Illustration of 4-HNE levels among various HCC subtypes. If a p value is less than 0.05, it is flagged with one star (*). If a p value is less than 0.01, it is flagged with 2 stars (**). If a p value is less than 0.001, it is flagged with three stars (***). No significance is labeled as “ns”.
Figure 2. Boxplots comparing 4-HNE levels in different HCCs. 4-HNE levels in (a) patients with and without liver cirrhosis and, if present, in (b) patients with different Child–Pugh scores. (c) Distribution of 4-HNE levels in HCC patients with no (V0), microscopic (V1), or macroscopic (V2) vascular invasion. (d) HCC patients are categorized based on tumor differentiation (G1: well differentiated, G2: moderately differentiated, G3: poorly differentiated). (e) HCC patients with and without glutamine synthetase (GS) overexpression. (f) Illustration of 4-HNE levels among various HCC subtypes. If a p value is less than 0.05, it is flagged with one star (*). If a p value is less than 0.01, it is flagged with 2 stars (**). If a p value is less than 0.001, it is flagged with three stars (***). No significance is labeled as “ns”.
Biomedicines 11 02471 g002

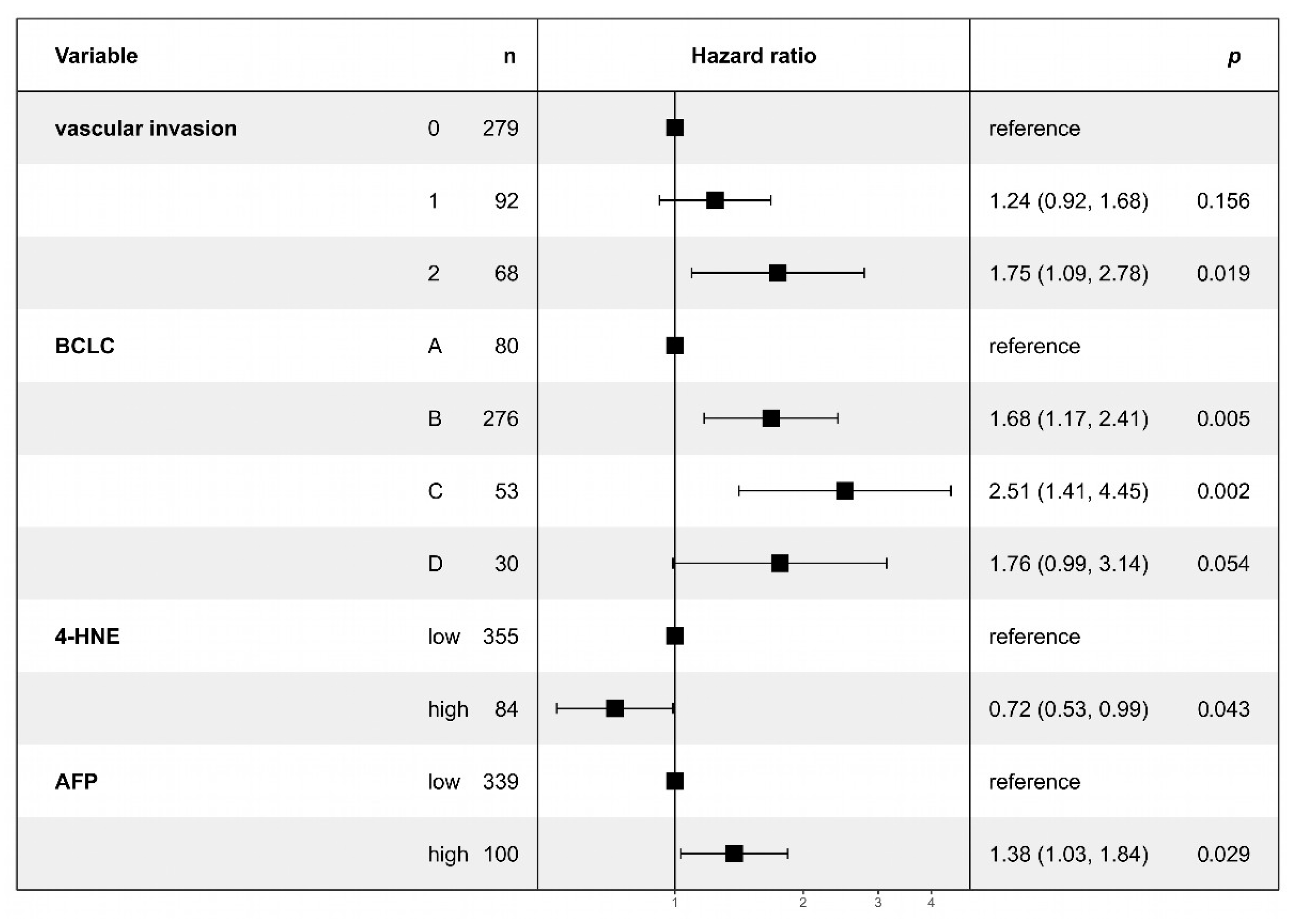

Figure 3. Multivariate Cox regression analysis of overall survival on prognostic factors in hepatocellular carcinoma (HCC) patients. The squares represent the hazard ratios, and the horizontal lines show the confidence intervals. The analysis includes vascular invasion (0: none, 1: microscopic, 2: macroscopic), Barcelona Clinic Liver Cancer (BCLC) stage (A, B, C, D), immunohistochemically detected 4-HNE levels (low, high), and serum alpha-fetoprotein (AFP) levels (low, high; cutoff: 240 ng/mL). Note the significantly decreased risk of adverse outcomes in patients with high 4-HNE levels.
Figure 3. Multivariate Cox regression analysis of overall survival on prognostic factors in hepatocellular carcinoma (HCC) patients. The squares represent the hazard ratios, and the horizontal lines show the confidence intervals. The analysis includes vascular invasion (0: none, 1: microscopic, 2: macroscopic), Barcelona Clinic Liver Cancer (BCLC) stage (A, B, C, D), immunohistochemically detected 4-HNE levels (low, high), and serum alpha-fetoprotein (AFP) levels (low, high; cutoff: 240 ng/mL). Note the significantly decreased risk of adverse outcomes in patients with high 4-HNE levels.
Biomedicines 11 02471 g003
Figure 4. 4-HNE immunohistochemistry in intrahepatic cholangiocarcinomas (iCCAs) of small (a,a’) and large (c,c’) duct types and their respective lymph node metastases (b,b’,d,d’). iCCAs demonstrate an overall weak staining reaction to 4-HNE, which is contrasted by strong staining intensity in the adjacent non-neoplastic hepatocytes ((a’), top right), lymphocytes ((b’), right; (d’)), and stromal cells (a’,c’). Bars: 100 µm.
Figure 4. 4-HNE immunohistochemistry in intrahepatic cholangiocarcinomas (iCCAs) of small (a,a’) and large (c,c’) duct types and their respective lymph node metastases (b,b’,d,d’). iCCAs demonstrate an overall weak staining reaction to 4-HNE, which is contrasted by strong staining intensity in the adjacent non-neoplastic hepatocytes ((a’), top right), lymphocytes ((b’), right; (d’)), and stromal cells (a’,c’). Bars: 100 µm.
Biomedicines 11 02471 g004

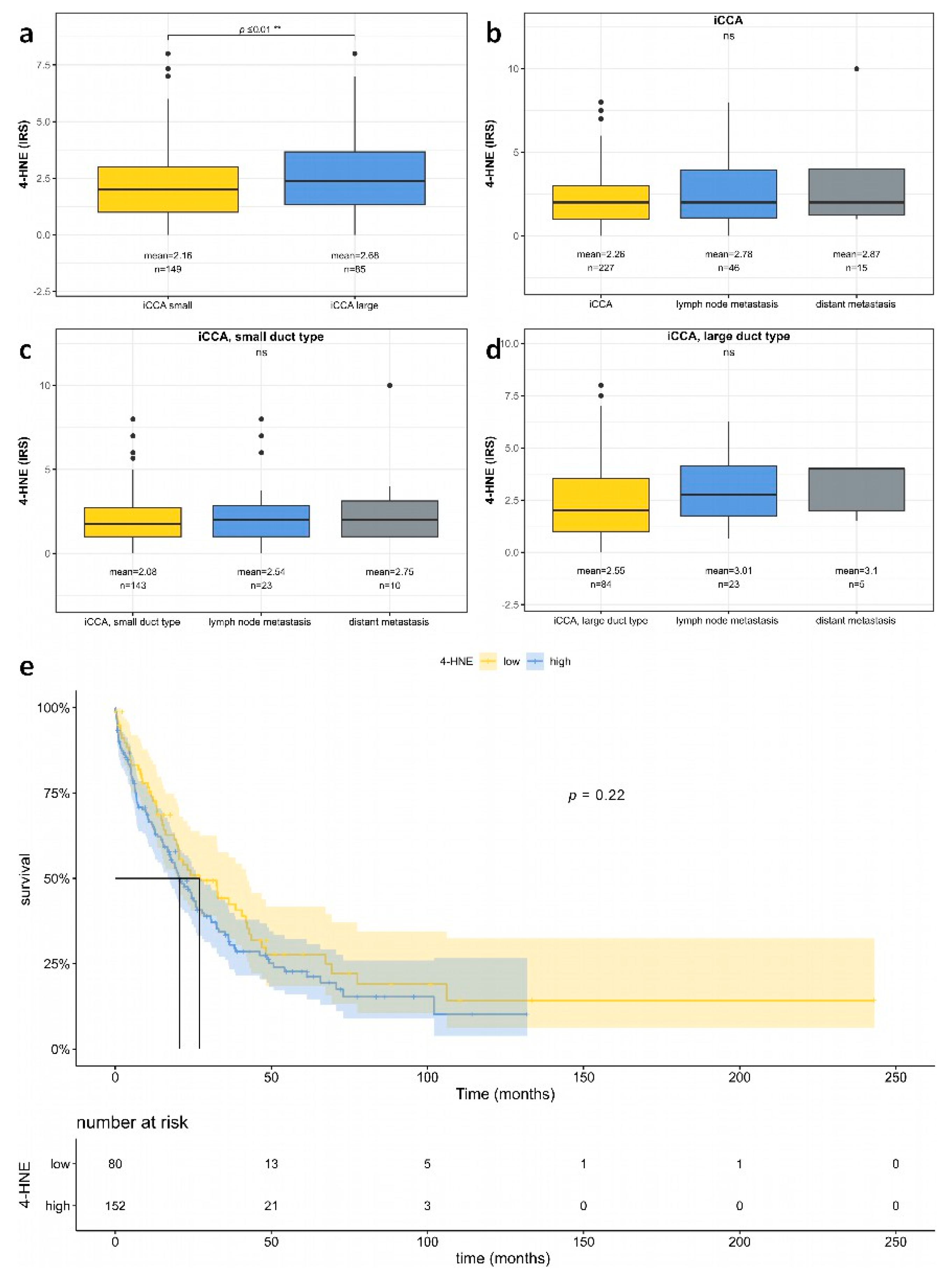

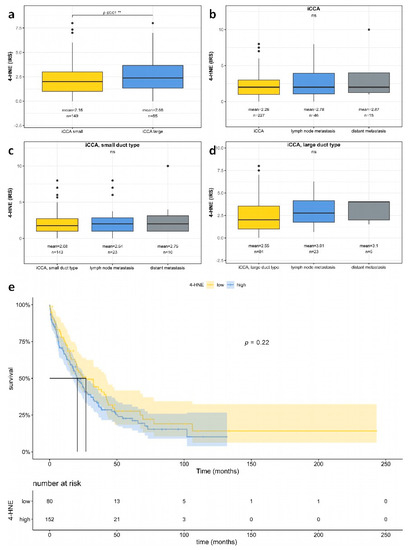

Figure 5. Semiquantitative analysis of 4-HNE in intrahepatic cholangiocarcinoma (iCCA) as analyzed by immunohistochemistry. (a) Boxplot analysis demonstrating significantly increased 4-HNE levels in large duct iCCA. (bd) No significant differences in 4-HNE levels between primary iCCA and lymph node and distant metastases ((b): iCCA, all types; c: small duct iCCA; (d): large duct iCCA). (e) Kaplan–Meier plot shows no significant differences between iCCA with high and low 4-HNE expression. If a p value is less than 0.01, it is flagged with 2 stars (**). No significance is labeled as “ns”.
Figure 5. Semiquantitative analysis of 4-HNE in intrahepatic cholangiocarcinoma (iCCA) as analyzed by immunohistochemistry. (a) Boxplot analysis demonstrating significantly increased 4-HNE levels in large duct iCCA. (bd) No significant differences in 4-HNE levels between primary iCCA and lymph node and distant metastases ((b): iCCA, all types; c: small duct iCCA; (d): large duct iCCA). (e) Kaplan–Meier plot shows no significant differences between iCCA with high and low 4-HNE expression. If a p value is less than 0.01, it is flagged with 2 stars (**). No significance is labeled as “ns”.
Biomedicines 11 02471 g005
Table 1. Clinicopathologic characteristics of the HCC cohort and analyses of prognostic factors.
Table 1. Clinicopathologic characteristics of the HCC cohort and analyses of prognostic factors.
Characteristic Low 4-HNEHigh 4-HNEp-Value *
  n = 424 (79%)n = 112 (21%)
Age at diagnosis [years] (range) 65.3 (57.8, 71.8)60.4 (52.6, 67.0)<0.001
Tumor max. diameter [mm] (range) 44 (26, 90)32 (22, 50)<0.001
Gendermale334 (79%)88 (79%)0.9
female90 (21%)24 (21%)
Alcohol abuseabsent305 (72%)72 (64%)0.12
present119 (28%)40 (36%)
HCVabsent343 (81%)86 (77%)0.3
present81 (19%)26 (23%)
HBVabsent346 (82%)90 (80%)0.8
present78 (18%)22 (20%)
NASHabsent386 (91%)108 (96%)0.059
present38 (9.0%)4 (3.6%)
Hemochromatosisabsent403 (95%)108 (96%)0.5
present21 (5.0%)4 (3.6%)
Cirrhosisabsent170 (40%)24 (21%)<0.001
present254 (60%)88 (79%)
Child–Pugh scoreA160 (58%)35 (38%)0.001
B97 (35%)41 (45%)
C19 (6.9%)15 (16%)
BCLC StageA72 (17%)26 (23%)<0.001
B278 (66%)65 (58%)
C55 (13%)6 (5.4%)
D19 (4.5%)15 (13%)
GradingG174 (19%)25 (26%)0.2
G2214 (55%)53 (55%)
G398 (25%)18 (19%)
VETCnegative344 (81%)97 (87%)0.2
positive80 (19%)15 (13%)
Vascular invasionabsent254 (60%)91 (81%)<0.001
present170 (40%)21 (18%)
Multifocalityabsent239 (65%)53 (58%)0.3
present131 (35%)38 (42%)
Macrotrabecular subtypeabsent379 (91%)108 (98%)0.009
present39 (9.3%)2 (1.8%)
GS overexpressionabsent340 (80%)84 (76%)0.4
present84 (20%)26 (24%)
* Wilcoxon rank sum test; Pearson’s Chi-squared test; Fisher’s exact test. NASH: nonalcoholic steatohepatitis; VETC: vessels encapsulating tumor clusters; GS: glutamine synthetase. The bold font indicates values that are statistically significant (p < 0.05).
