Beyond Imaging and Genetic Signature in Glioblastoma: Radiogenomic Holistic Approach in Neuro-Oncology
Abstract
:1. Introduction

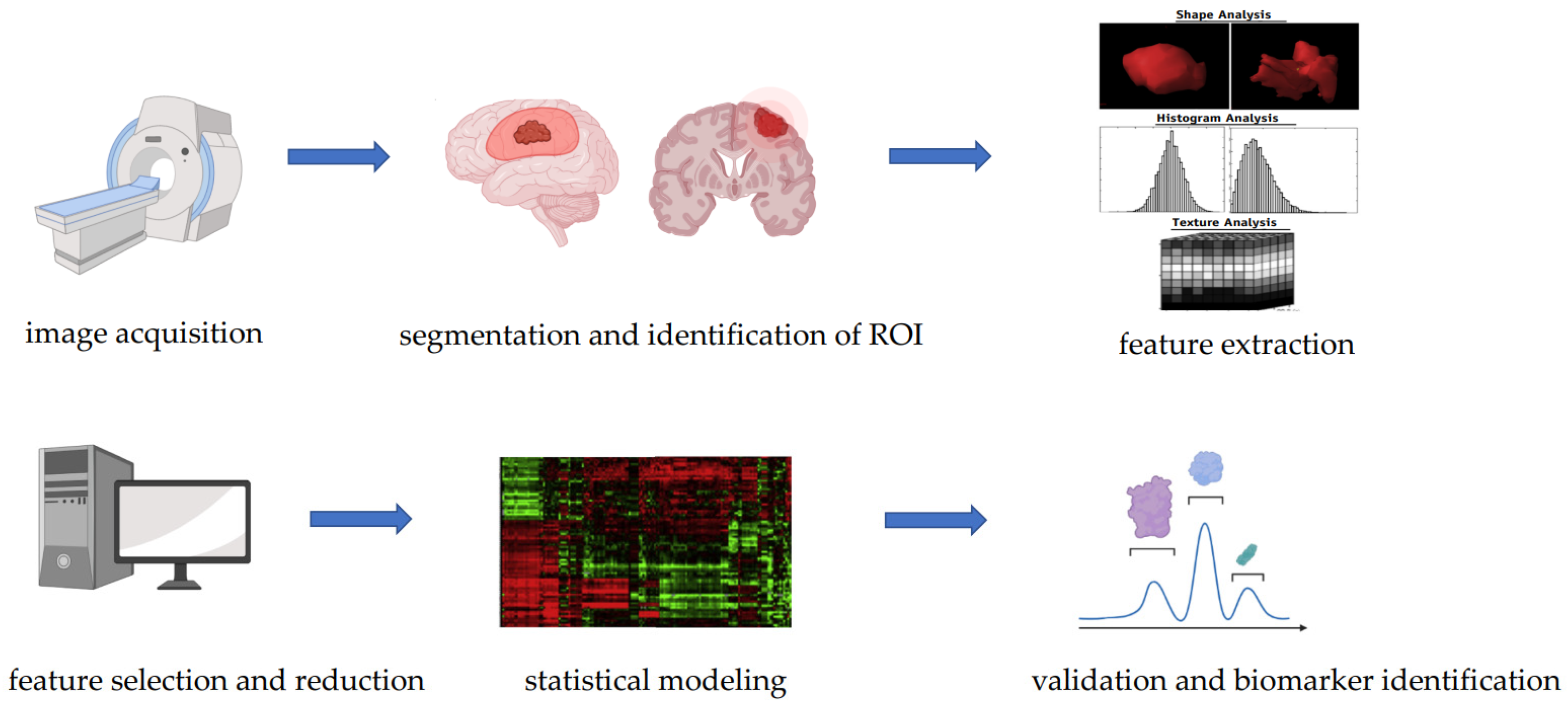

2. Radiogenomics Workflow
2.1. Image Acquisition
2.2. Pre-Processing of Data
2.3. Segmentation and Identification of Regions of Interest (ROI)
- −
- Thresholding method: starting from a grayscale image, thresholding returns a binary image [48];
- −
- Clustering: a more elaborate procedure that allows the determination, starting from a set of data, of groups with “similar” characteristics;
- −
- Edge-based method: emphasizes areas of abrupt change within a digital image (for example, discontinuity in the physical properties of tissues), which, generally, reflect changes in the physical status of the tissues [49];
- −
- Region growing: a simple region-based segmentation method, based on the selection of pixels that are similar and, therefore, can be classified as appertaining to the same tumoral subregion [50];
- −
- Watershed algorithm: a unique segmentation tool where gray levels and voxels are classified by their intensity or gradient in a topographical map, with ridges and valleys;
- −
- Atlas method: a tumor-free reference MRI is used to contour the MRI image containing the tumor volume [51].
- The first step consists of BET (brain extraction tool). It is a procedure where a first segmentation, which includes brain tissue and beyond, is performed. All structures which do not contain only brain tissue and which can cause biases (eyes, muscle, base of neck, scalp, fat, cerebrospinal fluid) are eliminated with a completely automatic algorithm;
- The second step consists of FAST (FMRIB’s automated segmentation tool), that is, the segmentation of the brain volume previously extracted with the BET. FAST is a package, included in the FSL software, for segmentation of the brain volume into the three different tissues (gray matter, white matter and CSF, the latter exclusively contained within the volume extracted with the BET), including algorithms for spatial intensity corrections (also called bias fields).
- SPM software (current version: SPM12) [52] uses a tool named optimized voxel-based morphometry which was developed at the Institute of Neurology at University College of London (UCL Queen’s Square Institute of Neurology, Queen’s Square House, Queen’s Square, London, WC1N 3BG, UK) and is available from the web.
- −
- Tools for brain surface extraction, bias field correction, voxel classification, cerebrum labeling, and surface generation;
- −
- Tools for processing of diffusion data including tensor fitting and tractography;
- −
- Sophisticated tools for visualizing and exploring MRI data, diffusion data, tractography and connectivity.
2.4. Feature Extraction
- (a)
- Texture features, describing the variation of gray level values within the tumor;
- (b)
- Shape features, describing form and geometrical properties of the region of interest, such as surface, volume, compactness, diameter and sphericity;
- (c)
- Histogram-based features, calculated starting from the histogram that describes the distribution of pixels in the ROI, the mean, median, maximum, minimum values of the voxel intensities on the image, asymmetry, kurtosis (flatness), uniformity, and entropy;
- (d)
- Second-order features derived from the gray-level co-occurrence matrix, quantifying the incidence of voxels with same intensity;
- (e)
- Higher order features: features that describe the relationships between two or more pixels of the ROI, obtained after applying filters (e.g., wavelet transform, Laplacian transform, Gaussian filter, etc.) or mathematical transform to the pictures [61].
2.5. Methods for Dimensionality Reduction and Feature Selection

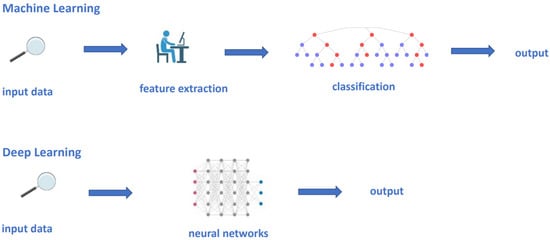

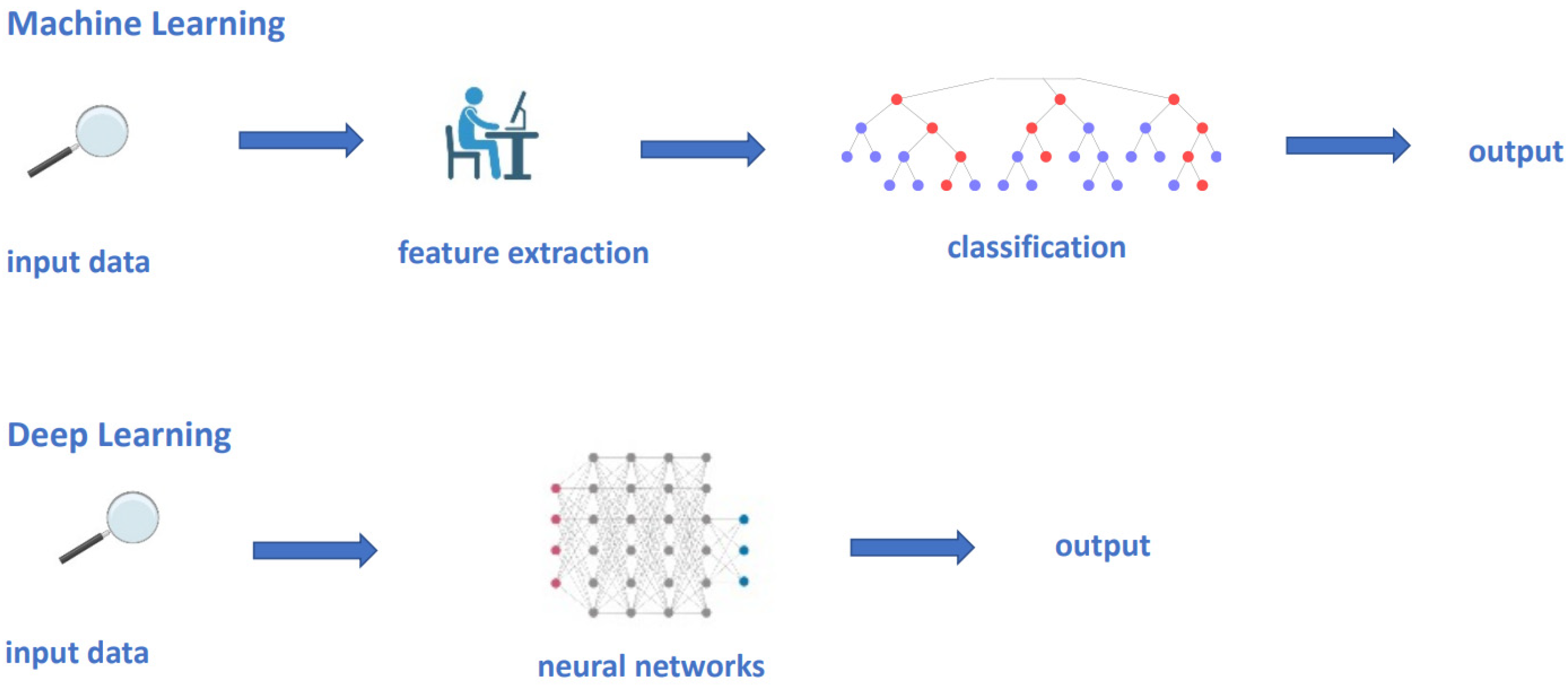

2.6. Classification of Radiomic Features and Informatic Analysis: Machine Learning and Deep Learning
- −
- It is not necessary to segment the tumor;
- −
- It is not necessary to explicitly define the features to be calculated;
- −
- It is not necessary to select the features.
- −
- Larger input data are needed;
- −
- Problems of interpretability.
2.7. ROC Curve and Model Validation

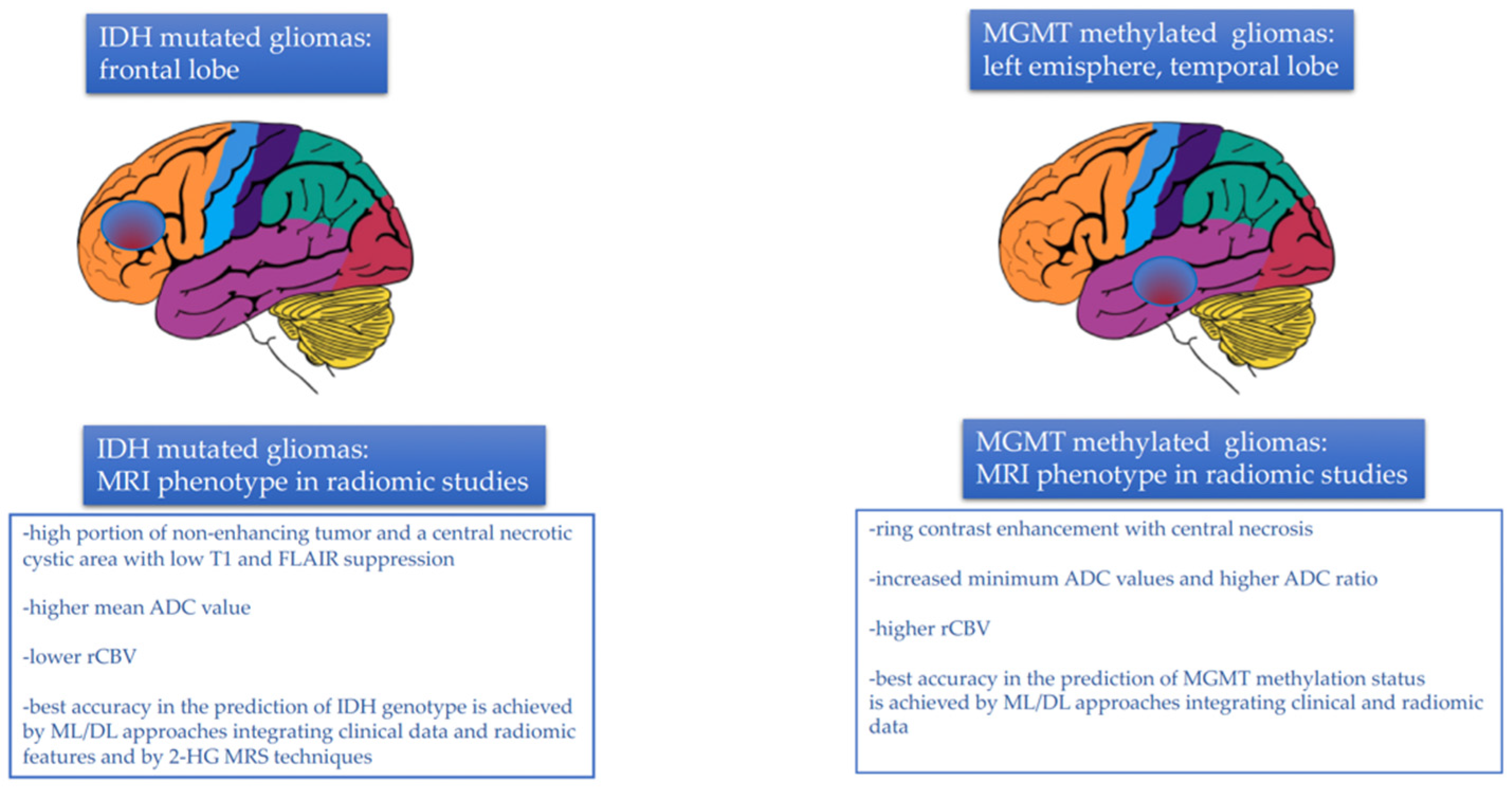

3. Radiogenomics of Glioblastoma
3.1. Prediction of IDH Mutational Status
- −
- Gliomas harboring IDH mutations occurred, more frequently, in the frontal lobe, adjacent to the rostral extension of the lateral ventricles;
- −
- A larger tumor volume in T2 sequences and a higher volume ratio between T2 and T1 sequences with contrast agents were observed in IDH mutant tumors, together with the presence of a high portion of non-enhancing tumor and a central necrotic cystic area with low T1 and FLAIR suppression. A larger portion of enhancing tumor with peripheral enhancement and an infiltrative pattern of edema, instead, was strongly associated with IDH wild-type genotype;
- −
- In diffusion imaging, a higher mean ADC value was observed in IDH mutated tumors;
- −
- Tumor vascularity, neoangiogenesis and vessels distribution, reflected by the parameter rCBV, were much less represented in IDH-mutated tumors than in the wild-type counterpart. Consequently, IDH-mutated gliomas exhibited significantly lower rCBV values relative to their wild-type counterpart;
- −
- Higher skewness and kurtosis were associated with IDH mutational status;
- −
- Approaches based on multimodal combination of CBV and ADC seemed to lead to better results for predicting IDH status and GBM aggressiveness [76];
- −
- Radiomics models combining data from multiple tumor regions, for example, core, whole tumor and peritumoral edema region, were more accurate in IDH prediction, especially if the analysis was integrated with clinical data (age, performance status, surgery);
- −
- ML-based approaches integrating clinical data (mainly age, significantly lower in IDH-mutated tumors) with the most predictive radiological features (frontal tumor location, ADC andT2/FLAIR volume) achieved the best accuracy in the prediction of IDH genotype;
- −
- DL approaches using DSC perfusion MRI images accurately predicted the IDH mutational status [76];
- −
- Approaches based on 2-HG MRS techniques also achieved adequate accuracy, sensitivity, and specificity in the prediction of the IDH status.
3.2. Prediction of MGMT Promoter Methylation Status
- −
- MGMT methylated tumors were localized in the left hemisphere, especially in the left temporal lobe. In contrast, MGMT unmethylated tumors tended to be localized in the right hemisphere, in the right frontal lobe or in proximity to the SVZ;
- −
- MGMT unmethylated tumors tended to exhibit more homogenous contrast enhancement, while MGMT methylated tumors were characterized by ring contrast enhancement, with central necrosis and decreased peritumoral edema;
- −
- In T2/FLAIR images, MGMT methylated tumors had a lower hyperintense tumor volume, in contrast with unmethylated tumors;
- −
- In diffusion imaging, increased minimum ADC values and higher ADC ratio were associated with MGMT promoter methylation;
- −
- In perfusion imaging, higher rCBV was associated with MGMT promoter methylation;
- −
- Multi-habitat MRI and comprehensive multi-omics models integrating radiomic features (possibly from both the tumor and the edema areas), clinical variables, and genetic data achieved the best accuracy for determining MGMT methylation status [128].
3.3. Discrimination of Pseudoprogression from Early Progression
3.4. Survival Prognostication
4. Conclusions
