Review

Aptamer-Conjugated Quantum Dot Optical Biosensors: Strategies and Applications

by
Dongmin Kim
1 and
Seungmin Yoo
2,*
1
Center for Applied Life Science, Hanbat National University, Daejeon 34158, Korea
2
School of Integrative Engineering, Chung-Ang University, Seoul 06974, Korea
*
Author to whom correspondence should be addressed.
Chemosensors 2021, 9(11), 318; https://doi.org/10.3390/chemosensors9110318
Submission received: 26 October 2021 / Revised: 4 November 2021 / Accepted: 10 November 2021 / Published: 12 November 2021
(This article belongs to the Special Issue Quantum-Dots Sensors)
Browse Figures
Versions Notes

Abstract

:
Quantum dots (QDs) represent the promising new generation of luminophores owing to their size-, composition-, and surface-dependent tunable photoluminescence (PL) and photochemical stability. The development of various QD composites with high PL and good biocompatibility has facilitated the use of aptamer-functionalized QD biosensors for highly sensitive and specific detection of molecules in clinical and environmental settings. In addition to describing the recent advances in aptamer-based QD biosensor technology for the detection of diverse chemicals and biomolecules, this review provides recent examples of sensing strategies based on optical signal enhancement and quenching of QDs. It also discusses potential strategies for the development of biosensors to widen their practical applications across various scientific and technological fields.

1. Introduction

Numerous pathogens and toxins exist in clinics, food industries, the environment, and military settings. These dangerous pollutants, including pathogenic bacteria, viruses, and heavy metals, can damage organ function and even cause failure, thereby seriously threatening people’s health. Accurate and rapid detection of these dangerous molecules is of great importance in medical and diagnostic fields, allowing for early diagnosis and proper treatment/removal of medical and environmental conditions. To effectively detect and monitor the molecules in a practical setting, the sensing systems to be developed need to fulfil diverse requirements, such as sensitivity, specificity, multiple detection, real-time detection, and low cost.
Biosensors integrated with various nanomaterials offer several advantages, including low limit of detection (LoD), real-time analysis, and multiplex detection [1,2,3]. As novel nanomaterials are being developed rapidly, various types of sensing nanoplatforms, physiochemical methods, bioconjugation strategies, and binding ligands are also being employed, leading to the creation of new strategies to enhance detection performance [4].
Nanomaterials that exhibit distinct optical, electrical, electrochemical, and magnetic characteristics have been applied for the development of biosensors that can detect and monitor dangerous pollutants [3,5,6,7,8,9,10,11]. These biosensors have been built using various nanomaterials, including nanoparticles (NPs), nanorods, nanowires, and quantum dots (QDs), as well as carbon-based nanomaterials, such as carbon dots (CDs), carbon nanotubes (CNTs), and graphene oxide (GOx) [5,6,7,8,9,10,11,12]. Of these, QDs possess unique spectral characteristics and act as special inorganic luminophores; therefore, they have come into focus to be used in the development of highly sensitive biosensors [12,13]. In addition to facilitating practical and sensitive detection, they also enable the monitoring of various molecules in environmental and clinical samples, including living cells [12,13,14,15,16]. This is a result of their several advantages over other fluorescence dyes, including their small size, wide excitation spectrum, narrow emission spectrum, and chemical resistance [17,18,19]. Varying the size, shape, and composition allows the creation of diverse QDs with unique photoluminescence (PL) at tunable wavelengths across the visible and near-infrared (NIR) spectra.
In order to achieve high specificity of biosensors, numerous efforts have been devoted to the discovery and modification of various ligands, including peptides, phages, oligonucleotides, proteins, antibodies, and aptamers [3]. Among these ligands, aptamers are short, single-stranded DNA (ssDNA), RNA (ssRNA), or XNA (xeno nucleic acid, which is a synthetic nucleic acid analogue) [20,21] molecules that can selectively bind to a wide variety of target molecules including small chemicals, peptides, proteins, and even whole cells [22,23,24,25,26]. Aptamers can be screened through an iterative in vitro process called systematic evolution of ligands by exponential enrichment (SELEX). In the SELEX process, a large oligonucleotide pool used as starting materials is exposed with target molecules and an aptamer with high affinity against target molecules is isolated by various screening strategies [22,23,24,25,26]. Such selected aptamers exhibit high affinity, specificity, high thermostability, acid-base resistance, low immunogenicity and toxicity, low cost, and easy synthesis and modification [27,28,29,30]. These excellent properties have enabled their increased use as bio-recognition ligands for practical applications in industrial, environmental, and clinical settings. Their widespread use has further facilitated the creation of novel strategies and enhanced technologies for aptamer discovery, even the establishment of several companies dedicated to the discovery and synthesis of aptamers [22].
Several reviews provide detailed information on the principles and characteristics of QD biosensors [13,14,17,31]. This article focuses on introducing molecule detection strategies and technologies based on the factors that affect the change in the optical signal emission of QDs, which can be largely divided into the following four categories: (1) the aptamer-analyte binding event, (2) the materials directly attach to the aptamer, (3) the materials indirectly linked with the aptamer, and (4) the DNA-modifying enzymes involved in signal amplification and quenching. Representative applications of aptamer-based QD biosensors, including those described in this paper along with others that have been developed and employed for the detection of a wide range of molecules, are also detailed in Table 1. Furthermore, this review describes an approach that can enable the development of QD biosensors to help achieve their eventual practical use.

2. Aptamer-Based QD Biosensors for Molecule Detection and Monitoring

2.1. QD as Sensing Material

QDs are tiny semiconducting particles or nanocrystals with diameters of 2–10 nm, comprising 10–50 atoms [13,14,32]. Their small size and ability to operate in a confined space lead to the quantum confinement effect, by which QDs have a distinct energy level. The decreased particle size increases the difference in energy between the top of the valence band and the bottom of the conduction band, the so-called band gap. A wide band gap implies that more energy is required to excite the QDs, which concurrently means that they release more energy when returning to the ground level. When light or electric energy contacts the QD, the QD enters its excitation state, wherein the electron moves from a hole in the valence band to the conduction band. Recombination of the electron and the hole results in the release of a photon. The photon adsorption increases at higher energies in the QD, which provides it a broad absorption spectrum (300–800 nm) and longer fluorescent lifetime [33]. Its broad wavelength absorption spectrum allows PL to be excited in multiple QDs with different colors by a single excitation source. Owing to its broad wavelength absorption spectrum, the QD can utilize distance-dependent energy transfer phenomena, such as fluorescence resonance energy transfer (FRET) and nano surface energy transfer (NSET), through the introduction of other NPs such as AuNP as acceptors [34,35,36]. The high quantum yield of QDs result in high brightness and photochemical stability, making them resistant to chemical and photo degradation [37]. The distinct advantages of high molar extinction coefficients over a broad excitation region enable the simultaneous detection of multiple targets from the blue to NIR spectral region and the detection of molecules in living cells and tissues [38]. Recently, the multi-shelling process, which involves coating semiconductor materials (shell) onto a colloidal QD (core), has facilitated the creation of diverse core-shell QDs, achieving higher fluorescence quantum yield and better photostability. The optical properties of QDs depend on their size, shape, material, composition of the core-shell conjugates, the shell growth rate, the additives, and the multiple emission layers [39,40,41,42,43].

2.2. Strategy for the Change in the Optical Signal Emission of the QDs for Biosensing Application

QD biosensors can detect and monitor the presence of an analyte in the samples based on their transition from the switch-on state to the switch-off state or vice versa. Biosensors are also capable of quantification, which is based on measuring the change in a tunable signal intensity. Ensuring clearer on-and-off detection and quantification requires this system to have a high signal intensity or low background noise in the initial state (without analyte). In aptamer-based QD biosensors, several systems that can harness the change in the optical signal emission of the QDs. The first system is based on the aptamer-analyte binding event [44,45,46]. Aptamer-attached QD emits an optical signal in the signal-on state. Once an analyte is added, the aptamer-analyte binding event occurs, and the aptamer-analyte quenches the emission of the QD, entering the signal-off state. In this strategy, the aptamer-analyte binding event triggers the signal on-off change in the system; therefore, this system has a simple and fast process. The binding force of the aptamer has a large kinetic barrier; therefore, it can significantly affect the sensing accuracy of the system.
The second system is based on the materials directly attaching to the aptamer [34,35]. This strategy usually harnesses the distance-dependent energy transfer mechanism. Aptamers are generally designed to attach to both QDs as emitters and the materials as quenchers. QD-aptamer-material composites maintain stretching, in which the QD-material distance is far enough to emit a signal from the QD, in its signal-on state. When an analyte exists in the sample, the aptamer binds to the analyte. As aptamer-target binding is determined by its tertiary structure, the binding event leads a conformational change in the aptamer which shortens the distance between the QD and the material, quenching the signal emission in the signal-off state. The binding ability of the aptamer and the quenching efficiency of the material facilitate the dynamic control of the system’s sensing performance.
The third system is based on the materials indirectly linking to the aptamer [47,48]. Aptamers bind to QDs; however, the materials are combined with other nucleic acid strands with sequences complementary to the aptamers. Therefore, the materials can be linked to the aptamers only once the aptamers hybridize with the complementary strands, forming QD-aptamer:complementary strand duplex-material composites. In this case, the presence of an analyte breaks the aptamer:complementary strand duplex into two single-stranded oligos because of the preferable interaction of the aptamer against the analyte. Dissociation of the material-attached strand causes changes in the optical signal of the QD. Compared to two systems mentioned above, this system requires a rather complicated process; however, it enables more dynamic control of the QD signal by varying the lengths and number of complementary strands.
The fourth system is based on DNA-modifying enzymes [49,50,51]. This strategy generally utilizes multifunctional DNA fragments containing aptamers. The components of the DNA depend on the DNA-modifying enzyme that is to be used. In this strategy, after the aptamer-analyte binding event occurs, the addition of DNA-modifying enzymes triggers the target recycling and signal amplification reactions, which enhance the sensitivity and specificity even if small amounts of analyte exist in the sample. The assay time required depends on the efficiency with which the enzymes catalyze the reaction on the substrate. This can also help determine whether the DNA and the enzymes should be added to the reaction mixture consecutively or simultaneously. Although one-tube enzymatic reactions are simple, they can have low signal-to-noise ratios. Subsequent exogenous component addition can provide high signal-to-noise ratios; however, this requires a more complicated, multi-step process with a long assay time that can prevent its practical applications.

3. Current Aptamer-Based QD Biosensors for Chemical and Biomolecule Detection

In this section, we highlight how specific aptamer-based QD biosensors change the signal intensity of QD to detect various molecules. The challenges and strategies to improve the performance of these biosensors and the related parameters (linear range, LoD, etc.) are also summarized in Table 1.

3.1. Biosensor Based on Change in Signal Emission of QD by Aptamer-Analyte Binding

The binding of aptamers with target molecules can directly change the signal emission of QDs. Aptamer-functionalized QDs can detect and monitor the presence of analytes by observing changes in the PL of the QDs. For example, an Mn-ZnS QD biosensor has been developed to detect cytochrome c (Cyt c) [44,45]. Mn doping can enhance the optical and electronic transport of QDs [61,62]. For the specific capture of Cyt c, the double recognition strategy was used; one recognition was achieved by using aptamers, and the other was achieved by using molecular imprinted polymers (MIPs) [44]; Figure 1A. MIPs are artificial custom-designed affinity materials. The polymerization of monomers upon exposure to template molecules forms a cavity in the polymer matrix, where the target molecules can bind, functioning as a lock-and-key mechanism [63]. In the fabrication of MIPs, aptamers have been used as target molecules [64], and these apt-MIP composites have been used to detect proteins and viruses [65,66]. This system, using thiolated DNA aptamers and methacrylic acid as the functional monomers, has been reported to form apt-MIP composites [44]. After cross-linking and polymerization, the imprinted cavity on the surface of the vinyl-QDs could specifically recognize the Cyt c, thereby quenching the fluorescence of the QDs. This system exhibited an LoD of 0.054 μM with a linear range of 0.20–2.00 μM (Table 1).

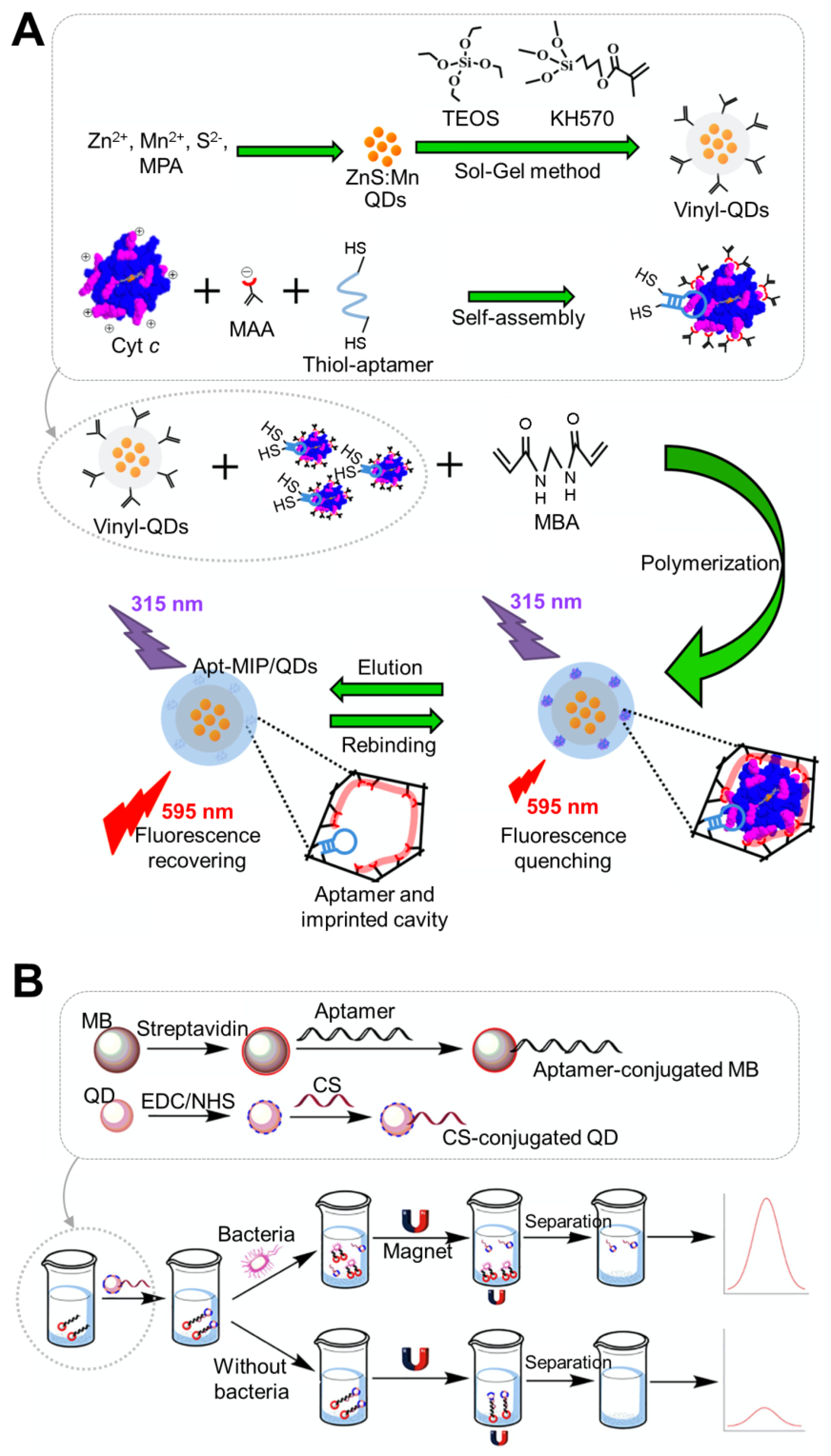

In order to detect Cyt c through easy and fast aptamer conjugation to QD, a QD was coated with polyethyleneimine (PEI) and then conjugated with an aptamer through the electrostatic interaction between the positively charged PEI and negatively charged DNA aptamer [45]. The added Cyt c made the aptamer form a ternary compound, and the electron transfer between the QD and Cyt c quenched the PL of the QD. This system could detect 84 nM of Cyt c with a detection range of 0.166–9.96 μM (Table 1).
In another example, aptamers were attached to CdTe QDs through hybridization with complementary ssDNA, forming an aptamer:ssDNA duplex-QD composite [46]; Figure 1B. Exposing this composite to an analyte (Salmonella typhimurium) allowed the aptamer to preferentially bind to it, while dissociating from the composite. As the aptamer was functionalized with magnetic NPs, the released aptamer could be easily separated using a magnet, whereas the remaining QD could emit florescence. The system exhibited an LoD of 1 CFU/mL with a linear range of 10–1010 CFU/mL (Table 1).

3.2. Biosensor Using Change in Signal Emission of QD by Materials Directly Attaching to the Aptamer

Materials that can cause a change in the optical properties of QDs can directly bind to an aptamer, where the aptamer can act as a linker bridging the QD and the material. As aptamers undergo changes in tertiary structure upon binding to analyte, the distance of QD and the material depends on an aptamer-analyte binding. Based on this phenomena, QD biosensors can harness the FRET effect to convert the switch-on state into the switch-off state or vice versa. FRET relies on the transfer of excitation energy of a donor fluorophore to an acceptor molecule through nonradiative dipole-dipole coupling. In FRET-based QD biosensor, QD and the material act as donor dye and acceptor molecules, respectively. The metallic QD-based system can be applied to another distance-dependent energy transfer, NSEF, which is a dipole-surface energy transfer process involving a metallic surface and a molecules dipole. The aptamer can modulate the distance between the donor and the acceptor; a conformational change in the aptamer shortens the distance, thereby quenching the QD emission. Based on this system, QDs can be used with various materials to detect or monitor dynamic binding events between aptamers and analytes.

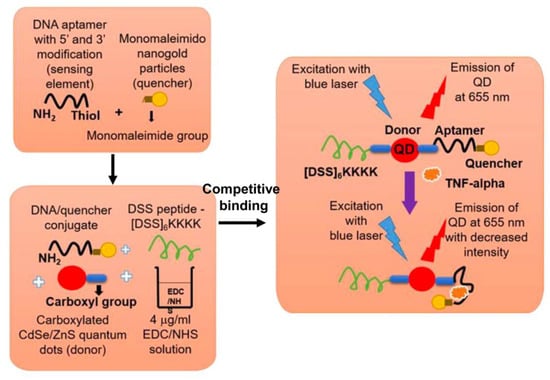

A QD-NP composite can exhibit the FRET effect in the UV-visible range, where the QD acts as a donor and the NPs act as acceptors that can quench or cause a release of photons [34,35,36]. For example, intracellular tumor necrosis factor-alpha (TNF-α) could be detected using the QD-AuNP sensing material [34]. The sensing platform comprised a QD, an AuNP, and an aptamer. The aptamer had two functional groups at each end; at one end, an amine group was attached, which bound to the carboxyl group-modified CdSe/ZnS QD that functioned as the FRET donor. At the other end, a thiol group was labelled and bound to the monomaleimide AuNP that functioned as the FRET acceptor. In the absence of TNF-α, the QD was far enough away from the AuNP to emit its PL. This resulted from the large amount of energy available in the QD that could be emitted as photons because of little to no transfer of energy from the QD to the AuNP, as the quencher. Upon the exposure of TNF-α, the aptamer specifically bound to TNF-α and underwent a conformational change, which reduced the QD-AuNP distance, resulting in a decrease in PL intensity. The change in PL intensity depended on the concentration of the TNF-α in the sample. This system revealed a linear correlation in the range of 0–22.3 nM with a LoD of 97.2 pM (Table 1).
This system has been applied to detect intracellular biomolecules in living cells by introducing a cell-penetrating peptide [36,38]. The DSS (Asp-Ser-Ser) peptide is a well-known cell-penetrating peptide [67]; this repeated motif has been used to coat lignin NPs to improve drug delivery efficiency [38,68]. The use of the DSS peptide enhances cell entry efficiency without endosomal trapping. In the QD-AuNP sensing platform, the DSS peptide was attached to a carboxylated QD [35]; Figure 2. Upon the DSS peptide-assisted entry of the sensory molecules into the macrophage cells, they exhibited a high PL intensity from the QD. The PL intensity was significantly decreased when the cells were treated with bacterial lipopolysaccharide (LPS), which triggers TNF-α production by inducing infection and inflammation. Using the same system, intracellular Ca2+ has been detected in living cells stimulated by thapsigargin, which induced increased intracellular calcium release [36]. This system could detect intracellular Ca2+ up to 3.77 pM (Table 1).

3.3. Biosensor Using Change in Signal Emission of QD by Materials Indirectly Linking with the Aptamer

Materials that influence the emission of photons from QDs can also indirectly bind to aptamers. Materials are generally attached to oligos with sequences complementary to the aptamers, which eventually form a duplex with aptamer. This system is designed to ensure that the duplex only partially forms base pairs while retaining ssDNA in some regions; therefore, adding target molecules can result in the preferential binding of aptamers to targets rather than to complementary strands, resulting in the dissociation of the duplex and the release of materials. Compared to the strategy in which the aptamer is directly attached, this strategy can exhibit dynamic changes in QD emission by changing the length of the duplex, and introducing another signal amplification/quenching reaction or fluorescent dye/luminophore.

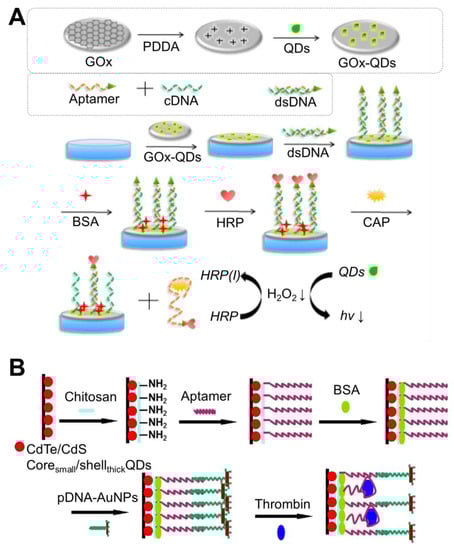

For example, a ratiometric assay has been developed to detect thrombin by employing a QD-NP composite with luminol [56]. These ratiometric assays are based on the change in electrochemiluminescence (ECL) signals from two different luminophores depending on the concentration of the analytes [69,70,71,72]. In this method, two different thrombin-specific aptamers were used: aptamer I was modified with thiol at the 5′ end to conjugate with the CdS QD and biotin at the 3′ end to interact with the streptavidin-coated AuNPs, and aptamer II was functionalized with biotin at the 5′ end to bind with the streptavidin-coated luminol-AuNP composites [56]. First, the CdS QDs were deposited onto the surface of the glassy carbon electrode (GCE), and aptamer I was sequentially attached to the QDs. When thrombin was present in the sample, aptamer I underwent a conformational change that reduced the distance between the QD and the AuNP, resulting in quenching of the CdS by the AuNPs. The presence of thrombin could be checked by observing the increased ECL intensity of luminol after introduction of the aptamer II-luminol-AuNP composites. The proximity of AuNP to luminol enhanced its ECL emission by increasing the electron transfer rate. In addition, to observe the obvious change in ECL intensity from the QD, it was pre-treated with H2O2 which oxidizes the CdS QD, leading to the formation of excess Cd2+ ions (sulphur vacancies) on the surface of the QD. This has been shown to stabilize the electrogenerated radicals, resulting in enhanced ECL intensity [73]. Treatment with citric acid has also been reported to enhance the stability of the QD, facilitating the formation of more excited states of QD. The system could detect 500 fg/mL of thrombin [56]; Table 1.
As a QD quencher, horseradish peroxidase (HRP) has been used to detect chloramphenicol [47]; Figure 3A. In order to immobilize CdS QD on the GCE, GOx was positively charged by treatment with polydiallyldimethylammonium chloride (PDDA) [74], which functioned as a linker. GOx could bind with CdS QD through electrostatic interactions and then the GOx-QD composite could be adsorbed onto the GCE. The amine-attached chloramphenicol-specific aptamer formed a duplex with its complementary strand, which is modified with biotin, resulting in two functional groups. The first functional group, amine, enabled the binding of aptamer with the carboxyl group of the QD. The second group, biotin, bound with streptavidin-coated HRP. When the sensing platform was exposed to a solution containing H2O2, the H2O2 reacted with the electron-injected QD to generate excited QDs, leading to strong ECL intensity because of signal amplification. In the presence of HRP, the H2O2 was consumed and the ECL intensity decreased, indicating that HRP could quench excited states of QD [74]. The presence of chloramphenicol led to a conformational change in the aptamer, causing it to be released from the duplex; eventually, the HRP attached to the aptamer was also removed in the washing step, resulting in an increase in the ECL intensity.
In addition to the application of QDs as visible-range ECL biosensors, there have been efforts to broaden the application of QD biosensors that are capable of detection in the NIR range. NIR emitters have several advantages including minimal autofluorescence, light absorption, and scattering from the biological environment, which have facilitated the development of NIR QDs [75]. In order to detect biomolecules in the NIR range, an aptamer-based QD biosensor has been incorporated with gold nanorods (AuNRs), which exhibit distinct shape-dependent surface plasmon resonance [48]; Figure 3B. A nanorod can absorb light in the NIR region; therefore, it can function as a FRET acceptor [76]. When molecules are detected in the NIR range, the background signal is extremely low, enabling interference-free detection, especially in complex biological samples [77]. For example, an NIR ECL (NECL)-emitting QD biosensor has been applied to detect thrombin [48]. For NECL detection, CdTe/CdS QDs have been coated on the surface of a GCE to obtain strong and stable NECL emission. The resulting QDs-GCE was pre-treated with a chitosan solution to obtain a uniform substrate surface, which enables uniform DNA immobilization, resulting in good reproducibility. Aptamers have been immobilized on QDs-GCE substrate through electrostatic attraction to NH2-QD and subsequent formation of a partial duplex with another DNA (pDNA) with a sequence complementary to the aptamer. The formation of a partial duplex resulted in a decrease in NECL emission because the end of the pDNA was linked to the AuNRs. When thrombin was present in the sample, it could specifically bind to the aptamer, which underwent conformational change and detached pDNA-AuNR from the aptamer, resulting in an increase in NECL intensity from the QD. In order to enhance the ECL energy transfer efficiency, which directly affects LoD, two different factors were optimized: one factor was the spectrum overlap between the donor and acceptor, which was optimized by employing pDNA-AuNRs with longitudinal surface plasmon resonance (SPR) bands at different wavelengths. The other was the distance between the QD and AuNR [78,79], which was optimized by changing the length of aptamer-pDNA. Therefore, using the low background noise of NIR-emitting QDs and a specific aptamer in optimal condition with enhanced ECL efficiency yielded a high LoD of 31 aM for thrombin (Table 1).

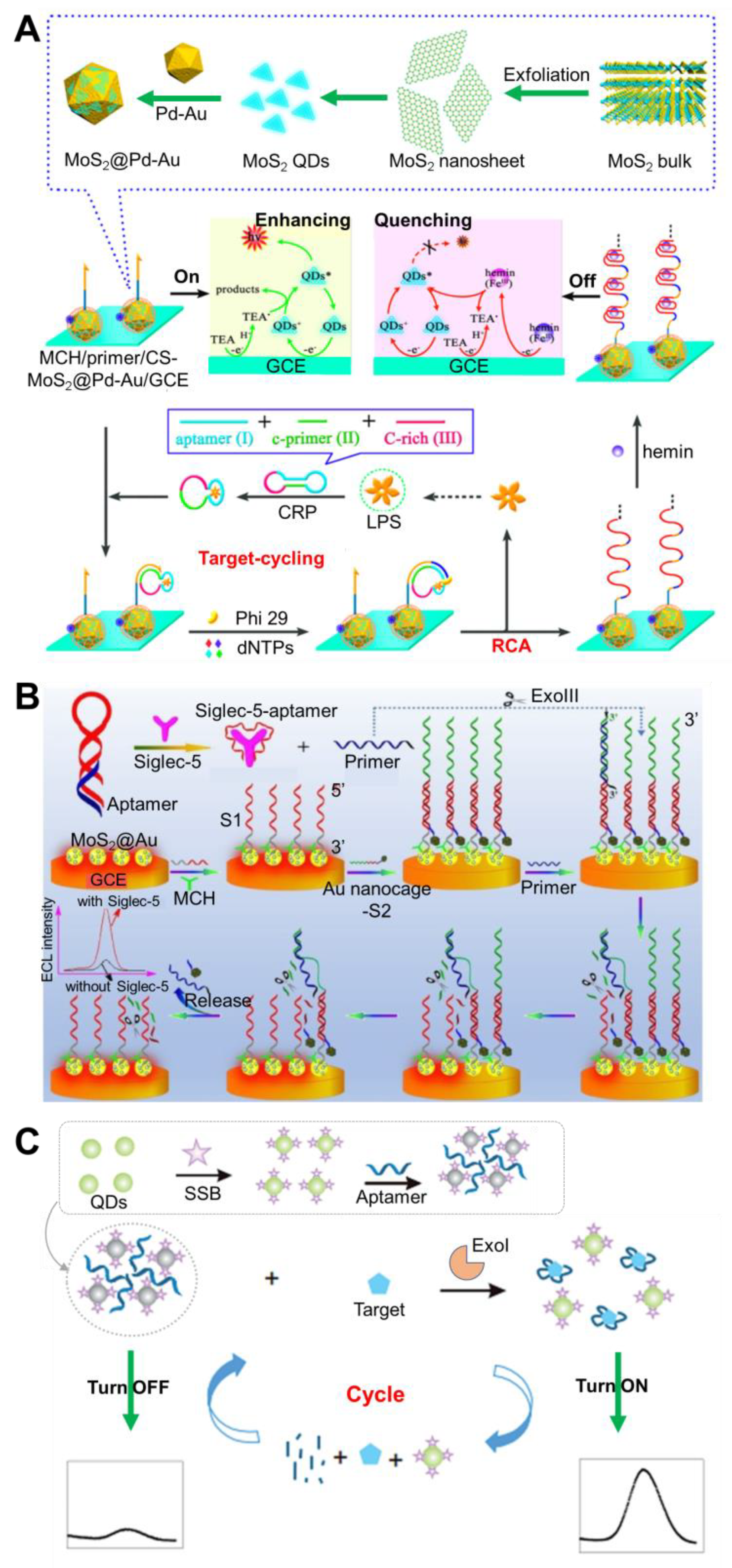

3.4. Biosensor Using Change in Signal Emission of QD by DNA-Modifying Enzyme-Assisted Reaction

The optical signals of QDs can be altered by incorporating an enzymatic catalytic reaction. The distinct catalytic activities and enzymatic activities of DNA-modifying enzymes, including DNA polymerases, nicking endonucleases, and exonucleases, can be used to enhance signal amplification and quenching because of their specific recognition capabilities and characteristic functional mechanisms [80]. The QD biosensor that uses aptamer-driven target cycling synchronized rolling circle amplification (RCA) reaction is one example. Using this sensor, LPS could be detect up to 70 ag/mL [49]; Figure 4A; Table 1. This system used MoS2 QDs that were encapsulated with a Pd-Au hexoctahedron composite and coated with chitosan. After activating the chitosan film for crosslinking with amine-functionalized primer DNA, dumbbell-shaped DNA was added. This DNA comprised multifunctional parts: a c-primer region with a sequence complementary to the primer, an aptamer region to specifically bind LPS, and a C-rich domain to form the hemin/G-quadruplex. Upon adding dumbbell-shaped DNA, this DNA could bind to the primer DNA at the c-primer region. When the analyte was present in the sample, the analyte bound to the aptamer region of the dumbbell-shaped DNA. After phi 29 polymerase and dNTPs were added, the dumbbell-shaped DNA acted as a template for the rolling circle amplification, and the primer strand on the MoS2/Pd-Au composite QD was lengthened. During RCA reaction, the analyte was released from the dumbbell-shaped DNA and bound to another dumbbell-shaped DNA, which is called the target-recycling reaction. As the generated RCA product, the lengthened primer on the composite QD contained numerous C-rich domains, which embed hemin, resulting in the quenching of the ECL emission from the QDs.
Another example is the incorporation of the exonuclease III-assisted signal amplification reaction. This sensor could achieve an LoD of LPS as low as 8.9 pM [50]; Figure 4B; Table 1. The QD used in this method was MoS2, which is an ECL emitter with low toxicity and good biocompatibility; however, it has limited intrinsic conductivity and functional groups on the surface [50,81,82]. These limitations can be overcome by forming a composite with AuNP, which provides a large area to attach and facilitates the immobilization of various chemicals, especially thiolated aptamers, through the formation of an Au-S covalent bond [83]. The MoS2@Au composite QD was deposited onto the GCE and conjugated with an ssDNA: Au nanocage-attached DNA (Au nanocage-S2) duplex; therefore, this activated the off state because of the quenching of the QD’s ECL emission by the Au nanocage [50]. When LPS was present, the aptamer:primer duplex was dissociated by preferentially binding the aptamer and the LPS, releasing the primer and further binding another Au nanocage-S2 that was already hybridized with S1 on MoS2@Au/GCE. Exposure of exonuclease III led to the specific cleavage of the 3′ terminus of the dsDNA and caused the digestion of Au nanocage-S2, which was in the off state. Concurrently, the primer was released from the duplex, enabling the combination of another S2 at a different locus on MoS2@Au/GCE to trigger the next cycle. The repeated cycle enabled primer recycling and signal amplification. The use of the Au nanocage instead of AuNP made the transition of the signal on-off state clearer because the Au nanocage exhibited enhanced quenching efficiency because of higher overlap with the ECL spectra of this QD composite.
In another study, exonuclease I has been employed in a biosensor to detect streptomycin [51]; Figure 4C. The signal-off state of the biosensor was achieved by the interaction between an ssDNA-binding protein (SSB)-attached QD and the aptamer. SSB could specifically bind to the ssDNA aptamer and act as a linker bridging the QDs, resulting in QD aggregation and quenching the fluorescence emission of the QD, which was in the signal-on state. Upon the addition of streptomycin and exonuclease I, the aptamer could preferentially bind with streptomycin, and the aptamer-free SSB-QD dispersed into solution, entering the signal-on state. Exonuclease I digested the aptamer coupled with streptomycin, and the liberated streptomycin could combine with another aptamer-SSB-QD aggregate. This system achieved an LoD of 30 pg/mL with a linear range of 0.1–100 ng/mL (Table 1).

4. Conclusions and Future Perspectives

QDs have been widely applied to detect and monitor molecules in vitro and in vivo owing to their excellent optical properties, such as their small size, photostability, broad excitation spectra, and narrow emission spectra. Their broadened application has facilitated the development of QDs with novel compositions and structures. By selecting the particle size, shape, material, and composition, the PL emission band can be easily adjusted from UV to IR [39,40,41]. The optimization of the shell growth rate, additives, and multiple emitting layers can enhance the PL quantum yield and photostability, which allows sensitive detection [42,43]. With these advances in QDs, the development of diverse nanostructure architectures, surface modifications [17], and aptamer-screening strategies [22] will play an increasingly critical role in the advancement of aptamer-based QD sensors to detect biomolecules in clinical and environmental settings.
Diverse in vitro biosensors were created with the development of various QDs triggered by the superior photophysical properties of QDs, and the tremendous progress. However, in developing in vivo biosensor, the toxicity and the biocompatibility of QDs are still major concerns for the detection of intracellular molecules in living cells or tissues. Most QDs are made using toxic materials, such as Cd, In, Te, and As, that can cause damage in multiple organ systems including the digestive, immune, nervous, and cardiovascular systems [82]. Many efforts have been devoted to overcoming these limitations (Table 2).
One way to reduce their toxicity is to change the surface of QDs. This surface change could be achieved through various fabrication strategies of core-shell conjugates because this can increase the size of the QDs and protect the toxic component from degrading, thereby minimizing the surface defects of these QDs and enhancing their luminescent quantum yield [75].
The QD surface can also be modified using three methods. One approach is ligand-based modification, where hydrophilic bifunctional molecules, such as PEG, are attached onto the surface of QDs [84,85]. This method is relatively simple and cost-effective, and it does not affect the change in particle size; however, it typically results in a lower PL quantum yield. For example, PEG-functionalized Cd-based QDs exhibited reduced toxicity and biocompatibility while retaining a high PL quantum yield, where PEG formed a fence-like structure, resulting in prevention of Cd2+ accumulation on the QD surface [52,84]. CdSe/CdS QDs were also modified with PEG using a cascade treatment of 3-mercaptopropionic acid (MPA) thiol-terminated methoxy PEG (mPEG-HS), where the resultant QDs exhibited a decreased PL intensity, and upon adding glycine to the solution the original PL intensity was re-achieved [85]. Another approach is micelle formation, where an amphiphilic polymer surrounds the surface of the QD through hydrophobic interactions [86,87,88]. Unlike the surface change approach, encapsulation provides large QDs with a high quantum yield. The silanization method can decrease the toxicity of QDs by covering the surface of QDs in a silica shell [89,90]. The silica surface is non-toxic and relatively biocompatible and prevents the leaching of toxic QD components (e.g., Cd). Moreover, it can be easy functionalized for bioconjugation.
Concerns regarding the chemical production of QDs, which requires a high temperature, pressure, and hazardous solvents and ligands, remain the main obstacle to their broad biological application [91]. An alternative way to produce eco-friendly QDs is to use microorganisms or viruses [92,93,94,95,96,97,98,99,100,101,102,103,104,105,106,107].
Another advantage of bioproduction is that it provides biogenic QDs to functional groups such as -OH, -NH2, and C=O originating from various biomolecules without additional processes [108]. These functional groups also lower the toxicity and exhibit good biocompatibility.
Some QDs have been produced at large titers in industrial-scale production; for example, ZnS QDs and CdS QDs have been produced in quantities as high as 322 g (72% yield) and ~3 g/L in Thermoanaerobacter sp. in a batch fermentation reactor, respectively [98,99].
There are some challenges for shortening the time required for biosynthesis and to developing low-cost purification processes, including precipitation, extraction, centrifugation, and calcination. When the challenges described above are overcome, it is expected that biogenic QDs will be safely applied to more diverse and innovative applications across various fields without causing environmental pollution.
Although the current trend has shifted to the substitution of the common, toxic Cd- and Pb-based QDs for less toxic semiconductor nanocrystals, such as CuInS2 and AgInS2, and the use of new material QDs such as silicon- and carbon-QDs [109,110,111], guidelines surrounding the safe handling of QDs are still needed during research, development, and large-scale manufacturing.
Taken together, these breakthroughs and innovations will undoubtedly lead to the emergence and discovery of new technologies and materials to facilitate disease diagnosis in the near future.
