Asymmetric Pt(II)-Porphyrin Incorporated in a PVC Ion-Selective Membrane for the Potentiometric Detection of Citrate

Abstract

A new sensing material, Pt(II)-5-(4-carboxyphenyl)-10,15,20-tris(4-phenoxyphenyl)-porphyrin (Pt(II)-COOH-TPOPP), was synthesized and characterized. Polymeric membranes containing the porphyrin and three different plasticizers were used as an electroactive material for a new anion-selective sensor. The best composition of the membrane was the one plasticized with dioctylsebacate (DOS), the obtained sensor being citrate-selective in a linear range of 5 × 10⁻⁷–1 × 10⁻¹ M citrate. The slope was Nernstian (19.73 mV/decade) with good selectivity towards a number of interfering anions and a lifetime of five weeks.

1. Introduction

Citric acid and sodium citrate have been used since the early 1920s in the treatment of cow milk in order to increase the volatile acidity and to create butter [1]. Sodium citrate is used for the reduction of gastric acidity [2] and plays an important role in acid–base homeostasis and in preventing calcium nephrolithiasis [3]. The quantification of urinary citrate can be used as a marker for chronic kidney disease in patients suffering from autosomal dominant polycystic kidney disease [4]

Citrate is a known calcium chelating agent, it reduces ionic calcium in the blood, thus preventing coagulation. Because the bicarbonate dialysis fluid requires an acid to prevent precipitation of inorganic salts, replacing acetate with citrate improves hemodynamic stability, as it lowers the incidence of hypotension. Citrate can be used in lower doses and can improve the lean mass index of the patients [5]. Despite all the advantages of citrate intake, its accumulation in the blood, generating an increase in the Ca_tot/Ca²⁺ ratio as a side-effect of citrate anticoagulation treatment in patients with liver failure, has not been completely analyzed [6] and, therefore, the amount of net citrate load delivered to the patient during anticoagulation treatment should be minimized [7].

In industry, citrate ion is also a well-known reducing and capping agent in obtaining of noble-metal nanoparticles [8,9,10,11].

Over time, the detection of citrate has been performed by various instrumental methods, such as gas chromatography [12], spectrophotometry [13] and high-performance liquid chromatography [14]. Among these methods, potentiometric detection proved to be one of the most accurate.

Other frequently used methods for the detection of citrate ions are based on fluorometric measurements, especially for medical samples, as presented in

Table 1. Sensitive materials used in the fluorometric detection of citrate.

Fluorophore	Concentration Domain (mol/L)/Medium	LOD (mol/L)	Ref.
Zn-triamino-guandine-thiophene (TAT)	0−1.8 × 10−6 In prostate cancer cells	10.8 × 10−9	[15]
Tetraphnyl- ethylene covalently linked to bipyridinium amide	1–5 × 10−6 Artificial urine	1.0 × 10−7	[16]
Triaminoguanidine carbon dots	0−650 × 10−9 Bioimaging in MCF-7 cells (breast epithelial cancer cells)	4 × 10−9	[17]

.

Methods for the detection of citrate are also based on the colorimetric response of the sensitive materials toward this anion. Thus, a colorimetric sensor based on silver nanoparticles capped with cetyl trimethyl ammonium bromide (CTAB) was reported [18]. In the case of naked-eye detection, the detected domain of citrate in urine was in the 1−130 μM domain, with a limit of detection (LOD) of 25 μM. By UV–Vis measurements, the detectable citrate concentration expanded up to 200 μM and to a much lower limit of detection of 4.05 nM.

Another selective colorimetric chemosensor for citrate reported in the literature, this time from aqueous solutions, was based on a complex between a pyridylazo dye and Ni²⁺ in a 2:1 stoichiometric ratio [19]. The detected concentration domain was 1–100 μM, with an LOD of 1.03 μM.

A new and innovative method for the detection of citrate was reported, using an asymmetric double-opening ring metamaterial in terahertz (THz) spectroscopy [20]. This is a technique that can differentiate between several types of citrate salts (Zn, Ca, Mg, K, Li, Fe) in mM concentration ranges.

The electrochemical detection of fentanyl citrate was achieved by performing differential pulse voltammetry (DPV) using single-walled carbon nanotube network electrodes [21]. The fentanyl citrate concentration range that could be detected with accurate sensitivity and selectivity was 0.01–1 μM, and the detection limit was calculated as 11 nM.

Porphyrins are some of the most remarkable ionophores known to date and have been extensively used in ion-selective polymeric membranes [22] for the potentiometric detection of heavy metals [23,24,25].

Platinum porphyrins are mainly used as catalysts in water oxidation [26,27], as oxygen nanosensors [28] for singlet oxygen generation [29,30,31], in the photodynamic therapy of cancer [32], as electron donors for organic solar cells [33] or as catalysts in water splitting [34].

An extensive study regarding anion-selective polymeric membrane electrodes using Pt(II)- and Pt(IV)-porphyrins as ionophores [35] determined the low oxophilicity of the central Pt-ion, and, thus, the capacity to avoid the dimerization of ionophore species in the membrane and, as a consequence, the super-Nernstian response of the electrodes.

Several aliphatic monatomic alcohols (ethanol, methanol and isobutyl alcohol) were detected by registering the potentiometric responses of Pt-porphyrin-based polymeric membranes [36]. The concentration range detected in all cases was from 5.5 × 10⁻⁵ M to 2.3 M. In order to validate the detection method, the authors tested the ethanol content of different beverages: grappa, whisky, various kinds of beer and dry wines.

Using Pt(II) 5,10,15,20-tetra(4-methoxy-phenyl)-porphyrin as an ionophore in plasticized membranes, the potentiometric detection of bromide ion was performed [37]. The bromide ion concentration range that produced a near-Nernstian potentiometric response of the sensor based on membranes plasticized with dioctylphtalate (DOP) was 10⁻¹ to 10⁻⁵ M with a slope of (64.4 ± 0.4) mV/decade and a detection limit of 8 × 10⁻⁶ M.

Using Pt(II)-5,10,15,20-tetra-(4-allyloxy-phenyl)porphyrin as a sensitive material in fluorescence, the lowest concentration of hydrogen peroxide was detected (1.05–3.9 × 10⁻⁷ M) and the electrochemical method provided the widest detection domain (1 × 10⁻⁶ M to 5 × 10⁻⁵ M) for the same analyte [38]. The incorporation of Pt(II)-5,10,15,20-tetra-(4-allyloxy-phenyl)-porphyrin into a silica matrix, based on tetraethylorthosilicate (TEOS), led to the achievement of a nanomaterial that is able to detect CO₂ gas in the concentration range 40–570 mM. The material performance to adsorb/recover CO₂ gas was one of the highest reported (25 ± 0.05 mmol CO₂/g) [39].

Pt(II)-5-(3-hydroxy-phenyl)-10,15,20-tris-(3-methoxy-phenyl)-porphyrin complexed with gold nanoparticles was able to spectroscopically detect hydroquinone [34].

In this work we present the obtainment and characterization of a novel platinum- A₃B mixed substituted metalloporphyrin, Pt(II)-5-(4-carboxyphenyl)-10,15,20-tris(4-phenoxyphenyl)-porphyrin, capable of performing as a suitable structured ionophore in PVC ion-selective membranes for the potentiometric detection of citrate anion.

2. Materials and Methods

2.1. Materials

Bis(benzonitrile)platinum(II) chloride PtCl₂(PhCN)₂ was received from Alfa (Haverhill, Massachusetts, United States); sodium acetate CH₃COONa × 3H₂O was obtained from Sigma-Aldrich (St Louis, USA); chlorobenzene, dichloromethane and anhydrous sodium sulfate were purchased from Merck (Darmstadt, Germany). The methyl ester of 5-(4-carboxyphenyl)-10,15,20-tris(4-phenoxyphenyl)-porphyrin was synthetized using a mixture of methyl 4-formylbenzoate, 4-phenoxybenzaldehyde and pyrrole, in a molar ratio of 1/3/4, with propionic acid as the solvent in the presence of propionic anhydride. The final porphyrin derivate (COOH-TPOPP) was obtained by the hydrolyzation reaction of the methyl ester of porphyrin, conducted in strong basic conditions. Complete characterization of the (COOH-TPOPP) was reported in a previously published paper [40].

For membrane preparation, poly(vinyl)chloride (PVC) of high molecular weight was provided by Merck (Darmstadt, Germany). The three plastifiants, bis(2-ethylhexyl)sebacate (DOS), o-nitrophenyloctylether (NPOE) and dioctylphtalate (DOP), and the cationic additive tridodeocylmethylammonium chloride (TDMACl) were also purchased from Merck (Darmstadt, Germany). All reagents were purum analyticum grade. In all measurements, double-distilled water was used.

2.2. Apparatus

UV–Vis spectra were acquired on a JASCO spectrophotometer V-650 model (Pfungstadt, Germany). For liquid samples, quartz cuvettes of 1 cm length were used.

Nuclear magnetic resonance spectra (NMR) were recorded on a Bruker Avance NEO 600 MHz apparatus (Rheinsteitten, Germany). The samples were dissolved in deuterated chloroform (CDCl₃). Tetramethylsilane was used as the reference and the chemical shifts δ were noted in ppm.

Infrared spectroscopy (FT-IR) samples were prepared as KBr pellets and recorded on a Jasco FT/IR-4200 model Type A device (Hachoji, Tokyo, Japan).

TGA/SDTA 851-LF 1100-Mettler equipment (Schwerzenbach, Switzerland) was employed for performing thermogravimetric analysis (TGA). The experiments were carried out under nitrogen atmosphere, using well ground powdered samples (about 5 mg each) deposited in Al crucibles, in a temperature domain varying from 25 °C up to 800 °C, with a heating rate of 10 °C min⁻¹. After pyrolysis, the samples were maintained under isothermal conditions (800 °C) for 30 min in nitrogen and then in air atmosphere.

The presumed detection mechanism of the citrate ion was drawn using the optimized structure of Pt(II)-5-(4-carboxyphenyl)-10,15,20-tris(4-phenoxyphenyl)-porphyrin via the program PyMOLMolecular Graphics System, Version 1.7.4 Schrödinger (LLC New York, NY, USA, 2015).

2.3. Synthesis of Pt(II)-5-(4-Carboxyphenyl)-10,15,20-tris(4-phenoxyphenyl)-porphyrin (Pt(II)-COOH-TPOPP)

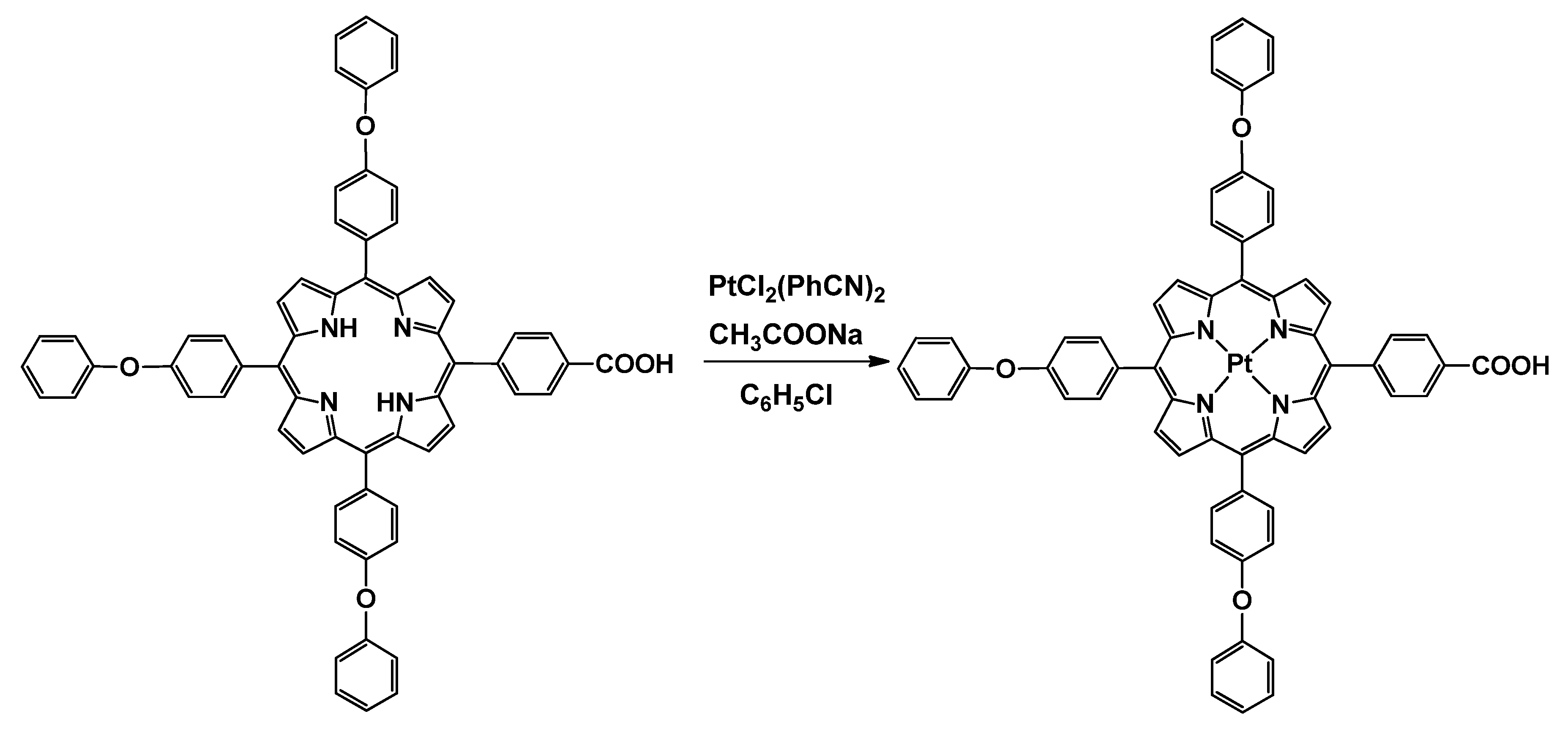

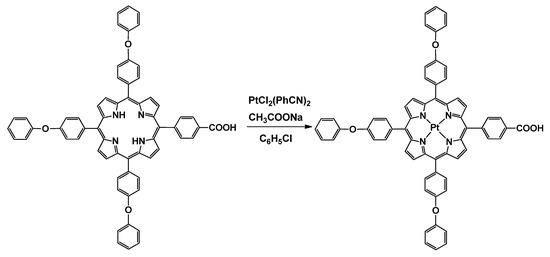

Pt(II)-COOH-TPOPP was synthesized by modifying previously reported methods [38,41,42,43], as follows (Scheme 1). The porphyrin base, 5-(4-carboxyphenyl)-10,15,20-tris(4-phenoxyphenyl)-porphyrin (COOH-TPOPP) (0.15 g, 1.604 × 10⁻⁴ mol) was dissolved in 35 mL of chlorobenzene and heated to reflux. A mixture composed of platinum complex PtCl₂(PhCN)₂ (0.1136 g, 2.4063 × 10^-4 mol) and CH₃COONa×3H₂O (0.0873 g, 6.4171 × 10⁻⁴ mol) both dissolved in 15 mL of chlorobenzene was added dropwise. Sodium acetate was used to avoid decomposition of the platinum metalloporphyrin due to the formation of hydrochloric acid (HCl). The reflux was maintained for 80 min, taking samples for UV–Vis spectroscopy every 10 min. The reaction was stopped after UV–Vis spectra showed major changes in the number and location of the bands, namely, the reduction of the Q bands number and the hypsochromic shifting of the Soret band. The mixture was then filtered and the precipitate was repeatedly washed with large portions of warm water (100 mL). The filtrate was washed again in a separatory funnel with warm water (3 × 200 mL). The organic phase was dried over anhydrous Na₂SO₄, filtered and the solvent was evaporated under vacuum. The resulting product, (Pt(II)-COOH-TPOPP), was recrystallized from CH₂Cl₂ and dried in an oven at 105 °C for 24 h.

The main characteristics of the obtained Pt(II)-5-(4-carboxyphenyl)-10,15,20-tris(4-phenoxyphenyl)-porphyrin: brownish-orange crystals; yield 92%; m.p. over 300 °C; ¹H-NMR (CDCl₃, 600 MHz), δ (ppm): 8.84–8.83 (d, 8H, β-pyrrole), 8.11–8.09 (d, 8H, 2,6-phenyl), 7.81–7.79 (d, 8H, 3,5-phenyl), 7.75–7.72 (t, 3H, 4*-phenyl), 7.58–7.55 (t, 6H, 3*,5*-phenyl), 7.36–7.34 (d, 6H, 2*,6*-phenyl); ¹³C-NMR (CDCl₃, 600 MHz), δ (ppm): 157.58 − 156.89 (C-O-C), 141.05 and 136.03 (C_α-pyrrole), 130.03 (C_β-pyrrole), 119.62 (C_meso quaternary); FT-IR (KBr, cm⁻¹): 793 (γ_C-Hpyrrole), 1105–1113 (ν_C-O), 1163 (δ_N-H), 1234 (ν and δ_Ar C–O–C), 1481 (ν_C–O–C and ν_C=N), 1595–1592 (ν_C=C), 1677–1684 (ν_COOas), 2897–2916 (ν_C-H), 3424 (ν_OH); UV–Vis, DMSO (λ_max, nm (log ε)): 406.1 (5.08), 511.4 (4.11), 541.5 (3.25), 596.7 (3.31).

2.4. Electrode Membrane Preparation and Measurements

The potentiometric investigations were conducted in a three-compartment cell, at environmental temperature on a pH/mV meter, model Hanna Instruments HI223. The cell notation is given below:

Hg|Hg₂Cl₂|bridge electrolyte|sample|ion-selective membrane|0.01 M KCl|AgCl, Ag

This approach was based on the manufacturing of three membranes containing the metalloporphyrin ionophore, Pt(II)-COOH-TPOPP, PVC, and three plasticizers differentiated by their polarity and their ability to modify the flexibility and durability of PVC at low temperature, such as o-nitrophenyloctylether (NPOE), dioctylphtalate (DOP) and dioctylsebacate (DOS). For the membrane composition, a lipophilic cationic additive was introduced in a ratio of 20 mol% relative to ionophore, namely, tridodecylmethylammonium chloride (TDMACl). The components were dissolved in 2 mL of tetrahydrofuran and vigorously stirred for 20 min. The three obtained solutions were poured onto a uniform plate glass and THF was allowed to completely evaporate in order to obtain flexible PVC membranes. Pieces of 8 mm diameter were cut out from each membrane and assembled on the Fluka electrode for further measurements. Before starting investigations, the sensors were conditioned for 48 h in 0.01 M citrate solution. Potentiometric selectivity coefficients were determined according to the separate solution method [44] by using the experimental EMF values obtained for 0.01 M solutions of the tested anions. The detection limit of the sensor was established at the point of intersection of the extrapolated linear range with the low concentration segment of the calibration plot.

3. Results and Discussion

3.1. UV–Vis Monitoring of the Pt(II)-Carboxy-phenyl-tris-(phenoxy-phenyl)porphyrin Synthesis

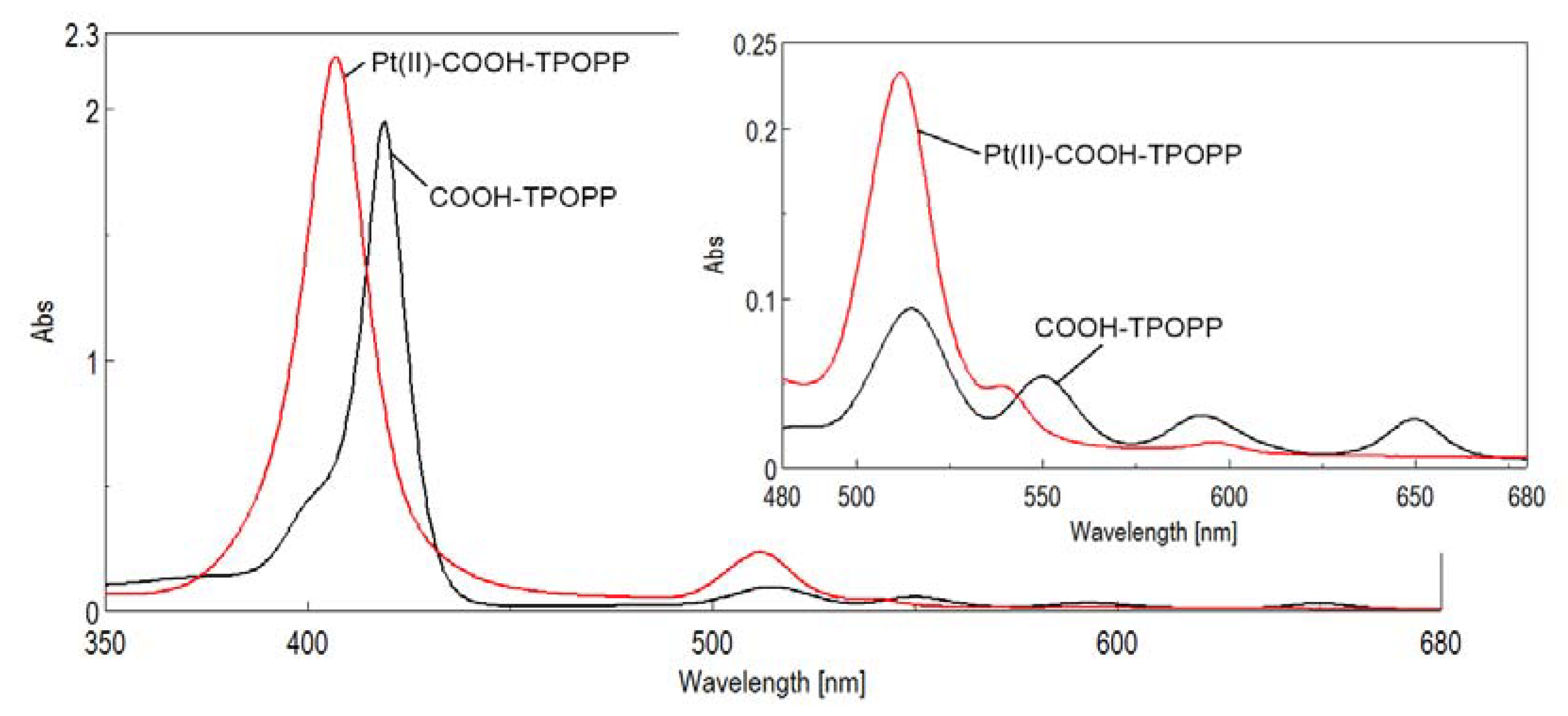

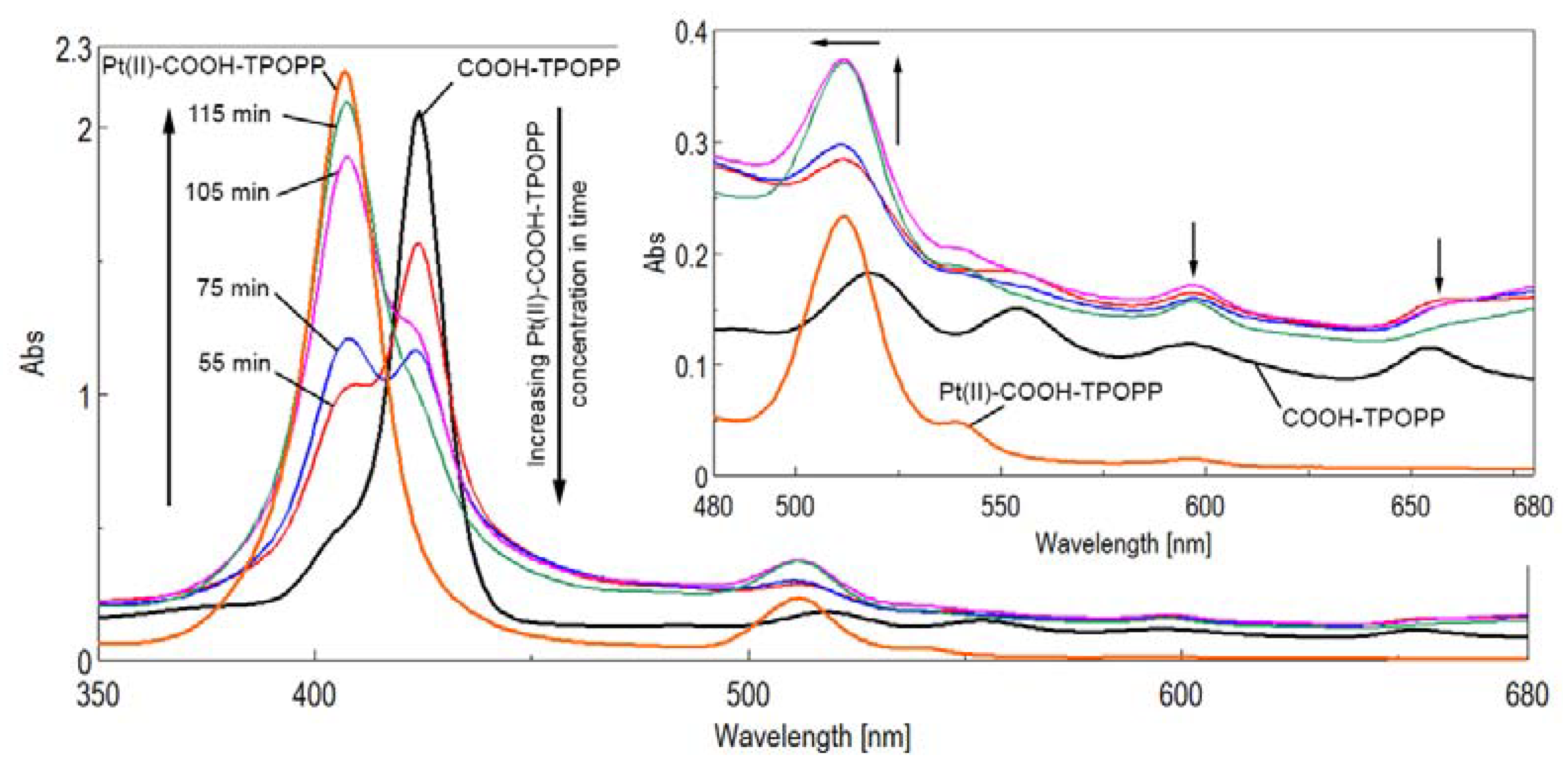

The metalation process was monitored by UV–Vis spectroscopy, as presented in Figure 1. It can be observed that, during metalation, the Soret band located at 424 nm is initially decreasing in intensity and a shoulder appears at 406 nm, that is increasing in intensity as the process develops. Additionally, the QIV band is shifting hypsochromically, from 518 nm to 511 nm. It can be observed that the number of Q bands decreases to only 3.

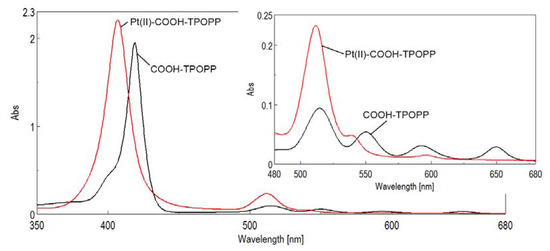

Analyzing the UV–Vis spectra of the carboxy-phenyl-tris-(phenoxy-phenyl)-porphyrin from chlorobenzene, it can be observed that it shows etio-type allure. The absorption spectrum presents an intense Soret band along with four Q bands in the visible region that are increasing in intensity in the order QI<QII<QIII<QIV. The Soret band at 426 nm is generated by the transition from a_1u(π) to e_g*(π) and the four Q bands are the result of a_2u(π)–e_g*(π) transitions. The Soret band of the metalated derivative is hypsochromically shifted by 18 nm, to 406 nm; the number of Q bands is diminished (Figure 2) to only 3, located at 511 nm with a pronounced shoulder at 541 nm and 597 nm, respectively.

3.2. Nuclear Magnetic Resonance Characterization

The ¹H-NMR spectrum is represented in Figure S1 (Supplementary Materials). The bonding of platinum in the inner core of the porphyrin is confirmed by the absence of the signal at −2.70 ppm assigned to the two internal protons [40]. All the protons that prove the proposed structure are identified by their characteristic signals. Thus, the β-pyrrolic protons present a doublet in the 8.84–8.83 ppm interval; the protons in the para position of the exterior phenyl ring give a triplet signal in the 7.75−7.72 ppm region. The meta protons located in the exterior phenyl rings resonate as a triplet in the 7.58−7.55 ppm domain. In the ¹³C-NMR spectrum presented in Figure S2 (Supplementary Materials), the main signals fairly correspond to attributed carbon atoms. The solvent (deuterated chloroform) gives a signal at 77 ppm. All aromatic carbons appear in the 109–157 ppm region as assigned in Figure S2.

3.3. Comparative FT-IR-Analysis

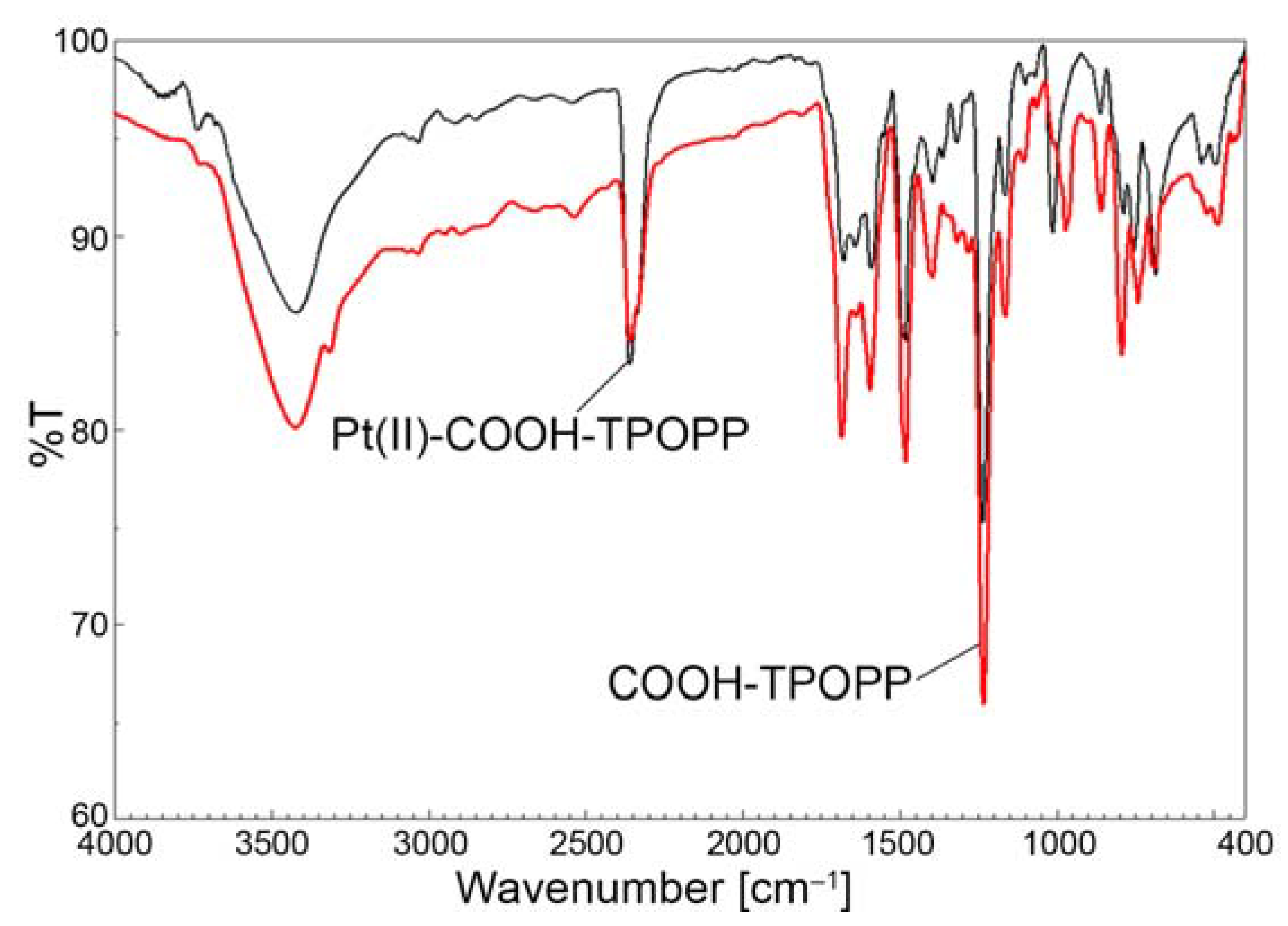

In the FT-IR spectrum (Figure 3), the full metalation of the free-base porphyrin is confirmed in the spectrum by the absence of Pt-COOH-TPOPP of the peak representing the stretching vibration of the internal N-H bonds, located at 3316 cm^-1. A comparison of the FT-IR spectra of the two compounds, the COOH-TPOPP porphyrin [40] and its platinum-derivative, gave some common features that can be noticed: the band located around 3424 cm^-1 represents the O-H stretching vibrations; the bands located at 2897–2916 cm^-1 prove the symmetrical and asymmetrical stretching vibrations of the C-H bonds [45]. The peaks at 1684-1677 cm⁻¹ and 1105-1113 cm^-1 represent the -COO (asymmetric) and -C-O stretching vibrations, respectively [46]. The large band located around 1595–1592 cm^-1 corresponds to the asymmetric stretching of the entire porphyrin macrocycle due to vibrations of the methyne bridges, of the pyrrole rings and of the symmetric C-C stretching in phenyl [47]. The band around 1481 cm^-1 is attributed to valence vibrations of C=N bonds [48]; the aromatic C-O-C bonds give an intense band at 1234 cm^-1 [49]. The 1163 cm⁻¹ vibration band is assigned to in-plane N-H bond deformation. The C-H pyrrole bond vibrates at 793 cm^-1 [50].

3.4. Thermogravimetric Analysis of COOH-TPOPP and Pt(II)-COOH-TPOPP

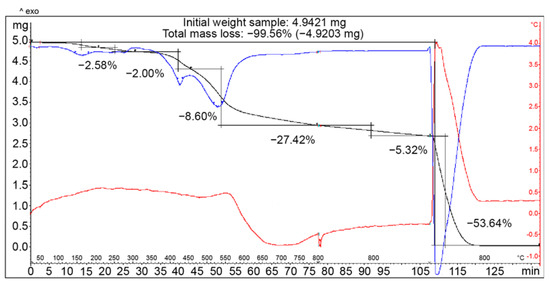

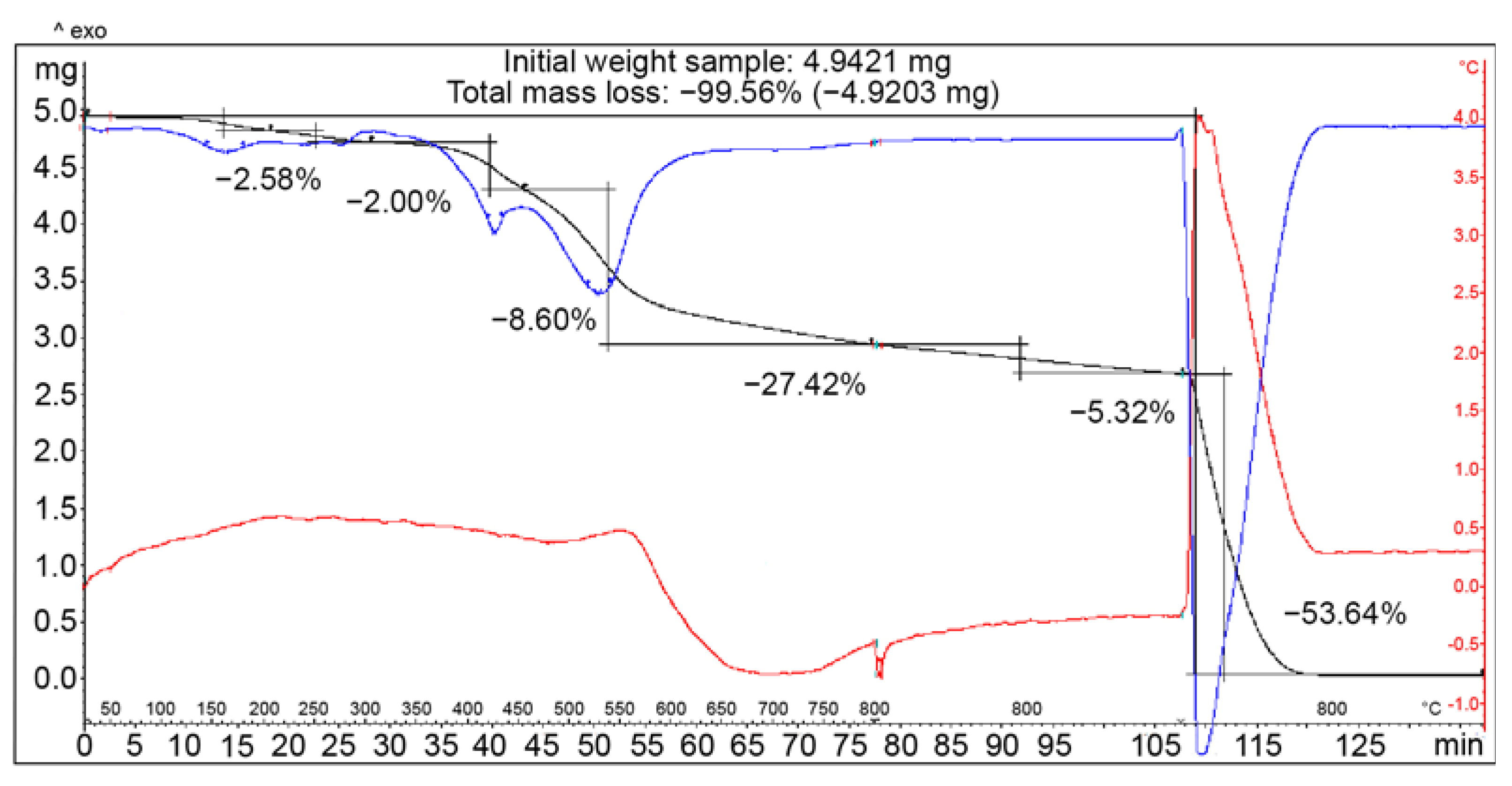

TGA provides information about the thermal stability of the two porphyrin derivatives. The TG/DTG/DTA curves of the studied compounds, porphyrin-base, COOH-TPOPP, and its metalloporphyrin, Pt(II)-COOH-TPOPP, are presented in Figure 4 and Figure 5. Pt(II)-COOH-TPOPP exhibits a higher thermal stability than the porphyrin–base under an air atmosphere, a case that is similar to other reported investigations [51]. Both the thermal and the oxidative decomposition depend on the nature, number and position of the functional groups grafted on the porphyrin macrocycle. The decomposition of COOH-POPP has two distinctive stages, as can be seen in Figure 4: the second stage includes the decomposition of the porphyrin ring from around 300 to 800 °C. The porphyrin shows very good thermal stability up to 300 °C, the mass loss being less than 2%, but after that it begins to decompose [52].

At 800 °C, under a nitrogen atmosphere, about 54% of the mass was lost. Under an air atmosphere at 800 °C, the decomposition reaction was almost completed, with a mass loss of 99.56%.

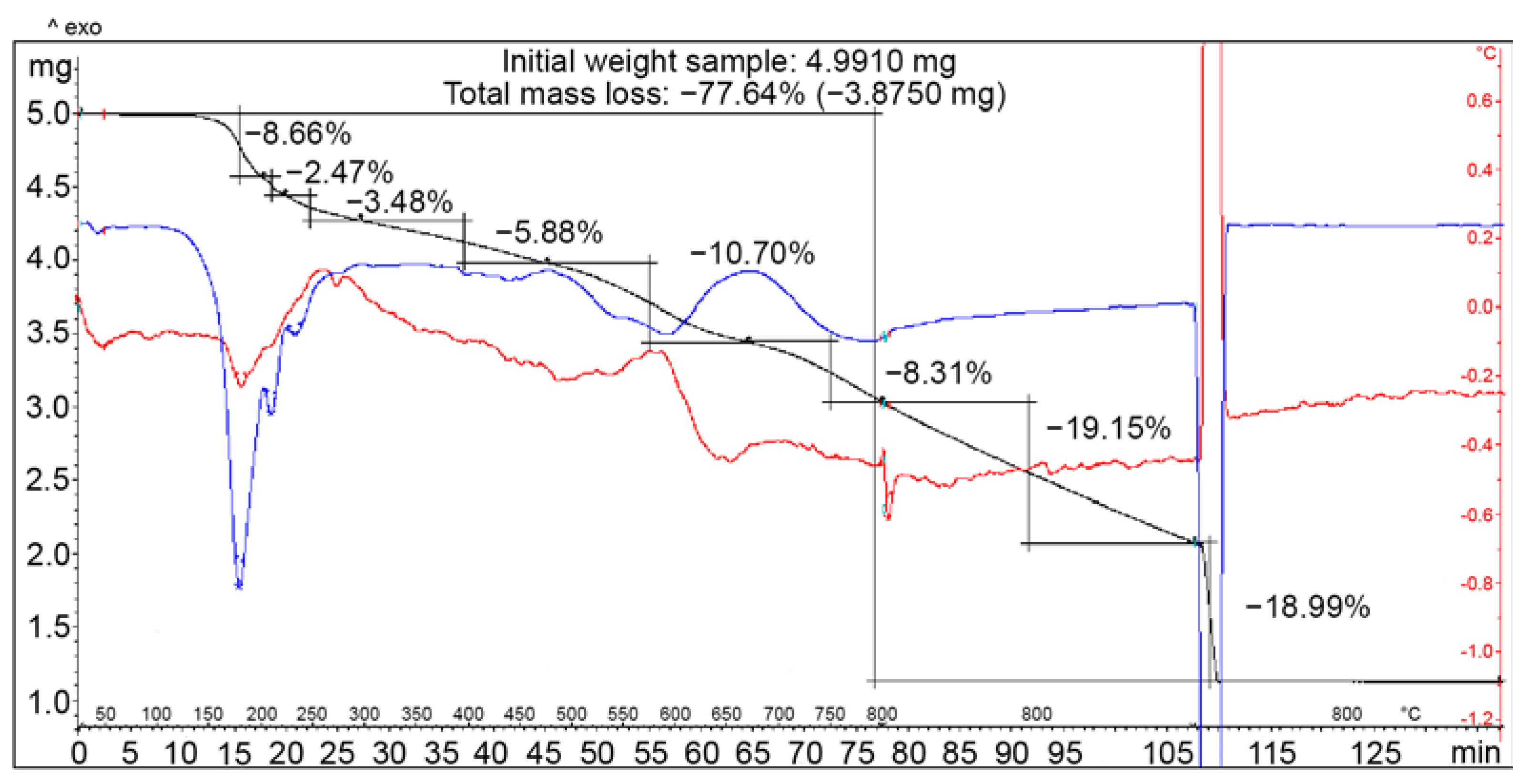

As opposed to the porphyrin base, in the case of metalloporphyrin Pt(II)-COOH-TPOPP, the TG curve (Figure 5) indicates a mass loss of 77.64%, both under nitrogen and air atmosphere. The thermal degradation occurs under a large exothermic peak in the DTA curve at 800 °C and can be associated with a combustion process of organic mass [53].

The thermogram of Pt-metalloporphyrin shows a 14.57% (0.73 mg) loss of mass in the range of 25 °C to 300 °C, which can be attributed to the presence of chlorobenzene solvent in the Pt(II)-COOH-TPOPP molecule. Differential thermal analysis (DTA) confirmed the presence of chlorobenzene solvent (e.g., endothermic peak with a maximum at 178.9 °C), as seen in the TG results.

Residual mass consisting in platinum(IV) oxide (PtO₂), obtained during thermal decomposition after pyrolysis and heating in an air atmosphere at 800 °C, represents 22.4% (1.12 mg) of its initial mass.

The incorporation of chlorobenzene in the crystalline structure of Pt(II)-COOH-TPOPP could be evidenced both in the ¹H-NMR spectrum and in the thermogravimetric analysis. For the detection experiments, the Pt(II)-COOH-TPOPP compound was further dried and purified.

3.5. Potentiometric Detection

Using the newly obtained Pt(II)-COOH-TPOPP as an ionophore, three different plasticized PVC ion-selective sensors having the composition mentioned in

Table 2. The sensors’ membrane composition (%w/w).

Membrane Composition.		Sensor 1	Sensor 2	Sensor 3
Ionophore		1	1	1
Plasticizer	DOS	66
	DOP		66
	NPOE			66
PVC		33	33	33

were formulated.

The used plasticizers, with three different dielectric constants, were o-nitrophenyloctylether (o-NPOE, Ɛ = 24), dioctyl phtalate (DOP, Ɛ = 7) and dioctyl sebacate (DOS, Ɛ = 4). As we have observed in our previous study [37], the cationic additive tridodeocylmethylammonium chloride (TDMACl) was used as an additive (20 mol% relative to ionophore) due to the 2+ oxidation state of the central ion.

The performance of each sensor was investigated by measuring its potential in the concentration range 10⁻⁶–10⁻¹ M in 10 different anionic solutions: F⁻, Br⁻, I⁻, ${\mathrm{ClO}}_4^{-}$, SCN⁻, ${\mathrm{NO}}_2^{-}$, ${\mathrm{NO}}_3^{-}$, Citrate³⁻, Sal⁻, Acetate⁻. Stock solutions of 0.1 M were prepared by dissolving sodium or potassium salts in a 4-morpholinoethanesulfonic acid (MES) buffer of pH 5.5 and also in Tris buffer of pH 8. All working solutions were prepared by gradual dilution of the stock solutions with the above-mentioned buffers.

Citric acid (H₃C₆H₅O₇) is a tribasic acid with pK_a values of 3.128, 4.761 and 6.396. In order to obtain the exact species distribution of citric acid, we plotted the mole fraction versus pH (Figure 6).

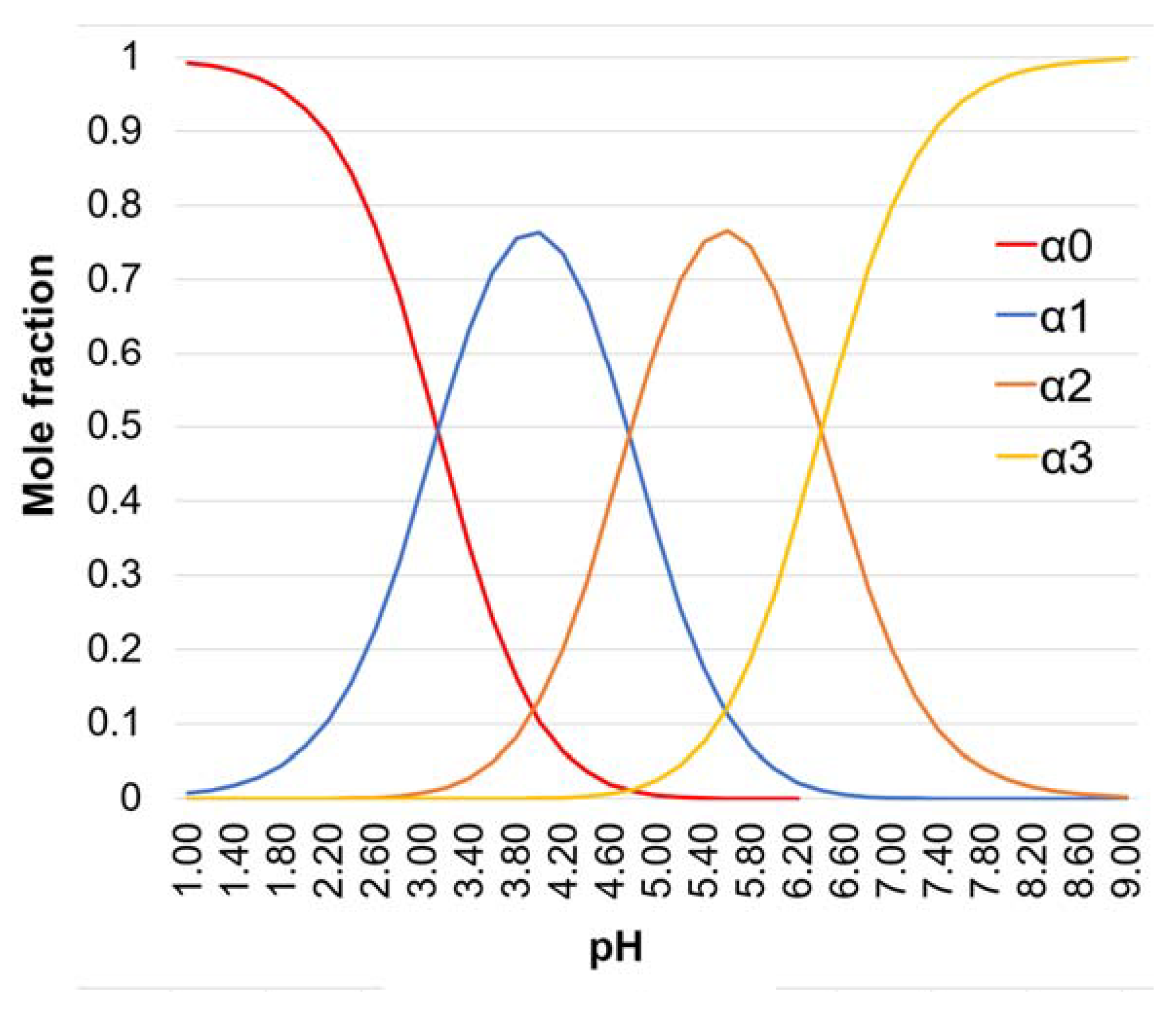

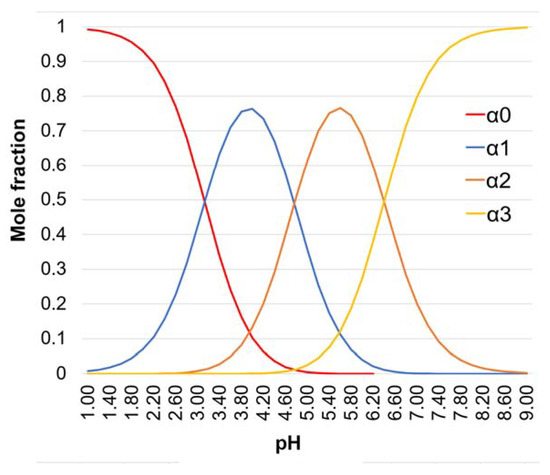

From Figure 6, we calculated the mole ratio of the species at each working pH, which is presented in

Table 3. Mole ratio of citrate species at each working pH.

pH	H3Cit	H2Cit-	HCit2-	Cit3-
5.50	-	1.46	7.93	1
8.00	-	-	1	39.8

.

The first measurements were made for all three sensors in solutions of pH 5.5. Analyzing the obtained measurements, it results that the best performances were obtained for Sensor 1 as a citrate-selective sensor, but only in the range of 10⁻⁴–10⁻¹ M citrate, with a slope of 35.4 mV/decade (instead of 29.6, the Nernstian value). As seen from Table 3, at pH 5.5 the most significant citrate species is HCit^2-, but the mole ratio with the other two species present in solution may be the reason for which the slope is bigger than Nernstian. For improving the DOS plasticized PVC sensor (Sensor 1), new measurements were made in Tris buffer solution of pH = 8. At this pH value, as resulting from Table 3, the main citrate species is ${\mathrm{C}}_6{\mathrm{H}}_5{\mathrm{O}}_7^{3-}$ in a mole ratio of 39.8:1, so a better fitted response towards the Nernstian slope can be expected for the potentiometric response_.

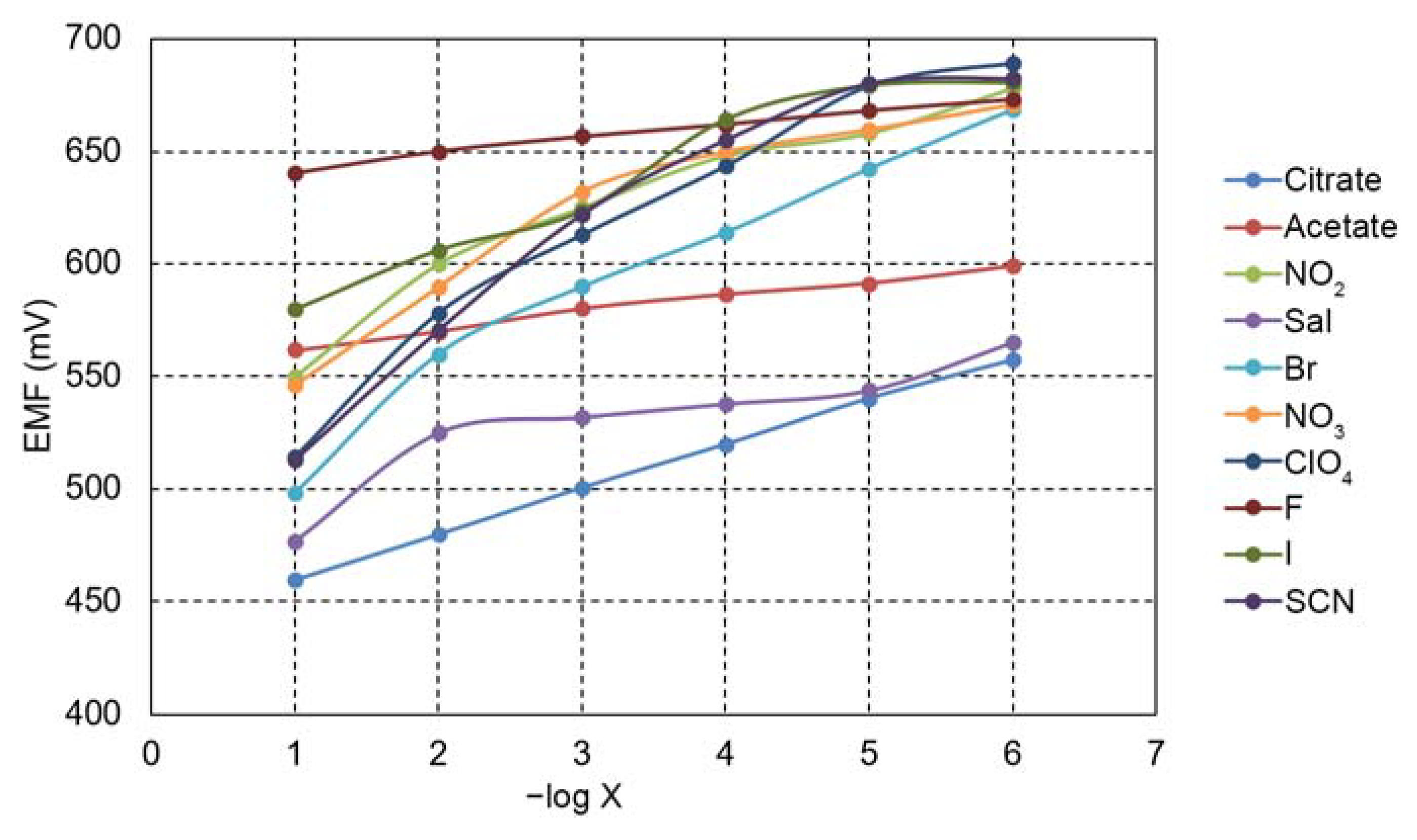

Using the improved Sensor 1, the potentiometric responses for all the tested anions are illustrated in Figure 7.

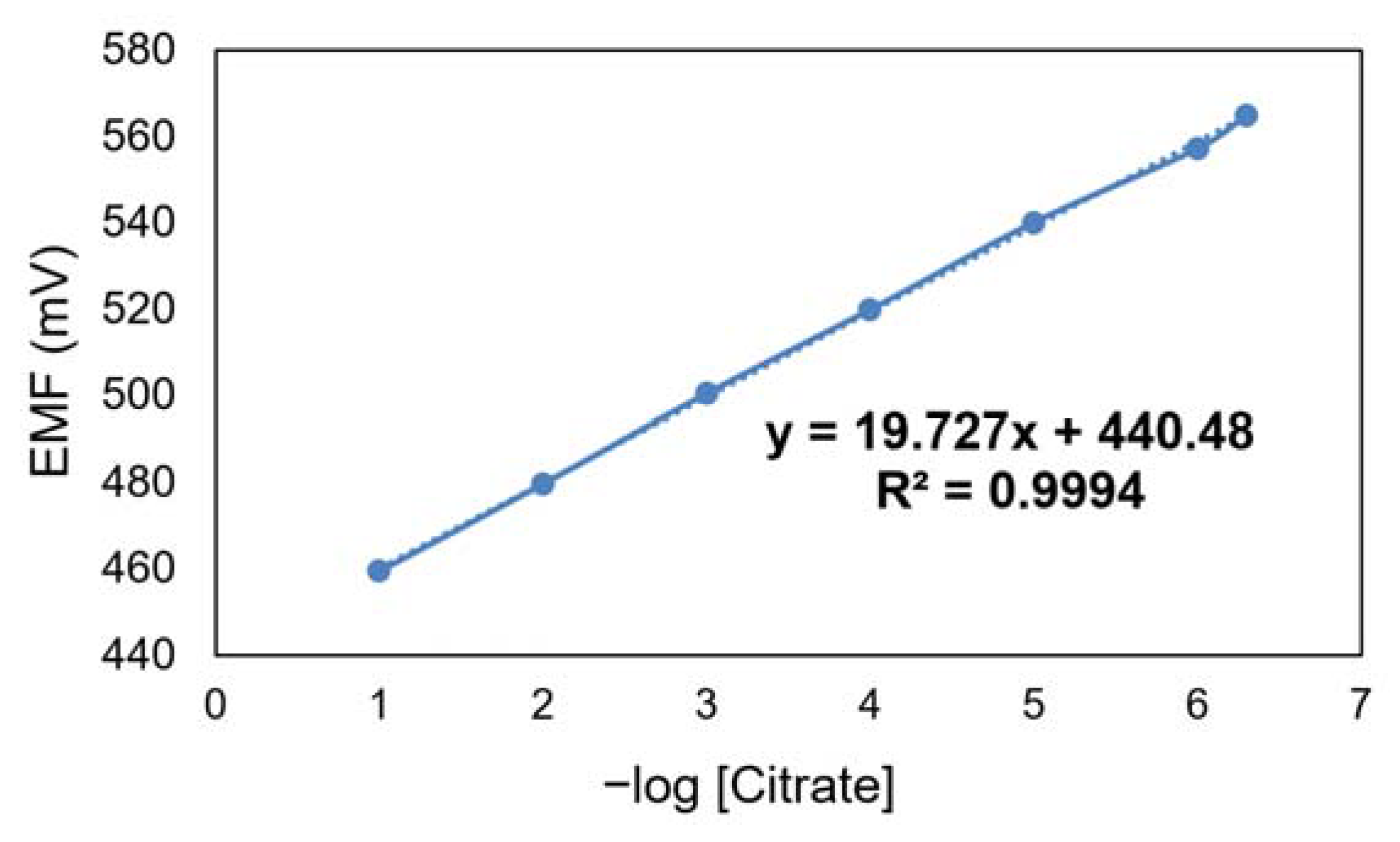

A critical analysis of the results obtained in Figure 7 shows that the sensor is citrate-selective. To establish a more precise linear range of the sensor, a new dilution from 10⁻⁶ to 10⁻⁷ M was made and the new potentiometric results are presented in Figure 8. We can conclude that the sensor has a linear range from 10⁻¹ to 5 × 10⁻⁷ M, with an almost Nernstian slope of 19.73 mV/decade and a detection limit of 3 × 10⁻⁷ M.

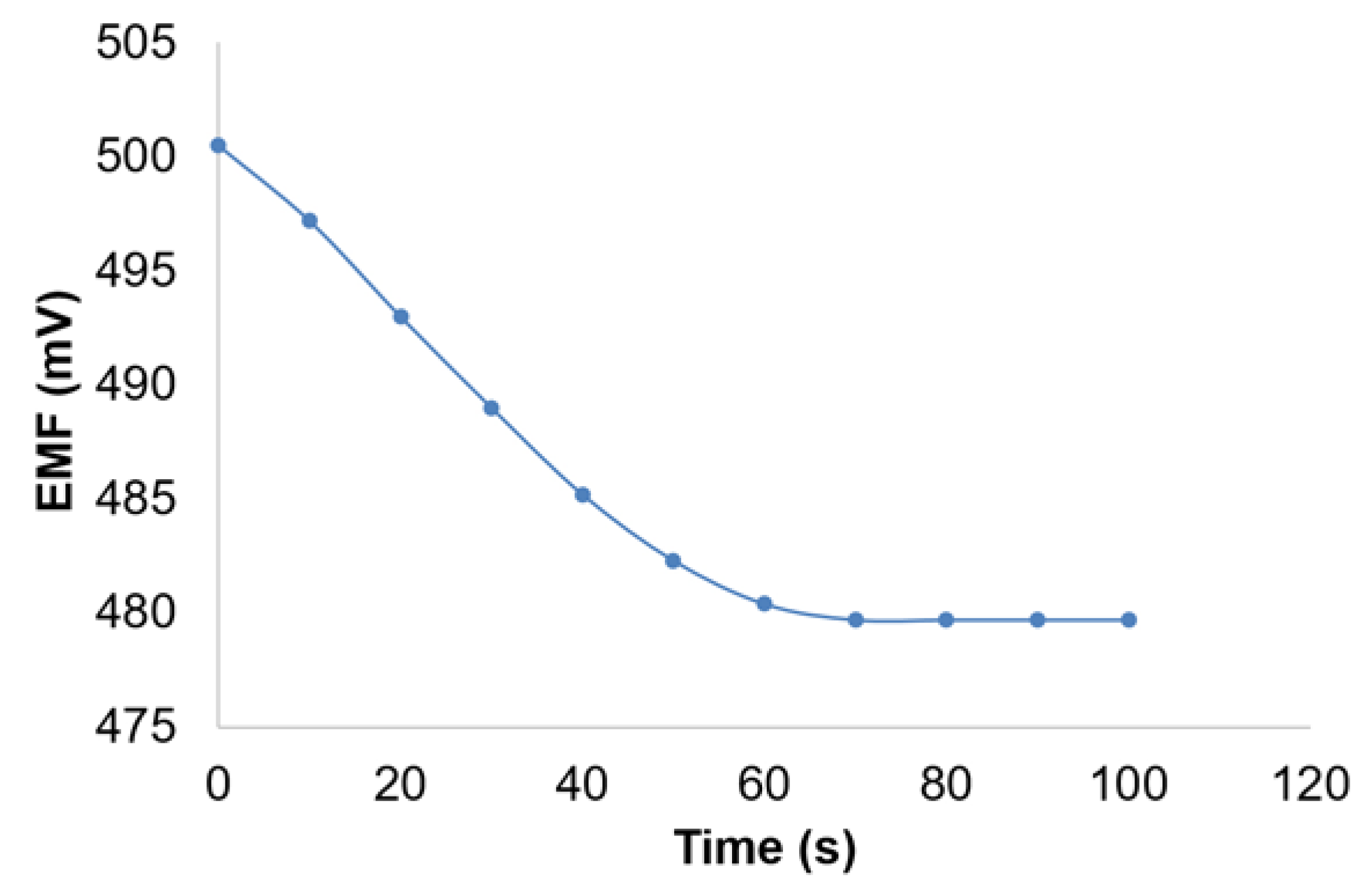

The response time of the sensor for citrate concentrations from 10⁻³ to 10⁻² M is about 70 s, as presented in Figure 9.

The sensor was used for a period of 5 weeks without any significant change of the slope. After this period, a slight decrease in the slope was observed (17.5 ± 0.5 mV/decade).

The selectivity coefficients of the sensor were obtained by the separate solution method according to Equation (1) [44]:

$$\log {\mathrm{K}}_{\mathrm{A},\mathrm{B}}^{\mathrm{pot}} = \frac{{(\mathrm{E}}_{\mathrm{B}}{- \mathrm{E}}_{\mathrm{A}})\cdot {\mathrm{z}}_{\mathrm{A}}\cdot \mathrm{F}}{\mathrm{R}\cdot \mathrm{T}\cdot \ln 10}+(1 - \frac{{\mathrm{z}}_{\mathrm{A}}}{{\mathrm{z}}_{\mathrm{B}}})\cdot {\mathrm{lga}}_{\mathrm{A}}$$

(1)

where E_A and E_B are the potential values of the primary and interfering anions, a_A is the activity, z_A and z_B are the charge numbers of primary and interfering anions, and R, T and F have their usual meaning.

Calculations were performed for equal concentrations of the primary and interfering anions, i.e., 10⁻² M, and are presented in

Table 4. Selectivity coefficients of Sensor 1 plasticized with DOS.

Anion	log KCitr, X
Ac −	−(0.68 ± 0.02)
${\mathrm{NO}}_2^{-}$	−(2.10 ± 0.04)
Sal−	−(0.20 ± 0.01)
Br−	-(0.40 ± 0.02)
${\mathrm{NO}}_3^{-}$	−(1.59 ± 0.04)
F−	−(4.64 ± 0.05)
I−	−(2.41 ± 0.05)
SCN−	−(0.60 ± 0.02)
${\mathrm{ClO}}_4^{-}$	−(1.00 ± 0.04)

. The obtained values indicate a good selectivity toward citrate anion.

3.6. Presumed Mechanism of Citrate Recognition

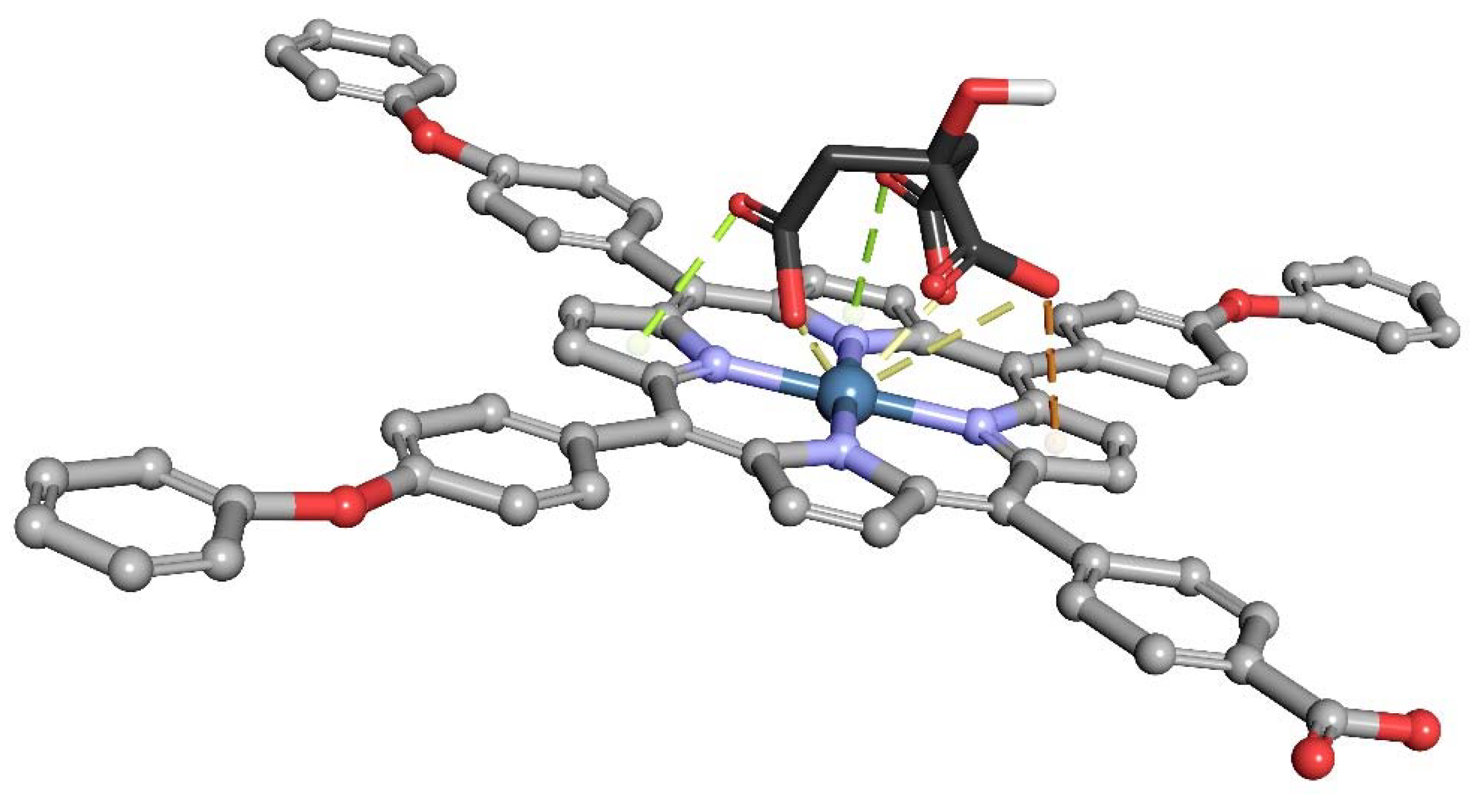

The interactions between the porphyrin incorporated as a sensitive substance in the ion-selective membrane and the citrate anions occur mainly at the platinum atom located in the center of the porphyrin molecule. The following electrostatic interactions might take place as follows:

-

Interactions between two opposite electrical charges (positively charged platinum coordinated in the porphyrin ring and negatively charged oxygen belonging to the carboxylate group contained in the citrate anion, depicted in yellow in Figure 10);

-

π-anion interactions between π-electrons of the extended aromatic heterocycle belonging to the porphyrin and the negatively charged oxygen from the carboxylate ion (represented in orange in Figure 10);

-

π–π interaction between the non-participating electron pairs present both in the porphyrin macrocycle and in the carbonyl oxygen from citrate (green lines in Figure 10).

Similar interactions were reported in literature [22,54,55] regarding tetraphenyl porphyrin-manganese(III) chloride as the ionophore and sulfadiazine the analyte [56] or Fe(III) tetrakis(pentafluorophenyl)porphyrin-chloride used in membrane formulation for the potentiometric detection of diclofenac [57].

3.7. Analytical Applications

The sensor was used with good results for the detection of citrate from synthetic samples and the obtained values are presented in

Table 5. Analytical applications of sensors from synthetic samples.

Synthetic Sample	Amount (mg)	Found by Sensor (mg ± S a)
Citrate	200	198 ± 0.5
Citrate	600	597 ± 0.6

^a Average of determinations on three samples of the same origin

.

Additionally, the sensor was used for the determination of citrate in food supplements, powders and tablets. The samples were prepared by dissolving them in Tris buffer of pH 8 and the citrate assay was carried out by direct potentiometry. The results are presented in

Table 6. Determination of citrate in food supplements.

Sample	Amount (mg)	Found by Sensor (mg)	Found by Titration (mg)
Magnesium citrate (Gym Beam)	500	498 ± 0.9	492 ± 2.0
Calcium citrate (Now)	800	795 ± 2.0	790 ± 3.0
Magnesium citrate (Solgar) tablets	200	197 ± 0.5	195 ± 2.0

^a Average of determinations on three samples of the same origin

(average of three measurements) in comparison to the titration method. For the titration method, the samples were dissolved in distilled water and an aliquot was titrated with 0.05 M EDTA using ammonium buffer of pH 10 and Erio T as the indicator. The results are in good agreement.

4. Conclusions

Pt(II)-5-(4-carboxyphenyl)-10,15,20-tris(4-phenoxyphenyl) porphyrin was synthesized, characterized and used as ionophore to obtain a new citrate-selective sensor. The sensor works in a linear range from 5 × 10⁻⁷ to 1 × 10⁻¹ M citrate, has a detection limit of 3 × 10⁻⁷ M, a good selectivity toward a number of anions and a fast response time of 70 s. It was used for a period of five weeks for the quantitative determination of citrate from synthetic samples and food supplements.

Other sensitive materials [58,59,60,61] used over time for the potentiometric detection of citrate ion, gave similar [59] or lower performances regarding LOD than our sensor, as can be seen in

Table 7. Sensitive materials used in the potentiometric detection of citrate.

Sensitive Material/Type of Electrode	Polymeric Membrane/Plasticizer	Membrane Composition (wt%)	Detection Domain (mol/L)/Medium	LOD (mol/L)	Ref.
Nano-clinoptilolite particles stabilized with hexadecyltrimethyl ammonium (SMZ)	Polyvinyl chloride (PVC) /dioctyl phthalate (DOP)	SMZ/PVC/DOP = 10:30:60	5.0 × 10-5–5.0 × 10-2Pharmaceutical tablets	1.3 × 10-5	[58]
Graphene functionalized with zinc monoamino- phthalocyanine (ZnMAPc-G)	PVC/ dioctyl sebacate (DOS)	PVC/DOS/ZnMAPc-G = 31.1: 58.9:10	8 × 10−7–1 × 10−2 Pharmaceuticals	5 × 10−7	[59]
Bis(triphenyl-phosphoran- iylden) ammonium chloride (BTPPIA)	PVC/ bis (2-ethylhexyl) sebacate (bEHS)/ p-tert-octylphenol -(TOP)	BTPPIA/bEHS/ TOP/PVC= 1.3:60.6:6.5: 31.6	1.0 × 10−4 to 1.0 × 10−2 Soft drinks and pharmaceuticals	5 × 10−5	[60]
Mono- and di-nuclear copper(II) complex with salicylaldehyde-semicarbazone ligand (CuLBr)	PVC/ DOP, Trioctylmethyl ammonium chloride (MTOAC)	PVC/DOP/ CuLBr/MTOAC = 30.3: 62: 4: 3.7	1.0 × 10−7−1.0 × 10−1In juices	6.3 × 10−8	[61]
Pt(II)-5-(4-carboxyphenyl)-10,15,20-tris(4-phenoxyphenyl) -porphyrin (Pt(II)-COOH-TPOPP)	PVC/ dioctyl sebacate (DOS)	Pt(II)-COOH-TPOPP/PVC/DOS = 1:33:66	5.0 × 10−7–1.0 × 10−1Synthetic samples and food supplements	3 × 10−7	This work

.
