Article

Detection of Xylene Using Ni(OH)2-Enhanced Co3O4 Nanoplate via p–n Junctions

by
Mengran Ran
1,
Zhenyu Yuan
1,
Hongmin Zhu
1,
Hongliang Gao
1 and
Fanli Meng
1,2,3,4,*
1
College of Information Science and Engineering, Northeastern University, Shenyang 110819, China
2
Hebei Key Laboratory of Micro-Nano Precision Optical Sensing and Measurement Technology, Qinhuangdao 066004, China
3
National Frontiers Science Center for Industrial Intelligence and Systems Optimization, Northeastern University, Shenyang 110819, China
4
Key Laboratory of Data Analytics and Optimization for Smart Industry, Northeastern University, Ministry of Education, Shenyang110819, China
*
Author to whom correspondence should be addressed.
Chemosensors 2023, 11(11), 568; https://doi.org/10.3390/chemosensors11110568
Submission received: 12 October 2023 / Revised: 7 November 2023 / Accepted: 16 November 2023 / Published: 20 November 2023
(This article belongs to the Special Issue Chemical Sensors for Volatile Organic Compound Detection, 2nd Edition)
Browse Figures
Versions Notes

Abstract

:
This study reports a novel Ni(OH)2/Co3O4 heterostructured nanomaterial synthesized through a simple two-step hydrothermal method combined with subsequent heat treatment. The Ni(OH)2/Co3O4 heterostructured nanomaterial showed excellent performance in the detection of xylene gas. XRD, SEM, and EDS characterized the crystal structure, microstructure, and composition elements of Co3O4 and Ni(OH)2/Co3O4, and the gas sensing properties of the Co3O4 sensor and Ni(OH)2/Co3O4 sensor were systematically tested. The test results indicate the Ni(OH)2/Co3O4 sensor has an optimal operating temperature of 175 °C, which is 10 °C lower than that of the Co3O4 sensor; has a response of 14.1 to 100 ppm xylene, which is 7-fold higher than that of the Co3O4 sensor; reduces the detection limit of xylene from 2 ppm to 100 ppb; and has at least a 4-fold higher response to xylene than other gases. The Ni(OH)2/Co3O4 nanocomposite exerts the excellent catalytic performance of two-dimensional nanomaterial Ni(OH)2, solves the deficiency in the electrical conductivity of Ni(OH)2 materials, and realizes the outstanding sensing performance of xylene, while the construction of the p–n heterojunction between Ni(OH)2 and Co3O4 also improves the sensing performance of the material. This study provides a strategy for designing high-performance xylene gas sensors using two-dimensional Ni(OH)2 materials.

1. Introduction

Xylene, as a toxic, flammable, volatile organic substance, is extensively applied in paint, chemical, automotive, and other fields [1,2,3]. Xylene is flammable and explosive; long-term exposure can cause cancer, high-concentration exposure can harm the skin and eyes, and inhalation of xylene can jeopardize the human respiratory system and nervous system and cause irreversible damage [4]. The detection of xylene gas is essential. Currently, there are already available detection devices such as fiber optic sensors [5], optical waveguide sensors [6], gas chromatography analyzers [7], electrochemical sensors, etc. However, these devices have large sizes and high costs, which are not conducive to portability. Semiconductor sensors have gained much attention for their low cost, good portability, and online operation [8,9,10]. Many semiconductor sensors for xylene have been developed. Ka Yoon Shin et al. [11] synthesized Ag-Co3O4 nanomaterials with a unique core–shell structure using chemical synthesis, which lowered the optimum operating temperature and improved the response to xylene gas compared to pristine Co3O4. The fabricated sensors had an optimum working temperature of 250 °C, and their response to 50 ppm xylene at 250 °C was 2.47; this enhanced sensing performance is probably due to the high specific surface area of the Ag-Co3O4 nanomaterials, the catalytic effect of the Ag nanoparticles, and the formation of heterojunctions between Ag and Co3O4. Fengdong Qu et al. [12] synthesized Co3O4@NiMoO4 core–shell nanowires using a two-step hydrothermal route to fabricate sensors for xylene detection. The fabricated sensor showed good gas-sensing properties at 255 °C, its response to 100 ppm xylene was 24.6, and it presented good selectivity for xylene. The mechanism of the increased gas-sensing performance is probably due to the formation of a heterojunction between Co3O4 and NiMoO4, and the synergistic catalytic effect between them. Table 1 lists some of the reported xylene sensors and their gas-sensing performance. Although these sensors have excellent performance, their operating temperatures are generally high, which, on the one hand, is not conducive to lowering power consumption. On the other hand, excessively high temperatures can lead to the explosion of VOC gases. Lower operating temperatures mean that more efficient catalytic materials are needed, and this is significant for the low-temperature detection of xylene.
Recently, novel two-dimensional (2D) materials have gained more and more attention from researchers, which is attributed to their unique electronic structure and abundant specific surface area [13,14,15], and 2D materials have been applied in catalysis [16], solar power [17], and gas sensitization [18,19,20]. Two-dimensional materials such as graphene, transition metal sulfides, and carbides have received extensive and sustained attention [21,22,23,24,25]. In recent years, two-dimensional layered double hydroxides (LDH) [26,27,28] have gradually come into the limelight, and have been applied in the fields of catalysis and electrochemistry due to their unique electronic structure, high activity, and superior catalytic performance. LDH is a 2D layered ionic crystal consisting of positively charged metal layers and anions used for charge balance between the layers, which is rich in defects and active sites [29] and is a potential material for gas sensing. Flaky Ni(OH)2 has a structure similar to hydrotalcite, which has excellent catalytic properties, but its poor electrical conductivity restricts the utilization of this material in gas sensors [30]. Utilizing the outstanding catalytic properties of Ni(OH)2 holds the promise of solving this problem of insufficient sensitivity of the sensor to xylene due to insufficient catalytic properties, and the problem of insufficient conductivity of the Ni(OH)2 material can be solved through constructing heterojunctions. Taking into account the conductivity issue, spinel Co3O4, with good conductivity, becomes an ideal material for constructing heterojunctions [31,32,33]. The special flaky spinel structure of Co3O4 can be used as a suitable loading substrate, which can fully solve the problem of poor conductivity of Ni(OH)2 and exert the catalytic effect of Ni(OH)2. Although there are fewer related reports, in-depth study of the effect of Ni(OH)2/Co3O4 nanomaterials on the detection of xylene is of great significance.
In this work, a Ni(OH)2/Co3O4 heterojunction nanomaterial was synthesized through a two-step hydrothermal route. The synthesized material exploits the excellent catalytic performance of Ni(OH)2, solves the problem of the insufficient electrical conductivity of Ni(OH)2, and achieves excellent sensing performance for xylene, while the construction of the p–n junction between Ni(OH)2 and Co3O4 also improves the sensing performance. The Ni(OH)2/Co3O4 sensor has an optimal operating temperature of 175 °C, which is 10 °C lower than that of the Co3O4 sensor; has a response of 14.1 to 100 ppm xylene, which is 7-fold higher than that of the Co3O4 sensor; reduces the detection limit of xylene to 100 ppb; and has a response to xylene at least 4-fold higher than several other gases (ammonia, glacial acetic acid, dibutyl ketone, formaldehyde, benzene, toluene, styrene, and ethanol). Finally, the mechanism of the superior performance of Ni(OH)2/Co3O4 as a xylene sensor was analyzed in detail. This work utilizes two-dimensional Ni(OH)2 materials to provide a strategy for designing high-performance xylene sensors.
Table 1. Xylene gas sensors have been reported.
Table 1. Xylene gas sensors have been reported.
MaterialsConcentration
(ppm)		Temperature (°C)Response (Rg/Ra)Lower Detection Limit (ppm)Reference
C/Co3O410018317.621[32]
W-doped NiO2003758.7415[34]
NiCo2O4/WO310030015.695[35]
CuO/WO3502606.360.3[36]
Ag-Co3O4502502.470.14[11]
Co3O4@NiMoO410025524.60.42[12]
Ni(OH)2/Co3O410017514.10.1This work

2. Materials and Experimental Details

2.1. Experimental Materials Overview

The reagents used in the experiments included cobalt nitrate (Co(NO3)2·6H2O, Macklin Biochemical Technology Co., Ltd., Shanghai, China), anhydrous sodium carbonate (Na2CO3, Sinopharm Chemical Reagent Co., Ltd., Shanghai, China), nickel chloride (NiCl2·6H2O, Sinopharm Chemical Reagent Co., Ltd., Shanghai, China), urea (CO(NH2)2, Xiya Chemical Technology, Shandong, China) and cetyltrimethyl ammonium bromide (CTAB, C19H42BrN, PHYGENE, Fujian, China). All the reagents used in the experiments were analytically pure and could be used directly.

2.2. Synthesis of Ni(OH)2 Nanosheets

The Ni(OH)2 nanosheets [37,38] were synthesized through one template-free hydrothermal route with the following experimental protocol: 0.2 g of Na2CO3, 0.2 g of NiCl2·6H2O, and 0.01 g of CTAB were placed in one beaker sequentially, then, 15 mL ultrapure water was poured into the beaker. After that, a rotor of suitable size was placed in the beaker, and the beaker was placed on a magnetic stirrer to stir with 500 r/min speed. After stirring, the solution of the precursor was placed into one 40 mL volume Teflon-lined hydrothermal autoclave reactor, then stored under 180 °C over 6 h. As the hydrothermal process slowed down and the solution utterly cooled down to ambient temperature, the solution was placed into a centrifuge tube. Then, the centrifuge was used to wash the residue to remove impurity ions, and the washing steps were as follows. First of all, ultrapure water was added to the solution to flatten the centrifuge tube; it was placed into the centrifuge and centrifuged for three minutes at 8000 r/min; after the centrifugation was completed, the top layer of the liquid was poured off and the residue left at the bottom. Then, a certain amount of anhydrous ethanol was poured into the centrifuge tube, the centrifuge tube was flattened, and the solution centrifuged. This process was repeated three times to complete the washing process, and then the tube was placed in an oven at 60 °C to dry overnight. When drying was completed, the precipitate was fully ground in a mortar, placed into a ceramic boat, and spread evenly. Finally, the ceramic boat was placed in a muffle furnace to heat up to 200 °C for 190 min, and kept at 200 °C for 120 min. Finally, greenish Ni(OH)2 was obtained.

2.3. Synthesis of Co3O4 Nanoplates and Ni(OH)2/Co3O4 Nanomaterials

Co3O4 nanoplates [39,40,41] and Ni(OH)2/Co3O4 nanocomposites [42,43] were prepared using a simple hydrothermal route, as described below. Briefly, 0.00624 g of Ni(OH)2 nanomaterials was measured and poured into a beaker containing 24 mL of ultrapure water for dissolution, after which the beaker was placed into an ultrasonic machine to sonicate the material for 10 min; after completion of the sonication, the beaker was placed onto a magnetic stirrer for stirring. Under continuous stirring, 1.14 g of Co(NO3)2·6H2O and 0.86 g of CO(NH2)2 were added to the solution and stirred well. Then, the solution of the precursor was placed into a 40 mL Teflon-lined hydrothermal autoclave reactor and reacted at 180 °C over 16 h. As the hydrothermal process slowed down and the solution utterly cooled down to ambient temperature, the washing and drying process, as described above, was repeated. The dried residue was placed into a mortar, fully ground, and evenly spread into a porcelain boat. Finally, the ceramic boat was placed in a muffle furnace to heat up to 250 °C for 150 min, and kept at 250 °C for 115 min to obtain the black Ni(OH)2/Co3O4 nanomaterials. The same method was used to prepare Co3O4 nanoplate materials, except that Ni(OH)2 nanomaterials were not added during the fabrication process, and black Co3O4 nanomaterials were finally obtained.

2.4. Material Characterization Methods

The morphology and microstructure of the nanomaterials were observed using scanning electron microscopy (SEM, SSX-550, Shimadzu Corporation, Japan) attached with energy dispersive spectroscopy (EDS), the elemental composition of the materials was determined using EDS, and the crystal structure of the materials was characterized using X-ray diffractometry (XRD, XRD-7000, Shimadzu Corporation, Kyoto, Japan), using Cu Kα radiation (λ = 0.15418 nm) with a 5°/min scanning speed and a 30~80° scanning range.

2.5. Gas Sensor Fabrication and Gas Sensing Performance Test

The detailed construction of the gas sensor is given as Figure 1a. It is composed of a sensor base, a ceramic tube, and a heating resistance wire. The heating resistance wire is a Ni-Cr alloy wire with a resistance value of 30 Ω, remaining constant during the heating process. The ceramic tube is made of Al2O3, which has a diameter of about 1 mm and a length of about 4 mm, with two rings of gold electrodes on the surface. The width of the individual gold electrodes is about 0.6 mm, the distance of the gold electrodes to each other is approximately 2 mm, two platinum wires are led out from the individual gold electrodes, and the length of the platinum wires is 5~6 mm.
The sensor needs to be coated with sensitive materials and aged before the gas sensing performance test, and the specific details are as follows [44]. Firstly, 2~10 mg of gas-sensitive material was taken into a 1.5 mL EP tube. Secondly, 5~10 μL of anhydrous ethanol was added to the EP tube using a pipette gun. Thirdly, the EP tube was placed on an oscillator to disperse the mixture to a gelatinous state. In the fourth step, a pipette gun was used to suck the gelatinous mixture and uniformly coat it on the ceramic tube to form a sensitive layer. Finally, to enhance the sensor’s stability, the well-coated sensor was placed at 180 °C for aging for 24 h.
The details of the gas sensing performance test system platform are shown in Figure 1b, composed of a gas chamber, a gas cylinder, a data acquisition device, a heating source, and a PC terminal. The volume of the gas chamber is 1000 mL, and it has a gas injection port and a gas discharge port. The gas cylinder is filled with dry synthetic air, of which 21% and 79% are oxygen and nitrogen, respectively. A DC power supply provides the working temperature for the sensor, during the gas sensing test, the sensor is inserted into the PCB board at the bottom of the gas chamber, and the two electrodes welded together with the ends of the resistance wire on the sensor are connected to the DC power supply (the heating resistance wire is the same type of nickel–chromium alloy resistance wire, which has a certain resistance value). The temperature of the heating resistor wire is the working temperature of the sensor, and the temperature of the heating resistor wire and the power supply power have a corresponding one-to-one relationship; when the power applied to the heating resistor wire is stable, the temperature of the resistor wire is a fixed value, so that the resistor wire can be applied to the different power to regulate the sensor’s operating temperature. A digital source meter collects the data from the sensor and processes it through gas-sensitive performance test software (Single channel voltage source v1.0) at the computer terminal, ultimately displaying the resistance change curve of the sensor on the software interface. The model of the DC power supply used in this experiment is RIGOL DP832A (DP832A, RIGOL, Beijing, China), and the model of the voltage source used is KEYSIGHT B2902A (B2902A, Keysight Technologies, Santa Rosa, CA, USA). In the process of the gas sensing performance test [44,45], the sensor is first inserted into the gas chamber, and then the gas chamber is closed. Then, the working temperature exerted on the sensor is regulated through the control of the DC power supply. After that, the valve on the pipeline connecting the gas cylinder and the gas chamber is opened, and then the synthetic air enters the gas chamber through the pipeline. After continuously blowing for 3 to 4 min, the synthetic air will fill the gas chamber and close the valve. The procedure for extracting a certain concentration of a known gas with a syringe is as follows. First, the volume of the target gas required to form a certain concentration of the target gas in the gas chamber is calculated using the static gas–liquid distribution method, after which the corresponding volume of saturated vapor gas is extracted from the liquid bottle of the target gas with a syringe and injected into the gas chamber through the inlet port of the gas chamber, where it rapidly diffuses into the gas of the required concentration. When the sensor resistance is stable and unchanged, a certain amount of target gas is extracted from the gas cylinder with a syringe and injected into the gas chamber from the air inlet. When the target gas diffuses into the desired concentration in the gas chamber, the interaction of the target gas molecules with the surface of the gas sensor causes the sensor resistance to change. The gas sensing performance test software records the sensor resistance change during the whole process. This paper defines the gas sensor response as S = Rg/Ra, with Ra and Rg being the sensor resistance when it reaches a steady state in the air and in the target gas, respectively. The response time (recovery time) of a gas sensor is defined as 90% of the time it takes for the resistance of the sensor to change after the adsorption (desorption) of the target gas on the surface of the sensor until the resistance value reaches a steady state.
The concentration (C, ppm) of the individual target gases during the gas sensitivity test is obtained using Equation (1) [33]:
C = 1000 × ( 22.4 × Φ × ρ × V 1 ) M × V 2
In the above equation, Φ and ρ are the purity and density of the desired liquid (g/mL), V 1 and V 2 are the volume of the liquid (μL) and the volume of the gas chamber (L), respectively, and M is the molar mass of the desired liquid (g/mol).

3. Results and Discussion

3.1. Characterization of Material Structure and Morphology

Figure 2 is the SEM images of Ni(OH)2, Co3O4 and Ni(OH)2/Co3O4 nanomaterials. Figure 2a presents the SEM image of Ni(OH)2 sample, and it can be observed that Ni(OH)2 nanosheets are composed of many ultrathin nanosheets laminated with each other, which are of different sizes. Figure 2b is the SEM image of Co3O4 sample. Pure Co3O4 is in the form of irregularly shaped plate-like structures, partially stacked together and of different sizes. Figure 2c shows the SEM image of Ni(OH)2/Co3O4 composite; the doping of Ni(OH)2 has no significant effect on the morphology of the material, but it can be seen from the figure that the average thickness of the Ni(OH)2/Co3O4 composite is smaller than that of the Co3O4 sample. Therefore, the Ni(OH)2/Co3O4 composites are able to provide more surface active sites for gas adsorption per unit volume, which is favorable for the reaction of gas on the surface of the gas-sensitive materials.
Typical XRD patterns of Co3O4, Ni(OH)2, and Ni(OH)2/Co3O4 nanomaterials are presented in Figure 3. The wide diffraction peaks of 31.3°, 36.9°, 44.88°, 59.45°, and 65.34° correspond to the (220), (311), (400), (511) and (440) diffraction planes of the original crystal structure of Co3O4, respectively, and the data are entirely in line with JCPDS 76-1802. The wide diffraction peaks of 33.41°, 38.61°, 52.21°, 59.60°, and 62.73° correspond to the (100), (002), (102), (003), and (111) diffraction planes of the original crystal structure of Ni(OH)2, respectively, and the data correspond exactly to JCPDS file No.02-1112. Ni(OH)2/Co3O4 composites have the same diffraction peaks as pure Co3O4, but the diffraction peak at 33.41° corresponds to the (100) point of Ni(OH)2, demonstrating the presence of Ni(OH)2 in the composites and the incorporation of Ni(OH)2 did not disrupt the lattice structure of Co3O4. The average grain sizes of Ni(OH)2 nanosheets, Ni(OH)2/Co3O4 composites, and Co3O4 nanoplates were determined using the Debye-Scherrer formula [46], and were 10.00 nm, 9.93 nm and 9.38 nm, respectively. There were not any other diffraction peaks found in the XRD pattern, meaning that the synthesized material was high in purity.

3.2. Xylene Gas-Sensing Properties

The main detected gas is xylene. In the practical application of gas sensors, the optimum working temperature is an essential index to evaluate the sensing performance of gas sensors. Therefore, the sensors were tested over a temperature range of 100 °C to 250 °C to find the optimum working temperature of the synthesized Co3O4-based gas sensors. The working concentration of the sensing response was chosen to be 100 ppm, and Figure 4a presents the sensor responses of Co3O4 and Ni(OH)2/Co3O4 gas sensors for 100 ppm xylene gas of 100~250 °C. The response curve of Ni(OH)2 is not shown, because pure Ni(OH)2 has almost no response to xylene. From the figure, it can be observed that the response curves of both sensors show a similar trend with the increase in the working temperature, that is, the response of the sensor gradually increases to a peak value as the working temperature increases, and the response of the sensor decreases gradually as the working temperature is further increased. The Co3O4 gas sensor showed the largest response to xylene at 185 °C, with a response value of 2.08; the Ni(OH)2/Co3O4 gas sensor showed the largest response to xylene at 175 °C, with a response value of 14.1. The Ni(OH)2 nanomaterials by themselves did not have a response to xylene, and the response was enhanced by about seven times after Ni(OH)2 decorated Co3O4, meaning the addition of Ni(OH)2 enhances the reaction of Co3O4 nanomaterials to xylene gas. The mechanism of the sensor response changes with temperature can be explained below. When at a lower temperature, the response of the sensor becomes larger as the working temperature increases, which may be attributed to two factors: firstly, as the operating temperature increases, the type of adsorbed oxygen on the surface of the material is changed from O2− to O−. The oxidizing ability of O− is higher than that of O2−. Therefore, as the temperature increases, the material becomes increasingly sensitive to the presence of xylene, a reducing gas, contributing to an increased response [47,48]. Secondly, with the increase in working temperature, the thermal energy of xylene gas molecules increases steadily, and more and more xylene gas molecules are able to surpass the activation energy barrier and react in redox reactions with the chemically adsorbed oxygen of the gas-sensitive material, causing an increase in response [49]. As the temperature rises to 175 °C, the maximum response is reached, and then the response decreases as the temperature continues to increase, which may be due to the desorption process of the previously adsorbed oxygen ions, causing a decrease in the amount of adsorption active sites for xylene gas molecules. Another possibility is that at high temperatures, xylene gas molecules have a smaller adsorption capacity than desorption capacity, and gas molecules adsorbed on sensitive materials tend to escape before charge transfer, reducing the utilization of the sensitive material and resulting in a reduced response [36].
In order to further examine the selectivity of Co3O4 and Ni(OH)2/Co3O4 nanomaterials for different gases, which refers to the immunity of the sensor to other gases, the response of Co3O4 and Ni(OH)2/Co3O4 sensors to 100 ppm concentration of ammonia, glacial acetic acid, xylene, dibutyl ketone, formaldehyde, benzene, toluene, styrene, and ethanol at their best working temperature is presented in Figure 4b. The Ni(OH)2/Co3O4 sensors showed a significant increase in response to all target gases, with the most significant increase in response to xylene, and the response values for xylene were significantly higher than those for the other gases. The Ni(OH)2/Co3O4 composite-based sensors showed better selectivity to xylene gas.
Figure 5a,b represent the response recovery curves of Co3O4 and Ni(OH)2/Co3O4 sensors at different xylene concentrations from 100 ppm to 100 ppb at their best operating temperature, respectively. As can be observed, the response of both the Co3O4 sensor and the Ni(OH)2/Co3O4 sensor showed a gradual decrease in the detected gas concentration. The responses of Co3O4 were 2.28 (100 ppm), 1.67 (50 ppm), 1.25 (20 ppm), 1.18 (10 ppm), 1.14 (5 ppm), and 1.1 (2 ppm), and the responses of Ni(OH)2/Co3O4 were 13.1 (100 ppm), 9.7 (50 ppm), 4.2 (20 ppm), 2.6 (10 ppm), 2.3 (5 ppm), 2 (2 ppm), 1.82 (500 ppb), 1.58 (200 ppb), 1.4 (100 ppb), respectively. From the above results, the improved sensor response is increased, the lower limit of detection is reduced, and the minimum concentration of detectable xylene is reduced from 2 ppm to 100 ppb, which means that ppb-level detection of xylene is accomplished. Ni(OH)2/Co3O4-based gas sensors can recognize the early warning of the presence of xylene gas at low concentrations. Figure 5c presents the curve of linear fitting with the average response value of Ni(OH)2/Co3O4 sensor at different xylene concentrations. The curve shows a good linear correlation relationship of xylene gas concentration with the sensor sensitivity, which indicates that the stability of the sensor is good and the detection range is enormous.
Response recovery characteristic is another vital parameter of gas sensors, and in practical applications, the sensors are required to have good response and recovery characteristics. Figure 6a,b presents the response recovery curves of 100 ppm xylene for Co3O4 nanomaterials and Ni(OH)2/Co3O4 composites at 185 °C and 175 °C, respectively. Since the sensors are in a 100 ppm xylene atmosphere, the response and recovery times are 100 s and 40 s for the Co3O4 sensor and 90 s and 75 s for the Ni(OH)2/Co3O4 sensor, respectively. Compared with the Co3O4 sensor, the Ni(OH)2/Co3O4 sensor’s response time is reduced by 10 s, and the recovery time is increased by 35 s. The longer recovery time of the Ni(OH)2/Co3O4 sensor is probably due to its lower operating temperature, making it harder for the xylene molecules to desorb from the surface of the material, leading to a longer recovery time. For practical applications, the response recovery characteristic of the sensor is still unsatisfactory, so in the future, this may be improved by adding noble metals or other substances.
In order to investigate the interference of humidity in the sensor, the sensor was exposed to 95% humid air. Figure 6c compares the response of the Ni(OH)2/Co3O4 sensor to 100 ppm xylene in dry air (0% RH) versus humid air (40% RH) at 175 °C. The response of the sensor to xylene decreased by 84.4% compared to dry air, and the humid atmosphere reduced the response of the sensor due to the fact that H2O molecules can occupy the adsorption sites on the surface of the sensitive material, reducing the available sites for xylene gas molecules to be adsorbed, and ultimately exhibiting a lower response in humid air, as confirmed by previous studies [50,51].

4. Xylene Sensing Mechanism

Ni(OH)2 is an n-type semiconductor, and Co3O4 is a typical p-type semiconductor. From the above results, the Ni(OH)2/Co3O4 sensor resistance increases after exposure to xylene gas, which indicates that it exhibits typical p-type semiconductor characteristics. The widely accepted gas-sensing mechanism of metal oxide semiconductor gas sensors is the surface-adsorbed oxygen model [19,47,48]. Specifically, when the target gas enters the gas chamber, the target gas molecules will react with chemically adsorbed oxygen present on the gas-sensitive material to cause charge transfer, which in turn will cause a change in the resistance of the sensor. As a typical p-type semiconductor, most of the carriers in Co3O4 are holes. When the sensor is placed in the air, the oxygen molecules attach to the surface of Co3O4 to form chemisorbed oxygen, and in the process, Co3O4 loses electrons to form a hole accumulation layer (HAL), which reduces the sensor resistance. The type of chemisorbed oxygen ions is dependent on the sensor working temperature, and the adsorbed oxygen exists in the form of O2− [36,49], as the working temperature is below 100 °C.
O 2 ( gas ) → O 2 ( ads )
O 2 ( ads ) + e − → O 2 − ( ads )
When the operating temperature is in the range of 100~300 °C, the adsorbed oxygen is converted from O2− to O−.
O 2 − ( ads ) + e − → 2 O − ( ads )
When the operating temperature is greater than 300 °C, the adsorbed oxygen is converted into O2−.
O − ( ads ) + e − → O 2 − ( ads )
Because the working temperature of the sensor is at 100~300 °C, chemisorbed oxygen exists mainly in the form of O−.
When the sensor lies in a xylene atmosphere, the adsorbed oxygen reacts with the xylene gas molecules in a redox reaction, and the electrons captured by the adsorbed oxygen return to the conduction band of the material, which gradually narrows the hole accumulation layer and leads to a larger resistance of the sensor. The chemical reaction between adsorbed oxygen ions and the xylene molecules occurs as follows [32,33]:
C 8 H 10 ( ads ) + 21 O − → 8 C O 2 ( gas ) + 5 H 2 O ( gas ) + 21 e −
In addition, another essential factor for the sensor performance enhancement is the formed p–n heterojunction between Ni(OH)2 and Co3O4 [52,53]. The energy band diagram of the Ni(OH)2/Co3O4 xylene gas sensor in air and in xylene is shown in Figure 7. The work function of Co3O4 is 6.03 eV, and of Ni(OH)2 is 3.7 eV, and there is a Fermi energy level difference between the two, so that when Ni(OH)2 is in contact with Co3O4, the electrons of Ni(OH)2 migrate toward Co3O4, and the holes flow from Co3O4 to Ni(OH)2 until they form the same Fermi energy level. At this point, a self-constructed electric field is created at the interface between the two. As the electrons of Ni(OH)2 complex with the holes of Co3O4, a depletion layer is formed at the Ni(OH)2/Co3O4 p–n junction interface, resulting in a bending of the energy bands. As electrons migrate toward Co3O4, more electrons are trapped by O−(ads), causing an increased adsorbed oxygen on the surface of the gas-sensitive material, causing a large depletion of holes in Co3O4 and leading to the increased resistance of the sensor. When the sensor is placed in a xylene atmosphere, the xylene molecules adsorb on the surface of the Co3O4 and react with the oxygen ions present on the Co3O4 in a redox reaction, at which time the electrons captured by the chemisorbed oxygen are returned to the conduction band of the material. As the electrons are compounded with the holes, the concentration of holes in Co3O4 decreases, the concentration of electrons in Ni(OH)2 increases, the conduction electrons from Ni(OH)2 enhance the depletion layer, and the potential barrier of the p–n junction increases, which causes composite resistance increases. The decrease in the number of Co3O4 holes and the broadening of the depletion layer at the Ni(OH)2/Co3O4 interface result in a larger resistivity and greater sensitivity.

5. Conclusions

In this paper, Ni(OH)2/Co3O4 nanomaterials were prepared through a two-step hydrothermal route. The materials were characterized using SEM, XRD, and EDS, and the gas-sensing properties of the Ni(OH)2/Co3O4 nanomaterials to xylene gas were explored in detail. In comparison to the original Co3O4 sensor, the Ni(OH)2/Co3O4 sensor has a reduced optimal working temperature (175 °C), superior response (Rg/Ra = 14.1), faster response time (35 s), lower limit of detection (500 ppb), and better gas selectivity. The mechanism of enhanced sensing performance can be summarized as the change in electrical resistance due to the reaction between xylene molecules and the chemisorbed oxygen ions of the material; in addition, the p–n heterojunction formed by the composite of Ni(OH)2 and Co3O4 widens the bandwidth of the electron depletion layer, resulting in an increase in the sensor response to xylene. The incorporation of Ni(OH)2 nanosheets caused a remarkable enhancement of the gas-sensing properties of the origin Co3O4 nanomaterials, which demonstrated that the two-dimensional Ni(OH)2 material is an effective catalyst, thereby providing a strategy for designing high-performance xylene sensors.

Author Contributions

Conceptualization, F.M., Z.Y. and H.G.; methodology, M.R., Z.Y., H.Z., H.G. and F.M.; writing—review and editing, M.R.; funding acquisition, H.G. and F.M.; formal analysis, M.R. and H.Z.; Data curation, M.R.; visualization, M.R. and F.M.; supervision, Z.Y., H.G. and F.M.; investigation, M.R.; resources, F.M.; writing—original draft preparation, M.R.; project administration, Z.Y., H.G. and F.M.; validation, M.R. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Natural Science Foundation of China (62033002 and 62071112), the Fundamental Research Funds for the Central Universities in China (N2201008 and N2304024), the 111 Project (B16009), and the Hebei Natural Science Foundation (F2020501040).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study.

Data Availability Statement

The data of our study are available upon request.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Yassaa, N.; Brancaleoni, E.; Frattoni, M.; Ciccioli, P. Isomeric analysis of BTEXs in the atmosphere using β-cyclodextrin capillary chromatography coupled with thermal desorption and mass spectrometry. Chemosphere 2006, 63, 502–508. [Google Scholar] [CrossRef]
  2. Zhang, J.; Zhang, K.; Liu, S.; Liang, X.; Zhang, M. Reasonable construction of 2D porous NiO/Co3O4 nanosheets for efficient detection of xylene. Sens. Actuators B Chem. 2023, 377, 133002. [Google Scholar] [CrossRef]
  3. Mirzaei, A.; Kim, J.-H.; Kim, H.W.; Kim, S.S. Resistive-based gas sensors for detection of benzene, toluene and xylene (BTX) gases: A review. J. Mater. Chem. C 2018, 6, 4342–4370. [Google Scholar] [CrossRef]
  4. Moon, Y.K.; Kim, K.B.; Jeong, S.-Y.; Lee, J.-H. Designing oxide chemiresistors for detecting volatile aromatic compounds: Recent progresses and future perspectives. Chem. Commun. 2022, 58, 5439–5454. [Google Scholar] [CrossRef]
  5. He, T.; Wang, W.; He, B.-G.; Chen, J. Review on Optical Fiber Sensors for Hazardous-Gas Monitoring in Mines and Tunnels. IEEE Trans. Instrum. Meas. 2023, 72, 7003722. [Google Scholar] [CrossRef]
  6. Zhang, Y.; Nizamidin, P.; Abudukeremu, H.; Yimit, A. Optical waveguide xylene gas sensor based on sodium dodecylbenzene sulfonate (SDBS)–TiO2 film for detection at room temperature. Opt. Mater. Express 2020, 10, 2212. [Google Scholar] [CrossRef]
  7. Ferreira, S.L.; dos Santos, A.M.; de Souza, G.R.; Polito, W.L. Analysis of the emissions of volatile organic compounds from the compression ignition engine fueled by diesel–biodiesel blend and diesel oil using gas chromatography. Energy 2008, 33, 1801–1806. [Google Scholar] [CrossRef]
  8. Šutka, A.; Gross, K.A. Spinel ferrite oxide semiconductor gas sensors. Sens. Actuators B Chem. 2016, 222, 95–105. [Google Scholar] [CrossRef]
  9. Batra, A.K.; Chilvery, A.K.; Guggilla, P.; Aggarwal, M.; Currie, J.R. Micro- and Nano-Structured Metal Oxides Based Chemical Sensors: An Overview. J. Nanosci. Nanotechnol. 2014, 14, 2065–2085. [Google Scholar] [CrossRef]
  10. Souri, M.; Salar Amoli, H. Gas sensing mechanisms in ABO3 perovskite materials at room temperature: A review. Mater. Sci. Semicond. Process. 2023, 156, 107271. [Google Scholar] [CrossRef]
  11. Shin, K.Y.; Mirzaei, A.; Lee, H.Y.; Bang, J.H.; Oum, W.; Kim, E.B.; Kim, H.M.; Majhi, S.M.; Kim, S.S.; Kim, H.W. Formation of nanograined Ag-Co3O4 core@shell structure to achieve enhanced xylene sensing characteristics. Sens. Actuators B Chem. 2023, 392, 134049. [Google Scholar] [CrossRef]
  12. Qu, F.; Zhang, S.; Zhang, B.; Zhou, X.; Du, S.; Lin, C.-T.; Ruan, S.; Yang, M. Hierarchical Co3O4@NiMoO4 core-shell nanowires for chemiresistive sensing of xylene vapor. Microchim. Acta 2019, 186, 222. [Google Scholar] [CrossRef]
  13. Zhao, M.; Huang, Y.; Peng, Y.; Huang, Z.; Ma, Q.; Zhang, H. Two-dimensional metal–organic framework nanosheets: Synthesis and applications. Chem. Soc. Rev. 2018, 47, 6267–6295. [Google Scholar] [CrossRef] [PubMed]
  14. Tyagi, D.; Wang, H.; Huang, W.; Hu, L.; Tang, Y.; Guo, Z.; Ouyang, Z.; Zhang, H. Recent advances in two-dimensional-material-based sensing technology toward health and environmental monitoring applications. Nanoscale 2020, 12, 3535–3559. [Google Scholar] [CrossRef] [PubMed]
  15. Sun, Z.; Liao, T.; Kou, L. Strategies for designing metal oxide nanostructures. Sci. China Mater. 2016, 60, 1–24. [Google Scholar] [CrossRef]
  16. Xu, C.; Zhang, M.; Yin, X.; Gao, Q.; Jiang, S.; Cheng, J.; Kong, X.; Liu, B.; Peng, H.-Q. Recent advances in two-dimensional nanomaterials as bifunctional electrocatalysts for full water splitting. J. Mater. Chem. A 2023, 11, 18502–18529. [Google Scholar] [CrossRef]
  17. Ayyub, M.M.; Singh, R.; Rao, C.N.R. Hydrogen Generation by Solar Water Splitting Using 2D Nanomaterials. Sol. RRL 2020, 4, 2000050. [Google Scholar] [CrossRef]
  18. Wang, Y.; Cao, J.; Qin, C.; Zhang, B.; Sun, G.; Zhang, Z. Synthesis and Enhanced Ethanol Gas Sensing Properties of the g-C3N4 Nanosheets-Decorated Tin Oxide Flower-Like Nanorods Composite. Nanomaterials 2017, 7, 285. [Google Scholar] [CrossRef]
  19. Hu, J.; Chen, M.; Rong, Q.; Zhang, Y.; Wang, H.; Zhang, D.; Zhao, X.; Zhou, S.; Zi, B.; Zhao, J.; et al. Formaldehyde sensing performance of reduced graphene oxide-wrapped hollow SnO2 nanospheres composites. Sens. Actuators B Chem. 2020, 307, 127584. [Google Scholar] [CrossRef]
  20. Parichenko, A.; Huang, S.; Pang, J.; Ibarlucea, B.; Cuniberti, G. Recent advances in technologies toward the development of 2D materials-based electronic noses. TrAC Trends Anal. Chem. 2023, 166, 117185. [Google Scholar] [CrossRef]
  21. Munusami, V.; Arutselvan, K.; Vadivel, S.; Govindasamy, S. High sensitivity LPG and H2 gas sensing behavior of MoS2/graphene hybrid sensors prepared by facile hydrothermal method. Ceram. Int. 2022, 48, 29322–29331. [Google Scholar] [CrossRef]
  22. Meng, F.; Li, X.; Yuan, Z.; Lei, Y.; Qi, T.; Li, J. Ppb-Level Xylene Gas Sensors Based on Co3O4 Nanoparticle-Coated Reduced Graphene Oxide(rGO) Nanosheets Operating at Low Temperature. IEEE Trans. Instrum. Meas. 2021, 70, 9511510. [Google Scholar] [CrossRef]
  23. Wang, Z.; Bu, M.; Hu, N.; Zhao, L. An overview on room-temperature chemiresistor gas sensors based on 2D materials: Research status and challenge. Compos. Part B Eng. 2023, 248, 110378. [Google Scholar] [CrossRef]
  24. Hasanzadeh, M.; Shadjou, N.; Mokhtarzadeh, A.; Ramezani, M. Two dimension (2-D) graphene-based nanomaterials as signal amplification elements in electrochemical microfluidic immune-devices: Recent advances. Mater. Sci. Eng. C 2016, 68, 482–493. [Google Scholar] [CrossRef] [PubMed]
  25. Kröner, A.; Hirsch, T. Current Trends in the Optical Characterization of Two-Dimensional Carbon Nanomaterials. Front. Chem. 2020, 7, 927. [Google Scholar] [CrossRef] [PubMed]
  26. Tian, P.; Yu, Y.; Yin, X.; Wang, X. A wafer-scale 1 nm Ni(OH)2 nanosheet with superior electrocatalytic activity for the oxygen evolution reaction. Nanoscale 2018, 10, 5054–5059. [Google Scholar] [CrossRef] [PubMed]
  27. Li, Y.; Xu, J.; Shi, G.; Yue, D. Different crystallographic Ni(OH)2 as highly efficient Fenton-like catalysts for sulfate radical activation. Chem. Commun. 2023, 59, 1341–1344. [Google Scholar] [CrossRef] [PubMed]
  28. Shao, D.; Wang, Q.; Yao, X.; Zhou, Y.; Yu, X.-Y. Phase-engineering of nickel hydroxide in the Ni/Ni(OH)2 interface for efficient hydrogen evolution and hydrazine-assisted water splitting in seawater. J. Mater. Chem. A 2022, 10, 21848–21855. [Google Scholar] [CrossRef]
  29. Zhang, L.-X.; Hu, J.; Jia, Y.-B.; Liu, R.-T.; Cai, T.; Xu, Z.P. Two-dimensional layered double hydroxide nanoadjuvant: Recent progress and future direction. Nanoscale 2021, 13, 7533–7549. [Google Scholar] [CrossRef]
  30. Jeon, S.S.; Lim, J.; Kang, P.W.; Lee, J.W.; Kang, G.; Lee, H. Design Principles of NiFe-Layered Double Hydroxide Anode Catalysts for Anion Exchange Membrane Water Electrolyzers. ACS Appl. Mater. Interfaces 2021, 13, 37179–37186. [Google Scholar] [CrossRef]
  31. Li, Y.; Ma, X.; Guo, S.; Wang, B.; Sun, D.; Zhang, X.; Ruan, S. Hydrothermal synthesis and enhanced xylene-sensing properties of pompon-like Cr-doped Co3O4hierarchical nanostructures. RSC Adv. 2016, 6, 22889–22895. [Google Scholar] [CrossRef]
  32. Wang, W.; Fan, Y.; Sun, D.; Guan, H.; Wang, Q.; Chen, Y.; Ruan, S. Detection of xylene from C/Co3O4 nanocomposites synthesized from double-template using g-C3N4/ZIF-67. Chem. Eng. J. 2023, 466, 143363. [Google Scholar] [CrossRef]
  33. Liu, Y.; Ji, H.; Yuan, Z.; Meng, F. Conductometric butanone gas sensor based on Co3O4 modified SnO2 hollow spheres with ppb-level detection limit. Sens. Actuators B Chem. 2023, 374, 132787. [Google Scholar] [CrossRef]
  34. Feng, C.; Wang, C.; Zhang, H.; Li, X.; Wang, C.; Cheng, P.; Ma, J.; Sun, P.; Gao, Y.; Zhang, H.; et al. Enhanced sensitive and selective xylene sensors using W-doped NiO nanotubes. Sens. Actuators B Chem. 2015, 221, 1475–1482. [Google Scholar] [CrossRef]
  35. Xu, K.; Yang, Y.; Yu, T.; Yuan, C. WO3 nanofibers anchored by porous NiCo2O4 nanosheets for xylene detection. Ceram. Int. 2018, 44, 21717–21724. [Google Scholar] [CrossRef]
  36. Guo, M.; Luo, N.; Chen, Y.; Fan, Y.; Wang, X.; Xu, J. Fast-response MEMS xylene gas sensor based on CuO/WO3 hierarchical structure. J. Hazard. Mater. 2022, 429, 127471. [Google Scholar] [CrossRef]
  37. Zhang, F.; Liu, Y.; Cai, Y.; Li, H.; Cai, X.; Djerdj, I.; Wang, Y. A facial method to synthesize Ni(OH)2 nanosheets for improving the adsorption properties of Congo red in aqueous solution. Powder Technol. 2013, 235, 121–125. [Google Scholar] [CrossRef]
  38. Cheng, X.; Zhang, D.; Liu, X.; Cao, D.; Wang, G. Influence of CTAB on morphology, structure, and supercapacitance of β-Ni(OH)2. Ionics 2014, 21, 533–540. [Google Scholar] [CrossRef]
  39. Adhikari, H.; Ghimire, M.; Ranaweera, C.K.; Bhoyate, S.; Gupta, R.K.; Alam, J.; Mishra, S.R. Synthesis and electrochemical performance of hydrothermally synthesized Co3O4 nanostructured particles in presence of urea. J. Alloys Compd. 2017, 708, 628–638. [Google Scholar] [CrossRef]
  40. Ma, Y.; Ji, B.; Lv, X.; Xiong, D.; Zhao, X.; Xie, H.; Zhang, Z. Confined heterogeneous catalysis by boron nitride-Co3O4 nanosheet cluster for peroxymonosulfate oxidation toward ranitidine removal. Chem. Eng. J. 2022, 435, 135126. [Google Scholar] [CrossRef]
  41. Wang, Z.; Yang, H.; Sun, J.; Xiu, K.; Hu, N.; Zhao, L.; Ma, Y.; Zhu, Y.; Zhang, R.; Yu, W. Defect engineering of two-dimensional ultrathin Co3O4 nanosheets for wireless and high-performance monitoring of the sensing properties of volatile organic compounds. Mater. Today Chem. 2023, 32, 101639. [Google Scholar] [CrossRef]
  42. Cao, J.; Qin, C.; Wang, Y.; Zhang, H.; Zhang, B.; Gong, Y.; Wang, X.; Sun, G.; Bala, H.; Zhang, Z. Synthesis of g-C3N4 nanosheet modified SnO2 composites with improved performance for ethanol gas sensing. RSC Adv. 2017, 7, 25504–25511. [Google Scholar] [CrossRef]
  43. Liu, Y.; Liu, J.; Pan, Q.; Pan, K.; Zhang, G. Metal-organic framework (MOF) derived In2O3 and g-C3N4 composite for superior NOx gas-sensing performance at room temperature. Sens. Actuators B Chem. 2022, 352, 131001. [Google Scholar] [CrossRef]
  44. Liu, Y.; Yuan, Z.; Zhang, R.; Ji, H.; Xing, C.; Meng, F. MoO3/SnO2 Nanocomposite-Based Gas Sensor for Rapid Detection of Ammonia. IEEE Trans. Instrum. Meas. 2021, 70, 9514209. [Google Scholar] [CrossRef]
  45. Liu, Y.; Qin, W.; Yuan, Z.; Gao, H.; Meng, F. Highly Sensitive and Selective NH3 Sensor Based on Au Nanoparticle Loaded MoO3 Nanorods. IEEE Sens. J. 2021, 21, 18435–18442. [Google Scholar] [CrossRef]
  46. Umar, A.; Ibrahim, A.A.; Algadi, H.; Nakate, U.T.; Choudhury, S.P.; Alsuwian, T.; Albargi, H.; Alsaiari, M.A.; Baskoutas, S. Selective ethanol gas sensing performance of flower-shaped CuO composed of thin nanoplates. J. Mater. Sci. Mater. Electron. 2021, 32, 18565–18579. [Google Scholar] [CrossRef]
  47. Zhao, R.; Wang, Z.; Yang, Y.; Xing, X.; Zou, T.; Wang, Z.; Wang, Y. Raspberry-like SnO2 hollow nanostructure as a high response sensing material of gas sensor toward n-butanol gas. J. Phys. Chem. Solids 2018, 120, 173–182. [Google Scholar] [CrossRef]
  48. Liu, J.; Dai, M.; Wang, T.; Sun, P.; Liang, X.; Lu, G.; Shimanoe, K.; Yamazoe, N. Enhanced Gas Sensing Properties of SnO2 Hollow Spheres Decorated with CeO2 Nanoparticles Heterostructure Composite Materials. ACS Appl. Mater. Interfaces 2016, 8, 6669–6677. [Google Scholar] [CrossRef]
  49. Yang, X.; Zhang, S.; Yu, Q.; Zhao, L.; Sun, P.; Wang, T.; Liu, F.; Yan, X.; Gao, Y.; Liang, X.; et al. One step synthesis of branched SnO2/ZnO heterostructures and their enhanced gas-sensing properties. Sens. Actuators B Chem. 2019, 281, 415–423. [Google Scholar] [CrossRef]
  50. Großmann, K.; Wicker, S.; Weimar, U.; Barsan, N. Impact of Pt additives on the surface reactions between SnO2, water vapour, CO and H2; an operando investigation. Phys. Chem. Chem. Phys. 2013, 15, 19151. [Google Scholar] [CrossRef]
  51. Kim, H.W.; Kwon, Y.J.; Mirzaei, A.; Kang, S.Y.; Choi, M.S.; Bang, J.H.; Kim, S.S. Synthesis of zinc oxide semiconductors-graphene nanocomposites by microwave irradiation for application to gas sensors. Sens. Actuators B Chem. 2017, 249, 590–601. [Google Scholar] [CrossRef]
  52. Zhao, L.; Jin, R.; Wang, C.; Wang, T.; Sun, Y.; Sun, P.; Lu, G. Flower-like ZnO-Co3O4 heterojunction composites for enhanced acetone sensing. Sens. Actuators B Chem. 2023, 390, 133964. [Google Scholar] [CrossRef]
  53. Mirzaei, A.; Park, S.; Kheel, H.; Sun, G.-J.; Ko, T.; Lee, S.; Lee, C. Acetone Sensors Based on In2O3–Co3O4 Composite Nanoparticles. J. Nanosci. Nanotechnol. 2017, 17, 4087–4090. [Google Scholar] [CrossRef]
Chemosensors 11 00568 g001

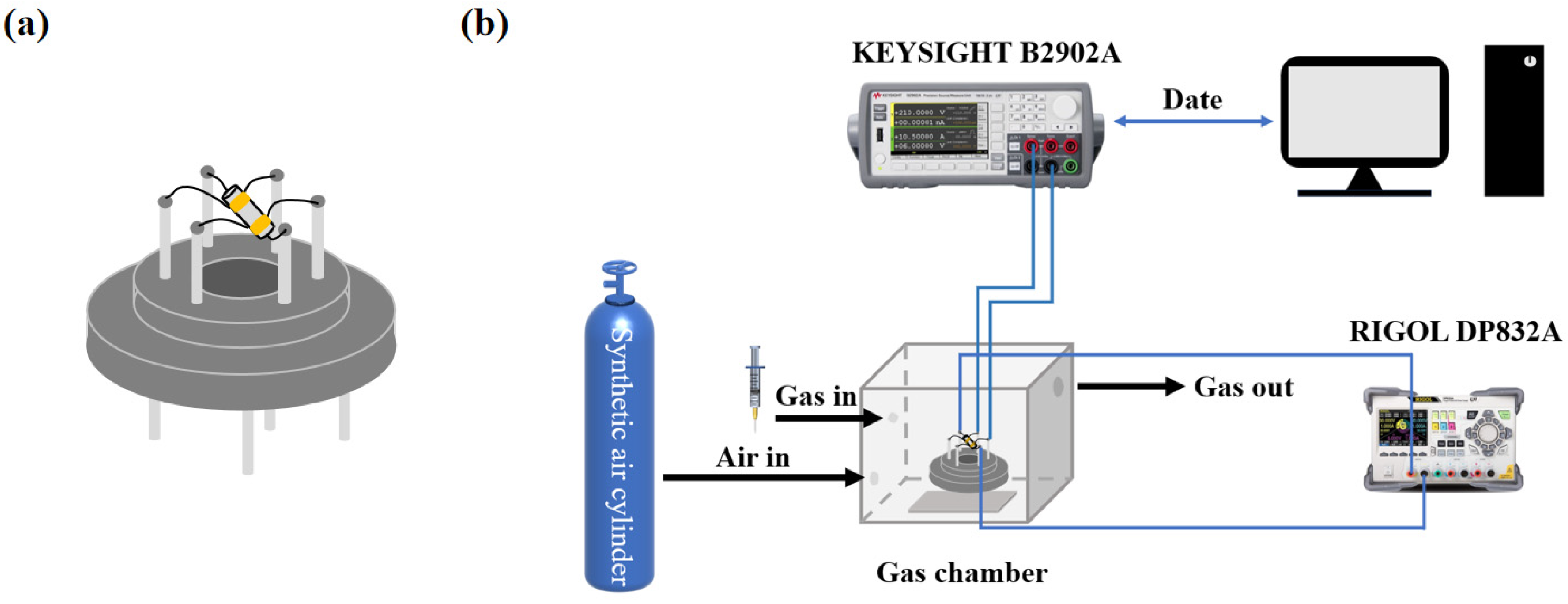

Figure 1. (a) Gas sensor structure; (b) Detailed drawing of the gas detection test system.
Figure 1. (a) Gas sensor structure; (b) Detailed drawing of the gas detection test system.
Chemosensors 11 00568 g001
Chemosensors 11 00568 g002

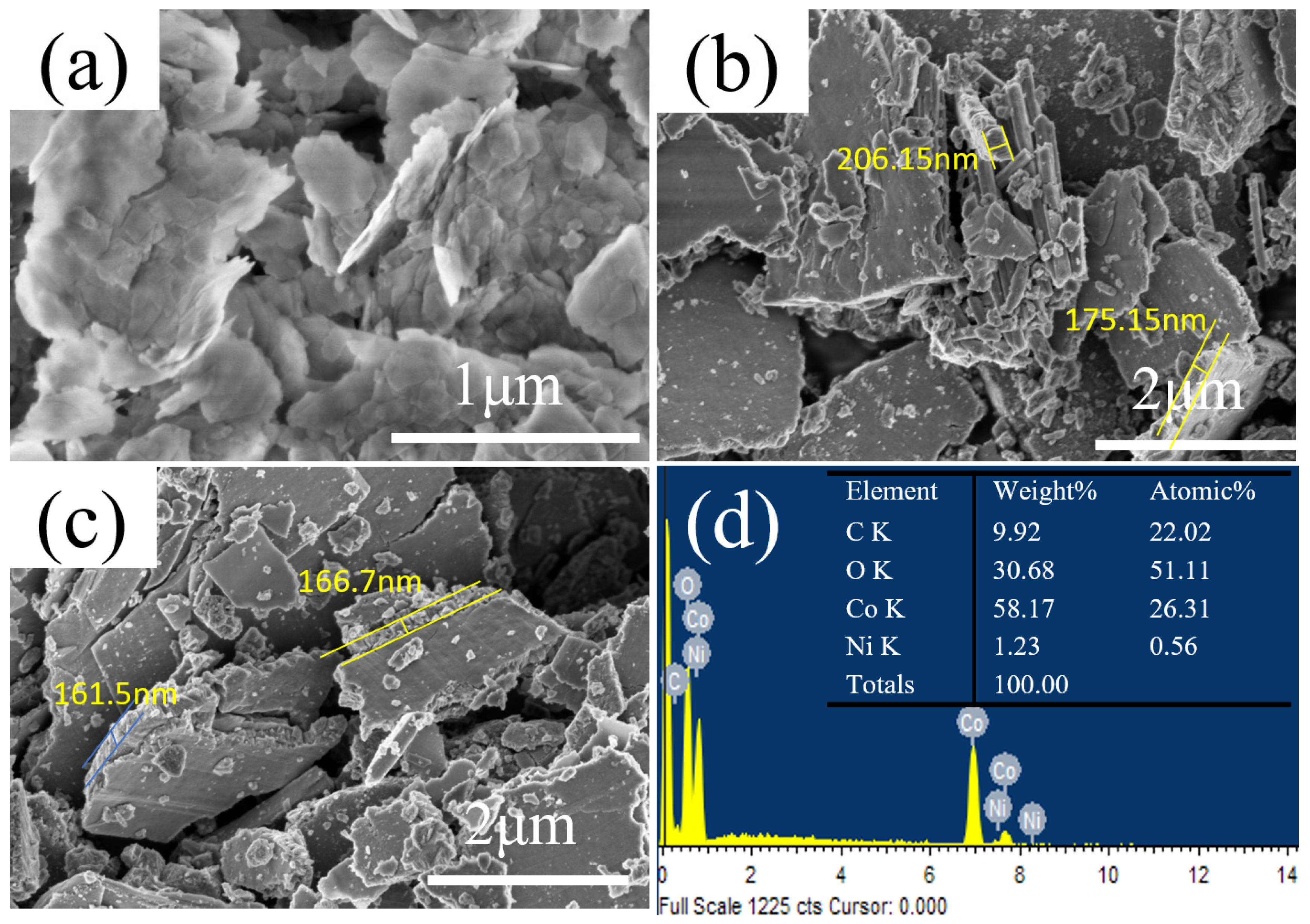

Figure 2. SEM images of (a) Ni(OH)2; (b) Co3O4; (c) Ni(OH)2/Co3O4; (d) EDS of Ni(OH)2/Co3O4.
Figure 2. SEM images of (a) Ni(OH)2; (b) Co3O4; (c) Ni(OH)2/Co3O4; (d) EDS of Ni(OH)2/Co3O4.
Chemosensors 11 00568 g002
Chemosensors 11 00568 g003

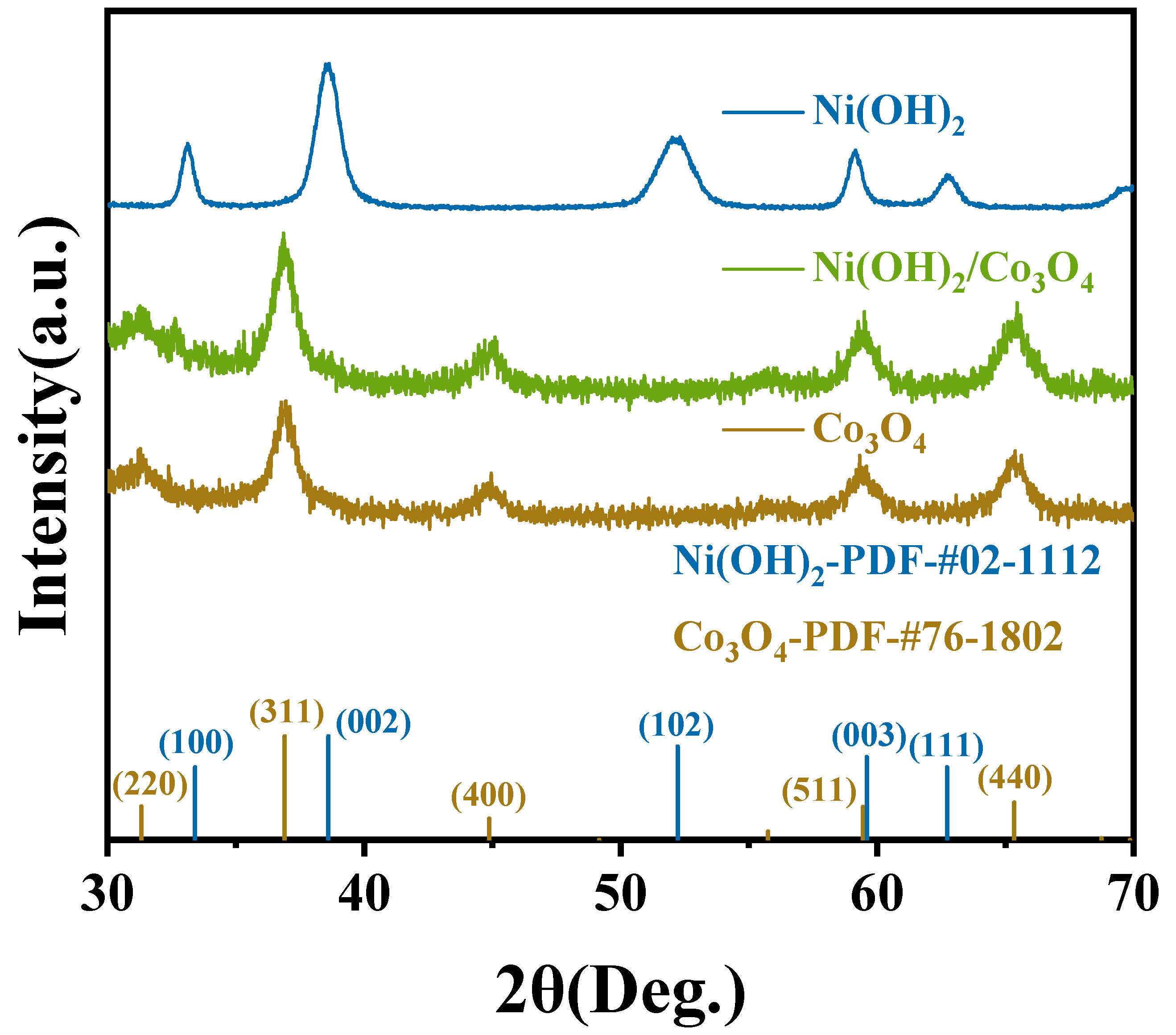

Figure 3. XRD pattern of Ni(OH)2, Co3O4, and Ni(OH)2/Co3O4.
Figure 3. XRD pattern of Ni(OH)2, Co3O4, and Ni(OH)2/Co3O4.
Chemosensors 11 00568 g003
Chemosensors 11 00568 g004

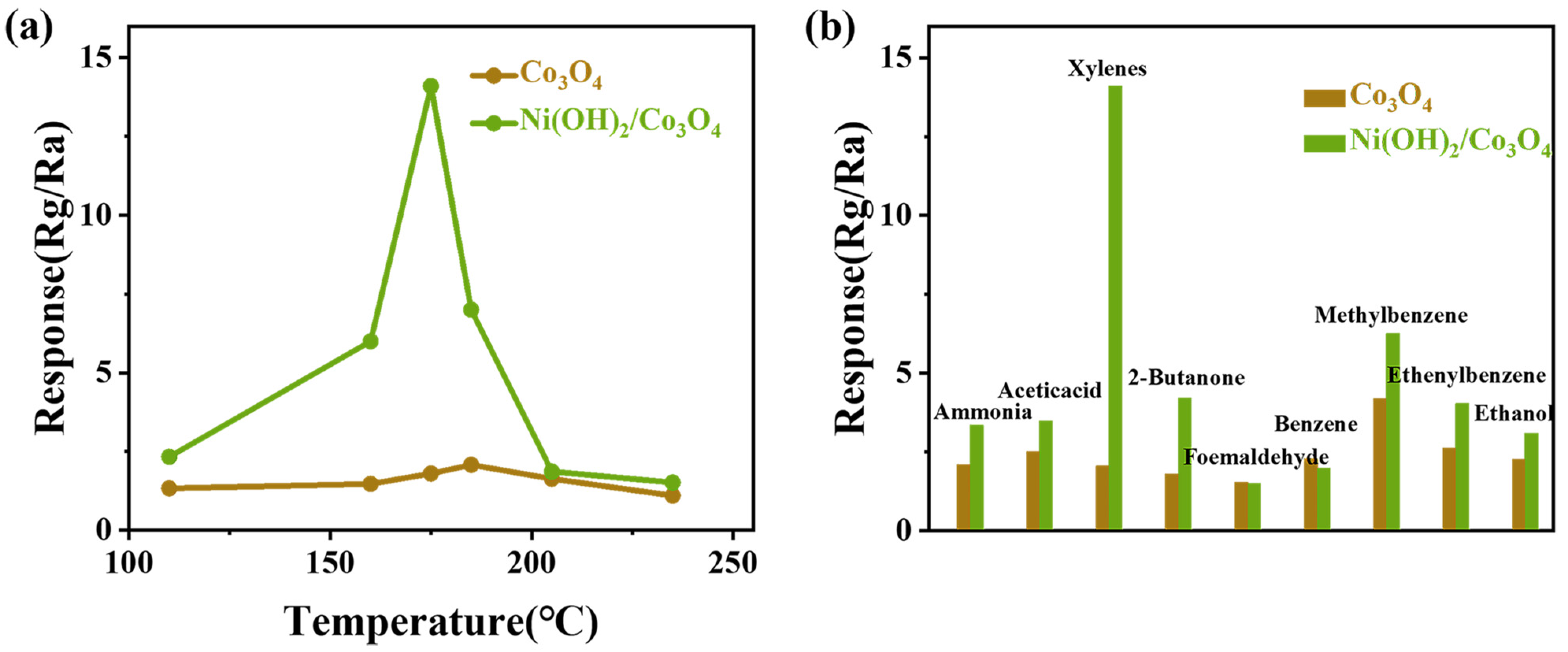

Figure 4. (a) Response of Co3O4 sensor and Ni(OH)2/Co3O4 sensor xylene at 100 ppm under various working temperatures; (b) Response of the Co3O4 sensor and Ni(OH)2/Co3O4 sensor to various gases at 100 ppm under 185 °C and 175 °C, respectively.
Figure 4. (a) Response of Co3O4 sensor and Ni(OH)2/Co3O4 sensor xylene at 100 ppm under various working temperatures; (b) Response of the Co3O4 sensor and Ni(OH)2/Co3O4 sensor to various gases at 100 ppm under 185 °C and 175 °C, respectively.
Chemosensors 11 00568 g004
Chemosensors 11 00568 g005

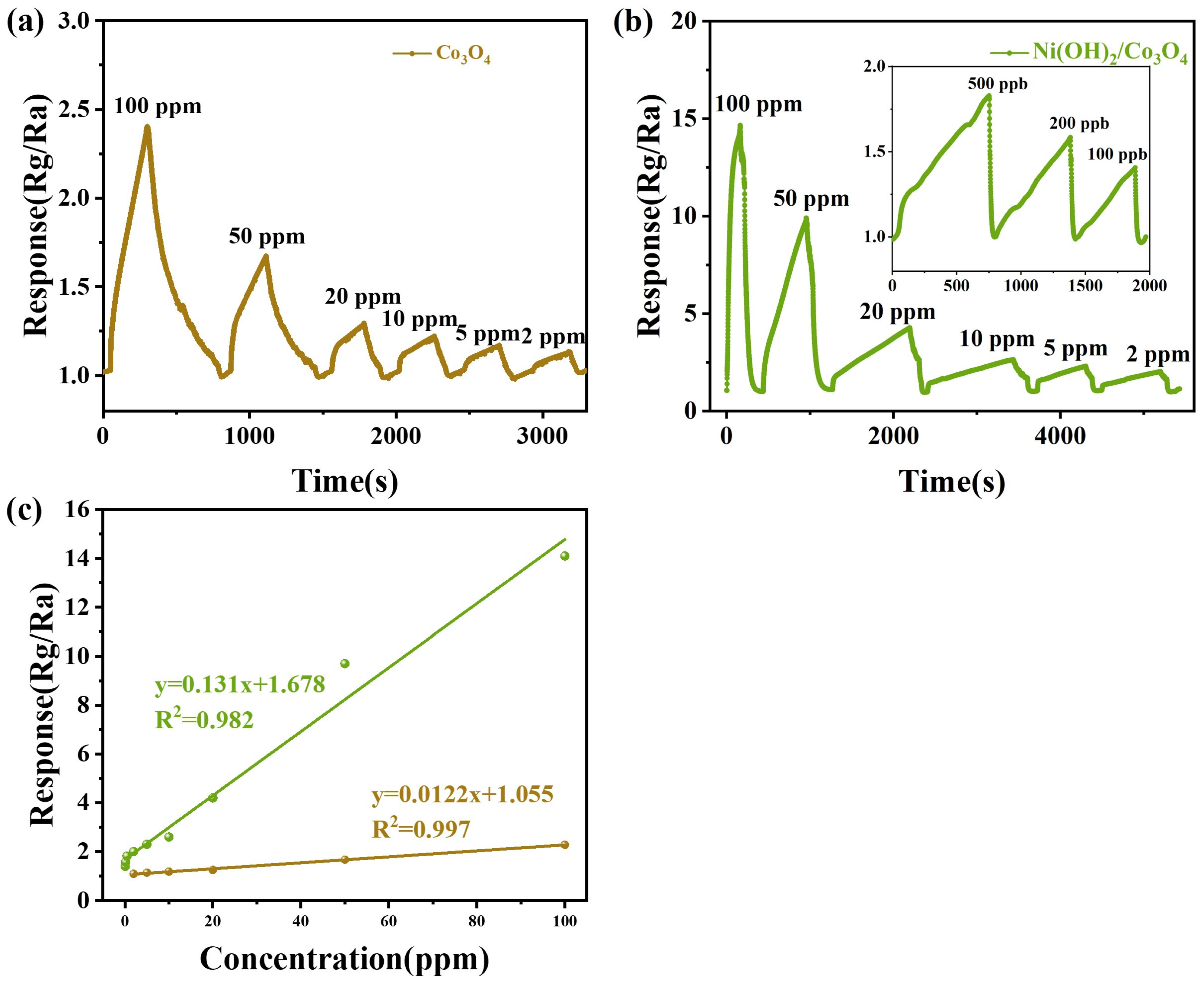

Figure 5. Response recovery curves of (a) Co3O4 sensor and (b) Ni(OH)2/Co3O4 sensor at different xylene concentrations from 100 ppm to 100 ppb at 185 °C and 175 °C, respectively. The linear fitting curve of (c) Co3O4 and Ni(OH)2/Co3O4 sensors to xylene of different concentrations at 185 °C and 175 °C, respectively.
Figure 5. Response recovery curves of (a) Co3O4 sensor and (b) Ni(OH)2/Co3O4 sensor at different xylene concentrations from 100 ppm to 100 ppb at 185 °C and 175 °C, respectively. The linear fitting curve of (c) Co3O4 and Ni(OH)2/Co3O4 sensors to xylene of different concentrations at 185 °C and 175 °C, respectively.
Chemosensors 11 00568 g005
Chemosensors 11 00568 g006

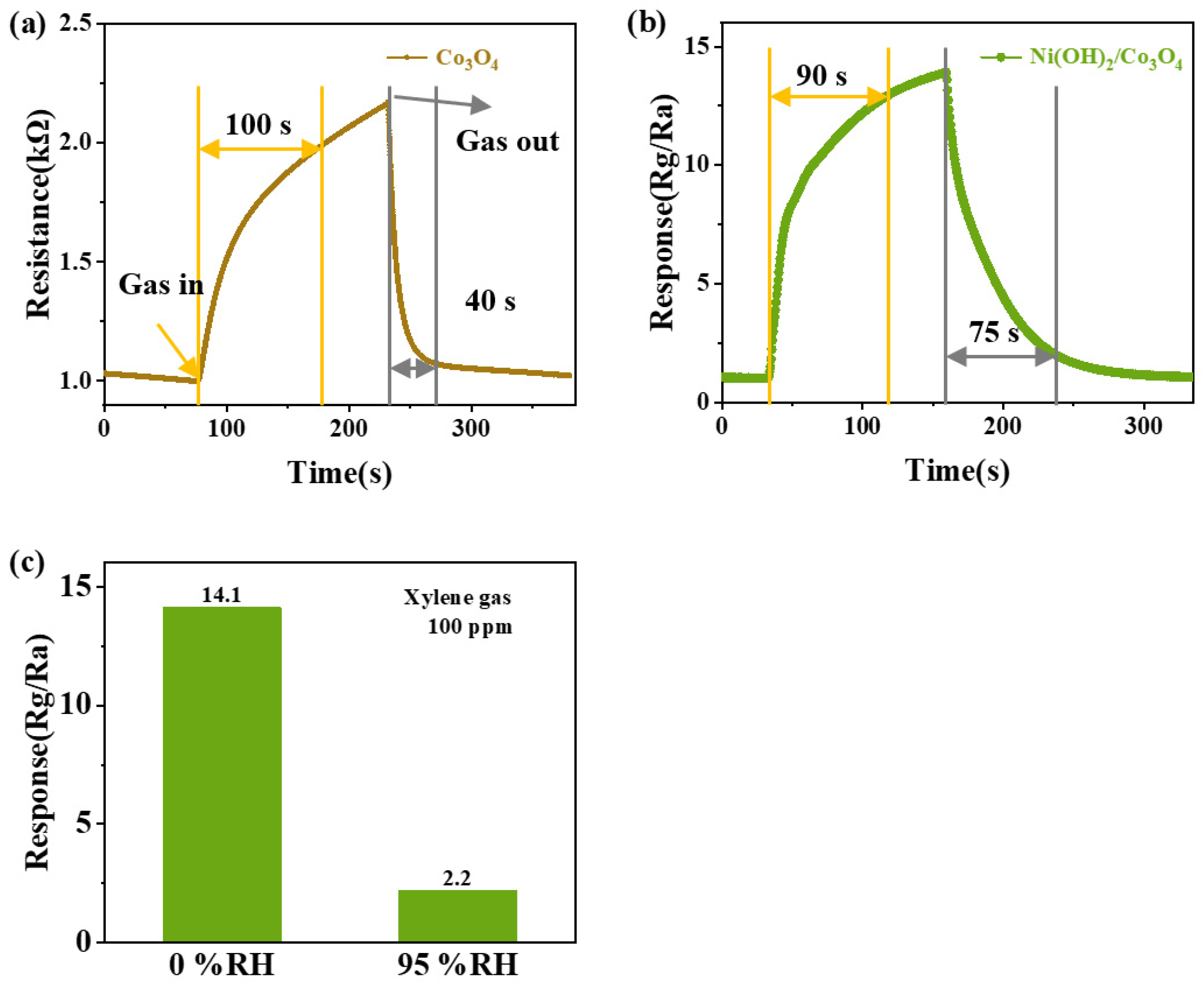

Figure 6. (a) Co3O4 (b) Ni(OH)2/Co3O4 response recovery curve at the best operating temperature with 100 ppm xylene; (c) Comparison of sensor response to 100 ppm xylene gas in dry air (0% RH) and humid air (95% RH).
Figure 6. (a) Co3O4 (b) Ni(OH)2/Co3O4 response recovery curve at the best operating temperature with 100 ppm xylene; (c) Comparison of sensor response to 100 ppm xylene gas in dry air (0% RH) and humid air (95% RH).
Chemosensors 11 00568 g006
Chemosensors 11 00568 g007

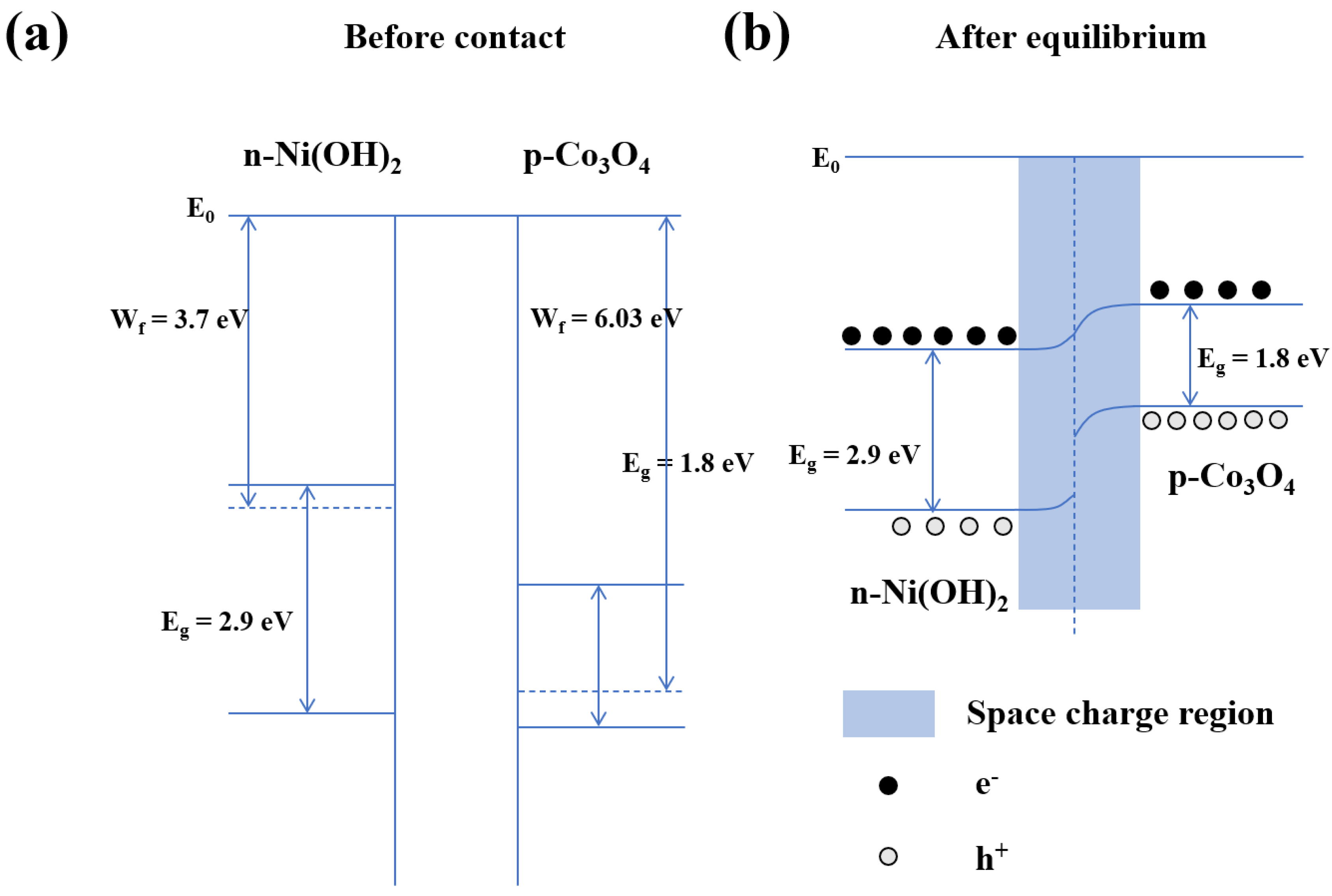

Figure 7. Energy band diagram of the Ni(OH)2/Co3O4 xylene gas sensor (a) in air and (b) in xylene.
