Review

Couplants in Acoustic Biosensing Systems

by
Rayyan Manwar
1,
Loїc Saint-Martin
1 and
Kamran Avanaki
1,2,*
1
Richard and Loan Hill Department of Bioengineering, University of Illinois at Chicago, Chicago, IL 60607, USA
2
Department of Dermatology, University of Illinois at Chicago, Chicago, IL 60607, USA
*
Author to whom correspondence should be addressed.
Chemosensors 2022, 10(5), 181; https://doi.org/10.3390/chemosensors10050181
Submission received: 7 April 2022 / Revised: 28 April 2022 / Accepted: 3 May 2022 / Published: 9 May 2022
(This article belongs to the Section (Bio)chemical Sensing)
Browse Figures
Versions Notes

Abstract

:
Acoustic biosensors are widely used in physical, chemical, and biosensing applications. One of the major concerns in acoustic biosensing is the delicacy of the medium through which acoustic waves propagate and reach acoustic sensors. Even a small airgap diminishes acoustic signal strengths due to high acoustic impedance mismatch. Therefore, the presence of a coupling medium to create a pathway for an efficient propagation of acoustic waves is essential. Here, we have reviewed the chemical, physical, and acoustic characteristics of various coupling material (liquid, gel-based, semi-dry, and dry) and present a guide to determine a suitable application-specific coupling medium.

1. Introduction

Biosensors are analytical devices consisting of sensing elements that are used to detect the presence or concentration of a biological analyte, such as a molecule, a subcellular structure, or a microorganism [1,2]. Depending upon various types of signals transduced, biosensors can be categorized as follows: electrochemical, electromagnetic (optical, thermal), and acoustic [3,4]. Since the abundance of biomarkers in human fluid is low compared to that of irrelevant biomolecules, a high-differentiation ability is required for electrochemical biosensors. Moreover, the matrix effect caused by biomolecules, other than the target, interferes with the target recognition process, which leads to an increased probability of false-positive results [5]. This phenomenon necessitates the electrochemical biosensing mechanism to be mostly invasive in nature. Optical and thermal biosensing techniques can be non-invasive with high sensitivity; however, they have a low penetration depth due to the rapid dissipation of optical/thermal energy through highly scattered tissue media [6].
On the other hand, acoustic biosensing is a popular technique due to advancements in ultrasound detection technologies that are non-invasive and enable deeper penetration [7] with reasonable resolution and sensitivity.

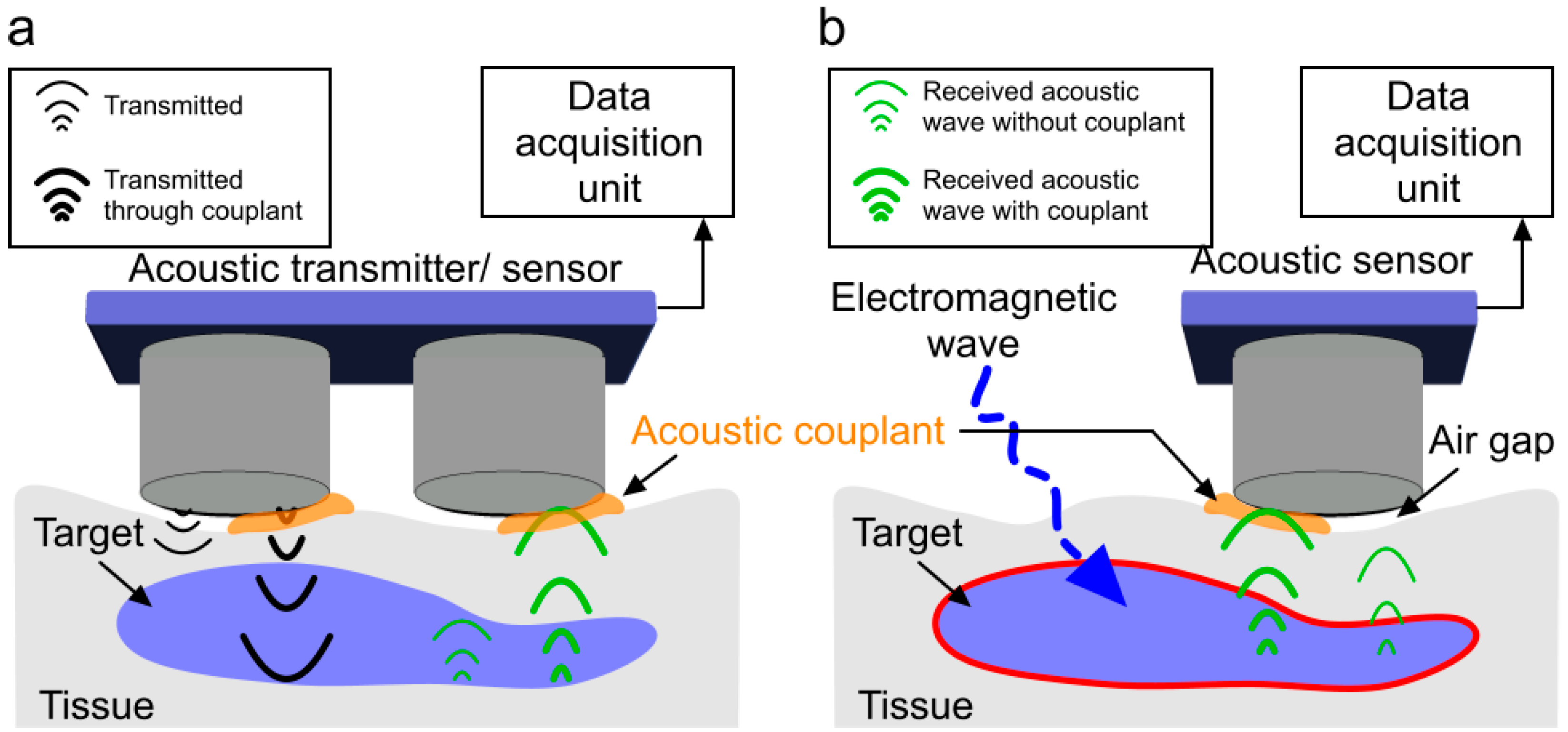

Acoustic sensing is based on the transmission and reception of acoustic pressure waves. Acoustic sensors are used to receive acoustic waves induced by the transmitted ultrasound (e.g., ultrasound transducers) or electromagnetic waves (e.g., in electroacoustic [8,9], magnetoacoustic [10,11], thermoacoustic [12,13], photoacoustic [7,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33], X-ray acoustic [34,35], and proton-acoustic [36,37] modalities) (see Figure 1). Acoustic biosensors employ, for instance, the piezoelectric effect to excite acoustic waves electrically to an input transducer and to receive waves at the output transducer. The incident acoustic pressure waves deform piezo material, and they are measured in terms of the potential difference across the piezo electrodes induced by the deformation [38,39]. Table 1 summarizes the advantages and disadvantages of different types of biosensors.
Acoustic sensing is performed efficiently in the frequency range from several kHz up to several gigahertz. Acoustic waves (ultrasound) are directional, making them more sensitive to the density and elastic properties of the materials they pass through [44]. Acoustic sensors are popular due to their low cost, simplicity, availability, and clinical acceptance [45,46,47]. In addition to biomedical applications, they have been widely used for non-destructive testing [44,48,49].
Every material presents an impedance to the passage of acoustic waves. The specific impedance of a material is determined by its density and speed of sound (governed by Young’s modulus and elasticity) through the material. The speed of sound can be calculated from the elastic modulus and density [50]. For the maximal transmission of energy from one medium to another, the impedance of the two media should be equal. In a bioacoustic sensor, with air coupling, the acoustic wave is poorly transmitted through the air and mostly reflected before reaching the target due to a high acoustic impedance mismatch. Considering that the unit of acoustic impedance is the MPascal second per cubic meter, represented in MRayl, the acoustic impedance of air is ~10−4 MRayl and that of a biological tissue is ~1.63 MRayl [51]. This indicates that even a small air gap between the acoustic sensor and the target will cause a reduction in acoustic waves by 99.998%. Therefore, the presence of a coupling medium is essential for efficient propagation by displacing air and filling contours, which brings the target and transducer impedance closer to equality. The coupling medium is called an acoustic couplant. Figure 1 shows the effect of not using acoustic couplants in an acoustic sensing experiment. In this demonstration, the transducer surface is partially (only right half) covered with acoustic couplants. Therefore, stronger transmitted and received acoustic pressure waves is observed through the couplant. The left half of the transmitter and receiver is not covered with acoustic couplant (causing an airgap) and corresponding acoustic pressure wave is shown to be weak (due to the high attenuation originating from a high acoustic impedance mismatch). A simple experiment was conducted using two acoustic transducers (C539-SM, Olympus, Center Valley, PA, USA, aperture: 1.25 cm, frequency: 1 MHz) as a pair of transmitter and receiver to demonstrate the effect of the acoustic couplant. The experimental setup is shown in Figure 2a. The transducers were coaxially placed (gap: 1 mm). A 10 V peak–peak sinusoidal signal was applied to the transmitter that was attached to the phantom without any couplant. The received signal was acquired by Picoscope-5242D (sampling frequency: 100 MHz, 15 bit, Pico Technology, Tyler, TX, USA) in two different scenarios: (1) gap between the receiver and the phantom was filled with ultrasound gel (couplant) and (2) in air (no couplant). The impact of the couplant to enable efficient propagation is as follows: the acquired signal strength of the experiment with couplant is ~250 times higher compared to the signal strength when the experiment was performed in air (see Figure 2b).
An ideal couplant is the one with the least absorption of acoustic energy or a small distortion of its path. Ideally, the coupling medium should be fluid so as to fill all available spaces, be relatively viscous so that it stays in place, have an impedance appropriate to the media it connects to, have a low reflection coefficient, have least air trapped, nontoxic, and should allow the transmission of acoustic waves with minimal attenuation over a wide operating frequency range [52]. A variety of substances such as water, gel, and oil can be used as acoustic couplants; however, for the best results, it is necessary to use specially formulated couplants. In medical applications, couplants are required to be conformable, have a certain degree of elasticity and adhesion, and must be biocompatible with the target area. In addition, the couplant may also act as a cooling agent to reduce the heat generated from the continuous operation of the sensors. Here, we study the acoustic characteristics of liquid/gel, dry, and semi-dry couplants and describe their main advantages and disadvantages. Table 2 demonstrates an example of each of the types of couplants.

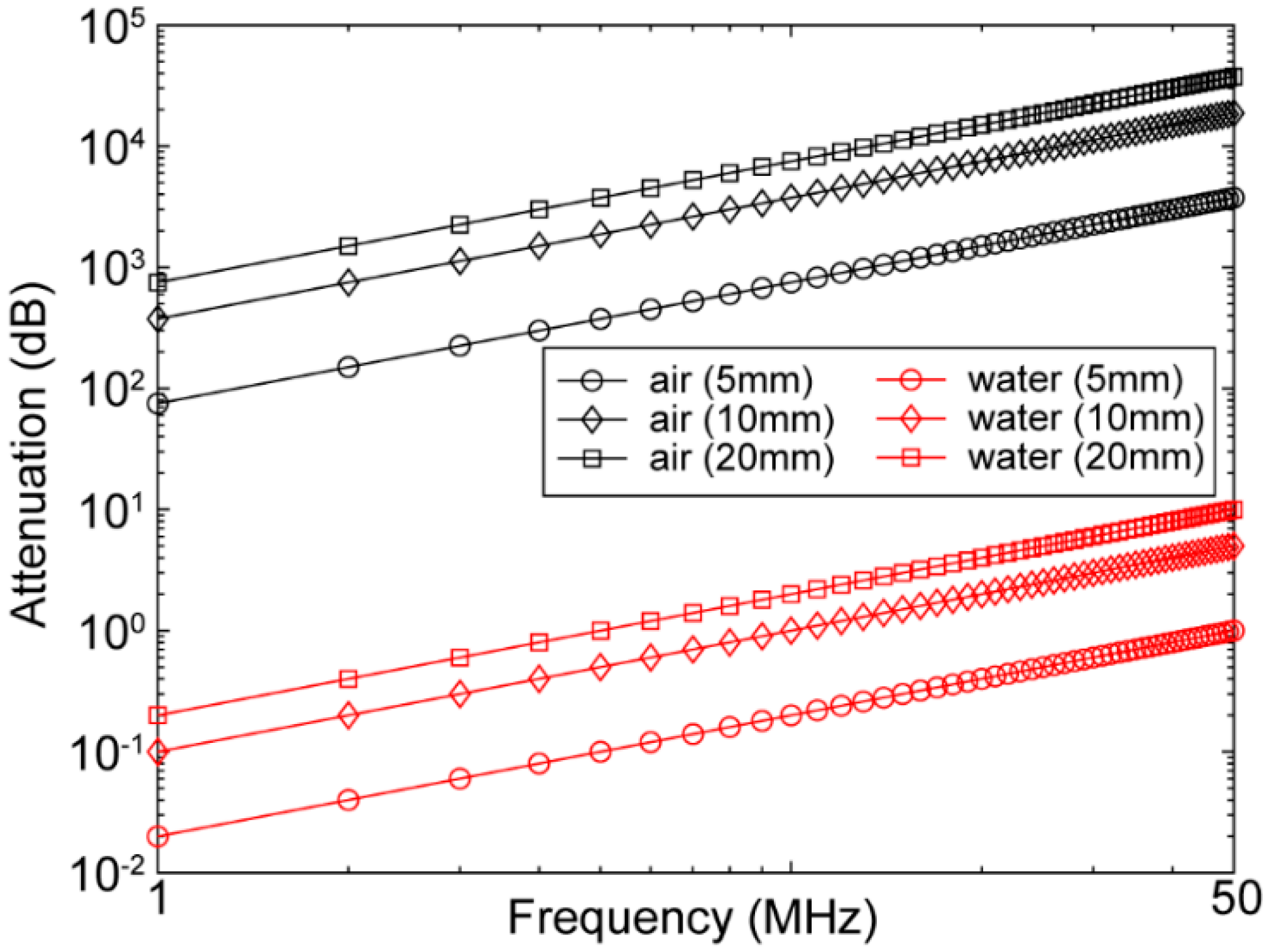

Acoustical properties are those that govern how a medium responds to acoustic waves. While propagating through a medium, acoustic waves experience attenuation due to absorption and scattering and reflection due to acoustic impedance mismatch at the interfaces of a multi layered medium. These phenomena can be realized from acoustic wave propagation theory in visco-elastic medium. Acoustic wave propagation originates from the excitation, induced by transmitted ultrasound (US) or electromagnetic waves, that is incident upon the surface particles of the medium and propagated by particle vibration through the medium. This wave propagation may be described by Newtonian mechanics and stress–strain relations. A detailed explanation of the wave propagation model can be found in [53,54,55]. Here, we briefly define acoustic pressure absorption, scattering, and impedance, which form the basis of acoustic wave characteristics in terms of attenuation. The attenuation factor (due to absorption), which leads to exponential damping of the wave amplitude as a function of depth and frequency, is given by the following:
α = ω 2 η 2 v p
Here, ω represents the angular frequency, v p is the phase velocity, η is viscosity, and ρ is the density of the medium. The theoretical attenuations of acoustic waves due to absorption at different frequencies and thicknesses for water and air, based on the attenuation power law [56], are plotted in Figure 3. Attenuation values of air and water are presented in Table 3 [57,58,59]. Moreover, attenuation due to scattering also depends on the thickness of the medium, as well as medium structural discontinuity, grain boundary, inclusions, and voids (air bubbles). On the other hand, acoustic reflection due to acoustic impedance mismatch depends on the medium’s density, Young’s modulus, and elasticity. The acoustic impedance (the resistance exerted by tissue to the sound propagation) can be represented as follows:
Z = ρ ω / k ≅ ρ v p
where k = β + i α represents the wave number and β is the propagation constant. When the impedances of the adjacent materials are known (Z1 and Z2), the fraction of the incident wave intensity that is reflected can be calculated with the equation below.
R = Z 2 − Z 1 Z 2 + Z 1 2
The result from Equation (3) is known as the reflection coefficient, R. The amount of energy reflected as a percentage of the original energy can be extracted by multiplying the reflection coefficient by 100.

2. Material Collection Method

The data for this review study were collected from published articles, industrial databases, and granted patents. Initially, we searched for available couplants. We used “acoustic couplant” and “coupling agent” keywords for our search. The result was 82 publications in Google Scholar database (October 2021). We then narrowed down our search to only sensing/diagnostics applications of acoustic sensors by adding the keyword “ultrasound” to and excluding the keyword “treatment coupling agents” from the search. We found 4 review articles on this topic; however, they only explored liquid and gel-based coupling agents (i.e., water, hydrogel, mineral oil, and petrolatum). These review articles were published between 2000 and 2004. Since then, more research works have been performed to improve the quality of the liquid and gel-based coupling agents. Alternatively, dry and semi-dry couplants have been introduced to overcome the existing limitations of liquid and gel-based couplants. Here, we have discussed three major coupling agents, (i) liquid/gel-base, (ii) dry, and (iii) semi-dry couplants, their composition, acoustic properties, advantages, and disadvantages in biosensing applications.

3. Acoustic Coupling Agents

3.1. Liquid/Gel-Based Couplants

In biomedical applications of acoustic sensors, the main objective of the couplant is to reduce acoustic impedance mismatches between two different materials. Acoustic impedance is dependant on density and longitudinal speed of sound through the propagating medium. Moreover, the absorption and scattering within the medium determines the acoustic amplitude attenuation as a function of frequency and depth. Hence, a low attenuating medium is preferred. In Table 3, we list a number of materials with their respective properties, including some of their acoustic properties.
Many fluids and water-based gels have been used as ultrasound couplants over the years [60,61,62]. The most-used acoustic coupling agents are water, gel, mineral oil, and white petrolatum [52]. A list of liquid/gel-based couplants with their acoustic properties is given in Table 4 [63,64]. In spite of having similar impedance and attenuation characteristics, only gel-based couplants have the additional quality of higher viscosity, which increases couplant adherence to surfaces. Gel viscosity is primarily derived using two different methods: a mixture of copolymer of methyl vinyl ether, maleic anhydride, and a carboxy polymethylene polymer or carboxy polymethylene polymers with hydroxyalkyl cellulose and a polyalkylene glycol [65].
Despite the advantage of liquid/gel-based couplants possessing low acoustic impedance mismatch with the biological tissue, they are amorphous fluids that tend to fall off or dry out over time [66,67]. In addition, liquid and gel couplants may sometimes lead to corrosion when used for a long time and modify the mechanical properties of the transducer [68]. Another issue is that gels could lead to potential bacterial growth if not cleaned properly [69]. In addition, gel and liquid couplants dry, leak, and/or ooze out from the transducer’s sensing surface and cause signal degradation. In clinical applications, the thickness of the gel applied to the imaging area is non-uniform and can easily trap air bubbles (umbrella artifact), becomes messy, and is not comfortable. Having to reapply acoustic couplant during an experiment is problematic because the procedure disturbs the positioning of the probe and takes time. Therefore, liquid/gel-based couplants provide only a temporary or short duration of suitable acoustic transmission/reception and simultaneously contribute to the inconsistencies in the received signal [70]. Bubbles trapped inside water or gel can be removed by keeping the couplant in a vacuum chamber under high pressure. After 20–30 s in a vacuum chamber, air bubbles migrate to the top surface and due to the negative pressure and start to breakdown.
Of the companies that produce acoustic couplants, the majority produce liquid/gel-based couplants (Aquasonic, EMS, KY gel, JPM, PhysioMed, SKF, Biofreeze, University of Hertfordshire, Hertfordshire, UK). There is not a significant clinical difference among these products [71,72]. However, these ultrasound couplants are produced in different atmospheric/mechanical state or form factor for various operating conditions. For specialized applications, companies such as Echo Ultrasonics [73], Magnaflux [74], and Olympus Co. [75] manufacture couplants designed for extreme temperature ranges (−23–538 °C) or acoustic characteristics (e.g., shear wave). These couplants are available as powders or pre-mixed.

3.2. Dry Couplants

Dry couplant is mainly used during the development and non-destructive testing [76] of biomedical instrumentation. For dry couplant, an appropriate material selection is crucial such that the couplant can easily be applied to and removed from the imaging area surface, flexible yet self-supporting, and conforms readily to the contours of the surface. In addition, high uniformity in thickness and having the least acoustic impedance mismatch are two other factors for dry couplants.
Dry couplants are made of polymers [77] and developed based on the desired acoustic, mechanical and thermal behavior of the couplant. Polymers are categorized as (1) thermoplastic, (2) thermoset, and (3) elastomers. Thermoplastic polymers are composed of long chains produced by joining small molecules or monomers; they behave in a plastic, ductile manner and soften at elevated temperatures [77]. Some of the most common thermoplastics are low- and high-density polyethylene (respectively, LDPE and HDPE), polypropylene (PP), polyvinyl chloride (PVC), and polystyrene [78]. Thermosetting polymers are composed of long chains of molecules that are strongly cross-linked to each other to form a three-dimensional network structure. These polymers are stronger yet more brittle than thermoplastics. Thermosets can further be classified into rubber-based and hard materials. The most common types of thermosets are epoxide and polyester resins (i.e., polyurethanes, and polyamides) [79].
The most popular dry couplants are the elastomers. In elastomers, some of the cross-linking of the chains are allowed to occur for tuning elastic properties [77,80]. Elastomers have similar acoustic properties to liquid/gel-based couplants and are produced in two forms, flexible or rigid, depending on the requirements of the application they are used in [81]. Elastomers are preferred in imaging applications, due to their stability and structural support, while still having similar acoustic characteristics to liquid or gel-based couplants, specifically low attenuation and impedance matching [66,82]. The acoustic properties of conventional polymers used as dry couplants are summarized in Table 5.
Although a high clamping pressure is applied to the dry coupling material to cause it to slightly deform at the interface in order to couple with the target surface and expel any air trapped between them [87], due to the rigidity of the thick coupling material completely removing air trapped when working with dry couplants is difficult.
Innovation Polymers Inc. (Kitchener, ON, Canada) [88] has developed several dry acoustic couplants among which Aqualene and ACE belong to thermoset and thermoplastic polymer categories, respectively. Aqualene and ACE are based on divinyl olefins with variations in the curing processes and additives to adjust hardness, attenuation, and acoustic velocities. Variation in characteristics can also be originated from differences in their respective forming processes. The forming process can be by injection molding or compression or transfer molding [89]. Different injection pressures and injection-head temperatures are also factor into the change in acoustic and mechanical properties. The properties of these materials used in medical phantom applications as a tissue-mimicking material have been discussed in [90] and further acoustic property analysis has been carried out in [89]. The acoustic properties of commercially available dry couplants are summarized in Table 6.

3.3. Semi-Dry Acoustic Couplants

Semi-dry couplants are considered as enclosed assemblies consisting of a thin inflatable membrane made of a dry couplant with a liquid/gel-based couplant (see Section 3.1) inside [91]. Semi-dry couplants are more flexible for avoiding air trapping compared to dry couplants, yet they have a reduced coupling impedance mismatch and attenuation similar to liquid/gel-based couplants. Semi-dry couplants are categorized based on their form factor including patch style, sheet form, pouch, and other customized enclosed assemblies.
Inflatable membranes are typically made of elastomers among which hydrogel (hydrophilic elastomer) is the most popular. Cross-linked hydrophilic elastomers are described as macromolecular networks that swell but do not dissolve in water [60,92,93]. By placing them in water, they hydrate, where they are capable of absorbing large quantities of water (in some cases up to 95% of their own wet weight). Hydrogels may consist mainly of water, yet they are in solid form and dry. The ability of a hydrogel to absorb water arises from hydrophilic functional groups attached to the polymeric backbone. Over time, the polymers will absorb water until they reach equilibrium [94,95]. The composition of the hydrogel depends on the polymer percentage, alkali salt contents, and type of chemical modifiers (viscosifying agent and hydrating agent). Conventional ingredients for developing a hydrogel is as follows: a mixture of 3 to 4% polyvinyl alcohol, 30 to 35% polyvinylpyrrolidone, and hydric alcohol, such as propylene glycol or glycerol in the amount of 20 to 25%. The remaining component is water. When these reactants are heated to 125 to 130 °C followed by cooling and subsequent casting on a suitable release mold, an adhesive hydrogel forms [96].
Larson et al. [97] developed a disposable, flexible, elastic sheath type membrane to enclose gel. The flexible sheath comprised a hydrophilic block copolymer and 20 wt.% to about 95 wt.% biocompatible liquid. The hydrogel sheaths are produced with a preferred controlled thickness of 0.05 to 4.0 mm throughout. When in contact with the skin, the sheath becomes lubricous and that provides more adhesion and, therefore, less chance of any air trapping. Sieverding et al. [98] proposed an electroconductive, water-insoluble, hydrophilic, elastomeric pressure-sensitive adhesive patch. This adhesive comprised gel of polyvinylpyrrolidone cross-linked by ionizing radiation, polyalkylene glycol plasticizer, water, and salt selected from ammonium acetate, magnesium acetate, or magnesium sulfate. Richardson et al. [99] claimed the use of hydrophilic material (75–90% water) for the coupling of an ultrasonic probe. Bourne et al. [100] also utilized hydrophilic polymers as acoustic couplants; however, they were intended for non-destructive testing applications. Other than hydrogels, researchers have also developed semi-dry couplants based on polymers (such as polypropylene, polyurethane, and polyethylene). Shikinami et al. [101] proposed a flexible plate-like acoustic coupler. The main component of this couplant is a polyurethane gel of 10 mm thickness and 1.1–2.0 MRayl acoustic impedance. The film layer that covers the gel and is exposed to skin is made of polypropylene of 0.1 mm thickness and 0.2–5.0 GPa Young’s modulus. The overall acoustic impedance of the coupler was 1.6–5.0 MRayl. Murdock et al. developed a fluid (i.e., water/gel) medium within a flexible membrane made of Polyethylene Terephtalate (PET), also known as Mylar. To reduce reflection from the membrane and the coupling fluid, the thickness of the PET layer was kept to only 25.4 µm. Jahnke et al. developed an enclosed rigid container for holding ultrasound gel. The rigid container was fabricated with highly compliant elastic materials, such as silicone, polyurethane, latex, and rubber, on superior and inferior surfaces. The container was filled with liquid couplant such as degassed water or gel. The container includes vents with caps for filling or emptying the acoustic coupling medium. Lima et al. proposed a low-cost solution to semi-dry couplants by using latex and nitrile glove material to hold water inside. Unlike conventional semi-dry couplant configurations, Pretlow et al. developed a gel pad without any membrane made from cellulose that provides rigidity with a mixture of glycerin and water/oil that provides flexibility and adhesion. The gel pad was relatively thin (approximately 1.5 mm) and could easily be positioned between an ultrasound transducer probe and the specified area of a patient. Buchalter et al. developed a similar yet disposable ultrasound coupling pad that adheres to a patient’s skin. Silicone elastomer and sylgard 184 were utilized to develop a flexible membrane; in this design, zinc oxide (ZnO) was added to avoid air trapping and improve adhesion. Table 7, summarizes the above-mentioned studies on semi-dry couplants.

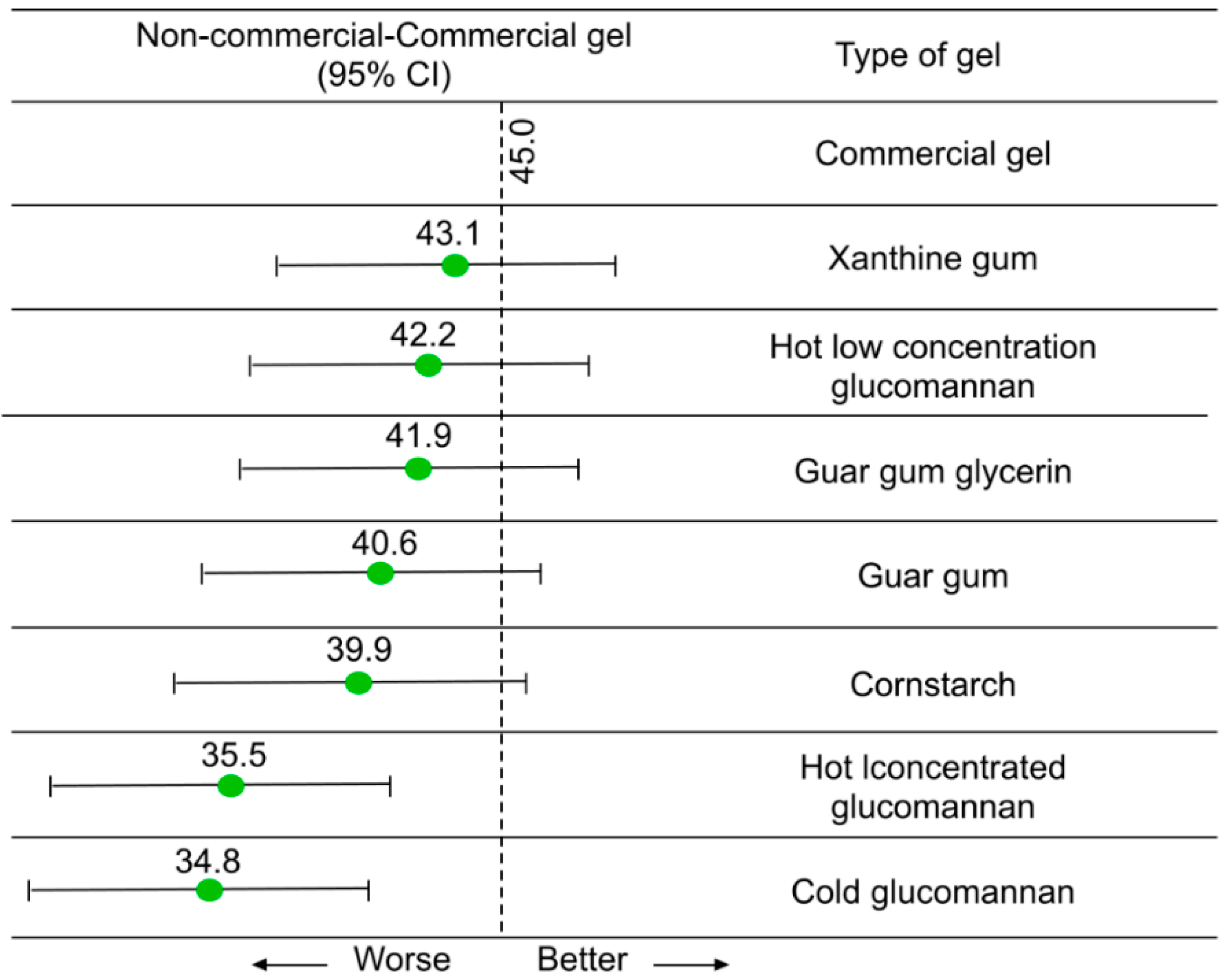

There are several non-commercial alternatives available derived from edible contents (i.e., guar gum with and without glycerin, xanthine gum, and glucomannan mixed with either hot or cold water) that can be used instead of commercial gel/water inside the enclosed assemblies. The detailed recipes are provided in [102]. This study evaluated eight different non-commercial gels made from these edible contents and evaluated their performance through ultrasound imaging. According to the authors, there is no difference in ultrasound image quality from blinded review and well suited for places where commercial gel may be unavailable, unaffordable, or both. In [102], authors have compared the non-commercial gel with commercial gel in terms of ease of use, consistency, and conformity. A total if 72 evaluations were performed by operators and for comparison purposes, a blind perfect mean score of 45 was assigned to the commercial gel. In Figure 4, the evaluation scores of the non-commercial gels are reported.
Table
Table 7. Summary of semi-dry coupling materials.
Table 7. Summary of semi-dry coupling materials.
Housing MaterialCross-Linking MaterialActual CouplantForm FactorRef
Hydrophilic block
copolymer		Biocompatible liquidGelSheath type membrane [97]
Polyalkylene glycol plasticizer, water,
ammonium acetate, magnesium acetate		GelAdhesive patch [98]
Polypropylene-polyurethane gelFlexible plate [101]
Mylar-Water/gelFlexible membrane [103]
Siliconepolyurethane, latex, and rubberDegassed waterRigid container [104]
Celluloseglycerin and water/oilGelGel pad [105]
Sylgard 184zinc oxideGelMembrane [106]

4. Coupling Mechanism within Ultrasound Transducer

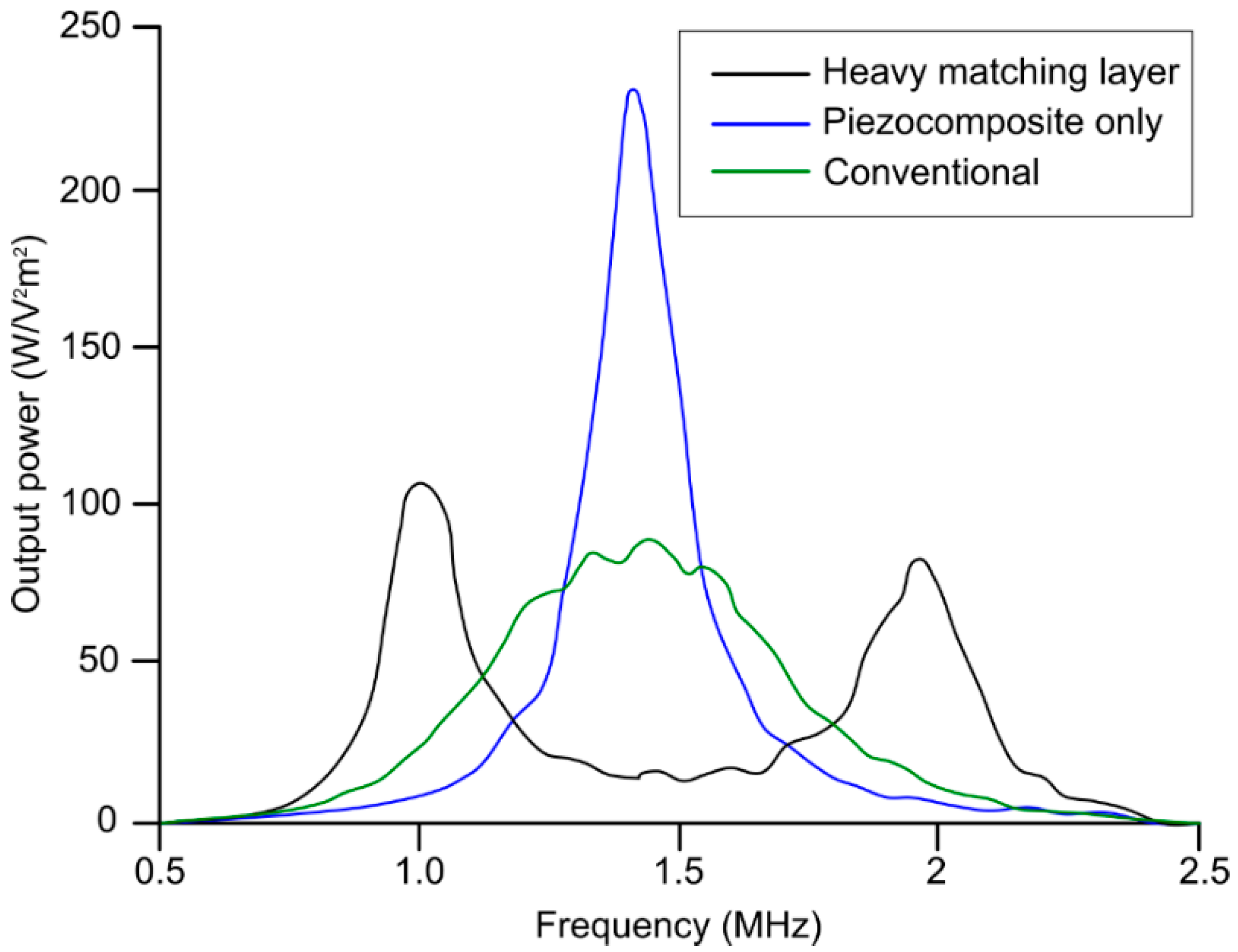

Piezoelectric ultrasound transducers are the most widely manufactured and clinically available transducers that are integrated into commercial ultrasound imaging systems [39,54,55]. The main component of a piezoelectric ultrasound transducer is the active sensing elements constructed from piezo-material with acoustic impedance >30 MRayl [107]; this is significantly different from that of biological soft tissues. This acoustic impedance mismatch is one of main sources of reverberations in ultrasound transducers that leads to the potential misinterpretation of ultrasound b-mode images. Therefore, an additional matching layer is employed in front of active-sensing elements for an efficient propagation of the acoustic pressure wave. There are two types matching layers: (1) active and (2) passive matching layer. In active matching layers, piezoelectric material properties are altered by adding composites and nanocomposites to match directly with the propagating media. In such cases, the matched piezoelectric material itself is called active matching layer, whereas when different materials or combination of materials are used to reduce the acoustic impedance mismatch, it is called passive matching layer. A piezocomposite is a diced ceramic with polymer-filled spaces [108]. The composite has the flexibility to provide heat dissipation or structural support. The characteristic acoustic impedance is around 10 MRayl, which is much closer to water and tissue. An array of piezocomposite transducers is made by blending piezo powder, piezo-rods, or piezo fibers with various resins to simultaneously impart flexibility and higher sensitivity. The active matching technique involves the modification of piezoelectric element properties, eliminating the need for matching layers, whereas the passive matching techniques involves matching acoustic passive layers with the piezoelectric element. Typical passive matching layers are gold, aluminum, glass, and different polymers. Table 8 summarizes the acoustic properties of several matching layer materials. A heavy matching layer (increased thickness) helps to lower acoustic impedance mismatch and alters the center frequency; however, overall transducer piezoelectric characteristics eventually deteriorate and, therefore, output power decreases. Figure 5 demonstrates the impact of the matching layer (heavy and conventional thickness) on generated output power as a function of frequency compared to a transducer with no matching layer [109]. For medical imaging, a typical design approach is to consider one fourth lambda thickness for the matching layer.

5. Air Couplant (for Air-Coupled Transducers)

As opposed to wet, dry, or semi-dry couplants, air couplants can only be used in specially designed transducers, called air-coupled or non-contact transducers. Air-coupled transducers are made of piezoceramics with several active matching layers to reduce transducer-air impedance mismatch. In conventional ultrasound transducers, the material of the matching layers has similar acoustic impedance as the target tissue acoustic impedance. In air-coupled transducers, the materials of the matching layer are carefully chosen to closely match the acoustic impedance of air. As with dry couplants, the air couplant is mainly used during development and non-destructive testing [76] of biomedical instrumentation where a liquid or gel couplant could damage the target or transducer. Ferroelectret thin films (40~100 µm) are typically used as matching layers to produce air-coupled ultrasonic transducers because their acoustic impedance is well matched to the impedance of air [110,111]. These are heterogeneous non-polar space-charge electrets that exhibit piezoelectric response combined with mechanical flexibility and low acoustic impedance (<0.1 MRayl). Moreover, these transducers are strictly operating at the resonant frequency of sensing material (usually frequencies <500 kHz) to improve the ultrasound transmission efficiency. There have been several developments for air-coupled transducers with higher operating frequencies and improved sensitivity [112,113,114]. In Table 9, we have summarized typical specifications of air-coupled transducers that are available in the market.

6. Conclusions

We reviewed the characteristics of liquid/gel, semi-dry, dry acoustic, and air couplants (see the comparison between their pros and cons in Table 10). The first two parameters, impedance mismatch and attenuation, are the acoustic properties of the couplants where lower parameter values are preferable to increase acoustic wave propagation efficiency. The chemical property should allow couplants to be less degradable and simultaneously adhere more to the applied surface. The mechanical property needs to enhance the flexibility of the couplants to enable the usage on uneven or curved surfaces; however, least manufacturing complexity and eventually low production cost is preferred. We described liquid/gel couplants are the most established and widely used couplants in clinical and research bioacoustic sensing applications. We then discussed semi-dry, dry and air couplants, their acoustic properties, and how they are made. Wet couplants are best suited for biomedical ex vivo studies where immersion is feasible; for in vivo studies, semi-dry couplants are better, especially when the coupling agent is required to be suspended vertically to the imaging surface (i.e., brain, skin, or breast imaging). We explained that although dry and air couplants are feasible, their use is intended for the characterization of bioacoustic sensing instruments during development and testing.

Author Contributions

Conceptualization, R.M. and K.A.; methodology, R.M. and L.S.-M.; validation, K.A.; formal analysis, R.M. and L.S.-M.; investigation, R.M. and L.S.-M.; resources, K.A.; writing—original draft preparation, R.M.; writing—review and editing, R.M. and K.A.; supervision, K.A. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Institutes of Health R01EB027769-01, R01EB028661-01, and R21 DA052657-01.

Institutional Review Board Statement

Not Applicable.

Informed Consent Statement

Not Applicable.

Data Availability Statement

Not Applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Vigneshvar, S.; Sudhakumari, C.; Senthilkumaran, B.; Prakash, H. Recent advances in biosensor technology for potential applications—An overview. Front. Bioeng. Biotechnol. 2016, 4, 11. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Gooding, J.J. Biosensor technology for detecting biological warfare agents: Recent progress and future trends. Anal. Chim. Acta 2006, 559, 137–151. [Google Scholar] [CrossRef]
  3. Kim, J.; Campbell, A.S.; de Ávila, B.E.-F.; Wang, J. Wearable biosensors for healthcare monitoring. Nat. Biotechnol. 2019, 37, 389–406. [Google Scholar] [CrossRef]
  4. Bhardwaj, T. Review on biosensor technologies. Int. J. Adv. Res. Eng. Technol. 2015, 6, 36–62. [Google Scholar]
  5. Pohanka, M.; Skládal, P. Electrochemical biosensors—Principles and applications. J. Appl. Biomed. 2008, 6, 57–64. [Google Scholar] [CrossRef] [Green Version]
  6. Ünlü, M.S.; Chiari, M.; Özcan, A. Introduction to the special issue of optical biosensors. Nanophotonics 2017, 6, 623–625. [Google Scholar] [CrossRef] [Green Version]
  7. Manwar, R.; Kratkiewicz, K.; Avanaki, K. Overview of ultrasound detection technologies for photoacoustic imaging. Micromachines 2020, 11, 692. [Google Scholar] [CrossRef]
  8. Wang, M.; Zarafshani, A.; Samant, P.; Merrill, J.; Li, D.; Xiang, L. Feasibility of Electroacoustic Tomography: A Simulation Study. IEEE Trans. Ultrason. Ferroelectr. Freq. Control 2019, 67, 889–897. [Google Scholar] [CrossRef]
  9. Zarafshani, A.; Zheng, B.; Xiang, L. Electroacoustic tomography system using ultra-short electric filed excitation source induced acoustic signals. J. Acoust. Soc. Am. 2019, 145, 1920–1921. [Google Scholar] [CrossRef]
  10. Kellnberger, S.; Rosenthal, A.; Myklatun, A.; Westmeyer, G.G.; Sergiadis, G.; Ntziachristos, V. Magnetoacoustic sensing of magnetic nanoparticles. Phys. Rev. Lett. 2016, 116, 108103. [Google Scholar] [CrossRef]
  11. Xu, Y.; He, B. Magnetoacoustic tomography with magnetic induction (MAT-MI). Phys. Med. Biol. 2005, 50, 5175. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Jin, X.; Li, C.; Wang, L.V. Effects of acoustic heterogeneities on transcranial brain imaging with microwave-induced thermoacoustic tomography. Med. Phys. 2008, 35, 3205–3214. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Xu, M.; Wang, L.V. Time-domain reconstruction for thermoacoustic tomography in a spherical geometry. IEEE Trans. Med. Imaging 2002, 21, 814–822. [Google Scholar] [PubMed] [Green Version]
  14. Wang, L.V. Tutorial on photoacoustic microscopy and computed tomography. IEEE J. Sel. Top. Quantum Electron. 2008, 14, 171–179. [Google Scholar] [CrossRef] [Green Version]
  15. Wang, L.V.; Gao, L. Photoacoustic microscopy and computed tomography: From bench to bedside. Annu. Rev. Biomed. Eng. 2014, 16, 155–185. [Google Scholar] [CrossRef] [Green Version]
  16. Manwar, R.; Li, X.; Mahmoodkalayeh, S.; Asano, E.; Zhu, D.; Avanaki, K. Deep learning protocol for improved photoacoustic brain imaging. J. Biophotonics 2020, 13, e202000212. [Google Scholar] [CrossRef]
  17. Kratkiewicz, K.; Manwar, R.; Zafar, M.; Mohsen Ranjbaran, S.; Mozaffarzadeh, M.; de Jong, N.; Ji, K.; Avanaki, K. Development of a stationary 3D photoacoustic imaging system using sparse single-element transducers: Phantom study. Appl. Sci. 2019, 9, 4505. [Google Scholar] [CrossRef] [Green Version]
  18. Matchynski, J.I.; Manwar, R.; Kratkiewicz, K.J.; Madangopal, R.; Lennon, V.A.; Makki, K.M.; Reppen, A.L.; Woznicki, A.R.; Hope, B.T.; Perrine, S.A. Direct measurement of neuronal ensemble activity using photoacoustic imaging in the stimulated Fos-LacZ transgenic rat brain: A proof-of-principle study. Photoacoustics 2021, 24, 100297. [Google Scholar] [CrossRef]
  19. Mozaffarzadeh, M.; Mahloojifar, A.; Nasiriavanaki, M.; Orooji, M. Eigenspace-based minimum variance adaptive beamformer combined with delay multiply and sum: Experimental study. In Proceedings of the Photonics in Dermatology and Plastic Surgery 2018, San Francisco, CA, USA, 27 January–1 February 2018; p. 1046717. [Google Scholar]
  20. Nasiriavanaki, M.; Xia, J.; Wan, H.; Bauer, A.Q.; Culver, J.P.; Wang, L.V. High-resolution photoacoustic tomography of resting-state functional connectivity in the mouse brain. Proc. Natl. Acad. Sci. USA 2014, 111, 21–26. [Google Scholar] [CrossRef] [Green Version]
  21. Zafar, M.; Manwar, R.; Avanaki, K. High-fidelity compression for high-throughput photoacoustic microscopy systems. J. Biophotonics 2022, 15, e202100350. [Google Scholar] [CrossRef]
  22. Mahmoodkalayeh, S.; Zarei, M.; Ansari, M.A.; Kratkiewicz, K.; Ranjbaran, M.; Manwar, R.; Avanaki, K. Improving vascular imaging with co-planar mutually guided photoacoustic and diffuse optical tomography: A simulation study. Biomed. Opt. Express 2020, 11, 4333–4347. [Google Scholar] [CrossRef] [PubMed]
  23. Manwar, R.; Kratkiewicz, K.; Avanaki, K. Investigation of the effect of the skull in transcranial photoacoustic imaging: A preliminary ex vivo study. Sensors 2020, 20, 4189. [Google Scholar] [CrossRef] [PubMed]
  24. Manwar, R.; Benavides Lara, J.; Prakash, R.; Ranjbaran, S.M.; Avanaki, K. Randomized Multi-Angle Illumination for Improved Linear Array Photoacoustic Computed Tomography in Brain. J. Biophotonics 2022, e202200016. [Google Scholar] [CrossRef] [PubMed]
  25. Hariri, A.; Omidi, P.; Nasiriavanaki, M. Resting-state functional connectivity measurement in the mouse brain using a low cost photoacoustic computed tomography. In Proceedings of the Laser Science, Rochester, NY, USA, 16–20 October 2016; p. JW4A.62. [Google Scholar]
  26. Mohammadi, L.; Behnam, H.; Tavakkoli, J.; Avanaki, K. Skull acoustic aberration correction in photoacoustic microscopy using a vector space similarity model: A proof-of-concept simulation study. Biomed. Opt. Express 2020, 11, 5542–5556. [Google Scholar] [CrossRef]
  27. Mohammadi, L.; Behnam, H.; Tavakkoli, J.; Avanaki, M. Skull’s photoacoustic attenuation and dispersion modeling with deterministic ray-tracing: Towards real-time aberration correction. Sensors 2019, 19, 345. [Google Scholar] [CrossRef] [Green Version]
  28. Kratkiewicz, K.; Manwar, R.; Zhou, Y.; Mozaffarzadeh, M.; Avanaki, K. Technical considerations in the Verasonics research ultrasound platform for developing a photoacoustic imaging system. Biomed. Opt. Express 2021, 12, 1050–1084. [Google Scholar] [CrossRef]
  29. Hariri, A.; Bely, N.; Chen, C.; Nasiriavanaki, M. Towards ultrahigh resting-state functional connectivity in the mouse brain using photoacoustic microscopy. In Proceedings of the Photons Plus Ultrasound: Imaging and Sensing 2016, San Francisco, CA, USA, 14–17 February 2016; p. 97085A. [Google Scholar]
  30. Manwar, R.; Islam, M.T.; Ranjbaran, S.M.; Avanaki, K. Transfontanelle photoacoustic imaging: Ultrasound transducer selection analysis. Biomed. Opt. Express 2022, 13, 676–693. [Google Scholar] [CrossRef]
  31. Avanaki, K.; Gelovani, J.G. Ultrasound and Multispectral Photoacoustic Systems and Methods for Brain and Spinal Cord Imaging through Acoustic Windows. U.S. Patent 16/566,212, 12 March 2020. [Google Scholar]
  32. Panchal, R.; Horton, L.; Poozesh, P.; Baqersad, J.; Nasiriavanaki, M. Vibration analysis of healthy skin: Toward a noninvasive skin diagnosis methodology. J. Biomed. Opt. 2019, 24, 015001. [Google Scholar] [CrossRef] [Green Version]
  33. Mahmoodkalayeh, S.; Kratkiewicz, K.; Manwar, R.; Shahbazi, M.; Ansari, M.A.; Natarajan, G.; Asano, E.; Avanaki, K. Wavelength and pulse energy optimization for detecting hypoxia in photoacoustic imaging of the neonatal brain: A simulation study. Biomed. Opt. Express 2021, 12, 7458–7477. [Google Scholar] [CrossRef]
  34. Tang, S.; Nguyen, D.; Zarafshani, A.; Ramseyer, C.; Zheng, B.; Liu, H.; Xiang, L. X-ray-induced acoustic computed tomography with an ultrasound transducer ring-array. Appl. Phys. Lett. 2017, 110, 103504. [Google Scholar] [CrossRef]
  35. Xiang, L.; Tang, S.; Ahmad, M.; Xing, L. High resolution X-ray-induced acoustic tomography. Sci. Rep. 2016, 6, 26118. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Ahmad, M.; Xiang, L.; Yousefi, S.; Xing, L. Theoretical detection threshold of the proton-acoustic range verification technique. Med. Phys. 2015, 42, 5735–5744. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. Kellnberger, S.; Assmann, W.; Lehrack, S.; Reinhardt, S.; Thirolf, P.; Queiros, D.; Sergiadis, G.; Dollinger, G.; Parodi, K.; Ntziachristos, V. Ionoacoustic tomography of the proton Bragg peak in combination with ultrasound and optoacoustic imaging. Sci. Rep. 2016, 6, 29305. [Google Scholar] [CrossRef]
  38. Lerch, R. Finite element analysis of piezoelectric transducers. In Proceedings of the IEEE 1988 Ultrasonics Symposium Proceedings, Chicago, IL, USA, 2–5 October 1988; pp. 643–654. [Google Scholar]
  39. Loveday, P.W. Analysis of piezoelectric ultrasonic transducers attached to waveguides using waveguide finite elements. IEEE Trans. Ultrason. Ferroelectr. Freq. Control 2007, 54, 2045–2051. [Google Scholar] [CrossRef] [PubMed]
  40. Luka, G.; Ahmadi, A.; Najjaran, H.; Alocilja, E.; DeRosa, M.; Wolthers, K.; Malki, A.; Aziz, H.; Althani, A.; Hoorfar, M. Microfluidics integrated biosensors: A leading technology towards lab-on-a-chip and sensing applications. Sensors 2015, 15, 30011–30031. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  41. Chhiba, L.; Zaher, B.; Sidqui, M.; Marzak, A. Glucose Sensing for Diabetes Monitoring: From Invasive to Wearable Device. In Proceedings of the Third International Conference on Smart City Applications, Casablanca, Morocco, 2–4 October 2019; pp. 350–364. [Google Scholar]
  42. Chen, L.; Neethirajan, S. A homogenous fluorescence quenching based assay for specific and sensitive detection of influenza virus A hemagglutinin antigen. Sensors 2015, 15, 8852–8865. [Google Scholar] [CrossRef]
  43. Murugaiyan, S.B.; Ramasamy, R.; Gopal, N.; Kuzhandaivelu, V. Biosensors in clinical chemistry: An overview. Adv. Biomed. Res. 2014, 3, 67. [Google Scholar]
  44. Jolly, M.R.; Prabhakar, A.; Sturzu, B.; Hollstein, K.; Singh, R.; Thomas, S.; Foote, P.; Shaw, A. Review of non-destructive testing (NDT) techniques and their applicability to thick walled composites. Procedia CIRP 2015, 38, 129–136. [Google Scholar] [CrossRef] [Green Version]
  45. Carovac, A.; Smajlovic, F.; Junuzovic, D. Application of ultrasound in medicine. Acta Inform. Med. 2011, 19, 168–171. [Google Scholar] [CrossRef] [Green Version]
  46. Webb, A.G. Introduction to Biomedical Imaging; John Wiley & Sons: Hoboken, NJ, USA, 2017. [Google Scholar]
  47. Szabo, T.L. Diagnostic Ultrasound Imaging: Inside out; Academic Press: Cambridge, MA, USA, 2004. [Google Scholar]
  48. Adamowski, J.C.; Andrade, M.A.; Perez, N.; Buiochi, F. A large aperture ultrasonic receiver for through-transmission determination of elastic constants of composite materials. In Proceedings of 2008 IEEE Ultrasonics Symposium, Beijing, China, 2–5 November 2008; pp. 1524–1527. [Google Scholar]
  49. Li, M.; Hayward, G. Ultrasound nondestructive evaluation (NDE) imaging with transducer arrays and adaptive processing. Sensors 2012, 12, 42–54. [Google Scholar] [CrossRef] [Green Version]
  50. Trachenko, K.; Monserrat, B.; Pickard, C.; Brazhkin, V. Speed of sound from fundamental physical constants. Sci. Adv. 2020, 6, eabc8662. [Google Scholar] [CrossRef] [PubMed]
  51. Reid, J.M.; Institute, B.M.; Foundation, N.S.; Health, B.O.R. Interaction of Ultrasound and Biological Tissues; US Bureau of Radiological Health: Des Moines, IA, USA, 1972. [Google Scholar]
  52. Casarotto, R.A.; Adamowski, J.C.; Fallopa, F.; Bacanelli, F. Coupling agents in therapeutic ultrasound: Acoustic and thermal behavior. Arch. Phys. Med. Rehabil. 2004, 85, 162–165. [Google Scholar] [CrossRef]
  53. Fahy, F. 7—Sound Absorption and Sound Absorbers. In Foundations of Engineering Acoustics; Fahy, F., Ed.; Academic Press: London, UK, 2001; pp. 140–180. [Google Scholar] [CrossRef]
  54. Kinsler, L.; Frey, A.; Coppens, A.; Sanders, J. The acoustic wave equation and simple solutions. In Fundamentals of Acoustics; Wiley: Hoboken, NJ, USA, 2000; pp. 113–148. [Google Scholar]
  55. Kozaczka, E.; Grelowska, G. Theoretical model of acoustic wave propagation in shallow water. Pol. Marit. Res. 2017, 24, 48–55. [Google Scholar] [CrossRef] [Green Version]
  56. Hanyga, A.; Seredyńska, M. Power-law attenuation in acoustic and isotropic anelastic media. Geophys. J. Int. 2003, 155, 830–838. [Google Scholar] [CrossRef] [Green Version]
  57. Azhari, H. Appendix A: Typical acoustic properties of tissues. In Basics of Biomedical Ultrasound for Engineers; Wiley-IEEE Press: Hoboken, NJ, USA, 2010. [Google Scholar]
  58. Aaslid, R. Cerebral autoregulation and vasomotor reactivity. In Handbook on Neurovascular Ultrasound; Karger Publishers: Basel, Switzerland, 2006; Volume 21, pp. 216–228. [Google Scholar]
  59. Amin, V.R. Ultrasonic Attenuation Estimation for Tissue Characterization. Master’s Thesis, Iowa State University, Ames, IA, USA, 1989. [Google Scholar]
  60. Bourne, S.; Newborough, M.; Highgate, D. Novel solid contact ultrasonic couplants based on hydrophilic polymers. In Proceedings of the 15th World Conference on NDT, Roma, Italy, 15–21 October 2000. [Google Scholar]
  61. Bindal, V. Water-based couplants for general purpose use for ultrasonic NDT applications. J. Sci. Ind. Res. 2000, 59, 935–939. [Google Scholar]
  62. Klucinec, B.; Scheidler, M.; Denegar, C.; Domholdt, E.; Burgess, S. Transmissivity of coupling agents used to deliver ultrasound through indirect methods. J. Orthop. Sports Phys. Ther. 2000, 30, 263–269. [Google Scholar] [CrossRef]
  63. Online Database: Acoustic Properties of Liquids. ONDA Corporation. Available online: http://www.ondacorp.com/images/Liquids.pdf (accessed on 1 April 2022).
  64. Zhang, Y. Measuring Acoustic Attenuation of Polymer Materials Using Drop Ball Test. Master’s Thesis, Embry-Riddle Aeronautical University, Daytona Beach, FL, USA, 2013. [Google Scholar]
  65. Desai, S.; Jones, J. Ultrashield Devices and Methods for Use in Ultrasonic Procedures. U.S. Patent 62/285,758, 9 November 2015. [Google Scholar]
  66. Burns, J.M. Development and Characterisation of a Fibre-Optic Acoustic Emission Sensor. Ph.D. Thesis, University of Birmingham, Birmingham, UK, 2012. [Google Scholar]
  67. Montecalvo, D.A.; Rolf, D. Solid Multipurpose Ultrasonic Biomedical Couplant Gel in Sheet Form and Method. U.S. Patent 5,522,878, 4 June 1996. [Google Scholar]
  68. Yochev, B.; Kutzarov, S.; Ganchev, D.; Staykov, K. Investigation of ultrasonic properties of hydrophilic polymers for dry-coupled inspection. In Proceedings of the European Conference on Non-Destructive Testing, Berlin, Germany, 1–7 January 2006; pp. 25–29. [Google Scholar]
  69. Muradali, D.; Gold, W.; Phillips, A.; Wilson, S. Can ultrasound probes and coupling gel be a source of nosocomial infection in patients undergoing sonography? An in vivo and in vitro study. Am. J. Roentgenol. 1995, 164, 1521–1524. [Google Scholar] [CrossRef]
  70. Nyholt, J.; Langlois, G.N. Dry-Coupled Permanently Installed Ultrasonic Sensor Linear Array. U.S. Patent 8,408,065, 2 April 2013. [Google Scholar]
  71. Watson, T. Ultrasound Gels and Coupling Agents. Electrotherapy on the Web. Available online: http://www.electrotherapy.org/modality/ultrasound-gels-and-coupling-agents#Ultrasound%20Transmissivity%20through%20Coupling%20Agents%20(Gels)%20in%20the%20UK (accessed on 1 April 2022).
  72. Poltawski, L.; Watson, T. Relative transmissivity of ultrasound coupling agents commonly used by therapists in the UK. Ultrasound Med. Biol. 2007, 33, 120–128. [Google Scholar] [CrossRef]
  73. Webpage: Couplant Selection Chart. Echo Ultrasonics. Available online: https://www.echoultrasonics.com/products/ (accessed on 1 April 2022).
  74. Online Database: Ultrasonic Testing Couplant. Magnaflux. Available online: https://www.magnaflux.com/Magnaflux/Products/Ultrasonic-Couplants.htm (accessed on 1 April 2022).
  75. Online Database: Ultrasonic Couplants. Oympus Corporation. Available online: https://www.olympus-ims.com/en/applications/ultrasonic-couplant/ (accessed on 1 April 2022).
  76. Dickson, J. Dry coupling ultrasonic method of inspection on composite and metallic honeycomb panels on aircraft structure. In Proceedings of the Non-Destructive Testing. Tenth World Conference, Moscow, Russia, 22–28 August 1982; pp. 216–221. [Google Scholar]
  77. Çetin, M.İ. Effect of Solid Couplants Made of Hydrophilic Polymers in Ultrasonic Testing. Master’s Thesis, Middle East Technical University, Ankara, Turkey, 2003. [Google Scholar]
  78. Mitchell, P. Tool and Manufacturing Engineers Handbook: Plastic Part Manufacturing; Society of Manufacturing Engineers: Southfield, MI, USA, 1996; Volume 8. [Google Scholar]
  79. Mitchell, B.S. An Introduction to Materials Engineering and Science for Chemical and Materials Engineers; John Wiley & Sons: Hoboken, NJ, USA, 2004. [Google Scholar]
  80. Vondráček, P.; Doležel, B. Biostability of medical elastomers: A review. Biomaterials 1984, 5, 209–214. [Google Scholar] [CrossRef]
  81. Ali, M.R.; Salit, M.S.; Jawaid, M.; Mansur, M.R.; Manap, M.F.A. Polyurethane-Based Biocomposites. In Polyurethane Polymers; Elsevier: Amsterdam, The Netherlands, 2017; pp. 525–546. [Google Scholar]
  82. Sanabria, S.J.; Mueller, C.; Neuenschwander, J.; Niemz, P.; Sennhauser, U. Air-coupled ultrasound as an accurate and reproducible method for bonding assessment of glued timber. Wood Sci. Technol. 2011, 45, 645–659. [Google Scholar] [CrossRef] [Green Version]
  83. Norman, J. Ultrasonic dry coupling through tissue. Can. Acoust. 2015, 43. [Google Scholar]
  84. Mojabi, P. Ultrasound Tomography: An Inverse Scattering Approach. Master’s Thesis, University of Manitoba, Winnipeg, MB, Canada, 2014. [Google Scholar]
  85. Ginzel, E.; Ginzel, R.; Brothers, G. Ultrasonic Properties of a New Low Attenuation Dry Couplant Elastomer. Available online: https://www.ndt.net/article/ginzel/ginzel.htm (accessed on 1 April 2022).
  86. Burke, M.; Smith, J.; Carroll, N.; Townend, D.; Porter, D.; Hoskins, P. Acoustic properties of butadiene and silicone elastomers at megahertz frequencies. Plast. Rubber Compos. 2009, 38, 343–348. [Google Scholar] [CrossRef]
  87. Bhadwal, N.; Torabi Milani, M.; Coyle, T.; Sinclair, A. Dry Coupling of Ultrasonic Transducer Components for High Temperature Applications. Sensors 2019, 19, 5383. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  88. MacNeil, R. Sound Transfer—Coupling Media Innovation Polymers. Available online: http://www.innovationpolymers.ca/assets/pdfs/material_property_overview.pdf (accessed on 1 April 2022).
  89. Ginzel, E.; Macneil, R.; Ginzel, R.; Zuber, M.; Sinclar, A. Acoustic Properties of the Elastomeric Materials Aqualene™ and ACE™. e-J. Nondestruct. Test. (NDT) 2015, 20, 1–2. [Google Scholar]
  90. Andrėkutė, K. Development of the Stable Ultrasound Phantoms for Superficial Human Tissue Investigation. Available online: https://nam04.safelinks.protection.outlook.com/?url=http%3A%2F%2Fbiomed.ktu.lt%2Findex.php%2FBME%2Farticle%2Fview%2F428&data=05%7C01%7Crmanwar%40uic.edu%7Cbe9f5c0f87ef4370fcc908da3009c1a5%7Ce202cd477a564baa99e3e3b71a7c77dd%7C0%7C0%7C637875116147137752%7CUnknown%7CTWFpbGZsb3d8eyJWIjoiMC4wLjAwMDAiLCJQIjoiV2luMzIiLCJBTiI6Ik1haWwiLCJXVCI6Mn0%3D%7C3000%7C%7C%7C&sdata=a64EBhQH1zyneUgzuMhvxcUyFhEMDQ9qSRN7zZ68HRA%3D&reserved=0 (accessed on 1 April 2022).
  91. Meimani, N.; Abani, N.; Gelovani, J.; Avanaki, M.R. A numerical analysis of a semi-dry coupling configuration in photoacoustic computed tomography for infant brain imaging. Photoacoustics 2017, 7, 27–35. [Google Scholar] [CrossRef]
  92. Mathur, A.M.; Moorjani, S.K.; Scranton, A.B. Methods for synthesis of hydrogel networks: A review. J. Macromol. Sci. Part C Polym. Rev. 1996, 36, 405–430. [Google Scholar] [CrossRef]
  93. Kálal, J. Water sensitive chemically cross-linked gels. In Chemistry and Technology of Water-Soluble Polymers; Springer: Berlin/Heidelberg, Germany, 1983; pp. 71–80. [Google Scholar]
  94. Luprano, V.; Montagna, G.; Maffezzoli, A. A study of the water sorption kinetic of Poly (HEMA) hydrogels by SLAM and FT-IR measurements. IEEE Trans. Ultrason. Ferroelectr. Freq. Control 1996, 43, 948–955. [Google Scholar] [CrossRef]
  95. Maffezzoli, A.; Luprano, A.; Montagna, G.; Nicolais, L. Ultrasonic characterization of water sorption in poly (2-hydroxyethyl methacrylate) hydrogels. J. Appl. Polym. Sci. 1998, 67, 823–831. [Google Scholar] [CrossRef]
  96. Smith, L.L. Adhesive Hydrophilic Membranes as Couplants in Ultrasound Imaging Applications. U.S. Patent 6,719,699, 13 April 2004. [Google Scholar]
  97. Larson, M.J.; Rutter, J.W.; Smith, L.L. Coupling Sheath for Ultrasound Transducers. U.S. Patent 6,039,694, 21 March 2000. [Google Scholar]
  98. Sieverding, D.L. Hydrophilic, Elastomeric, Pressure-Sensitive Adhesive. U.S. Patent 4,699,146, 13 October 1987. [Google Scholar]
  99. Richardson, P.C.; Stevens, A.L. Ultrasonic Transducer Coupling Member. U.S. Patent 4,459,854, 17 July 1984. [Google Scholar]
  100. Bourne, S.J. Novel Hydrophilic Polymer Couplant for Application in Ultrasonic Non Destructive Testing. Ph.D. Thesis, Cranfield University, Bedford, UK, 2001. [Google Scholar]
  101. Shikinami, Y.; Tsuta, K.; Taniguchi, M.; Boutani, H. Liquid Segment Polyurethane Gel and Couplers for Ultrasonic Diagnostic Probe Comprising the Same. U.S. Patent 5,039,774, 13 August 1991. [Google Scholar]
  102. Vinograd, A.M.; Fasina, A.; Dean, A.J.; Shofer, F.; Panebianco, N.L.; Lewiss, R.E.; Gupta, S.; Rao, A.R.; Henwood, P.C. Evaluation of Noncommercial Ultrasound Gels for Use in Resource-Limited Settings. J. Ultrasound Med. 2019, 38, 371–377. [Google Scholar] [CrossRef] [Green Version]
  103. Murdock, D.M. Flexible Ultrasound Coupling System. U.S. Patent 4,059,098, 22 November 1977. [Google Scholar]
  104. Jahnke, R.C.; Bertolina, J.A.; Roberts, W.W.; Cain, C.A.; Teofilovic, D.; Davison, T.W. Disposable Acoustic Coupling Medium Container. U.S. Patent 9,061,131, 23 June 2015. [Google Scholar]
  105. Pretlow III, R.A. Coupling Pad for Use with Medical Ultrasound Devices. U.S. Patent 5,782,767, 21 July 1998. [Google Scholar]
  106. Norman, J. Development of a Dry Coupling Material for Ultrasonic Transcutaneous Energy Transfer. Ph.D. Thesis, The Pennsylvania State University, State College, PA, USA, 2017. [Google Scholar]
  107. Rathod, V.T. A review of acoustic impedance matching techniques for piezoelectric sensors and transducers. Sensors 2020, 20, 4051. [Google Scholar] [CrossRef]
  108. Chapelon, J.-Y.; Cathignol, D.; Cain, C.; Ebbini, E.; Kluiwstra, J.-U.; Sapozhnikov, O.A.; Fleury, G.; Berriet, R.; Chupin, L.; Guey, J.-L. New piezoelectric transducers for therapeutic ultrasound. Ultrasound Med. Biol. 2000, 26, 153–159. [Google Scholar] [CrossRef]
  109. Zaini, Z.; Osuga, M.; Jimbo, H.; Yasuda, J.; Takagi, R.; Yoshizawa, S.; Umemura, S.-I. Study on heavy matching layer transducer towards producing second harmonics. Jpn. J. Appl. Phys. 2016, 55, 07KF15. [Google Scholar] [CrossRef]
  110. Bovtun, V.; Döring, J.; Bartusch, J.; Beck, U.; Erhard, A.; Yakymenko, Y. Ferroelectret non-contact ultrasonic transducers. Appl. Phys. A 2007, 88, 737–743. [Google Scholar] [CrossRef]
  111. Rupitsch, S.J.; Lerch, R.; Strobel, J.; Streicher, A. Ultrasound transducers based on ferroelectret materials. IEEE Trans. Dielectr. Electr. Insul. 2011, 18, 69–80. [Google Scholar] [CrossRef]
  112. Billson, D.; Hutchins, D. Development of novel piezoelectric ultrasonic transducers for couplant-free non-destructive testing. Br. J. Non-Destr. Test. 1993, 35, 705–709. [Google Scholar]
  113. Drinkwater, B.; Cawley, P. An ultrasonic wheel probe alternative to liquid coupling. Insight 1994, 36, 430–433. [Google Scholar]
  114. Drinkwater, B.; Cawley, P. The practical application of solid coupled ultrasonic transducers. Mater. Eval. 1996, 55, 2041–2044. [Google Scholar]
  115. Silk, M.G. Ultrasonic Transducers for Nondestructive Testing; U.S. Department of Energy: Washington, DC, USA, 1984. [Google Scholar]
  116. Shenk, T. Ultrasonic Transducers. In Airducer Catalog; Corporation, A.T., Ed.; Airmar Technlogy Corporation: Milford, NH, USA, 2018; Available online: www.airmar.com (accessed on 1 April 2022).
Chemosensors 10 00181 g001 550
Figure 1. All-acoustic sensor versus induced-acoustic sensor with and without a couplant. (a) Acoustic wave transmission and reception in an all-acoustic sensor; (b) acoustic wave detection in an induced-acoustic sensor. Inefficient acoustic wave propagation in air is due to a high acoustic impedance mismatch between the tissue and the transducer. Acoustic coupling medium reduces the impedance mismatch between probe surface and target for improved acoustic wave transmission and reception with decreased loss of signal (thick acoustic waves-green).
Figure 1. All-acoustic sensor versus induced-acoustic sensor with and without a couplant. (a) Acoustic wave transmission and reception in an all-acoustic sensor; (b) acoustic wave detection in an induced-acoustic sensor. Inefficient acoustic wave propagation in air is due to a high acoustic impedance mismatch between the tissue and the transducer. Acoustic coupling medium reduces the impedance mismatch between probe surface and target for improved acoustic wave transmission and reception with decreased loss of signal (thick acoustic waves-green).
Chemosensors 10 00181 g001
Chemosensors 10 00181 g002 550

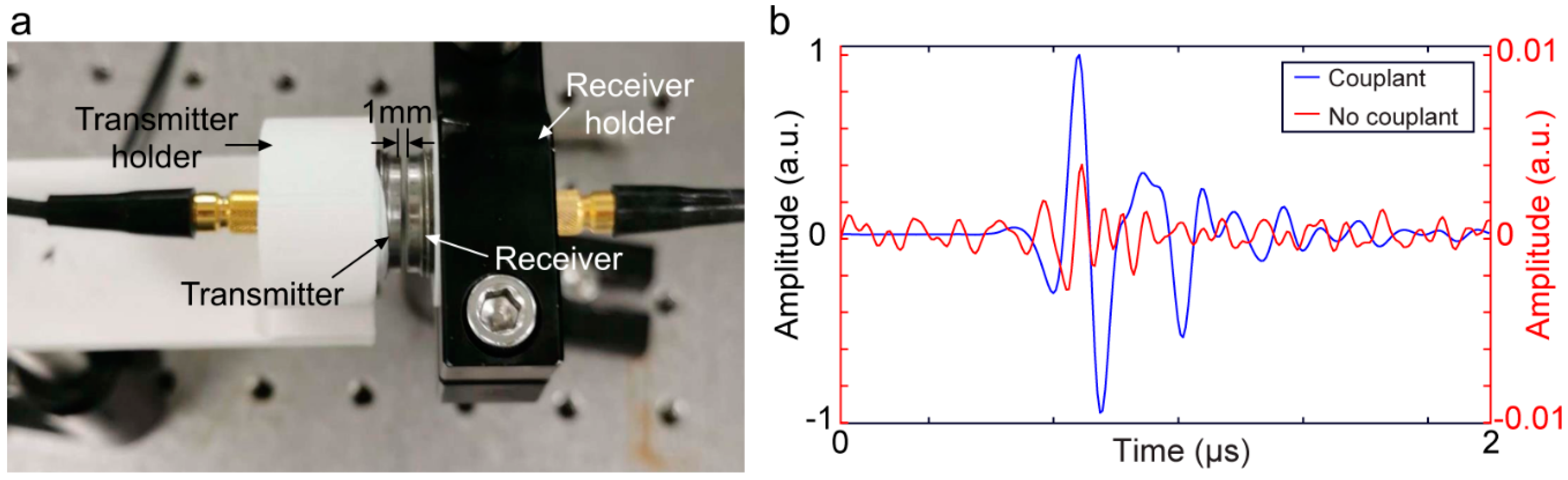

Figure 2. Impact of couplant on acoustic signal propagation. (a) Experimental setup demonstrating a pair of ultrasound transducer (transmitter and receiver) coaxially placed. The distance between the transmitter and receiver was 1 mm; (b) normalized acoustic signal strength acquired by the receiver in (a) the presence of coupling medium (ultrasound gel-blue line) and no couplant (air gap-red line).
Figure 2. Impact of couplant on acoustic signal propagation. (a) Experimental setup demonstrating a pair of ultrasound transducer (transmitter and receiver) coaxially placed. The distance between the transmitter and receiver was 1 mm; (b) normalized acoustic signal strength acquired by the receiver in (a) the presence of coupling medium (ultrasound gel-blue line) and no couplant (air gap-red line).
Chemosensors 10 00181 g002
Chemosensors 10 00181 g003 550
Figure 3. Attenuation of acoustic wave as a function of frequency (1–50 MHz) at different distances (5, 10, and 20 mm) in air (black) and water (red).
Figure 3. Attenuation of acoustic wave as a function of frequency (1–50 MHz) at different distances (5, 10, and 20 mm) in air (black) and water (red).
Chemosensors 10 00181 g003
Chemosensors 10 00181 g004 550
Figure 4. Aggregate performance of noncommercial gel alternatives compared to commercial gel. Error bars indicate adjusted 95% confidence interval (CI) from post hoc Tukey-Kramer t- tests; bars crossing dashed lines represent no statistically significant difference from commercial gel. The commercial gel mean score was 45 (ideal score). Reproduced from [102].
Figure 4. Aggregate performance of noncommercial gel alternatives compared to commercial gel. Error bars indicate adjusted 95% confidence interval (CI) from post hoc Tukey-Kramer t- tests; bars crossing dashed lines represent no statistically significant difference from commercial gel. The commercial gel mean score was 45 (ideal score). Reproduced from [102].
Chemosensors 10 00181 g004
Chemosensors 10 00181 g005 550
Figure 5. Comparison between the power generated from transducer with heavy matching layer on piezocomposite active layer, transducer without heavy matching layer on piezocomposite active layer, and transducer with conventional matching layer + piezocomposite method. Reproduced from [109].
Figure 5. Comparison between the power generated from transducer with heavy matching layer on piezocomposite active layer, transducer without heavy matching layer on piezocomposite active layer, and transducer with conventional matching layer + piezocomposite method. Reproduced from [109].
Chemosensors 10 00181 g005
Table
Table 1. Advantages and disadvantages of different biosensing techniques [40,41,42,43].
Table 1. Advantages and disadvantages of different biosensing techniques [40,41,42,43].
Biosensing TechniqueAdvantageDisadvantageSensitivitySelectivity
Electrochemical- easy to integrate
- label free
- low cost		- mostly in-vitro
- poor stability
- time consuming		LowHigh
Electromagnetic- high resolution
- can be non-invasive
- real-time detection		- limited penetration
- complex instrumentation
- affected by environmental factors		HighAverage
Acoustic- label free
- non-invasive
- high dynamic range
- deeper penetration		- limited resolution
- bulky		HighLow
Table
Table 2. Different form factors of acoustic coupling agents.
Table 2. Different form factors of acoustic coupling agents.
TypeLiquid/Gel-BasedDrySemi-Dry
Form factor Chemosensors 10 00181 i001 Chemosensors 10 00181 i002 Chemosensors 10 00181 i003
Table
Table 3. Acoustic properties of water, air, and some biological tissues [57,58,59].
Table 3. Acoustic properties of water, air, and some biological tissues [57,58,59].
MaterialLongitudinal Speed (m/s)Density (g/cm3)Acoustic Impedance (MRayl)Attenuation (dB/cm·MHz)
Water148011.50.0022
Air3440.001250.000017.5
Blood15701.261.610.087
Brain15501.0871.580.87
Fat14500.8701.380.61
Liver15901.061.690.9
Kidney15701.051.651
Heart15701.0451.642
Eye lens15251.041.722
Muscle15801.0651.580.7~1.4
Bone35001.97.808.7
Table
Table 4. Acoustic properties of commonly used liquid/gel-based ultrasound coupling media [63,64].
Table 4. Acoustic properties of commonly used liquid/gel-based ultrasound coupling media [63,64].
MaterialLongitudinal Speed (m/s)Density (g/cm3)Acoustic Impedance (MRayl)Attenuation (dB/cm·MHz)
Glycerin19301.262.420.25
Ethylene glycol16261.0871.80.34
Oil17530.8701.510.15~0.5
Gel1390–16200.98–1.031.45–1.60<0.05
Water at 20 °C147311.480.002
Table
Table 5. Acoustic properties of conventional polymers used as dry couplants [63,64,83,84,85,86].
Table 5. Acoustic properties of conventional polymers used as dry couplants [63,64,83,84,85,86].
TypeMaterialLongitudinal Speed
(m/s)		Density
(g/cm3)		Acoustic Impedance (MRayl)Attenuation @ 5MHz
(dB/cm)
ThermoplasticPVC (soft)22701.363.2711.2
PTFE13902.1733.9
UHMWP23640.912.338
Polypropylene27400.922.45.1
Polycarbonate23001.222.7523.2
PMMA (clear)27501.202.3211.3
Nylon 6-626001.3142.912.9
ThermosetPolyester,22901.212.8610–20
Epoxy23601.152.8615–20
ElastomerPolyurethane20900.9412.3627.6–100
Polystyrene24001.212.521.8
Butadiene15670.951.491
Silicone10410.991.040.71
PVC: Polyvinyl chloride; PTFE: Polytetrafluoroethylene (Teflon); UHWMP: Ultra-high-molecular weight polyethylene; PMMA: Polymethyl methacrylate; silicone: RTV12.
Table
Table 6. Acoustic properties of commercially available dry ultrasound couplants [88,89,91].
Table 6. Acoustic properties of commercially available dry ultrasound couplants [88,89,91].
MaterialTypeAcoustic Speed (m/s)Attenuation
(dB/mm @5MHz)		Hardness
(Shore A)		Feature
Aqualene 200Thermoset1589−0.2240Soft, flexible
ACE 400Thermoplastic1541−0.9940Low temperature
AqualinkThermoplastic14890.445Conforming, Clear, Supersoft
AquasiloxSilicone based1001−0.8023High temperature
AquaCyanUrethane1589−3.3390High abrasion, tough
Table
Table 8. Acoustic properties of matching layer [107].
Table 8. Acoustic properties of matching layer [107].
MaterialLongitudinal Speed (m/s)Density (g/cm3)Acoustic Impedance (MRayl)
Parylene11002.352.58
Gold19,7003.2463.8
Aluminum63202.7017
Glass59007.7045
Perspex50003.0015
Anodic aluminum oxide epoxy23501.062.5
High density polyehylene34602.759.5
Syntactic foam23390.952.2
Epotek 30124860.701.75
Teflon28002.306.4
Acrylonitrile-butadiene-styrene23001.222.8
Polysulfone25101.062.7
Mylar27400.922.4
Table
Table 9. Specification of the air-coupled transducer [115,116].
Table 9. Specification of the air-coupled transducer [115,116].
Transducer Diameter (mm)Center Frequency (kHz)Sensing Range (m)
20519.50.8–40
106300.8–25
77.5410.35–15
77.5500.30–10
76.2750.25–7
251250.20–3
162000.12–2
132280.10–1.5
123000.05–0.5
Table
Table 10. Qualitative comparison between different acoustic couplants.
Table 10. Qualitative comparison between different acoustic couplants.
ParametersLiquid/GelDrySemi-DryAir-Coupled
Impedance mismatch+++++++++++
Attenuation+++++++++++
Biodegradability++++++++
Flexibility++++++++++++
Adhesion++++++-
Cost+++++++++
Complexity (Develop)++++++++++++
Complexity (Usage)+++++++
++++: high, +++/++: medium, +: low, - Not applicable.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Manwar, R.; Saint-Martin, L.; Avanaki, K. Couplants in Acoustic Biosensing Systems. Chemosensors 2022, 10, 181. https://doi.org/10.3390/chemosensors10050181

AMA Style

Manwar R, Saint-Martin L, Avanaki K. Couplants in Acoustic Biosensing Systems. Chemosensors. 2022; 10(5):181. https://doi.org/10.3390/chemosensors10050181

Chicago/Turabian Style

Manwar, Rayyan, Loїc Saint-Martin, and Kamran Avanaki. 2022. "Couplants in Acoustic Biosensing Systems" Chemosensors 10, no. 5: 181. https://doi.org/10.3390/chemosensors10050181

APA Style

Manwar, R., Saint-Martin, L., & Avanaki, K. (2022). Couplants in Acoustic Biosensing Systems. Chemosensors, 10(5), 181. https://doi.org/10.3390/chemosensors10050181

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
