Theoretical Study on the Electrochemical Catalytic Activity of Au-Doped Pt Electrode for Nitrogen Monoxide

Abstract

In order to gradually reduce automobile exhaust pollution and improve fuel quality, the NOx sensor, which can be monitored in real time in an automobile engine’s electronic control system, has become an indispensable part of the automobile lean burn system. In these types of NOx sensors, Au-doped platinum electrodes have received great attention due to their selectivity towards NO. However, the reaction process of NO gas on the Au-doped platinum electrode in the sensor and the possible regulation mechanism is still unclear. In this paper, the density functional theory (DFT) was used to analyze the effect of Au-doped Pt electrodes on the performance of nitrogen oxide sensors in automobiles. Firstly, the adsorption energies of NO molecules on pure Pt and Au/Pt surfaces were compared. The adsorption and dissociation of NO on Pt substrates doped with Au monomers, dimers, and trimers were investigated. These results showed that Au can effectively weaken the adsorption energy of NO molecules on a Pt surface. It was noted that with the increase in the number of Au atoms on the surface of Pt(111), the adsorption capacity of NO molecules on the alloy surface becomes weaker. When observing the transition state of NO decomposition on three different alloy surfaces, the study showed that the activation energy and reaction heat of NO dissociation increased. It further showed that doping with Au increased the activation energy of NO decomposition, thereby effectively inhibiting the decomposition of NO.

1. Introduction

In recent years, a rapid increase in automobile production and the demand for better consumer products has been observed, leading to a drastic impact on the environment due to exhaust emissions from automobiles and factories. NOx is among the major contributors of air pollution owing to its highly toxic nature. It is very dangerous for human health [1], as well as the environment [2], ecology [3], and social economy [4]. Therefore, governments’ emission regulations for automobile exhaust are becoming more and more stringent. To further reduce vehicle exhaust emissions and improve fuel efficiency, the sensor that can monitor the real-time NOx in automobile engines and electronic control systems has become an indispensable part of the lean burn control system. The current-mode NOx sensor is the only commercial NOx sensor that has been used in automobile selective catalytic reduction systems (SCR) [5]. Its detection principle is explained in the following text. There are two kinds of gas-sensing electrodes in the structure of the current-mode NOx sensor, as shown in Figure 1. One is the main pump electrode, and the other is the auxiliary pump electrode, which is located in the front middle of the sensor. Because the concentration of the O₂ automobile exhaust is usually measured in terms of percentage of total contents, it causes great interference when measuring the ppm of NOx. Therefore, the purpose of the main pump electrode and the auxiliary pump electrode is to pump O₂ out of the tail gas under the operation of external voltage, reducing its concentration to the level of 1 × 10⁻⁶ without decomposing NOx. The other is the measuring pump electrode, in which the remaining NOx in the tail gas is reduced to N₂ and O²⁻ at the measuring pump electrode under the operation of external voltage. Under the action of an electric field, O²⁻ migrates through the solid electrolyte YSZ to the external anode to form a current. According to Faraday’s first law [6], the concentration of NOx in the gas can be obtained by measuring the current.

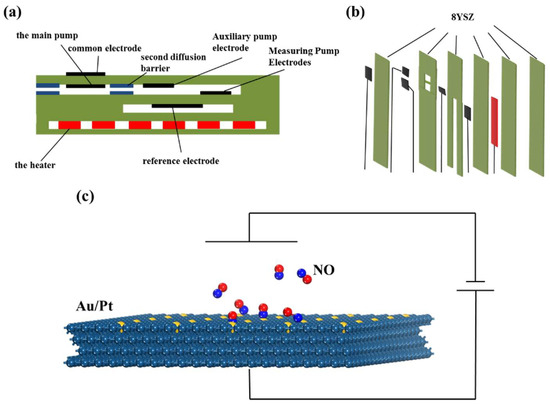

Because the precious metal Pt has better stability and oxygen catalytic activity than other electrode materials [7,8,9,10,11], it is often used as the oxygen pump electrode material for the main pump electrode and auxiliary pump electrode. However, the main pump electrode and auxiliary pump electrode should not only pump oxygen, but also ensure that other gases except oxygen (especially NO) do not decompose; thus, a certain amount of Au is added to reduce the catalytic activity of Pt [12]. For years, Pt was considered a reductive catalyst to NO [13,14,15,16,17]. Therefore, the surface science of NO on Pt has always attracted much attention [18,19,20,21,22,23]. Tang et al. calculated the chemisorption of NO on the surfaces of Pt(111), Rh/Pt(111), and Pd/Pt(111) alloys using the first-principles density functional theory (DFT) [24]. Zhanpeisov et al. used the combined basis set to calculate the interaction of NO and Br with the Pt(111) surface at the B3LYP level and simulated the interaction with the bilayer Pt(111) cluster model. The interaction between Br and Pt is well explained, and the three adsorption modes of NO on the Pt(111) surface are explained [25]. Rachel B. Getman et al. calculated the energy, charge distribution, and vibrational spectra of the steady and metastable adsorption of NO, NO₂, and NO₃ on the Pt(111) surface, indicating the possible adsorption states of nitrogen oxides on the Pt(111) surface [26]. Huang et al. studied the formulation of non-activated electrode paste for the NOx sensor. By adjusting the content of the pore-forming agent and Au in the formula of the Pt electrode, the paste managed to meet the requirements of the main pump electrode and auxiliary pump electrode of the NOx sensor [27]. Ovesson et al. carried out a kinetic Monte Carlo simulation using the parameters of density functional theory and found that the conversion of NO to NO₂ is due to a strong oxygen–platinum bond; the intrinsic NO+O→NO₂ reaction on Pt(111) is inhibited (endothermic) rather than promoted. Pt can be an efficient oxidation catalyst only under sufficient oxidation chemical potential [28]. Although many studies associate the adsorption and reaction of NO on the alloy surface with the composition and structure of the alloy surface, there are few reports on the adsorption and decomposition of NO on the Pt(111) surface doped with different proportions of Au.

Therefore, the density functional theory (DFT) is proposed to analyze the surface structure of Pt-based alloy catalysts doped with different amounts of Au. The adsorption and decomposition transition state of NO on Au/Pt(111) surfaces were studied, and we analyzed the difference in the charge density of NO after the addition of Au.

2. Materials and Methods

When theoretical calculations are carried out to build surface models, the actual catalyst structure is often set up, and the construction is based on real information such as high-exposure or high-activity crystal planes in the catalyst. Pt crystals (111), (200), and (220), as well as other crystal planes, are generally exposed more [29]. Therefore, in order to find their guiding potential for practical significance, this paper mainly calculates on the basis of (111), (200), and (220) crystal planes.

The VASP software package was used for calculations. The GGA-PBE exchange correlation function and projected plane wave (PAW) methods were used to simulate the electron–ion interaction. The surface Brillouin zone used a (3 × 3 × 1) k-point mesh, and the plane wave cutoff energy of 450 eV was selected to sample the Brillouin zone and the expanded plane wave. When the force change was less than 0.02 eV·Å⁻¹ and the energy difference was less than 1 × 10⁻⁵ eV, it was determined that the structure had reached the convergence condition. CI-NEB and dimer methods were used to search the transition state (TS) until the force difference was less than 0.05 eV·Å⁻¹, and the transition state was determined by confirming that there was a unique imaginary frequency in the reaction coordinate state.

The structure of bulk Pt was calculated within a primitive face-centered cubic (fcc) cell. The lattice parameter was calculated to be 3.9654 Å, in excellent agreement with previous reports [30]. The calculated lattice parameter exceeded the experimental value by 0.042 Å [31], consistent with the general tendency of the GGA to overestimate internuclear distances. The pure Pt(111), (200), and (220) surfaces were first simulated by constructing a four-layer (2 × 2) supercell. Then, Au single atoms, dimers, and trimers were placed on the surface of the metal Pt crystal face, respectively, i.e., Au_single/Pt(200), Au_single/Pt(220), Au_single/Pt(111), Au_dimer/Pt(111), and Au_trimer/Pt(111), as well as Au single atoms and dimer- and trimer-embedded Pt surfaces. The vacuum was set to 1.5 nm to ensure that the plates adjacent to the z-axis did not interact with each other. The bottom two layers remained fixed, while the other two layers allowed for complete relaxation.

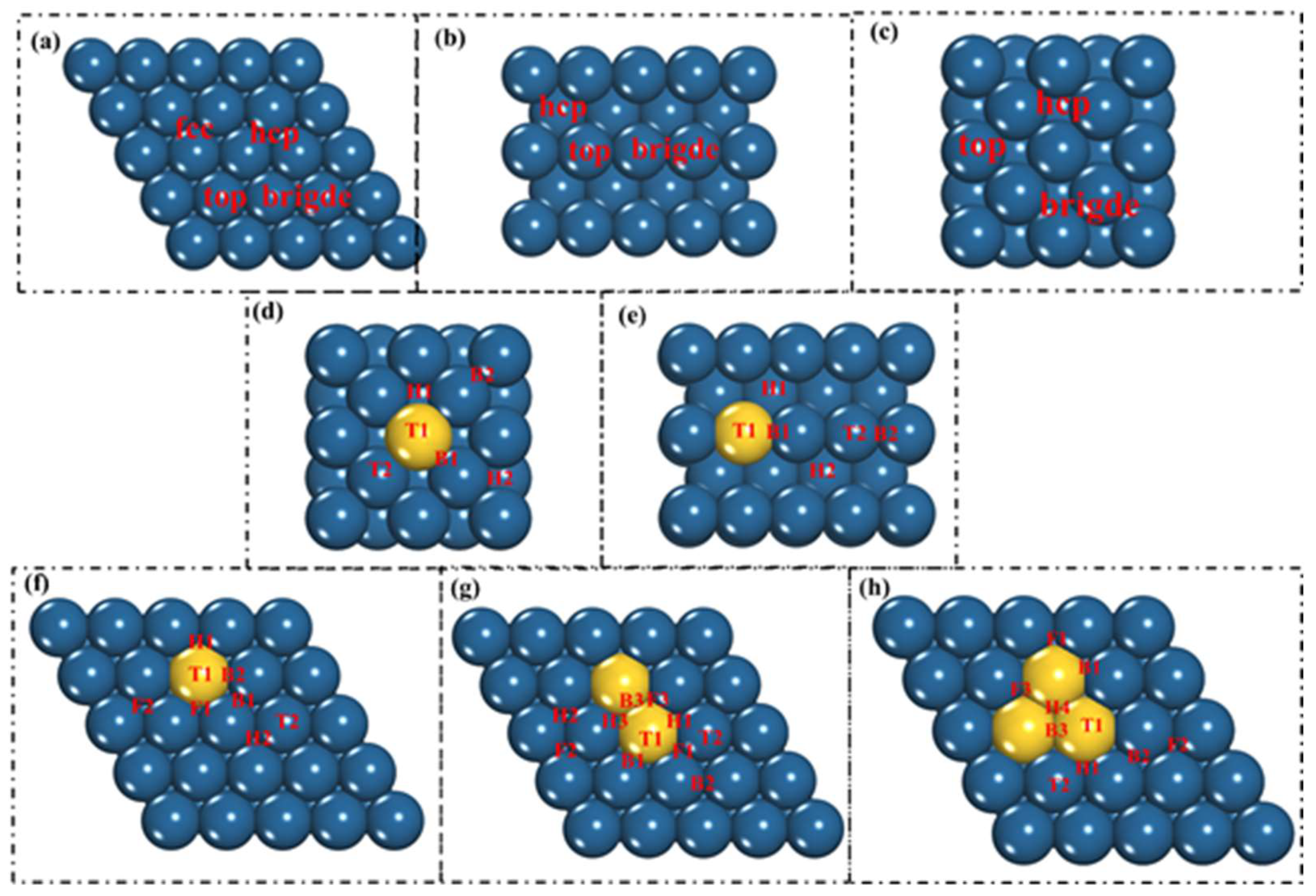

As shown in Figure 2, after constructing the surface model of the Au/Pt(111) alloy with different structural units, NO molecules were placed on the surface of each model, and all possible adsorption sites were considered. Then, the structure was optimized to determine the lowest energy adsorption configuration and adsorption energy E_ads. The calculation formula of adsorption energy is as follows:

$$E_{ads}=E_{total}-E_{slab}-E_{NO}$$

(1)

where E_total represents the total energy of the system after adsorption of NO molecules, E_slab represents the energy of the Pt surface before adsorption of NO molecules, and E_NO represents the energy of free gas molecules of NO. The negative value of E_ads indicates that the adsorption process releases energy, and the greater the energy release, the stronger the adsorption capacity.

In addition, the reaction heat ΔE and activation energy E_a are calculated as follows:

$$\Delta E=E_{FS}-E_{IS}$$

(2)

$$E_a=E_{TS}-E_{IS}$$

(3)

In Equations (2) and (3), E_IS represents the energy of the initial state, E_TS represents the energy of the transition state, and E_FS represents the energy of the final state.

3. Results and Discussion

3.1. Effects of Au Single-Atom Doping on Pt with Different Crystal Planes on NO Adsorption Energy

As shown in Figure 2, when NO adsorption took place on the Pt(111) surface, the NO adsorption calculation was performed on the fcc, hcp, bridge, and top active sites using the vertical adsorption model. It can be seen from

Table 1. Adsorption energies of NO on adsorption sites on Pt(111), Pt(200), and Pt(220) surfaces.

Type	Site	Eads/eV
Pt(111)	top	−1.75
	bridge	−2.23
	fcc	−2.43
	hcp	−2.31
Pt(200)	top	−2.09
	hcp	−1.92
	bridge	−2.08
Pt(220)	top	−2.16
	hcp	−1.13
	bridge	−3.00

that the corresponding NO adsorption energies are −2.44 eV, −2.32 eV, −2.23 eV, and −1.75 eV, respectively. On the surface of Pt(200), the adsorption energies of NO on the top and bridge sites are not much different, and slightly smaller on hcp sites. On the Pt(220) surface, the adsorption energy of NO on the bridge site is the largest and the smallest on the hcp site. It can be seen that the adsorption energy of NO on the three surfaces is greatly affected by the surface structure.

When Au/Pt(111) adsorbs NO, as shown in Figure 2, the vertical adsorption model is used for adsorption at the T1, T2, B1, B2, H1, H2, F1, and F2 active sites. The adsorption sites of Au/Pt (200) and Au/Pt (220) are B1, B2, H1, H2, T1, and T2. It can be seen from Table 1 and

Table 2. Adsorption energies of Au single atoms for NO on Pt(111), Pt(200), and Pt(220) surfaces.

Type	Site	Eads/eV
Pt(111)	T1	−0.93
	T2	−1.65
	B1	−1.48
	B2	−2.14
	H1	−1.86
	H2	−2.30
	F1	−1.99
	F2	−2.41
Pt(200)	B1	−1.94
	B2	−2.40
	H1	−1.23
	H2	−1.40
	T1	−0.26
	T2	−1.95
Pt(220)	B1	−2.11
	B2	−2.60
	H1	−1.75
	H2	−1.82
	T1	−0.34
	T2	−2.17

that when the NO molecule is closer to Au, its adsorption capacity is weakened. The small energy gap indicates that NO does not have an excessive energy barrier when the configuration changes on the Pt surface. In addition, the adsorption energies of NO on each active site on the Au/Pt surface were lower than those on the corresponding active sites on the pure Pt surface. It is preliminarily indicated that with the doping of Au in Pt, the catalytic ability of the Pt surface for NO is weakened.

In addition, previous studies have shown that the exposed area of the Pt(111) surface is larger [29]. Research is also extensive [32,33]. Therefore, in the following sections, we mainly calculate and analyze the adsorbates on the (111) surface.

3.2. Effects of Au Single-Atom, Dimer, and Trimer Doping on Pt surface on NO Adsorption Energy

Table 3. Adsorption sites and adsorption energies of NO molecules on Au_dimer/Pt(111) and Au_trimer/Pt(111) surfaces.

Type	Site	Eads/eV
Audimer/Pt(111)	T1	−0.33
	T2	−1.23
	B2	−1.59
	B3	−0.26
	H2	−1.83
	F2	−1.82
Autrimer/Pt(111)	T1	0.30
	T2	−1.31
	B2	−1.77
	B3	−0.21
	H2	−1.49
	H4	−0.31
	F2	−1.69

shows the stable adsorption of NO on several adsorption sites. From the information above, it can be seen that the adsorption energy of the NO molecule on Au_single/Pt(111) is larger at the F2, H2, and B2 sites. It can be seen from the table that when Au_dimer/Pt adsorbs NO molecules, they are adsorbed on the active sites of T1, T2, B2, B3, H2, and F2, respectively. The corresponding adsorption energies are: −0.33 eV, −1.23 eV, −1.59 eV, −0.26 eV, −1.83 eV, and −1.82 eV. The adsorption energies on the active sites of H2 and F2 are larger, followed by the sites of T2 and B2, and the sites of T1 and B3 are smaller. On Au_dimer/Pt(111), the T1 and B3 sites have a greater influence on the adsorption energy of NO in the alloy. When Au_trimer/Pt(111) adsorbs NO molecules, it is adsorbed on the T1, T2, B2, B3, H2, H4, and F2 active sites, respectively. The corresponding adsorption energies are: −0.30 eV, −1.31 eV, −1.77 eV, −0.21 eV, −1.49 eV, −0.31 eV, and −1.69 eV. The adsorption energies on the active sites of B2 and F2 are larger; the sites of T2 and H2 are the last; and the sites of T1, B3, and H4 are smaller. It can be seen that the adsorption capacity of the alloy surface is weakest when the NO molecule forms bonds with the Au atoms only on the surface of the alloy.

In summary, when the NO molecule is adsorbed closer to the Au atom, the adsorption energy on the corresponding adsorption site becomes smaller. This indicates that Au atoms have a certain weakening effect on the adsorption of NO molecules on the surface of Pt(111). Furthermore, when observing the adsorption energies of the corresponding adsorption sites of NO molecules on different surfaces, such as H2, the adsorption energies of NO molecules on the Au_single/Pt, Au_dimer/Pt, and Au_trimer/Pt surfaces are −2.30 eV, −1.83 eV, and −1.49 eV, respectively. With the increase in the number of Au atoms on the Pt surface, the adsorption capacity of NO molecules becomes weaker and weaker. This also shows that Au can passivate Pt, which reduces the adsorption reaction of NO on the surface of the alloy electrode to a certain extent. In fact, it has also been experimentally proven that the addition of Au to Pt can weaken the catalytic performance of the alloy for NO [27]. This characteristic can be used to develop NOx sensors with very good selectivity.

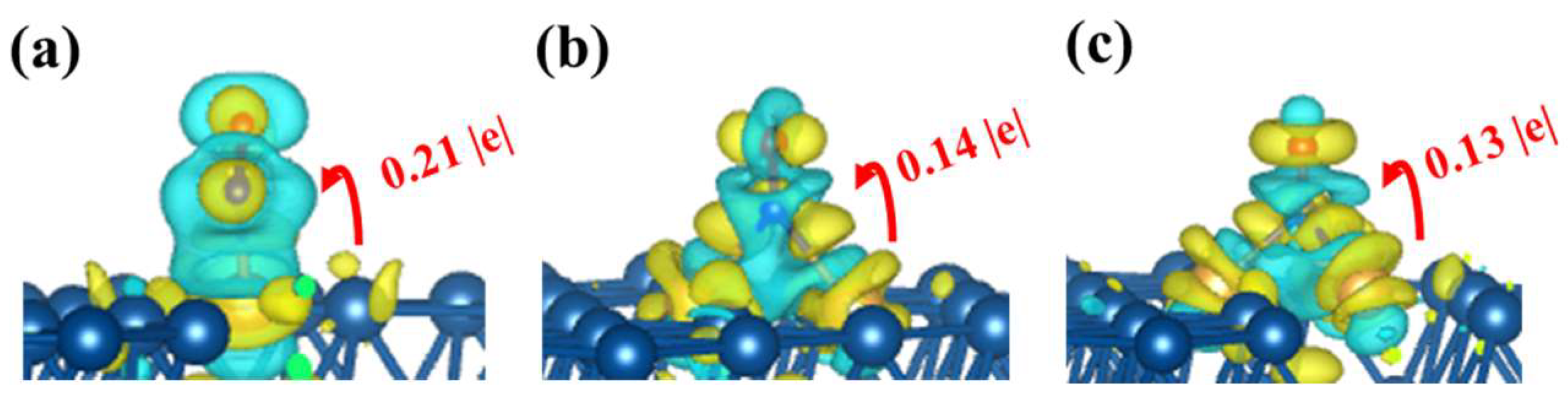

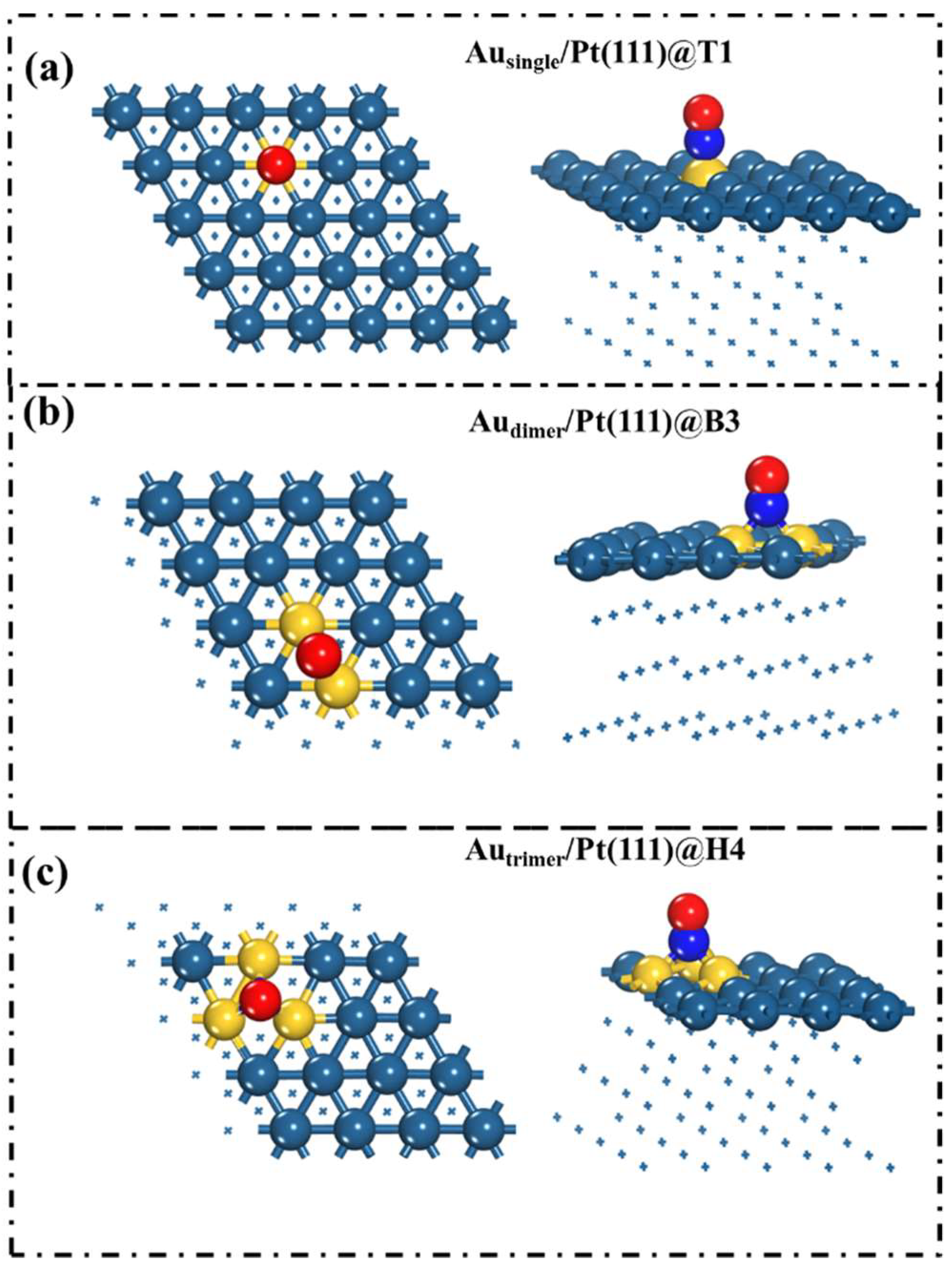

To illustrate the relationship between NO and surfaces, the adsorption sites of NO on the surface of alloy catalysts with different structures were determined, as shown in Figure 3. The analysis results show that the electrons in the NO molecules adsorbed on the surface are mainly distributed on the O atoms. The total charge density was calculated to further study the interaction of gas molecules and Au/Pt(111). As shown in Figure 4, electron transfer between the three surfaces and NO molecules was observed, and the number of electron transfers on Au_dimer/Pt(111) and Au_trimer/Pt(111) was less than that on Au_single/Pt(111), especially on Au_trimer/Pt(111). This result implies that the interaction between NO and Au_trimer/Pt(111) is smaller than that of the other two alloy surfaces, and further indicates that Au_trimer/Pt(111) is less gas-sensitive to NO.

3.3. NO Dissociation Reaction on the Au/Pt(111) Surfaces

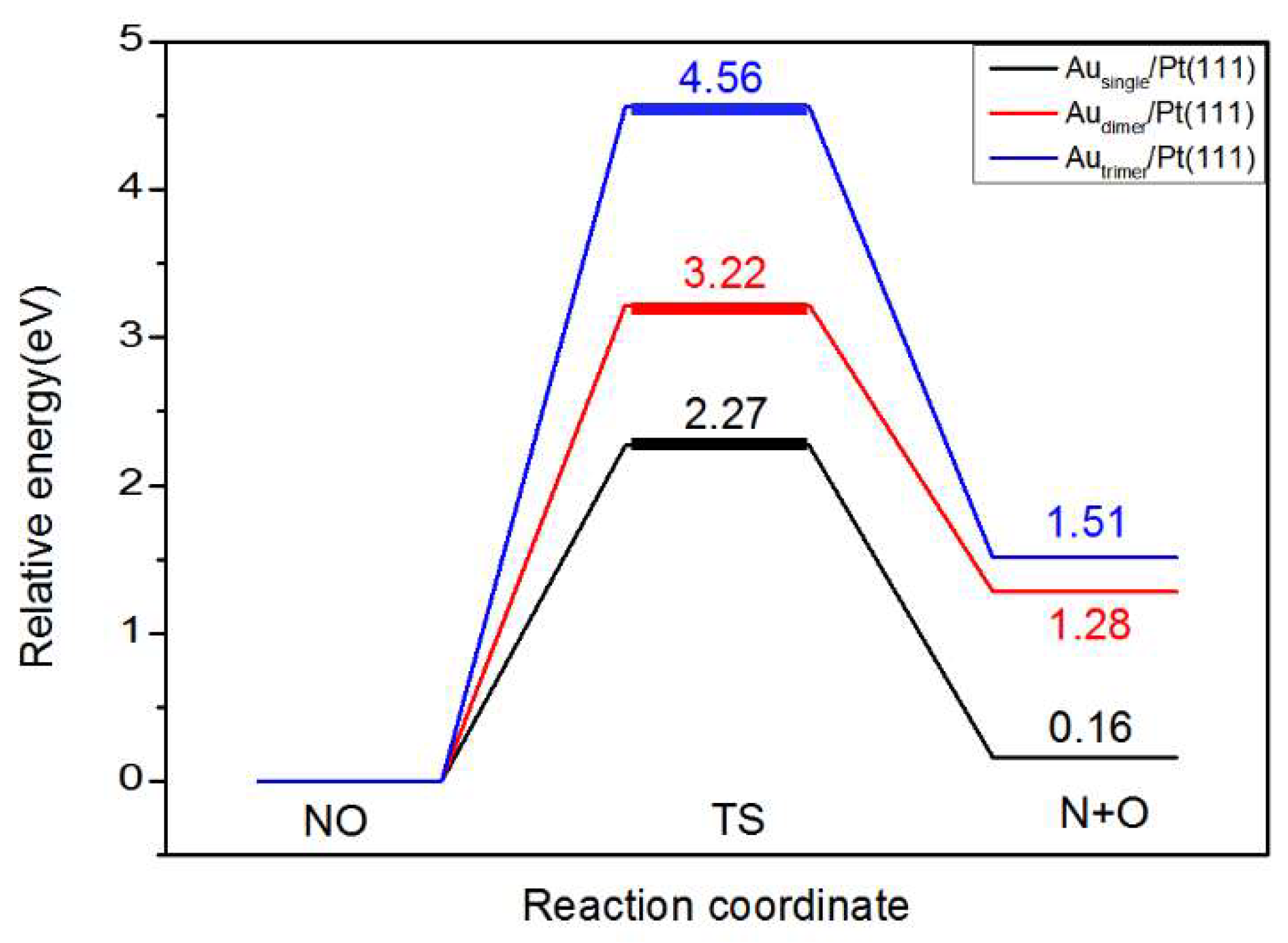

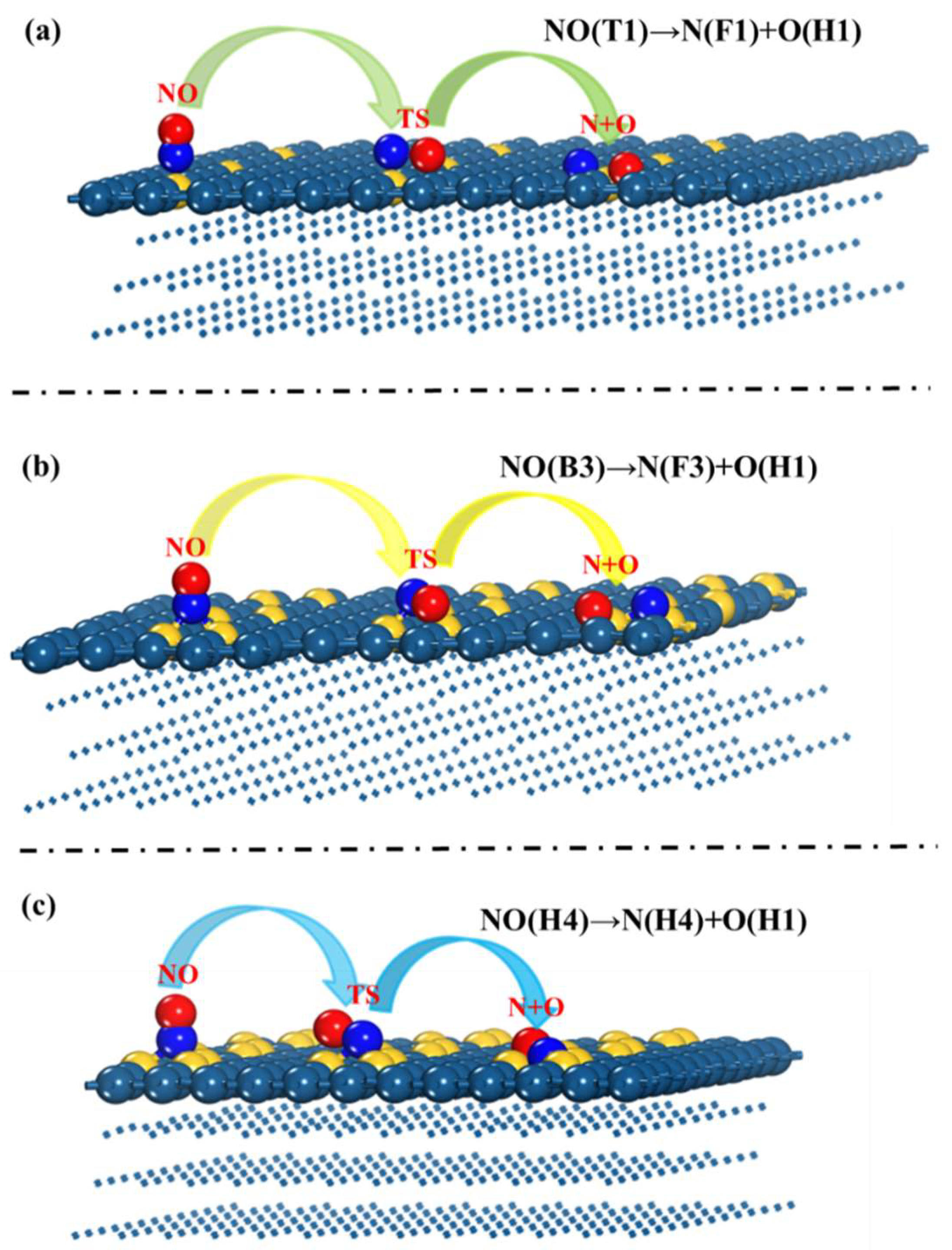

In the NO dissociation reaction on the surfaces of Au_single/Pt(111), Au_dimer/Pt(111), and Au_trimer/Pt(111), the initial reactant NO was first adsorbed at the T1, B3, and H4 sites. N and O atoms are generated by the dissociation of NO. As shown in Figure 5 and Figure 6, NO dissociates into N and O atoms on the surface of Au_single/Pt(111), which are adsorbed at the F1 and H1 sites, respectively. This step is required to overcome the activation energy barrier of 2.27 eV, and the reaction heat is 0.16 eV. On Au_dimer/Pt(111), NO dissociates into N and O atoms, which are adsorbed at the F3 and H1 sites, respectively. In this step, the activation energy barrier of 3.22 eV needs to be overcome, and the reaction heat is 1.28 eV. On Au_trimer/Pt(111), NO dissociates into N and O atoms, which are adsorbed at the H4 and H1 sites, respectively. In this step, the activation energy barrier of 4.56 eV needs to be overcome, and the reaction heat is 1.51 eV.

The decomposition processes of NO on Au/Pt(111) surfaces with different structural units are compared. In the process of NO molecular decomposition, the two bonds between N and O are not easy to break, and the surface needs to absorb a lot of energy to decompose, so the activation energy of NO decomposition is higher. When NO is adsorbed on the surface of Au/Pt(111), the decrease in the charge transfer between Au and N atoms can strengthen the force between N and O, thus inhibiting the decomposition of NO. With the increase in the doping amount of Au atoms on the surface of Pt, the potential barrier for NO decomposition increases gradually, and the energy barrier of NO decomposition on the Au_trimer/Pt(111) surface is the highest, as shown in Figure 6. The reaction heat of the Au_trimer/Pt(111) surface after decomposition is also the highest. In short, doping Au can improve the activation energy of NO decomposition and can effectively inhibit the decomposition of NO so that the oxygen-pumping process occurs preferentially on the electrode. There are also experimental data in previous studies showing that doping Pt with a certain proportion of Au can increase the activation energy of NO during surface dissociation [34,35]. This is also consistent with our calculated results.

4. Conclusions

By combining density functional theory (DFT) calculations with micro-reaction kinetic analysis, the adsorption properties of NO on different crystal planes of Au doped on Pt substrates were investigated. Furthermore, the adsorption and dissociation of NO on Pt(111) by Au single atoms, dimers, and trimers were analyzed. The adsorption and dissociation of NO on Pt(111) aggregates and the effect of different amounts of Au on the performance of Pt electrodes were clarified. The results show that with the increase in the number of Au atoms on the surface of Pt(111), the adsorption capacity of NO on the surface of the alloy decreases, thereby reducing the gas sensitivity of the electrode to NO. In addition, the interaction force between NO and Au atoms is reduced, and the activation energy of NO decomposition is increased, which can effectively inhibit the decomposition of NO and make the oxygen-pumping process preferentially occur on the electrode. In conclusion, these results are expected to provide guidance for the design of future high-performance NOx sensor electrode materials.
