Phthalocyanine-Carbon Nanotube Hybrid Materials: Mechanism of Sensor Response to Ammonia from Quantum-Chemical Point of View

by
Pavel Krasnov
1,
Victoria Ivanova
2,
Darya Klyamer
2,
Aleksandr Fedorov
1,3 and
Tamara Basova
2,*
1
International Research Center of Spectroscopy and Quantum Chemistry, Siberian Federal University, 26 Kirensky St., 660074 Krasnoyarsk, Russia
2
Nikolaev Institute of Inorganic Chemistry Siberian Branch of the Russian Academy of Sciences SB RAS, 3 Lavrentiev Ave., 630090 Novosibirsk, Russia
3
Kirensky Institute of Physics, Federal Research Center KSC SB RAS, 50/38 Akademgorodok, 660036 Krasnoyarsk, Russia
*
Author to whom correspondence should be addressed.
Chemosensors 2022, 10(11), 479; https://doi.org/10.3390/chemosensors10110479
Submission received: 24 October 2022 / Revised: 11 November 2022 / Accepted: 11 November 2022 / Published: 14 November 2022
(This article belongs to the Special Issue Carbon Nanomaterials and Related Materials for Sensing Applications)
Browse Figures
Versions Notes

Abstract

:
Quantum chemical calculations of the geometric and electronic structure of periodic hybrid compounds representing carbon nanotubes (10,0) with zinc phthalocyanine molecules ZnPc-xpy (x = 0, 1, 2, 4) on their surface and their interaction with ammonia were carried out to explain the dependence of the sensor response of the hybrid materials to ammonia on the number of substituents in the ZnPc-xpy macrocycle and to clarify the nature of the interaction between ammonia and phthalocyanine molecules. It was found that the key feature of these materials, which determines their sensor response toward ammonia, is the presence of an impurity band in the band gap of a carbon nanotube, formed by the orbitals of macrocycle atoms. When ammonia adsorbs through the formation of hydrogen bonds with the side atoms of phthalocyanine, the energy of this impurity band decreases. As a consequence, the electron population of the conduction band and, accordingly, the electrical conductivity of the hybrid materials become lower. Moreover, with an increase in the number of oxypyrene substituents in ZnPc-xpy, the interaction energy of ammonia increases and, as a result, the decrease in the energy of the impurity band becomes higher. These facts may explain recent experimental measurements of the parameters of the sensor response of similar hybrid materials to ammonia, where, in particular, it was shown that the sensor response is reversible, and its value increases with an increase in the number of oxypyrene substituents in the phthalocyanine macrocycle.

Graphical Abstract

1. Introduction

In the last decade, carbon nanotubes (CNT) and hybrid materials with various classes of compounds have been the subjects of numerous theoretical and experimental studies [1]. Their electrophysical characteristics and the ability to change the conductivity in the atmosphere of various gases contribute to their widespread use as active layers of chemiresistive sensors of various gases and some liquids [1,2,3]. Covalent and non-covalent functionalization by metal or metal oxide nanoparticles, polymers, and various aromatic molecules are widely used to improve sensor characteristics such as sensitivity and selectivity with respect to various gases [2,4,5,6]. The advantage of non-covalent functionalization over covalent interactions is minimal damage to the single-walled CNT surface with less distortion in their electronic structure [7,8]. Among other aromatic molecules, metal phthalocyanines (MPc), which have an extended π-system and the ability to vary widely in chemical structure, are promising candidates for the modification of carbon nanotubes by non-covalent functionalization [9]. The expansion of the MPc aromatic system, when passing from phthalocyanine to naphthalocyanine (MNc) [10] or by introducing additional aromatic substituents into the macroring [11,12], was shown to improve the interaction between the MPc macrocycle and CNTs and, thus, to lead to an improvement in the chemiresistive sensor performance.
The literature abounds with examples of the use of CNT/MPc hybrid materials as active layers of gas sensors for the determination of chlorine [13,14], NO2 [15], ammonia [16,17,18], and some other gases and volatile organic vapors [19]. At the same time, an analysis of the literature shows that systematic studies of the influence of the phthalocyanine structure (for example, the type of substituents) on sensor characteristics, as well as studies of the nature of the interaction of hybrid materials with analytes and the mechanism of the sensor response, are sporadic [20,21]. Most researchers, referring to each other, give only a speculative description of the mechanism based on the charge transfer between the electron acceptor or electron donor analyte molecules and a phthalocyanine molecule adsorbed on the surface of CNTs, which leads to an increase or decrease in the number of charge carriers, resulting in a change in the resistance of a sensing hybrid film [22,23,24,25]. Such conclusions usually are not supported by either experimental studies or theoretical calculations.
It has been shown in our previous works that CNT/MPc hybrid materials demonstrated a high sensor response to ammonia [9,10,26,27]. The limit of ammonia detection of the CNT/MPc-based sensors was found to reach 0.4 ppm and their sensitivity to ammonia was much higher than to CO2, H2, H2S, CH4, ethanol, acetone, and dichloromethane vapors. For this reason, the nature of the interaction of hybrid materials with ammonia is considered in this work.
The process of adsorption of oxygen molecules on the surface of a hybrid material or phthalocyanine film during exposure to ambient air with the formation of O2– species and their further reaction with reducing gases such as ammonia is also considered as a mechanism. In this connection, some researchers indicate that the following reaction proceeds: 4NH3(g) + 3O2−(ads) → 2N2(g) + 6H2O(g) + 6e− [28,29], while the authors of other works [30,31] believe that the reaction with the formation of NO (4NH3(g) + 5O2−(ads) → 4NO(g) + 6H2O(g) + 5e−) is more preferable. Electrons release during these processes and rapidly transfer to the carbon nanomaterials, changing their resistance.
Another point of discussion when considering the mechanism of the sensor response is the question of the adsorption sites of the analyte molecules on the surface of a hybrid material. DFT calculations are the most useful tool to clarify this issue. In most works [18,22,32,33,34,35,36], the interaction of the analyte molecules through the central metal is considered. For example, to explain the dependence of the sensor response on the nature of the central metal, Li et al. [22] estimated the binding energy in MPc-NH3 systems depending on M, which decreased in the order of Co > Cu > Ni > Fe from 21.7 to 6.2 kcal/mol. Comparable values of the binding energies were also obtained in the works of other authors [35]. Guo et al. [28] investigated the effect of substituents in CoPcs bearing various phenoxyl substituents in their hybrids with reduced graphene oxide on the sensor response to ammonia. It was shown that the binding energies between NH3 and CoPc bearing various phenoxyl substituents varied in the range of 21.7–23.1 kcal/mol.
On the one hand, the analysis of the interaction of ammonia through the central metal in those works showed that the central metal played a critical role in NH3 sensitivity. Thus, this consideration raises several ambiguous points. Firstly, the values of the binding energy of NH3 with some central metals indicate a rather strong binding. With such an interaction, the sensor response could hardly be reversible, which contradicts experimental data showing that hybrid materials and metal phthalocyanine films demonstrate a completely reversible sensor response at room temperature [17,37]. Secondly, the consideration of the interaction of NH3 with the metal centers is acceptable only if there is direct access to the central metal in the MPc molecules. This is possible, for example, if the phthalocyanine molecules are deposited as a monolayer on the surface of a substrate or nanotubes, and the neighboring molecules or nanotubes do not prevent access to them. If the phthalocyanine molecules are packed in stacks on the CNT surface or in polycrystalline films, such a consideration is doubtful, since the separation between the neighboring molecules in the stack is 3.3–3.4 A, which is insufficient for the free penetration of an NH3 molecule to the central atom. In this case, the consideration of the interaction of the analyte molecules with a phthalocyanine molecule through the edge atoms of the MPc macrocycle or substituents in the ring seems more appropriate. Moreover, Chia et al. [15], in their experimental studies of the interaction between ammonia and CuPc by the methods of in-situ X-ray absorption spectroscopy (XAS) and EXAFS, demonstrated that the first derivative of XANES did not confirm the coordination of NH3 with the Cu metal center. Therefore, it was proposed to consider the interaction of NH3 with the benzene ring or the bridging nitrogen atom of the macrocycle.
We have already used a similar explanation in our recent work [38] when explaining the effect of the number (x = 0, 1, 2, 4) of oxypyrene (py) substituents in zinc(II) phthalocyanine molecules ZnPc-xpy-h on the sensor properties of their hybrid materials with single-walled carbon nanotubes. In particular, it was shown that the chemiresistive sensor response to ammonia increased in the order ZnPc-0py-h < ZnPc-1py-h < ZnPc-2py-h < ZnPc-4py-h. To explain this regularity, we considered three possible sites for NH3 molecule adsorption: the central metal atom, oxypyren substituents, and side phthalocyanine atoms. Quantum-chemical calculations of these means of ammonia interaction with CNT(10,0)/ZnPc-xpy hybrid systems have shown that, in the first case, the binding energy was too high (more than 0.8 eV) for ammonia desorption under normal conditions, which could not explain the reversibility of the sensor response. In the case of the oxypyren substituent, the interaction of the NH3 molecule was too weak (about 0.14 eV) to change the electron structure of the hybrid materials significantly and, as a result, their conductivity. When the ammonia molecules interacted with the side phthalocyanine atoms, the binding energy was enough (about 0.24 eV) to decrease the energy of the impurity electron band of the hybrid structures. This led to a lower population of the conduction band and, as a result, to a decrease in the electrical conductivity. Moreover, this decrease was higher the greater the number of oxypyren substituents, which explained the experimental observations. Despite the used explanation of the experimental results, several questions remained unresolved, namely, the nature of the impurity electron band, the dependence of its energy change on the number of oxypyren substituents, and the influence of these substituents on the binding energy of ammonia. Therefore, this work is aimed at clarifying these issues.
In this paper, we show using quantum chemical calculations that the impurity electron band in the band gap of the CNT(10,0)/ZnPc-xpy hybrid structures is formed by the orbitals of the phthalocyanine atoms. The interaction of the NH3 molecules with the side atoms of phthalocyanine occurs via the formation of hydrogen bonds. The presence of the oxypyren substituents leads to the strengthening of these bonds due to the macrocycle polarization. A stronger interaction of the ammonia molecules with phthalocyanine leads to a more significant decrease in the impurity band energy.

2. Objects and Methods of Investigation

Quantum-chemical calculations of the geometric and electronic structure of the CNT(10,0)/ZnPc-xpy hybrid compounds, where x = 0, 1, 2, and 4, were performed using the SCC-DFTB method in the DFTB+ software package [39,40]. The 3OB parameter set (Slater-Koster files) was used to describe the interatomic interaction [41,42]. The dispersion interaction was corrected using the DFT-D3 method [43,44].
Each compound was considered as a periodic structure, the unit cell of which contained a fragment of a carbon nanotube (10,0) 12a long, where a is the unit cell length of pure CNT(10,0), with a ZnPc-xpy molecule on the surface (Figure 1). The orientation of phthalocyanine in each case was chosen so that the total energy of the entire system was minimal due to the greater overlap of the conjugated π-systems of the macrocycle and the carbon surface [12,45]. In this case, the periodicity of the hybrid was considered along the CNT(10,0) axis (direction c), and vacuum gaps of at least 50 Å were set along the other two perpendicular directions a and b in order to exclude the interaction of the hybrid with its images in neighboring cells.
The first Brillouin zone was divided according to the Monkhorst–Pack scheme [46] into a grid containing 1 × 1 × 15 k-points along the directions a, b, and c, respectively. The optimization of the geometric structure of the compounds under consideration was carried out up to the value of the forces acting on atoms equal to 1×10−4 a.u. In this case, since the number of electrons in the case of all the considered systems, including the carbon nanotube and phthalocyanines separately, was even, the calculations were carried out without taking into account spin polarization.
In the first step, the geometric structures of the CNT(10,0)/ZnPc-xpy hybrids were optimized, during which both the position of all the atoms and the cell length along the periodicity axis were varied. In the second step, four NH3 molecules were added to each structure so that they interacted with the side atoms of the phthalocyanines. Furthermore, in the obtained CNT(10,0)/ZnPc-xpy/4NH3 structures, the geometry and position of the ammonia molecules were optimized at fixed positions of the atoms and the sizes of the hybrid structures themselves (Figure 1). As a result, data on the electronic structure (band structure and density of states) of the CNT(10,0)/ZnPc-xpy hybrids were obtained before and after the addition of the four NH3 molecules.
To describe the nature and features of the interaction of ammonia with the considered phthalocyanine molecules, additional quantum-chemical calculations of the geometric and electronic structure of ZnPc-xpy molecules with the four NH3 molecules were carried out. The orientation of the latter was chosen similarly to that obtained by considering the CNT(10,0)/ZnPc-xpy/4NH3 hybrid structures (Figure 2). Since the number of electrons here was even in all cases, spin polarization as well as any symmetry constraints were not considered.
At the stage of the geometry optimization of the ZnPc-xpy/4NH3 aggregates, calculations were performed using the DFT BP86-D3/def2-SVP method [43,44,47,48,49] in the ORCA software package [50,51] using RI approximation [52,53,54,55,56,57] and the corresponding Def2/J auxiliary basis set [58]. Then, the binding energy Eb of each ammonia molecule in the composition of each aggregate was calculated from the difference in the total energies of the corresponding structure and its components, the geometries of which were also optimized separately:
E b = E NH 3 + E ZnPc − x py / 3 NH 3 − E ZnPc − x py / 4 NH 3 − ∆ E BSSE ,
where ΔEBSSE is the correction to the binding energy, taking into account the basis set superposition error, which, in turn, was estimated as follows:
∆ E BSSE = E ZnPc − x py / 3 NH 3 ZnPc − x py / 4 NH 3 + E NH 3 ZnPc − x py / 4 NH 3 − E ZnPc − x py / 3 NH 3 * ZnPc − x py / 4 NH 3 + E NH 3 * ZnPc − x py / 4 NH 3 .
Here, the superscript ZnPc-xpy/4NH3 indicates that the geometries of ZnPc-xpy/3NH3 and NH3, respectively, were taken from an optimized aggregate of a phthalocyanine molecule and four ammonia molecules, while their geometry optimization was not performed, but only the calculation of the total energy was carried out. An asterisk in the subscript means that the specified fragment of the whole aggregate was considered in the case when the atoms of the second fragment were dummy; that is, they were points described by the corresponding basis sets of atomic orbitals.
In the next step, the electron wave functions of the optimized ZnPc-xpy/4NH3 compounds were calculated using the cc-pVTZ basis set of atomic orbitals [59]. In the framework of the QTAIM theory [60,61,62], a topological analysis of the electron density distribution ρ(r) in the structures under consideration was performed using these wave functions and the AIMAll software package [63]. In this approach, the indicator of the binding interaction of two atoms is the presence of a bond critical point (3,−1) (BCP) between them. Here, ω = 3 is the rank of the Hessian of ρ(r) at this point, and σ = −1 is the sum of the signs of the Hessian eigenvalues λi (λ1 < 0, λ2 < 0, and λ3 > 0).
Based on the set of values of these parameters, including the electron density Laplacian ∇2ρ(r) = λ1 + λ2 + λ3, it is possible to judge the nature of the interaction between the considered atoms. In particular, if |λ1|/λ3 > 1 (∇2ρ(r) < 1), the so-called “shared interaction” occurs, in which the accumulation and sharing of electron density in the interatomic space typical for covalent bonds are observed. In the case when |λ1|/λ3 < 1 (∇2ρ(r) > 1), a “closed-shell interaction” is observed, which is characteristic of ionic, high-polar covalent, hydrogen, and van der Waals bonds [60,61,62,63]. In this case, there is an outflow of electron density from the critical point toward atomic nuclei. There is also an “intermediate interaction”, in which the value of ∇2ρ(r) is also positive, but the chemical bond is considered covalent if the value of ρ(r) is large.

3. Results and Discussion

After the optimization of the geometry of the CNT(10,0)/ZnPc-xpy hybrids, as well as the geometry and arrangement of the four ammonia molecules bound to them through the side atoms of the phthalocyanines, calculations and analysis of the band structure and electron densities of the states of all the considered objects were performed (Figure 3). Here, first of all, it should be noted that the band gaps (Eg1 and Eg2) of the hybrid materials under study, practically, do not depend either on the number of oxypyrene substituents in the zinc phthalocyanine macrocycle or on the presence of ammonia. The band gap values Eg1 of the hybrids without the NH3 molecules and Eg2 of the hybrids with the NH3 molecules differ only by thousandths of eV (Table 1). At the same time, considering the densities of the states (DOS) (Figure 3, central and right panels) and the visualization of the wave functions (Figure 3, left panels), it should be concluded that the conduction band bottom and the valence band top in all the structures are formed by the orbitals of the carbon atoms of CNT(10,0).
The most interesting point here is the presence in the band gap of an impurity band formed mainly by the orbitals of the phthalocyanine atoms. Since this band does not hybridize with other bands, the electrons populating it do not directly participate in electrical conduction. However, due to thermal excitation, they can pass into the conduction band of CNT, changing the electrical conductivity of the carbon nanotube. The key factor determining the possibility of this transition is the energy difference between the impurity band and the conduction band bottom.
In the case of hybrids without ammonia molecules, the value of ΔE1 of this difference decreases with an increase in the number of oxypyrene substituents of zinc phthalocyanine (Figure 3). This may be due to an increase in the strength of the bond between the ZnPc-xpy molecules and CNT(10,0) with an increase in x, which was demonstrated earlier [12]. When the four NH3 molecules attach to the side atoms of phthalocyanine, the energy difference between the impurity band and the conduction band bottom increases to ΔE2, which should be accompanied by a decrease in the electrical conductivity of the carbon nanotube.
The most important point is that the change in ΔE = ΔE2 − ΔE1 during ammonia adsorption increases with an increase in the number of oxypyrene substituents in zinc phthalocyanine in the hybrid compound (Table 1). If we take into account that the population of the conduction band (n1 without NH3 molecules and n2 with NH3 molecules) depends on the energy of the electron transition into it, according to Equation (3),
n 1 ∝ exp − ∆ E 1 2 k T ,         n 2 ∝ exp − ∆ E 2 2 k T ,
where k is the Boltzmann constant, T is the temperature, then its decrease with the addition of the four NH3 molecules can be estimated by the ratio 4:
n 1 n 2 = exp − ∆ E 1 2 k T / exp − ∆ E 2 2 k T = exp ∆ E 2 − ∆ E 1 2 k T = exp ∆ E 2 k T .
With an increase in the number of oxypyrene substituents, this ratio increases (Table 1). This means that the addition of ammonia leads to a greater decrease in the population of the conduction band. Thus, at room temperature, in the case of CNT(10,0)/ZnPc-0py, the population decreases by 1.1, while in the case of CNT(10,0)/ZnPc-4py, it decreases by 2.1. This, in turn, determines the sensitivity of the hybrid materials under consideration: the more oxypyrene substituents, the more the conduction band population decreases when the NH3 molecules are added, the more the electrical conductivity decreases, and, as a result, the sensor response to ammonia increases, as was observed in earlier experimental studies [38].
A deeper downward shift of the indicated impurity level in the CNT(10,0)/ZnPc-xpy hybrids in the case of the larger x values with the addition of the four NH3 molecules may be caused by the fact that the strength of the interaction of ammonia with the side atoms of the phthalocyanine molecule increases with an increase in the number of oxypyrene substituents. In this case, the expected effect should be a stronger impact of ammonia on the electron system of the macrocycle. As a result of the quantum-chemical calculations of the ZnPc-xpy/4NH3 molecular systems using the DFT BP86-D3/def2-SVP method, it was shown that the introduction of oxypyrene substituents led to an increase in the binding energy of the ammonia molecule in the position adjacent to the attachment site (Table 2).
In particular, in the case of ZnPc-1py, the strongest binding is observed in position 4 (Figure 2), while in the case of ZnPc-2py, in positions 2 and 4. This is due to a shift in the electron density in the macrocycle due to the polarization action of the oxypyrene substituent. This effect is most clearly observed in the case of one substituent. If, in the ZnPc-0py/4NH3 compound, the Eb values of all the NH3 molecules are the same, then, in the ZnPc-1py/4NH3 compound, they are all different. In positions 1 and 2, they are lower than in position 4. In this case, the average binding energy of the four ammonia molecules is higher in the case of ZnPc-1py/4NH3 than in the case of ZnPc-0py/4NH3. Similarly, the Eb values are higher in the case of phthalocyanine with the four oxypyrene substituents compared to phthalocyanine without the oxypyrene substituents.
The obtained values of the binding energy of the NH3 molecules are comparable with the energies of the hydrogen bonds. However, in order to obtain more reliable information about the nature of the interaction of ammonia with the side atoms of the phthalocyanines, the electronic structure of the ZnPc-xpy/4NH3 aggregates was examined.
It was found that, as a result of the topological analysis of the electron density distribution in ZnPc-1py/4NH3, performed within the framework of QTAIM, three critical bond points are formed between each NH3 molecule and the side phthalocyanine atoms (Figure 4).
Two points are located between the ammonia nitrogen atom and the non-peripheral hydrogen atoms of ZnPc-1py (BCP1 and BCP3, BCP4 and BCP6, BCP7 and BCP9, BCP10 and BCP12), while one point is between one of the NH3 hydrogen atoms and the bridging nitrogen atom of ZnPc-1py (BCP2, BCP5, BCP8, BCP11).
It was previously shown [64] that, when the hydrogen bonds were formed, the values of ρ(r) and ∇2ρ(r) at the corresponding critical points should be in the ranges of 0.013–0.236 e/Å3 and 0.578–3.350 e/Å5, respectively. The values of the electron density and its Laplacian obtained by us fully satisfy these requirements (Table 3). Thus, it can be concluded that the attachment of the ammonia molecules to the side atoms of the phthalocyanines occurs due to the formation of exclusively hydrogen bonds, which is also evidenced by the values of Eb (Table 2).
Thus, this fact allowed us to explain the experimental observations. If strong covalent bonds were formed as a result of the interaction of the NH3 molecules with phthalocyanine, the desorption process would be difficult, and the sensor response would be irreversible. In this case, the changes in the electronic structure of the CNT(10,0)/ZnPc-xpy hybrids would be more significant due to the hybridization of the molecular orbitals, and the change in the energy of the impurity band would not be limited to hundredths of eV. Due to the weakness of these interactions, significant changes in the electronic structure of the CNT(10,0)/ZnPc-xpy hybrids are not observed. In this regard, hydrogen bonds, which occupy an intermediate position between covalent and dispersion interactions, are the most suitable for explaining the phenomena observed in the experiments to study the sensor response of the CNT(10,0)/ZnPc-xpy hybrid layers to ammonia, namely, its appearance and reversibility.
In ZnPc-1py/4NH3, the total Mulliken charge of the atoms of the oxypyrene substituent is −0.044e; that is, the substituent pulls the electron density onto itself. As a result, it can be seen that the H1 atom (Figure 4) has the largest positive charge q among all the phthalocyanine hydrogen atoms involved in the formation of the hydrogen bonds with the NH3 molecules. As a consequence, the values of ρ(r) and ∇2ρ(r) in BCP1 between this atom and the nitrogen atom N1 of ammonia are the largest when compared with the other indicated bond critical points (Table 3). This is what determines the highest bond strength of the NH3 molecule in position 4 of the ZnPc-1py/4NH3 structure (Figure 2, Table 2).
Thus, the effect of the oxypyrene substituents is to polarize the phthalocyanine molecule and, in particular, the side atoms with which ammonia interacts. As a result, the strength of the interaction of NH3 with the ZnPc-xpy molecules bearing the oxypyrene substituents is higher than in the case of ZnPc-0py without the substitutes. Stronger binding of the NH3 molecules has a stronger effect on the electronic structure of phthalocyanine. This leads to a greater shift of the impurity band downward in energy in the CNT(10,0)/ZnPc-xpy hybrids during ammonia adsorption with an increase in the number of oxypyrene substituents x in ZnPc-xpy.

4. Conclusions

Quantum chemical calculations of the geometric and electronic structure of periodic hybrid compounds representing carbon nanotubes (10.0) with zinc phthalocyanine molecules on their surface have been carried out. Zinc phthalocyanines ZnPc-xpy (x = 0, 1, 2, 4) differed from each other in the number of oxypyrene substituents in the tetrapyrrole macrocycle. It was found, as a result of the calculations, that, in these hybrids, an impurity band formed by the orbitals of the phthalocyanine atoms was located in the band gap of the carbon nanotube. The electrons of this level do not directly participate in electric conduction; however, due to thermal excitation, they can pass into the conduction band. The probability of this transition is determined by the difference between the energies of the impurity band and the conduction band bottom. With an increase in the number of oxypyrene substituents, this difference decreases. The interaction of the ammonia molecules with the side phthalocyanine atoms on the surface of a carbon nanotube occurs through the formation of hydrogen bonds. As a result, the energy of the impurity band decreases. Consequently, the thermal population of the conduction band decreases. This explains the occurrence of the sensor response of the considered hybrid materials to ammonia, which is manifested as a decrease in electrical conductivity during the adsorption of gas molecules. Such interaction of ammonia through the formation of weak hydrogen bonds can cause the reversibility of the sensor response.
The strength of the bonds between the ammonia and phthalocyanine molecules increases with an increase in the number of oxypyrene substituents. As a result, the decrease in the energy of the impurity band becomes more significant, which leads to a more noticeable decrease in the thermal population of the conduction band. This may explain the higher value of the sensor response of the hybrids containing the larger number of oxypyrene substituents in the zinc phthalocyanine macrocycle, which was observed experimentally in our previous work, since, in this case, the decrease in electrical conductivity during adsorption of the same amount of ammonia molecules is more significant.

Author Contributions

Conceptualization, P.K. and T.B.; methodology, P.K. and T.B.; software, P.K.; validation, P.K., D.K. and A.F.; formal analysis, P.K. and A.F.; investigation, P.K. and V.I.; writing—original draft preparation, P.K., V.I. and T.B.; writing—review and editing, P.K., D.K. and T.B.; visualization, P.K.; supervision, T.B.; funding acquisition, D.K. All authors have read and agreed to the published version of the manuscript.

Funding

Studies of periodic hybrid materials were performed under the financial support of the Russian Science Foundation (grant 20-12-00175). Studies of the interaction parameters of ammonia molecules with phthalocyanines were carried out under the financial support of the Ministry of Science and Higher Education of the Russian Federation (N 121031700314-5).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Zaporotskova, I.V.; Boroznina, N.P.; Parkhomenko, Y.N.; Kozhitov, L.V. Carbon nanotubes: Sensor properties. A review. Mod. Electron. Mater. 2016, 2, 95–105. [Google Scholar] [CrossRef]
  2. Norizan, M.N.; Siti Zulaikha, N.D.; Norhana, A.B.; Syakir, M.I.; Norli, A. Carbon nanotubes-based sensor for ammonia gas detection—An overview. Polimery 2021, 66, 175–186. [Google Scholar] [CrossRef]
  3. Giordano, C.; Filatrella, G.; Sarno, M.; Di Bartolomeo, A. Multi-walled carbon nanotube films for the measurement of the alcoholic concentration. Micro Nano Lett. 2019, 14, 304–308. [Google Scholar] [CrossRef] [Green Version]
  4. Le, X.V.; Luu, T.L.A.; Nguyen, H.L.; Nguyen, C.T. Synergistic enhancement of ammonia gas-sensing properties at low temperature by compositing carbon nanotubes with tungsten oxide nanobricks. Vacuum 2019, 168, 108861. [Google Scholar] [CrossRef]
  5. Vu, T.D.; Cong, T.N.; Huu, B.L.; Duc, C.N.; Huu, L.N. Surface-modified carbon nanotubes for enhanced ammonia gas sensitivity at room temperature. J. Nanosci. Nanotechnol. 2019, 19, 7447–7451. [Google Scholar] [CrossRef]
  6. Norizan, M.N.; Moklis, M.H.; Ngah Demon, S.Z.; Halim, N.A.; Samsuri, A.; Mohamad, I.S.; Knight, V.F.; Abdullah, N. Carbon nanotubes: Functionalisation and their application in chemical sensors. RSC Adv. 2020, 10, 43704–43732. [Google Scholar] [CrossRef]
  7. Saxena, S.; Srivastava, A.K.; Srivastava, R.; Kheraj, V. Metal-phthalocyanine functionalized CNTs sensor for chloroform series. Eur. J. Eng. Sci. Technol. 2019, 2, 71–80. [Google Scholar] [CrossRef]
  8. Ansari, N.; Lone, M.Y.; Shumaila; Ali, J.; Zulfequar, M.; Husain, M.; Islam, S.S.; Husain, S. Trace level toxic ammonia gas sensing of single-walled carbon nanotubes wrapped polyaniline nanofibers. J. Appl. Phys. 2020, 127, 044902. [Google Scholar] [CrossRef]
  9. Bouanis, F.Z.; Bensifia, M.; Florea, I.; Mahouche-chergui, S.; Carbonnier, B.; Grande, D.; Léonard, C.; Yassar, A.; Pribat, D. Non-covalent functionalization of single walled carbon nanotubes with Fe-/Co-porphyrin and Co-phthalocyanine for field-effect transistor applications. Org. Electron. 2021, 96, 106212. [Google Scholar] [CrossRef]
  10. Polyakov, M.S.; Basova, T.V. Hybrid materials of zinc (II) tetra-tert-butylphthalocyanine and zinc (II) tetra-tert-butylnaphthalocyanine with single walled carbon nanotubes: Structure and sensing propertie. Macroheterocycles 2017, 10, 31–36. [Google Scholar] [CrossRef]
  11. Kaya, E.N.; Tuncel, S.; Basova, T.; Banimuslem, H.; Hassan, A.; Gürek, A.G.; Ahsen, V.; Durmuş, M. Effect of pyrene substitution on the formation and sensor properties of phthalocyanine-single walled carbon nanotube hybrids. Sens. Actuators B. Chem. 2014, 199, 277–283. [Google Scholar] [CrossRef]
  12. Krasnov, P.O.; Ivanova, V.N.; Basova, T.V. Carbon nanotubes functionalized with Zinc (II) phthalocyanines: Effect of the expanded aromatic system and aromatic substituents on the binding energy. Appl. Surf. Sci. 2021, 547, 149172. [Google Scholar] [CrossRef]
  13. Sharma, A.K.; Mahajan, A.; Bedi, R.K.; Kumar, S.; Debnath, A.K.; Aswal, D.K. Non-covalently anchored multi-walled carbon nanotubes with hexa-decafluorinated zinc p hthalocyanine as ppb level chemiresistive chlorine sensor. Appl. Surf. Sci. 2018, 427, 202–209. [Google Scholar] [CrossRef]
  14. Saini, R.; Mahajan, A.; Bedi, R.K.; Aswal, D.K.; Debnath, A.K. Room temperature ppb level Cl2 detection and sensing mechanism of highly selective and sensitive phthalocyanine nanowires. Sens. Actuators B. Chem. 2014, 203, 17–24. [Google Scholar] [CrossRef]
  15. Chia, L.S.; Du, Y.H.; Palale, S.; Lee, P.S. Interaction of copper phthalocyanine with nitrogen dioxide and ammonia investigation using X-ray absorption spectroscopy and chemiresistive gas measurements. ACS Omega 2019, 4, 10388–10395. [Google Scholar] [CrossRef] [Green Version]
  16. Wang, B.; Wang, X.; Li, X.; Guo, Z.; Zhou, X.; Wu, Y. The effects of amino substituents on the enhanced ammonia sensing performance of PcCo/rGO hybrids. RSC Adv. 2018, 8, 41280–41287. [Google Scholar] [CrossRef] [Green Version]
  17. Gai, S.; Wang, B.; Wang, X.; Zhang, R.; Miao, S.; Wu, Y. Ultrafast NH3 gas sensor based on phthalocyanine-optimized non-covalent hybrid of carbon nanotubes with pyrrole. Sens. Actuators B. Chem. 2022, 357, 131352. [Google Scholar] [CrossRef]
  18. Kang, D.; Wang, B.; Wang, X.; Li, Y.; Chen, Z.; He, C.; Wu, Y. Stably dispersed metallophthalocyanine noncovalently bonded to multiwalled carbon nanotubes for ammonia sensing at room temperature. Sens. Actuators B. Chem. 2017, 246, 262–270. [Google Scholar] [CrossRef]
  19. Prasongkit, J.; Tangsukworakhun, S.; Jaisutti, R.; Osotchan, T. Highly sensitive and selective sensing of acetone and hydrogen sulfide using metal phthalocyanine—carbon nanotube hybrids. Appl. Surf. Sci. 2020, 532, 147314. [Google Scholar] [CrossRef]
  20. Basiuk, E.V.; Huerta, L.; Basiuk, V.A. Noncovalent bonding of 3d metal (II) phthalocyanines with single-walled carbon nanotubes: A combined DFT and XPS study. Appl. Surf. Sci. 2019, 470, 622–630. [Google Scholar] [CrossRef]
  21. Mendoza-Domínguez, C.U.; Basiuk, V.A. Adsorption of yttrium bisphthalocyanine on pristine and defect-contaning graphene models: A DFT study. Diam. Relat. Mater. 2022, 126, 109051. [Google Scholar] [CrossRef]
  22. Li, Y.; Wang, B.; Yu, Z.; Zhou, X.; Kang, D.; Wu, Y.; Chen, Z.; He, C.; Zhou, X. The effects of central metals on ammonia sensing of metallophthalocyanines covalently bonded to graphene oxide hybrids. RSC Adv. 2017, 7, 34215–34225. [Google Scholar] [CrossRef] [Green Version]
  23. Ridhi, R.; Neeru; Gautam, S.; Saini, G.S.S.; Tripathi, S.K.; Rawat, J.S.; Jha, P. Study of the effect of orbital on interaction behaviour of SWCNT-metal phthalocyanines composites with ammonia gas. Sens. Actuators B. Chem. 2021, 337, 129767. [Google Scholar] [CrossRef]
  24. Dasari, B.S.; Taube, W.R.; Agarwal, P.B.; Rajput, M.; Kumar, A.; Akhtar, J. Room temperature single walled carbon nanotubes (SWCNT) chemiresistive ammonia gas sensor. Sens. Transducers 2015, 190, 24–30. [Google Scholar]
  25. Nikolic, M.V.; Milovanovic, V.; Vasiljevic, Z.Z.; Stamenkovic, Z. Semiconductor gas sensors: Materials, technology, design, and application. Sensors 2020, 20, 6694. [Google Scholar] [CrossRef]
  26. Kaya, E.N.; Basova, T.; Polyakov, M.; Durmuş, M.; Hassan, A. Hybrid materials of pyrene substituted phthalocyanines with single-walled carbon nanotubes: Structure and sensing properties. RSC Adv. 2015, 5, 91855–91862. [Google Scholar] [CrossRef]
  27. Polyakov, M.S.; Basova, T.V.; Göksel, M.; Şenocak, A.; Demirbaş, E.; Durmuş, M.; Kadem, B.; Hassan, A. Effect of covalent and non-covalent linking of zinc(II) phthalocyanine functionalised carbon nanomaterials on the sensor response to ammonia. Synth. Met. 2017, 227, 78–86. [Google Scholar] [CrossRef]
  28. Guo, Z.; Wang, B.; Wang, X.; Li, Y.; Gai, S.; Wu, Y.; Cheng, X. A high-sensitive room temperature gas sensor based on cobalt phthalocyanines and reduced graphene oxide nanohybrids for the ppb-levels of ammonia detection. RSC Adv. 2019, 9, 37518–37525. [Google Scholar] [CrossRef]
  29. Wu, H.; Chen, Z.M.; Zhang, J.L.; Wu, F.; He, C.H.; Ren, Z.Y.; Wu, Y.Q. Manipulating polyaniline fibrous networks by doping tetra-β-carboxyphthalocyanine cobalt(II) for remarkably enhanced ammonia sensing. Chem. Mater. 2017, 29, 9509–9517. [Google Scholar] [CrossRef]
  30. Tai, H.; Duan, Z.; He, Z.; Xian, L.; Xu, J.; Liu, B.; Jiang, Y. Enhanced ammonia response of Ti3C2Tx nanosheets supported by TiO2 nanoparticles at room temperature. Sens. Actuators B. Chem. 2019, 298, 126874. [Google Scholar] [CrossRef]
  31. Zhang, D.; Jiang, C.; Li, P.; Sun, Y. Layer-by-Layer Self-assembly of Co3O4 Nanorod-Decorated MoS2 Nanosheet-Based Nanocomposite toward High-Performance Ammonia Detection. ACS Appl. Mater. Interfaces 2017, 9, 6462–6471. [Google Scholar] [CrossRef] [PubMed]
  32. Ridhi, R.; Singh, S.; Saini, G.S.S.; Tripathi, S.K. Comparison of interaction mechanisms of copper phthalocyanine and nickel phthalocyanine thin films with chemical vapours. J. Phys. Chem. Solids 2018, 115, 119–126. [Google Scholar] [CrossRef]
  33. Liang, X.; Chen, Z.; Wu, H.; Guo, L.; He, C.; Wang, B.; Wu, Y. Enhanced NH3-sensing behavior of 2,9,16,23-tetrakis(2,2,3,3-tetrafluoropropoxy) metal(II) phthalocyanine/multi-walled carbon nanotube hybrids: An investigation of the effects of central metals. Carbon 2014, 80, 268–278. [Google Scholar] [CrossRef]
  34. Cao, Z.; Chen, Q.; Lu, Y.; Liu, H.; Hu, Y. Density functional theory study on the interaction between metalloporphyrins and NH3. Int. J. Quantum Chem. 2012, 113, 1137–1146. [Google Scholar] [CrossRef]
  35. Baggio, A.R.; Machado, D.F.S.; Carvalho-Silva, V.H.; Paterno, L.G.; de Oliveira, H.C.B. Rovibrational spectroscopic constants of the interaction between ammonia and metallo-phthalocyanines: A theoretical protocol for ammonia sensor design. Phys. Chem. Chem. Phys. 2017, 19, 10843–10853. [Google Scholar] [CrossRef]
  36. Rana, M.K.; Sinha, M.; Panda, S. Gas sensing behavior of metal-phthalocyanines: Effects of electronic structure on sensitivity. Chem. Phys. 2018, 513, 23–24. [Google Scholar] [CrossRef]
  37. Kaya, E.N.; Şenocak, A.; Klyamer, D.D.; Demirbaş, E.; Basova, T.V.; Durmuş, M. Ammonia sensing performance of thin films of cobalt(II) phthalocyanine bearing fluorinated substituents. J. Mater. Sci. Mater. Electron. 2019, 30, 7543–7551. [Google Scholar] [CrossRef]
  38. Ivanova, V.; Klyamer, D.; Krasnov, P.; Kaya, E.N.; Kulu, İ.; Kostakoglu, S.T.; Durmuş, M.; Basova, T. Hybrid materials based on pyrene-substituted metallo phthalocyanines as sensing layers for ammonia detection: Effect of the number of pyrene substituents. Sens. Actuators B. Chem. 2022, 375, 132843. [Google Scholar] [CrossRef]
  39. Elstner, M.; Porezag, D.; Jungnickel, G.; Elsner, J.; Haugk, M.; Frauenheim, T.; Suhai, S.; Seifert, G. Self-consistent-charge density-functional tight-binding method for simulations of complex materials properties. Phys. Rev. B 1998, 58, 7260–7268. [Google Scholar] [CrossRef]
  40. Hourahine, B.; Aradi, B.; Blum, V.; Bonafé, F.; Buccheri, A.; Camacho, C.; Cevallos, C.; Deshaye, M.Y.; Dumitric, T.; Dominguez, A.; et al. DFTB+, a software package for efficient approximate density functional theory based atomistic simulations. J. Chem. Phys. 2020, 152, 124101. [Google Scholar] [CrossRef]
  41. Lu, X.; Gaus, M.; Elstner, M.; Cui, Q. Parametrization of DFTB3/3OB for magnesium and zinc for chemical and biological applications. J. Phys. Chem. B 2015, 119, 1062–1082. [Google Scholar] [CrossRef] [PubMed]
  42. Gaus, M.; Goez, A.; Elstner, M. Parametrization and benchmark of DFTB3 for organic molecules. J. Chem. Theory Comput. 2013, 9, 338–354. [Google Scholar] [CrossRef] [PubMed]
  43. Grimme, S.; Ehrlich, S.; Goerigk, L. Effect of the damping function in dispersion corrected density functional theory. J. Comput. Chem. 2011, 32, 1456–1465. [Google Scholar] [CrossRef] [PubMed]
  44. Grimme, S.; Antony, J.; Ehrlich, S.; Krieg, H. A consistent and accurate ab initio parametrization of density functional dispersion correction (DFT-D) for the 94 elements H-Pu. J. Chem. Phys. 2010, 132, 154104. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Krasnov, P.O.; Basova, T.V.; Hassan, A. Interaction of metal phthalocyanines with carbon zigzag and armchair nanotubes with different diameters. Appl. Surf. Sci. 2018, 457, 235–240. [Google Scholar] [CrossRef] [Green Version]
  46. Monkhorst, H.J.; Pack, J.D. Special points for Brillonin-zone integrations. Phys. Rev. B 1976, 13, 5188–5192. [Google Scholar] [CrossRef]
  47. Becke, A.D. Density-functional exchange energy approximation with correct asymptotic behavior. Phys. Rev. A 1988, 38, 3098–3100. [Google Scholar] [CrossRef]
  48. Perdew, J.P. Density functional approximation for the correlation energy of the inhomogeneous electron gas. Phys. Rev. B 1986, 33, 8822–8824. [Google Scholar] [CrossRef]
  49. Weigend, F.; Ahlrichs, R. Balanced basis sets of split valence, triple zeta valence and quadruple zeta valence quality for H to Rn: Design and assessment of accuracy. Phys. Chem. Chem. Phys. 2005, 7, 3297–3305. [Google Scholar] [CrossRef]
  50. Neese, F. The ORCA program system. WIREs Comput. Mol. Sci. 2012, 2, 73–78. [Google Scholar] [CrossRef]
  51. Neese, F. Software update: The ORCA program system, version 4.0. WIREs Comput. Mol. Sci. 2017, 8, e1327. [Google Scholar] [CrossRef]
  52. Baerends, E.J.; Ellis, D.E.; Ros, P. Self-consistent molecular Hartree-Fock-Slater calculations I. The computational procedure. J. Chem. Phys. 1973, 2, 41–51. [Google Scholar] [CrossRef]
  53. Dunlap, B.I.; Connolly, J.W.D.; Sabin, J.R. On some approximations in applications of Xα theory. J. Chem. Phys. 1979, 71, 3396–3402. [Google Scholar] [CrossRef]
  54. Van Alsenoy, C. Ab initio calculations on large molecules: The multiplicative integral approximation. J. Comp. Chem. 1988, 9, 620–626. [Google Scholar] [CrossRef]
  55. Kendall, R.A.; Früchtl, H.A. The impact of the resolution of the identity approximate integral method on modern ab initio algorithm development. Theor. Chem. Acc. 1997, 97, 158–163. [Google Scholar] [CrossRef]
  56. Eichkorn, K.; Treutler, O.; Öhm, H. Auxiliary basis sets to approximate Coulomb potentials. Chem. Phys. Lett. 1995, 240, 283–290. [Google Scholar] [CrossRef]
  57. Eichkorn, K.; Weigend, F.; Treutler, O. Auxiliary basis sets for main row atoms and transition metals and their use to approximate Coulomb potentials. Theor. Chem. Acc. 1997, 97, 119–124. [Google Scholar] [CrossRef]
  58. Weigend, F. Accurate Coulomb-fitting basis sets for H to Rn. Phys. Chem. Chem. Phys. 2006, 8, 1057–1065. [Google Scholar] [CrossRef] [PubMed]
  59. Dunning, T.H., Jr. Gaussian basis sets for use in correlated molecular calculations. I. The atoms boron through neon and hydrogen. J. Chem. Phys. 1989, 90, 1007–1023. [Google Scholar] [CrossRef]
  60. Bader, R.F.W.; Essén, H. The characterization of atomic interactions. J. Chem. Phys. 1984, 80, 1943–1960. [Google Scholar] [CrossRef]
  61. Bader, R.F.W. A quantum theory of molecular structure and its applications. Chem. Rev. 1991, 91, 893–928. [Google Scholar] [CrossRef]
  62. Bader, R.F.W. Atoms in Molecules: A Quantum Theory; Oxford University Press: New York, NY, USA, 1994. [Google Scholar]
  63. Todd, A.; Keith, T.K. AIMAll, version 19.10.12; Gristmill Software: Overland Park, KS, USA, 2019; Available online: aim.tkgristmill.com (accessed on 24 October 2022).
  64. Bushmarinov, I.S.; Lyssenko, K.A.; Antipin, M.Y. Atomic energy in the ’Atoms in Molecules’ theory and its use for solving chemical problems. Russ. Chem. Rev. 2009, 78, 283–302. [Google Scholar] [CrossRef]
Chemosensors 10 00479 g001 550

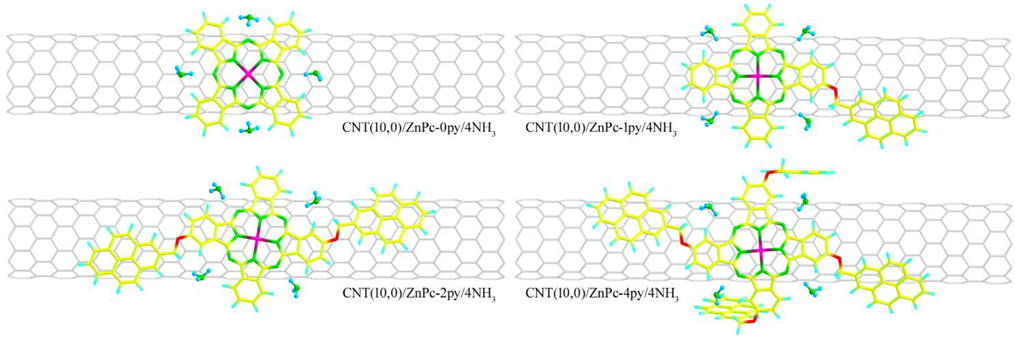

Figure 1. Geometrical structures of CNT(10,0)/ZnPc-xpy/4NH3 obtained as a result of quantum-chemical modeling by the SCC-DFTB method.
Figure 1. Geometrical structures of CNT(10,0)/ZnPc-xpy/4NH3 obtained as a result of quantum-chemical modeling by the SCC-DFTB method.
Chemosensors 10 00479 g001
Chemosensors 10 00479 g002 550

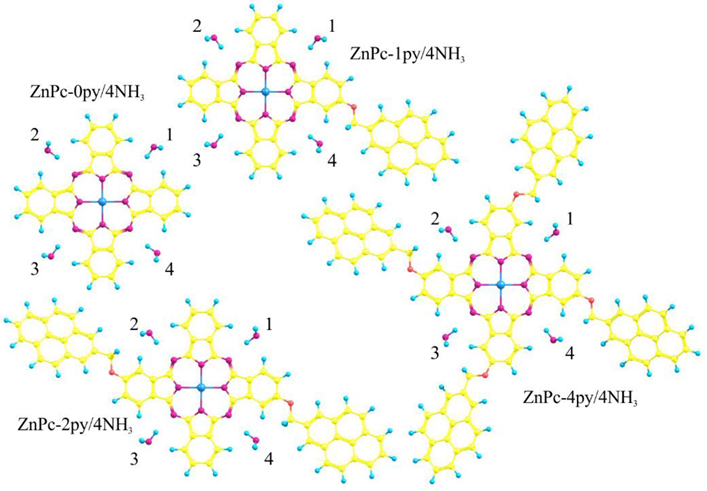

Figure 2. Geometrical structures of ZnPc-xpy/4NH3 aggregates, obtained from the results of quantum-chemical calculations by the DFT BP86-D3/def2-SVP method. The numbers 1–4 indicate the order of calculation of the binding energy of the corresponding NH3 molecule in the composition of the entire aggregate.
Figure 2. Geometrical structures of ZnPc-xpy/4NH3 aggregates, obtained from the results of quantum-chemical calculations by the DFT BP86-D3/def2-SVP method. The numbers 1–4 indicate the order of calculation of the binding energy of the corresponding NH3 molecule in the composition of the entire aggregate.
Chemosensors 10 00479 g002
Chemosensors 10 00479 g003 550

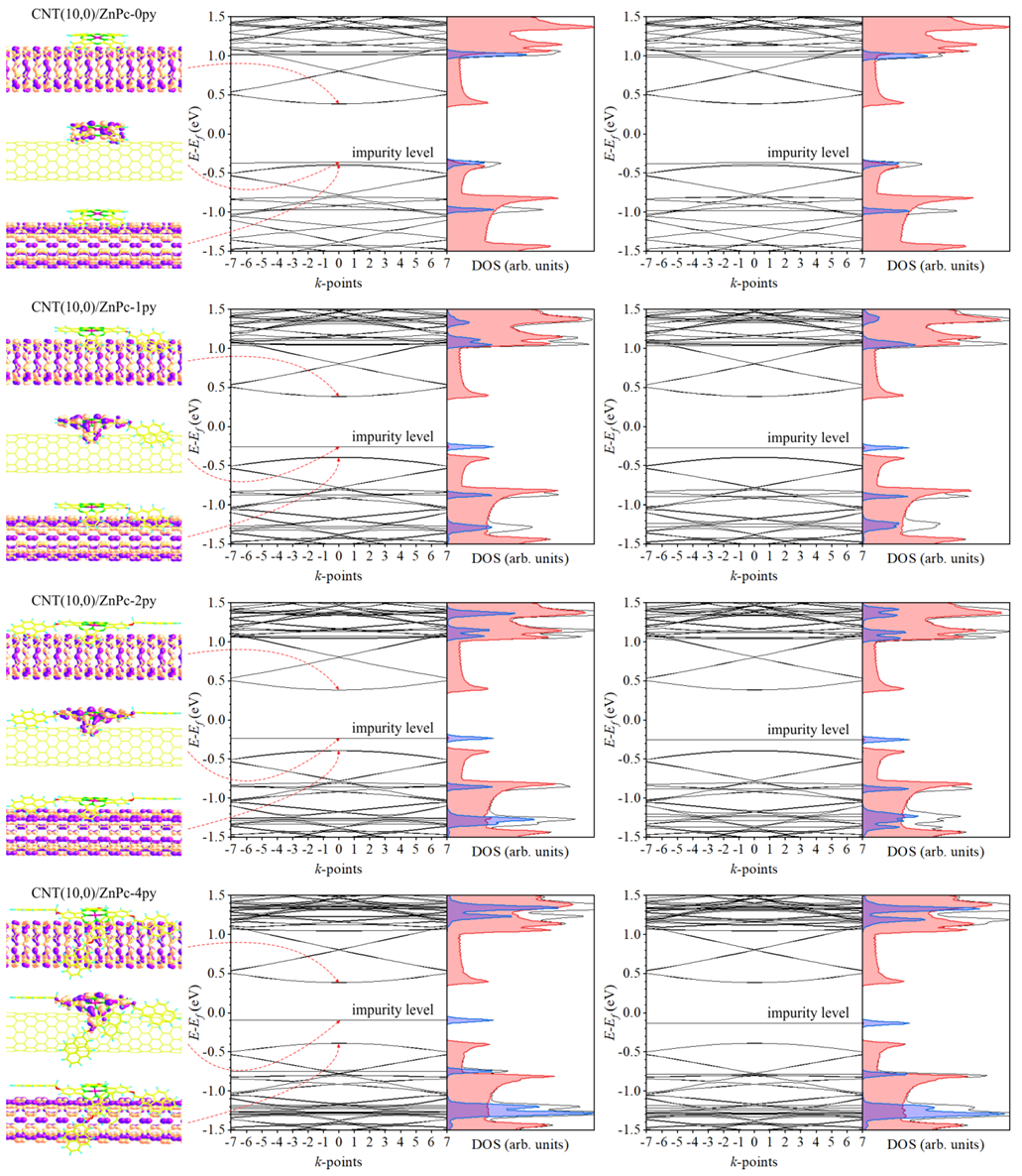

Figure 3. Band structure and densities of states of CNT(10,0)/ZnPc-xpy (center panels) and CNT(10,0)/ZnPc-xpy/4NH3 (right panels); electron wave functions of the conduction band bottom, the impurity band, and the valence band top of the hybrids without ammonia molecules (left panels). In the case of densities of states, the black line is the total DOS, and the red and blue peaks are the partial DOS of the CNT(10,0) and ZnPc-xpy atoms separately.
Figure 3. Band structure and densities of states of CNT(10,0)/ZnPc-xpy (center panels) and CNT(10,0)/ZnPc-xpy/4NH3 (right panels); electron wave functions of the conduction band bottom, the impurity band, and the valence band top of the hybrids without ammonia molecules (left panels). In the case of densities of states, the black line is the total DOS, and the red and blue peaks are the partial DOS of the CNT(10,0) and ZnPc-xpy atoms separately.
Chemosensors 10 00479 g003
Chemosensors 10 00479 g004 550

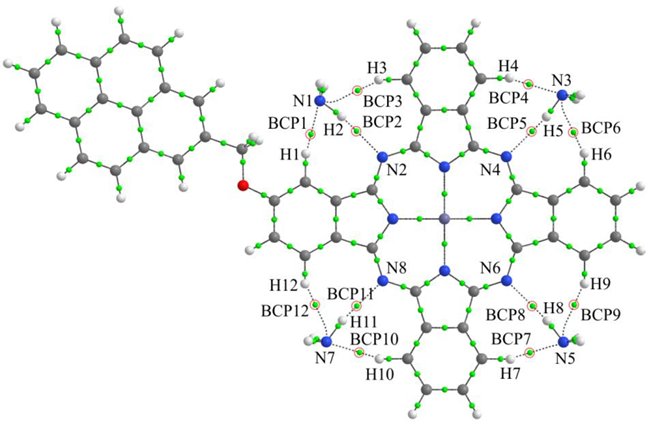

Figure 4. Bond critical points in the ZnPc-1py aggregate with four ammonia molecules (red circles show the BCP1-BCP12 points characterizing the interaction of NH3 molecules with the phthalocyanine between the indicated atoms).
Figure 4. Bond critical points in the ZnPc-1py aggregate with four ammonia molecules (red circles show the BCP1-BCP12 points characterizing the interaction of NH3 molecules with the phthalocyanine between the indicated atoms).
Chemosensors 10 00479 g004
Table
Table 1. Band gap and change in the position of the impurity band and the conduction band population in CNT(10,0)/ZnPc-xpy hybrids with the addition of four ammonia molecules.
Table 1. Band gap and change in the position of the impurity band and the conduction band population in CNT(10,0)/ZnPc-xpy hybrids with the addition of four ammonia molecules.
xEg1, eVEg2, eVΔE, eVn1/n2
00.7740.7740.0051.10
10.7740.7730.0131.29
20.7750.7740.0191.45
40.7720.7720.0382.10
Table
Table 2. Binding energies (in eV) of each of the four NH3 molecules in ZnPc-xpy/4NH3 aggregates.
Table 2. Binding energies (in eV) of each of the four NH3 molecules in ZnPc-xpy/4NH3 aggregates.
xPosition Number of the NH3 Molecule
(in Accordance with Figure 2)
1234
00.1410.1410.1410.141
10.1330.1270.1410.215
20.1390.1490.1450.204
40.1560.1560.1560.156
Table
Table 3. Values of ρ(r) and ∇2ρ(r) at bond critical points characterizing the interaction of four NH3 molecules with the ZnPc-1py molecule and effective charges q of the corresponding hydrogen atoms of phthalocyanine.
Table 3. Values of ρ(r) and ∇2ρ(r) at bond critical points characterizing the interaction of four NH3 molecules with the ZnPc-1py molecule and effective charges q of the corresponding hydrogen atoms of phthalocyanine.
BCPAtomsρ(r), e/Å3∇2ρ(r), e/Å5q, e
1N1-H10.1461.6020.148
2N2-H20.1171.162-
3N1-H30.0961.0500.051
4N3-H40.1401.5430.106
5N4-H50.1291.270-
6N3-H60.0981.0690.046
7N5-H70.1371.5270.107
8N6-H80.1251.238-
9N5-H90.1001.0920.047
10N7-H100.1381.5300.107
11N8-H110.1261.250-
12N7-H120.0991.0820.048
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Krasnov, P.; Ivanova, V.; Klyamer, D.; Fedorov, A.; Basova, T. Phthalocyanine-Carbon Nanotube Hybrid Materials: Mechanism of Sensor Response to Ammonia from Quantum-Chemical Point of View. Chemosensors 2022, 10, 479. https://doi.org/10.3390/chemosensors10110479

AMA Style

Krasnov P, Ivanova V, Klyamer D, Fedorov A, Basova T. Phthalocyanine-Carbon Nanotube Hybrid Materials: Mechanism of Sensor Response to Ammonia from Quantum-Chemical Point of View. Chemosensors. 2022; 10(11):479. https://doi.org/10.3390/chemosensors10110479

Chicago/Turabian Style

Krasnov, Pavel, Victoria Ivanova, Darya Klyamer, Aleksandr Fedorov, and Tamara Basova. 2022. "Phthalocyanine-Carbon Nanotube Hybrid Materials: Mechanism of Sensor Response to Ammonia from Quantum-Chemical Point of View" Chemosensors 10, no. 11: 479. https://doi.org/10.3390/chemosensors10110479

APA Style

Krasnov, P., Ivanova, V., Klyamer, D., Fedorov, A., & Basova, T. (2022). Phthalocyanine-Carbon Nanotube Hybrid Materials: Mechanism of Sensor Response to Ammonia from Quantum-Chemical Point of View. Chemosensors, 10(11), 479. https://doi.org/10.3390/chemosensors10110479

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
