Article

Rational Design and Synthesis of Large Stokes Shift 2,6-Sulphur-Disubstituted BODIPYs for Cell Imaging

1
UoE Centre for Inflammation Research, The University of Edinburgh, Edinburgh EH16 4TJ, UK
2
EASTChem School of Chemistry, The University of Edinburgh, Edinburgh EH9 3FJ, UK
3
Institute of Chemistry, Fluminense Federal University, Niterói 24020-141, RJ, Brazil
4
Department of Chemistry, Fluminense Federal University, Volta Redonda 27213-145, RJ, Brazil
5
Institute of Exact Sciences, Department of Chemistry, Federal University of Minas Gerais, Belo Horizonte 31270-901, MG, Brazil
6
Institute of Physics, University of São Paulo, São Carlos 13560-160, SP, Brazil
*
Authors to whom correspondence should be addressed.
These authors contributed equally to the work.
Academic Editor: Guo-Hui Pan
Chemosensors 2022, 10(1), 19; https://doi.org/10.3390/chemosensors10010019
Received: 23 November 2021 / Revised: 28 December 2021 / Accepted: 28 December 2021 / Published: 4 January 2022

Abstract

Five new disubstituted 2,6-thioaryl-BODIPY dyes were synthesized via selective aromatic electrophilic substitution from commercially available thiophenols. The analysis of the photophysical properties via absorption and emission spectroscopy showed unusually large Stokes shifts for BODIPY fluorophores (70–100 nm), which makes them suitable probes for bioimaging. Selected compounds were evaluated for labelling primary immune cells as well as different cancer cell lines using confocal fluorescence microscopy.
Keywords: fluorophores; probes; microscopy; cytometry; labelling fluorophores; probes; microscopy; cytometry; labelling

1. Introduction

Compounds containing chalcogen elements—for instance, selenium, tellurium, and sulphur—have wide applications in many areas of science [1,2,3]. Importantly, they can act as redox centers and modulate the activity of biomolecules [4,5,6]. Chalcogen atoms can be also introduced in fluorescent structures to fine-tune their optical properties, including absorption/emission wavelengths and photodynamic capabilities [7,8]. In recent years, our research group and others have focused on the preparation of several classes of fluorescent compounds [9,10,11,12,13,14,15,16]. Antitumor compounds with fluorescent properties, optical probes activated by enzymes [17,18,19,20,21,22], fluorescent amino acids and synthetic peptides for imaging studies [23,24,25,26,27,28,29,30], and more recently, boron-dipyrromethene (BODIPY) derivatives [31,32,33,34,35,36,37,38,39,40] have been the targets of many investigations.
BODIPY dyes are versatile fluorescent scaffolds due to their remarkable photophysical properties. These include relatively large molar absorption coefficients, high fluorescence quantum yields, sharp emission bandwidths, and high photostability [41,42,43]. Moreover, the chemical versatility of the BODIPY core allows their spectroscopic and photophysical properties to be fine-tuned. This family of compounds has been extensively employed in many research fields, including chemosensors [44], photosensitizers [45,46,47,48,49], and OLEDs [50].
The functionalization of BODIPYs with chalcogen groups has multiple motivations, such as the enhancement of their physicochemical properties [51]. Among the BODIPY derivatives already reported in the literature [52], BODIPYs containing sulphur [53,54,55], selenium [56,57], and tellurium [58] atoms have been reported for the detection of hypochlorite or hypochlorous acid, among some applications.
Synthetic methods for the insertion of sulphur atoms into the basic architecture of BODIPYs have been described (Scheme 1); however, many of them require harsh reaction conditions [55]. Rezende and coworkers developed a methodology for the thiocyanation of 3-substituted and 3,5-disubstituted BODIPYs using oxone and ammonium thiocyanate [59]. Kim and coworkers prepared an alkylthioether BODIPY derivatives via an electrophilic substitution reaction in the presence of DMSO and POCl3 [60]. Bröring’s group described other interesting examples using S2Cl2 to dimerize BODIPY moieties as sulfide analogues [61].
Upon compiling existing data on the photophysical properties of the above-mentioned BODIPYs, we observed that while having variable excitation and emission maxima and photoluminescence quantum yields (ΦPL), all 2- and 2,6-thioether-substituted compounds exhibited large Stokes shifts > 50 nm [60,61] (Scheme 1B), partially due to electron delocalization, whereas the 3-, 3,5- and meso-thioether-substituted BODIPYs displayed smaller excitation–emission gaps of 10 to 30 nm (Scheme 1A) [53,54,55]. Because large Stokes shifts can improve signal-to-noise ratios or allow excitation of multiple dyes with the same laser source, they can be advantageous for bioimaging applications. Therefore, we designed new 2,6-sulphur-disubstituted BODIPYs based on thiophenol derivatives. Herein we present an optimized 2-step synthesis from readily available building blocks, their photophysical properties in different solvents, and potential use as probes for live-cell imaging (Scheme 1C).

2. Materials and Methods

2.1. Chemistry

All reagents and solvents used were of analytical grade. 1H, 13C, and 19F spectra were recorded on a Varian VNMRS 300 MHz and Varian VNMRS 500 MHz spectrometer, using tetramethylsilane (TMS) or trifluoroacetic acid (TFA) as reference. Spectra were recorded typically at r.t. in CDCl3. Chemical shifts are reported in ppm (δ) and coupling constants (J) are given in Hz. Column chromatographic purifications were carried out on silica gel SiliaFlash G60 70–230 mesh (SiliCycle) columns with the defined eluents. NMR spectra and HRMS data are presented in Supporting Information.
4,4-Difluoro-8-(4-methoxyphenyl)-1,3,5,7-tetramethyl-4-bora-3a,4a-diaza-S-indacene (1): 2,4-dimethyl-1H-pyrrole (1.03 mL, 10.0 mmol) and 4-methoxybenzaldehyde (0.61 mL, 5.0 mmol) were mixed with a pestle and mortar. Trifluoroacetic acid was added and the mixture was ground for 2 min. CHCl3 (2.0 mL) was added and then p-chloranil (1.81 g, 7.4 mmol) was added to the mixture and ground for 2 min. Next, triethylamine (6.0 mL, 43.0 mmol) was added and the resulting paste was ground for 3 min. BF3·OEt2 (6.0 mL, 47.4 mmol) was then added dropwise and the mixture was ground for 2 min until a dark red paste formed. The reaction mixture was dissolved in CHCl3 (200 mL) and washed with saturated Na2CO3 (3  ×  200 mL) and brine (2  ×  200 mL). The solvent was evaporated and the crude solid was purified by normal-phase chromatography with hexane:chloroform (9:1). The product was obtained as an orange solid (45% yield). 1H NMR (500 MHz, CDCl3) δ: 7.18–7.16 (d, J = 8.7 Hz, 2H), 7.02–7.00 (d, J = 8.7 Hz, 2H), 5.97 (s, 2H), 3.87 (s, 3H), 2.55 (s, 6H), 1.43 (s, 6H) ppm. 19F NMR (470 MHz, CDCl3) δ: −143.5 (q, JBF = 32.9 Hz) ppm. 13C NMR (75 MHz, CDCl3) δ: 160.27, 155.39, 143.29, 141.99, 131.98, 127.1, 121.2, 114.6, 55.4, 14.6 ppm. The data are consistent with those reported in the literature [62].
Synthesis of thioaryl-BODIPYs (2ae): To a suspension of N-chlorosuccinimide (267 mg, 2 mmol) in CH2Cl2 (10 mL) at r.t., we carried out a dropwise addition of a solution of the corresponding thiophenol (2 mmol) in dry CH2Cl2 (10 mL). After stirring for 30 min, the orange solution of the phenyl-sulfenyl chloride was used in situ. To the solution of phenyl-sulfenyl chloride at 0 °C, a solution of BODIPY 1 (50.0 mg, 0.135 mmol) in 10 mL of dry CH2Cl2 was added dropwise over 15 min. The mixture was stirred at r.t. for 15 min. Next, H2O (20 mL) was added to the reaction mixture. After separation, the organic phase was washed with H2O (20 mL), dried over Na2SO4, and the solvent was evaporated under reduced pressure. The residue was purified by column chromatography using hexane:CH2Cl2 (8:1) to give the products 2a–e.
4,4-Difluoro-8-(4-methoxyphenyl)-2,6-bis(phenylthio)-1,3,5,7-tetramethyl-4-bora-3a,4a-diaza-S-indacene (2a): The product was obtained as a red solid (94% yield; m.p. (°C) 225–228; 1H NMR (500 MHz, CDCl3) δ: 7.22–7.19 (m, 6H), 7.11–7.08 (t, J = 7.4 Hz, 2H), 7.04–7.03 (d, J = 8.7 Hz, 2H), 7.01–7.00 (d, J = 7.3 Hz, 4H), 3.87 (s, 3H), 2.62 (s, 6H), 1.54 (s, 6H). 19F NMR (470 MHz, CDCl3) δ: −143.11 (q, J = 31.7 Hz). 13C NMR (75 MHz, CDCl3) δ: 160.6, 160.1, 148.5, 143.3, 137.5, 132.0, 129.1, 126.7, 126.0, 125.3, 115.0, 77.1, 55.5, 13.6, 13.3. ESI+/HRMS (m/z) [M + H]+: 571.1855 Cald. for C32H30BF2N2OS2, found: 571.1850. Data are consistent with those reported in the literature.
4,4-Difluoro-8-(4-methoxyphenyl)-2,6-bis(2-methylphenylthio)-1,3,5,7-tetramethyl-4-bora-3a,4a-diaza-S-indacene (2b): The product was obtained as a red solid (83% yield); m.p. (°C) 223-229; 1H NMR (300 MHz, CDCl3) δ: 7.25–7.22 (d, J = 8.7 Hz, 2H)), 7.14–7.11 (m, 2H), 7.05–7.00 (m, 6H), 6.63-6.60 (m, 2H), 3.78 (s, 3H), 2.52 (s, 6H), 2.33 (s, 6H), 1.43 (s, 6H).19F NMR (470 MHz, CDCl3) δ: −143.11 (q, J = 31.7 Hz). 13C NMR (75 MHz, CDCl3) δ: 160.6, 160.1, 148.7, 143.1, 136.5, 134.8, 130.2, 129.2, 126.7, 126.6, 124.9, 124.7, 115.0, 77.1, 55.5, 20.0, 13.5, 13.3. ESI+/HRMS (m/z) [M + H]+: 599.2168 Cald. for C34H34BF2N2OS2, found: 599.2162.
4,4-Difluoro-8-(4-methoxyphenyl)-2,6-bis(4-methylphenylthio)-1,3,5,7-tetramethyl-4-bora-3a,4a-diaza-S-indacene (2c): The product was obtained as a pink solid (63% yield); m.p. (°C) 225–229; 1H NMR (500 MHz, CDCl3) δ: 7.21–7.20 (d, J = 8.6 Hz, 2H), 7.04–7.01 (m, 6H), 6.92–6.91 (d, J = 8.2 Hz, 4H), 3.86 (s, 3H), 2.27 (s, 6H), 1.53 (s, 6H). 19F NMR (470 MHz, CDCl3) δ: −148.08 (q, J = 31.5 Hz). 13C NMR (125 MHz, CDCl3) δ: 160.6, 160.0, 148.3, 143.2, 135.3, 133.9, 132.0, 129.9, 129.2, 126.8, 126.4, 115.0, 55.5, 13.6, 13.4. ESI+/HRMS (m/z) [M + H]+: 599.2168 Cald. for C34H34BF2N2OS2, found: 599.2163.
4,4-Difluoro-8-(4-methoxyphenyl)-2,6-bis(4-methoxiphenylthio)-1,3,5,7-tetramethyl-4-bora-3a,4a-diaza-S-indacene (2d): The product was obtained as a deep red solid (90% yield); m.p. (°C) 234–238; 1H NMR (500 MHz, CDCl3) δ: 7.19–7.18 (d, J = 8.7 Hz, 2H), 7.03–7.02 (d, J = 8.7 Hz, 2H), 7.01–6.99 (d, J = 8.9 Hz, 4H), 6.78–6.76 (d, J = 8.9 Hz, 4H), 3.79 (s, 3H), 3.68 (s, 6H), 2.55 (s, 6H), 1.46 (s, 6H). 19F NMR (470 MHz, CDCl3) δ: −143.17 (q, J = 31.7 Hz). 13C NMR (125 MHz, CDCl3) δ: 160.6, 159.7, 158.2, 147.7, 143.0, 131.8, 129.2, 128.8, 127.9, 126.8, 122.3, 114.9, 114.8, 77.1, 55.5, 13.6, 13.4. ESI+/HRMS (m/z) [M + H]+: 631.2066 Cald. for C34H34BF2N2O3S2, found: 631.2057.
4,4-Difluoro-8-(4-methoxyphenyl)-2,6-bis(4-chlorophenylthio)-1,3,5,7-tetramethyl-4-bora-3a,4a-diaza-S-indacene (2e): The product was obtained as a deep red solid (52% yield); m.p. (°C) 230–235; 1H NMR (500 MHz, CDCl3) δ: 7.21–7.19 (d, J = 8.8 Hz, 2H), 7.18–7.17 (d, J = 8.7 Hz, 4H), 7.05-7.03 (d, J = 8.7 Hz, 2H), 6.93–6.91 (d, J = 8.7 Hz, 4H), 3.52 (s, 3H), 2.57 (s, 6H), 1.47 (s, 6H). 19F NMR (470 MHz, CDCl3) δ: −148.01 (q, J = 31.7 Hz). 13C NMR (125 MHz, CDCl3) δ: 160.7, 160.0, 148.6, 143.6, 136.0, 132.1, 131.2, 129.2, 129.1, 127.3, 126.5, 120.3, 115.1, 77.1, 55.5, 13.5, 13.3. ESI+/HRMS (m/z) [M + H]+: 639.1076 Cald. for C32H28BCl2F2N2OS2, found: 639.1076.

2.2. Photophysical Measurements

Absorption spectra were obtained on a UV-visible spectrophotometer (Thermo Scientific Evolution 600) at r.t. Fluorescence excitation and emission spectra were recorded on a Varian Cary Eclipse spectrofluorometer using 1 cm pathlength cuvettes at r.t. Fluorescence quantum yields (ΦF) of the new compounds were obtained from a comparative method using Rhodamine 6G (ΦF = 0.95 in ethanol, λexc = 500 nm) as a standard [63]. In this method, a series of solutions in different concentrations were used for measurements of absorbance and fluorescence emission, keeping a low absorbance (A < 0.1) to avoid inner-filter effects and intermolecular reabsorption [64]. The quantum yield was calculated by plotting the integrated fluorescence intensity vs. absorbance to obtain the slope of the curve. The photoluminescence quantum yield of the tested compound (Φx) was calculated using the following equation
Φ x = Φ st   ( Grad x Grad st ) ( η x 2 η st 2 )
where Φst is the quantum yield of the standard, Gradx and Gradst are the slopes for the test and standard compounds, respectively, and ηx and ηst are the refractive indexes of the solvents.

2.3. Biological Experiments

Viability assays: Cell lines were cultured in DMEM supplemented with 10% FBS, antibiotics (100 U mL−1 penicillin and 100 mg mL−1 streptomycin) and 1% L-Glutamine at 37 °C in a humidified atmosphere with 5% CO2. Cells were regularly passaged in T-75 flasks using trypsin-EDTA. Cells were plated at a density of 10,000 cells per well and incubated overnight with the fluorophores (10 μM). Cell viability was assessed using an MTT cell proliferation assay following the manufacturer’s instructions. Values were normalized to the viability of untreated cells and analysed by GraphPad Prism.
Work with peripheral blood cells: The study protocol to work with human peripheral blood leukocytes was approved by the Accredited Medical Regional Ethics Committee (AMREC, 20-HV-069, University of Edinburgh). Human blood leukocytes were isolated from healthy volunteers and processed as described previously [65]. Briefly, whole blood was anticoagulated with sodium citrate 0.4% (w/v) and centrifuged at 350×  g for 20 min. Polymorphonuclear cells (>95% neutrophils) were harvested from the 63%/72.9% interface and cultured in RPMI with 5% FBS, 100 U mL−1 penicillin, and 100 µg mL−1 streptomycin. Neutrophils were stimulated with 10 nM PMA for 3 h at 37 °C. Monocytes were separated from the 49.5%/63% interface and cultured for 10 days in IMDM supplemented with 5% autologous serum to yield monocyte-derived macrophages (MDMs). Cells were plated and cultured with or without 5 ng/mL LPS at 37 °C.

2.4. Fluorescence Confocal Microscopy

Cells were plated in glass chamber slides (NuncTM Lab-TekTM II) and incubated with compounds 1 or 2a (10 μM) and Hoechst 33342 (0.1 µg/mL) for 15 min. Cells were washed and imaged using a Leica SP8 confocal microscope using 488 nm laser for excitation. All resulting images were analysed using FIJI.

2.5. Crystallography

Single, clear, light, colourless block-shaped crystals of 2d were obtained by recrystallization from slow evaporation. A suitable crystal 0.22 × 0.20 × 0.15 mm3 was selected and mounted on a suitable support on an XtaLAB Mini (ROW) diffractometer. The crystal was kept at a steady T = 293(2) K during data collection. The structure was solved with the ShelXT [66] structure solution program using the intrinsic phasing solution method and by using Olex2 [67] as the graphical interface. The model was refined with version 2017/1 of ShelXL 2017/1 [68] using least-squares minimization.

3. Results

The synthesis of the target compounds started with the preparation of BODIPY structure 1 as shown in Scheme 2. Compound 1 was synthesized from 2,4-dimethyl-1H-pyrrole and 4-methoxybenzoldehyde condensation, followed by oxidation with p-chloranil and complexation with BF3·OEt2. The one-pot reaction was performed by grinding the starting materials using a simple mortar affording the compound 1, and the optimized reaction procedure raised the recovery yields from 19 to 45% [62]. The use of neat conditions also led to faster reaction times (15 min) in comparison to conventional BODIPY synthesis.
With the BODIPY derivative 1 in hand, we prepared 2-, and 6-thioaryl-substituted BODIPY dyes as outlined in Scheme 3. Arylthiol chlorides were prepared in situ from N-chlorosuccinimide and commercially available thiophenols, and then used for the selective electrophilic substitution of the positions 2 and 6 of compound 1, which are known to be more susceptible to electrophilic attack [59]. The new 2,6-substituted thioaryl-BODIPYs 2ae were obtained in moderate to high yields (52–94%), and fully characterized by 1H, 13C and 19F NMR spectroscopy and high-resolution mass spectrometry. Suitable crystals of compound 2d were obtained by the slow evaporation method using chloroform as solvent. With appropriate red crystals in hand, the structure of 2d was solved and reconfirmed by X-ray crystallographic analysis. Representative Oak Ridge thermal ellipsoid plot (ORTEP)-3 diagram for 2d is displayed in Figure S1 and the crystallographic data is shown in Table S1.
The photophysical properties (absorption/emission wavelengths and relative photoluminescence quantum yields) of compounds 2a2e were determined in different relevant solvents, namely toluene, tetrahydrofuran (THF), acetone, methanol (MeOH), dimethylsulfoxide (DMSO), and water (including 1% DMSO). These results are summarized in Figure 1 and Table 1. In general, no relevant solvatochromic properties were observed (Figure S2 and Table 1). All compounds presented a large Stokes shift (70–100 nm, 2200–3200 cm−1) with absorption maxima around 515–525 nm and emission maxima around 595–620 nm in toluene. Notably, this large Stokes shift was not observed for the unsubstituted parent compound 1, highlighting the increased electronic delocalization in thio-containing compounds. We also observed that the emission wavelengths shifted from ~590 nm for the most electron-poor thioaryl group (2e, 4-Cl-Ph, toluene) to ~618 nm for the most electron-rich substituent (2d, 4-OMe-Ph, toluene); however, the absorption maxima remain unchanged (519 and 521 nm for 2d and 2e). In most BODIPY dyes, it has been reported that the HOMO is localized on the π-system of the pyrrole rings, whereas the LUMO sits on a mix of the π-system and the meso position [69]; however, with the introduction of the thioaryl groups on positions 2 and 6 of the BODIPY core, the compound may undergo heavy-atom-free intersystem crossing via photoinduced electron transfer (PET) as observed in some BODIPY dyads [45].
Next, to evaluate the applicability of our new BODIPY fluorophores for live-cell imaging, we performed cell viability assays. For these experiments, we used breast cancer cells MDA-MB-231 as a representative cell line. All our new compounds (2a2e) did not show any significant cytotoxicity when incubated with the cells for 16 h at 10 μM, and adverse effects on cell viability were only detected at very high concentrations (i.e., >100 μM, Figure S3). Because the photophysical properties of our new BODIPY fluorophores are relatively similar, we decided to assess the application of compound 2a, the simplest disubstituted thioaryl-BODIPY compound, for live-cell imaging experiments.
First, we evaluated the ability of compound 2a to label different human cancer cell lines, namely MDA-MB-231 and MCF7 (both breast cancer cells) and HT29 (colorectal carcinoma). Cells were incubated with compound 2a (10 μM) and Hoechst 33342 for 15 min prior to acquiring images under the fluorescence confocal microscope (λexc: 488 nm, λem: 550–680 nm). Figure 2 shows that compound 2a was taken up by cancer cells, with slightly brighter staining being observed in breast cancer cells than in colorectal cancer cells, which could be due to differences in the expression of transporters or efflux pumps between these cell lines. The parent compound 1 was also able to stain MCF7 cells with a similar intracellular distribution than compound 2a (Figure S4).
Next, we also examined the utility of compound 2a to label human primary cells, such as healthy immune cells derived from peripheral blood. We examined the labeling capabilities of compound 2a in human neutrophils (both unstimulated and stimulated with phorbol myristate) and in monocyte-derived macrophages (both unstimulated and stimulated with liposaccharide). We acquired Z-stack fluorescence microscopy to analyze the cell labelling as well as the intracellular localization. As shown in Figure 3, we observed bright intracellular punctate structures in neutrophils, whereas the labeling in macrophages was distributed across the whole cytoplasm.

4. Conclusions

In conclusion, we reported a new synthetic approach to generate BODIPY derivatives under neat conditions and the preparation of novel 2,6-thioaryl-derivatized BODIPY compounds. The straightforward and selective functionalization of the BODIPY core by thiophenol chloride prepared in situ allows for easy modification and addition of targeting moieties. Analysis of the photophysical properties shows that thioaryl-BODIPY derivatives display large Stokes shifts, which can be advantageous for optical imaging. Finally, we have confirmed that thioaryl-BODIPYs are not toxic in mammalian cells at their working concentrations and can be used for fluorescence confocal microscopy in human cells of multiple origin.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/chemosensors10010019/s1, Figure S1: ORTEP-3 projection of compound 2d, Figure S2: absorption and emission spectra of compound 2a in different organic solvents, Figure S3: cell viability data, Figure S4: additional confocal microscopy images. Table S1: ORTEP-3 projection of compound 2d, showing the atom numbering and displacement ellipsoids at the 50% probability level.

Author Contributions

Conceptualization, E.N.d.S.J. and M.V.; investigation, A.E.R., C.L., A.G., L.A.M., M.C.d.S., F.F.C.M., C.A.d.S., M.M.G. and L.F.P.; resources, E.N.d.S.J. and M.V.; writing—original draft preparation, A.E.R., C.L., E.N.d.S.J. and M.V.; writing—review and editing, E.N.d.S.J. and M.V.; supervision, E.N.d.S.J. and M.V.; funding acquisition, E.N.d.S.J. and M.V. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by CNPq (PQ 309774/2020-9), FAPEMIG (PPM-00635-18 and Rede de Pesquisa e Inovação para Bioengenharia de Nanossistemas (RED-00282-16), the Royal Society of Chemistry (RG160289), and an ERC Consolidator Grant (DYNAFLUORS, 771443).

Institutional Review Board Statement

The study protocol to work with human peripheral blood leukocytes was approved by the Accredited Medical Regional Ethics Committee (AMREC, 20-HV-069, University of Edinburgh).

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study.

Data Availability Statement

Data available from the corresponding authors upon reasonable request.

Acknowledgments

M. C. de Souza, F. F. C. Marques, and L. F. Pedrosa acknowledge funding from the FAPERJ, CAPES, and CNPq. E. N. da Silva Júnior acknowledges funding from CNPq (PQ 309774/2020-9), CAPES, INCT-Catálise, FAPEMIG (PPM-00635-18 and Rede de Pesquisa e Inovação para Bioengenharia de Nanossistemas-RED-00282-16), Return Fellowship of the Alexander von Humboldt Foundation (AvH), and the Royal Society of Chemistry for the research fund grant (RG160289). M.V. acknowledges funding from an ERC Consolidator Grant (DYNAFLUORS, 771443).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Lu, X.; Mestres, G.; Singh, V.P.; Effati, P.; Poon, J.F.; Engman, L.; Ott, M.K. Selenium- and Tellurium-Based Antioxidants for Modulating Inflammation and Effects on Osteoblastic Activity. Antioxidants 2017, 6, 13. [Google Scholar] [CrossRef] [PubMed]
  2. Borges, F.; Zugman, T.; Bandeira, P.; Dalmolin, M.; Scariot, D.; Garcia, F.; De Oliveira, A.; Nakamura, C.; Piovan, L. Complementary Performance of Organoselenides and Organotellurides as Antimicrobials Agents. J. Braz. Chem. Soc. 2021, 32, 642–675. [Google Scholar] [CrossRef]
  3. Galant, L.S.; Rafique, J.; Braga, A.L.; Braga, F.C.; Saba, S.; Radi, R.; da Rocha, J.B.T.; Santi, C.; Monsalve, M.; Farina, M.; et al. The Thiol-Modifier Effects of Organoselenium Compounds and Their Cytoprotective Actions in Neuronal Cells. Neurochem. Res. 2021, 46, 120–130. [Google Scholar] [CrossRef]
  4. Jardim, G.A.M.; Lima, D.J.B.; Valença, W.O.; Cavalcanti, B.C.; Pessoa, C.; Rafique, J.; Braga, A.L.; Jacob, C.; da Silva Junior, E.N.; Da Cruz, E.H.G. Synthesis of Selenium-Quinone Hybrid Compounds with Potential Antitumor Activity via Rh-Catalyzed C-H Bond Activation and Click Reactions. Molecules 2017, 23, 83. [Google Scholar] [CrossRef] [PubMed]
  5. Kharma, A.; Jacob, C.; Bozzi, Í.A.O.; Jardim, G.A.M.; Braga, A.L.; Salomão, K.; Gatto, C.C.; Silva, M.F.S.; Pessoa, C.; Stangier, M.; et al. Electrochemical Selenation/Cyclization of Quinones: A Rapid, Green and Efficient Access to Functionalized Trypanocidal and Antitumor Compounds. Eur. J. Org. Chem. 2020, 2020, 4474–4486. [Google Scholar] [CrossRef]
  6. Vieira, A.A.; Brandão, I.R.; Valença, W.O.; de Simone, C.A.; Cavalcanti, B.C.; Pessoa, C.; Carneiro, T.R.; Braga, A.L.; da Silva, E.N. Hybrid compounds with two redox centres: Modular synthesis of chalcogen-containing lapachones and studies on their antitumor activity. Eur. J. Med. Chem. 2015, 101, 254–265. [Google Scholar] [CrossRef] [PubMed]
  7. Benson, S.; de Moliner, F.; Fernandez, A.; Kuru, E.; Asiimwe, N.L.; Lee, J.-S.; Hamilton, L.; Sieger, D.; Bravo, I.R.; Elliot, A.M.; et al. Photoactivatable metabolic warheads enable precise and safe ablation of target cells in vivo. Nat. Commun. 2021, 12, 2369. [Google Scholar] [CrossRef] [PubMed]
  8. Benson, S.; Fernandez, A.; Barth, N.D.; De Moliner, F.; Horrocks, M.H.; Herrington, C.S.; Abad, J.L.; Delgado, A.; Kelly, L.; Chang, Z.; et al. SCOTfluors: Small, Conjugatable, Orthogonal, and Tunable Fluorophores for In Vivo Imaging of Cell Metabolism. Angew. Chem. Int. Ed. 2019, 58, 6911–6915. [Google Scholar] [CrossRef]
  9. Fernandez, A.; Thompson, E.J.; Pollard, J.W.; Kitamura, T.; Vendrell, M. A Fluorescent Activatable AND-Gate Chemokine CCL2 Enables In Vivo Detection of Metastasis-Associated Macrophages. Angew. Chem. Int. Ed. 2019, 58, 16894–16898. [Google Scholar] [CrossRef]
  10. Mellanby, R.J.; Scott, J.I.; Mair, I.; Fernandez, A.; Saul, L.; Arlt, J.; Moral, M.; Vendrell, M. Tricarbocyanine N-triazoles: The scaffold-of-choice for long-term near-infrared imaging of immune cells in vivo. Chem. Sci. 2018, 9, 7261–7270. [Google Scholar] [CrossRef]
  11. Zhao, C.; Fernandez, A.; Avlonitis, N.; Velde, G.V.; Bradley, M.; Read, N.D.; Vendrell, M. Searching for the Optimal Fluorophore to Label Antimicrobial Peptides. ACS Comb. Sci. 2016, 18, 689–696. [Google Scholar] [CrossRef]
  12. Mendive-Tapia, L.; Subiros-Funosas, R.; Zhao, C.; Albericio, F.; Read, N.D.; Lavilla, R.; Vendrell, M. Preparation of a Trp-BODIPY fluorogenic amino acid to label peptides for enhanced live-cell fluorescence imaging. Nat. Protoc. 2017, 12, 1588–1619. [Google Scholar] [CrossRef] [PubMed]
  13. Park, S.-J.; Yeo, H.C.; Kang, N.-Y.; Kim, H.; Lin, J.; Ha, H.-H.; Vendrell, M.; Lee, J.-S.; Chandran, Y.; Lee, D.-Y.; et al. Mechanistic elements and critical factors of cellular reprogramming revealed by stepwise global gene expression analyses. Stem Cell Res. 2014, 12, 730–741. [Google Scholar] [CrossRef] [PubMed]
  14. Zhang, X.; Chen, Y.; He, H.; Wang, S.; Lei, Z.; Zhang, F. ROS/RNS and Base Dual Activatable Merocyanine-Based NIR-II Fluorescent Molecular Probe for in vivo Biosensing. Angew. Chem. Int. Ed. Engl. 2021, 60, 26337–26341. [Google Scholar] [CrossRef]
  15. Gao, M.; Lee, S.H.; Park, S.H.; Ciaramicoli, L.M.; Kwon, H.Y.; Cho, H.; Jeong, J.; Chang, Y.T. Neutro-phil-Selective Fluorescent Probe Development through Metabolism-Oriented Live-Cell Distinction. Angew. Chem. Int. Ed. Engl. 2021, 60, 23743–23749. [Google Scholar] [CrossRef] [PubMed]
  16. Zhang, J.; Wang, L.; Jaschke, A.; Sunbul, M. A Color-Shifting Near-Infrared Fluorescent Aptamer-Fluorophore Module for Live-Cell RNA Imaging. Angew. Chem. Int. Ed. Engl. 2021, 60, 21441–21448. [Google Scholar] [CrossRef]
  17. Scott, J.I.; Deng, Q.; Vendrell, M. Near-Infrared Fluorescent Probes for the Detection of Cancer-Associated Proteases. ACS Chem. Biol. 2021, 16, 1304–1317. [Google Scholar] [CrossRef] [PubMed]
  18. Oe, M.; Miki, K.; Ohe, K. An enzyme-triggered turn-on fluorescent probe based on carboxylate-induced detachment of a fluorescence quencher. Org. Biomol. Chem. 2020, 18, 8620–8624. [Google Scholar] [CrossRef]
  19. Nobori, T.; Kawamura, M.; Yoshida, R.; Joichi, T.; Kamino, K.; Kishimura, A.; Baba, E.; Mori, T.; Katayama, Y. Fluorescence Signal Amplification by Using beta-Galactosidase for Flow Cytometry; Advantages of an Endogenous Activity-Free Enzyme. Anal. Chem. 2020, 92, 3069–3076. [Google Scholar] [CrossRef]
  20. Yao, C.; Li, Y.; Wang, Z.; Song, C.; Hu, X.; Liu, S. Cytosolic NQO1 Enzyme-Activated Near-Infrared Fluorescence Imaging and Photodynamic Therapy with Polymeric Vesicles. ACS Nano 2020, 14, 1919–1935. [Google Scholar] [CrossRef]
  21. Wang, R.; Chen, J.; Gao, J.; Xu, G.; Zhu, T.; Gu, X.; Guo, Z.; Zhu, W.-H.; Zhao, C. A molecular design strategy toward enzyme-activated probes with near-infrared I and II fluorescence for targeted cancer imaging. Chem. Sci. 2019, 10, 7222–7227. [Google Scholar] [CrossRef]
  22. Li, X.; Bottini, M.; Zhang, L.; Zhang, S.; Chen, J.; Zhang, T.; Liu, L.; Rosato, N.; Ma, X.; Shi, X.; et al. Core–Satellite Nanomedicines for in Vivo Real-Time Monitoring of Enzyme-Activatable Drug Release by Fluorescence and Photoacoustic Dual-Modal Imaging. ACS Nano 2018, 13, 176–186. [Google Scholar] [CrossRef] [PubMed]
  23. Barth, N.D.; Subiros-Funosas, R.; Mendive-Tapia, L.; Duffin, R.; Shields, M.A.; Cartwright, J.A.; Henriques, S.T.; Sot, J.; Goñi, F.M.; Lavilla, R.; et al. A fluorogenic cyclic peptide for imaging and quantification of drug-induced apoptosis. Nat. Commun. 2020, 11, 1–14. [Google Scholar] [CrossRef]
  24. Cheng, Z.; Kuru, E.; Sachdeva, A.; Vendrell, M. Fluorescent amino acids as versatile building blocks for chemical biology. Nat. Rev. Chem. 2020, 4, 275–290. [Google Scholar] [CrossRef]
  25. Yraola, F.; Ventura, R.; Vendrell, M.; Colombo, A.; Fernàndez, J.-C.; De La Figuera, N.; Fernández-Forner, D.; Royo, M.; Forns, P.; Albericio, F. A Re-evaluation of the Use of Rink, BAL, and PAL Resins and Linkers. QSAR Comb. Sci. 2004, 23, 145–152. [Google Scholar] [CrossRef]
  26. Zerfas, B.L.; Coleman, R.A.; Salazar-Chaparro, A.F.; Macatangay, N.J.; Trader, D.J. Fluorescent Probes with Un-natural Amino Acids to Monitor Proteasome Activity in Real-Time. ACS Chem. Biol. 2020, 15, 2588–2596. [Google Scholar] [CrossRef]
  27. Kuru, E.; Lambert, C.; Rittichier, J.; Till, R.; Ducret, A.; Derouaux, A.; Gray, J.; Biboy, J.; Vollmer, W.; VanNieuwenhze, M.; et al. Fluorescent D-amino-acids reveal bi-cellular cell wall modifications important for Bdellovibrio bacteriovorus predation. Nat. Microbiol. 2017, 2, 1648–1657. [Google Scholar] [CrossRef] [PubMed]
  28. Harkiss, A.H.; Sutherland, A. Recent advances in the synthesis and application of fluorescent α-amino acids. Org. Biomol. Chem. 2016, 14, 8911–8921. [Google Scholar] [CrossRef]
  29. Cheruku, P.; Huang, J.-H.; Yen, H.-J.; Iyer, R.S.; Rector, K.D.; Martinez, J.S.; Wang, H.-L. Tyrosine-derived stimuli responsive, fluorescent amino acids. Chem. Sci. 2015, 6, 1150–1158. [Google Scholar] [CrossRef]
  30. Krueger, A.T.; Imperiali, B. Fluorescent Amino Acids: Modular Building Blocks for the Assembly of New Tools for Chemical Biology. ChemBioChem 2013, 14, 788–799. [Google Scholar] [CrossRef]
  31. Subiros-Funosas, R.; Ho, V.C.L.; Barth, N.D.; Mendive-Tapia, L.; Pappalardo, M.; Barril, X.; Ma, R.; Zhang, C.B.; Qian, B.Z.; Sintes, M.; et al. Fluorogenic Trp(redBODIPY) cyclopeptide targeting keratin 1 for imaging of aggressive carcinomas. Chem. Sci. 2019, 11, 1368–1374. [Google Scholar] [CrossRef]
  32. Fernandez, A.; Vermeren, M.; Humphries, D.; Subiros-Funosas, R.; Barth, N.; Campana, L.; MacKinnon, A.; Feng, Y.; Vendrell, M. Chemical Modulation of in Vivo Macrophage Function with Subpopulation-Specific Fluorescent Prodrug Conjugates. ACS Central Sci. 2017, 3, 995–1005. [Google Scholar] [CrossRef] [PubMed]
  33. Subiros-Funosas, R.; Mendive-Tapia, L.; Sot, J.; Pound, J.D.; Barth, N.; Varela, Y.; Goni, F.M.; Paterson, M.; Gregory, C.D.; Albericio, F.; et al. A Trp-BODIPY cyclic peptide for fluorescence la-belling of apoptotic bodies. Chem. Commun. 2017, 53, 945–948. [Google Scholar] [CrossRef]
  34. Li, W.; Gong, Q.; Guo, X.; Wu, Q.; Chang, F.; Wang, H.; Zhang, F.; Hao, E.; Jiao, L. Synthesis, Reactivity, and Properties of a Class of pi-Extended BODIPY Derivatives. J. Org. Chem. 2021, 86, 17110–17118. [Google Scholar] [CrossRef] [PubMed]
  35. Maleckaitė, K.; Dodonova, J.; Toliautas, S.; Žilėnaitė, R.; Jurgutis, D.; Karabanovas, V.; Tumkevičius, S.; Vyšniauskas, A. Designing a Red-Emitting Viscosity-Sensitive BODIPY Fluorophore for Intracellular Viscosity Imaging. Chem.—Eur. J. 2021, 27, 16768–16775. [Google Scholar] [CrossRef] [PubMed]
  36. Nodeh-Farahani, D.; Bentley, J.N.; Crilley, L.R.; Caputo, C.B.; VandenBoer, T.C. A boron dipyrromethene (BODIPY) based probe for selective passive sampling of atmospheric nitrous acid (HONO) indoors. Analyst 2021, 146, 5756–5766. [Google Scholar] [CrossRef]
  37. Shi, W.-J.; Feng, L.-X.; Wang, X.; Huang, Y.; Wei, Y.-F.; Ma, H.-J.; Wang, W.; Xiang, M.; Gao, L. A near-infrared-emission aza-BODIPY-based fluorescent probe for fast, selective, and “turn-on” detection of HClO/ClO. Talanta 2021, 233, 122581. [Google Scholar] [CrossRef] [PubMed]
  38. Schrage, B.R.; Nemykin, V.N.; Ziegler, C.J. BOSHPY Fluorophores: BODIPY Analogues with Single Atom Controlled Aggregation. Org. Lett. 2021, 23, 5246–5250. [Google Scholar] [CrossRef]
  39. Deng, P.; Xiao, F.; Wang, Z.; Jin, G. A Novel BODIPY Quaternary Ammonium Salt-Based Fluorescent Probe: Synthesis, Physical Properties, and Live-Cell Imaging. Front. Chem. 2021, 9, 650006. [Google Scholar] [CrossRef]
  40. Pandey, V.; Raza, K.; Sonowal, M.; Gupta, I. BODIPY based red emitters: Synthesis, computational and biological studies. Bioorg. Chem. 2020, 106, 104467. [Google Scholar] [CrossRef]
  41. Bañuelos, J. BODIPY Dye, the Most Versatile Fluorophore Ever? Chem. Rec. 2016, 16, 335–348. [Google Scholar] [CrossRef] [PubMed]
  42. Ulrich, G.; Ziessel, R.; Harriman, A. The Chemistry of Fluorescent Bodipy Dyes: Versatility Unsurpassed. Angew. Chem. Int. Ed. 2008, 47, 1184–1201. [Google Scholar] [CrossRef]
  43. Loudet, A.; Burgess, K. BODIPY Dyes and Their Derivatives: Syntheses and Spectroscopic Properties. Chem. Rev. 2007, 107, 4891–4932. [Google Scholar] [CrossRef] [PubMed]
  44. Zhang, J.; Wang, N.; Ji, X.; Tao, Y.; Wang, J.; Zhao, W. BODIPY-Based Fluorescent Probes for Biothiols. Chem.—Eur. J. 2020, 26, 4172–4192. [Google Scholar] [CrossRef]
  45. Filatov, M.A. Heavy-atom-free BODIPY photosensitizers with intersystem crossing mediated by intramolecular photoinduced electron transfer. Org. Biomol. Chem. 2019, 18, 10–27. [Google Scholar] [CrossRef]
  46. Wang, J.; Gong, Q.; Wang, L.; Hao, E.; Jiao, L. The main strategies for tuning BODIPY fluorophores into photosensi-tizers. J. Porphyr. Phthalocyanines 2020, 24, 603–635. [Google Scholar] [CrossRef]
  47. Karges, J.; Kuang, S.; Maschietto, F.; Blacque, O.; Ciofini, I.; Chao, H.; Gasser, G. Rationally designed ruthenium complexes for 1- and 2-photon photodynamic therapy. Nat. Commun. 2020, 11, 3262. [Google Scholar] [CrossRef]
  48. Li, W.; Yang, J.; Luo, L.; Jiang, M.; Qin, B.; Yin, H.; Zhu, C.; Yuan, X.; Zhang, J.; Luo, Z.; et al. Targeting photodynamic and photothermal therapy to the endoplasmic reticulum enhances im-munogenic cancer cell death. Nat. Commun. 2019, 10, 3349. [Google Scholar] [CrossRef]
  49. Ge, J.; Lan, M.; Zhou, B.; Liu, W.; Guo, L.; Wang, H.; Jia, Q.; Niu, G.; Huang, X.; Zhou, H.; et al. A graphene quantum dot photodynamic therapy agent with high singlet oxygen generation. Nat. Commun. 2014, 5, 4596. [Google Scholar] [CrossRef]
  50. Squeo, B.M.; Pasini, M. BODIPY platform: A tunable tool for green to NIR OLEDs. Supramol. Chem. 2020, 32, 56–70. [Google Scholar] [CrossRef]
  51. Kue, C.S.; Ng, S.Y.; Voon, S.H.; Kamkaew, A.; Chung, L.Y.; Kiew, L.V.; Lee, H.B. Recent strategies to improve boron dipyrromethene (BODIPY) for photodynamic cancer therapy: An updated review. Photochem. Photobiol. Sci. 2018, 17, 1691–1708. [Google Scholar] [CrossRef] [PubMed]
  52. Boens, N.; Verbelen, B.; Ortiz, M.J.; Jiao, L.; Dehaen, W. Synthesis of BODIPY dyes through postfunctionalization of the boron dipyrromethene core. Coord. Chem. Rev. 2019, 399, 213024. [Google Scholar] [CrossRef]
  53. Lv, F.; Tang, B.; Hao, E.; Liu, Q.; Wang, H.; Jiao, L. Transition-metal-free regioselective cross-coupling of BODIPYs with thiols. Chem. Commun. 2019, 55, 1639–1642. [Google Scholar] [CrossRef] [PubMed]
  54. Goud, T.V.; Tutar, A.; Biellmann, J.-F. Synthesis of 8-heteroatom-substituted 4,4-difluoro-4-bora-3a,4a-diaza-s-indacene dyes (BODIPY). Tetrahedron 2006, 62, 5084–5091. [Google Scholar] [CrossRef]
  55. Fron, E.; Coutiño-Gonzalez, E.; Pandey, L.; Sliwa, M.; Van der Auweraer, M.; De Schryver, F.C.; Thomas, J.; Dong, Z.; Leen, V.; Smet, M.; et al. Synthesis and photophysical characterization of chalcogen sub-stituted BODIPY dyes. New J. Chem. 2009, 33, 1490–1496. [Google Scholar] [CrossRef]
  56. Palao, E.; Slanina, T.; Klán, P. Construction of the carbon–chalcogen (S, Se, Te) bond at the 2,6-positions of BODIPY via Stille cross-coupling reaction. Chem. Commun. 2016, 52, 11951–11954. [Google Scholar] [CrossRef]
  57. Mulay, S.V.; Choi, M.; Jang, Y.J.; Kim, Y.; Jon, S.; Churchill, D.G. Enhanced Fluorescence Turn-on Imaging of Hy-pochlorous Acid in Living Immune and Cancer Cells. Chemistry 2016, 22, 9642–9648. [Google Scholar] [CrossRef]
  58. Manjare, S.T.; Kim, J.; Lee, Y.; Churchill, D.G. Facile meso-BODIPY Annulation and Selective Sensing of Hypochlorite in Water. Org. Lett. 2013, 16, 520–523. [Google Scholar] [CrossRef]
  59. Rezende, L.C.; Melo, S.M.; Boodts, S.; Verbelen, B.; Emery, F.S.; Dehaen, W. Thiocyanation of 3-substituted and 3,5-disubstituted BODIPYs and its application for the synthesis of new fluorescent sensors. Dye. Pigment. 2018, 154, 155–163. [Google Scholar] [CrossRef]
  60. Kim, T.-I.; Park, S.; Choi, Y.; Kim, Y. A BODIPY-Based Probe for the Selective Detection of Hypochlorous Acid in Living Cells. Chem.—Asian J. 2011, 6, 1358–1361. [Google Scholar] [CrossRef]
  61. Ahrens, J.; Böker, B.; Brandhorst, K.; Funk, M.; Bröring, M. Sulfur-Bridged BODIPY DYEmers. Chem.—Eur. J. 2013, 19, 11382–11395. [Google Scholar] [CrossRef] [PubMed]
  62. Jameson, L.P.; Dzyuba, S.V.; Yoon, T.P. Expeditious, mechanochemical synthesis of BODIPY dyes. Beilstein J. Org. Chem. 2013, 9, 786–790. [Google Scholar] [CrossRef] [PubMed]
  63. Wurth, C.; Gonzalez, M.G.; Niessner, R.; Panne, U.; Haisch, C.; Genger, U.R. Determination of the absolute fluo-rescence quantum yield of rhodamine 6G with optical and photoacoustic methods—Providing the basis for fluorescence quantum yield standards. Talanta 2012, 90, 30–37. [Google Scholar] [CrossRef] [PubMed]
  64. Brouwer, A. Standards for photoluminescence quantum yield measurements in solution (IUPAC Technical Report). Pure Appl. Chem. 2011, 83, 2213–2228. [Google Scholar] [CrossRef]
  65. Dransfield, I.; Buckle, A.M.; Savill, J.S.; McDowall, A.; Haslett, C.; Hogg, N. Neutrophil apoptosis is associated with a reduction in CD16 (Fc gamma RIII) expression. J. Immunol. 1994, 153, 1254–1263. [Google Scholar] [PubMed]
  66. Sheldrick, G.M. SHELXT—Integrated space-group and crystal-structure determination. Acta Crystallogr. Sect. A 2015, 71, 3–8. [Google Scholar] [CrossRef] [PubMed]
  67. Dolomanov, O.V.; Bourhis, L.J.; Gildea, R.J.; Howard, J.A.K.; Puschmann, H. OLEX2: A complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 2009, 42, 339–341. [Google Scholar] [CrossRef]
  68. Sheldrick, G.M. Crystal structure refinement with SHELXL. Acta Crystallogr. Sect. C 2015, C71, 3–8. [Google Scholar] [CrossRef]
  69. Schlachter, A.; Fleury, A.; Tanner, K.; Soldera, A.; Habermeyer, B.; Guilard, R.; Harvey, P. The TDDFT Excitation Energies of the BODIPYs; The DFT and TDDFT Challenge Continues. Molecules 2021, 26, 1780. [Google Scholar] [CrossRef] [PubMed]

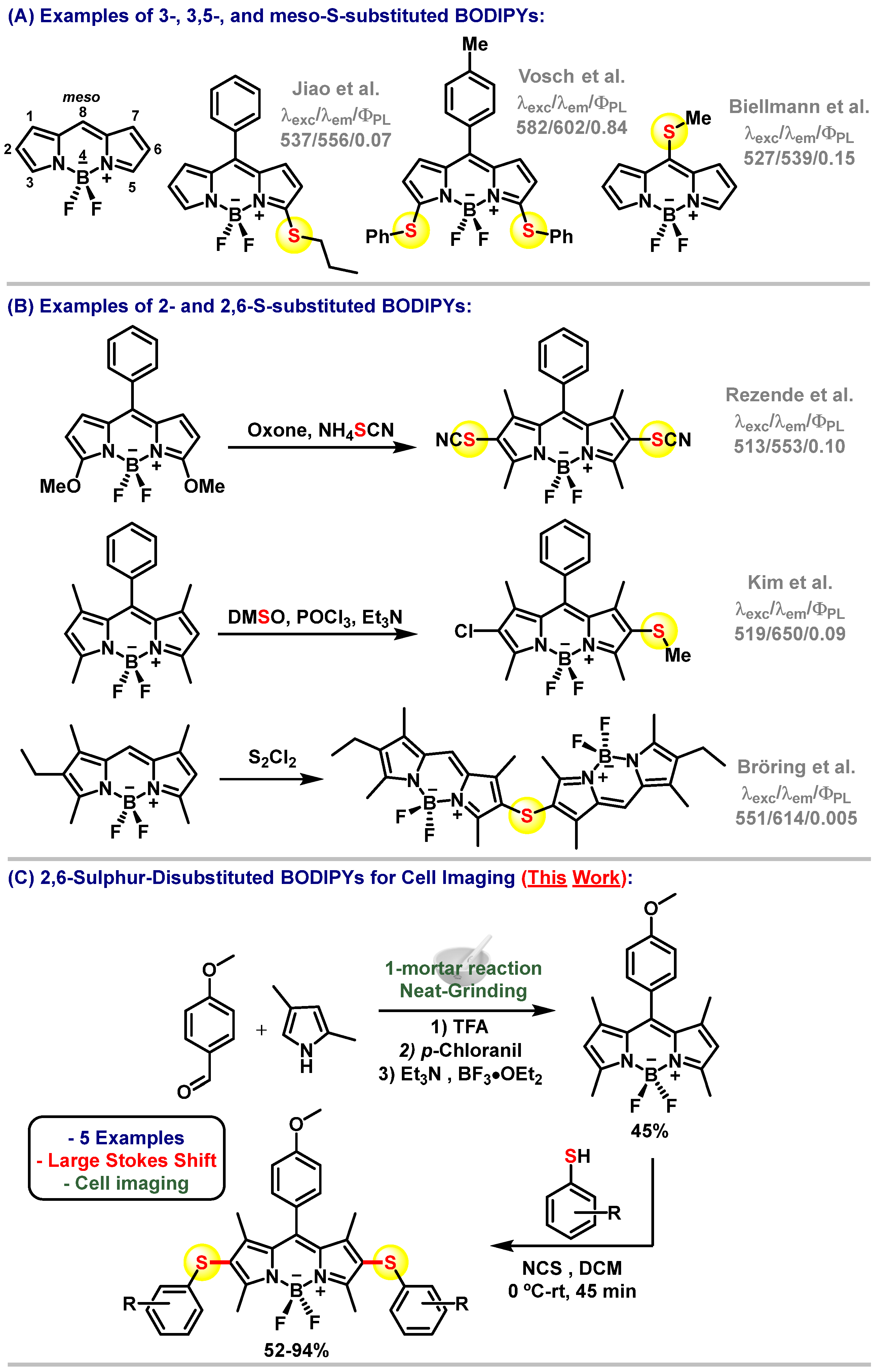

Scheme 1. (A) Examples of 3-, 3,5-, and meso-S-substituted BODIPYs. (B) Examples of 2- and 2,6-thiosubstituted BODIPYs. (C) Chemical structures and synthetic strategy for the new fluorophores described in this work.
Scheme 1. (A) Examples of 3-, 3,5-, and meso-S-substituted BODIPYs. (B) Examples of 2- and 2,6-thiosubstituted BODIPYs. (C) Chemical structures and synthetic strategy for the new fluorophores described in this work.
Chemosensors 10 00019 sch001

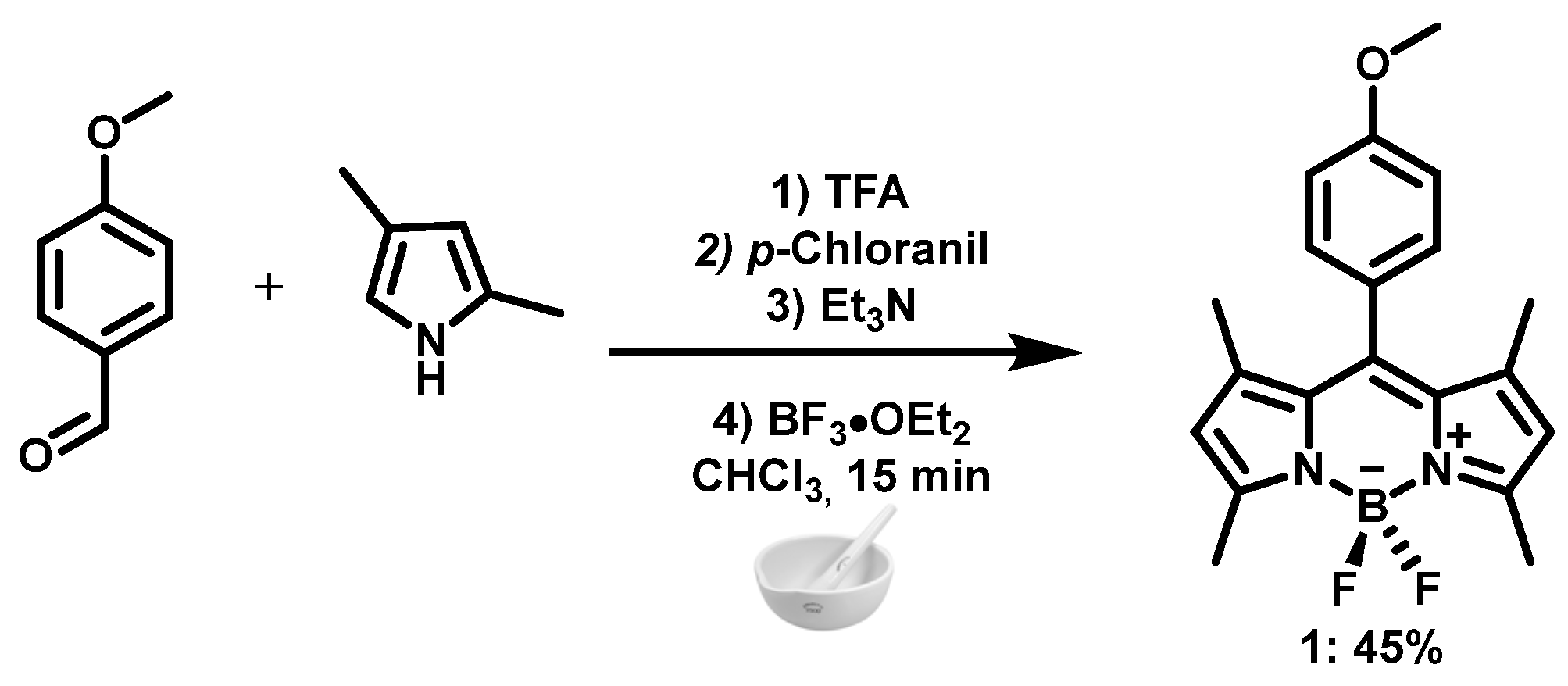

Scheme 2. Synthesis of the BODIPY compound 1 obtained from the reaction of 2,4-dimethyl-1H-pyrrole and 4-methoxybenzoldehyde.
Scheme 2. Synthesis of the BODIPY compound 1 obtained from the reaction of 2,4-dimethyl-1H-pyrrole and 4-methoxybenzoldehyde.
Chemosensors 10 00019 sch002

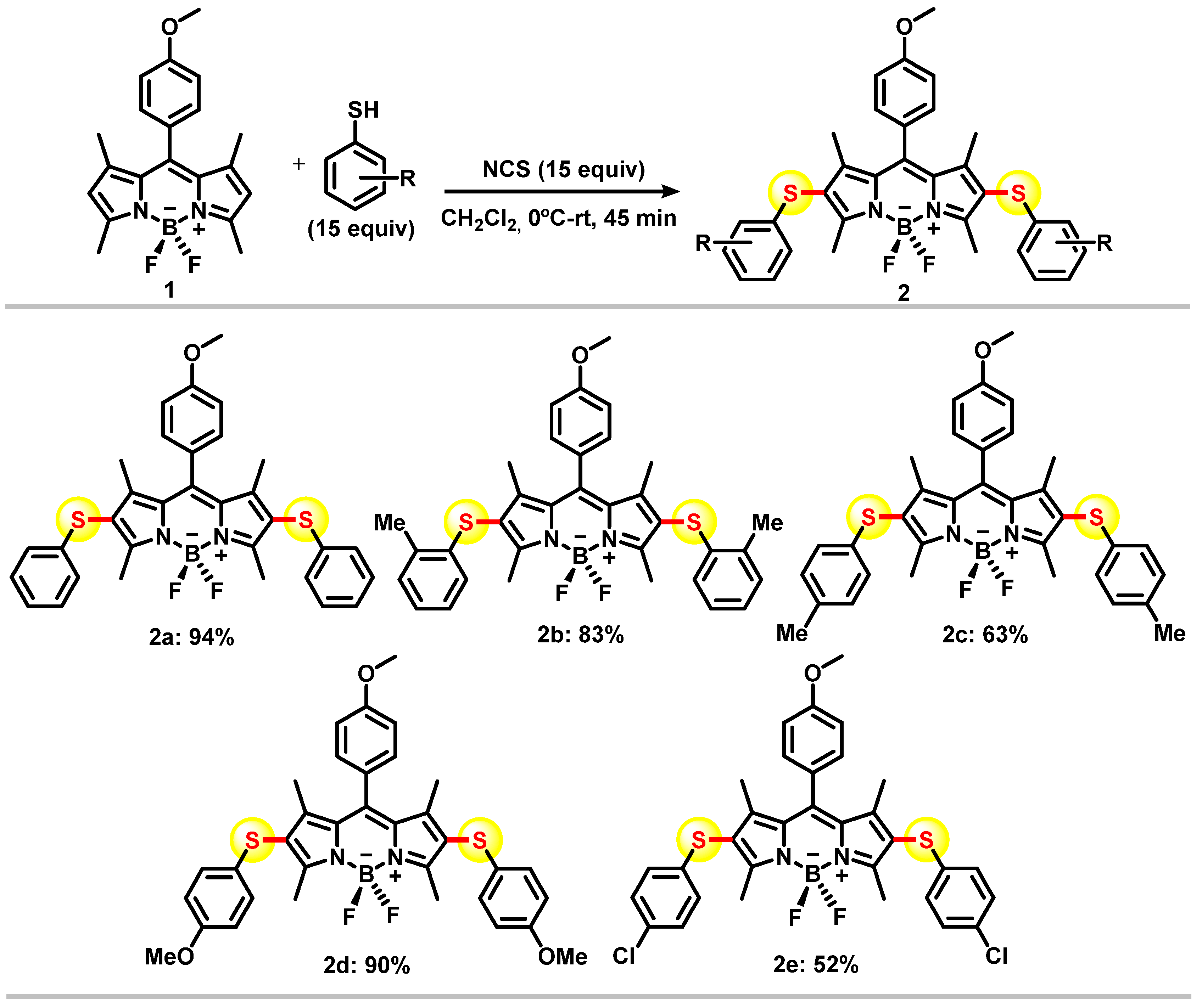

Scheme 3. Synthesis and chemical structures of sulphur-containing BODIPY derivatives (2a2e).
Scheme 3. Synthesis and chemical structures of sulphur-containing BODIPY derivatives (2a2e).
Chemosensors 10 00019 sch003

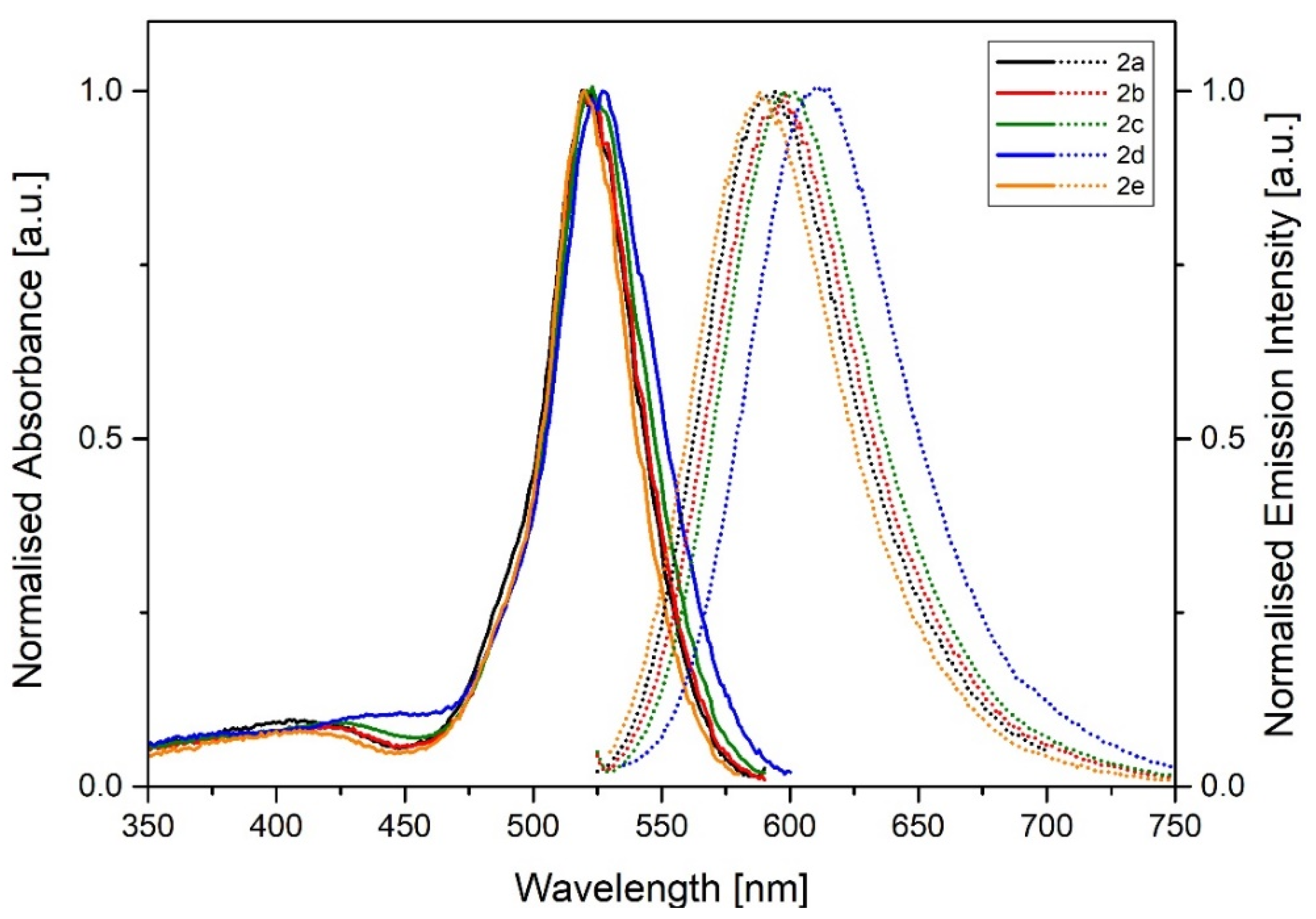

Figure 1. Absorbance and emission spectra of the BODIPY compounds (2a2e) in toluene.
Figure 1. Absorbance and emission spectra of the BODIPY compounds (2a2e) in toluene.
Chemosensors 10 00019 g001
Figure 2. Confocal fluorescence microscopy images of compound 2a (10 μM, λexc = 488 nm, λem = 550–680 nm) in MDA-MB-231 and MCF7 (breast cancer cells) as well as HT29 (colorectal carcinoma cells). Cells were counterstained with Hoechst 33342 for nuclear labelling. Scale bar: 5 μm.
Figure 2. Confocal fluorescence microscopy images of compound 2a (10 μM, λexc = 488 nm, λem = 550–680 nm) in MDA-MB-231 and MCF7 (breast cancer cells) as well as HT29 (colorectal carcinoma cells). Cells were counterstained with Hoechst 33342 for nuclear labelling. Scale bar: 5 μm.
Chemosensors 10 00019 g002
Figure 3. Z-stack confocal fluorescence microscopy images of neutrophils (untreated and PMA-stimulated), and macrophages (untreated and LPS-stimulated). Cells were incubated with compound 2a (10 μM, λexc = 488 nm, λem = 550–680 nm) and counterstained with Hoechst 33342 for nuclear labelling. Scale bar: 15 μm.
Figure 3. Z-stack confocal fluorescence microscopy images of neutrophils (untreated and PMA-stimulated), and macrophages (untreated and LPS-stimulated). Cells were incubated with compound 2a (10 μM, λexc = 488 nm, λem = 550–680 nm) and counterstained with Hoechst 33342 for nuclear labelling. Scale bar: 15 μm.
Chemosensors 10 00019 g003
Table 1. Photophysical properties of BODIPY compounds (2a2e) and the standard BODIPY FL.
Table 1. Photophysical properties of BODIPY compounds (2a2e) and the standard BODIPY FL.
CompoundSolventλabs
[nm]
λem
[nm]
Stokes Shift
[cm−1]
ΦPL
2aToluene52159523870.27
THF52059323400.18
Acetone51659726290.1
MeOH51660027130.1
DMSO51760528130.07
Water (1% DMSO)51660628780.02
2bToluene52359924260.24
THF52059925360.13
Acetone51960026010.08
MeOH51760227310.05
DMSO51861329910.07
Water (1% DMSO)51961229280.03
2cToluene52459923890.2
THF52160225830.12
Acetone51860728310.05
MeOH51960727930.05
DMSO52261629230.02
Water (1% DMSO)5206142944< 0.01
2dToluene51961830870.14
THF51761931870.03
Acetone5166193225< 0.01
MeOH5146193300< 0.01
DMSO5136203364< 0.01
Water (1% DMSO)5156223340< 0.01
2eToluene52159022450.26
THF51758923640.2
Acetone51259226390.12
MeOH51559124970.11
DMSO51859926100.05
Water (1% DMSO)51360028260.01
BODIPY-FLDMSO5035092340.97
