Adsorption Kinetics of NO₂ Gas on Pt/Cr-TiO₂/Pt-Based Sensors

Abstract

Metal oxides are excellent candidates for the detection of various gases; however, the issues such as the limited operating temperature and selectivity are the most important ones requiring the comprehensive understanding of gas adsorption kinetics on the sensing layer surfaces. To this context, the present study focuses mainly on the fabrication of a Pt/Cr-TiO₂/Pt type sensor structure that is highly suitable in reducing the operating temperature (from 400 to 200 °C), extending the lower limit NO₂ gas concentration (below 10 ppm) with fast response (37 s) and recovery (24 s) times. This illustrates that the sensor performance is not only solely dependent on the nature of sensing material, but also, it is significantly enhanced by using such a new kind of electrode geometry. Moreover, Cr doping into TiO₂ culminates in altering the sensor response from n- to p-type and thus contributes to sensor performance enhancement by detecting low NO₂ concentrations selectively at reduced operating temperatures. In addition, the NO₂ surface adsorption kinetics are studied by fitting the obtained sensor response curves with Elovich, inter-particle diffusion, and pseudo first-order and pseudo second-order adsorption models. It is found that a pseudo first-order reaction model describes the best NO₂ adsorption kinetics toward 7–170 ppm NO₂ gas at 200 °C. Finally, the sensing mechanism is discussed on the basis of the obtained results.

1. Introduction

The detection of oxides of nitrogen (NO and NO₂) is highly demanding, as the reducing and oxidizing nature of these gases may yield sensor signals in the opposite directions. In the course of the previous two decades, the outdoor concentration of NO₂ gas has been increased particularly due to environmental pollution caused by increased transport and industrial human activities; therefore, its consequences affect human health. Some people with bronchitis/asthma are particularly sensitive to NO₂, which causes lung irritations and thus leads to breathing difficulties [1,2,3,4]. Furthermore, NO₂ is a highly perilous gas for the human and environment as well because of its threshold limit value (TLV), which is about 3 and 5 ppm for 8 h and 15 min (this is estimated for the time-weighted average) [5]. In fact, even the inhalation of low concentrations of NO₂ by humans can cause severe damage to the respiratory tract, thus leading to lung cancer. Therefore, the allowed short-time exposure of NO₂ gas concentration has been reduced to 1 ppm by the Occupational Safety and Health Administration (US). However, the conventional TLV (as of 2018) is still much lower (≈0.2 ppm). Hence, researchers around the globe are striving to discover new possible solutions for the detection of NO₂ with high accuracy, sensitivity, and selectivity to avoid any kind of expected danger to humans and the environment [6].

Semiconducting metal oxides (MOx) offer sensing ability in a large variety. However, some may suffer from high cross-sensitivity to many environmental gases [7,8,9,10]. In this regard, it is found that TiO₂ is one of the potential candidates for NO₂ sensing and is preferred over other MOx materials due to its low-cost fabrication and chemical stability under harsh and humid environment [11,12,13]. Yet, the high operating temperature (200–600 °C) of the TiO₂-based sensors has been depreciating their widespread use. The cost and complexity of conventional sensors increase due to the high power consumption, as they require a heater (generally resistive) at the sensing material. Therefore, there is a need for NO₂ gas sensors with improved sensing properties at relatively lower operating temperatures to reduce the power consumption and consequently the cost of sensor device. Recent studies showed that TiO₂ with low-dimensional morphology (for example, nanowires and nanotubes) offer excellent opportunity for reducing the operating temperature [14,15,16,17]. However, these nanostructured material-based gas sensors with finer circuitry still have trouble with long-term stability issues. Ultimately, from the commercial point of view, the advanced manufacturing procedures (e.g., use of electron beam lithography and focused ion beam) results in high-cost gas sensor devices.

In general, the response of a gas sensor consists of two functions, receptor and traducer. The receptor (sensing material) enables the identification of gas concentrations by their corresponding interactions. In return, this prompts the relative change in the electrical transport property of the sensing material. Then, the metallic electrodes of the transducer part transfer this change into an electrical output signal. If the transducer function is not properly designed, then the sensor may produce an improper output signal. Importantly, the recent progress in gas sensor is primarily focused on the improvement of receptor function (i.e., the sensing material), while the pre-eminent role of transducer function has been ignored and rarely investigated. Contemporary studies on the effect of transducer function (the role of electrode material, its fabrication methods, its geometry and gap size) have shown that the sensor response can be significantly improved by tuning the transducer properties [18,19,20,21,22]. Recently, our group has proved that a novel sandwiched type configuration (Pt/TiO₂/Pt) with top–bottom electrodes can produce fast and highly sensitive response toward NO₂ gas and hence reduce the optimal operating temperature from 400 to 200 °C [23].

The present study reports the implementation of sandwiched-type sensor configuration (Pt/TiO₂/Pt) for NO₂-oxidizing gas. The effects of TiO₂ doping with chromium (Cr-TiO₂) are investigated on the basis of crystal structure and layer morphology but also when sandwiched between two Pt electrodes after heat treatment. Ultimately, the NO₂ adsorption mechanism of pristine TiO₂ and Cr-TiO₂ with such configuration is interpreted based on the data obtained.

2. Materials and Methods

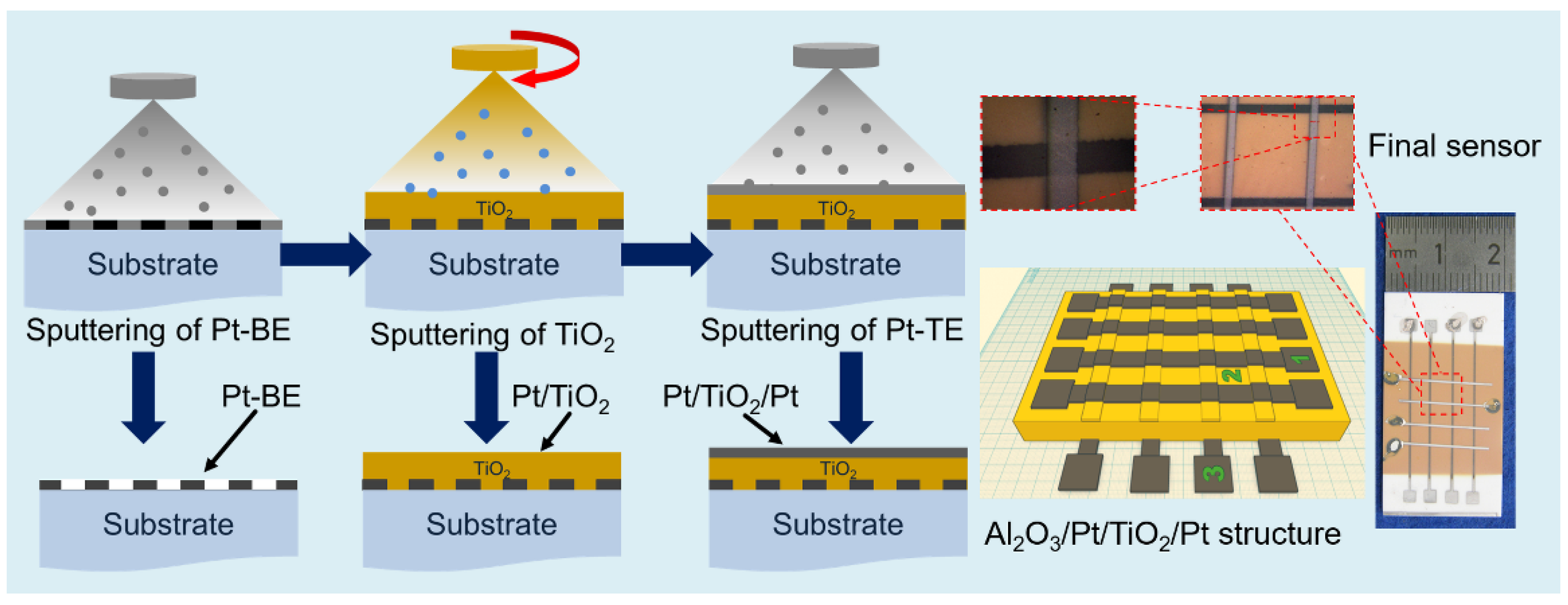

The sensors were fabricated in three steps (as shown in Figure 1) via the sputtering deposition technique. Firstly, 300 μm wide and 200 nm thick bottom Pt electrodes (BE) were patterned on alumina substrates via sputter coater (BALTEC, Hallbergmoos, Germany). On the patterned BEs, 2 µm thick TiO₂ or Cr-TiO₂ sensing layers with a columnar structure were deposited by reactive magnetron sputtering from Ti targets (99.95% purity) or Ti and Cr targets (99.99% purity), respectively. The sputtering equipment Z400 (from SVS, Gilching, Germany) allows reactive sputtering from multiple metallic or ceramic sources (targets) under a mixture of 23 sccm (standard cubic centimeter) inert argon (99.999% purity) and 06 sccm reactive oxygen (99.995% purity) flow. Subsequently, as the final step, the top Pt-electrodes (TEs) were deposited as a cross-bar pattern to the bottom Pt electrodes. The width of both the top and bottom electrodes is kept fixed in order to only elucidate the effect of Cr doping on the sensing mechanism.

During the deposition of sensing layers, several other substrates were placed inside the chamber for basic characterization: for instance, sapphire discs of 13 mm diameter (for XRD) and 20 × 20 mm silicon (Si) substrates (for EDX analysis). Thus, the obtained analyses results were free of any interference of Pt from platinum circuitry and Al from Al₂O₃ substrates. Finally, the sensing structures Pt/TiO₂/Pt were post-deposition annealed for 3 h under static air conditions at 800 °C (ramping/heating rate of 6.6 °C per min) in a furnace from HERAEUS Instruments (Hanau, Germany).

The crystal structural analysis was performed in standard Bragg–Brentano geometry by using an X-ray diffractometer XRD-D5000 from SIEMENS AG (Munich, Germany), with a CuKα radiation (λ_CuKα = 0.15418 nm) and the graphite curved monochromator. For the quantitative analysis, the measured θ/2θ spectra from the 23° to 87° 2θ range were compared with the standard anatase (PDF 21-1272) and rutile (PDF 21-1276) phases. The morphology of the samples (both surface and cross-sections) was investigated by a field effect scanning electron microscope FE-SEM ULTRA 55 equipped with a built-in energy dispersive spectrometer (EDS) having an X-Ray Fluorescence Analyzer MESA 500 from ZEISS AG (Jena, Germany).

The gas-sensing tests of the Pt/TiO₂/Pt-based sensors were performed in a sensor and catalyst characterization unit SESAM (German Aerospace Center, Cologne, Germany), which is fully computer-controlled with custom-made LabVIEW software. The SESAM test unit is comprised of MFC-647b type mass flow controllers (MKS Instruments GmbH, Munich, Germany). The unit has the capability of directing eight various kinds of gases simultaneously via eight-channel flow into the gas mixing chamber made of Quartz-glass recipient, which is permanently placed inside a CARBOLITE tube furnace. The setup enables measuring the high resistance ≈10¹¹ Ω of the sensing layer and signal noise is negligible due the usage of a triaxial cable and sensitive resistance measuring source meter Keithley 2635A (Keithley Instruments GmbH, Germering, Germany). The sensors are contacted with thin Pt wires using silver paste solder. During the gas sensing tests, the gas flow rate was kept constant at 400 mL/min, and a constant voltage of 1 V (DC bias) was applied. All instruments included in this unit are controlled with the LabVIEW program.

3. Results and Discussion

3.1. Characterization

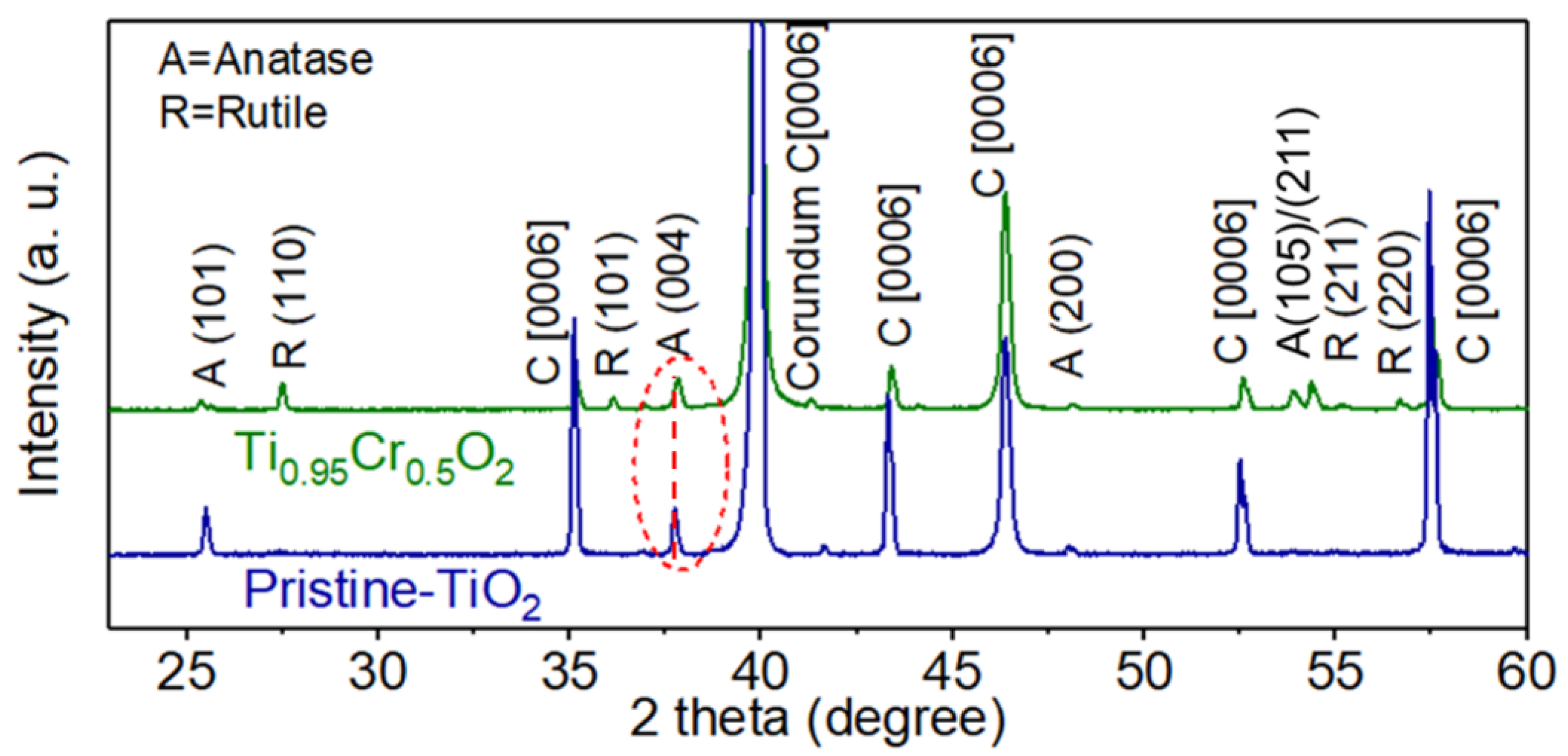

In the present case, the coatings were ex situ annealed at 800 °C; contradicting with previous reports [24,25], it can be seen that only anatase phases are present in undoped TiO₂ coatings, whereas in Cr-TiO₂ coatings, both anatase (PDF 21-1272) and rutile (PDF 21-1276) phases are present in Figure 2, which is in good agreement with [26,27]. From the XRD diffraction patterns, it is notable that the following anatase (101), (004), (200), (101) and rutile (110), (101), (211) and (220) peaks are present. For anatase phases, the peaks are found at 2θ values of 25.41°, 37.76°, 48.10°, and 53.88°, whereas the peaks corresponding to the rutile phase are observed at 2θ values of 27.44°, 36.06°, and 41.18°. It is very interesting to note that the peak of A (004) is comparatively higher than that of the A (101) phase. For the powder diffraction patterns, the A (101) peak of TiO₂ is higher than the other peaks, which contradicts the above XRD diffractograms, as shown in Figure 2. This scenario happens due to the corundum substrate C [0006], where the crystallites assimilate preferentially following the substrate crystals orientations. From the previous reports, one can anticipate an anatase to rutile transformation for undoped TiO₂ at annealing temperature higher than 800 °C. However, for Cr-TiO₂ coatings, this phase transformation already exists at 800 °C, which is in good agreement with the previous reports [28,29,30]. A slight shift in the reflections of TiO₂ in the above X-ray diffraction patterns has been observed (Figure 2), which indicates Cr integration into the TiO₂ matrix. Furthermore, no significant changes in the values of lattice parameters are anticipated, which is most probably due to the minor variation in the ionic radii of Cr (0.61 $Å$) and Ti (0.60 $Å$). The weight fraction of anatase phase W_A(%) was estimated with the help of Spurr–Mayer’s equation for A(101), A(004), and R(110) peaks. The detected weight fraction of anatase is 100 wt % in undoped TiO₂, while for Cr-doped TiO₂, the respective wt % of anatase phase A(101):R(110) and A(004):R(110) W_A(%) is ≈64 wt % and ≈23, respectively (the estimation error with this method is 10%). Thus, one can infer from the quantitative analysis that Cr significantly promotes the phase transformation from anatase to rutile. In addition, metallic Cr and its secondary phases are absent, which affirm that Cr segregates into TiO₂ instead of forming metallic or secondary oxides (e.g., Cr₂O₃).

From the microstructure and compositional analysis of the sensor structure in Figure 3a–c, it is observed that both electrodes show different morphology but are highly stable and do not vanish or crack even after annealing at 800 °C [31]. The Pt layer crystallized with the average faceted grain size of ≈150–200 nm for bottom electrodes and ≈100–150 nm for top electrodes. There are pores (average estimated pore size is ≈350–400 nm) in the top electrodes, which promotes the gas diffusion to the sensing layer surface whereas the pores size in bottom electrode is relatively smaller (≈200–300 nm), and its accumulation is highly in compliance with the substrate even without using the supportive layer for adhesion purpose [32].

A typical micro columnar structure of the sensing layer is observed with excellent adhesion [33,34]. From Figure 3d–i, it can be seen that these vertical columnar structures are around 2 μm in height. After annealing at 800 °C, the grains (amorphous and finely dense in as-deposited form) on the top surface become centered, and these columnar structures transform to crystalline structures; see Figure 3d,g. There is a formation of occasional nanostructured grains existing as pumps or nodules (average size of ≈70–80 nm) grown on the surface. It can be seen in the SEM images that the average bottom diameters of these columns show an irregular trend. For instance, undoped coatings show an average value of ≈400–520 nm, while for Cr-TiO₂ coatings, the estimated average diameter of the columns is smaller (≈300–430 nm). From Figure 3g–i, it is observable that there are a significant number of voids and cracks, which increased in the case of Cr-doped TiO₂ films as compared to pristine TiO₂ layer Figure 3d–f. The voids size varies from 100 to 300 nm for both coatings. However, the widening of these cracks and voids after annealing at 800 °C is more significant in Cr-TiO₂ [35].

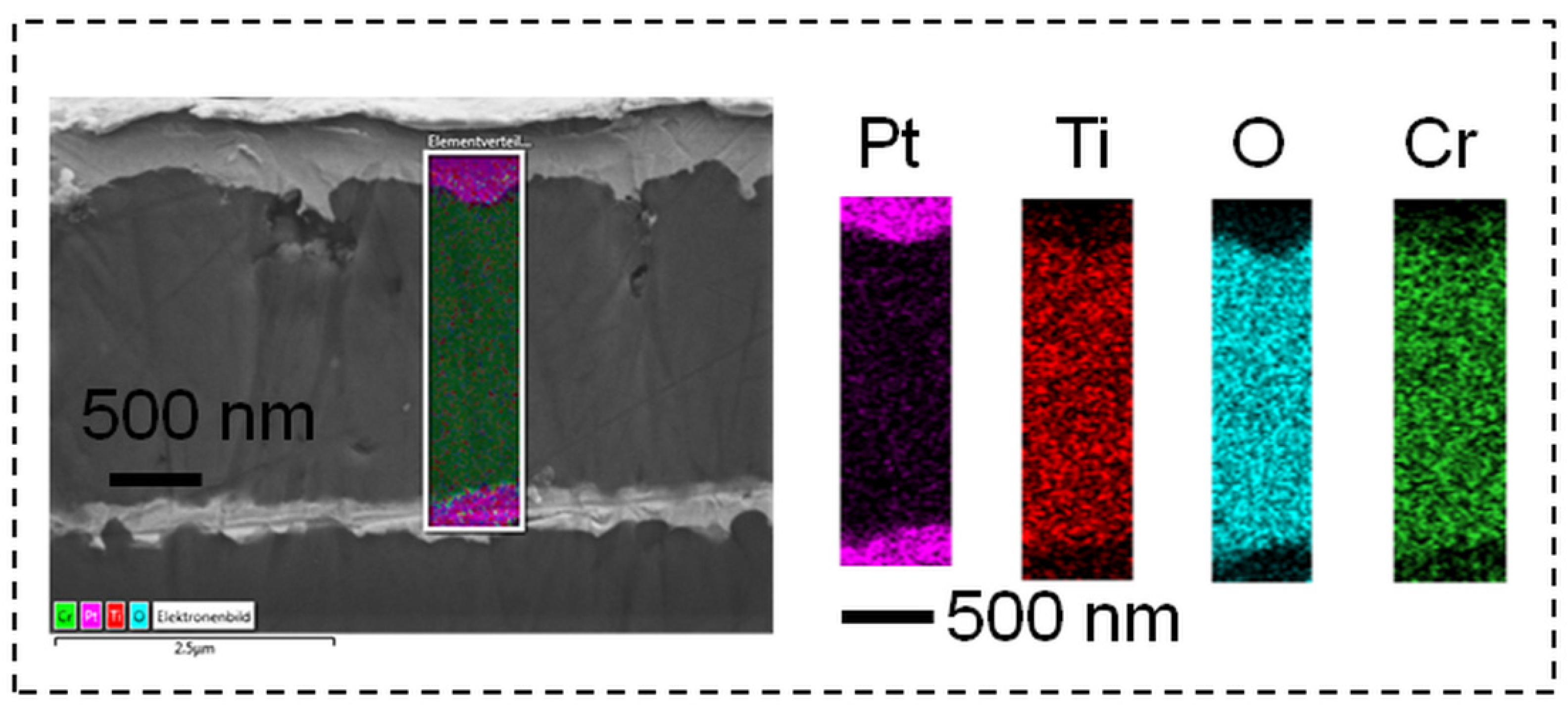

From the elemental compositional studies with EDX, it was found that the Cr contents (relative to Ti) in the doped coatings are about 0.5 wt % (Pt/Ti_0.95Cr_0.5O₂/Pt). The EDX analysis confirms the transformation of non-stoichiometric TiO_2−x to near stoichiometric TiO₂ after annealing at 800 °C. From Figure 4, it can be seen that there is a diffusion of Pt top and bottom electrodes into the depth of several nanometers into the sensing layer, which is caused by thermally induced Pt atoms into the sensing layer during the annealing process at 800 °C. Furthermore, it was affirmed by point analysis that the interdiffusion rate is higher at the bottom Pt/TiO₂ interface than at the top interface.

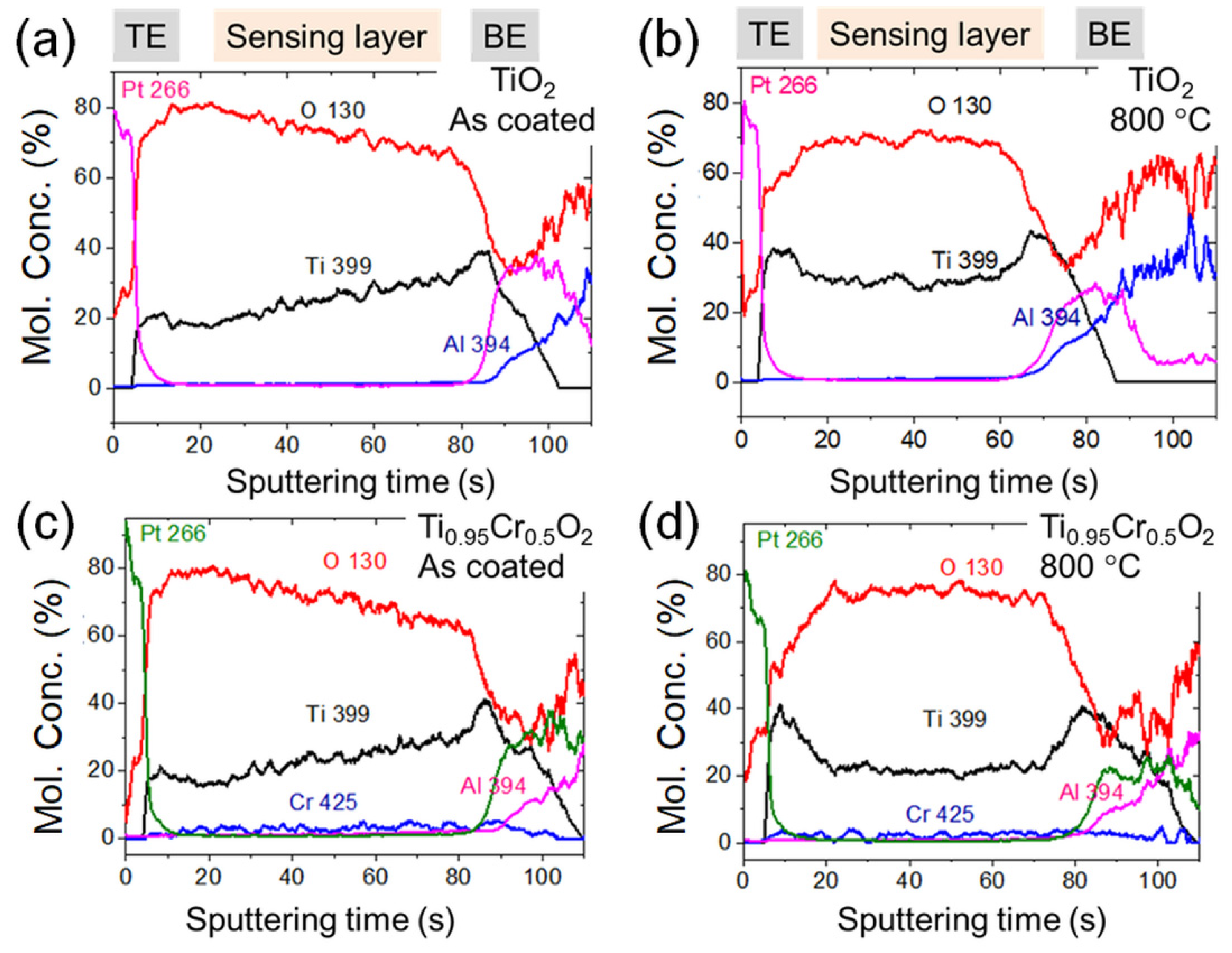

From the GDOES analysis shown in Figure 5, it is noticeable from the variation in quantitative elemental distribution profile that both the as-coated samples consist of a highly non-stoichiometric TiO_2−x layer as the O 130 has a decreasing trend, while Ti 399 has an increasing trend; see Figure 5a,b. The figure also shows that the bottom part of the sensing layer is rich in metallic Ti 399. Stoichiometric films are formed after annealing at 800 °C with both concentrations, O 130 and Ti 399, has become constant. It is critical to note that the Ti:O ratio in the region near the bottom Pt/TiO₂ interface is still non-stoichiometric, and it is rich in metallic Ti, which is in good agreement with the EDX analysis. However, this Ti:O ratio is about ≈0.80:2.10; thus, one can conclude that the gradient of O 130 concentration holds even after 800 °C heat treatment (Figure 5c,d). This is also affirmed by the Pt 266 peaks in the annealed samples, which showed extended inclination into TiO₂ from the bottom electrode; such observations were also mentioned in previous reports [36].

3.2. Sensor Performance

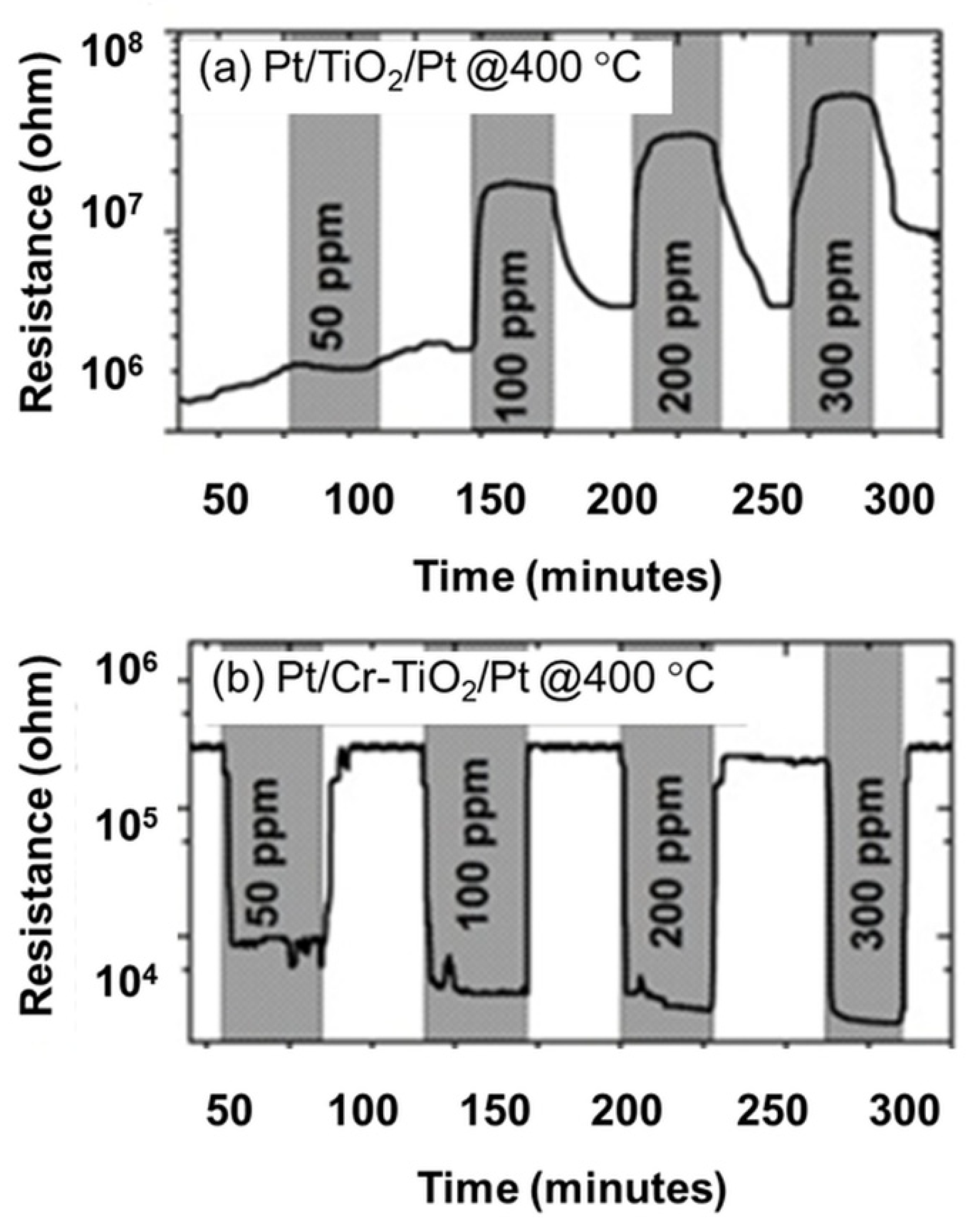

The comparative sensing performance of the pristine TiO₂ sensing layer and Ti_0.95Cr_0.5O₂ (we simply mention it with Cr-TiO₂) are shown in Figure 6. It is found that undoped TiO₂ exhibited a typical n-type sensor response (S_Rn = R_NO2/R_air), while there was an inverse p-type response (S_Rp = R_air/R_NO2) for the Cr-doped TiO₂ based sensor when exposed to a certain concentration of NO₂ gas; here, R_air and R_NO2 indicate saturated resistances in the air and NO₂ gas, respectively. A low baseline resistance in air was observed for the Pt/Cr-TiO₂/Pt sensor (≈3.5 × 10⁵ ohm) compared to that of the undoped TiO₂ sensor (≈2.6 × 10⁶ ohm) at 400 °C shown in Figure 6. The inimitable sensing responses of both prepared sensors toward 50–300 ppm of NO₂ at 400 °C is illustrated in Figure 7a. Furthermore, it is evident from Figure 7a that the Cr-doped TiO₂ sensor showed a superior response toward NO₂. For example, the Pt/TiO₂/Pt-based sensor showed about S_Rn ≈ 1.58, while the Pt/Cr-TiO₂/Pt based sensor showed about S_Rp ≈ 33.24 toward 50 ppm NO₂ at 400 °C. In both cases, the sensor response increased with the NO₂ gas concentration. However, a significant drift in the baseline resistance is found for Pt/TiO₂/Pt-based sensor due to incomplete recovery, but then, Pt/Cr-TiO₂/Pt-based sensors showed excellent response with full recovery after the NO₂ gas is off. In addition, for the sensors based on the Pt/Cr-TiO₂/Pt structure, the sensor response values increased as the operating temperature decreased from 400 to 200 °C, compared with Pt/TiO₂/Pt-based sensors that showed the best response at 400 °C while observing the decreasing trend with an operating temperature decrease in the same range. One can infer that Cr incorporation in the Ti-O matrix can significantly decrease the operating temperature of the sensor and thus require less power consumption when designing a gas sensor for real-life applications.

Based on the aforementioned superior performance, the further analysis was done on Pt/Cr-TiO₂/Pt-based sensors. It is well-known that the response of the gas sensor is strongly dependent on the gas concentration and operating temperature due to the adsorption/desorption processes of various gases on the surface of the sensing layer. Figure 5b depicts the sensing analysis of Pt/Cr-TiO₂/Pt sensors at various temperatures (100 °C, 200 °C, 300 °C, and 400 °C) toward increasing NO₂ concentration. For the reader’s clarity, it is to be noted that in the current study, the actual gas concentration used is 25–400 ppm NO₂, while the curves in the Figure 7b are extrapolated to show the trend of sensor response with gas concentration. The gas-sensing measurements of the Pt/Cr-TiO₂/Pt sensor in Figure 7b show that the maximum response was obtained at 200 °C. Thus, the dynamic sensing responses of the Pt/Cr-TiO₂/Pt sensor toward low concentrations of NO₂ gas were measured at 200 °C. Figure 7c depicts the real-time variation in baseline resistance before and after exposure to 7, 12, 18, 25, 50, 75, and 125 ppm NO₂. The gas sensing measurements showed that the sensor could detect NO₂ gas at a concentration as low as 7 ppm with reproducible signals at 200 °C. The Ti_0.95Cr_0.5O₂ sensor shows the recoverable and reproducible response at 7 ppm NO₂ gas, which indicates that the sensor could detect a low concentration of the NO₂ gas, thus leading to the detection of a broad range of NO₂ concentration (7–400 ppm). To further elaborate, at 200 °C, the response of Pt/Cr-TiO₂/Pt based sensors is about ≈212 and 545 toward 50 and 100 ppm, which is higher than the response mentioned in the reports on the TiO₂-based sensors [37,38,39,40]. Furthermore, the Pt/Cr-TiO₂/Pt sensors showed remarkable sensing characteristics such as response and recovery times (estimated for 90% resistance change). For instance, at 200 °C, the response and recovery times toward 100 ppm are 37 s and 24 s respectively, which indicates the fast response and recovery of the sensors.

3.3. Adsorption Kinetics

It is well-established that TiO₂ offers multifunctional properties [41], and while designing a gas sensor, it is of utmost importance to get scientific insights about the gas adsorption kinetics onto the surface of the sensing layer. In our previous report, we have shown that room temperature hydrogen adsorption onto an ordered mesoporous TiO₂ surface is mainly governed by the pseudo second-order rate equations. However, in the present case, we chose the NO₂ adsorption fitting at 200 °C, which is the optimum temperature to obtain the highest response, and found that the pseudo first-order model fits well with the obtained dynamic responses. In fact, the obtained adsorption regressions were fitted with the Elovich model (EM), inter-particle diffusion model (IPD), Lagergren’s pseudo first order (or simply pseudo first order—PFO), and Ho’s pseudo second-order (or simply pseudo second-order—PSO) models.

For the Elovich model, in the adsorption regression expression (Equation (1)), we consider that the surface coverage of NO₂ onto the sensor layer is ${\theta }_t$(at time t), the adsorption and desorption are represented by a and b respectively.

$$\frac{d{\theta }_t}{dt}=a e^{-b{\theta }_t}$$

(1)

Under the condition that ${\theta }_t=0$ at t = 0, the integration of the Equation (1) results in Equation (2).

$${\theta }_t=\frac{1}{b}\ln \left(t+t_0\right)+\frac{1}{b}\ln \left(t_0\right)$$

(2)

If the condition t >> t₀ is valid, then one may write:

$${\theta }_t=\frac{1}{b}\ln \left(ab\right)+\frac{1}{b}\ln \left(t\right).$$

(3)

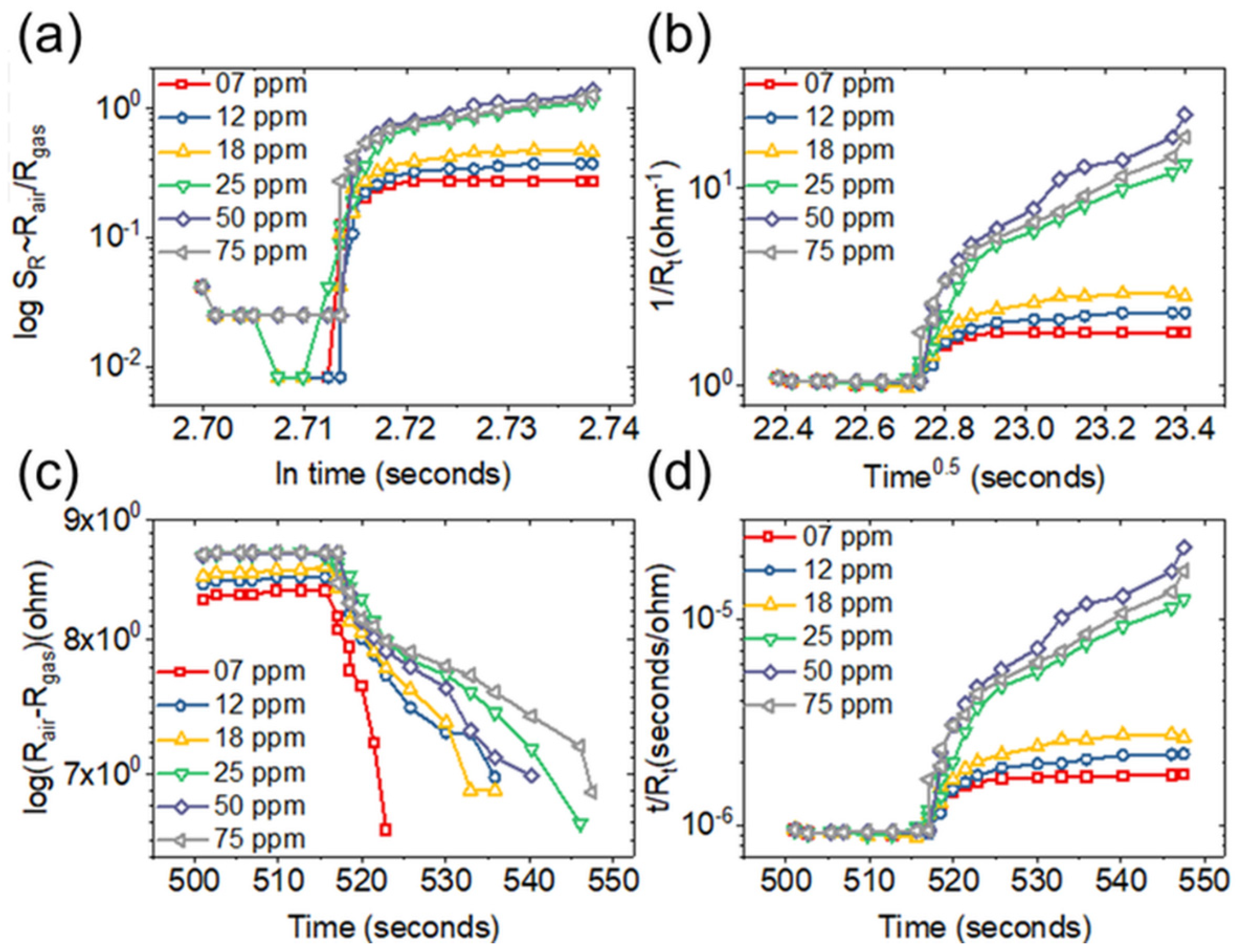

After fitting the obtained data with the Elovich model, we found an irregular trend in the R² values for each fitting curve. The R² values range from 0.33 to 0.66, which means that the adsorption does not follow Equation (3) of the Elovich model; the fitting of these curves can be seen in Figure 8a.

$${\theta }_t=k_{id}{\mathrm{t}}^{0.5}+C_i$$

(4)

As demonstrated in Figure 8b, next, the response data were fitted with the inter-particle diffusion (IPD) model, which is generally governed with molecular or ionic transport at the grain boundaries of the polycrystalline sensing layer, and its fitting is done by using Equation (4). Here, ${\theta }_t$ is the surface coverage of NO₂ gas adsorbed on the sensing layer, C_i is the inter-particle boundary width and directly linked with the thickness of the sensing layer, and k_id is the inter-particle diffusion constant. Since our sensing layers are polycrystalline in nature but not purely a porous layer, thus, the IPD fitting values of R² (0.49–0.88) are also not in accordance with the linearity of the model fitting; see Figure 8b.

$$\frac{d{\theta }_t}{dt}\cong k_2 {\left({\theta }_e-{\theta }_t\right)}^n$$

(5)

The above equation (Equation (5)) represents the pseudo nth order rate regression. For n = 1 and n = 2, we can fit the pseudo first-order Figure 8c and pseudo second-order Figure 8d adsorption kinetics. In Equation (5), $k_2$ is the first-order reaction rate constant, ${\theta }_t$ is the surface coverage at equilibrium, and ${\theta }_e$ is the surface coverage at equilibrium, respectively. The integration of Equation (5) yields the following relationship:

$$\ln \left({\theta }_e-{\theta }_t\right)=\ln \left({\theta }_e\right)-k_{2}t.$$

(6)

In addition, for PSO, the above equation (Equation (5)) can be solved as:

$$\frac{t}{{\theta }_t}=\frac{1}{k_3{\theta }_e^2}+\frac{1}{{\theta }_e}t.$$

(7)

Then, the obtained sensor dynamic responses are further fitted with PFO and PSO, as shown in Figure 8c,d. The fitting with PFO is more accurate than PSO as the R² values of PFO fall in the range of 0.93–0.97, while for PSO, the R² values fall in the range of 0.58–0.89. The R² values obtained after the fitting of the data with various models are shown in

Table 1. The R² values obtained with the help of the Elovich model, IPD, PFO, and PSO model. The table also includes the adsorption constants (reaction rate constant and surface coverage) obtained via the PFO model.

NO2 Concentration (ppm)	R2 Value				PFO
	Elovich Model	IPD Model	PFO Model	PSO Model	Reaction Constant	Surface Coverage
7	0.41688	0.49611	0.93143	0.58517	3.26 × 108	9.03404
12	0.33381	0.64163	0.9351	0.67651	1.41 × 108	48.91089
18	0.43138	0.66521	0.96841	0.69388	1.05 × 108	93.6908
25	0.66231	0.88895	0.97402	0.8918	4.93 × 107	678.57839
50	0.41089	0.85677	0.9472	0.85997	2.6 × 107	1450.98803
70	0.39329	0.87706	0.94101	0.88094	1.09 × 107	3866.0941

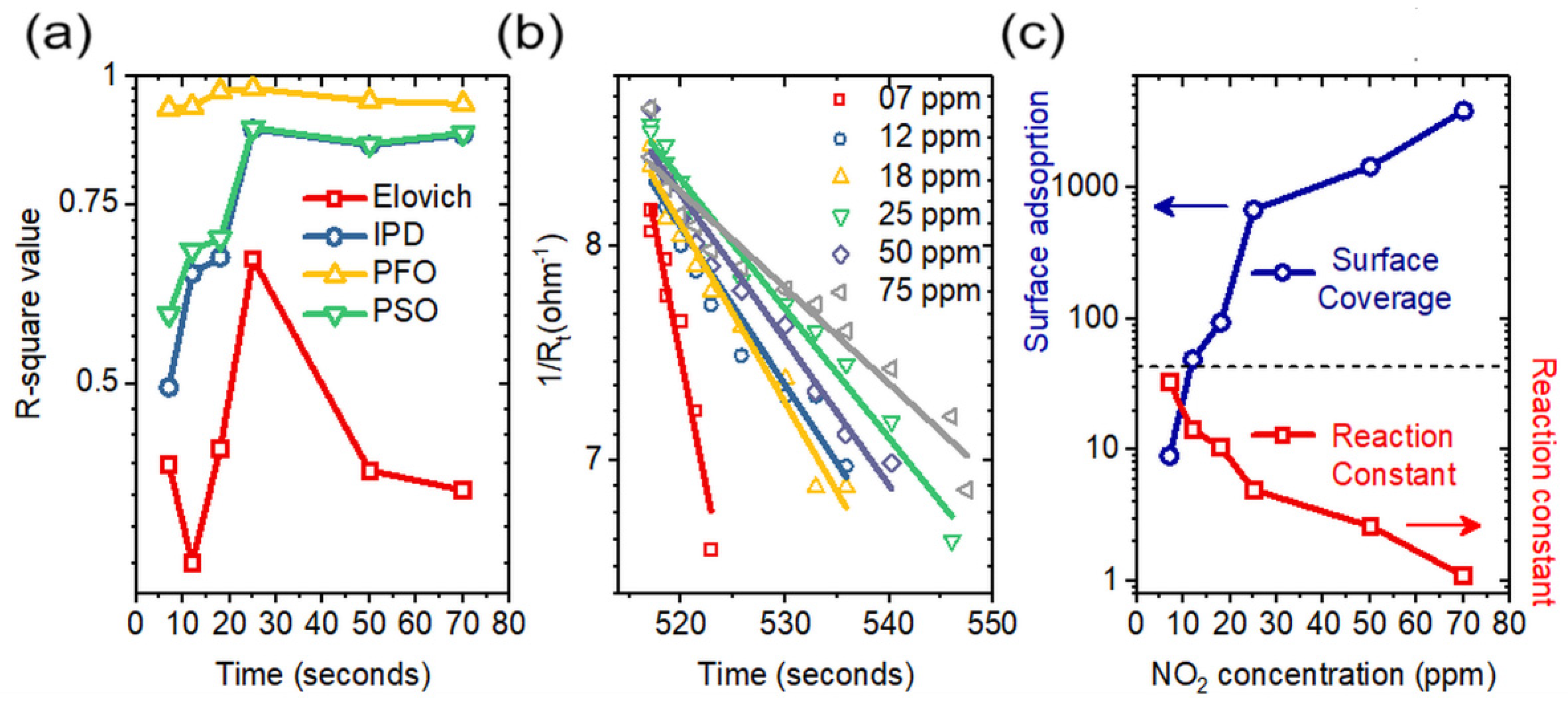

and plotted in Figure 9a. Thus, as given in Figure 9b, we further proceed with the fitting of obtained data with the PFO model, and the estimated reaction parameters are shown in Table 1. Here, the surface coverage at equilibrium ${\theta }_e$ corresponds to the sensor response S_R and reaction constant corresponds to the resistance of the sensor; see Figure 9c. Thus, we can conclude that the PFO model has the highest appositeness to describe the NO₂ adsorption on the surface of the Pt/Cr-TiO₂/Pt sensor at 200 °C. The values of rate constants k are seven orders of magnitude lower than the saturated sensor resistance in various gas concentrations; however, the surface coverage values (9.03–3866.09) are well pertinent with the experimentally obtained sensor response shown in Figure 9c. Furthermore, the data presented for PFO in Table 1 illustrate that the surface coverage is linearly proportional to the amount of gas adsorption (sensor response) that is also depicted from Figure 8, where its linear fitting is observed with increasing NO₂ gas concentrations. Here, the reaction rate is also dependent on the number of adsorption sites and the rate constant k. The reaction constant k is determined, which decreases linearly with gas concentration. This corresponds to the decrease in the sensor’s resistance, indicating that the adsorption reaction in Cr-TiO₂ is a pseudo first-order reaction, which is more favorable as compared to the pseudo second-order adsorption reaction, as shown in Figure 8a.

3.4. Sensing Mechanism

The sensing mechanism for NO₂ gas onto the TiO₂ sensing layer is based on three stages: firstly, the adsorption of gas, secondly, the transfer of charge due to the adsorbed gas, and lastly, desorption of the gas. The surface of the metal oxide (adsorbate) has a natural ability to collect and gather species based on chemicals (adsorbent). As the adsorbate is accessible for air, the oxygen percentage in its molecule (lower than 150 °C) or available ionic phase (higher than 150 °C) can be easily adsorbed, giving a depletion layer by the captured electrons. As shown in Figure 10, the sensing mechanism for NO₂ depends on occurrence of the reactions between adsorbate and NO₂ gas; this yields an increase or decrease in the resistance value of the sensing layer due to the charge transfer function, as shown by the following Equation (8).

$${\mathrm{NO}}_2\left(\mathrm{gas}\right)+{\mathrm{e}}^{-}\to {\mathrm{NO}}_2^{-}\left(\mathrm{ads}\right)$$

(8)

If the adsorbate is n-type, the increase in resistance is caused by the NO₂ surface reaction, this is firstly led by the oxygen vacancies V_O that are doubly ionized, and secondly, the encounter between O⁻/O²⁻ and NO₂ gas adsorption, as the adsorption of NO₂ is more robust, it dominates the O⁻/O²⁻ adsorption. On the other side, the decrease in resistance in the p-type adsorbate is accomplished by an inversion layer which is created by trivalent acceptor-type impurity (e.g., Cr³⁺). As the chromium Cr³⁺ is doped with the titanium dioxide, it changes the electronic structure of TiO₂ by developing an acceptor level just below the conduction band shown in Figure 10, thus causing the Fermi level to lower down. This variation from n-type to p-type conductivity happens after a certain concentration of Cr³⁺ doping, as in this scenario, the defects found in the acceptor have outnumbered the donor defects, as shown in the Equation (9) below.

$${\mathrm{Cr}}_2{\mathrm{O}}_3+\frac{1}{2}{\mathrm{O}}^2\to 2{{\mathrm{Cr}}^{\prime }}_{\mathrm{Ti}}+2{\mathrm{h}}^{•}+4{\mathrm{O}}_o^x$$

(9)

According to the literature, this p-type conductivity is attained by at least 5 at % dopant concentration of Cr in TiO₂ nanopowders. In our case, 2 at % of Cr dopant has already yielded in p-type sensor behavior; also, there are no chromium oxides peaks detected in the XRD patterns. According to XRD analysis, 64 ± 10% of the anatase phases is found in the undoped TiO₂ that has a marginally higher optical bandgap of 3.2 eV than that of the rutile phase after Cr doping, giving the value of 3 eV in Cr-TiO₂ films. The better sensitivity of NO₂ in Cr-TiO₂ cannot be linked with only this point. This bandgap difference of 0.2 eV can alter the height of the activation energy barrier initiated between the grains (eV_S). In our case, the bandgap values for undoped TiO₂ (0.36 eV) and Cr-TiO₂ (0.35) are not much varied.

4. Conclusions

In this work, we demonstrate a highly sensitive Pt/Cr-TiO₂/Pt sensor design suitable for NO₂ detection with the reduced operating temperatures (200 °C) and lower limit of the NO₂ gas concentrations (7 ppm). The XRD, SEM, EDX, and GDOES analyses confirmed that the dominant anatase A (004) crystal structure was preferentially oriented following the crystal orientation of the substrate, which was a morphology of columnar structured TiO₂ matrix with a column diameter of ≈400–520 nm for undoped TiO₂ and a smaller column diameter ≈300– 430 nm for Cr-TiO₂ coatings, and the interdiffusion of Pt/TiO₂ specifically more at the bottom interface. The sensor response at 200 °C is relatively high ≈1.08 × 10³ toward 300 ppm NO₂ with a response (recovery) time of ≈37 s (≈24 s). The adsorption kinetics fitting showed that pseudo first-order reaction regressions are linearly fitted (R² value above 0.97) with the obtained sensor responses. The obtained reaction rate (32.60–1.09) and surface coverage (9.03–3866.09) showed comparative trends observed for the sensor resistance and sensor response; however, the rate constant value is 10⁷ orders lower than that of the sensor resistance. The sensing mechanism is explained on the basis of surface adsorption kinetics and reduced grain size due to Cr segregation into the Ti-O matrix.
