An Extended Chaotic Map-Based Authentication and Key Agreement Scheme for Multi-Server Environment

Abstract

With the increasing number of users and the emergence of different types of network services, a multi-server architecture has emerged in recent years. In order to ensure the secure communication of Internet participants in an open network environment, the authentication and key agreement protocol for multi-server architectures were proposed in the past. In 2018, Chatterjee et al. put forward a lightweight three-factor authentication and key agreement protocol for a multi-server environment, and they claimed that all known security features with satisfactory performance could be realized in their protocol. However, it is found that their scheme is vulnerable to user impersonation attacks and cannot achieve user un-traceability and three-factor security through our cryptanalysis. In order to solve these shortcomings, we propose a new lightweight and anonymous three-factor authentication scheme for the multi-server environment in this article. Furthermore, the proposed protocol is proved to be AKE secure theoretically, and we use BAN-logic to prove that our protocol realizes mutual authentication between communication participants. Finally, we show that our proposed scheme is practical and efficient through the comparison of security features and performance.

1. Introduction

In the past two decades, people’s lives have changed significantly because of the development of the Internet. People benefit from a variety of Internet services anytime and anywhere, such as telemedicine services, online shopping, online meetings, online games, and so on. Online life has become the mainstream mode of life, and the virtual network has changed the world [1,2]. With the continuous growth of the online network service business, security and privacy protection has become one of the most important challenges restricting its further development [3,4].

Authentication key agreement protocol is an effective security protocol to realize communication security in a client-server architecture. It can realize mutual authentication between users and servers, ensure that only legitimate users can access the server. At the same time, it can also effectively resist server spoofing attacks. When the user and the server complete mutual authentication, the two sides will negotiate to get their session key, which is used to ensure the security of their future communication. Moreover, the session key is obtained by negotiation between the two parties, and both parties have the same contribution to the generation of the session key, which enhances the security of the session key.

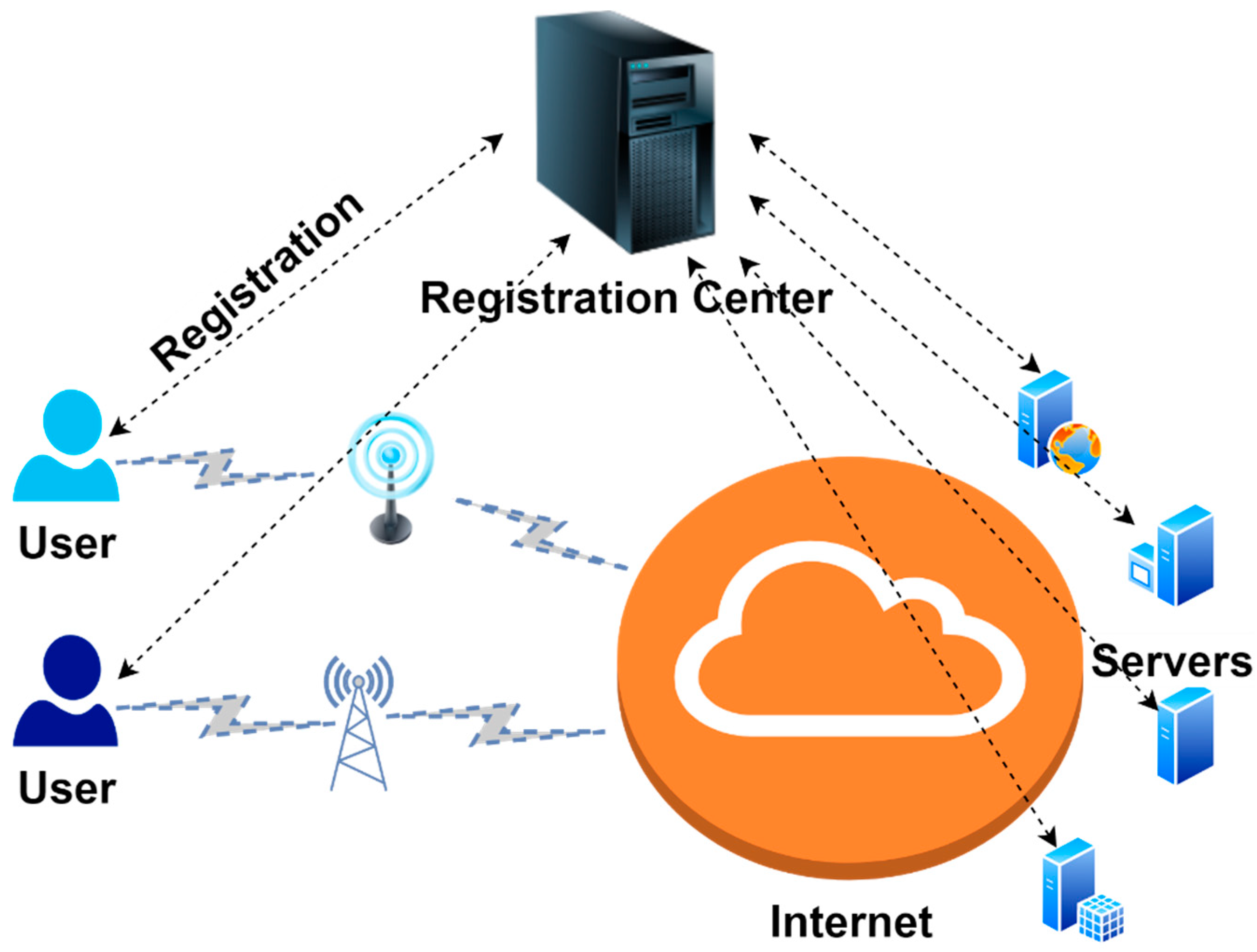

In the traditional single-server network environment, there is a service provider that provides network services for many users. When users access network services, they need to provide legal user identity and authentication factors (passwords, smart cards, biometrics). However, with the strong demand for more types of network services, users need to prepare multiple sets of user identity and authentication factors to register multiple single server network systems in order to access different single server network systems. Obviously, this has caused great inconvenience. If users set the same authentication factor for different systems, when the user password of a system is leaked, it will also affect the security of other systems, which has great security risks. On the other hand, each network service system needs an authentication server to complete the user registration operation, which causes a serious waste of resources.

In order to solve the above drawbacks, the authentication key agreement protocol for a multi-server environment arises at the historic moment. Users can use the same set of identity and authentication factors to complete mutual authentication with different servers in the system so as to obtain the corresponding network services. Generally, the registration center RC needs to complete the initialization of the system. At the same time, it is responsible for the registration of users and service providers into the system and distributes the secret information related to the registrants when the registration is completed. When the registered users want to access the network services, they need to authenticate with the server and establish their session key after the authentication to ensure their future network communication security [5]. The network model of the multi-server environment is shown in Figure 1.

In 2001, Li et al. [6] proposed the first authentication protocol in a multi-server environment. However, Lin et al. [7] pointed out that the performance of the protocol is poor due to the use of the neural network. Meanwhile, to improve the performance of the protocol, Lin et al. designed an authentication protocol based on a discrete logarithm problem [7]. Unfortunately, their scheme was soon found unable to resist the attack of fake users [8]. At the same time, for the sake of improving the performance, many authentication protocols based on symmetric cryptography primitives [9,10,11,12,13,14,15] have been proposed.

Although these protocols use lightweight symmetric cryptography primitives and their performance has been improved, it is difficult for these protocols to achieve strong security attributes, such as perfect forward secrecy. To ensure the security and practicability of the protocol, researchers designed an authentication protocol based on Elliptic Curve Cryptography in a multi-server environment. In 2013, Yoon and Yoo proposed a three-factor authentication protocol based on elliptic curve cryptography [16]. However, the protocol is not secure; malicious users can fake the identity of other users to obtain network services [17]. Subsequently, He and Wang put forward an improved protocol [18] based on Yoon’s protocol [16], but Odelu et al. [19] pointed out that the improved protocol could not achieve user anonymity. In 2015, Tsai proposed a new authentication protocol for multi-server environments [20] and claimed that their protocol could achieve strong security. However, reference [21] claimed that the protocol could not resist server spoofing attacks. Since 2017, Kumari et al. [22] and Wu et al. [23] have proposed relevant authentication protocols for multi-server environments. However, some security problems were found in the proposed scheme by Feng et al. [24] and Wang et al. [25], respectively. Kumari et al.’s scheme [22] has weak user un-traceability and is vulnerable to man-in-the-middle attacks. Wu et al.’s scheme [23] is vulnerable to smart card stolen attacks and temporary information leakage attacks. Based on the previous works, the improved schemes enhance the security and performance step by step. For example, Haq et al. [26] put forward a new, improved protocol based on the work of Ying-Nayak et al. [27] and Kumar-Om et al. [28] in 2021. In recent years, as an effective security mechanism to ensure network security, the authentication protocol in multi-server environments has been paid attention to by scholars, and the related protocols [29] have been proposed one after another. In the research process of authentication and key agreement protocol, these schemes not only need to improve the security (such as introducing biological information as the security factor) but also should have better performance to adapt to the more practical environment, such as wireless sensor network, body area network, and so on.

Through the review of the authentication schemes above, we find that researchers are easy to ignore the user un-traceability and N-factor security of their protocol, and many protocols are also vulnerable to user impersonation attacks. For instance, Chatterjee et al. proposed a three-factor authentication and key agreement protocol based on an extended chaotic map for the multi-server environment in 2018 [30] and claimed that the protocol could achieve all known security features with satisfactory performance. However, it is found that their scheme is vulnerable to user impersonation attacks and cannot achieve user un-traceability and three-factor security through our cryptanalysis.

Based on our analysis of the above protocols, we propose three basic design principles of authentication and key agreement protocol for multi-server environments in this study:

(1) The authentication and key agreement protocol with high-level anonymity cannot be realized only by using symmetric cryptography (such as hash function and XOR operation). In other words, public key technology is a necessary condition to realize user anonymity.

(2) In order to ensure the n-factor security of the authentication protocol, the local verification of the smart card cannot be the deterministic verification method, and the fuzzy authentication technology should be introduced to avoid the offline password guessing attacks initiated by the adversary.

(3) In the login and authentication phase, the requester has a complete set of legal ID, password, smart card, and biological information, which is the necessary condition to generate legal login request information. Only in this way can we ensure the correctness of users’ identity and resist the user impersonation attacks.

Contributions

Our crucial contributions are as follows.

(1) We review and analyze Chatterjee et al.’s three-factor authentication scheme for multi-server environments. Further, we show that their scheme is vulnerable to user impersonation attacks and cannot achieve user un-traceability and three-factor security.

(2) We present a new lightweight anonymous three-factor authentication scheme with perfect forward secrecy for multi-server environments. Our scheme uses an extended chaotic map and achieves strong security.

(3) The proposed protocol is proved to be AKE secure theoretically, and we use BAN-logic to prove that our protocol realizes mutual authentication between communication participants

(4) Through the comparison of security features and performance, it can be found that our proposed scheme is excellent and practical.

2. Preliminaries

2.1. Discrete Logarithm

Given a finite cyclic group G₁ and its generator $g\in G_1$, there is a unique integer x such that ${a = g}^x, a\in G_1$. xis the discrete logarithm of a, which is recorded as ${x = log}_{g}a$.

Discrete logarithm problem (DLP): Given a finite cyclic group G₁ whose generator is $g\in G_1$ and an element $a\in G_1$, DLP is to find the integer x such that ${a = g}^x$.

Computational Diffie–Hellman problem (CDHP): Given a finite cyclic group G₁ whose generator is $g\in G_1$ and two elements ${ g}^a{, g}^b\in G_1$, CDHP is to calculate the value of ${ g}^{a·b}$.

DLP and CDHP are known mathematical problems, which are not computationally feasible; that is, they are not solvable in polynomial time. They are often used in the construction and design of public-key cryptography.

2.2. Chebyshev Chaotic Map

Chebyshev chaotic map satisfies the following iterative relation: $T_n{\left(x\right) = 2xT}_{n-1}{\left(x\right) - T}_{n-2}\left(x\right)$, where $n \ge 2$, $n \in Z$, $x \in [-1,1]$, $T_0\left(x\right) = 1$, $T_1\left(x\right) = x$. Chebyshev chaotic map has semi-group property, i.e., $T_r{(T}_s{\left(x\right)) = T}_{sr}{\left(x\right) = T}_s{(T}_r\left(x\right))$.

In 2008, Zhang et al. [31] extended the domain of Chebyshev chaotic map $x \in [-1,1]$ to $x \in [-\infty , +\infty ]$. The extended Chebyshev chaotic map still has the semi-group property, namely $T_r{(T}_s{\left(x\right)) = T}_{sr}{\left(x\right) = T}_s{(T}_r\left(x\right))$, where $T_n\left(x\right) =\cos (n*\arccos (x\left)\right) mod p$, $n \ge 2$, $n \in Z$, $x \in [-\infty ,+\infty ]$, and p is a large prime number.

Chaotic map discrete logarithm problem (CMDLP): Given a Chebyshev chaotic map $T_n\left(x\right)$ and two random variables: x and ${y = T}_r\left(x\right)$, CMDLP is to calculate the value of r.

Computational chaotic maps Diffie–Hellman Problem (CMCDHP): Given a Chebyshev chaotic map $T_n\left(x\right)$ and $(x,{ y = T}_r\left(x\right),{ z = T}_s\left(x\right))$, CMCDHP is to calculate the value of $T_{sr}\left(x\right)$.

2.3. Adversarial Model

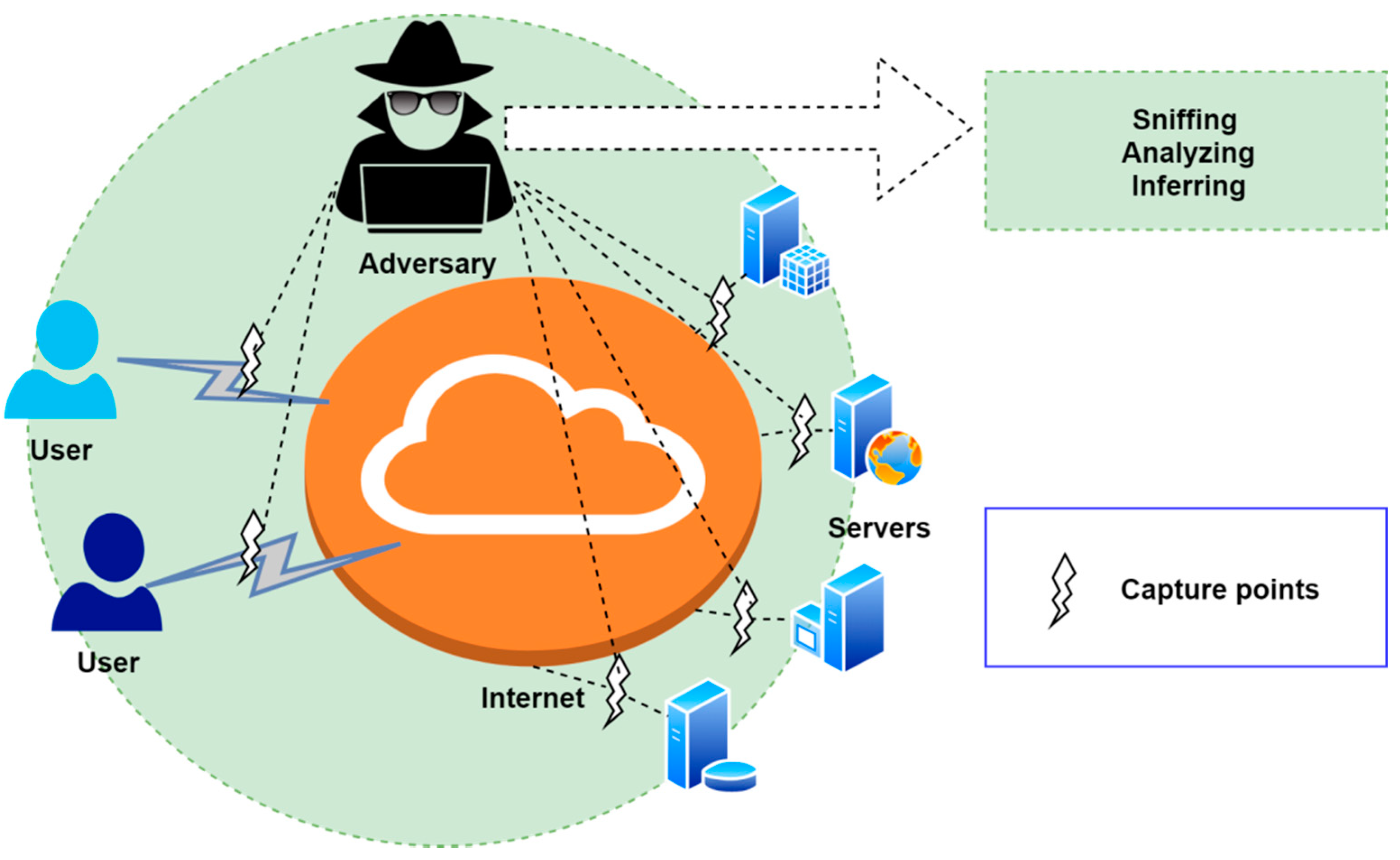

Due to the openness of the Internet, the attacker can easily control the information spread in the public channel, tamper, replay, block the information, and then launch a possible malicious attack, as shown in Figure 2. In this paper, the adversary $A$’s capabilities in a multi-server environment are set as shown in

Table 1. Attackers’ capabilities.

	Capabilities
1	$A$ can enumerate every possibility of user identity and password.
2	$A$ can extract the secret information from the smart card through side-channel technology.
3	$A$ can intercept, modify, or block messages propagated in the public channels.
4	For a three-factor scheme, $A$ can capture two of the authentication factors simultaneously.
5	$A$ can capture an expired session key.
6	$A$ can get the long-term private keys of users, RC, or servers (only when evaluating forward secrecy).

.

3. Review of Chatterjee et al.’s Scheme

In the highly cited paper published by Santanu Chatterjee et al., an authentication protocol based on an extended Chebyshev chaotic map for multi-server environments was proposed in 2016 [30]. This section will take Chatterjee’s protocol as an example to analyze and point out the security defects of this kind of authentication protocol.

Chatterjee et al.’s scheme mainly consists of the following phases: system setup phase, user registration phase, server registration phase, login and authentication phase, user password, and biometric update phase.

Table 2. Notations in Chatterjee et al.’s scheme.

Symbol	Description
$H(·)$	Hash function
$BH(·)$	Biological hash function
$T_x(·)$	Chebyshev polynomial
$E_k(·{)/D}_k(·)$	Symmetric encryption/decryption alogrithms
$K_s{, K}_u$	Private key of $RC$
$x_j$	Private key of $S_j$
${ID}_{U_i}$	Identification of $U_i$
${ID}_{S_j}$	Identification of $S_j$
PWi	Password of $U_i$
Bi	Biological information of $U_i$
SCi	Smart card of $U_i$
${SK}_{\mathit{ij}}$	Session key of $U_i$ and $S_j$
$\oplus$	XOR operation
$\parallel$	Concatenation operation

lists the symbols used in their scheme.

The detailed description of the scheme is as follows:

3.1. System Setup Phase

Step 1: The Registration Center RC randomly selects $K_s$ and $K_u$ from $[-\infty , +\infty ]$.

Step 2: RC selects a secure hash function $H(·)$, a biological hash function $BH(·)$, a Chebyshev polynomial $T_x(·)$, and a pair of symmetric encryption/decryption algorithms $E_k(·{)/D}_k(·)$. Then, $\left\{H\right(·), BH(·{), T}_x(·{), E}_k(·{)/D}_k(·\left)\right\}$ will be passed onto the public.

3.2. Server Registration Phase

Step 1: The server S_j sends its identity ${ID}_{S_j}$ to RC through a secure channel.

Step 2: After receiving the registration information, RC randomly selects x_j, calculates $T_{x_j}{(K}_s)$, $T_{x_j}{(K}_u)$, and sends ${\{x}_j{, T}_{x_j}{(K}_s{), T}_{x_j}{(K}_u\left)\right\}$ back to S_j through the secure channel.

3.3. User Registration Setup Phase

Step 1: The user U_i selects his identity ${ID}_{U_i}$, password PW_i and enters his biological information B_i. Next, U_i obtains the current timestamp T_i, generates a random number R_i to calculate ${ID}_i{ = H(ID}_{U_i}\parallel R_i\parallel T_i)$, $b_i{ = BH(B}_i)$, ${RPW}_i{ = H(ID}_i\parallel {PW}_i\parallel b_i\parallel R_i)$, $K_i{ = H(b}_i\parallel R_i\parallel {ID}_i)$, $C_i{ = R}_i \oplus { H(b}_i\parallel {ID}_{U_i}\parallel {PW}_i)$, and transmits the registration information ${\{ID}_i{, T}_i{, K}_i{, C}_i{, RPW}_i\}$ to RC through the secure channel.

Step 2: After receiving the registration request from U_i, RC randomly selects x_i and $K_{u_i}$ and computes the Chebyshev polynomials $T_{x_i}{(K}_{u_i})$ and $T_{x_i}{(K}_u)$. Afterward, RC calculates ${SK}_i{ = K}_i \oplus x_i$, ${P = K}_s \oplus { H(x}_i\parallel K_i)$, $A_i{ = H(ID}_{U_i}\parallel {RPW}_i\parallel T_i\parallel T_{x_i}{(K}_{u_i})\parallel x_i\parallel P)$, writes ${\{ID}_i{, T}_i{, A}_i{, T}_{x_i}{(K}_{u_i}{), C}_i{, SK}_i{, P, T}_{x_i}{(K}_u{), <ID}_{S_j}{, T}_{x_j}{(K}_s), 1 \le j \le m>\}$ to smart card SC_i, and gives it to U_i, where m is the number of servers in the system.

Step 3: After U_i completes registration, RC selects a random number ${Ur}_i$ and calculates ${Uh}_i{ = H(T}_{x_i}{(K}_{u_i})\parallel {Ur}_i)$. Finally, RC transmits ${\{Uh}_i{, Ur}_i{, ID}_i\}$ to all servers in the system through the secure channel.

3.4. Login and Authentication Phase

Step 1: The user U_i inserts his smart card SC_i into the terminal, inputs his identity ID_i, password PW_i, and collects the biometrics B_i. SC_i calculates $b_i{ = BH(B}_i)$, $R_i^{\prime }{ = C}_i \oplus { H(b}_i\parallel {ID}_{U_i}\parallel {PW}_i)$, ${ID}_i^{\prime }{ = H(ID}_{U_i}\parallel R_i^{\prime }\parallel T_i)$, ${RPW}_i^{\prime }{ = H(ID}_i^{\prime }\parallel {PW}_i\parallel b_i\parallel R_i^{\prime })$, $K_i^{\prime }{ = H(b}_i\parallel R_i^{\prime }\parallel {ID}_i^{\prime })$, $x_i^{\prime }{ = SK}_i\oplus K_i^{\prime }$, $A_i^{\prime }{ = H(ID}_{U_i}\parallel {RPW}_i^{\prime }\parallel T_i\parallel T_{x_i}{(K}_{u_i})\parallel x_i^{\prime }\parallel P)$. The smart card verifies whether $A_i^{\prime }{ ?= A}_i$ is true or not; if not, SC_i rejects the login request of U_i; otherwise, SC_i obtains the current timestamp TS_i, generates a random number RN_i, and calculates $K_s = P \oplus { H(x}_i\parallel K_i^{\prime })$, $T_{K_1}{ = T}_{x_i}{(T}_{x_j}{(K}_s\left)\right)$, $T_{x_i}{(K}_s)$, $K_1{ = H(T}_{x_j}{(K}_s)\parallel {ID}_i\parallel {ID}_{S_j}\parallel {TS}_i)$. Finally, SC_i sends the login request information $M_1{=\{ID}_i{,ID}_{S_j}{,E}_{K_1}{(ID}_i\parallel {ID}_{S_j}\parallel T_{K_1}\parallel T_{x_i}{(K}_s)\parallel T_{x_i}{(K}_u)\parallel T_{x_i}{(K}_{u_i})\parallel {RN}_i\parallel K_i{),TS}_i,$ ${H(K}_i\parallel {TS}_i\parallel {ID}_i\parallel {ID}_{S_j}\parallel {RN}_i\parallel T_{x_i}{(K}_u)\parallel T_{K_1}\left)\right\}$to the server S_j.

Step 2: The server S_j receives M₁ and first verifies the validity of the time stamp TS_i. If the time stamp TS_i is invalid, S_j rejects the login request; otherwise, S_j calculates $K_1^{\prime }{ = H(T}_{x_j}{(K}_s)\parallel {ID}_i\parallel {ID}_{S_j}\parallel {TS}_i)$ and decrypts $E_{K_1}{(ID}_i\parallel {ID}_{S_j}\parallel T_{K_1}\parallel T_{x_i}{(K}_s)\parallel T_{x_i}{(K}_u)\parallel T_{x_i}{(K}_{u_i})\parallel {RN}_i\parallel K_i)$ with $K_1^{\prime }$ to get ${ID}_i$, ${ID}_{S_j}$, $T_{K_1}$, $T_{x_i}{(K}_s)$, $T_{x_i}{(K}_u)$, $T_{x_i}{(K}_{u_i})$, ${RN}_i$, $K_i$. S_j uses the decrypted ID_i to search for the corresponding ${(Uh}_i{, Ur}_i)$ and verify whether ${Uh}_i{ ?= H(T}_{x_i}{(K}_{u_i})\parallel {Ur}_i)$ is true; if not, S_j terminates the session; otherwise, S_j calculates ${H(K}_i\parallel {TS}_i\parallel {ID}_i\parallel {ID}_{S_j}\parallel {RN}_i\parallel T_{x_i}{(K}_u)\parallel T_{K_1})$, $T_{K_1}^{\prime }{ = T}_{x_j}{(T}_{x_i}{(K}_s\left)\right)$, and compares the calculated result with the received corresponding value; if not, S_j terminates the session; otherwise, S_j authenticates U_i successfully. Next, S_j obtains the current timestamp TS_j and calculates $T_{K_2}{ = T}_{x_j}{(T}_{x_i}{(K}_{u_i}{\left)\right), Y = K}_i \oplus { T}_{K_2},{ K}_2{ = H(T}_{x_i}{(K}_{u_i})\parallel {ID}_{S_j}\parallel {ID}_i\parallel {TS}_i\parallel {TS}_j\parallel {RN}_i\parallel T_{K_1}^{\prime }{), T}_{K_3}{ = T}_{x_j}{(T}_{x_i}{(K}_u\left)\right)$, and the session key ${SK}_{\mathit{ij}}{ = H(ID}_i\parallel {ID}_{S_j}\parallel {TS}_i\parallel {TS}_j\parallel {RN}_i\parallel {RN}_j\parallel T_{K_1}^{\prime }\parallel T_{K_2}\parallel T_{K_3})$. Finally, S_j transmits $M_2{ = \{ID}_i{,ID}_{S_j}{,E}_{K_2}{(ID}_i\parallel {ID}_{S_j}\parallel Y\parallel T_{x_j}{(K}_u)\parallel {RN}_j\parallel T_{K_3}{),H(TS}_i\parallel {TS}_j\parallel {RN}_i\parallel {RN}_j\parallel Y\parallel T_{K_3}\parallel T_{x_j}{(K}_u{\left)\right),TS}_j\}$ back to user U_i.

Step 3: U_i receives M₂ and verifies the validity of time stamp TS_j. If TS_j is invalid, U_i terminates the session; otherwise, U_i computes $K_2{ = H(T}_{x_i}{(K}_{u_i})\parallel {ID}_{S_j}\parallel {ID}_i\parallel {TS}_i\parallel {TS}_j\parallel {RN}_i\parallel T_{K_1})$ and decrypts $E_{K_2}{(ID}_i\parallel {ID}_{S_j}\parallel Y\parallel T_{x_j}{(K}_u)\parallel {RN}_j\parallel T_{K_3})$ to get ${ID}_i$, ${ID}_{S_j}$, $Y$, $T_{x_j}{(K}_u)$, ${RN}_j$, $T_{K_3},$ and then U_i computes $T_{K_2}^{\prime }{ = K}_i \oplus Y$, $T_{K_3}^{\prime }{ = T}_{x_i}{(T}_{x_j}{(K}_u\left)\right)$. If $T_{K_3}^{\prime }{ ?= T}_{K_3}$ holds, U_i authenticates S_j successfully and calculates session key ${SK}_{\mathit{ij}}{ = H(ID}_i\parallel {ID}_{S_j}\parallel {TS}_i\parallel {TS}_j\parallel {RN}_i\parallel {RN}_j\parallel T_{K_1}\parallel T_{K_2}^{\prime }\parallel T_{K_3}^{\prime })$.

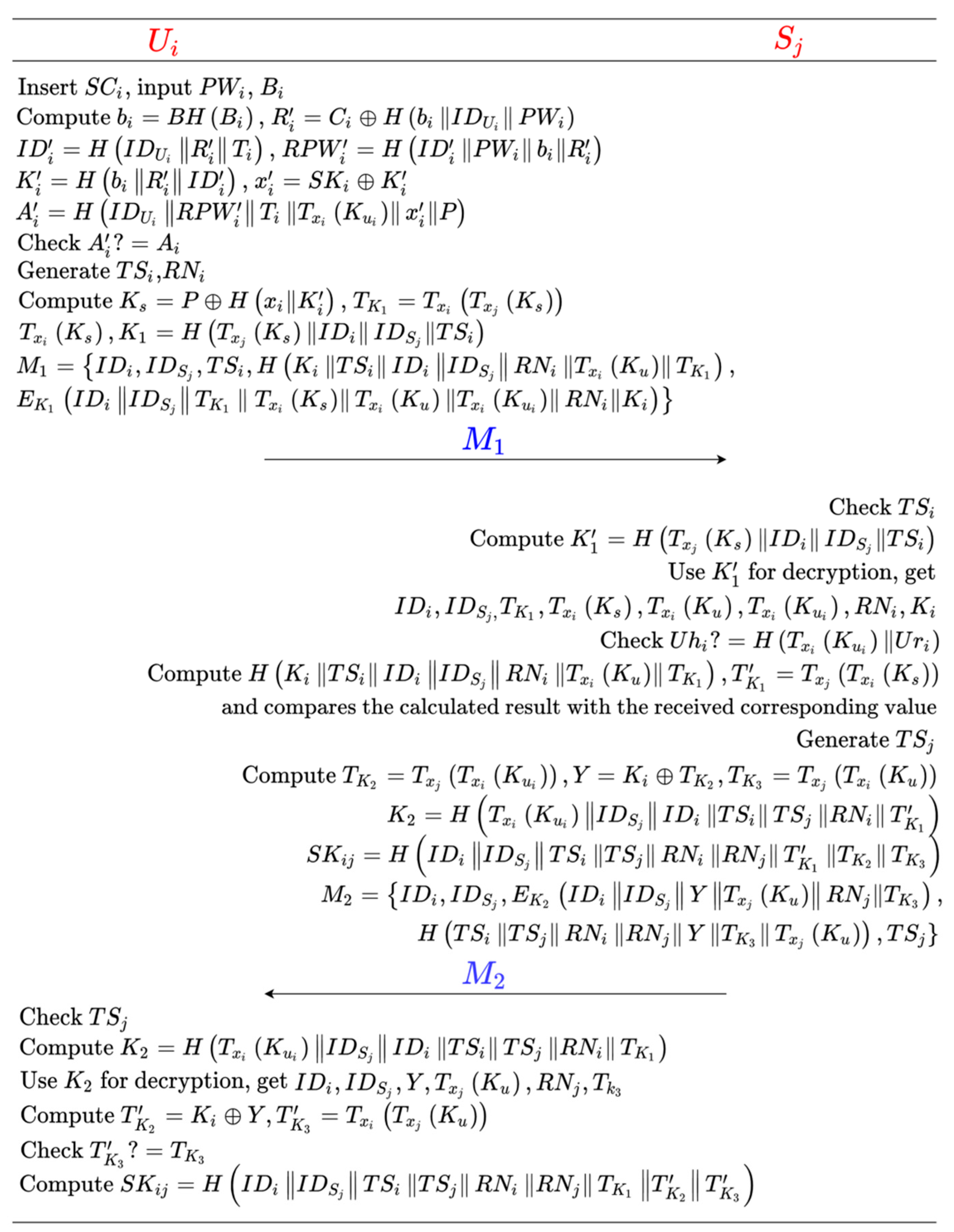

The process of login and authentication phase is shown in Figure 3.

3.5. User Password and Biometric Update Phase

Step 1: The user U_i inserts his smart card SC_i into the terminal, inputs his identity ${ID}_{U_i}$ and password PW_i, and collects his biometric B_i. SC_i calculates $b_i{ = BH(B}_i)$, $R_i^{\prime }{ = C}_i \oplus { H(b}_i\parallel {ID}_{U_i}\parallel {PW}_i)$, ${ID}_i^{\prime }{ = H(ID}_{U_i}\parallel R_i^{\prime }\parallel T_i)$, ${RPW}_i^{\prime }{ = H(ID}_i^{\prime }\parallel {PW}_i\parallel b_i\parallel R_i^{\prime })$, $K_i^{\prime }{ = H(b}_i\parallel R_i^{\prime }\parallel {ID}_i^{\prime })$, $x_i^{\prime }{ = SK}_i \oplus { K}_i^{\prime }$, $A_i^{\prime }{ = H(ID}_{U_i}\parallel {RPW}_i^{\prime }\parallel T_i\parallel T_{x_i}{(K}_{u_i})\parallel x_i^{\prime }\parallel P)$. SC_i verifies whether $A_i^{\prime }{?=A}_i$ is established; if not, the smart card rejects the login request of U_i; otherwise, SC_i makes U_i enter a new password and new biological information.

Step 2: U_i enters the new password ${PW}_i^{new}$ and new biometric $B_i^{new}$. Then, the smart card computes $b_i^{new}{ = BH(B}_i^{new})$, $C_i^{new}{ = R}_i^{\prime } \oplus { H(b}_i^{new}\parallel {ID}_{U_i}\parallel {PW}_i^{new})$, ${RPW}_i^{new}{ = H(ID}_i^{\prime }\parallel {PW}_i^{new}\parallel b_i^{new}\parallel R_i^{\prime })$, $A_i^{new}{ = H(ID}_{U_i}\parallel {RPW}_i^{new}\parallel T_i\parallel T_{x_i}{(K}_{u_i})\parallel x_i^{\prime }\parallel P)$.

Step 3: SC_i replaces $A_i^{new}$, $C_i^{new}$ with A_i and C_i.

4. Cryptanalysis of Chatterjee et al.’s Scheme

4.1. User Un-Traceability

The adversary can intercept the information transmitted between the user and the server in the public channel. Due to the protection of hash function, the adversary cannot directly extract the user’s identity. However, in the login request information of user u, ${ID}_i{ = H(ID}_{U_i}\parallel R_i\parallel T_i)$, $R_i{ = C}_i \oplus { H(b}_i\parallel {ID}_{U_i}\parallel {PW}_i)$ where T_i is the time stamp obtained when U_i registers. It can be found that the ID_i generated by the same user in each login request is fixed. Therefore, it is easy for adversaries to determine whether two sessions are initiated by the same user through ID_i, so as to track the user’s behavior. Therefore, the protocol proposed by Chatterjee et al. cannot achieve user un-traceability.

4.2. Three-Factor Security

Chatterjee et al.’s protocol involves three security factors: user password, smart card, and user’s biometrics. Suppose that the adversary accidentally obtains the smart card and biometric $B_i$ of user $U_i$, the adversary can obtain the password of $U_i$ through the following operations:

Step 1: The adversary $A$ uses the side-channel attack technology [32] to extract the secret information ${\{ID}_i{, T}_i{, A}_i{, T}_{x_i}{(K}_{u_i}{), C}_i{, SK}_i{, P, T}_{x_i}{(K}_u{), \text{<}ID}_{S_j}{, T}_{x_j}{(K}_s), 1\le j \le m>\}$ stored in the smart card of $U_i$, and calculates $b_i{=BH(B}_i)$.

Step 2: $A$ guesses that the identity and password of U_i are ${(ID}_{U_i}^{*}{, PW}_i^{*})$, where ${ID}_{U_i}^{*}$ and ${PW}_i^{*}$ are generated from user identity space $D_{id}$ and password space $D_{pw}$, respectively.

Step 3: $A$ calculates $R_i^{*}{ = C}_i \oplus { H(b}_i\parallel {ID}_{U_i}^{*}\parallel {PW}_i^{*})$, ${ID}_i^{*}{ = H(ID}_{U_i}^{*}\parallel R_i^{*}\parallel T_i)$, ${RPW}_i^{*}{ = H(ID}_i^{*}\parallel {PW}_i^{*}\parallel b_i\parallel R_i^{*})$, $K_i^{*}{ = H(b}_i\parallel R_i^{*}\parallel {ID}_i^{*})$, $x_i^{*}{ = SK}_i \oplus { K}_i^{*}$, $A_i^{*}{ = H(ID}_{U_i}^{*}\parallel {RPW}_i^{*}\parallel T_i\parallel T_{x_i}{(K}_{u_i})\parallel x_i^{*}\parallel P)$.

Step 4: The smart card verifies whether $A_i^{*}{ ?= A}_i$ is true; if it is true, ${(ID}_{U_i}^{*}{, PW}_i^{*})$ are correct; otherwise, go to Step 2.

According to the above steps, it takes ${(5T}_h)·{|D}_{id}|·{|D}_{pw}|$ to complete the offline password guessing attack, where T_h is the time-consuming of hash function running once, and XOR operation can be ignored due to its small time-consuming. According to reference [33], ${|D}_{id}| \le { |D}_{pw}| \le {10}^6$. Using the computing processor intel-i7-5500 3.6 g Hz in reference [34], $T_h \approx 0.564\mu s$, the adversary can complete the above attack within 33 days. If a high-performance cloud platform launches the attack, the user’s password can be guessed within a few hours.

4.3. User Impersonation Attack

Since ${\left\{\right(ID}_{S_j}{, T}_{x_j}\left(K_S\right)\left)\right|1 \le j \le m\}$ is stored in each user’s smart card, malicious users can intercept the login request information of user U_i to initiate login request as user U_i and pass the authentication of server S_j. The specific operations are as follows:

Step 1: The malicious user $A$ intercepts $M_1{ = \{ID}_i{,ID}_{S_j}{,E}_{K_1}{(ID}_i\parallel {ID}_{S_j}\parallel T_{K_1}\parallel T_{x_i}{(K}_s)\parallel$

$T_{x_i}{(K}_u)\parallel T_{x_i}{(K}_{u_i})\parallel {RN}_i\parallel K_i{), TS}_i{, H(K}_i\parallel {TS}_i\parallel {ID}_i\parallel {ID}_{S_j}\parallel {RN}_i\parallel T_{x_i}{(K}_u)\parallel T_{K_1}\left)\right\}$ transmitted in the public channel.

Step 2: $A$ calculates $K_1{ = H(T}_{x_j}{(K}_s)\parallel {ID}_i\parallel {ID}_{S_j}\parallel {TS}_i)$, where $T_{x_j}{(K}_s)$ is extracted from the smart card of $A$, ${ID}_i$, ${ID}_{S_j}$, ${TS}_i$ is obtained from M₁. Then, $A$ uses K₁ to decrypt $E_{K_1}{(ID}_i\parallel {ID}_{S_j}\parallel T_{K_1}\parallel T_{x_i}{(K}_s)\parallel T_{x_i}{(K}_u)\parallel T_{x_i}{(K}_{u_i})\parallel {RN}_i\parallel K_i)$ to get ${ID}_i$, ${ID}_{S_j}$, $T_{K_1}$,${ T}_{x_i}{(K}_s)$, $T_{x_i}{(K}_u)$, $T_{x_i}{(K}_{u_i})$, ${RN}_i$, $K_i$.

Step 3: Through the information obtained in Step 2, $A$ can generate a new timestamp ${TS}_i^{\prime }$ and construct the legitimate request information m of user U_i requesting to log in to server S_j: $M_1^{\prime }{ = \{ID}_i{, ID}_{S_j}{, E}_{K_1}{(ID}_i\parallel {ID}_{S_j}\parallel T_{K_1}\parallel T_{x_i}{(K}_s)\parallel T_{x_i}{(K}_u)\parallel T_{x_i}{(K}_{u_i})\parallel {RN}_i\parallel K_i{), TS}_i^{\prime },$ ${H(K}_i\parallel {TS}_i^{\prime }\parallel {ID}_i\parallel {ID}_{S_j}\parallel {RN}_i\parallel T_{x_i}{(K}_u)\parallel T_{K_1}\left)\right\}.$

5. The Proposed Scheme

The proposed protocol includes the following phases: system setup phase, server registration phase, login and authentication phase, user registration phase, user password, and biometric update phase. The symbols used in the proposed protocol are shown in

Table 3. Notations in Chatterjee et al.’s scheme.

Symbol	Description
h(·)	Hash function
$BH(·)$	Biological hash function
$T_x(·)$	Chebyshev polynomial
x, y	Private key of $RC$
Kj	Private key of $S_j$
IDi	Identification of $U_i$
SIDj	Identification of $S_j$
PWi	Password of $U_i$
Bioi	Biological information of $U_i$
SCi	Smart card of $U_i$
${SK}_{\mathit{ij}}$	Session key of $U_i$ and $S_j$
$\oplus$	XOR operation
$\parallel$	Concatenation operation
$mod$	Modulus operation

.

The detailed description of the agreement is as follows:

5.1. System Setup Phase

The registration center RC randomly selects x, y as the system master keys in $[-\infty , +\infty ]$. Next, RC selects a secure hash function h(·).

5.2. Server Registration Phase

Step 1: The server S_j selects its identity SID_j and passes it to RC through a secure channel.

Step 2: After receiving SID_j, RC calculates $K_j{ = h(SID}_j\parallel y)$ and publishes information ${\{SID}_j, z\}$. Next, RC sends K_j back to S_j through the secure channel.

Step 3: S_j receives K_j and keeps it in secret.

5.3. User Registration Setup Phase

Step 1: The user U_i selects his identity ID_i and password PW_i and enters his biometric Bio_i. Then, U_i uses the biological hash function BH(.) to get b_i and calculates ${PID}_i{ = h(ID}_i\parallel b_i)$, ${PWB}_i{ = h(PW}_i\parallel b_i)$. Finally, U_i transmits the registration information ${\{ID}_i{, PID}_i{, PWB}_i\}$ to RC through a secure channel.

Step 2: After receiving U_i ‘s registration information, RC computes $A_i{ = h(ID}_i\parallel {PWB}_i) mod n$, $B_i{ = h(PID}_i\parallel x)$, $C_i{ = B}_i \oplus { PWB}_i$, where $2^4 \le n \le { 2}^8$. Next, RC calculates $D_{\mathit{ij}}{ = h(B}_i\parallel K_j)$, $E_{\mathit{ij}}{ = B}_i \oplus { K}_j$, $F_{\mathit{ij}}{ = D}_{\mathit{ij}} \oplus { h(B}_i)$ where $1 \le j \le m$ and m is the number of servers in the systems. At last, ${\{A}_i{, C}_i{, E}_{\mathit{ij}}{, F}_{\mathit{ij}}, n, h(.), h(x\parallel y), z\}$ are written into the smart card SC_i, and SC_i is transmitted to U_i via the secure channel.

Step 3: U_i keeps SC_i properly.

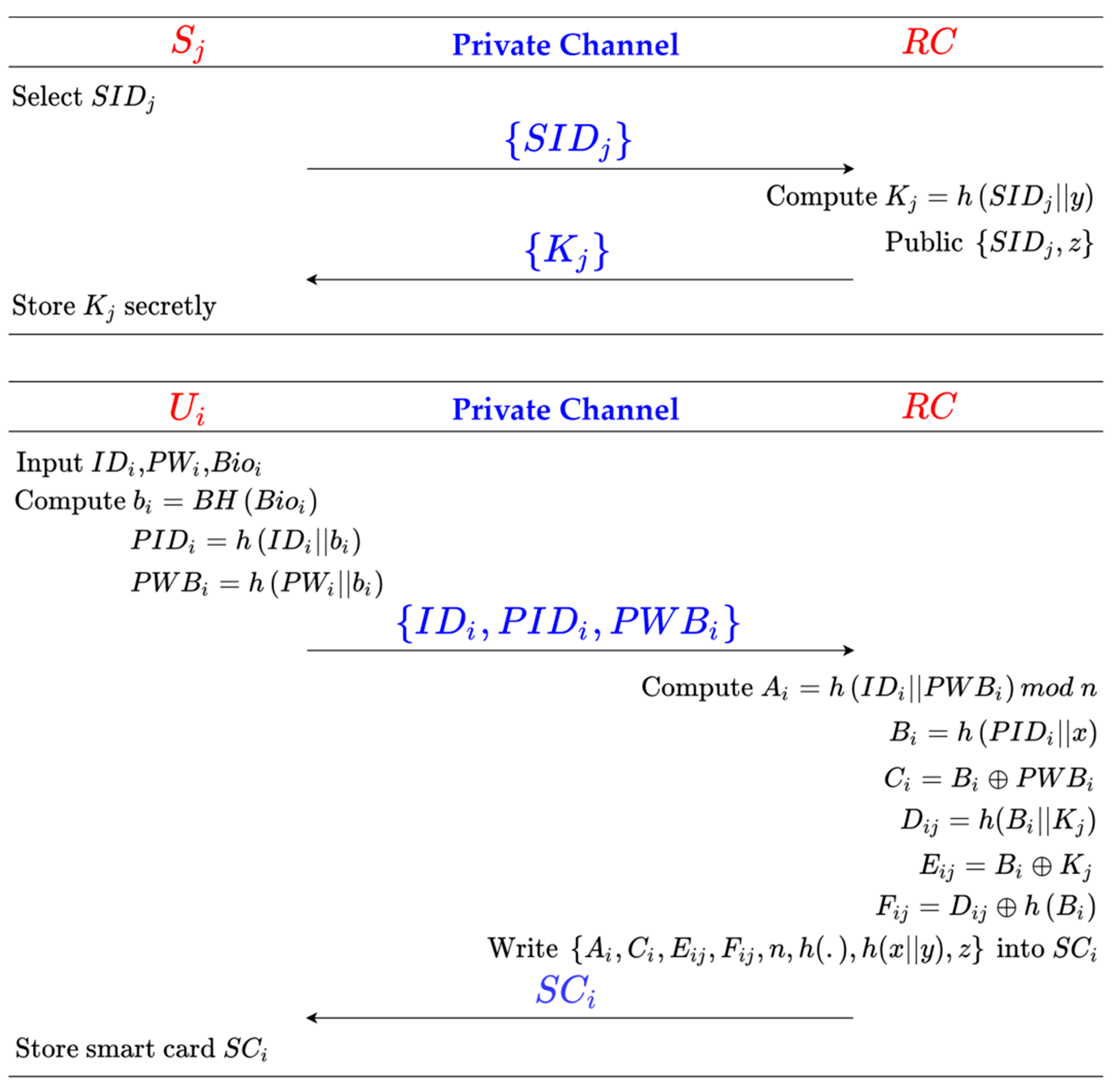

The process of the registration phase is shown in Figure 4.

5.4. Login and Authentication Phase

Step 1: The user U_i inserts his smart card SC_i into the terminal and inputs his identity ID_i, password PW_i, and biometric Bio_i. SC_i calculates $b_i{ = BH(Bio}_i)$, ${PID}_i{ = h(ID}_i\parallel b_i)$, ${PWB}_i{ = h(PW}_i\parallel b_i),$ and verifies whether $A_i{ ?= h(ID}_i\parallel {PWB}_i) mod n$ is established; if not, SC_i terminates the session; otherwise, SC_i generates a random number n_i, selects the identity of the server to be accessed SID_j, and calculates $N_i{ = T}_{n_i}\left(z\right)$, $P_{\mathit{ij}}{ = E}_{\mathit{ij}} \oplus { h(SID}_j\parallel h(x\parallel y)\parallel N_i)$, $N_k{ = h(B}_i\parallel N_i)$, $D_{\mathit{ij}}{ = F}_{\mathit{ij}} \oplus h\left(\mathrm{Bi}\right)$, ${CID}_{\mathit{ij}}{ = PID}_i \oplus { h(P}_{\mathit{ij}}\parallel B_i)$, $M_1{ = h(B}_i\parallel D_{\mathit{ij}}\parallel {CID}_{\mathit{ij}}\parallel N_k)$. Finally, U_i sends ${\{P}_{\mathit{ij}}{, CID}_{\mathit{ij}}{, N}_i{, M}_1\}$ to server S_j.

Step 2: Upon the receipt of login request from U_i, S_j computes $E_{\mathit{ij}}{ = P}_{\mathit{ij}} \oplus { h(SID}_j\parallel h(x\parallel y)\parallel N_i)$, $B_i{ = E}_{\mathit{ij}} \oplus { K}_j$, $D_{\mathit{ij}}{ = h(B}_i\parallel K_j)$, $N_k{ = h(B}_i\parallel N_i)$, $M_1^{*}{ = h(B}_i\parallel D_{\mathit{ij}}\parallel {CID}_{\mathit{ij}}\parallel N_k)$, and verifies that M₁ and $M_1^{*}$ match. If not, S_j terminates the session. Otherwise, S_j generates a random number n_j and calculates $N_j{ = T}_{n_j}\left(z\right)$, ${PID}_i{ = CID}_{\mathit{ij}} \oplus { h(P}_{\mathit{ij}}\parallel B_i)$, $M_2{ = h(PID}_i\parallel P_{\mathit{ij}}\parallel D_{\mathit{ij}}\parallel B_i\parallel {SID}_j\parallel N_j)$, $M_3{ = N}_k \oplus { N}_j$. Afterward, S_j sends ${\{M}_2{, M}_3\}$ to U_i.

Step 3: U_i receives ${\{M}_2{, M}_3\}$ and calculates $N_j{ = M}_3 \oplus { N}_k$. U_i verifies whether $M_2{ ?= h(PID}_i\parallel P_{\mathit{ij}}\parallel D_{\mathit{ij}}\parallel B_i\parallel {SID}_j\parallel N_j)$ is established; if not, U_i terminates the session; otherwise, U_i identifies S_j as legal. After that, U_i computes $M_4{ = h(B}_i\parallel D_{\mathit{ij}}\parallel N_j\parallel {SID}_j)$, $T_{\mathit{ij}}{ = T}_{n_i}{(N}_j)$, and gets the session key ${SK}_{\mathit{ij}}{ = h(PID}_i\parallel P_{\mathit{ij}}\parallel T_{\mathit{ij}})$. Ultimately, ${\{M}_4\}$ is delivered to S_j.

Step 4: S_j receives ${\{M}_4\}$ and verifies whether $M_4{ ?= h(B}_i\parallel D_{\mathit{ij}}\parallel N_j\parallel {SID}_j)$ holds; if not, S_j terminates the session; otherwise, S_j certifies that the identity of U_i is legal. Furthermore, S_j computes $T_{\mathit{ji}}{ = T}_{n_j}{(N}_i)$ and reaches the same session key with U_i: ${SK}_{\mathit{ji}}{ = h(PID}_i\parallel P_{\mathit{ij}}\parallel T_{\mathit{ji}}{) = h(PID}_i\parallel P_{\mathit{ij}}\parallel T_{\mathit{ij}}{) = SK}_{\mathit{ij}}$.

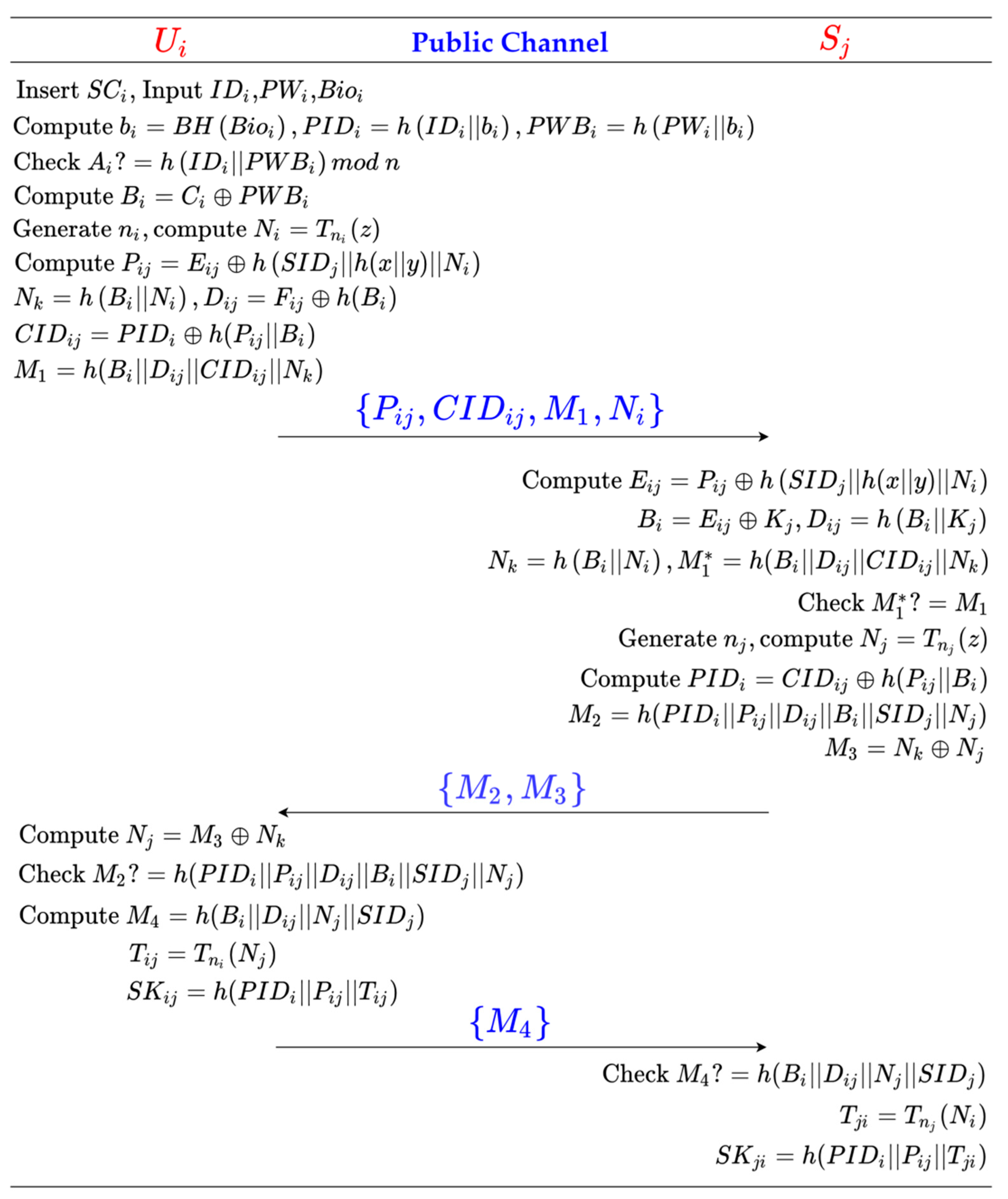

The process of login and authentication phase is shown in Figure 5.

5.5. User Password and Biometric Update Phase

Step 1: The user U_i inserts his smart card SC_i into the terminal, inputs his identity ${ID}_{U_i}$ and password PW_i, and collects his biometric B_i. SC_i calculates $b_i{ = BH(Bio}_i)$, ${PID}_i{ = h(ID}_i\parallel b_i)$, ${PWB}_i{ = h(PW}_i\parallel b_i)$ and verifies whether $A_i{ ?= h(ID}_i\parallel {PWB}_i) mod n$ is established; if not, SC_i terminates the session; otherwise, SC_i makes U_i enter a new password and new biological information.

Step 2: U_i enters the new password ${PW}_i^{new}$ and new biometric ${Bio}_i^{new}$. Then, SC_i computes $b_i^{new}{ = BH(Bio}_i^{new})$, ${PID}_i^{new}{ = h(ID}_i\parallel b_i^{new})$, ${PWB}_i^{new}{ = h(PW}_i^{new}\parallel b_i^{new})$, $A_i^{new}{ = h(ID}_i\parallel {PWB}_i^{new}) mod n$, $C_i^{new} = C_i \otimes { PWB}_i \oplus {PWB}_i^{new}$.

Step 3: SC_i replaces $A_i^{new}$, $C_i^{new}$ with A_i and C_i.

6. Security Analysis

6.1. Provable Security

Based on the BPR2000 model [35], the following is the description of the random oracle model and the definition of AKE security:

(1)

Participants

As participants, users U and servers S have many different instances, which are called oracle. The i-th instance of U and the j-th instance of S are denoted as Uⁱ and S^j, respectively, and any instance can be denoted as I uniformly.

(2)

Queries

${\mathit{Execute}(U}^i{, S}^j)$: The query captures the passive eavesdropping of the scheme, and its output includes all the communication records of the scheme between $U^i$ and $S^j$.

${\mathit{Send}(U}^i, \mathrm{start})$: This query indicates a login request that triggers the scheme startup and outputs $U^i$.

${\mathit{Send}(I}^i, m)$: This query captures active attacks. More precisely, the adversary $A$ constructs a forged message m by interrupting and intercepting messages. Then, $A$ sends m to $I^i$ and gets a response from $I^i$.

${\mathit{Reveal}(I}^i)$: If $I^i$ accepts the session and generates the session key SK, it will respond to $A$ with SK.

${\mathit{Corrupt}(I}^i, a)$: The query simulates the capture of any two of the three security factors. If a = 1 and I = U, the user password and all parameters stored in the smart card are returned to $A$. If a = 2 and I = U, the user biometrics and all parameters stored in the smart card are returned to $A$. If a = 3 and I = U, the user password and biometrics are returned to $A$. If a = 1 and I = S, the long-term private key of the server is returned to $A$.

${\mathit{Test}(I}^i)$: The oracle tosses a coin b ∈ (0,1); if b = 1, it returns the session key; if b = 0, it returns a random number with the same length as the session key.

(3)

Partnership

$U^i$ and $S^j$ are called partnerships if: (i) $U^i$ and $S^j$ are accepted; (ii) and have the same session identifier (sid), that is, ${\mathit{sid}}_U^i{ = \mathit{sid}}_S^j$; (iii) the partner identifier of $S^j$ is $U^i$ and vice versa.

(4)

Freshness

A user instance or server instance is called fresh if (i) I has calculated an acceptable session key; (ii) $A$ has not made any Reveal queries to I or its partners. (iii) From the beginning of the game, $A$ makes Corrupt query to I or its partners at most once.

Definition 1.

The adversary $A$ outputs the result of guess b^’ through Test queries. If b^’ = b, $A$ wins the game. The advantage probability of breaking the security of the protocol$P$is defined as: ${\mathit{Adv}}_P^{\mathit{AKE}}\left(A\right)=\left|2\mathit{Pr}[b^{\prime }=b]-1\right|$ . If the probability${\mathit{Adv}}_P^{\mathit{AKE}}\left(A\right)$ is negligible for any probabilistic polynomial time adversary $A$, the protocol $P$ is AKE secure.

Theorem 1.

Suppose the adversary$A$operates$q_{\mathit{send}}$ Send queries, $q_{\mathit{exe}}$ Execute queries and $q_h$ Hash queries to break the AKE security of the protocol. ${\mathit{Adv}}_A^{\mathit{CMCDH}}\left(t\right)$ represents the advantage probability of $A$ solving CMCDH problem in the polynomial time t, then we have:

$${\mathit{Adv}}_P^{\mathit{AKE}}\left(A\right)\le {2C}^{\prime }{q}_{\mathit{send}}^{s^{\prime }}+\frac{q_{\mathit{send}}+q_h+q_h^2}{2^{1-1}}+\frac{{2(q}_{\mathit{send}}+q_{\mathit{exe}}{)}^2}{p}+{2q}_h\cdot {\mathit{Adv}}_A^{\mathit{CMCDH}}\left(t^{\prime }\right)$$

(1)

where C’ and s’ are the CDF-Zipf regression parameters of password space, l is the bit length of hash function output, $t^{\prime }\le {t+(q}_{\mathit{send}}{+q}_{\mathit{exe}}{+1)T}_c$ , and $T_c$ represents the running time of extended chaotic map operation.

Proof.

Game $G_i, 0 \le i \le 5$ is created to prove that the proposed scheme is provably secure, and ${\mathit{Suc}}_i$ stands for $A$ correctly guessing b in game $G_i$ using Test queries.

Game $G_0$: This game simulates the real attack in the random oracle model. We can get:

$${\mathit{Adv}}_P^{\mathit{AKE}}\left(A\right) = \left|2\mathit{Pr}\left[{\mathit{Suc}}_0\right]-1\right|$$

(2)

Game $G_1$: This game manages Hash list $L_h$ while simulating random oracle. Then we get:

$$\mathit{Pr}\left[{\mathit{Suc}}_1\right]=\mathit{Pr}\left[{\mathit{Suc}}_0\right]$$

(3)

Game $G_2$: In $G_2$, if there is a collision of interactive information or a collision of Hash query results, the game ends; otherwise, $G_2$ simulates all queries in $G_1$. According to the birthday paradox [36], the collision probability of the result of Hash query is $\frac{q_h^2}{2^{l-1}}$ and the collision probability of interaction information is $\frac{{{(q}_{\mathit{send}}{+q}_{\mathit{exe}})}^2}{2p}$; therefore, we derive the following result:

$$\mathit{Pr}\left[{\mathit{Suc}}_2\right]-\mathit{Pr}\left[{\mathit{Suc}}_1\right] \le \frac{q_h^2}{2^{ l + 1}} + \frac{{{(q}_{\mathit{send}}{ + q}_{\mathit{exe}})}^2}{2p}$$

(4)

Game $G_3$: In game $G_3$, if $A$ guesses the information M₁ and M₂ used for authentication correctly, the game ends; otherwise, $G_3$ is the same simulation as the previous game; therefore, we derive the following result:

$$\mathit{Pr}\left[{\mathit{Suc}}_3\right]-\mathit{Pr}\left[{\mathit{Suc}}_2\right]\le \frac{q_{\mathit{send}}}{2^l}$$

(5)

Game $G_4$: In this game, $A$ guesses the session key without asking the corresponding random oracle. Therefore, this game is indistinguishable from the previous game, except that $A$ makes queries for ${SK}_{\mathit{ji}}{ = h(PID}_i\parallel P_{\mathit{ij}}\parallel T_{\mathit{ji}}{) = h(PID}_i\parallel P_{\mathit{ij}}\parallel T_{\mathit{ij}}{) = SK}_{\mathit{ij}}$. Thus, we get that:

$$\mathit{Pr}\left[{\mathit{Suc}}_4\right]-\mathit{Pr}\left[{\mathit{Suc}}_3\right]\le q_h{\mathit{Adv}}_A^{\mathit{CMCDH}}{(t}^{\prime })+\frac{q_h}{2^l}$$

(6)

where $t^{\prime }\le {t+(q}_{\mathit{send}}{+q}_{\mathit{exe}}{+1)T}_c$.

Game $G_5$: This game is similar to the previous game, but the only difference is the Test query. If $A$ performs the Test query on ${h(PID}_i\parallel P_{\mathit{ij}}\parallel T_{n_i{n}_j}\left(z\right))$, the game will be terminated. Therefore, the maximum probability of obtaining session key by random oracle query is $\frac{q_h^2}{2^{ l + 1}}$. Moreover, if ${\mathit{Corrupt}(U}^i, 2)$ query is executed, ${\mathit{Corrupt}(U}^i, 1)$ and ${\mathit{Corrupt}(U}^i, 3)$ can no longer be queried. According to reference [37], in the case of $q_{\mathit{send}}$ times of send query for online guess, the probability of getting the password is at most $C^{\prime }{q}_{\mathit{send}}^{s^{\prime }}$.

According to the definition of freshness, $A$ can perform ${\mathit{Test}(I}^i)$ query after performing ${\mathit{Corrupt}(I}^i, a)$ query. As a result, outdated copies are used in old games (perfect forward secrecy). Therefore, the maximum probability of $A$ getting $T_{n_i{n}_j}\left(z\right)$ is $\frac{{{(q}_{\mathit{send}}{ + q}_{\mathit{exe}})}^2}{2p}$. Then, we get:

$$\mathit{Pr}\left[{\mathit{Suc}}_5\right]-\mathit{Pr}\left[{\mathit{Suc}}_4\right]\le C^{\prime }{q}_{\mathit{send}}^{s^{\prime }}+\frac{q_h^2}{2^{l+1}}+\frac{{{(q}_{\mathit{send}}{+q}_{\mathit{exe}})}^2}{2p}$$

(7)

If $A$ does not request any random oracle query with valid input, then the game has no advantage to distinguish the real SK from the random string with the same length, so we get:

$$\mathit{Pr}\left[{\mathit{Suc}}_5\right] = \frac{1}{2}$$

(8)

According to Formulas (2), (3), and (8), we come to the conclusion

$$\begin{array}{c}{\mathit{Adv}}_P^{\mathit{AKE}}\left(A\right)=2\times \left[\right(\mathit{Pr}[{\mathit{Suc}}_5]-\mathit{Pr}[{\mathit{Suc}}_4\left]\right)+\left(\mathit{Pr}\right[{\mathit{Suc}}_4]-\mathit{Pr}\left[{\mathit{Suc}}_3\right])+(\mathit{Pr}[{\mathit{Suc}}_3]-\mathit{Pr}[{\mathit{Suc}}_2\left]\right)+\\ \left(\mathit{Pr}\right[{\mathit{Suc}}_2]-\mathit{Pr}\left[{\mathit{Suc}}_1\right])\le 2C^{\prime }{q}_{\mathit{send}}^{s^{\prime }}+\frac{q_{\mathit{send}}{+q}_h{+q}_h^2}{2^{1-1}}+\frac{{2(q}_{\mathit{send}}{+q+q}_{\mathit{exe}}{)}^2}{p}{+2q}_h\cdot {\mathit{Adv}}_A^{\mathit{CMCDH}}\left(t^{\prime }\right)\end{array}$$

(9)

6.2. BAN-Logic

Burrow, Abadi, and Needham proposed BAN-logic [38] in 1989. BAN-logic is a belief-based modal logic, which can be used to describe and verify authentication protocols. When using BAN-logic to analyze the security of authentication protocol, we first need to idealize the interaction information in the protocol, then make initialization assumptions according to the specific situation, and finally get the expected goal through reasoning rules.

Table 4. BAN-logic notations.

Symbol	Description
$P|\equiv X$	$P$ believes $X$.
$P◁X$	$P$ sees .
$P|\text{~}X$	$P$ sends $X$.
$P\Rightarrow X$	$P$ has jurisdiction over $X$.
$\#\left(X\right)$	$X$ is fresh.
$(X,Y)$	$X$ or $Y$ is part of $(X,Y)$.
${\left(X\right)}_K$	Use the key $K$ to compute $X$.
$P\stackrel{SK}{\leftrightarrow }Q$	$P$ and $Q$ reach shared key $SK$.

introduces the notations for the BAN-logic, and some basic rules are described in

Table 5. Basic logical postulates of BAN-logic.

Symbol	Description
Message-meaning rule	$\frac{P|\equiv (P\stackrel{K}{\leftrightarrow }Q), P◁{\left(X\right)}_K}{P|\equiv Q|\text{~}X}$
Freshness-conjuncatenation rule	$\frac{P|\equiv \#\left(X\right)}{P|\equiv \#\left(X, Y\right)}$
Nonce verification rule	$\frac{P|\equiv \#\left(X\right), P|\equiv Q|\text{~}X}{P|\equiv Q|\equiv X}$
Jurisdiction rule	$\frac{P|\equiv Q|\Rightarrow X, P|\equiv Q|\equiv X}{P|\equiv X}$
Believe rule	$\frac{P|\equiv Q|\equiv \left(X,Y\right)}{P|\equiv Q|\equiv X}, \frac{P|\equiv X,P|\equiv Y}{P|\equiv \left(X,Y\right)}$

.

(1)

The idealized form of the proposed scheme

Message 1: $U_i\to S_j: {{(PID}_i{, P}_{\mathit{ij}})}_{U_i\stackrel{B_i}{\leftrightarrow }{S}_j}{, P}_{\mathit{ij}}{, M}_1{, N}_i$

Message 2: $S_j\to U_i:{{(PID}_i{, P}_{\mathit{ij}}{, D}_{\mathit{ij}}{, SID}_j{, N}_j)}_{U_i\stackrel{B_i}{\leftrightarrow }{S}_j}{, M}_3$

(2)

Verification goals

Goal 1: $U_i|\equiv {(U}_i\stackrel{SK}{\leftrightarrow }{S}_j)$.

Goal 2: $U_i|\equiv S_j|\equiv {(U}_i\stackrel{SK}{\leftrightarrow }{S}_j)$.

Goal 3: $S_j|\equiv {(U}_i\stackrel{SK}{\leftrightarrow }{S}_j)$.

Goal 4: $S_j|\equiv U_i|\equiv {(U}_i\stackrel{SK}{\leftrightarrow }{S}_j)$.

(3)

Assumptions about the initial state

A1: $U_i|\equiv \#{(n}_i,n_j)$.

A2: $S_j|\equiv \#{(n}_i,n_j)$.

A3: $U_i|\equiv {(U}_i\stackrel{B_i}{\leftrightarrow }{S}_j)$.

A4: $S_j|\equiv {(U}_i\stackrel{B_i}{\leftrightarrow }{S}_j)$.

A5: $U_i|\equiv S_j\Rightarrow {(U}_i\stackrel{SK}{\leftrightarrow }{S}_j)$.

A6: $S_j|\equiv U_i\Rightarrow {(U}_i\stackrel{SK}{\leftrightarrow }{S}_j)$

(4)

Proofs

Step 1: According to Message 1, we know that $S_j◁{{(PID}_i{, P}_{\mathit{ij}})}_{U_i\stackrel{B_i}{\leftrightarrow }{S}_j}$.

Step 2: According to Step1, A4, and the message-meaning rule, we obtain the following: $S_j|\equiv U_i|\equiv {{(PID}_i{, P}_{\mathit{ij}})}_{U_i\stackrel{B_i}{\leftrightarrow }{S}_j}$.

Step 3: According to A2, freshness-conjuncatenation rule, $P_{\mathit{ij}}{ = E}_{\mathit{ij}} \oplus { h(SID}_j\parallel h(x\parallel y)\parallel N_i)$, and $N_i{ = T}_{n_i}\left(z\right)$, the following can be inferred: $S_j|\equiv \#{(PID}_i{,P}_{\mathit{ij}})$.

Step 4: From Step 2, Step 3, and the nonce verification rule, we get that: $S_j|\equiv U_i|\equiv {{(PID}_i{,P}_{\mathit{ij}})}_{U_i\stackrel{B_i}{\leftrightarrow }{S}_j}$.

Step 5: From Step 4, A4, and ${SK = h(PID}_i\parallel P_{\mathit{ij}}\parallel T_{\mathit{ij}})$, we prove Goal 4: $S_j|\equiv U_i|\equiv {(U}_i\stackrel{SK}{\leftrightarrow }{S}_j)$.

Step 6: According Step 5, A6, and the jurisdiction rule, we prove Goal 3: $S_j|\equiv {(U}_i\stackrel{SK}{\leftrightarrow }{S}_j)$.

Step 7: According to Message 2, we know that $U_i◁{{(PID}_i{, P}_{\mathit{ij}}{, D}_{\mathit{ij}}{, SID}_j{, N}_j)}_{U_i\stackrel{B_i}{\leftrightarrow }{S}_j}$.

Step 8: According to Step 7, A3, and the message-meaning rule, we obtain the following: $U_i|\equiv S_j|\equiv {{(PID}_i{, P}_{\mathit{ij}}{, D}_{\mathit{ij}}{, SID}_j{, N}_j)}_{U_i\stackrel{B_i}{\leftrightarrow }{S}_j}$.

Step 9: According A1, freshness-conjuncatenation rule, $N_j{ = T}_{n_j}\left(z\right)$, the following can be inferred: $U_i|\equiv \#{(PID}_i{, P}_{\mathit{ij}}{, D}_{\mathit{ij}}{, SID}_j{, N}_j)$.

Step 10: From Step 8, Step 9, and the nonce verification rule, we get that: $U_i|\equiv S_j|\equiv {{(PID}_i{, P}_{\mathit{ij}}{, D}_{\mathit{ij}}{, SID}_j{, N}_j)}_{U_i\stackrel{B_i}{\leftrightarrow }{S}_j}$.

Step 11: From Step 10, A4, and , we prove Goal 2: $U_i|\equiv S_j|\equiv {(U}_i\stackrel{SK}{\leftrightarrow }{S}_j)$.

Step 12: According Step 11, A5 and jurisdiction rule, we prove Goal 1: $U_i|\equiv {(U}_i\stackrel{SK}{\leftrightarrow }{S}_j)$.

It can be seen from Goal 1, Goal 2, Goal 3, and Goal 4 that the mutual authentication between user $U_i$ and server $S_j$ is completed, and the session key SK trusted by both parties is reached.

6.3. Informal Security Analysis

The new scheme can effectively improve the shortcomings of Chatterjee et al.’s scheme. First of all, the new protocol ensures that the information related to user identity and security factors are used reasonably in the process of generating login request information, which can effectively resist the user impersonation attack. Secondly, in the verification phase of smart cards, the modular operation is introduced, which can avoid the offline password guessing attack so as to achieve three-factor security. Finally, the construction of user login request information needs the participation of random numbers to ensure the realization of user un-traceability.

On the other hand, according to the description of the login and authentication phase of the new protocol, only with the ID, password, biological information, and smart card of the legal user U_i, the user can generate the legal login request information while only the server S_j with the legal K_j can generate the legal response information. Therefore, on the basis of ensuring the mutual authentication between the user and the server, the server S_j can get the correct ${PID}_i$ by calculating ${PID}_i{ = CID}_{\mathit{ij}} \oplus { h(P}_{\mathit{ij}}\parallel {(E}_{\mathit{ij}} \oplus { K}_j\left)\right)$. Due to the semi-group property of the extended Chebyshev polynomials, $T_{\mathit{ij}}{ = T}_{n_i}{(N}_j{) = T}_{n_j}{(N}_i{) = T}_{\mathit{ji}}$, U_i and S_j reach the session key ${SK}_{\mathit{ji}}{ = h(PID}_i\parallel P_{\mathit{ij}}\parallel T_{\mathit{ji}}{) = h(PID}_i\parallel P_{\mathit{ij}}\parallel T_{\mathit{ij}}{) = SK}_{\mathit{ij}}$ for future sessions. They complete the session key agreement, and the contributions to session key generation are equal. Next, we make a specific security analysis of our proposed protocol.

(1)

Anonymity and un-traceability

In the login and authentication phase, the adversary can intercept the login request information of the user and the response information of the server. Obviously, under the protection of Hash function, the adversary cannot obtain the user's identity. Therefore, the proposed scheme can achieve user anonymity. On the other hand, the construction of $P_{\mathit{ij}}{, CID}_{\mathit{ij}}{, N}_i{, M}_1{, M}_2{, M}_3$, and ${ M}_4$ is related to the random number n_i or n_j. Therefore, the interactive information generated in each session is different. Even if the adversary intercepts the message, it is still unable to determine whether two sessions originate from the same user. Therefore, the new protocol can achieve user un-traceability.

(2)

Perfect forward secrecy

Suppose that the adversary accidentally obtains the private keys of RC: x and y, and intercepts the information ${\{P}_{\mathit{ij}}{, CID}_{\mathit{ij}}{, N}_i{, M}_1{, M}_2{, M}_3{, M}_4\}$ propagated in the public channel. The adversary can compute $E_{\mathit{ij}}{ = P}_{\mathit{ij}} \oplus { h(SID}_j\parallel h(x\parallel y)\parallel N_i)$, $B_i{ = E}_{\mathit{ij}} \oplus { h(SID}_j\parallel y)$, ${PID}_i{ = CID}_{\mathit{ij}} \oplus { h(P}_{\mathit{ij}}\parallel B_i)$, $N_k{ = h(B}_i\parallel N_i)$, $N_j{ = M}_3 \oplus { N}_k$. However, it is a CMCDH problem to get $T_{\mathit{ij}}{ = T}_{n_i}{(N}_j{) = T}_{n_j}{(N}_i{) = T}_{\mathit{ji}}$ in polynomial time from the known information. Therefore, the adversary is still unable to calculate the session key between user U_i and S_j, and the perfect forward secrecy of the new scheme is realized.

(3)

Mutual authentication

According to the description of the new scheme, only with U_i's identity, password, smart card, and biometrics can the legitimate login request information be generated. The server can authenticate the U_i’s identity by verifying the legitimacy of the received information. On the other hand, only the server S_j with legal K_j can correctly respond to the user’s login request information. Therefore, the new scheme realizes the mutual authentication between the user and the server.

(4)

Session key agreement

Based on the description of the new scheme, the user and the server can reach the session key for future communication after completing the login and authentication phase ${SK}_{\mathit{ji}}{ = h(PID}_i\parallel P_{\mathit{ij}}\parallel T_{\mathit{ji}}{) = h(PID}_i\parallel P_{\mathit{ij}}\parallel T_{\mathit{ij}}{) = SK}_{\mathit{ij}}$.

(5)

Three-factor security

For the three-factor authentication protocol, the difficulty of breaking through the user password is obviously lower than the difficulty of breaking through the secret information of smart cards or user biometrics. Suppose the adversary accidentally obtains the smart card and biometrics of U_i, and the secret information in the smart card is extracted through the side-channel technology. However, the verification $A_i{ ?= h(ID}_i\parallel {PWB}_i) mod n$ performed by the smart card in the login phase is a fuzzy verification. Even if the adversary’s guess ${(ID}_{U_i}^{*}{, PW}_i^{*})$ passes the above verification, the adversary still cannot confirm whether ${ PW}_i^{*}$ is the real password of U_i. Specifically, through offline password guessing, the adversary can get ${|D}_{id}|·{|D}_{pw}{|/2}^8 \approx { 2}^{32}$ possible ${(ID}_{U_i}^{*}{, PW}_i^{*})$ pairs. The adversary still needs to log in online (not offline) and traverse these user identity and password pairs to obtain the accurate user password. The server can identify the victim according to the adversary’s login request. By setting the threshold of login times, when the adversary’s online login times exceed the threshold, the server can refuse the adversary’s login request. The adversary cannot log in to the system many times, so he cannot get the correct one of the ${ 2}^{32}$ possible passwords. Therefore, the new protocol can achieve three-factor security.

(6)

Good Repairability

In our proposed scheme, the user U_i's private information stored in the smart card includes $A_i{ = h(ID}_i\parallel {PWB}_i{) mod n = h(ID}_i\parallel {h(PW}_i\parallel b_i\left)\right) mod n$, $C_i{ = B}_i \oplus { PWB}_i {= h\left(h\right(ID}_i\parallel b_i)\parallel x) \oplus { PWB}_i$, $E_{\mathit{ij}}{ = B}_i \oplus { K}_j {= h\left(h\right(ID}_i\parallel b_i)\parallel x) \oplus { K}_j$, $F_{\mathit{ij}}{ = D}_{\mathit{ij}} \oplus { h(B}_i{) = D}_{\mathit{ij}} \oplus { h\left(h\right(h(ID}_i\parallel b_i)\parallel x\left)\right)$. Therefore, U_i's password and biometrics will directly affect the secret information. When the smart card SC_i is lost, U_i only needs to modify his password and biometrics to ensure the security of the system. Thus, our scheme has good repairability.

(7)

Resistance of other known attacks

Insider attack: Insiders can get the registration information ${\{ID}_i{, PID}_i{, PWB}_i\}$ of user U_i. However, the information is protected by Hash function, and the attacker cannot extract the user’s password or biometrics. Therefore, the insider attack is invalid for the proposed new scheme.

Stolen verifier table attack: There is no password-related and biometric-related information table stored in the servers and RC. Therefore, the stolen verifier table attack is infeasible in our proposed scheme.

Temporary information leakage attack: In our proposed scheme, the user $U_i$ and the server $S_j$ reach a session key ${SK}_{\mathit{ji}}{ = h(PID}_i\parallel P_{\mathit{ij}}\parallel T_{\mathit{ji}}{) = h(PID}_i\parallel P_{\mathit{ij}}\parallel T_{\mathit{ij}}{) = SK}_{\mathit{ij}}$. Even if an adversary captured the temporary information n_i and n_j, he could not launch a temporary information leakage attack without ${PID}_i$. As a result, our proposed scheme can resist a temporary information leakage attack.

Replay attack: According to the description of the proposed protocol, the user and the server generate the new random number n_i and n_j in the authentication phase. Both sides can easily find replay attacks by checking the validity of the received message. Therefore, the new protocol can effectively resist replay attacks.

DoS attack: After receiving the login request from U_i, the server S_j verifies whether $M_1^{*}{ ?= M}_1$ holds. Only U_i calculates the legitimate login request information according to his identity, password, biometrics, and smart card and can pass the verification. Therefore, S_j can confirm that the login request is from U_i, which can effectively reject a large number of invalid login requests from attackers.

According to the previous analysis and proof, we also know that the new scheme can resist user impersonation attacks, server spoofing attacks, man-in-the-middle attacks, offline password guessing attacks, and smart card stolen attacks.

7. Performance Analysis

In this section, we will compare the performance of the proposed new protocol with other authentication protocols based on the extended chaotic map in multi-server environments, including the comparison of computation cost and communication cost. Since the registration phase of users and servers only occurs once, and users do not frequently update their passwords and biometrics, this section only discusses the performance comparison between the login and authentication phases.

7.1. Comparison of Computing Costs

The new scheme and other similar protocols [30,39,40,41] all use fuzzy extractor algorithm or bio-hash function to extract users’ biometrics for protocol design. According to literature [42,43], the time cost of the fuzzy extractor algorithm and bio hash function is considered equal. Therefore, the user biometric extraction operation is ignored in the comparison of computation cost.

The comparison between the new proposed protocol and the protocols proposed by Chatterjee et al. [30], Lee et al. [39], Irshad et al. [40], and Braeken et al. [41] is shown in

Table 6. Comparison of computing costs (millisecond).

Protocol	User	Server
Chatterjee et al.	${10T}_h{+3T}_{\mathit{ch}}{+2T}_{e/d} \approx 85.46$	${6T}_h{+3T}_{\mathit{ch}}{+2T}_{e/d} \approx 8.432$
Lee et al.	${12T}_h{+3T}_{\mathit{ch}} \approx 69.06$	${7T}_h{+3T}_{\mathit{ch}} \approx 6.732$
Irshad et al.	${7T}_h{+4T}_{\mathit{ch}} \approx 87.58$	${4T}_h{+4T}_{\mathit{ch}} \approx 8.656$
Braeken et al.	${7T}_h{+3T}_{\mathit{ch}}{+T}_{e/d} \approx 75.26$	${6T}_h{+3T}_{\mathit{ch}}{+T}_{e/d} \approx 7.552$
Proposed	${10T}_h{+2T}_{\mathit{ch}} \approx 47.04$	${8T}_h{+2T}_{\mathit{ch}} \approx 4.688$

. The symbols used in the table have the following meanings:

$T_h$: Time to execute a general hash operation.

$T_{e/d}$: Time to execute a symmetric encryption/decryption algorithm.

$T_{\mathit{ch}}$: Time to execute a chaotic map operation.

(The computation overhead of XOR operation is ignored).

The running time of the user to perform the above operation is obtained from the experiment of Intel Pentium 4 2600 MHZ processor and 1024 MB memory platform in reference [30]. The server performance is assumed to be 10 times of 2.4 GHz processor and 2GB memory platform. The running time of different operations on two platforms is shown in

Table 7. Running time of operations (millisecond).

Protocol	User	Server
$T_{\mathit{ch}}$	21.02	2.104
$T_{e/d}$	8.7	0.88
$T_h$	0.5	0.06

.

From the results in Table 7, the proposed protocol has a lower computation cost than the other four protocols for both the user and server sides.

7.2. Comparison of Communication Costs

For the convenience of comparison, it is assumed that the length of identification, random number, timestamp, and other parameters involved in the new protocol and other related protocols is 128 bits, the length of large prime p is 128 bits, the output length of Hash function is 160 bits (such as SHA-1), and the ciphertext length of the symmetric encryption algorithm is an integral multiple of 128 bits (such as AES).

In the login and authentication phase of the proposed protocol, the interaction information between the user and the server includes ${\{P}_{\mathit{ij}}{, CID}_{\mathit{ij}}{, N}_i{, M}_1\}$, ${\{M}_2{, M}_3\},$ and ${\{M}_4\}$. The total length of interactive information is $160 * 7 = 1120 \mathrm{bits}$.

In the login and authentication phase of Chatterjee et al.’s protocol, the interaction information between the user and the server includes ${\{ID}_i{,ID}_{S_j}{,E}_{K_1}{(ID}_i\parallel {ID}_{S_j}\parallel T_{K_1}\parallel T_{x_i}{(K}_s)\parallel T_{x_i}{(K}_u)\parallel T_{x_i}{(K}_{u_i})\parallel {RN}_i\parallel K_i{),TS}_i{, H(K}_i\parallel {TS}_i\parallel {ID}_i\parallel {ID}_{S_j}\parallel {RN}_i\parallel$ $T_{x_i}{(K}_u)\parallel T_{K_1}\left)\right\}$ and ${\{ID}_i{,ID}_{S_j}{,E}_{K_2}{(ID}_i\parallel {ID}_{S_j}\parallel Y\parallel T_{x_j}{(K}_u)\parallel {RN}_j\parallel T_{K_3}{),H(TS}_i\parallel {TS}_j\parallel {RN}_i\parallel {RN}_j\parallel Y\parallel T_{K_3}\parallel T_{x_j}{(K}_u{\left)\right),TS}_j\}$. The total length of interactive information is $(128 + 128 + 128 * 9 + 128 + 160) + (128 + 128 + 128 * 7 + 128 + 160) = 3136 \mathrm{bits}$.

Table 8. Comparison of communication costs.

Protocol	Number of Messages	Length of Interactive Information
Chatterjee et al.	2 messages	3136 bits
Lee et al.	2 messages	1152 bits
Irshad et al.	2 messages	992 bits
Braeken et al.	2 messages	1216 bits
Proposed	3 messages	1120 bits

shows the comparison of communication cost between the proposed new protocol and Chatterjee et al. [30], Lee et al. [39], Irshad et al. [40], and Braeken et al. [41]. From the comparison results, it can be seen that the communication cost of the new proposed scheme is at a better level compared with similar protocols, and it has good communication efficiency. It should be noted that our scheme is the only one that needs three times of data transmission. This is to further strengthen the identity authentication of the server to the user, to further ensure the security of the system. If we give up the information M₄ that the user transmits to the server, the server can complete the authentication of the user in the second step of the authentication phase and also generate the session key ${SK}_{\mathit{ji}}$. We finally choose stronger security, and the communication overhead caused by this is acceptable.

8. Conclusions

In recent years, multi-server network architecture is widely used in practical applications. Moreover, due to the insecurity of the network, abundant researches on authentication and key agreement protocol for multi-server architecture have been put forward. In 2018, Chatterjee et al. published an authentication protocol based on an extended Chebyshev chaotic map for multi-server environments. However, through the analysis of their protocol, we find that the protocol cannot achieve user un-traceability and three-factor security and cannot resist the counterfeiting attacks launched by malicious users. In order to ensure the communication security of participants in multi-server network environments, this study proposed a secure three-factor authentication protocol based on the extended chaotic map. The new protocol can effectively avoid the security defects of Chatterjee’s protocol and achieve all known security goals. Moreover, the proposed scheme is analyzed and verified by the provable security and BAN logic. The results show that our scheme realizes the mutual authentication of communication participants and can effectively resist all kinds of attacks. Compared with other related protocols, the new protocol has good practicability and can be applied to multi-server environments.
