Calculation of Two Types of Quaternion Step Derivatives of Elementary Functions

Abstract

We aim to get the step derivative of a complex function, as it derives the step derivative in the imaginary direction of a real function. Given that the step derivative of a complex function cannot be derived using i, which is used to derive the step derivative of a real function, we intend to derive the complex function using the base direction of the quaternion. Because many analytical studies on quaternions have been conducted, various examples can be presented using the expression of the elementary function of a quaternion. In a previous study, the base direction of the quaternion was regarded as the base separate from the basis of the complex number. However, considering the properties of the quaternion, we propose two types of step derivatives in this study. The step derivative is first defined in the j direction, which includes a quaternion. Furthermore, the step derivative in the $\frac{j+k}{\sqrt{2}}$ direction is determined using the rule between bases i, j, and k defined in the quaternion. We present examples in which the definition of the j-step derivative and $(j,k)$-step derivative are applied to elementary functions $e^z$, $sinz$, and $cosz$.

1. Introduction

Sensitivity analysis is an important area in engineering research; hence, when selecting a sensitivity calculation method, the accuracy and computational cost must be considered. The commonly used method for sensitivity calculation is the finite difference. Although it lacks computational accuracy and efficiency, the biggest advantage of this method is that it is easy to implement. Analytical methods for sensitivity analysis are more accurate and can be classified in terms of the derivation and implementation. According to Martins et al. [1,2], the continuous approach for deriving the sensitivity equation of a given system involves the differentiation of the sensitivity equation followed by the discretization of the resulting sensitivity equation, before solving the numerical values. The alternative discrete approach involves the discretization of the governing equation followed by its differentiation to obtain a sensitivity equation that can be solved numerically.

The application of complex variables to develop estimates of the derivatives and Taylor’s formula have been extensively studied. Agarwal and Bohner [3] developed basic tools of calculus on time scales such as Taylor’s formula and L’Hôspital’s rule. Agarwal et al. [4] established inclusions involving the Riemann–Liouville fractional derivative. Lyness and Moler [5] and Lyness [6] introduced several methods using complex variables, including a reliable method for calculating the n-th derivative of an analytical function. This theory was used by Squire and Trapp [7] to obtain a simple expression for estimating the first derivative. The estimate, which was demonstrated as suitable for application in modern numerical calculations, can be easily implemented, while maintaining reasonable computational costs. Hence, this technique has been used for sensitivity analysis in a wide variety of environments, including computational fluid dynamics (see [8,9]). Lai and Crassidis [10,11] further examined the approach of Martins et al. [1,2], and based on the results of studying the derivation of the step derivative along the complex direction for a real function using the Taylor series expansion, a complex step differential approximation and its application to a numerical algorithm were presented (see [12,13,14,15]). Kim et al. [16,17,18] investigated the composition and properties of quaternion functions based on the algebraic features of quaternions. They suggested that the definitions of the function limit and the derivative are not uniquely determined by the noncommutativity of the product, which is a typical characteristic of the quaternary function basis. Therefore, by proposing various types of differential operators and applying differentiation calculations and results according to the shape of the differential operators, a theorem to replace the definition of the differential was presented.

Roelfs et al. [19] and Turner [15] defined the quaternion direction and proposed a step derivative of the complex function in the quaternion direction. They proposed the quaternion direction by using the properties of the complex-like form and the form corresponding to the Pauli matrix. In [15,19], although the quaternion number is a number system that extends the complex number, a step derivative was proposed by interpreting base i of the complex number as a separate base that can be exchanged without being treated as part of the quaternion-number base. Motivated by their approach, but unlike [15,19], this study focuses on the definition and structure of quaternions based on the original meaning proposed by Hamilton and proposes a step derivative by recognizing complex number i as the basis of the quaternion. This defines the step derivative of the complex function, while retaining the meaning and characteristics of the quaternion.

In this paper, we propose a definition of the quaternion step derivative for a complex function with reference to the method of deriving the complex step derivative for a real function. Considering the rule between the base of the quaternion and that of the complex number, we propose two types of step derivatives using the Taylor series expansion. In Section 1, the step derivative is first defined in the j direction, which includes a quaternion. As the derivative of the complex function should be included in the complex system, the step derivative is presented by specifying the terms included in the complex system in the Taylor series expansion using the property between i and j. Section 2 defines the step derivative in the $(j,k)$ direction. The step derivative in the $\frac{j+k}{\sqrt{2}}$ direction is presented to apply the same magnitude and direction in the j and k directions using the rule between bases i, j, and k defined in the quaternion. In Section 1 and Section 2, we provide examples in which the definition of the j-step and $(j,k)$-step derivatives are applied to elementary functions $e^z$, $sinz$, and $cosz$. Further, the value of the step derivative at a certain point and the relative error of the derivative value determined using the differential method of the complex function are calculated. Based on the graphs for the calculated results, we demonstrate the effectiveness of the j-step and $(j,k)$-step derivative values. In Section 3, the j-step derivative proposed in Section 1 and the $(j,k)$-derivative proposed in Section 2 are compared, and the characteristics of each derivative depending on the direction of Taylor series expansion and the magnitude of h are summarized. In addition, as a future development plan, the step derivative of the quaternionic function is conceived of by defining the step derivative in the base direction of various Clifford algebras.

2. Quaternion $j$-Step Derivative

Let $\mathbb{H}$ be a set of quaternions denoted by:

$$\mathbb{H}:=\left\{q\right|q=a+ib+jc+kd,a,b,c,d\in \mathbb{R}\},$$

satisfying $i^2=j^2=k^2=-1$, $ij=-ji=k$, $jk=-kj=i$, and $ki=-ik=j$. Now, considering the properties of the basis of the quaternion, we derive a new step derivative in the j-direction as follows:

A small step h is expanded in the direction of imaginary unit j of the quaternion, whose direction is different from that of imaginary unit i of the complex number. As per the definition of the Taylor series expansion,

$$f(z+jh)=f\left(z\right)+f^{\prime }\left(z\right)jh-\frac{1}{2!}{f}^{″}\left(z\right)h^2-\frac{1}{3!}{f}^{\left(3\right)}\left(\zeta \right)j{h}^3,$$

(1)

where $\zeta$ is a quaternion constant between z and $z+jh$, which means that it is located in a place not exceeding the real h size along the axis j perpendicular to the plane where the complex number z exists. If Equation (1) is rearranged to express the quaternionic step derivative of a complex-valued function of complex variable $z=x+iy$, we have:

$$-f(z+jh)j=-f\left(z\right)j+f^{\prime }\left(z\right)h+\frac{1}{2!}{f}^{″}\left(z\right)h^{2}j-\frac{1}{3!}{f}^{\left(3\right)}\left(\zeta \right)h^3.$$

The aim of this study is to determine how derivative $f^{\prime }\left(z\right)$ of $f\left(z\right)$ is obtained. Because the derivative of a complex function is defined in the complex system, we define ${[·]}_{\mathbb{C}}$. Let ${[·]}_{\mathbb{C}}:\mathbb{H}\to \mathbb{C}$ be a function that outputs only the complex numbers in ${[·]}_{\mathbb{C}}$; i.e., from the quaternion applied to ${[·]}_{\mathbb{C}}$, the elements corresponding to the complex numbers are extracted. For example,

$${[a+ib+jc+kd]}_{\mathbb{C}}=a+ib.$$

Hence,

$$\frac{1}{h}{[-f(z+jh)j]}_{\mathbb{C}}=f^{\prime }\left(z\right)-\frac{1}{3!}{f}^{\left(3\right)}\left(\zeta \right)h^2.$$

We finally obtain the following equation:

$$f^{\prime }\left(z\right)=\frac{1}{h}{[-f(z+jh)j]}_{\mathbb{C}}+\frac{1}{3!}{f}^{\left(3\right)}\left(\zeta \right)h^2.$$

The truncation about the derivative terms greater than or equal to two is motivated by referring to the error analysis in [2,10,11] containing the error analysis in the domain of the extension step from real functions to complex functions and in [15,19] containing the error analysis in the domain of the extension step from complex functions to quaternionic functions. Thus:

Definition 1.

For sufficiently small h, the first derivative of f can be derived using the following equation:

$$f^{\prime }\left(z\right)=\frac{1}{h}{[-f(z+jh)j]}_{\mathbb{C}}.$$

This is called the quaternion j-step derivative of f.

Using Definition 1, we find the quaternion j-step derivative for each following elementary function.

Example 1.

For a complex variable z, the quaternion j-step derivative of the exponential function $f\left(z\right)=e^z$ can be calculated as follows:

$$f^{\prime }\left(z\right)=\frac{1}{h}{[-e^{(z+jh)}j]}_{\mathbb{C}}+\frac{1}{3!}{f}^{\left(3\right)}\left(\zeta \right)h^2$$

and for sufficiently small $h>0$,

$$\begin{array}{ccc}\hfill f^{\prime }\left(z\right)& =& \frac{1}{h}{[-e^{(z+jh)}j]}_{\mathbb{C}}\hfill \\ & =& \frac{1}{h}{\left[-e^x\left(cos\sqrt{y^2+h^2}+\frac{iy+jh}{\sqrt{y^2+h^2}}sin\sqrt{y^2+h^2}\right)j\right]}_{\mathbb{C}}\hfill \\ & =& \frac{e^{x}sin\left(\sqrt{y^2+h^2}\right)}{\sqrt{y^2+h^2}}.\hfill \end{array}$$

Let $f_T^{\prime }\left(z\right)$ and $f^{\prime }\left(z\right)$ be functions that print the actual and measured values, respectively. With the complex derivative, using the definition of complex analysis, we obtain $f_T^{\prime }\left(z\right)$. The $f_T^{\prime }\left(z\right)$ for the function that will be used in the examples (we will cover later) is derived by [20]. For $z_0=\frac{\pi }{4}+i\frac{\pi }{3}$, the quaternion j-step derivative of $e^z$ is:

$$f^{\prime }\left(z_0\right)=\frac{e^{\frac{\pi }{4}}sin\left(\sqrt{{\left(\frac{\pi }{3}\right)}^2+h^2}\right)}{\sqrt{{\left(\frac{\pi }{3}\right)}^2+h^2}}.$$

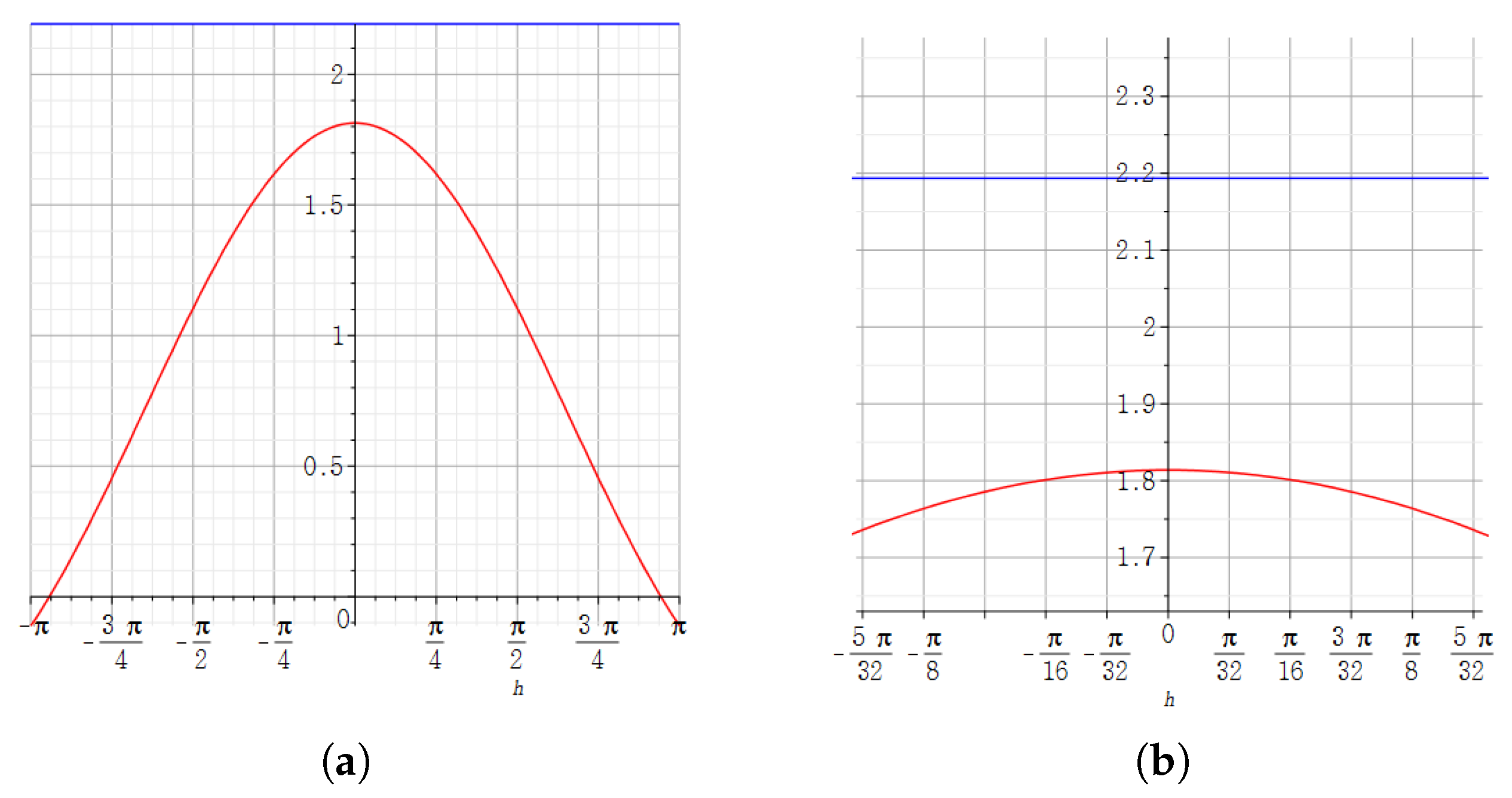

Figure 1 illustrates the quaternion j-step derivative of $e^z$ at $z_0=\frac{\pi }{4}+i\frac{\pi }{3}$ with respect to h.

For $z_0=\frac{\pi }{4}+i\frac{\pi }{3}$, the relative error $E_R$ of the quaternion j-step derivative of $e^z$ is:

$$\begin{array}{ccc}\hfill E_R& :=& \left|\frac{f^{\prime }\left(z_0\right)-f_T^{\prime }\left(z_0\right)}{f_T^{\prime }\left(z_0\right)}\right|\hfill \\ & =& \sqrt{{\left(\frac{sin\left(\sqrt{{\left(\frac{\pi }{3}\right)}^2+h^2}\right)}{\sqrt{{\left(\frac{\pi }{3}\right)}^2+h^2}}\right)}^2-\frac{sin\left(\sqrt{{\left(\frac{\pi }{3}\right)}^2+h^2}\right)}{\sqrt{{\left(\frac{\pi }{3}\right)}^2+h^2}}+1}.\hfill \end{array}$$

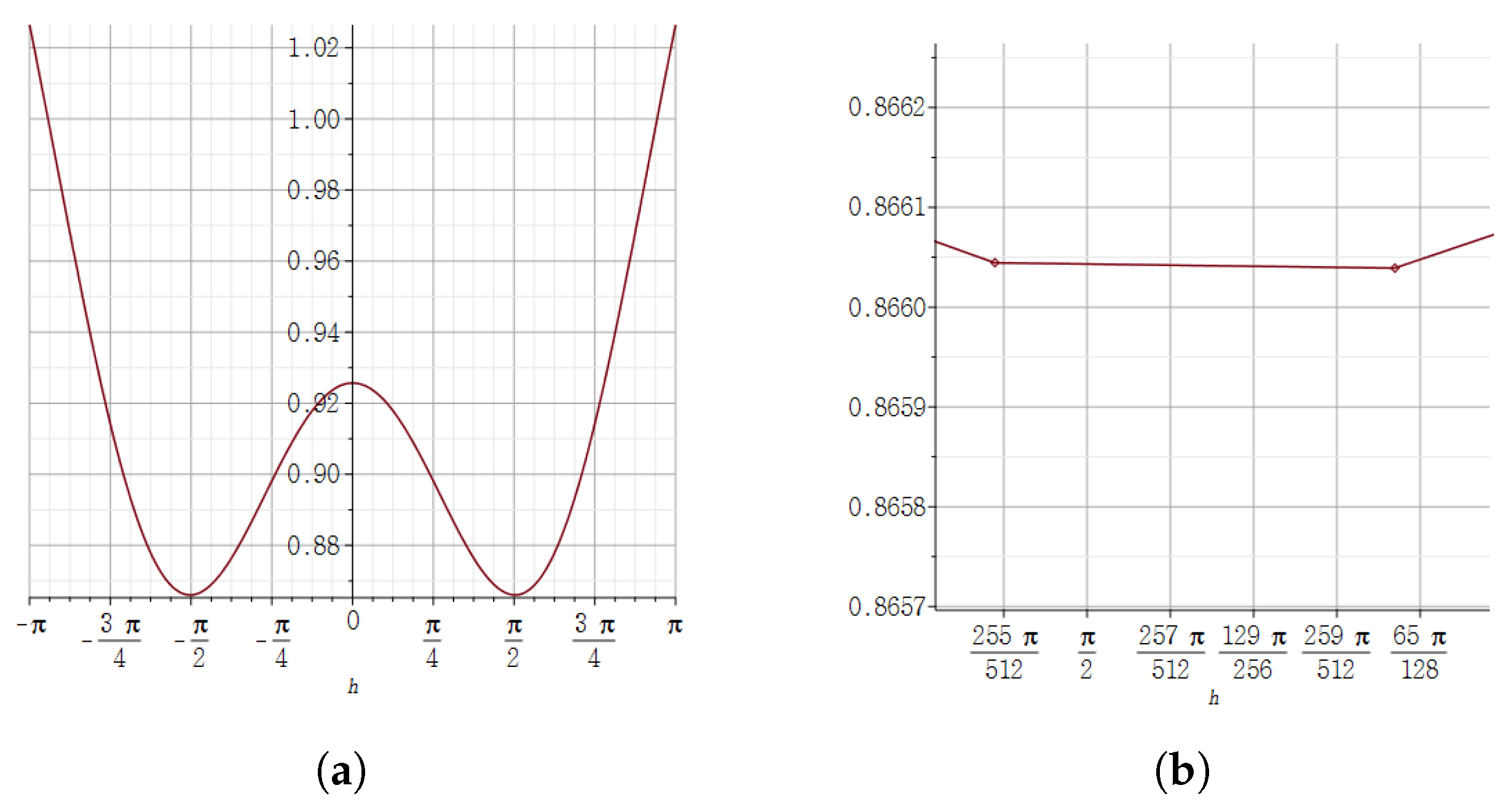

Figure 2 depicts the relative error of $e^z$ with respect to h.

Example 2.

As another example, for a complex variable z, the quaternion j-step derivative of the cosine function $f\left(z\right)=cos\left(z\right)$ can be calculated as follows:

$$f^{\prime }\left(z\right)=\frac{1}{h}{[-cos(z+jh)j]}_{\mathbb{C}}+\frac{1}{3!}{f}^{\left(3\right)}\left(\zeta \right)h^2.$$

For sufficiently small $h>0$,

$$\begin{array}{ccc}\hfill f^{\prime }\left(z\right)& =& \frac{1}{h}{[-cos(z+jh)j]}_{\mathbb{C}}\hfill \\ & =& -\frac{1}{2}\frac{(e^{\sqrt{y^2+h^2}}-e^{-\sqrt{y^2+h^2}})sinx}{\sqrt{y^2+h^2}}.\hfill \end{array}$$

For $z_0=\frac{\pi }{4}+i\frac{\pi }{3}$, with the quaternion j-step derivative,

$$f^{\prime }\left(z_0\right)=-\frac{1}{2\sqrt{2}}\frac{e^{\sqrt{{\left(\frac{\pi }{3}\right)}^2+h^2}}-e^{-\sqrt{{\left(\frac{\pi }{3}\right)}^2+h^2}}}{\sqrt{{\left(\frac{\pi }{3}\right)}^2+h^2}}.$$

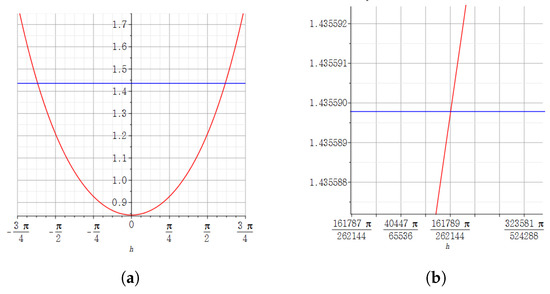

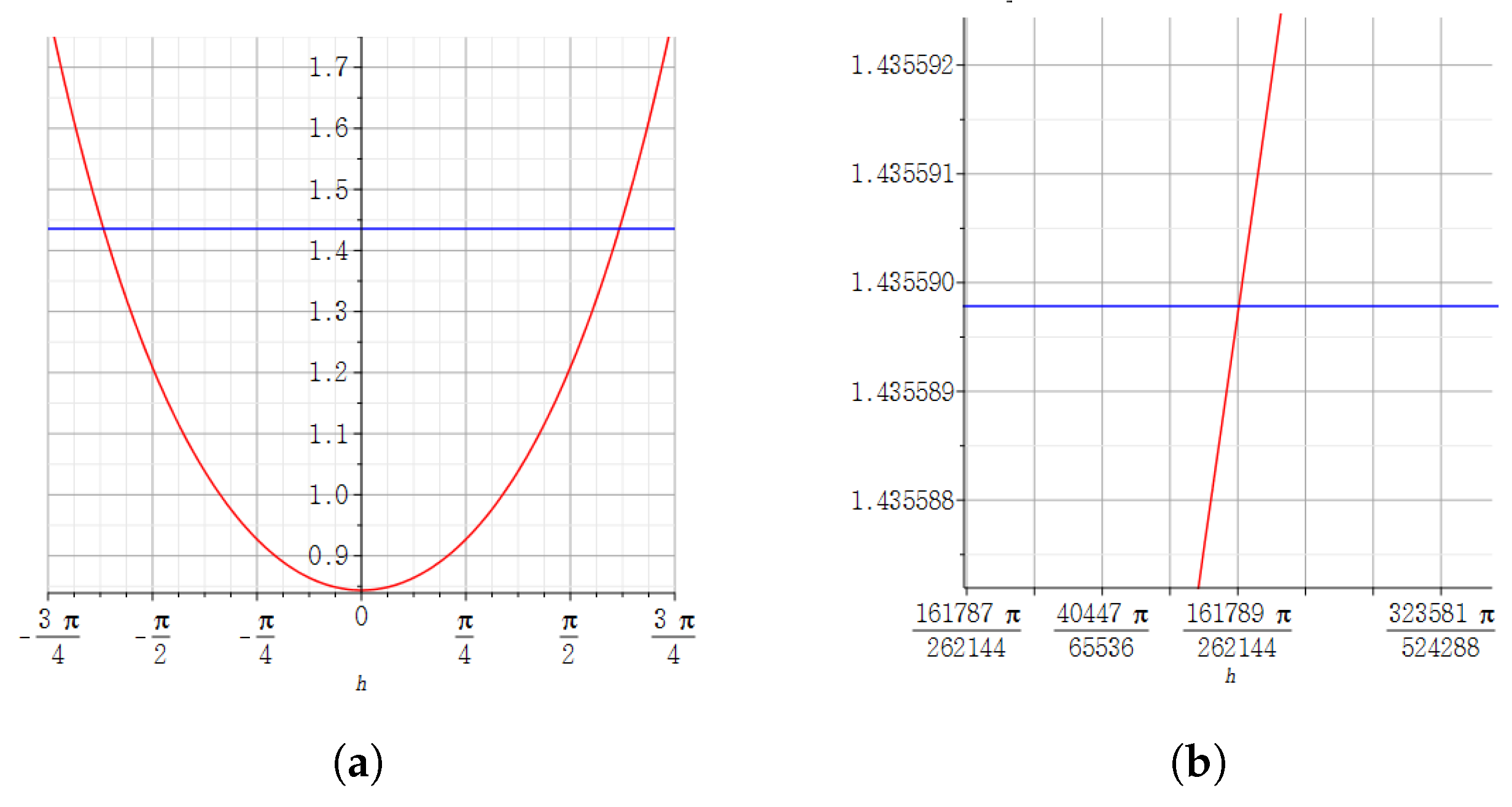

Figure 3 displays the quaternion j-step derivative of $cos\left(z\right)$ at $z_0=\frac{\pi }{4}+i\frac{\pi }{3}$ with respect to h.

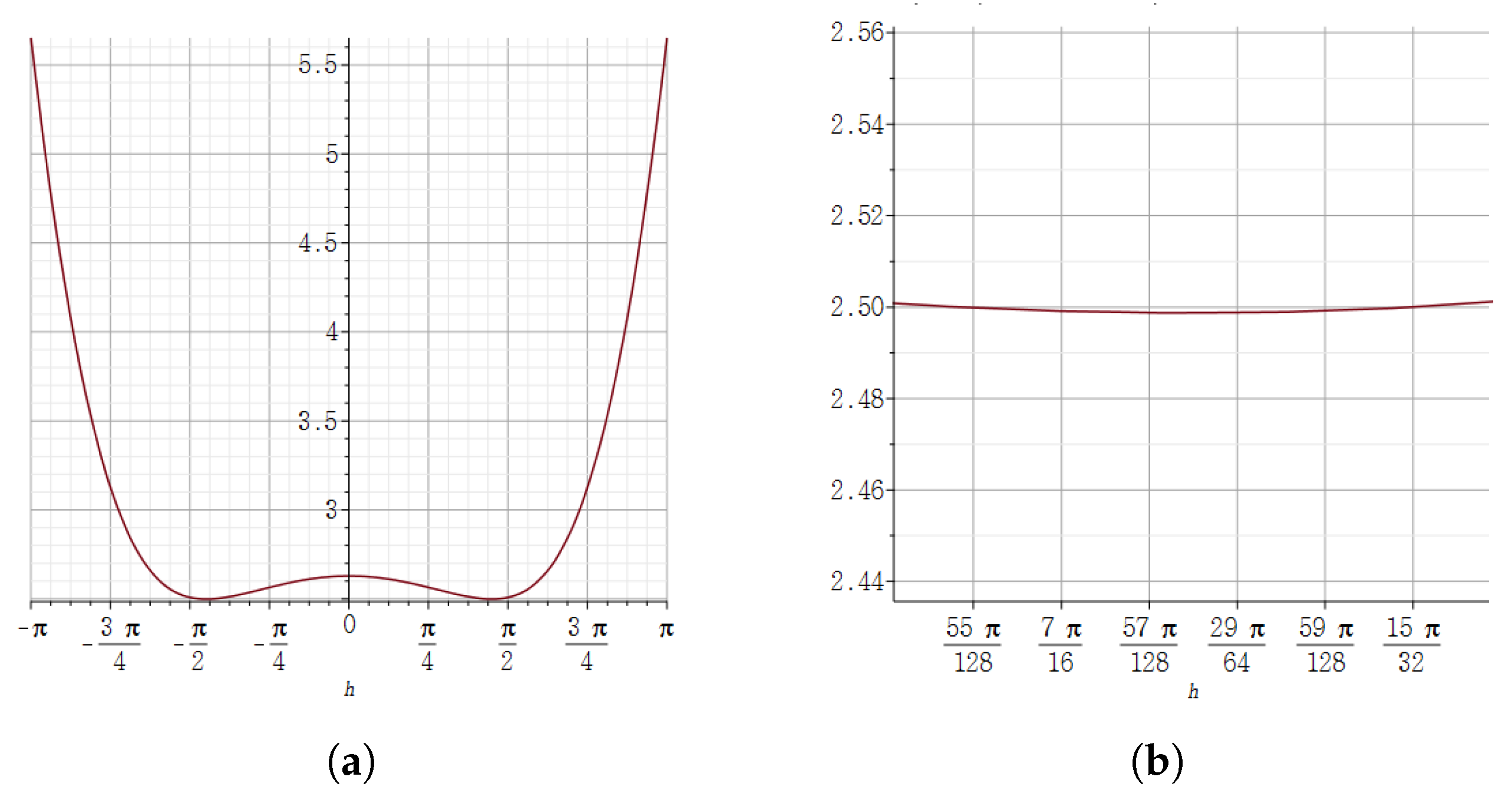

The relative error of the quaternion j-step derivative of $cos\left(z\right)$ at $z_0$ is:

$$\begin{array}{ccc}\hfill E_R& =& \left|\frac{f^{\prime }\left(z_0\right)-f_T^{\prime }\left(z_0\right)}{f_T^{\prime }\left(z_0\right)}\right|\hfill \\ & =& \frac{\sqrt{{\{E\left(h\right)(e^{\frac{\pi }{3}}+e^{-\frac{\pi }{3}})-2(e^{\frac{2\pi }{3}}+e^{-\frac{2\pi }{3}})\}}^2+{\left\{E\left(h\right)(e^{\frac{\pi }{3}}-e^{-\frac{\pi }{3}})\right\}}^2}}{2(e^{\frac{2\pi }{3}}+e^{-\frac{2\pi }{3}})},\hfill \end{array}$$

where ${\displaystyle E\left(h\right):=\frac{e^{\sqrt{{\left(\frac{\pi }{3}\right)}^2+h^2}}-e^{-\sqrt{{\left(\frac{\pi }{3}\right)}^2+h^2}}}{\sqrt{{\left(\frac{\pi }{3}\right)}^2+h^2}}.}$ Figure 4 shows the relative error of $cos\left(z\right)$ with respect to h.

Example 3.

As another example, for a complex variable z, the quaternion j-step derivative of the sine function $f\left(z\right)=sin\left(z\right)$ calculated as per the definition of the quaternion j-step derivative:

$$f^{\prime }\left(z\right)=\frac{1}{h}{[-sin(z+jh)j]}_{\mathbb{C}}+\frac{1}{3!}{f}^{\left(3\right)}\left(\zeta \right)h^2$$

and for sufficiently small $h>0$,

$$\begin{array}{ccc}\hfill f^{\prime }\left(z\right)& =& \frac{1}{h}{[-sin(z+jh)j]}_{\mathbb{C}}\hfill \\ & =& -\frac{1}{2}\frac{(e^{-\sqrt{y^2+h^2}}-e^{\sqrt{y^2+h^2}})cosx}{\sqrt{y^2+h^2}}.\hfill \end{array}$$

For $z_0=\frac{\pi }{4}+i\frac{\pi }{3}$, with the quaternion j-step derivative,

$$f^{\prime }\left(z_0\right)=\frac{1}{2\sqrt{2}}\frac{e^{\sqrt{{\left(\frac{\pi }{3}\right)}^2+h^2}}-e^{-\sqrt{{\left(\frac{\pi }{3}\right)}^2+h^2}}}{\sqrt{{\left(\frac{\pi }{3}\right)}^2+h^2}}.$$

As h approaches $\pm \frac{5\pi }{8}$, the quaternion j-step derivative of $sin\left(z\right)$ at $z_0$ tends to the actual value $f_T^{\prime }\left(z_0\right)$ by the definition of the derivative for a complex system. Furthermore, as h approaches $\pm \frac{\pi }{2}$, the relative error of $sin\left(z\right)$ at $z_0$ tends to zero. In particular, the relative error of the quaternion j-step derivative of $sin\left(z\right)$ at $z_0$ is equal to that of $cos\left(z\right)$ according to the calculation based on the definition of the quaternion j-step derivative. Therefore, Figure 4 also expresses the relative error of the quaternion j-step derivative of $sin\left(z\right)$ at $z_0$.

3. Quaternion $(j,k)$-Step Derivative

The basis of the quaternion is composed of $i,j,k$. In the previous section, the step derivative was derived using j. We now derive the step derivative in the $\frac{j+k}{\sqrt{2}}$ direction, including k as the basis of the quaternion, as follows:

As the direction of $\frac{j+k}{\sqrt{2}}$ is distinct from that of i, which contains the complex-valued functions of a complex variable, we define a formula called the $(j,k)$-step derivative using the Taylor series expansion for $f(z+\frac{j+k}{\sqrt{2}}h)$ at z. With the Taylor series expansion, we have:

$$f(z+\frac{j+k}{\sqrt{2}}h)=f\left(z\right)+f^{\prime }\left(z\right)\frac{j+k}{\sqrt{2}}h-\frac{1}{2!}{f}^{″}\left(z\right)h^2-\frac{1}{3!}{f}^{\left(3\right)}\left(\zeta \right)\frac{j+k}{\sqrt{2}}{h}^3.$$

Multiplying both sides by $-\frac{j+k}{\sqrt{2}}$,

$$-f(z+\frac{j+k}{\sqrt{2}}h)\frac{j+k}{\sqrt{2}}=-f\left(z\right)\frac{j+k}{\sqrt{2}}+f^{\prime }\left(z\right)h+\frac{1}{2!}{f}^{″}\left(z\right)h^2\frac{j+k}{\sqrt{2}}-\frac{1}{3!}{f}^{\left(3\right)}\left(\zeta \right)h^3.$$

Applying ${[·]}_{\mathbb{C}}:\mathbb{H}\to \mathbb{C}$ to extract only the complex functions, we get:

$$\frac{1}{h}{\left[-f(z+\frac{j+k}{\sqrt{2}}h)\frac{j+k}{\sqrt{2}}\right]}_{\mathbb{C}}=f^{\prime }\left(z\right)-\frac{1}{3!}{f}^{\left(3\right)}\left(\zeta \right)h^2.$$

Thus, we obtain the following formula:

Definition 2.

For a complex-valued function $f\left(z\right)$ of a complex variable z, we have:

$$f^{\prime }\left(z\right)=\frac{1}{h}{\left[-f(z+\frac{j+k}{\sqrt{2}}h)\frac{j+k}{\sqrt{2}}\right]}_{\mathbb{C}}+\frac{1}{3!}{f}^{\left(3\right)}\left(\zeta \right)h^2.$$

This is called the quaternion $(j,k)$-step derivative of $f\left(z\right)$. As h approaches a sufficiently small value, the term $\frac{1}{3!}{f}^{\left(3\right)}\left(\zeta \right)h^2$ tends to zero.

The quaternion $(j,k)$-step derivative is derived with reference to the definition of the elementary functions of a quaternion variable summarized in [21]. Functions $cosq$ and $sinq$ are defined as follows:

$$cosq=\frac{1}{2}\left(e^{q\frac{iy+jh+kh}{\sqrt{y^2+2h^2}}}+e^{-q\frac{iy+jh+kh}{\sqrt{y^2+2h^2}}}\right)$$

and:

$$sinq=\frac{1}{2}\frac{iy+jh+kh}{\sqrt{y^2+2h^2}}\left(e^{q\frac{iy+jh+kh}{\sqrt{y^2+2h^2}}}-e^{-q\frac{iy+jh+kh}{\sqrt{y^2+2h^2}}}\right).$$

Referring to [21], we consider the quaternion $(j,k)$-step derivative of the elementary functions.

Example 4.

For example, for a complex variable z, the quaternion $(j,k)$-step derivative of the exponential function $f\left(z\right)=e^z$ is as follows:

$$\begin{array}{ccc}\hfill f^{\prime }\left(z\right)& =& \frac{1}{h}{\left[-e^{z+(j+k)h}\frac{j+k}{\sqrt{2}}\right]}_{\mathbb{C}}\hfill \\ & =& \frac{1}{h}{\left[-e^x(cos\sqrt{y^2+2h^2}+\frac{iy+jh+kh}{\sqrt{y^2+2h^2}}sin\sqrt{y^2+2h^2})\frac{j+k}{\sqrt{2}}\right]}_{\mathbb{C}},\hfill \\ & =& \frac{e^{x}sin\sqrt{y^2+2h^2}}{\sqrt{y^2+2h^2}}.\hfill \end{array}$$

For $z_0=\frac{\pi }{4}+i\frac{\pi }{3}$, the quaternion $(j,k)$-step derivative of $f\left(z\right)=e^z$ is:

$$f^{\prime }\left(z_0\right)=\frac{e^{\frac{\pi }{4}}sin\sqrt{{\left(\frac{\pi }{3}\right)}^2+2h^2}}{\sqrt{{\left(\frac{\pi }{3}\right)}^2+2h^2}}.$$

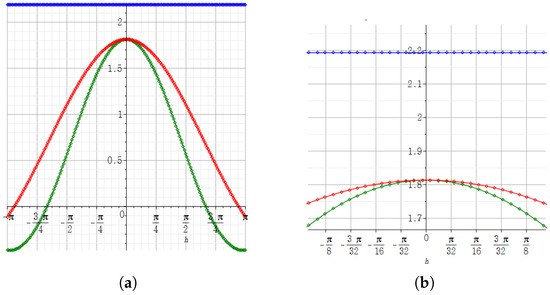

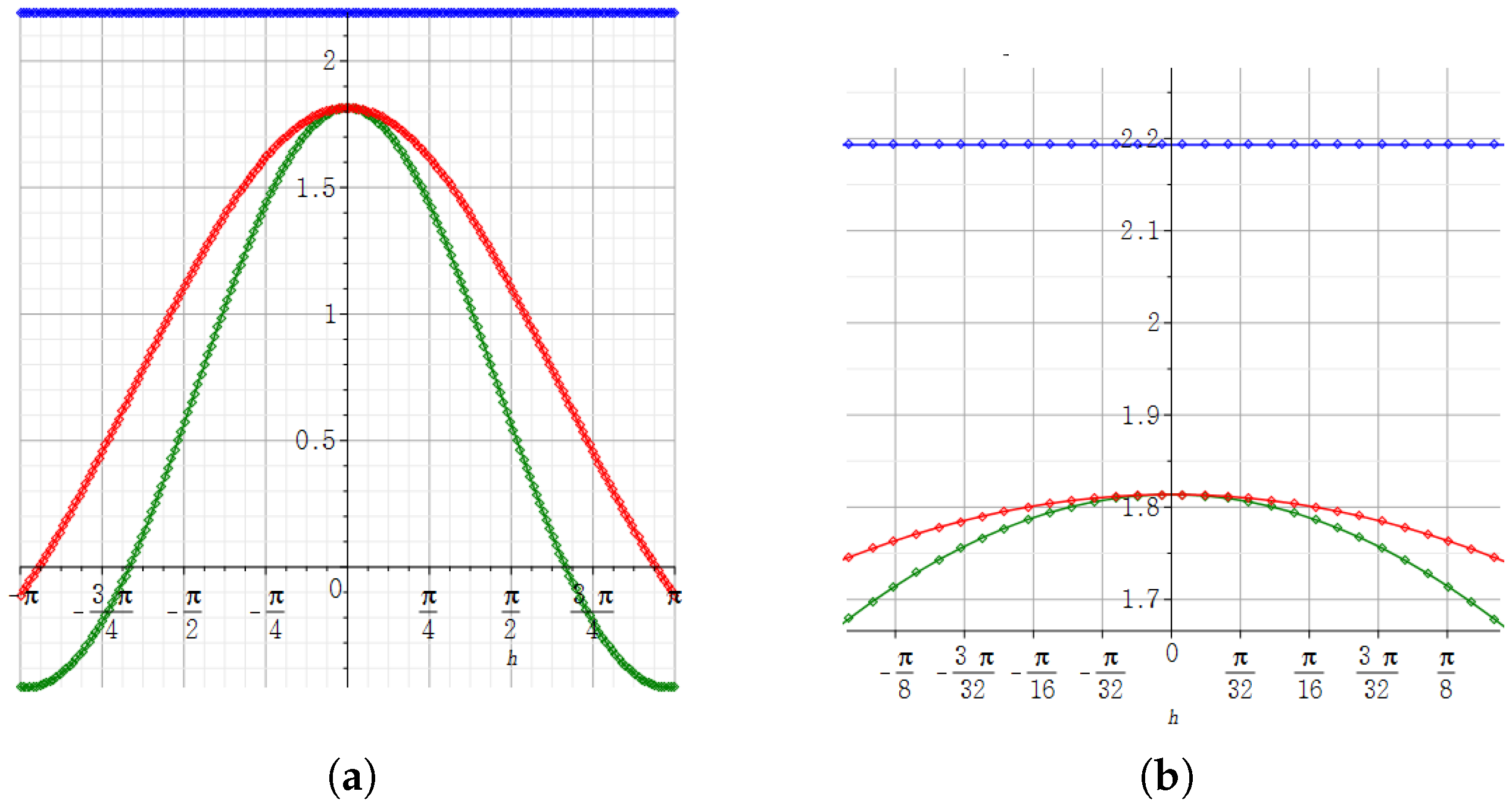

Figure 5 illustrates the quaternion $(j,k)$-step derivative of $e^z$ at $z_0=\frac{\pi }{4}+i\frac{\pi }{3}$ with respect to h.

For the true value of $f_T^{\prime }\left(z_0\right)$, the relative error of the quaternion $(j,k)$-step derivative of $e^z$ at $z_0$ is:

$$E_R=\sqrt{{\left(\frac{sin\left(\sqrt{{\left(\frac{\pi }{3}\right)}^2+2h^2}\right)}{\sqrt{{\left(\frac{\pi }{3}\right)}^2+2h^2}}\right)}^2-\frac{sin\left(\sqrt{{\left(\frac{\pi }{3}\right)}^2+2h^2}\right)}{\sqrt{{\left(\frac{\pi }{3}\right)}^2+2h^2}}+1},$$

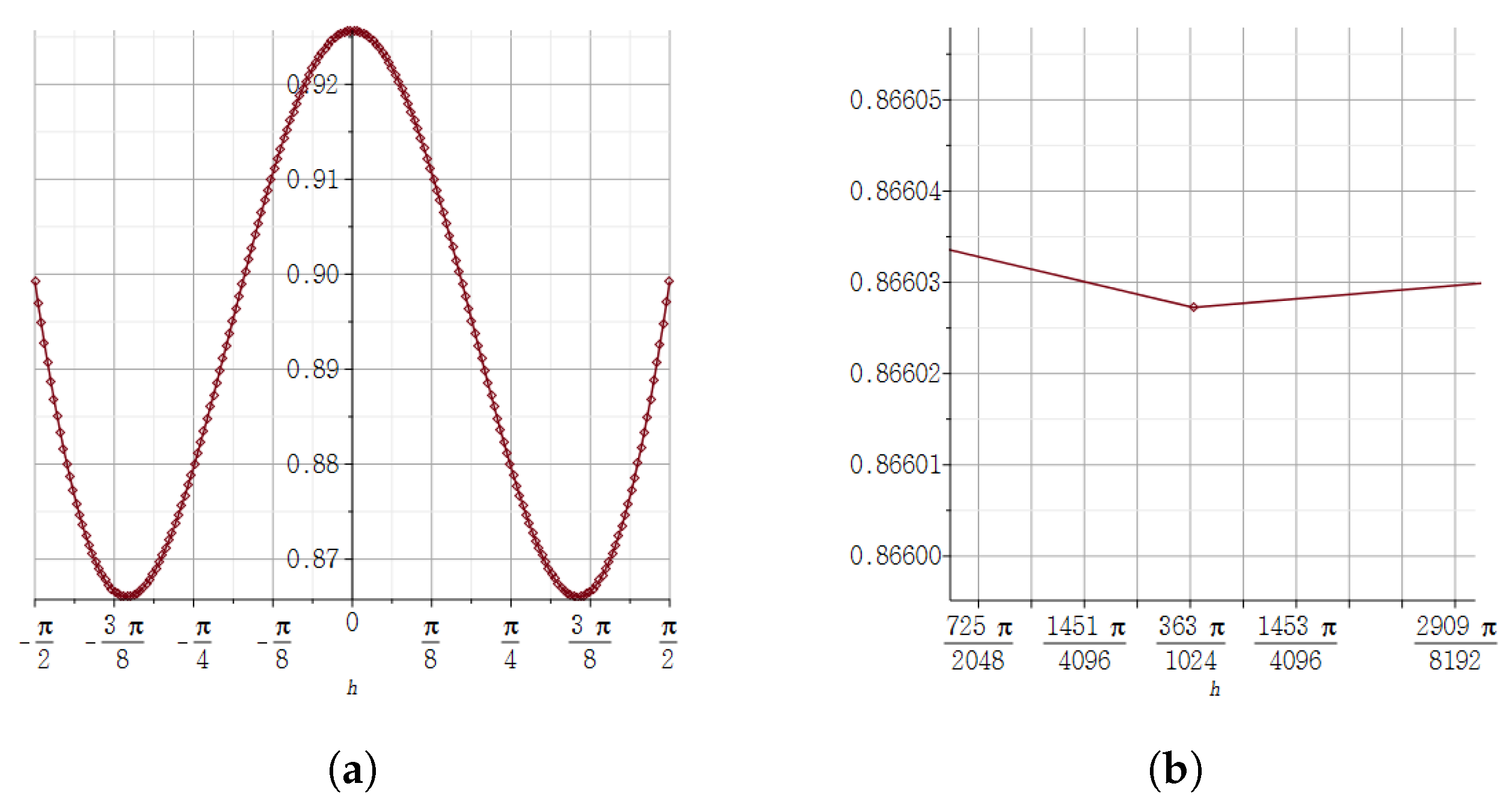

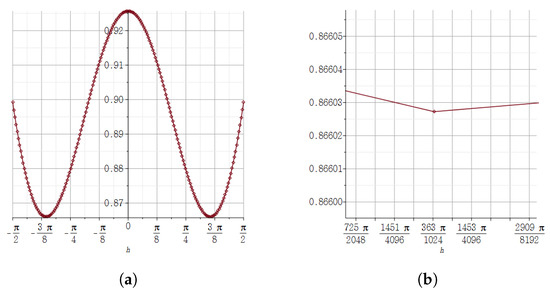

which is depicted in Figure 6.

From Figure 6, we check how close the relative error of the quaternion $(j,k)$-step derivative of $e^z$ approximated to zero for h values near $\frac{3\pi }{8}$ is, compared to the j-step derivative.

Example 5.

For example, consider the quaternion $(j,k)$-step derivative of cosine function $cosz$. As per the definition of the quaternion $(j,k)$-step derivative, the following equation is derived:

$$\begin{array}{ccc}\hfill f^{\prime }\left(z\right)& =& \frac{1}{h}{\left[-cos(z+(j+k)h)\frac{j+k}{\sqrt{2}}\right]}_{\mathbb{C}}\hfill \\ & =& \frac{1}{h}{\left[-cos(x+iy+(j+k)h)\frac{j+k}{\sqrt{2}}\right]}_{\mathbb{C}}\hfill \\ & =& \frac{1}{h}[-\frac{1}{2}(e^{-\sqrt{y^2+2h^2}}(cosx+\frac{iy+jh+kh}{\sqrt{y^2+2h^2}}sinx)\hfill \\ & & +e^{\sqrt{y^2+2h^2}}(cosx-\frac{iy+jh+kh}{\sqrt{y^2+2h^2}}sinx))\frac{j+k}{\sqrt{2}}{]}_{\mathbb{C}}\hfill \\ & =& \frac{1}{4}\frac{sinx}{\sqrt{y^2+2h^2}}(e^{-\sqrt{y^2+2h^2}}-e^{\sqrt{y^2+2h^2}}).\hfill \end{array}$$

For $z_0=\frac{\pi }{4}+i\frac{\pi }{3}$, we obtain the quaternion $(j,k)$-step derivative of $cosz$ at $z_0$:

$$\begin{array}{ccc}\hfill f^{\prime }\left(z_0\right)& =& \frac{1}{4}\frac{sin\frac{\pi }{4}}{\sqrt{{\left(\frac{\pi }{3}\right)}^2+2h^2}}(e^{-\sqrt{{\left(\frac{\pi }{3}\right)}^2+2h^2}}-e^{\sqrt{{\left(\frac{\pi }{3}\right)}^2+2h^2}})\hfill \\ & =& \frac{1}{4\sqrt{2}}\frac{1}{\sqrt{{\left(\frac{\pi }{3}\right)}^2+2h^2}}(e^{-\sqrt{{\left(\frac{\pi }{3}\right)}^2+2h^2}}-e^{\sqrt{{\left(\frac{\pi }{3}\right)}^2+2h^2}}).\hfill \end{array}$$

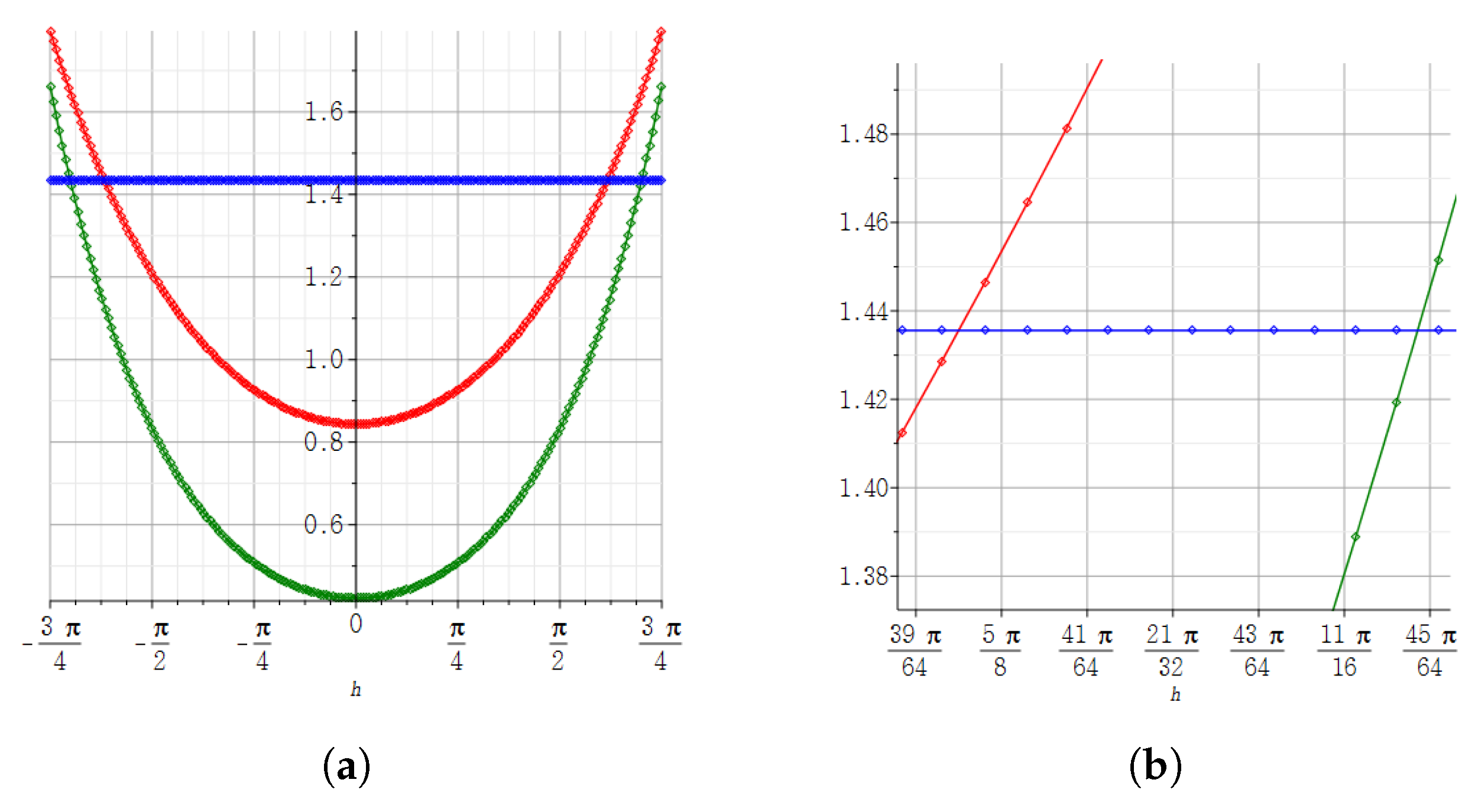

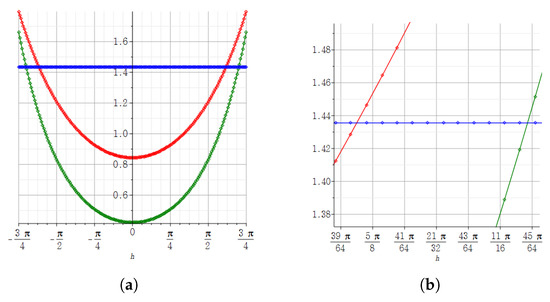

Figure 7 shows the quaternion $(j,k)$-step derivative, the j-step derivative, and the typical definition of the complex derivative of $cosz$ at $z_0$.

The relative error of the quaternion $(j,k)$-step derivative of $cosz$ at $z_0$ is calculated as follows:

$$\begin{array}{ccc}\hfill E_R& =& \left|\frac{f^{\prime }\left(z_0\right)-f_T^{\prime }\left(z_0\right)}{f_T^{\prime }\left(z_0\right)}\right|\hfill \\ & =& \frac{\sqrt{{\{E\left(h\right)(e^{\frac{\pi }{3}}+e^{-\frac{\pi }{3}})-2(e^{\frac{2\pi }{3}}+e^{-\frac{2\pi }{3}})\}}^2+{\left\{E\left(h\right)(e^{\frac{\pi }{3}}-e^{-\frac{\pi }{3}})\right\}}^2}}{2(e^{\frac{2\pi }{3}}+e^{-\frac{2\pi }{3}})},\hfill \end{array}$$

where:

$$E\left(h\right):=\frac{e^{\sqrt{{\left(\frac{\pi }{3}\right)}^2+2h^2}}-e^{-\sqrt{{\left(\frac{\pi }{3}\right)}^2+2h^2}}}{\sqrt{{\left(\frac{\pi }{3}\right)}^2+2h^2}},$$

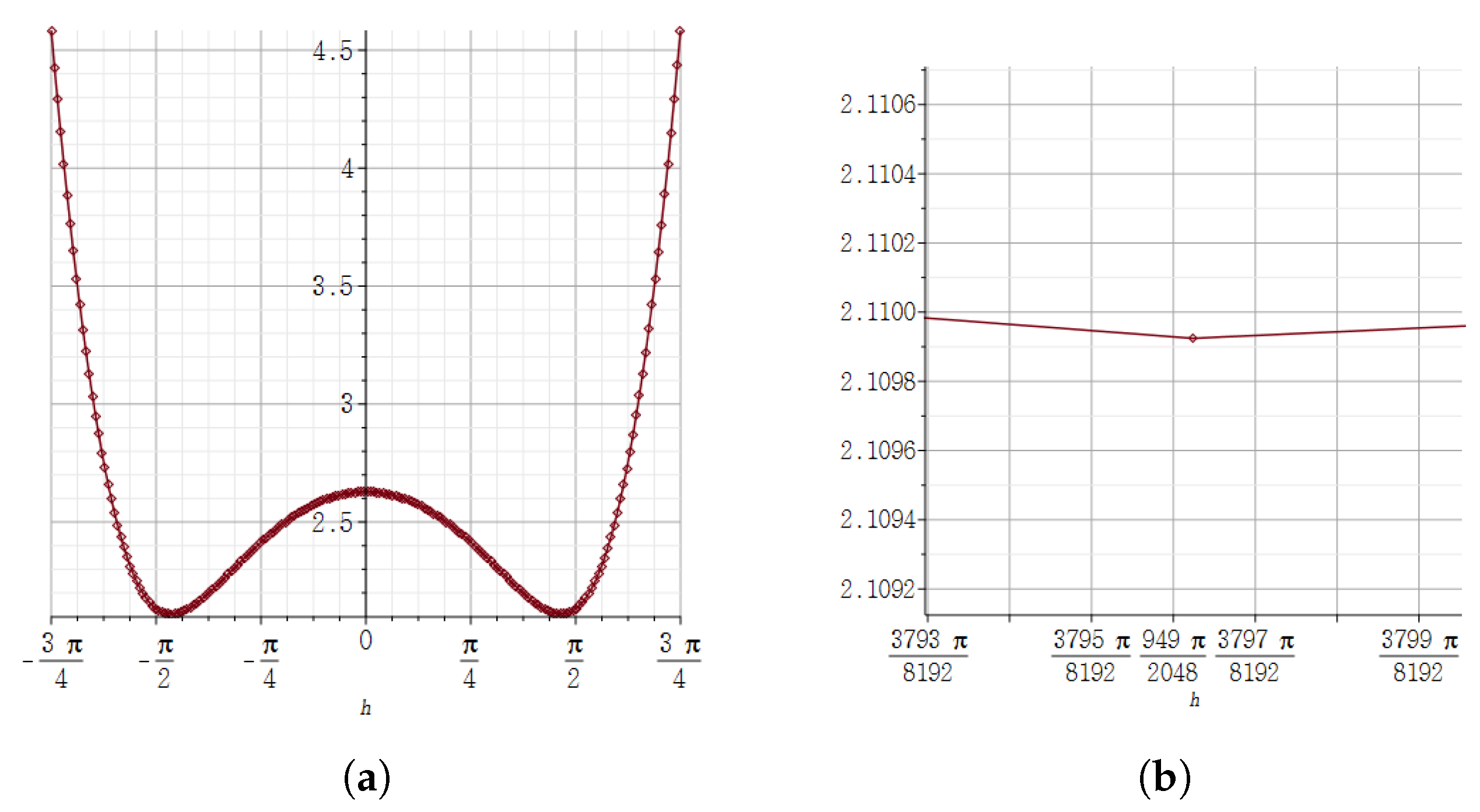

which is shown in Figure 8.

Example 6.

For example, for a complex variable z, consider the sine function $f\left(z\right)=sinz$; the quaternion $(j,k)$-step derivative is as follows:

$$\begin{array}{ccc}\hfill f^{\prime }\left(z\right)& =& \frac{1}{h}{\left[-sin(z+(j+k)h)\frac{j+k}{\sqrt{2}}\right]}_{\mathbb{C}}\hfill \\ & =& \frac{1}{h}{\left[-sin(x+iy+(j+k)h)\frac{j+k}{\sqrt{2}}\right]}_{\mathbb{C}}\hfill \\ & =& \frac{1}{h}[-\frac{1}{2}\frac{iy+jh+kh}{\sqrt{y^2+2h^2}}(e^{-\sqrt{y^2+2h^2}}((j+k)cosx+\frac{ky-jy-h}{\sqrt{y^2+2h^2}}sinx),\hfill \\ & & +e^{\sqrt{y^2+2h^2}}((j+k)cosx-\frac{ky-jy-h}{\sqrt{y^2+2h^2}}sinx))\frac{1}{2}{]}_{\mathbb{C}}\hfill \\ & =& \frac{1}{4}\frac{1}{\sqrt{y^2+2h^2}}\{e^{-\sqrt{y^2+2h^2}}\left(cosx-\frac{iysinx}{\sqrt{y^2+2h^2}}\right)\hfill \\ & & +e^{\sqrt{y^2+2h^2}}\left(cosx+\frac{iysinx}{\sqrt{y^2+2h^2}}\right)\}.\hfill \end{array}$$

For $z_0=\frac{\pi }{4}+i\frac{\pi }{3}$, the value of the quaternion $(j,k)$-step derivative of $f\left(z\right)=sinz$ is:

$$\begin{array}{ccc}\hfill f^{\prime }\left(z_0\right)& =& \frac{1}{4}\frac{1}{\sqrt{{\left(\frac{\pi }{3}\right)}^2+2h^2}}\{e^{-\sqrt{{\left(\frac{\pi }{3}\right)}^2+2h^2}}\left(cos\frac{\pi }{4}-\frac{i\frac{\pi }{3}sin\frac{\pi }{4}}{\sqrt{{\left(\frac{\pi }{3}\right)}^2+2h^2}}\right)\hfill \\ & & +e^{\sqrt{{\left(\frac{\pi }{3}\right)}^2+2h^2}}\left(cos\frac{\pi }{4}+\frac{i\frac{\pi }{3}sin\frac{\pi }{4}}{\sqrt{{\left(\frac{\pi }{3}\right)}^2+2h^2}}\right)\}\hfill \\ & =& \frac{1}{4\sqrt{2}}\frac{1}{{\left(\frac{\pi }{3}\right)}^2+2h^2}\{e^{-\sqrt{{\left(\frac{\pi }{3}\right)}^2+2h^2}}\left(\sqrt{{\left(\frac{\pi }{3}\right)}^2+2h^2}-i\frac{\pi }{3}\right)\hfill \\ & & +e^{\sqrt{{\left(\frac{\pi }{3}\right)}^2+2h^2}}\left(\sqrt{{\left(\frac{\pi }{3}\right)}^2+2h^2}+i\frac{\pi }{3}\right)\}.\hfill \end{array}$$

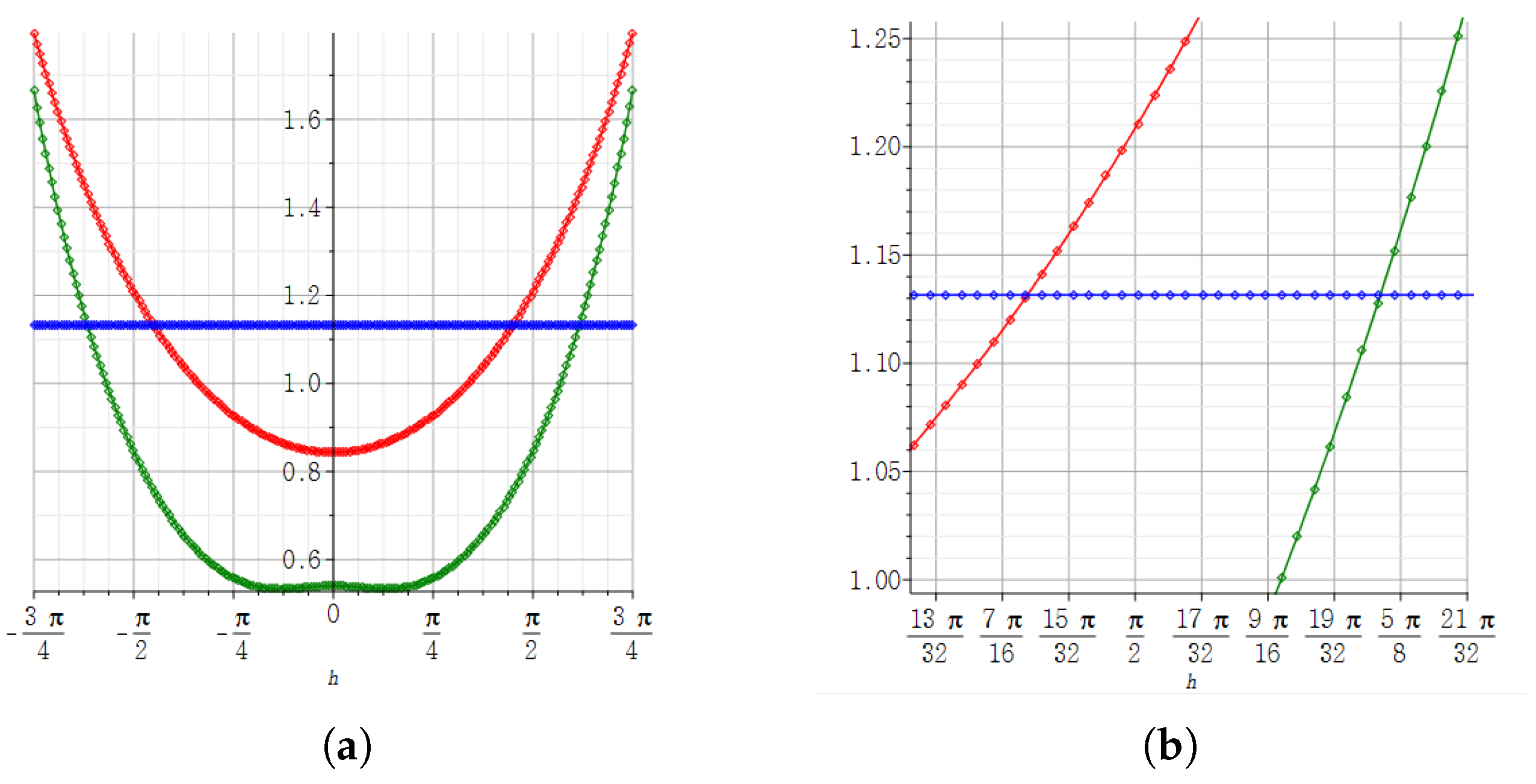

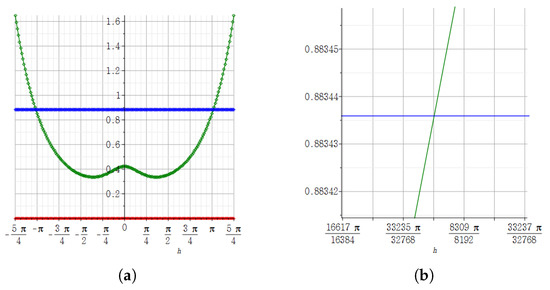

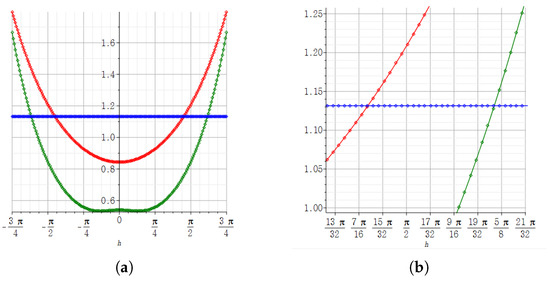

Figure 9 and Figure 10 show where the quaternion $(j,k)$-step derivative, the j-step derivative, and the typical definition of complex derivative of $sinz$ at $z_0$ will be equal to each other around some h.

The relative error of the quaternion $(j,k)$-step derivative of $sinz$ at $z_0$ is:

$$E_R=\frac{\sqrt{{\{E_1\left(h\right)A_{\frac{\pi }{3}}+E_2\left(h\right)B_{\frac{\pi }{3}}-2(A_{\frac{\pi }{3}}^2+B_{\frac{\pi }{3}}^2)\}}^2+{\{E_2\left(h\right)A_{\frac{\pi }{3}}-E_1\left(h\right)B_{\frac{\pi }{3}}\}}^2}}{2(A_{\frac{\pi }{3}}^2+B_{\frac{\pi }{3}}^2)},$$

where:

$$E_1\left(h\right):=\frac{e^{\sqrt{{\left(\frac{\pi }{3}\right)}^2+2h^2}}+e^{-\sqrt{{\left(\frac{\pi }{3}\right)}^2+2h^2}}}{\sqrt{{\left(\frac{\pi }{3}\right)}^2+2h^2}},$$

$$E_2\left(h\right):=\frac{\pi }{3}\frac{e^{\sqrt{{\left(\frac{\pi }{3}\right)}^2+2h^2}}-e^{-\sqrt{{\left(\frac{\pi }{3}\right)}^2+2h^2}}}{{\left(\frac{\pi }{3}\right)}^2+2h^2},$$

$$A_{\frac{\pi }{3}}:=e^{\frac{\pi }{3}}+e^{-\frac{\pi }{3}},B_{\frac{\pi }{3}}:=e^{-\frac{\pi }{3}}-e^{\frac{\pi }{3}},$$

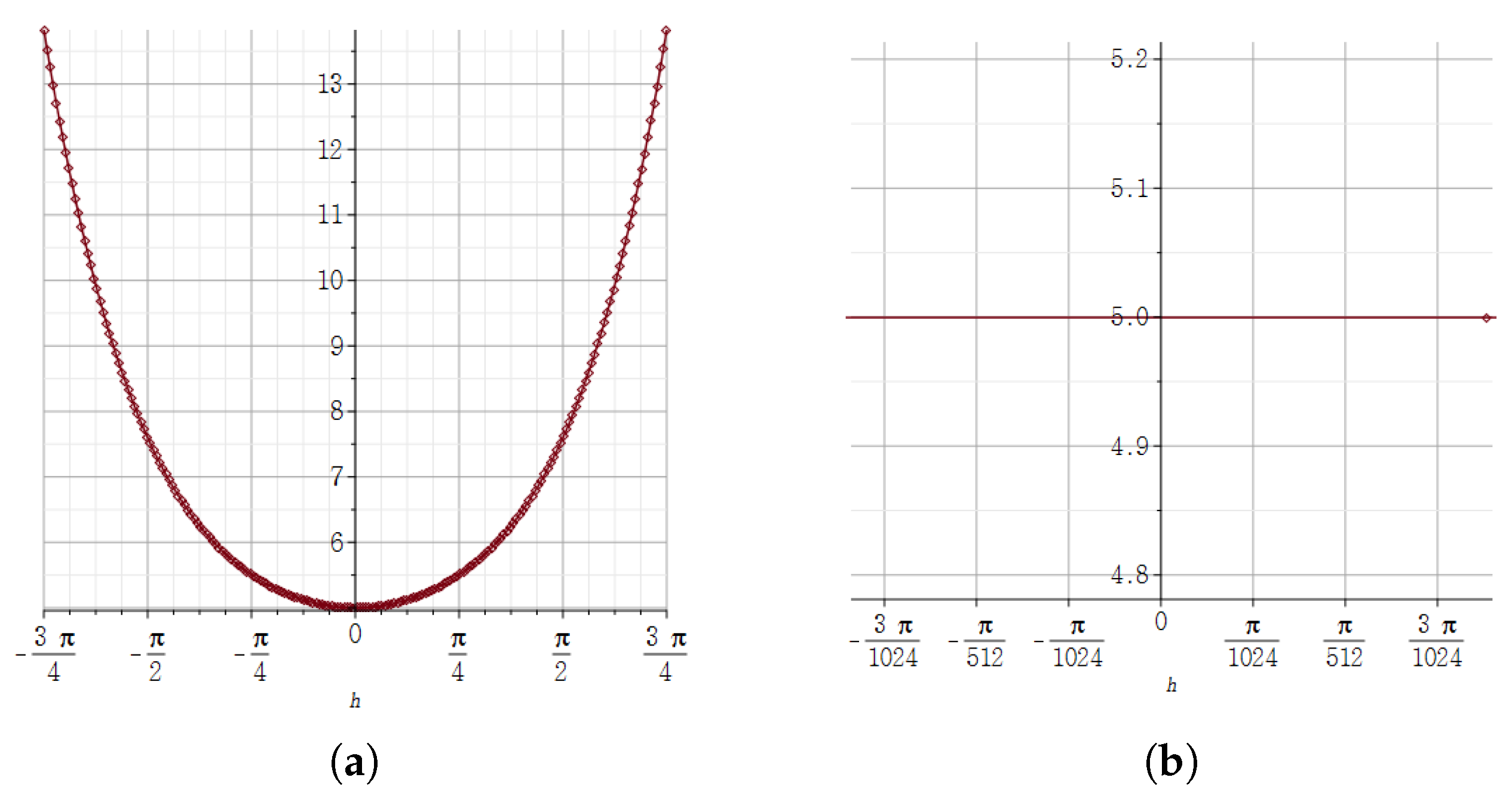

which is shown in Figure 11.

4. Conclusions

The step derivative of a complex-valued function of a complex one-variable was defined based on the rules and properties of the quaternion basis. Using the quaternion system, the step derivative was defined by presenting a direction distinct from that of basis i of the complex function. The value of the derivative calculated as per the definition of the derivative in the complex system for an elementary complex function was compared with that defined as per the definition of the quaternion j-step derivative. Depending on the size of h, the quaternion j-step derivative was similar to the derivative value calculated as per the definition of the derivative used in the complex number system. The similarity was directly confirmed by calculating the relative error through examples of the elementary function. It was observed that as the size of h decreased or was near a specific value of h, the relative error of the derivative value at a certain point approached zero.

In addition, because the quaternion has j and k as the bases, the step derivative to which the quaternion characteristic was applied was investigated. A step derivative that can be applied simultaneously with j and k, the bases of the quaternion number, was defined. As both j and k are defined in different directions from i of the complex number, a step derivative that can be applied in the j and k directions simultaneously and with the same size was defined. The quaternion $(j,k)$-step derivative has a relative error with the derivative value as per the limit definition of the complex function; however, the derivative value can be made similar by setting an appropriate h value.

As a future development plan, we will propose step derivatives in the base direction of various Clifford algebras for quaternion functions based on this study. It is expected that the problem caused by the noncommutativity of the product over the quaternion system will be solved and the derivative of a new perspective will be used. Indeed, given that the quaternion function has the noncommutative product for the basis, various forms of the definition of the Taylor series expansion exist for the quaternion function. As we derive the step derivative in the base direction of the quaternion for the complex function, we can derive the step derivative in the new base direction for the quaternion function. Hence, we can propose step derivatives in various directions in consideration of the properties of the quaternion function by using the algebraic properties and the results of the analytical definition of the quaternion. In particular, the limitations of the definition and use of limit operations and differential operators arising from the noncommutativity can be addressed. As the concept of difference can be derived from algebraic properties, the calculation can be expected to be easier. It is expected that a new perspective derivative can be used that is freed from the characteristic of the quaternion caused by the noncommutativity of the product.
