Article

Enriching Elementary School Mathematical Learning with the Steepest Descent Algorithm

Centro de Investigación Avanzada en Educación, Instituto de Educación, Universidad de Chile, Santiago 8320000, Chile
Mathematics 2021, 9(11), 1197; https://doi.org/10.3390/math9111197
Received: 18 April 2021 / Revised: 7 May 2021 / Accepted: 19 May 2021 / Published: 25 May 2021
(This article belongs to the Special Issue Recent Advances in STEM Education)

Abstract

:
The steepest descent (or ascent) algorithm is one of the most widely used algorithms in Science, Technology, Engineering, and Mathematics (STEM). However, this powerful mathematical tool is neither taught nor even mentioned in K12 education. We study whether it is feasible for elementary school students to learn this algorithm, while also aligning with the standard school curriculum. We also look at whether it can be used to create enriching activities connected to children’s real-life experiences, thus enhancing the integration of STEM and fostering Computational Thinking. To address these questions, we conducted an empirical study in two phases. In the first phase, we tested the feasibility with teachers. In a face-to-face professional development workshop with 457 mathematics teachers actively participating using an online platform, we found that after a 10-min introduction they could successfully apply the algorithm and use it in a couple of models. They were also able to complete two complex and novel tasks: selecting models and adjusting the parameters of a model that uses the steepest descent algorithm. In a second phase, we tested the feasibility with 90 fourth graders from 3 low Socioeconomic Status (SES) schools. Using the same introduction and posing the same questions, we found that they were able to understand the algorithm and successfully complete the tasks on the online platform. Additionally, we found that close to 75% of the students completed the two complex modeling tasks and performed similarly to the teachers.

1. Introduction

A large part of elementary school education is dedicated to teaching mathematics. Together with learning to read and write, mathematics is one of the building blocks of elementary education. Numeracy and literacy therefore account for most of the time spent at school. In the case of mathematics, a large portion of this time is dedicated to learning about and mastering algorithms, such as the four operations and operations with fractions. Although arithmetic algorithms are simple and consist of only a few rules, learning them takes several years, with many students struggling to learn them properly [1,2].
Much of the difficulty is due to what is known as evolutionary mismatch or the evolutionary trap [3,4,5,6]. Our brain is the product of a long process of evolution that has taken place over millions of years. In this time, it has evolved highly efficient mechanisms to learn the knowledge and skills required for the life of hunter-gatherers. These are the learning mechanisms of imitation, play, storytelling and teaching, which allow learning to walk, speak, collect food, hunt, cook, fight against other bands, and maintain a productive social life in our own small tribe. These types of knowledge and skills are called biologically primary [7]. However, due to the enormous advances in cultural evolution over the last 5000 years, today we need students to learn completely new things, often of a totally different nature and some of them very counter-intuitive. Students also need to learn to live and socialize with thousands of strangers. They have to learn to read and write, something for which the brain is not adapted, requiring intensive and guided practice and leading to a huge transformation of different areas of the brain [8,9]. We also need them to learn abstract concepts that are totally different from the ones acquired by their ancestors, such as positional notation, negative numbers, fractions, and algebra. These are considered biologically secondary knowledge [7]. For this reason, students need very well designed and tested lesson plans in order to guide them along proven learning trajectories. Connecting these abstract concepts with concrete elements of every day hunter-gatherer life can be a fruitful didactic strategy [10]. This includes connections between numbers and objects, or between numbers and positions. By doing so, adding and subtracting becomes grouping or ungrouping, or even a navigational activity. Another example is the connection between mathematical modeling and building a board game such as chess, where beads can be used to represent agents.
A great deal of experience has been accumulated over the last 600 years regarding how to teach these new abstract concepts and their respective algorithms. In the history of mathematics education, the teaching of algorithms plays a central role; particularly algorithms with numbers and practical applications. For example, the arithmetic textbook Liber Abaci written in 1202 by Fibonacci [11] presented algorithms for performing calculations without the aid of the abacus, using instead the then novel Hindu Arabic positional notation. This notation, which is the one we use today, represents the numbers and algorithms used with abacuses in a more abstract way. Later, in 1478, the Arithmetic of Treviso [12], the first printed arithmetic textbook, teaches arithmetic algorithms and how to apply them to business practice. It was a book with real-life applications, which was highly relevant to students and of great interest for the practical training of merchants. Filled with exercises based on business transactions, it set a precedent for what is perhaps still the most common type of exercise found in arithmetic textbooks.
However, new advances in science and technology require the introduction of new concepts and ways of Computational Thinking [13,14,15]. In recent centuries, the number of mathematical concepts and algorithms invented has grown exponentially. They are used in several practical and engineering problems. For example, linear programming algorithms, spectral methods, Kalman filters, neural networks, text mining algorithms, and many others are used in science and engineering. It is a dynamic process that continues to accelerate and put enormous pressure on an already overcrowded curriculum. However, these scientific and technological advances also make some algorithms almost obsolete. With a calculator or a smartphone, we can calculate everything that is needed in commerce. Students therefore need not be very skillful in using an abacus or basic arithmetic algorithms for performing long divisions with big numbers. This situation frees up time to introduce new concepts and algorithms that are increasingly important in STEM and Computational Thinking.
Which new concepts and algorithms have been included recently on the curricula of different countries? One important case is Mathematical Modeling. Nowadays, it is considered one of the most important mathematical skills. This ability was included in the 2003 PISA Framework [16] and the Common Core State Standards for Mathematics in the USA [17]. Developing and using models is also a basic practice in the Next Generation Science Standards (NGSS) [18], and delimiting and defining the system under study and making a model of it is one of the core crosscutting concepts for K12 Education in NGSS [19,20]. Building models is a basic thinking activity [21]. We are continuously imagining landscapes, situations, relations, and using them to run simulations in our heads in order to make decisions and act upon them. Most of these models are implicit. In mathematical modeling, we try to make them as explicit as possible, specifying their main components and the relations between them. For example, if you are planning to build a bridge, you start by imagining different possible bridges and the traffic across them. This is normally an implicit process that is done automatically. If you have more time and are in charge of designing the bridge, then you might try to imagine its components and how it will respond to traffic loads, water flow, and wind. You therefore start a more deliberate and explicit process. You can build a small toy bridge, test it, and measure its response to different stresses. You then have to think about how to scale it. Here it is critical that you try to determine the relations between the different components, testing them on your toy model and eventually on a more realistic model. This whole process, from an initial implicit model to an explicit model with mathematical specifications, is the mathematical model building process that allows us to make better decisions. It is a key ability that we need our students to learn and start using systematically in their daily lives.
Why steepest descent algorithm? Why with modeling? The steepest descent is one of the most widely used algorithms in applied Mathematics and STEM. In Mathematics it is at the core of Optimization and central to Dynamical Systems. It is critical in Computer Sciences for Machine Learning and Natural Language Processing. In Physics it is used to estimate trajectories with Scalar Potentials such as Gravitational and Electric Potential. In Chemistry and Biology, it is the core idea behind Chemotaxis and Tropisms. In Economics it is used in Decision Theory and Econometrics. It is also a common tool used in mathematical modeling and engineering. Several popular mathematical models are based on finding trajectories of particles or agents that optimize scalar potentials. This means that at each moment the next movement of the particle or agent is in the direction of steepest descent or steepest ascent. It is a powerful Computational Thinking tool.
Why, then, is it not used in K12 education? Steepest descent is normally introduced in Differential Calculus courses. This is because minus the gradient gives the direction of steepest descent when a linear tangent approximation to the scalar potential is used. However, in a discrete world, where the potential function is discrete or approximated using a discrete function, it can be formulated to move to the neighboring cell with the smallest (or highest) value. In this case, there is no need for differential calculus and the algorithm can be introduced in kindergarten or elementary school. According to [22], “Mathematical modeling can be particularly accessible when the resulting mathematical field at the heart of the development is in the area of discrete mathematics” [22] (p. 102). Moreover, why introduce this algorithm in primary education? Because in addition to its growing importance and wide applications in STEM, it offers an excellent opportunity to easily connect with the natural interests of students at that age. As we will see later, this algorithm can help to model the behavior of different animals, which is very attractive to children. In this way, this algorithm makes it possible to establish a meaningful bridge between mathematics and biology and behavioral sciences. As [23] suggests, one powerful way to motivate students to do math and science is using them to understand animal and social issues. Thus, the use of steepest descent algorithm used for modeling animal behavior illustrates how elementary school mathematics can extend its field of application beyond typical commercial transactions and allows elementary school students to know and appreciate the power of mathematics to understand better other phenomena that occur in their daily life and are very meaningful to them.
Our research question therefore asks whether it is feasible for elementary school students to learn the steepest descent algorithm and use it for modeling, while aligning with the standard school curriculum. Can it be done with activities connected to children’s real-life experiences and that enhance the integration of STEM and foster Computational Thinking?

2. Materials and Methods

We use four methodological strategies: applying a specialized framework for modeling, designing steepest descent activities with real-life models based on the interests of elementary school students, testing the activities during a professional development workshop for teachers, and testing the activities with fourth grade students. However, it is important to highlight that our goal is to test the students in order to answer the research question. The plan to test the teachers is designed as a mechanism to assess to what extent the exercises were appropriate, not too complex, and to have a benchmark to compare the performance of students.
The first methodological strategy is the use of a specialized framework for introducing mathematical modeling. This is the Use-Select-Adapt-Build (USAB) framework of Mathematical modeling [24,25]. This is a framework designed to introduce Mathematical Modeling skills in the K-12 school system. The strategy is to emulate how scientists, engineers, and other professionals do mathematical modeling. Some people have built models from scratch, but this is very uncommon. Normally, experts have been working for several years on existing types of models. We therefore need to know the main types of mathematical models that are used. There are also certain specific patterns and kinds of techniques that are used by experts. We need to identify these and then teach them to our teachers. Based on what the experts do, we have proposed a strategy for teaching mathematical modeling. This strategy consists of four stages [23]. The first stage is to make students USE certain types of typical and fertile [18] mathematical models; the student learns certain ways of thinking with models that can be used in a wide range of situations. Once the student knows how to use a model and has used it several times, then the second stage begins. During this stage, the student has to SELECT the most appropriate model from a set of two to five options. In the third stage, they have to ADJUST the parameters in a model in order to best fit a situation. In the fourth stage, they have to BUILD a new model or adapt an existing model for a new situation.
The USAB framework is similar to other strategies that emphasize teaching modeling starting with having students know and use some models. For example, according to [26], the English version of the Swedish curriculum for the gymnasium, “The school in its teaching of mathematics should aim to ensure that pupils develop their ability to design, fine-tune and use mathematical models, as well as critically assess the conditions, opportunities and limitations of different models” [26] (p. 61) and “develop their knowledge of how mathematics is used in information technology, as well as how information technology can be used for solving problems in order to observe mathematical relationships, and to investigate mathematical models” [26] (p. 61). Another example that recommends starting using models is [27] “In teaching modelling, there are obviously two things that you have to do, very basic kinds of questions. You have to take some models that have been created and have been known to be successful and students have to study those models, and understand what makes them work, and think about what went into their creation and the way they were formulated and their success. Also, students have to take situations for themselves and start creating models of those situations, make decisions of what you have to keep and what you can afford to ignore, and how you are going to test whether you really succeeded” [27] (p. 114). It is particularly important to start knowing and using a “core set of models” [28] that can be viewed as a multiplicity of lens. “Mastery of models improves your ability to reason, explain, design, communicate, act, predict and explore” [28] (p. 1). Moreover, the USAB strategy is well adapted to the developmental stages that are found in children thinking and their discovery process in elementary math activities [29,30]. In several studied mathematical tasks, children start Using a simple strategy, but in the process, they change it slightly, and starts a process of Selection, and Adaptation of strategies, and then discovering or Building completely new strategies. This learning trajectory is generated by a planned learning goal, together with designed learning activities [31]. The learning process is also related to Van Hiele levels of reasoning [32]. In the Van Hiele levels of reasoning, Use would be level 2, Select and Adapt could be associated to level 3, and Build is a more complex level that could be associated with level 4.
On the other hand, it is essential that the models introduced are really fertile or generative. They must also be adaptable so as to include more details and complex phenomena in higher grades. In this way, every year students will review the same types of model but using more sophisticated mathematics and more parameters in order to account for more realistic situations. This strategy will ensure that they incorporate particular strategies and ways of thinking that can be used in building important and widely used types of mathematical and computational models.
The second methodological strategy is the design of steepest descent activities as a part of mathematical modeling. We designed four items using models of real-life experiences that could be of great interest to students: locomotion of bacteria [33,34] and locomotion of dogs. The first item has 3 questions. The goal is to test the basic understanding of the scalar potential model and the steepest descent algorithm. However, in the example, we use the steepest ascent version. In each question, the user has to apply the Steepest Ascent algorithm to generate the trajectories of three bacteria as shown in Figure 1. In this item, the user has to Use the model. At each step, the user therefore has to consider the rules of an already precisely described model and the current position of the bacteria in order to work out their next position. This mental process must be repeated until the bacteria cannot continue ascending. Thus, the user has to manage several thinking processes, all of which correspond to the Use component of the USAB framework.
This item has what is called an agent-based model. In this particular case is a model of the behavior of bacteria. We follow here [23] that recommends starting introducing science with what naturally attracts children “…we should consider focusing school science on what has dismissively been termed the “soft” sciences, namely animal behavior, ecology and psychology… the advantage of this lies precisely in the fact that these disciplines deal predominantly with social behavior, and would thus capitalize on children’s natural facility for understanding the social world” [23] (p. 183). Similar agent-based models are very common in social sciences. For example, the agent-based models of population migration [35] where agents live in a sugar-space board, moving from cell to cell searching unoccupied places having the most nutrient (sugar). Nobel Prize winner Thomas Schelling [36] uses similar agent-based models to understand the very important and nowadays critical phenomenon of social segregation.
Figure 2 shows the solution. There are three trajectories. The user has to consecutively click on the right cell in order to generate the trajectories.
In the second item, the user again has to apply the Steepest Ascent algorithm. However, this time it is to generate the trajectory of a dog (Figure 3). This is a direct generalization of the previous model. It has just two changes. Firstly, there is a change in the agent. Instead of bacteria, we have a dog. Secondly, there is a change in the meaning of the potential function. Instead of nutrients for bacteria, the scalar potential now represents the intensity of the smell. This again involves the Use component of the USAB modeling framework, with the student having to consider a small adaptation in how the numbers on the board are interpreted.
Figure 4 shows the corresponding solution. The user has to consecutively click on the right cell in order to generate the correct trajectory.
The third item asks the user to select a model (Figure 5). This represents a higher-order thinking skill. The user has to mentally simulate the trajectories for both models. Then, at some point, the user has to realize a new interpretation of the problem. During the thinking process, the user has to discover that the problem translates to the following: on which board are there two local maximums? This item corresponds to the Select stage of the USAB framework.
The fourth item asks the user to adjust the parameters of a model (Figure 6). This item also requires higher-order thinking skills, where several options have to be tested. Here, the user has to realize that the problem can again be interpreted as having to find local maximums. Once they discover that the board has two local maximums, the user has to change the number in one of them in order to make sure that all trajectories will lead to the desired location. This item corresponds to the Adjust component of the USAB framework. This item requires a deeper understanding of the model. The subject has to adapt (change) part of the model in order to generate a certain behavior of the agent. The agent is using steepest ascent, but this is just one part of the model. The other part is the board with the numbers. The activity asks to select one cell in order to change there the number and thus obtain a global desired behavior. In other words, the dynamical system will have just one fixed point. This is a deeper type of question posed to a dynamical system model. Typical questions of this sort are the following: under what conditions a unique fixed point will exist, or under what conditions the system will reach a stable equilibrium [36], or under what environment a specific pattern will emerge [36,37].
In all 4 of the items, the numbers in the cells are all natural numbers below 50. The items require the user to do a series of number comparisons. This is a typical learning objective on the elementary mathematics curriculum. For fourth graders, the numbers could be larger than 50, or include fractions, decimals, or additions and subtractions of integers. This means that the exercises can be adapted to include more complex numbers and expressions based on the grade level and learning objectives. Nevertheless, for the present study, all numbers are integers between zero and 50.
The four items measure some of the learning objectives that are typically found in the number strand of the curriculum, as well as the students’ mathematical modeling skills. Furthermore, they also introduce the user to computational thinking.
The third methodological strategy is to test the idea with teachers. To do so, we designed a Mathematical Modeling seminar for teachers that included the steepest descent algorithm. The seminar focused on why we should teach mathematical modeling, explaining that it has been included on the international PISA test since 2003, as well as on the TIMMS test for 4th and 8th grade. The seminar provided a historical overview of Mathematical Modeling, presenting Archimedes’ Method [38] and ancient Egyptian board games [39]. The seminar then focused on what has changed with the increasing use of computers and computer simulations. It argued that mathematical models are enhanced by these technologies, leading to a huge increase in the ability to predict what will happen in different scenarios and therefore improve decision-making. Thus, traditional mathematical skills must be complemented with the knowledge that is needed to detect patterns, as well as to select and adjust mathematical models. The seminar included a 90-min workshop during which teachers were introduced to several models. The workshop included a 10-min introduction to the steepest descent algorithm used in said models. At the end of the workshop, we asked the participants to answer the previous four items on modeling using their personal devices (smartphone or tablet). Teachers were shown how to login to the ConectaIdeas platform [40,41] and how to generate a trajectory. During the last 15 min of the workshop, the teachers connected their devices to the Wi-Fi, logged in to the ConectaIdeas platform, and answered the four items.
The fourth methodological strategy was testing the same activities with elementary school students. Ninety fourth graders (51 boys and 39 girls) from three different schools participated in a 90-min session on mathematical modeling and the steepest descent algorithm. The students were given the same 10-min introduction that was delivered during the teacher workshop. The students then had to answer the same four items using the ConectaIdeas platform. We studied whether they were able to understand the steepest descent algorithm and use it to understand modeling with scalar potentials, as well as looking at the extent to which they were able to solve the more complex items.
In all these items, the model is the board and the rules (the algorithm) to move the agent. This is typical of agent-based models [35,36,37,42]. In the first task, students have to use the model. This means understanding that there is a world modeled as a board, with cells with numbers that represent nutrients, and an agent that moves following certain rules or algorithm. Then, as the second task, students have to use or apply the model to a new situation, where there is another agent and the numbers on the board have a different meaning. In the third task, students have to understand moored deeply the situation and select the model that represents it. All these tasks require modeling, but in increasing order of complexity and according to the need to align to typical development of children thinking [29,30]. Thus, the strategy proposed to teach modeling is that first the students have to know and understand several basic models. This is similar to what [28] calls a core set of models. They are multiple lenses to view and understand nature. In this paper, we propose one such core family of models. On the other hand, as [28] suggests, we promote the many model thinking approach. We propose that students learn to select models and adjust them to better fit a real-world situation.

3. Results

The face-to-face seminar attracted almost nine hundred teachers. Most of them also attended the mathematical modeling workshop. The workshop was well evaluated by the teachers. A total of 130 teachers answered a written survey. The average satisfaction of the teachers was 5.7 on a scale of 1 to 7, where 1 is completely dissatisfied and 7 is completely satisfied. They appreciated the modeling exercises for different grade levels and with practical examples. They also valued the association of mathematics with experiences and areas that they had never thought could be related to mathematics. However, the biggest concerns were how to evaluate this new modeling skill.
Not all of the teachers brought a device that could connect to internet and the ConectaIdeas platform. We received responses from 457 teachers: 175 male and 282 female teachers. Virtually all of the teachers who answered at least one item went on to complete all four (Table 1). However, there may have been teachers who had suitable devices but chose not to respond. The data is in Supplementary Materials.
In the case of students, we contacted eight schools that satisfied three conditions: (a) School must be classified as a low socioeconomic status school according to the official classification of the Ministry of Education. (b) School must be located within the metropolitan region. (c) At least one teacher of the school had attended the seminar. Five schools agreed to participate in the coming month. The first three schools that had available a computer lab were selected. A total of 90 fourth-grade students participated (51 boys and 39 girls). The majority of students answered all of the items, with the exception of Item 1 (Table 1). Only 42.2% of the students answered Item 1. However, 95.6% of the students answered Item 2, which is very similar to Item 1 and has the same level of difficulty. Item 1 was a basic item used mainly to check understanding and how to use the platform.
The teachers and students’ performance was well above chance (Table 2). The first two scores (computed as the percentage of correct answers) are well above random selection. For Item 1, each of the three questions has many possible answers. Even if only empty neighboring cells are considered, there are eight options for the first move alone. Therefore, the probability of randomly choosing the correct option is just 1/8. This is followed by the second move, where the probability of randomly choosing the correct option is again 1/8. The probability of randomly getting the 2 moves right is (1/8)2. With three movements, the probability decreases to (1/8)3. The probability of randomly getting all three questions right in 3 moves each is (1/8)3(1/8)3(1/8)3 = 0.000000008. This means that choosing neighboring cells at random gives an expected score of 0.0000008 points. The real expected score is even lower since some trajectories are longer than 3 moves. Thus, in practical terms, the probability of answering correctly by chance is zero. Similarly, for Item 2 the expected score is 0.19 points when choosing at random. For Item 3, selection by chance gives 50 points. This means that the teachers and students in our study scored above chance with a 95% confidence level. The closest to chance is Item 3. However, the scores minus the Confidence Interval (CI) width do not hit the chance score. Therefore, the score is above chance with a 95% confidence level. Interestingly, the students performed significantly better than the teachers on Item 3 (Figure 7). This is indeed the only item where students did better than teachers. However, we have to consider a critical fact: that only 76.7% of the students answered this item, compared with 98.9% of the teachers. Item 4 has 5 options. Therefore, the expected score is 20 points when choosing at random.
The response times for the teachers was almost twice that of the students (Table 3). This is because the teacher data includes a number of very long response times. Some teachers opened the question during the workshop and answered them once the workshop had finished. In the case of the students, they all responded during the session. Item 1 takes a longer time to answer because it has three questions, each of them requiring a separate trajectory. Item 3 and 4 take less time to answer because they do not require a trajectory.

4. Discussion

There are many algorithms that are taught in elementary mathematics. Most of them stem from previous advances in mathematics and technology, such as the abacus and the positional system. Nevertheless, today there are a number of new algorithms that are particularly relevant to more modern applications. The steepest descent (or ascent) algorithm is an extremely popular and useful algorithm in STEM and Computer Sciences. However, it is not taught in the K12 school system. Our research question therefore looked to determine whether this powerful algorithm and its use in mathematical modeling can be learned by elementary school students. In this study, we have implemented a practical experience of mathematical modeling with scalar potentials using this algorithm. Following a 10 min introduction, we have found that teachers and fourth grade students were able to understand and apply the algorithm to a series of an increasingly complex models. The users started by directly applying the models, before moving on to selecting and adjusting said models. These are more complex and advanced modeling tasks that require less direct and more creative mathematical thinking.
Item 3 requires users to select a model that, when applying the steepest ascent algorithm, generates the desired behavior. This task was not similar to the ones used in the introduction. It was completely new to users. It requires them to mentally simulate the dog’s behavior in both models and generate the corresponding trajectories. Furthermore, the user can also translate the problem to another problem: determining in which model there are two local maximums. Of the teachers, 98.9% answered this problem, with an average score of 60.8 points. In the case of the students, 76.7% of them answered the problem, with an average score of 77.5 points. In both cases, the scores suggest that the users understood the problem since they are statistically above chance. While the scores might also suggest that the students understood the problem better than the teachers, we have to consider that just over a quarter of the students failed to answer. Furthermore, practically all of the teachers answered said item.
Item 4 also proposes a completely new situation. It is not directly related to the initial training nor to the first two items. Here, the user is given five options on the board where they can modify the value in the respective cell. In each case, the user must think about the impact it will have on the dog’s behavior and its corresponding trajectory, regardless of wherever it starts. This means mentally exploring a huge number of possible trajectories. Simulating them all is not possible given the capacity of the working memory of each user. Even if the subject is writing them down, it would take a great deal of time. The way to solve the problem is to imagine that it boils down to finding a way to make sure the board has only one local maximum. This requires a leap in the conception of the problem. Of the teachers, 98.9% answered this item and scored an average of 56.8 points, and 72.7% of the students answered the same item and managed an average score of 50.1 points. In both cases, the scores are far above chance. Furthermore, the students’ average score is statistically equal to the teachers’ average score. However, again it must be considered that just over a quarter of the students did not answer this item.
Items 3 and 4 test a computational way of thinking. Students must imagine that the world is modeled on a board or array with discrete cells, containing numbers that represent nutrients, and they must conceive the behavior of organisms as if they were automata that follow precise rules. The results show that in this computational representation, they manage to think of changes in the environment as changes in the numbers of the cells. Therefore, students begin to model behavior in a fully computational way.
The activities were an enriching experience that modeled and applied the steepest descent algorithm to everyday problems that are of interest to the students. Children are naturally attracted to animals and their behavior. One activity is about the navigation of bacteria. Bacteria are a familiar topic for the students as they learn that millions of them live and move within their bodies; some helping with digestion, while others cause diseases. Another activity is about dogs and their sense of smell. This is undoubtedly the closest animal to children. Understanding how the dog moves when it looks for food using its sense of smell is an activity that is very close to the students’ daily lives. In both cases, mathematics helps them understand phenomena that they experience every day, and that go beyond the arithmetic exercises typical of school textbooks that are largely circumscribed to transactions in commerce. These are enriching activities that initiate students in modeling social behavior. This is a rich and growing field. Ref. [42] reviewing social models of Anasazi, an ancient Native American culture, states that “a promising approach to this general problem is ‘agent-based modelling’, which populates specified spatial landscapes with agents that assess the landscape and behave according to a set of decision rules” [42] (p. 567). Another example of agent-bases modeling is a model of the birth and dissemination of large-scale societies in Afroeurasia during 1500 BCE–1500 CE [43]. The authors developed an agent-based model that try to explain how human societies evolved from small groups to the huge anonymous societies of nowadays. Another set of such models are the ones proposed by Nobel Prize winner Thomas Schelling to study segregation, a critical social problem that we have to understand in order to be able to deal with it.
One critical challenge in STEM education is integration [44]. However, one of the most powerful thinking tools that the experts use for Mathematical Modeling across disciplines is the scalar potential. It is used in physics (gravity and electromagnetism), chemistry (chemotaxis), and biology (tropisms of microorganisms, bacterial chemotaxis) [45,46]. Here, we have shown that by using steepest descent algorithm, this tool can be taught to elementary school students integrating biology with mathematics.
Additionally, the activities can be perfectly aligned to the requirements of the current curriculum, both for Mathematics and Science. They can be easily adapted to be taught using different media: inside the classroom on paper or whiteboards, outdoors in school yards, or on students´ smartphones. Our results show that it is feasible to introduce the algorithm in elementary schools.

5. Conclusions

We conducted an experience with 475 teachers and then repeated exactly the same experience with 90 fourth-grade students. In both cases, the users answered 4 items containing a total of 7 questions. We found that in both cases there is an understanding of the models and the algorithm. Furthermore, on two completely new items for teachers and students, we found empirical evidence that suggests they were able to generalize and gain insight. This is a particularly encouraging finding that answers the first research question. It suggests that these powerful STEM concepts and tools can be easily introduced into the school system. In other words, despite the potential difficulties foreseen by the evolutionary trap, students can quickly understand this algorithm in navigation problems. One possible explanation is that the navigation problem that organisms solve by using local information from their environment to move to where there are more nutrients or intensity of nutrient odors is, ultimately, a basic foraging problem that all animals and our ancestors have repeatedly solved for survival. In this sense, the steepest descent (or ascent) algorithm is equivalent to a navigation rule for which our brain is very well adapted.
Additionally, to answer the second research question, we introduced this algorithm in activities that mathematically model real-life situations that are of great interest to fourth graders. These are activities that promote the integration of STEM; in this case mathematics and biology. Students can do similar examples integrating mathematics with other sciences and engineering. Moreover, the steepest descent algorithm is a powerful example of Computational Thinking. It is a way of thinking and modeling the world with an important impact on a great variety of problems. It is also at the core of two pillars of Computational Thinking: Machine Learning and Computational Modeling [14,15]. Moreover, we have introduced agent-based that moves in a spatial domain. These are really very ancient types of models: “Board games are a singular human construct, and were common feature on the early Egyptian dynasties (3000 B.C. and earlier) [37] (p. 22). As [37] highlights board games are very important to model the world: “Board games are not usually accorded the same primacy as numbers, but to my mind they are an equally important cornerstone in the scientific endeavor. In particular, I think board games, as well as numbers, mark a watershed in human perception of the world” [37] (p. 202).
We can therefore conclude that introducing the steepest descent (or ascent) algorithm is both feasible in elementary education and attractive to students, while also allowing greater integration in STEM and successfully promoting Computational Thinking.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/math9111197/s1.

Funding

This work was supported by the Chilean National Agency for Research and Development (ANID), grant number ANID/PIA/Basal Funds for Centers of Excellence FB0003.

Institutional Review Board Statement

Ethical review and approval were waived for this study, due to it being a class session during school time. The activity was revised and authorized by the respective teachers.

Informed Consent Statement

Student consent was waived due to authorization from teachers. Given that there are no patients but only students in a normal session in their schools, within school hours, and using a platform that records their responses anonymously, the teachers authorized the use of anonymized information.

Data Availability Statement

The data set that supports findings is shared in this link.

Acknowledgments

Support from ANID/PIA/Basal Funds for Centers of Excellence FB0003 is gratefully acknowledged.

Conflicts of Interest

The author declares no conflict of interest. The funder had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

References

  1. Valverde, G.; Marshall, J.; Sorto, A. Mathematics Learning in Latin America and the Caribbean. In Learning Mathematics in the 21st Century: Adding Technology to the Equation, 1st ed.; Arias Ortiz, E., Cristia, J., Cueto, S., Eds.; IDB: Washington, DC, USA, 2020; pp. 97–139. [Google Scholar]
  2. OECD. PISA 2018 Results (Volume II): Where All Students Can Succeed; PISA OECD Publishing: Paris, France, 2019. [Google Scholar]
  3. Mayr, E. Systematics and the Origin of Species, from the Viewpoint of a Zoologist; Columbia University Press: New York, NY, USA, 1942; p. 224. [Google Scholar]
  4. Lloyd, E.; Wilson, D.; Sober, E. Evolutionary Mismatch and What to Do About It: A Basic Tutorial. Evol. Appl. 2011, 2–4. [Google Scholar]
  5. Van Gugt, M.; De Vries, L.; Li, N. The Evolutionary Mismatch Hypothesis. In Applications of Social Psychology: How Social Psychology Can Contribute to the Solution of Real-World Problems; Forgas, J., Crano, W., Fiedler, K., Eds.; Routledge: New York, NY, USA, 2020. [Google Scholar]
  6. Pani, L. Is there an evolutionary mismatch between the normal physiology of the human dopaminergic system and current environmental conditions in industrialized countries? Mol. Psychiatry 2000, 5, 467–475. [Google Scholar] [CrossRef] [PubMed][Green Version]
  7. Geary, D. Educating the evolved mind: Conceptual foundations for an evolutionary educational psychology. In Psychological Perspectives on Contemporary Educational Issues; Carlson, J.S., Levin, J.R., Eds.; Information Age Publishing: Charlotte, NC, USA, 2007. [Google Scholar]
  8. Henrich, J. The Weirdest People in the World: How the West Became Psychologically Peculiar and Particularly Prosperous; Farrar, Straus and Giroux: New York, NY, USA, 2020. [Google Scholar]
  9. Dehaene, S. Evolution of human cortical circuits for reading and arithmetic: The “neuronal recycling” hypothesis. In From Monkey Brain to Human Brain; Dehaene, S., Duhamel, J.R., Hauser, M., Rizzolatti, G., Eds.; MIT Press: Cambridge, MA, USA, 2005; pp. 133–157. [Google Scholar]
  10. Araya, R.; Calfucura, P.; Jiménez, A.; Aguirre, C.; Palavicino, M.; Lacourly, N.; Soto-Andrade, J.; Dartnell, P. The Effect of Analogies on Learning to Solve Algebraic Equations. Pedagog. Int. J. 2010, 5, 216–232. [Google Scholar] [CrossRef]
  11. Fibonacci. Liber Abaci. Available online: https://en.wikipedia.org/wiki/Liber_Abaci (accessed on 20 May 2021).
  12. Swetz, F. Capitalism & Arithmetic; Open Court: La Salle, IL, USA, 1987. [Google Scholar]
  13. Wing, J.M. Computational Thinking Benefits Society. 2014. Available online: http://socialissues.cs.toronto.edu/index.html%3Fp=279.html (accessed on 20 May 2021).
  14. Denning, P. Computational Thinking in Science. Am. Sci. 2017, 105, 13–17. [Google Scholar] [CrossRef]
  15. Araya, R.; Isoda, M.; González, O. A Framework for Computational Thinking in Preparation for Transitioning to a Super Smart Society. J. Southeast Asian Educ. 2020, 1, 1–15. [Google Scholar]
  16. OECD. PISA 2003 Assessment Framework: Mathematics, Reading, Science and Problem Solving Knowledge and Skills; OECD: Paris, France, 2003; Available online: https://www.oecd.org/education/school/programmeforinternationalstudentassessmentpisa/33694881.pdf (accessed on 20 May 2021).
  17. Common Core Standards for Mathematics. Available online: http://www.corestandards.org/assets/CCSSI_Math%20Standards.pdf (accessed on 20 May 2021).
  18. Next Generation Science Standards. Available online: https://www.nextgenscience.org/ (accessed on 20 May 2021).
  19. Krajcik, J.; Merritt, J. Engaging Students in Scientific Practices: What does constructing and revising models look like in the science classroom? Sci. Scope 2012, 35, 6–8. [Google Scholar]
  20. Krajcik, J. The Next Generation Science Standards a Focus on Physical Science. Sci. Teach. 2013, 80, 27–37. [Google Scholar]
  21. Epstein, J. Why model? J. Artif. Soc. Soc. Simul. 2008, 11, 12. [Google Scholar]
  22. Pollak, H. Mathematical Modeling and Discrete Mathematics. In DIMACS Series in Discrete Mathematics and Theoretical Computer Science; American Mathematical Society: Providence, RI, USA, 1997; Volume 36. [Google Scholar]
  23. Dunbar, R. The Trouble with Science; Harvard University Press: Cambridge, MA, USA, 1995. [Google Scholar]
  24. Araya, R. Improving Math Education in Chile: Standards, e-Tutoring and Multiplayer Games. In Proceedings of the APEC Seminar on Best Practices and Innovations in the Teaching and Learning of Science and Math, Penang, Malaysia, 2004; Available online: https://www.automind.cl/wp-content/uploads/2020/09/APEC_Malasya.pdf (accessed on 20 May 2021).
  25. Araya, R. Introducing Mathematical Modeling Skills in the Curriculum. In Proceedings of the APEC Conference in Math Modeling in the Mathematics Curriculum: Some Best Practices in APEC Economies, Bandung, Indonesia, 22–23 October 2012; pp. 52–64. Available online: http://publications.apec.org/publication-detail.php?pub_id=1362 (accessed on 20 May 2021).
  26. Lingefjard, T. Mathematical Modelling in Teacher Education—Necessity or Unnecessarily. In Modelling and Applications in Mathematics Education: The 14th ICMI Study; Blum, W., Galbraith, P., Henn, H., Niss, M., Eds.; Springer: Berlin/Heidelberg, Germany, 2007. [Google Scholar]
  27. Pollak, H. Mathematical Modelling—A Conversation with Henry Pollak. In Modelling and Applications in Mathematics Education: The 14th ICMI Study; Blum, W., Galbraith, P., Henn, H., Niss, M., Eds.; Springer: Berlin/Heidelberg, Germany, 2007. [Google Scholar]
  28. Page, S. The Model Thinker: What You Need to Know to Make Data Work for You; Basic Books: New York, NY, USA, 2018. [Google Scholar]
  29. Siegler, R. Emerging Minds: The Process of Change in Children´s Thinking; Oxford University Press: Oxford, MI, USA, 1996. [Google Scholar]
  30. Siegler, R.; Araya, R. A computational model of conscious and unconscious strategy discovery. Adv. Child Dev. Behav. 2005, 33, 1–42. [Google Scholar] [PubMed]
  31. Simon, M. Reconstructing mathematics pedagogy from a constructivist perspective. J. Res. Math. Educ. 1995, 26, 114–145. [Google Scholar] [CrossRef]
  32. Gutiérrez, A.; Jaime, A. On the assessment of the Van Hiele levels of reasoning. Focus Learn. Probl. Math. 1998, 20, 27–46. [Google Scholar]
  33. Loeb, J. Forced Movements, Tropisms, and Animal Conduct; Lippincott: Philadelphia, PA, USA, 1918. [Google Scholar]
  34. Itskovits, E.; Ruach, R.; Zaslaver, A. Concerted pulsatile and graded neural dynamics enables efficient chemotaxis in C. elegans. Nat. Commun. 2018, 9, 2866. [Google Scholar] [CrossRef] [PubMed][Green Version]
  35. Epstein, J.; Axtell, R. Growing Artificial Societies; MIT Press: Cambridge, MA, USA, 1996. [Google Scholar]
  36. Schelling, T. Micromotives and Macrobehavior; Norton: New York, NY, USA, 1978. [Google Scholar]
  37. Holland, J. Emergence: From Chaos to Order; Addison-Wesley: Reading, MA, USA, 1995. [Google Scholar]
  38. Archimedes. The Method. Available online: https://en.wikipedia.org/wiki/The_Method_of_Mechanical_Theorems (accessed on 20 May 2021).
  39. Thibault, D. ASEB: The Game of Twenty Squares. An Ancient Egyptian Two-Player Board Game. Available online: https://cdn.myminifactory.com/assets/object-assets/59e48c87ac796/threedfiles/aseb.pdf (accessed on 20 May 2021).
  40. Araya, R.; Diaz, K. Implementing Government Elementary Math Exercises Online: Positive Effects Found in RCT under Social Turmoil in Chile. Educ. Sci. 2020, 10, 244. [Google Scholar] [CrossRef]
  41. Araya, R.; Arias Ortiz, E.; Bottan, N.; Cristia, J. Does Gamification in Education Work? Experimental Evidence from Chile; No. IDB-WP-982. IDB Working Paper Series; Inter-American Development Bank: New York, NY, USA, 2019. [Google Scholar]
  42. Diamond, J. Life with the artificial Anasazi. Nature 2002, 419, 567. [Google Scholar] [CrossRef] [PubMed]
  43. Turchin, P.; Currie, T.; Turner, E.; Gravrilets, S. War, space, and the evolution of Old World complex societies. Proc. Natl. Acad. Sci. USA 2013, 110, 16384–16389. [Google Scholar] [CrossRef] [PubMed][Green Version]
  44. Honey, M.; Pearson, G.; Schweingruber, H. STEM Integration in K-12 Education: Status, Prospects, and an Agenda for Research; National Academies Press: Washington, DC, USA, 2014. [Google Scholar]
  45. Araya, R. Estrategias de Enseñanza de Las Matemáticas. Internet Course for Latin American Teachers of Basic Education, Organization of American States (OAS). 2000. Available online: http://www.educoas.org/portal/ineam/cursos_2011/MATE-E114_11.aspx?culture=es (accessed on 20 May 2021).
  46. Araya, R. Math Teacher Education to Prepare Students for the 21st Century Jobs: Mathematical Modeling and Computational Thinking. Submitted.
Figure 1. Screenshot of Item 1. Note that this item has three questions. The user has to mark the path that the bacteria will follow, which always move to the neighboring cell with the highest number (the number represents the amount of nutrients), until they no longer find a higher number.
Figure 1. Screenshot of Item 1. Note that this item has three questions. The user has to mark the path that the bacteria will follow, which always move to the neighboring cell with the highest number (the number represents the amount of nutrients), until they no longer find a higher number.
Mathematics 09 01197 g001
Figure 2. Correct answers to Item 1. There are three trajectories, one for each question.
Figure 2. Correct answers to Item 1. There are three trajectories, one for each question.
Mathematics 09 01197 g002

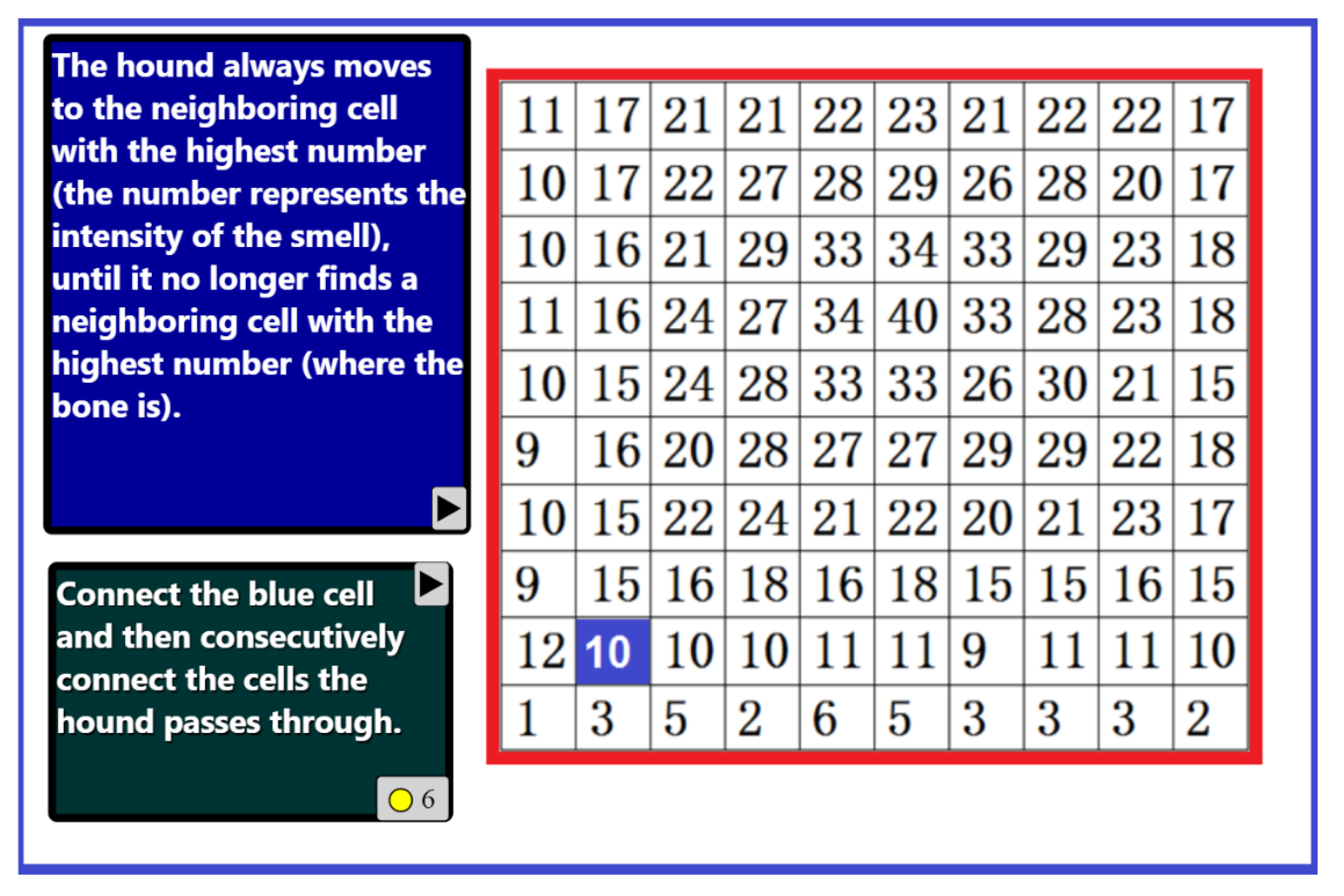

Figure 3. Screenshot of Item 2. Here, the user has to connect the blue cell and then consecutively connect the cells through which the dog passes, considering that it always moves to the neighboring cell with the highest number (the number represents the intensity of the smell), until it no longer finds a neighboring cell with the highest number (i.e., where the bone is).
Figure 3. Screenshot of Item 2. Here, the user has to connect the blue cell and then consecutively connect the cells through which the dog passes, considering that it always moves to the neighboring cell with the highest number (the number represents the intensity of the smell), until it no longer finds a neighboring cell with the highest number (i.e., where the bone is).
Mathematics 09 01197 g003

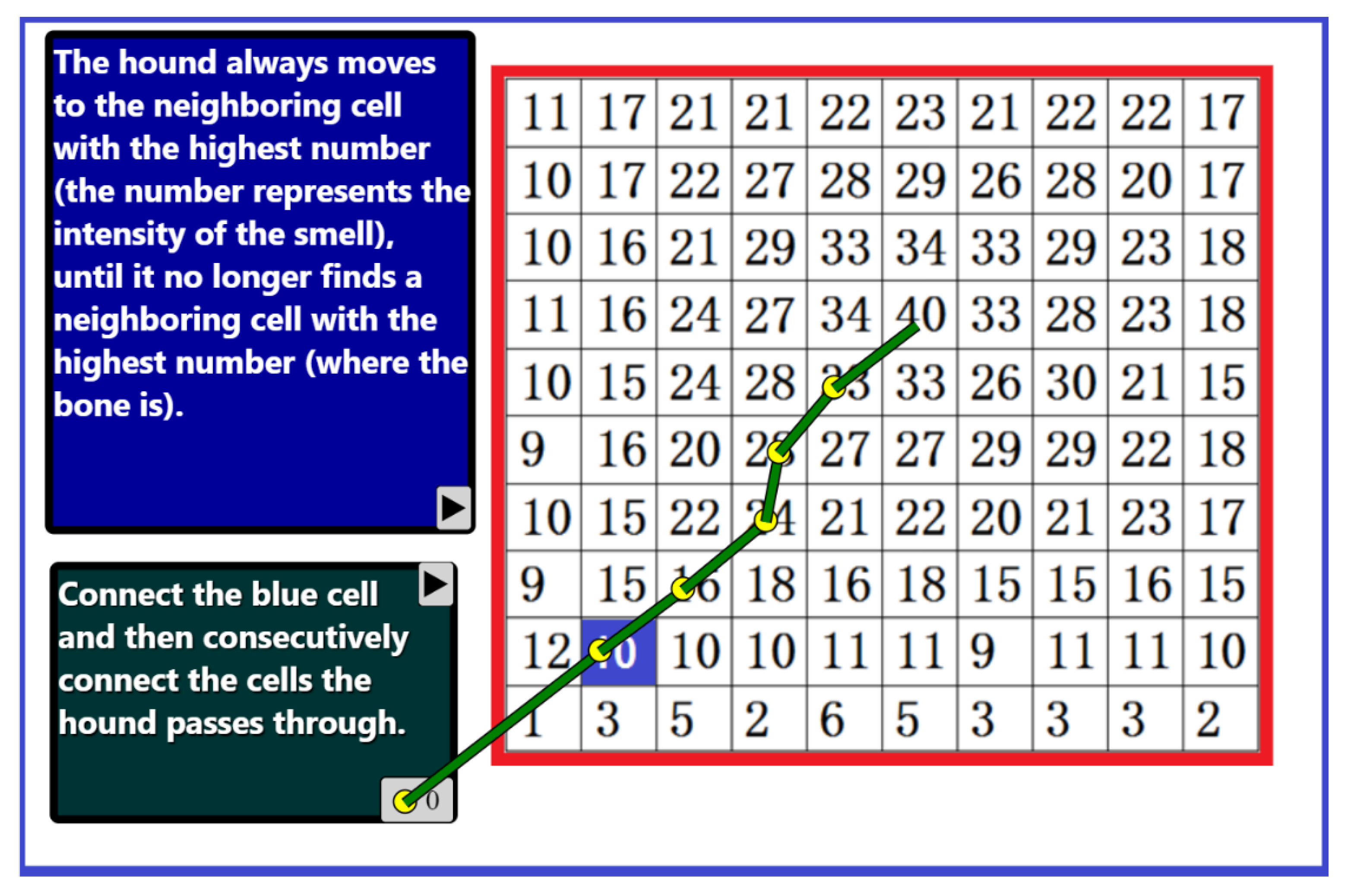

Figure 4. Correct answer to Item 2.
Figure 4. Correct answer to Item 2.
Mathematics 09 01197 g004

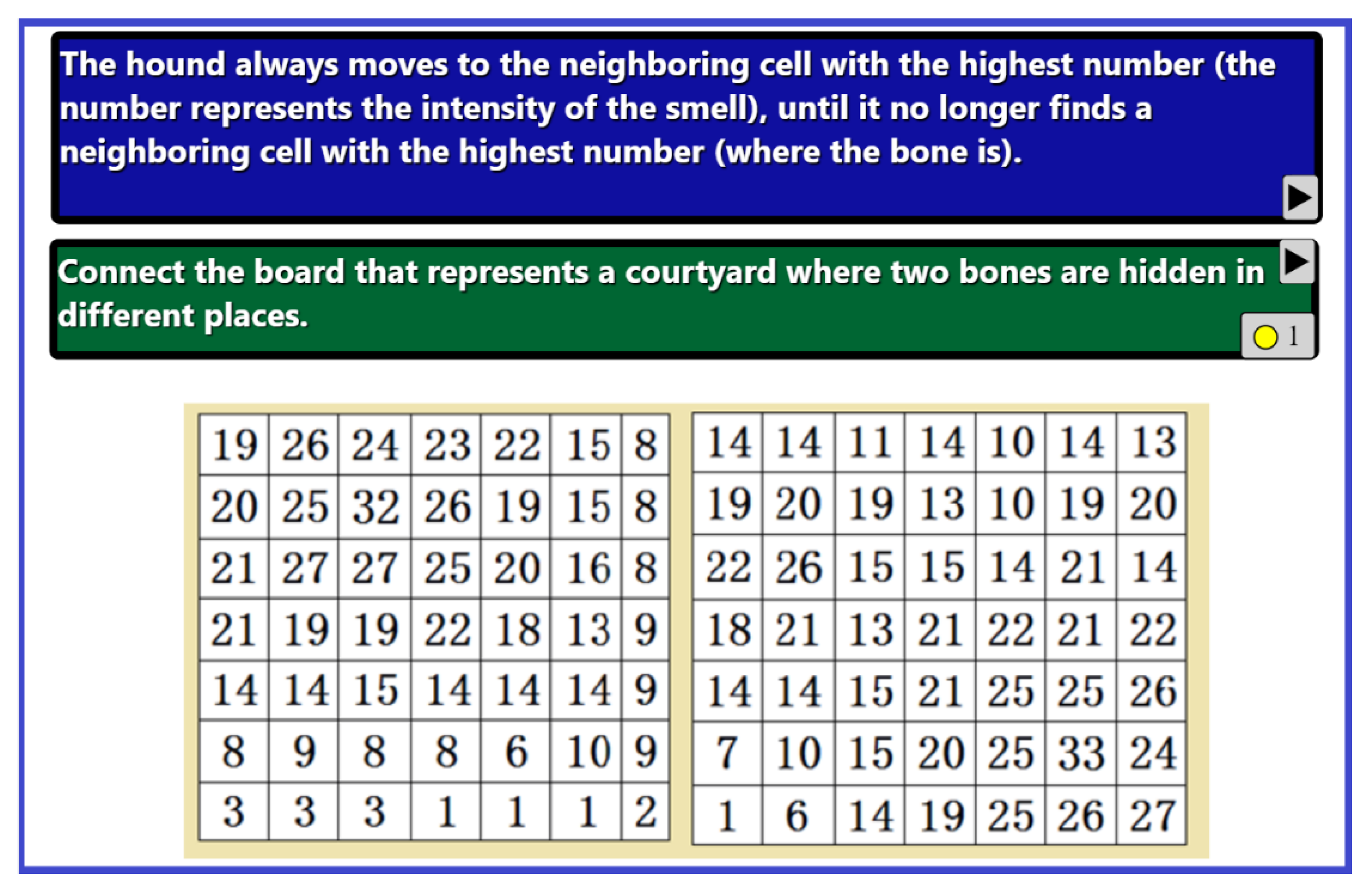

Figure 5. Screenshot of Item 3. In this item, the user has to consider the same rule of motion as in Item 2 and then connect the board that represents a courtyard where two bones are hidden in different places.
Figure 5. Screenshot of Item 3. In this item, the user has to consider the same rule of motion as in Item 2 and then connect the board that represents a courtyard where two bones are hidden in different places.
Mathematics 09 01197 g005

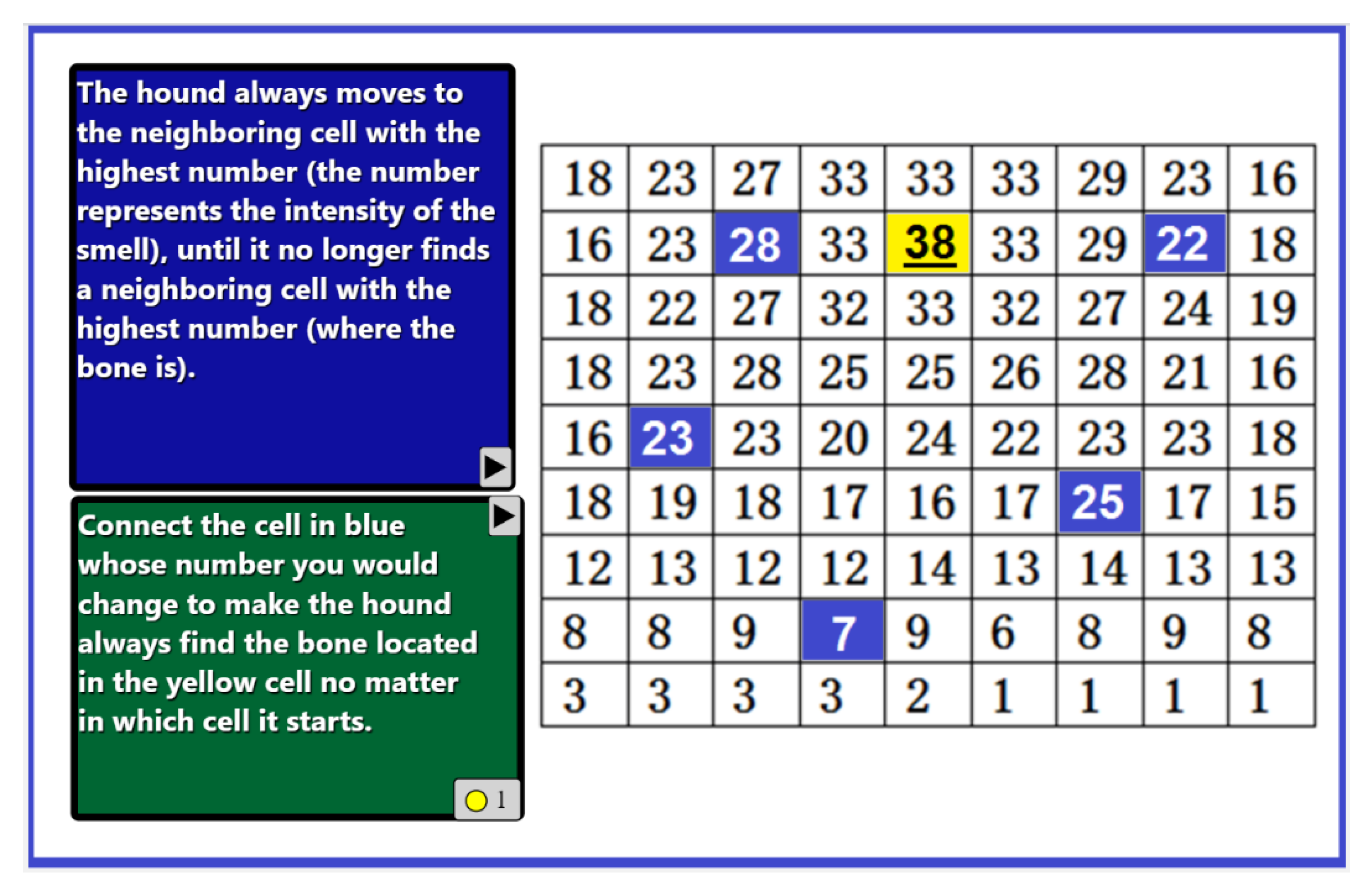

Figure 6. Screenshot of Item 4. Here the user has to consider the same rules of motion as in Items 2 and 3 and then connect the cell in blue whose number should be changed in order for the dog to always find the bone located at the yellow cell no matter where it starts.
Figure 6. Screenshot of Item 4. Here the user has to consider the same rules of motion as in Items 2 and 3 and then connect the cell in blue whose number should be changed in order for the dog to always find the bone located at the yellow cell no matter where it starts.
Mathematics 09 01197 g006
Figure 7. Average score by teachers and students for each item, with 95% Confidence Intervals.
Figure 7. Average score by teachers and students for each item, with 95% Confidence Intervals.
Mathematics 09 01197 g007
Table 1. Percentage of teachers and students who answered each item.
Table 1. Percentage of teachers and students who answered each item.
SubjectsN% Item 1% Item 2% Item 3% Item 4
Teachers45799.699.398.998.9
Students9042.295.676.772.2
Table 2. Average score by teachers and fourth grade students.
Table 2. Average score by teachers and fourth grade students.
SubjectsItem 1Item 2Item 3Item 4
Teachers52.359.760.856.8
Students43.249.777.550.1
Chance00.195020
Table 3. Average response times (in seconds) for each item.
Table 3. Average response times (in seconds) for each item.
SubjectsItem 1Item 2Item 3Item 4
Teachers730537204140
Students4782197879
