Application of Recursive Theory of Slow Viscoelastic Flow to the Hydrodynamics of Second-Order Fluid Flowing through a Uniformly Porous Circular Tube
Abstract
:1. Introduction
2. Governing Equations
3. Langlois Recursive Approach
4. Problem Description
5. Problem Solution
5.1. First Order System and the Solution
5.2. Second Order System and the Solution
5.3. Third Order System and the Solution
5.4. Expression for Stream Function Correct to Third Order
6. Velocity Components
6.1. First Order Velocity Terms
6.2. Second Order Velocity Terms
6.3. Third Order Velocity Terms
6.4. Expressions for Velocity Components Correct to Third Order
7. Pressure Distribution
7.1. First Order Characteristic Pressure Terms and Pressure Drop
7.2. Second Order Characteristic Pressure Terms
7.3. Third Order Characteristic Pressure Terms
7.4. Characteristic Pressure Correct to Third Order
8. Various Important Expressions in Dimensionless Form
8.1. Velocity Components
8.2. Volume Flow Rate
8.3. Wall Shear Stress
8.4. Fractional Rabsorption
8.5. Leakage Flux
8.6. Mean Pressure Drop

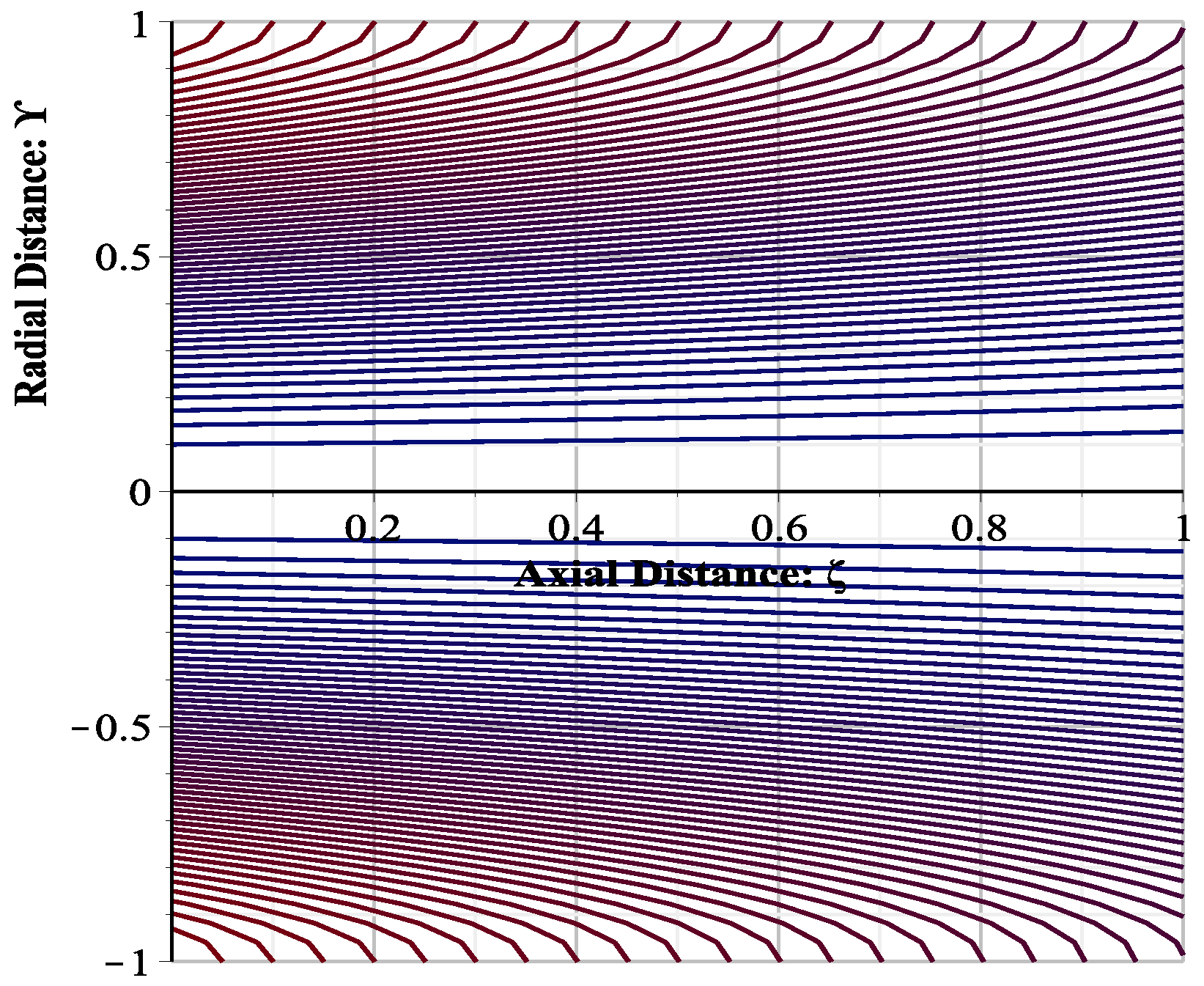

8.7. Stream Function
9. Graphical Results and Discussion
10. Conclusions
- If the elastic parameter , the results obtained by Narasimhan [16] are achieved.
- If , the results obtained by Macey [1] are achieved.

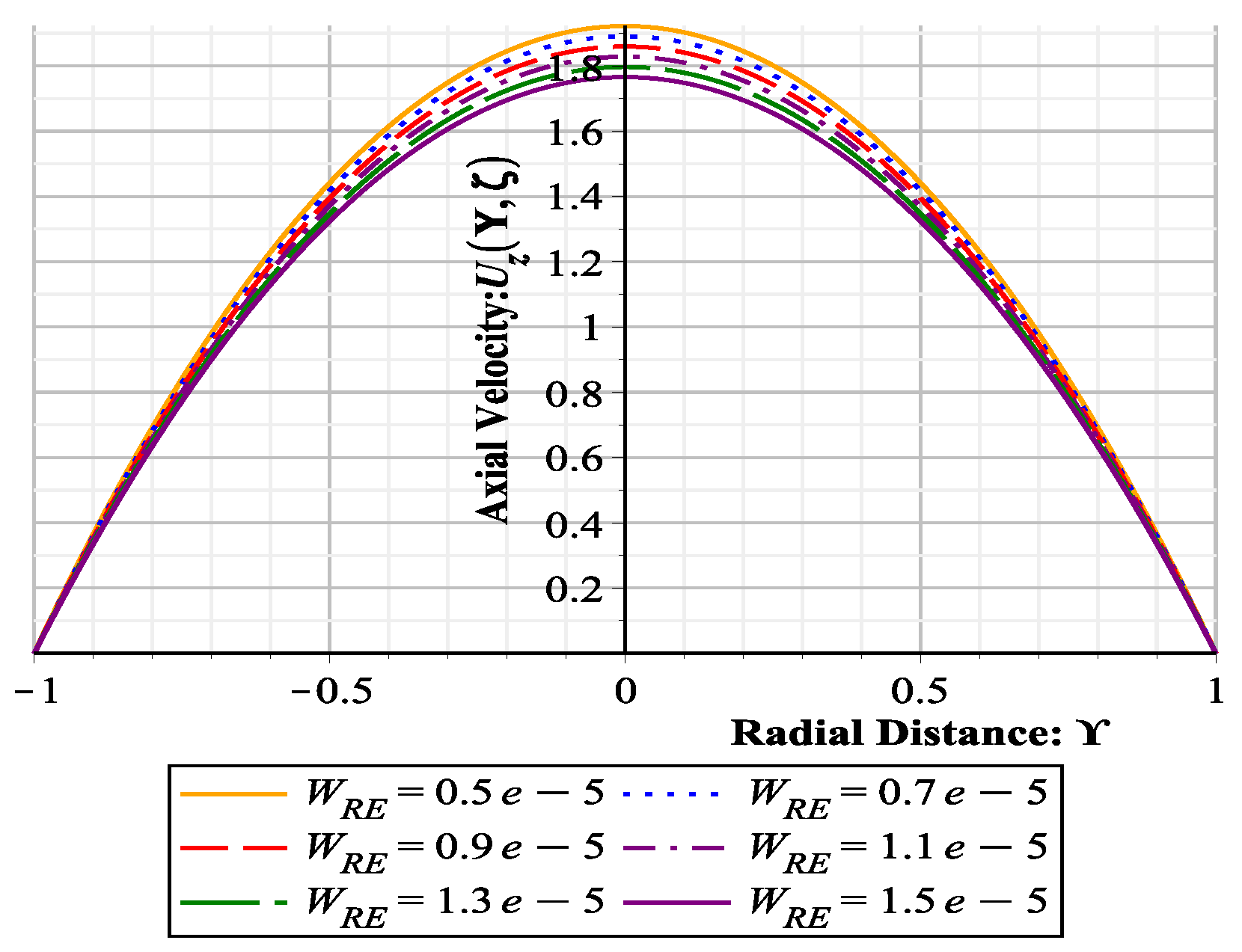

- Elastic parameter does not bring any significant change in any of the flow variables in case of slow flow with small amount of cross flow.

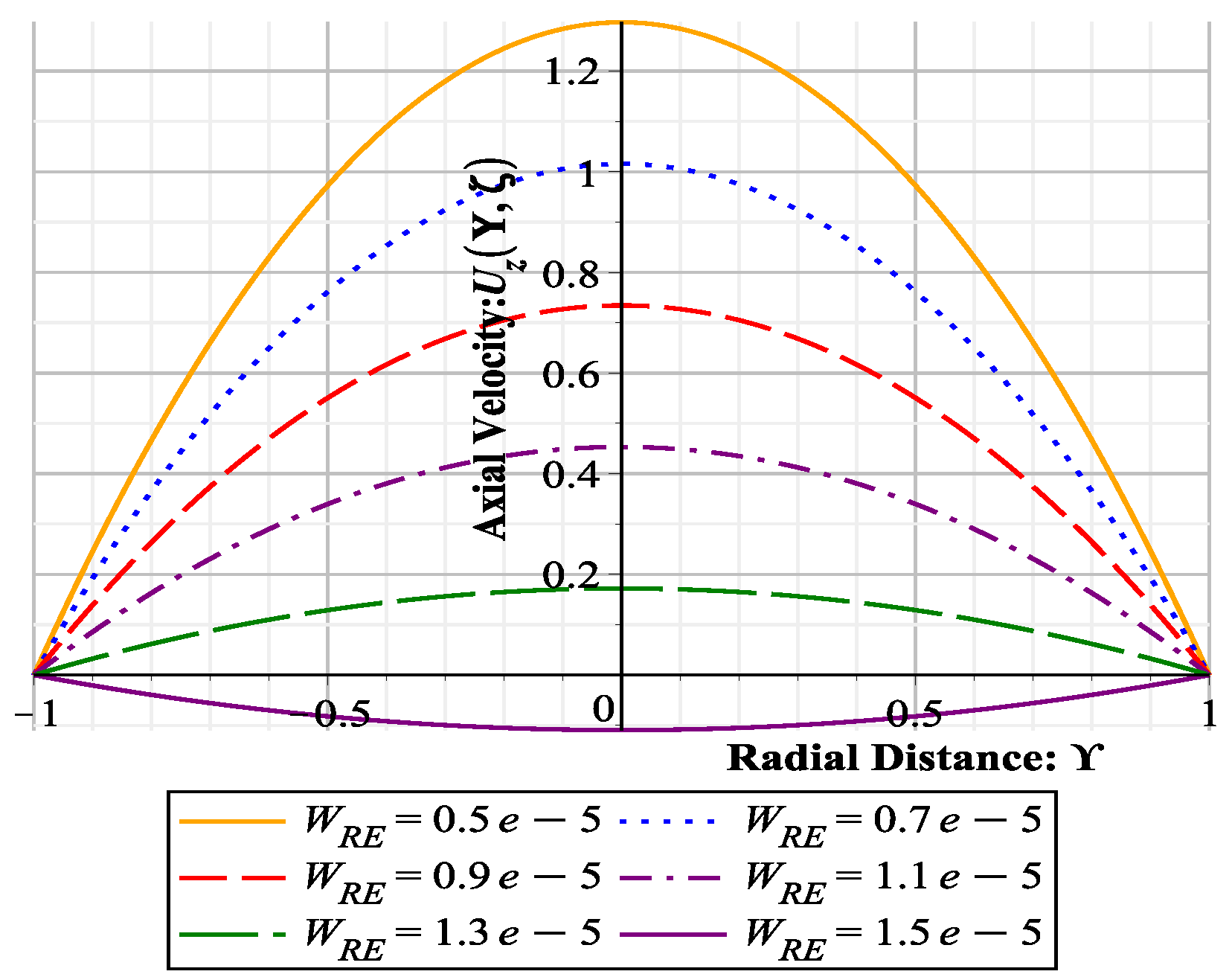

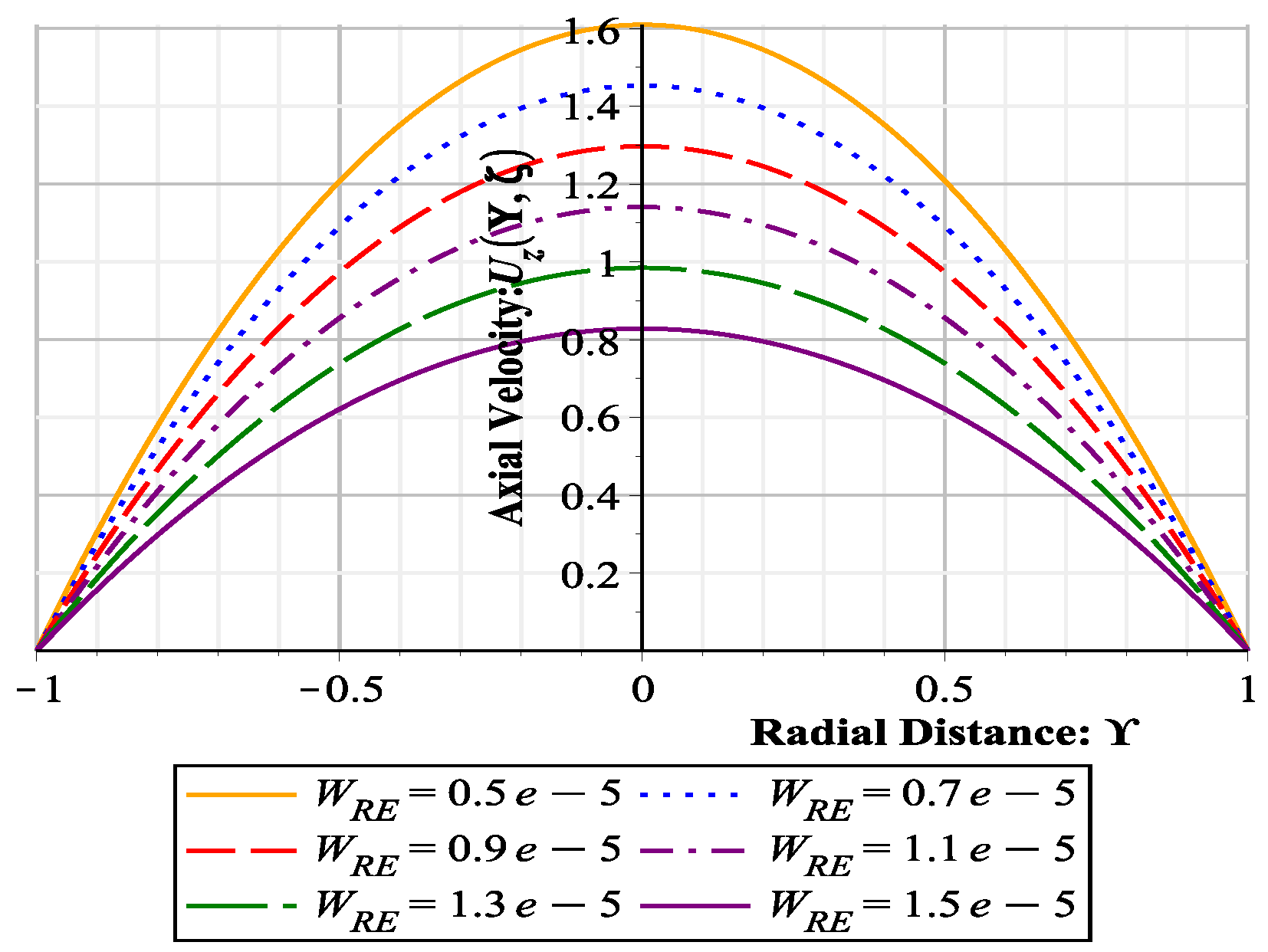

- The magnitude of axial velocity component decreases if the magnitude of suction increases. Reverse flow is observed when wall porosity parameter assumes value threshold value of .
- Volume flow rate is found to be independent of both the elastic parameter and the cross-viscosity parameter .

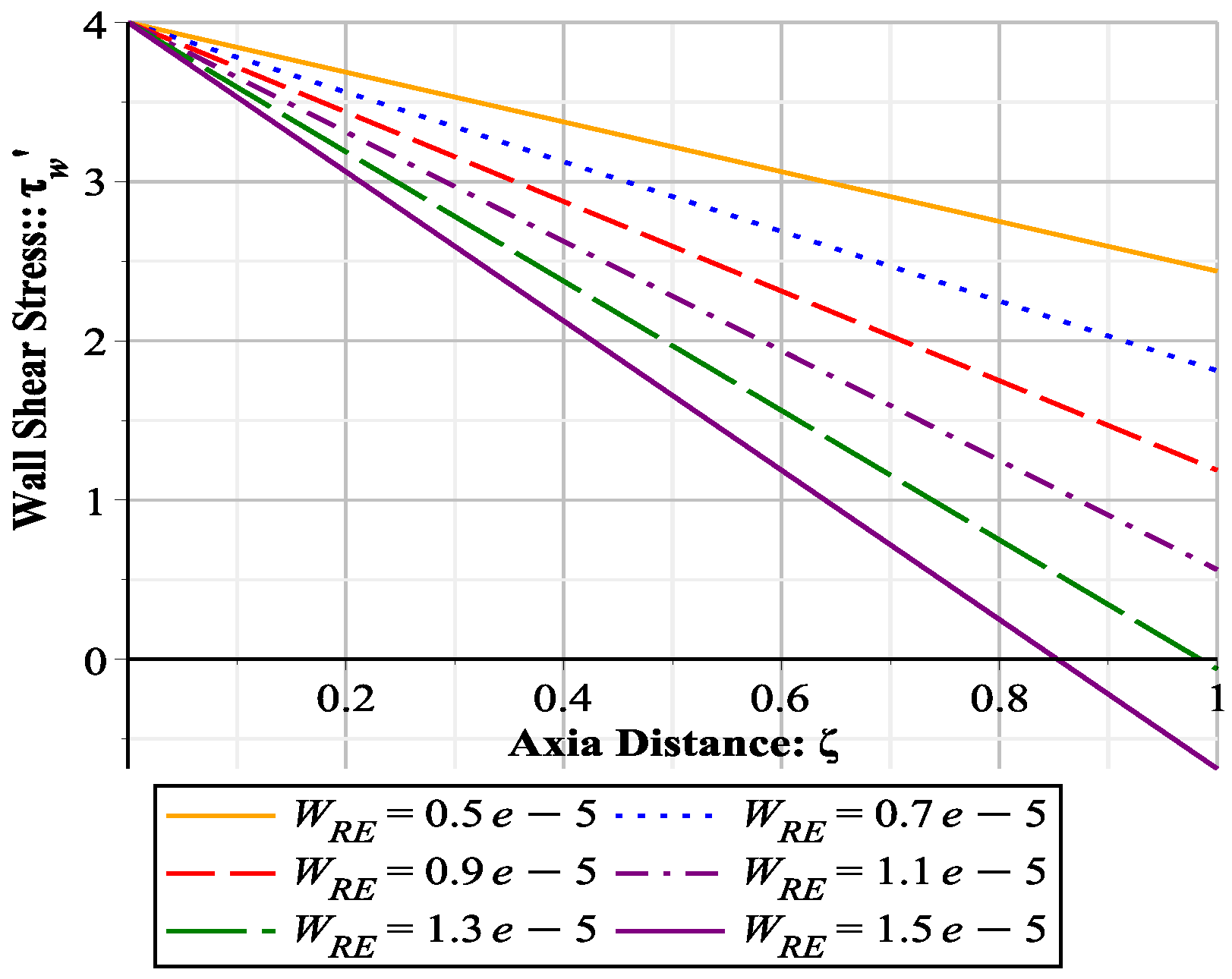

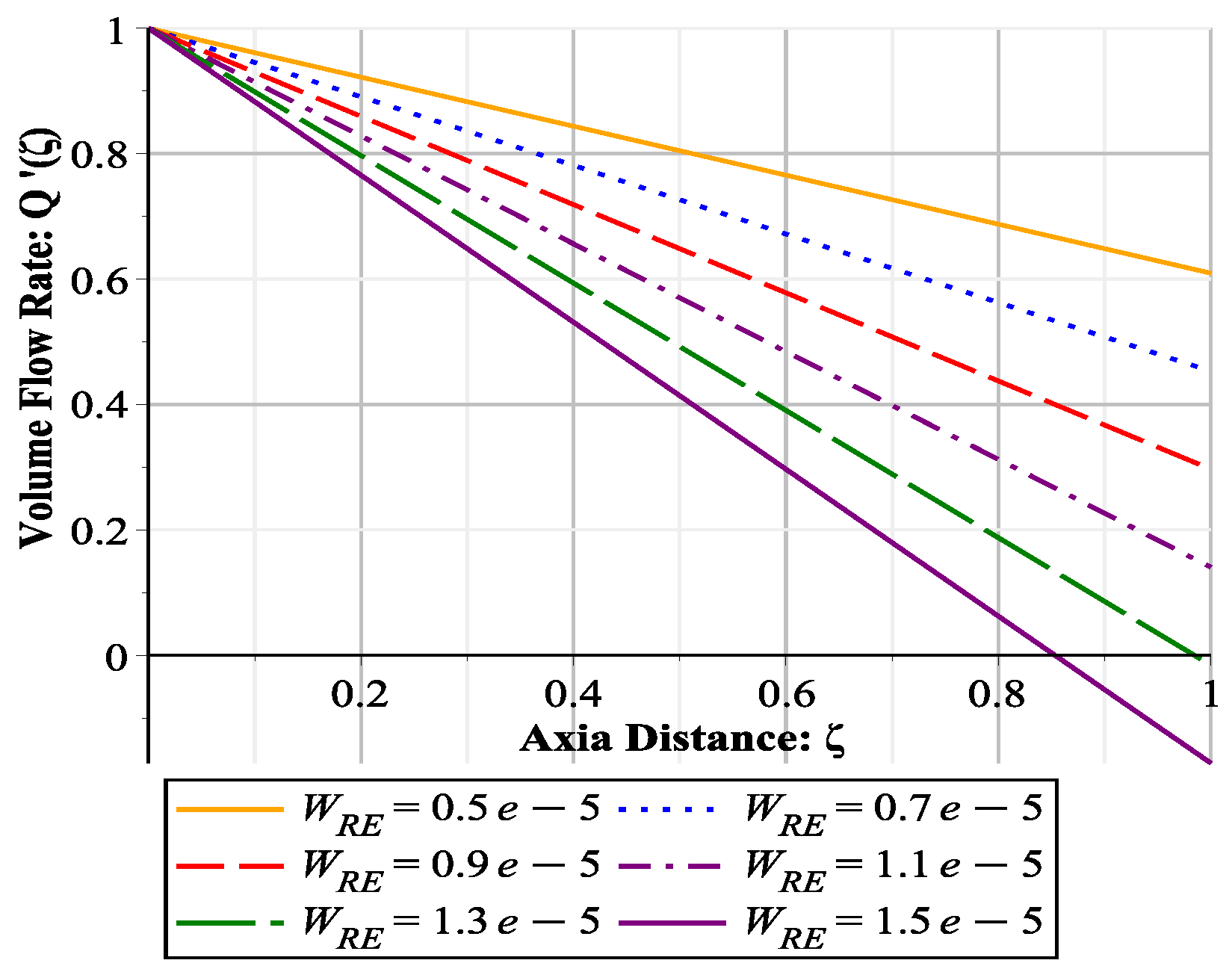

- Volume flow rate and wall shear stress decrease in major flow direction if increases.

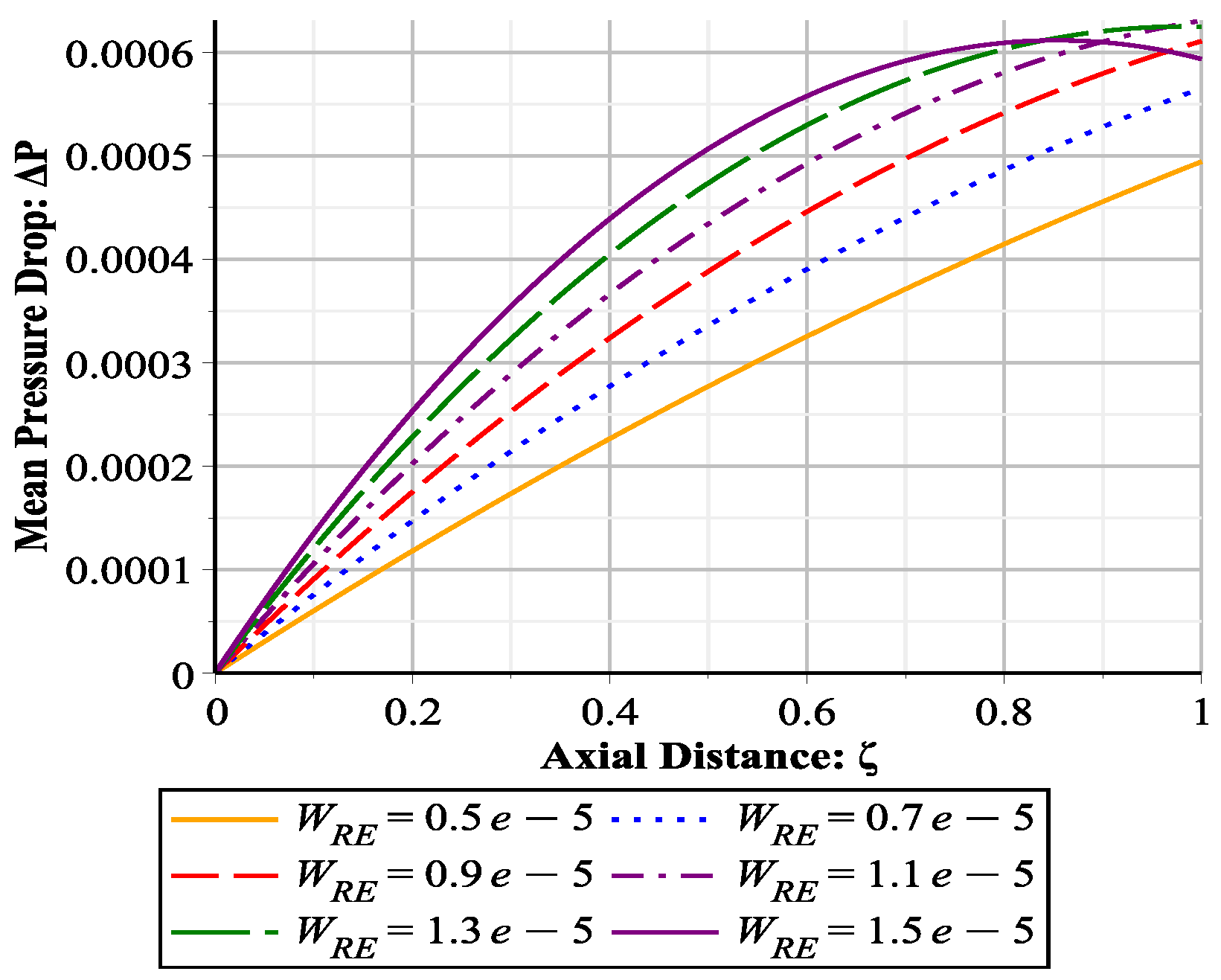

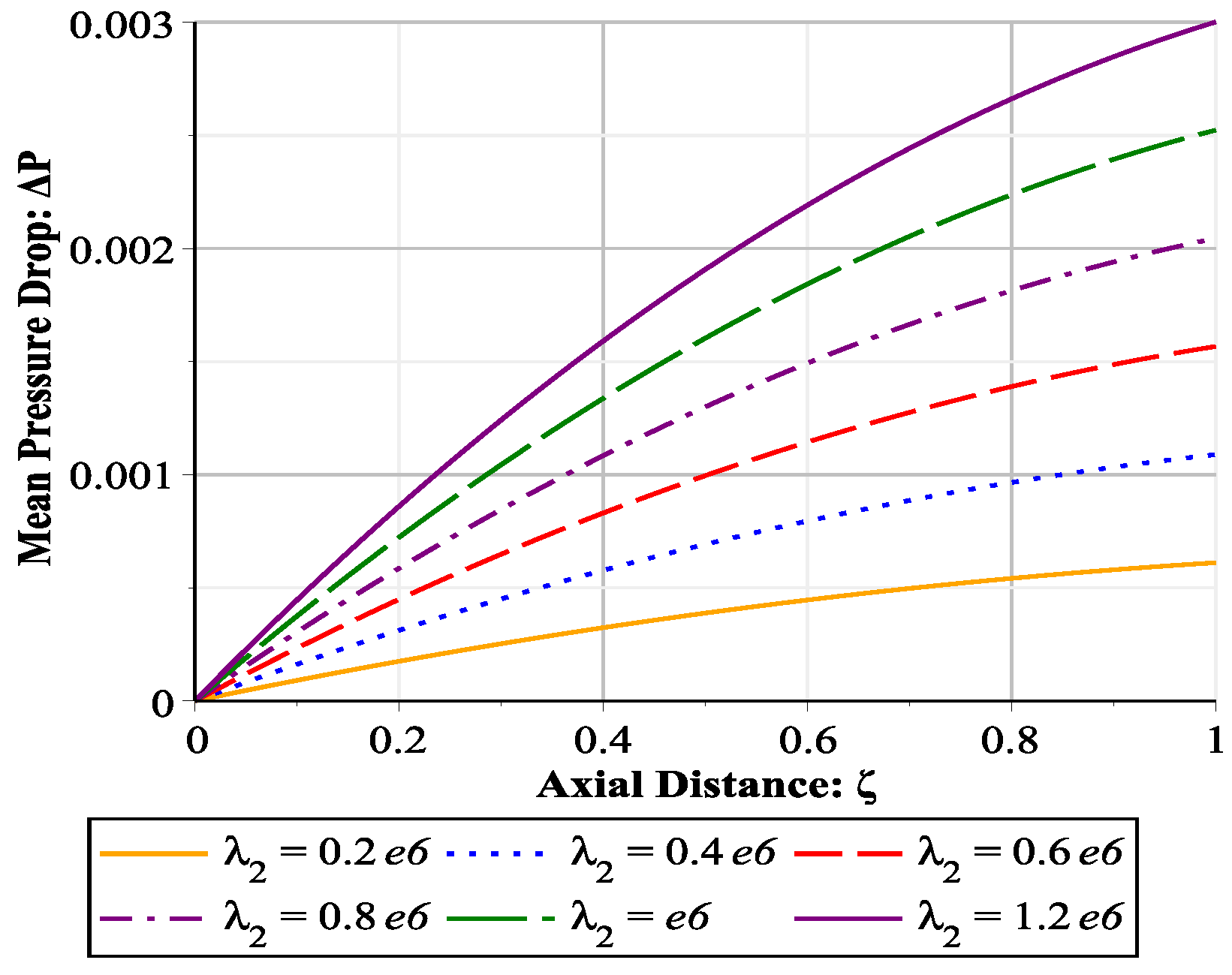

- Mean pressure drop in major flow direction increases with the increase of the value of wall Reynolds number . It is also observed that elastic parameter does not bring significant change in pressure drop, however pressure drop increases with increase of cross-viscosity parameter .
- Fractional reabsorption (FR) also increases with increase of , this relationship is given in Table 2.

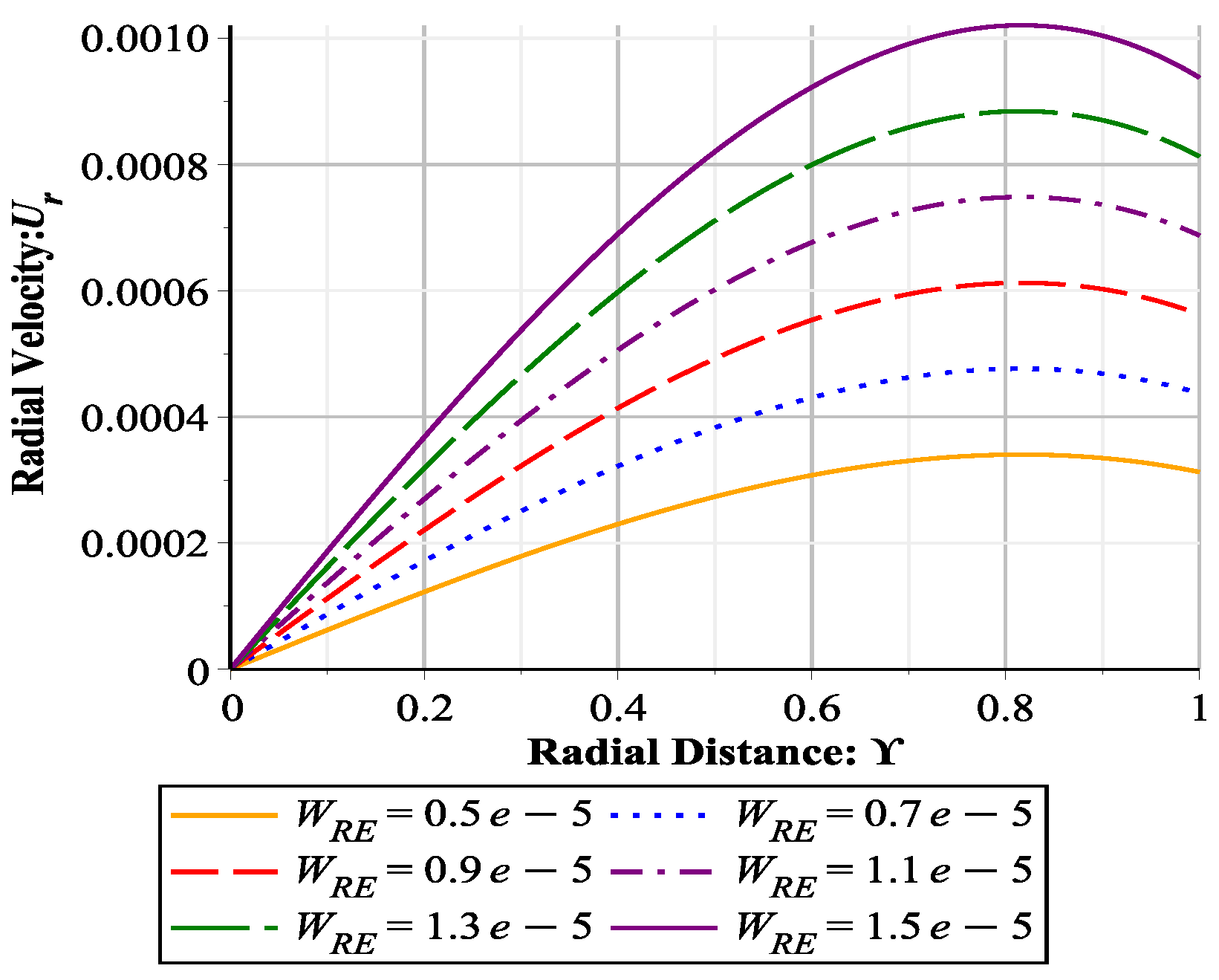

- The radial velocity component is independent of and attains maximum at . The magnitude of radial velocity component increases with increase of .
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
Abbreviations
Elastic parameter | |
Cross-viscosity parameter | |
Ratio of radius to length | |
Dimensionless coordinate of tube’s transversal axis, | |
Dimensionless elastic parameter | |
Dimensionless cross viscosity parameter | |
Dimensionless stream function | |
Stream function | |
Wall shear stress | |
Dimensionless wall shear stress | |
Coordinate of tube’s azimuthal axis | |
Dimensionless coordinate of tube’s longitudinal axis, | |
Mean pressure drop in major flow direction in the tube at point | |
Characteristic pressure in the tube at point | |
Fractional reabsorption | |
L | Length of the tube |
Inlet flow Reynolds number | |
P | Dimensionless pressure in the tube at point |
p | Pressure in the tube at point |
Q | Volume flow rate at any point z |
Dimensionless volume flow rate at any point | |
Inlet volume flow rate | |
q | leakage flux |
Dimensionless leakage flux | |
R | Radius of the tube |
r | Coordinate of tube’s transversal axis |
Dimensionless fluid velocity along r-direction | |
Dimensionless fluid velocity along r-direction | |
Dimensionless fluid velocity along z-direction | |
Fluid velocity along z-direction | |
Cross flow radial velocity at wall of the pipe | |
Wall Reynolds number | |
z | Coordinate of tube’s longitudinal axis |
Appendix A. Expression of Characteristic Pressure Correct to Third Order
References
- Macey, R.I. Pressure flow patterns in a cylinder with reabsorbing walls. Bull. Math. Biophys. 1963, 25, 1–9. [Google Scholar] [CrossRef]
- Kelman, R.B. A theoretical note on exponential flow in the proximal part of the mammalian nephron. Bull. Math. Biophys. 1962, 24, 303–317. [Google Scholar] [CrossRef] [PubMed]
- Macey, R.I. Hydrodynamics in the renal tubule. Bull. Math. Biophys. 1965, 27, 117–124. [Google Scholar] [CrossRef] [PubMed]
- Palatt, P.J.; Sackin, H.; Tanner, R.I. A hydrodynamic model of a permeable tubule. J. Theor. Biol. 1974, 44, 287–303. [Google Scholar] [CrossRef]
- Pozrikidis, C. Stokes flow through permeable tubule. Arch. Appl. Mech. 2010, 80, 323–333. [Google Scholar] [CrossRef]
- Naqvi, S.; Haroon, T.; Siddiqui, A.M.; Sohail, A. Analysis of Stokes flow through periodic permeable tubules. Alex. Eng. J. 2017, 56, 105–113. [Google Scholar]
- Shreenivas, K.R.; Achala, L.N. Two dimensional flow in renal tubules with linear model. Adv. Appl. Math. Biosci. 2011, 2, 47–59. [Google Scholar]
- Siddiqui, A.M.; Haroon, T.; Shahzad, A. Hydrodynamics of viscous fluid through porous slit with linear absorption. Appl. Math. Mech.-Eng. Ed. 2016, 37, 361–378. [Google Scholar] [CrossRef]
- Kashan, M.; Iqbal, Z.; Siddiqui, A.M. Slip effects on the flow of Newtonian fluid in renal tubule. J. Comput. Theor. Nanosci. 2015, 12, 4319. [Google Scholar]
- Beavers, G.S.; Joseph, D.D. Boundary conditions at a naturally permeable wall. J. Fluid Mech. 1967, 30, 197–207. [Google Scholar] [CrossRef]
- Kashan, M.; Lu, D.; Gorji, M.R. Hydrodynamical study of flow in a permeable channel: Application to flat plate dialyzer. Int. J. Hydrog. Energy 2019, 44, 17041–17047. [Google Scholar] [CrossRef]
- Berman, A.S. Laminar flow in channels with porous walls. J. Appl. Phys. 1953, 24, 1232–1235. [Google Scholar] [CrossRef]
- Yuan, S.W. Further investigation of laminar flow in channels with porous walls. J. Appl. Phys. 1956, 27, 267–269. [Google Scholar] [CrossRef]
- Sellars, J.R. Laminar flow in channels with porous walls at high suction Reynolds numbers. J. Appl. Phys. 1955, 26, 489–490. [Google Scholar] [CrossRef] [Green Version]
- Donoughe, P.L. Analysis of Laminar Incompressible Flow in Semiporous Channels. NACA-TN-3759; 1956. Available online: https://ntrs.nasa.gov/search.jsp?R=19930084695 (accessed on 16 July 2020).
- Narasimhan, M.N.L. Laminar non-Newtonian flow in a porous pipe. Appl. Sci. Res. 1961, 10, 393–409. [Google Scholar] [CrossRef]
- Annan, K. Mathematical modeling for hollow fiber dialyzer: Blood and HCO3-dialysate flow characterstics. Int. J. Pure Appl. Math. 2012, 79, 425–452. [Google Scholar]
- Oxarango, L.; Schmitz, P.; Quintard, M. Laminar flow in channels with wall suction or injection: A new model to study multi-channel filtration systems. Chem. Eng. Sci. 2004, 59, 1039–1051. [Google Scholar] [CrossRef]
- Yu, J.; Chitalia, V.C.; Akintewe, O.O.; Edwards, A.; Wong, J.Y. Determinants of hemodialysis performance: Modeling fluid and solute transport in hollow-fiber dialyzers. Regen. Eng. Transl. Med. 2019. [Google Scholar] [CrossRef]
- Moussy, Y.; Snider, A.D. Laminar flow over pipes with injection and suction through the porous wall at Reynolds number. J. Membr. Sci. 2009, 327, 104–107. [Google Scholar] [CrossRef]
- Ullah, H.; Sun, H.; Siddiqui, A.M.; Haroon, T. Creeping flow analysis of slightly non-Newtonian fluid in a uniformly porous slit. J. Appl. Anal. Comput. 2019, 9, 140–158. [Google Scholar] [CrossRef]
- Ullah, H.; Siddiqui, A.M.; Sun, H.; Haroon, T. Slip effects on creeping flow of slightly non-Newtonian fluid in a uniformly porous slit. J. Braz. Soc. Mech. Sci. Eng. 2019, 41, 412. [Google Scholar] [CrossRef]
- Kacou, A.; Rajagopal, K.R.; Szeri, A.Z. A thermodynamical analysis of journal bearings lubricated by a non-Newtonian fluid. J. Tribol. 1988, 110, 414–420. [Google Scholar] [CrossRef]
- Ng, C.W. Saibel, Nonlinear viscosity effects in slider bearing lubrication. ASME J. Fluid. Eng. 1974, 56, 191–252. [Google Scholar]
- Rivlin, R.S.; Ericksen, J.L. Stress-deformation relations for isotropic materials. J. Ration. Mech. Anal. 1955, 4, 523–532. [Google Scholar] [CrossRef]
- Sinha, A. MHD flow and heat transfer of a third order fluid in a porous channel with stretching wall: Application to hemodynamics. Alex. Eng. J. 2015, 54, 1243–1252. [Google Scholar] [CrossRef] [Green Version]
- Leal, L.G. The slow motion of slender rod-like particles in a second-order fluid. J. Fluid Mech. 1975, 69, 305–337. [Google Scholar] [CrossRef] [Green Version]
- Imran, A.; Rana, M.A.; Siddiqui, A.M.; Shoaib, M. Flow of second grade fluid in a scraped surface heat exchanger. J. Food Process Eng. 2017, 40, e12393. [Google Scholar] [CrossRef]
- Tai, C.W.; Wang, S.; Narasimhan, V. Cross-stream migration of non-spherical particles in a second-order fluid—Theories of particle dynamics in arbitrary quadratic flows. J. Fluid Mech. 20202, 895. [Google Scholar] [CrossRef]
- Siddiqui, A.M.; Haroon, T.; Bano, Z. Steady 2-D flow of a second grade fluid in a symmetrical diverging channel of varying width. Appl. Math. Sci. 2014, 8, 4675–4691. [Google Scholar] [CrossRef]
- Langlois, W.E. A recursive approach to the theory of slow, steady-state viscoelastic flow. Trans. Soc. Rheol. 1963, 7, 75–99. [Google Scholar] [CrossRef]
- Langlois, W.E. The recursive theory of slow viscoelastic flow applied to three basic problems of hydrodynamics. Trans. Soc. Rheol. 1964, 8, 33–60. [Google Scholar] [CrossRef]
- Fosdick, R.L.; Dunn, J.E. Thermodynamics, stability and boundedness of fluids of complexity 2 and fluids of second grade. Arch. Ration. Mech. Anal. 1974, 56, 191–252. [Google Scholar]
Quantity | Symbol | Value |
---|---|---|
Length of the Tube | L | cm |
Radius of the Tube | R | cm |
Inlet Volume Flow Rate | cm/s | |
Dynamic Viscosity | dyn·s/cm |
