Lung X-ray Segmentation using Deep Convolutional Neural Networks on Contrast-Enhanced Binarized Images

1
Department of Electronics and Computer Engineering, National Taiwan University of Science and Technology, Taipei 10607, Taiwan
2
Department of Computer Science, National Chengchi University, Taipei 11605, Taiwan
*
Author to whom correspondence should be addressed.
Mathematics 2020, 8(4), 545; https://doi.org/10.3390/math8040545
Received: 2 March 2020 / Revised: 29 March 2020 / Accepted: 1 April 2020 / Published: 7 April 2020
(This article belongs to the Special Issue Artificial Intelligence and Big Data Computing)

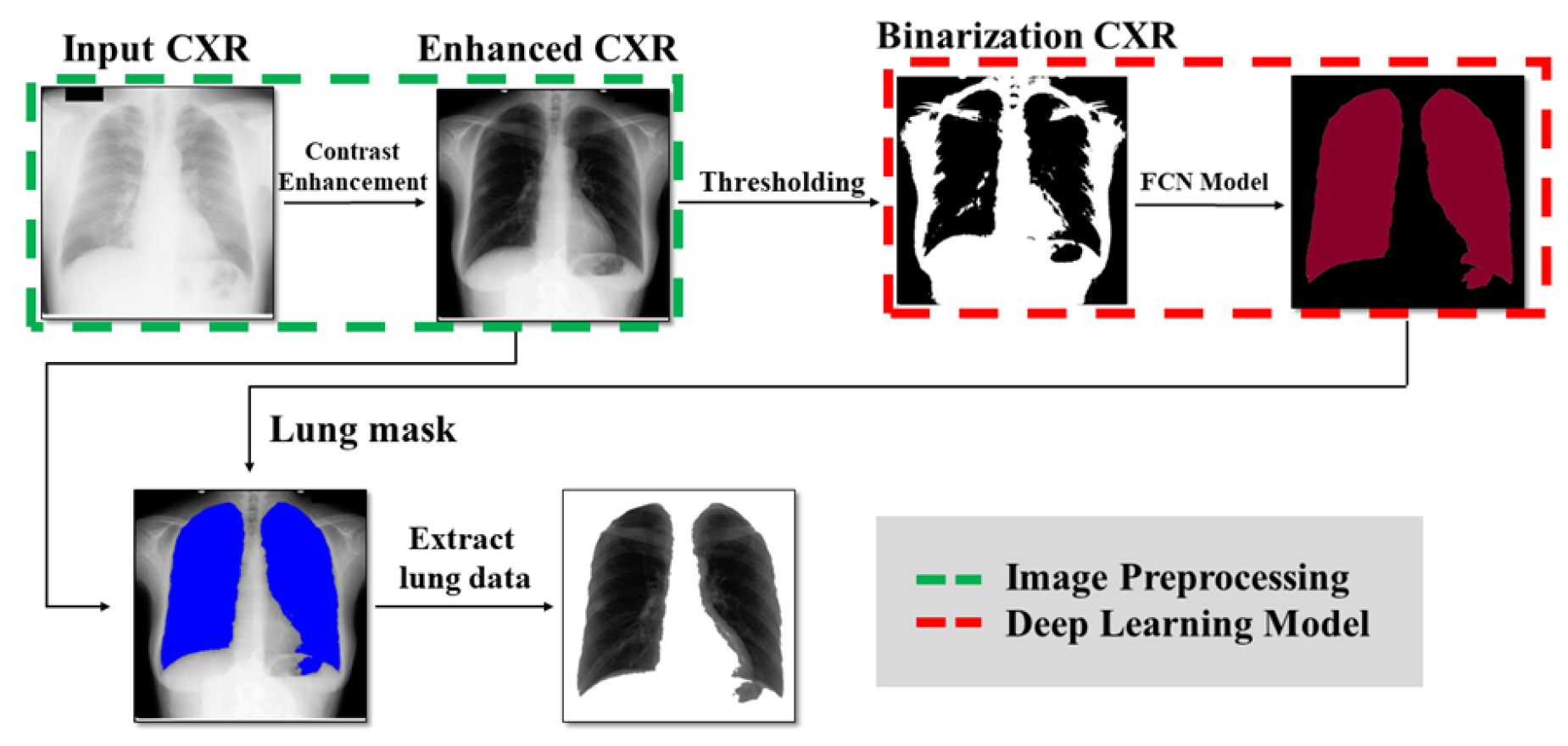

Automatically locating the lung regions effectively and efficiently in digital chest X-ray (CXR) images is important in computer-aided diagnosis. In this paper, we propose an adaptive pre-processing approach for segmenting the lung regions from CXR images using convolutional neural networks-based (CNN-based) architectures. It is comprised of three steps. First, a contrast enhancement method specifically designed for CXR images is adopted. Second, adaptive image binarization is applied to CXR images to separate the image foreground and background. Third, CNN-based architectures are trained on the binarized images for image segmentation. The experimental results show that the proposed pre-processing approach is applicable and effective to various CNN-based architectures and can achieve comparable segmentation accuracy to that of state-of-the-art methods while greatly expediting the model training by up to 20.74 % and reducing storage space for CRX image datasets by down to 94.6 % on average. View Full-Text
Keywords: lung X-ray segmentation; deep convolutional neural networks; image binarization; histogram equalization lung X-ray segmentation; deep convolutional neural networks; image binarization; histogram equalization
Show Figures

Figure 1

MDPI and ACS Style

Chen, H.-J.; Ruan, S.-J.; Huang, S.-W.; Peng, Y.-T. Lung X-ray Segmentation using Deep Convolutional Neural Networks on Contrast-Enhanced Binarized Images. Mathematics 2020, 8, 545.
