N00N State Generation by Floquet Engineering

Abstract

We review quantum architectures for engineering the N00N state, a bipartite maximally entangled state essential in quantum metrology. These schemes transform the initial state $|N⟩\otimes |0⟩$ into the N00N state, ${\displaystyle \frac{1}{\sqrt{2}}}\left(\right|N⟩\otimes |0⟩+|0⟩\otimes |N⟩),$ where $|N⟩$ and $|0⟩$ are Fock states with N and 0 excitations, respectively. We demonstrate that this state can be generated through superpositions of quantum light modes, hybrid light–matter interactions, or spin ensembles. Our approach also enables the creation of mesoscopic and macroscopic entangled states, including entangled coherent and squeezed states. Furthermore, we show that a broad class of maximally entangled states can be realized within this framework. Extensions to multi-mode state engineering are also explored.

1. Introduction

The estimation of unknown parameters is a fundamental challenge across various scientific fields, underpinning both technological progress and scientific breakthroughs [1,2,3,4,5,6,7,8,9,10,11]. Achieving the highest precision in parameter estimation is a central goal in metrology [12,13,14,15,16,17,18,19,20]. A widely adopted approach to improving estimation accuracy involves repeating experiments and gathering more information about the parameter of interest. When employing N independent resources to estimate a parameter $\phi$, the achievable precision leads to an uncertainty scaling of $\Delta \phi \propto 1/\sqrt{N}$. This regime is commonly known as the shot-noise limit or standard quantum limit [21,22,23].

Quantum physics offers a remarkable advantage in parameter estimation, surpassing the limits imposed by classical methodologies [24,25,26]. By harnessing quantum resources, it is possible to achieve measurement precision beyond what is attainable within classical frameworks [27,28,29,30,31]. This quantum-enhanced precision paves the way for unprecedented accuracy, transforming scientific and technological domains where ultra-precise measurements are essential [32,33,34,35,36,37]. The investigation of quantum-enhanced estimation has emerged as a key research area, with the potential to redefine the fundamental limits of measurement precision.

Therefore, quantum resources enable a significant enhancement in precision, exceeding classical limits and approaching the fundamental bounds set by quantum mechanics. In particular, quantum-enhanced estimation can surpass the classical shot-noise limit and reach the Heisenberg limit (HL), where the estimation error scales as $\Delta \phi \propto 1/N$ for a given resource count N [38]. A notable quantum state capable of achieving this precision is the N00N state, expressed as ${\displaystyle \frac{1}{\sqrt{2}}}\left(\right|N\rangle \otimes |0\rangle +|0\rangle \otimes |N\rangle ).$ Renowned for its potential to attain Heisenberg-limited precision, the N00N state is a key resource in quantum metrology [38,39,40,41,42].

The quantum advantage provided by the N00N state stems from its intrinsic quantum entanglement [43]. Entanglement underpins the unique properties of quantum systems and serves as a fundamental resource for a wide range of quantum applications, including quantum computing, quantum communication, and beyond [44,45,46,47,48]. In recent years, significant efforts have been devoted to harnessing entangled states for quantum sensing and metrology, aiming to push the boundaries of measurement precision.

Despite their potential, N00N states are notoriously difficult to realize due to the complexities involved in their generation and their high sensitivity to decoherence [49,50,51,52,53]. These challenges are not exclusive to N00N states; rather, they reflect broader obstacles that challenge quantum technologies more generally [54,55,56,57,58,59]. The generation of N00N states remains a central challenge in the field. Achieving and preserving such entanglement under realistic conditions is difficult, highlighting the fundamental limitations in controlling quantum systems for practical use in metrology. Overcoming these limitations is essential for advancing quantum-enhanced technologies, particularly in the context of high-precision parameter estimation.

This review examines quantum architectures aimed at engineering entangled states, with a particular emphasis on generating N00N states. We present strategies for producing these states via superpositions involving quantum light modes, hybrid light–matter interactions, and coupled spin ensembles. The approaches outlined here are capable of generating both mesoscopic and macroscopic entangled states, such as entangled coherent states and squeezed states. As a result, we demonstrate that a wide variety of maximally entangled states can be realized using these architectural schemes. Furthermore, we extend this discussion to encompass multi-mode scenarios, providing a comprehensive analysis of the techniques used to engineer complex entangled states across multiple degrees of freedom.

This review is organized as follows. In Section 2, we introduce a quantum circuit for N00N state generation, with detailed consideration of cavity-QED systems. In Section 3, we discuss N00N state generation as a superposition of spin ensembles and as a superposition of light and motion. Section 4 explores entangled state generation beyond the N00N state, identifying the creation of a broader class of entangled states. In Section 5, we extend the discussion to entangled state generation beyond two-mode systems, considering multimode state generation. Section 6 focuses on Heisenberg-limit metrology beyond N00N states, where a wide range of states achieving Heisenberg-limit precision in phase estimation are identified. Finally, we briefly conclude this review in Section 7.

2. Quantum Circuit for N00N State Generation

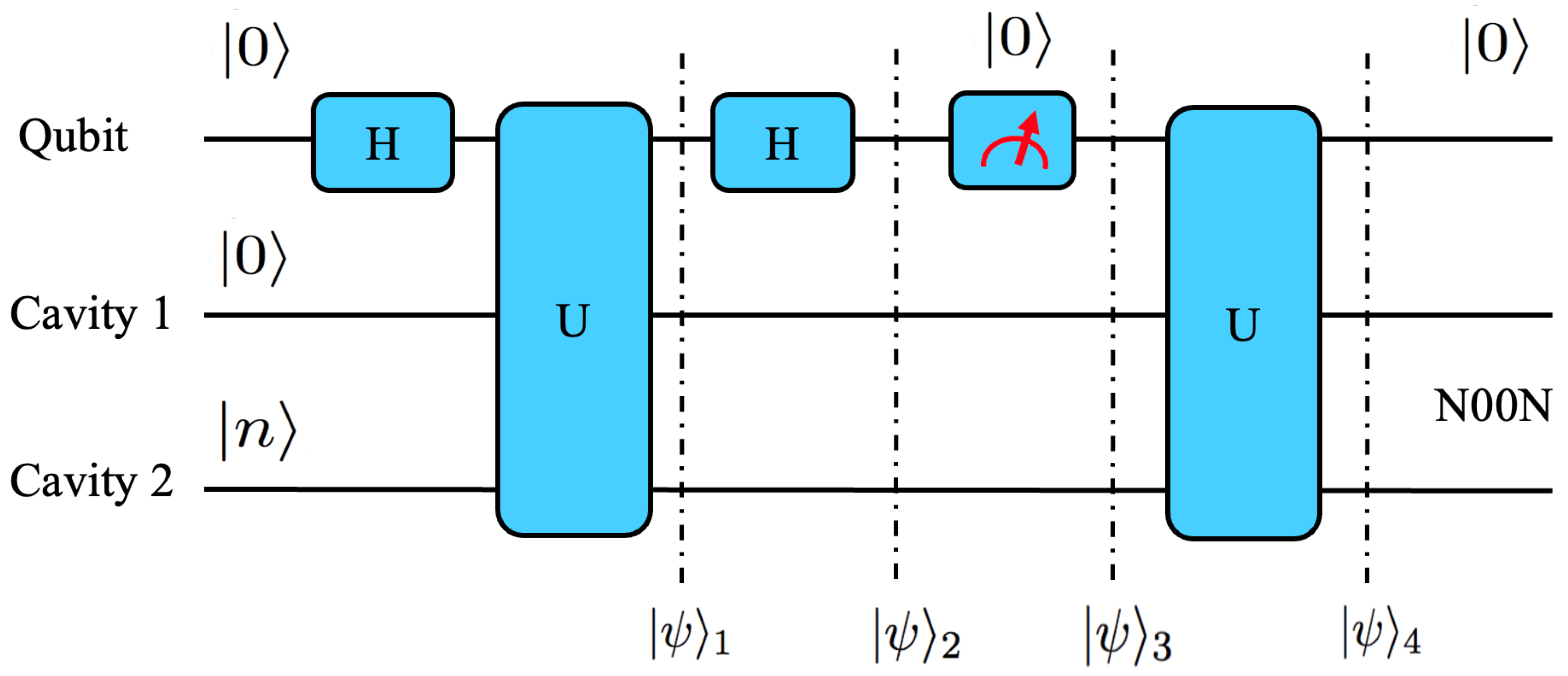

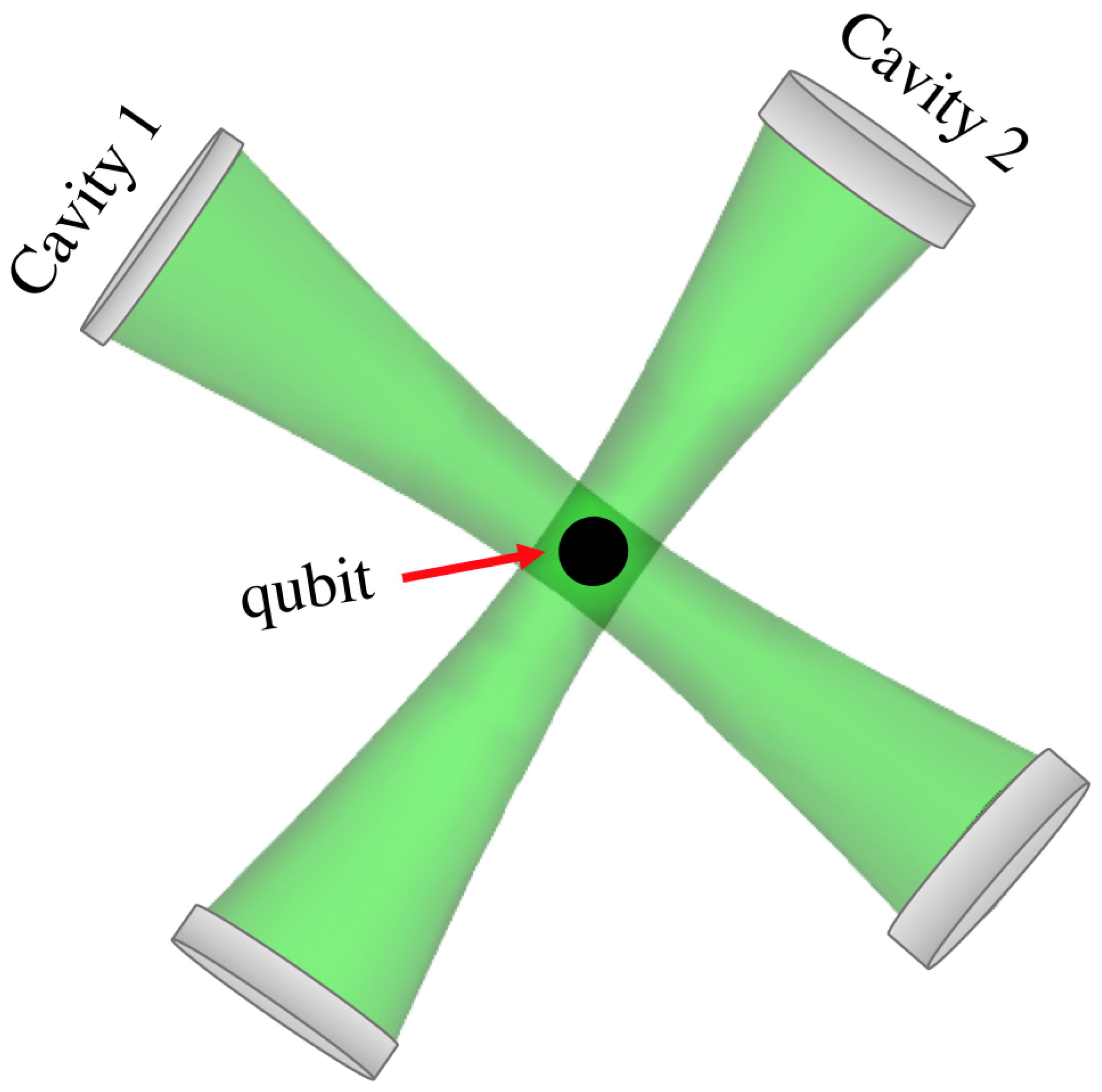

To facilitate the generation of the N00N state, we consider an interaction Hamiltonian interaction describing two cavity modes coupled to a two-level qubit, expressed as follows [60,61,62].

$$H_{\mathrm{eff}}=i\kappa (a_1{a}_2^{†}-a_1^{†}{a}_2){\sigma }_z,$$

(1)

in which the bosonic annihilation and creation operators for the first and second modes are denoted by $a_1,a_1^{†}$ and $a_2,a_2^{†}$, respectively. These operators can correspond to any harmonic oscillator system, such as the quantized electromagnetic field modes in a cavity. The qubit operators are given by ${\sigma }_z=|1\rangle \langle 1|-|0\rangle \langle 0|$, ${\sigma }_{+}=|1\rangle \langle 0|$ and ${\sigma }_{-}=|0\rangle \langle 1|$, representing the standard Pauli operators that generate the $\mathfrak{su}\left(2\right)$ Lie algebra. Moreover, $\kappa$ is the effective coupling strength between the two bosonic modes mediated by the qubit. It determines the rate at which excitations are coherently transferred between the two modes.

Hence, the system effectively describes a two-level qubit interacting with two bosonic modes, such as two distinct modes of the cavity field [62].

A key element in our approach to high-N00N state generation is the derivation of the effective Hamiltonian presented in Equation (1). A detailed derivation of the effective Hamiltonian is presented in Appendix A. For conceptual clarity, let us consider a setup where two cavity modes interact with a single qubit, as illustrated in Figure 1. It is insightful to explore how the above Hamiltonian can lead to the generation of a N00N state, beginning with an initial configuration of N photons in one of the cavities. Specifically, we demonstrate that this interaction can result in a N00N state shared between the two cavity modes. To proceed, we initialize the qubit in a logical superposition state, ${\displaystyle \frac{1}{\sqrt{2}}}\left(\right|0\rangle +|1\rangle ),$ while the first and second cavity modes are prepared in the Fock states ${|0\rangle }_1$ and ${|N\rangle }_2$, respectively. Thus, the initial state of the combined system—comprising the qubit and the two cavities—can be expressed as

$$\begin{array}{c}\hfill |\psi \left(0\right)\rangle ={\displaystyle \frac{1}{\sqrt{2}}}\left(\right|0\rangle +{|1\rangle )|0\rangle }_1{|N\rangle }_2.\end{array}$$

(2)

Starting from this initial state, we analyze the time evolution of the entire system governed by the effective Hamiltonian introduced earlier. The dynamics are dictated by the unitary time evolution operator

$$\begin{array}{c}\hfill U\left(t\right)=e^{-i{H}_{\mathrm{eff}}\Delta t/\hslash }.\end{array}$$

(3)

Applying this operator to the initial state, $\left|\psi \right(t)\rangle =U(t\left)\right|\psi \left(0\right)\rangle$, allows us to study how the interaction leads to the formation of a N00N state in the two cavity modes.

We allow the system to evolve over a time interval $\Delta t_1=\pi /\left(4\kappa \right)$. Under this evolution, the state of the system transforms into

$${|\psi \rangle }_1={\displaystyle \frac{1}{\sqrt{2^N}}}\sum _{k=0}^N\sqrt{\left({\displaystyle \genfrac{}{}{0pt}{}{N}{k}}\right)}|k,N-k\rangle \left(|0\rangle +{(-1)}^k|1\rangle \right).$$

(4)

In this state, the two cavity modes become entangled with the qubit, resulting in a tripartite entangled system. A measurement on the first resonator projecting it into the Fock state $|k\rangle$ effectively collapses the qubit into a superposition state that depends on the parity of k. Specifically, if k is even, the qubit is projected onto the symmetric state ${\displaystyle \frac{1}{\sqrt{2}}}\left(\right|0\rangle +|1\rangle )$, while for odd k, it collapses into the antisymmetric state ${\displaystyle \frac{1}{\sqrt{2}}}\left(\right|0\rangle -|1\rangle )$. These two states form an orthogonal basis in the qubit’s Hilbert space. Conversely, a measurement performed on the qubit in the basis $\{{\displaystyle \frac{1}{\sqrt{2}}}\left(\right|0\rangle \pm |1\rangle )\}$ provides information about the parity of k in the first mode. A similar analysis applies to measurements on the second cavity mode, owing to the symmetric structure of the state.

Next, we apply the Hadamard gate to the qubit. The Hadamard operation is represented by a $2\times 2$ unitary matrix acting on the Hilbert space of a single qubit, defined as [63]

$$\mathcal{H}={\displaystyle \frac{1}{\sqrt{2}}}\left(\begin{array}{cc}1& 1\\ 1& -1\end{array}\right).$$

(5)

This gate performs a rotation in the qubit’s computational basis, mapping the states as follows: $|0\rangle \to {\displaystyle \frac{1}{\sqrt{2}}}\left(\right|0\rangle +|1\rangle ),$ and $|1\rangle \to {\displaystyle \frac{1}{\sqrt{2}}}\left(\right|0\rangle -|1\rangle ).$ Applying the Hadamard transformation to the qubit in the previously evolved state induces a local change of basis. After this operation, we allow the system to evolve again under the same effective Hamiltonian for another time interval $\Delta t_2=\pi /\left(4\kappa \right)$.

Following this second round of evolution, the quantum state of the system becomes

$${|\psi \rangle }_2={\displaystyle \frac{1}{\sqrt{2^N}}}\sum _{k=0}^N\sqrt{\left({\displaystyle \genfrac{}{}{0pt}{}{N}{k}}\right)}[1+{(-1)}^k]|k,N-k\rangle |0\rangle +{\displaystyle \frac{1}{\sqrt{2^N}}}\sum _{k=0}^N\sqrt{\left({\displaystyle \genfrac{}{}{0pt}{}{N}{k}}\right)}[1-{(-1)}^k]|k,N-k\rangle |1\rangle .$$

(6)

This state explicitly separates the contributions of even and odd photon number states due to the parity-dependent coefficients $[1\pm {(-1)}^k]$. The terms corresponding to even k contribute to the component with the qubit in state $|0\rangle$, while odd k terms contribute to the component with the qubit in state $|1\rangle$.

Subsequently, we perform a projective measurement on the qubit in the computational basis. This measurement collapses the total wavefunction, projecting the two cavity modes into a superposition of number states depending on the measurement outcome. If the qubit is found in the state $|0\rangle$, the total state of the system collapses into

$${|\psi \rangle }_3={\displaystyle \frac{1}{\sqrt{2^N}}}\sum _{k=0}^N\sqrt{\left({\displaystyle \genfrac{}{}{0pt}{}{N}{k}}\right)}[1+{(-1)}^k]|k,N-k\rangle |0\rangle .$$

(7)

It is evident from this expression that the qubit is now disentangled from the cavity modes due to the measurement-induced collapse of the wavefunction. The remaining state of the field modes is a parity-filtered superposition, containing only contributions from even values of k.

Alternatively, if the qubit measurement yields the outcome $|1\rangle$, the total wavefunction collapses into

$${|\psi \rangle }_3={\displaystyle \frac{1}{\sqrt{2^N}}}\sum _{k=0}^N\sqrt{\left({\displaystyle \genfrac{}{}{0pt}{}{N}{k}}\right)}[1-{(-1)}^k]|k,N-k\rangle |1\rangle .$$

(8)

As in the previous case, the qubit becomes disentangled from the field modes due to the projective measurement. The resulting state is a superposition of number states that includes only contributions from odd values of k.

Following the qubit measurement, regardless of the specific outcome, we proceed by applying the unitary time evolution operator once more to the post-measurement state. Suppose, first, that the outcome of the measurement is $|0\rangle$. In this case, evolving the system for an additional time interval $\Delta t=\pi /\left(4\kappa \right)$ leads to the formation of a N00N state of the form

$$|\mathrm{N}00\mathrm{N}\rangle ={\displaystyle \frac{1}{\sqrt{2}}}\left({(-1)}^N{|N\rangle }_1\otimes {|0\rangle }_2+{|0\rangle }_1\otimes {|N\rangle }_2\right).$$

(9)

Alternatively, if the qubit is found in the state $|1\rangle$, the system must evolve for a longer duration, specifically $3\pi /\left(4\kappa \right)$, in order to reach the N00N state given by

$$|\mathrm{N}00\mathrm{N}\rangle ={\displaystyle \frac{1}{\sqrt{2}}}\left({|N\rangle }_1\otimes {|0\rangle }_2-{|0\rangle }_1\otimes {|N\rangle }_2\right).$$

(10)

It is worth noting that, regardless of what the outcome of the measurement of the qubit state is, the N00N state can be obtained at the final step of this protocol. Therefore, the N00N state generated with this protocol is deterministic.

It is noteworthy that, once the initial Fock state $|N\rangle$ is prepared, the number of steps required to generate the corresponding N00N state remains independent of the photon number N. In contrast, many conventional N00N state generation protocols begin with a single-photon ($N=1$) N00N state and increase the photon number systematically [64,65]. In such approaches, the number of operations typically scales with N, making them more vulnerable to decoherence and operational errors. However, in the architecture presented here, the N00N state can be achieved through a fixed number of well-defined steps, regardless of the value of N. This feature is particularly advantageous in minimizing the exposure to decoherence, as it reduces the number of required operations and the time the system spends in vulnerable intermediate states. Notably, once a high-fidelity Fock state $|N\rangle$ is prepared in one of the cavity modes—without entangling it initially with other parts of the system—it can be efficiently converted into a N00N state using a small number of coherent operations. This simplicity enhances the scheme’s practicality, as it requires only a single qubit coupled to two cavity modes. Unlike many alternative proposals, the present scheme avoids complex multi-qubit operations or ancillary systems. The full architecture of this setup is illustrated schematically in Figure 2.

3. N00N State Generation in Different Systems

The effective Hamiltonian discussed above can be implemented across various quantum platforms. One particularly promising approach involves coupling two superconducting resonators to a common qubit [60,61]. In such systems, the coupling strength between the resonators and the qubit can reach the order of tens of MHz [66,67,68], allowing the system to operate well within the strong-coupling regime. This facilitates the realization of the effective Hamiltonian and enables the generation of N00N states shared between the two resonators, following the quantum circuit protocol described in detail in Figure 2.

Along the same direction, we show that the same effective Hamiltonian can be realized in spin-based systems. In particular, we focus on nitrogen-vacancy (NV) centers in diamond as a candidate for implementing this scheme. NV ensembles (NVEs) offer several key advantages, including long coherence times, which help mitigate one of the main challenges associated with N00N states—decoherence. Moreover, NVEs are excellent candidates for quantum memory applications. Thus, generating and storing N00N states in such systems could be of great importance, enabling long-term preservation of entangled states for quantum technologies.

Furthermore, we demonstrate that the desired effective Hamiltonian can be realized in a trapped ion system, where an atomic transition between two electronic states is coupled to a cavity mode and driven by an external classical laser field. This configuration enables the generation of a N00N state as a superposition of light and motion, effectively entangling the cavity field with the motional degree of freedom of the ion.

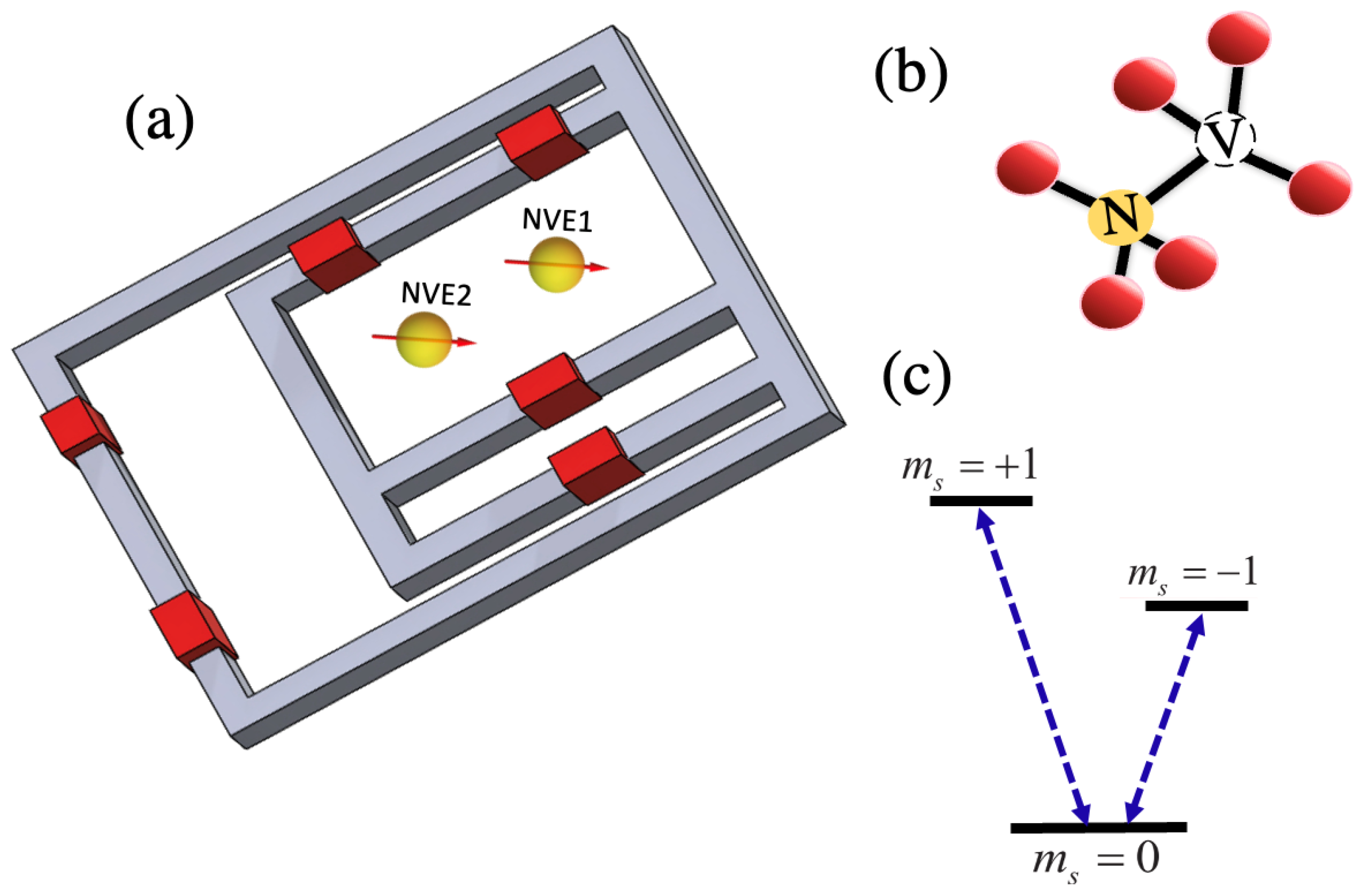

3.1. N00N State in Nitrogen-Vacancy Centers in Diamond

Following the developments in Ref. [60], we now demonstrate that N00N states can also be generated in ensembles of nitrogen-vacancy centers (NVEs) in diamond. The overall N00N state generation strategy follows the same circuit protocol described previously. Here, we outline a scenario in which a similar effective Hamiltonian can be engineered for NVEs interacting with a common qubit. In this architecture, we consider a hybrid quantum system composed of two spatially separated, non-interacting NVEs embedded in diamond, both coupled to the same superconducting flux qubit. Specifically, we assume a large, gap-tunable flux qubit (Figure 3a) as the central coupling element [69,70].

This hybrid scheme has several advantages: the long coherence times associated with NV spins, the ability to manipulate NV centers via both microwave and optical fields [71,72], the frequency tunability and circuit scalability offered by superconducting devices, and their compatibility with advanced nanofabrication techniques [64,69,70,73,74].

Although superconducting resonators provide a powerful platform for N00N state generation—thanks to their strong interactions and fast gate times—the coherence times of microwave photons in these resonators typically remain on the order of milliseconds [75]. In contrast, NV centers in diamond can exhibit coherence times approaching one second, even at relatively high temperatures [76]. Therefore, integrating NVEs with superconducting qubits in a single architecture offers a compelling pathway toward high-fidelity quantum state preparation, combining fast gate operations with long-term coherence and quantum memory capabilities.

We now describe the quantum characteristics of the flux qubit. To this end, we note that the flux bias applied to the main loop of the qubit must be chosen close to half of the magnetic flux quantum, ${\Phi }_0=h/\left(2e\right)$. Under this condition, the flux qubit can be effectively modeled as a two-level system described by a Hamiltonian in a two-dimensional Hilbert space. The effective Hamiltonian for the flux qubit takes the form [69]

$$H=-{\displaystyle \frac{1}{2}}\left[ϵ\left({\Phi }_{\mathrm{ext}}\right){\sigma }_z+\Delta \left({\Phi }_{\mathrm{ext}}^{\prime }\right){\sigma }_x\right],$$

(11)

where ${\sigma }_x$ and ${\sigma }_z$ are the standard Pauli operators in the flux qubit basis. The term $ϵ\left({\Phi }_{\mathrm{ext}}\right)$ represents the energy bias between the two persistent current states and depends on the external magnetic flux threading the main loop. The term $\Delta \left({\Phi }_{\mathrm{ext}}^{\prime }\right)$ denotes the tunneling amplitude between these states, which can be controlled via the external flux through the $\alpha$-loop.

When a static magnetic field corresponding to half of the flux quantum is applied perpendicularly to the main loop, the clockwise and counterclockwise persistent current states become nearly degenerate [77,78]. These two states can be used to define the logical basis states ${|0\rangle }_f$ and ${|1\rangle }_f$, representing the clockwise and counterclockwise circulating currents, respectively.

Importantly, $ϵ\left({\Phi }_{\mathrm{ext}}\right)$ and $\Delta \left({\Phi }_{\mathrm{ext}}^{\prime }\right)$ are independently tunable via external magnetic fluxes applied to the main and auxiliary loops. Setting $ϵ\left({\Phi }_{\mathrm{ext}}\right)=0$ places the qubit at its optimal working point, where the system exhibits maximum coherence and symmetric energy levels. With the qubit initialized in either of the computational basis states ${|0\rangle }_f$ or ${|1\rangle }_f$, arbitrary single-qubit operations can be implemented using the Hamiltonian above.

In the following, we demonstrate how such a flux qubit can be integrated with nitrogen-vacancy ensembles (NVEs) in diamond to form a hybrid quantum architecture suitable for both quantum information processing and entangled state generation.

For the nitrogen-vacancy (NV) centers in diamond, we focus exclusively on their ground-state manifold. Notably, the ground state of an NV center forms a spin-triplet configuration, with a zero-field splitting of approximately $D_{\mathrm{gs}}\approx 2.87$ GHz between the $m_s=0$ sublevel and the degenerate $m_s=\pm 1$ sublevels (Figure 3b,c). To lift the degeneracy of the $m_s=\pm 1$ states, we apply an external static magnetic field $B_{\mathrm{ext}}$ along the [100] crystallographic axis of the diamond. This induces a Zeeman splitting between the $|m_s=+1\rangle$ and $|m_s=-1\rangle$ levels, allowing us to isolate the two-level subspace spanned by $|m_s=0\rangle$ and $|m_s=-1\rangle$ (Figure 3c).

This two-level subspace enables a natural definition of a computational basis for quantum information processing, effectively reducing the Hilbert space of each NV center to a qubit. Within this reduced space, we can express the spin operators for the jth NV center using Pauli-like operators

$$\begin{array}{cc}\hfill s_{zj}& =|-1_j\rangle \langle -1_j|-|0_j\rangle \langle 0_j|,\hfill \end{array}$$

(12)

$$\begin{array}{cc}\hfill s_{+j}& =|-1_j\rangle \langle 0_j|,\hfill \end{array}$$

(13)

$$\begin{array}{cc}\hfill s_{-j}& =|0_j\rangle \langle -1_j|.\hfill \end{array}$$

(14)

To generalize this for an ensemble containing $N_0$ NV centers, we define collective spin operators by summing over individual spins

$$S_{\tau }=\sum _{k=1}^{N_0}{s}_{\tau k},\tau =z,+,-.$$

(15)

Qubits based on NV centers, operated under external magnetic fields that induce Zeeman splitting between the $m_s=\pm 1$ states, have been studied extensively (see, e.g., [77,78,79,80]). However, the approach we consider here introduces an additional element, where we apply time-dependent magnetic fields $B_j\left(t\right)$ to the NV ensembles, along with the static field $B_{\mathrm{ext}}$, in order to periodically modulate the energy splitting between the $m_s=0$ and $m_s=-1$ levels. This time-periodic modulation plays a central role in enabling the generation of N00N states, which is the primary goal of this work.

To derive the desired effective Hamiltonian, we employ the Holstein–Primakoff (HP) transformation [81], which allows us to map the collective spin degrees of freedom of the NV ensemble onto bosonic modes. Applying the HP transformation to the periodically modulated two-level system formed by the $m_s=0$ and $m_s=-1$ states leads to a closed-form Hamiltonian suitable for N00N state generation.

To apply the HP transformation, we restrict our analysis to the weak excitation regime, where the number of excitations is much smaller than the total number of NV centers, $N_0$. Under this condition, the collective spin operators of each ensemble can be approximated as follows

$$\begin{array}{cc}\hfill \sum _{k=1}^{N_0}{s}_{+k}^{\left(j\right)}& =c_j^{†}\sqrt{N_0-c_j^{†}{c}_j}\approx \sqrt{N_0}{c}_j^{†},\hfill \end{array}$$

(16)

$$\begin{array}{cc}\hfill \sum _{k=1}^{N_0}{s}_{-k}^{\left(j\right)}& =c_j\sqrt{N_0-c_j^{†}{c}_j}\approx \sqrt{N_0}{c}_j,\hfill \end{array}$$

(17)

$$\begin{array}{cc}\hfill \sum _{k=1}^{N_0}{s}_{zk}^{\left(j\right)}& =2c_j^{†}{c}_j-N_0,\hfill \end{array}$$

(18)

where $j=1,2$ labels the two NV ensembles, and the bosonic operators satisfy $[c_j,c_j^{†}]=1$.

An important feature of this collective spin representation is the enhancement of the coupling strength by a factor of $\sqrt{N_0}$ compared to a single spin [82], allowing the system to reach the strong coupling regime more easily. The weak-excitation condition $c_j^{†}{c}_j\ll N_0$ ensures the validity of the HP approximation. In practice, values of $N_0\sim {10}^7$ have been realized [83], allowing for N00N states with photon numbers $N\ll N_0$.

The total Hamiltonian of the hybrid NVE–flux-qubit system is given by

$$H=-\hslash {\displaystyle \frac{\Delta \left({\Phi }_{\mathrm{ext}}^{\prime }\right)}{2}}{\sigma }_x+\hslash \sum _{j=1}^2{\omega }_j{c}_j^{†}{c}_j+\hslash \sum _{j=1}^{2}g(c_j^{†}+c_j){\sigma }_z,$$

(19)

where

$${\omega }_j=D_{\mathrm{gs}}-g_e{\mu }_B{B}_z-g_e{\mu }_B{B}_j.$$

(20)

Here, $g_e$ is the Landé g-factor, ${\mu }_B$ is the Bohr magneton, $B_z$ is the effective field from the applied $B_{\mathrm{ext}}$ and the flux qubit, and g is the coupling strength between the NVE and the flux qubit.

We assume that the NVEs are sufficiently small that spatial inhomogeneities of the qubit-generated magnetic field can be neglected. The external magnetic fields are chosen such that

$${\omega }_j={\displaystyle \frac{\Delta \left({\Phi }_{\mathrm{ext}}^{\prime }\right)}{2}}+\delta \sin (\nu t+{\phi }_j),$$

(21)

with the sinusoidal modulation controlled by the AC magnetic fields $B_j\left(t\right)$. For $\Delta \left({\Phi }_{\mathrm{ext}}^{\prime }\right)\gg \zeta =\delta /\nu$ and large $\nu$, we apply the rotating-wave approximation and move to the flux qubit eigenbasis to obtain the interaction Hamiltonian

$$H_I=\hslash g{\sigma }^{+}\left(c_1{e}^{i\zeta cos(\nu t+{\phi }_1)}+c_2{e}^{i\zeta cos(\nu t+{\phi }_2)}\right)+\mathrm{h}.\mathrm{c}.$$

(22)

This Hamiltonian can be mapped to a Floquet form. Setting $\zeta =2.40$ (so that $J_0\left(2.40\right)=0$) and ${\phi }_2\ne {\phi }_1$), we obtain the effective interaction Hamiltonian

$$H_{\mathrm{eff}}=i\hslash \Omega \left(c_1^{†}{c}_2-c_1{c}_2^{†}\right){\sigma }_z,$$

(23)

where $\Omega$ is a tunable coupling coefficient determined by the modulation phase difference, acting as an effective interaction rate between two collective modes, mediated by a common qubit. For example, with ${\phi }_1-{\phi }_2=\pi /3$ and $\nu =5\chi g\simeq 3.14g$, we obtain $\Omega /2\pi \approx 14$ MHz. Such coupling strengths have been demonstrated experimentally for flux qubits interacting with NVEs containing $N_0\approx 3\times {10}^7$ centers [83].

Assuming decay rates of ${\gamma }_{\mathrm{NV}}\sim 1$ Hz for NVEs [76] and ${\gamma }_{\mathrm{FQ}}\sim 1$ MHz for the flux qubit [84], the strong coupling condition $\Omega \gg {\gamma }_{\mathrm{FQ}},{\gamma }_{\mathrm{NV}}$ is clearly satisfied.

An important feature of the proposed N00N-state generation protocol is that it only requires local operations on the flux qubit during the second and third steps, where the state ${|\psi \rangle }_1$ evolves into ${|\psi \rangle }_3$. As a result, the operation times $\Delta t_2$ and $\Delta t_3$ reduce to typical single-qubit operation times, approximately ∼1 ns [78]. This allows the total time for N00N state preparation, $\Delta \tau ={\sum }_{i=1}^4\Delta t_i$, to remain very short—minimizing decoherence effects. Given $\Omega /2\pi \simeq 14$ MHz, the interaction time $\Delta t_1\approx 9$ ns. Therefore, the N00N-state preparation time can be determined by considering $\Delta \tau \approx 20$ ns if the measurement outcome is ${|0\rangle }_f$ and $\Delta \tau \approx 38$ ns if the outcome is ${|1\rangle }_f$. In both cases, the generation time is significantly shorter than the coherence times of the flux qubit (∼1 $\mathsf{\mu }$s [84]) and the NVEs (∼350 $\mathsf{\mu }$s [85]), ensuring that high-fidelity N00N states can be prepared within this hybrid platform.

3.2. N00N State as a Superposition of Light and Motion

The desired effective Hamiltonian can be realized in a trapped ion system, where an ion is coupled to a cavity mode and driven by an external classical field. This configuration enables the generation of a N00N state as a superposition of light and motion.

To show this, we consider a trapped ion system characterized by an atomic transition between two electronic states, denoted by $|g\rangle$ and $|e\rangle$, with transition frequency ${\omega }_0$. The ion is coupled to a cavity mode of frequency ${\omega }_c$ and is driven externally by a classical laser field with frequency ${\omega }_L$. In the rotating frame defined by the laser frequency ${\omega }_L$, the system’s Hamiltonian can be written as [86,87]

$$\begin{array}{cc}\hfill H& =\nu b^{†}b+{\Delta }_c{a}^{†}a+\delta {\sigma }_z+{\epsilon }_L{\sigma }_{+}+{\epsilon }_L^{*}{\sigma }_{-}\hfill \\ \hfill & +g_{0}sin\eta (b^{†}+b)(a^{†}{\sigma }_{-}+a{\sigma }_{+}).\hfill \end{array}$$

(24)

Here, a and $a^{†}$ are the annihilation and creation operators for the cavity field, while b and $b^{†}$ correspond to the quantized vibrational (phonon) modes of the trapped ion. The Pauli operators are defined as ${\sigma }_z=|e\rangle \langle e|-|g\rangle \langle g|$, ${\sigma }_{+}=|e\rangle \langle g|$, and ${\sigma }_{-}=|g\rangle \langle e|$. The parameter $\eta$ denotes the Lamb–Dicke parameter, quantifying the extent of coupling between the ion’s motion and the light field.

The detuning parameters are defined as ${\Delta }_c={\omega }_c-{\omega }_L$ and $\delta ={\omega }_0-{\omega }_L$, while ${\epsilon }_L={ϵ}_L{e}^{-i{\phi }_L}$ encodes the complex amplitude of the driving laser. The coupling strength $g_0$ describes the interaction between the ion, the cavity photon, and the standing-wave pattern of the cavity field.

In the Lamb–Dicke regime ($\eta \ll 1$), the sine term can be linearized as $sin\left[\eta (b^{†}+b)\right]\approx \eta (b^{†}+b),$ which simplifies the Hamiltonian. Assuming resonant atomic driving ($\delta =0$) and setting $\nu ={\Delta }_c$, we move to the interaction picture and apply the rotating wave approximation (RWA), yielding the simplified interaction Hamiltonian

$$H^{\prime }={\epsilon }_L{\sigma }_{+}+{\epsilon }_L^{*}{\sigma }_{-}+g_0\eta (b{a}^{†}{\sigma }_{-}+b^{†}a{\sigma }_{+}).$$

(25)

We then apply a unitary transformation to move into a rotated basis

$$R=e^{i{\displaystyle \frac{\pi }{4}}{\sigma }_y}{e}^{-i{\displaystyle \frac{{\phi }_L}{2}}{\sigma }_z}{e}^{i{ϵ}_L{\sigma }_{z}t},$$

(26)

which transforms the Hamiltonian to $H_I=R{H}^{\prime }{R}^{†}$. Under the condition $g_0\eta \ll {ϵ}_L$, and after adiabatically eliminating the fast-oscillating terms via RWA, we redefine the phase as ${\phi }_L\to \phi -\pi /2$. The resulting effective interaction Hamiltonian takes the form [88]

$$H_{\mathrm{eff}}=i{\Omega }^{\prime }(e^{-i\phi }{a}^{†}b-e^{i\phi }a{b}^{†}){\sigma }_z,$$

(27)

where the effective coupling strength is given by ${\Omega }^{\prime }=g_0\eta /2$.

This effective Hamiltonian describes a controllable excitation exchange between the cavity field and the ion’s motional mode, with the interaction modulated by the relative phase $\phi$ and governed by the internal state of the ion.

3.3. Impact of Decoherence on the N00N State

Now, we consider the effect of decoherence on the N00N state. Without loss of generality, we use the parameters of NVE systems; however, a similar analysis can be developed for the other systems as well.

To model our scheme, we solve the evolution equation governing the density operator $\widehat{\rho }$, given by [89,90].

$${\displaystyle \frac{\partial \widehat{\rho }}{\partial t}}=\sum _j\left[-i{\omega }_j[c_j^{†}{c}_j,\widehat{\rho }]+{\displaystyle \frac{{\gamma }_j}{2}}(1+{\overline{n}}_{\mathrm{th}})(2c_j\widehat{\rho }{c}_j^{†}-c_j^{†}{c}_j\widehat{\rho }-\widehat{\rho }{c}_j^{†}{c}_j)+{\displaystyle \frac{{\gamma }_j}{2}}{\overline{n}}_{\mathrm{th}}(2c_j^{†}\widehat{\rho }{c}_j-c_j{c}_j^{†}\widehat{\rho }-\widehat{\rho }{c}_j{c}_j^{†})\right],$$

(28)

where $j=1,2$, and ${\gamma }_j$ denotes the decoherence rate of the j-th nitrogen-vacancy ensemble (NVE). Here, ${\overline{n}}_{\mathrm{th}}={[\exp (\hslash \omega /k_{B}T)-1]}^{-1}$ is the thermal excitation number at temperature T and frequency $\omega$. After generating the desired state, the magnetic field is switched off, setting $\omega ={\omega }_j=2.87\mathrm{GHz}$.

For our analysis, we set ${\gamma }_1={\gamma }_2=\gamma$ and fix the temperature at $T=20\mathrm{mK}$. At this temperature, the coherence time is approximately $1/\gamma \approx 1\mathrm{s}$, which is attainable for NV centers. Figure 4 shows the time evolution of the density matrix elements ${\rho }_{ij,kl}=\langle i|\langle k|\widehat{\rho }\left(t\right)|j\rangle |l\rangle$, with the initial condition corresponding to an $N=2$ N00N state shared between the two ensembles at $t=0$. Decoherence builds up over a timescale of hundreds of milliseconds.

At $T=20\mathrm{mK}$, the mean thermal excitation number is ${\overline{n}}_{\mathrm{th}}\approx 0.001$. With modern cooling techniques, achieving temperatures below $10\mathrm{mK}$ is feasible, where ${\overline{n}}_{\mathrm{th}}\lesssim {10}^{-6}$. Therefore, thermal excitation effects can be safely neglected. Assuming $T=0\mathrm{K}$, the master equation for the N00N state admits an exact solution. Ignoring thermal excitations, the time evolution of the N00N state density matrix $\widehat{\rho }\left(t\right)$ can be expressed as

$$\widehat{\rho }\left(t\right)={\displaystyle \frac{1}{2}}\left[\sum _{n=0}^N{e}^{-\gamma nt}\left({\displaystyle \genfrac{}{}{0pt}{}{N}{n}}\right){(1-e^{-\gamma t})}^{N-n}\left(|n0\rangle \langle n0|+|0n\rangle \langle 0n|\right)+e^{-\gamma Nt}\left(|N0\rangle \langle 0N|+|0N\rangle \langle N0|\right)\right].$$

(29)

From this solution, the ultimate precision limit of a phase measurement, $\Delta \varphi$, is found to satisfy

$$\Delta \varphi \gtrsim {\displaystyle \frac{e^{\gamma Nt/2}}{N}},$$

(30)

indicating that decoherence introduces an exponential degradation in the sensitivity of phase estimation as time evolves.

This allows for evaluating the fidelity of the N00N state, defined as the overlap between the evolved state and the initial N00N state

$$F=\langle \mathrm{N}00\mathrm{N}\left|\widehat{\rho }\left(t\right)\right|\mathrm{N}00\mathrm{N}\rangle .$$

(31)

The fidelity F of the N00N state under decoherence can be calculated as

$$F=e^{-\gamma Nt}.$$

(32)

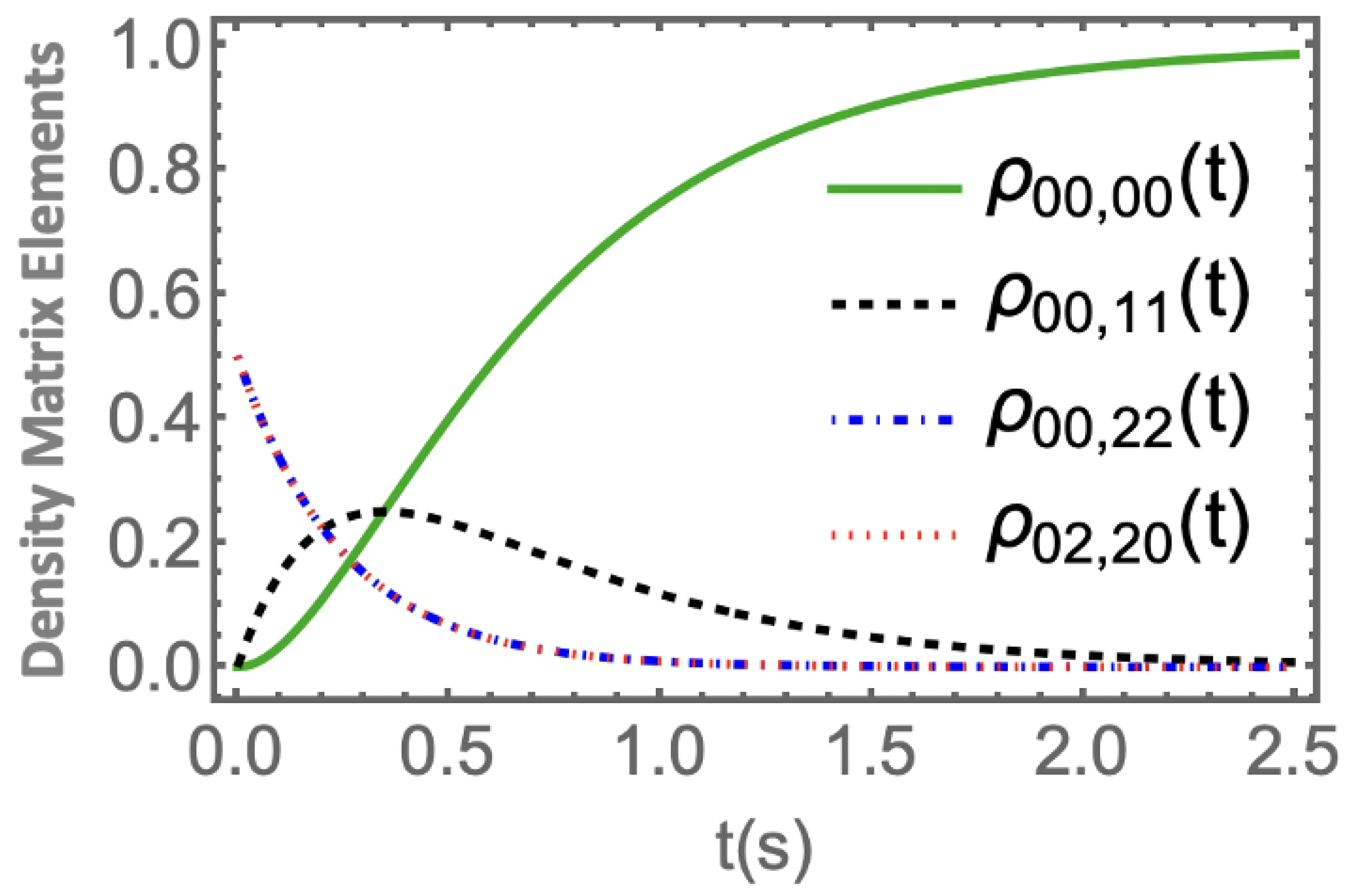

Thus, the fidelity decays exponentially over time, highlighting the fragility of highly entangled states against environmental noise. In fact, this analysis reveals the fundamental challenge associated with generating entangled states and highlights how decoherence poses a significant obstacle to the realization of quantum computing and quantum technologies.

Since the decoherence rate $\gamma$ is inversely proportional to the system’s coherence time, $\gamma =1/\tau$, platforms with longer coherence times offer significant advantages. In particular, nitrogen-vacancy ensembles (NVEs) benefit from exceptionally long coherence times, providing an exponential improvement in robustness compared to many other proposed physical systems.

For a fixed photon number N, the fidelity drops to approximately $e^{-1}$ when $\gamma Nt=1$, signaling that the state has largely decohered. Therefore, maintaining coherence over timescales satisfying $\gamma Nt\ll 1$ is crucial for preserving the quantum advantage offered by N00N states.

4. Entangled State Generations Beyond the N00N State

Now, we explore the generation of entangled states beyond the N00N state. These more general entangled states are valuable resources for a wide range of quantum information processing applications [91]. Following the approach in [61], we demonstrate that a broad class of entangled states, including various maximally entangled configurations, can be engineered using the same underlying framework.

We begin with the effective Hamiltonian introduced earlier in Equation (1), where two cavity modes interact with a common qubit. From this Hamiltonian, we derive the Heisenberg equations of motion for the field operators

$$\begin{array}{cc}\hfill {\dot{a}}_1\left(t\right)& =\kappa a_2\left(t\right){\sigma }_z,\hfill \\ \hfill {\dot{a}}_2\left(t\right)& =-\kappa a_1\left(t\right){\sigma }_z.\hfill \end{array}$$

Solving these equations yields the time evolution of the cavity operators

$$\begin{array}{cc}\hfill a_1\left(t\right)& =a_1\left(0\right)\cos \left(\kappa t\right)-a_2\left(0\right)\sin \left(\kappa t\right){\sigma }_z,\hfill \\ \hfill a_2\left(t\right)& =a_2\left(0\right)\cos \left(\kappa t\right)+a_1\left(0\right)\sin \left(\kappa t\right){\sigma }_z.\hfill \end{array}$$

At the specific interaction time $\kappa t=\pi /4$, these evolve into

$$\begin{array}{cc}\hfill a_1& ={\displaystyle \frac{1}{\sqrt{2}}}\left(a_1\left(0\right)-a_2\left(0\right){\sigma }_z\right),\hfill \\ \hfill a_2& ={\displaystyle \frac{1}{\sqrt{2}}}\left(a_2\left(0\right)+a_1\left(0\right){\sigma }_z\right).\hfill \end{array}$$

Next, the photon fields are passed through a $50/50$ beam splitter, described by the unitary operation

$$U=exp\left[-{\displaystyle \frac{\pi }{4}}(a_1^{†}\left(0\right)a_2\left(0\right)-a_2^{†}\left(0\right)a_1\left(0\right))\right].$$

(33)

This transformation yields the field operator relations

$$\begin{array}{cc}\hfill a_1\left(0\right)& \to {\displaystyle \frac{1}{\sqrt{2}}}\left(a_1\left(0\right)+a_2\left(0\right)\right),\hfill \\ \hfill a_2\left(0\right)& \to {\displaystyle \frac{1}{\sqrt{2}}}\left(a_2\left(0\right)-a_1\left(0\right)\right).\hfill \end{array}$$

Combining both the qubit-dependent dynamics and the beam splitter transformation, the effective photon operators become

$$\begin{array}{cc}\hfill a_1& \to a_1\left(0\right)|e\rangle \langle e|+a_2\left(0\right)|g\rangle \langle g|,\hfill \end{array}$$

(34)

$$\begin{array}{cc}\hfill a_2& \to a_2\left(0\right)|e\rangle \langle e|-a_1\left(0\right)|g\rangle \langle g|.\hfill \end{array}$$

(35)

These transformations are conditional on the state of the qubit and form the foundation of a powerful entanglement generation protocol. They can map initial states into entangled superpositions of field and qubit states, which can be utilized for quantum state engineering tasks. To illustrate this mechanism, consider the following input state

$$|\psi \rangle =|N\rangle \otimes |0\rangle \otimes {\displaystyle \frac{1}{\sqrt{2}}}\left(|g\rangle +|e\rangle \right),$$

(36)

where the first and second terms denote the photon number states in the two cavity modes, and the third term is the superposition state of the qubit.

Applying the above transformations to this input yields the entangled output state

$$|\psi \rangle ⟶{\displaystyle \frac{1}{\sqrt{2}}}\left(|N\rangle |0\rangle |e\rangle +|0\rangle |N\rangle |g\rangle \right).$$

(37)

By applying an external $\pi /2$ pulse (Hadamard gate) to the atom, the system evolves into the state

$${\displaystyle \frac{1}{2}}\left[\left(\right|N\rangle |0\rangle +|0\rangle |N\rangle )|e\rangle +(|N\rangle |0\rangle -|0\rangle |N\rangle \left)\right|g\rangle \right].$$

(38)

Thus, a projective measurement on the atom yields different N00N states depending on the measurement outcome. Detecting the atom in the excited state $|e\rangle$ produces the N00N state

$${\displaystyle \frac{1}{\sqrt{2}}}\left(|N\rangle |0\rangle +|0\rangle |N\rangle \right),$$

(39)

while detection in the ground state $|g\rangle$ yields

$${\displaystyle \frac{1}{\sqrt{2}}}\left(|N\rangle |0\rangle -|0\rangle |N\rangle \right).$$

(40)

Despite the relative sign difference, both states are equivalent in applications such as phase estimation and represent genuine N00N states.

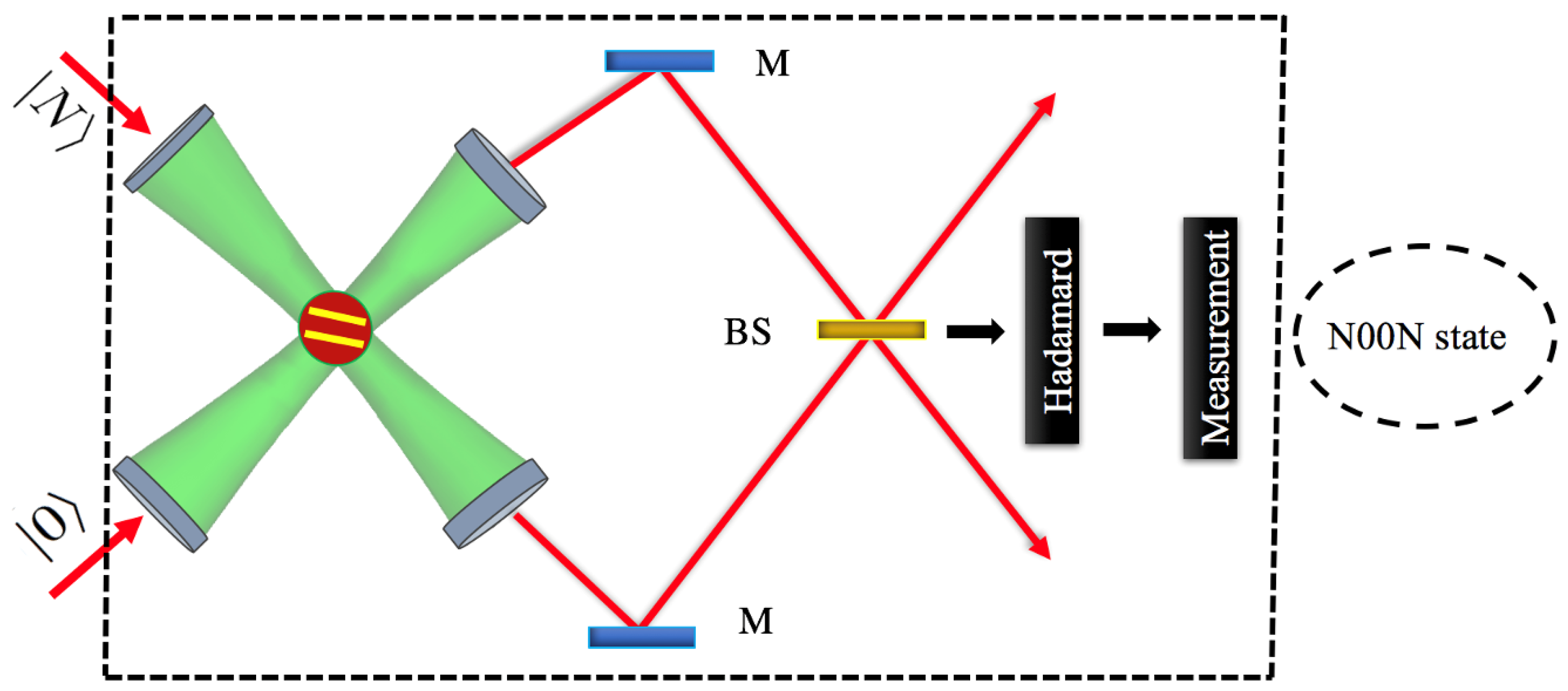

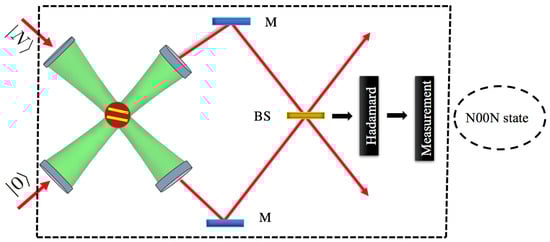

The overall protocol is summarized schematically in Figure 5. The input state first interacts with the resonators–qubit system for a duration of $\kappa t=\pi /4$, then passes through a beam splitter, and finally, a Hadamard operation and measurement on the qubit complete the N00N state preparation.

As previously mentioned, the capabilities of our setup extend beyond N00N state generation. For instance, consider an initial coherent state [92]

$$|\alpha \rangle =e^{-{\left|\alpha \right|}^2/2}\sum _{n=0}^{\infty }{\displaystyle \frac{{\alpha }^n}{\sqrt{n!}}}|n\rangle ,$$

(41)

where $\alpha$ is a complex amplitude. Preparing the system in the initial state

$$|\psi \rangle =|\alpha \rangle \otimes |0\rangle \otimes {\displaystyle \frac{1}{\sqrt{2}}}\left(|g\rangle +|e\rangle \right),$$

(42)

the protocol results in the entangled state

$$|\psi \rangle ⟶{\displaystyle \frac{1}{\sqrt{2}}}\left(|\alpha \rangle |0\rangle |e\rangle +|0\rangle |\alpha \rangle |g\rangle \right).$$

(43)

This constitutes a micro–macro entangled state, where a shared coherent state is entangled with the atomic qubit. After measuring the atomic state, we obtain states of the form

$$|{\phi }^{\pm }\rangle ={\displaystyle \frac{1}{\sqrt{2\pm 2e^{-{\left|\alpha \right|}^2}}}}\left(|\alpha \rangle |0\rangle \pm |0\rangle |\alpha \rangle \right),$$

(44)

where the + (−) corresponds to a symmetric (antisymmetric) superposition. The symmetric state $|{\phi }^{+}\rangle$ is shown to be particularly useful for quantum metrology tasks [93].

Moreover, the scheme allows for the generation of a wide range of entangled states. Starting with general input states

$$\begin{array}{cc}\hfill |{\psi }_1\rangle & =\sum _{n=0}^{d_1}{b}_n|n\rangle ,\hfill \end{array}$$

(45)

$$\begin{array}{cc}\hfill |{\psi }_2\rangle & =\sum _{n=0}^{d_2}{c}_n|n\rangle ,\hfill \end{array}$$

(46)

the initial system is prepared in

$$|\psi \rangle =|{\psi }_1\rangle \otimes |{\psi }_2\rangle \otimes {\displaystyle \frac{1}{\sqrt{2}}}\left(|g\rangle +|e\rangle \right).$$

(47)

Following the interaction and measurement, detection of the atom in the excited (ground) state produces the symmetric (antisymmetric) entangled states

$$\begin{array}{cc}\hfill |{\psi }^{+}\rangle & ={\displaystyle \frac{1}{\sqrt{2+2|\langle {\psi }_1|{\psi }_2\rangle {|}^2}}}\left(|{\psi }_1\rangle |{\psi }_2\rangle +|{\psi }_2\rangle |{\psi }_1\rangle \right),\hfill \end{array}$$

(48)

$$\begin{array}{cc}\hfill |{\psi }^{-}\rangle & ={\displaystyle \frac{1}{\sqrt{2-2|\langle {\psi }_1|{\psi }_2\rangle {|}^2}}}\left(|{\psi }_1\rangle |{\psi }_2\rangle -|{\psi }_2\rangle |{\psi }_1\rangle \right).\hfill \end{array}$$

(49)

As an example, if the initial states are coherent states, one can generate entangled states, such as

$${\displaystyle \frac{1}{\sqrt{2\pm {2\left|\langle \alpha |\beta \rangle \right|}^2}}}\left(|\alpha \rangle |\beta \rangle \pm |\beta \rangle |\alpha \rangle \right).$$

(50)

Also, superposition of two squeezed states

$${\displaystyle \frac{1}{\sqrt{2\pm 2|\langle {\xi }_1|{\xi }_2\rangle {|}^2}}}\left(|{\xi }_1\rangle |{\xi }_2\rangle \pm |{\xi }_2\rangle |{\xi }_1\rangle \right),$$

(51)

or hybrid entangled states

$${\displaystyle \frac{1}{\sqrt{2\pm 2|\langle {\xi }_1|\alpha \rangle {|}^2}}}\left(|\alpha \rangle |{\xi }_1\rangle \pm |{\xi }_1\rangle |\alpha \rangle \right),$$

(52)

$${\displaystyle \frac{1}{\sqrt{2\pm {2\left|\langle N|\alpha \rangle \right|}^2}}}\left(|\alpha \rangle |N\rangle \pm |N\rangle |\alpha \rangle \right),$$

(53)

$${\displaystyle \frac{1}{\sqrt{2\pm 2|\langle N|{\xi }_1\rangle {|}^2}}}\left(|{\xi }_1\rangle |N\rangle \pm |N\rangle |{\xi }_1\rangle \right),$$

(54)

can be generated using this setup. Such entangled states are crucial for surpassing the shot-noise limit in quantum metrology and have broad applications in quantum information science.

To quantify the entanglement of the generated states $|{\psi }^{\pm }\rangle$, we employ the concurrence as an entanglement measure [94], defined by

$$C=\left|\langle \psi |{\sigma }_y\otimes {\sigma }_y|{\psi }^{*}\rangle \right|,$$

(55)

where ${\sigma }_y$ is the Pauli-y matrix and $|{\psi }^{*}\rangle$ denotes the complex conjugate of $|\psi \rangle$.

A straightforward calculation yields

$$C={\displaystyle \frac{1-|\langle {\psi }_1|{\psi }_2\rangle {|}^2}{1\pm |\langle {\psi }_1|{\psi }_2\rangle {|}^2}},$$

(56)

where the plus (minus) sign corresponds to the concurrence of $|{\psi }^{+}\rangle$ ($|{\psi }^{-}\rangle$). Interestingly, the antisymmetric state $|{\psi }^{-}\rangle$ is maximally entangled for any input states. In contrast, the symmetric state $|{\psi }^{+}\rangle$ becomes maximally entangled only when the input states are orthogonal, i.e., $\langle {\psi }_1|{\psi }_2\rangle =0$.

Starting with the input states $|N\rangle \otimes |M\rangle$, the protocol generates maximally entangled states

$$|\psi \rangle ⟶{\displaystyle \frac{1}{\sqrt{2}}}\left(|N\rangle |M\rangle +|M\rangle |N\rangle \right),$$

(57)

which reduces to a N00N state when $M=0$.

Given the ability to generate a large class of maximally entangled states, this platform holds significant promise for various quantum protocols. The versatility and robustness of the scheme make it a powerful tool for quantum information processing and quantum metrology applications.

5. Eantangled State Generation Beyond the Two-Mode States

As demonstrated earlier, the architecture we proposed allows for the generation of a wide variety of entangled states, including N00N states and entangled coherent states. It is therefore natural to consider extending the scheme to a multimode scenario. Generating entangled states involving more than two modes is highly valuable for many applications in quantum information science and quantum metrology. However, the creation of multimode entangled states remains a significant experimental challenge. Thus, the extension presented here could find broad utility across quantum disciplines.

We now describe how the previously introduced scheme can be generalized to generate multimode entangled states. We consider an array of resonators, where each pair of cavities interacts with a common qubit, as shown in Figure 6. The initial state of the full system is prepared as

$$|\psi \rangle =|N,0\rangle \otimes |N,0\rangle \otimes \dots \otimes |N,0\rangle \otimes {\displaystyle \frac{1}{\sqrt{2}}}\left(|g\rangle +|e\rangle \right),$$

(58)

where each pair of resonators starts with N photons in the first mode and vacuum in the second mode.

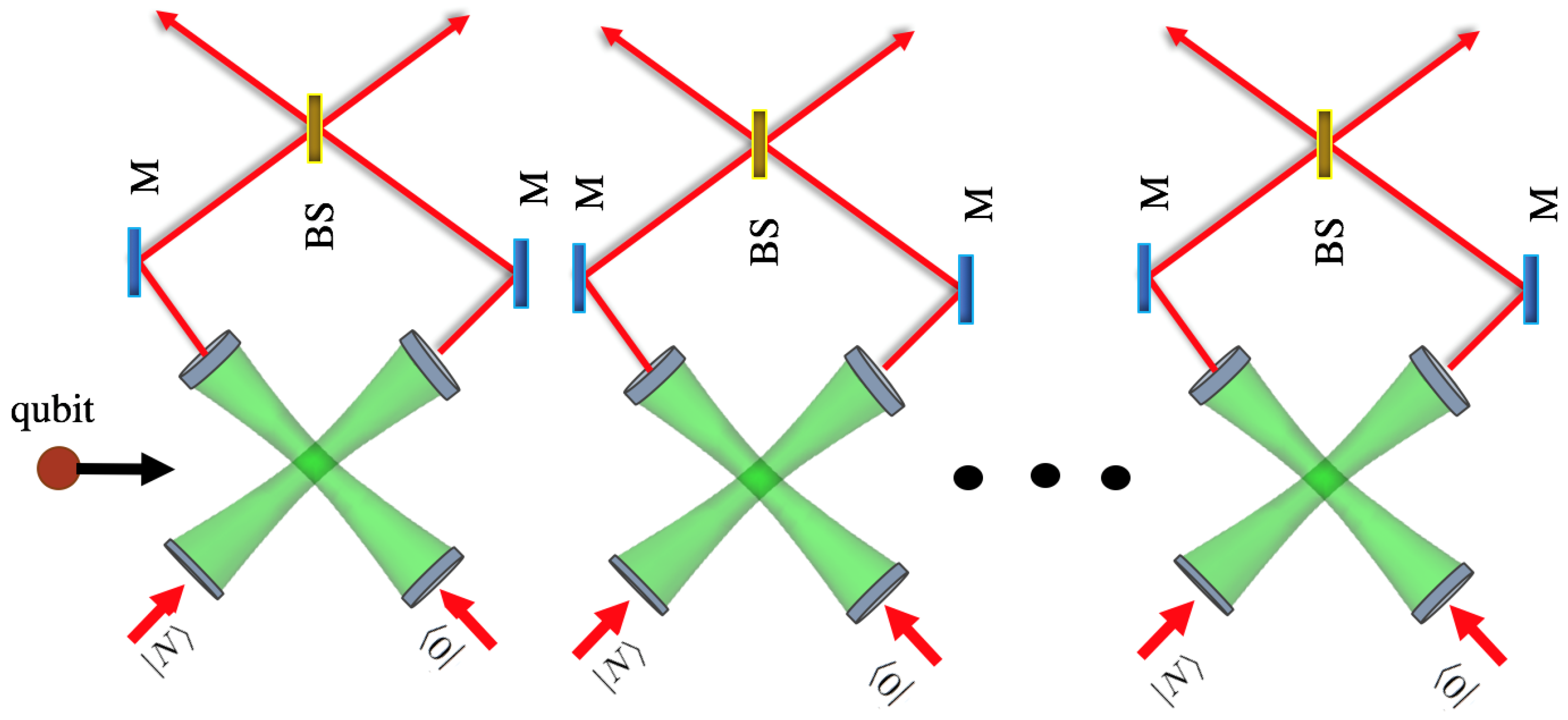

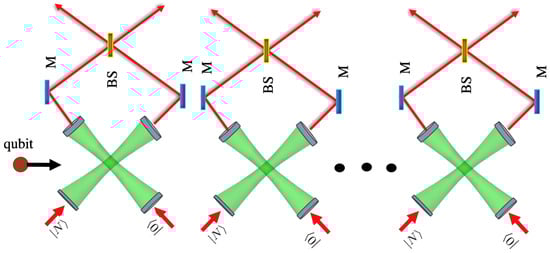

The protocol proceeds by sequentially sending the qubit through the network, allowing it to interact for a duration $\kappa t=\pi /4$ with each resonator pair. After interaction, the photons in each pair are directed through beam splitters. As a result, the system evolves into the entangled state

$$|\psi \rangle ⟶{\displaystyle \frac{1}{\sqrt{2}}}\left(|N,0\rangle \otimes \dots \otimes |N,0\rangle \otimes |e\rangle +|0,N\rangle \otimes \dots \otimes |0,N\rangle \otimes |g\rangle \right).$$

(59)

Applying a $\pi /2$ pulse (Hadamard gate) on the qubit followed by a projective measurement yields the multi-N00N state

$$|\psi \rangle ⟶{\displaystyle \frac{1}{\sqrt{2}}}\left(|N,0\rangle \otimes \dots \otimes |N,0\rangle \pm |0,N\rangle \otimes \dots \otimes |0,N\rangle \right),$$

(60)

where the sign depends on the measurement outcome.

An important feature of this scheme is the scaling of the phase resolution. For an array of M resonator pairs, the phase uncertainty scales as

$$\Delta \phi \propto {\displaystyle \frac{1}{MN}},$$

(61)

which improves linearly with the number of resonator pairs M and the number of photons N. Achieving a similar phase resolution using a traditional N00N state would require increasing the photon number to $MN$ in a single mode, which becomes extremely challenging for large M and N.

A scheme for generating double-N00N states was proposed in Ref. [95]. To highlight the advantages of our approach, consider the case $M=2$, and directly compare it with the scheme introduced in Ref. [95]. Their approach requires $N+2$ operational steps to produce a double N00N state, while our system achieves N00N state generation in only a few steps, regardless of the photon number. This operational simplicity constitutes a major strength of our method. Furthermore, our architecture naturally extends to the generation of multi-N00N states, offering valuable advantages for quantum phase estimation.

6. Heisenberg Limit Metrology Beyond N00N States

As discussed earlier, N00N states possess the special capability of achieving the Heisenberg limit (HL) in phase estimation sensitivity. Here, we revisit the Heisenberg-limited sensitivity in the $su\left(2\right)$ algebra framework and explore its generalization. In particular, we demonstrate that a broader class of Fock state superpositions can also achieve HL sensitivity. To formulate this more generally, we analyze the connection between the N00N state and spin coherent state superpositions, following Ref. [96].

A detailed consideration of spin algebra is given in Appendix B. Based on the formulation of the $su\left(2\right)$ algebra in Appendix B, for N photons in one of the two modes of the system, we can write

$$\begin{array}{cc}\hfill {|0\rangle }_a\otimes {|N\rangle }_b& \equiv {|j,-j\rangle }_z,\hfill \end{array}$$

(62)

$$\begin{array}{cc}\hfill {|N\rangle }_a\otimes {|0\rangle }_b& \equiv {|j,j\rangle }_z.\hfill \end{array}$$

(63)

Thus, the N00N state can be expressed in the Dicke basis as [97]

$$|\mathrm{N}00\mathrm{N}\rangle ={\displaystyle \frac{1}{\sqrt{2}}}{\left(\right|j,j\rangle }_z{+|j,-j\rangle }_z).$$

(64)

This corresponds to a coherent superposition of the north and south poles on the Bloch sphere in the z-basis. It is important to note that general superpositions of other ${|j,m\rangle }_z$ states, such as

$${\displaystyle \frac{1}{\sqrt{2}}}\left({|j,m\rangle }_z+{|j,-m\rangle }_z\right),$$

(65)

lead to Fock basis states of the form

$${\displaystyle \frac{1}{\sqrt{2}}}\left(|\frac{n}{2}{+m\rangle }_a|\frac{n}{2}{-m\rangle }_b+|\frac{n}{2}{-m\rangle }_a{|\frac{n}{2}+m\rangle }_b\right),$$

(66)

which do not, in general, achieve Heisenberg-limited sensitivity.

However, if we consider superpositions involving extreme points along other axes, such as the x-axis, interesting possibilities arise. In the x-basis, the Dicke states are related to the z-basis states through

$${|j,\pm j\rangle }_x={\displaystyle \frac{1}{2^j}}\sum _{m=-j}^j\sqrt{\left({\displaystyle \genfrac{}{}{0pt}{}{2j}{j+m}}\right)}{(\pm 1)}^{j+m}{|j,m\rangle }_z,$$

(67)

where $\left({\displaystyle \genfrac{}{}{0pt}{}{2j}{j+m}}\right)$ is the binomial coefficient.

Thus, a normalized superposition of the two extremal states along x is given by

$$|\psi \rangle ={\displaystyle \frac{1}{\sqrt{2}}}\left({|j,j\rangle }_x+{|j,-j\rangle }_x\right).$$

(68)

Now, applying a unitary rotation about the x-axis, $exp\left(i{\theta }_x{J}_x\right)$, to this state yields

$$|\psi \left({\theta }_x\right)\rangle ={\displaystyle \frac{1}{\sqrt{2}}}\left(e^{i{\theta }_{x}j}{|j,j\rangle }_x+e^{-i{\theta }_{x}j}{|j,-j\rangle }_x\right).$$

(69)

The phase uncertainty for this state is found to be $\Delta {\theta }_x={\displaystyle \frac{1}{2j}}={\displaystyle \frac{1}{N}},$ indicating Heisenberg-limited sensitivity, identical to that of the N00N state. Similar results hold for superpositions of the two extreme points along the y-axis, involving the states ${|j,\pm j\rangle }_y$. These considerations were investigated in detail in Ref. [97].

It is natural to ask whether other superposition states, beyond the N00N state, can achieve Heisenberg-limited sensitivity, or whether the three classes discussed so far (along x, y, and z axes) are the only possibilities. If other states exist, what are their properties? Additionally, how can such superposition states be generated, especially in the x, y, and z directions? We address these questions in the following.

Notably, in all these cat-like superposition states, the two constituent states are antipodal points on the Bloch sphere. In general, any point on the Bloch sphere can be obtained by applying a suitable rotation to a reference state, such as ${|j,-j\rangle }_z$. This rotation can be expressed using the generators of the $su\left(2\right)$ algebra. The most general form of the rotation operator is [96]

$$R(\theta ,\phi )e^{i\vartheta J_z}=exp\left\{-{\displaystyle \frac{\theta }{2}}\left(J_{+}{e}^{-i\phi }-J_{-}{e}^{i\phi }\right)\right\}{e}^{i\vartheta J_z}.$$

(70)

In the z-basis, the term $e^{-i\vartheta J_z}$ introduces only a phase factor, which does not affect phase sensitivity. Indeed, the state

$${\displaystyle \frac{1}{\sqrt{2}}}\left(e^{i{\vartheta }_1}{|N\rangle }_a\otimes {|0\rangle }_b+e^{-i{\vartheta }_1}{|0\rangle }_a\otimes {|N\rangle }_b\right),$$

(71)

has the same precision sensitivity as the standard N00N state (the inclusion of this phase factor was previously discussed in Ref. [97] to facilitate N00N state generation).

The first exponential term in the rotation operator displaces the ground Dicke state into a spin coherent state, given by [98,99]

$$\begin{array}{cc}\hfill |\theta ,\phi ,j\rangle & =exp\left[{\displaystyle \frac{\theta }{2}}(J_{+}{e}^{-i\phi }-J_{-}{e}^{i\phi })\right]|j,-j\rangle \hfill \\ \hfill & ={\displaystyle \frac{1}{{(1+|\gamma |}^2{)}^j}}\sum _{m=-j}^j\sqrt{\left({\displaystyle \genfrac{}{}{0pt}{}{2j}{j+m}}\right)}{\gamma }^{j+m}|j,m\rangle ,\hfill \end{array}$$

(72)

where $\gamma =e^{-i\phi }tan\left({\displaystyle \frac{\theta }{2}}\right)$.

The overlap between two spin coherent states $|\gamma ,j\rangle$ and $|\delta ,j\rangle$ is

$$\langle \delta ,j|\gamma ,j\rangle ={\displaystyle \frac{{(1+\overline{\delta }\gamma )}^{2j}}{{(1+|\delta |}^2{)}^j{(1+|\gamma |}^2{)}^j}}.$$

(73)

Now, consider the superposition of two antipodal spin coherent states

$${\displaystyle \frac{1}{\sqrt{2}}}\left(|\theta ,\phi ,j\rangle +|\pi -\theta ,\pi +\phi ,j\rangle \right).$$

(74)

To investigate the phase sensitivity associated with this state, we define the Hermitian operator

$$J_{\gamma }=J_{z}cos\theta -{\displaystyle \frac{1}{2}}(J_{+}{e}^{-i\phi }+J_{-}{e}^{i\phi })sin\theta .$$

(75)

This operator allows the construction of a unitary phase shift operator $U=e^{-i\xi J_{\gamma }}$.

Applying the phase shift yields

$$\begin{array}{c}\hfill e^{-i\xi J_{\gamma }}{\displaystyle \frac{1}{\sqrt{2}}}\left(|\theta ,\phi ,j\rangle +|\pi -\theta ,\pi +\phi ,j\rangle \right)={\displaystyle \frac{1}{\sqrt{2}}}\left(e^{i\xi j}|\theta ,\phi ,j\rangle +e^{-i\xi j}|\pi -\theta ,\pi +\phi ,j\rangle \right).\end{array}$$

(76)

Thus, the phase uncertainty is $\Delta \xi ={\displaystyle \frac{1}{2j}},$ reaching the Heisenberg limit.

This result shows that the Heisenberg-limited phase sensitivity is not exclusive to N00N states. A broad class of quantum states, including superpositions of antipodal spin coherent states on the Bloch sphere, can achieve HL precision. Such generalized states provide a wider landscape of useful resources for quantum metrology.

As a natural question, one may ask if it is possible to achieve Heisenberg-limited sensitivity using the superposition of two non-orthogonal spin coherent states that are not antipodal points? Or is this property restricted to antipodal, orthogonal superpositions? To gain better insight, we explore the relation between N00N states and such superposition states. First, observe that the two extreme points along the x-axis are related to the z-axis spin coherent states via a $\pi /2$ rotation around the y-axis

$$R_y\left(-{\displaystyle \frac{\pi }{2}}\right){|j,\pm j\rangle }_x={|j,\pm j\rangle }_z,$$

(77)

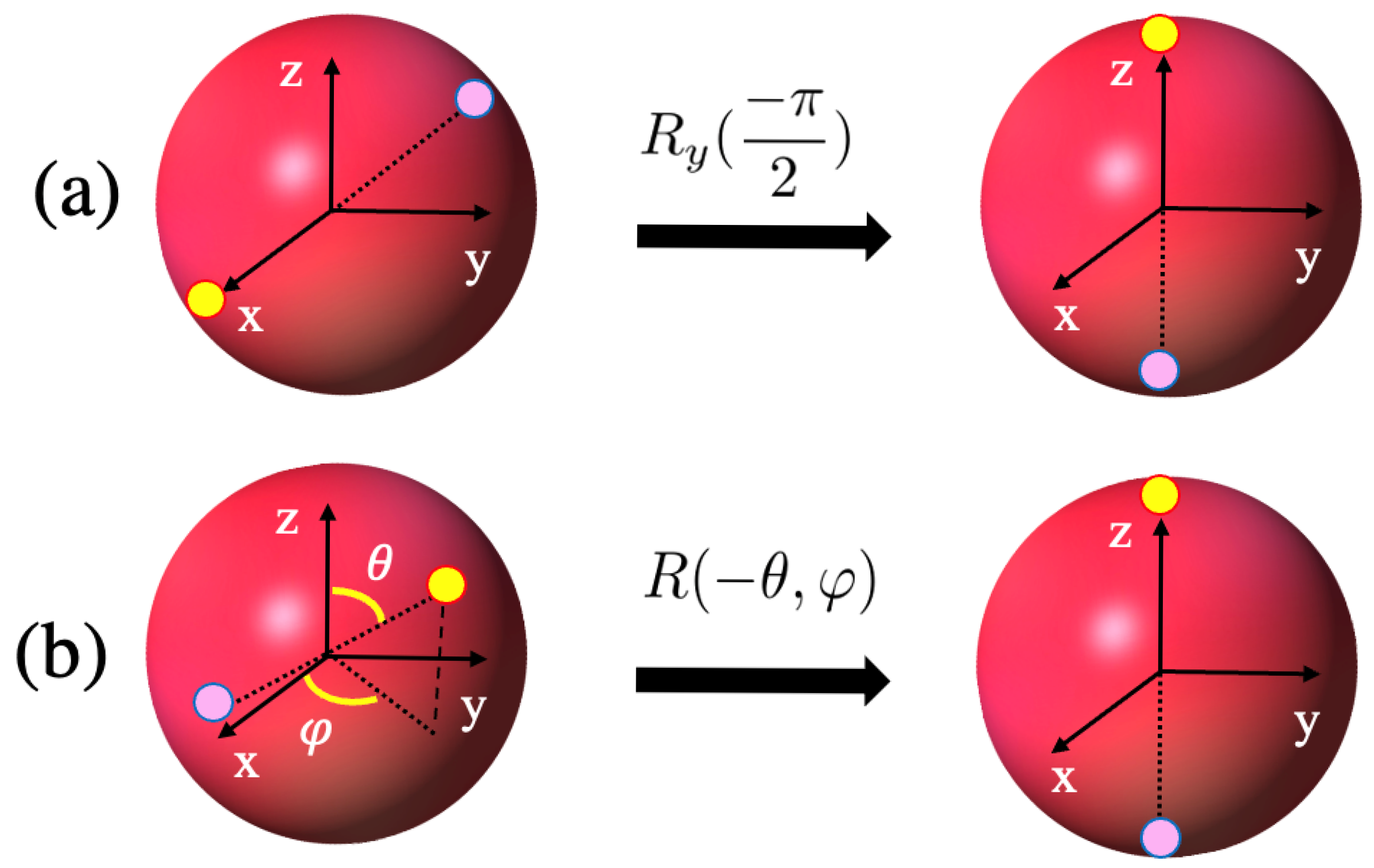

where $R_y\left(\theta \right)=\exp (-i\theta J_y)$ is the rotation operator. This relation is illustrated in Figure 7. Thus, by rotating the x-axis cat state about the y-axis and recalling that ${|0\rangle }_a\otimes {|N\rangle }_b\equiv {|j,-j\rangle }_z,$ and ${|N\rangle }_a\otimes {|0\rangle }_b\equiv {|j,j\rangle }_z,$ one generates the N00N state

$$|\mathrm{N}00\mathrm{N}\rangle ={\displaystyle \frac{1}{\sqrt{2}}}\left({|2j\rangle }_a\otimes {|0\rangle }_b+{|0\rangle }_a\otimes {|2j\rangle }_b\right).$$

(78)

This shows that a N00N state is a particular case of a spin cat state [97]. More generally, a spin coherent state can be expressed as the action of a rotation operator on the ground state $|\theta ,\phi ,j\rangle =R(\theta ,\phi \left)\right|j,-j\rangle .$ The antipodal point of this coherent state is then

$$|\pi -\theta ,\pi +\phi ,j\rangle =R(\theta ,\phi \left)R\right(\pi ,\phi \left)\right|j,-j\rangle =R(\theta ,\phi )|j,j\rangle .$$

(79)

Applying the inverse rotation $R^{-1}(\theta ,\phi )=R(-\theta ,\phi )$ maps the antipodal spin coherent states into a N00N state. However, such transformations generally change the structure of the states significantly.

Now, consider the superposition of two arbitrary spin coherent states $|{\theta }_1,{\phi }_1,j\rangle +|{\theta }_2,{\phi }_2,j\rangle .$ Applying $R(-{\theta }_1,{\phi }_1)$ yields

$$|j,-j\rangle +R(-{\theta }_1,{\phi }_1)R({\theta }_2,{\phi }_2)R(\pi ,0)|j,j\rangle .$$

(80)

This condition can be fulfilled if $R({\theta }_2,{\phi }_2)=e^{i\beta }R({\theta }_1,{\phi }_1)R(\pi ,{\phi }^{\prime }),$ where we note that $|j,-j\rangle =R(\pi ,0\left)\right|j,j\rangle$.

The composition of two rotation operators satisfies

$$R\left({\gamma }_1\right)R\left({\gamma }_2\right)=R\left({\gamma }_3\right)e^{i\Phi ({\gamma }_1,{\gamma }_2)J_z},$$

(81)

where

$$\begin{array}{c}\hfill {\gamma }_3={\displaystyle \frac{{\gamma }_1+{\gamma }_2}{1-{\gamma }_1^{*}{\gamma }_2}},\Phi ({\gamma }_1,{\gamma }_2)=-iln\left({\displaystyle \frac{1-{\gamma }_1^{*}{\gamma }_2}{1-{\gamma }_1{\gamma }_2^{*}}}\right),\end{array}$$

(82)

with ${\gamma }_1=e^{-i{\phi }_1}tan\left({\displaystyle \frac{{\theta }_1}{2}}\right)$ and ${\gamma }_2=e^{-i{\phi }_2}tan\left({\displaystyle \frac{{\theta }_2}{2}}\right).$ To recover a N00N-like state, the condition

$$R(-{\theta }_1,{\phi }_1)R({\theta }_2,{\phi }_2)R(\pi ,0)=I{e}^{i\Theta J_z}$$

(83)

must be satisfied, where $\Theta$ is some phase determined by the initial parameters. Thus, $|{\theta }_1,{\phi }_1,j\rangle$ and $|{\theta }_2,{\phi }_2,j\rangle$ must correspond to antipodal points.

If this condition is not met, the superposition will not transform into a N00N state under a global unitary operation, and the corresponding state will have a different structure. In the Fock basis, such a general two-mode superposition state reads

$${\displaystyle \frac{1}{{(1+|\gamma |}^2{)}^{n/2}}}\sum _{m=0}^n\sqrt{\left({\displaystyle \genfrac{}{}{0pt}{}{n}{m}}\right)}\left({\gamma }^m+e^{i\psi }{\left(-{\displaystyle \frac{1}{\overline{\gamma }}}\right)}^m\right){|m\rangle }_a{|n-m\rangle }_b,$$

(84)

where n is the total number of photons. Although this state is structurally different from a N00N state, it still achieves Heisenberg-limited phase sensitivity. Therefore, it offers a more general path to HL precision.

To consider the generation of such states, we start with the interaction Hamiltonian between the two-mode field, and a two-level atom reads

$$H_1=i\hslash \Omega (a^{†}b-b^{†}a){\sigma }_z,$$

(85)

where $\Omega$ is the coupling strength.

Suppose the atom is initially prepared in the superposition state ${\displaystyle \frac{1}{\sqrt{2}}}\left(\right|g\rangle +|e\rangle ),$ while the two-mode field is prepared such that mode-a is in the vacuum ${|0\rangle }_a$ and mode-b is in the Fock state ${|n\rangle }_b$. Then, the initial state reads

$$|\psi \left(0\right)\rangle ={\displaystyle \frac{1}{\sqrt{2}}}\left(\right|g\rangle +{|e\rangle )|0\rangle }_a{|n\rangle }_b.$$

(86)

Defining $\xi \left(t\right)=e^{i\phi }tan(\Omega t)$, the evolved state becomes

$$|\psi \left(t\right)\rangle ={\displaystyle \frac{1}{\sqrt{2}}}\left(|e\rangle \otimes |\xi \left(t\right),j\rangle +|g\rangle \otimes |-\xi \left(t\right),j\rangle \right),$$

(87)

where $\left|\xi \right(t),j\rangle$ denotes a spin coherent state.

This describes a micro–macro entangled state between the atomic and photonic degrees of freedom. Applying a $\pi /2$ pulse on the atomic state, $|e\rangle ⟶{\displaystyle \frac{1}{\sqrt{2}}}\left(\right|g\rangle +|e\rangle ),$ and subsequently performing a projective measurement on the atomic ground state collapses the system to ${\displaystyle \frac{1}{\sqrt{2}}}\left(\left|\xi \right(t),j\rangle +|-\xi \left(t\right),j\rangle \right),$ which is a spin cat state.

Thus, a large class of spin cat states can achieve Heisenberg-limited metrology, providing new routes toward practical realization of quantum-enhanced precision measurements.

7. Conclusions

In this review, we presented a comprehensive framework for the generation of N00N states—a bipartite maximally entangled state crucial for quantum metrology applications. This was achieved by employing Floquet-engineered interactions across a variety of physical platforms, including superconducting resonators, nitrogen-vacancy ensembles, and hybrid light–motion systems. Our approach significantly reduces the operational complexity typically associated with N00N state generation by requiring a fixed number of steps independent of the photon number N, thus minimizing exposure to decoherence.

Despite the advantages demonstrated, several limitations remain. The most important limitation is the vulnerability of N00N states to decoherence, which leads to a decrease in fidelity over time and imposes significant requirements on the coherence times of the physical systems involved. Although our proposed architectures—particularly those based on NV ensembles—benefit from long intrinsic coherence times, practical implementations may still face challenges due to fabrication imperfections, control errors, and thermal noise. Possible improvements could involve the integration of quantum error correction techniques or decoherence-free subspace encoding to enhance robustness.

This study not only advances practical strategies for N00N state generation, but also broadens the landscape of states capable of achieving Heisenberg-limited sensitivity. By extending the methods to more general spin coherent state superpositions, we lay a foundation for future investigations into more resilient and scalable quantum-enhanced technologies.
