On Neural Observer in Dynamic Sliding Mode Control of Permanent Magnet Synchronous Wind Generator

Abstract

The captured energy of a wind turbine (WT) can be converted into electricity by a generator. Therefore, to improve the efficiency of this system, both the structures of WTs and generators should be considered for control. But the present challenge is WT uncertainty, while the input signals to the generator should be smooth. In this paper, a permanent magnet synchronous generator (PMSG) is considered. The dynamics of the PMSG can be described using two axes, named d-q reference frameworks, with an input in each framework direction. To obtain the maximum power and to overcome the uncertainty by means of a smooth signal, the dynamic sliding mode controller (D-SMC) is implemented. In the D-SMC, an integrator is placed in the control scheme in order to suppress the chattering, because it acts like a low-pass filter. To estimate the state added by the integrator, a new observer-based neural network (ONN) is proposed. The proof of the stability of the D-SMC and ONN is based on Lyapunov theory. To prove the advantages of the D-SMC, a comparison was also carried out by traditional sliding mode control (T-SMC) with a similar ONN. From this comparison, we know that the advantages of the D-SMC are clear in terms of real implementation, concept, and chattering suppression.

1. Introduction

Global warming is a dangerous phenomenon posing a problem for the future of the Earth. It seems that using clean renewable energies such as wind and solar is the only approach for humans to reduce the effects of global warming [1,2], which are apparent in most countries [3]. However, due to the economical preference for and freely accessible nature of wind energy, many researchers are focusing on wind turbines (WTs) [4,5]. In past decades, fixed-speed WTs (FWTs) were used extensively [6,7], but in the case of wind speed change, FWTs have some limitations in capturing the maximum wind power [8]. Therefore, in recent years, variable-speed WTs (VWTs) have been constructed and used in industries [9]. The approach of maximum power capturing using VWTs is based on achieving the critical rated wind speed [10]. Below and above of this rate, the torque of the permanent magnet synchronous generator (PMSG) and pitch angle of the turbine blades (PATB) serve as the controller variables [11,12]. When the generator torque is controlled, the power coefficient is fixed. But when the power coefficient declines, the PATB is controlled to reduce the mechanical power of the captured wind so as not to exceed the nominal power of the VWT [11,12]. The other important wind speed boundaries which should be considered are cut-in and cut-out [11,12]. The WT would need to be shut down outside of this interval because of reasons linked to both economical and fatigue damage [13].

Therefore, torque control is an important issue in WTs [14,15,16,17,18,19,20,21,22,23], even in the presence of important challenges, i.e., drivetrain uncertainties, which can produce mechanical stress [8]. Hence, a robust controller should be designed to remove the effect of these uncertainties [15]. Many controllers have been proposed in the literature, though they are not robust, including the proportional–integral–derivative controller (PID) [16], the linear quadratic Gaussian controller (LQG) [17,18,19], the adaptive back-stepping controller [20], and model predictive control (MPC) [21]. Aside from them, the sliding mode controller (SMC) has the property of invariance and plays a powerful role in fighting against uncertainties [24,25]. The most prominent characteristic of the SMC is its invariance, since it is stronger than its robustness [26,27]. For this reason, many studies have focused on the torque control of WTs using the SMC [8,14,22,23,28,29]. Most of these methods have chattering as an unwanted phenomenon. For achieving the elimination of chattering, some methodologies have been presented [30], for example, the boundary layer SMC (B-SMC) [31,32], the adaptive boundary layer SMC (AB-SMC) [33,34], the higher-order SMC (H-SMC) [22,35,36], and the dynamic SMC (D-SMC) [26,27]. The most prominent property of the SMC, i.e., invariance, is missing in the B-SMC and AB-SMC [26,27,28,29,30,31]. Higher system model derivatives are needed in the H-SMC, which should be provided by observers [37,38,39,40,41]. In the D-SMC, a low-pass filter, such as an integrator, is set before the plant to remove the effect of chattering [26,27]. This increases the plant dimension. Therefore, in the D-SMC, the dynamics produced by this integrator should be estimated using a suitable observer [27]. However, in the H-SMC, an observer is needed to identify plant differentiation. This is the superior aspect of the D-SMC compared to the H-SMC.

The concepts of model identification [42,43], disturbance observer [28,29,44,45,46], and state observer [47,48] are used in a wide range of systems. Hence, these concepts refer to the estimation of unmeasurable or unknown parts of the systems or systems states. An observer is implemented by known system inputs and system outputs [42,43,44,45,46,47,48,49,50,51]. Based on the above discussion, using the D-SMC in WT torque control can help overcome both chattering and uncertainty to remove mechanical stress. Furthermore, to construct the D-SMC, a plant model is identified by an observer-based neural network (ONN). In this study, the stability of the ONN and D-SMC are proven by using Lyapunov approaches.

Therefore, based on the above discussion, chattering is a challenge in all of the mentioned works. Motivated by the above discussion about the drawbacks of other chattering suppression methods, we propose the use of the D-SMC in WT, connected to the PMSG for torque control. The proposed D-SMC was constructed by a new ONN to identify the plant model, preserve the invariance property and prevent chattering, and overcome mechanical stresses. A reliable comparison was carried out using the same ONN for both the D-SMC and T-SMC. Finally, to prove the stability of both the proposed controller and ONN, Lyapunov stability approaches are used.

Therefore, to put it concisely, the main contribution of this paper is its proposal of a new scheme for a D-SMC to control nonlinear WTs connected to a PMSG, which is modeled in d-q frameworks. The approach is chattering-free and based on a new observer-based neural network (ONN).

Six sections are presented to described the construction of the proposed method. A complete model of a WT is demonstrated in Section 2. Then, the ONN and its proposed structure are described in Section 3. Section 4 is focused on a comparison and the proposed controller. Furthermore, the superiority of the proposed controller is shown by two simulations in Section 5. Finally, some conclusions are provided in Section 6.

2. Configuration and Structure of Turbine

The WT model consists of the generator part, the mechanical drivetrain part, and the aerodynamic part [22,52,53], which are shown in Figure 1, along with the model’s corresponding signals.

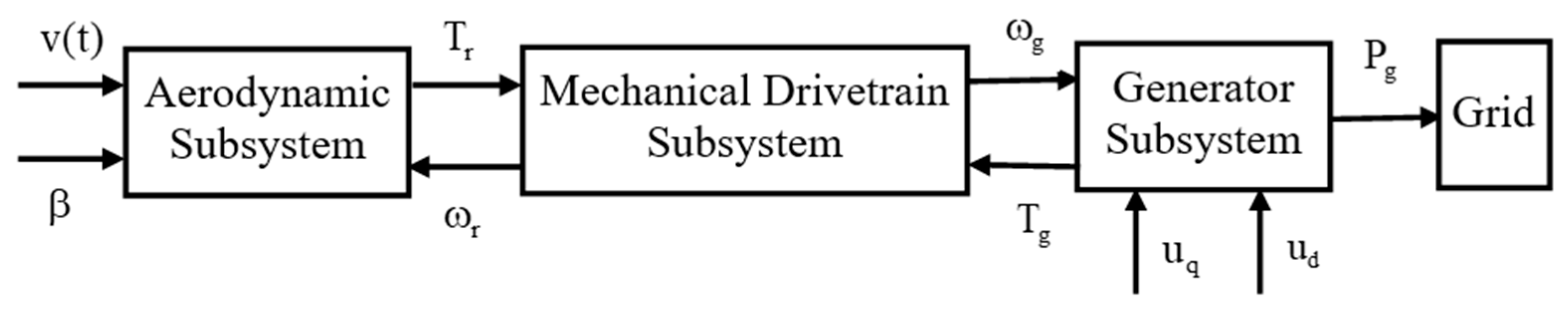

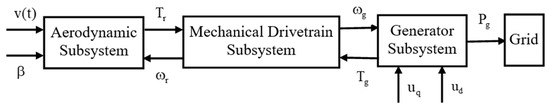

Figure 1. Subsystems and signals of the WT.

2.1. The Aerodynamic Part

The following equation describes the wind power generated by a WT, which is dependent on the blade length $\hspace{0.17em}\mathrm{r}$, wind speed $\mathrm{v}(\mathrm{t})$, air density ${\mathsf{\rho }}_{\mathrm{a}}$, and power coefficient ${\mathrm{C}}_{\mathrm{p}}$ [14].

$${\mathrm{P}}_{\mathrm{w}\mathrm{i}\mathrm{n}\mathrm{d}}={\displaystyle \frac{\mathsf{\pi }\hspace{0.17em}{\mathrm{r}}^2{\mathrm{v}}^3{\mathsf{\rho }}_{\mathrm{a}}}{2}}{\mathrm{C}}_{\mathrm{p}}(\mathsf{\lambda },\mathsf{\beta })$$

(1)

Here, $\mathsf{\lambda }$ and $\mathsf{\beta }$ represent the tip speed ratio (TSR) and pitch blades, respectively. The TSR can be defined by dividing the tip blade’s linear velocity and wind speed [14].

$$\mathsf{\lambda }={\displaystyle \frac{\mathrm{r}{\mathsf{\omega }}_{\mathrm{r}}}{\mathrm{v}}}$$

(2)

In the above equation, ${\mathsf{\omega }}_{\mathrm{r}}$ is the angular velocity of the rotor side. Based on Equation (1), the rotor torque or wind generated torque can be calculated as follows [14]:

$${\mathrm{T}}_{\mathrm{r}}={\displaystyle \frac{{\mathrm{P}}_{\mathrm{w}\mathrm{i}\mathrm{n}\mathrm{d}}}{{\mathsf{\omega }}_{\mathrm{r}}}}={\displaystyle \frac{\mathsf{\pi }\hspace{0.17em}{\mathrm{r}}^3{\mathrm{v}}^2{\mathsf{\rho }}_{\mathrm{a}}}{2\mathsf{\lambda }}}{\mathrm{C}}_{\mathrm{p}}(\mathsf{\lambda },\mathsf{\beta })$$

(3)

2.2. The Drivetrain Part

Although some papers have used a one-mass model [50], to have both a steady state and transient response [52], as well as a kinetic characteristic [53], in the WT, the mechanical drivetrain section should be modeled by a two-mass damper, as shown in Figure 2. This two-mass mechanical drivetrain is described by Equation (4), including the moment of inertia ${\mathrm{J}}_{\mathrm{r}}$ and ${\mathrm{J}}_{\mathrm{g}}$, the external damping of ${\mathrm{K}}_{\mathrm{r}}$ and ${\mathrm{K}}_{\mathrm{g}}$, and generator torque ${\mathrm{T}}_{\mathrm{g}}$ [14].

$$\begin{array}{l}{\mathrm{J}}_{\mathrm{r}}{\dot{\mathsf{\omega }}}_{\mathrm{r}}=-{\mathrm{K}}_{\mathrm{r}}{\mathsf{\omega }}_{\mathrm{r}}+{\mathrm{T}}_{\mathrm{r}}-{\mathrm{T}}_{\mathrm{l}\mathrm{s}}\\ {\mathrm{J}}_{\mathrm{g}}{\dot{\mathsf{\omega }}}_{\mathrm{g}}=-{\mathrm{K}}_{\mathrm{g}}{\mathsf{\omega }}_{\mathrm{g}}-{\mathrm{T}}_{\mathrm{g}}+{\mathrm{T}}_{\mathrm{h}\mathrm{s}}\end{array}$$

(4)

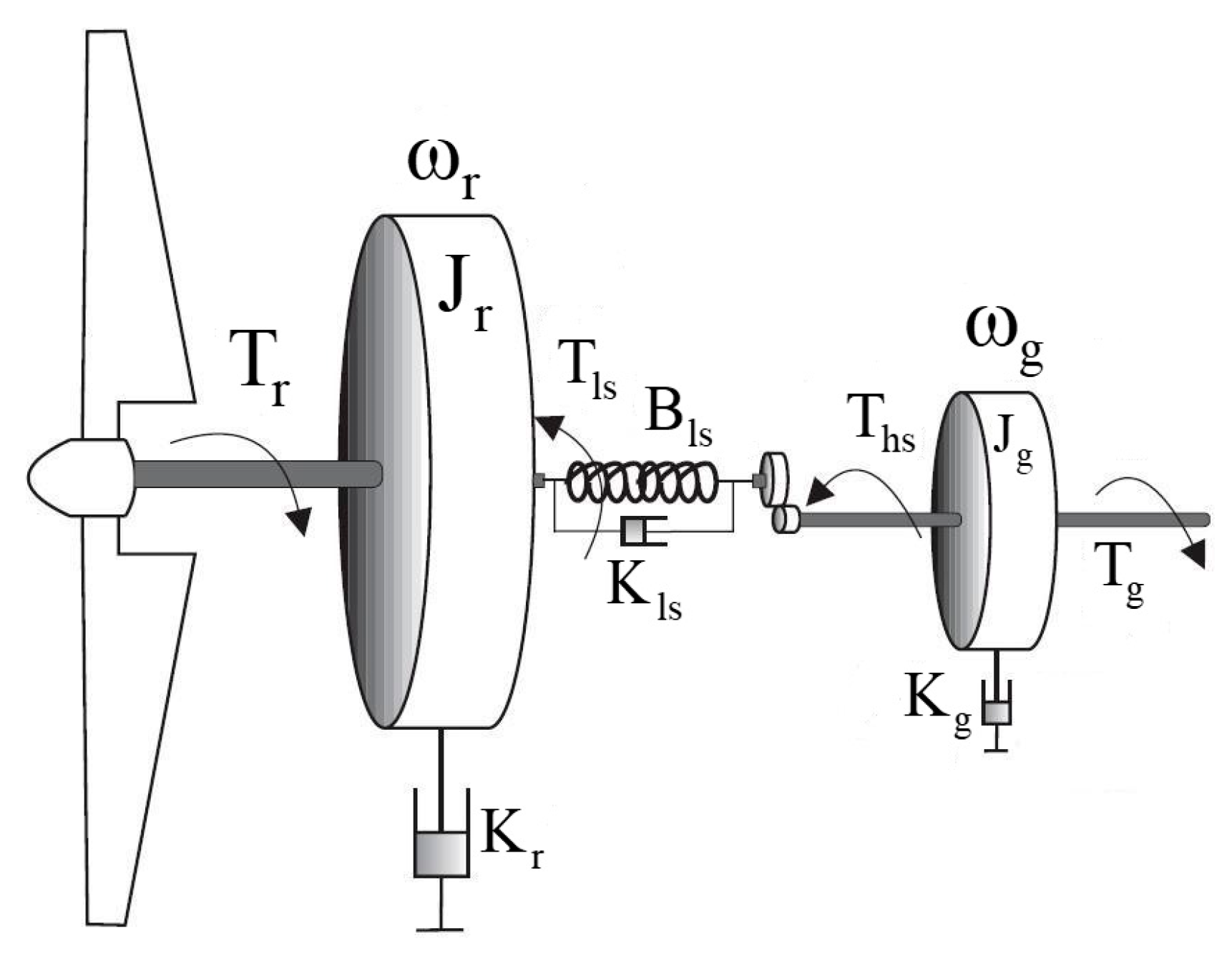

Figure 2. Mechanical model of WT.

As ${\mathsf{\omega }}_{\mathrm{r}}$ is the angular velocity of the rotor side, the angular velocity of the generator side is ${\mathsf{\omega }}_{\mathrm{g}}$. The low-speed shaft braking torque ${\mathrm{T}}_{\mathrm{l}\mathrm{s}}$ is defined as follows [14]:

$${\mathrm{T}}_{\mathrm{l}\mathrm{s}}={\mathrm{K}}_{\mathrm{l}\mathrm{s}}({\mathsf{\omega }}_{\mathrm{r}}-{\mathsf{\omega }}_{\mathrm{l}\mathrm{s}})+{\mathrm{B}}_{\mathrm{l}\mathrm{s}}({\mathsf{\theta }}_{\mathrm{r}}-{\mathsf{\theta }}_{\mathrm{l}\mathrm{s}})$$

(5)

Then, in the low-speed section, shaft angular speed, shaft angular velocity, shaft damping, and shaft stiffness are ${\mathsf{\theta }}_{\mathrm{l}\mathrm{s}}$, ${\mathsf{\omega }}_{\mathrm{l}\mathrm{s}}$, ${\mathrm{K}}_{\mathrm{l}\mathrm{s}}$, and ${\mathrm{B}}_{\mathrm{l}\mathrm{s}}$, respectively, and ${\mathsf{\theta }}_{\mathrm{r}}$ is the speed deviation on the rotor side. Finally, the gearbox ratio, in an ideal case, can be defined as follows [14]:

$${\mathrm{n}}_{\mathrm{g}}={\displaystyle \frac{{\mathrm{T}}_{\mathrm{l}\mathrm{s}}}{{\mathrm{T}}_{\mathrm{h}\mathrm{s}}}}={\displaystyle \frac{{\mathsf{\omega }}_{\mathrm{g}}}{{\mathsf{\omega }}_{\mathrm{r}}}}$$

(6)

Then, the second section of Equation (4) can be rewritten as

$${\mathrm{J}}_{\mathrm{g}}\left({\mathrm{n}}_{\mathrm{g}}{\dot{\mathsf{\omega }}}_{\mathrm{r}}\right)=-{\mathrm{K}}_{\mathrm{g}}\left({\mathrm{n}}_{\mathrm{g}}{\mathsf{\omega }}_{\mathrm{r}}\right)-{\mathrm{T}}_{\mathrm{g}}+\left({\displaystyle \frac{{\mathrm{T}}_{\mathrm{l}\mathrm{s}}}{{\mathrm{n}}_{\mathrm{g}}}}\right)$$

(7)

or

$${{\mathrm{n}}_{\mathrm{g}}}^2{\mathrm{J}}_{\mathrm{g}}{\dot{\mathsf{\omega }}}_{\mathrm{r}}=-{{\mathrm{n}}_{\mathrm{g}}}^2{\mathrm{K}}_{\mathrm{g}}{\mathsf{\omega }}_{\mathrm{r}}-{\mathrm{n}}_{\mathrm{g}}{\mathrm{T}}_{\mathrm{g}}+{\mathrm{T}}_{\mathrm{l}\mathrm{s}}$$

(8)

In order to have all variables in the low-speed shaft, Equation (8) and the first section of Equation (4) should be combined:

$${\mathrm{J}}_{\mathrm{t}}{\dot{\mathsf{\omega }}}_{\mathrm{r}}=-{\mathrm{K}}_{\mathrm{t}}{\mathsf{\omega }}_{\mathrm{r}}+{\mathrm{T}}_{\mathrm{r}}-{\mathrm{n}}_{\mathrm{g}}{\mathrm{T}}_{\mathrm{g}}$$

(9)

where ${\mathrm{J}}_{\mathrm{t}}={\mathrm{J}}_{\mathrm{r}}+{{\mathrm{n}}_{\mathrm{g}}}^2{\mathrm{J}}_{\mathrm{g}}$, and ${\mathrm{K}}_{\mathrm{t}}={\mathrm{K}}_{\mathrm{r}}+{{\mathrm{n}}_{\mathrm{g}}}^2{\mathrm{K}}_{\mathrm{g}}$.

2.3. The Permanent Magnet Synchronous Generator (PMSG) Part

A model of the PMSG, as two independent d-q dynamic current structures, can be described as follows [54,55]:

$$\begin{array}{l}{\dot{\mathrm{i}}}_{\mathrm{q}}=-{\displaystyle \frac{{\mathrm{R}}_{\mathrm{g}}}{{\mathrm{L}}_{\mathrm{g}}}}{\mathrm{i}}_{\mathrm{q}}-\mathrm{p}{\mathsf{\omega }}_{\mathrm{g}}{\mathrm{i}}_{\mathrm{d}}-\mathrm{p}{\displaystyle \frac{{\mathsf{\psi }}_{\mathrm{f}}}{{\mathrm{L}}_{\mathrm{g}}}}{\mathsf{\omega }}_{\mathrm{g}}+{\displaystyle \frac{{\mathrm{u}}_{\mathrm{q}}}{{\mathrm{L}}_{\mathrm{g}}}}\\ {\dot{\mathrm{i}}}_{\mathrm{d}}=-{\displaystyle \frac{{\mathrm{R}}_{\mathrm{g}}}{{\mathrm{L}}_{\mathrm{g}}}}{\mathrm{i}}_{\mathrm{d}}+\mathrm{p}{\mathsf{\omega }}_{\mathrm{g}}{\mathrm{i}}_{\mathrm{q}}+{\displaystyle \frac{{\mathrm{u}}_{\mathrm{d}}}{{\mathrm{L}}_{\mathrm{g}}}}\end{array}$$

(10)

where ${\mathrm{u}}_{\mathrm{q}}$, ${\mathrm{i}}_{\mathrm{q}}$, and ${\mathrm{u}}_{\mathrm{d}}$, ${\mathrm{i}}_{\mathrm{d}}$ are the q-axis and d-axis voltage and current, respectively; ${\mathrm{R}}_{\mathrm{g}}$ and ${\mathrm{L}}_{\mathrm{g}}$ are stator resistance and inductance, respectively; ${\mathsf{\psi }}_{\mathrm{f}}$ is the permanent magnet flux; and, finally, $\mathrm{p}$ is the number of pole pairs. Using Equation (6) yields the following results:

$$\begin{array}{l}{\dot{\mathrm{i}}}_{\mathrm{q}}=-{\displaystyle \frac{{\mathrm{R}}_{\mathrm{g}}}{{\mathrm{L}}_{\mathrm{g}}}}{\mathrm{i}}_{\mathrm{q}}-\mathrm{p}{\mathrm{n}}_{\mathrm{g}}{\mathsf{\omega }}_{\mathrm{r}}{\mathrm{i}}_{\mathrm{d}}-\mathrm{p}{\displaystyle \frac{{\mathsf{\psi }}_{\mathrm{f}}}{{\mathrm{L}}_{\mathrm{g}}}}{\mathrm{n}}_{\mathrm{g}}{\mathsf{\omega }}_{\mathrm{r}}+{\displaystyle \frac{{\mathrm{u}}_{\mathrm{q}}}{{\mathrm{L}}_{\mathrm{g}}}}\\ {\dot{\mathrm{i}}}_{\mathrm{d}}=-{\displaystyle \frac{{\mathrm{R}}_{\mathrm{g}}}{{\mathrm{L}}_{\mathrm{g}}}}{\mathrm{i}}_{\mathrm{d}}+\mathrm{p}{\mathrm{n}}_{\mathrm{g}}{\mathsf{\omega }}_{\mathrm{r}}{\mathrm{i}}_{\mathrm{q}}+{\displaystyle \frac{{\mathrm{u}}_{\mathrm{d}}}{{\mathrm{L}}_{\mathrm{g}}}}\end{array}$$

(11)

Moreover, the generator torque is ${\mathrm{T}}_{\mathrm{g}}={\displaystyle \frac{3}{2}}\mathrm{p}{\mathsf{\psi }}_{\mathrm{f}}{\mathrm{i}}_{\mathrm{q}}+({\mathrm{L}}_{\mathrm{d}}-{\mathrm{L}}_{\mathrm{q}}){\mathrm{i}}_{\mathrm{d}}{\mathrm{i}}_{\mathrm{q}}$, where ${\mathrm{L}}_{\mathrm{d}}$ and ${\mathrm{L}}_{\mathrm{q}}$ are the equivalent inductance in d-q directions. For a generator with flat poles, we have ${\mathrm{L}}_{\mathrm{d}}={\mathrm{L}}_{\mathrm{q}}$, and therefore, ${\mathrm{T}}_{\mathrm{g}}={\displaystyle \frac{3}{2}}\mathrm{p}{\mathsf{\psi }}_{\mathrm{f}}{\mathrm{i}}_{\mathrm{q}}$.

3. The Observer-Based Neural Network (ONN) Proposed Approach

Based on the previous WT models, i.e., using the derivative of Equation (9) and the equation stating that ${\dot{\mathrm{T}}}_{\mathrm{g}}={\displaystyle \frac{3}{2}}\mathrm{p}{\mathsf{\psi }}_{\mathrm{f}}{\dot{\mathrm{i}}}_{\mathrm{q}}$, and then replacing the first part of Equation (11), the following equalities can be yielded:

$$\begin{array}{l}{\ddot{\mathsf{\omega }}}_{\mathrm{r}}=-{\displaystyle \frac{{\mathrm{K}}_{\mathrm{t}}}{{\mathrm{J}}_{\mathrm{t}}}}{\dot{\mathsf{\omega }}}_{\mathrm{r}}-{\mathrm{n}}_{\mathrm{g}}{\displaystyle \frac{{\dot{\mathrm{T}}}_{\mathrm{g}}}{{\mathrm{J}}_{\mathrm{t}}}}+{\displaystyle \frac{{\dot{\mathrm{T}}}_{\mathrm{r}}}{{\mathrm{J}}_{\mathrm{t}}}}=-{\displaystyle \frac{{\mathrm{K}}_{\mathrm{t}}}{{\mathrm{J}}_{\mathrm{t}}}}{\dot{\mathsf{\omega }}}_{\mathrm{r}}-{\mathrm{n}}_{\mathrm{g}}{\displaystyle \frac{3\mathrm{p}{\mathsf{\psi }}_{\mathrm{f}}{\dot{\mathrm{i}}}_{\mathrm{q}}}{2{\mathrm{J}}_{\mathrm{t}}}}+{\displaystyle \frac{{\dot{\mathrm{T}}}_{\mathrm{r}}}{{\mathrm{J}}_{\mathrm{t}}}}\\ \hspace{0.17em}\hspace{0.17em}\hspace{0.17em}=-{\displaystyle \frac{{\mathrm{K}}_{\mathrm{t}}}{{\mathrm{J}}_{\mathrm{t}}}}{\dot{\mathsf{\omega }}}_{\mathrm{r}}+{\displaystyle \frac{3{\mathrm{R}}_{\mathrm{g}}\mathrm{p}{\mathrm{n}}_{\mathrm{g}}{\mathsf{\psi }}_{\mathrm{f}}{\mathrm{i}}_{\mathrm{q}}}{2{\mathrm{L}}_{\mathrm{g}}{\mathrm{J}}_{\mathrm{t}}}}+{\displaystyle \frac{3{\mathrm{p}}^2{{\mathrm{n}}_{\mathrm{g}}}^2{\mathsf{\psi }}_{\mathrm{f}}{\mathsf{\omega }}_{\mathrm{r}}{\mathrm{i}}_{\mathrm{d}}}{2{\mathrm{J}}_{\mathrm{t}}}}+{\displaystyle \frac{3{\mathrm{p}}^2{{\mathrm{n}}_{\mathrm{g}}}^2{{\mathsf{\psi }}_{\mathrm{f}}}^2{\mathsf{\omega }}_{\mathrm{r}}}{2{\mathrm{L}}_{\mathrm{g}}{\mathrm{J}}_{\mathrm{t}}}}-{\displaystyle \frac{3\mathrm{p}{\mathrm{n}}_{\mathrm{g}}{\mathsf{\psi }}_{\mathrm{f}}{\mathrm{u}}_{\mathrm{q}}}{2{\mathrm{L}}_{\mathrm{g}}{\mathrm{J}}_{\mathrm{t}}}}+{\displaystyle \frac{{\dot{\mathrm{T}}}_{\mathrm{r}}}{{\mathrm{J}}_{\mathrm{t}}}}\\ \hspace{0.17em}\hspace{0.17em}\hspace{0.17em}=-{\displaystyle \frac{{\mathrm{K}}_{\mathrm{t}}}{{\mathrm{J}}_{\mathrm{t}}}}{\dot{\mathsf{\omega }}}_{\mathrm{r}}+{\displaystyle \frac{{\mathrm{R}}_{\mathrm{g}}{\mathrm{n}}_{\mathrm{g}}}{{\mathrm{L}}_{\mathrm{g}}{\mathrm{J}}_{\mathrm{t}}}}{\mathrm{T}}_{\mathrm{g}}+{\displaystyle \frac{3{\mathrm{p}}^2{{\mathrm{n}}_{\mathrm{g}}}^2{\mathsf{\omega }}_{\mathrm{r}}{\mathsf{\psi }}_{\mathrm{f}}{\mathrm{i}}_{\mathrm{d}}}{2{\mathrm{J}}_{\mathrm{t}}}}+{\displaystyle \frac{3{\mathrm{p}}^2{{\mathrm{n}}_{\mathrm{g}}}^2{{\mathsf{\psi }}_{\mathrm{f}}}^2{\mathsf{\omega }}_{\mathrm{r}}}{2{\mathrm{L}}_{\mathrm{g}}{\mathrm{J}}_{\mathrm{t}}}}-{\displaystyle \frac{3\mathrm{p}{\mathrm{n}}_{\mathrm{g}}{\mathsf{\psi }}_{\mathrm{f}}{\mathrm{u}}_{\mathrm{q}}}{2{\mathrm{L}}_{\mathrm{g}}{\mathrm{J}}_{\mathrm{t}}}}+{\displaystyle \frac{{\dot{\mathrm{T}}}_{\mathrm{r}}}{{\mathrm{J}}_{\mathrm{t}}}}\\ \hspace{0.17em}\hspace{0.17em}\hspace{0.17em}=-{\displaystyle \frac{{\mathrm{K}}_{\mathrm{t}}}{{\mathrm{J}}_{\mathrm{t}}}}{\dot{\mathsf{\omega }}}_{\mathrm{r}}-{\displaystyle \frac{{\mathrm{R}}_{\mathrm{g}}}{{\mathrm{L}}_{\mathrm{g}}}}{\dot{\mathsf{\omega }}}_{\mathrm{r}}-{\displaystyle \frac{{\mathrm{R}}_{\mathrm{g}}{\mathrm{K}}_{\mathrm{t}}}{{\mathrm{L}}_{\mathrm{g}}{\mathrm{J}}_{\mathrm{t}}}}{\mathsf{\omega }}_{\mathrm{r}}+{\displaystyle \frac{{\mathrm{R}}_{\mathrm{g}}{\mathrm{T}}_{\mathrm{r}}}{{\mathrm{L}}_{\mathrm{g}}{\mathrm{J}}_{\mathrm{t}}}}+{\displaystyle \frac{3{\mathrm{p}}^2{{\mathrm{n}}_{\mathrm{g}}}^2{\mathsf{\psi }}_{\mathrm{f}}{\mathsf{\omega }}_{\mathrm{r}}{\mathrm{i}}_{\mathrm{d}}}{2{\mathrm{J}}_{\mathrm{t}}}}+{\displaystyle \frac{3{\mathrm{p}}^2{{\mathrm{n}}_{\mathrm{g}}}^2{{\mathsf{\psi }}_{\mathrm{f}}}^2{\mathsf{\omega }}_{\mathrm{r}}}{2{\mathrm{L}}_{\mathrm{g}}{\mathrm{J}}_{\mathrm{t}}}}\\ \hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}-{\displaystyle \frac{3\mathrm{p}{\mathrm{n}}_{\mathrm{g}}{\mathsf{\psi }}_{\mathrm{f}}{\mathrm{u}}_{\mathrm{q}}}{2{\mathrm{L}}_{\mathrm{g}}{\mathrm{J}}_{\mathrm{t}}}}+{\displaystyle \frac{{\dot{\mathrm{T}}}_{\mathrm{r}}}{{\mathrm{J}}_{\mathrm{t}}}}\\ \hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}=\left(-{\displaystyle \frac{{\mathrm{K}}_{\mathrm{t}}}{{\mathrm{J}}_{\mathrm{t}}}}-{\displaystyle \frac{{\mathrm{R}}_{\mathrm{g}}}{{\mathrm{L}}_{\mathrm{g}}}}\right){\dot{\mathsf{\omega }}}_{\mathrm{r}}+\left({\displaystyle \frac{3{\mathrm{p}}^2{{\mathrm{n}}_{\mathrm{g}}}^2{\mathsf{\psi }}_{\mathrm{f}}{\mathrm{i}}_{\mathrm{d}}}{2{\mathrm{J}}_{\mathrm{t}}}}+{\displaystyle \frac{3{\mathrm{p}}^2{{\mathrm{n}}_{\mathrm{g}}}^2{{\mathsf{\psi }}_{\mathrm{f}}}^2}{2{\mathrm{L}}_{\mathrm{g}}{\mathrm{J}}_{\mathrm{t}}}}-{\displaystyle \frac{{\mathrm{R}}_{\mathrm{g}}{\mathrm{K}}_{\mathrm{t}}}{{\mathrm{L}}_{\mathrm{g}}{\mathrm{J}}_{\mathrm{t}}}}\right){\mathsf{\omega }}_{\mathrm{r}}-{\displaystyle \frac{3\mathrm{p}{\mathrm{n}}_{\mathrm{g}}{\mathsf{\psi }}_{\mathrm{f}}}{2{\mathrm{L}}_{\mathrm{g}}{\mathrm{J}}_{\mathrm{t}}}}{\mathrm{u}}_{\mathrm{q}}\\ \hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}+{\displaystyle \frac{{\mathrm{R}}_{\mathrm{g}}{\mathrm{T}}_{\mathrm{r}}}{{\mathrm{L}}_{\mathrm{g}}{\mathrm{J}}_{\mathrm{t}}}}+{\displaystyle \frac{{\dot{\mathrm{T}}}_{\mathrm{r}}}{{\mathrm{J}}_{\mathrm{t}}}}\end{array}$$

(12)

Note that the last equation is obtained after rearranging. For power factor correction or compensation (PFC), the current of the $\mathrm{d}-\mathrm{a}\mathrm{x}\mathrm{i}\mathrm{s}$ is set to zero, i.e., ${\mathrm{i}}_{\mathrm{d}}=0$, and therefore, from Equation (11), we have ${\mathrm{u}}_{\mathrm{d}}=-{\mathrm{L}}_{\mathrm{g}}\mathrm{p}{\mathrm{n}}_{\mathrm{g}}{\mathsf{\omega }}_{\mathrm{r}}{\mathrm{i}}_{\mathrm{q}}$. Hence,

$$\begin{array}{c}{\ddot{\mathsf{\omega }}}_{\mathrm{r}}=\left(-{\displaystyle \frac{{\mathrm{K}}_{\mathrm{t}}}{{\mathrm{J}}_{\mathrm{t}}}}-{\displaystyle \frac{{\mathrm{R}}_{\mathrm{g}}}{{\mathrm{L}}_{\mathrm{g}}}}\right){\dot{\mathsf{\omega }}}_{\mathrm{r}}+\left({\displaystyle \frac{3{\mathrm{p}}^2{{\mathrm{n}}_{\mathrm{g}}}^2{{\mathsf{\psi }}_{\mathrm{f}}}^2}{2{\mathrm{L}}_{\mathrm{g}}{\mathrm{J}}_{\mathrm{t}}}}-{\displaystyle \frac{{\mathrm{R}}_{\mathrm{g}}{\mathrm{K}}_{\mathrm{t}}}{{\mathrm{L}}_{\mathrm{g}}{\mathrm{J}}_{\mathrm{t}}}}\right){\mathsf{\omega }}_{\mathrm{r}}\\ -\left({\displaystyle \frac{3\mathrm{p}{\mathrm{n}}_{\mathrm{g}}{\mathsf{\psi }}_{\mathrm{f}}}{2{\mathrm{L}}_{\mathrm{g}}{\mathrm{J}}_{\mathrm{t}}}}\right){\mathrm{u}}_{\mathrm{q}}+\left({\displaystyle \frac{{\mathrm{R}}_{\mathrm{g}}{\mathrm{T}}_{\mathrm{r}}}{{\mathrm{L}}_{\mathrm{g}}{\mathrm{J}}_{\mathrm{t}}}}+{\displaystyle \frac{{\dot{\mathrm{T}}}_{\mathrm{r}}}{{\mathrm{J}}_{\mathrm{t}}}}\right)\end{array}$$

(13)

For simplicity, the state variables ${\mathrm{x}}_1={\mathsf{\omega }}_{\mathrm{r}}$ and ${\mathrm{x}}_2={\dot{\mathsf{\omega }}}_{\mathrm{r}}$, with the following linear state feedback, are defined:

$${\mathrm{u}}_{\mathrm{q}}={\displaystyle \frac{2{\mathrm{L}}_{\mathrm{g}}{\mathrm{J}}_{\mathrm{t}}}{3\mathrm{p}{\mathrm{n}}_{\mathrm{g}}{\mathsf{\psi }}_{\mathrm{f}}}}\left[\left(-{\displaystyle \frac{{\mathrm{K}}_{\mathrm{t}}}{{\mathrm{J}}_{\mathrm{t}}}}-{\displaystyle \frac{{\mathrm{R}}_{\mathrm{g}}}{{\mathrm{L}}_{\mathrm{g}}}}+{\mathrm{a}}_2\right){\mathrm{x}}_2+\left({\displaystyle \frac{3{\mathrm{p}}^2{{\mathrm{n}}_{\mathrm{g}}}^2{{\mathsf{\psi }}_{\mathrm{f}}}^2}{2{\mathrm{L}}_{\mathrm{g}}{\mathrm{J}}_{\mathrm{t}}}}-{\displaystyle \frac{{\mathrm{R}}_{\mathrm{g}}{\mathrm{K}}_{\mathrm{t}}}{{\mathrm{L}}_{\mathrm{g}}{\mathrm{J}}_{\mathrm{t}}}}+{\mathrm{a}}_1\right){\mathrm{x}}_1-\mathrm{z}(\mathrm{t})\right]$$

(14)

where $\mathrm{z}$ is the new input control signal; now, Equation (13) can be rewritten as follows:

$$\dot{\mathrm{x}}=\mathrm{A}\mathrm{x}+\mathrm{B}\mathrm{z}+\mathrm{B}\mathsf{\Delta }$$

(15)

where $\mathsf{\Delta }$ is an unknown part, and

$$\mathrm{A}=\left[\begin{array}{cc}0& 1\\ -{\mathrm{a}}_1& -{\mathrm{a}}_2\end{array}\right],\mathrm{B}=\left[\begin{array}{c}0\\ 1\end{array}\right],\mathrm{x}=\left[\begin{array}{c}{\mathrm{x}}_1\\ {\mathrm{x}}_2\end{array}\right]$$

(16)

$$\mathsf{\Delta }={\displaystyle \frac{{\mathrm{R}}_{\mathrm{g}}{\mathrm{T}}_{\mathrm{r}}}{{\mathrm{L}}_{\mathrm{g}}{\mathrm{J}}_{\mathrm{t}}}}+{\displaystyle \frac{{\dot{\mathrm{T}}}_{\mathrm{r}}}{{\mathrm{J}}_{\mathrm{t}}}}$$

(17)

In the above equation, ${\mathrm{a}}_1$ and ${\mathrm{a}}_2$ are constants and are selected in order to have a Hurwitz matrix $\mathrm{A}$. Matrix $\mathrm{A}$ is a Hurwitz matrix if, for any matrix $\mathrm{Q}$ (symmetric positive definite), a matrix $\mathrm{P}$ (symmetric positive definite) can be find from the following Lyapunov equation:

$${\mathrm{A}}^{\mathrm{T}}\mathrm{P}+\mathrm{P}\mathrm{A}=-\mathrm{Q}$$

(18)

Using the D-SMC for system Equation (15), the sliding surface is defined as follows:

$$\begin{array}{l}\mathrm{s}={\mathrm{c}}_1({\mathsf{\omega }}_{\mathrm{r}}-{\mathsf{\omega }}_{\mathrm{r}\mathrm{d}})+{\mathrm{c}}_2({\dot{\mathsf{\omega }}}_{\mathrm{r}}-{\dot{\mathsf{\omega }}}_{\mathrm{r}\mathrm{d}})+{\mathrm{c}}_3({\ddot{\mathsf{\omega }}}_{\mathrm{r}}-{\ddot{\mathsf{\omega }}}_{\mathrm{r}\mathrm{d}})\\ \hspace{0.17em}\hspace{0.17em}={\mathrm{c}}_1({\mathrm{x}}_1-{\mathsf{\omega }}_{\mathrm{r}\mathrm{d}})+{\mathrm{c}}_2({\mathrm{x}}_2-{\dot{\mathsf{\omega }}}_{\mathrm{r}\mathrm{d}})+{\mathrm{c}}_3({\dot{\mathrm{x}}}_2-{\ddot{\mathsf{\omega }}}_{\mathrm{r}\mathrm{d}})\end{array}$$

(19)

However, variable ${\dot{\mathrm{x}}}_2$ is not accessible due to the unknown variable $\mathsf{\Delta }$. This variable is unknown and can be considered as the uncertainty because ${\mathrm{T}}_{\mathrm{r}}$ and ${\dot{\mathrm{T}}}_{\mathrm{r}}$ are completely unknown. These variables are unknown because various power factors, ${\mathrm{C}}_{\mathrm{p}}$, are used in the literature [45,53]. To calculate this variable, a new ONN structure is proposed, as described in the following paragraphs.

Since neural networks have the property of universal approximation [26], one can find some weights $\mathsf{\Theta }$ for the continuous function $\mathsf{\Delta }$ so that

$$\mathsf{\Delta }={\mathsf{\Theta }}^{\mathrm{T}}\mathsf{\Phi }(\mathrm{x})+\mathsf{\epsilon }(\mathrm{x})$$

(20)

where the neural network approximation error is norm-bounded, i.e., $\Vert \mathsf{\epsilon }(\mathrm{x})\Vert \le {\mathrm{F}}_{\mathsf{\epsilon }}$, and $\mathsf{\Theta }\in {\mathrm{R}}^{2\times 1}$ is the unknown weight vector; also, $\mathsf{\Phi }(\mathrm{x})={[{\mathsf{\varphi }}_1(\mathrm{x}),{\mathsf{\varphi }}_2(\mathrm{x})]}^{\mathrm{T}}$ is the Sigmoidal function in the hidden layer.

$$\begin{array}{l}{\mathsf{\varphi }}_{\mathrm{i}}(\mathrm{x})={\displaystyle \frac{2}{1+\exp (-2{\mathrm{N}}_{\mathrm{i}}\mathrm{x})}}-1:\mathrm{i}=1,2\\ {\mathrm{N}}_{\mathrm{i}}=[{\mathrm{n}}_1,{\mathrm{n}}_2]\\ {\mathrm{n}}_{\mathrm{j}}=\{\begin{array}{c}0\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}:\mathrm{j}\ne \mathrm{i}\\ 1\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}:\mathrm{j}=\mathrm{i}\end{array}\end{array}$$

(21)

Hence, Equation (15) can be expressed as follows:

$$\dot{\mathrm{x}}=\mathrm{A}\mathrm{x}+\mathrm{B}\mathrm{z}+\mathrm{B}({\mathsf{\Theta }}^{\mathrm{T}}\mathsf{\Phi }+\mathsf{\epsilon })$$

(22)

Nevertheless, Equation (22) is described by the following approximate model:

$$\dot{\widehat{\mathrm{x}}}=\mathrm{A}\widehat{\mathrm{x}}+\mathrm{B}\mathrm{z}+\mathrm{B}{\widehat{\mathsf{\Theta }}}^{\mathrm{T}}\mathsf{\Phi }(\mathrm{x})$$

(23)

The identification error can be defined as follows:

$$\begin{array}{l}\tilde{\mathrm{x}}=\mathrm{x}-\widehat{\mathrm{x}}\\ \tilde{\mathsf{\Theta }}=\mathsf{\Theta }-\widehat{\mathsf{\Theta }}\end{array}$$

(24)

From Equations (22) and (23) and their subtraction, one can conclude that

$$\dot{\tilde{\mathrm{x}}}=\mathrm{A}\tilde{\mathrm{x}}+\mathrm{B}({\tilde{\mathsf{\Theta }}}^{\mathrm{T}}\mathsf{\Phi }(\mathrm{x})+\mathsf{\epsilon })$$

(25)

Theorem 1.

When the adaptive weight is updated based on the following equation, the error $\tilde{\mathrm{x}}=\mathrm{x}-\widehat{\mathrm{x}}$ converges to zero.

$$\dot{\widehat{\mathsf{\Theta }}}={\mathsf{\rho }}_1\mathrm{A}\mathsf{\Phi }\Vert \tilde{\mathrm{x}}\Vert -{\mathsf{\rho }}_2\widehat{\mathsf{\Theta }}\Vert \tilde{\mathrm{x}}\Vert$$

(26)

The above includes the use of scalars ${\mathsf{\rho }}_1>0$ and ${\mathsf{\rho }}_2>0$, which are constant.

Proof.

We proceed with the Lyapunov function as the sum of two quadratic sections.

$$\mathrm{V}={\displaystyle \frac{1}{2}}{\tilde{\mathrm{x}}}^{\mathrm{T}}\mathrm{P}\tilde{\mathrm{x}}+{\displaystyle \frac{1}{2{\mathsf{\rho }}_2}}{\tilde{\mathsf{\Theta }}}^{\mathrm{T}}\tilde{\mathsf{\Theta }}$$

(27)

Derivative of Lyapunov Equation (27) with respect to time leads to the following:

$$\dot{\mathrm{V}}={\displaystyle \frac{1}{2}}{\tilde{\mathrm{x}}}^{\mathrm{T}}\mathrm{P}\dot{\tilde{\mathrm{x}}}+{\displaystyle \frac{1}{2}}{\dot{\tilde{\mathrm{x}}}}^{\mathrm{T}}\mathrm{P}\tilde{\mathrm{x}}+{\displaystyle \frac{1}{{\mathsf{\rho }}_2}}{\tilde{\mathsf{\Theta }}}^{\mathrm{T}}\dot{\tilde{\mathsf{\Theta }}}$$

(28)

In the above, $\dot{\tilde{\mathsf{\Theta }}}=-\dot{\widehat{\mathsf{\Theta }}}$; now, using Equations (18), (25), and (26) in Equation (28) results in the following:

$$\dot{\mathrm{V}}={\tilde{\mathrm{x}}}^{\mathrm{T}}\mathrm{P}\mathrm{B}({\mathsf{\Theta }}^{\mathrm{T}}\mathsf{\Phi }+\mathsf{\epsilon })-{\displaystyle \frac{1}{2}}{\dot{\tilde{\mathrm{x}}}}^{\mathrm{T}}\mathrm{Q}\tilde{\mathrm{x}}+{\displaystyle \frac{{\mathsf{\rho }}_1}{{\mathsf{\rho }}_2}}{\tilde{\mathsf{\Theta }}}^{\mathrm{T}}\mathrm{A}\mathsf{\Phi }\Vert \mathrm{x}\Vert +{\tilde{\mathsf{\Theta }}}^{\mathrm{T}}\tilde{\mathsf{\Theta }}\Vert \mathrm{x}\Vert$$

(29)

Consider the following inequality [24]:

$$-{\tilde{\mathrm{x}}}^{\mathrm{T}}\mathrm{Q}\tilde{\mathrm{x}}\le -{\mathsf{\lambda }}_{\min }(\mathrm{Q}){\Vert \tilde{\mathrm{x}}\Vert }^2<0$$

(30)

And consider that

$$\begin{array}{l}{\tilde{\mathsf{\Theta }}}^{\mathrm{T}}\widehat{\mathsf{\Theta }}={\tilde{\mathsf{\Theta }}}^{\mathrm{T}}(\mathsf{\Theta }-\tilde{\mathsf{\Theta }})\le {\mathrm{F}}_{\mathsf{\Theta }}\Vert \tilde{\mathsf{\Theta }}\Vert -{\Vert \tilde{\mathsf{\Theta }}\Vert }^2\\ {\tilde{\mathsf{\Theta }}}^{\mathrm{T}}\mathrm{A}\mathsf{\Phi }\le {\mathrm{F}}_{\mathsf{\Phi }}\Vert \tilde{\mathsf{\Theta }}\Vert \hspace{0.17em}\Vert \mathrm{A}\Vert \end{array}$$

(31)

where ${\mathsf{\lambda }}_{\min }$ denotes the minimum eign-value, and ${\mathrm{F}}_{\mathsf{\Phi }}$ and ${\mathrm{F}}_{\mathsf{\Theta }}$ are the bounds of neural network parameters.

$$\Vert {\mathsf{\Theta }}^{\mathrm{T}}\Vert =\Vert \mathsf{\Theta }\Vert \le {\mathrm{F}}_{\mathsf{\Theta }},\hspace{0.17em}\Vert {\mathsf{\Phi }}^{\mathrm{T}}\Vert =\Vert \mathsf{\Phi }\Vert \le {\mathrm{F}}_{\mathsf{\Phi }}$$

(32)

Therefore,

$$\begin{array}{l}\dot{\mathrm{V}}\le -{\displaystyle \frac{1}{2}}{\mathsf{\lambda }}_{\min }(\mathrm{Q}){\Vert \tilde{\mathrm{x}}\Vert }^2+\Vert \tilde{\mathrm{x}}\Vert \hspace{0.17em}\hspace{0.17em}\Vert \mathrm{P}\Vert \hspace{0.17em}\hspace{0.17em}\Vert \mathrm{B}\Vert \hspace{0.17em}\hspace{0.17em}\left(\Vert \tilde{\mathsf{\Theta }}\Vert {\mathrm{F}}_{\mathsf{\Phi }}+{\mathrm{F}}_{\mathsf{\epsilon }}\right)\\ \hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}+{\displaystyle \frac{{\mathsf{\rho }}_1}{{\mathsf{\rho }}_2}}{\mathrm{F}}_{\mathsf{\Phi }}\Vert \tilde{\mathsf{\Theta }}\Vert \hspace{0.17em}\hspace{0.17em}\Vert \mathrm{A}\Vert \hspace{0.17em}\hspace{0.17em}\Vert \tilde{\mathrm{x}}\Vert +\hspace{0.17em}\left({\mathrm{F}}_{\mathsf{\Theta }}\Vert \tilde{\mathsf{\Theta }}\Vert +{\Vert \tilde{\mathsf{\Theta }}\Vert }^2\right)\hspace{0.17em}\hspace{0.17em}\Vert \tilde{\mathrm{x}}\Vert \end{array}$$

(33)

Taking into account $\Vert \mathrm{B}\Vert =1$ results in the following:

$$\dot{\mathrm{V}}\le -{\displaystyle \frac{1}{2}}{\mathsf{\lambda }}_{\min }(\mathrm{Q}){\Vert \tilde{\mathrm{x}}\Vert }^2+\left(\Vert \mathrm{P}\Vert {\mathrm{F}}_{\mathsf{\epsilon }}-\left[{\Vert \tilde{\mathsf{\Theta }}\Vert }^2-\left(\Vert \mathrm{P}\Vert {\mathrm{F}}_{\mathsf{\Phi }}+{\mathrm{F}}_{\mathsf{\Theta }}+{\displaystyle \frac{{\mathsf{\rho }}_1}{{\mathsf{\rho }}_2}}{\mathrm{F}}_{\mathsf{\Phi }}\Vert \mathrm{A}\Vert \right)\hspace{0.17em}\hspace{0.17em}\Vert \tilde{\mathsf{\Theta }}\Vert \right]\right)\hspace{0.17em}\hspace{0.17em}\Vert \tilde{\mathrm{x}}\Vert$$

(34)

Now, we define ${\mathrm{F}}_{\tilde{\mathrm{x}}}$:

$${\mathrm{F}}_{\tilde{\mathrm{x}}}={\displaystyle \frac{\Vert \mathrm{P}\Vert {\mathrm{F}}_{\mathsf{\epsilon }}-\frac{1}{4}{\left(\Vert \mathrm{P}\Vert {\mathrm{F}}_{\mathsf{\Phi }}+{\mathrm{F}}_{\mathsf{\Theta }}+\frac{{\mathsf{\rho }}_1}{{\mathsf{\rho }}_2}{\mathrm{F}}_{\mathsf{\Phi }}\Vert \mathrm{A}\Vert \right)}^2}{\frac{1}{2}{\mathsf{\lambda }}_{\min }(\mathrm{Q})}}$$

(35)

Then,

$$\dot{\mathrm{V}}\le -{\displaystyle \frac{1}{2}}{\mathsf{\lambda }}_{\min }(\mathrm{Q})\left(\hspace{0.17em}\Vert \tilde{\mathrm{x}}\Vert -{\mathrm{F}}_{\tilde{\mathrm{x}}}\right)\hspace{0.17em}\hspace{0.17em}\Vert \tilde{\mathrm{x}}\Vert -{\left(\Vert \tilde{\mathsf{\Theta }}\Vert -{\displaystyle \frac{1}{2}}\left[\Vert \mathrm{P}\Vert {\mathrm{F}}_{\mathsf{\Phi }}+{\mathrm{F}}_{\mathsf{\Theta }}+{\displaystyle \frac{{\mathsf{\rho }}_1}{{\mathsf{\rho }}_2}}{\mathrm{F}}_{\mathsf{\Phi }}\Vert \mathrm{A}\Vert \right]\right)}^2\Vert \tilde{\mathrm{x}}\Vert$$

(36)

or

$$\dot{\mathrm{V}}\le -{\displaystyle \frac{1}{2}}{\mathsf{\lambda }}_{\min }(\mathrm{Q})\left(\hspace{0.17em}\Vert \tilde{\mathrm{x}}\Vert -{\mathrm{F}}_{\tilde{\mathrm{x}}}\right)\hspace{0.17em}\hspace{0.17em}\Vert \tilde{\mathrm{x}}\Vert$$

(37)

Suppose $\Vert \tilde{\mathrm{x}}\Vert >{\mathrm{F}}_{\tilde{\mathrm{x}}}$; therefore, $\dot{\mathrm{V}}\le -0.5{\mathsf{\lambda }}_{\min }(\mathrm{Q})\left(\hspace{0.17em}\Vert \tilde{\mathrm{x}}\Vert -{\mathrm{F}}_{\tilde{\mathrm{x}}}\right)\hspace{0.17em}\hspace{0.17em}\Vert \tilde{\mathrm{x}}\Vert \le 0$, which leads to the following:

$$\begin{array}{l}0\le {\displaystyle {\int }_0^{\mathrm{t}}0.5}\hspace{0.17em}\left(\hspace{0.17em}\Vert \tilde{\mathrm{x}}(\mathsf{\tau })\Vert -{\mathrm{F}}_{\tilde{\mathrm{x}}}\right)\hspace{0.17em}\hspace{0.17em}\Vert \tilde{\mathrm{x}}(\mathsf{\tau })\Vert \hspace{0.17em}{\mathsf{\lambda }}_{\min }(\mathrm{Q})\mathrm{d}\mathsf{\tau }\\ \hspace{0.17em}\hspace{0.17em}\le {\displaystyle {\int }_0^{\mathrm{t}}0.5}\hspace{0.17em}\left(\hspace{0.17em}\Vert \tilde{\mathrm{x}}(\mathsf{\tau })\Vert -{\mathrm{F}}_{\tilde{\mathrm{x}}}\right)\hspace{0.17em}\hspace{0.17em}\Vert \tilde{\mathrm{x}}(\mathsf{\tau })\Vert \hspace{0.17em}{\mathsf{\lambda }}_{\min }(\mathrm{Q})\mathrm{d}\mathsf{\tau }+\mathrm{V}(\mathrm{t})\le \mathrm{V}(0)\end{array}$$

(38)

This inequality is true even if $\mathrm{t}\to \infty$, since $\mathrm{V}(0)$ is finite and positive. Therefore, the Barbalat’s lemma [24] results in the following:

$$\underset{\mathrm{t}\to \infty }{\lim } 0.5\hspace{0.17em}\hspace{0.17em}\left(\hspace{0.17em}\Vert \tilde{\mathrm{x}}\Vert -{\mathrm{F}}_{\tilde{\mathrm{x}}}\right)\hspace{0.17em}\hspace{0.17em}\Vert \tilde{\mathrm{x}}\Vert \hspace{0.17em}{\mathsf{\lambda }}_{\min }(\mathrm{Q})=0$$

(39)

It is clear that ${\mathsf{\lambda }}_{\min }(\mathrm{Q})$ is greater than zero, so Equation (39) causes a decrease in $\Vert \tilde{\mathrm{x}}\Vert$ into the bound of ${\mathrm{F}}_{\tilde{\mathrm{x}}}$, i.e., $\underset{\mathrm{t}\to \infty }{\lim }\Vert \tilde{\mathrm{x}}\Vert \le {\mathrm{F}}_{\tilde{\mathrm{x}}}$. □

Remark 1.

Parameters ${\mathsf{\rho }}_1$ and ${\mathsf{\rho }}_1$ are selected in order to prevent drift in Equation (26).

4. Sliding Mode Controller (SMC) Design

In this section, two new approaches are proposed: the D-SMC and T-SMC. In both of them, the same presented ONN of Equation (23) is used to ensure a trustworthy comparison.

4.1. The Proposed D-SMC Approach

As has been mentioned, variable ${\dot{\mathrm{x}}}_2$ is not accessible in Equation (39). To this end, the ONN in Equation (23) is proposed. Substituting the observer equation (Equation (23)) and Equation (26) into the sliding surface equation (Equation (19)) results in the following:

$$\mathrm{s}={\mathrm{c}}_1({\widehat{\mathrm{x}}}_1-{\mathsf{\omega }}_{\mathrm{r}\mathrm{d}})+{\mathrm{c}}_2({\widehat{\mathrm{x}}}_2-{\dot{\mathsf{\omega }}}_{\mathrm{r}\mathrm{d}})+{\mathrm{c}}_3({\dot{\widehat{\mathrm{x}}}}_2-{\ddot{\mathsf{\omega }}}_{\mathrm{r}\mathrm{d}})$$

(40)

Hence, by definition of $\mathrm{G}=[0,1]$, we have the following (note that $\mathrm{G}\mathrm{B}=1$):

$$\begin{array}{l}\dot{\mathrm{s}}={\mathrm{c}}_1({\widehat{\mathrm{x}}}_2-{\dot{\mathsf{\omega }}}_{\mathrm{r}\mathrm{d}})+{\mathrm{c}}_2(\mathrm{G}\mathrm{A}\widehat{\mathrm{x}}+\mathrm{z}+{\widehat{\mathsf{\Theta }}}^{\mathrm{T}}\mathsf{\Phi }-{\ddot{\mathsf{\omega }}}_{\mathrm{r}\mathrm{d}})\\ \hspace{0.17em}\hspace{0.17em}+{\mathrm{c}}_3\left(\mathrm{G}\mathrm{A}\left[\mathrm{A}\widehat{\mathrm{x}}+\mathrm{B}\mathrm{z}+\mathrm{B}{\widehat{\mathsf{\Theta }}}^{\mathrm{T}}\mathsf{\Phi }\right]+\dot{\mathrm{z}}+{\left[\hspace{0.17em}{\mathsf{\rho }}_1\mathrm{A}\mathsf{\Phi }\hspace{0.17em}\Vert \tilde{\mathrm{x}}\Vert -{\mathsf{\rho }}_2\widehat{\mathsf{\Theta }}\hspace{0.17em}\Vert \tilde{\mathrm{x}}\Vert \hspace{0.17em}\right]}^{\mathrm{T}}\mathsf{\Phi }+{\widehat{\mathsf{\Theta }}}^{\mathrm{T}}\mathsf{\Phi }-{\stackrel{⃛}{\mathsf{\omega }}}_{\mathrm{r}\mathrm{d}}\right)\end{array}$$

(41)

or

$$\begin{array}{l}\dot{\mathrm{s}}={\mathrm{c}}_1({\widehat{\mathrm{x}}}_2-{\dot{\mathsf{\omega }}}_{\mathrm{r}\mathrm{d}})+{\mathrm{c}}_2(\mathrm{G}\mathrm{A}\widehat{\mathrm{x}}+\mathrm{z}+{\widehat{\mathsf{\Theta }}}^{\mathrm{T}}\mathsf{\Phi }-{\ddot{\mathsf{\omega }}}_{\mathrm{r}\mathrm{d}})\\ +{\mathrm{c}}_3\left(\mathrm{G}{\mathrm{A}}^2\widehat{\mathrm{x}}+\mathrm{G}\mathrm{A}\mathrm{B}\mathrm{z}+\mathrm{G}\mathrm{A}\mathrm{B}{\widehat{\mathsf{\Theta }}}^{\mathrm{T}}\mathsf{\Phi }+\dot{\mathrm{z}}+{\mathsf{\rho }}_1{\mathsf{\Phi }}^{\mathrm{T}}{\mathrm{A}}^{\mathrm{T}}\hspace{0.17em}\Vert \tilde{\mathrm{x}}\Vert \mathsf{\Phi }-{\mathsf{\rho }}_2{\widehat{\mathsf{\Theta }}}^{\mathrm{T}}\hspace{0.17em}\Vert \tilde{\mathrm{x}}\Vert \mathsf{\Phi }+{\widehat{\mathsf{\Theta }}}^{\mathrm{T}}\mathsf{\Phi }-{\stackrel{⃛}{\mathsf{\omega }}}_{\mathrm{r}\mathrm{d}}\right)\end{array}$$

(42)

Theorem 2.

The reaching-to-sliding surface equation (Equation (19)) is provided in finite time if the following chattering-free signal is used as the input control for the system (Equation (15)).

$$\begin{array}{l}\dot{\mathrm{z}}=-{\displaystyle \frac{{\mathrm{c}}_1({\widehat{\mathrm{x}}}_2-{\dot{\mathsf{\omega }}}_{\mathrm{r}\mathrm{d}})+{\mathrm{c}}_2(\mathrm{G}\mathrm{A}\widehat{\mathrm{x}}+\mathrm{z}+{\widehat{\mathsf{\Theta }}}^{\mathrm{T}}\mathsf{\Phi }-{\ddot{\mathsf{\omega }}}_{\mathrm{r}\mathrm{d}})}{{\mathrm{c}}_3}}\\ -{\displaystyle \frac{{\mathrm{c}}_3\left(\mathrm{G}{\mathrm{A}}^2\widehat{\mathrm{x}}+\mathrm{G}\mathrm{A}\mathrm{B}\mathrm{z}+\mathrm{G}\mathrm{A}\mathrm{B}{\widehat{\mathsf{\Theta }}}^{\mathrm{T}}\mathsf{\Phi }+\dot{\mathrm{z}}+{\mathsf{\rho }}_1{\mathsf{\Phi }}^{\mathrm{T}}{\mathrm{A}}^{\mathrm{T}}\hspace{0.17em}\Vert \tilde{\mathrm{x}}\Vert \mathsf{\Phi }-{\mathsf{\rho }}_2{\widehat{\mathsf{\Theta }}}^{\mathrm{T}}\hspace{0.17em}\Vert \tilde{\mathrm{x}}\Vert \mathsf{\Phi }+{\widehat{\mathsf{\Theta }}}^{\mathrm{T}}\mathsf{\Phi }-{\stackrel{⃛}{\mathsf{\omega }}}_{\mathrm{r}\mathrm{d}}\right)}{{\mathrm{c}}_3}}\\ \hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}-{\displaystyle \frac{{\mathrm{h}}_1\mathrm{s}\mathrm{i}\mathrm{g}\mathrm{n}(\mathrm{s})+{\mathrm{h}}_2\mathrm{s}}{{\mathrm{c}}_3}}\end{array}$$

(43)

The above includes the constant parameters ${\mathrm{h}}_1$ and ${\mathrm{h}}_2$.

Proof.

Considering Equations (42) and (43) provides the following:

$$\dot{\mathrm{s}}=-{\mathrm{h}}_1\mathrm{s}\mathrm{i}\mathrm{g}\mathrm{n}(\mathrm{s})-{\mathrm{h}}_2\mathrm{s}$$

(44)

Using $\mathrm{V}=0.5{\mathrm{s}}^2$ as the Lyapunov function leads to the following:

$$\dot{\mathrm{V}}=\mathrm{s}\dot{\mathrm{s}}=\mathrm{s}(-{\mathrm{h}}_1\mathrm{s}\mathrm{i}\mathrm{g}\mathrm{n}(\mathrm{s})-{\mathrm{h}}_2\mathrm{s})=-{\mathrm{h}}_1\left|\mathrm{s}\right|-{\mathrm{h}}_2{\mathrm{s}}^2\le -{\mathrm{h}}_1\left|\mathrm{s}\right|$$

(45)

Consider ${\mathrm{t}}_{\mathrm{f}}$ and suppose that $\mathrm{s}({\mathrm{t}}_{\mathrm{f}})=0$; then, it can be shown that ${\mathrm{t}}_{\mathrm{f}}\le {\displaystyle \frac{\left|\mathrm{s}(0)\right|}{{\mathrm{h}}_1}}$ [24]. □

Remark 2.

Parameter ${\mathrm{h}}_1$ is selected to enable reaching to the sliding surface in a small time ${\mathrm{t}}_{\mathrm{f}}$ and parameter ${\mathrm{h}}_2$ is selected to ensure good performance for the closed loop system.

Note that the implemented proposed D-SMC and ONN are presented in Figure 3.

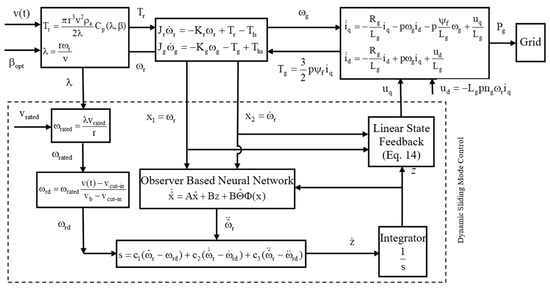

Figure 3. The proposed configuration diagram.

As explained before and shown in this figure, the sliding surface $\mathrm{s}$ is calculated based on the reference of rotor angular velocity ${\mathsf{\omega }}_{\mathrm{r}\mathrm{d}}$, as well as the neural observer output ${\ddot{\widehat{\mathsf{\omega }}}}_{\mathrm{r}}$. Then, $\dot{\mathrm{z}}$ is calculated and $\mathrm{z}$ obtained via the integration of $\dot{\mathrm{z}}$. Finally, ${\mathrm{u}}_{\mathrm{q}}$ is obtained using state feedback.

4.2. The Proposed T-SMC Approach

Consider the following sliding surface:

$$\mathrm{s}={\mathrm{c}}_1({\widehat{\mathrm{x}}}_1-{\mathsf{\omega }}_{\mathrm{r}\mathrm{d}})+{\mathrm{c}}_2({\widehat{\mathrm{x}}}_2-{\dot{\mathsf{\omega }}}_{\mathrm{r}\mathrm{d}})$$

(46)

Using Equation (23) and equality $\mathrm{G}\mathrm{B}=1$ results in the following:

$$\dot{\mathrm{s}}={\mathrm{c}}_1({\widehat{\mathrm{x}}}_2-{\dot{\mathsf{\omega }}}_{\mathrm{r}\mathrm{d}})+{\mathrm{c}}_2(\mathrm{G}\mathrm{A}\widehat{\mathrm{x}}+\mathrm{z}+{\widehat{\mathsf{\Theta }}}^{\mathrm{T}}\mathsf{\Phi }-{\dot{\mathsf{\omega }}}_{\mathrm{r}\mathrm{d}})$$

(47)

Theorem 3.

The reaching-to-sliding surface equation (Equation (46)) is carried out in finite time if the following signal is used as the input control for the system equation (Equation (15)).

$$\mathrm{z}=-{\displaystyle \frac{{\mathrm{c}}_1({\widehat{\mathrm{x}}}_2-{\dot{\mathsf{\omega }}}_{\mathrm{r}\mathrm{d}})+{\mathrm{c}}_2(\mathrm{G}\mathrm{A}\widehat{\mathrm{x}}+{\widehat{\mathsf{\Theta }}}^{\mathrm{T}}\mathsf{\Phi }-{\ddot{\mathsf{\omega }}}_{\mathrm{r}\mathrm{d}})+{\mathrm{h}}_1\mathrm{s}\mathrm{i}\mathrm{g}\mathrm{n}(\mathrm{s})+{\mathrm{h}}_2\mathrm{s}}{{\mathrm{c}}_2}}$$

(48)

The above includes the constant parameters ${\mathrm{h}}_1$ and ${\mathrm{h}}_2$.

Proof.

Substituting Equation (48) into Equation (47), we can conclude that:

$$\dot{\mathrm{s}}=-{\mathrm{h}}_1\mathrm{s}\mathrm{i}\mathrm{g}\mathrm{n}(\mathrm{s})-{\mathrm{h}}_2\mathrm{s}$$

(49)

Then, the Lyapunov function, $\mathrm{V}=0.5{\mathrm{s}}^2$, results in the following:

$$\dot{\mathrm{V}}=\mathrm{s}\dot{\mathrm{s}}=\mathrm{s}(-{\mathrm{h}}_1\mathrm{s}\mathrm{i}\mathrm{g}\mathrm{n}(\mathrm{s})-{\mathrm{h}}_2\mathrm{s})=-{\mathrm{h}}_1\left|\mathrm{s}\right|-{\mathrm{h}}_2{\mathrm{s}}^2\le -{\mathrm{h}}_1\left|\mathrm{s}\right|$$

(50)

Consider ${\mathrm{t}}_{\mathrm{f}}$ and suppose that $\mathrm{s}({\mathrm{t}}_{\mathrm{f}})=0$; then, it can be shown that ${\mathrm{t}}_{\mathrm{f}}\le {\displaystyle \frac{\left|\mathrm{s}(0)\right|}{{\mathrm{h}}_1}}$ [24]. Hence, proof is obtained. □

4.3. The Reference of Rotor Angular Velocity

Based on Figure 4, the VWT operation mode is divided by a known rated index into four regions. When the wind speed is smaller than cut-in, VWT is shut down because of the economic conditions. The pitch blades of a VWT are set to its constant optimal value, and generator torque is controlled for the wind speed bigger than the cut-in wind speed and smaller than the rated wind speed. For this operation mode, the maximum power coefficient is provided by increasing rotor speed. For the wind speed bigger than the rated wind speed and smaller than the cut-out wind speed, the pitch angle of the blades is increased to reduce the rotor speed. In this case, the generator power is regulated to its rated value. Finally, for protection against fatigue damage, the VWT is shut down above the cut-out operation mode [13].

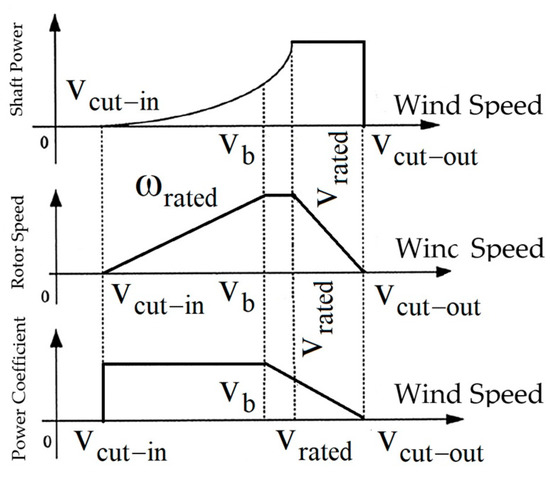

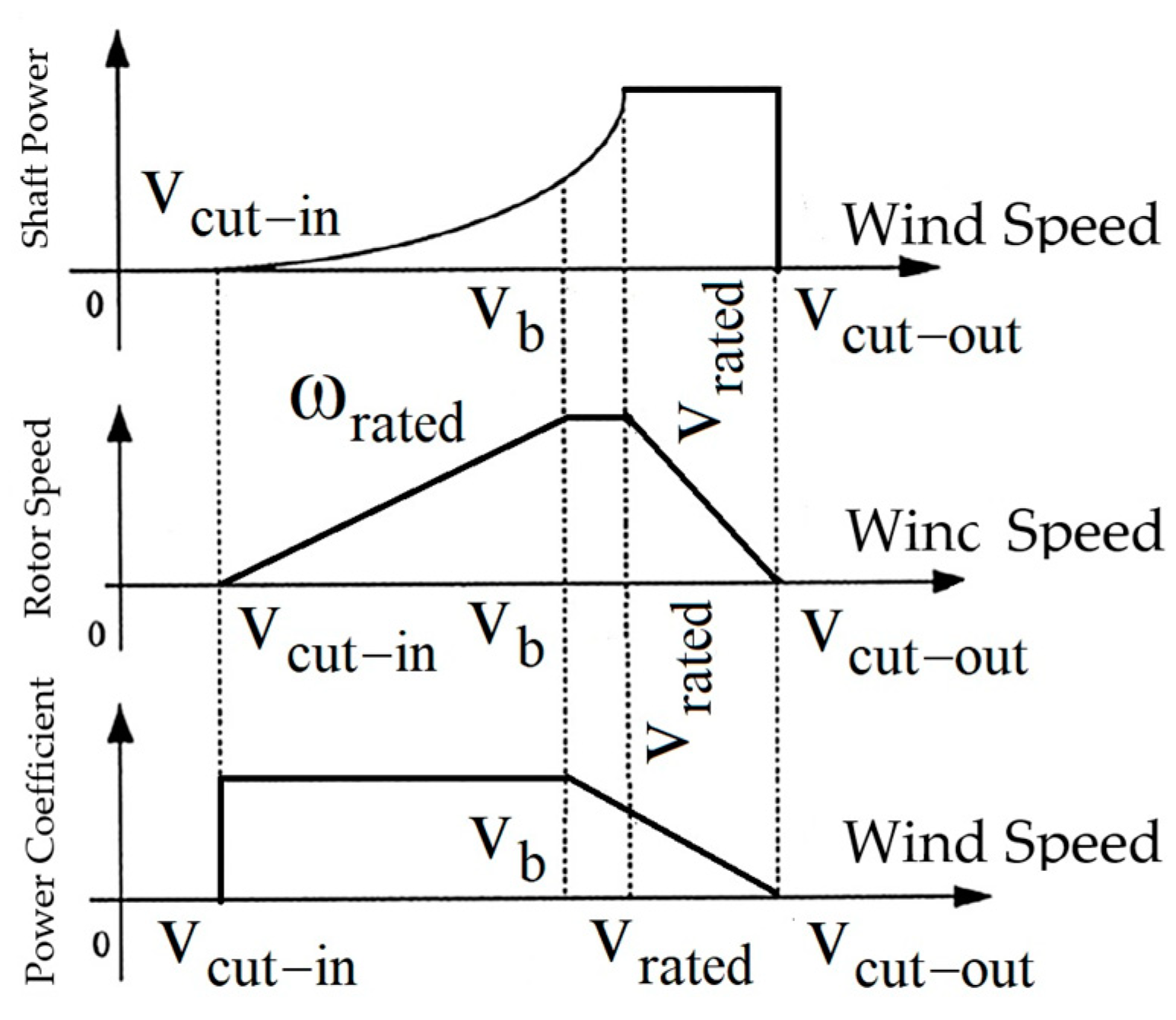

Figure 4. Operation regions of VWT.

From Figure 4, in the second operation mode and for torque control, the reference of rotor angular velocity can be written as follows:

$${\mathsf{\omega }}_{\mathrm{r}\mathrm{d}}={\mathsf{\omega }}_{\mathrm{r}\mathrm{a}\mathrm{t}\mathrm{e}\mathrm{d}}{\displaystyle \frac{\mathrm{v}(\mathrm{t})-{\mathrm{v}}_{\mathrm{c}\mathrm{u}\mathrm{t}-\mathrm{i}\mathrm{n}}}{{\mathrm{v}}_{\mathrm{b}}-{\mathrm{v}}_{\mathrm{c}\mathrm{u}\mathrm{t}-\mathrm{i}\mathrm{n}}}}$$

(51)

According to Equation (2), it is clear that:

$${\mathsf{\omega }}_{\mathrm{r}\mathrm{a}\mathrm{t}\mathrm{e}\mathrm{d}}={\displaystyle \frac{\mathsf{\lambda }{\mathrm{v}}_{\mathrm{r}\mathrm{a}\mathrm{t}\mathrm{e}\mathrm{d}}}{\mathrm{r}}}$$

(52)

We use a two-mass VWT with a power of 5 MW which is placed in the National Renewable Energy Laboratory (NREL) in Colorado. The parameters of this WT are presented in Table 1 [56].

Table 1. VWT parameters.

Parameter	Value	Unit
${\mathrm{v}}_{\mathrm{c}\mathrm{u}\mathrm{t}-\mathrm{i}\mathrm{n}}$	$3$	$\mathrm{m}/\mathrm{s}$
${\mathrm{v}}_{\mathrm{b}}$	$10.2$	$\mathrm{m}/\mathrm{s}$
${\mathrm{v}}_{\mathrm{r}\mathrm{a}\mathrm{t}\mathrm{e}\mathrm{d}}$	$11.4$	$\mathrm{m}/\mathrm{s}$
${\mathrm{v}}_{\mathrm{c}\mathrm{u}\mathrm{t}-\mathrm{o}\mathrm{u}\mathrm{t}}$	$25$	$\mathrm{m}/\mathrm{s}$
${\mathsf{\beta }}_{\mathrm{o}\mathrm{p}\mathrm{t}}$	$0$	$\mathrm{deg}$
${\mathsf{\lambda }}_{\mathrm{o}\mathrm{p}\mathrm{t}}$	$7.55$	$\mathrm{r}\mathrm{a}\mathrm{d}$

In addition, due to the use of the NREL WT, the parameters of the mechanical part are also listed in Table 2 [56].

Table 2. VWT drivetrain parameters.

Notation	Value	Unit
$\mathrm{r}$	$21.62$	$\mathrm{m}$
${\mathsf{\rho }}_{\mathrm{a}}$	$1.308$	$\mathrm{k}\mathrm{g}/{\mathrm{m}}^3$
${\mathrm{J}}_{\mathrm{r}}$	$3.25\times {10}^5$	$\mathrm{k}\mathrm{g}\times {\mathrm{m}}^2$
${\mathrm{J}}_{\mathrm{g}}$	$34.4$	$\mathrm{k}\mathrm{g}\times {\mathrm{m}}^2$
${\mathrm{K}}_{\mathrm{r}}$	$27.36$	$(\mathrm{N}\times \mathrm{m})/(\mathrm{r}\mathrm{a}\mathrm{d}/\mathrm{s})$
${\mathrm{K}}_{\mathrm{g}}$	$0.2$	$(\mathrm{N}\times \mathrm{m})/(\mathrm{r}\mathrm{a}\mathrm{d}/\mathrm{s})$
${\mathrm{K}}_{\mathrm{l}\mathrm{s}}$	$9.5\times {10}^3$	$(\mathrm{N}\times \mathrm{m})/\mathrm{r}\mathrm{a}\mathrm{d}$
${\mathrm{B}}_{\mathrm{l}\mathrm{s}}$	$2.691\times {10}^5$	$(\mathrm{N}\times \mathrm{m})/(\mathrm{r}\mathrm{a}\mathrm{d}/\mathrm{s})$
${\mathrm{n}}_{\mathrm{g}}$	$43.165$	$\mathrm{S}\mathrm{c}\mathrm{a}\mathrm{l}\mathrm{a}\mathrm{r}$

Furthermore, the parameters of the PMSG are specified in Table 3.

Table 3. The PMSG parameters.

Notation	Value	Unit
${\mathrm{R}}_{\mathrm{g}}$	$2$	$\mathrm{O}\mathrm{h}\mathrm{m}$
${\mathrm{L}}_{\mathrm{g}}$	$12$	$\mathrm{H}\mathrm{e}\mathrm{n}\mathrm{r}\mathrm{y}$
${\mathsf{\psi }}_{\mathrm{f}}$	$25$	$\mathrm{W}\mathrm{e}\mathrm{b}\mathrm{e}\mathrm{r}$
$\mathrm{p}$	$12$	$\mathrm{S}\mathrm{c}\mathrm{a}\mathrm{l}\mathrm{a}\mathrm{r}$

5. Simulation Results

Both the D-SMC and T-SMC were simulated using the parameters of ${\mathrm{a}}_1=1$ and ${\mathrm{a}}_2=2$ for the state feedback. Moreover, the same proposed ONN was used in both approaches for a reliable comparison. Moreover, the initial values of ONN weights were set to zero, i.e., ${\mathsf{\Theta }}_1(0)={\mathsf{\Theta }}_2(0)=0$. Also, we chose ${\mathrm{h}}_1=5$, ${\mathrm{h}}_2=20$, ${\mathsf{\rho }}_1=1$, and ${\mathsf{\rho }}_2=5$. The wind speed and the reference of rotor speed, denoted by Equation (51), are shown in Figure 5 and Figure 6, respectively. Note that this wind speed is in the second region, with a mean value of 7 and added white noise to simulate a read wind.

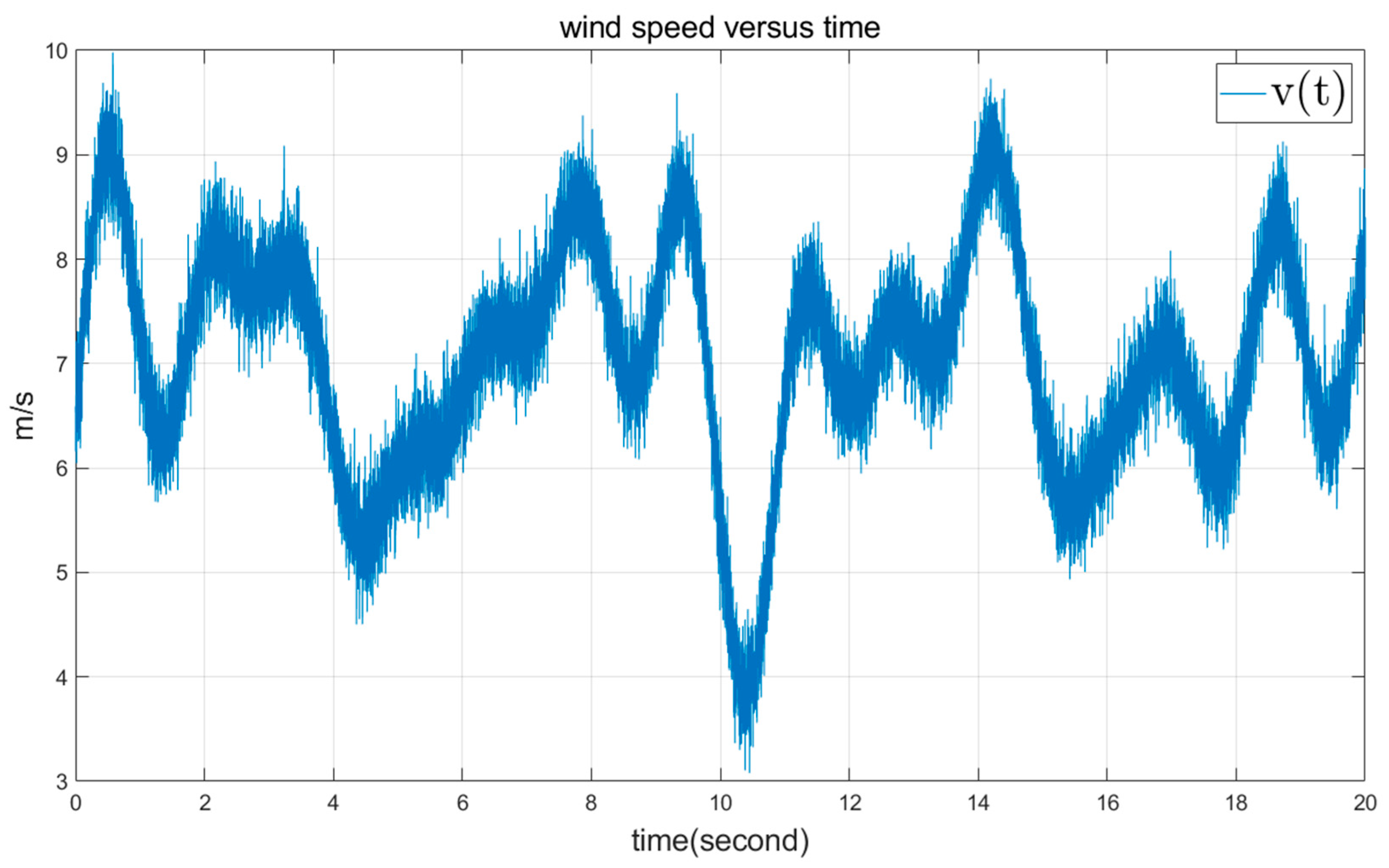

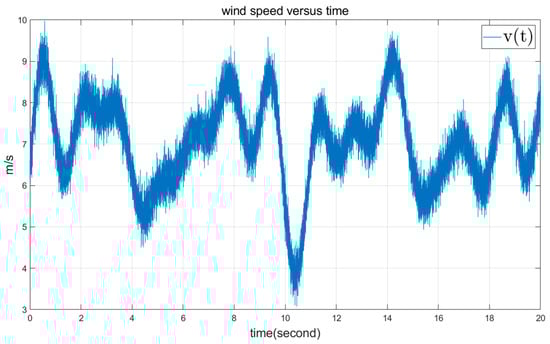

Figure 5. Time series of wind profile.

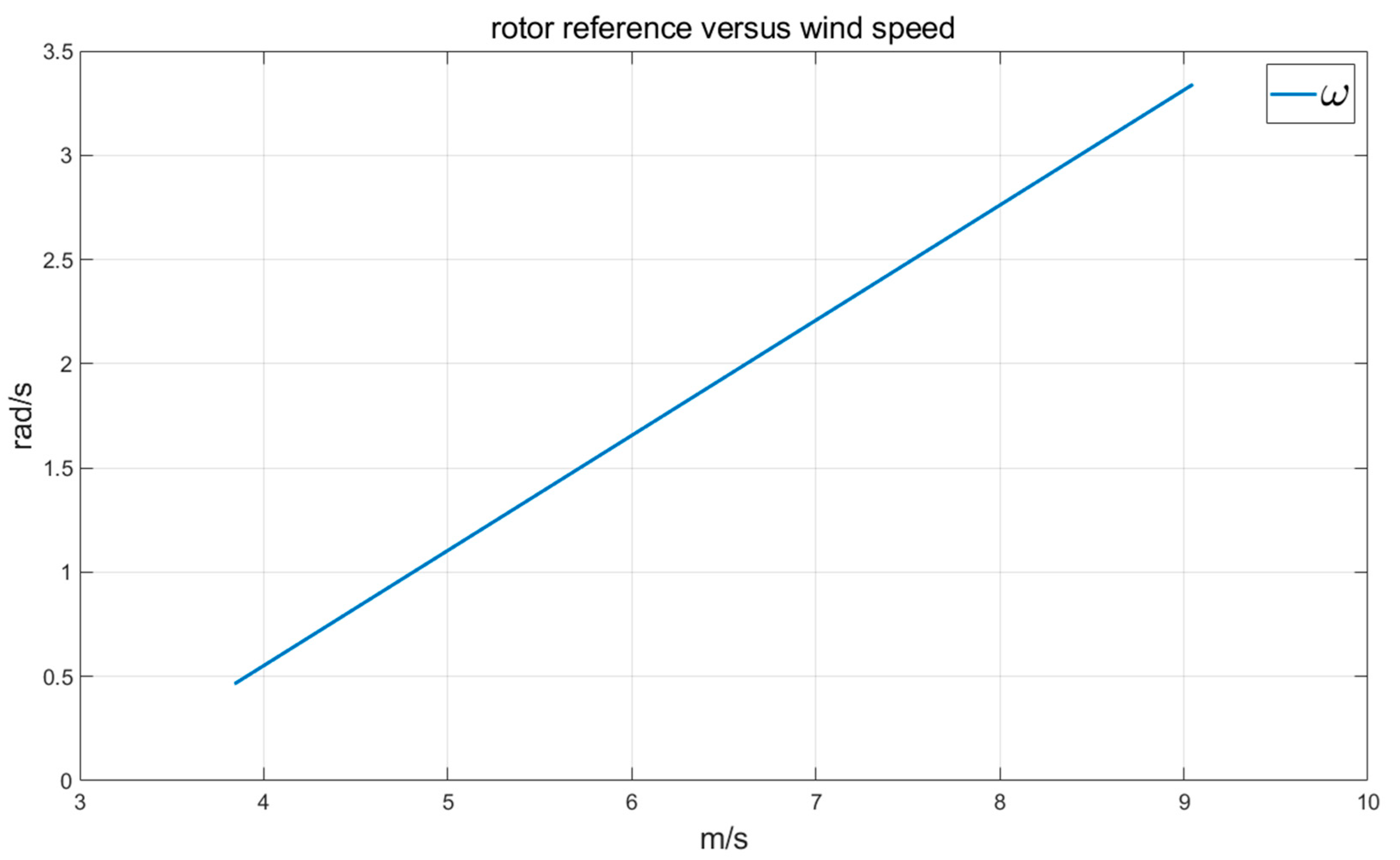

Figure 6. Angular velocity of rotor reference.

In the proposed D-SMC approach, the sliding surface coefficients are selected as ${\mathrm{c}}_1=10$, ${\mathrm{c}}_2=0.1$, and ${\mathrm{c}}_3=0.01$. This selection causes the zero dynamics of sliding surface (19) or (40) to be set to zero, i.e., when the sliding surface reaches zero in finite time, the sliding variables converge to zero. The initial value of $\mathrm{z}(0)$ is set to zero, i.e., $\mathrm{z}(0)=0$. This is needed for the calculation of the input control signal from Equation (43). Figure 7, Figure 8, Figure 9 and Figure 10 show the simulation results. Figure 7 shows the sliding surface, which converges to zero in finite time. Figure 8 shows the performance of the proposed ONN. Reference signal tracking can also be seen from this figure. In Figure 9, the torque input control signal of the PMSG in the q-axis is depicted. This chattering-free signal is also the D-SMC output. The adaptive weights of the ONN are shown in Figure 10. Note that the initial oscillations in Figure 9 and Figure 10 are not chattering.

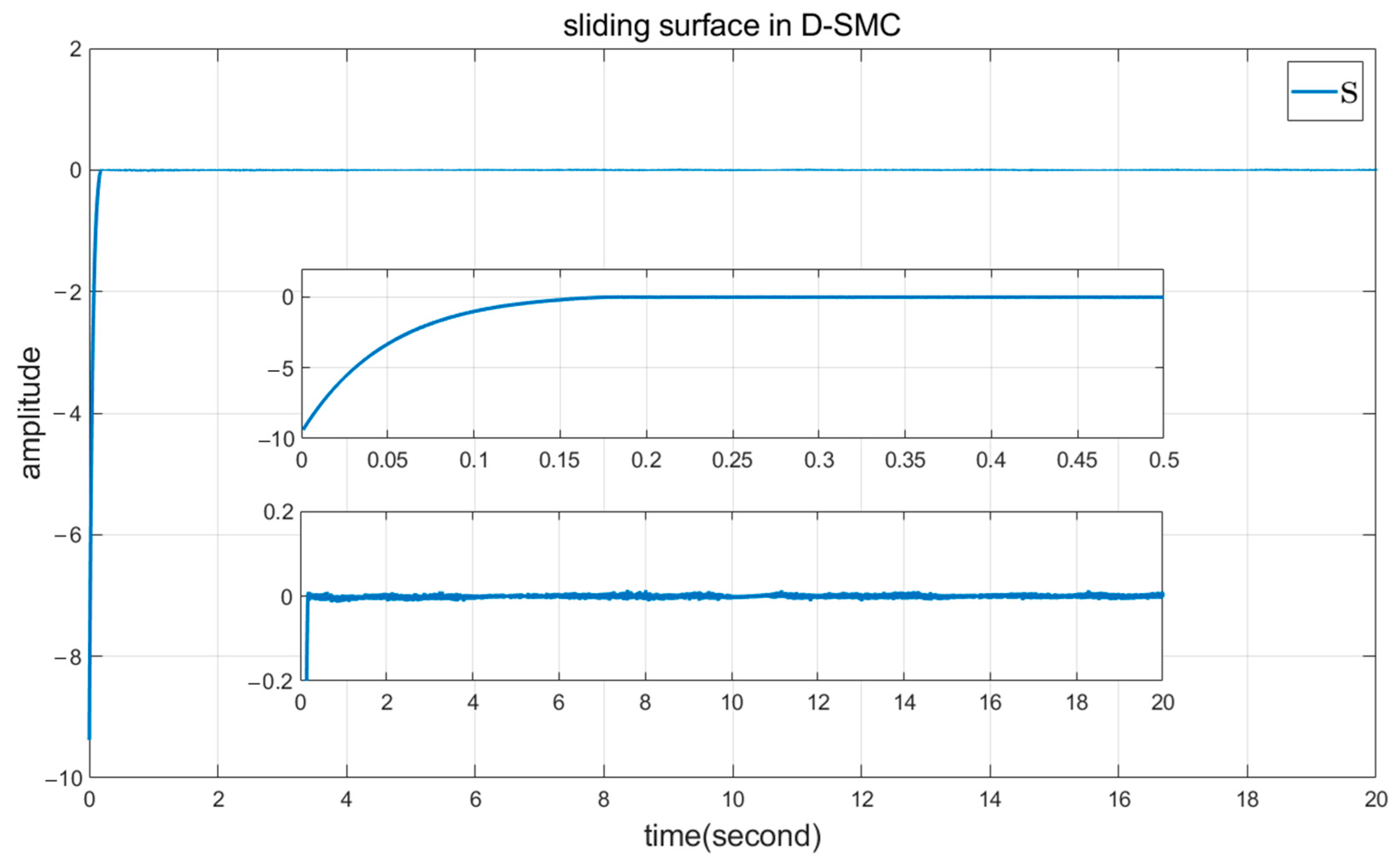

Figure 7. Finite-time sliding surface convergence to zero using D-SMC.

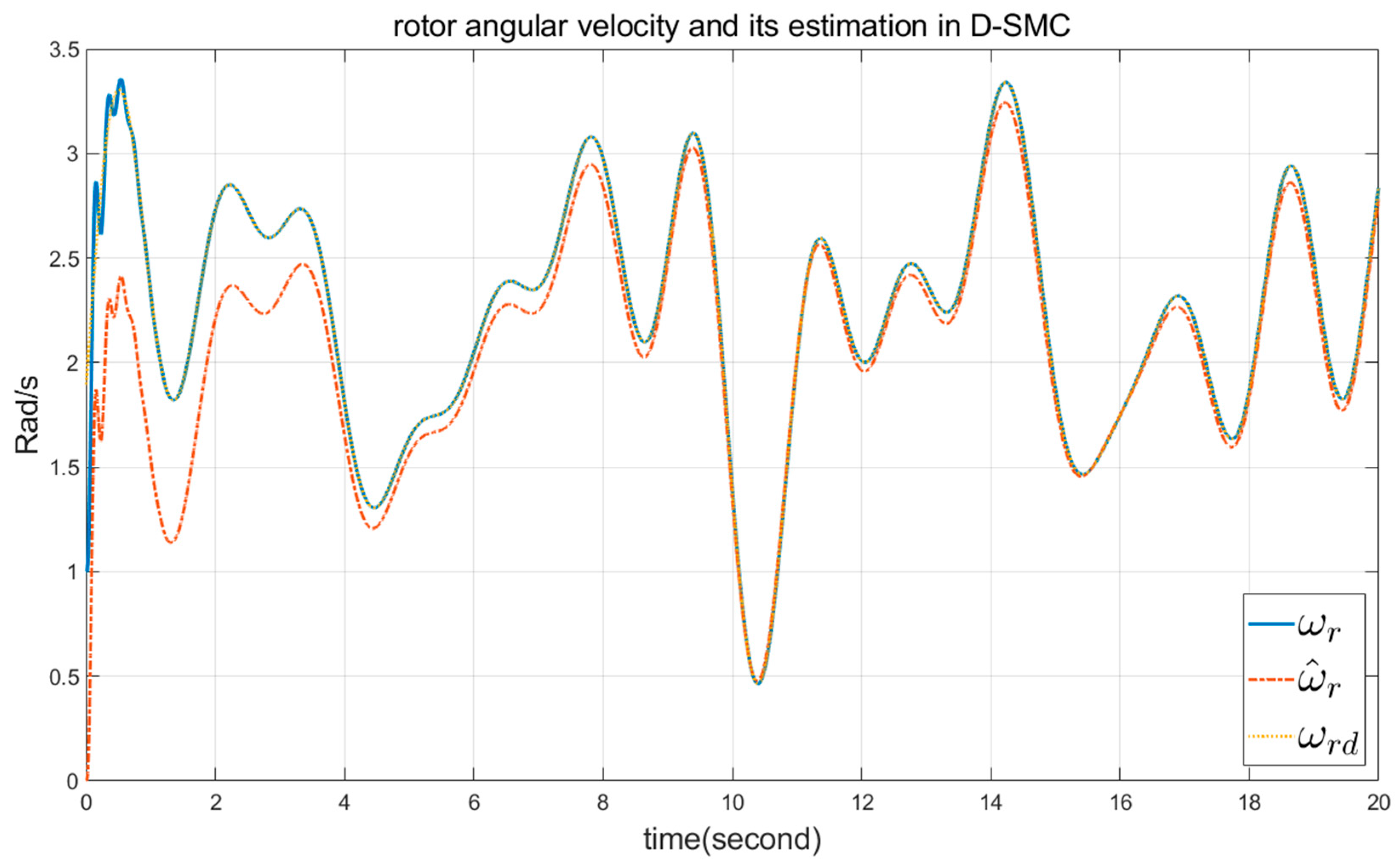

Figure 8. Performance of ONN in estimation and tracking using D-SMC.

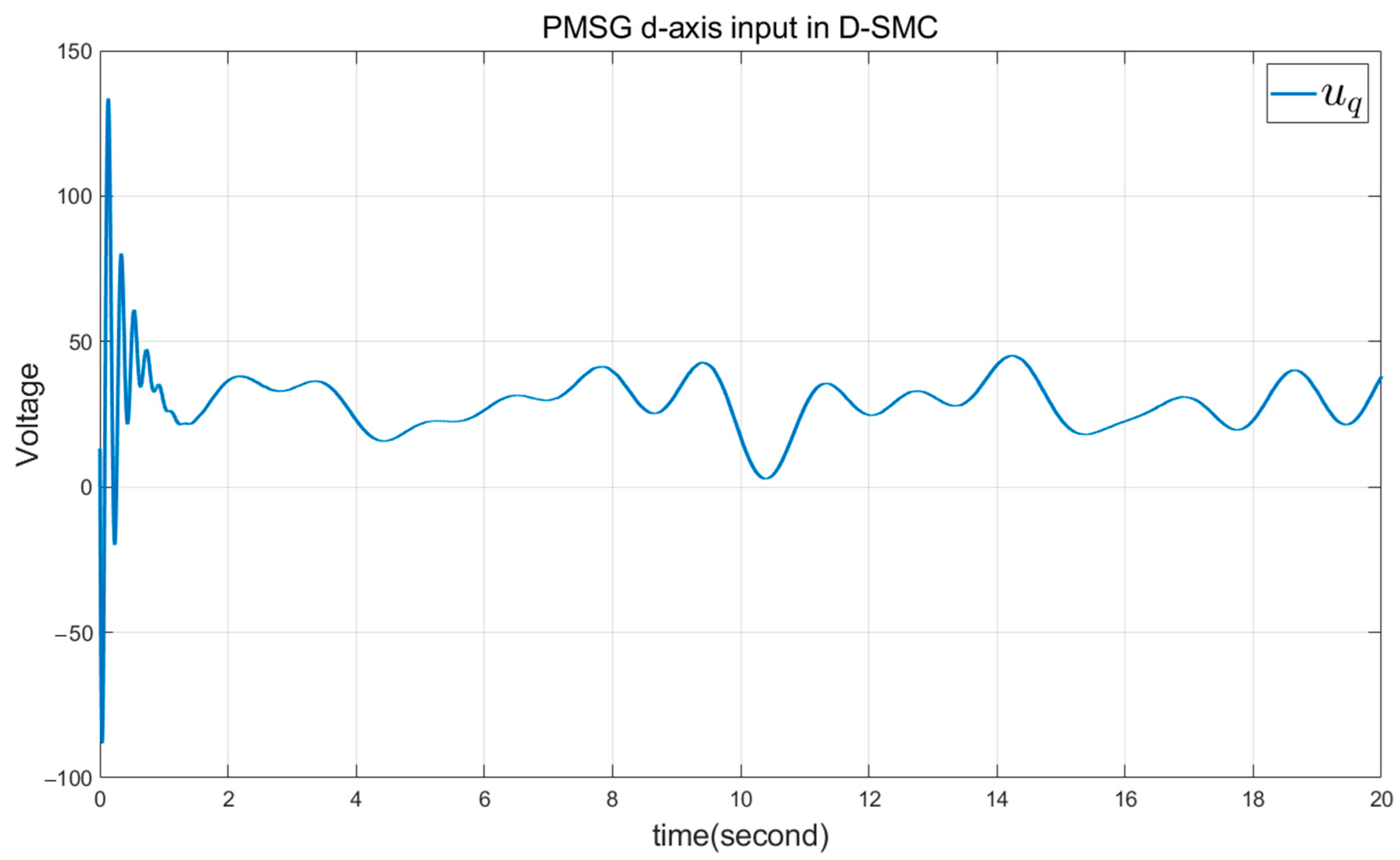

Figure 9. Torque input of PMSG in q-axis using D-SMC.

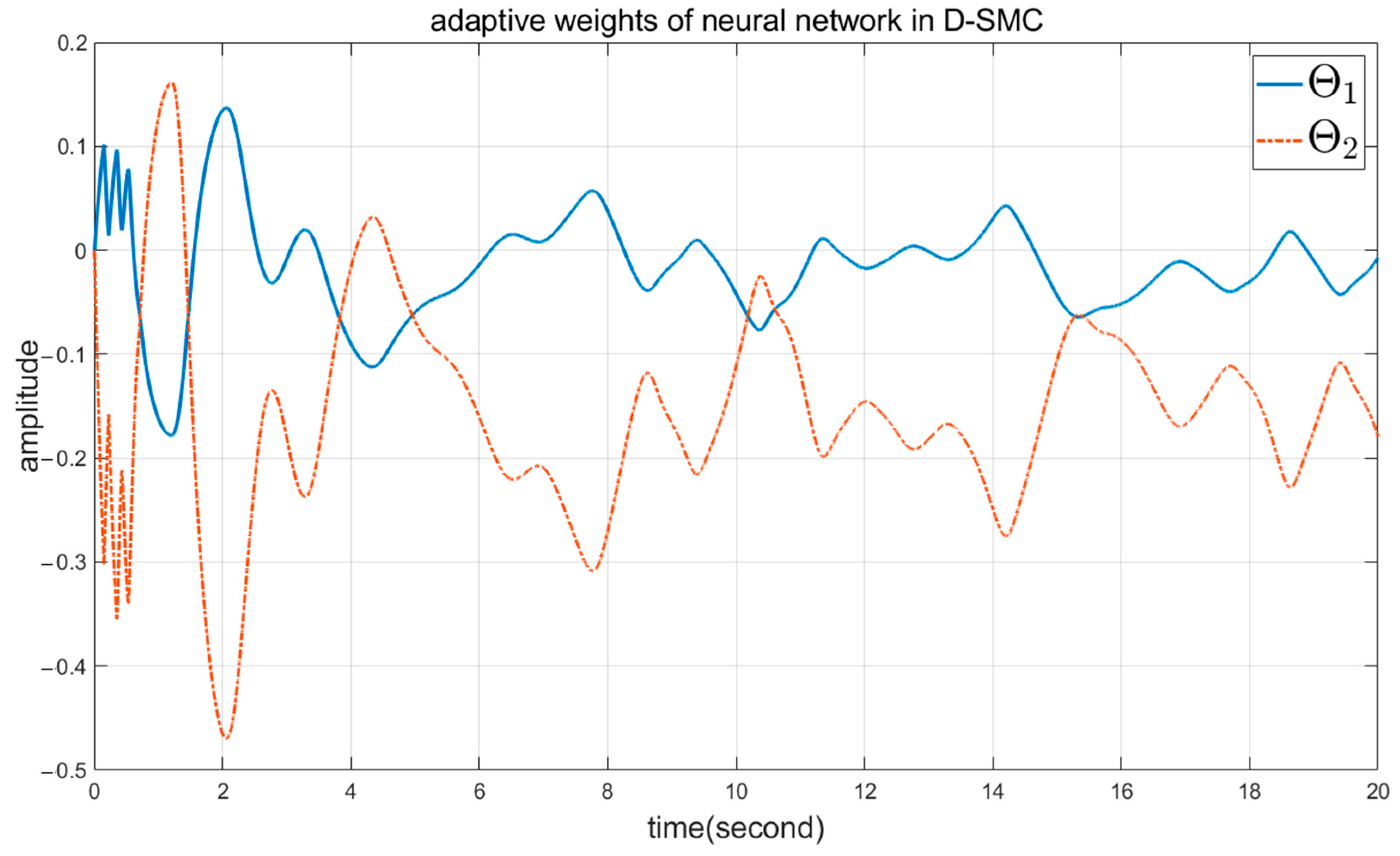

Figure 10. Adaptive weights of ONN using D-SMC.

The advantage of the D-SMC approach is shown using the T-SMC with similar parameters. For example, the selected sliding coefficients in Equation (46) are ${\mathrm{c}}_1=10$ and ${\mathrm{c}}_2=0.1$. Figure 11, Figure 12, Figure 13 and Figure 14 show the simulation results. The sliding surface’s finite-time convergence to zero can be seen, as in the previous example. Good tracking of the ONN state, rotor speed, and its desired signal can be seen. Figure 13 shows the available chattering in the torque signal, which cannot be applied to the actuator of the PMSG in the q-axis. The adaptive weights of the ONN are shown in Figure 14.

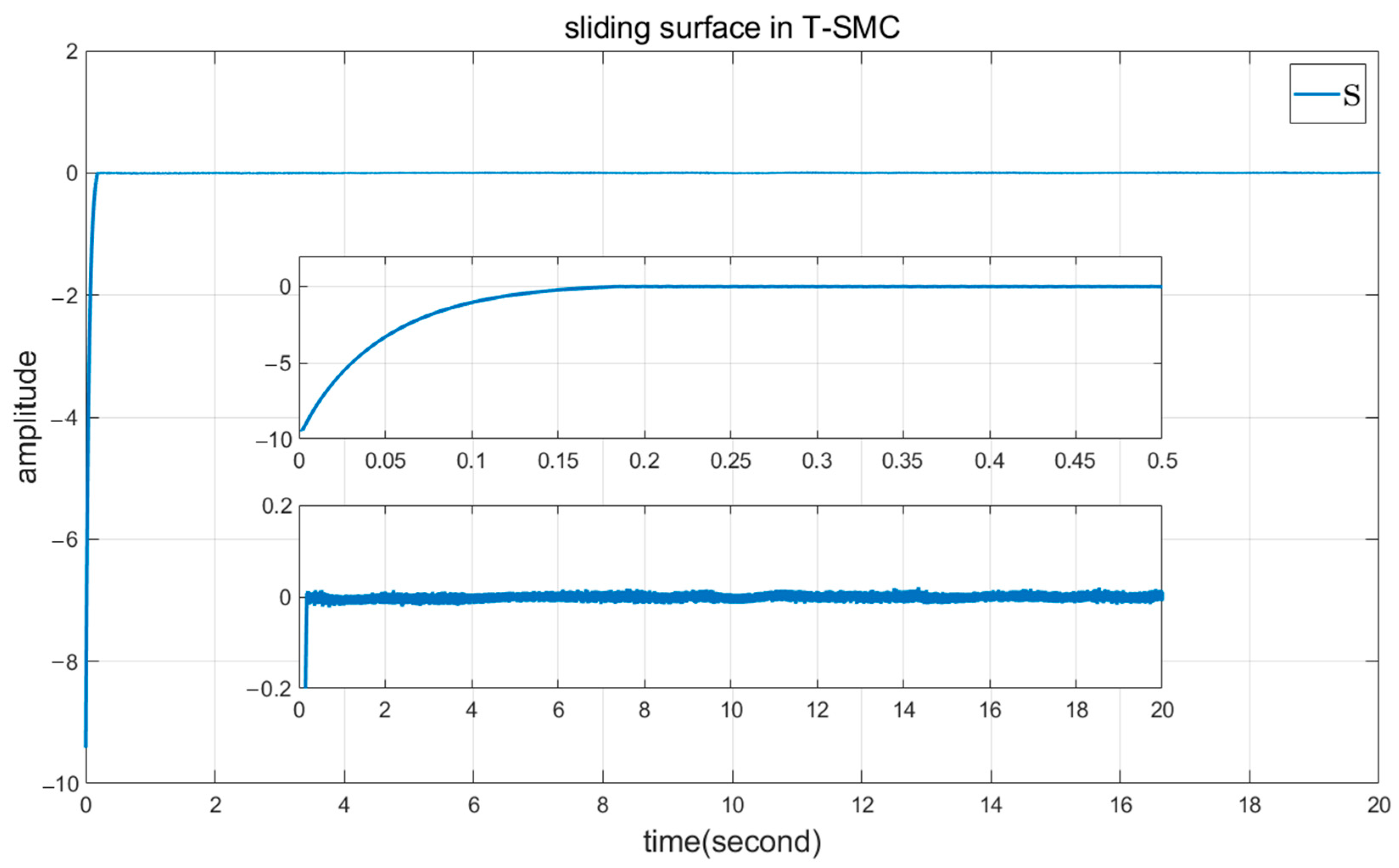

Figure 11. Finite-time sliding surface convergence to zero using T-SMC.

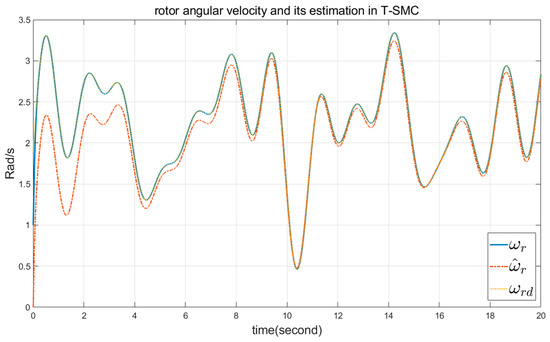

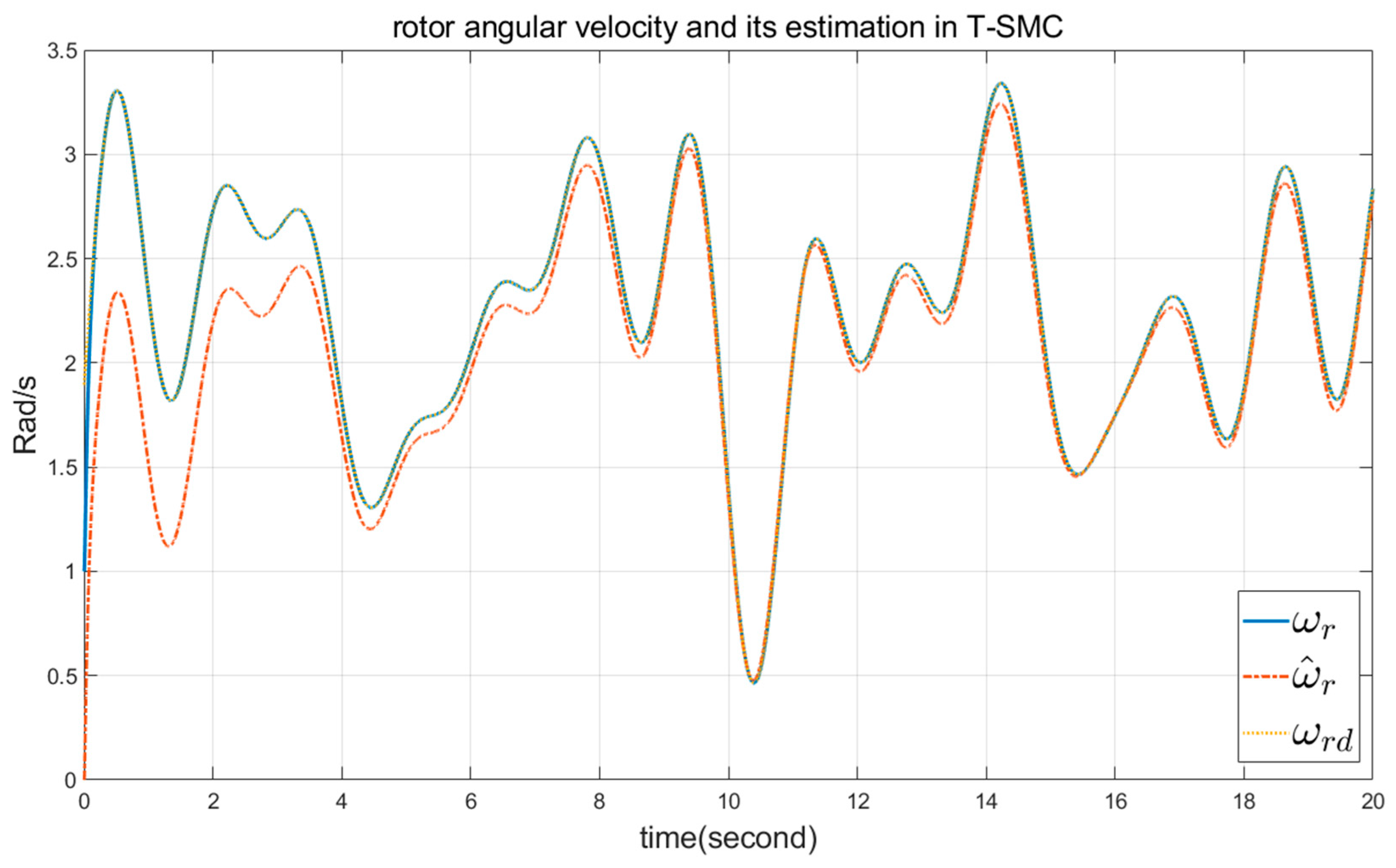

Figure 12. Performance of ONN in estimation and tracking using T-SMC.

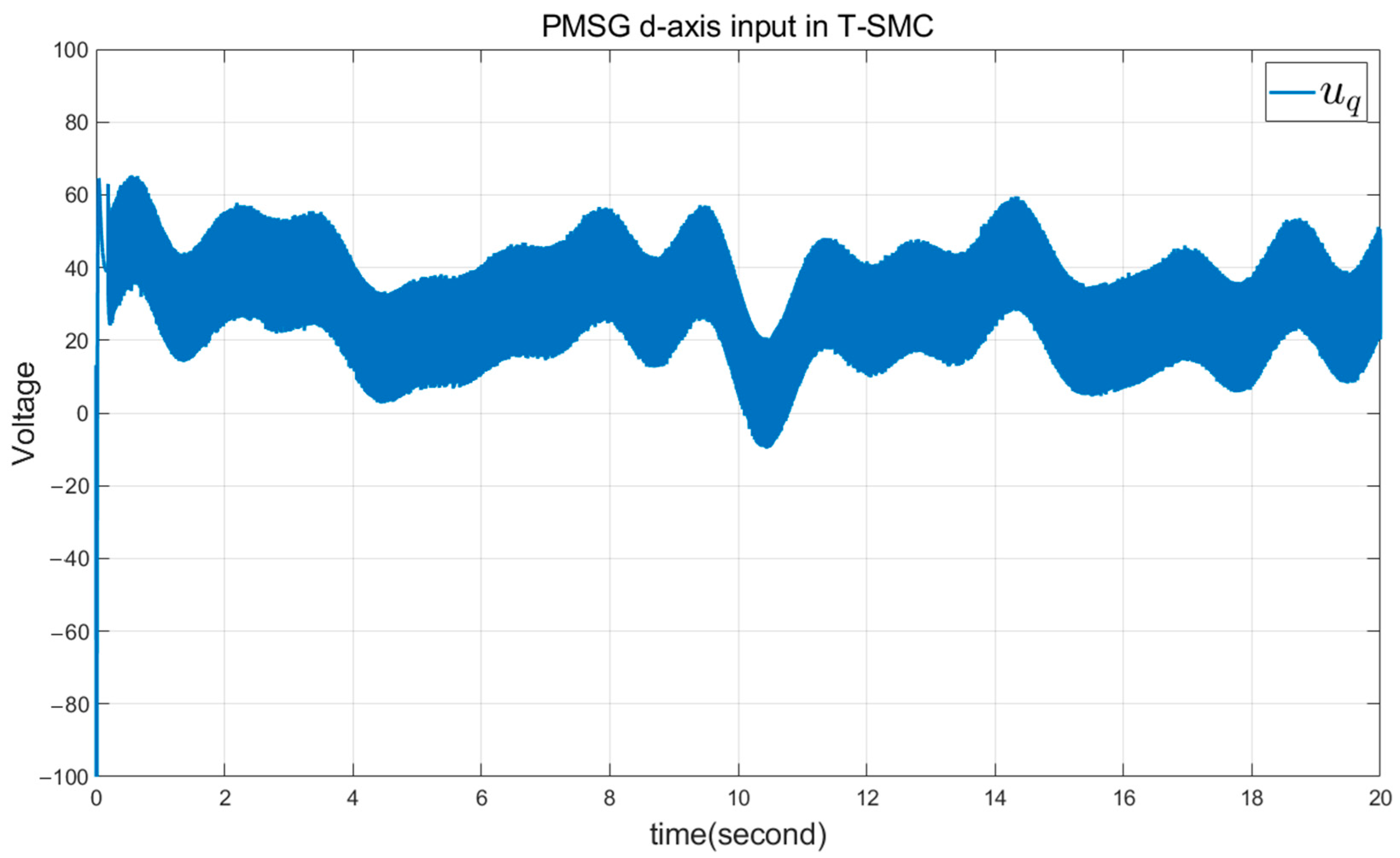

Figure 13. Torque input of PMSG in q-axis using T-SMC.

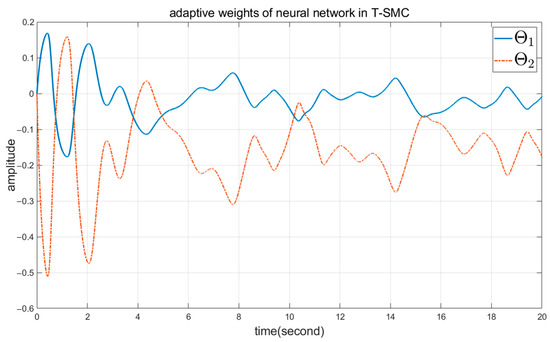

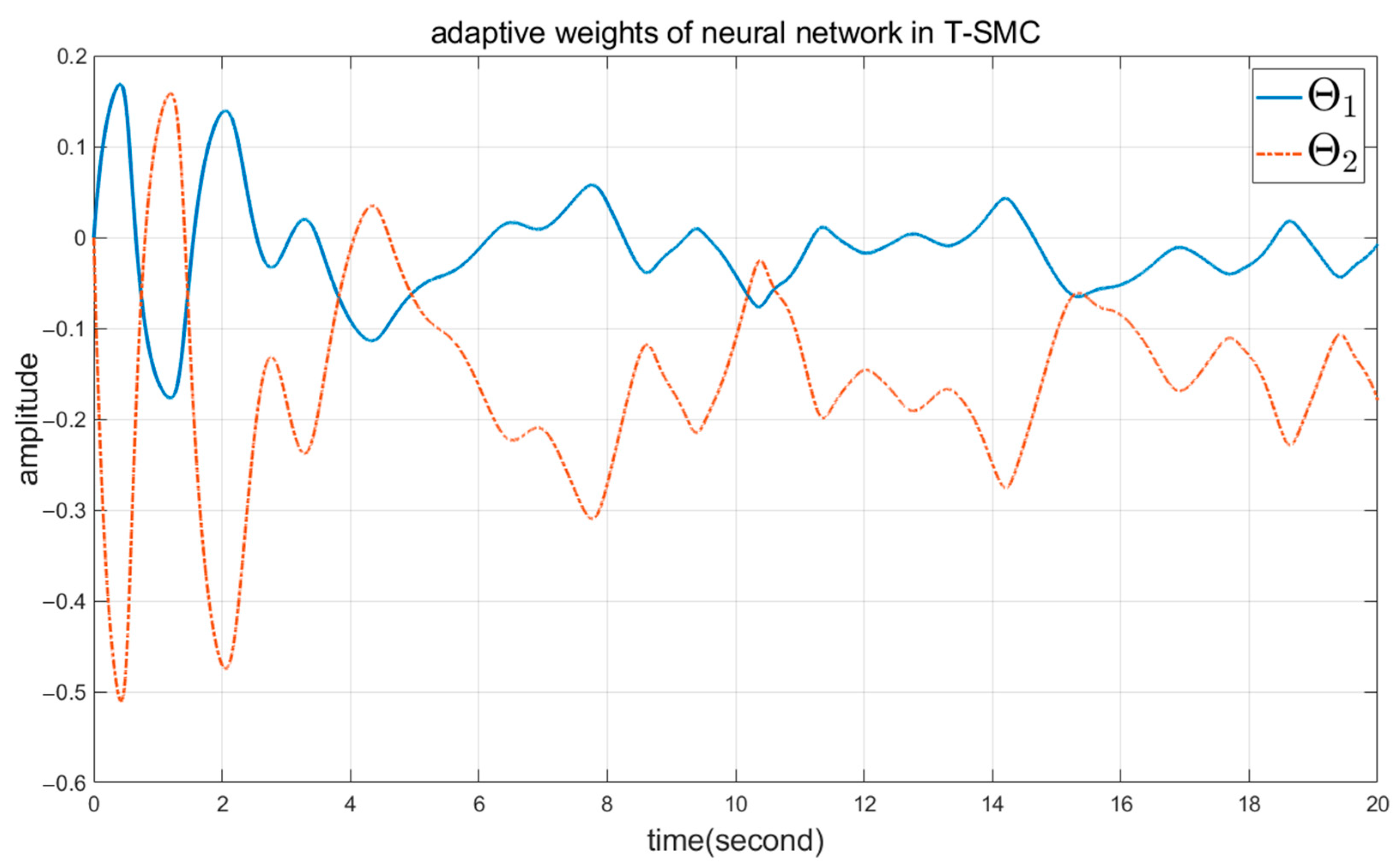

Figure 14. Adaptive weights of ONN using T-SMC.

Based on Figure 7 and Figure 11, one can see the sliding surface’s convergence to zero happens in finite time in both approaches. From Figure 8 and Figure 12, it is clear that when the wind speed is decreased (for example, at 10.4 s), the rotor angular velocity decreases to near zero due to the economic reasons. On the other hand, if the wind speed is increased (for example, at 14 s), the rotor angular velocity also increases. Figure 10 and Figure 14 show the adaptive weights of the neural network in both the D-SMC and T-SMC, respectively. Note that the initial oscillations in the D-SMC are due to the added integrator and are not chattering. High-frequency chattering can be seen in Figure 13, while Figure 9 indicates smoothness and is without chattering. Due to the available chattering in the d-axis input of the T-SMC, it cannot be applied to the PMSG.

These two simulations show the advantages of the T-SMC and D-SMC in the tracking of the desired signal and also the good performance of the proposed ONN. However, chattering is available in the T-SMC and can be suppressed in the D-SMC. This is what makes the D-SMC a priority over the T-SMC.

6. Conclusions

A novel structure of torque control has been constructed for a VWT coupled to a PMSG. A PMSG has been described in d-q reference frameworks. In order to obtain a good performance, smooth control signals should be used as the inputs for the PMSG in both d-q directions. Moreover, the available uncertainties of the WT model are another issue which should be considered. To this end, a novel D-SMC is presented in this paper. Using the proposed D-SMC, high-frequency chattering is removed by a low-pass integrator filter. Then, to implement the D-SMC and to identify the extra state, an ONN is proposed. Moreover, the stability of the D-SMC and ONN has been proved using Lyapunov theory. Additionally, a comparison using the T-SMC has also been provided. To exhibit the fair advantages and superiority of the D-SMC over the T-SMC, a similar novel ONN was implemented in two SMC-based controllers. Chattering elimination results can be seen in the D-SMC, while the chattering remains in the T-SMC. Moreover, the design procedure developed in this work shows the simplicity of the realization, and the concept for, the proposed D-SMC. Future works can be focused on the selection of other generators such as double-fed induction generators (DFIGs) and comparisons to the PMSG.
