# Effect of Significant Parameters on Squeeze Film Characteristics in Pathological Synovial Joints

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

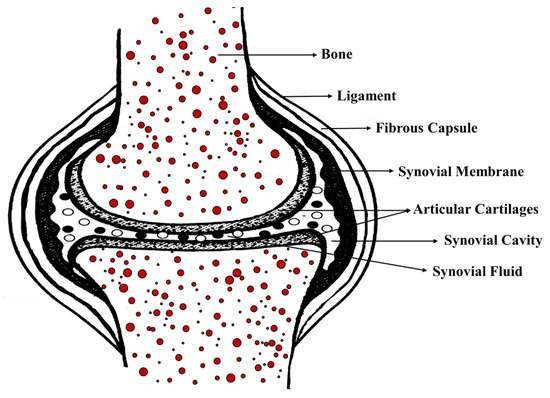

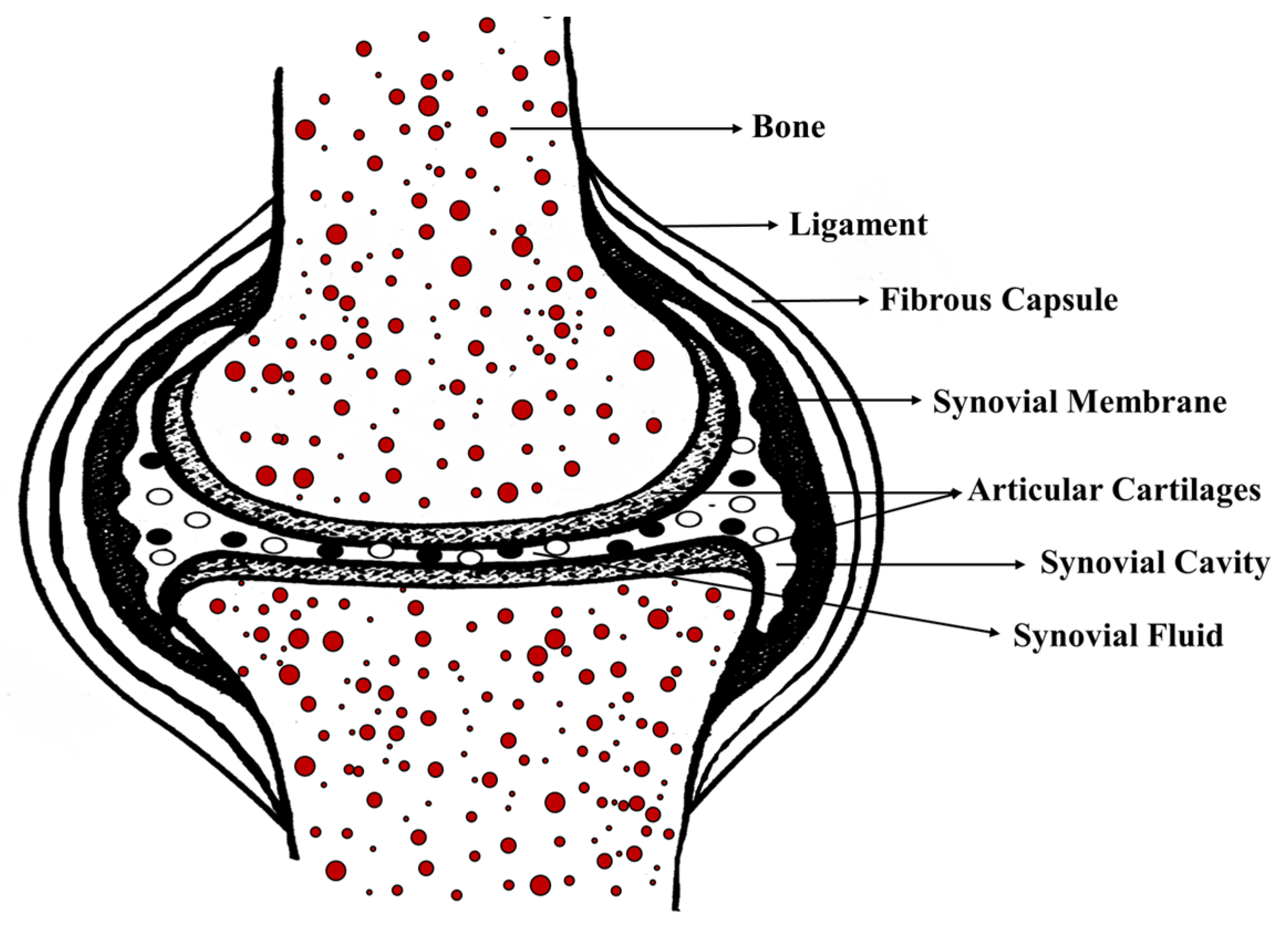

## 1. Introduction

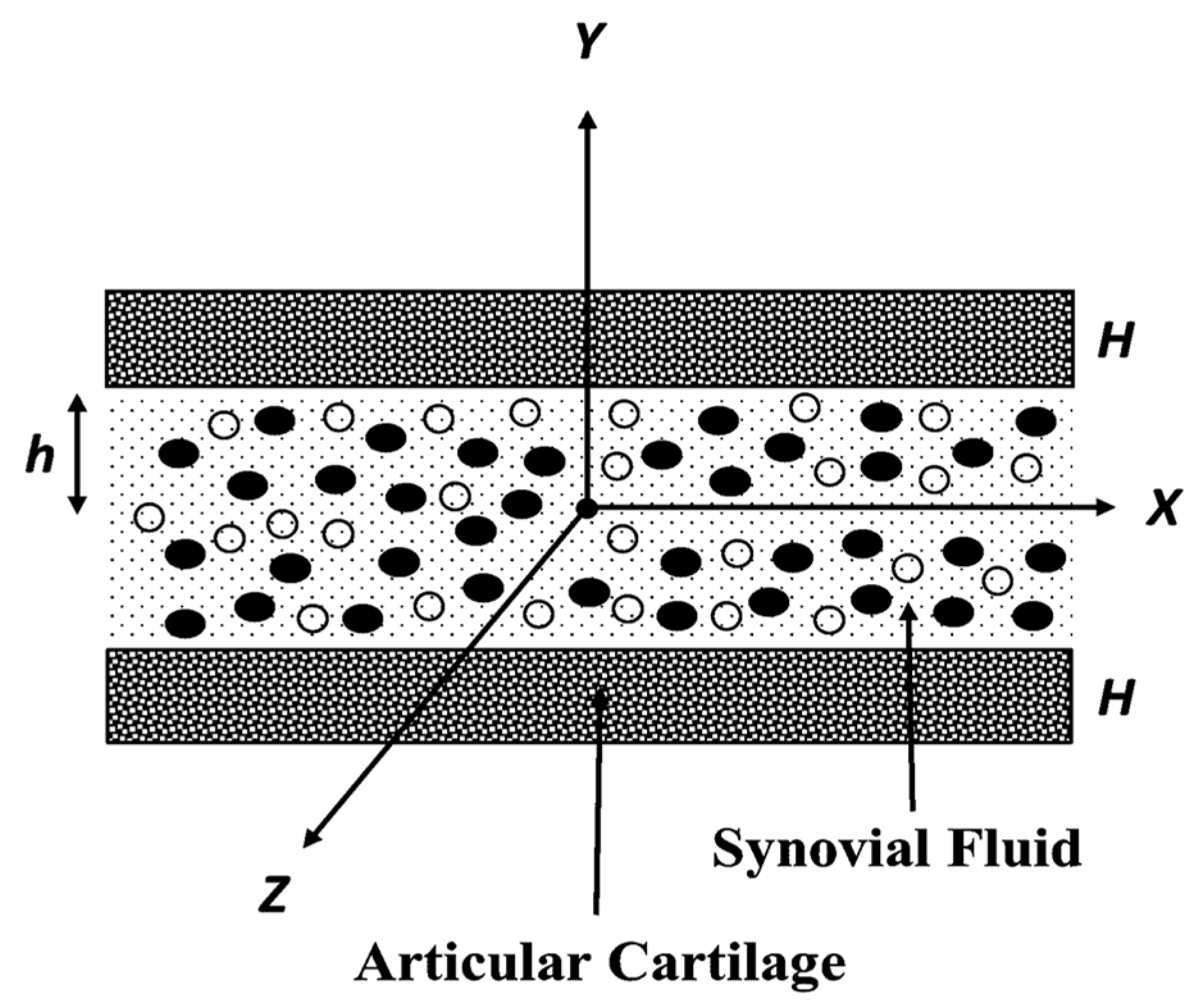

## 2. Mathematical Model

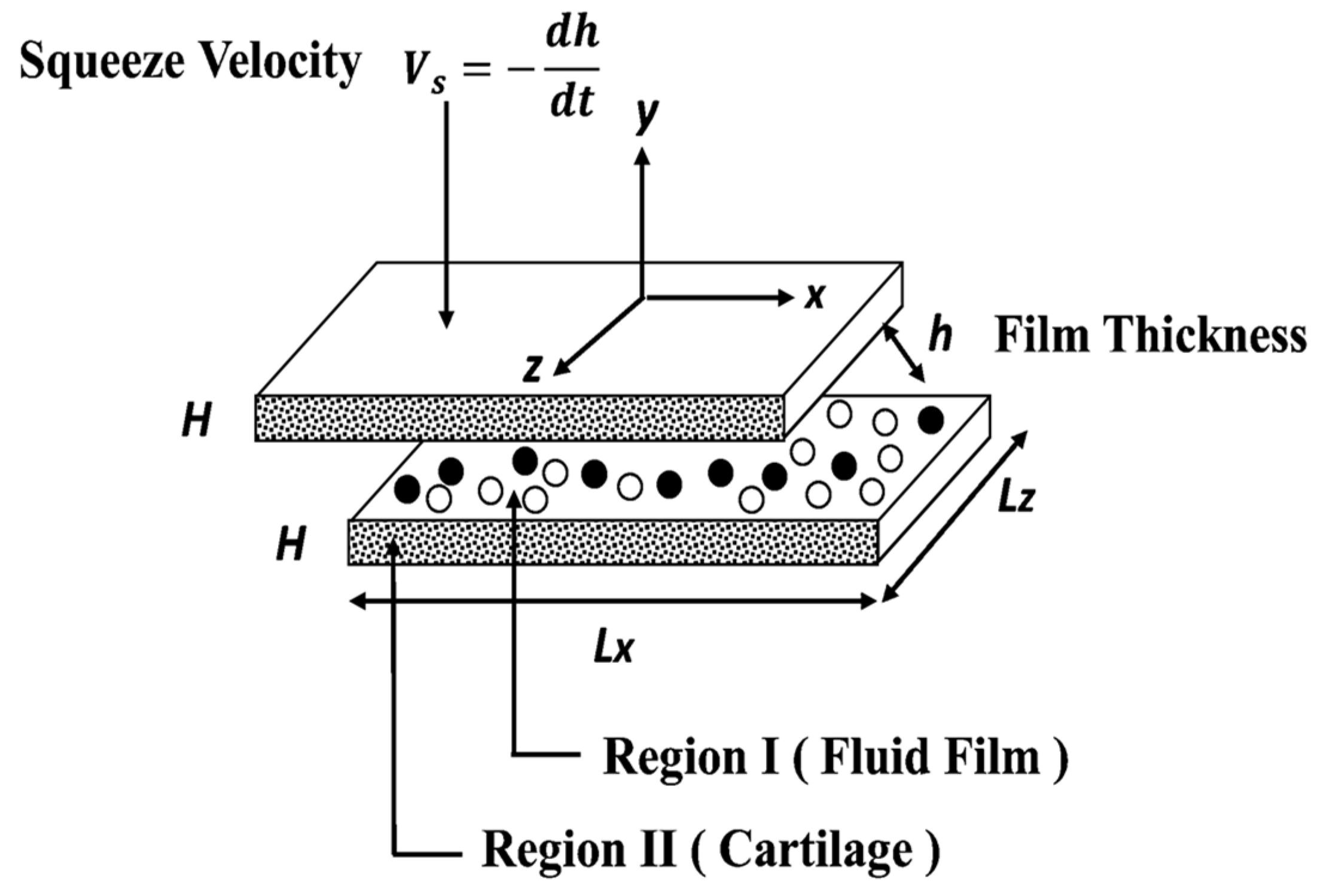

#### 2.1. Governing Equations

**Region I:**- Fluid Film Region $0\le y\le h$$$\mu \frac{{\partial}^{2}{u}_{1}}{\partial {y}^{2}}-\frac{\partial p}{\partial x}=0$$$$\mu \frac{{\partial}^{2}{v}_{1}}{\partial {y}^{2}}-\frac{\partial p}{\partial z}=0$$$$\frac{\partial p}{\partial y}=0$$

**Region II:**- Cartilage Region $h\le y\le h+H$

#### 2.2. Boundary and Matching Conditions

#### 2.3. Solution of the Problem

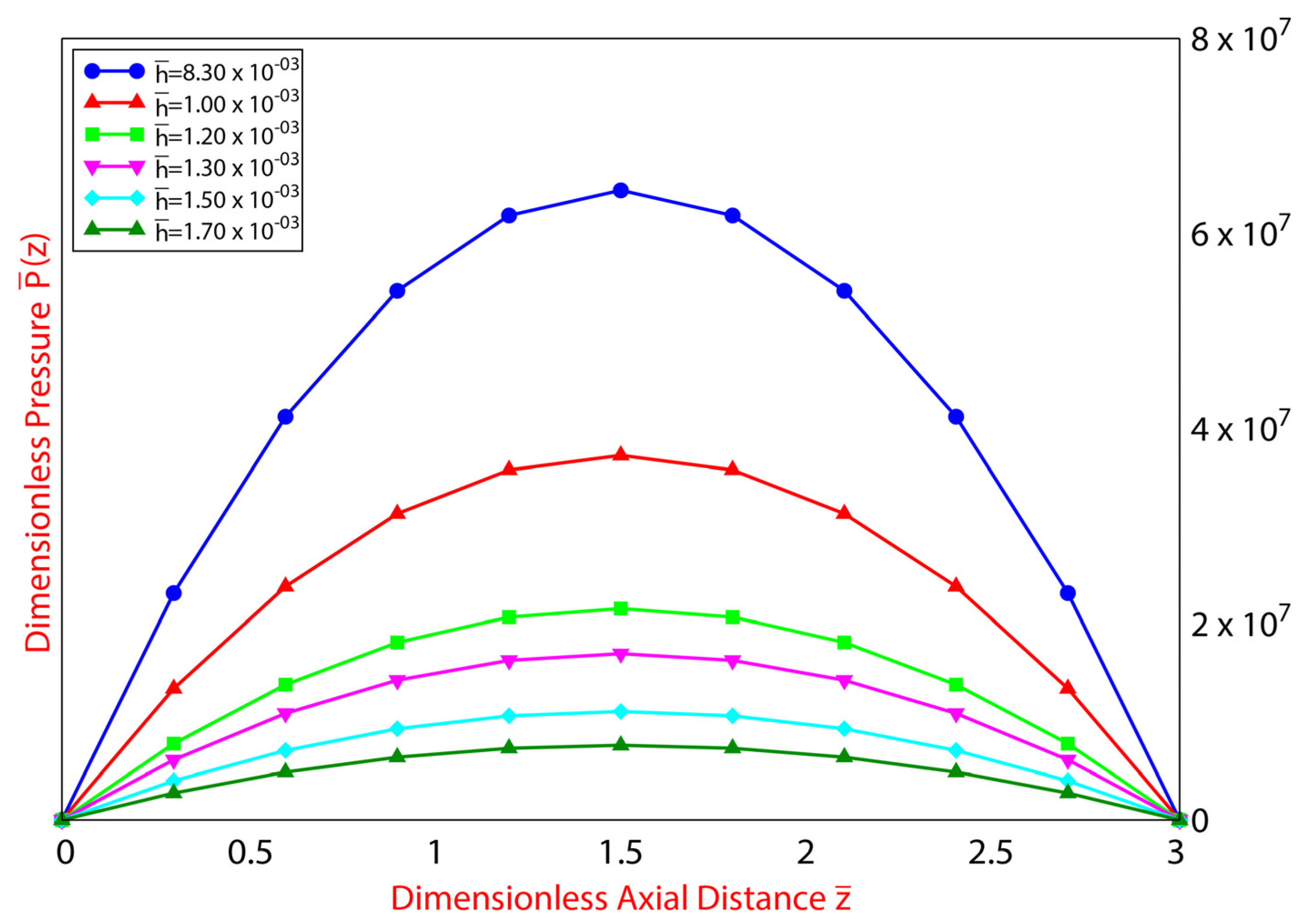

## 3. Numerical Results and Discussions

## 4. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## Nomenclature

${u}_{1,}{v}_{1}$ | Velocity of Synovial Fluid in Fluid Film |

${u}_{2,}{v}_{2}$ | Velocity of Synovial Fluid in Cartilage |

${V}_{x,}{V}_{z}$ | Velocity of Synovial Fluid at Interface |

${\phi}_{1,}{\phi}_{2}$ | Permeability of Articular Cartilage |

${Q}_{x,}{Q}_{z}$ | Synovial Fluid Flux |

$x,y,z$ | Cartesian Co-ordinate |

$\overline{p}\left(z\right)$ | Dimensionless Pressure |

$\overline{{W}_{z}}$ | Dimensionless Load Capacity |

$\overline{{T}_{z}}$ | Dimensionless Squeeze Time |

$h$ | Fluid Film Thickness |

$H$ | Articular Cartilage Thickness |

$w$ | Velocity of Synovial Fluid along Film Thickness |

${V}_{s}$ | Squeeze Velocity |

${L}_{z}$ | Width of Articular Cartilage |

## References

- Ogston, A.G.; Stanier, J.E. The Physiological Function of Hyaluronic Acid in Synovial Fluid; Viscous, Elastic and Lubricant Properties. J. Physiol.
**1953**, 119, 244–252. [Google Scholar] [CrossRef] [PubMed] - Ogston, A.G.; Stanier, J.E. On the State of Hyaluronic Acid in Synovial Fluid. Biochem. J.
**1950**, 46, 364–376. [Google Scholar] [CrossRef][Green Version] - Linn, F.C. Lubrication of Animal Joints. J. Biomech.
**1968**, 1, 193–205. [Google Scholar] [CrossRef] - Rubenstein, D.A.; Yin, W.; Frame, M.D. Lubrication of Joints and Transport in Bone. In Biofluid Mechanics; Elsevier: Amsterdam, The Netherlands, 2015; pp. 375–401. ISBN 978-0-12-800944-4. [Google Scholar]
- Chandra, P. Synovial Joint Lubrication. Ph.D. Thesis, Indian Institute of Technology, Kanpur, India, 1980. [Google Scholar]
- Dumbleton, J.H. The Lubrication of Natural Joints. In Tribology of Natural and Artificial Joints; Tribology Series 3; Elsevier: Amsterdam, The Netherlands, 1981; Volume 1, ISBN 978-0-08-087567-5. [Google Scholar]
- Ruggiero, A.; Gòmez, E.; D’Amato, R. Approximate Analytical Model for the Squeeze-Film Lubrication of the Human Ankle Joint with Synovial Fluid Filtrated by Articular Cartilage. Tribol. Lett.
**2011**, 41, 337–343. [Google Scholar] [CrossRef][Green Version] - Hlaváček, M. Lubrication of the Human Ankle Joint in Walking. J. Tribol.
**2010**, 132, 011201. [Google Scholar] [CrossRef] - Cooke, A.F.; Dowson, D.; Wright, V. The Rheology of Synovial Fluid and Some Potential Synthetic Lubricants for Degenerate Synovial Joints. Eng. Med.
**1978**, 7, 66–72. [Google Scholar] [CrossRef] - Rao, P.S.; Srivathsa, B.; Murthy, P.N. A Numerical Scheme for Hydrodynamic Lubrication of Synovial Fluid. Indian J. Pure Appl. Math.
**1995**, 26, 831–835. [Google Scholar] - Goldsmith, A.A.J.; Hayes, A.; Clift, S.E. Application of Finite Elements to the Stress Analysis of Articular Cartilage. Med. Eng. Phys.
**1996**, 18, 89–98. [Google Scholar] [CrossRef] - Hlaváček, M.; Vokoun, D. Elastohydrodynamic Lubrication of Cylinders with Soft Incompressible Coatings Firmly Bonded to the Substrate. Wear
**1996**, 197, 1–8. [Google Scholar] [CrossRef] - Hlaváček, M. Squeeze-Film Lubrication of the Human Ankle Joint Subjected to the Cyclic Loading Encountered in Walking. J. Tribol.
**2005**, 127, 141–148. [Google Scholar] [CrossRef] - Clarke, I.C. Articular Cartilage: A Review and Scanning Electron Microscope Study. II. The Territorial Fibrillar Architecture. J. Anat.
**1974**, 118, 261–280. [Google Scholar] [CrossRef] [PubMed][Green Version] - Mow, V.C.; Lai, W.M.; Redler, I. Some Surface Characteristics of Articular Cartilage—I. A Scanning Electron Microscopy Study and a Theoretical Model for the Dynamic Interaction of Synovial Fluid and Articular Cartilage. J. Biomech.
**1974**, 7, 449–456. [Google Scholar] [CrossRef] [PubMed] - Nigam, K.M.; Manohar, K.; Jaggi, S. Micropolar Fluid Film Lubrication between Two Parallel Plates with Reference to Human Joints. Int. J. Mech. Sci.
**1982**, 24, 661–671. [Google Scholar] [CrossRef] - Tandon, P.N.; Jaggi, S. A Model for the Lubrication Mechanism in Knee Joint Replacements. Wear
**1979**, 52, 275–284. [Google Scholar] [CrossRef] - Conway, H.D.; Lee, H.C. Impact of a Lubricated Surface by a Sphere. J. Lubr. Technol.
**1975**, 97, 613–615. [Google Scholar] [CrossRef] - Bujurke, N.M.; Kudenatti, R.B.; Awati, V.B. Effect of Surface Roughness on Squeeze Film Poroelastic Bearings with Special Reference to Synovial Joints. Math. Biosci.
**2007**, 209, 76–89. [Google Scholar] [CrossRef] - Naduvinamani, N.B.; Savitramma, G.K. Squeeze Film Lubrication between Rough Poroelastic Rectangular Plates with Micropolar Fluid: A Special Reference to the Study of Synovial Joint Lubrication. ISRN Tribol.
**2013**, 2013, 1–9. [Google Scholar] [CrossRef][Green Version] - Tichy, J.A.; Winer, W.O. Inertial Considerations in Parallel Circular Squeeze Film Bearings. J. Lubr. Technol.
**1970**, 92, 588–592. [Google Scholar] [CrossRef] - Qvale, E.B.; Wiltshire, F.R. The Performance of Hydrodynamic Lubricating Films with Viscosity Variations Perpendicular to the Direction of Motion. J. Lubr. Technol.
**1972**, 94, 44–48. [Google Scholar] [CrossRef] - Shukla, J.B. A New Theory of Lubrication for Rough Surfaces. Wear
**1978**, 49, 33–42. [Google Scholar] [CrossRef] - Tandon, P.N.; Bali, R. A Study on Temperature Regulation in Synovial Joints. Tribol. Lett.
**1997**, 3, 209–213. [Google Scholar] [CrossRef] - Naduvinamani, N.B.; Fathima, S.T.; Hiremath, P.S. On the Squeeze Effect of Lubricants with Additives between Rough Porous Rectangular Plates. ZAMM
**2004**, 84, 825–834. [Google Scholar] [CrossRef] - Bali, R.; Sharma, S.K. A Model for Intra-Articular Heat Exchange in a Knee Joint. Tribol. Lett.
**2011**, 41, 379–386. [Google Scholar] [CrossRef] - Bali, R.; Shukla, A.K. A Biphasic Model for Hip-Joint Replacement. Tribol. Lett.
**2002**, 13, 187–195. [Google Scholar] [CrossRef] - Jung, S.; Petelska, A.; Beldowski, P.; Augé, W.K.; Casey, T.; Walczak, D.; Lemke, K.; Gadomski, A. Hyaluronic Acid and Phospholipid Interactions Useful for Repaired Articular Cartilage Surfaces—A Mini Review toward Tribological Surgical Adjuvants. Colloid Polym. Sci.
**2017**, 295, 403–412. [Google Scholar] [CrossRef][Green Version] - Fathima, S.T.; Naduvinamani, N.B.; Hanumagowda, B.N.; Kumar, J.S. Modified Reynolds Equation for Different Types of Finite Plates with the Combined Effect of MHD and Couple Stresses. Tribol. Trans.
**2015**, 58, 660–667. [Google Scholar] [CrossRef] - Savitramma, G.K.; Naduvinamani, N.B. Micropolar Fluid Squeeze Film Lubrication between Rough Anisotropic Poroelastic Rectangular Plates: Special Reference to Synovial Joint Lubrication. Tribol.-Mater. Surf. Interfaces
**2012**, 6, 174–182. [Google Scholar] [CrossRef] - Al-Atawi, N.O.; Mashat, D.S. Synovial Joint Study. Am. J. Comput. Math.
**2022**, 12, 7–24. [Google Scholar] [CrossRef] - Kumar, B.R.; Vijayakumar, R.; Rani, A.J. A Model for the Generalised Dispersion of Synovial Fluids on Nutritional Transport with Joint Impacts of Electric and Magnetic Field. Math. Comput. Appl.
**2022**, 28, 3. [Google Scholar] [CrossRef] - Hays, D.F. Squeeze Films for Rectangular Plates. J. Basic Eng.
**1963**, 85, 243–246. [Google Scholar] [CrossRef] - Gould, P. Parallel Surface Squeeze Films: The Effect of the Variation of Viscosity with Temperature and Pressure. J. Lubr. Technol.
**1967**, 89, 375–380. [Google Scholar] [CrossRef] - Wu, H. An Analysis of the Squeeze Film Between Porous Rectangular Plates. J. Lubr. Technol.
**1972**, 94, 64–68. [Google Scholar] [CrossRef] - Bali, R.; Shukla, A.K.; Shrma, S.K. A Bi-Phasic Model for Artificial Replacement. Int. J. Appl. Mech. Eng.
**2009**, 14, 633–643. [Google Scholar] - Bali, R.; Sharma, S.K. Effect of Magnetic Field in Lubrication of Synovial Joints. Tribol. Lett.
**2005**, 19, 281–287. [Google Scholar] [CrossRef] - Naduvinamani, N.B.; Savitramma, G.K. Effect of Surface Roughness on the Squeeze Film Lubrication of Finite Poroelastic Partial Journal Bearings with Couple Stress Fluids: A Special Reference to Hip Joint Lubrication. ISRN Tribol.
**2014**, 2014, 1–13. [Google Scholar] [CrossRef][Green Version] - Kumar, J.V.; Rao, R.R. Effects of Surface Roughness in Squeeze Film Lubrication of Spherical Bearings. Procedia Eng.
**2015**, 127, 955–962. [Google Scholar] [CrossRef][Green Version] - Radulescu, A.V.; Radulescu, I. Analysis of Squeeze Film Process between Non-Parallel Circular Surfaces. IOP Conf. Ser. Mater. Sci. Eng.
**2017**, 174, 012038. [Google Scholar] [CrossRef][Green Version] - Hanumagowda, B.N.; Siddangouda, A.; Nagarajappa, C.S.; Kumar, J.S. Squeeze Film Lubrication Between Hydromagnetic Porous Parallel Stepped Plates. IOSR J. Eng.
**2018**, 8, 87–95. [Google Scholar] - Walker, P.S.; Hajek, J.V. The load-bearing area in the knee joint. J. Biomech.
**1972**, 5, 581–589. [Google Scholar] [CrossRef] - Dowson, D. Paper 12: Modes of Lubrication in Human Joints. Proc. Inst. Mech. Eng. Conf. Proc.
**1966**, 181, 45–54. [Google Scholar] [CrossRef] - Brinkman, H.C. A Calculation of the Viscous Force Exerted by a Flowing Fluid on a Dense Swarm of Particles. Flow Turbul. Combust.
**1949**, 1, 27–34. [Google Scholar] [CrossRef] - Dowson, D.; Jin, Z.-M. Micro-Elastohydrodynamic Lubrication of Synovial Joints. Eng. Med.
**1986**, 15, 63–65. [Google Scholar] [CrossRef] [PubMed] - Bełdowski, P.; Mazurkiewicz, A.; Topoliński, T.; Małek, T. Hydrogen and Water Bonding between Glycosaminoglycans and Phospholipids in the Synovial Fluid: Molecular Dynamics Study. Materials
**2019**, 12, 2060. [Google Scholar] [CrossRef] [PubMed][Green Version] - Bełdowski, P.; Gadomski, A. A Quest to Extend Friction Law into Multiscale Soft Matter: Experiment Confronted with Theory—A Review. J. Phys. Appl. Phys.
**2022**, 55, 483002. [Google Scholar] [CrossRef]

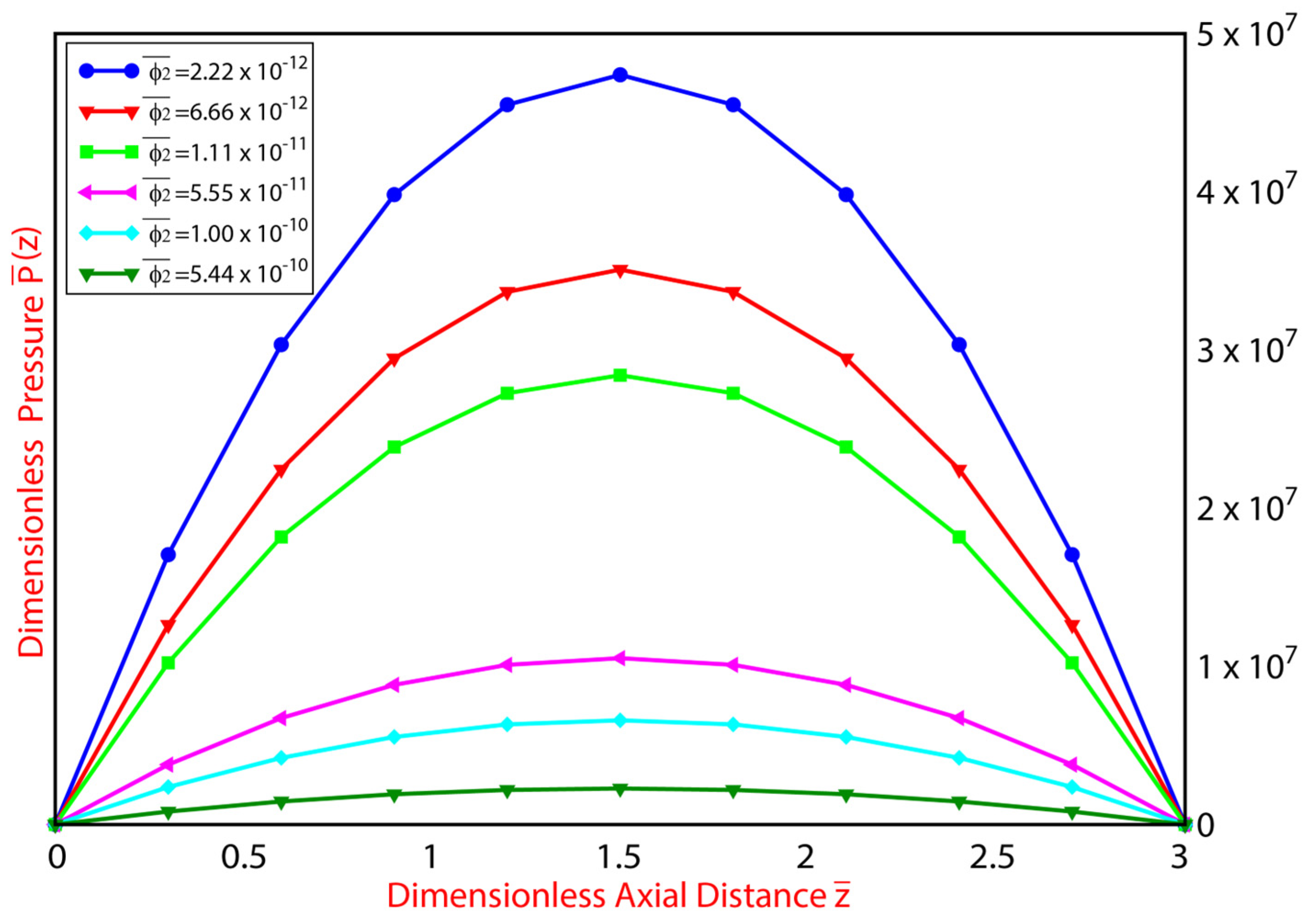

**Figure 5.**Pressure Variation with Axial Distance for Different Values of Articular Cartilage Permeability.

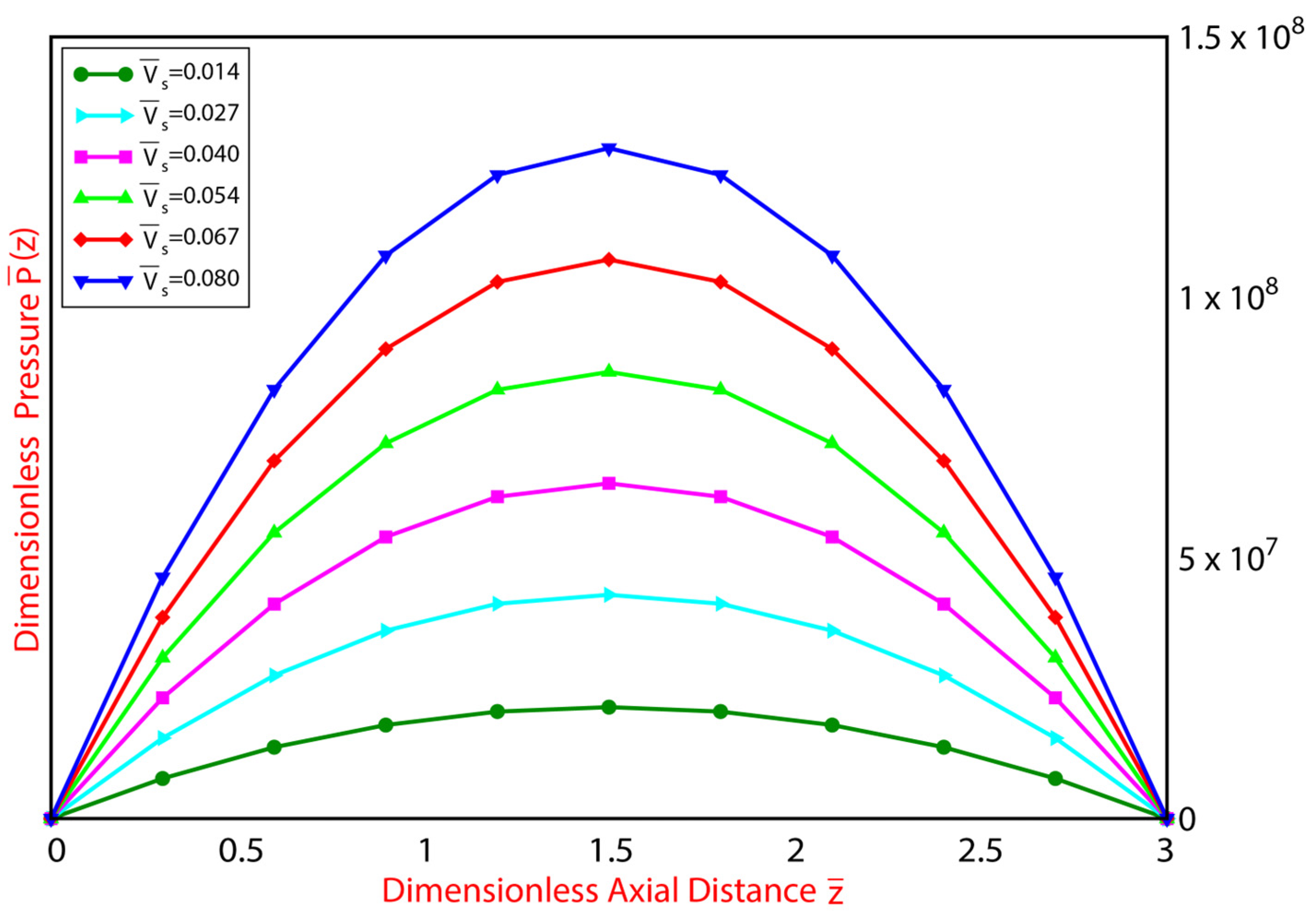

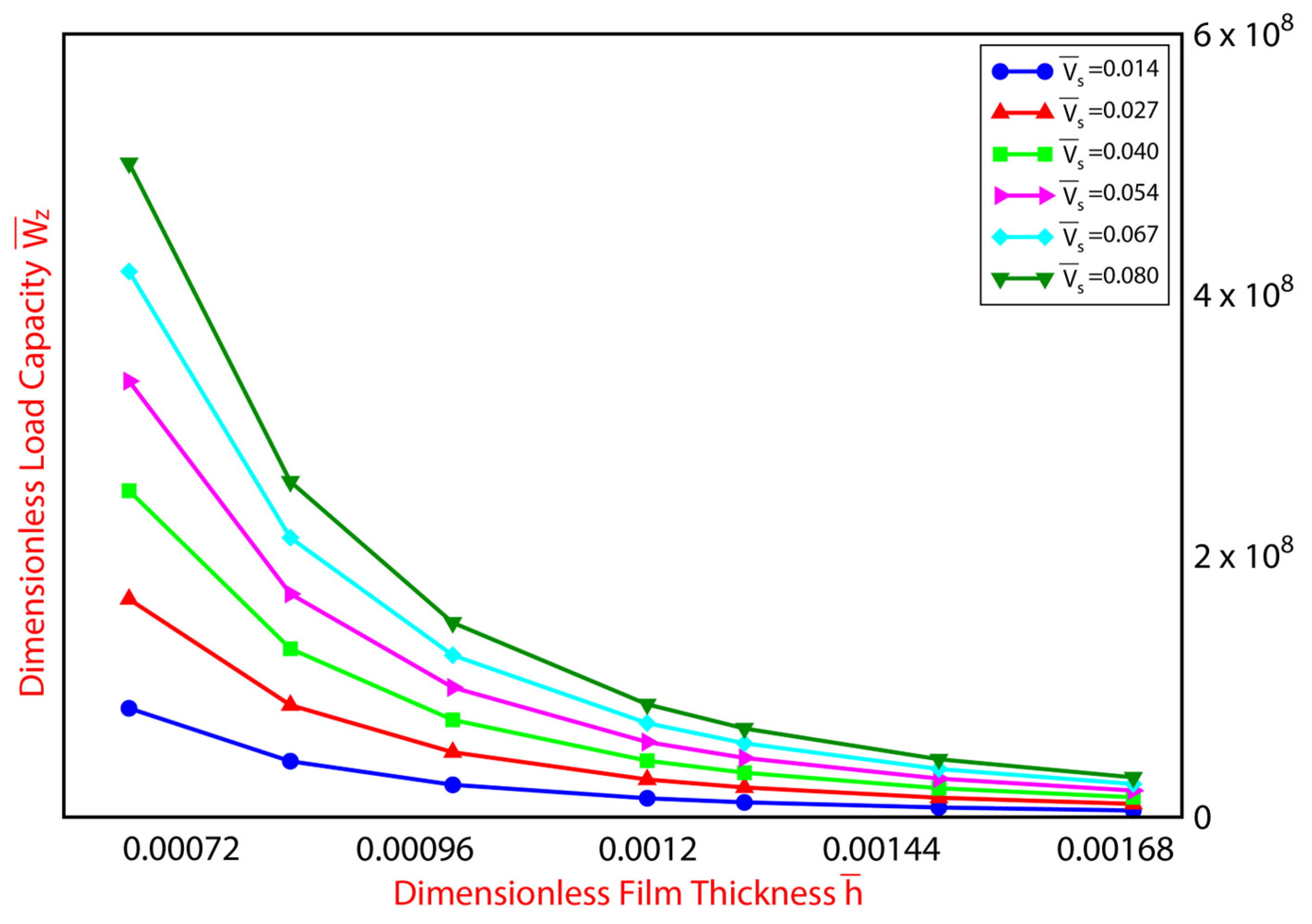

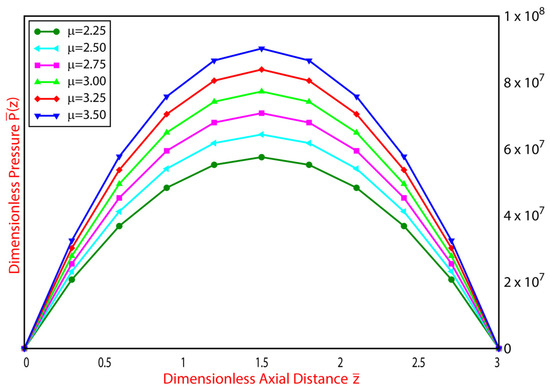

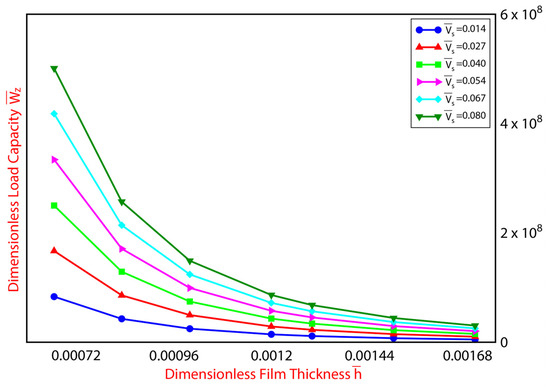

**Figure 8.**Variation of Load Capacity with Fluid Film Thickness for Different Values of Squeeze Velocity.

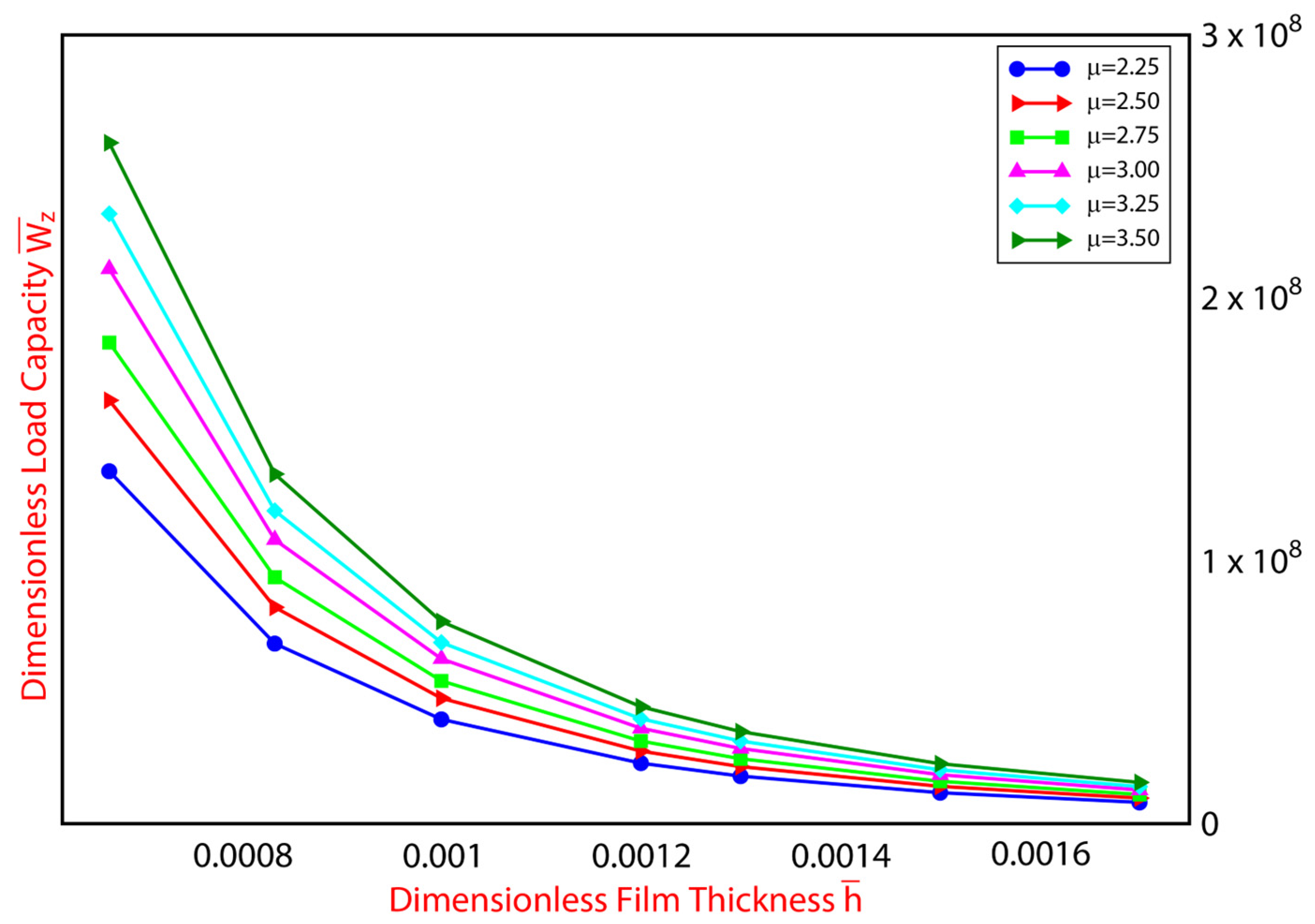

**Figure 9.**Variation of Load Capacity with Fluid Film Thickness for Different Values of Synovial Fluid Viscosity.

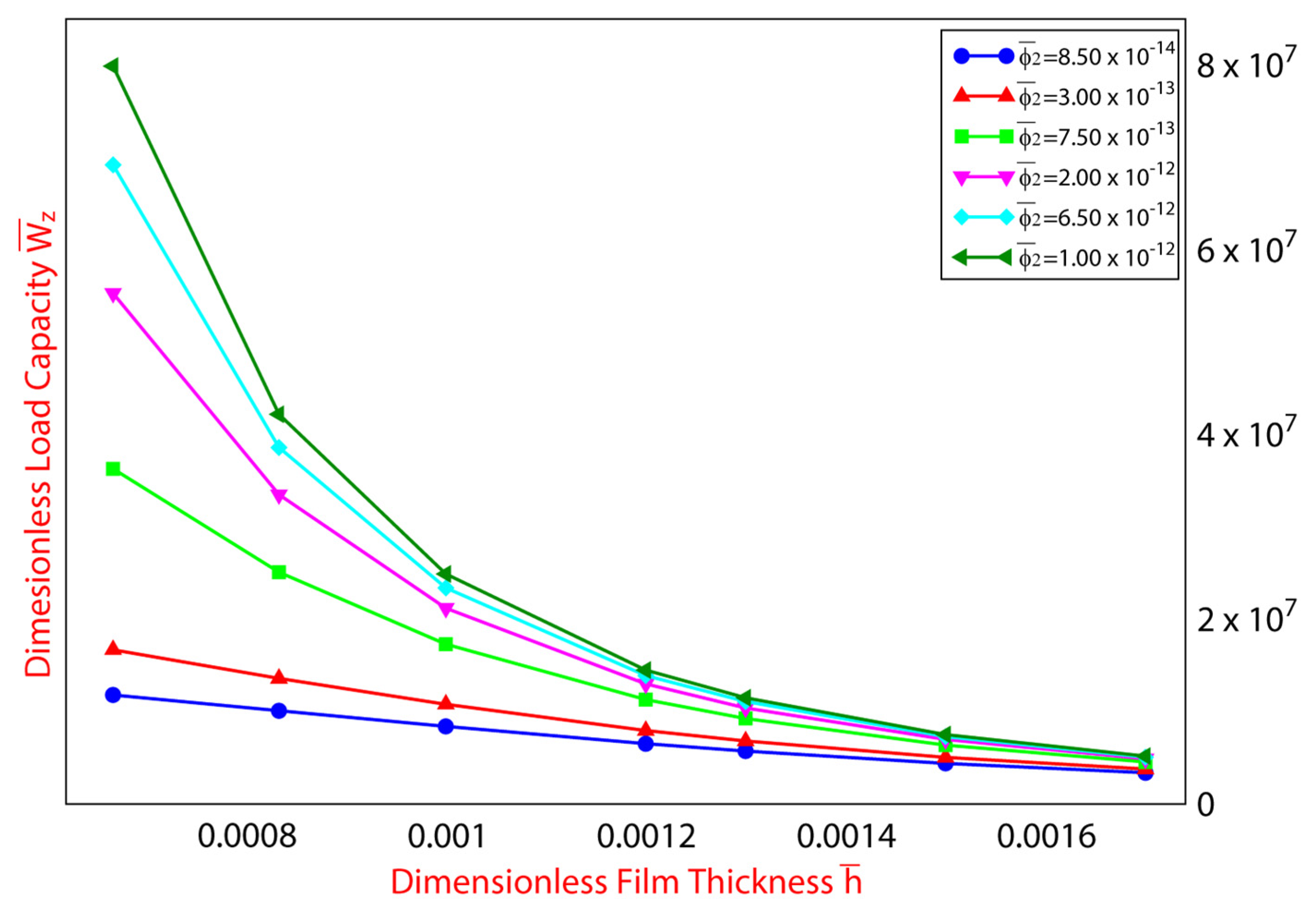

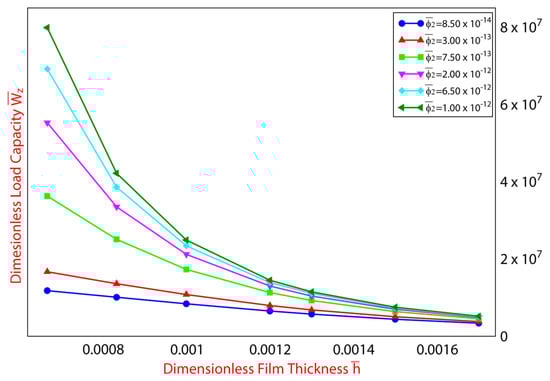

**Figure 10.**Variation of Load Capacity with Fluid Film Thickness for Different Values of Permeability.

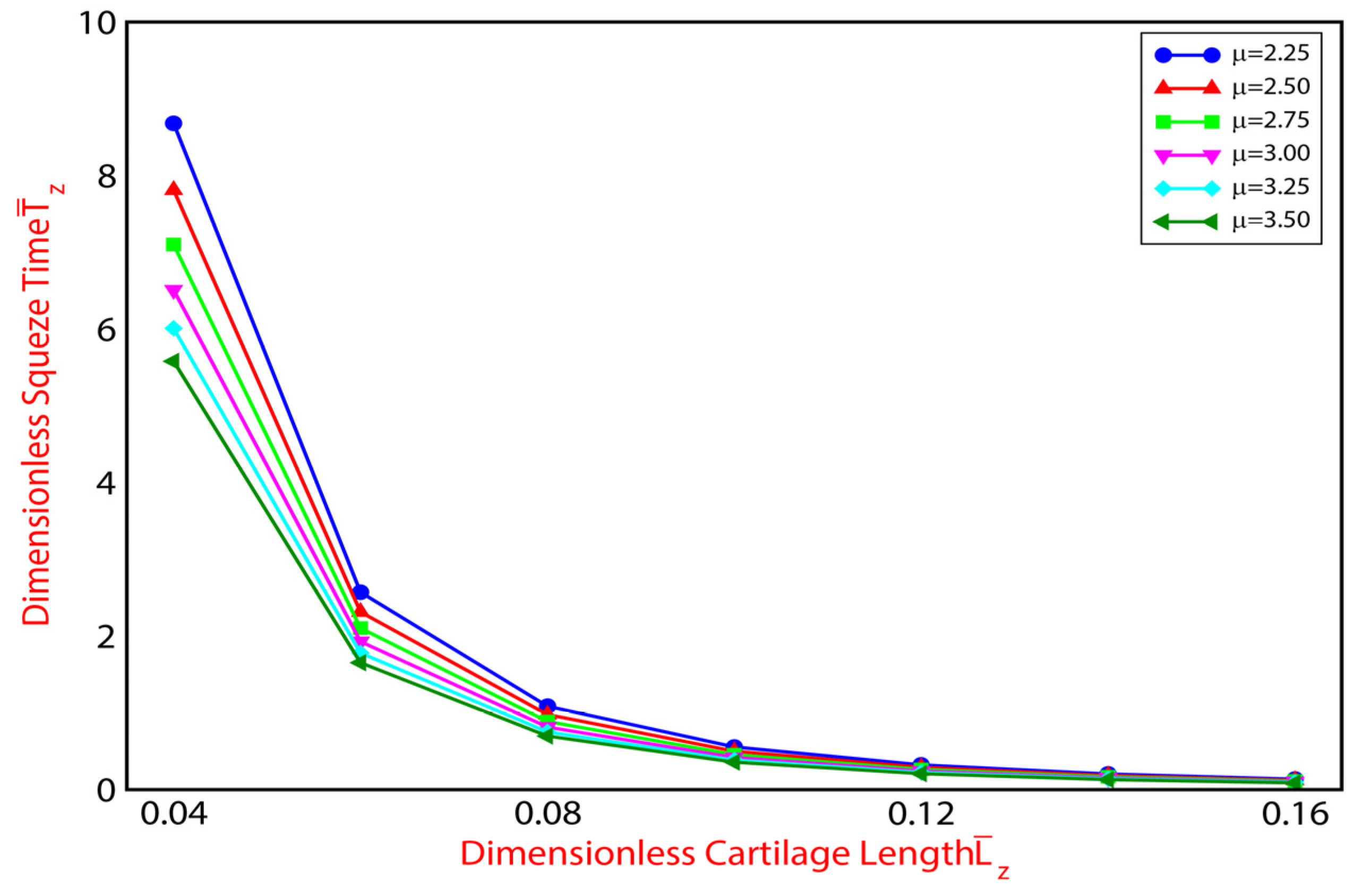

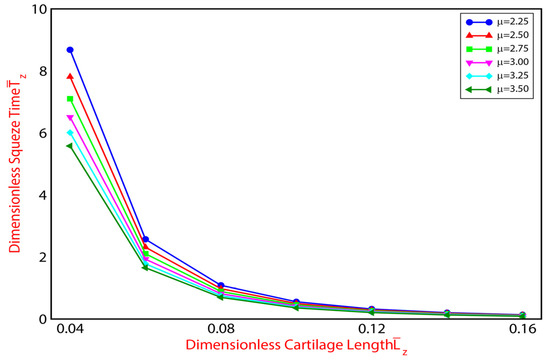

**Figure 11.**Variation of Squeeze Time with Articular Cartilage Length for Different Values Synovial Fluid Viscosity.

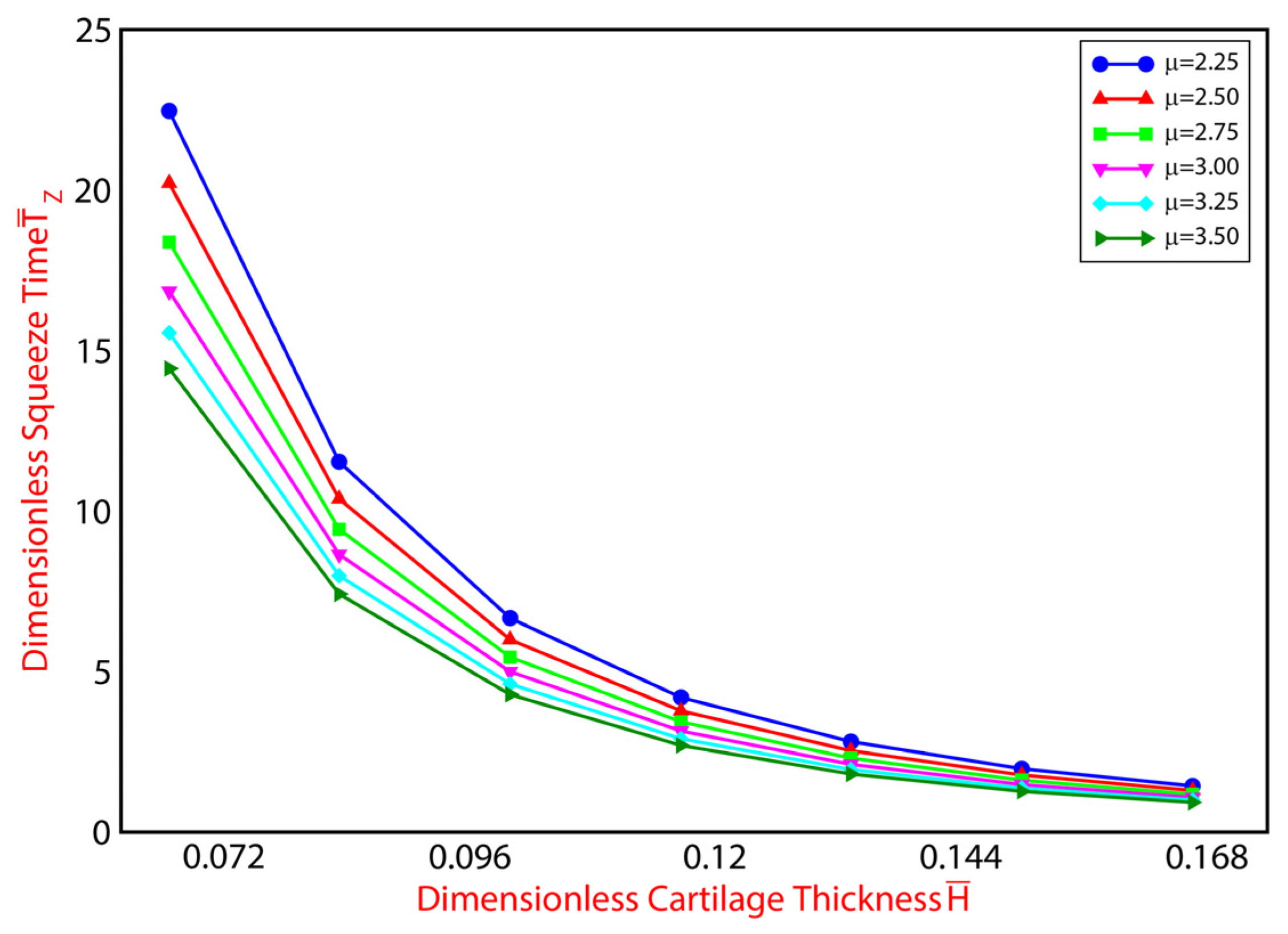

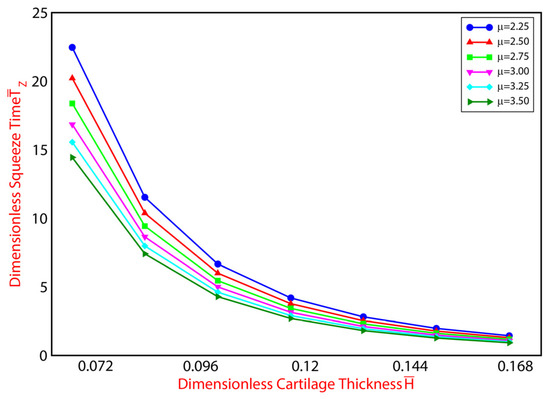

**Figure 12.**Variation of Squeeze Time with Articular Cartilage Thickness for Different Values Synovial Fluid Viscosity.
