# An Evolutionary View on Equilibrium Models of Transport Flows

^{1}

^{2}

^{3}

^{4}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Traffic Assignment: Problem Statement

**Beckmann model.**An important idea behind the Beckmann model is that the cost (e.g., travel time) of passing a link e is the same for all agents and depends only on the flow ${f}_{e}$ along it. We denote this cost for a given flow ${f}_{e}$ by ${t}_{e}={\tau}_{e}\left({f}_{e}\right)$. Another essential point is a behavioral assumption (the first Wardrop’s principle): each agent knows the state of the whole network and chooses a path p minimizing the total cost ${T}_{p}\left(t\right)={\sum}_{e\in p}{t}_{e}.$

**Population games dynamic for (stochastic) Beckmann model.**Let us consider each driver to be an agent in population game, where ${P}_{w}$, $w\in OD$ is a set of types of agents. All agent (drivers) of type ${P}_{w}$ can choose one of the strategy $p\in {P}_{w}$ with cost function ${T}_{p}\left(t\left(f\left(x\right)\right)\right):={\tilde{T}}_{p}\left(x\right)$. Assume that every driver/agent independently of anything (in particular of any other drivers) is considering the opportunity to reconsider his choice of route/strategy p in time interval $[\mathrm{t},\phantom{\rule{3.33333pt}{0ex}}\mathrm{t}+\mathsf{\Delta}\mathrm{t})$ with probability $\lambda \mathsf{\Delta}\mathrm{t}+o\left(\mathsf{\Delta}\mathrm{t}\right)$, where $\lambda >0$ is the same for all drivers/agents. It means that with each driver we relate its own Poisson process with parameter $\lambda $. If in moment of time t (when the flow distribution vector is $x\left(\mathrm{t}\right)$) the the driver of type ${P}_{w}$ decides to reconsider his route, than he choose the route $q\in {P}_{w}$ with probability

**Theorem**

**1.**

**Proof.**

## 3. Origin–Destination Matrix Estimation

## 4. Two-Stages Traffic Assignment Model

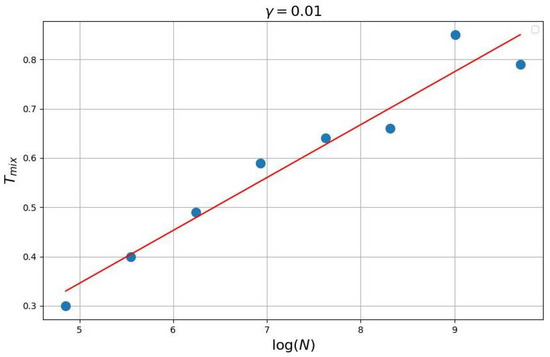

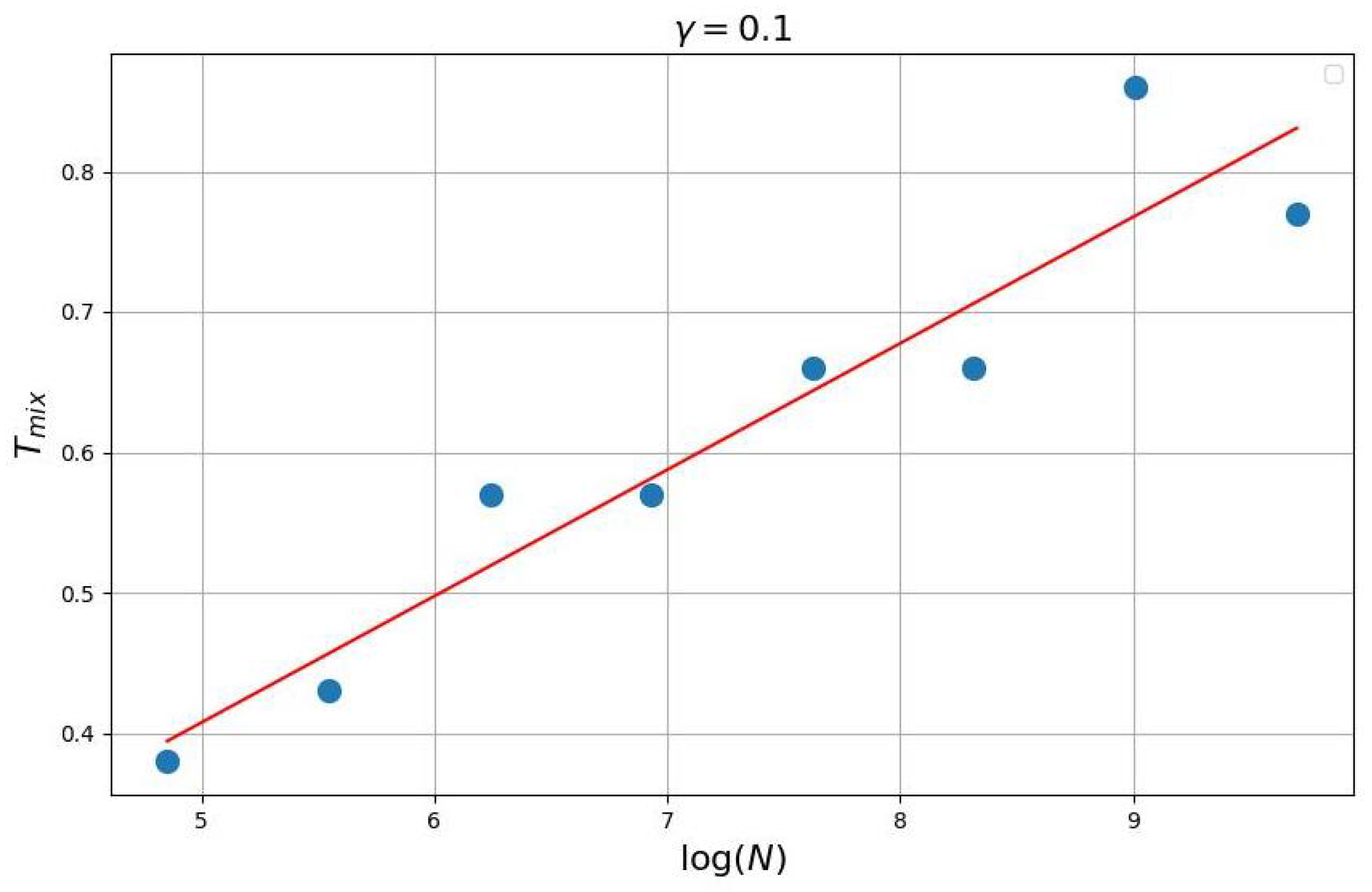

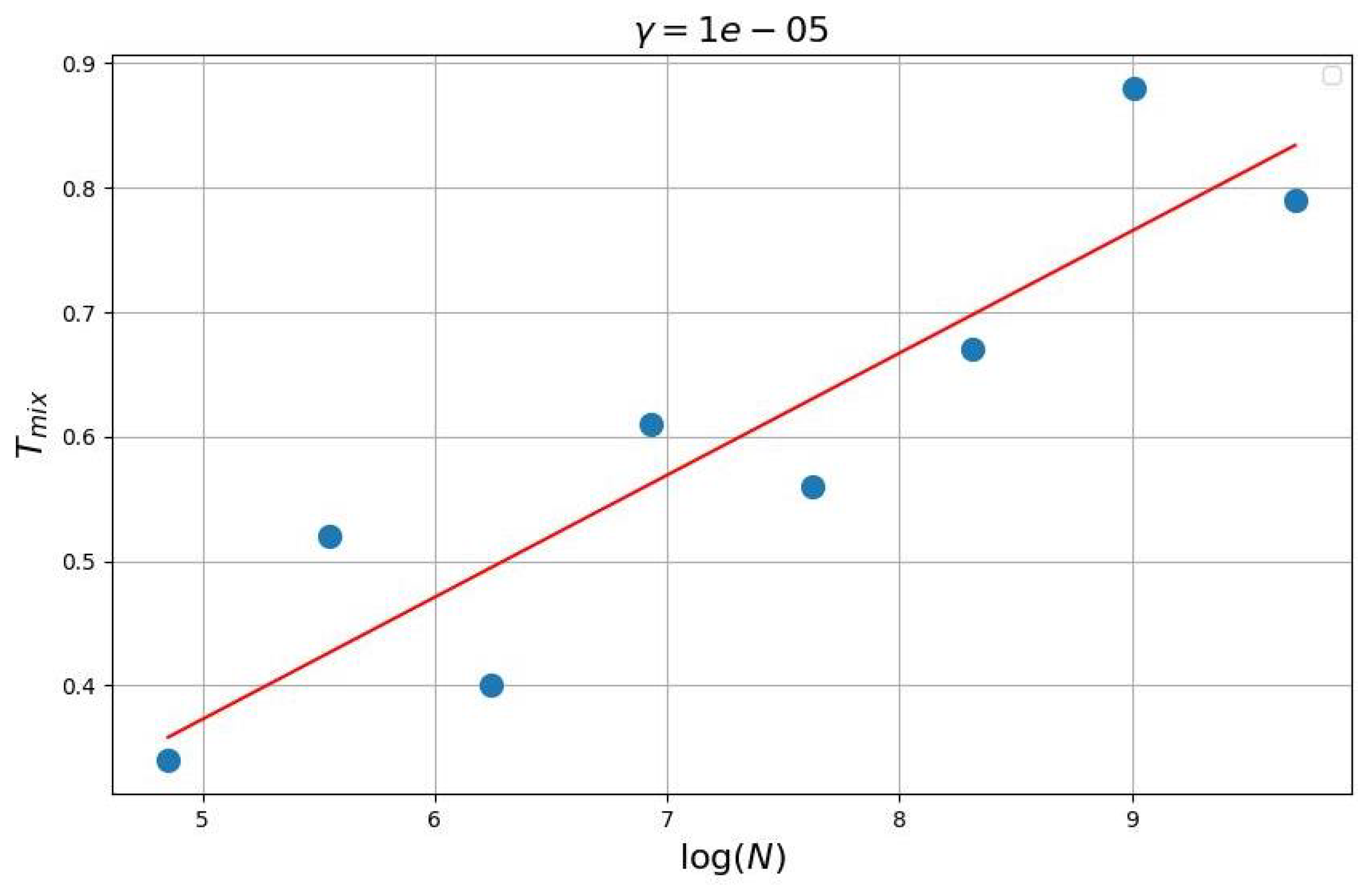

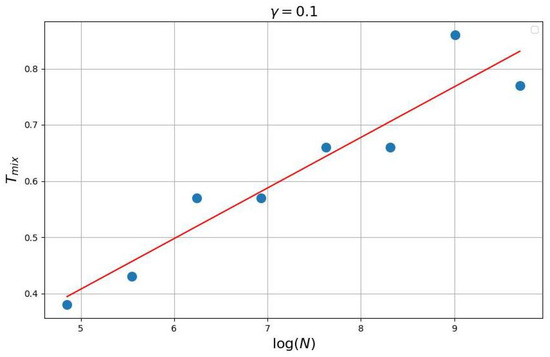

## 5. Numerical Experiments

## 6. Conclusions

## Author Contributions

## Funding

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Beckmann, M. A continuous model of transportation. Econom. J. Econom. Soc.
**1952**, 20, 643–660. [Google Scholar] [CrossRef] - Beckmann, M.J.; McGuire, C.B.; Winsten, C.B. Studies in the Economics of Transportation; Technical Report; The National Academies of Sciences, Engineering, and Medicine: Washington, DC, USA, 1956. [Google Scholar]
- Patriksson, M. The Traffic Assignment Problem: Models and Methods; Courier Dover Publications: Mineola, NY, USA, 2015. [Google Scholar]
- Sheffi, Y. Urban Transportation Networks; Prentice-Hall: Englewood Cliffs, NJ, USA, 1985; Volume 6. [Google Scholar]
- Nesterov, Y.; De Palma, A. Stationary dynamic solutions in congested transportation networks: Summary and perspectives. Netw. Spat. Econ.
**2003**, 3, 371–395. [Google Scholar] - Baimurzina, D.R.; Gasnikov, A.V.; Gasnikova, E.V.; Dvurechensky, P.E.; Ershov, E.I.; Kubentaeva, M.B.; Lagunovskaya, A.A. Universal method of searching for equilibria and stochastic equilibria in transportation networks. Comput. Math. Math. Phys.
**2019**, 59, 19–33. [Google Scholar] - Gasnikov, A.; Gasnikova, E. Traffic Assignment Models. Numerical Aspects; MIPT: Dolgoprudny, Russia, 2020. [Google Scholar]
- Wilson, A. Entropy in Urban and Regional Modelling (Routledge Revivals); Routledge: Oxfordshire, UK, 2013. [Google Scholar]
- Gasnikov, A.; Klenov, S.; Nurminskiy, Y.; Kholodov, Y.; Shamray, N. Vvedenie v matematicheskoe modelirovanie transportnykh potokov. In Introduction to Mathematical Modeling of Traffic Flows: Textbook; MCCME: Moscow, Russia, 2013. [Google Scholar]
- Gasnikov, A.V.; Gasnikova, E.V.; Mendel’, M.A.; Chepurchenko, K.V. Evolutionary interpretations of entropy model for correspondence matrix calculation. Mat. Model.
**2016**, 28, 111–124. [Google Scholar] - Sandholm, W.H. Population Games and Evolutionary Dynamics; MIT Press: Cambridge, MA, USA, 2010. [Google Scholar]
- de Dios Ortúzar, J.; Willumsen, L.G. Modelling Transport; John Wiley & Sons: Hoboken, NJ, USA, 2011. [Google Scholar]
- Gasnikov, A.V.; Dorn, Y.V.; Nesterov, Y.E.; Shpirko, S.V. On the three-stage version of stable dynamic model. Mat. Model.
**2014**, 26, 34–70. [Google Scholar] - Kubentayeva, M.; Gasnikov, A. Finding equilibria in the traffic assignment problem with primal-dual gradient methods for Stable Dynamics model and Beckmann model. Mathematics
**2021**, 9, 1217. [Google Scholar] [CrossRef] - Kotlyarova, E.V.; Krivosheev, K.Y.; Gasnikova, E.V.; Sharovatova, Y.I.; Shurupov, A.V. Proof of the connection between the Backman model with degenerate cost functions and the model of stable dynamics. Comput. Res. Model.
**2022**, 14, 335–342. [Google Scholar] [CrossRef] - Leadbetter, M.; Lindgren, G.; Rootzén, H. Asymptotic Distributions of Extremes. In Extremes and Related Properties of Random Sequences and Processes; Springer: Berlin/Heidelberg, Germany, 1983. [Google Scholar]
- Anderson, S.P.; De Palma, A.; Thisse, J.F. Discrete Choice Theory of Product Differentiation; MIT Press: Cambridge, MA, USA, 1992. [Google Scholar]
- Malyshev, V.A.; Pirogov, S.A. Reversibility and irreversibility in stochastic chemical kinetics. Russ. Math. Surv.
**2008**, 63, 1. [Google Scholar] [CrossRef] - Boucheron, S.; Lugosi, G.; Massart, P. Concentration Inequalities: A Nonasymptotic Theory of Independence; Oxford University Press: Oxford, UK, 2013. [Google Scholar]
- Cover, T.M.; Thomas, J.A. Elements of Information Theory, 2nd ed.; Wiley Series in Telecommunications and Signal Processing; Wiley: New York, NY, USA, 2006. [Google Scholar]
- Levin, D.A.; Peres, Y. Markov Chains and Mixing Times; American Mathematical Society: Providence, RI, USA, 2017; Volume 107. [Google Scholar]
- Ethier, S.N.; Kurtz, T.G. Markov Processes: Characterization and Convergence; John Wiley & Sons: Hoboken, NJ, USA, 2009. [Google Scholar]
- Batishcheva, Y.G.; Vedenyapin, V.V. The 2-nd low of thermodynamics for chemical kinetics. Mat. Model.
**2005**, 17, 106–110. [Google Scholar] - Gasnikov, A.V.; Gasnikova, E.V. On entropy-type functionals arising in stochastic chemical kinetics related to the concentration of the invariant measure and playing the role of Lyapunov functions in the dynamics of quasiaverages. Math. Notes
**2013**, 94, 854–861. [Google Scholar] [CrossRef] - Frank, M. The braess paradox. Math. Program.
**1981**, 20, 283–302. [Google Scholar]
