Solving Rescheduling Problems in Dynamic Permutation Flow Shop Environments with Multiple Objectives Using the Hybrid Dynamic Non-Dominated Sorting Genetic II Algorithm
Abstract
:1. Introduction
1.1. Flow Shop Problems
1.2. Rescheduling Systems
2. Problem Statement
- Factors related to the readiness of jobs and machines:
- ○
- rli is the time when job Ji is available for being processed after arriving to the shop floor (known as release time).
- ○
- rtj is the time when machine Mj is ready to process an incoming job (known as ready time).
- Jobs-related specification factors:
- ○
- pij indicates the processing time needed by the job Ji to be processed on the machine Mj.
- ○
- di represents the due date for job Ji, as requested by the client.
- ○
- wi indicates a weight for the job Ji, representing its urgency.
- Predictive-reactive-related factors:
- ○
- RT is the current rescheduling instant time.
- ○
- represents the starting time of job Ji on machine Mj in the predictive baseline schedule calculated initially.
- Disruption events-related factors:
- ○
- represents the starting time of a breakdown disruption for machine Mj.
- ○
- represents the end time of a breakdown disruption for machine Mj.
- xij are binary variables indicating the position of each Job Ji in the schedule:
- Si,j represents the starting time of job Ji on machine Mj in the calculated new optimal schedule.
- Ci indicates the completion time of job Ji, and it depends on the competition time on each machine Mj (Ci,j).
- yi,j,1, yi,j,2, and yi,j,3 are binary variables that represents three possible situations of machine breakdowns:
- ○
- is 1 (job already processed situation) in case operation of job Ji on machine Mj finishes before we have a breakdown in the machine; otherwise takes 0 value.
- ○
- is 1 (conflict situation) in case operation is not finished when the breakdown occurs; otherwise takes 0 value.
- ○
- is 1 (job starting time displacement situation) in case operation needs to be done after a machine breakdown; otherwise takes 0 value.
3. Proposed Solution
3.1. Rescheduling Architecture

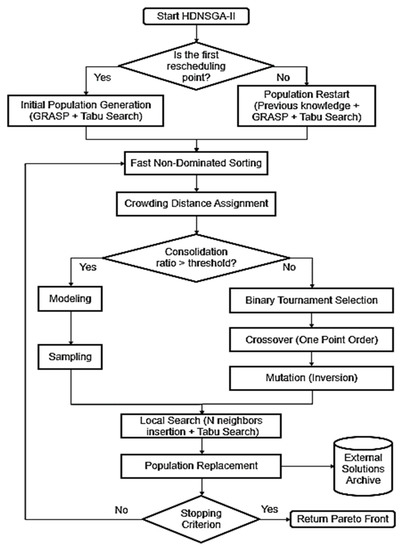

3.2. Hybrid Dynamic NSGA-II Algorithm
4. Results
4.1. Parameter Calibration

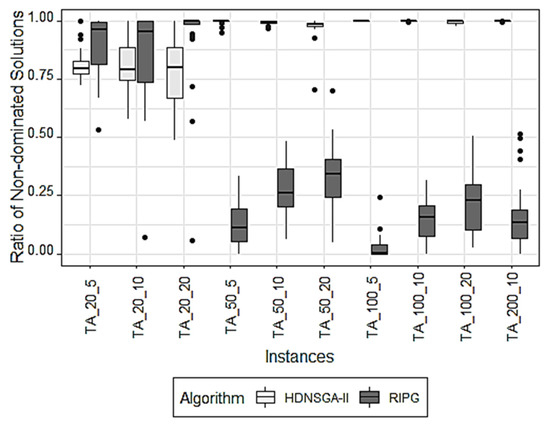

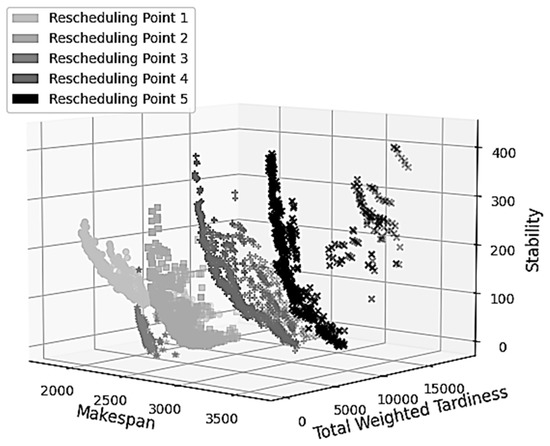

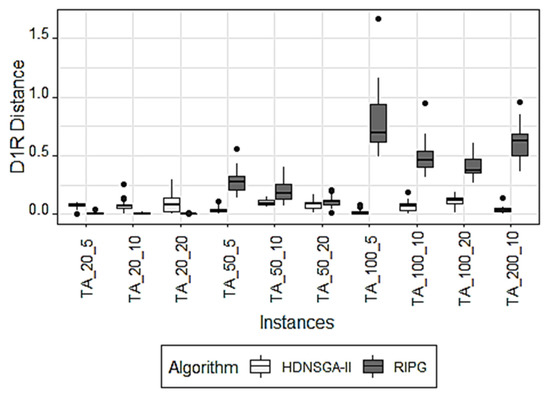

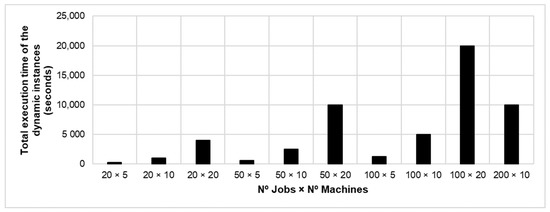

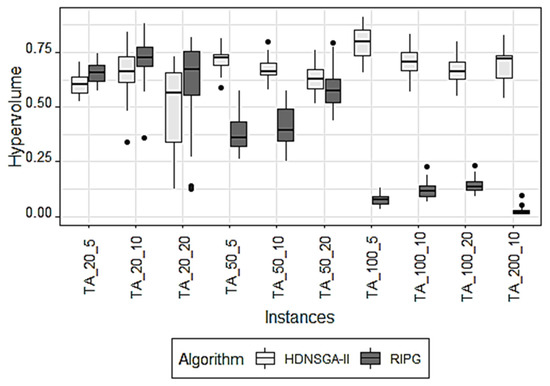

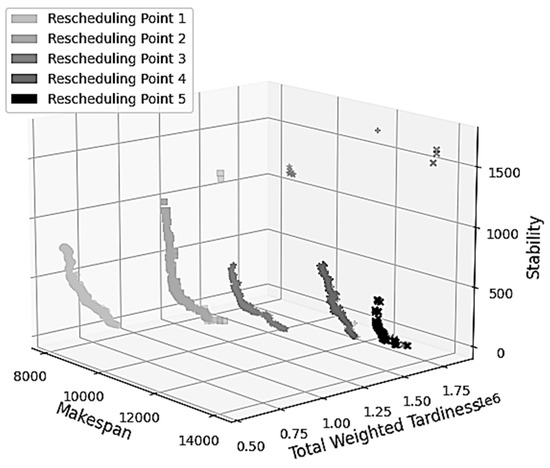

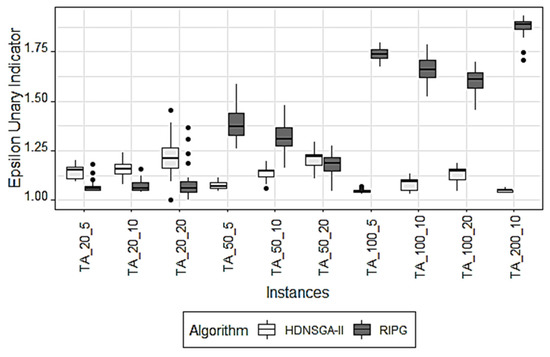

4.2. Comparison of HDNSGA-II and RIPG Metaheuristics in Dynamic Multi-Objective Environments
5. Conclusions and Future Lines of Research
