# Thermoelastic Coupling Response of an Unbounded Solid with a Cylindrical Cavity Due to a Moving Heat Source

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Fundamental Equations

- (i)
- Coupled dynamical thermoelasticity (CTE theory) [2]: ${\tau}_{\theta}={\tau}_{q}=0$ and $\varrho =1$

- (ii)
- Lord and Shulman generalized thermoelasticity theory (L–S theory) [3]: ${\tau}_{\theta}=0$, ${\tau}_{q}={\tau}_{0}$ and $\varrho =1$

- (iii)

- (iv)

- (v)

## 3. Problem Construction

## 4. Closed-Form Solution

- The surface of the cylindrical cavity is exposed to a harmonically varying heat

- The mechanical boundary condition is considered as the surface of the cylindrical cavity is traction free

## 5. Validation of Results

#### 5.1. First Validation Example

- The G–N theory gives the smallest absolute field of all field quantities.
- The other theories CTE and L–S give suitable results for the field quantities.
- Three values $N=3$, 4, and 5 have been used for the RDPL theory while the simple dual-phase-lag (SDPL) theory is described with $N=1$.
- The most accurate results are given by using the RDPL theory.
- For the RDPL theory the temperature, displacement, and hoop stress are slightly increasing with the increase in many terms $N$, while the dilatation, radial stress, and axial stress are slightly decreasing. The increasing and decreasing amounts may be un-sensitive when $N\ge 5$.

#### 5.2. Second Validation Example

#### 5.3. Additional Applications

#### 5.3.1. Effect of Angular Frequency of Thermal Vibration

#### 5.3.2. Effect of Velocity of Heat Source

#### 5.3.3. Effect of Dimensionless Time

## 6. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## Nomenclature

${\alpha}_{t}$ | thermal expansion coefficient $\left({\mathrm{K}}^{-1}\right)$ |

${C}_{e}$ | specific heat at uniform strain $\left(\mathrm{J}{\mathrm{kg}}^{-1}{\mathrm{K}}^{-1}\right)$ |

${\delta}_{ij}$ | Kronecker delta function |

${e}_{\phi \phi}$ | hoop strain |

${e}_{rr}$ | radial strain |

$e$ | dilatation |

${e}_{ij}$ | linear strain tensor |

$\vartheta $ | the velocity of heat source $\left({\mathrm{m}\mathrm{s}}^{-1}\right)$ |

$\gamma \equiv \left(3\lambda +2\mu \right){\alpha}_{t}$ | thermal modulus $\left({\mathrm{N}\mathrm{m}}^{-2}{\mathrm{K}}^{-1}\right)$ |

$H\left(t\right)$ | Heaviside unit step function |

$k$ | coefficient of heat conductivity $\left({\mathrm{W}\mathrm{m}}^{-1}{\mathrm{K}}^{-1}\right)$ |

${k}^{*}$ | rate of thermal conductivity of an isotropic material $\left({\mathrm{W}\mathrm{m}}^{-1}{\mathrm{K}}^{-1}\right)$ |

$\lambda ,\mu $ | Lame’s constants $\left({\mathrm{N}\mathrm{m}}^{-2}\right)$ |

$\rho $ | material density $\left({\mathrm{kg}\mathrm{m}}^{-3}\right)$ |

$R$ | The radius of the cylindrical cavity $\left(\mathrm{m}\right)$ |

$\left(r,\phi ,z\right)$ | cylindrical coordinates system |

${\sigma}_{ij}$ | stress tensor components $\left({\mathrm{N}\mathrm{m}}^{-2}\right)$ |

${\sigma}_{\phi z},{\sigma}_{zr},{\sigma}_{r\phi}$ | shear stresses $\left({\mathrm{N}\mathrm{m}}^{-2}\right)$ |

${\sigma}_{\phi \phi}$ | hoop stress $\left({\mathrm{N}\mathrm{m}}^{-2}\right)$ |

${\sigma}_{rr}$ | radial stress $\left({\mathrm{N}\mathrm{m}}^{-2}\right)$ |

${\sigma}_{zz}$ | axial stress $\left({\mathrm{N}\mathrm{m}}^{-2}\right)$ |

$s$ | Laplace parameter |

$\theta =T-{T}_{0}$ | temperature change $\left(\mathrm{K}\right)$ |

${\theta}_{0}$ | thermal constant $\left(\mathrm{K}\right)$ |

${T}_{0}$ | environment temperature $\left(\mathrm{K}\right)$ |

${\tau}_{q}$ | phase-lag of heat flux $\left(\mathrm{s}\right)$ |

${\tau}_{\theta}$ | phase-lag of temperature gradient $\left(\mathrm{s}\right)$ |

${\tau}_{0}$ | first relaxation time $\left(\mathrm{s}\right)$ |

$\omega $ | angular frequency of thermal vibration $\left({\mathrm{rad}\mathrm{s}}^{-1}\right)$ |

${Q}_{0}$ | strength of heat source $\left({\mathrm{W}\mathrm{m}}^{-3}\right)$ |

$\delta $ | delta function |

$\stackrel{\rightharpoonup}{q}$ | heat flux vector $\left({\mathrm{W}\mathrm{m}}^{-2}\right)$ |

${u}_{r}$ | radial displacement $\left(\mathrm{m}\right)$ |

${u}_{\varphi}$ | hoop displacement $\left(\mathrm{m}\right)$ |

${u}_{z}$ | axial displacement $\left(\mathrm{m}\right)$ |

## References

- Duhamel, J.M.C. Second memoire sur les phenomes thermomechaniques. J. École Polytech.
**1837**, 15, 1–57. [Google Scholar] - Biot, M.A. Thermoelasticity and irreversible thermodynamics. J. Appl. Phys.
**1956**, 27, 240–253. [Google Scholar] [CrossRef] - Lord, H.W.; Shulman, Y. A generalized dynamical theory of thermoelasticity. J. Mech. Phys. Solids
**1967**, 15, 299–309. [Google Scholar] [CrossRef] - Green, A.E.; Lindsay, K.A. Thermoelasticity. J. Elast.
**1972**, 2, 1–7. [Google Scholar] [CrossRef] - Chandrasekharaiah, D.S. Hyperbolic thermoelasticity: A review of recent literature. Appl. Mech. Rev.
**1998**, 51, 705–729. [Google Scholar] [CrossRef] - Green, A.E.; Naghdi, P.M. A re-examination of the basic postulates of thermomechanics. Proc. R. Soc. A
**1991**, 432, 171–194. [Google Scholar] - Green, A.E.; Naghdi, P.M. On undamped heat waves in an elastic solid. J. Therm. Stresses
**1992**, 15, 253–264. [Google Scholar] [CrossRef] - Green, A.E.; Naghdi, P.M. Thermoelasticity without energy dissipation. J. Elast.
**1993**, 31, 189–208. [Google Scholar] [CrossRef] - Tzou, D.Y. A unified approach for heat conduction from macro- to micro-scales. J. Heat Transf.
**1995**, 117, 8–16. [Google Scholar] [CrossRef] - Tzou, D.Y. Macro- to Microscale Heat Transfer: The Lagging Behavior; Taylor & Francis: Washington, DC, USA, 1997. [Google Scholar]
- Zenkour, A.M. Thermo-diffusion of solid cylinders based upon refined dual-phase-lag models. Multid. Model. Mater. Struct.
**2020**, 16, 1417–1434. [Google Scholar] [CrossRef] - Zenkour, A.M. Wave propagation of a gravitated piezo-thermoelastic half-space via a refined multi-phase-lags theory. Mech. Adv. Mater. Struct.
**2020**, 27, 1923–1934. [Google Scholar] [CrossRef] - Zenkour, A.M. Thermoelastic diffusion problem for a half-space due to a refined dual-phase-lag Green-Naghdi model. J. Ocean Eng. Sci.
**2020**, 5, 214–222. [Google Scholar] [CrossRef] - Zenkour, A.M. Thermal-shock problem for a hollow cylinder via a multi-dual-phase-lag theory. J. Therm. Stresses
**2020**, 43, 687–706. [Google Scholar] [CrossRef] - Zenkour, A.M. Exact coupled solution for photothermal semiconducting beams using a refined multi-phase-lag theory. Opt. Laser Tech.
**2020**, 128, 106233. [Google Scholar] [CrossRef] - Chandrasekharaiah, D.S.; Srinath, K.S. Axisymmetric thermoelastic interactions without energy dissipation in an unbounded body with cylindrical cavity. J Elast.
**1997**, 46, 19–31. [Google Scholar] [CrossRef] [Green Version] - Allam, M.N.; Elsibai, K.A.; Abouelregal, A.E. Thermal stresses in a harmonic field for an infinite body with a circular cylindrical hole without energy dissipation. J. Therm. Stresses
**2002**, 25, 57–67. [Google Scholar] [CrossRef] - Ezzat, M.A.; El-Bary, A.A. Fractional order theory to an infinite thermo-viscoelastic body with a cylindrical cavity in the presence of an axial uniform magnetic field. J. Electromag. Waves Appl.
**2017**, 31, 495–513. [Google Scholar] [CrossRef] - Ezzat, M.A.; El-Bary, A.A. Application of fractional order theory of magneto-thermoelasticity to an infinite perfect conducting body with a cylindrical cavity. Microsyst. Technol.
**2017**, 23, 2447–2458. [Google Scholar] [CrossRef] - Sharma, J.N.; Sharma, N.K.; Sharma, K.K. Diffusion in generalized thermoelastic solid in an infinite body with cylindrical cavity. Proc. Natl. Acad. Sci. India Sect. A Phys. Sci.
**2013**, 83, 353–364. [Google Scholar] [CrossRef] - Kumar, R.; Mukhopadhyay, S. Effects of three phase lags on generalized thermoelasticity for an infinite medium with a cylindrical cavity. J. Therm. Stresses
**2009**, 32, 1149–1165. [Google Scholar] [CrossRef] - Mukhopadhyay, S.; Kumar, R. Thermoelastic interactions on two-temperature generalized thermoelasticity in an infinite medium with a cylindrical cavity. J. Therm. Stresses
**2009**, 32, 341–360. [Google Scholar] [CrossRef] - Kumar, R.; Prasad, R.; Kumar, R. Thermoelastic interactions on hyperbolic two-temperature generalized thermoelasticity in an infinite medium with a cylindrical cavity. Eur. J. Mech. A Solids
**2020**, 82, 233–245. [Google Scholar] [CrossRef] - Sarkar, N.; Mondal, S. Transient responses in a two-temperature thermoelastic infinite medium having cylindrical cavity due to moving heat source with memory-dependent derivative. ZAMM J.
**2019**, 99, 1–19. [Google Scholar] [CrossRef] - Sharma, J.N.; Kumari, N.; Sharma, K.K. Diffusion in a generalized thermoelastic solid in an infinite body with a cylindrical cavity. J. Appl. Mech. Tech. Phys.
**2013**, 54, 819–831. [Google Scholar] [CrossRef] - Mukhopadhyay, S.; Kumar, R. A problem on thermoelastic interactions in an infinite medium with a cylindrical hole in generalized thermoelasticity III. J. Comput. Appl. Mech.
**2008**, 31, 455–475. [Google Scholar] [CrossRef] - Xia, R.-H.; Tian, X.-G.; Shen, Y.-P. The influence of diffusion on generalized thermoelastic problems of infinite body with a cylindrical cavity. Int. J. Eng. Sci.
**2009**, 47, 669–679. [Google Scholar] [CrossRef] - Xiong, Q.-L.; Tian, X.-G. Thermoelastic study of an infinite functionally graded body with a cylindrical cavity using the Green-Naghdi model. J. Therm. Stresses
**2012**, 35, 718–732. [Google Scholar] [CrossRef] - Abouelregal, A.E. Generalized thermoelastic infinite transversely isotropic body with a cylindrical cavity due to moving heat source and harmonically varying heat. Meccanica
**2013**, 48, 1731–1745. [Google Scholar] [CrossRef] - Youssef, H.M. Two-temperature generalized thermoelastic infinite medium with cylindrical cavity subjected to moving heat source. Arch. Appl. Mech.
**2010**, 80, 1213–1224. [Google Scholar] [CrossRef] - Youssef, H.M. State-space approach to two-temperature generalized thermoelasticity without energy dissipation of medium subjected to moving heat source. Appl. Math. Mech.
**2013**, 34, 63–74. [Google Scholar] [CrossRef] - Shaw, S.; Mukhopadhyay, B. Moving heat source response in a thermoelastic microelongated solid. J. Eng. Phys. Thermophys.
**2013**, 86, 716–722. [Google Scholar] [CrossRef] - Sarkar, N.; Lahiri, A. Interactions due to moving heat sources in generalized thermoelastic half-space using L-S model. Int. J. Appl. Mech. Eng.
**2013**, 18, 815–831. [Google Scholar] [CrossRef] [Green Version] - Youssef, H.M. State-space approach to fractional order two-temperature generalized thermoelastic medium subjected to moving heat source. Mech. Adv. Mater. Struct.
**2013**, 20, 47–60. [Google Scholar] [CrossRef] - Xia, R.-H.; Tian, X.-G.; Shen, Y.-P. Dynamic response of two-dimensional generalized thermoelastic coupling problem subjected to a moving heat source. Acta Mech. Solida Sin.
**2014**, 27, 300–305. [Google Scholar] [CrossRef] - Abbas, I.A. A GN model for thermoelastic interaction in a microscale beam subjected to a moving heat source. J. Comput. Acta Mech.
**2015**, 226, 2527–2536. [Google Scholar] [CrossRef] - Youssef, H.M. Generalized thermoelastic infinite medium with cylindrical cavity subjected to moving heat source. Mech. Res. Commun.
**2009**, 36, 487–496. [Google Scholar] [CrossRef] - Zenkour, A.M. Thermal diffusion of an unbounded solid with a spherical cavity via refined three-phase-lag Green–Naghdi models. Indian J. Phys. 2021; in press. [Google Scholar] [CrossRef]
- Kutbi, M.A.; Zenkour, A.M. Refined dual-phase-lag Green–Naghdi models for thermoelastic diffusion in an infinite medium. Waves Rand. Complex Media, 2021; in press. [Google Scholar] [CrossRef]
- Zenkour, A.M.; El-Mekawy, H.F. On a multi-phase-lag model of coupled thermoelasticity. Int. Commun. Heat Mass Transf.
**2020**, 116, 104722. [Google Scholar] [CrossRef] - Sobhy, M.; Zenkour, A.M. Modified three-phase-lag Green–Naghdi models for thermomechanical waves in an axisymmetric annular disk. J. Therm. Stresses
**2020**, 43, 1017–1029. [Google Scholar] [CrossRef]

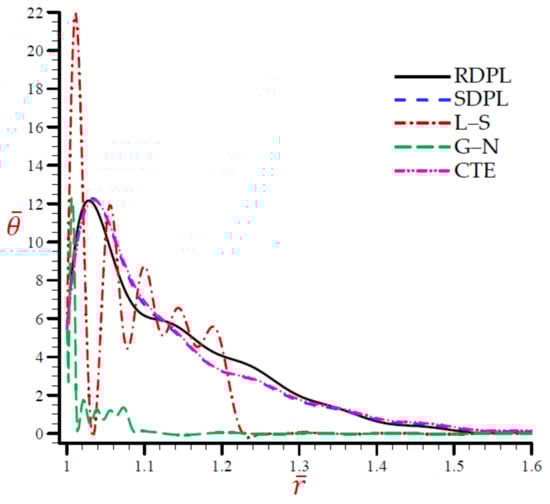

**Figure 1.**The temperature $\overline{\theta}$ across the radial direction of the cylindrical cavity conferring to all theories.

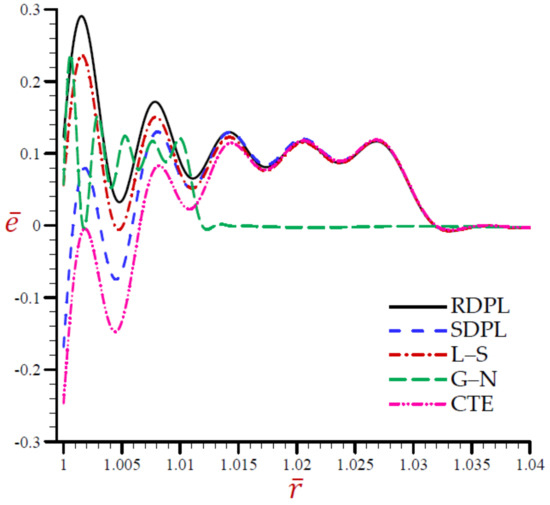

**Figure 2.**The dilatation $\overline{e}$ across the radial direction of the cylindrical cavity conferring to all theories.

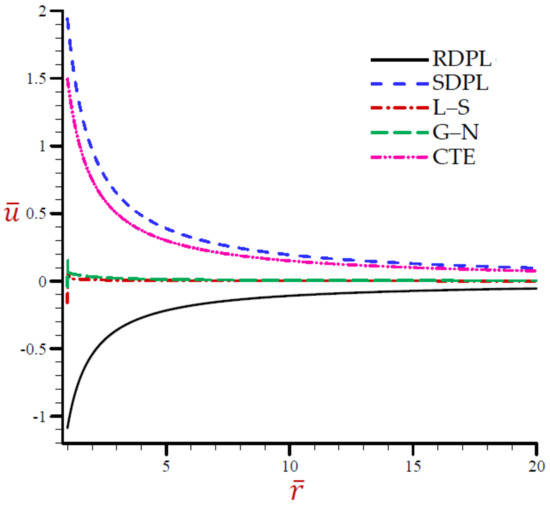

**Figure 3.**The radial displacement $\overline{u}$ across the radial direction of the cylindrical cavity conferring to all theories.

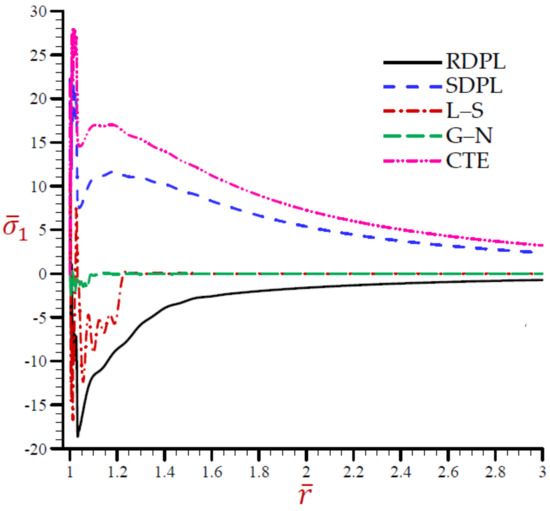

**Figure 4.**The radial stress ${\overline{\sigma}}_{1}$ across the radial direction of the cylindrical cavity conferring to all theories.

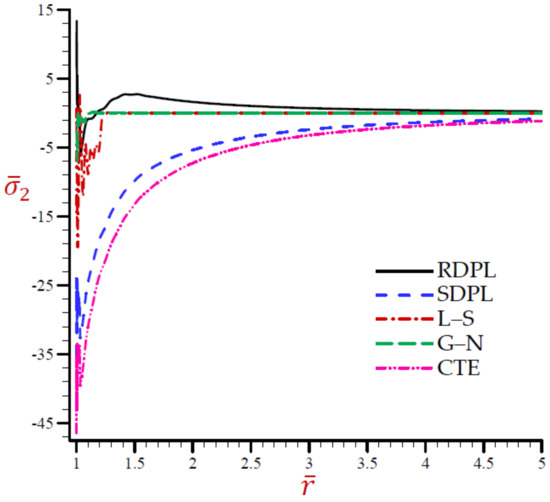

**Figure 5.**The hoop stress ${\overline{\sigma}}_{2}$ across the radial direction of the cylindrical cavity conferring to all theories.

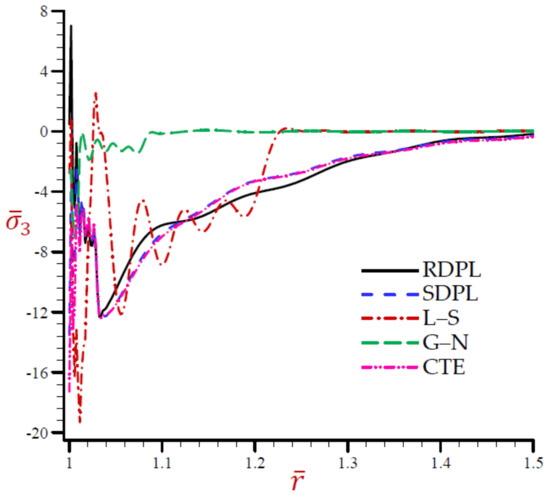

**Figure 6.**The axial stress ${\overline{\sigma}}_{3}$ across the radial direction of the cylindrical cavity conferring to all theories.

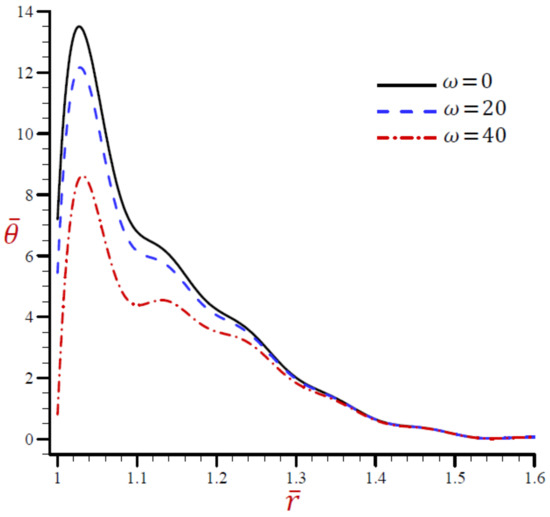

**Figure 7.**Effect of $\omega $ on temperature $\overline{\theta}$ across the radial direction of the cylindrical cavity utilizing the RDPL model.

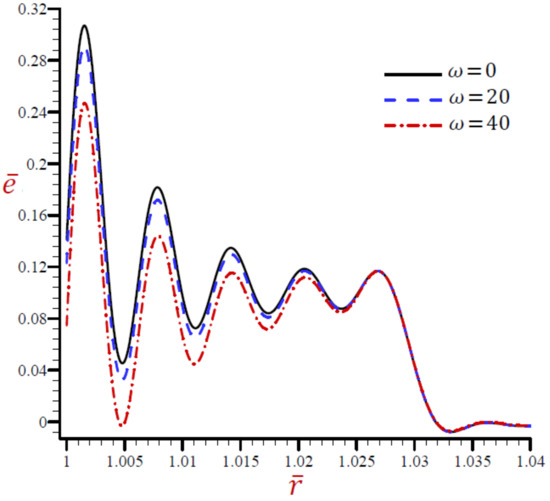

**Figure 8.**Effect of $\omega $ on dilatation $\overline{e}$ across the radial direction of the cylindrical cavity utilizing the RDPL model.

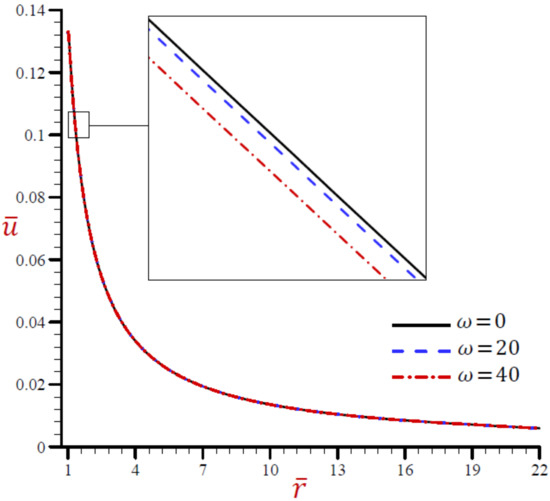

**Figure 9.**Effect of $\omega $ on radial displacement $\overline{u}$ across the radial direction of the cylindrical cavity utilizing the RDPL model.

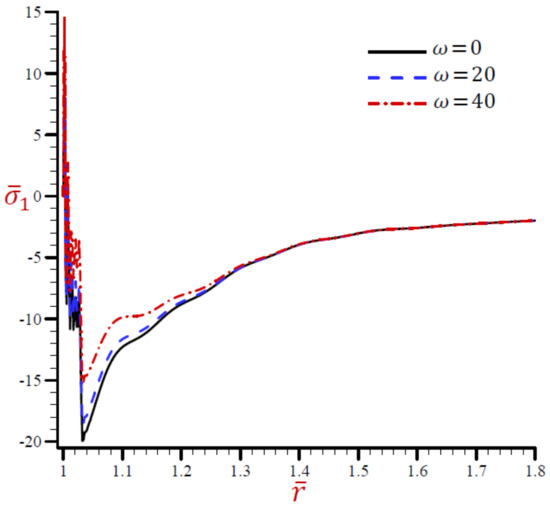

**Figure 10.**Effect of $\omega $ on radial stress ${\overline{\sigma}}_{1}$ across the radial direction of the cylindrical cavity utilizing the RDPL model.

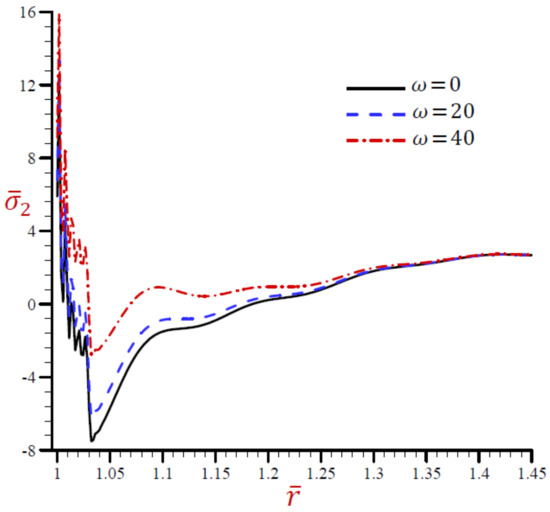

**Figure 11.**Effect of $\omega $ on radial stress ${\overline{\sigma}}_{2}$ across the radial direction of the cylindrical cavity utilizing the RDPL model.

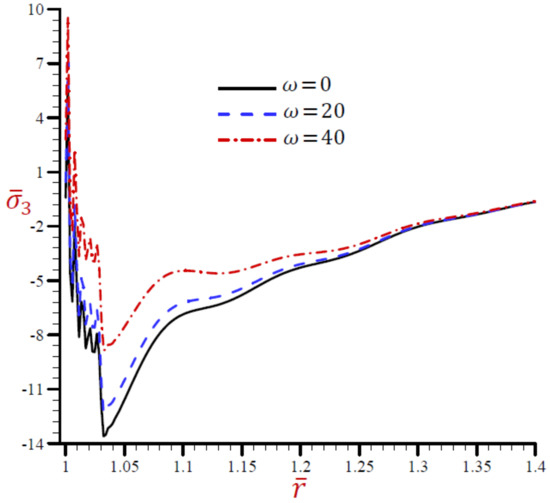

**Figure 12.**Effect of $\omega $ on radial stress ${\overline{\sigma}}_{3}$ across the radial direction of the cylindrical cavity utilizing the RDPL model.

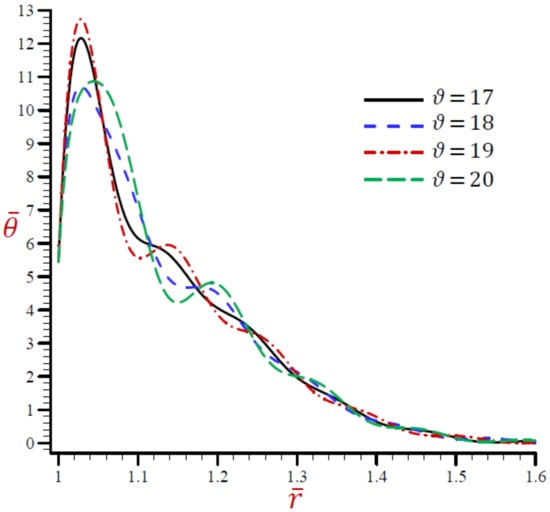

**Figure 13.**Effect of $\vartheta $ on temperature $\overline{\theta}$ across the radial direction of the cylindrical cavity utilizing the RDPL model.

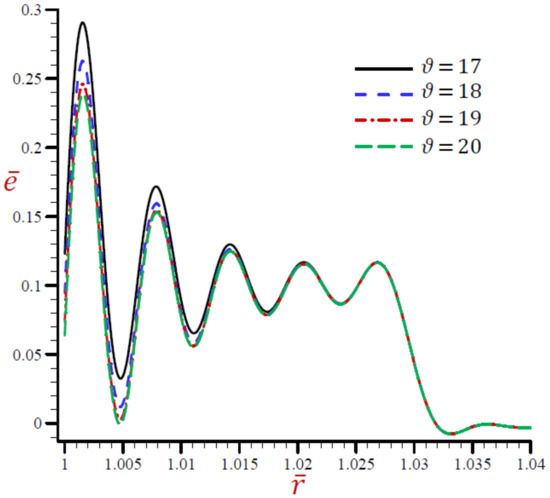

**Figure 14.**Effect of $\vartheta $ on dilatation $\overline{e}$ across the radial direction of the cylindrical cavity utilizing the RDPL model.

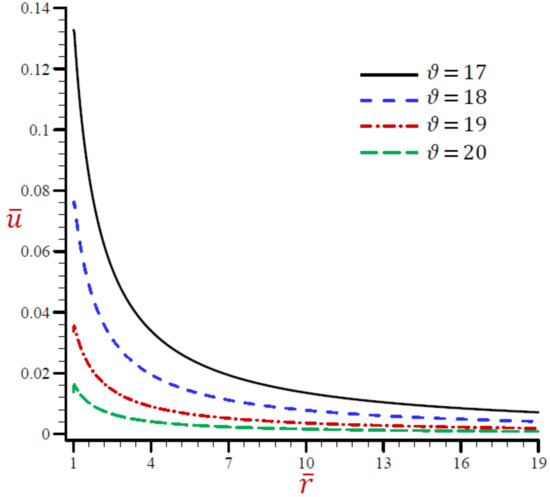

**Figure 15.**Effect of $\vartheta $ on radial displacement $\overline{u}$ across the radial direction of the cylindrical cavity utilizing the RDPL model.

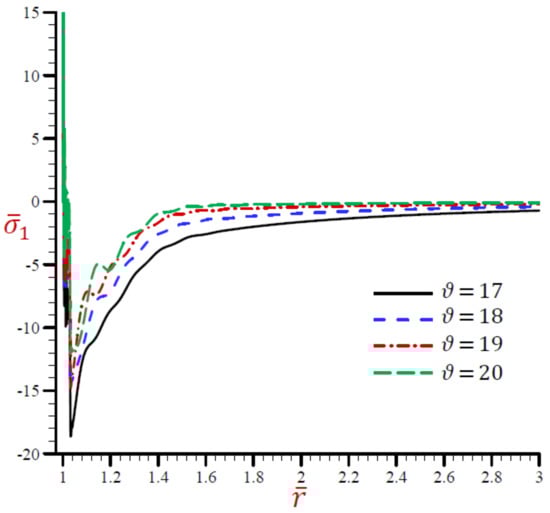

**Figure 16.**Effect of $\vartheta $ on radial stress ${\overline{\sigma}}_{1}$ across the radial direction of the cylindrical cavity utilizing the RDPL model.

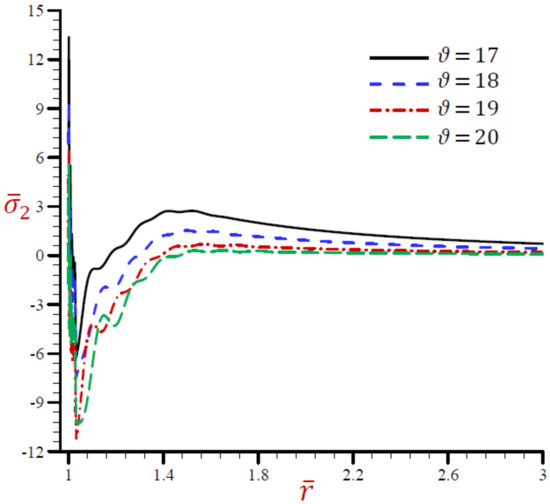

**Figure 17.**Effect of $\vartheta $ on radial stress ${\overline{\sigma}}_{2}$ across the radial direction of the cylindrical cavity utilizing the RDPL model.

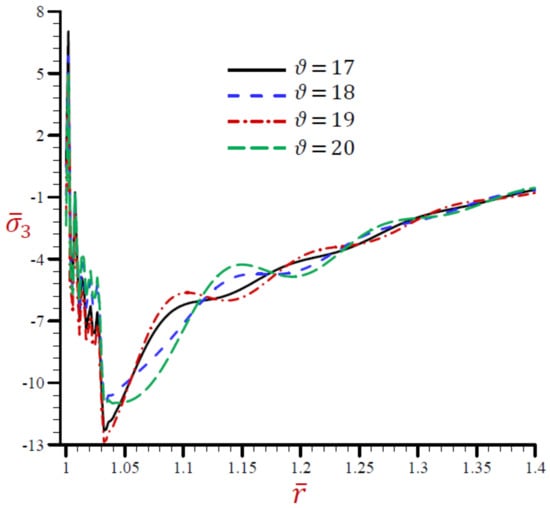

**Figure 18.**Effect of $\vartheta $ on radial stress ${\overline{\sigma}}_{3}$ across the radial direction of the cylindrical cavity utilizing the RDPL model.

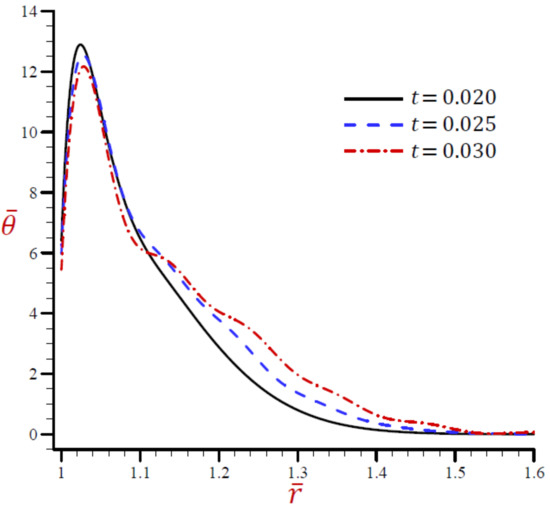

**Figure 19.**Effect of $t$ on temperature $\overline{\theta}$ across the radial direction of the cylindrical cavity utilizing the RDPL model.

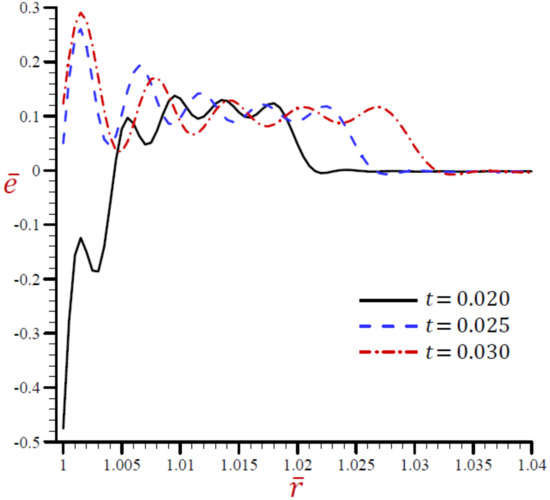

**Figure 20.**Effect of $t$ on dilatation $\overline{e}$ across the radial direction of the cylindrical cavity utilizing the RDPL model.

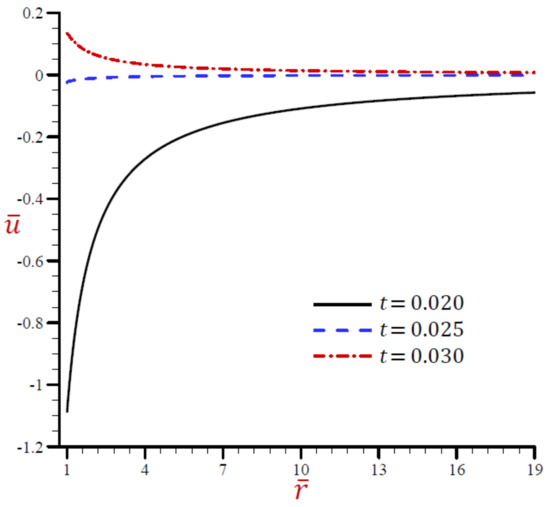

**Figure 21.**Effect of $t$ on radial displacement $\overline{u}$ across the radial direction of the cylindrical cavity utilizing the RDPL model.

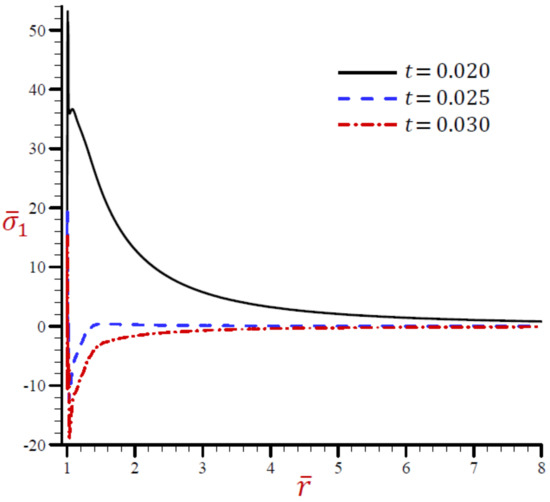

**Figure 22.**Effect of $t$ on radial stress ${\overline{\sigma}}_{1}$ across the radial direction of the cylindrical cavity utilizing the RDPL model.

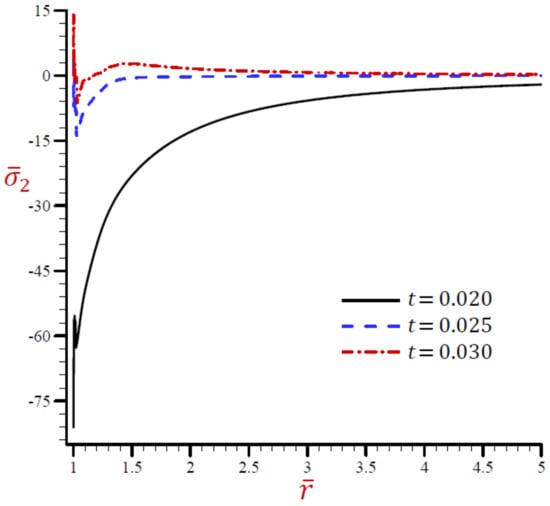

**Figure 23.**Effect of $t$ on radial stress ${\overline{\sigma}}_{2}$ across the radial direction of the cylindrical cavity utilizing the RDPL model.
