Simulating Electronic Absorption Spectra of Atmospherically Relevant Molecules: A Systematic Assignment for Enhancing Undergraduate STEM Education

by
Eleanor J. Stelz-Sullivan
,
Barbara Marchetti
and
Tolga Karsili
*
Department of Chemistry, University of Louisiana at Lafayette, Lafayette, LA 70504, USA
*
Author to whom correspondence should be addressed.
Educ. Sci. 2022, 12(4), 252; https://doi.org/10.3390/educsci12040252
Submission received: 5 February 2022 / Revised: 26 March 2022 / Accepted: 28 March 2022 / Published: 1 April 2022
Browse Figures
Versions Notes

Abstract

:
Computational and atmospheric chemistry are two important branches of contemporary chemistry. With the present topical nature of climate change and global warming, it is more crucial than ever that students are aware of and exposed to atmospheric chemistry, with an emphasis on how modeling may aid in understanding how atmospherically relevant chemical compounds interact with incoming solar radiation. Nonetheless, computational and atmospheric chemistry are under-represented in most undergraduate chemistry curricula. In this manuscript, we describe a simple and efficient method for simulating the electronic absorption spectral profiles of atmospherically relevant molecules that may be utilized in an undergraduate computer laboratory. The laboratory results give students hands-on experience in computational and atmospheric chemistry, as well as electronic absorption spectroscopy.

1. Introduction

Climate change is one of the most significant challenges faced by modern society. The influx of harmful anthropogenic pollutants has led to an increase in the average global temperature. The consequences of such increases in temperatures are most notably observed in the Arctic regions, where melting of polar icecaps leads to rising sea levels. As a result, forefront scientific research into climate change and its implications for global warming has significantly increased in recent years [1,2,3,4].
Despite its importance, little emphasis is given to atmospheric chemistry in many undergraduate chemistry programs. Students are therefore unaware of the vital link between fundamental chemical concepts taught in undergraduate chemistry and their importance in the life-sustaining chemistry of the atmosphere. To date, some studies have focused on implementing atmospheric and environmental research into undergraduate chemistry curricula [5,6,7,8,9,10,11,12,13]. Much of this research provides hands-on practical experiences in atmospheric sciences and attempts to make students aware of the experimental tools for atmospheric measurements.
Computational chemistry is another field of chemistry to which students have little exposure at the undergraduate level—despite its importance in aiding in the interpretation of experimental results. Several computational chemistry packages such as Gaussian [14,15,16] and Spartan [17] offer user-friendly interfaces that allow the user to draw structures and calculate properties such as their optimized geometries, vibrational and electronic absorption spectra and electronic charge distributions, etc. Such projects are routinely implemented into undergraduate chemistry laboratory classes [18,19,20,21,22,23,24,25]. Given the COVID-19 pandemic, recent educational research has focused on the design of computational-based exercises for implementation into distance learning laboratories [26,27,28,29]. Such studies are important in identifying how science may be conveyed at a distance and may be translated to students with disabilities or part-time students. Computational chemistry-based research is particularly suitable for these scenarios.
Atmospheric modeling incorporates both Atmospheric and Computational Chemistry and may be used to model global levels of pollutants, trace gases, and atmospherically relevant products from a given emission source. Advanced modeling techniques such as STOCHEM provide highly detailed information on the global distribution of atmospherically relevant intermediates as well their most likely origins [30]. Such techniques are based on experimental or theoretical kinetic models and are therefore far advanced for implementation into an undergraduate setting.
Modeling may also be used to simulate the electronic absorption spectra of atmospherically relevant molecules [31,32,33]. Recently, we have used the nuclear ensemble model to model the electronic absorption spectra of various Criegee intermediates, which are a class of carbonyl oxides formed via alkene ozonolysis in the troposphere and are implicated in promoting the oxidizing capacity of troposphere [31]. Others have also used the nuclear ensemble method to model the electronic absorption spectra of other atmospherically relevant molecules [32,34,35,36,37,38,39].
In this manuscript, we report a versatile computational chemistry laboratory that may be easily implemented into undergraduate general and organic chemistry laboratories. This laboratory will make use of the nuclear ensemble method of simulating electronic absorption profiles. Students will compute the electronic absorption spectra of CO2, CH4, H2O, O3, NO3, and NO2. They will be asked to compare their results with the experimentally measured spectrum of these molecules, which can be found at The MPI-Mainz UV/VIS Spectral Atlas of Gaseous Molecules of Atmospheric Interest [40]. The students will then compare their results to the tropospherically relevant solar irradiance and will be asked to comment on the extent to which the spectrum of a given molecule overlaps with the solar irradiance spectrum. Students will elaborate on the implications that this observation has on the removal of the molecule of interest by tropospherically relevant solar radiation.
The goal of the laboratory is to expose students to computational chemistry, spectroscopy, photochemistry, and atmospheric chemistry, as well as giving them to make the vital link between the atmospheric lifetime of various atmospherically relevant molecules and their removal by solar irradiation. In the next section, we outline the pedagogical goals that we expect from the implementation of this laboratory.

2. Pedagogical Goals

2.1. Course Approach

Our current chemistry curriculum at UL Lafayette exposes undergraduate students to fundamental concepts in chemistry, aligning with the standards set by the American Chemical Society. Many of these concepts translate to atmospheric chemistry, which is an essential field concerned with sustaining life on Earth. Despite this, practical atmospheric chemical studies are largely limited to lecture courses, with very little exposure at the laboratory level.
Atmospheric chemistry involves a myriad of interconnected reactions that have positive and detrimental effects on the environment. Computational chemistry provides essential tools for quantifying the reaction mechanisms of diverse ranges of chemistry. Such computational methods, in particular quantum chemical methods, have been used to great success for describing the complex chemistry of the atmosphere [41,42,43,44,45].
The laboratory experiment designed in this manuscript provides first-hand account of both computational and atmospheric chemistry—in a self-contained manner. This simulation-based laboratory may be implemented into undergraduate General, Organic or Physical Chemistry laboratories as a single session in a straightforward manner. Implementation of this laboratory will ensure that students are sufficiently exposed to how fundamental organic and physical chemistry is relevant to sustaining the chemistry of our atmosphere and therefore life on Earth. The students will be asked to complete a pre-laboratory assignment that cover topics associated with atmospheric chemistry and photochemistry. During the pre-laboratory lecture, the instructor emphasizes the importance of photochemistry and how it relates to the myriad of chemical processes relevant to our atmosphere. The instructor will then outline the concept of quantum chemistry and methods such as time-dependent density functional theory that may be used to simulate electronic absorption spectra of molecules.

2.2. Pedagogical Aims and Learning Outcomes

Prior to or alongside the General Chemistry Laboratory, students complete the General Chemistry II lecture course and are exposed to concepts such as chemical kinetics which is relevant to atmospheric chemistry. More relevant to the purpose of this study, the General Chemistry I lecture course at UL Lafayette includes a unit comprised of three modules and covers fundaments of electronic structure of atoms and their electronic absorption spectra, as well as electronic and molecular structure of simple molecules. The module-level objectives within this unit are designed to enable students to recognize and understand concepts surrounding electronic and molecular structure as well as light—matter interactions. In particular, the pedagogical aims (vide infra) of the current experiment align with the following module- and course-level objectives for General Chemistry I, which constitute the required background and pre-requisite knowledge for this activity:
  • Define and calculate the wavelength, frequency and energy of electromagnetic radiation
  • Describe the concepts of excitation and relaxation of an electron
  • Define the basic concepts of quantum numbers, shells, subshells, orbitals, electronic charge distribution, and their relative energies
  • Write electronic configuration in simple atoms and molecules
  • Correlate electronic configuration of a molecule to its shape
As the current experiment requires students to compute optimised structures and electronic excitations, its implementation in General Chemistry courses could provide students at introductory chemistry level with hands-on experience in exploring principles and concepts pertinent to learning objectives 1–5, outlined above.
Furthermore, the general chemistry laboratory course at UL Lafayette includes one experiment on UV/Vis spectroscopy (in aqueous solution) of a metal complex (spectrophotometric analysis of Cu(II) tetraammonia complex); in this laboratory session, students are expected to measure the UV/Vis absorption spectrum of the complex and relate the measured absorbance to both its absorptivity coefficient at set wavelengths (e.g., λ = 610 nm) and its concentration in the aqueous solution. The computer-based experiment presented in this work could complement this or similar experiments as it provides a more fundamental, molecular approach to exploring molecular spectroscopy and illustrating the link between absorption of light and electronic excitation in simple molecules.
The use of electronic spectroscopy also finds common use in organic chemistry, especially in the context of photoinduced organic reactions—such as the Paterno–Buchi reaction. Students undertaking organic chemistry courses should be equipped with good background knowledge of electronic structure and spectroscopy to ensure that they acquire a solid and well-rounded experience surrounding principles of the (photo)reactivity of organic molecules. In this context, the current experiment could represent a useful, hands-on activity for consolidating such knowledge. Furthermore, if implementation into organic or physical chemistry laboratories is planned, this laboratory will provide students with practical knowledge of various concepts in mechanistic chemical reactivity and photochemistry, and how they extend and apply to atmospheric chemistry.
During the experiment, students will be asked to calculate the electronic absorption spectra of CO2, CH4, H2O, O3, NO3, and NO2. Four (CO2, CH4, H2O and O3) out of the six molecules have electronic absorption spectra that are outside of the tropospherically relevant solar irradiance, while the other two (NO3 and NO2) absorb within it. When the electronic absorption spectra are simulated, the students will be asked to compare with measure spectra available in the literature. This will allow students to make the important link between a simulation and how well it is able to model the experimentally derived spectrum.
The pedagogical aims of this experiment are as follows:
  • Expose students to practical photochemistry and electronic absorption spectroscopy at an early stage.
  • Make students aware of how important chemical concepts translate to the chemistry of the atmosphere.
  • Be able to relate the lifetimes of long-lived greenhouse (and other) gases in Earth’s troposphere and their overlap with the tropospherically relevant solar irradiance.
  • Be able to discover the reasons for the scarcity of NO2/NO3 during the day and their higher abundances at night—relating it to the photochemistry.
Furthermore, students will be asked to explore the relationship between the recorded/simulated absorption spectrum of a molecule and its electronic and molecular structure. In particular, at the end of the experiment students will be able to do the following:
  • Visualize and analyze molecular orbitals
  • Assign electronic transitions
  • Relate the character of the electronic excitation to the magnitude of the associated oscillator strength (and/or intensity)
  • Compare and contrast spectra simulated with the nuclear ensemble method to those predicted by exclusively computing the vertical excitation energies.
In order to complete the experiment and fulfill its learning objectives, the following computational packages are required:
  • GaussView6 [14] and Gaussian09 [15] and/or Gaussian16 [16]
  • Newton-X [46]
  • Our spectral simulation script which will be made available to interested users by contacting the authors.
GaussView6 and Gaussian09/16 are commercial computational packages; if these are not available, alternative open source computational programs can be used to carry out this experiment. This may include MacMolPlt [47] and Avogadro [48] for drawing and visualizing molecular structure and viewing and analyzing normal mode wavenumbers and molecular orbitals. For computation of optimized structures, normal mode wavenumbers and vertical excitation energies, Psi4 [49] and ORCA [50] represent possible alternatives to Gaussian09/16.

3. Experimental Overview

The methodology described in this section provides simulated electronic absorption spectra that have excellent agreement with the experimentally measured spectra. Furthermore, the methods were selected to return simulated absorption spectra that are computable within a single typical laboratory session (generally 2–3 h). An example pre-laboratory assignment is illustrated in Section S1 of the Supporting Information, alongside the answer keys. The pre-laboratory assignment is designed to test the students’ understanding of UV spectroscopy and prepare them for the laboratory session, by sampling various general aspects of this topic. In order to complete the experiment, the students are asked to perform the following steps:
  • Computation of optimized structures and associated vibrational frequencies. This step is performed using the GaussView6 and Gaussian16 computational packages.
  • Generation of initial geometries (Wigner points) and vertical excitation energies to generate the full electronic absorption spectral profile of the selected molecule. This step is performed using our home-written script and is very important because it provides an absorption profile rather than the commonly used (and sometime mis-interpreted) stick spectra.
  • Analysis and interpretation of the simulated spectra, with comparison to the known experimental spectra.
Details of steps 1–3 are explained in the following text, while the procedure for the experiment is reported in Section S2 of the Supporting Information. The instruction provided in this procedure are specific to GaussView6, thus they need to be modified if another computational package is used for this experiment. Using GaussView6, [14] i.e., a user-friendly graphical interface, the students will first construct the molecular structure of CO2, CH4, H2O, NO2, NO3 or O3. In this step, it is important to remind students to derive the charge and spin multiplicity of each molecular system prior setting the ‘Opt + Freq’ calculations running, especially if the experiment is implemented in higher division classes (even though, when using GaussView6, these are typically suggested by default). Subsequently, they will use GaussView6 to setup the calculations for submission to the Gaussian computational package; [16] this allows geometry optimization and, importantly, calculation of the vibrational frequencies. To this aim, it is important that the job type in the Gaussian Calculation Setup is set to ‘Opt + Freq’. The method we used in this project is Density Functional Theory (DFT), i.e., one of the most commonly used computational methods in many research applications. The functional and basis set selected for the calculations were B3LYP/6-311+G(d,p). After the calculation setup, the students will submit the job so that the Gaussian computational program may optimize the molecular geometry, calculate the vibrational frequencies and prepare an output file which contains all the relevant information. If GaussView is unavailable, open-source alternatives, such as MacMolPlt or Avogadro, may also be used.
Subsequently, a set of initial geometries is generated by sampling the ground state vibrational wavefunction using a Wigner distribution. We opted to use this approach to simulate the spectra of our molecules of interest because it has been previously used to successfully simulate electronic spectra of more complex atmospheric molecules [32,34,35,36,37,38,39]. Furthermore, it represents a relatively straightforward approach to be implemented in an undergraduate laboratory. To this end, we developed a simple script which can be run using Terminal on a Unix or Linux platform. The script interfaces with the open source package Newton-X [46] to generate the required number of Wigner points based on the previous frequency calculations. In this way, the Gaussian16 output file from the first step above is used to prepare a set of geometries around the equilibrium geometry. The vertical excitation energies and corresponding oscillator strengths are then calculated at each Wigner point to allow generating the full electronic absorption spectrum. The interactive script guides the students by asking a series of questions to ensure that they provide the required information for the Wigner point generation. The script then prepares the corresponding input files. In particular, the students will be asked to provide the name of the output file containing the frequency calculations and the desired number of Wigner points to be generated. Subsequently, the script will require the students to select the desired level of theory (computational method and basis set) to be used to compute the electronic absorption spectra. Finally, students will be asked to input the number of absorbing or emitting states for which the vertical excitation energy and oscillator strength require computing. In our optimal case, we have used the B3LYP/6-311+G(d,p) level of theory to compute the lowest 10 singlet excited states for closed shell molecules and lowest 10 doublet states for the radical species (NO2 and NO3). Once the level of theory is selected, the script uses the optimized geometry and normal mode displacements to build an n-point Wigner distribution to model the ground vibrational level of the ground state [46,51]. A preview of the interactive script is given in Section S3 of the Supporting Information. Newton-X also allows one to simulate electronic absorption spectra using this method. The additional aspects of our script are that it enables an interactive way of generating the inputs, i.e., that the student is asked to select the level of theory as well as other molecule-specific questions. This script is therefore expected to work alongside Newton-X to facilitate implementation of absorption spectra simulations in an undergraduate laboratory setting. As mentioned above, the number of Wigner points (n) is input by the students while running the script and can be modified at the discretion of the instructor or operator. In this project, we set the number of Wigner points to be 100. The number of Winger points to be sampled was selected so as to allow completion of the experiment within the typical timeframe of an undergraduate chemistry laboratory session. A smaller or larger number of Wigner points can be selected by the instructor based on the time and resources allocated for the experiment. Figure S1 of the Supporting Information reports a comparison between the UV absorption spectrum of O3 computed at the TD-B3LYP/6-311+G(d,p) level of theory, when sampling 50, 100 and 150 Wigner points. If the required information has been entered correctly and the initial geometries have been successfully generated, the script will output a success message and proceed to submission of jobs for computation of the vertical excitation energies. As part this project, a dedicated queueing script is coupled with the previous script to allow the students to run automatically the jobs in series starting from the first to the n-Wigner point. At each Wigner geometry, vertical excitation energies and oscillator strengths are calculated at the TD-DFT level is computed. In our present study, we use the TD-B3LYP/6-311+G(d,p) level of theory. After these are computed, the excitation energy dependent photoabsorption cross section P(E) can then obtained using Equation (1),
P ( E ) = π e 2 2 m e c ε 0 ∑ j = 1 M [ 1 N T O T ∑ N = 1 N T O T f i j N g ( E − Δ E i j N   ,   δ ) ]
where g is a Lorentzian line shape function given by Equation (2),
g ( E − Δ E i j N   ,   δ ) = h δ 2 π ( ( E − Δ E i j N ) 2 + ( δ 2 ) 2 ) − 1
fij is the oscillator strength.
An additional script is then used to obtain the vertical excitation energies and oscillator strengths from each output file. Students are then asked to use Equations (1) and (2) to compute the absolute photoabsorption cross sections of the molecules of interest. This functionality is already implemented in Newton-X, which the students may use to calculate the photoabsorption cross section, or they may simply use a spreadsheet program as part of their post-laboratory report to obtain the photoabsorption cross-sections. Interested users can contact the authors to obtain our scripts and for support.

4. Results and Discussion

This section will outline the results to be obtained from the laboratory session and the learning outcomes that are expected to benefit the students.
Solar photolysis is a significant source of removing volatile gases from the atmosphere. We therefore start by discussing the tropospheric solar spectrum to decide on the extent to which the absorption profiles of our molecules of interest absorb at and are removed by the fraction of near-UV and Visible solar wavelengths that survive through the stratosphere. Figure 1 presents the fraction of tropospheric solar flux in the wavelength range 280–2000 nm—at the surface of planet Earth. As is evident from Figure 1, no irradiance (the power per unit area per nanometer wavelength of light) is measured at wavelengths shorter than 300 nm. Ozone in our stratosphere is responsible for the lack of irradiance at such short wavelengths.
The irradiance reaches a maximum at ca. 500 nm and tails off at wavelengths longer than 1500 nm. The broad “dips” in the irradiance at ca. 950 nm, 1150 nm and 1350 nm are due to near-IR absorptions by tropospheric water vapor. The sharp “dip” at ca. 750 nm is due to near-IR absorption of O2. Absorption of IR radiation is insufficient for overcoming the bond dissociation energy of the O-H and O-O bonds in H2O and O2, respectively. Therefore, H2O and O2 are not removed from the troposphere via solar photolysis. Instead, they are likely to undergo collisional relaxation and subsequent bimolecular chemistry that promotes secondary chemistry in the atmosphere. If, however, the electronic absorption profile of a given molecule overlaps with the solar tropospheric irradiance curve, and its bond dissociation energies are less than or comparable to the excitation wavelength, it will likely undergo removal by solar photolysis. We will now access the electronic absorption spectra of several key molecules that are expected to undergo electronic absorption outside and within the tropospherically relevant solar irradiance.
Figure 2 shows the calculated electronic absorption spectra of three key tropospherically relevant molecules CO2, CH4 and H2O using the procedure described in the methodology. These molecules are classified as greenhouse gases. The experimentally measured electronic absorption spectra are displayed alongside each simulated absorption profile. The students may be provided with the experimentally measured spectra or asked to find these by consulting an online database (such as the The MPI-Mainz UV/VIS Spectral Atlas of Gaseous Molecules of Atmospheric Interest) [40]. In all cases, the calculated and experimental electronic absorption spectra are in good agreement—reinforcing the level of theory and methodology used to simulate these spectra. By close inspection of Figure 2a, it becomes clear that a second absorption feature is observed in the experimental UV spectrum at λ < 110 nm, but it is not reproduced by the simulated electronic spectrum. This is most likely due to the limited number of excited states included in the spectral simulation; computation of vertical excitation energies of additional, higher lying electronic states is expected to return the short-wavelength absorption band observed in the experiment. This was not carried out in the present work as we aim at keeping the computations consistent for all molecules and the simulation easy to complete within the time allocated for a laboratory session. The expected minor differences between the simulated and experimentally measured spectra provide the students with the vital first-hand account of the approximations inherent to quantum chemical methods that lead to such discrepancies between the simulated and experiment results.
Time permitting, the instructor may decide to explore changes in the method and/or basis set or, if the class has been exposed to the essential elements of quantum chemistry, ask students to comment on the differences between the level of theory and the agreement. Students can then gauge which methods and basis sets are the most accurate for a given problem.
In all the molecular systems in Figure 2, the electronic absorption maximum, and its long-wavelength tail, are at shorter wavelengths than the solar spectrum displayed in Figure 1. At this stage, students should be able to make the connection between the atmospheric lifetime and their lack of removal via solar photolysis, concluding that they do not absorb within the solar spectrum and therefore survive with long atmospheric lifetimes in the troposphere. Atmospheric lifetimes for CO2, CH4 and H2O are of the order of 300–1000 years, 9–12 years and a few hours to days, respectively [54,55]. The comparatively shorter lifetime of the latter is attributable to its removal by bimolecular chemistry with atmospherically oxidants (e.g., Criegee intermediates).
Figure 3 presents three further atmospherically relevant molecules NO2, NO3 and O3. Again, their simulated electronic absorption spectra are given in black, while the experimentally measured spectra are given in red. In all cases, the simulated and experimental electronic absorption spectra are in good agreement. Again, the instructor may decide to change the level of theory to show how method and basis set impacts the spectral profile. In the case studies presented in Figure 3, NO2 and NO3 absorb in the range 300–600 nm, covering the near UV and mid-visible spectrum, and at wavelengths that are well within the solar irradiance that reaches the surface of earth. The students will then be expected to recognize that both NO2 and NO3 absorb within the tropospherically relevant solar spectral range. In the case of O3, students will be expected to analyze the absorption spectrum of ozone and relate it to the anticipated stratospheric absorption of near- and mid- UV radiation. From this, they will rationalize the absence of such near-/mid- UV wavelengths in the tropospheric solar spectrum at sea level based on the absorption spectrum of O3. This latter observation should be connected to the activity of O3 in the stratosphere in blocking harming UV-radiation from penetrating into the troposphere, thus offering protection to life to the surface.
The students should also be able to appreciate the comparably shorter daytime lifetimes of NO2 and NO3 (2–11 h), [56] connecting their daytime removal to their inherently high solar photolysis rate constants, which manifest from their absorption within the tropospheric solar spectrum.
Taken together, CO2, H2O and CH4 are case studies that are designed to show the student that UV excitation in the troposphere does not contribute to their tropospheric removal, leading to elevated atmospheric lifetimes and their potent activities as greenhouse gases. In contrast, O3, NO2 and NO3 are examples which are selected to illustrate how the optical properties of certain atmospheric species can limit their lifetime due to solar photolysis or to block harmful UV-radiation from reaching the surface of earth.

5. Conclusions

In this study, we devise a simple and efficient method for simulating the electronic absorption spectra of atmospherically relevant gas molecules which may be implemented into an undergraduate teaching laboratory. The method allows for the computation of spectral profiles, which distinguishes it from the simple yet unreliable approach of calculating vertical excitation energies from optimized ground state minima, which only provide stick spectra.
Once the laboratory session is completed, the participating students should have a realization of the ways in which chemical and physical properties extend to topical issues such as climate science. In particular, the laboratory is designed to expose students to available methods for the simulation of electronic absorption spectra, as well as to provide students with the essential knowledge of how tropospheric solar photolysis leads to removal of trace gases from the atmosphere. The laboratory is especially suitable for exposing students to two under-represented (but important) fields in chemistry: computational and atmospheric chemistry. The laboratory is therefore expected to bridge the gap between undergraduate and graduate level chemistry.
The computational exercise presented in this work could be implemented in introductory or general chemistry class as well as physical chemistry laboratories to allow students to explore concepts of molecular and electronic structure through a hand-on activity. For instance, the experiment allows students to visually investigate optimal geometries of simple molecules, beyond the pen and paper approach typically offered in general chemistry lecture courses (e.g., Lewis Dot structures and fundaments of electronic structure), and provides them with a 3D visualization of molecular orbitals in simple molecules. Furthermore, the experiment may serve to reinforce or facilitate the introduction of basic concepts of ground/excited state configurations of a molecule, vibrational motion and electronic excitation, which may be particularly important for higher division classes such as physical chemistry courses. The experiment can be implemented into organic chemistry classes as it is or by adapting it to include the simulation of UV spectra of atmospherically relevant organic species (e.g., chlorofluorocarbons or hydrochlorofluorocarbons). Finally, it is important to remember that UV spectroscopy often features in both organic and physical chemistry as a means to investigate the occurrence, mechanisms and kinetics of chemical reactions, and computational modeling of ground and excited state properties may aid interpretation of mechanisms of (photo)chemical reactions when experiments are not available; introducing students to the applications of computational chemistry may be beneficial for their future studies or careers.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/educsci12040252/s1. Figure S1: Dependence of the simulated UV absorption spectra to the number of Wigner points sampled.

Author Contributions

Conceptualization, T.K. and B.M.; methodology, T.K. and B.M.; validation, E.J.S.-S., T.K. and B.M.; formal analysis, E.J.S.-S., T.K. and B.M.; investigation, E.J.S.-S., T.K. and B.M.; resources, T.K. and B.M.; data curation, E.J.S.-S.; writing—original draft preparation, E.J.S.-S., T.K. and B.M.; writing—review and editing, T.K. and B.M.; supervision, T.K. and B.M.; project administration, B.M; funding acquisition, T.K. All authors have read and agreed to the published version of the manuscript.

Funding

The study was supported by the National Science Foundation under Grant no. 2003422.

Institutional Review Board Statement

Not Applicable.

Informed Consent Statement

Not Applicable.

Data Availability Statement

The data underlying this study will be made available by reasonable request to the authors.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Sharifi, A.; Simangan, D.; Kaneko, S. Three decades of research on climate change and peace: A bibliometrics analysis. Sustain. Sci. 2021, 16, 1079–1095. [Google Scholar] [CrossRef]
  2. Hall, C.M.; Saarinen, J. 20 years of Nordic climate change crisis and tourism research: A review and future research agenda. Scand. J. Hosp. Tour. 2021, 21, 102–110. [Google Scholar] [CrossRef]
  3. Ortiz, A.M.D.; Outhwaite, C.L.; Dalin, C.; Newbold, T. A review of the interactions between biodiversity, agriculture, climate change, and international trade: Research and policy priorities. One Earth 2021, 4, 88–101. [Google Scholar] [CrossRef]
  4. Mach, K.J.; Kraan, C.M. Science–policy dimensions of research on climate change and conflict. J. Peace Res. 2020, 58, 168–176. [Google Scholar] [CrossRef]
  5. D’Eon, J.C.; Stirchak, L.T.; Brown, A.-S.; Saifuddin, Y. Project-Based Learning Experience That Uses Portable Air Sensors to Characterize Indoor and Outdoor Air Quality. J. Chem. Educ. 2021, 98, 445–453. [Google Scholar] [CrossRef]
  6. D’Eon, J.C.; Faust, J.A.; Browning, C.S.; Quinlan, K.B. Exploring the Phases of Carbon Dioxide and the Greenhouse Effect in an Introductory Chemistry Laboratory. J. Chem. Educ. 2019, 96, 329–334. [Google Scholar] [CrossRef]
  7. Wagner, E.P.; Murray, B.E. An Undergraduate Experiment to Investigate Air Pollutants Created from Lightning. J. Chem. Educ. 2021, 98, 1361–1370. [Google Scholar] [CrossRef]
  8. Roberts, J.E.; Zeng, G.; Maron, M.K.; Mach, M.; Dwebi, I.; Liu, Y. Measuring Heterogeneous Reaction Rates with ATR-FTIR Spectroscopy to Evaluate Chemical Fates in an Atmospheric Environment: A Physical Chemistry and Environmental Chemistry Laboratory Experiment. J. Chem. Educ. 2016, 93, 733–737. [Google Scholar] [CrossRef]
  9. Ballard, J.; Mooring, S.R. Cleaning Our World through Green Chemistry: Introducing High School Students to the Principles of Green Chemistry Using a Case-Based Learning Module. J. Chem. Educ. 2021, 98, 1290–1295. [Google Scholar] [CrossRef]
  10. Bopegedera, A.M.R.P.; Coughenour, C.L. An Interdisciplinary, Project-Based Inquiry into the Chemistry and Geology of Alkaline Surface Lake Waters in the General Chemistry Laboratory. J. Chem. Educ. 2021, 98, 1352–1360. [Google Scholar] [CrossRef]
  11. Darr, J.P. Combining Experiment and Theory to Probe Salt Aerosol Deliquescence. J. Chem. Educ. 2013, 90, 1392–1395. [Google Scholar] [CrossRef]
  12. Fillman, K.L.; Palkendo, J.A. Collection, Extraction, and Analysis of Lead in Atmospheric Particles. J. Chem. Educ. 2014, 91, 590–592. [Google Scholar] [CrossRef]
  13. Crosby, C.M.; Maldonado, R.A.; Hong, A.; Caylor, R.L.; Kuhn, K.L.; Wise, M.E. Investigating NOx Concentrations on an Urban University Campus Using Passive Air Samplers and UV–Vis Spectroscopy. J. Chem. Educ. 2018, 95, 2023–2027. [Google Scholar] [CrossRef]
  14. Dennington, R.; Keith, T.A.; Millam, J.M. GaussView Version 6; Semichem Inc.: Shawnee, KS, USA, 2019. [Google Scholar]
  15. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Petersson, G.A.; Nakatsuji, H.; et al. Gaussian 09, Revision A.02; Gaussian Inc.: Wallingford, CT, USA, 2009. [Google Scholar]
  16. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Petersson, G.A.; Nakatsuji, H.; et al. Gaussian 16, Revision C.01; Gaussian Inc.: Wallingford, CT, USA, 2016. [Google Scholar]
  17. Kong, J.; White, C.A.; Krylov, A.I.; Sherrill, D.; Adamson, R.D.; Furlani, T.R.; Lee, M.S.; Lee, A.M.; Gwaltney, S.R.; Pople, J.; et al. Q-Chem 2.0: A high-performance ab initio electronic structure program package. J. Comput. Chem. 2000, 21, 1532–1548. [Google Scholar] [CrossRef]
  18. Martini, S.R.; Hartzell, C.J. Integrating Computational Chemistry into a Course in Classical Thermodynamics. J. Chem. Educ. 2015, 92, 1201–1203. [Google Scholar] [CrossRef]
  19. Martin, N.H. Integration of Computational Chemistry into the Chemistry Curriculum. J. Chem. Educ. 1998, 75, 241. [Google Scholar] [CrossRef]
  20. Marzzacco, C.J.; Baum, J.C. Computational Chemistry Studies on the Carbene Hydroxymethylene. J. Chem. Educ. 2011, 88, 1667–1671. [Google Scholar] [CrossRef]
  21. Howe, J.J.; Lever, L.S.; Whisnant, D.M. Collaborative Physical Chemistry Projects Involving Computational Chemistry. J. Chem. Educ. 2000, 77, 199. [Google Scholar] [CrossRef]
  22. Pearson, J.K. Introducing the Practical Aspects of Computational Chemistry to Undergraduate Chemistry Students. J. Chem. Educ. 2007, 84, 1323. [Google Scholar] [CrossRef]
  23. Lipkowitz, K.B.; Jalaie, M.; Robertson, D.; Barth, A. Interdisciplinary Learning with Computational Chemistry: A Collaboration between Chemistry and Geology. J. Chem. Educ. 1999, 76, 684. [Google Scholar] [CrossRef]
  24. Esselman, B.J.; Hill, N.J. Integration of Computational Chemistry into the Undergraduate Organic Chemistry Laboratory Curriculum. J. Chem. Educ. 2016, 93, 932–936. [Google Scholar] [CrossRef]
  25. Snyder, H.D.; Kucukkal, T.G. Computational Chemistry Activities with Avogadro and ORCA. J. Chem. Educ. 2021, 98, 1335–1341. [Google Scholar] [CrossRef]
  26. Metz, I.K.; Bennett, J.W.; Mason, S.E. Examining the Aufbau Principle and Ionization Energies: A Computational Chemistry Exercise for the Introductory Level. J. Chem. Educ. 2021, 98, 4017–4025. [Google Scholar] [CrossRef]
  27. Kobayashi, R.; Goumans, T.P.; Carstensen, N.O.; Soini, T.M.; Marzari, N.; Timrov, I.; Poncé, S.; Linscott, E.B.; Sewell, C.J.; Talirz, L.; et al. Virtual Computational Chemistry Teaching Laboratories—Hands-On at a Distance. J. Chem. Educ. 2021, 98, 3163–3171. [Google Scholar] [CrossRef]
  28. Ji, X.; Liu, X.; Li, M.; Shao, S.; Chang, J.; Du, J.; Ma, X.; Feng, X.; Zhu, L.; Yu, X.; et al. Study of the Redox Potentials of Benzoquinone and Its Derivatives by Combining Electrochemistry and Computational Chemistry. J. Chem. Educ. 2021, 98, 3019–3025. [Google Scholar] [CrossRef]
  29. Heimann, J.E.; Williams, T.H.; Bennett, J.W.; Rosenzweig, Z. Baltimore SCIART: A Fully Virtual Undergraduate Research Experience at the Interface of Computational Chemistry and Art. J. Chem. Educ. 2021, 98, 3172–3179. [Google Scholar] [CrossRef]
  30. Chhantyal-Pun, R.; Khan, M.A.H.; Martin, R.; Zachhuber, N.; Buras, Z.J.; Percival, C.J.; Shallcross, D.E.; Orr-Ewing, A.J. Direct Kinetic and Atmospheric Modeling Studies of Criegee Intermediate Reactions with Acetone. ACS Earth Space Chem. 2019, 3, 2363–2371. [Google Scholar] [CrossRef]
  31. McCoy, J.C.; Marchetti, B.; Thodika, M.; Karsili, T.N.V. A Simple and Efficient Method for Simulating the Electronic Absorption Spectra of Criegee Intermediates: Benchmarking on CH2OO and CH3CHOO. J. Phys. Chem. A 2021, 125, 4089–4097. [Google Scholar] [CrossRef]
  32. McGillen, M.R.; Curchod, B.F.; Chhantyal-Pun, R.; Beames, J.M.; Watson, N.P.; Khan, M.A.H.; McMahon, L.; Shallcross, D.E.; Orr-Ewing, A.J. Criegee Intermediate–Alcohol Reactions, A Potential Source of Functionalized Hydroperoxides in the Atmosphere. ACS Earth Space Chem. 2017, 1, 664–672. [Google Scholar] [CrossRef]
  33. Crespo-Otero, R.; Barbatti, M. Spectrum simulation and decomposition with nuclear ensemble: Formal derivation and application to benzene, furan and 2-phenylfuran. Theor. Chem. Acc. 2012, 131, 1237. [Google Scholar] [CrossRef]
  34. Yu, X.; Hou, H.; Wang, B. Atmospheric Chemistry of Perfluoro-3-methyl-2-butanone [CF3C(O)CF(CF3)2]: Photodissociation and Reaction with OH Radicals. J. Phys. Chem. A 2018, 122, 8840–8848. [Google Scholar] [CrossRef] [PubMed]
  35. Francés-Monerris, A.; Carmona-García, J.; Acuña, A.U.; Dávalos, J.Z.; Cuevas, C.A.; Kinnison, D.E.; Francisco, J.S.; Saiz-Lopez, A.; Roca-Sanjuán, D. Photodissociation Mechanisms of Major Mercury(II) Species in the Atmospheric Chemical Cycle of Mercury. Angew. Chemie Int. Ed. 2020, 59, 7605–7610. [Google Scholar] [CrossRef] [PubMed]
  36. Prlj, A.; Ibele, L.M.; Marsili, E.; Curchod, B.F.E. On the Theoretical Determination of Photolysis Properties for Atmospheric Volatile Organic Compounds. J. Phys. Chem. Lett. 2020, 11, 5418–5425. [Google Scholar] [CrossRef]
  37. Röder, A.; de Oliveira, N.; Grollau, F.; Mestdagh, J.-M.; Gaveau, M.-A.; Briant, M. Vacuum-Ultraviolet Absorption Spectrum of 3-Methoxyacrylonitrile. J. Phys. Chem. A 2020, 124, 9470–9477. [Google Scholar] [CrossRef] [PubMed]
  38. Rodrigues, G.P.; Ventura, E.; Monte, S.A.D.; Barbatti, M. UV-photoexcitation and ultrafast dynamics of HCFC-132b (CF2ClCH2Cl). J. Comput. Chem. 2016, 37, 675–683. [Google Scholar] [CrossRef] [Green Version]
  39. Saiz-Lopez, A.; Sitkiewicz, S.P.; Roca-Sanjuán, D.; Oliva-Enrich, J.M.; Dávalos, J.Z.; Notario, R.; Jiskra, M.; Xu, Y.; Wang, F.; Thackray, C.P.; et al. Photoreduction of gaseous oxidized mercury changes global atmospheric mercury speciation, transport and deposition. Nat. Commun. 2018, 9, 4796. [Google Scholar] [CrossRef] [Green Version]
  40. Keller-Rudek, H.; Moortgat, G.K.; Sander, R.; Sörensen, R. The MPI-Mainz UV/VIS Spectral Atlas of Gaseous Molecules of Atmospheric Interest. Earth Syst. Sci. Data 2013, 5, 365–373. [Google Scholar] [CrossRef] [Green Version]
  41. Nguyen, T.L.; Peeters, J.; Vereecken, L. Theoretical study of the gas-phase ozonolysis of β-pinene (C10H16). Phys. Chem. Chem. Phys. 2009, 11, 5643–5656. [Google Scholar] [CrossRef]
  42. Vansco, M.; Zuraski, K.; Winiberg, F.; Au, K.; Trongsiriwat, N.; Walsh, P.; Osborn, D.; Percival, C.; Klippenstein, S.; Taatjes, C.; et al. Functionalized Hydroperoxide Formation from the Reaction of Methacrolein-Oxide, an Isoprene-Derived Criegee Intermediate, with Formic Acid: Experiment and Theory. Molecules 2021, 26, 3058. [Google Scholar] [CrossRef]
  43. Kuwata, K.T.; Kujala, B.J.; Morrow, Z.W.; Tonc, E. Quantum chemical and RRKM/master equation studies of cyclopropene ozonolysis. Comput. Theor. Chem. 2011, 965, 305–312. [Google Scholar] [CrossRef]
  44. Vansco, M.F.; Marchetti, B.; Lester, M.I. Electronic spectroscopy of methyl vinyl ketone oxide: A four-carbon unsaturated Criegee intermediate from isoprene ozonolysis. J. Chem. Phys. 2018, 149, 244309. [Google Scholar] [CrossRef] [PubMed]
  45. Lightfoot, P.; Cox, R.; Crowley, J.; Destriau, M.; Hayman, G.; Jenkin, M.; Moortgat, G.; Zabel, F. Organic peroxy radicals: Kinetics, spectroscopy and tropospheric chemistry. Atmospheric Environ. Part A Gen. Top. 1992, 26, 1805–1961. [Google Scholar] [CrossRef]
  46. Barbatti, M.; Ruckenbauer, M.; Plasser, F.; Pittner, J.; Granucci, G.; Persico, M.; Lischka, H. Newton-X: A surface-hopping program for nonadiabatic molecular dynamics. Wiley Interdiscip. Rev. Comput. Mol. Sci. 2013, 4, 26–33. [Google Scholar] [CrossRef]
  47. Bode, B.; Gordon, M.S. Macmolplt: A graphical user interface for GAMESS. J. Mol. Graph. Model. 1998, 16, 133–138. [Google Scholar] [CrossRef]
  48. Hanwell, M.D.; Curtis, D.E.; Lonie, D.C.; Vandermeersch, T.; Zurek, E.; Hutchison, G.R. Avogadro: An advanced semantic chemical editor, visualization, and analysis platform. J. Cheminform. 2012, 4, 17. [Google Scholar] [CrossRef] [Green Version]
  49. Parrish, R.M.; Burns, L.A.; Smith, D.G.A.; Simmonett, A.C.; DePrince, A.E.; Hohenstein, E.G.; Bozkaya, U.; Sokolov, A.; Di Remigio, R.; Richard, R.; et al. Psi4 1.1: An Open-Source Electronic Structure Program Emphasizing Automation, Advanced Libraries, and Interoperability. J. Chem. Theory Comput. 2017, 13, 3185–3197. [Google Scholar] [CrossRef]
  50. Neese, F.; Wennmohs, F.; Becker, U.; Riplinger, C. The ORCA quantum chemistry program package. J. Chem. Phys. 2020, 152, 224108. [Google Scholar] [CrossRef]
  51. Barbatti, M.; Granucci, G.; Persico, M.; Ruckenbauer, M.; Vazdar, M.; Eckert-Maksić, M.; Lischka, H. The on-the-fly surface-hopping program system Newton-X: Application to ab initio simulation of the nonadiabatic photodynamics of benchmark systems. J. Photochem. Photobiol. A Chem. 2007, 190, 228–240. [Google Scholar] [CrossRef]
  52. Gueymard, C.A. The sun’s total and spectral irradiance for solar energy applications and solar radiation models. Sol. Energy 2004, 76, 423–453. [Google Scholar] [CrossRef]
  53. Gueymard, C.; Myers, D.; Emery, K. Proposed reference irradiance spectra for solar energy systems testing. Sol. Energy 2002, 73, 443–467. [Google Scholar] [CrossRef]
  54. Saunois, M.; Stavert, A.R.; Poulter, B.; Bousquet, P.; Canadell, J.G.; Jackson, R.B.; Raymond, P.A.; Dlugokencky, E.J.; Houweling, S.; Patra, P.K.; et al. The Global Methane Budget 2000–2017. Earth Syst. Sci. Data 2020, 12, 1561–1623. [Google Scholar] [CrossRef]
  55. Hodnebrog, Ø.; Myhre, G.; Samset, B.H.; Alterskjær, K.; Andrews, T.; Boucher, O.; Faluvegi, G.; Fläschner, D.; Forster, P.M.; Kasoar, M.; et al. Water vapour adjustments and responses differ between climate drivers. Atmos. Chem. Phys. 2019, 19, 12887–12899. [Google Scholar] [CrossRef] [Green Version]
  56. Kenagy, H.S.; Sparks, T.L.; Ebben, C.J.; Wooldrige, P.J.; Lopez-Hilfiker, F.D.; Lee, B.H.; Thornton, J.A.; McDuffie, E.E.; Fibiger, D.L.; Brown, S.S.; et al. NOx Lifetime and NOy Partitioning During WINTER. J. Geophys. Res. Atmos. 2018, 123, 9813–9827. [Google Scholar] [CrossRef]
Education 12 00252 g001 550

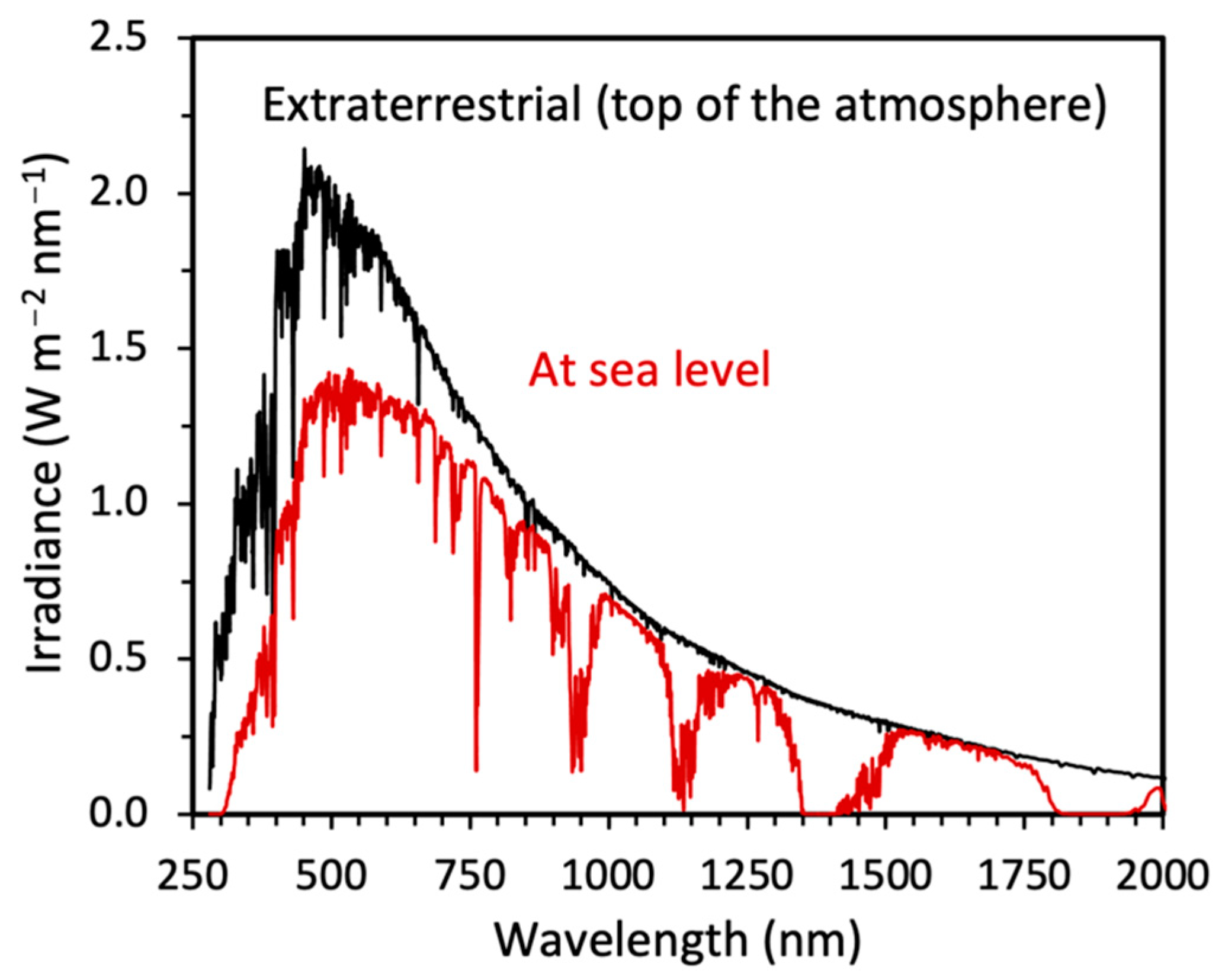

Figure 1. The solar actinic flux, [52,53] showing the solar flux of a given wavelength present in the troposphere at sea level (red solid line).
Figure 1. The solar actinic flux, [52,53] showing the solar flux of a given wavelength present in the troposphere at sea level (red solid line).
Education 12 00252 g001
Education 12 00252 g002 550

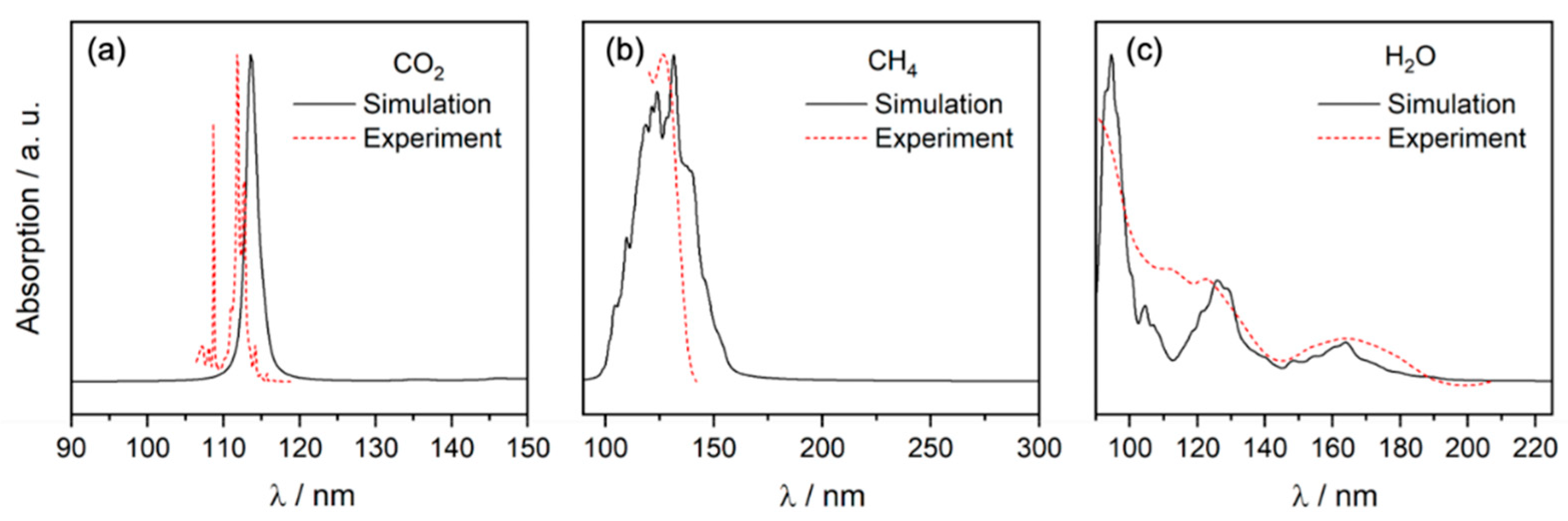

Figure 2. Simulated (black) and experimental (red) electronic absorption spectra of (a) CO2, (b) CH4 and (c) H2O.
Figure 2. Simulated (black) and experimental (red) electronic absorption spectra of (a) CO2, (b) CH4 and (c) H2O.
Education 12 00252 g002
Education 12 00252 g003 550

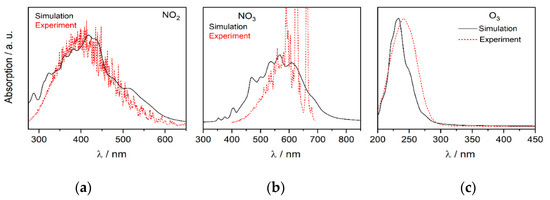

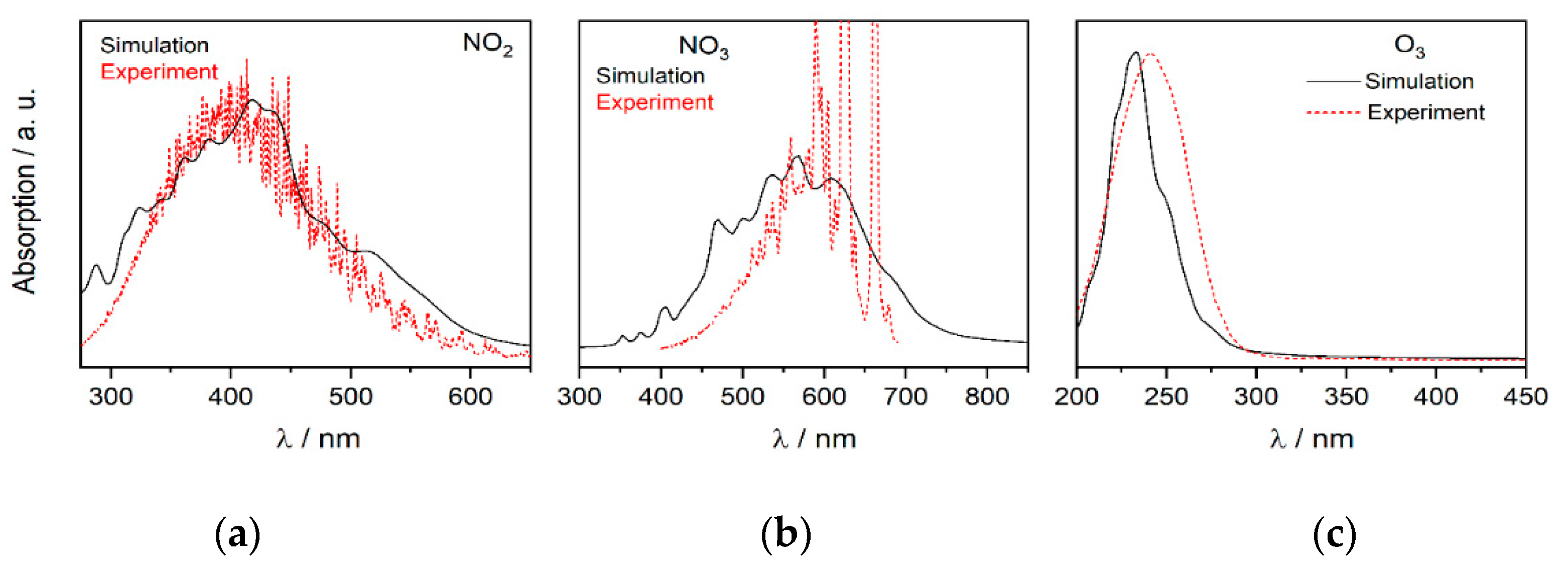

Figure 3. Simulated (black) and experimental (red) electronic absorption spectra of (a) NO2, (b) NO3 and (c) O3.
