Diffusion Efficiency of Innovation among EU Member States: A Data Envelopment Analysis
Faculty of Economics and Administration, University of Pardubice, Studentska 85, Pardubice 53009, Czech Republic
Author to whom correspondence should be addressed.
Received: 18 February 2019 / Accepted: 24 April 2019 / Published: 30 April 2019


Innovation, in contemporary times, has been established as the lynchpin of growth and national competitive advantage among countries. Supranational and national resources have jointly combined to create sound innovation strategies and diffusion policies for member states in recent times. However, there is the question of whether increased innovation translates to effective diffusion of innovation. With this in mind, the present research aims to comparatively assess and evaluate the efficiency of diffusion of innovation of European Union member states in reference to their European Innovation Scoreboard (EIS) rankings. Using the Charnes, Cooper and Rhodes (CCR) model of Data Envelopment Analysis (DEA), the present research found contrasting diffusion efficiency scores of member states with different innovation performances as most innovative member states had much lower efficiency scores compared to some supposedly weak innovating member states. We also computed the input-redundancy and output-deficiency of member states, provided recommendations for efficient input-output combinations based on findings of respective member states and innovation groups, and finally, outlined directions for future studies.
efficiency; diffusion; innovation; European Union; DEA analysis
JEL Classification:
011; 032; 038

1. Introduction

Innovation creation has been deservedly lauded as the driver of economic growth, and has generated substantial interest in policy creation in most countries. Baden Wurttemberg in Germany, for example, recognizes innovation as the lynchpin of their regional growth, as stated on their website and actively rewards the more innovative with even more resources. The European Union (EU), having recognized regional differences in endowments used for innovation, rightly adopted the Territorial Innovation model of regional growth and innovation. This effort refutes a superimposed model of regional development and allows regions the flexibility of operating with their available resources effectively permitting variations in strategies for innovation generation. The Cohesion policy document (2014–2020) further endorsed this model to recognize geographical variations in the creation of innovation by firms and regions to the reception of many scholars (Capello 2012). Even in light of the flexibility in innovation generation of member states, there seemed to be lagging productivity issues potentially caused by input insufficiency or ineffective diffusion of innovation to recoup the capital invested. Andrews et al. (2016) revealed that over the past decade the productivity gap between frontier and laggard firms has widened. One of the main reasons being the persistently insufficient diffusion of technologies and innovations across firms and countries, both between and within sectors. Furthermore, even though innovation has driven the European Union economy in the years prior, it has been reported that EU companies reportedly spend less on innovation than their counterparts in the United States and China (European Commission 2018). Venture capital also remains underdeveloped as well, thereby driving most companies to ecosystems where with quicker growth opportunities. Even though Public funding has been set to be increased to 3% of Gross Domestic product (GDP) by 2020, this has also been impeded by the erratic foreign direct-investment (FDI) performance from 2007. In spite of this relative scarcity, we are moved to question whether the current venture capital and public spending on innovation are even efficiently used to diffuse innovation created that is desperately sought to be improved in the Union.
Comparatively little research has been conducted on the diffusion of innovation of member states within the European Union. Zanello, Fu, Mohnen and Ventresca (Zanello et al. 2016) researched on the diffusion of innovation in the private sectors (industry and services) in low-income countries (LICs). They found that innovation in LICs is about creation or adoption of new ideas and technologies; but the capacity for innovation is embodied by dynamics between socio-economic, geographical, political and legal subsystems. Carayannis, Grigoroudis, and Goletsis (Carayannis et al. 2015) came closest by applying a multi-stage DEA efficiency analysis to assess innovation generation of 23 selected European regions focusing on sub-processes and hierarchical modelling at the Nomenclature of Territorial Units for Statistics (NUTS) II level. Results showed significant differences among regions and countries used. Relying on the assertion of European Union that the high innovative countries perform well in diffusion, the territorial influences on innovation creation and having observed little research in the direction of efficiency of innovation in the European Union and the relatively low resource inputs available, the aim of our research is to comparatively assess the efficiency of diffusing innovation created in the twenty-eight (28) European Union member states with key reference to their innovation ranking according to European Commission (European Commission 2018). We are of the opinion that the more a country pursues innovation generation, the higher the tendency to innovate but efficiency of diffusing innovation can differ irrespective of the innovation ranking. Results of our research revealed efficiency of diffusing innovation was independent of national innovation scores or ranking. This was all summed up by Sweden, the most innovative EU member state, recording the lowest efficiency score among all the member states considered. Recommended input and output adjustments were analyzed and reported for all member states concerned to restructure their diffusion scope and appropriately reap their economic potential.
The remainder of the paper is as follows: Section 2 will review studies undertaken on innovation diffusion and the supportive requirements, the methodology detailing data sources, variable selection, and research areas, including the CCR (the model proposed by Charnes, Cooper, and Rhodes in 1978) will be explained in Section 3. The fourth section will discuss and present results of the research, including innovation diffusion comparison, the portion occupied by countries on the efficiency pie based on their innovation scores and the analysis of redundancy and deficiency values of member states. The final section will present the conclusions of this paper and provides related recommendations.

2. Literature Review

Territorial Innovation Systems (TIS) was revealed in the early 1980’s as an effort to comprehend evolving geographies of economic growth (Crevoisier 2014). This concept merges various theories such as industrial districts, milieu innovators, new industrial spaces and local production systems. TIS as a model examines the interactions between organizations in a spatial context and their relations with other economic and social contexts with a specific focus on innovation centric activities and specificities of regions. Under this perspective, regions can develop their own mode of innovation according to the presence of local conditions effectively permitting the varying phases of the innovation process to occur and seamlessly move from one process to the other (Capello 2012). National institutional framework is argued to have a strong impact on the development of regional innovation system such that entrepreneurial regional innovation system (ERIS) and Institutional regional innovation system (IRIS) are more common in liberal and coordinated markets respectively (Asheim et al. 2016); however, there was slight opposition from Crescenzi and Rodriguez-Pose (Crescenzi and Rodriguez-Pose 2012) who conducted an extensive theoretical analysis and eventually concluded that there is no need to classify approaches according to National or even continental difference, but rather, key focus should be on sustainable models of local conditions that maximize potential returns of regional innovation policies.
The EU official document titled “Regional Policy Contributing to Smart Growth in Europe” (European Commission 2010) was the first official move in this direction which called for the need to identify sectors and technological domains where regional policies should be tailored to promote local innovation processes in their specialization fields. This policy direction supported the policy report presented by “knowledge for Growth” expert team (Camagni and Capello 2013). Following the TIS concept, Cooke, Uranga and Exteberria (Cooke et al. 1998) attempted to link new regional work to evolutionary economics arguing for the development of evolutionary regional science. Developing an analytical framework, they assessed the financial mechanisms, knowledge infrastructure and even cultural dispositions concluding that most regions do not yet have the necessary institutional and organizational characteristics to fully justify the status of Regional Systems of Innovation (RSI), but by means of evolutionary processes many may already possess key elements for that status. Camagni and Capello (Camagni and Capello 2013), following up on Europe 2020 report, extensively discussed and proposed the adoption of a smart innovation policy that goes a step further, taking into consideration the research and development (R&D) element whilst also adapting the two concepts of “embeddedness” and connectedness (Camagni and Capello 2013). They furthered on to conclude there is the need to adopt a modern version of the smart specialization to develop single innovation policy for each region according to their specialization is also critical. The specificities of single regions are fundamental for the implementation of projects and also enables identification of common approaches for similar types of regions in order to eschew misallocation of public resources and unlikely local strategies. Ponsiglione, Quinto and Zollo (Ponsiglione et al. 2018) also found that the exploration capacity, the propensity to cooperation, and the embedded competencies of actors in a region could also be key as key aspects in affecting the regional innovation performance. In spite of this essence of role of actors, Alkemade, Kleinschmidt, Hekkert (Alkemade et al. 2007) recommended asserted that, in energy creation, policymakers should formulate energy policies on system level and not on specific actors or groups of actors alone as concurred by Foxon and Pearson (Foxon and Pearson 2008). Doloreux (Doloreux 2002) also reviewed literature on regional System of Innovation (RSI) and concurred a typology that blocks Regional System of Innovation. He outlined the “organizational thinness of RSI”, i.e., the result of a region presenting a lack of relevant actors to enable collective learning, “fragmented RSI”, i.e., a region exhibiting a lack of regional cooperation and mutual trust among actors and “Lock-in RSI”, i.e., the result of an old industrial region characterized by industry in outdated technologies—as key factors that blocks the realization of Regional System of Innovation (RSI). Further research has also shown that the exploration capacity, the propensity to cooperation, and the endowed competencies of regional actors could be considered as key aspects in affecting the regional innovation performance hence policy-makers should make efforts to incentivize investments in research and development activities both at the public and private levels, support public-private partnerships, enhance national and regional university systems and also increase the number of researchers employed both in the public and private sectors (Ponsiglione et al. 2018). They could also strategically position intermediaries in the innovation process to seamlessly facilitate knowledge transfer to adequately generate innovation (Rippa et al. 2016) to also assist with efficient dissemination. In effect, these innovation policies in Europe should be even more centred on Small and Medium Scale enterprises as it form due to the sensitivity of firm level innovation determinants (Sternberg and Arndt 2001).
European Commission’s Cohesion policy (2014–2020), played a pivotal role in re-channeling the focus of tendencies of innovation of regions from a National-centric perspective to a region-centric one effectively admonishing regions to innovate from bottom-up unlike the traditional top-down approach previously adopted (Crescenzi and Rodriguez-Pose 2012). According to Crescenzi and Rodriguez-Pose (Crescenzi and Rodriguez-Pose 2012), the local resources are hinged on and recognized as the engine of regional economic performance such that quantitatively, they operate as inputs in the Knowledge Production Function for idea generation even as qualitatively, such innovation activities are handled in various contexts with roles played by private firms, research centers and universities. In their opinion, impact of innovative activities is dependent on two main factors: systems of innovation and social filter conditions and geography. Deeper insight into Rogers (Rogers 2003) model of innovation diffusion reveals four prime factors that determine diffusion of innovations. He perceived that innovation has to be viewed as new by the adopter or user, and must occur in the presence of effective communication channels, recognition of time constraint and the social system that adopts it. He conceptualized the process into five steps in this process: (1) knowledge, (2) persuasion, (3) decision, (4) implementation, and (5) confirmation as visually shown in Figure 1 below.
Tidd (Tidd 2010) opined that, practically, the adoption of innovation is strongly determined by supply-side factors, e.g., the availability of information, relative advantage of the innovation, barriers to adoption and feedback between suppliers and consumers—and demand-side factors—adopters with different perceptions, imitation of early adopters. Hence, the absorptive capacity of regions essentially determined the diffusion model opted for. Briglauer (Briglauer 2014) also found that even in broadband service provision, substantial networks effects deeply underly the success of adoption. Aside the factor of absorptive capacity and market significance (Caiazza 2016), several researchers also pointed out various dimensions of factors that could facilitate or derail the rails of efficient innovation diffusion in countries. Technological, social and learning conditions were also found to be an impeding factor MacVaugh and Schiavone (MacVaugh and Schiavone 2010). Entrepreneurship policies were also pointed out as variables that expedited or receded innovation. Hall, Matos and Sheehan (Hall et al. 2012) assessed the participation of personnel as entrepreneurs in a research. They found that weak institutions rather assisted undesirable outcomes even more when entrepreneurial policies were solely based on economic indicators. Allard, Martinez and Williams (Allard et al. 2012) also added that pro-business market reforms had a lasting effect that superseded political instability effects in developing countries with declining science and technology performance. Cultural and linguistic barriers are also thought to affect the effective flow of innovation such that as well as physical and technological proximity, sharing a common language does facilitate the ease of information flow and even creation of trust (Caiazza 2016). Cultural barriers are usually tied to poorly organize inter-firm relationships, business climate, entrepreneurial behavior and risk-taking attitude.
Having known the territorial influence on innovation generation and limitations to innovation diffusion in mind, some researchers have attempted to comparatively compute the innovation performance of countries and regions to reveal the innovation differences. Most notable of them is (Carayannis et al. 2015) who used a multi-stage and multi-level DEA to compute and compare innovation performance of 23 selected countries from around the world. Afzal (Afzal 2014) also selected 20 countries around the world to assess their national innovation system using DEA bootstrap and a Tobit regression model. Based on his findings, he further classified countries that were efficient at both constant and variable returns to scale as innovation leaders. We observed that despite the territorial differences in innovation generation, little theoretical and practical focus has been given to the efficiency of diffusion of this generated innovation, even in the wake of these geographical variations in innovation generation and the astronomical funding program, ‘Horizon 2020’, set up for European Union firms. Hence, the novelty of the present research will be to reveal information regarding the member states that are efficiently utilizing funding and framework structures set up for diffusion of innovation and to fill in the literature on efficiency of diffusion of innovation of EU member states. Based on the aforementioned assumption, the literature affirming that proper structures and adequate finance results in higher innovation (Franco and de Oliveira 2017; Akcali and Sismanoglu 2015), the territorial impact on regions’ innovation sources (Crescenzi and Rodriguez-Pose 2012), we set two research questions:
  • Is the diffusion efficiency of innovation determined by the innovation excellence or innovation deficiency of member states? If not, which member state reported highest and/or lowest efficiency?
  • To what degree were inputs (outputs) inefficiently used? Which inputs were most inefficiently utilized? And how should inputs (and outputs) be juggled to produce an efficiency in innovation diffusion in member states?

3. Data and Methodology

3.1. Data Resources and Research Area

Data was extracted from the European Innovation Scoreboard (EIS) collated in 2018 via the website of the European Commission. This is a repository of information for the innovative capacities and rankings of all European Union member states. The present research is exploratory and quantitative in nature and also employs purposive sampling technique. Following this sampling technique, we selected the twenty-eight member states in the European Union as the unit of analysis because of the intent to comparatively assess the efficiency of diffusion of innovation of all European Union member states. We exclusively focused on EU member states due to their growing public investment and relatively poor private investment, venture capital investments compared with United States and China. However, even though United Kingdom are currently negotiating to leave the Union, we still decided to include them as part of the analysis since the process had not formally been concluded yet.
In Table 1 below, the member states are ranked and grouped according to their relative score with the EU average. The first group of Innovation Leaders includes Member States whose performance is more than 20% above the EU average namely: Denmark, Finland, Luxembourg, the Netherlands, Sweden, and the United Kingdom. The second group of strong innovators are those that performed close to or higher above the EU average but not more than 20% of the average. The third group of Moderate Innovators includes Member States whose performance is between 50% and 90% of the EU average and the fourth, the Modest Innovators, includes Member States that show a performance level below 50% of the EU average.
In Table 2, the input and output variables selected for the present research are presented. These variables selected encompass the category of finance, human resource, creativity and non-financial innovation structures as used by (Rickne 2001; Moon and Lee 2005; Afzal 2014; Carayannis et al. 2015) and also published by European Commission (2018) in the latest European Innovation Scoreboard. Below is a list of inputs and output variables used for computation.
To assess the potential inflation of the variance in the event of multicollinearity, variance inflation factor (VIF) was employed to test the multicollinearity. According to Hair, Sarstedt, Ringle and Mena (Hair et al. 2012) the variance inflation factor (VIF) exhibits a high collinearity when the collinearity rate exceeds 5.0. Mathematically, it can be shown that the variance of the estimated coefficient bk is:
Var ( b k ) min = a 2 ni = 1 ( x ik x   k ¯ ) 2
Results of the Variance inflation factors (VIF’s) in Table 3 below showed that the inputs and the output variables had no strong multicollinearity issues according to (Hair et al. 2012).

3.2. DEA Model: CCR

Created by Charnes in 1978, CCR model is regarded as the most commonly used DEA model. This model analyses a DMU’s efficiency on the premise of a constant or variable return to scale (CRS) using the input or output orientation. When using the CCR model at constant returns to scale, a DMU is regarded as inefficient if the technical efficiency value is less than 1, which means that the production value is below the production–possibility frontier; on the other hand, the operation of a DMU is efficient if the technical efficiency value is equal to 1. This will enable further analyses of the inefficient units to propose improvement and suggestions by circulating the redundancy and the deficiency value. The objective function as used by (Li et al. 2019) is stated as follows:
h j = r = 1 s u r y r j i = 1 m n v r x i j , j = 1 , , n .
where hj denotes the technical efficiency of DMU j; xij and yrj represent the values of input i and output r for DMU j, respectively; and vi and ur are weight coefficients that measure input i and output r, respectively. For the CCR model, the goal is to maximize the efficiency value hj of the above DMU. Taking the efficiency value of DMU j as the target, we use the efficiency value of all DMUs as constraints. As stated by Charnes Cooper and Rhodes (1978) the CCR (C2R) model is constructed as follows:
max h j 0 = r = 1 s u r y r j 0 r = 1 m v i x i j
h j = r = 1 s u r y r j i = 1 m v i x i j 1
u 0 , v 0 ; j = 1 , , n ; r = 1 , , s ; i = 1 , , m
Slack variable, S+, and the residual variable, S, are further introduced into the model, which change the inequality constraints into the equality constraints. In 1952, Charnes, Cooper, and Mellon successfully proposed a small “non-Archimedean” quantity, making calculations faster and more convenient, which is why DEA can be widely used in various fields. Similarly, Charnes established a CCR model with the non-Archimedean quantity, shown below
{ min [ θ ε ( j = 1 m S + j = 1 m S + } = v d ( ) j = 1 m x j λ j + S = θ x 0 j = 1 m y j λ j + S = y 0
λ j 0 , S + 0 , S 0 , j = 1 , , n
where θ denotes the radial value or distance from the production–possibility frontier in this equation, and S+, S represent the redundancy value and the deficiency value, respectively. The classification criteria are such that (θ represents the optimal solution):
The DMU j is DEA-inefficient when θ < 1;
The DMU j is DEA-efficient when θ = 1 and S+ + S = 0;
The DMU j is weakly DEA-inefficient when θ = 1 and S+ + S > 0.

4. Results and Discussion

To compute the efficiency of diffusion of innovation, we opted for employment of knowledge intensive service and sales of developed or newly produced products as the output variables. The input variables of new doctorate graduates, lifelong learning, opportunity-driven entrepreneurship, R&D expenditure in the public sector, venture capital investments, R&D expenditure in the business sector and non-R&D innovation expenditure were also selected.
From Table 4, the existence of a wide gap in resource availability for the considered member states can easily be observed. The degree of deviation of new doctorate graduates per thousands of the population was reported as 63.25 persons per thousand population and lifelong learning figure of 79 persons from the mean. None of the figures for standard deviation reported was less than one third of the reported arithmetic mean among all inputs and outputs. This could be inferred as a large gap in availability of resources of innovation with respect to the measures of diffusion. However, Netherland, an innovation leader and Slovenia, a strong innovator, both recorded inputs below the arithmetic mean but was still relatively efficient compared to other member states hence, resource availability could not conveniently be held as a reason for lower efficiency.
From Figure 2 below, it can be observed that almost half (50%) of all member states considered were relatively efficient and vice-versa. We named member states were named according to their official two-letter international abbreviations as used by the European Commission. Amongst these countries that were found to be significant, two (2) were innovation leaders, one (1) strong innovator, eight moderate innovators and two modest innovators. This result reveals a mix of countries with variations in results in spite of the level of innovation scores and ranking on the European Innovation Scoreboard published by European Commission (2018). This effectively implies that firms’ efficiency of diffusing innovation generated has no bearing with the innovation generation status of the member state or even the economic status of countries concerned but purely connected with efficient combinations of input resources. These findings answer the first research question and support the hypothesis that firm’s efficiency of innovation diffusion does not depend on excellence or deficiency of innovation performance of member states and largely corroborates findings of (Carayannis et al. 2015) at their first level analysis. At the first level, they employed human capital, financial support to knowledge processes and non- financial research and development support whilst mapping it to product or process innovation, marketing or organizational innovation, employment and sales of new to market or new to firm products. They found 19 out of 23 countries assessed to be efficient including Netherland, Czech Republic, Hungary and Bulgaria. Having found this, it is worthy to note that, in regional innovation assessment, certain complexities, ambiguities in regional innovation analysis may be lessened by bringing to the fore analytical fields that portrays insights of regional science (Cooke et al. 1998). Hence, to capture the regional drivers of regional differences in efficiency and performance and arrest the trends, is essential to build targeted normative strategies, well beyond what is proposed by the smart specialization model that has recently been adopted (Capello 2012). This is because geography of innovation is much more complex than a simple core-periphery model; the capacity to pass progress from knowledge to innovation as well as the specific innovation patterns is different among regions, (Camagni and Capello 2013).
As part of the first research question, efficient and inefficient member states and their proposed input (output) combination can be found in Table A1 and Table A2 (Appendix A). To further interpret, it could be seen that among the innovation leaders, only Luxembourg and Netherlands were found to be relatively efficient in their usage of inputs, i.e., human resources, finance, creativity and innovation structures. Luxembourg has made great strides in research and development policies lately which could be alluded as a significant contributor to this efficiency score. According to the European Commission (2018), since 2000, there has been a five-fold increase in public sector research and development intensity from 0.12% to 0.59% in 2014 indicating a strong resolve to achieve innovation targets. They also backed this up with solid and newly structured research and investment strategy by concentrating on their most important research and investment actors. However, United Kingdom, Denmark, Finland and Sweden, in descending order, were found to be rather relatively inefficient. Sweden was, in relative terms, was revealed as the least efficient member state among all the 28-member states considered even as it is currently the most innovative European Union member state. These findings were largely in line with the findings of (Guan and Zuo 2014). To assess the innovative performance they used knowledge generated, general expenditure on research and development and patents as inputs and scientific output as the output of their innovation of 37 countries around the world. Although their results did not adequately measure the dissemination efficiency of innovation, results revealed at the constant returns to scale (CRS) showed all above-mentioned innovation leaders to be inefficient in innovation creation; even though results of variable returns to scale was largely the same. These contrasting results could be a reason of different innovation measurement variables used in the analysis as this could portray some countries as stronger and more efficient than others if it is based on their innovative strength. It must also be noted that territorial nature of innovation structures within the European Union largely put some member states at a disadvantage especially when assessing their inputs used. Since DEA analysis also computes efficiency based on relative efficiency scores, the results could also be affected by several other countries like Turkey, Australia, Canada, Argentina and the like that were also analysed by the author aside the EU member states assessed. However, to improve its sales and employment efficiency, the model shows that Sweden, the most innovative member state in the European Union operated with much more inputs than it would conveniently need and recommends that a reduction of human resource, financial and non-financial inputs already expended towards innovation diffusion to generate efficient employment and sales output. Creativity exploited from human capital should be adequately educated and supported in their quest for entrepreneurship to reduce set-up failures, increase their success rate whilst assigning them selectively defined and controlled roles in the diffusion process. Even as the public incentives may be imperative for cooperation, The CARIS model, from agent-based modelling can be lent from the work of (Ponsiglione et al. 2018) to expertly create sound policies to manage the actors in play, their cooperation and trust levels to even reap more results in terms of creativity via learning and communication.
Regarding the strong innovators, only Ireland was found to be the relatively efficient member state in this rank. Over time, Ireland has gradually strengthened the performance of innovators and employment variables. The provisional 2016 data has also shown a drastic improvement in sales of new products France recorded a nearly efficient score of 0.99. Lately in Ireland, range of policy responses have been implemented to accommodate SME’s inability to absorb innovations to raise the number of local SME’s involved in research and development activities whilst actively eliminating duplicate funding for research. Even though Slovenia and Germany were relatively inefficient, ranking 17th and 25th respectively, Belgium’s efficiency was substantially lower, only next to Sweden. These results also corroborate the research of (Wang and Huang 2007; Guan and Zuo 2014; Carayannis et al. 2015). According the model, input redundancy is in excess, and needs to be largely downsized in line with results from Table 5, to reach relative maximum efficiency.
Most member states fell within the range of moderate innovators according to European Commission (2018). Among the fourteen member states recognized as such, a total of seven nations, namely, Czech Republic, Greece, Hungary, Latvia, Malta, Poland, Slovakia and Spain, were relatively efficient in the analysis. Comparatively, Croatia, Cyprus, Italy, Estonia, Lithuania and Portugal were singled out as inefficient in descending order. This research corroborates the findings of (Sharma and Thomas 2008) when they assessed the research and development efficiency of 22 nations including Russia, Japan and even Australia using variable returns to scale (VRS). According to the model, Croatia is recommended to possibly reduce human resources, financial, creative and innovation framework inputs to attain an efficient employment and even higher sales of new or developed goods. This implies an over-allocation of inputs which could have been employed in other productive ventures to genuinely utilize their output potential. An equally viable recommendation was also proposed by the model for Cyprus, Portugal, Estonia and Italy. This seems to conclude that in most cases member states with lower efficiencies have too much input allocated for outputs and could achieve such efficiency with even lower inputs to free up the unused potential to be diverted to other output orientations in the economy. Bulgaria and Romania were the only modest innovators and were 24th and 27th respectively on the ranking of efficiencies as also found by (Carayannis et al. 2015). Contrary to their performance on the EU innovation ranking, which ranks them the lowest on the EIS ratings, their diffusion efficiency relative to other member states was efficient. Although EU reports confirms that innovative capacity of firms is a significant factor in the diffusion capacity and performance of member states, this finding reveals the possibility of occurrence of “too much input for too little output” compared with highly innovative member states in light of their input invested and output accrued. This finding further reveals viable potential for new venture creation and resource investments amongst some innovative leaders and strong innovators.
Looking at the efficiency performance scores of the moderate and modest innovators, a leaf could be taken from the research of Ponsiglione, Ivana, and Giuseppe (Ponsiglione et al. 2018) in arresting this canker. Assessing leading and lagging European regions, they inferred that lagging regions lacked solid interactions, network coordination, competences and skills as well. However, it is imperative to note that cooperation cannot be imposed from the top, but rather emerges from the interactions between the actors in the eco-system. An approach which has been sensitively outlined by Morieux and Tollman (Morieux and Tollman 2014). Furthermore, lagging regions would also do well adopting the proposed CARIS structure by Ponsiglione et al. (2018), as it enables the fine-tuning of parameters that regulate the local behaviors of the actors and the creation of partnerships among them, in order to evaluate ex-ante the impact of policies on the emergence of extended forms of cooperation. Intermediaries of the innovation process, with consideration to the firm size, should be strategically positioned to expedite innovation processes and to close the gap in inefficiencies of innovation dissemination as concurred by Rippa et al. (2016). This is adjudged to enable development of effective innovation policies able to foster the growth and innovativeness of all European regions, especially the lagging ones.
Table A3 shows changes in efficiency of innovation diffusion scores and rankings of member states in 2017 relative to 2010. This comparison revealed a vast improvement in the ranking of some countries like Netherland when compared with diffusion efficiency scores of 2010. It is also worth mentioning that despite the differences in efficiency among member states, much blame cannot be put at their doorstep. This is because even though inputs selected for the analysis were predominantly fundamental inputs that every member state needed in their quest for creation and efficiently diffusing innovation, the Regional System of Innovation of the European Union allows differentiated strategies by firms to create their own innovation according to their regional resources thereby creating different styles, different strengths and weaknesses for these regions. Hence, the variables used may be considered as strengths for some but weaknesses for others. Furthermore, according to the European Commission (2018), venture capital has remained sorely under-developed in the Union such that the Union still lags behind in the venture capital queue compared with other continents, This has contributed to the valuation of entire start-up firms in the Union as $1billion compared with $109 billion dollars in the United States and $59 in China. Business research and development expenditure is also at 1.3% compared with 2% in the United States and 3.3% in China. Even in 2006, a European Commission report captioned ‘How is the internal market integration performing?’ revealed a poor inward foreign direct investment (FDI) flow into the service sector particularly even as it formed the most part of EU’s. It was tipped to improve however the results have not been quite stable as can be seen from Figure 3. This can be interpreted as a poor acceptance of mergers and acquisitions, or even as unattractive for such undertakings, and could really be useful especially in light of the consistently low venture capital figures.
Figure 4 gives us a visual view of the member states’ innovative classifications and their input-modified efficiency performance relative to one another. Results revealed in Table 5 of the CCR DEA analysis showed the redundant inputs and deficient outputs of member states considered. This was calculated by computing the difference between the actual and recommended outputs revealed by the DEA results. From the variable of NDG, Sweden, an innovation leader, had the worst redundancy rate of approximately 74% implying that 74% of their new doctoral graduates incorporated in the diffusion process did not efficiently contribute to the innovation diffusion process and could be of more efficient use in other ventures and sections of the country. Croatia, a moderate innovator however, recorded the lowest redundant input of NDG for innovation diffusion. Innovation leaders recorded the highest average redundancy rate of 52% revealing that New Doctoral Graduates were least used in the diffusion of innovation. These excess doctoral graduates could preferably have been relieved to be utilized in other ventures, since their input is not statistically relevant.
Regarding lifelong learning, Cyprus, a moderate innovator, recorded the highest redundant input of 96% of persons incorporated in the diffusion process. Croatia, a moderate innovator reported the lowest excess of 34% of persons involved. However, the strong innovators recorded the highest average redundancy in this variable compared with the other ranked groups. This implies that strong innovators least utilise learned persons in the diffusion process contrary to other inputs. Even as other inputs are essentially required it is imperative that persons recognized as having knowledge and education be utilized within the diffusion process to instill confidence in patronage and usage of products and to minimize overdependence on other inputs and framework variables for diffusion.
Regarding public expenditure expended to public institutions for diffusing of innovations, data reported revealed Sweden had the highest redundant public expenditure of 89% of funds oriented towards innovation diffusion. This is quickly followed up by 88% of Belgium, a strong innovator. United Kingdom recorded the lowest redundancy rate of 14% of public expenditure invested affirming a more relevant and effective use of public funds apportioned for diffusion of innovation. However, moderate innovators recorded the highest redundancy average of approximately 70% of public funds invested. This reveals serious and substantial probable fund misappropriation or improper control of public research expenditure. This also reveals a marvelous opportunity for growth of moderate innovator member states if 30% of funds can generate desirable efficiency leaving behind excess funds digressive venture investment in the economy or external or complementary innovatory projects to be run as well.
Data recorded for Opportunity development entrepreneurship showed Cyprus recorded the highest redundant input of 93% followed closely by 92% of Sweden. However, the innovation leaders recorded the highest average redundancy figure of approximately 73% compared to all other ranks. This finding reveals the availability of entrepreneurial opportunities created but possibly these ventures have a shorter duration or is not actively involved in diffusion process of innovation. This could also be interpreted as persons that engaged in necessity-driven entrepreneurship does not possibly have their objectives properly aligned with innovation orientation or such firm activities are not actively engaged in innovation ventures possibly or even failure to achieve it.
Data on venture capital invested shows Cyprus also recorded the highest redundancy of venture capital invested; 98% of amount invested did not efficiently contribute to innovation diffusion and consequently, moderate innovators were found to also have the highest redundant venture capital invested. Even though data on venture capital have been extensively theorized to have a significant effect on innovation in Europe, as found by Bertoni and Tykvová (Bertoni and Tykvová 2015). Even though EU’s venture capital lowest compared with United States and China, from the results, it could be interpreted that there is sufficient venture capital investment in firms but are not efficiently engaged in innovation diffusion process owing to probably low performance, non-participation or even an increased investment in non-innovation oriented ventures. Lastly, strong innovators also reported the highest average redundancy of private expenditure invested. Moderate innovators reported the lowest redundancy for non-research and development expenditure; however, member states utilized this input most efficiently as the redundancy rate was low amongst all member states ranked when compared to other inputs assessed.

5. Conclusions

The present research sought to analyze and compare the innovation diffusion efficiencies of member states based on the number of their doctoral graduates, lifelong learning, public and private funding, venture capital and opportunity development entrepreneurship in generating employment in knowledge-intensive activities and sales of new-to-market and new-to-firm innovations. The CCR DEA model was used to analyze the efficiency of innovation diffusion of member states due to its capacity to hypothesize the interrelations between input and output and provides trade off ratios for further comparative improvement.
In answering the first research question, it was revealed that innovation excellence, to a certain extent, did not depend on the innovation excellence or deficiency of member states as evidenced by Sweden, the most innovative EU member state, ranking lowest on the efficiency scale, even as Bulgaria and Romania, the two modest innovators, were relatively efficient. Several other member states on different innovation scales were both efficient and inefficient. However, aside Sweden, it is worth noting that the next lowest ranking member states were within the strong and moderate innovation ranks. No modest innovator was inefficient in the diffusion analysis, even as the literature endorses that a higher innovation performance corresponds to better efficiency of diffusion of innovation.
Regarding the second research question posed, after analysis of member’ states redundancies and deficiencies, we eventually found that the highest input redundancy recorded was for lifelong learning, opportunity-driven entrepreneurship, venture capital and public expenditure chronologically. It is recommended that persons be tactfully engaged at required areas of the diffusion tree to expertly take advantage of their knowledge and expertise to make even more efficient the diffusion process. Adequate entrepreneurial guidance set up support and motivation be provided to persons engaged in opportunity driven entrepreneurship as well as start-ups receiving venture capital support. We also recommend a much open environment with less barriers to entry to facilitate higher and consistently-growing foreign direct investment. A further look at the analysis reveals that structural and financial capacity alone does not connote a higher efficiency of innovation of diffusion even as it is desperately needed as a necessity for diffusion of innovation. Member states like Romania, for example, recorded all inputs below the EU average yet had an efficient score contrary to many other Innovation leaders like United Kingdom.
Theoretically, this should elicit a stronger interest in investigating the success factors of member states underperforming in innovation but with a relatively efficient diffusion performance for comparative improvement of member states concerned. This research also adds up to the collection of literature on the innovation status of regions and how that affects their diffusion performance. It further reveals a disregard for economic status or size of a firm in efficiently diffusing innovation given the resources at hand. Previous researches have rather focused on innovation performance and levels of countries, this research penetrates the bowels of fundamental drivers and deficiencies spreading this innovation created amongst EU member states in light of their ambitious quest to stay ahead of the competition. This research theoretically draws key attention to the funding combinations and gaps faced and presses the need to closely monitor and study the intervention of cooperation, networks and trust in closing and minimizing inefficiencies in innovation dissemination. Practically, this research reveals the usage of input resources in efficiently disseminating innovation created and calls for questions about transparency, accountability and questionable priorities, which should be addressed both internally by firms and externally by concerned stakeholders owing the inefficient public and private expenditures. Even though our data did not afford us the luxury of undertaking a thorough regional analysis, the results alerts the member states to the gaps in dissemination of their innovation. They could, in turn, assess their key resource diversion areas, the sectors taking in the most or the least inputs and actively instigate further studies in these areas to begin with. Lastly, even though this study used only the CCR model, it revealed that the most innovative member state of the Union, Sweden, came up as the least efficient member state in efficiently diffusing innovation. With the revelation, policymakers should not be quick in hailing innovation generators as the generation of innovation is not key to competitive advantage but rather the usage, assimilation and improvement in the quality of life is what further generates subsequent innovation whether from a linear or open perspective.
However, the downside of this research could be the years used with respect to the input and output variables; even though they were sourced from the latest European Innovation Scoreboard of European Commission (2018), they were borrowed from the latest Eurostat’s’ Community Innovation Survey data making it difficult to know how long the inputs may need to operate to produce a more efficient diffusion of innovation. Secondly, DEA tool only reveals the efficiency of a member state to another and hence the efficiency is affected by the sample size considered. Nevertheless, these findings should (re)shape and direct policy structures not just for the innovation performance of regions, but also for the adoption process utilized, the patronage and the usage by the social system, whilst also actively creating an attractive focus on not just innovation performance but diffusion structures and processes of member states. Policy makers should also properly channel resources to non-redundant areas geared towards diffusion of innovation of member states, whilst also instilling adequate pre and post control measures to mitigate embezzlement and ensure actual usage of funds as intended.

Author Contributions

Conceptualization, H.J.A.; Methodology, J.S.


This research was funded by the Student Grant Agency of University of Pardubice in the year 2019 with grant number SGS_2019_018.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A

Table A1. DEA results of EU member states.
Table A1. DEA results of EU member states.
Innovation LeadersRankNDGPr (NDG)LLPr (LL)OEPr (ODE)VCIPr (VCI)
United Kingdom16th222190138471116018244
Strong Innovators
Moderate Innovators
Czech Republic1st1141149191909066
Modest Innovators
Table A2. DEA results of EU member states.
Table A2. DEA results of EU member states.
United Kingdom954295826555130167175175
Strong Innovators
Moderate Innovators
Czech Republic86861401408686132132113113
Modest Innovators
Source: Author’s calculation. Code “Pr” connotes the recommended change by the DEA model.
Table A3. Table of Efficiency ranking comparison of Member states for the years 2010 and 2017.
Table A3. Table of Efficiency ranking comparison of Member states for the years 2010 and 2017.
Member States2010 Efficiency Score2010 Ranking2017 Ranking
Innovation Leaders
United Kingdom0.63417th16th
Strong Innovators
Moderate Innovators
Czech Republic0.43124th1st
Modest Innovators
Source: Authors’ own computation.


  1. Afzal, Munshi Naser Ibne. 2014. An empirical investigation of the National Innovation System (NIS) using Data Envelopment Analysis (DEA) and the TOBIT model. International Review of Applied Economics 28: 507–23. [Google Scholar] [CrossRef]
  2. Akcali, Burcay Yasar, and Elcin Sismanoglu. 2015. Innovation and the effect of research and development (R&D) expenditure on growth in some developing and developed countries. Procedia-Social and Behavioral Sciences 195: 768–75. [Google Scholar] [CrossRef]
  3. Alkemade, Floortje, Chris Kleinschmidt, and Marko Hekkert. 2007. Analysing emerging innovation systems: A functions approach to foresight. International Journal of Foresight and Innovation Policy 3: 139–68. [Google Scholar] [CrossRef]
  4. Allard, Gayle, Candace A. Martinez, and Christopher Williams. 2012. Political instability, pro-business market reforms and their impacts on national systems of innovation. Research Policy 41: 638–651. [Google Scholar] [CrossRef]
  5. Andrews, Dan, Chiara Criscuolo, and Peter Gal. 2016. The Global Productivity Slowdown, Technology Divergence and Public Policy: A Firm Level Perspective. Working Paper 24. Washington: Brookings Institution Hutchins Center. [Google Scholar]
  6. Asheim, Björn T., Markus Grillitsch, and Michaela Trippl. 2016. Regional innovation systems: Past–present–future. Handbook on the Geographies of Innovation 36: 45–62. [Google Scholar]
  7. Bertoni, Fabio, and Tereza Tykvová. 2015. Does governmental venture capital spur invention and innovation? Evidence from young European biotech companies. Research Policy 44: 925–35. [Google Scholar] [CrossRef]
  8. Briglauer, Wolfgang. 2014. The impact of regulation and competition on the adoption of fiber-based broadband services: Recent evidence from the European Union member states. Journal of Regulatory Economics 46: 51–79. [Google Scholar] [CrossRef]
  9. Caiazza, Rosa. 2016. A cross-national analysis of policies affecting innovation diffusion. The Journal of Technology Transfer 41: 1406–19. [Google Scholar] [CrossRef]
  10. Camagni, Roberto, and Roberta Capello. 2013. Regional innovation patterns and the EU regional policy reform: Toward smart innovation policies. Growth and Change 44: 355–89. [Google Scholar] [CrossRef]
  11. Capello, Roberta. 2012. The knowledge economy in European regions: A strategic goal for competitiveness. In Networks, Space and Competitiveness. Evolving Challenges for Sustainable Growth. Cheltenham: Edward Elgar, pp. 77–106. [Google Scholar]
  12. Carayannis, Elias G., Yorgos Goletsis, and Evangelos Grigoroudis. 2015. Multi-level multi-stage efficiency measurement: The case of innovation systems. Operational Research 15: 253–74. [Google Scholar] [CrossRef]
  13. Cooke, Philip, Mikel G. Uranga, and Goio Etxebarria. 1998. Regional systems of innovation: An evolutionary perspective. Environment and Planning A 30: 1563–84. [Google Scholar] [CrossRef]
  14. Crescenzi, Riccardo, and Andrés Rodríguez-Pose. 2012. Infrastructure and regional growth in the European Union. Papers in Regional Science 91: 487–513. [Google Scholar] [CrossRef]
  15. Crevoisier, Olivier. 2014. Beyond territorial innovation models: The pertinence of the territorial approach. Regional Studies 48: 551–61. [Google Scholar] [CrossRef]
  16. Doloreux, David. 2002. What we should know about regional systems of innovation. Technology in Society 24: 243–63. [Google Scholar] [CrossRef]
  17. European Commission. 2010. Regional Policy Contributing to Smart Growth in Europe. Brussels: European Commission. [Google Scholar]
  18. European Commission. 2018. European Innovation Scoreboard 2018: Europe Must Deepen Its Innovation Edge. Brussels: European Commission, Available online: (accessed on 30 April 2019).
  19. Foxon, Tim, and Peter Pearson. 2008. Overcoming barriers to innovation and diffusion of cleaner technologies: Some features of a sustainable innovation policy regime. Journal of Cleaner Production 16: S148–61. [Google Scholar] [CrossRef]
  20. Franco, Camila, and Renan Henrique de Oliveira. 2017. Inputs and outputs of innovation: Analysis of the BRICS: Theme 6–innovation technology and competitiveness. RAI Revista de Administração e Inovação 14: 79–89. [Google Scholar] [CrossRef]
  21. Guan, Jiancheng, and Kairui Zuo. 2014. A cross-country comparison of innovation efficiency. Scientometrics 100: 541–75. [Google Scholar] [CrossRef]
  22. Hair, Joe F., Marko Sarstedt, Christian M. Ringle, and Jeannette A. Mena. 2012. An assessment of the use of partial least squares structural equation modelling in marketing research. Journal of the Academy of Marketing Science 40: 414–33. [Google Scholar] [CrossRef]
  23. Hall, Jeremy, Stelvia Matos, Lorn Sheehan, and Bruno Silvestre. 2012. Entrepreneurship and innovation at the base of the pyramid: A recipe for inclusive growth or social exclusion? Journal of Management Studies 49: 785–812. [Google Scholar] [CrossRef]
  24. Li, Kai, Zhili Ma, and Guozhou Zhang. 2019. Evaluation of the Supply-Side Efficiency of China’s Real Estate Market: A Data Envelopment Analysis. Sustainability 11: 288. [Google Scholar] [CrossRef]
  25. MacVaugh, Jason, and Francesco Schiavone. 2010. Limits to the diffusion of innovation: A literature review and integrative model. European Journal of Innovation Management 13: 197–221. [Google Scholar] [CrossRef]
  26. Moon, Hye-Seon, and Jeong-Dong Lee. 2005. A fuzzy set theory approach to national composite S&T indices. Scientometrics 64: 67–83. [Google Scholar] [CrossRef]
  27. Morieux, Yves, and Peter Tollman. 2014. Six Simple Rules: How to Manage Complexity without Getting Complicated. Brighton: Harvard Business Review Press. [Google Scholar]
  28. Ponsiglione, Cristina, Ivana Quinto, and Giuseppe Zollo. 2018. Regional Innovation Systems as Complex Adaptive Systems: The Case of Lagging European Regions. Sustainability 10: 2862. [Google Scholar] [CrossRef]
  29. Rickne, Annika. 2001. Assessing the Functionality of an Innovation System. Goteborg: Chalmers University of Technology. [Google Scholar]
  30. Rippa, Pierluigi, Ivana Quinto, Valentina Lazzarotti, and Luisa Pellegrini. 2016. Role of innovation intermediaries in open innovation practices: Differences between micro-small and medium-large firms. International Journal of Business Innovation and Research 11: 377–96. [Google Scholar] [CrossRef]
  31. Rogers, Everett. 2003. The Diffusion of Innovations, 5th ed. New York: The Free Press. [Google Scholar]
  32. Sharma, Seema, and V. Thomas. 2008. Inter-country R&D efficiency analysis: An application of data envelopment analysis. Scientometrics 76: 483–501. [Google Scholar] [CrossRef]
  33. Sternberg, Rolf, and Olaf Arndt. 2001. The firm or the region: What determines the innovation behavior of European firms? Economic Geography 77: 364–82. [Google Scholar] [CrossRef]
  34. Tidd, Joe. 2010. From models to the management of diffusion. Gaining Momentum: Managing the Diffusion of Innovations 15: 3–45. [Google Scholar]
  35. Walker, Richard M. 2006. Innovation type and diffusion: An empirical analysis of local government. Public Administration 84: 311–35. [Google Scholar] [CrossRef]
  36. Wang, Eric C., and Weichiao Huang. 2007. Relative efficiency of R&D activities: A cross-country study accounting for environmental factors in the DEA approach. Research Policy 36: 260–73. [Google Scholar]
  37. Zanello, Giacomo, Xiaolan Fu, Pierre Mohnen, and Marc Ventresca. 2016. The creation and diffusion of innovation in developing countries: A systematic literature review. Journal of Economic Surveys 30: 884–912. [Google Scholar] [CrossRef]
Figure 1. A model of the five-stage of diffusion process by (Rogers 2003).
Figure 1. A model of the five-stage of diffusion process by (Rogers 2003).
Economies 07 00034 g001

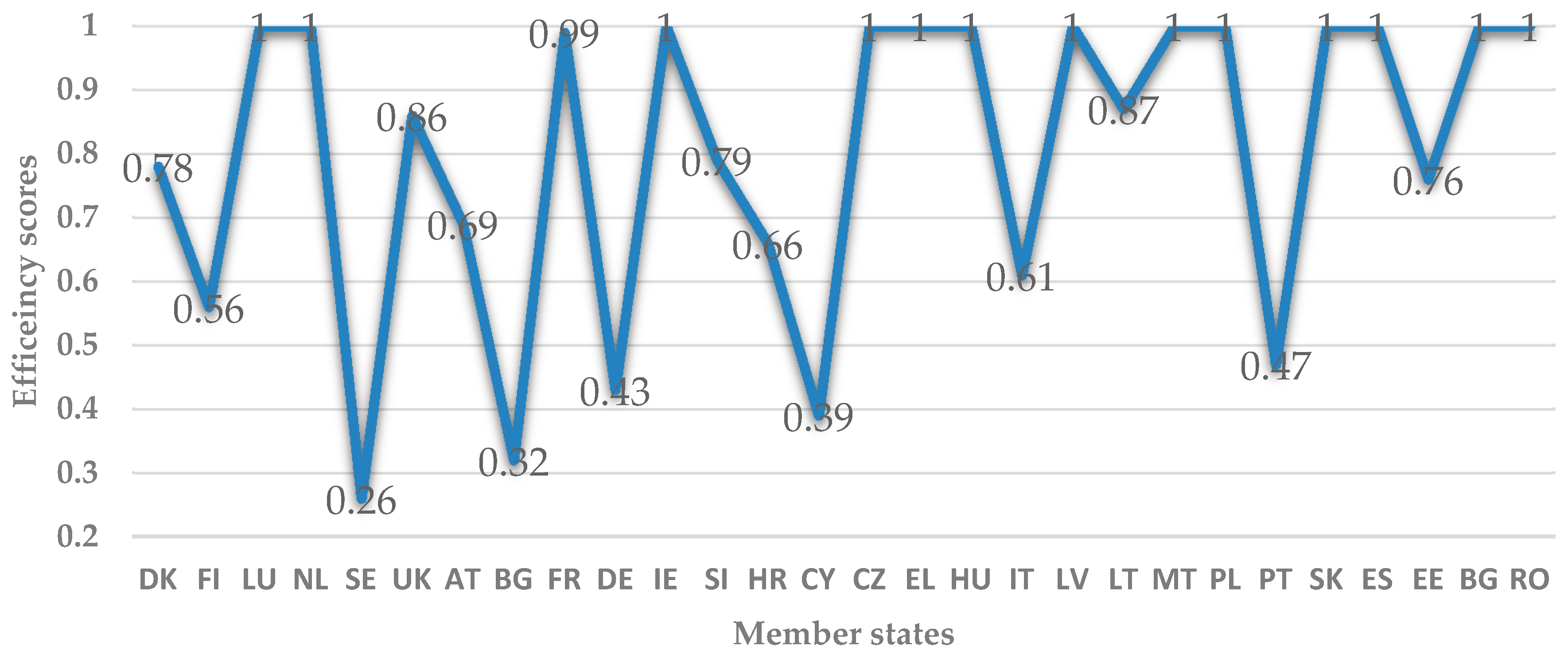

Figure 2. DEA efficiency scores of EU member states.
Figure 2. DEA efficiency scores of EU member states.
Economies 07 00034 g002

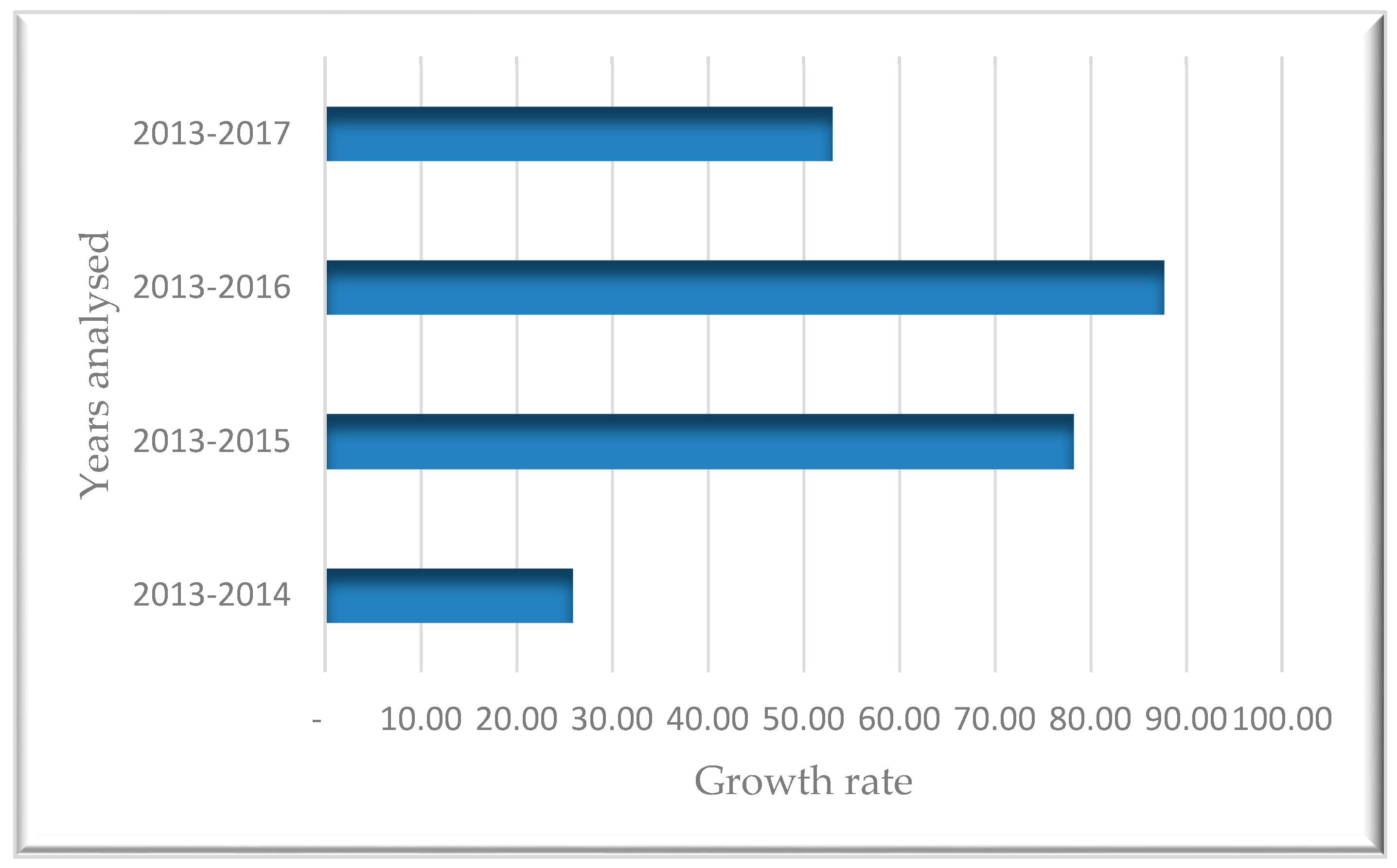

Figure 3. Inward Foreign-direct investment flow into the EU as a percentage of GDP.
