Analysis of Lubrication Characteristics and Bearing Structure Optimization for a Multi−Stage Planetary Transmission System

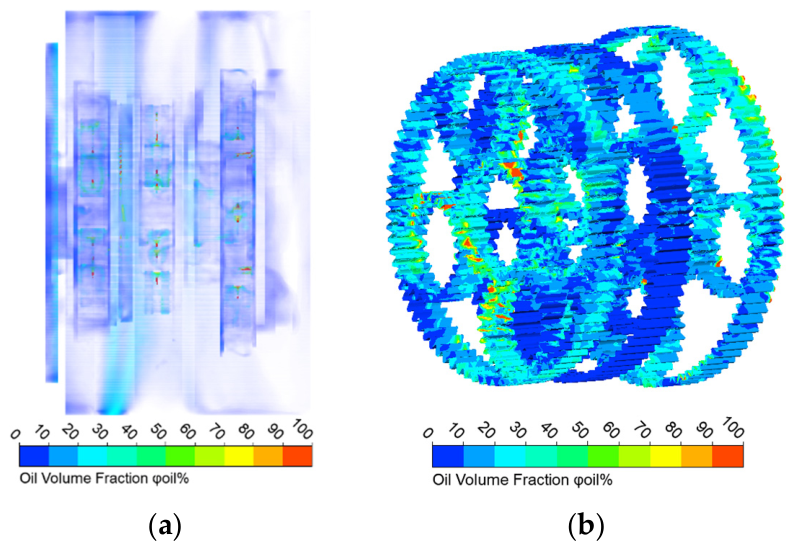

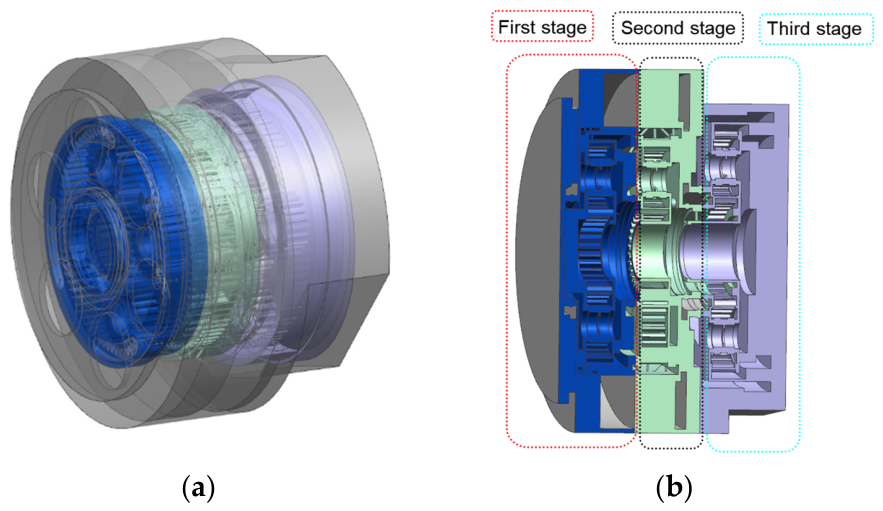

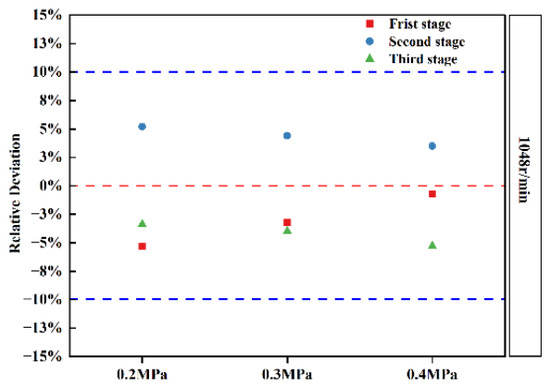

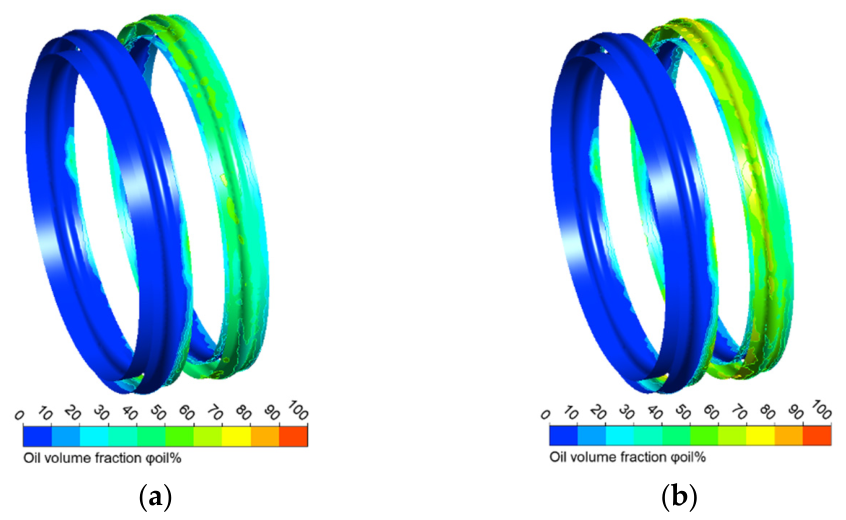

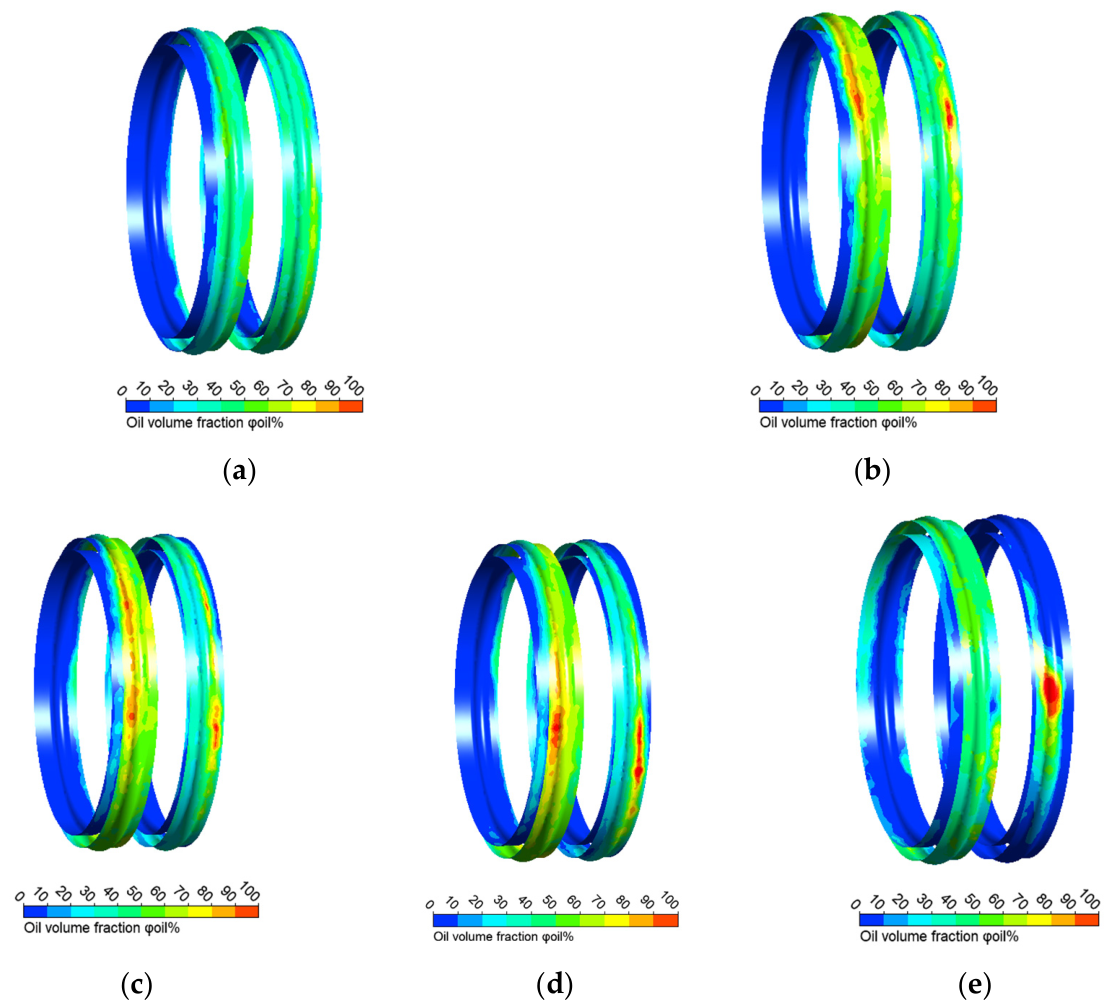

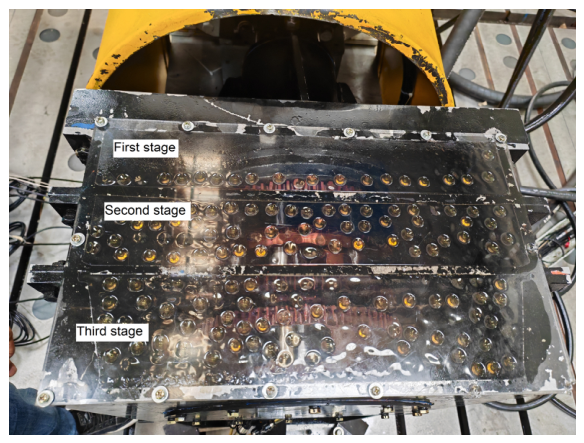

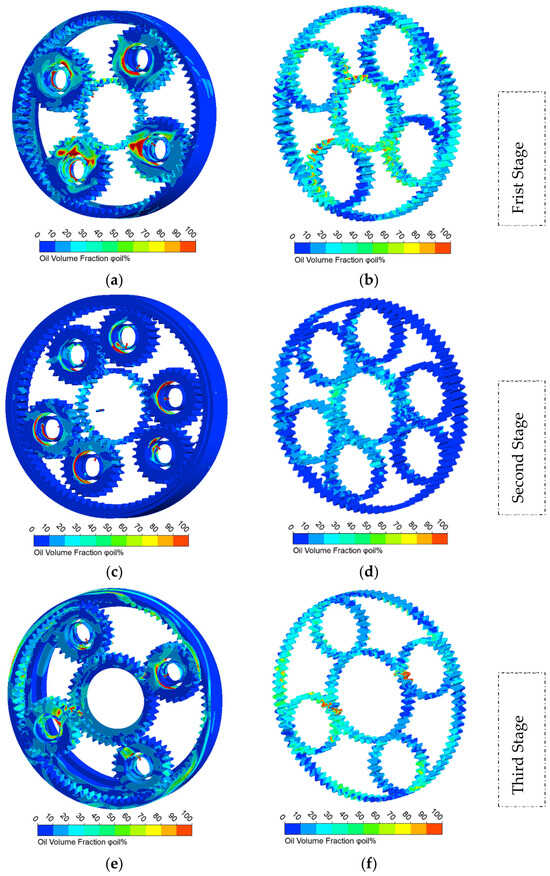

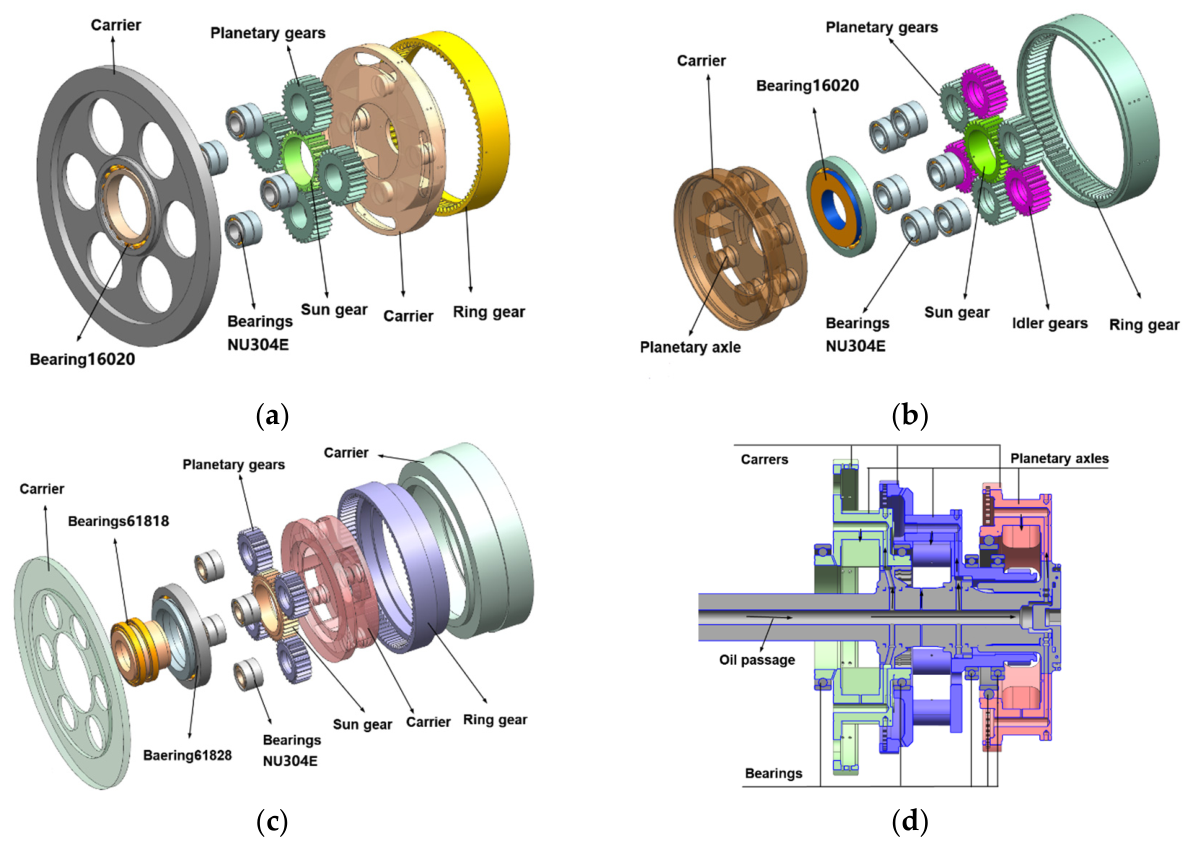

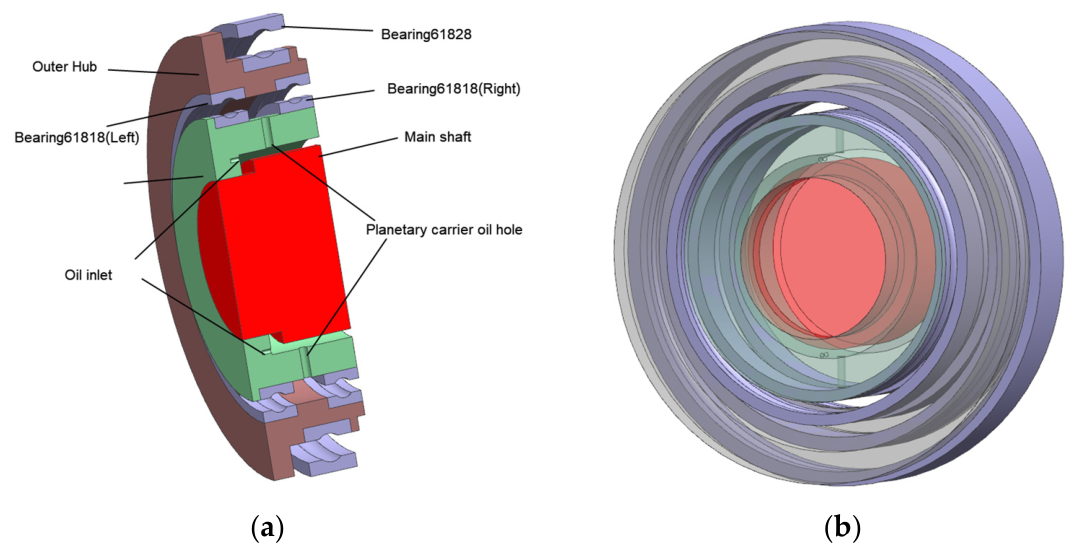

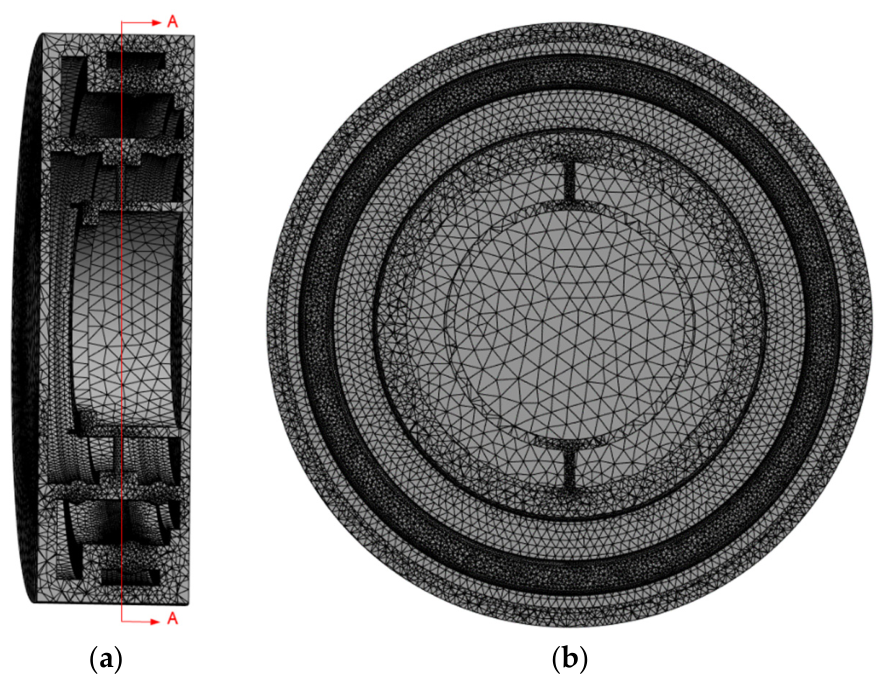

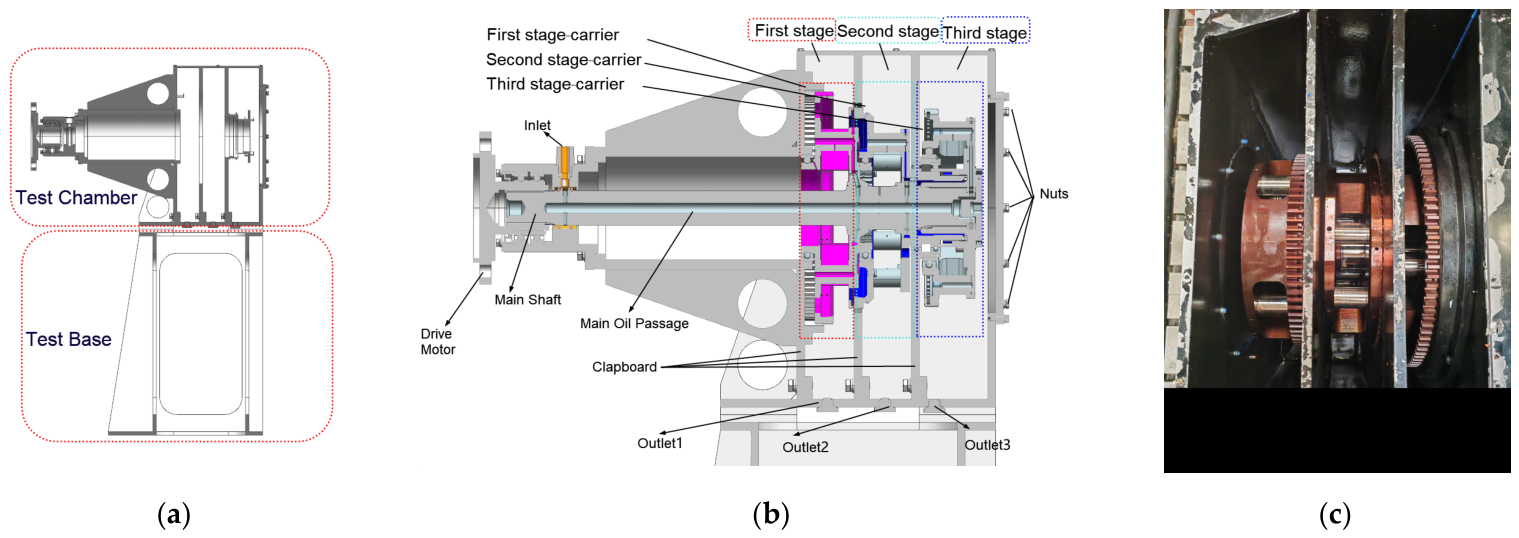

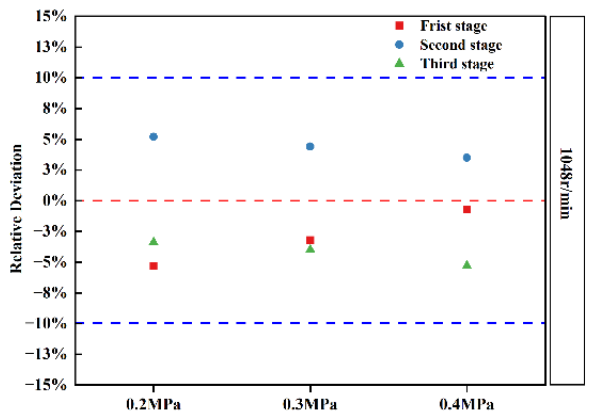

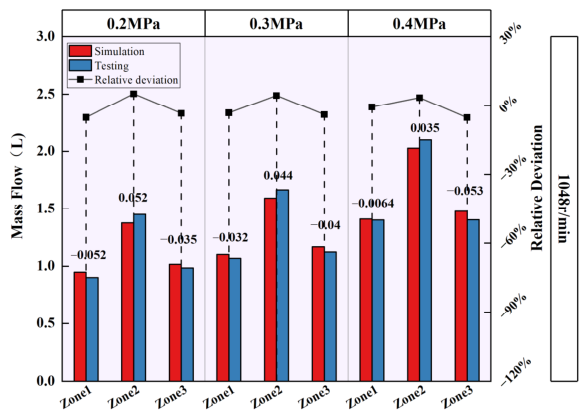

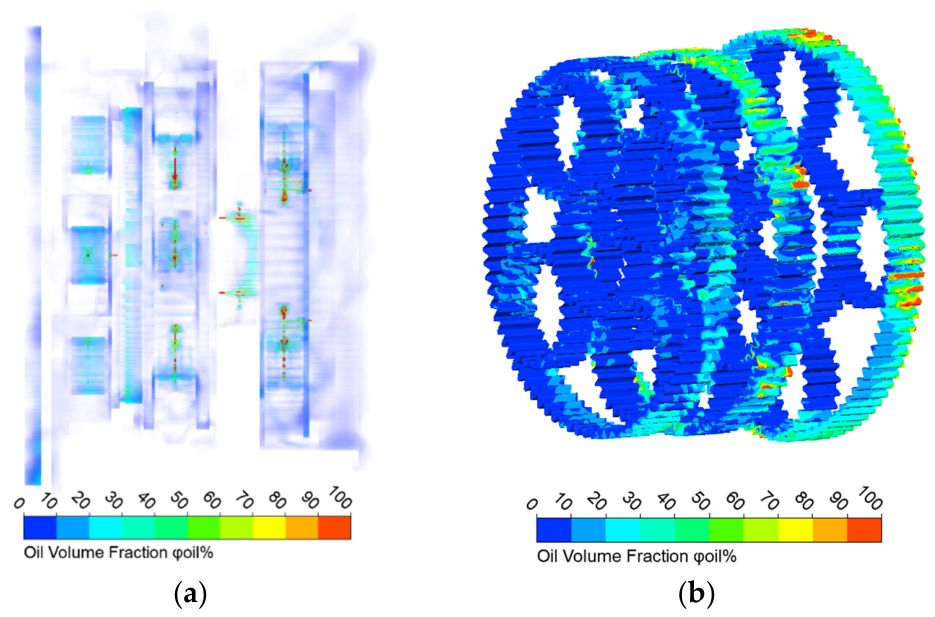

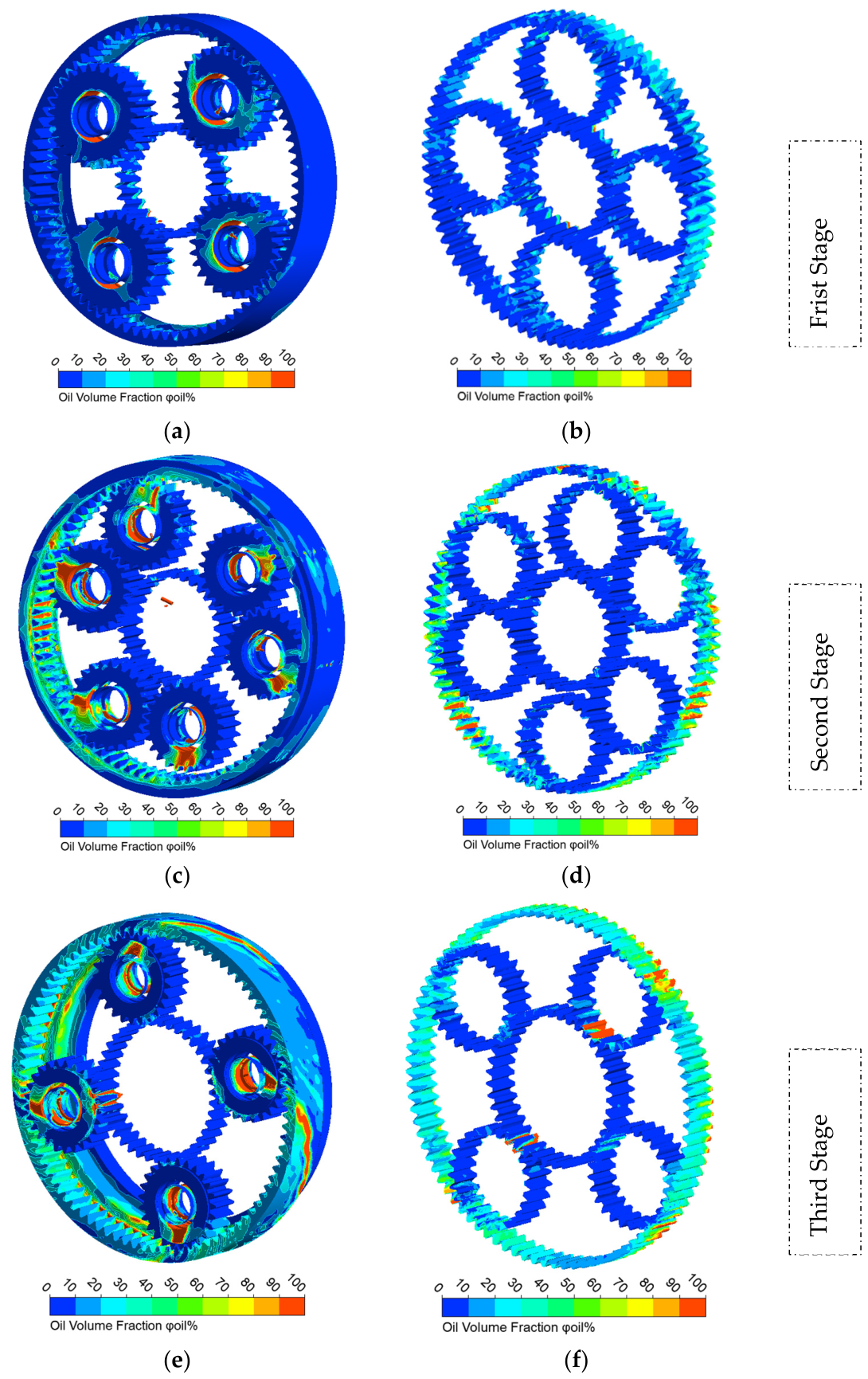

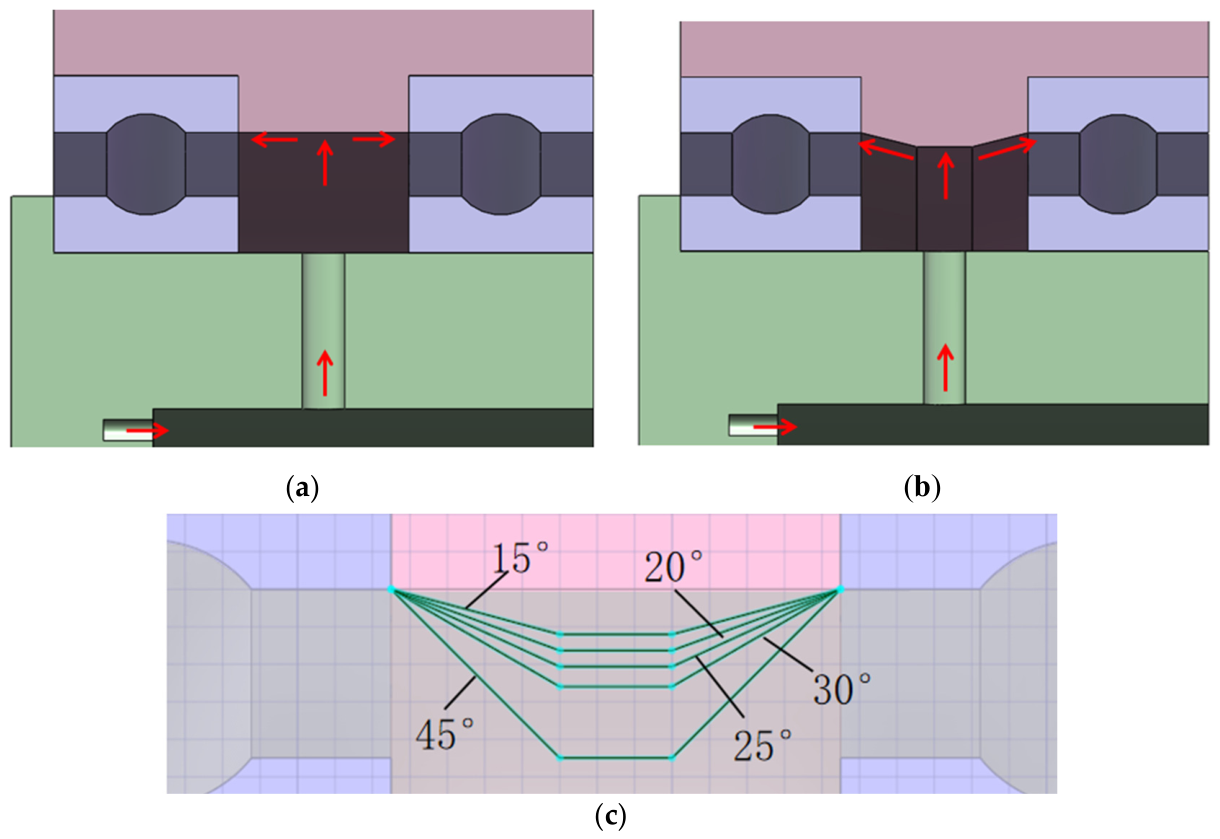

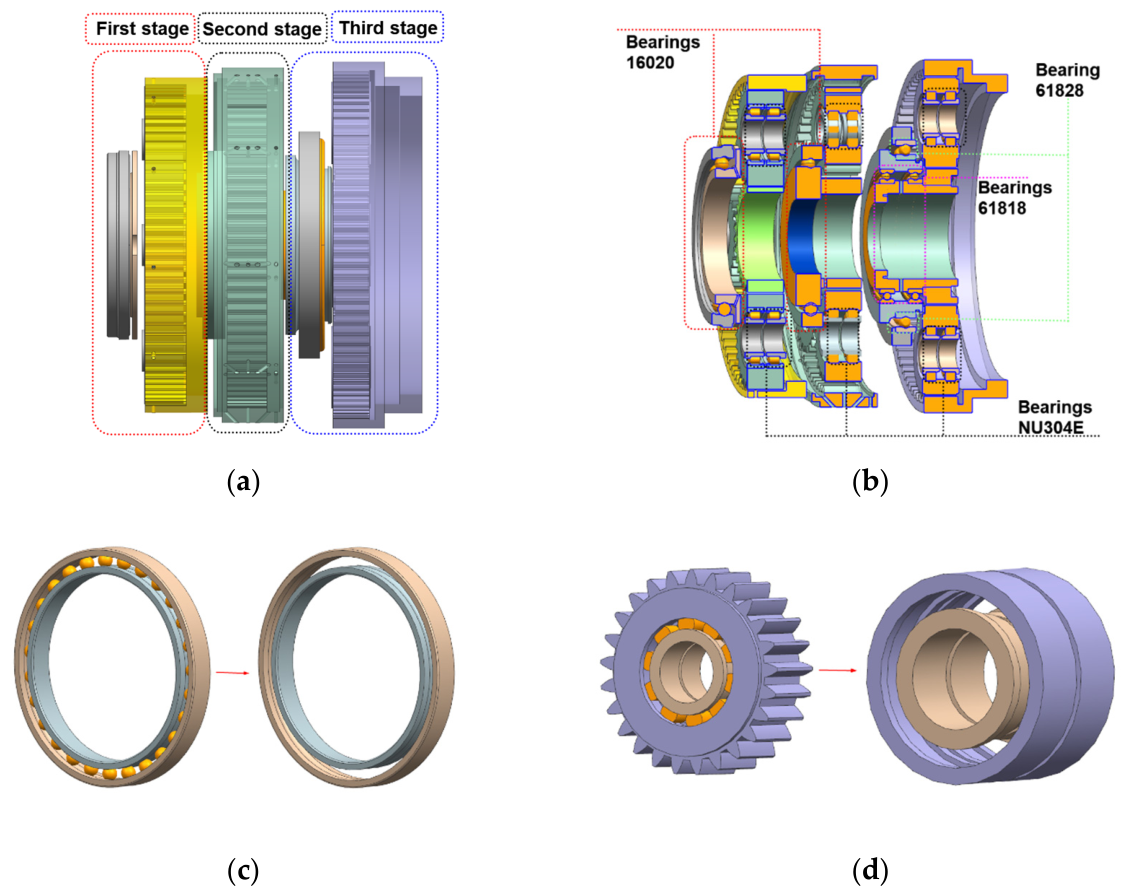

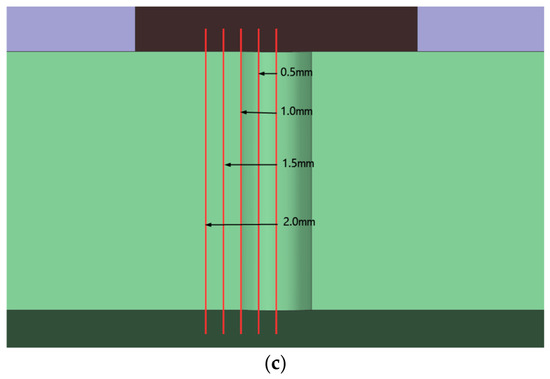

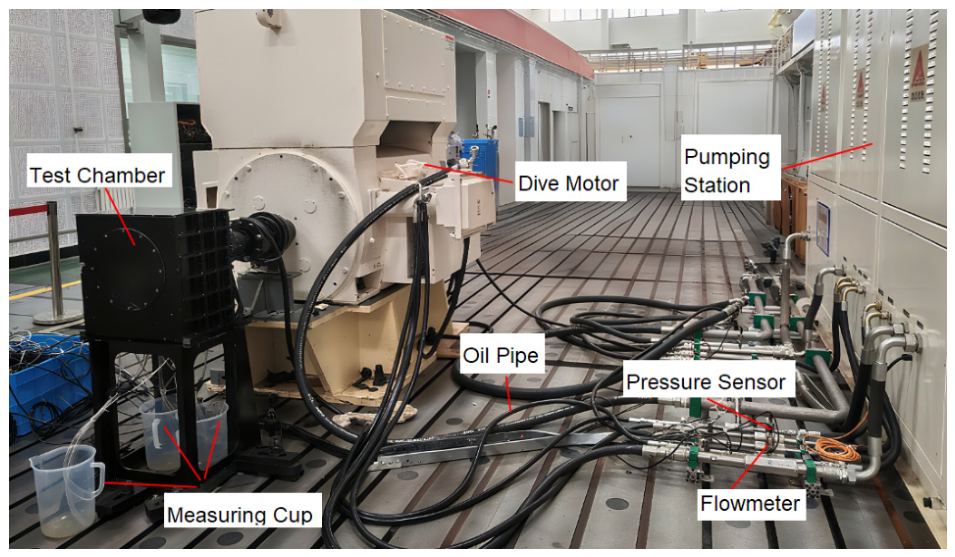

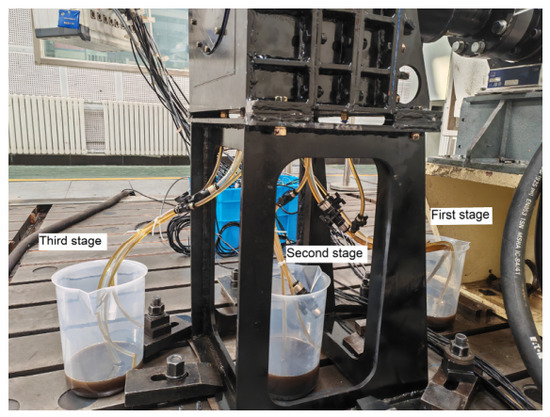

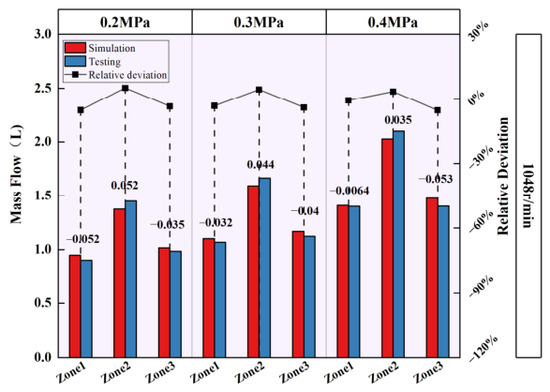

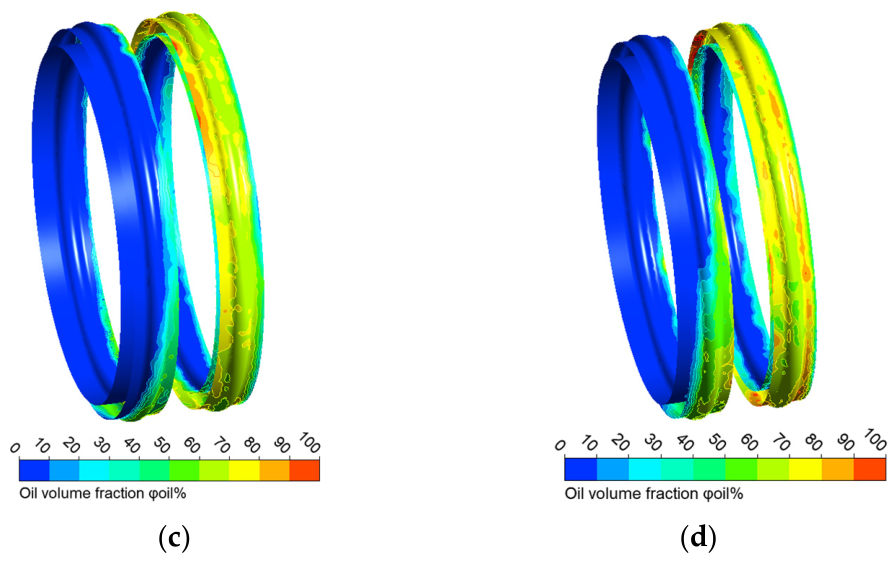

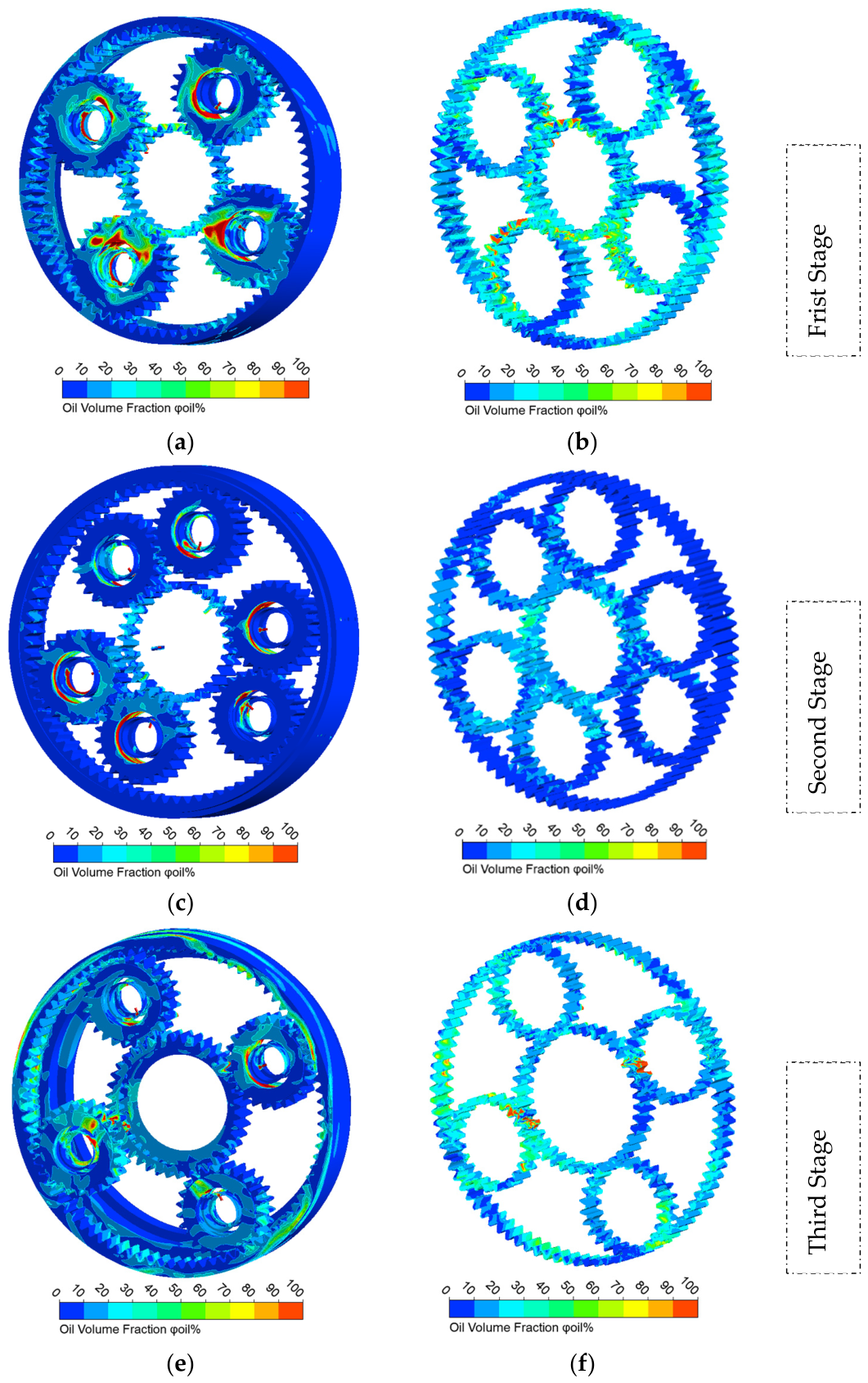

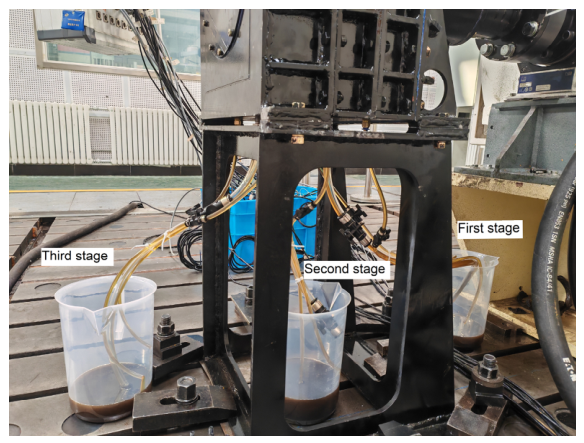

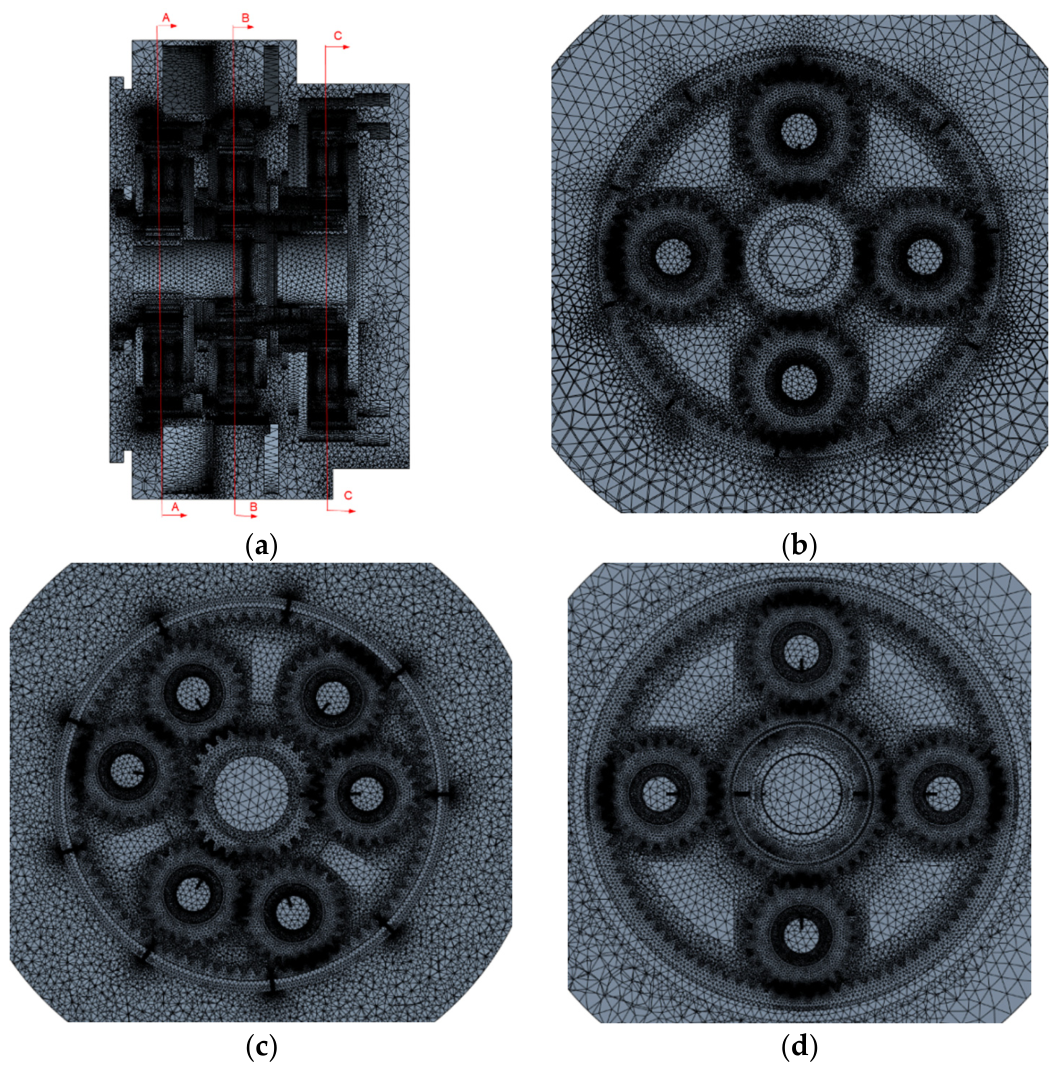

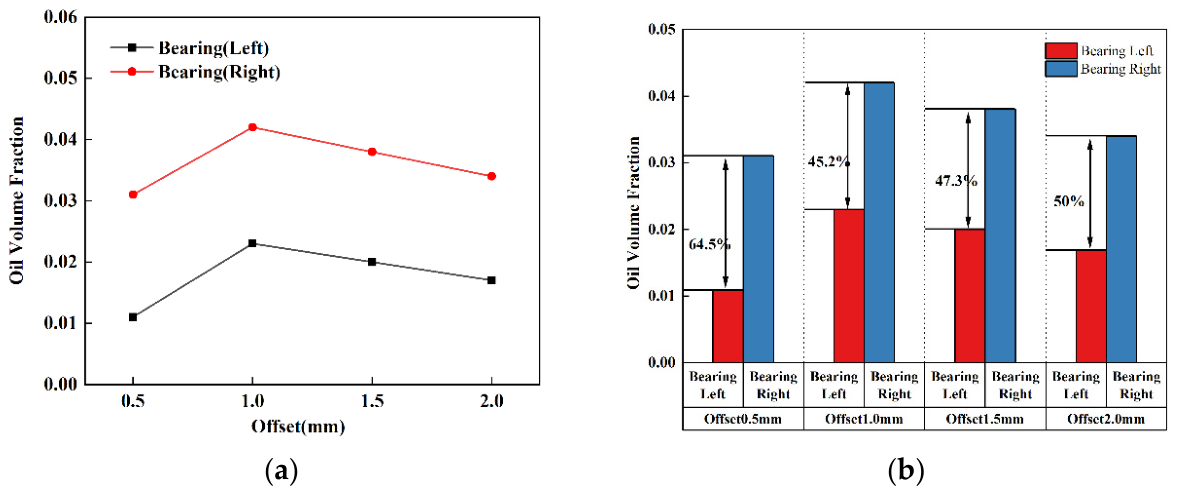

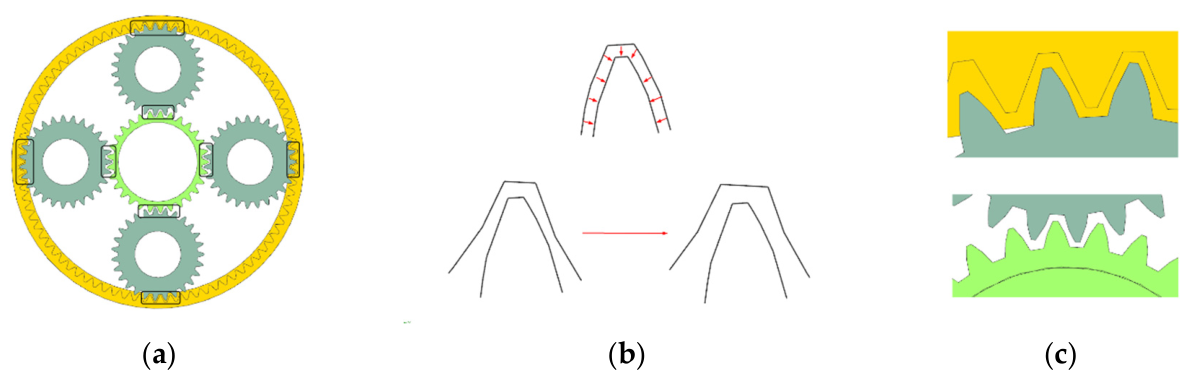

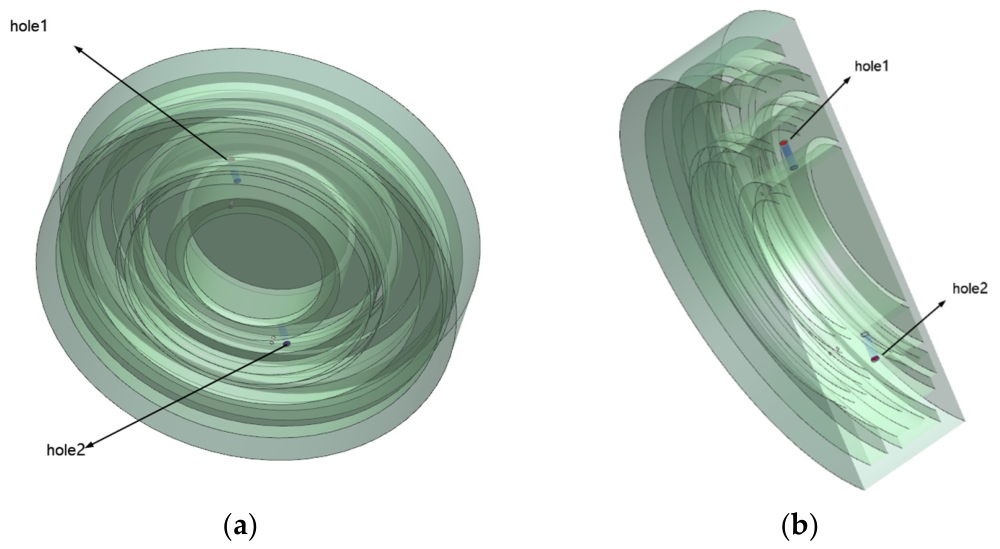

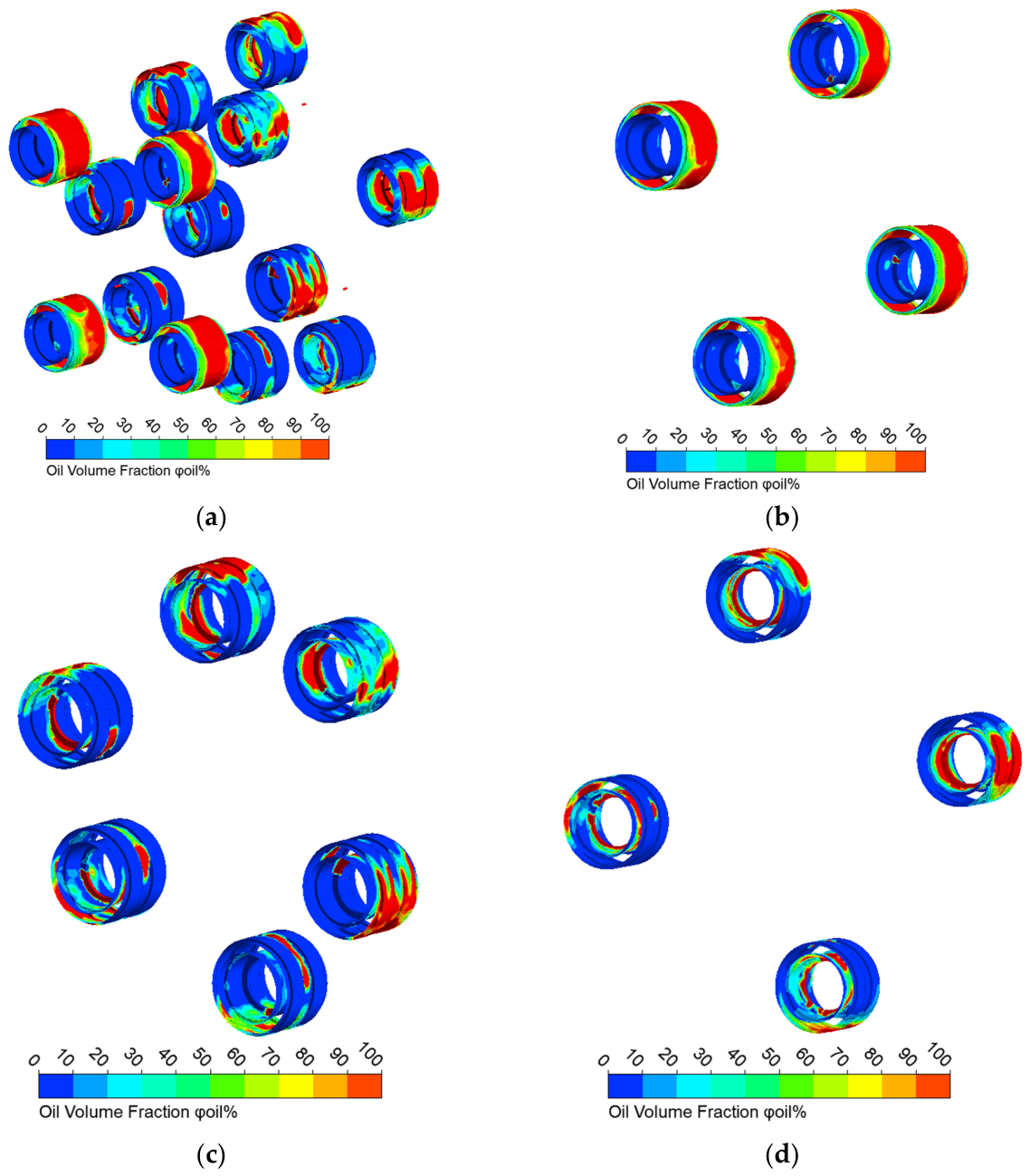

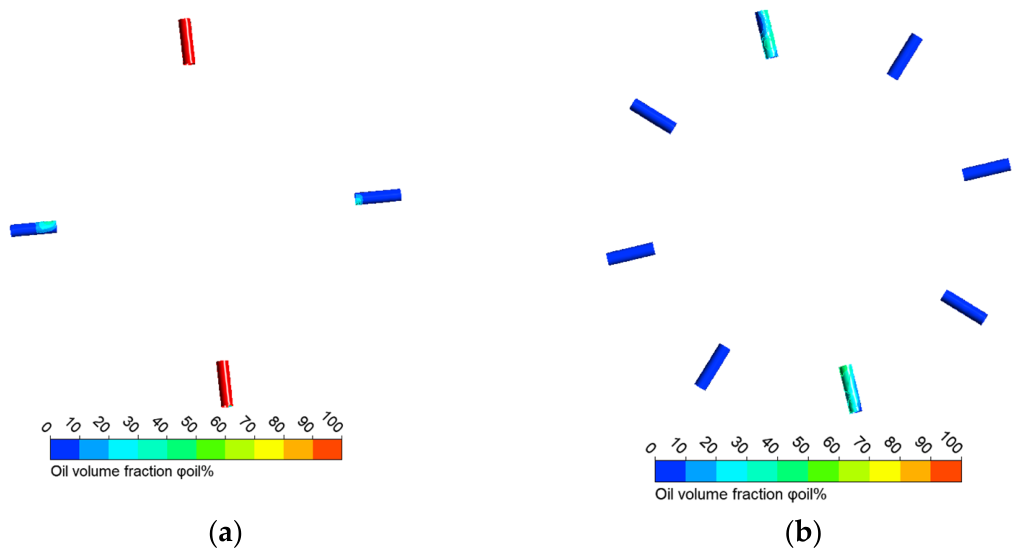

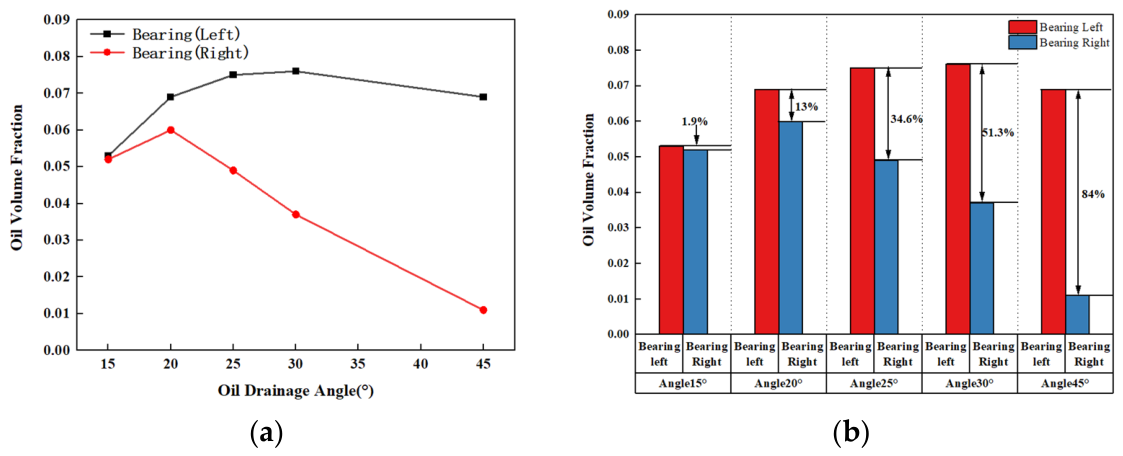

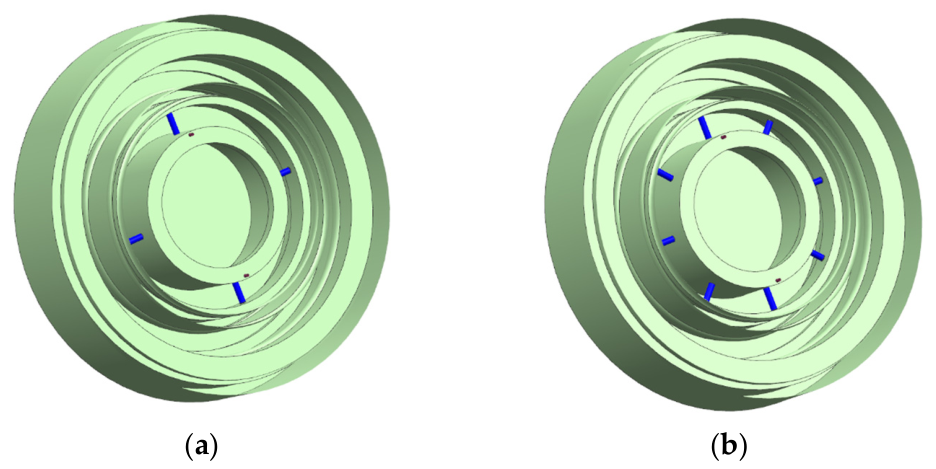

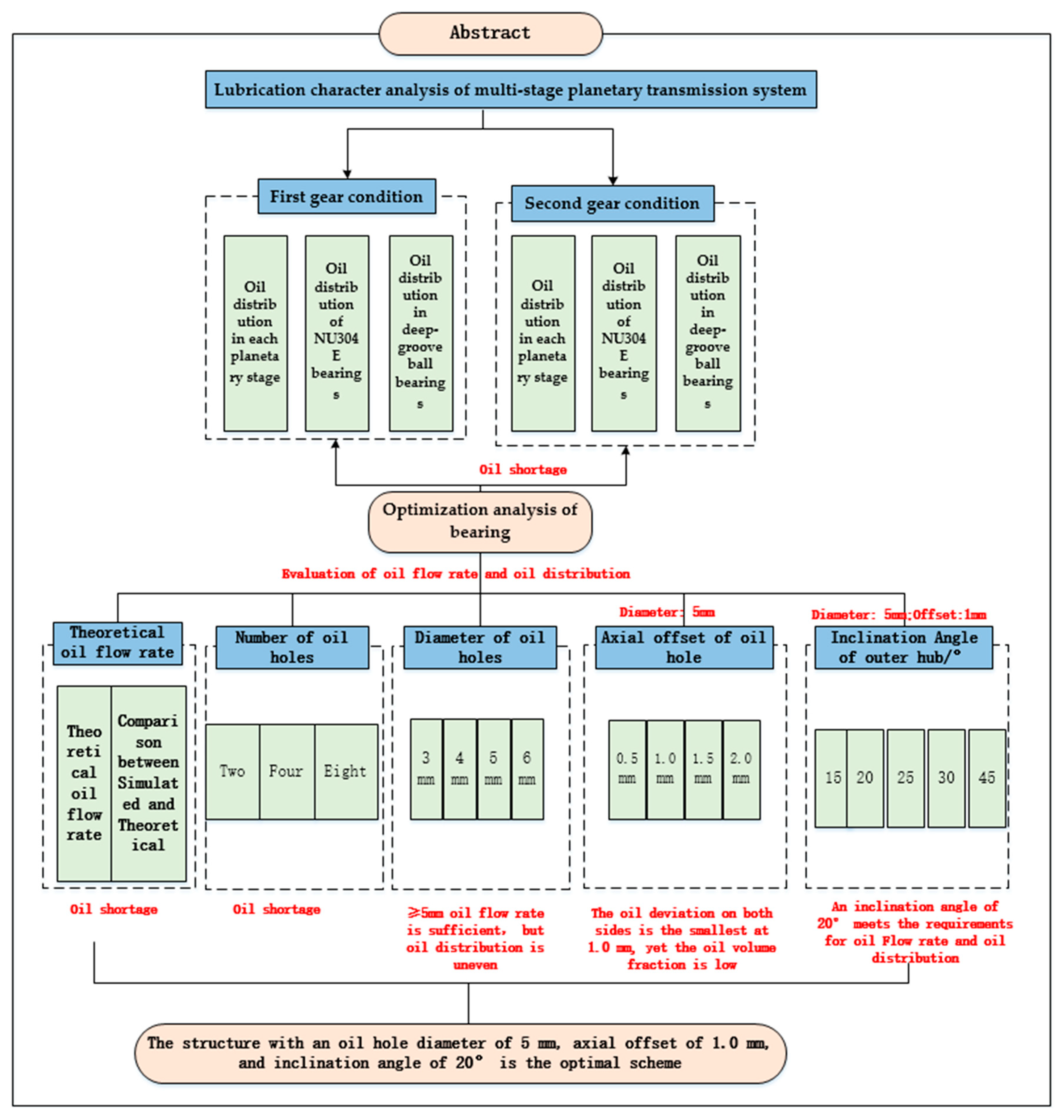

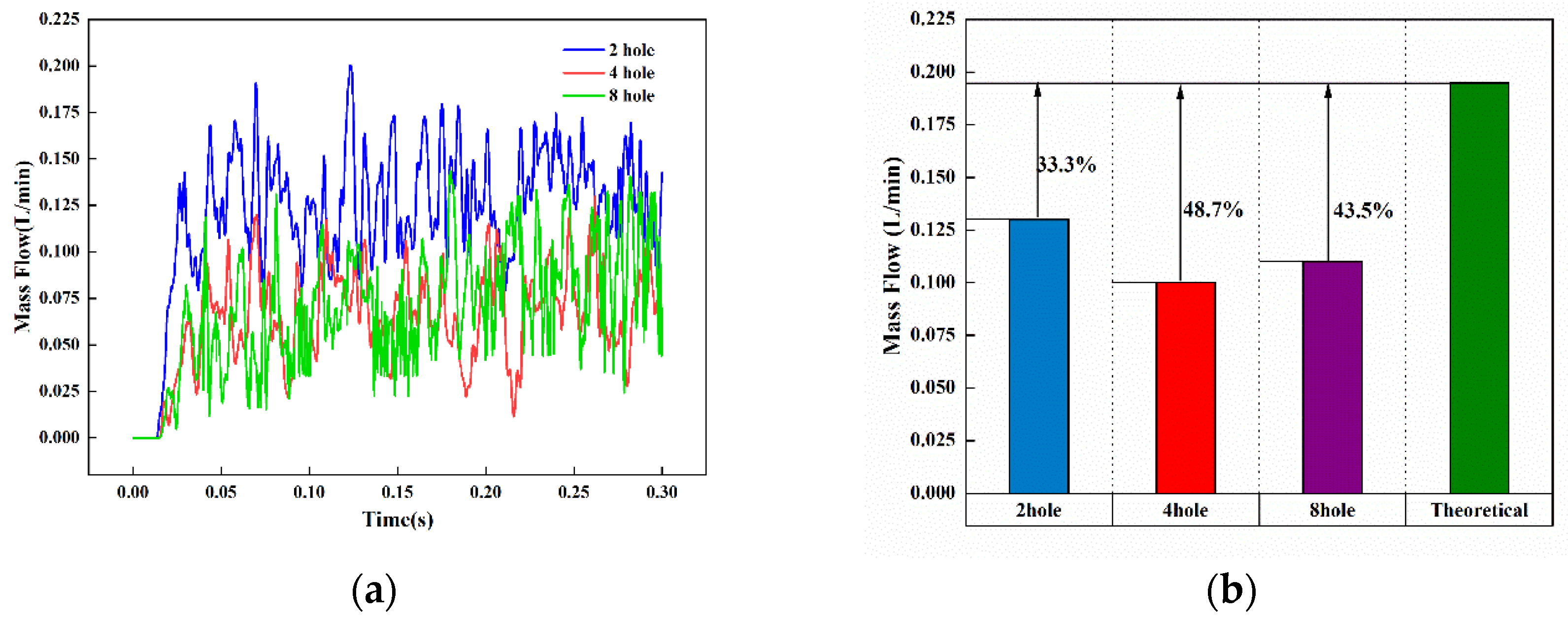

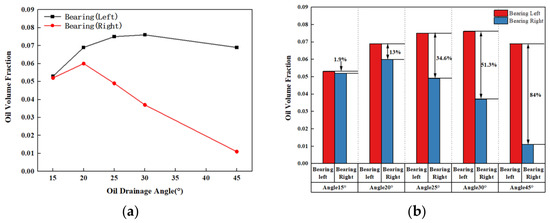

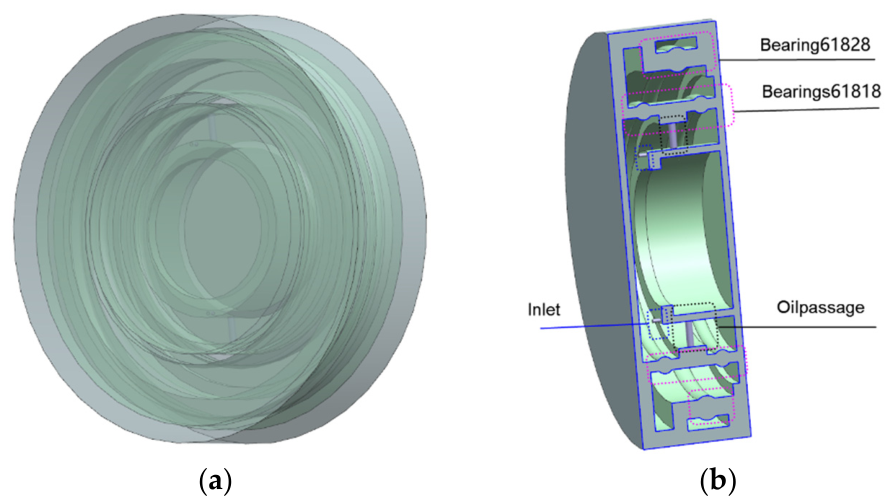

The research investigates lubrication characteristics of a three−stage planetary transmission system under first and second gear conditions. A whole−system CFD model and a planetary carrier bearing CFD model are established. Oil distribution is simulated using a UDF dynamic mesh technique. A dedicated test bench is designed and built for a multi−stage planetary transmission system to measure oil flow data at the outlets of each planetary stage. By comparing the simulation and experimental results, the CFD model is confirmed. The oil distribution in the planetary transmission system is followed. In the first gear condition, the oil distribution within the second stage is significantly lower than that in the other two stages, and mainly converges onto the meshing surfaces of gears. In the second gear condition, the planetary carrier remained stationary, resulting in limited oil distribution in the first stage. Meanwhile, the third−stage planetary carrier bearings exhibit insufficient oil distribution across different gear conditions. To address this issue, several structural optimization structures for the numerical model of the third−stage planetary carrier bearings are compared in terms of theoretical oil supply rates and oil volume fraction distribution characteristics. Among these, constrained by the fixed positions between the oil inlet and oil holes, the structures with different numbers of oil holes in the planetary carrier lead to an oil flow rate reduction due to flow division and pressure loss induced by turbulence at high rotational speed, failing to meet the oil demand. Optimization of oil−hole diameter enlargement, the oil flow rate increases proportionally with the hole diameter. A diameter of 5 mm satisfies the theoretical oil flow rate demand, yet an asymmetric oil distribution is observed between the two inner bearings. Building upon the initial design with two oil holes, a 5 mm diameter design, a 1 mm axial leftward offset of the oil hole position, and a 20° oil−guiding inclination on the outer hub reduce the oil distribution asymmetry between the two inner bearings from 64.5% to 13%. The oil volume fraction increases from 0.005 to 0.069 in the inner bearing and from 0.001 to 0.013 in the outer bearing, resulting in a substantial improvement in overall bearing lubrication performance.
