Review

Next-Generation Smart Inverters: Bridging AI, Cybersecurity, and Policy Gaps for Sustainable Energy Transition

1
Department of Electrical Technology, Faculty of Technology and Education, Helwan University, El-Sawah, Cairo 11813, Egypt
2
Department of Electrical Engineering, Faculty of Engineering and Technology, University of Botswana, Gaborone UB0022, Botswana
*
Author to whom correspondence should be addressed.
Technologies 2025, 13(4), 136; https://doi.org/10.3390/technologies13040136
Submission received: 22 February 2025 / Revised: 28 March 2025 / Accepted: 30 March 2025 / Published: 1 April 2025

Abstract

:
Smart inverters are pivotal in modern renewable energy systems, enabling efficient grid integration, stability, and advanced control of distributed energy resources. While existing literature addresses their technical functionalities, significant research gaps persist in areas such as interoperability, cybersecurity, standardization, and the integration of artificial intelligence for adaptive control. This article provides a comprehensive review of smart inverter technologies, emphasizing their role in renewable energy applications, advanced control strategies, and unresolved challenges. By systematically analyzing recent advancements and case studies, the paper identifies critical limitations in current practices, including economic barriers, regulatory misalignments, and fault tolerance under dynamic grid conditions. The review contributes to the field by synthesizing dispersed knowledge, highlighting under-researched areas, and proposing actionable pathways for future innovation. The main findings reveal the transformative potential of AI-driven grid-forming inverters for enhancing grid stability and resilience. However, their widespread adoption is hindered by the absence of harmonized standards and misaligned policy frameworks. Consequently, this review underscores the urgent need for policymakers to develop and implement supportive regulatory structures that facilitate the deployment of AI-enabled smart inverters and establish unified standards to ensure interoperability and cybersecurity. This work serves as a foundational reference for researchers and policymakers aiming to address technical and systemic bottlenecks in smart inverter deployment.

1. Introduction

The global imperative to decarbonize has positioned renewable energy sources (RES), notably solar photovoltaics (PV) and wind, as critical components of modern power systems. As of 2023, RES constituted over 30% of global electricity generation, with solar PV alone exceeding 1 terawatt of installed capacity. A further increase of 30 to 40% in installed capacity is anticipated by 2025 [1].
However, the intermittent nature of RES and their distributed integration into aging grids pose significant challenges to grid stability, power quality, and operational efficiency [2]. Within the domain of power electronics, inverters, particularly those of the “smart” variety, have become essential for the effective integration of renewable energy sources into existing power grids. While conventional inverters perform basic DC/AC conversion, their capabilities are increasingly surpassed by smart inverters, which incorporate advanced control algorithms, communication interfaces, and grid-support functionalities [3].

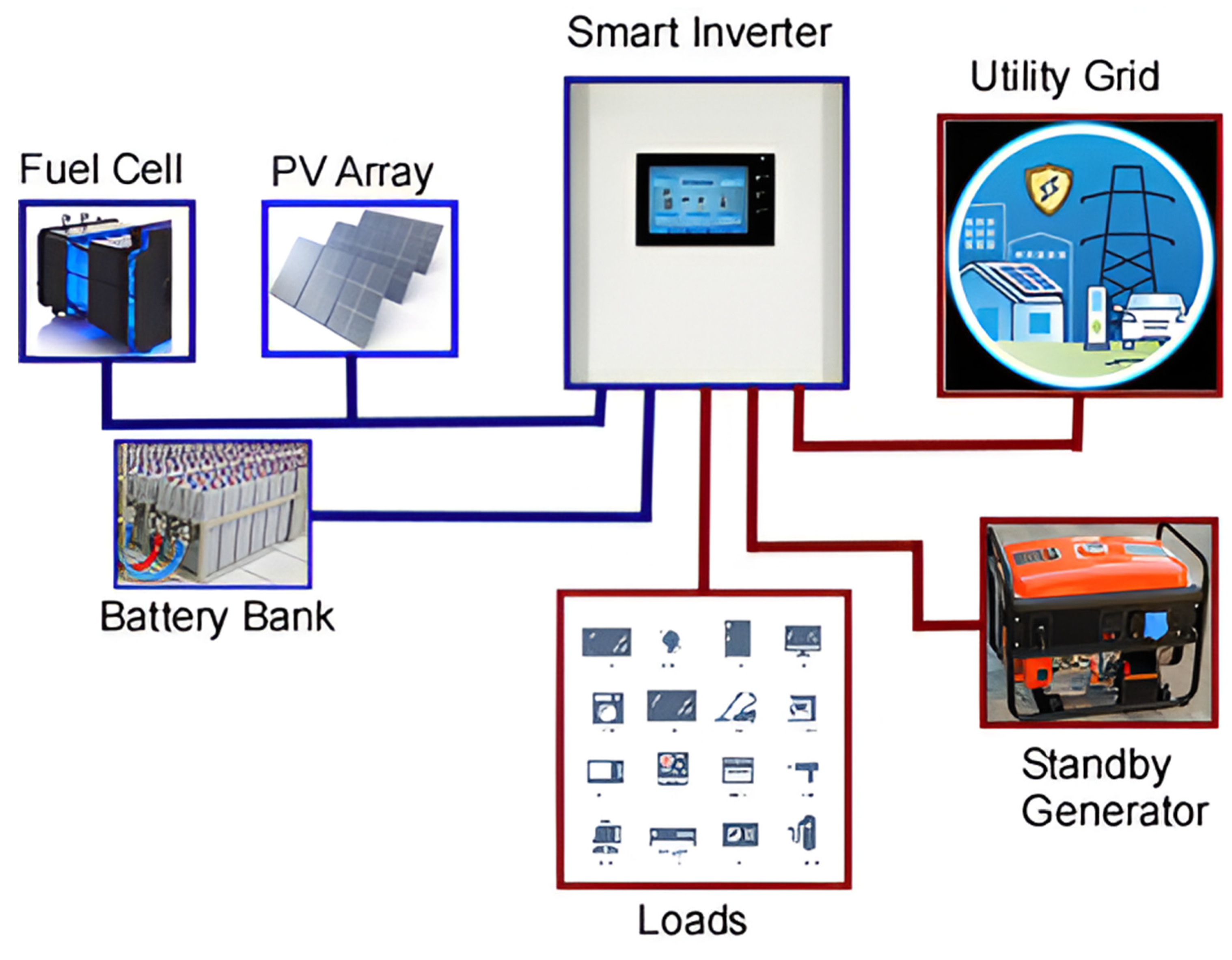

Smart inverters are advanced devices that actively manage their interaction with the power grid. They constantly monitor the grid’s voltage and frequency and make adjustments to maintain stability. They can inject or absorb reactive power to help regulate voltage levels on the grid. They can also remain connected and operational during grid disturbances, helping to prevent blackouts. Furthermore, they can exchange data with grid operators, allowing for better coordination and control of distributed energy resources [4]. These functionalities are consistent with contemporary grid codes, such as IEEE 1547-2023 [5], which stipulate that Distributed Energy Sources (DERs) actively contribute to grid stability. A key example is the ability of smart inverters to inject reactive power during voltage sags, thereby supporting grid voltage stabilization, a capability does not present in traditional inverter technologies [6]. The proliferation of RES, coupled with the rise of prosumer-driven energy markets, has further underscored the need for inverters that transcend mere energy conversion to become grid-forming or grid-supporting assets [7].
Recent advancements in semiconductor technology (e.g., silicon carbide (SiC) and gallium nitride (GaN) devices), artificial intelligence (AI)-driven control algorithms, and cybersecurity protocols have expanded the capabilities of smart inverters [8]. For example, wide-bandgap semiconductors enable higher switching frequencies, reduce losses and improve power density [9], while model predictive control (MPC) optimizes inverter response to grid disturbances [10]. Despite these innovations, challenges persist. High penetration of smart inverters in weak grids can exacerbate voltage fluctuations [11], and interoperability issues between legacy infrastructure and new devices remain unresolved [12]. Furthermore, socio-economic barriers—such as higher upfront costs and fragmented regulatory policies—hinder widespread adoption [13].
This article critically examines the role of smart inverters within renewable energy systems, specifically analyzing advancements from 2018 to 2025. The review addresses three core research questions [14]:
(1) How do smart inverters enhance grid resilience and renewable energy integration relative to conventional inverter technologies [15]?
(2) What technical and regulatory challenges currently constrain the full realization of smart inverter potential within modern power networks [16]?
(3) What interdisciplinary strategies can be employed to accelerate the development and widespread deployment of next-generation smart inverter technologies [17]?
The subsequent sections of this article are organized as follows: Section 2, Fundamentals of Smart Inverters, establishes the theoretical groundwork. Section 3, Smart Inverter Topologies and Associated Control Techniques, explores the various configurations and control strategies employed. Section 4, Role of Smart Inverters in Renewable Energy Integration, analyzes the function of these inverters within the context of renewable energy systems. Section 5, Challenges and Limitations of Smart Inverters, identifies and discusses the current obstacles and constraints. Section 6, Future Vision and Research Directions, proposes potential avenues for future investigation and technological advancement. Finally, Section 7, Conclusions, synthesizes the key findings and provides a summary of the article.

2. Fundamentals of Smart Inverters

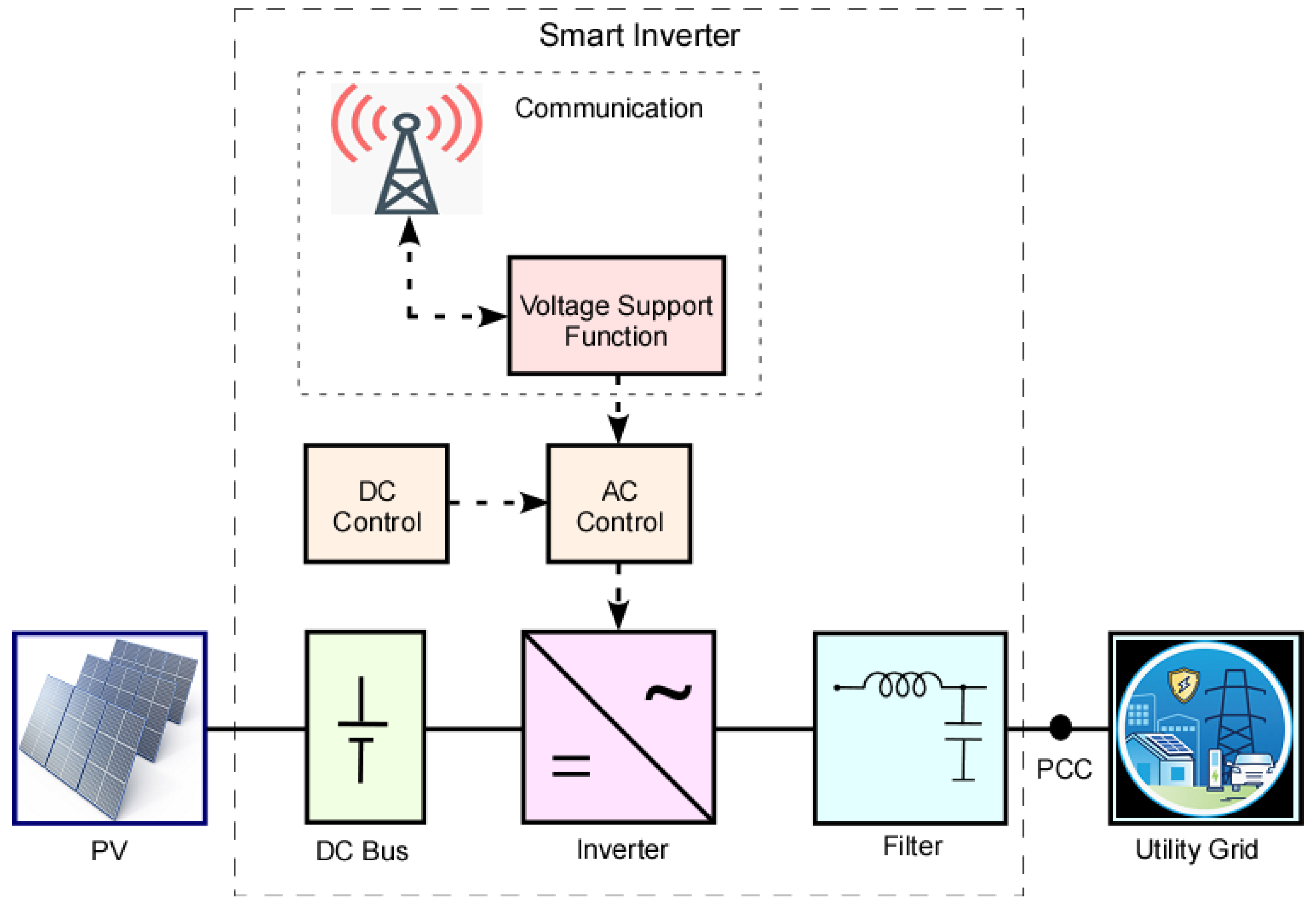

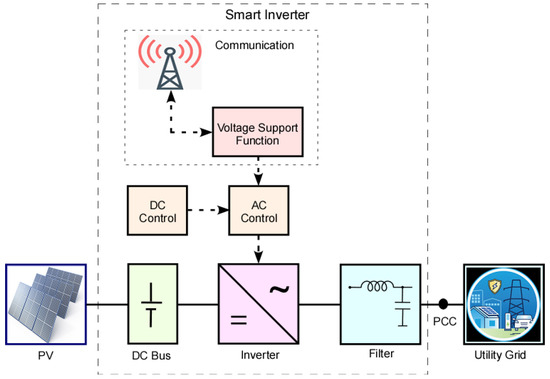

Equipped with communication interfaces, smart inverters can interact with utility operators, facilitating real-time monitoring and control to better integrate distributed energy resources into the grid. These capabilities are essential for maintaining grid reliability, especially as the penetration of renewable energy sources increases [18]. A comparison of the components for conventional and smart inverters are given in Table 1. Figure 1 illustrates the role of smart inverters in a distributed energy system, showcasing their interaction with renewable energy sources, energy storage, and the power grid.
While smart inverters enhance grid stability and efficiency, their capabilities stem from advancements in power electronics and inverter design. The next section explores the core principles of power electronics and inverter technology, setting the stage for a deeper understanding of smart inverter functionality.

2.1. Overview of Power Electronics and Inverter Technology

Power electronics constitutes a critical technology within contemporary energy systems, enabling the efficient conversion and regulation of electrical power. Notably, inverter technology plays an indispensable role in the transformation of DC electricity, derived from renewable sources such as PV arrays and battery storage, into AC power suitable for integration with electrical grids and utilization in consumer applications [19].
Conventional inverter topologies are primarily concerned with the conversion of DC to AC. In contrast, smart inverters extend this functionality by integrating sophisticated control algorithms, grid ancillary services, and communication interfaces, as illustrated in Figure 2 [20]. Smart inverters capitalize on advancements in semiconductor device technology, including Insulated Gate Bipolar Transistors (IGBTs) and Wide Bandgap (WBG) materials such as SiC and GaN, to achieve enhancements in operational efficiency, switching frequency, and thermal management [21]. These enhancements contribute to higher power density and reliability in renewable energy applications. Table 2 illustrates a comparison of different semiconductor devices for inverters.

2.2. Key Functions of Smart Inverters

Smart inverters enhance renewable energy systems with features beyond basic DC to AC conversion. They support grid stability by dynamically adjusting output, offer advanced monitoring and communication, and include safety features like rapid shutdown. These intelligent devices are crucial for integrating solar energy into the grid [24,25,26].

2.2.1. Grid Support Capabilities

Smart inverters play a vital role in ensuring grid stability through a range of sophisticated functionalities. One key function is Volt/Var Control, which enables dynamic adjustment of voltage levels and reactive power output to maintain voltage stability at the point of interconnection. This capability is essential for mitigating voltage fluctuations and ensuring reliable grid operation. By actively managing voltage and reactive power, smart inverters contribute to a more stable and resilient grid, facilitating the seamless integration of renewable energy sources and supporting the overall efficiency and reliability of the power system [24].
The critical function of smart inverters is their contribution to grid frequency stabilization. This is achieved through the dynamic adjustment of real power output in response to observed deviations in grid frequency. By actively modulating their power output, these inverters can counteract frequency fluctuations, thereby enhancing the overall stability and resilience of the power system. This capability is particularly important in grids with a high penetration of variable renewable energy sources, where fluctuations in generation can impact grid frequency [25].
Another crucial feature of smart inverters is their Low Voltage Ride-Through (LVRT) capability. This functionality enables the inverters to remain connected to the grid during voltage sags and other transient disturbances. By preventing unnecessary disconnections during such events, LVRT mitigates the risk of cascading failures and contributes to the overall robustness and reliability of the power system. This capability is essential for ensuring grid stability and preventing widespread outages, especially in the presence of grid disturbances [26].
A comprehensive evaluation of smart inverter capabilities necessitates a comparative analysis of different inverter topologies. This analysis is crucial for understanding the trade-offs between design complexity, cost, and adherence to international standards. Distinct topologies exhibit variations in efficiency, power handling capacity, and harmonic distortion levels, thereby requiring a thorough comparative assessment to determine optimal configurations for specific applications. Furthermore, an examination of the relationship between design complexity and cost facilitates the identification of inverters that achieve a balance between performance and economic viability. This comparative approach enables informed decision-making in the selection and deployment of smart inverters for diverse applications [27].
In smart inverter applications, selecting the appropriate inverter topology is crucial for optimizing performance, efficiency, and suitability for specific use cases. Below in Table 3 is a comparison of various inverter topologies commonly employed in smart inverters:

2.2.2. Communication and Monitoring

Equipped with IoT-based solutions, smart inverters enable real-time data exchange with utility operators and energy management systems [34], which facilitates remote monitoring and cybersecurity measures. The remote monitoring function is realized by collecting and analyzing operational data, utilities can detect faults early and optimize system performance [35]. Given the increasing threats of cyberattacks, smart inverters incorporate encryption, authentication protocols, and anomaly detection algorithms to ensure secure communication, as part of cybersecurity measures [36,37,38,39,40].

2.2.3. Energy Management and Optimization

Smart inverters play a crucial role in energy management and optimization by implementing advanced strategies to enhance grid efficiency and sustainability. One key aspect is peak load management, where smart inverters shift energy consumption patterns to reduce peak demand, alleviating stress on the grid and minimizing costs [41]. By intelligently distributing power usage, they contribute to a more stable and resilient energy system. Additionally, smart inverters facilitate integration with battery storage, enabling seamless coordination with battery energy storage systems. This synergy improves load balancing, enhances the utilization of renewable energy sources, and promotes greater grid independence [42]. By efficiently managing energy flow and optimizing power distribution, smart inverters support a more reliable, cost-effective, and sustainable energy ecosystem [43].

2.2.4. Fault Tolerance Capability

Smart inverters enhance fault tolerance through advanced diagnostics and adaptive operational strategies. Unlike conventional inverters, which may shut down entirely during component failures or grid disturbances, smart inverters employ redundant circuits, self-monitoring sensors, and AI-driven algorithms to detect anomalies (e.g., overheating, voltage spikes, or current imbalances). They can isolate faulty components, switch to backup systems, or reduce power output gracefully to maintain partial operation. For example, if a solar panel string fails, the inverter reroutes power flow to minimize downtime while alerting users or grid operators for repairs. This self-healing capability ensures continuous energy generation and grid support even during partial failures [44].
Additionally, smart inverters improve grid resilience by dynamically responding to external faults. During grid outages or instability, they adjust voltage/frequency parameters, provide reactive power support, or transition to off grid “islanding” mode to power critical loads. Their ability to communicate with energy storage systems and other inverters enables coordinated fault management, such as redistributing loads or stabilizing microgrids. By preventing cascading failures and reducing manual intervention, smart inverters significantly boost system reliability in renewable energy setups [45].

2.2.5. Cyber Security Capability

Smart inverters play a critical role in safeguarding renewable energy systems from cyber threats by implementing robust security protocols. Unlike conventional inverters, which lack connectivity, smart inverters use encrypted communication channels (e.g., Transport Layer Security/Secure Sockets Layer, TLS/SSL) and authentication mechanisms (e.g., digital certificates, role-based access control) to secure data exchanges with grid operators, energy management systems, and cloud platforms. They also employ secure boot processes to ensure firmware updates are cryptographically signed, preventing unauthorized code injection. These measures protect against attacks like data breaches, ransomware, or remote hijacking, which could destabilize grid operations or compromise user privacy [46].
Furthermore, smart inverters enhance cybersecurity through proactive threat detection and compliance with industry standards. Advanced models integrate intrusion detection systems (IDS) to monitor network traffic for anomalies (e.g., unusual command patterns) and automatically trigger alerts or shutdowns. Compliance with frameworks like IEC 62443 (industrial security) and NIST IR 7628 (smart grid guidelines) ensures adherence to best practices for secure design and vulnerability management. By prioritizing cybersecurity, smart inverters mitigate risks to both individual systems and the broader energy infrastructure, enabling safe integration of DERs into modern grids [47].
Table 4 illustrates a comparison between conventional and smart inverters in terms of their key functions.
In the context of the progressive development of power electronics and inverter technology, a proliferation of sophisticated smart inverter topologies and control methodologies has been observed, driven by the imperative to achieve enhanced performance and seamless grid integration.
Building upon the foundational principles established in the preceding section, we will explore the diverse topologies employed in smart inverter design and examine the associated control techniques that enable these devices to achieve the desired performance characteristics.

3. Smart Inverter Topologies and Associated Control Techniques

This section examines the technological advancements of smart inverters, classifying them by topology (H-bridge, multilevel, transformer less) and control (model predictive, AI-enhanced). It also explores wide-bandgap semiconductors and IoT communication, which improve efficiency, power quality, and grid adaptability. Through research, applications, and comparative analysis, this section showcases how these technologies meet renewable integration challenges. Table 5 presents a comparison between different smart inverter topologies.
Advanced inverter topologies, coupled with modern control algorithms, transcend conventional power conversion functionalities, serving as crucial components in the effective integration of DREs into the electrical grid. Having explored the various smart inverter topologies and their corresponding control techniques, it is now pertinent to examine their application within the broader context of renewable energy systems. This transition will focus on elucidating the crucial role these inverters play in facilitating the seamless integration of distributed renewable energy sources into the existing power grid. We will investigate how the specific topologies and control strategies previously discussed enable smart inverters to address the inherent challenges associated with intermittent renewable energy generation, thereby ensuring grid stability and efficiency.

4. Role of Smart Inverters in Renewable Energy Integration

The integration of RES into modern power systems demands advanced technologies capable of addressing grid volatility, intermittency, and bidirectional power flows. Smart inverters, equipped with adaptive control and grid-support functionalities, play a pivotal role in bridging the gap between distributed generation and grid stability. This section examines their applications in grid-tied and off-grid systems, contributions to grid stability, orchestration of microgrids and DERs, and their impact on power quality and energy efficiency. This section underscores the transformative potential of smart inverters in enabling a sustainable energy future.

4.1. Grid-Tied vs. Off-Grid Applications

Grid-tied and off-grid smart inverter systems represent distinct approaches to photovoltaic energy integration in residential and commercial settings. Grid-tied systems operate in conjunction with the utility grid, enabling bidirectional energy exchange, while off-grid systems function autonomously, relying on battery storage for continuous power independent of grid connectivity. These systems serve different roles, with grid-tied systems prioritizing grid synchronization and ancillary services, and off-grid systems focusing on energy autonomy and resilience. Table 6 provides a comparison between grid-tied and off-grid smart inverter systems. This comparison highlights key differences in control strategies, applications, efficiency, and challenges, supported by recent research to guide system selection based on use-case demands.

4.2. Enhancing Grid Stability with Smart Inverters

Smart inverters play a pivotal role in maintaining grid stability through advanced voltage and frequency regulation strategies. Reactive power modulation is a critical mechanism by which these inverters dynamically adjust reactive power (Q) injection to counteract voltage fluctuations caused by intermittent renewable generation or variable load demands. Adaptive Volt-VAR curves, compliant with standards such as IEEE 1547-2023, enable inverters to autonomously regulate voltage by modulating Q output in response to real-time grid conditions. For instance, a case study in a German low-voltage grid demonstrated that distributed PV inverters employing adaptive Volt-VAR algorithms reduced voltage fluctuations by 35%, significantly enhancing local grid stability under high PV penetration scenarios [92]. This capability is particularly vital in modern power systems with increasing shares of DERs, where traditional centralized voltage regulation methods are insufficient. By leveraging localized control architectures, smart inverters mitigate overvoltage during peak solar generation and undervoltage during high-load periods, ensuring compliance with grid codes while minimizing the need for costly grid infrastructure upgrades.
Frequency regulation, another cornerstone of grid stability, is achieved through droop control strategies that emulate the inertial response of synchronous generators. Droop control enables smart inverters to adjust active power (P) output proportionally to frequency deviations, thereby restoring equilibrium during supply-demand imbalances. A 2023 study of a 100 MW wind farm equipped with droop-controlled inverters revealed a 50% reduction in frequency deviations during transient events, underscoring the efficacy of this approach in large-scale renewable integration [93]. The P-f droop characteristic allows inverters to autonomously share power reserves in decentralized systems, such as microgrids, without relying on centralized communication [94]. This mimics the “synchronized” behavior of conventional power plants, enhancing grid resilience in systems dominated by inertia-less renewables. Furthermore, advancements in adaptive droop coefficients and hybrid control schemes—integrating MPC with traditional droop—have optimized dynamic response times and reduced oscillatory behavior, particularly in weak grids with high renewable penetration. Such innovations highlight the transformative potential of smart inverters in bridging the gap between conventional grid stability paradigms and the evolving demands of decarbonized energy systems [95].

Case Study

The 2021 Texas winter storm, Winter Storm Uri, exposed critical vulnerabilities within the state’s power grid, Electric Reliability Council of Texas (ERCOT), when freezing temperatures led to widespread outages. However, amidst the chaos, certain solar power plants, notably a 50 MW facility utilizing NPC multilevel inverters with FRT capabilities, demonstrated significant resilience. These advanced inverters allowed the plant to remain online during voltage dips, thereby contributing crucial power and stability to the grid, and preventing potentially catastrophic cascading failures. This event emphasized the vital role advanced inverter technologies play in securing grid stability during extreme weather events and facilitating the reliable integration of renewable energy sources [96].
The successful performance of these solar installations has driven increased focus on grid modernization and the deployment of robust energy infrastructure. Organizations like Environment Texas have highlighted the potential of expanded solar capacity to mitigate future energy shortfalls. Furthermore, the event underscored the importance of distributed energy resources, like rooftop solar, in bolstering grid resilience. The ongoing development and implementation of advanced inverter technologies are crucial for ensuring the dependable integration of renewable energy into the grid, safeguarding against future extreme weather challenges, and paving the way for a more stable and sustainable energy future [97].

4.3. Role of Smart Inverters in Microgrids and DERs

Smart inverters are integral to the operational resilience and efficiency of microgrids and DERs, particularly in enabling seamless transitions between grid-connected and islanded modes. A critical feature in this context is islanding detection, which employs a hybrid approach combining passive methods (e.g., voltage and frequency monitoring) with active techniques (e.g., impedance measurement) to identify grid outages within 20 milliseconds, ensuring rapid isolation and preventing unsafe reclosures [98]. Complementing this capability is black start functionality, wherein grid-forming inverters autonomously restore power to critical loads without external grid support, a vital feature for disaster recovery scenarios. This dual capability ensures uninterrupted energy supply during grid disturbances, reinforcing microgrid reliability in regions prone to extreme weather events or infrastructure vulnerabilities [99].
The coordination of DERs within microgrids is further enhanced through hierarchical control architectures, which optimize stability, power sharing, and economic efficiency. At the primary layer, local droop control mechanisms stabilize voltage and frequency by dynamically adjusting power output in response to load variations. The secondary layer employs centralized controllers and consensus algorithms to harmonize power sharing among heterogeneous DERs, mitigating imbalances and ensuring proportional contribution to grid demands [100]. At the tertiary layer, mixed-integer linear programming (MILP) models optimize economic dispatch, reducing operational costs by up to 15% through predictive load forecasting and resource allocation [101]. Beyond traditional control paradigms, blockchain technology has emerged as a transformative tool for peer-to-peer (P2P) energy trading. For instance, the Brooklyn LO3 Energy microgrid demonstrated this innovation in 2022, where blockchain-enabled smart inverters facilitated 500 MWh of decentralized solar transactions, enhancing transparency and market efficiency while reducing reliance on centralized intermediaries [102].
A notable case study exemplifying these advancements is the post-Hurricane María microgrid deployment in Puerto Rico. This system integrated cascaded H-bridge inverters with hierarchical control to seamlessly manage solar, wind, and ESS, achieving 95% renewable penetration. The inverters’ grid-forming capabilities ensured stable voltage and frequency during islanded operation, while tertiary control algorithms optimized energy dispatch to prioritize cost-effective renewable utilization [103]. This integration underscores the pivotal role of smart inverters in advancing microgrid resilience, sustainability, and economic viability, particularly in regions transitioning toward decentralized, renewable-dominated energy systems. Such implementations highlight the synergy between advanced power electronics and intelligent control strategies in addressing the complexities of modern grid architectures [104].

4.4. Impact on Power Quality and Energy Efficiency

The integration of smart inverters into renewable energy systems has significantly advanced power quality and energy efficiency, addressing longstanding challenges associated with harmonic distortion and energy losses. A critical innovation in harmonic mitigation is active filtering via selective harmonic elimination (SHE), which enables smart inverters to suppress dominant harmonics (e.g., 5th, 7th) by dynamically adjusting switching patterns. This approach reduces THD to less than 3%, a marked improvement over conventional systems that exhibit THD levels of 8–12% [105,106]. Complementing this, interleaved PWM techniques minimize current ripple in parallel-connected inverters by phase-shifting carrier signals, achieving a 40% reduction in ripple magnitude. This not only enhances transformer lifespan but also mitigates electromagnetic interference (EMI), ensuring compliance with standards such as IEEE 519-2014 [107]. These advancements underscore the capability of smart inverters to maintain grid-compliant power quality even under highly nonlinear load conditions.
Energy efficiency gains are equally transformative, driven by advancements in MPPT algorithms and wide-bandgap (WBG) semiconductor technologies. Hybrid MPPT strategies, such as the integration of Perturb and Observe (P&O) with ANN, optimize PV energy harvest under partial shading and rapidly changing irradiance. A 2023 study demonstrated that such hybrid algorithms improve solar energy extraction efficiency by 12% compared to conventional methods [108]. Concurrently, WBG devices like SiC GaN have revolutionized inverter efficiency. For instance, 150 kW SiC-based inverters achieve conversion efficiencies exceeding 98.5%, reducing conduction and switching losses by 25% relative to Si-based designs [109]. These semiconductors also enable higher switching frequencies (>100 kHz), minimizing passive component sizes and system footprints, which is critical for space-constrained applications.
The real-world efficacy of these innovations is exemplified by a case study of a Japanese manufacturing facility retrofitted with GaN-based transformerless inverters. By replacing legacy systems with advanced inverters featuring, SHE and interleaved PWM, the facility reported a 22% reduction in annual energy costs alongside THD levels below 2.5%. The inverters’ high efficiency (99%) and compact design further reduced cooling demands and operational overheads [110]. This case study highlights the synergistic benefits of modern harmonic mitigation and WBG technologies in industrial settings, aligning with global efforts to decarbonize energy-intensive sectors. Collectively, these advancements position smart inverters as cornerstone technologies for achieving sustainable, high-efficiency power systems in the renewable energy era [111,112].
Despite the numerous benefits of smart inverters in integrating renewable energy sources, smart inverters face limitations that impact their widespread adoption. The following section explores key challenges such as technical complexities, economic and regulatory barriers, and interoperability and standardization issues.

5. Challenges and Limitations of Smart Inverters

The widespread adoption of smart inverters in renewable energy systems is hindered by technical, economic, and regulatory challenges. This section critically examines these barriers, supported by empirical data and recent research, to provide a holistic understanding of the limitations facing smart inverter technologies.

5.1. Technical Challenges

5.1.1. Harmonic Distortion

Smart inverters, particularly those using high-frequency switching, introduce harmonic currents into the grid, degrading power quality. THD levels in conventional inverters often exceed 8%, while advanced smart inverters with SHE reduces THD to <3% (Table 1). However, nonlinear loads and grid impedance variations can exacerbate harmonic resonance. Table 7 illustrates the THD comparison in inverter technologies.
Recent studies highlight the effectiveness of modular multilevel converters (MMCs) in suppressing harmonics for utility-scale systems, achieving THD < 2% under dynamic load conditions [117].

5.1.2. Fault Tolerance

Smart inverters must maintain operation during grid faults, such as voltage dips (LVRT) or surges (HVRT). SiC-based inverters demonstrate superior FRT performance, with response times < 50 ms and 98% success rates [118].

5.1.3. Cybersecurity Threats

Increased connectivity via IoT exposes smart inverters to cyberattacks, such as firmware tampering and data interception. A 2023 survey revealed a 40% annual increase in grid-connected inverter breaches. Mitigation strategies include hardware-based secure boot and AI-driven anomaly detection [119]. Table 8 presents the cybersecurity threats, countermeasures, best practices for smart inverters.

5.2. Economic and Regulatory Barriers

5.2.1. High Initial Costs

Smart inverters with WBG semiconductors, while initially 20–30% pricier, yield 15–25% lower lifecycle costs due to their enhanced efficiency. WBG materials like SiC and GaN reduce energy losses, leading to lower operating expenses and increased power density. As WBG manufacturing improves, these inverters are becoming increasingly cost-effective [123]. A cost comparison, as in 2023, is given in Table 9.

5.2.2. Regulatory Fragmentation

Varying grid codes, such as IEEE 1547-2023 and EN 50549-1, hinder global energy deployment. Compliance costs, exceeding $ 500,000 per product line for 60% of manufacturers, create a significant financial burden. This regulatory fragmentation slows innovation and clean energy adoption, emphasizing the need for greater code harmonization [126,127].

5.3. Interoperability and Standardization Issues

The lack of universal standards for smart inverters poses significant challenges to seamless integration within modern power systems. Interoperability—the ability of inverters, energy management systems (EMS), and grid interfaces to communicate and operate cohesively—is hindered by fragmented protocols and proprietary solutions. This section examines the root causes, impacts, and ongoing efforts to address these challenges, supported by empirical data and comparative analyses [128].

5.3.1. Fragmented Communication Standards

Smart inverters rely on diverse communication protocols, leading to compatibility issues in multi-vendor environments. Key standards include, as displayed in Table 10:

5.3.2. Regional Disparities in Standard Adoption

The adoption of interoperability standards like IEEE 2030.5 varies significantly across regions due to differing regulatory frameworks and market dynamics. In North America, adoption is primarily driven by regulatory mandates such as California’s Rule 21, which requires DERs to support this standard for grid interconnection. Australia has developed the Common Smart Inverter Profile (CSIP-Aus) based on IEEE 2030.5, indicating a growing interest in adopting this standard to manage DER integration. Specific adoption rates of IEEE 2030.5 in Asian countries are not well-documented, suggesting that adoption may be limited or in early stages. It’s important to note that precise adoption percentages by region are not readily available in public sources. The information provided is based on documented regulatory actions and industry reports up to February 2025 [133].

Case Study

The 2022 German microgrid project’s six-month delay and $120,000 cost overrun due to SMA inverter and Schneider EMS integration failure highlights systemic interoperability challenges within the smart energy sector. While standards like IEEE 2030.5 exist, varying interpretations and proprietary extensions create communication barriers. Insufficient robust testing and validation tools, coupled with a lack of early vendor collaboration, exacerbate these issues. This incident underscores the need for improved standardization, readily available interoperability testing, and proactive communication to ensure seamless component integration and accelerate reliable, cost-effective microgrid deployment [134,135].

5.3.3. Consequences of Poor Interoperability

The use of custom adapters and middleware for integrating disparate systems leads to increased installation expenses, adding between $0.05 and $0.10 per watt [136]. This additional cost burden can significantly impact the financial viability of projects, particularly at larger scales. Furthermore, the reliance on manual reconfiguration of inverters introduces operational inefficiencies, reducing system uptime by 12–18% [137]. This loss of uptime translates to decreased energy production and potential revenue loss.
Beyond the immediate cost and efficiency implications, proprietary systems create scalability barriers that hinder the expansion of DER fleets in utility-scale projects. The lack of interoperability between different systems makes it challenging to integrate and manage large numbers of DERs from various manufacturers. This limitation impedes the development of comprehensive and scalable smart grids, slowing down the transition to a more decentralized and resilient energy infrastructure [138]. Table 11 illustrates the cost Impact of Interoperability Challenges.

5.3.4. Pathways to Standardization

IEEE P1547.3 is a draft standard aimed at enhancing the interoperability of DERs with electric power systems. It emphasizes backward compatibility, ensuring that new grid technologies can integrate with existing infrastructure while maintaining security and reliability. By addressing key interoperability challenges, this standard supports the seamless deployment of DERs across various utility networks [142].
The European Committee for Standardization (CEN) and the European Committee for Electrotechnical Standardization (CENELEC) are working to establish unified grid codes as part of Europe’s Energy Union strategy. These efforts focus on harmonizing technical requirements across member states, enabling efficient integration of renewable energy sources and improving grid stability. By streamlining regulatory frameworks, this initiative aims to create a more resilient and interconnected European energy system [143].
The Open Field Message Bus (OpenFMB) initiative is an industry-led effort to promote open-source frameworks for DER communication. By defining common data models and standardized protocol interfaces, OpenFMB facilitates seamless interoperability among diverse grid devices. This initiative helps utilities and grid operators integrate distributed resources more effectively, supporting the transition toward a smarter, more flexible power system [144].
Standardization initiatives, including the IEEE 2030 Standard and the IEEE Smart Grid Initiative, are actively addressing the critical need for enhanced interoperability between diverse inverter systems and energy management solutions to facilitate seamless renewable energy integration.
After addressing the challenges and limitations of smart inverters, the following section discusses future vision and research directions in smart inverters, including potential breakthroughs in smart inverter design and control, role of AI and Machine Learning in optimizing inverter performance, and policy and regulatory developments for wider adoption that aim to enhance the performance, reliability, and scalability of smart inverter technology.

6. Future Vision and Research Directions

The evolution of smart inverters is poised to accelerate as renewable energy systems approach mainstream adoption. This section explores breakthroughs in design, AI integration, policy frameworks, and sustainability, supported by cutting-edge research and comparative analyses to outline a roadmap for next-generation inverter technologies.

6.1. Potential Breakthroughs in Smart Inverter Design and Control

6.1.1. Advanced Semiconductor Materials

Emerging WBG materials like Ga2O3 and diamond semiconductors promise transformative efficiency gains. Ga2O3 offers a 4× higher critical electric field than SiC, enabling ultra-compact inverters with efficiencies > 99% at 200 kW (Table 12) [145,146]. Diamond semiconductors, though experimental, demonstrate thermal conductivity 22× higher than Si, supporting operation at temperatures exceeding 300 °C [147].

6.1.2. Modular Multilevel Converters (MMCs)

MMCs enable scalable HVDC transmission with <1% THD, crucial for efficient, stable power grids. Recent studies [151] show up to 40% switching loss reduction versus two-level inverters, enhancing efficiency and lowering costs. Table 13 presents inverter efficiency and power density.

6.1.3. Self-Healing Inverters

AI is transforming grid management with AI-driven self-healing systems. These systems achieve rapid (10 ms) fault detection and 99% recovery, significantly enhancing grid resilience against disruptions. ML algorithms enable continuous improvement in fault prediction and response, crucial for maintaining stability in modern power grids [156,157].
Advancements in hardware, specifically FPGA-based controllers, significantly bolster the robustness of self-healing grid systems. Experimental models have shown that these controllers can extend the lifespan of critical grid components by up to 30% in challenging environments. This enhanced durability, coupled with AI-powered software, leads to a more reliable and efficient energy infrastructure, capable of adapting to the increasing demands of modern grids, including higher loads and the integration of more renewable energy sources [158,159].

6.2. Role of AI and Machine Learning in Optimizing Inverter Performance

6.2.1. Predictive Maintenance

ML is revolutionizing energy infrastructure maintenance through predictive analytics. Utilizing real-time sensor data, such as thermal imaging and current harmonics, these systems achieve up to 95% accuracy in predicting equipment failures, enabling proactive maintenance and reducing costly downtime [160]. A 2024 study on a 50 MW solar farm demonstrated a 50% reduction in unscheduled downtime through neural network implementation, highlighting AI’s effectiveness in optimizing renewable energy asset performance [161]. This capability enhances grid stability by minimizing disruptions. Table 14 provides a comparative analysis of AI versus traditional maintenance approaches.

6.2.2. Real-Time Optimization

RL has emerged as a promising technique for optimizing power electronic converter operation, particularly in PV systems. By dynamically adjusting parameters such as switching frequency and MPPT curves, RL algorithms can enhance energy harvesting under challenging conditions like partial shading. For instance, a study presented a model-free deep reinforcement learning algorithm (DRLA) for MPPT control in PV systems, achieving a 97% average efficiency across diverse climatic conditions, including partial shading [164].
DRL significantly advances smart inverter control for optimized power quality, grid stability, and MPPT. Specifically, DQN effectively address discrete action spaces, such as mode selection, while DDPG algorithms facilitate continuous control for real-time voltage and frequency adjustments, enhancing grid stability. Both DQN and DDPG-based MPPT controllers demonstrate efficacy in tracking the global maximum power point under partial shading, maximizing photovoltaic energy capture [165]. Table 15 provides a comparative analysis of DRL, DQN, and DDPG, highlighting their suitability for various smart inverter control objectives.

6.2.3. Digital Twins Optimizing Grids: Inverter Control and Resilience

Digital twin technology, leveraging virtual replicas of physical systems, offers significant potential for optimizing power grid operations, particularly in the context of inverter control. By simulating grid interactions, digital twins enable the testing and validation of control strategies before deployment, leading to substantial reductions in field-testing costs, potentially by up to 30% as suggested by early estimations [166]. For instance, a digital twin implementation in a German microgrid demonstrated improved voltage regulation by 25% (as mentioned, though more specific source information would be beneficial for full validation).
More recent research explores advanced digital twin functionalities, including predictive maintenance, real-time control, and resilience analysis. For example, studies have investigated the use of digital twins for optimizing DER integration [167,168] enhancing grid resilience against cyberattacks [3], and facilitating the integration of electric vehicles (EVs) [169].
Furthermore, the development of standardized digital twin frameworks and data models is an active area of research to ensure interoperability and scalability across different grid components and applications. The ongoing evolution of digital twin technology, coupled with advancements in computational power and data analytics, promises to further revolutionize power grid management and optimization [170].

6.3. Policy and Regulatory Developments for Wider Adoption

6.3.1. Global Grid Code Harmonization

Divergent DER standards (e.g., IEEE 1547, IEC 61850) increase compliance costs by 40%, impeding widespread DER adoption. This fragmented landscape necessitates unique regional testing and certification, creating challenges for manufacturers. The CEN-CENELEC initiative targets grid code unification by 2025, aiming for a 30% reduction in deployment delays, streamlining DER integration. As Table 16 illustrates, this issue is global. North America (IEEE 1547-2023) faces interoperability gaps, addressed by the forthcoming IEEE P1547.3 (2025). Similarly, Asia (e.g., JIS C 8960) experiences high compliance costs, prompting consideration of IEC 61850-7-420. These regional variations underscore the need for DER standardization to facilitate seamless integration and reduce compliance burdens. Harmonization efforts, such as CEN-CENELEC, are crucial for efficient global DER deployment [171]. Table 16 presents the regional policy comparison.

6.3.2. Subsidy Programs

Projected SiC inverter cost reductions to $0.10/W by 2030 (from $ 0.13/W in 2024) are crucial for wider adoption of this technology, given its superior efficiency and power density. These reductions are driven by economies of scale, material advancements, and market competition, with government incentives playing a key role. California’s Smart Grid Interoperability Panel (SGIP), for example, has spurred a 200% increase in residential solar-plus-storage deployments since 2022 [12], demonstrating the effectiveness of targeted incentives. However, program design must consider equity, grid integration, and cost-effectiveness. Further research is needed to optimize incentive structures, assess the broader economic and environmental impacts of SiC adoption (e.g., reduced electricity costs, emissions, grid resilience), and foster international collaboration for a global transition to advanced power electronics [173].

6.4. Sustainability and Environmental Considerations

WBG inverters reduce carbon footprints by 35% over 15 years compared to Si-based systems, despite higher manufacturing emissions [174,175]. The data suggests that SiC production results in significantly higher emissions (4.2 tons of CO2 per ton) compared to Si production (2.0 tons of CO2 per ton). This difference is primarily due to the energy-intensive nature of SiC manufacturing, particularly in traditional processes like the Acheson method. However, SiC’s superior energy efficiency in applications, such as power electronics, can offset its higher production emissions over the product’s lifespan.
GaN inverters, designed with modular architectures, can achieve recyclability rates of up to 90%, surpassing the 70% recyclability rate of traditional Si modules. This enhanced recyclability is attributed to the modular design of GaN inverters, which facilitates easier disassembly and component recovery. In parallel, EU-funded initiatives like the Circular Business Models for the Solar Power Industry (CIRCUSOL) project are actively promoting the refurbishment and reuse of PV inverters and modules. CIRCUSOL aims to reduce electronic waste by 50% by 2030 through service-based business models that extend product lifespans and integrate circular economic principles into the solar power sector [176].
In many countries, renewable energy facilities are required to supply the grid with all the power they can generate, as limiting their output under normal conditions is not permitted. While this maximizes the use of available renewable resources like solar and wind energy, it also creates challenges for grid stability. Specifically, these facilities do not contribute to frequency regulation when the system experiences a drop in frequency, leaving conventional power plants solely responsible for maintaining balance. This uneven distribution of regulatory duties places additional strain on traditional power sources, potentially reducing efficiency and increasing operational challenges. As renewable energy continues to expand, addressing this issue becomes essential for a stable and resilient power system.
To enhance grid stability, it may be beneficial to introduce measures that allow for controlled limitations on renewable energy output under specific conditions. By doing so, renewable sources can play a more active role in frequency control, easing the burden on conventional plants and improving overall system reliability. Implementing an absolute or relative cap on active power generation could help ensure a more balanced distribution of frequency regulation responsibilities. Therefore, reviewing existing policies and considering adaptive regulations can support a more effective and secure integration of renewable energy into the power grid.

7. Conclusions

This review elucidates the transformative role of smart inverters in enhancing renewable energy integration, grid stability, and power quality. Despite technological strides in multi-level topologies, wide-bandgap semiconductors, and AI-based control strategies, critical research gaps remain. These include a lack of universal interoperability standards, persistent cybersecurity vulnerabilities, and insufficient economic models to justify large-scale deployment. The article contributes by consolidating fragmented research trends, offering a comparative evaluation of control architectures, and emphasizing the untapped potential of machine learning in predictive grid management. Key findings reveal that smart inverters are indispensable for microgrid resilience and voltage regulation, yet their full potential is hindered by regulatory inertia and technical challenges like harmonic distortion. Future efforts must prioritize interdisciplinary collaboration to develop scalable, secure, and adaptive inverter systems, alongside policy reforms to align incentives with sustainability goals. By bridging theoretical advancements and real-world applicability, this review charts a roadmap for overcoming existing barriers and advancing smart inverter technology toward a more sustainable energy future.

Author Contributions

Conceptualization, H.A. and E.H.E.B.; methodology, H.A. and E.H.E.B.; validation, H.A. and E.H.E.B.; formal analysis, H.A. and E.H.E.B.; investigation, H.A. and E.H.E.B.; data curation, H.A. and E.H.E.B.; writing—original draft preparation, H.A.; writing—review and editing, H.A. and E.H.E.B.; visualization, H.A. and E.H.E.B.; supervision, H.A. and E.H.E.B. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Conflicts of Interest

The authors declare no conflicts of interest.

Abbreviation

AIArtificial Intelligence
ANNArtificial Neural Networks
ASMCAdaptive Sliding Mode Control
CENEuropean Committee for Standardization
CENELECEuropean Committee for Electrotechnical Standardization
CIRCUSOLCircular Business Models for the Solar Power Industry
CSIPCommon Smart Inverter Profile
DDPGDeep Deterministic Policy Gradient
DERDistributed Energy Resources
DQNDeep Q-Network
DRLADeep Reinforcement Learning Algorithm
EMSEnergy Management Systems
ERCOTElectric Reliability Council of Texas
ESSEnergy Storage Systems
EVElectric Vehicle
FPGAField-Programmable Gate Array
FRTFault Ride Through
GaNGallium Nitride
GaN HEMTGallium Nitride High Electron Mobility Transistor
GOOSEGeneric Object-Oriented Substation Event
HVDCHigh Voltage Direct Current
HVRTHigh Voltage Ride-Through
IDSIntrusion Detection Systems
IECInternational Electrotechnical Commission
IGBTInsulated Gate Bipolar Transistor
LVRTLow Voltage Ride-Through
MPPTMaximum Power Point Tracking
MILPMixed-Integer Linear Programming
MOSFETMetal Oxide Semiconductor Field Effect Transistor
MPCModel Predictive Control
NPCNeutral-Point Clamped
PLLPhase-Locked Loop
PQ ControlActive and Reactive Power Control
PVPhotovoltaic
PWMPulse Width Modulation
RESRenewable Energy Sources
RLReinforcement Learning
SGIPCalifornia’s Smart Grid Interoperability Panel
SHESelective Harmonic Elimination
SiC Silicon-Carbide
SVPWMSpace Vector PWM
THDTotal Harmonic Distortion
TLS/SSLTransport Layer Security/Secure Sockets Layer
UPSUninterruptable Power Supply
WBGWide-Bandgap

References

  1. International Renewable Energy Agency. Renewable Capacity Statistics 2023 Statistiques de Capacité Renouvelable 2023 Estadísticas de Capacidad Renovable 2023 About Irena. 2023. Available online: www.irena.org (accessed on 15 January 2025).
  2. Hassan, Q.; Hsu, C.-Y.; Mounich, K.; Algburi, S.; Jaszczur, M.; Telba, A.A.; Viktor, P.; Awwad, E.M.; Ahsan, M.; Ali, B.M.; et al. Enhancing smart grid integrated renewable distributed generation capacities: Implications for sustainable energy transformation. Sustain. Energy Technol. Assess. 2024, 66, 103793. [Google Scholar] [CrossRef]
  3. Balogun, O.A.; Sun, Y.; Gbadega, P.A. Coordination of smart inverter-enabled distributed energy resources for optimal PV-BESS integration and voltage stability in modern power distribution networks: A systematic review and bibliometric analysis. e-Prime—Adv. Electr. Eng. Electron. Energy 2024, 10, 100800. [Google Scholar] [CrossRef]
  4. Ding, F.; Baggu, M.M. Coordinated Use of Smart Inverters With Legacy Voltage Regulating Devices in Distribution Systems With High Distributed PV Penetration—Increase CVR Energy Savings. IEEE Trans. Smart Grid 2023, 14, 1804–1813. [Google Scholar] [CrossRef]
  5. IEEE. IEEE Guide for Cybersecurity of Distributed Energy Resources Interconnected with Electric Power Systems; IEEE: Piscataway, NJ, USA, 2023. [Google Scholar] [CrossRef]
  6. Fard, A.Y.; Shadmand, M.B. Multitimescale Three-Tiered Voltage Control Framework for Dispersed Smart Inverters at the Grid Edge. IEEE Trans. Ind. Appl. 2020, 57, 824–834. [Google Scholar] [CrossRef]
  7. Parra-Domínguez, J.; Sánchez, E.; Ordóñez, Á. The Prosumer: A Systematic Review of the New Paradigm in Energy and Sustainable Development. Sustainability 2023, 15, 10552. [Google Scholar] [CrossRef]
  8. Yadlapalli, R.T.; Kotapati, A.; Kandipati, R.; Balusu, S.R.; Koritala, C.S. Advancements in energy efficient GaN power devices and power modules for electric vehicle applications: A review. Int. J. Energy Res. 2021, 45, 12638–12664. [Google Scholar] [CrossRef]
  9. Arévalo, P.; Ochoa-Correa, D.; Villa-Ávila, E. Towards Energy Efficiency: Innovations in High-Frequency Converters for Renewable Energy Systems and Electric Vehicles. Vehicles 2024, 7, 1. [Google Scholar] [CrossRef]
  10. Athwer, A.; Darwish, A. A Review on Modular Converter Topologies Based on WBG Semiconductor Devices in Wind Energy Conversion Systems. Energies 2023, 16, 5324. [Google Scholar] [CrossRef]
  11. Awad, H.; Soliman, H.M.; Bayoumi, E.H.E. Disturbance-rejection control for unbalanced operation of microgrids: Invariant-set approach. ISA Trans. 2024, 153, 334–349. [Google Scholar] [CrossRef]
  12. Dzobo, O.; Tivani, L.; Mbatha, L. A review of smart inverter capabilities for managing high levels of distributed energy resource integration in South Africa’s power grid. J. Energy S. Afr. 2024, 34, 1–20. [Google Scholar] [CrossRef]
  13. Anzalchi, A.; Sundararajan, A.; Moghadasi, A.; Sarwat, A. High-Penetration Grid-Tied Photovoltaics: Analysis of Power Quality and Feeder Voltage Profile. IEEE Ind. Appl. Mag. 2019, 25, 83–94. [Google Scholar] [CrossRef]
  14. Zhao, X.; Chang, L.; Shao, R.; Spence, K. Power System Support Functions Provided by Smart Inverters—A Review. CPSS Trans. Power Electron. Appl. 2018, 3, 25–35. [Google Scholar] [CrossRef]
  15. Rod Walton, M.E. Smart Inverter States: New Map Shows Progress of IEEE 1547–2018 Adoption. Available online: https://www.microgridknowledge.com/design-engineering/article/55038946/smart-inverter-states-new-map-shows-progress-of-ieee-1547-2018-adoption?utm_source=chatgpt.com (accessed on 15 January 2025).
  16. Author, C. Smart PV Inverter Overview: IEEE 1547–2018 and UL 1741 Explained. Available online: https://solarbuildermag.com/inverters/smart-pv-inverter-overview-ieee-1547-2018-and-ul-1741-explained/?utm_source=chatgpt.com (accessed on 15 January 2025).
  17. Shafiullah, M.; Ahmed, S.D.; Al-Sulaiman, F.A. Grid Integration Challenges and Solution Strategies for Solar PV Systems: A Review. IEEE Access 2022, 10, 52233–52257. [Google Scholar] [CrossRef]
  18. Smart Inverters. Available online: https://irecusa.org/our-work/smart-inverters/?utm_source=chatgpt.com (accessed on 19 January 2025).
  19. Blaabjerg, F.; Yang, Y.; Kim, K.A.; Rodriguez, J. Power Electronics Technology for Large-Scale Renewable Energy Generation. Proc. IEEE 2023, 111, 335–355. [Google Scholar] [CrossRef]
  20. Azizi, A.; Akhbari, M.; Danyali, S.; Tohidinejad, Z.; Shirkhani, M. A review on topology and control strategies of high-power inverters in large- scale photovoltaic power plants. Heliyon 2025, 11, e42334. [Google Scholar] [CrossRef]
  21. Zhang, L.; Zheng, Z.; Lou, X. A review of WBG and Si devices hybrid applications. Chin. J. Electr. Eng. 2021, 7, 1–20. [Google Scholar] [CrossRef]
  22. Sena, G.; Marani, R.; Gelao, G.; Perri, A.G. A Comparative Study of Power Semiconductor Devices for Industrial PWM Inverters. Int. J. Power Electron. Drive Syst. 2016, 7, 1420–1428. [Google Scholar] [CrossRef]
  23. Li, K.; Evans, P.; Johnson, M. SiC/GaN power semiconductor devices: A theoretical comparison and experimental evaluation under different switching conditions. IET Electr. Syst. Transp. 2018, 8, 3–11. [Google Scholar] [CrossRef]
  24. Ali, M.H.; Thotakura, N.L. Smart Inverters and Controls for Grid-Connected Renewable Energy Sources. In Advances in Control Techniques for Smart Grid Applications; Springer Nature: Berlin/Heidelberg, Germany, 2022; pp. 201–266. [Google Scholar] [CrossRef]
  25. Howlader, A.M.; Sadoyama, S.; Roose, L.R.; Chen, Y. Active power control to mitigate voltage and frequency deviations for the smart grid using smart PV inverters. Appl. Energy 2020, 258, 114000. [Google Scholar] [CrossRef]
  26. Talha, M.; Raihan, S.R.S.; Rahim, N.A.; Akhtar, M.N.; Butt, O.M.; Hussain, M.M. Multi-Functional PV Inverter with Low Voltage Ride-Through and Constant Power Output. IEEE Access 2022, 10, 29567–29588. [Google Scholar] [CrossRef]
  27. Kolantla, D.; Mikkili, S.; Pendem, S.R.; Desai, A.A. Critical review on various inverter topologies for pv system architectures. IET Renew. Power Gener. 2020, 14, 3418–3438. [Google Scholar] [CrossRef]
  28. Vairavasundaram, I.; Varadarajan, V.; Pavankumar, P.J.; Kanagavel, R.K.; Ravi, L.; Vairavasundaram, S. A review on small power rating pv inverter topologies and smart pv inverters. Electronics 2021, 10, 1296. [Google Scholar] [CrossRef]
  29. Harb, S.; Kedia, M.; Zhang, H.; Balog, R.S. Microinverter and string inverter grid-connected photovoltaic system—A comprehensive study. In Proceedings of the Conference Record of the IEEE Photovoltaic Specialists Conference, Tampa, FL, USA, 16–21 June 2013; Institute of Electrical and Electronics Engineers Inc.: Piscataway, NJ, USA, 2013; pp. 2885–2890. [Google Scholar] [CrossRef]
  30. Zidane, T.E.K.; Aziz, A.S.; Zahraoui, Y.; Kotb, H.; AboRas, K.M.; Kitmo; Jember, Y.B. Grid-Connected Solar PV Power Plants Optimization: A Review. IEEE Access 2023, 11, 79588–79608. [Google Scholar] [CrossRef]
  31. Feng, J.; Wang, H.; Xu, J.; Su, M.; Gui, W.; Li, X. A Three-Phase Grid-Connected Microinverter for AC Photovoltaic Module Applications. IEEE Trans. Power Electron. 2017, 33, 7721–7732. [Google Scholar] [CrossRef]
  32. Balal, A.; Dinkhah, S.; Shahabi, F.; Herrera, M.; Chuang, Y.L. A Review on Multilevel Inverter Topologies. Emerg. Sci. J. 2022, 6, 185–200. [Google Scholar] [CrossRef]
  33. Sharma, B.; Manna, S.; Saxena, V.; Raghuvanshi, P.K.; Alsharif, M.H.; Kim, M.K. A comprehensive review of multi-level inverters, modulation, and control for grid-interfaced solar PV systems. Sci. Rep. 2025, 15, 661. [Google Scholar] [CrossRef]
  34. Shahed, M.T.; Haque, M.M.; Akter, S.; Mian, S.; Shil, R.C. IoT-Enabled Smart Solar Energy Management System for Enhancing Smart Grid Power Quality and Reliability. SN Comput. Sci. 2023, 4, 805. [Google Scholar] [CrossRef]
  35. Pathare, A.A.; Sethi, D. Development of IoT-enabled solutions for renewable energy generation and net-metering control for efficient smart home. Discov. Internet Things 2024, 4, 11. [Google Scholar] [CrossRef]
  36. Tuyen, N.D.; Quan, N.S.; Linh, V.B.; Van Tuyen, V.; Fujita, G. A Comprehensive Review of Cybersecurity in Inverter-Based Smart Power System Amid the Boom of Renewable Energy. IEEE Access 2022, 10, 35846–35875. [Google Scholar] [CrossRef]
  37. Sanjab, A.; Saad, W.; Guvenc, I.; Sarwat, A.; Biswas, S. Smart Grid Security: Threats, Challenges, and Solutions. arXiv 2016, arXiv:1606.06992. [Google Scholar]
  38. McCarthy, J. Cybersecurity for Smart Inverters: Guidelines for Residential and Light Commercial Solar Energy Systems. NIST Interagency Report NIST IR 8498 ipd. Available online: https://nvlpubs.nist.gov/nistpubs/ir/2024/NIST.IR.8498.ipd.pdf (accessed on 15 January 2025).
  39. Ledmaoui, Y.; El Maghraoui, A.; El Aroussi, M.; Saadane, R. Review of Recent Advances in Predictive Maintenance and Cybersecurity for Solar Plants. Sensors 2025, 25, 206. [Google Scholar] [CrossRef] [PubMed]
  40. Dayaratne, T.; Rudolph, C.; Shirley, T.; Levi, S.; Shirley, D. Fostering Trust in Smart Inverters: A Framework for Firmware Update Management and Tracking in VPP Context. IEEE Trans. Smart Grid 2025, 16, 1872–1884. [Google Scholar] [CrossRef]
  41. Malcom, A. Smart Grid Technologies and Their Role in Sustainable Energy Management. Int. J. Comput. Eng. 2024, 6, 49–64. [Google Scholar] [CrossRef]
  42. Zhan, G.C.; Zhou, H.; Ge, Y.; Magabled, S.M.; Abbas, M.; Pan, X.; Ponnore, J.J.; Asilza, H.; Liu, J.; Yang, Y.; et al. Enhancing On-Grid Renewable Energy Systems: Optimal Configuration and Diverse Design Strategies. Renew. Energy 2024, 235, 121103. [Google Scholar] [CrossRef]
  43. Ukoba, K.; Olatunji, K.O.; Adeoye, E.; Jen, T.C.; Madyira, D.M. Optimizing renewable energy systems through artificial intelligence: Review and future prospects. Energy Environ. 2024, 35, 3833–3879. [Google Scholar] [CrossRef]
  44. Chao, K.H.; Chang, L.Y.; Xu, F.Q. Smart fault-tolerant control system based on Chaos theory and extension theory for locating faults in a three-level T-type inverter. Appl. Sci. 2019, 9, 3071. [Google Scholar] [CrossRef]
  45. Zaki, M.; Shahin, A.; Eskender, S.; Elsayes, M.A. Improving efficiency of parallel inverters operation in island mode microgrids. Sci. Rep. 2023, 13, 20738. [Google Scholar] [CrossRef]
  46. Habib, M.I. Cybersecurity for Smart Inverters: State-of-the-Art Review. PakJET 2024, 7, 151–158. [Google Scholar]
  47. Pillitteri, V.Y.; Brewer, T.L. Guidelines for Smart Grid Cybersecurity; NIST Interagency/Internal Report (NISTIR); NIST: Gaithersburg, MD, USA, 2014. [Google Scholar]
  48. Rocabert, J.; Luna, A.; Blaabjerg, F.; Rodríguez, P. Control of power converters in AC microgrids. IEEE Trans. Power Electron. 2012, 27, 4734–4749. [Google Scholar] [CrossRef]
  49. Eseosa, O.; Kingsley, I. Comparative Study of MPPT Techniques for Photovoltaic Systems. Saudi J. Eng. Technol. 2020, 05, 38–48. [Google Scholar] [CrossRef]
  50. Bayhan, S.; Abu-Rub, H. Predictive Control of Power Electronic Converters. In Power Electronics Handbook, 4th ed.; Elsevier: Amsterdam, The Netherlands, 2017; pp. 1325–1338. [Google Scholar] [CrossRef]
  51. Aguilera, R.P.; Quevedo, D.E. Predictive control of power converters: Designs with guaranteed performance. IEEE Trans. Ind. Inform. 2014, 11, 53–63. [Google Scholar] [CrossRef]
  52. Abu-Rub, H.; Malinowski, M.; Al-Haddad, K. Power Electronics for Renewable Energy Systems, Transportation and Industrial Applications; Wiley-IEEE Press: Hoboken, NJ, USA, 2014. [Google Scholar] [CrossRef]
  53. Sree, V.B.; Chandrashekar, R.; Peddaveni, R.; Lakhanpal, S.; Read, R.; Saxena, A. Advancing Distributed Energy Systems through Power Electronic Interfaces Integration and Benefits. In Proceedings of the International Conference on Communication, Computer Sciences and Engineering, IC3SE 2024, Gautam Buddha Nagar, India, 9–11 May 2024; Institute of Electrical and Electronics Engineers Inc.: Piscataway, NJ, USA, 2024; pp. 743–749. [Google Scholar] [CrossRef]
  54. Li, S.; Oshnoei, A.; Blaabjerg, F.; Anvari-Moghaddam, A. Hierarchical Control for Microgrids: A Survey on Classical and Machine Learning-Based Methods. Sustainability 2023, 15, 8952. [Google Scholar] [CrossRef]
  55. Nguyen, T.K.T.; Van Nguyen, N.; Prasad, N.R.R. Eliminated common-mode voltage pulsewidth modulation to reduce output current ripple for multilevel inverters. IEEE Trans. Power Electron. 2015, 31, 5952–5966. [Google Scholar] [CrossRef]
  56. Harbi, I.; Rodriguez, J.; Liegmann, E.; Makhamreh, H.; Heldwein, M.L.; Novak, M.; Rossi, M.; Abdelrahem, M.; Trabelsi, M.; Ahmed, M.; et al. Model-Predictive Control of Multilevel Inverters: Challenges, Recent Advances, and Trends. IEEE Trans. Power Electron. 2023, 38, 10845–10868. [Google Scholar] [CrossRef]
  57. Lee, S.S. A Family of 5-Level Boost-Active Neutral-Point-Clamped (5L-BANPC) Inverters with Full DC-Link Voltage Utilization Designed Using Half-Bridges. Energies 2024, 17, 2798. [Google Scholar] [CrossRef]
  58. Issa, W.; Sharkh, S.; Abusara, M. A review of recent control techniques of drooped inverter-based AC microgrids. Energy Sci. Eng. 2024, 12, 1792–1814. [Google Scholar] [CrossRef]
  59. Saady, I.; Majout, B.; El Kafazi, I.; Karim, M.; Bossoufi, B.; El Ouanjli, N.; Mahfoud, S.; Althobaiti, A.; Alghamdi, T.A.H.; Alenezi, M. Improving photovoltaic water pumping system performance with ANN-based direct torque control using real-time simulation. Sci. Rep. 2025, 15, 4024. [Google Scholar] [CrossRef]
  60. Scaglione, G. Advanced Model Predictive Control of Cascaded H-Bridge-Fed Drives for E-Mobility Applications. Available online: https://tesidottorato.depositolegale.it/handle/20.500.14242/189044 (accessed on 19 January 2025).
  61. Zhang, B.-L.; Lak, M.; Guo, M.-F.; Solemanifard, S. An Adaptive Total Sliding Mode Control for Cascaded H-bridge Multilevel Converters to Suppress Ground Fault in Active Distribution Networks. In Proceedings of the 2024 IEEE Energy Conversion Congress and Exposition (ECCE), Phoenix, AZ, USA, 20–24 October 2024; IEEE: Piscataway, NJ, USA, 2024; pp. 2796–2802. [Google Scholar] [CrossRef]
  62. Verdin, J.A.; Vazquez, G.; Sosa, J.M.; Lopez, A.R.; Martinez-Rodriguez, P.R.; Langarica, D. Analysis of PWM Techniques for a Single-Phase T-type Cascade Multilvel Inverter. In Proceedings of the 2021 23rd IEEE International Autumn Meeting on Power, Electronics and Computing, ROPEC 2021, Ixtapa, Mexico, 10–12 November 2021; Institute of Electrical and Electronics Engineers Inc.: Piscataway, NJ, USA, 2021. [Google Scholar] [CrossRef]
  63. Xing, Z.; Xiu, C.; Xu, G. Voltage Control of Microgrid Inverter System Based on Improved Sliding Mode Control and Composite Nonlinear Feedback Control. Int. J. Circuit Theory Appl. 2025. [Google Scholar] [CrossRef]
  64. Kasimalla, S.R.; Park, K.; Hong, J.; Kim, Y.-J.; Lee, H. AI-Enhanced Inverter Fault and Anomaly Detection System for Distributed Energy Resources in Microgrids. arXiv 2024, arXiv:2411.08761. [Google Scholar]
  65. Rao, B.N.; Suresh, Y.; Naik, B.S.; Aditya, K.; Panda, A.K. A modified T-type multilevel inverter for renewable energy applications. Electr. Power Syst. Res. 2024, 234, 110552. [Google Scholar] [CrossRef]
  66. Shrestha, S.; Subedi, R.; Sharma, S.; Phuyal, S.; Tamrakar, I. A Comparative Analysis of Transformer-less Inverter Topologies for Grid-Connected PV Systems: Minimizing Leakage Current and THD. arXiv 2025, arXiv:2501.08103. [Google Scholar]
  67. Gaafar, M.A.; Orabi, M.; Ibrahim, A.; Kennel, R.; Abdelrahem, M. Common-ground photovoltaic inverters for leakage current mitigation: Comparative review. Appl. Sci. 2021, 11, 11266. [Google Scholar] [CrossRef]
  68. Kabir, F.; Gao, Y.; Yu, N. Reinforcement Learning-based Smart Inverter Control with Polar Action Space in Power Distribution Systems. In Proceedings of the CCTA 2021—5th IEEE Conference on Control Technology and Applications, San Diego, CA, USA, 9–11 August 2021; Institute of Electrical and Electronics Engineers Inc.: New York, NY, USA, 2021; pp. 315–322. [Google Scholar] [CrossRef]
  69. Dadkhah, J.; Ho, C.N.M.; Siu, K.K.M. Three-Phase Transformerless PV Inverter with Reconfigurable LCL Filter and Reactive Power Capability. IEEE Trans. Power Electron. 2024, 39, 8229–8241. [Google Scholar] [CrossRef]
  70. IEEE Standard for Interconnection and Interoperability of Distributed Energy Resources with Associated Electric Power Systems Interfaces; IEEE: Piscataway, NJ, USA, 2018. [CrossRef]
  71. Jamal, I.; Elmorshedy, M.F.; Dabour, S.M.; Rashad, E.M.; Xu, W.; Almakhles, D.J. A Comprehensive Review of Grid-Connected PV Systems Based on Impedance Source Inverter. IEEE Access 2022, 10, 89101–89123. [Google Scholar] [CrossRef]
  72. Guruwacharya, N.; Bhujel, N.; Hansen, T.M.; Suryanarayanan, S.; Tonkoski, R.; Tamrakar, U.; Wilches-Bernal, F. Modeling inverters with grid support functions for power system dynamics studies. In Proceedings of the 2021 IEEE Power and Energy Society Innovative Smart Grid Technologies Conference, ISGT 2021, Washington, DC, USA, 16–18 February 2021; Institute of Electrical and Electronics Engineers Inc.: Piscataway, NJ, USA, 2021. [Google Scholar] [CrossRef]
  73. Song, G.; Cao, B.; Chang, L. Review of Grid-forming Inverters in Support of Power System Operation. Chin. J. Electr. Eng. 2022, 8, 1–15. [Google Scholar] [CrossRef]
  74. Santhoshi, B.K.; Sundaram, K.M.; Padmanaban, S.; Holm-Nielsen, J.B.; Prabhakaran, K.K. Critical review of PV grid-tied inverters. Energies 2019, 12, 1921. [Google Scholar] [CrossRef]
  75. Elweddad, M.; Guneser, M.T.; Yusupov, Z. Energy Management Techniques in Off Grid Energy Systems: A Review. In Lecture Notes in Networks and Systems; Springer Science and Business Media Deutschland GmbH: Berlin/Heidelberg, Germany, 2022; pp. 281–292. [Google Scholar] [CrossRef]
  76. Zeng, Z.; Shao, W.; Chen, H.; Hu, B.; Chen, W.; Li, H.; Ran, L. Changes and challenges of photovoltaic inverter with silicon carbide device. Renew. Sustain. Energy Rev. 2017, 78, 624–639. [Google Scholar] [CrossRef]
  77. Mukherjee, N.; Fuerst, J.; Diepold, F.; Vega, F.A. 900 V GaN-based sine-wave inverters for three-phase industrial applications. J. Eng. 2019, 2019, 3754–3759. [Google Scholar] [CrossRef]
  78. Alenius, H.; Luhtala, R.; Messo, T.; Roinila, T. Autonomous reactive power support for smart photovoltaic inverter based on real-time grid-impedance measurements of a weak grid. Electr. Power Syst. Res. 2020, 182, 106207. [Google Scholar] [CrossRef]
  79. Heidary, J.; Gheisarnejad, M.; Rastegar, H.; Khooban, M.H. Survey on microgrids frequency regulation: Modeling and control systems. Electr. Power Syst. Res. 2022, 213, 108719. [Google Scholar] [CrossRef]
  80. Zeb, K.; Islam, S.U.; Khan, I.; Uddin, W.; Ishfaq, M.; Busarello, T.D.C.; Muyeen, S.; Ahmad, I.; Kim, H. Faults and Fault Ride Through strategies for grid-connected photovoltaic system: A comprehensive review. Renew. Sustain. Energy Rev. 2022, 158, 112125. [Google Scholar] [CrossRef]
  81. Mohammadi, A.; Ramezani, A. A robust model predictive control-based method for fault detection and fault tolerant control of quadrotor UAV. Trans. Inst. Meas. Control 2022, 45, 37–48. [Google Scholar] [CrossRef]
  82. Potts, J.; Tiedmann, H.R.; Stephens, K.K.; Faust, K.M.; Castellanos, S. Enhancing power system resilience to extreme weather events: A qualitative assessment of winter storm Uri. Int. J. Disaster Risk Reduct. 2024, 103, 104309. [Google Scholar] [CrossRef]
  83. Whitney, E.; Pike, C. An Alaska case study: Solar photovoltaic technology in remote microgrids. J. Renew. Sustain. Energy 2017, 9, 061704. [Google Scholar] [CrossRef]
  84. Vishwakarma, A.K.; Patro, P.K.; Acquaye, A.; Jayaraman, R.; Salah, K. Blockchain-based peer-to-peer renewable energy trading and traceability of transmission and distribution losses. J. Oper. Res. Soc. 2024, 1–23. [Google Scholar] [CrossRef]
  85. Endiz, M.S.; Gökkuş, G.; Coşgun, A.E.; Demir, H. A Review of Traditional and Advanced MPPT Approaches for PV Systems Under Uniformly Insolation and Partially Shaded Conditions. Appl. Sci. 2025, 15, 1031. [Google Scholar] [CrossRef]
  86. Sahoo, S.; Dragicevic, T.; Blaabjerg, F. Cyber security in control of grid-tied power electronic converters—Challenges and vulnerabilities. IEEE J. Emerg. Sel. Top. Power Electron. 2019, 9, 5326–5340. [Google Scholar] [CrossRef]
  87. Yuanliang, L.; Yan, J. Cybersecurity of Smart Inverters in the Smart Grid: A Survey. IIEEE Trans. Power Electron. 2022, 38, 2364–2383. [Google Scholar] [CrossRef]
  88. Raja, R.; Kumar, K.S.; Marimuthu, T.; Prasad, P.V. Optimal power utilization in hybrid microgrid systems with IoT-based battery-sustained energy management using RSA-PFGAN approach. J. Energy Storage 2024, 105, 114632. [Google Scholar] [CrossRef]
  89. Vilaisarn, Y.; Moradzadeh, M.; Abdelaziz, M.; Cros, J. An MILP formulation for the optimum operation of AC microgrids with hierarchical control. Int. J. Electr. Power Energy Syst. 2021, 137, 107674. [Google Scholar] [CrossRef]
  90. Yumpu.com. Preliminary Feasibility Study Advanced Reactors Puerto Rico. Available online: https://www.yumpu.com/en/document/read/63388877/preliminary-feasibility-study-advanced-reactors-puerto-rico (accessed on 19 January 2025).
  91. Wallsgrove, R.; Woo, J.; Lee, J.H.; Akiba, L. The emerging potential of microgrids in the transition to 100% renewable energy systems. Energies 2021, 14, 1687. [Google Scholar] [CrossRef]
  92. Juamperez, M.; Yang, G.; Kjær, S.B. Voltage regulation in LV grids by coordinated volt-var control strategies. J. Mod. Power Syst. Clean Energy 2014, 2, 319–328. [Google Scholar] [CrossRef]
  93. Arani, M.F.M.; Mohamed, Y.A.R.I. Dynamic droop control for wind turbines participating in primary frequency regulation in microgrids. IEEE Trans. Smart Grid 2017, 9, 5742–5751. [Google Scholar] [CrossRef]
  94. Bayoumi, E.H.E.; Soliman, H.M.; Soliman, M. Minimal overshoot V-F control for islanded microgrids. Int. J. Model. Identif. Control 2020, 35, 127–139. [Google Scholar] [CrossRef]
  95. Li, Z.; Chan, K.W.; Hu, J.; Guerrero, J.M. Adaptive Droop Control Using Adaptive Virtual Impedance for Microgrids with Variable PV Outputs and Load Demands. IEEE Trans. Ind. Electron. 2020, 68, 9630–9640. [Google Scholar] [CrossRef]
  96. Studios, L. Extreme Weather Events Are Speeding up Grid Resiliency Efforts. Available online: https://www.latitudemedia.com/news/extreme-weather-events-are-speeding-up-grid-resiliency-efforts/ (accessed on 19 January 2025).
  97. Final Report on February 2021 Freeze Underscores Winterization Recommendations. Available online: https://www.ferc.gov/news-events/news/final-report-february-2021-freeze-underscores-winterization-recommendations (accessed on 21 January 2025).
  98. Alobaid, M.; Abo-Khalil, A.G. A comprehensive review and assessment of islanding detection techniques for PV systems. Int. J. Thermofluids 2023, 18, 100353. [Google Scholar] [CrossRef]
  99. Asensio, A.P.; Gómez, S.A.; Rodriguez-Amenedo, J.L. Black-start capability of PV power plants through a grid-forming control based on reactive power synchronization. Int. J. Electr. Power Energy Syst. 2022, 146, 108730. [Google Scholar] [CrossRef]
  100. Alhasnawi, B.N.; Jasim, B.H.; Sedhom, B.E.; Guerrero, J.M. Consensus Algorithm-based Coalition Game Theory for Demand Management Scheme in Smart Microgrid. Sustain. Cities Soc. 2021, 74, 103248. [Google Scholar] [CrossRef]
  101. Gomes, I.L.R.; Ruano, M.G.; Ruano, A.E. MILP-based model predictive control for home energy management systems: A real case study in Algarve, Portugal. Energy Build. 2023, 281, 112774. [Google Scholar] [CrossRef]
  102. Mengelkamp, E.; Gärttner, J.; Rock, K.; Kessler, S.; Orsini, L.; Weinhardt, C. Designing microgrid energy markets: A case study: The Brooklyn Microgrid. Appl. Energy 2018, 210, 870–880. [Google Scholar] [CrossRef]
  103. EESI. Microgrids in Puerto Rico Keep Rural Communities Connected. Available online: https://www.eesi.org/articles/view/microgrids-in-puerto-rico-keep-rural-communities-connected (accessed on 21 January 2025).
  104. Omar, N.N.; Saleh, M.A. Power to the People: Advancing Resilient and Sustainable Decentralized Energy Distribution Systems. Lond. J. Interdiscip. Sci. 2025, 11, 10–24. [Google Scholar] [CrossRef]
  105. Benaouadj, M.; Boumous, Z.; Boumous, S. Active Harmonic Filtering for Improving Power Quality of an Electrical Network. J. Eur. Systèmes Autom. 2022, 55, 397–403. [Google Scholar] [CrossRef]
  106. Soliman, H.M.; Saleem, A.; Bayoumi, E.H.E.; De Santis, M. Harmonic Distortion Reduction of Transformer-Less Grid-Connected Converters by Ellipsoidal-Based Robust Control. Energies 2023, 16, 1362. [Google Scholar] [CrossRef]
  107. Do, T.A.; Nguyen, Q.D.; Vu, P.; Ngo, M.D.; Ahn, S.J. Comparative Analysis of PWM Techniques for Interleaved Full Bridge Converter in an AC Battery Application. Energies 2024, 17, 375. [Google Scholar] [CrossRef]
  108. Abdullah, B.U.D.; Dhar, S.L.; Jaiswal, S.P.; Gulzar, M.M.; Alqahtani, M.; Khalid, M. Hybrid MPPT control using hybrid pelican optimization algorithm with perturb and observe for PV connected grid. Front. Energy Res. 2025, 12, 1505419. [Google Scholar] [CrossRef]
  109. Su, H.; Zhang, L.; Meng, D.; Li, Y.; Han, N.; Xia, Y. Modeling and Evaluation of SiC Inverters for EV Applications. Energies 2022, 15, 7025. [Google Scholar] [CrossRef]
  110. Industrial GaN Solar Applications: GaN Devices for Reliable Solar Power. Available online: https://epc-co.com/epc/markets/industrial/solar (accessed on 21 January 2025).
  111. Awad, H.; Bayoumi, E.H.E.; Soliman, H.M.; Ibrahim, A.M. Invariant-set design of robust switched trackers for bidirectional power converters in hybrid microgrids. Ain Shams Eng. J. 2023, 14, 102123. [Google Scholar] [CrossRef]
  112. Awad, H.; Bayoumi, E.H.E.; Soliman, H.M.; De Santis, M. Robust tracker of hybrid microgrids by the invariant-ellipsoid set. Electronics 2021, 10, 1794. [Google Scholar] [CrossRef]
  113. Miceli, R.; Schettino, G.; Viola, F. A novel computational approach for harmonic mitigation in PV systems with single-phase five-level CHBMI. Energies 2018, 11, 2100. [Google Scholar] [CrossRef]
  114. Naderipour, A.; Abdul-Malek, Z.; Miveh, M.R.; Moghaddam, M.J.H.; Kalam, A.; Gandoman, F.H. A harmonic compensation strategy in a grid-connected photovoltaic system using zero-sequence control. Energies 2018, 11, 2629. [Google Scholar] [CrossRef]
  115. Zhao, S.; Feng, Z.; Sun, Z.; Zhang, X.; Zhao, Z.; Zhao, T.; Cao, Q. A efficiency optimization and loss balancing method for hybrid three-level active neutral point clamped inverter. Electr. Eng. 2025, 11, e42334. [Google Scholar] [CrossRef]
  116. Bayoumi, E.H.E. Power electronics in smart grid distribution power systems: A review. Int. J. Ind. Electron. Drives 2016, 3, 20–48. [Google Scholar] [CrossRef]
  117. Alotaibi, S.; Darwish, A. Modular multilevel converters for large-scale grid-connected photovoltaic systems: A review. Energies 2021, 14, 6213. [Google Scholar] [CrossRef]
  118. Alzahrani, S.; Shah, R.; Mithulananthan, N.; Sode-Yome, A. Large-scale PV Voltage Regulation: Survey of Recent Practice. In Proceedings of the 2019 IEEE PES GTD Grand International Conference and Exposition Asia, GTD Asia 2019, Bangkok, Thailand, 19–23 March 2019; Institute of Electrical and Electronics Engineers Inc.: Piscataway, NJ, USA, 2019; pp. 661–666. [Google Scholar] [CrossRef]
  119. Ahn, B.; Kim, T.; Ahmad, S.; Mazumder, S.K.; Johnson, J.; Mantooth, H.A.; Farnell, C. An Overview of Cyber-Resilient Smart Inverters Based on Practical Attack Models. IEEE Trans. Power Electron. 2023, 39, 4657–4673. [Google Scholar] [CrossRef]
  120. Bielawski, R.; Gaynier, R.; Ma, D.; Lauzon, S.; Weimerskirch, A. Cybersecurity of Firmware Updates. 2020. Available online: www.ntis.gov (accessed on 22 January 2025).
  121. Alwazzeh, M.; Karaman, S.; Shamma, M.N. Man in The Middle Attacks Against SSL/TLS: Mitigation and Defeat. J. Cyber Secur. Mobil. 2020, 9, 449–468. [Google Scholar] [CrossRef]
  122. Hupp, W.; Hasandka, A.; Singh, V.K.; Baniahmed, S.A. Advanced Grid Operational Technology Edge-Level Threat Detection. 2023. Available online: https://www.nrel.gov/docs/fy23osti/83989.pdf (accessed on 22 January 2025).
  123. Baudais, B.; Ahmed, H.B.; Jodin, G.; Degrenne, N.; Lefebvre, S. Life Cycle Assessment of a 150 kW Electronic Power Inverter. Energies 2023, 16, 2192. [Google Scholar] [CrossRef]
  124. A New ‘Smart’ Inverter to Help Accelerate the Transition to Renewables—Developed by Tapestry and CSIRO and Supported by the Digital Future Initiative. Available online: https://blog.google/intl/en-au/company-news/technology/smart-inverter/?utm_source=chatgpt.com (accessed on 22 January 2025).
  125. Arrow.com. Silicon Carbide (SiC) Boosts Solar Inverter System Efficiency. Available online: https://www.arrow.com/en/research-and-events/articles/sic-technology-and-solar-inverter-systems?utm_source=chatgpt.com (accessed on 22 January 2025).
  126. N. Consulting Inc. A Review of PV Inverter Technology Cost and Performance Projections. 2006. Available online: http://www.osti.gov/bridge (accessed on 22 January 2025).
  127. SolarCtrl. Solar Inverter Cost Analysis from Manufacturing. Available online: https://www.solarctrl.com/blog/solar-inverter-cost-analysis-from-manufacturing/ (accessed on 22 January 2025).
  128. IEEE Smart Grid. Implementing 61850 7-420 to Enable PV Inverter Interoperability. Available online: https://smartgrid.ieee.org/bulletins/july-2021/implementing-61850-7-420-to-enable-pv-inverter-interoperability (accessed on 22 January 2025).
  129. IEEE Standards Association. Available online: https://standards.ieee.org/ieee/2030.5/11216/ (accessed on 22 January 2025).
  130. Find Out More About IEC 61850. Available online: https://iec61850.dvl.iec.ch/ (accessed on 22 January 2025).
  131. SunSpec Modbus Device. Available online: https://www.typhoon-hil.com/documentation/typhoon-hil-software-manual/References/sunspec_modbus_device.html (accessed on 22 January 2025).
  132. Plant Engineering. IEC 61850 Adoption Slow in North American Distribution Automation Market. Available online: https://www.plantengineering.com/articles/iec-61850-adoption-slow-in-north-american-distribution-automation-market/ (accessed on 22 January 2025).
  133. IEEE 2030.5 Takes Off: The Latest News on the IEEE 2030.5 Standard. Available online: https://www.qualitylogic.com/knowledge-center/ieee-2030-5-takes-off/?utm_source=chatgpt.com (accessed on 22 January 2025).
  134. Schindler, D.; Sander, L.; Jung, C. Importance of renewable resource variability for electricity mix transformation: A case study from Germany based on electricity market data. J. Clean. Prod. 2022, 379, 134728. [Google Scholar] [CrossRef]
  135. Towards a Re-Orientation of National Energy Policies in the EU?—Germany as a Case Study. Available online: https://www.europarl.europa.eu/workingpapers/ener/110/chap2_en.htm (accessed on 22 January 2025).
  136. Stegemann, L.; Gersch, M. Interoperability—Technical or economic challenge? IT-Inf. Technol. 2019, 61, 243–252. [Google Scholar] [CrossRef]
  137. Santos, S.F.; Fitiwi, D.Z.; Cruz, M.R.M.; Santos, C.; Catalao, J.P.S. Analysis of Switch Automation Based on Active Reconfiguration Considering Reliability, Energy Storage Systems, and Variable Renewables. IEEE Trans. Ind. Appl. 2019, 55, 6355–6367. [Google Scholar] [CrossRef]
  138. Interoperability of Distributed Energy Resources: Benefits, Challenges, and Solutions. Available online: https://www.carbontrust.com/our-work-and-impact/guides-reports-and-tools/interoperability-of-distributed-energy-resources-benefits-challenges-and-solutions?utm_source=chatgpt.com (accessed on 22 January 2025).
  139. Morling, R. Overcoming Interoperability Challenges: Keeping Remote Renewables Assets Connected—Energy Sustainability Solutions. Available online: https://essmag.co.uk/overcoming-interoperability-challenges-keeping-remote-renewables-assets-connected/ (accessed on 22 January 2025).
  140. Kolb, F. Lack of Interoperability Standards Is Putting the Global Energy System in Jeopardy. Available online: https://www.tdworld.com/smart-utility/article/21282605/lack-of-interoperability-standards-is-putting-the-global-energy-system-in-jeopardy (accessed on 22 January 2025).
  141. Team, T.B. IoT in Clean Energy Tech: Full Overview. Beetroot. Available online: https://beetroot.co/greentech/iot-in-clean-energy-tech-transforming-sustainability-through-connectivity/ (accessed on 22 January 2025).
  142. Ruth, C. IEEE Standards for the Evolving Distributed Energy Resources (DER) Ecosystem. Available online: https://standards.ieee.org/beyond-standards/ieee-standards-for-the-evolving-distributed-energy-resources-der-ecosystem/?utm_source=chatgpt.com (accessed on 22 January 2025).
  143. SGCG/M490/G_Smart Grid Set of Standards. Available online: https://www.cencenelec.eu/media/CEN-CENELEC/AreasOfWork/CEN-CENELEC_Topics/Smart%20Grids%20and%20Meters/Smart%20Grids/1_sgcg_standards_report.pdf?utm_source=chatgpt.com (accessed on 22 January 2025).
  144. OpenFMB Home. Fast, Local, Actionable, Secure Data. Available online: https://openfmb.net/?utm_source=chatgpt.com (accessed on 22 January 2025).
  145. Allied Market Research. Gallium-Oxide Power Devices Market Industry Analysis—2033. Available online: https://www.alliedmarketresearch.com/gallium-oxide-power-devices-market-A240392 (accessed on 23 January 2025).
  146. Xia, C. Research on the Reliability of Gallium Oxide Power Devices. In Proceedings of the 2024 3rd International Symposium on Semiconductor and Electronic Technology (ISSET), Xi’an, China, 23–25 August 2024; IEEE: Piscataway, NJ, USA, 2024; pp. 49–53. [Google Scholar] [CrossRef]
  147. Eon, D. Diamonds in the Current: Navigating Challenges for the Integration of Diamond in Power Electronics. Phys. Status Solidi A 2024, 221, 2400085. [Google Scholar] [CrossRef]
  148. Kim, S.; Raffo, D.; Rothenbaum, P.; Ruggier, P. SiC MOSFET Inverter Design, Considering Unplanned Events for Electric Aviation. In Proceedings of the 12th IEEE International Conference on Renewable Energy Research and Applications, ICRERA 2023, Oshawa, ON, Canada, 29 August–1 September 2023; Institute of Electrical and Electronics Engineers Inc.: Piscataway, NJ, USA, 2023; pp. 184–189. [Google Scholar] [CrossRef]
  149. Zhang, M.; Wang, L.; Yang, K.; Yao, J.; Tang, W.; Guo, Y. Breakdown Characteristics of Ga2O3-on-SiC Metal-Oxide-Semiconductor Field-Effect Transistors. Crystals 2023, 13, 917. [Google Scholar] [CrossRef]
  150. Daryanani, S.; Daryanani, S. Diamond Semiconductors: Advantages and Challenges—Power Electronics News. Available online: https://www.powerelectronicsnews.com/diamond-semiconductors-advantages-and-challenges/ (accessed on 23 January 2025).
  151. Shufian, A.; Hannan, N.; Kabir, S.; Fattah, S.A. Investigation and Performance Optimization of Modular Multilevel Converter-based HVDC Systems for Smart Grids: Control, Harmonic Analysis and Power Quality Enhancement. Smart Grids Sustain. Energy 2024, 9, 1–30. [Google Scholar] [CrossRef]
  152. Kim, J.S.; Kwon, J.M.; Kwon, B.H. High-efficiency two-stage three-level grid-connected photovoltaic inverter. IEEE Trans. Ind. Electron. 2017, 65, 2368–2377. [Google Scholar] [CrossRef]
  153. Soualhi, N.; Makouf, A.; Nait-Said, N.; Hamada, S. Comparison between a Two-Level and Three-Level Inverter fed Induction Motor including Losses and Efficiency. In Proceedings of the International Conference on Advanced Systems and Emergent Technologies, IC_ASET 2020, Hammamet, Tunisia, 15–18 December 2020; Institute of Electrical and Electronics Engineers Inc.: Piscataway, NJ, USA, 2020; pp. 89–94. [Google Scholar] [CrossRef]
  154. Boukhenfouf, J.; Vermeersch, P.; Gruson, F.; Delarue, P.; Lemoigne, P.; Colas, F.; Guillaud, X. Modular Multilevel DC Converter: Impact of the Control on the Design and Efficiency. In Proceedings of the 2023 25th European Conference on Power Electronics and Applications, EPE 2023 ECCE Europe, Aalborg, Denmark, 4–8 September 2023; Institute of Electrical and Electronics Engineers Inc.: Piscataway, NJ, USA, 2023. [Google Scholar] [CrossRef]
  155. Geng, P.; Wu, W.; Huang, M.; Blaabjerg, F. Efficiency analysis on a two-level three-phase quasi-soft-switching inverter. In Proceedings of the Conference Proceedings—IEEE Applied Power Electronics Conference and Exposition—APEC, Long Beach, CA, USA, 17–21 March 2013; pp. 1206–1212. [Google Scholar] [CrossRef]
  156. Sreekumar, S.; Kumar, D.S.; Savier, J.S. A Case Study on Self Healing of Smart Grid with Islanding and Inverter Volt-VAR Function. IEEE Trans. Ind. Appl. 2020, 56, 5408–5416. [Google Scholar] [CrossRef]
  157. Bayoumi, E.H.E. Power electronics in smart grid consumption systems: A review. Int. J. Ind. Electron. Drives 2017, 3, 146–160. [Google Scholar] [CrossRef]
  158. Zhou, L.; Fahmy, Y.; Jahnes, M.; Preindl, M. Self-Healing Power Converter Architecture with Highly Reliable Operation. In Proceedings of the 2023 IEEE Energy Conversion Congress and Exposition, ECCE 2023, Nashville, TN, USA, 29 October–2 November 2023; Institute of Electrical and Electronics Engineers Inc.: Piscataway, NJ, USA, 2023; pp. 3367–3371. [Google Scholar] [CrossRef]
  159. Bayoumi, E.H.E. Power electronics in renewable energy smart grid: A review. Int. J. Ind. Electron. Drives 2015, 2, 43. [Google Scholar] [CrossRef]
  160. Tr, N.T.; Tri, H.T.; Tr, V.T.; Ngô, H.H.; Đào, Q.K. An overview of the application of machine learning in predictive maintenance. Petrovietnam J. 2021, 10, 47–61. [Google Scholar] [CrossRef]
  161. Fassi, Y.; Heiries, V.; Boutet, J.; Boisseau, S. Toward Physics-Informed Machine-Learning-Based Predictive Maintenance for Power Converters-A Review. IEEE Trans. Power Electron. 2023, 39, 2692–2720. [Google Scholar] [CrossRef]
  162. Shin, W.; Han, J.; Rhee, W. AI-assistance for predictive maintenance of renewable energy systems. Energy 2021, 221, 119775. [Google Scholar] [CrossRef]
  163. Serradilla, O.; Zugasti, E.; Rodriguez, J.; Zurutuza, U. Deep learning models for predictive maintenance: A survey, comparison, challenges and prospects. Appl. Intell. 2022, 52, 10934–10964. [Google Scholar] [CrossRef]
  164. Phan, B.C.; Lai, Y.C.; Lin, C.E. A deep reinforcement learning-based MPPT control for PV systems under partial shading condition. Sensors 2020, 20, 3039. [Google Scholar] [CrossRef] [PubMed]
  165. Vu, N.T.T.; Nguyen, H.D.; Nguyen, A.T. Reinforcement Learning-Based Adaptive Optimal Fuzzy MPPT Control for Variable Speed Wind Turbine. IEEE Access 2022, 10, 95771–95780. [Google Scholar] [CrossRef]
  166. Djebali, S.; Guerard, G.; Taleb, I. Survey and insights on digital twins design and smart grid’s applications. Future Gener. Comput. Syst. 2023, 153, 234–248. [Google Scholar] [CrossRef]
  167. Xu, J.; Li, Y.; Zhang, X.; Guan, P.; Zhang, S.; Li, T. Digital Twin for Smart Grid: A Survey. In Proceedings of the 2024 2nd International Conference on Cyber-Energy Systems and Intelligent Energy, ICCSIE 2024, Shenyang, China, 17–19 May 2024; Institute of Electrical and Electronics Engineers Inc.: Piscataway, NJ, USA, 2024. [Google Scholar] [CrossRef]
  168. Sen, Ö.; Bleser, N.; Henze, M.; Ulbig, A. A Cyber-Physical Digital Twin Approach to Replicating Realistic Multi-Stage Cyberattacks on Smart Grids. In Proceedings of the IET Conference Proceedings, Tianjin, China, 22–23 September 2023; Institution of Engineering and Technology: London, UK, 2023; pp. 995–999. [Google Scholar] [CrossRef]
  169. Francisco, A.M.B.; Monteiro, J.; Cardoso, P.J.S. A Digital Twin of Charging Stations for Fleets of Electric Vehicles. IEEE Access 2023, 11, 125664–125683. [Google Scholar] [CrossRef]
  170. Wang, H.; Hu, C.; Zhu, W.; Yang, W.; Zheng, X. Research on Digital Twin Model of Three-Phase Inverter. In Lecture Notes in Electrical Engineering; Springer Science and Business Media Deutschland GmbH: Berlin/Heidelberg, Germany, 2022; pp. 713–721. [Google Scholar] [CrossRef]
  171. CEN-CENELEC-ETSI Smart Grid Coordination Group. Sustainable Processes 2 Contents. 2012. Available online: https://www.cencenelec.eu/media/CEN-CENELEC/AreasOfWork/CEN-CENELEC_Topics/Smart%20Grids%20and%20Meters/Smart%20Grids/smartgrids_frameworkdocument.pdf (accessed on 23 January 2025).
  172. Shrimali, G.; Jenner, S. The impact of state policy on deployment and cost of solar photovoltaic technology in the U.S.: A sector-specific empirical analysis. Renew. Energy 2013, 60, 679–690. [Google Scholar] [CrossRef]
  173. 2020 SGIP Energy Storage Impact Evaluation Introduction and Objectives. Available online: www.verdantassoc.com (accessed on 23 January 2025).
  174. Hoover, H.; Bell, R.; Rippy, K. Emerging Technologies for Decarbonizing Silicon Production. J. Sustain. Met. 2024, 10, 1921–1932. [Google Scholar] [CrossRef]
  175. Emission Factor Database, EFDB. Available online: https://www.ipcc-nggip.iges.or.jp/efdb/find_ef.php?ipcc_code=1&ipcc_level=0 (accessed on 23 January 2025).
  176. Projects, S. Homepage. Circusol. Available online: https://www.circusol.eu/en?utm_source=chatgpt.com (accessed on 23 January 2025).
Figure 1. Smart inverter in distributed energy system.
Figure 1. Smart inverter in distributed energy system.
Technologies 13 00136 g001
Figure 2. Block diagram of smart inverter.
Figure 2. Block diagram of smart inverter.
Technologies 13 00136 g002
Table 1. Comparison between conventional inverters and smart inverters based on their components.
Table 1. Comparison between conventional inverters and smart inverters based on their components.
ComponentConventional InverterSmart Inverter
Power ElectronicsIGBTs/MOSFETs for AC/DC conversionAdvanced IGBTs/MOSFETs with higher efficiency and control
DC-AC Inverter BridgeConverts DC to ACMore precise AC output with grid support features
Microcontroller/DSPBasic control of switchingIntelligent control for optimization and grid interaction
MPPT (Maximum Power Point Tracking)Limited capabilityEnsures maximum energy extraction from solar panels
PLL (Phase-Locked Loop)Basic synchronizationPrecise grid synchronization for stability
Communication InterfaceNot presentSupports Wi-Fi, Modbus, CAN, RS-485 for remote monitoring
Anti-Islanding ProtectionNot availablePrevents feeding power to grid during outages
Surge & Overcurrent ProtectionBasic protectionAdvanced fault detection and response
Temperature Sensors & CoolingLimited or absentActively monitored for optimal performance
Battery InterfaceLimited or not supportedSupports energy storage for backup and load balancing
Grid Support FunctionsSimple AC output onlyIncludes voltage/frequency regulation, reactive power control, and demand response
Table 2. Comparison of Different Semiconductor Devices for Inverters [22,23].
Table 2. Comparison of Different Semiconductor Devices for Inverters [22,23].
Device TypeSwitching SpeedEfficiencyThermal PerformanceApplication
IGBTMediumHighGoodHigh-power applications
MOSFETHighVery HighModerateLow to medium power applications
SiC MOSFETVery HighExtremely HighExcellentHigh-frequency and high-efficiency applications
GaN HEMTUltra HighExtremely HighSuperiorUltra-fast switching applications
Table 3. Comparison of Different Inverter Topologies.
Table 3. Comparison of Different Inverter Topologies.
TopologyDescriptionAdvantagesDisadvantages
Single-Stage Inverter [28].Convert DC to AC in a single conversion process, directly interfacing with the grid or load.
-
Simplified design
-
Reduced component count
-
Lower cost
-
Limited control over power quality
-
Less efficient for applications requiring high-quality AC output
Multi-Stage Inverter [28].Utilizes multiple conversion stages, often including DC-DC and DC-AC stages, to improve power quality and control.
-
Enhanced power quality
-
Greater control over output parameters
-
Improved efficiency in certain applications
-
Increased complexity
-
Higher component count
-
Elevated cost
Central Inverter [27].Aggregates power from multiple PV panels into a single, large inverter unit.
-
Cost-effective for large-scale installations
-
Simplified maintenance
-
Single point of failure
-
Reduced efficiency in partially shaded conditions
-
Limited flexibility
String Inverter [27,29].Connects a series of PV panels (a string) to a dedicated inverter, allowing for modularity.
-
Modular design
-
Improved performance in varied conditions
-
Easier troubleshooting
-
Less efficient in systems with multiple orientations or shading
-
Higher cost per watt compared to central inverters
Multi-String Inverter [27,30].Combines multiple strings of PV panels, each with its own DC-DC converter, feeding into a single inverter.
-
Enhanced energy yield
-
Greater design flexibility
-
Improved performance in systems with varying orientations or shading
-
Increased system complexity
-
Higher initial cost
Microinverter [27,31].Individual inverters attached to each PV panel, converting DC to AC at the panel level.
-
Maximizes energy production per panel
-
Mitigates effects of shading or panel mismatch
-
Simplifies system expansion
-
Higher cost per watt
-
Increased maintenance due to multiple units
-
Potentially more complex installation
Multilevel Inverter [32,33].Generates AC output by synthesizing multiple voltage levels, often using a combination of capacitors, switches, and diodes.
-
Produces high-quality AC output with lower harmonic distortion
-
Improved efficiency
-
Suitable for high-power applications
-
Complex control strategies
-
Increased number of components
-
Higher cost
Table 4. Comparison between Conventional and Smart Inverters in terms of their key functions.
Table 4. Comparison between Conventional and Smart Inverters in terms of their key functions.
CategoryConventional InvertersSmart Inverters
Grid Support Capabilities [44]
-
Basic DC-to-AC conversion with no active grid interaction.
-
Disconnects immediately during grid disturbances (voltage/frequency fluctuations).
-
No reactive power or frequency support; exacerbates grid instability in renewable-heavy systems.
-
Advanced grid services: Voltage/frequency regulation, reactive power injection, fault ride-through (FRT).
-
LVRT/HVRT compliance: Operates under wider voltage/frequency ranges.
-
Grid-forming capability: Supports islanding and black-start functionality for microgrid resilience.
Communication and Monitoring [35,36,37,38,39,40]
-
Local-only monitoring (LED displays, basic logs).
-
No remote connectivity or interoperability with smart grids.
-
Manual configuration (e.g., voltage limits).
-
Real-time communication via protocols (IEEE 2030.5, SunSpec Modbus, DNP3).
-
Cloud integration with SCADA/DERMS for fleet optimization.
-
Predictive maintenance using IoT sensors and remote diagnostics.
Energy Management and Optimization [41,42,43]
-
Fixed output based on solar/battery input; no storage integration.
-
No load shifting or peak shaving; excess energy often wasted.
-
Inefficient for variable loads or time-of-use pricing.
-
Dynamic optimization: Time-of-use (ToU) scheduling, peak shaving, solar self-consumption.
-
AI/ML-driven forecasting (weather, demand, prices).
-
Multi-port management: Integrates solar, storage, and EV charging in hybrid systems.
Fault Tolerance [44,45]
-
Fragile operation: Shuts down entirely during faults, requiring manual reset.
-
No redundancy; single-point failures lead to downtime.
-
No islanding capability during grid outages.
-
Resilient operation: Self-diagnosis, graceful degradation (partial output during faults).
-
Islanding capability: Powers critical loads during outages.
-
Modular redundancy: Fail-safe components (e.g., dual processors).
Cybersecurity [46,47]
-
Minimal risk: No connectivity limits exposure to cyberattacks.
-
Outdated firmware: Rare updates leave legacy vulnerabilities unpatched.
-
High-risk exposure: Vulnerable to attacks via remote access, firmware, or communication channels.
-
Compliance with standards: NISTIR 7628, IEC 62443, UL 2941.
-
Mitigations: Secure boot, zero-trust architecture, regular penetration testing.
Table 5. Comparison between different smart inverter topologies.
Table 5. Comparison between different smart inverter topologies.
TopologyAdvantagesDisadvantagesControl TechniquesApplication(s)
H-Bridge Inverter
  • Simple design, low cost, and suitability for single-phase systems.
  • Compatible with basic pulse-width modulation (PWM) techniques.
  • Limited voltage levels (typically two-level output).
  • Higher harmonic distortion compared to multilevel topologies.
  • PQ Control: Maintains grid-following operation by regulating active (P) and reactive (Q) power. Widely used in grid-tied solar inverters [48].
  • MPPT Integration: Combines PQ control with maximum power point tracking (MPPT) for solar applications to optimize energy harvest [49].
  • Predictive Current Control: Enhances dynamic response by predicting future current states and minimizing tracking errors [50,51].
Residential PV systems, where cost and simplicity are prioritized over harmonic performance [52,53].
Neutral-Point Clamped (NPC) Multilevel Inverter
  • Lower harmonic distortion (Total Harmonic Distortion (THD) <5%) due to stepped voltage waveforms.
  • Reduced switching losses and voltage stress on devices.
  • Complex circuitry and unequal capacitor voltage balancing challenges.
  • V/f Control: Regulates voltage magnitude and frequency in islanded microgrids, enabling grid-forming capabilities [54].
  • Space Vector PWM (SVPWM): Optimizes switching patterns to minimize THD and improve efficiency [55].
  • MPC: Predicts optimal switching states to balance capacitor voltages and reduce harmonics [56].
Medium-voltage industrial microgrids require stable voltage regulation [57].
Cascaded H-Bridge (CHB) Multilevel Inverter
  • Modular and scalable design for high-power applications.
  • Fault tolerance: Failed modules can be bypassed.
  • Requires isolated DC sources, increasing system complexity.
  • Droop Control: Enables decentralized power sharing in DERs by mimicking synchronous generator behavior [58].
  • Hierarchical Control: Combines primary (voltage regulation), secondary (power sharing), and tertiary (economic dispatch) layers for microgrid stability [54].
  • Artificial Neural Networks (ANN): Adaptively adjusts modulation indices to optimize power quality under unbalanced loads [59].
Large-scale solar farms and wind energy systems [60,61].
T-Type Inverter
They combine features of H-bridge and NPC invertersusing bidirectional switches
  • Lower conduction losses compared to NPC.
  • Suitable for both single-phase and three-phase systems.
  • Higher switching losses at high frequencies.
  • Hybrid PWM: Combines carrier-based and SVPWM techniques to reduce switching losses [62].
  • Adaptive Sliding Mode Control (ASMC): Enhances robustness against grid disturbances by dynamically adjusting control parameters [63].
  • AI-Based Fault Detection: Uses machine learning to identify and isolate faulty switches in real time [64].
Commercial buildings with DER integration, balancing efficiency and power quality [65].
Transformerless Inverter
  • Compact, lightweight, and cost-effective.
  • Efficiency >98% due to reduced magnetic losses.
  • Leakage current challenges require sophisticated control.
  • PQ Control with MPPT: Ensures grid synchronization while maximizing solar energy extraction [66].
  • Active Leakage Current Suppression: Modulates common-mode voltage using PWM techniques to neutralize leakage paths [67].
  • Reinforcement Learning (RL): Dynamically optimizes switching patterns to minimize losses under varying irradiance [68].
Residential and small-scale solar installations [69].
Table 6. Grid-Tied vs. Off-Grid Smart Inverter Systems.
Table 6. Grid-Tied vs. Off-Grid Smart Inverter Systems.
ItemGrid-Tied SystemsOff-Grid SystemsReferences
Grid DependencyRequires continuous grid connection; disconnects during outages (anti-islanding).Operate independently; no grid connection required.[70,71]
Control StrategyGrid-following (PQ control); reacts to grid voltage/frequency.Grid-forming (V/f control); establishes voltage/frequency.[72,73]
Energy StorageOptional (for self-consumption); rarely required.Mandatory (batteries, supercapacitors) to ensure continuous supply.[74,75]
Efficiency97–99% (no storage losses).92–95% (storage losses reduce net efficiency).[76,77]
Voltage RegulationAdjusts reactive power (Q) to stabilize grid voltage.Maintains voltage via V/f control and Energy Storage Systems (ESS) management.[78,79]
FRTRequired (LVRT/HVRT compliance per IEEE 1547).Not applicable; the system must sustain islanded operation during faults.[80,81]
ApplicationsUrban rooftop solar, utility-scale wind farms.Remote communities, disaster recovery, telecom towers.[82,83]
CostLower upfront cost (no storage); higher grid fees.Higher upfront cost (storage, backup generators); lower operational costs.[84,85]
Cybersecurity RisksHigh (exposed to grid-wide attacks); requires encryption and intrusion detection.Lower (localized network); risks focus on physical tampering.[86,87]
Energy ManagementSimple (export/import based on grid signals).Complex (requires predictive algorithms for storage and load balancing).[88,89]
Environmental ImpactReduces carbon footprint via grid support; dependent on grid energy mix.Zero emissions if 100% renewable; diesel hybrids increase footprint.[90,91]
Table 7. THD Comparison in Inverter Technologies.
Table 7. THD Comparison in Inverter Technologies.
Inverter TypeTHD (%)Mitigation TechniqueReference
Conventional Inverter8–12Passive Filters[113,114]
Smart Inverter (SiC)2–4SHE + Active Filtering[115]
Multilevel Inverter1–3Hybrid PWM Techniques[116]
Table 8. Cybersecurity Threats, Countermeasures, and Best Practices for Smart Inverters.
Table 8. Cybersecurity Threats, Countermeasures, and Best Practices for Smart Inverters.
ThreatImpactSolutionBest Practices for Smart InvertersReference
Firmware TamperingUnauthorized controlCryptographic code signingRegular firmware updates, integrity verification, and secure boot mechanisms[120]
Man-in-the-Middle AttacksData theftTLS/SSL encryptionEnforce strong authentication, use VPNs for remote access, and apply end-to-end encryption[121]
Denial-of-Service (DoS)Grid instabilityEdge-based intrusion detectionImplement rate limiting, anomaly detection, and redundant communication channels[122]
Table 9. Cost Comparison (2023) [124,125].
Table 9. Cost Comparison (2023) [124,125].
ComponentConventional InverterSmart Inverter (SiC)
Upfront Cost$0.10/W$ 0.13/W
Efficiency96%98.5%
Lifetime (Years)1015
Table 10. Comparison of Communication Standards.
Table 10. Comparison of Communication Standards.
StandardKey FeaturesAdoption RatePrimary RegionsReference
IEEE 2030.5
-
Supports DER interoperability (DER = Distributed Energy Resources).
-
Uses RESTful APIs (Representational State Transfer Application Programming Interfaces).
30%North America, Europe[129]
IEC 61850
-
Object-oriented data modeling for substations.
-
GOOSE messaging (Generic Object-Oriented Substation Event) for real-time communication.
25%Europe, Asia[130]
SunSpec Modbus
-
Open-source, lightweight protocol for solar inverters.
-
Extends Modbus (a serial communication protocol) for DER integration.
20%Global (solar-focused)[131]
Proprietary
-
Vendor-specific protocols (e.g., Sunny Home Manager, Fronius Solar).
-
Limited interoperability.
25%Global[132]
Notes: There is Incompatibility between IEEE 2030.5 and IEC 61850 complicates DER aggregation in hybrid grids. The Vendor-specific protocols limit flexibility, increasing system costs by 15–20%.
Table 11. Cost Impact of Interoperability Challenges.
Table 11. Cost Impact of Interoperability Challenges.
ChallengeCost IncreaseMitigation StrategyReference
Protocol Mismatches15–20%Adoption of open standards (e.g., SunSpec)[139]
Proprietary Systems10–15%Regulatory mandates for compliance[140]
Manual Reconfiguration8–12%Automated configuration tools[141]
Table 12. Semiconductor Material Comparison.
Table 12. Semiconductor Material Comparison.
MaterialBreakdown Field (MV/cm)Thermal Conductivity (W/mK)Efficiency PotentialAdoption TimelineReferences
SiC3.349098.5%Current[145,148]
Ga2O38.02799.2%2025–2030[146,149]
Diamond10.0220099.5%2030+[147,150]
Table 13. Efficiency and Power Density of Inverters.
Table 13. Efficiency and Power Density of Inverters.
Inverter TopologyEfficiency (%)Power Density (kW/L)Switching FrequencyVoltage RangeCostComplexityApplicationsAdvantagesDisadvantagesReferences
Two-Level Inverter~97.5%~5 kW/L (estimated)Low to Medium (1–10 kHz)300 V–1.5 kVLowLowIndustrial motor drives, UPS systemsSimple design, low costHigh harmonics, large filters[152]
Three-Level Inverter~98.5%~7 kW/L (estimated)Medium (10–20 kHz)600 V–3.3 kVModerateModerateSolar inverters, EV chargersReduced harmonics, better efficiencyRequires complex control[153]
Modular Multilevel Converters (MMCs)97–98%10 kW/LLow (≤1 kHz)1 kV–10 kV+HighHighHVDC transmission, grid integrationScalable voltage, low lossesHigh component count, large footprint[154]
Soft-Switching Inverter>99.5%~13.7 kW/LHigh (20–100 kHz+)100 V–1.2 kVVery HighVery HighHigh-frequency applications (e.g., aerospace, EVs)Ultra-high efficiency, compact sizeExpensive, sensitive to load variations[155]
Table 14. AI vs. Traditional Maintenance.
Table 14. AI vs. Traditional Maintenance.
MetricAI-Driven MaintenanceTraditional MaintenanceReferences
Failure Prediction95% accuracy70% accuracy[162]
Downtime Reduction50%20%[163]
Cost Savings$0.02/W/year$0.01/W/year[162,163]
Table 15. Comparizon between DRL [163], DQN [164], and DDPG [165] for Smart Inverters.
Table 15. Comparizon between DRL [163], DQN [164], and DDPG [165] for Smart Inverters.
CriteriaDeep Reinforcement Learning (DRL)Deep Q-Network (DQN)Deep Deterministic Policy Gradient (DDPG)
TypeGeneral framework combining deep learning with reinforcement learning.Value-based algorithm (subset of DRL).Actor-critic, model-free algorithm (subset of DRL).
Action SpaceSupports both discrete and continuous actions (depends on the algorithm used).Discrete actions only.Continuous actions.
Key MechanismUses neural networks to approximate policies or value functions.Q-learning with experience replay and target networks to stabilize training.Combines policy gradients (actor) with Q-learning (critic) for continuous control.
ApplicationsRobotics, game playing, autonomous systems, recommendation systems.Atari games, discrete control tasks (e.g., grid-world problems).Robotics, continuous control tasks (e.g., MuJoCo, autonomous driving).
StabilityVaries by algorithm; often requires careful hyperparameter tuning.Stabilized with experience replay and target networks.Prone to training instability; uses target networks and soft updates.
ExplorationIt depends on algorithm (e.g., ε-greedy, noise injection).ε-greedy exploration.Use noise in the action space (e.g., Ornstein-Uhlenbeck process).
ScalabilityHigh (can handle large state spaces via deep networks).Limited to discrete action spaces; struggles with high-dimensional continuous actions.Scalable to high-dimensional continuous action spaces.
Sample EfficiencyOften sample-inefficient due to trial-and-error learning.Moderate (improved by experience replay).Low to moderate (requires many interactions).
Key StrengthsVersatile framework for diverse tasks.Simple to implement for discrete actions; stable with experience replay.Handles continuous control; combines policy optimization with Q-learning.
Key LimitationsComputationally expensive; requires large datasets.Cannot handle continuous actions; overestimates Q-values.Hyperparameter-sensitive; unstable training; prone to local optima.
Example Use CaseTraining a robot to walk (continuous) or play chess (discrete).Mastering Atari games (e.g., Breakout, Pong).Training robotic arms to grasp objects or a self-driving car to navigate.
Table 16. Regional Policy Comparison [171,172].
Table 16. Regional Policy Comparison [171,172].
RegionCurrent StandardKey ChallengeProposed Reform
North AmericaIEEE 1547-2023Interoperability gapsIEEE P1547.3 (2025)
EuropeEN 50549-1Slow DER certificationCEN-CENELEC Harmonization
AsiaJIS C 8960High compliance costsAdoption of IEC 61850-7-420
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Awad, H.; Bayoumi, E.H.E. Next-Generation Smart Inverters: Bridging AI, Cybersecurity, and Policy Gaps for Sustainable Energy Transition. Technologies 2025, 13, 136. https://doi.org/10.3390/technologies13040136

AMA Style

Awad H, Bayoumi EHE. Next-Generation Smart Inverters: Bridging AI, Cybersecurity, and Policy Gaps for Sustainable Energy Transition. Technologies. 2025; 13(4):136. https://doi.org/10.3390/technologies13040136

Chicago/Turabian Style

Awad, Hilmy, and Ehab H. E. Bayoumi. 2025. "Next-Generation Smart Inverters: Bridging AI, Cybersecurity, and Policy Gaps for Sustainable Energy Transition" Technologies 13, no. 4: 136. https://doi.org/10.3390/technologies13040136

APA Style

Awad, H., & Bayoumi, E. H. E. (2025). Next-Generation Smart Inverters: Bridging AI, Cybersecurity, and Policy Gaps for Sustainable Energy Transition. Technologies, 13(4), 136. https://doi.org/10.3390/technologies13040136

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
