Application of the Multi-Criteria Method FUCOM for Evaluating Technological Processes

1
Department of Manufacturing Technologies and Machine Tools, Faculty of Manufacturing Engineering and Technologies, Technical University of Varna, 9010 Varna, Bulgaria
2
Department of Machine Tools and Manufacturing, Faculty of Mechanical and Manufacturing Engineering, Angel Kanchev University of Ruse, 7017 Ruse, Bulgaria
*
Authors to whom correspondence should be addressed.
Technologies 2025, 13(11), 537; https://doi.org/10.3390/technologies13110537
Submission received: 26 October 2025 / Revised: 13 November 2025 / Accepted: 16 November 2025 / Published: 19 November 2025

Abstract

In modern industrial production, the selection and evaluation of technological processes is a factor in achieving high quality, efficiency, and sustainability. Due to the existence of numerous and often contradictory criteria, the decision-making process requires the application of reliable multi-criteria methods. This article demonstrates the application of MCDM (Multi-Criteria Decision-Making) methods, the FUCOM (Full Consistency Method), for evaluating and selecting a rational technological process under real production conditions. The research results presented in the article demonstrate that the FUCOM method ensures a high degree of consistency, transparency, and efficiency in the evaluation of technological processes. It allows, among a variety of alternative technological process for manufacturing a given product, for the clear identification of the most rational one according to specified requirements. The data obtained in a real production environment confirm the applicability of the method in the field of production engineering and provide a basis for future research and optimization of technological processes.

1. Introduction

Today, mechanical engineering production is characterized by a high degree of complexity and a variety of technological processes. The management of technological processes increasingly depends on assessing and choosing logical solutions using several, frequently incompatible criteria in light of the growing demands for efficiency, sustainability, and competitiveness. The finding of efficient technological solutions is greatly aided by contemporary Computer-Aided Manufacturing (CAM) systems, which integrate automated planning and production optimization techniques [1]. Every day, manufacturing firms must make decisions about technologies, equipment, materials, and organizational solutions that successfully balance technical, financial, and environmental factors. In such situations, multi-criteria decision-making (MCDM) methods can be used, which offer a systematic and reliable approach to evaluating and selecting optimal solutions [2,3,4,5,6,7,8].
Multi-criteria methods are analytical techniques that allow for the simultaneous evaluation of several alternatives according to multiple criteria, which are often contradictory—for example, low price, high quality, etc. Determining the weights of the criteria and processing the expert assessments are an essential stage in multi-criteria analysis, as the reliability, objectivity, and consistency of the final decision depend on them.

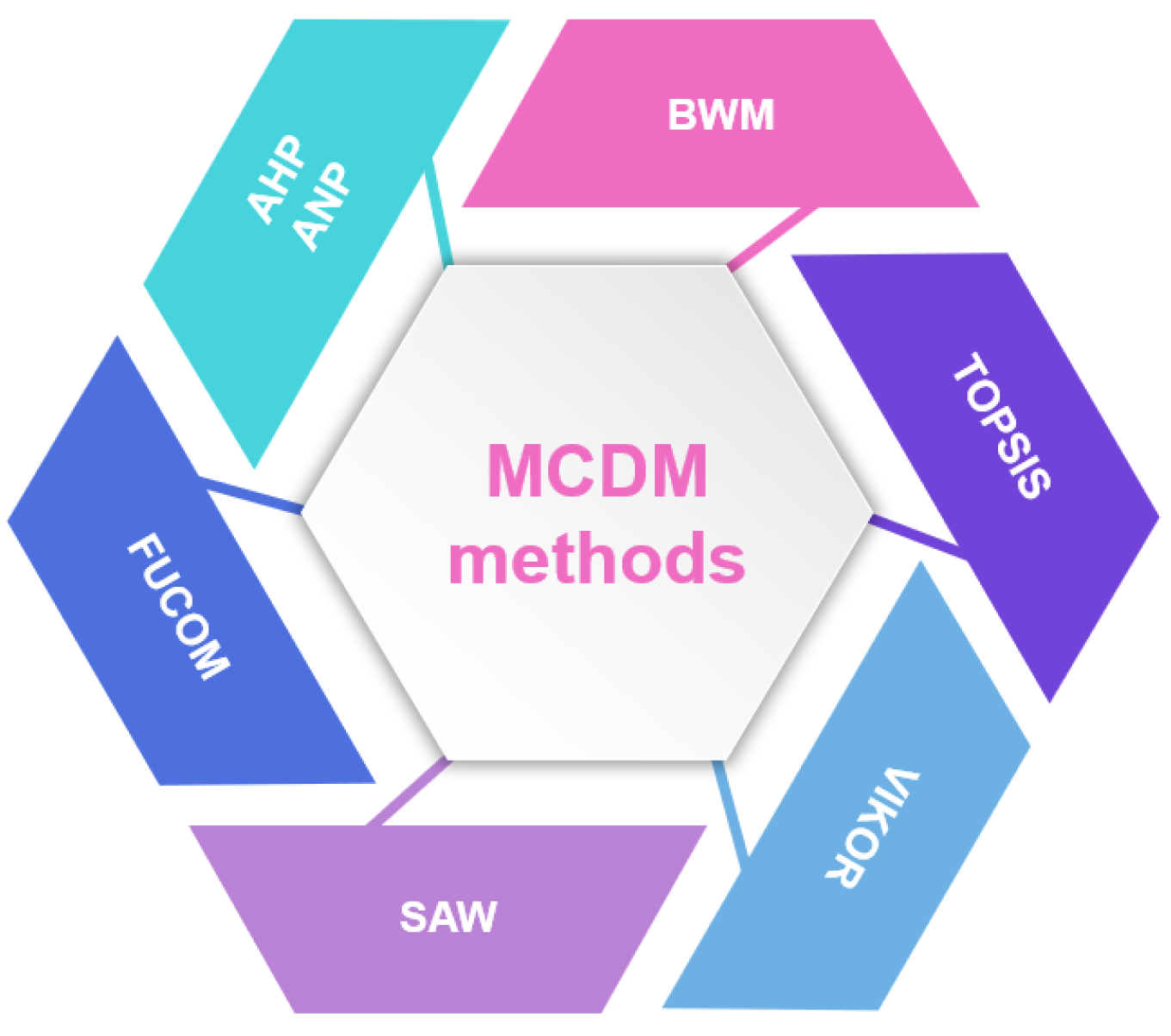

The most widely used MCDM methods [9] include AHP (Analytic Hierarchy Process), ANP (Analytic Network Process), TOPSIS (Technique for Order Preference by Similarity to Ideal Solution), VIKOR (Višekriterijumsko kompromisno rangiranje), SAW (Simple Additive Weighting), BWM (Best Worst Method), and the relatively newer FUCOM (Full Consistency Method) [3,10,11,12,13,14,15,16,17,18], as shown in Figure 1.
Each method has specific advantages and disadvantages, meaning that careful selection is required for their application in different areas. For example, AHP is a well-established and understandable approach, but it requires a large number of comparisons and is sensitive to subjectivity [19,20]. ANP takes into account the interrelationships between criteria, but is extremely complex to apply [21,22]. TOPSIS and VIKOR are good for use in situations with many quantitative criteria, but assume independence between them [16,23,24]. SAW and BWM are easy to use but are limited in complex dependencies [25,26,27,28,29]. Against this background, FUCOM stands out for its efficiency in working with a large number of criteria and low computational complexity [30,31].
These methods are used in various fields—from strategic management and resource planning to logistics, transport, energy, and risk assessment. Despite their advantages, they are often associated with high computational complexity, substantial demands on experts in terms of the number of comparisons, as well as the potential for inconsistencies in the assessments [32,33].
A comparative analysis of MCDM methods shows that each of them has different advantages and limitations depending on the specific objective and conditions of application [9,34]. The AHP method offers a clear hierarchical structure and is easy to understand, but there is a lack of subjectivity in determining the weights. ANP, as its enhancement, allows for the modeling of interdependencies between criteria, but requires significant resources and time for calculations [35]. TOPSIS [36] and VIKOR [34] are distinguished by their effectiveness in analyzing alternatives through their proximity to the “ideal solution,” which makes them suitable for engineering applications with quantitative data. SAW and BWM [37] offer lower computational complexity and are preferred for quick assessments and a small number of criteria. When choosing a method, it is important to consider the complexity of the problem, the available resources, and the degree of accuracy required.
The FUCOM method approach has become more well-known and popular in recent years due to its many benefits [38,39]. Its primary goal is to ensure complete consistency in the assigned weights while reducing the number of expert comparisons required. This makes it particularly attractive for practical applications, as it reduces the cognitive load on experts, limits the possibility of errors, and shortens the time required to perform the evaluation. In addition, FUCOM is sufficiently flexible and can be integrated both independently and in combination with other multi-criteria analysis methods. The method’s weaknesses include the requirement of normalizing quantitative criteria and its reliance on expert evaluations (“weakness” here refers not to the need for expert assessment itself, but to the possibility that it may be carried out by specialists who are not well prepared and have little or irrelevant experience). This calls for meticulous planning and validation of outcomes. Nevertheless, FUCOM is an up-and-coming tool for further study and applications due to its high consistency and adaptability.
Despite the existing examples of FUCOM application in various fields—logistics, transportation, supply chain management, strategic planning, and evaluation of alternatives [40,41,42]—there is a lack of research articles, papers, and practical research focused on its use for evaluating technological processes. This gap in the published research highlights the need for new advances in this field, which has drawn interest. Complex structures, many interdependencies, and particular evaluation criteria—typically including sustainability, energy efficiency, economic efficiency, and environmental indicators—are characteristics of technological processes. This makes them a particularly suitable area for the application of FUCOM, which can provide a reliable, transparent, and systematic mechanism for setting priorities and evaluating alternatives.
The main objective of this article is to propose and test the application of the FUCOM method for evaluating technological processes in real production conditions. This study aims to prove its applicability in a new direction, identify its possible advantages and limitations, and provide practical guidelines for future use in an industrial environment. Additional emphasis is placed on enriching the scientific literature with results that will serve as a basis for further research and development of multi-criteria methods for evaluating technological processes.

2. Materials and Methods

2.1. Methodology for Selecting a Rational Technological Process

To achieve the set goals, a methodology for selecting a rational technological process [43], already developed by the authors, is used. This is based on the application of the FUCOM method and served as the basis for conducting the present experimental study.

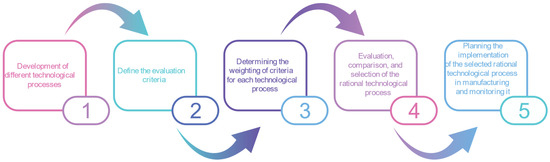

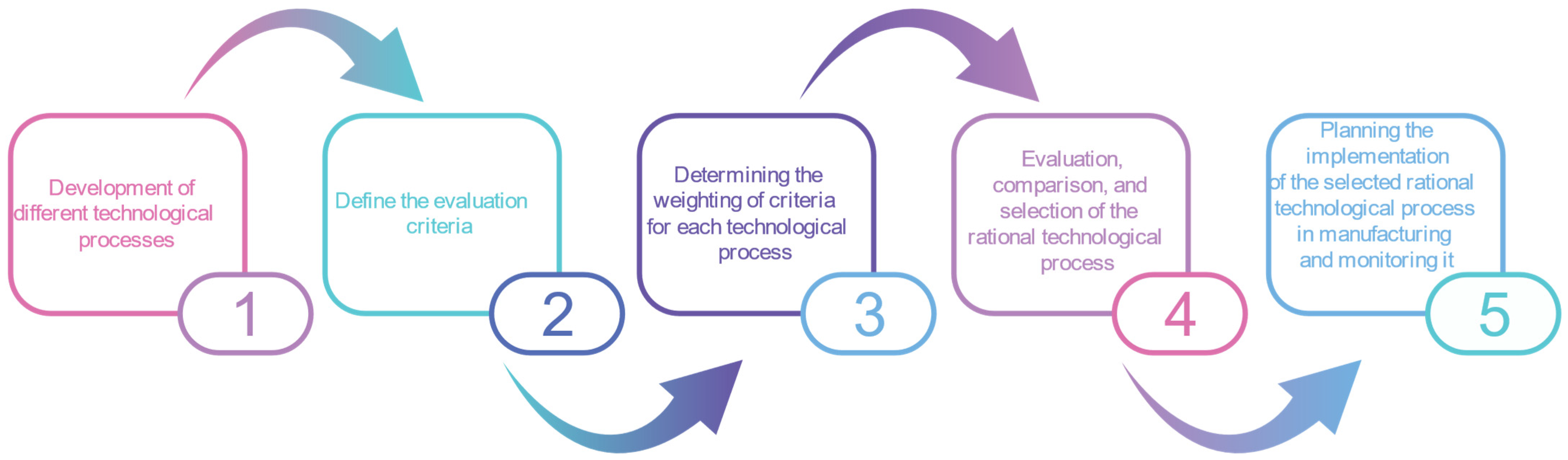

Figure 2 shows the sequence of the five main stages of the methodology for selecting a rational technological process. They are interrelated, logically arranged, and contribute to the optimization of production decisions and the achievement of high quality at minimum cost and time.

2.1.1. Stage 1—Development of Different Technological Processes

This stage aims to create several possible technological solutions (compliant with the objectives and hard requirements specified in the drawings and technical specifications) for manufacturing the same part. Their development takes into account production resources, equipment capabilities, production volume, and product quality requirements. Having more alternatives creates conditions for more flexible and rational decision-making.
P = P 1 , P 2 , P 3 P m ,
where
-
m—the number of technological processes analyzed.

2.1.2. Stage 2—Define the Evaluation Criteria

In the second stage, the main criteria are defined, according to which the technological processes developed in stage 1 will be compared. They cover both technical indicators (accuracy, roughness, dimensional stability) and economic and organizational factors (production costs, production time, productivity). A clear definition of the criteria is key to achieving an objective and repeatable assessment.
C = C 1 , C 2 , C 3 , , C n
where
-
n—index indicating the number of criteria considered.

2.1.3. Stage 3—Determining the Weighting of Criteria for Each Technological Process

After identifying the criteria, their relative importance is determined by applying the FUCOM method. The weights of the criteria are determined once by FUCOM and are applied equally to all technological processes under consideration. The method does not generate separate weights for the different variants of technological processes but provides a uniform, mathematically consistent system of weight coefficients used for comparison between them, and the set of weights is the same for all the alternatives. This allows for a high degree of consistency in expert assessment and minimizes subjectivity in setting priorities. The end product is a collection of normalized weighting coefficients that show how important each criterion is in relation to the others.
C k = K ,   K 1 , 2 , n ,
where C k C p ,     p 1,2 , n ,   p k ,   k = 1,2 , n .

2.1.4. Stage 4—Evaluation, Comparison, and Selection of the Rational Technological Process

At this point, all technological processes created in Stage 1 are evaluated using a mathematical model based on the weights determined in Stage 3 and the criteria established in Stage 2. Based on the designated indicators, each process is assigned a numerical value indicating its efficiency. The process with the best overall rating is determined to be rational, as it provides an optimal balance between quality, time, and price.
V i , j = ( P i , ω j )
where
-
I = 1…m, j = 1…n, ω j is the normalized value of the criterion Cj.
S P 1 m = 1 n ω j · V ( P 1 m , C j ) m i n ,
where
-
ωj—weight assigned to each criterion C(1…n) (the FUCOM—determined weight of the j-th criterion).
In manufacturing environments and when evaluating technological processes, the aim is always that criteria such as price and production time are as low as possible. Accordingly, all other criteria are normalized using the PN index, which minimizes deviations in dimensions, roughness, and other factors to a single number representing the deviations in the technological process for the criterion under consideration (i.e., more deviations means the normalized value is higher). All criteria are equalized so that the lower value is better, which allows Equation (5) to be minimized (i.e., the technological process with the minimum value according to the equation is the most suitable).

2.1.5. Stage 5—Planning the Implementation of the Selected Rational Technological Process in Manufacturing and Monitoring It

The final stage covers the actual implementation of the selected technological process in a production environment, as well as monitoring its results. Tracking statistical indices of process capability (Cp, Cpk, Pp, Ppk) allows for the timely detection of deviations, an assessment of stability, and the planning of corrective actions. This ensures sustainability and continuous improvements in production.
The suggested methodology ensures transparency, objectivity, and adaptability to the changing conditions of the modern production environment by combining strategic planning with a quantitative decision-making approach. The transparency argument comes from the fact that the proposed methodology allows for the traceability of the entire process, while objectivity is linked to reduced expert involvement in the assessment of the processes. This provides technology experts with a valuable tool for process optimization and sustainable quality, with reduced production risk.

2.2. Methodology for Conducting the Experiment

The planning of an experiment, choice of research object, defining of the criteria for assessing technological processes, selection of measurement tools, processing of the results, and choice of a logical technological process are all covered by the current experimental methodology. The main idea is to achieve a systematic approach—from the formulation of the research objectives and planning of the experiment, through conducting the experiments and measurements, to the final analysis and evaluation of the results. Following the steps of the methodology makes it possible to evaluate the quality of the final part, determine the influence of the various technological processes, and draw objective conclusions about their effectiveness.

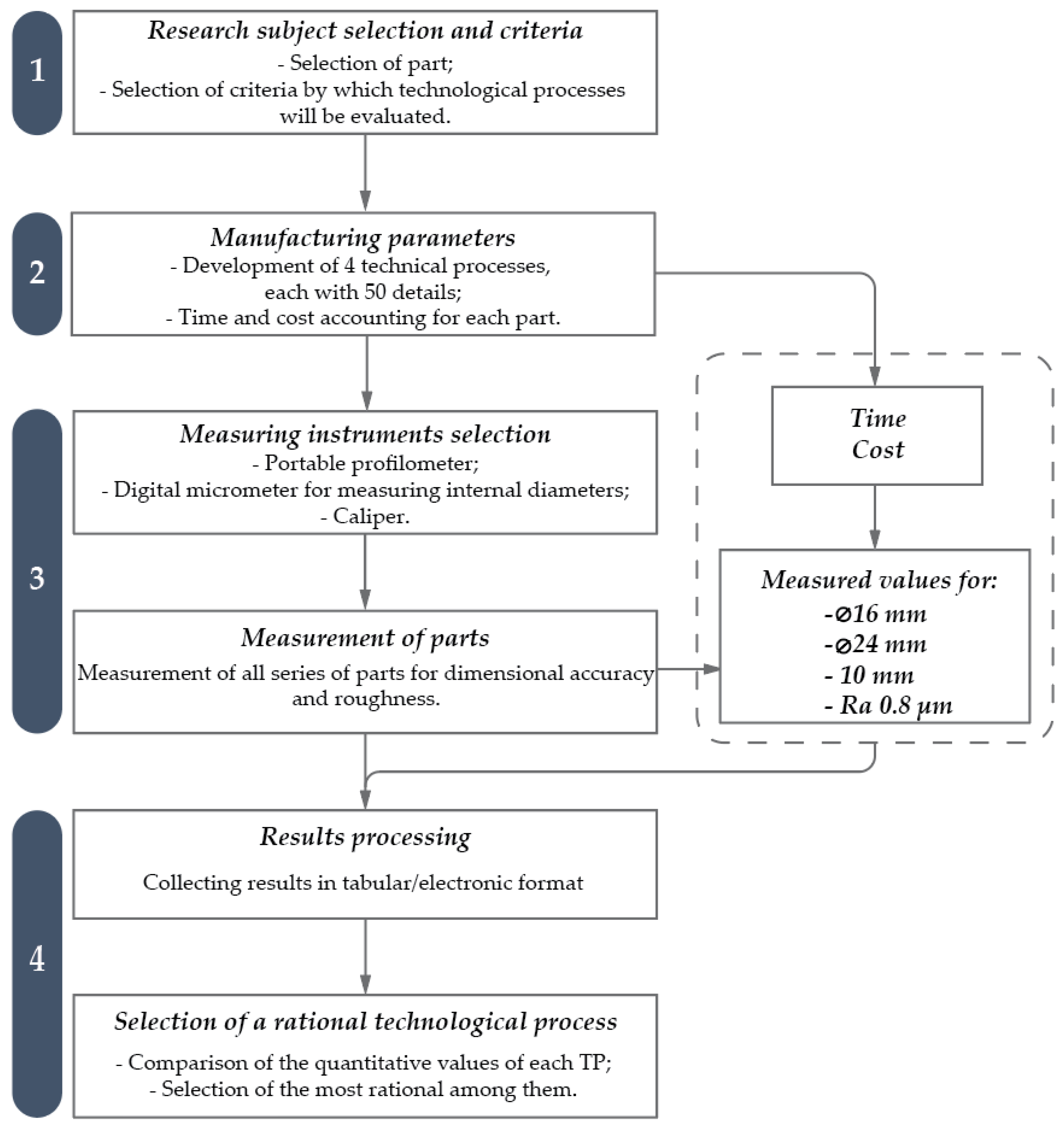

Figure 3 shows a diagram of a specific methodology for conducting an experiment related to the implementation of the study in real production conditions at CERATIZIT Bulgaria AD. However, this methodology is universal and can be applied to other research subjects in other manufacturing companies.
The ability to systematically conduct experimental studies is ensured by adhering to the methodology’s steps. This, in turn, makes it easier to compare various technological solutions and encourages well-informed choices when designing technological processes.

2.2.1. Selection of Research Subject and Criteria

To test the methodology for selecting a rational technological process based on the application of the FUCOM method, the experimental part was carried out in the real production conditions of CERATIZIT Bulgaria AG.
The challenges in selecting a suitable research object include the limitations of the available production technologies and the need to balance the complexity of the part with the possibilities for its production in the manufacturing conditions of CERATIZIT Bulgaria AG. All of the above issues were discussed and resolved through iterative consultations and the active participation of the company’s technologists. With their help, one part—“Guide for 3D printer”, shown in Figure 4—was selected as the research object in connection with the testing of the methodology for selecting a rational technological process.

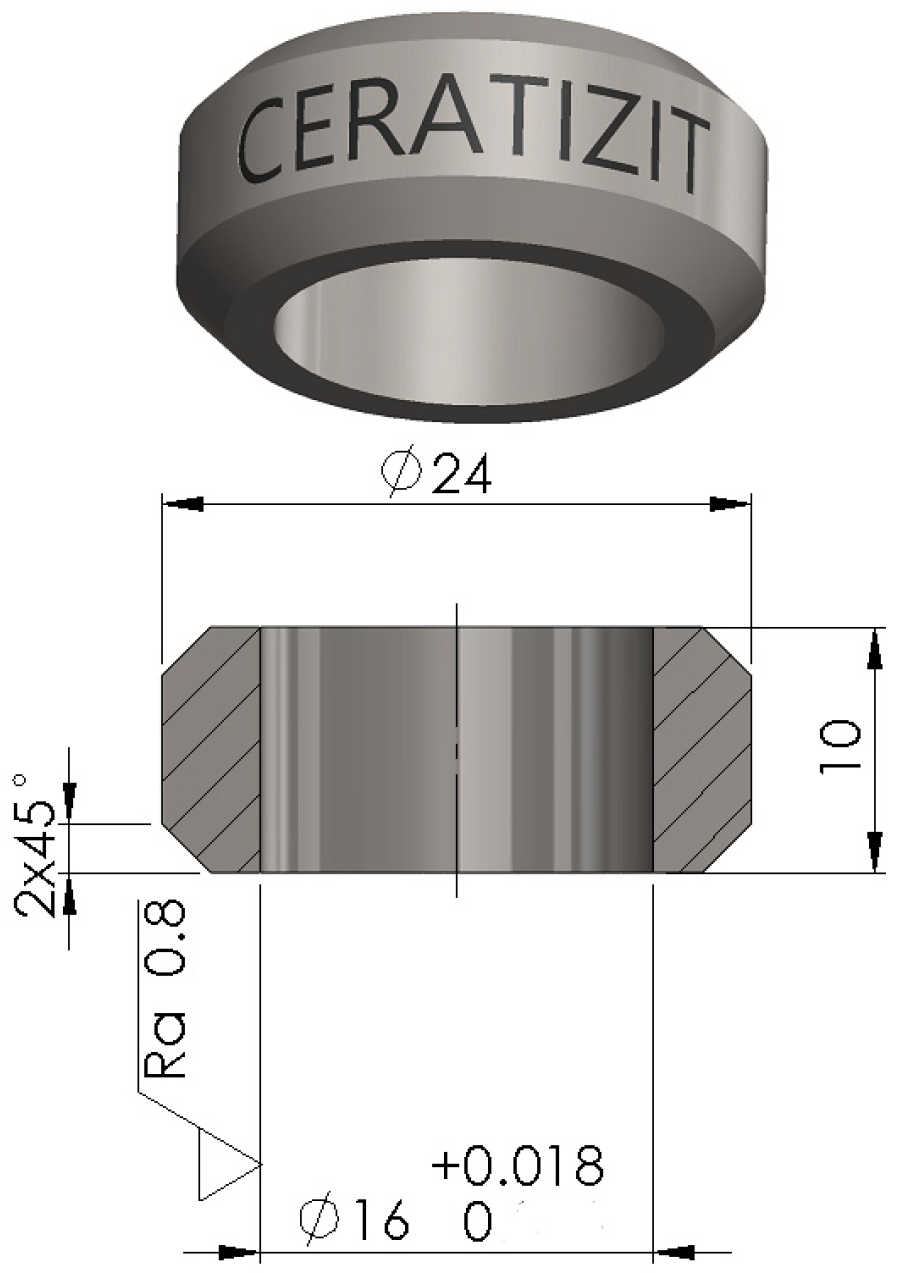

The object of the experimental research is a cylindrical part that acts as a guide for the parallels of a 3D printer. Its main purpose is to ensure precise guidance and minimize wear or friction between the contact surfaces. The part has clearly defined geometric dimensions, accuracy, and roughness parameters, which are essential for reliable and precise operation in the kinematic diagram of the 3D printer.
During the preliminary planning of the experimental research and in close cooperation with the technologists from CERATIZIT Bulgaria AG, six basic criteria were defined for the evaluation of each technological process. These criteria reflect the most important aspects of the production and quality of the resulting part:
  • Internal diameter accuracy Ø16+0.018 mm;
  • External diameter accuracy Ø24 ± 0.2 mm, according to ISO 2768—m [44];
  • Length accuracy 10 ± 0.2 mm, according to ISO 2768—m [44];
  • Roughness of the machined surface with a required value of Ra 0.8 μm;
  • Production costs;
  • Manufacturing time.
All technological processes were evaluated according to the same criteria in order to ensure a uniform basis for comparison and to avoid inconsistencies arising from different methods of analysis. This makes the results directly comparable and allows conclusions to be drawn about which technological process is rational for specific production needs. This not only provides a realistic assessment of the capabilities of each process but also facilitates the selection of the optimal solution depending on predefined production or customer priorities.

2.2.2. Production Parameters

As part of the experiment, four different technological processes were designed in collaboration with technologists from CERATIZIT Bulgaria AG, each covering a set of different operations, machines, tools, and materials, and ensuring the production of suitable parts. For each of the four technological variants, 50 parts were produced to provide a sufficient basis for analysis of the technological processes. The characteristics of each technological process are summarized in Table 1.
The number of parts produced by each technological process (50 pcs.) was chosen to be enough to provide an overview of the distribution of errors. In this way, we can obtain objective information about the degree of correspondence between the different technological processes.
To ensure full traceability and repeatability of the experimental results, detailed technical information on the measuring instruments used, calibration procedures, and experimental setup schemes is included in Appendix A. Descriptions of the SRT 6210 profilometer Graiger (Shenzhen, China), the ETOPOO digital micrometer Yiwu Hot Electronic Co. (Zhejiang, China), and the Caliper Mitutoyo (Kanagawa, Japan) are provided, along with their basic metrological characteristics and operating conditions.

3. Results

3.1. Measurement Results

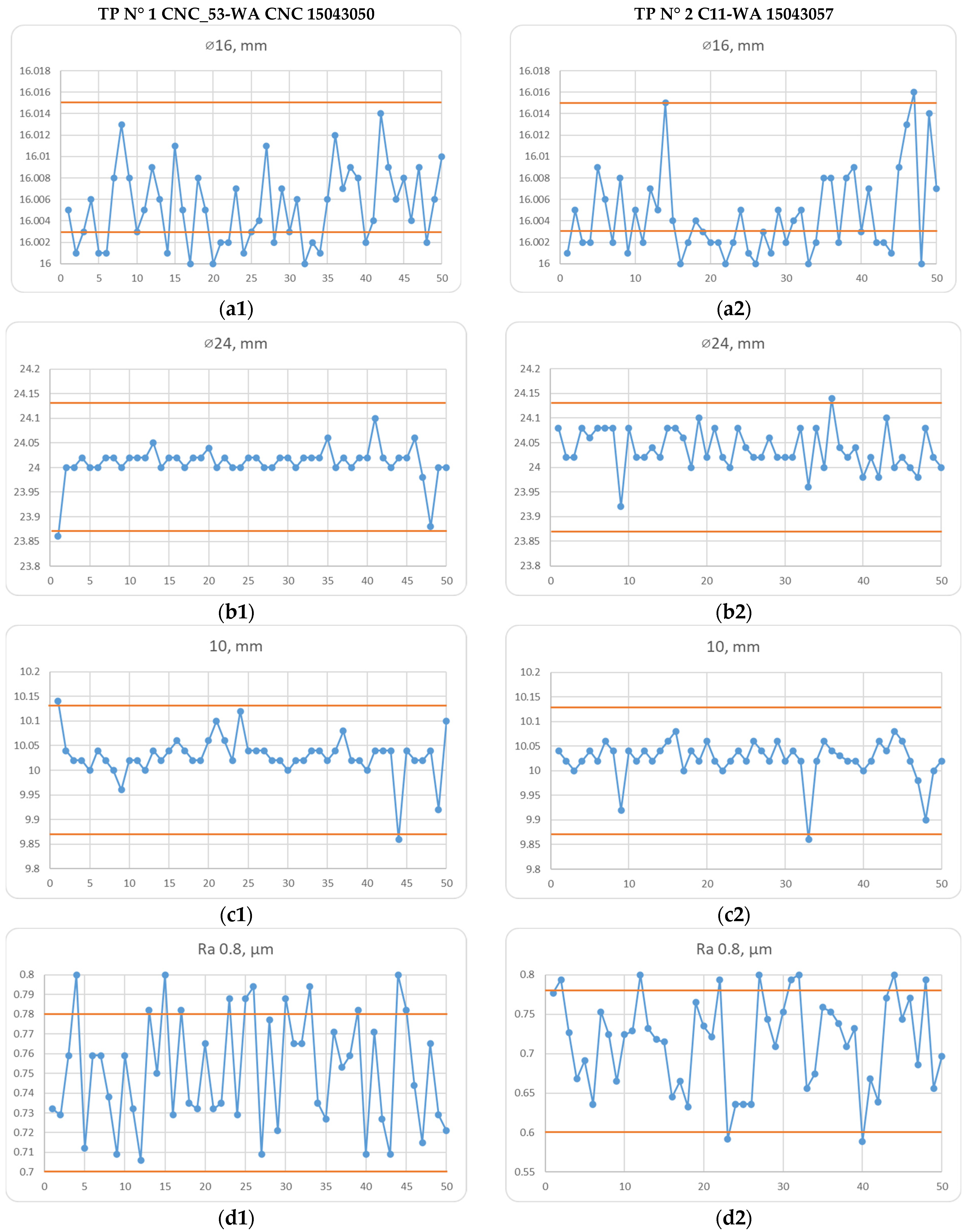

After the production of the parts according to the four technological processes under examination, the main geometric and quality characteristics were measured in accordance with the criteria set out in the methodology for conducting experimental research (see Section 2.2). The purpose of the measurement is to determine the extent to which each process meets the requirements for accuracy and roughness. The measurements were performed on 50 pieces for each technological process. Each part was measured in a controlled environment using calibrated measuring instruments (see Appendix A).
The obtained summary data for each technological process are presented in Table 2. Average values, standard deviations, and dispersion limits are calculated for each parameter. This allows for comparison between the individual technological processes not only by average value but also by stability of performance.

3.2. Analysis of the Results

3.2.1. Statistical Data Analysis

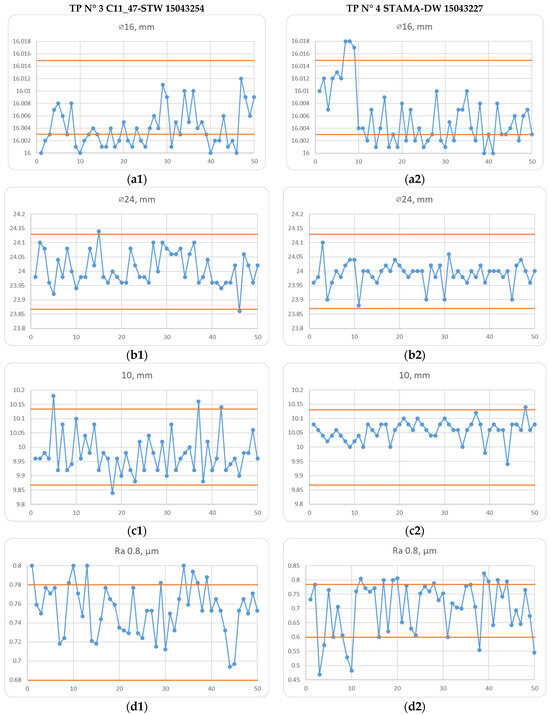

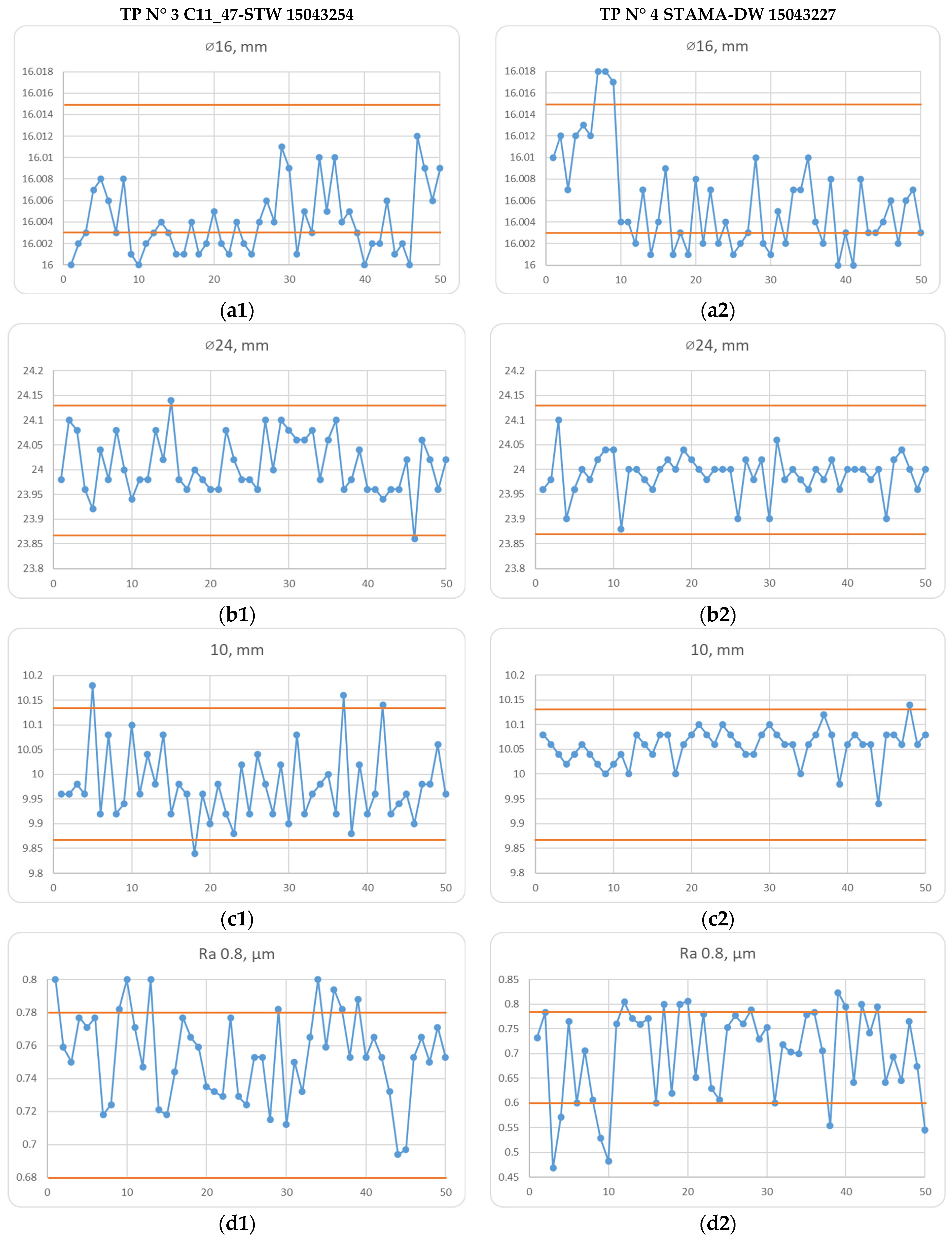

The measurement of the parameters studied shows that all four technological processes, despite their differences, ensure compliance with the tolerances specified in the technical documentation and guarantee the production of suitable parts. Figure 5 and Figure 6 show control charts of the measured parameters of the parts manufactured using the four technological processes. The control charts facilitate the analysis and comparison of the results for each of the four technological variants. To track the results obtained, the warning limits of the parameter in review (discussed in Section 3.2.2) are shown in orange.
The analysis of four different technological processes provides a clear picture of their stability and ability to maintain critical parameters within the specified tolerances. All parameters considered—diameters Ø16 mm and Ø24 mm, size 10 mm, and surface roughness Ra 0.8 μm—remain within acceptable limits, which indicates that the technological processes have been correctly selected and that quality control methods have been effectively applied.
However, the results show some differences in the behavior of the individual processes. With a well-defined uniform distribution around the nominal values and little variation in dimensions, TP N° 1 is clearly the most reliable and repeatable. This characterizes it as a reference procedure that can be used as a foundation for comparison in subsequent research. TP N° 2 and TP N° 3 also demonstrate good quality, but they show isolated peaks and values close to or above the control limits.
The greatest variation in dimensions is observed in TP N° 4, especially for the parameters Ø16 mm and Ra 0.8 μm. Although the process remains within tolerances, the high amplitude of the fluctuations is a sign of potential instability.

3.2.2. Determining the Warning Limits

Warning limits are defined values within the acceptable tolerance range that serve as an indicator of potential instability or deviation in the process.
They do not indicate non-compliance but signal an increasing likelihood that the process will exceed the specified limits if preventive action is not taken. According to ISO 7870-2:2023 [45], warning limits are determined by the following formulas:
σ = U S L L S L 6
U W L = U S L + L S L 2 + 2 σ
L W L = U S L + L S L 2 2 σ
where
-
USL—upper specification limit;
-
LSL—lower specification limit;
-
UWL—upper warning limit;
-
LWL—lower warning limit.
The formulas were used to calculate the warning limits for the following measured dimensions: Ø 16 mm, Ø 24 mm, and 10 mm. Their values are shown in Table 3.
When setting specification limits for a parameter such as roughness (in this case, Ra 0.8 µm), the standards do not mention a specific method for calculating the limits. According to the roughness standard “EN ISO 21920-3 [46]”, if no other “acceptable” criterion is specified, the so-called maximum limit value rule applies by default. That is, for this specific case, Ra = 0.8 µm is specified in the drawing of the parts, which means that the upper limit is 0.8 µm and for values above this, the product is considered non-compliant with the drawing. The lower warning limit is not mentioned in the standard because all values below the specified upper limit are considered acceptable.
No standard has been found for calculating warning limits when measuring roughness, so the standard “ISO 7870-2:2023 [45]” is applied. In this case, it is not possible to take 0.8 µm as the average value because it is the upper control limit, so the center line ( X ¯ = 0.6 µm) is selected to ensure a sufficient margin from the upper “engineering limit” (control upper limit—0.80 µm) and to ensure stable surface quality without the risk of exceeding the specification under normal process fluctuations. The calculated values according to the standard are presented in Table 3.

3.2.3. Analysis of Statistical Data

For the purposes of the methodology, the values of all parameters, which in this case are measured for 50 machined parts (i.e., there are 50 measured values), must be reduced to a single summary value that represents the quality and stability of the technological process. For this purpose, a normalized index—PN—is introduced, defined by the following formula:
P N = 1 N w n . 100 % ,
where
-
n—number of measured values;
-
Nw—number of measured values falling within the range LWL ≤ x ≤ UWL;
-
LWL—lower warning limit;
-
UWL—upper warning limit.
By calculating the percentage of measurements that fall outside the specified warning interval, the method provides an easily interpretable metric that allows for quick comparison between different technological processes. If most of the results are centered around the average value, the process is considered stable, and a small percentage of deviations indicates better quality. This early warning of small but significant deviations provides an opportunity for operational control and timely intervention before the process leads to more serious problems. In this way, the normalized index—PN—not only combines all the information into a single number but also assists in the rational selection of the technological process by allowing a comparison to be made and for the selection of the option whose measurements are closest to the target value.
The normalization via PN converts the various measured parameters into a dimensionless value based on the percentage deviation from the warning limits. This eliminates differences in measurement units, ranges, and tolerances, allowing for a correct comparison between different criteria and different technological processes. The normalized values obtained in this way are fully comparable and can be used for objective evaluation using the FUCOM method.
Table 4 shows the normalized values of the measured parameters—roughness (Ra = 0.8 µm) and dimensional accuracy (Ø16 mm, Ø24 mm, 10 mm)—using the normalized index—PN.

3.3. Application of the Methodology for Selecting a Rational Technological Process

3.3.1. Stage 1—Designing Various Technological Processes

The four technological processes, developed in cooperation with the technologists of CERATIZIT Bulgaria AG, were designed for the manufacture of a part—guide for 3D printer. For each of them, batches of 50 parts were produced. The measured values of these parts are presented in Table 2.

3.3.2. Stage 2—Defining the Criteria

The criteria that will help evaluate and compare the technological processes were again selected in cooperation with specialists from CERATIZIT Bulgaria AG in order to fully comply with the approval process in real production conditions and the decision-making process of the specialist technologists. Production costs and manufacturing time are presented in Table 1, and Table 2 shows the measured values of all parts from the four technological processes.

3.3.3. Stage 3—Defining the Importance of the Criteria

Table 5 shows the importance of the selected criteria used to evaluate the technological processes. If the criteria change, the selected rational technological process may change and be replaced by another technological process that meets the new criteria. The importance of the criteria can be determined both by specialists and by customer needs or requirements. The importance of the criteria is assessed by assigning 1 to the most important criterion and 6 to the least important.
The presented example uses a simplified form of FUCOM, in which the expert technologist provides only the rank of the criteria. This allows for inaccurate or arbitrary numerical ratios to be avoided, while maintaining the full consistency of FUCOM through the weighting model. Therefore, simplification does not violate the methodology but increases reliability and applicability in a real production environment.
  • Application of the multi-criteria method
The weights of the criteria are calculated via the following formulas using the FUCOM multi-criteria method. By solving linear equations with many unknowns, the weights for each criterion that will be included in the evaluation of the technological processes are calculated.
φ 1 = C 2 C 1 = 2 = ω 1 ω 2 φ 2 = C 3 C 2 = 1.5 = ω 2 ω 3 φ 3 = C 4 C 3 = 1.33 = ω 3 ω 4 φ 4 = C 5 C 4 = 1.25 = ω 4 ω 5 φ 5 = C 6 C 5 = 1.2 = ω 5 ω 6 ω 2 ω 3   .   ω 1 ω 2 = ω 1 ω 3 = 3 ω 3 ω 4   . ω 2 ω 3 = ω 2 ω 4 = 1.995 ω 4 ω 5   . ω 3 ω 4 = ω 3 ω 5 = 1.6625 ω 5 ω 6   . ω 4 ω 5 = ω 4 ω 6 = 1.5
ω 1 = 3 ω 3 ω 2 = 1.995 ω 4 ω 3 = 1.6625 ω 5 ω 4 = 1.5 ω 6 ω 1 = 2 ω 2 ω 2 = 1.5 ω 3 ω 3 = 1.33 ω 4 ω 4 = 1.25 ω 5 ω 5 = 1.2 ω 6 ω 1 = 0.408 ω 2 = 0.204 ω 3 = 0.136 ω 4 = 0.102 ω 5 = 0.082 ω 6 = 0.068
j = 1 n ω j = 1

3.3.4. Stage 4—Calculation and Comparison of the Different Technological Processes

Table 6 presents the quantitative values of each technological process, which include production costs, a normalized index of measured values, and manufacturing time.
S P m = j = 1 n ω j · V ( P m , C j )
T P   1 / S ( P 1 )   =   12.520
T P   2 / S ( P 2 )   =   15.181
T P   3 / S ( P 3 )   =   14.241
T P   4 / S ( P 4 )   =   14.840
The criteria specified in Table 7 are as follows:
  • C1 (production costs)—1;
  • C2 (dimension accuracy Ø16+0.018 mm)—2;
  • C3 (dimension accuracy Ø24 ± 0.2 mm)—3;
  • C4 (length accuracy 10 ± 0.2 mm)—4;
  • C5 (production time)—5;
  • C6 (roughness Ra 0.8 μm)—6.
The lowest value of the calculated technological processes with the indicator S(Pm) shows that the rational technological process is the one with the lowest calculated value, namely TP 1/S(P1) = 12.520.

3.3.5. Stage 5—Selection of a Rational Technological Process

In order to demonstrate the flexibility and adaptability of the proposed method, Table 7 presents various combinations of the importance of the selected criteria. They are automatically generated in MS Excel and confirmed by the technical specialists at CERATIZIT Bulgaria AG.
The purpose of generating random combinations is to show that when customer requirements change (change in the weight of certain criteria)—for example, when the focus is on cost instead of quality—the final choice of a rational technological process may be different. For instance, a technological process that was previously ranked lower may now be the most appropriate if criteria associated with production costs and time are given more weight. This demonstrates how flexible the approach is and how it can be used practically when making decisions in light of shifting production objectives and limitations. The table is for demonstration purposes and also represents an example of the sensitivity of the methodology and was not used as a tool in the experts’ assessment.
Presenting different options in tabular form contributes to a better understanding of the impact of each criterion on the final result and emphasizes the importance of correctly selecting and weighing the criteria involved in the evaluation of the technological process.

4. Discussion

FUCOM stands out with consistent and reliable results, even when repeated calculations are performed, making it suitable for analyzing complex production tasks. This makes it suitable for integration into automated and digitized decision-making systems. Its potential for generalization is significant, as it can be adapted to various sectors, from mechanical engineering and logistics to energy and healthcare. With the proper calibration of criteria and combination with other MCDM methods, FUCOM can become a universal tool for evaluating and optimizing technological processes. The limitations of the method include its dependence on expert assessments, difficulties using the mathematical model when there are a large number of criteria, and the need for normalization when working with different types of data. Therefore, although it has its limitations, the method has a solid mathematical basis and potential for wide application in solving complex multi-criteria problems [9].
The results of the experimental studies and the application of the FUCOM method for selecting a rational technological process show that the method provides a high degree of objectivity and consistency in determining the priorities of different criteria. By applying this in the analysis of different technological processes for the manufacture of a single part, the subjectivity of expert choices and assessments is minimized, and the final decision is based on a mathematically sound model that ensures complete consistency between the weights of the criteria.
The analysis of the four technological processes considered (TP N° 1—CNC_53; TP N° 2—C11; TP N° 3—C11_47; and TP N° 4—STAMA) showed that TP N° 1 occupies a leading position in the ranking, given the weights (Table 5) of the specific criteria determining the part that was considered, as this offers an optimal balance between accuracy, roughness, production costs, and manufacturing time. However, in order to show the method’s adaptability to various evaluation priorities, Table 7 displays randomly generated combinations of criterion weights. This shows that varying the weights that different combinations of criteria can result in different final rankings of technological processes, reflecting the actual dynamics of production decisions based on the particular situation’s goals and constraints.
These results confirm that the FUCOM method can be successfully used in a production environment to evaluate technological processes, providing an opportunity for the clear and justified ranking of alternatives even in the presence of multiple and conflicting criteria.
Compared to other multi-criteria methods, such as AHP and BWM, FUCOM was chosen by the authors because of its advantages in terms of the number of expert comparisons required and the achievement of complete consistency. This makes the method more effective and easier to apply in real production conditions, where time and resources are often limited.
Despite the positive results, some limitations of the study should be noted. Determining the weights of the criteria through expert assessments based on production needs and customer requirements remains somewhat subjective and can be hindered by lack of experience, poor training of experts, and unfamiliarity with the production process when starting a new job (when the human factor is involved, no matter how much expertise there is, there is always an element of subjectivity). This requires careful selection of expert technologists and the application of additional methods to verify the consistency and stability of the assessments. In order to increase the reliability of the results, future developments may combine FUCOM with quantitative approaches or automated evaluation algorithms to limit the influence of the subjective factor.
Small changes even between two criteria lead to a change in weights, as demonstrated by the examples presented in Table 7. As can be seen, could result in the selection of a different technological process, which shows an adequate response to the methodology.
In order to evaluate the impact of the final decision when changing weights and normalizing criteria, it is useful to combine the FUCOM method with other methods, such as TOPSIS or VIKOR, in future studies. Such hybrid models may result in systems for selecting technological solutions that are even more precise and flexible.

5. Conclusions

This study demonstrates the applicability of the MCDM method FUCOM for evaluating and selecting a rational technological process in real production conditions. Through the experimental measurements and following analysis, the results were validated in an industrial environment, confirming that the method can be used effectively in decision-making related to the selection of technological processes in mechanical engineering production. The results obtained show good consistency between the mathematically calculated estimates and the actual quality and efficiency indicators observed in production.
The FUCOM method reveals significant potential for evaluating technological processes by allowing for multiple criteria to be considered simultaneously. Its high consistency in determining the weights of the criteria and the reduced number of expert comparisons make it suitable for practical application in companies seeking a balance between accuracy, quality, cost, and productivity.
Adding LWL to roughness control is an effective parameter for preventing overprocessing. The approach marks areas where unnecessarily smooth surfaces and overly precise dimensions are generated without improving the functionality of the product. This ensures balanced quality and a measurable reduction in cost.
The main advantages of the method include the following:
  • Ensuring full consistency between the weights of the criteria;
  • Minimizing the cognitive overload on experts;
  • Transparency and easy traceability of results;
  • Possibility of integration with other methods of multi-criteria analysis.
Nevertheless, there are some restrictions regarding the use of FUCOM. The approach depends on expert evaluations, which are subjective to some degree despite their limited quantity. Furthermore, if the scales are not properly defined, the normalization of quantitative criteria may result in distortions and necessitates careful preparation.
The study suggests a number of potential opportunities for further research, including the following:
  • Extending the application of the FUCOM method to a wider range of technological processes in mechanical engineering, such as additive manufacturing;
  • Combining FUCOM with other MCDM methods (e.g., TOPSIS, VIKOR, AHP) to build hybrid models for more sustainable and sensitive decision-making;
The FUCOM method demonstrates effectiveness, flexibility, and practical applicability in the assessment of technological processes in mechanical engineering. It provides a stable analytical basis for objective and transparent decision-making, and its application in the assessment of technological processes would contribute to the optimization of production processes.

Author Contributions

Conceptualization, T.A., T.P. and A.I.; methodology, T.A. and T.P.; software, T.P. and T.A.; validation, T.A., T.P., and A.I.; formal analysis, T.P. and T.A.; investigation, T.A. and T.P.; resources, A.I.; data curation, A.I.; writing—original draft preparation, T.P. and T.A.; writing—review and editing, T.A. and A.I.; visualization, T.P., T.A. and A.I.; supervision, T.A. and A.I.; project administration, A.I.; funding acquisition, A.I. All authors have read and agreed to the published version of the manuscript.

Funding

This study is financed by the European Union—NextGenerationEU, through the National Recovery and Resilience Plan of the Republic of Bulgaria, project No. BG-RRP-2.013-0001.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The original contributions presented in this study are included in the article. Further inquiries can be directed at the corresponding authors.

Acknowledgments

The approbation of the methodology is realized with the help and assistance of the company “CERATIZIT Bulgaria” AG.

Conflicts of Interest

The authors declare no conflicts of interest.

Abbreviations

The following abbreviations are used in this manuscript:
MCDMMulti-Criteria Decision-Making
AHPAnalytic Hierarchy Process
ANPAnalytic Network Process
TOPSISTechnique for Order Preference by Similarity to Ideal Solution
BWMBest Worst Method
SAWSimple Additive Weighting Method
VIKORVišekriterijumsko Kompromisno Rangiranje
FUCOMFull Consistency Method

Appendix A. Used Measuring Instruments

Appendix A.1. Portable Profilometer—SRT 6210

The device is used to measure the roughness of various machined parts in production conditions—Figure A1. It calculates the relevant parameters (Ra, Rz, Rq, Rt) depending on the specified measurement conditions and clearly displays the results on the screen. The main technical characteristics of the SRT 6210 are shown in Table A1.

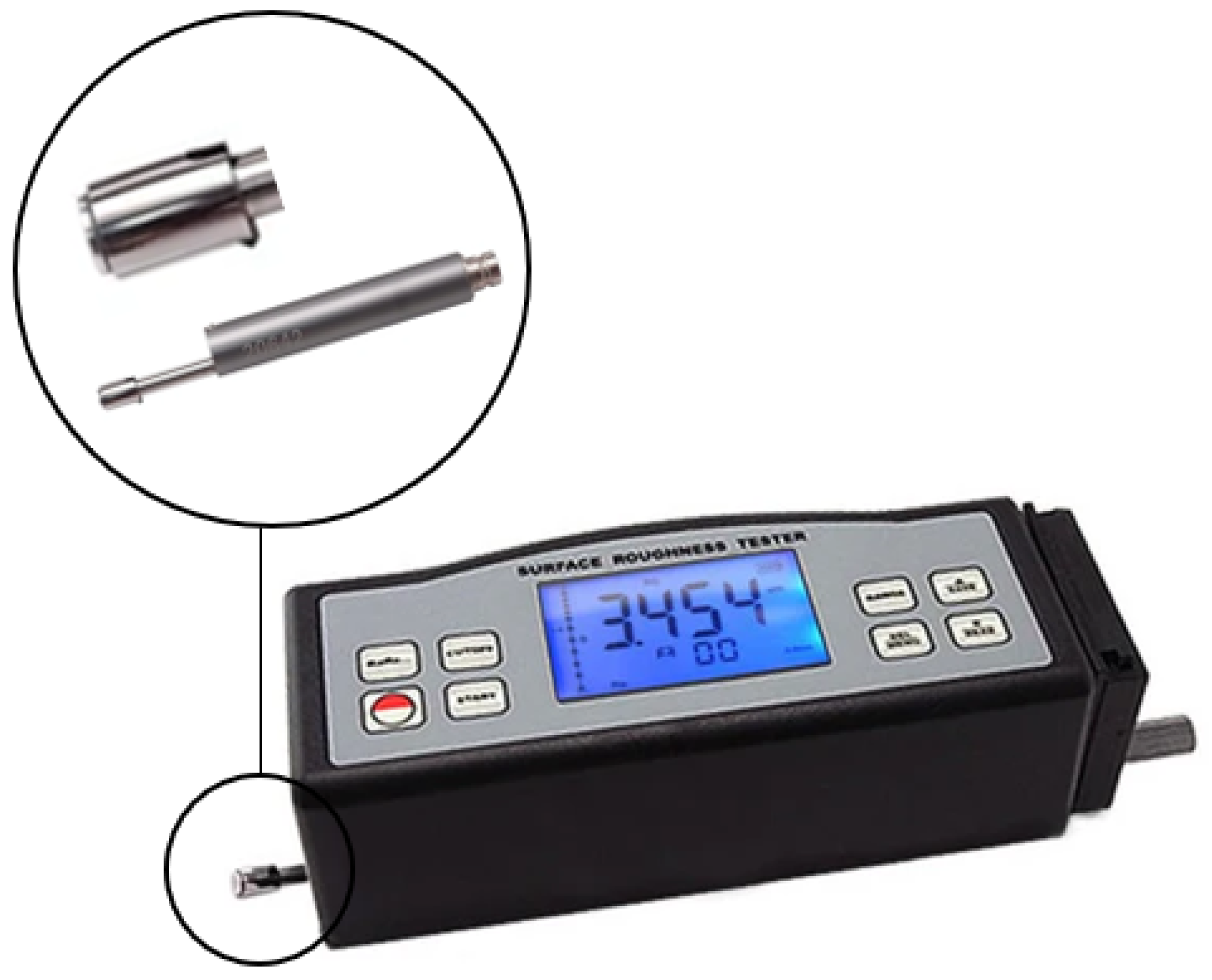

Figure A1. Portable profilometer—SRT 6210.
Figure A1. Portable profilometer—SRT 6210.
Technologies 13 00537 g0a1
Table A1. Main technical characteristics of the SRT 6210 profilometer.
Table A1. Main technical characteristics of the SRT 6210 profilometer.
Portable Profilometer—SRT 6210
Measured parametersRa, Rz, Rq, Rt
Measuring rangeRa, Rq: 0.005 ÷ 16.00 µm
Rz, Rt: 0.020 ÷ 160.00 µm
Accuracyless than ± 10%
Applied standardsISO, DIN, ANSI и JIS
Maximum driving stroke17.5 mm
Length of the cut0.25 mm/0.8 mm/2.5 mm
Measuring length1~5 L
Before starting the measurement process, the profilometer was calibrated with a standard reference plate, part of the profilometer kit, to ensure measurement accuracy—Figure A2.

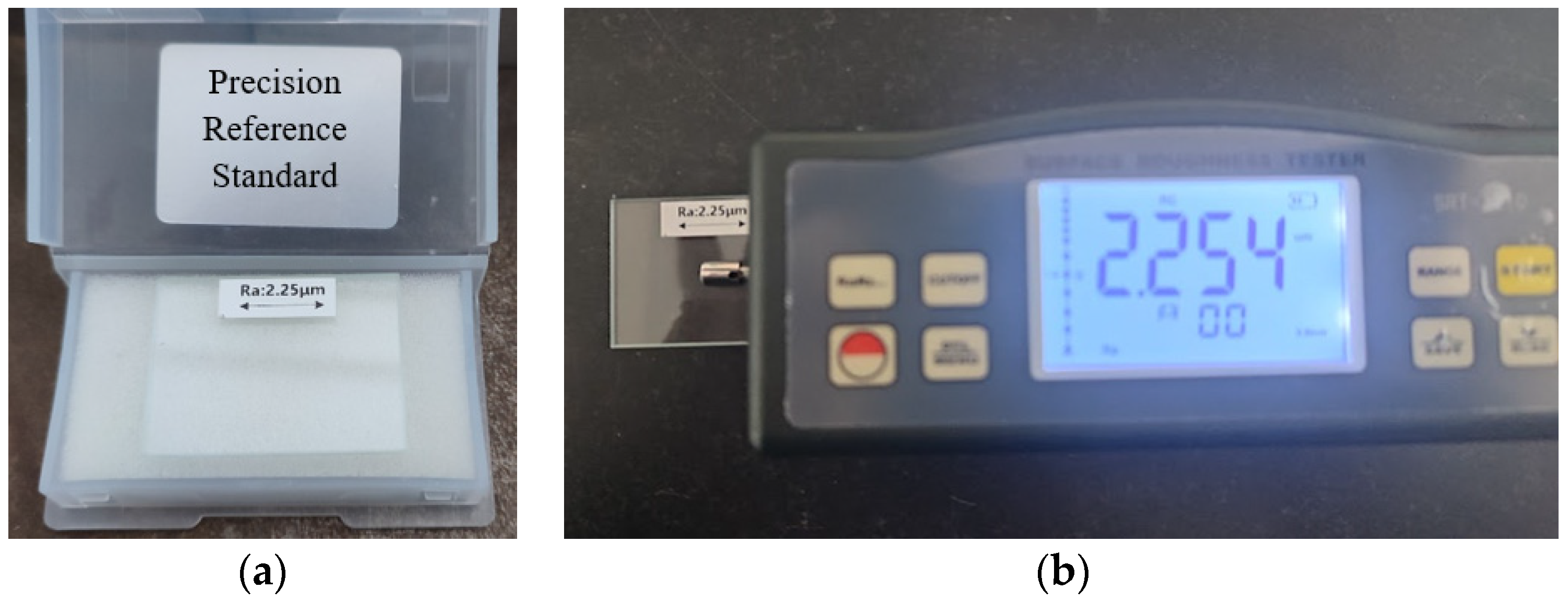

Figure A2. Calibration of SRT 6210. (a) standard reference plate; (b) calibration of the device.
Figure A2. Calibration of SRT 6210. (a) standard reference plate; (b) calibration of the device.
Technologies 13 00537 g0a2
The roughness measurement procedure is shown in Figure A3. To ensure the accuracy and repeatability of the measurements, a specialized table designed for the stable mounting of the parts and precise positioning of the measuring device (SRT 6210 profilometer) was used in the experiments—Figure A4. The specialized table has a V-block that ensures the fixed and stable positioning of the cylindrical part, preventing its unwanted movement or rotation during the measurement process.

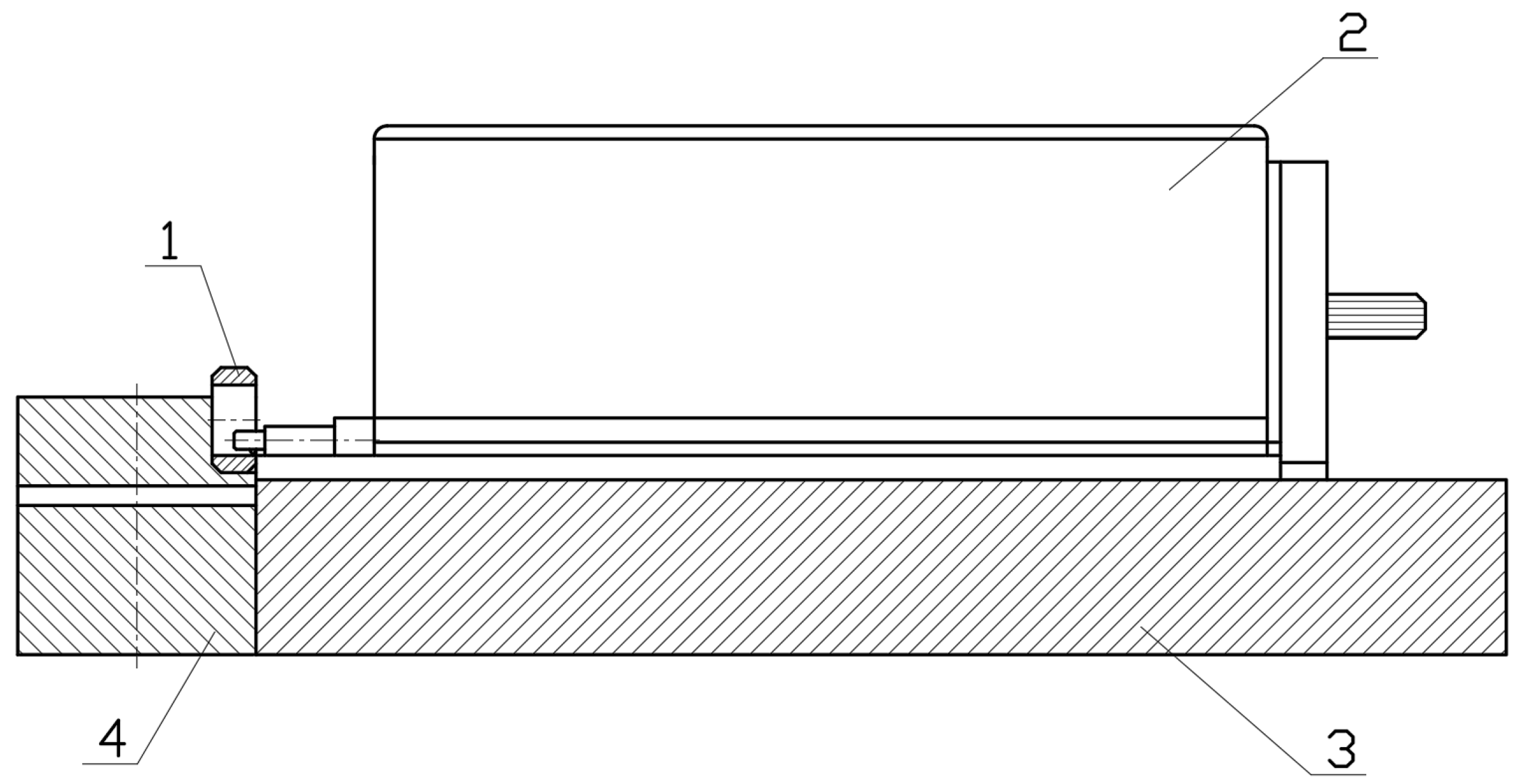

Figure A3. Schematic diagram of the experimental setup. 1—Part—guide; 2—SRT 6210 profilometer; 3—measuring table; 4—V-block.
Figure A3. Schematic diagram of the experimental setup. 1—Part—guide; 2—SRT 6210 profilometer; 3—measuring table; 4—V-block.
Technologies 13 00537 g0a3
The parts were carefully cleaned of any dirt, oil, or dust that could affect the accuracy of the results. After cleaning, the profilometer was carefully placed on the table and leveled to ensure that the measuring probe moves horizontally.

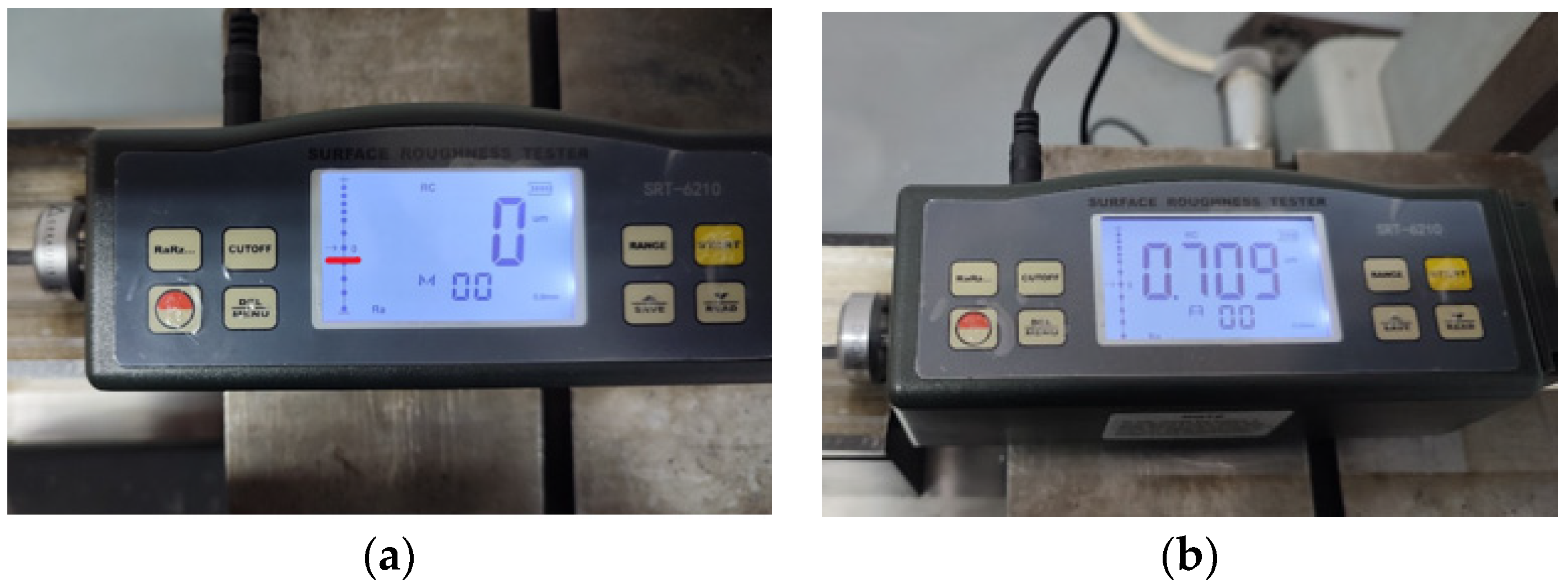

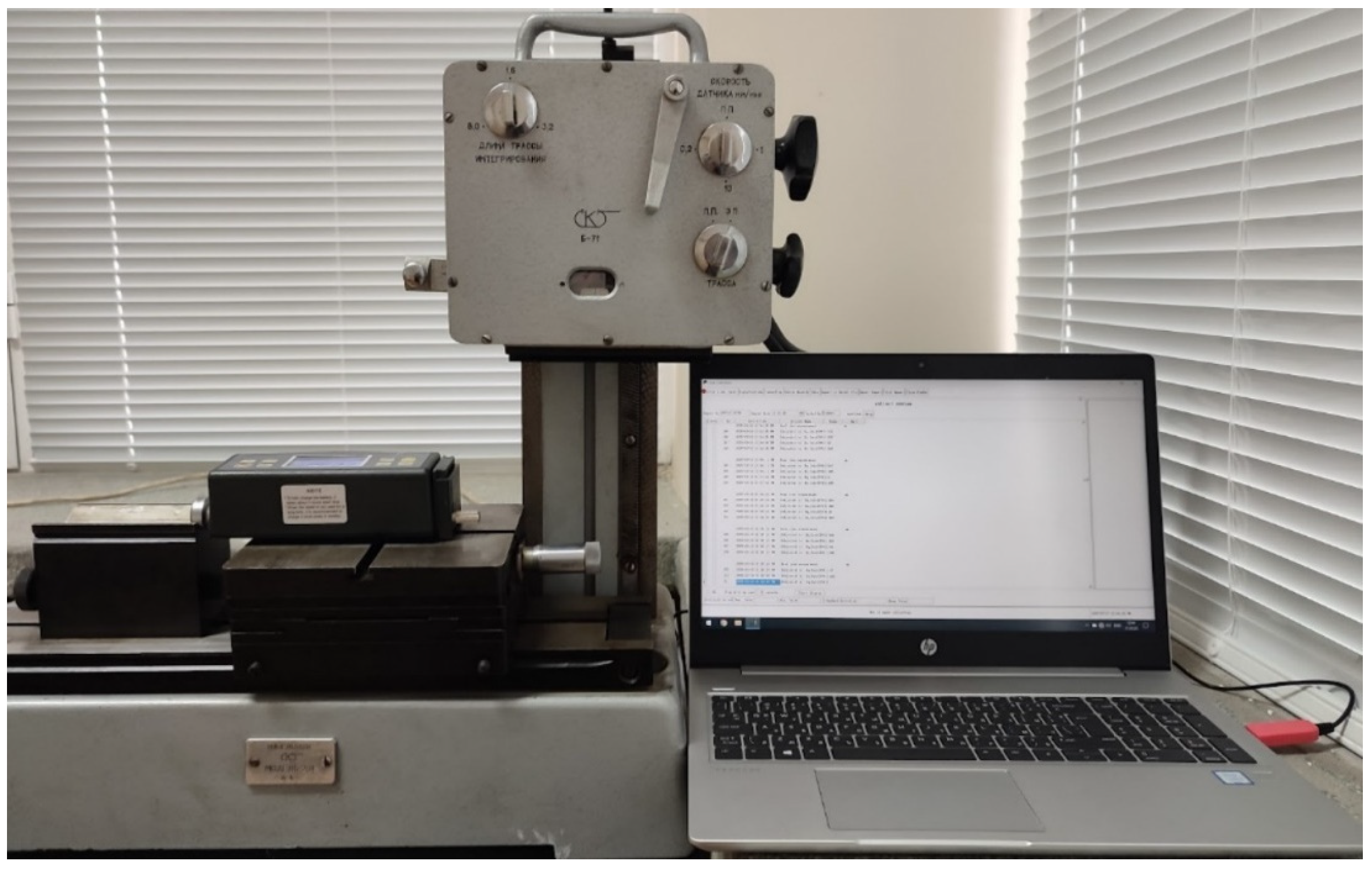

Figure A4. Roughness measurement setup with portable profilometer SRT 6210.
Figure A4. Roughness measurement setup with portable profilometer SRT 6210.
Technologies 13 00537 g0a4
The cleaned part was placed securely on the V-block, and after placement, the leveling was checked and confirmed again to ensure the correct positioning of the part—Figure A5a.
Figure A5. Roughness measurement. (a) Leveling the device; (b) measuring the roughness of the parts.
Figure A5. Roughness measurement. (a) Leveling the device; (b) measuring the roughness of the parts.
Technologies 13 00537 g0a5
Once the leveling and positioning were checked, the profilometer was started. The diamond-tipped measuring sensor began to move smoothly and with a preset measuring length (0.8 mm for “>0.63 ÷ 1.25”, according to EN ISO 21920-3 [46])—Figure A2, along the surface of the part Figure A5b. After completing the measurement, the profilometer, connected to a computer via a USB cable, sent the received data directly to specialized software. The software allows for the subsequent recording, analysis, and processing of the data, providing the opportunity for detailed evaluation and documentation of the measurement results—Figure A6.

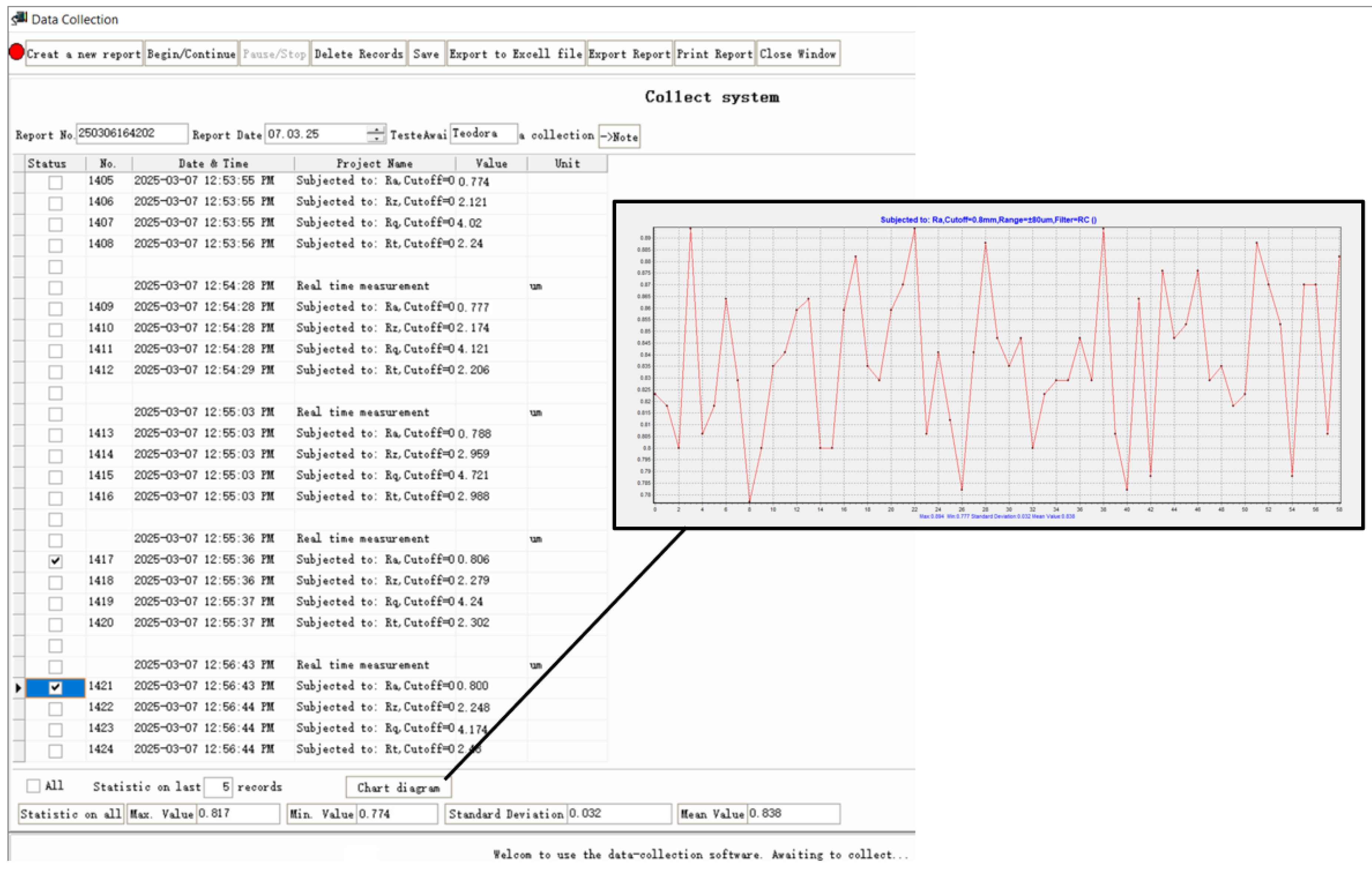

Figure A6. Software for recording and processing data from the SRT 6210 profilometer.
Figure A6. Software for recording and processing data from the SRT 6210 profilometer.
Technologies 13 00537 g0a6

Appendix A.2. Digital Micrometer—ETOPOO

The digital micrometer—ETOPOO—Figure A7, was selected to measure the inner diameter Ø16+0.018 mm due to its high accuracy. With a measuring range of 5 to 30 mm and a resolution of 0.001 mm, the device provides precise measurements, which are essential for controlling dimensions with small tolerances. The main technical characteristics of the measuring device are presented in Table A2.
Table A2. Main technical characteristics of the ETOPOO digital micrometer.
Table A2. Main technical characteristics of the ETOPOO digital micrometer.
Digital Micrometer—ETOPOO
Measurement range5 ÷ 30 mm
Measurement accuracy±0.002 mm/0.0001″
Measurement force5 ÷ 10 N
Repeatability0.001 mm/0.00005″
Adjustment speed30 mm/s
In order to reduce the impact of operator errors and ensure stability, a micrometer stand was used during the measurement process. This removes undesired errors from manual measurement by guaranteeing stability as well as proper device positioning in relation to the part. In order to verify the accuracy of the readings, the micrometer was zeroed and calibrated using a calibration ring (Figure A7), which is included in the micrometer kit, prior to beginning the series of measurements.

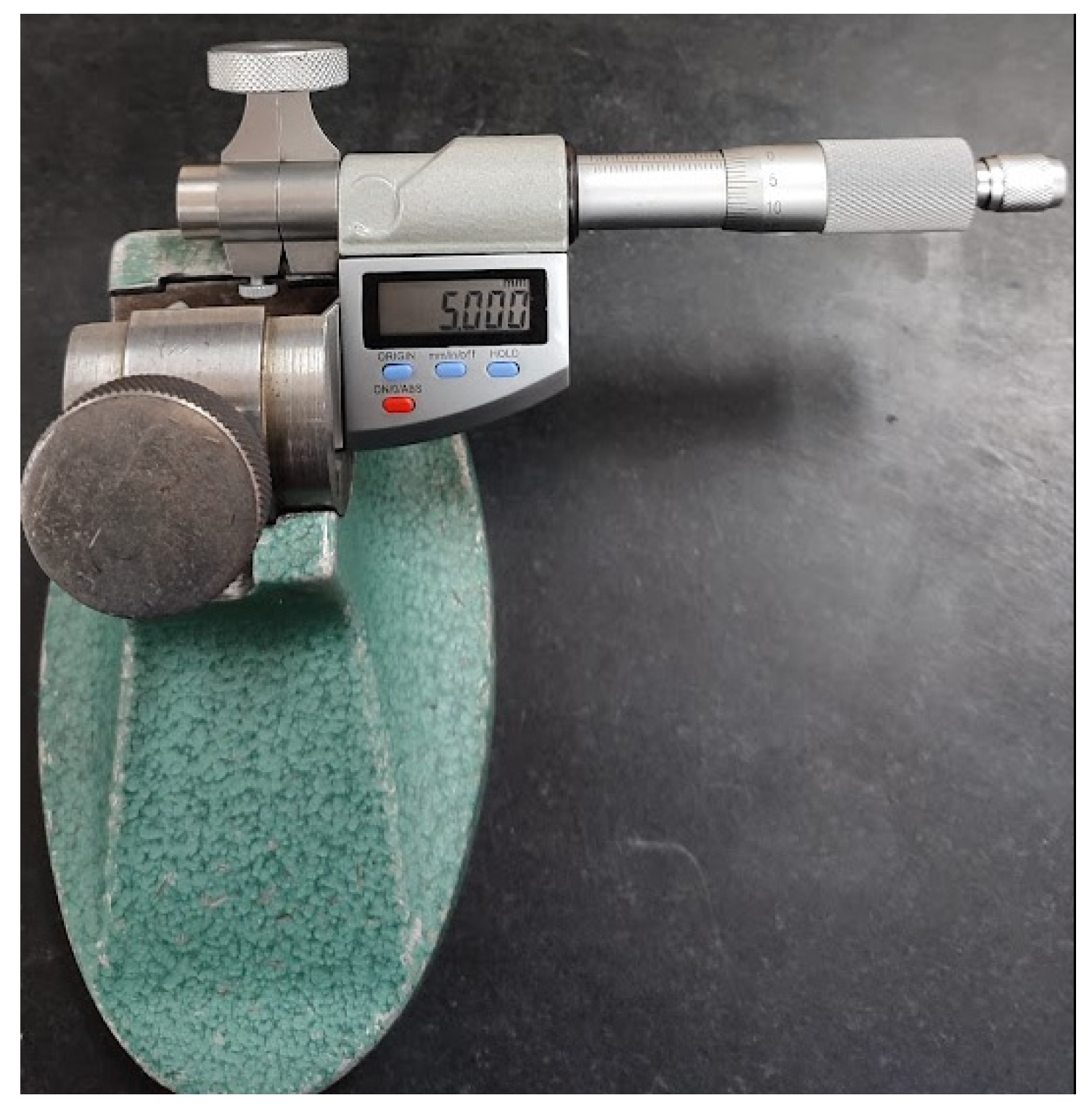

Figure A7. Calibration of the micrometer using a calibration ring.
Figure A7. Calibration of the micrometer using a calibration ring.
Technologies 13 00537 g0a7

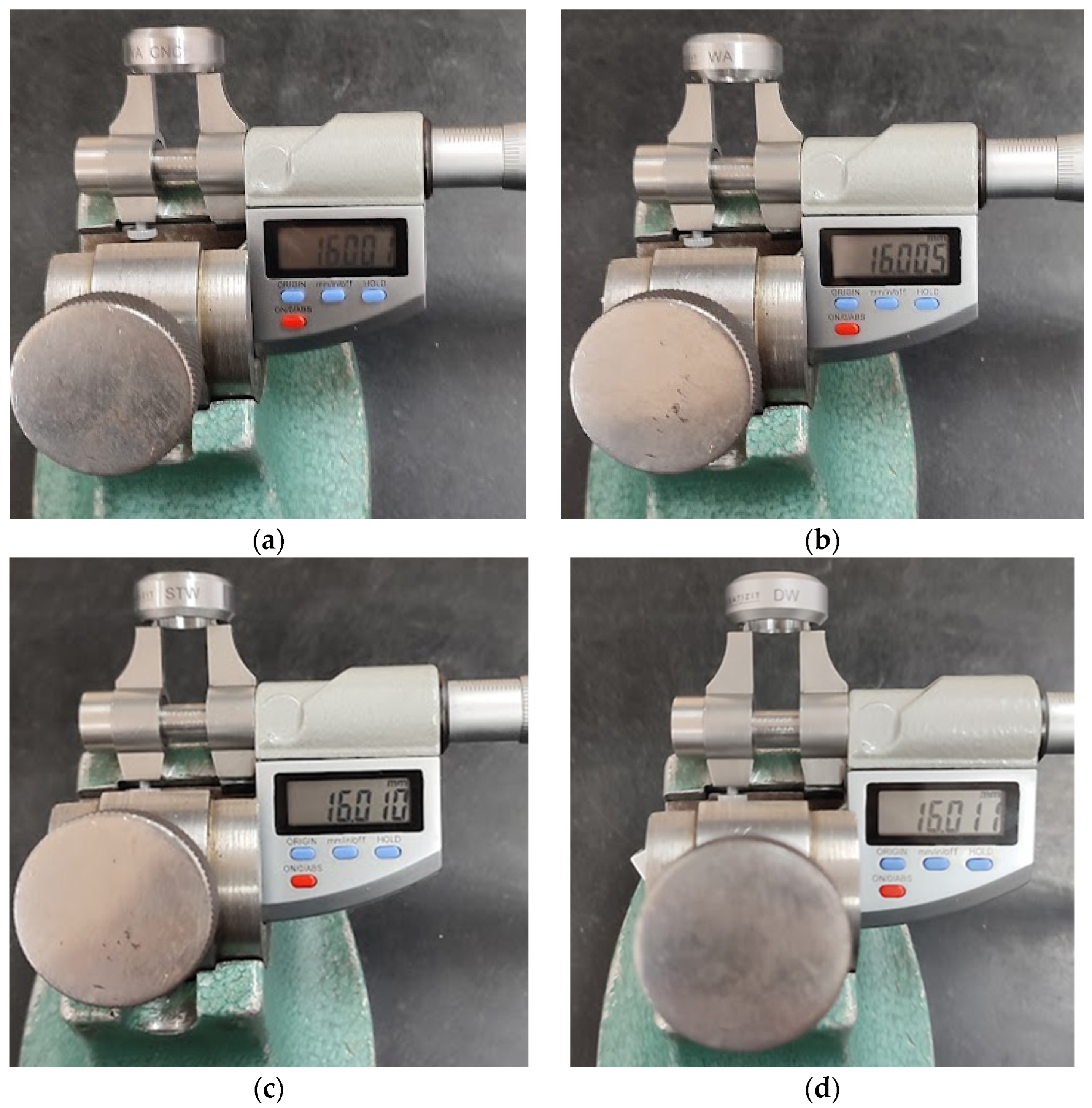

Figure A8 shows the measurement of the internal dimension—Ø16+0.018 mm—of the parts manufactured using the four different technological processes: TP N° 1 CNC_53-WA CNC (Figure A8a); TP N° 2 C11-WA (Figure A8b); TP N° 3 C11_47-STW (Figure A8c); and TP N° 4 STAMA-DW (Figure A8d).
Figure A8. Measurement of parts from various technological processes. (a) TP N° 1 CNC_53-WA CNC; (b) TP N° 2 C11-WA; (c) TP N° 3 C11_47-STW; (d) TP N° 4 STAMA-DW.
Figure A8. Measurement of parts from various technological processes. (a) TP N° 1 CNC_53-WA CNC; (b) TP N° 2 C11-WA; (c) TP N° 3 C11_47-STW; (d) TP N° 4 STAMA-DW.
Technologies 13 00537 g0a8
The part was slightly shifted and rotated to guarantee proper seating in the measuring device and prevent any looseness brought on by the part’s rotating shape, which could result in inaccurate measurements. Each piece’s measured diameter was recorded and the outcomes from the various batches were then examined and compared. The measurement process was repeated for all parts produced from the four batches (for each batch obtained through one of the four technological processes).

Appendix A.3. Caliper-Mitutoyo

The caliper shown in Figure A9 was selected for measuring and controlling the external dimensions of the part—Ø24 mm and 10 mm—with tolerances in accordance with ISO 2768 m [44] for linear and angular dimensions without individual tolerance indications. The selected measuring device had a measuring range from 0 to 150 mm and a division value of 0.02 mm—as shown in Table A3—ensuring the required accuracy in accordance with the standard.
Table A3. Technical characteristics of the caliper—Mitutoyo.
Table A3. Technical characteristics of the caliper—Mitutoyo.
Caliper-Mitutoyo
Range0 ÷ 150 mm
Graduation0.02 mm
Max. Permissible Error E MPE±0.03 mm
Max. Permissible Error S MPE±0.05 mm
Before starting the measuring process, the caliper was checked using Gauge Block Set—Figure A9.

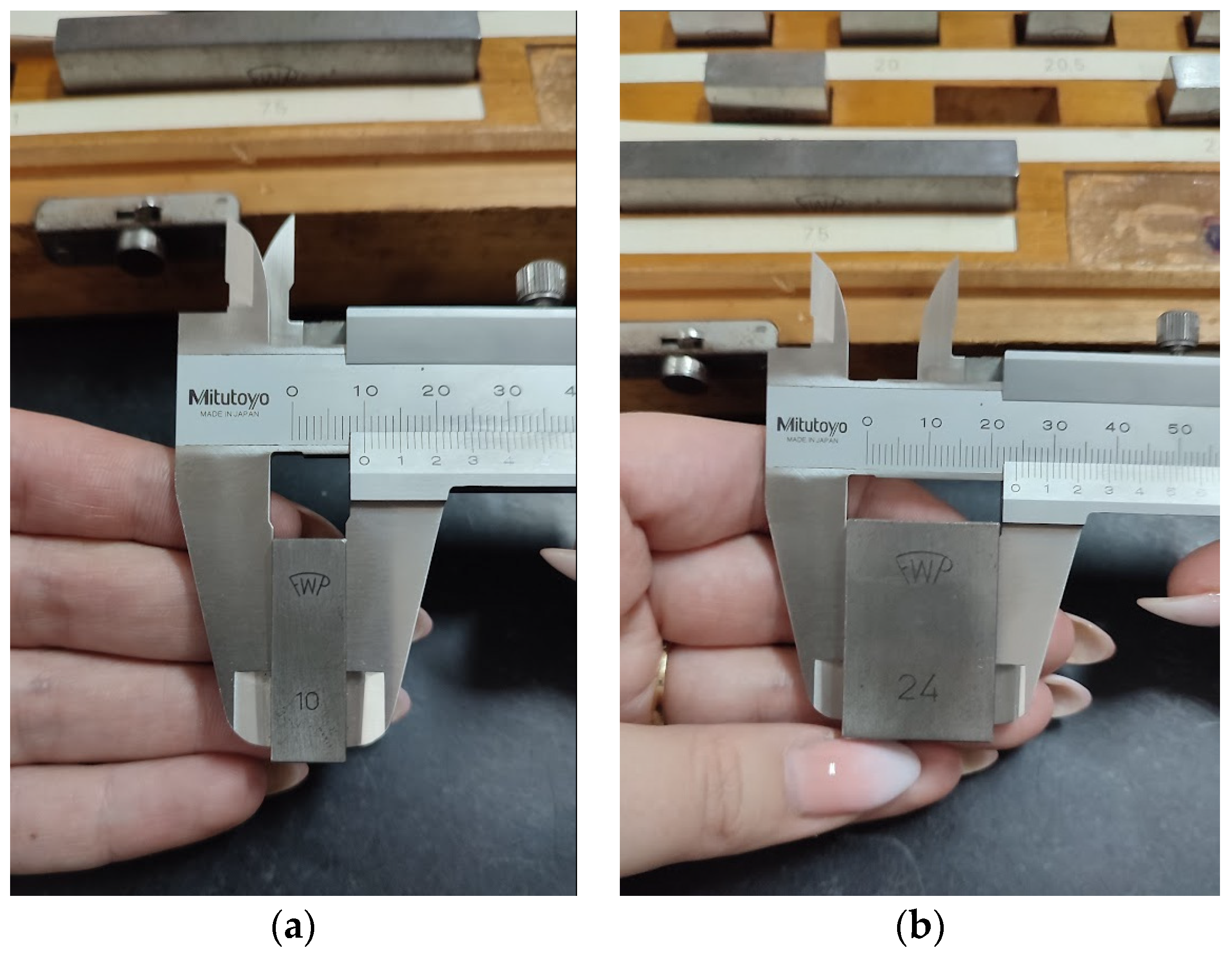

Figure A9. Checking the accuracy of the measuring device—caliper Mitutoyo. (a) Verification for size 10 mm; (b) verification for size 24 mm.
Figure A9. Checking the accuracy of the measuring device—caliper Mitutoyo. (a) Verification for size 10 mm; (b) verification for size 24 mm.
Technologies 13 00537 g0a9
Once the accuracy of the tool was confirmed, all parts from the batches (with nominal dimensions of Ø24 and 10 mm) were measured consecutively, following the rule of tight but pressure-free contact between the jaws and the surface—Figure A10. Finally, the results were recorded and analyzed, comparing the values obtained with the permissible tolerances according to the specification of the parts.

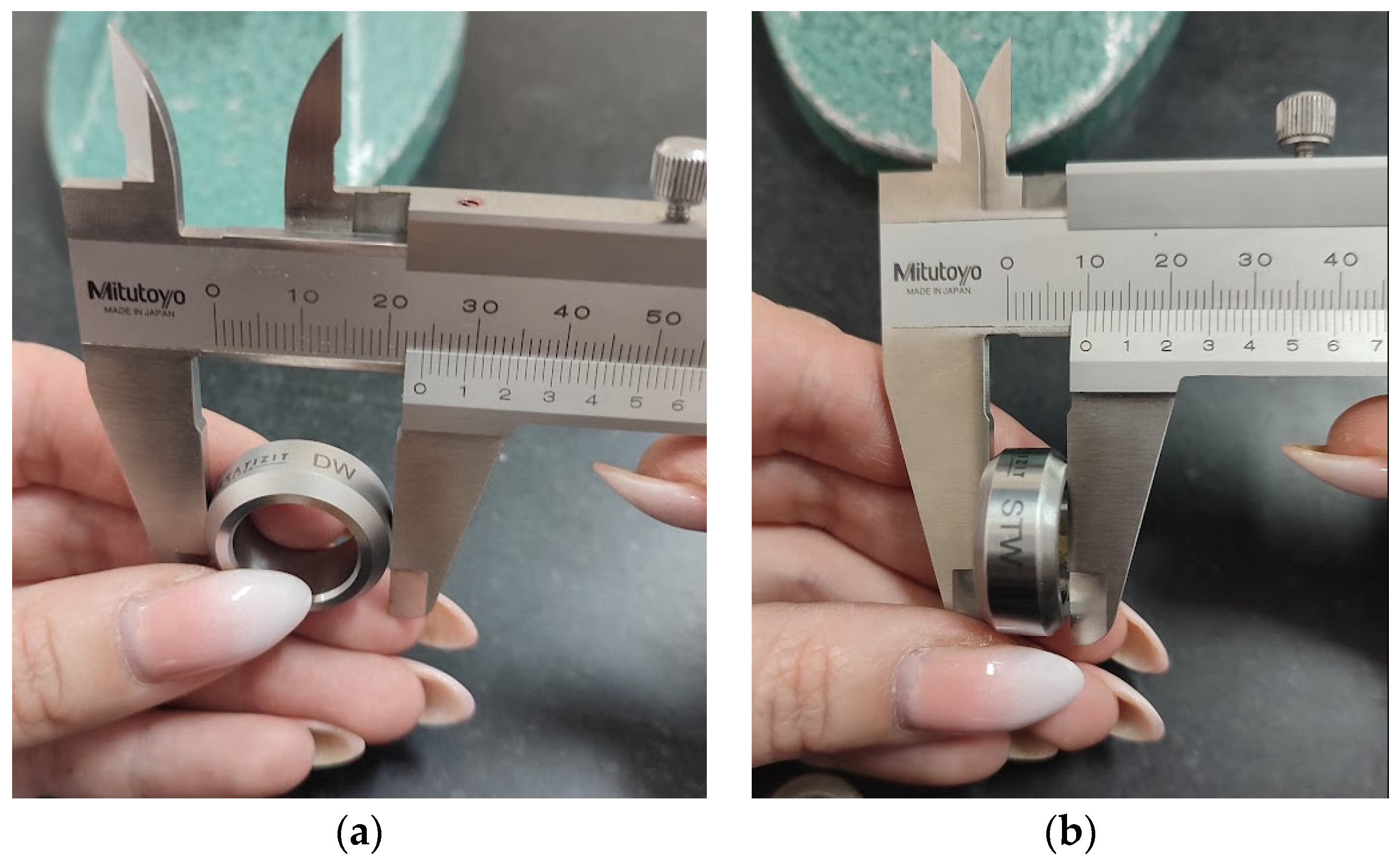

Figure A10. Measuring parts from various technological processes with a caliper. (a) Measuring a dimension of Ø24 mm; (b) measuring a dimension of 10 mm.
Figure A10. Measuring parts from various technological processes with a caliper. (a) Measuring a dimension of Ø24 mm; (b) measuring a dimension of 10 mm.
Technologies 13 00537 g0a10

References

  1. Mihalache, A.M. An overview of possibilities for CAM machining. MATEC Web Conf. 2018, 178, 5005. [Google Scholar] [CrossRef]
  2. Chakraborty, S.; Chatterjee, P.; Das, P.P. Multi-Criteria Decision-Making Methods in Manufacturing Environments: Models and Applications; CRC Press: Boca Raton, FL, USA, 2023. [Google Scholar]
  3. Sahoo, S.K.; Goswami, S.S. A comprehensive review of multiple criteria decision-making (MCDM) methods: Advancements, applications, and future directions. Decis. Mak. Adv. 2023, 1, 25–48. [Google Scholar] [CrossRef]
  4. Rosin, F.; Forget, P.; Lamouri, S.; Pellerin, R. Enhancing the Decision-Making Process through Industry 4.0 Technologies. Sustainability 2022, 14, 461. [Google Scholar] [CrossRef]
  5. Zayat, W.; Kilic, H.S.; Yalcin, A.S.; Zaim, S.; Delen, D. Application of MADM Methods in Industry 4.0: A Literature Review. Comput. Ind. Eng. 2023, 177, 109075. [Google Scholar] [CrossRef]
  6. Abdullah, F.M.; Al-Ahmari, A.M.; Anwar, S. A Hybrid Fuzzy Multi-Criteria Decision-Making Model for Evaluating the Influence of Industry 4.0 Technologies on Manufacturing Strategies. Machines 2023, 11, 310. [Google Scholar] [CrossRef]
  7. Torbacki, W. Towards Sustainable Industry 4.0: An MCDA-Based Assessment Framework for Manufacturing and Logistics. Sustainability 2025, 17, 5082. [Google Scholar] [CrossRef]
  8. Rodríguez-Carrillo, M.L.; Pérez-Domínguez, L.; Romero-López, R.; Luviano-Cruz, D.; León-Castro, E. A systematic literature review on the use of multicriteria decision making methods for small and medium-sized enterprises innovation assessment. Front. Artif. Intell. 2025, 8, 1605756. [Google Scholar] [CrossRef] [PubMed]
  9. Avramova, T.; Peneva, T.; Ivanov, A. Overview of Existing Multi-Criteria Decision-Making (MCDM) Methods Used in Industrial Environments. Technologies 2025, 13, 444. [Google Scholar] [CrossRef]
  10. Forman, E.H.; Gass, S.I. The analytic hierarchy process—An exposition. Oper. Res. 2001, 49, 469–486. [Google Scholar] [CrossRef]
  11. Saaty, T.L.; Vargas, L.G. Decision Making with the Analytic Network Process: Economic, Political, Social and Technological Applications with Benefits, Opportunities, Costs and Risks; Springer: New York, NY, USA, 2006; ISBN 978-1-4614-7279-7. [Google Scholar] [CrossRef]
  12. Chakraborty, S. TOPSIS and modified TOPSIS: A comparative analysis. Decis. Anal. J. 2021, 2, 100021. [Google Scholar] [CrossRef]
  13. Guo, S.; Zhao, H. Fuzzy best-worst multi-criteria decision-making method and its applications. Knowl. Based Syst. 2017, 121, 23–31. [Google Scholar] [CrossRef]
  14. Taherdoost, H. Analysis of Simple Additive Weighting method (SAW) as a multi-attribute decision-making technique: A step-by-step guide. J. Manag. Sci. Eng. Res. 2023, 6, 21–24. [Google Scholar] [CrossRef]
  15. Hosseinzadeh Lotfi, F.; Allahviranloo, T.; Pedrycz, W.; Shahriari, M.; Sharafi, H.; Razipour GhalehJough, S. Simple additive weighting (SAW) method in fuzzy environment. In Fuzzy Decision Analysis: Multi Attribute Decision Making Approach; Springer: Cham, Switzerland, 2023; Volume 1121, pp. 154–196. [Google Scholar] [CrossRef]
  16. Park, J.H.; Cho, H.J.; Kwun, Y.C. Extension of the VIKOR method for group decision making with interval-valued intuitionistic fuzzy information. Fuzzy Optim. Decis. Mak. 2011, 10, 233–253. [Google Scholar] [CrossRef]
  17. Pamučar, D.; Stević, Ž.; Sremac, S. A new model for determining weight coefficients of criteria in MCDM models: Full consistency method (FUCOM). Symmetry 2018, 10, 393. [Google Scholar] [CrossRef]
  18. Sofuoğlu, M.A. Fuzzy applications of FUCOM method in manufacturing environment. Politek. Derg. 2020, 23, 189–195. [Google Scholar] [CrossRef]
  19. Shin, Y.; Kim, H.; Jeong, J.; Shin, D. Federated Learning for Surveillance Systems: A Literature Review and AHP Expert-Based Evaluation. Electronics 2025, 14, 3500. [Google Scholar] [CrossRef]
  20. Schuhmann, D.; Rupp, M.; Merkel, M.; Harrison, D.K. Additive vs. conventional manufacturing of metal components: Selection of the manufacturing process using the AHP method. Processes 2022, 10, 1617. [Google Scholar] [CrossRef]
  21. Jayant, A. An application of analytic network process (ANP) to evaluate green supply chain management strategies: A case study. MATEC Web Conf. 2016, 57, 3003. [Google Scholar] [CrossRef]
  22. Jin, H.; Zhang, M.; Yuan, Y. Analytic network process-based multi-criteria decision approach and sensitivity analysis for temporary facility layout planning in construction projects. Appl. Sci. 2018, 8, 2434. [Google Scholar] [CrossRef]
  23. Pasupuleti, T.; Natarajan, M.; Kiruthika, J.; Naik, M.R.; Silambarasan, R. Application of TOPSIS approach for optimization on additive manufacturing (fusion deposition modeling) of TPU material: A systematic approach for process enhancement. SAE Tech. Pap. 2024, 28, 232. [Google Scholar] [CrossRef]
  24. Kamalizadeh, S.; Niknam, S.A.; Balazinski, M.; Turenne, S. The use of TOPSIS method for multi-objective optimization in milling Ti-MMC. Metals 2022, 12, 1796. [Google Scholar] [CrossRef]
  25. Goswami, S.S.; Behera, D.K.; Afzal, A.; Razak Kaladgi, A.; Khan, S.A.; Rajendran, P.; Subbiah, R.; Asif, M. Analysis of a robot selection problem using two newly developed hybrid MCDM models of TOPSIS-ARAS and COPRAS-ARAS. Symmetry 2021, 13, 1331. [Google Scholar] [CrossRef]
  26. Kawecka, E.; Perec, A.; Radomska-Zalas, A. Use of the simple multicriteria decision-making (MCDM) method for optimization of the high-alloy steel cutting process by the abrasive water jet. Spectr. Mech. Eng. Oper. Res. 2024, 1, 111–120. [Google Scholar] [CrossRef]
  27. Thinh, H.X.; Trung, D.D. A research on application of the measurement of alternatives and ranking according to compromise solution method for multi-criteria decision making in the grinding process. EUREKA Phys. Eng. 2022, 2, 101–110. [Google Scholar] [CrossRef]
  28. Raigar, J.; Sharma, V.S.; Srivastava, S.; Chand, R.; Singh, J. A decision support system for the selection of an additive manufacturing process using a new hybrid MCDM technique. Sādhanā 2020, 45, 101. [Google Scholar] [CrossRef]
  29. Rezaei, J. Best-worst multi-criteria decision-making method: Some properties and a linear model. Omega 2016, 64, 126–130. [Google Scholar] [CrossRef]
  30. Dalić, Z.; Stević, Ž.; Erceg, P.; Macura, P.; Terzić, S. Selection of a distribution channel using the integrated FUCOM-MARCOS model. Int. Rev. 2020, 3, 80–96. [Google Scholar] [CrossRef]
  31. Pamučar, D.; Ecer, F. Prioritizing the weights of the evaluation criteria under fuzziness: The fuzzy full consistency method—FUCOM-F. Facta Univ. Ser. Mech. Eng. 2020, 18, 419–437. [Google Scholar] [CrossRef]
  32. Gölcük, İ.; Durmaz, E.D.; Şahin, R. Interval type-2 fuzzy development of FUCOM and activity relationship charts along with MARCOS for facilities layout evaluation. Appl. Soft Comput. 2022, 128, 109414. [Google Scholar] [CrossRef]
  33. Saha, A.; Mishra, A.R.; Rani, P.; Hezam, I.M.; Cavallaro, F. A q-Rung orthopair fuzzy FUCOM double normalization-based multi-aggregation method for healthcare waste treatment method selection. Sustainability 2022, 14, 4171. [Google Scholar] [CrossRef]
  34. Rachman, A.P.; Ichwania, C.; Mangkuto, R.A.; Pradipta, J.; Koerniawan, M.D.; Sarwono, J. Comparison of Multi-Criteria Decision-Making Methods for Selection of Optimum Passive Design Strategy. Energy Build. 2024, 314, 114285. [Google Scholar] [CrossRef]
  35. Hariri, A.; Domingues, P.; Sampaio, P. Integration of Multi-Criteria Decision-Making Approaches Adapted for Quality Function Deployment: An Analytical Literature Review and Future Research Agenda. Int. J. Qual. Reliab. Manag. 2023, 40, 2326–2350. [Google Scholar] [CrossRef]
  36. Pandey, V.; Komal; Dincer, H. A Review on TOPSIS Method and Its Extensions for Different Applications with Recent Development. Soft Comput. 2023, 27, 18011–18039. [Google Scholar] [CrossRef]
  37. Peykani, P.; Emrouznejad, A.; Nouri, M. Best-Worst Multi-Criteria Decision-Making Method: A Review of the Literature. Socio-Econ. Plan. Sci. 2025, 103, 102345. [Google Scholar] [CrossRef]
  38. Pamucar, D.; Macura, D.; Tavana, M.; Bozanic, D.; Knezevic, N. An integrated rough group multicriteria decision-making model for the ex-ante prioritization of infrastructure projects: The Serbian railways case. Socioecon. Plann. Sci. 2022, 79, 101098. [Google Scholar] [CrossRef]
  39. Dhalmahapatra, K.; Garg, A.; Singh, K.; Xavier, N.F.; Maiti, J. An integrated RFUCOM–RTOPSIS approach for failure modes and effects analysis: A case of manufacturing industry. Reliab. Eng. Syst. Saf. 2022, 221, 108333. [Google Scholar] [CrossRef]
  40. Stević, Ž.; Tanackov, I.; Puška, A.; Jovanov, G.; Vasiljević, J.; Lojaničić, D. Development of modified SERVQUAL–MCDM model for quality determination in reverse logistics. Sustainability 2021, 13, 5734. [Google Scholar] [CrossRef]
  41. Stević, Ž.; Korucuk, S.; Karamaşa, Ç.; Demir, E.; Zavadskas, E.K. A novel integrated fuzzy-rough MCDM model for assessment of barriers related to smart logistics applications and demand forecasting method in the COVID-19 period. Int. J. Inf. Technol. Decis. Mak. 2022, 21, 1647–1678. [Google Scholar] [CrossRef]
  42. Popović, V.; Pamučar, D.; Stević, Ž.; Lukovac, V.; Jovković, S. Multicriteria optimization of logistics processes using a grey FUCOM-SWOT model. Symmetry 2022, 14, 794. [Google Scholar] [CrossRef]
  43. Peneva, T.; Avramova, T. Methodology for Selecting a Rational Technological Process. Int. J. Mod. Manuf. Technol. 2025, 17, 42. [Google Scholar] [CrossRef]
  44. EN ISO 2768-1:1989; General Tolerances—Part 1: Tolerances for Linear and Angular Dimensions Without Individual Tolerance Indications. International Organization for Standardization: Geneva, Switzerland, 1989.
  45. ISO 7870-2:2023; Control Charts—Part 2: Shewhart Control Charts. International Organization for Standardization: Geneva, Switzerland, 2023.
  46. EN ISO 21920-3:2022; Geometrical Product Specifications (GPS)—Surface Texture: Profile—Part 3: Specification Operators. International Organization for Standardization: Geneva, Switzerland, 2022.
Figure 1. The most widely used multi-criteria methods.
Figure 1. The most widely used multi-criteria methods.
Technologies 13 00537 g001
Figure 2. Stages of the methodology for selecting a rational technological process.
Figure 2. Stages of the methodology for selecting a rational technological process.
Technologies 13 00537 g002
Figure 3. Methodology for experimental research study.
Figure 3. Methodology for experimental research study.
Technologies 13 00537 g003
Figure 4. Research object—guide for a 3D printer.
Figure 4. Research object—guide for a 3D printer.
Technologies 13 00537 g004
Figure 5. Control charts from measurements of the parameters of the parts obtained in technological processes TP N° 1 CNC_53-WA CNC and TP N° 2 C11-WA. (a1,a2) for size Ø16 mm; (b1,b2) for size Ø24 mm; (c1,c2) for size 10 mm; (d1,d2) for roughness Ra = 0.8 μm. The blue lines with markers represent the measured values for each sample, while the orange lines indicate the upper and lower warning limits (UWL and LWL).
Figure 5. Control charts from measurements of the parameters of the parts obtained in technological processes TP N° 1 CNC_53-WA CNC and TP N° 2 C11-WA. (a1,a2) for size Ø16 mm; (b1,b2) for size Ø24 mm; (c1,c2) for size 10 mm; (d1,d2) for roughness Ra = 0.8 μm. The blue lines with markers represent the measured values for each sample, while the orange lines indicate the upper and lower warning limits (UWL and LWL).
Technologies 13 00537 g005
Figure 6. Control charts from measurements of the parameters of the parts obtained in technological processes TP N° 3 C11_47-STW and TP N° 4 STAMA-DW. (a1,a2) for size Ø16 mm; (b1,b2) for size Ø24 mm; (c1,c2) for size 10 mm; (d1,d2) for roughness Ra = 0.8 μm. The blue lines with markers represent the measured values for each sample, while the orange lines indicate the upper and lower warning limits (UWL and LWL).
Figure 6. Control charts from measurements of the parameters of the parts obtained in technological processes TP N° 3 C11_47-STW and TP N° 4 STAMA-DW. (a1,a2) for size Ø16 mm; (b1,b2) for size Ø24 mm; (c1,c2) for size 10 mm; (d1,d2) for roughness Ra = 0.8 μm. The blue lines with markers represent the measured values for each sample, while the orange lines indicate the upper and lower warning limits (UWL and LWL).
Technologies 13 00537 g006
Table 1. Characteristics of different technological processes.
Table 1. Characteristics of different technological processes.
CharacteristicsTP N° 1TP N° 2TP N° 3TP N° 4
Material41Cr4 (40X)
1.7035
41Cr4 (40X)
1.7035
55NiCrMoV7
1.2714
55NiCrMoV7
1.2714
Manufacturing costs9.20 €8.56 €8.47 €12.15 €
Manufacturing time, h0.70060.66970.44470.2122
Workpiece, mmØ25Ø25Ø25.8Ø25.8
Production lineWA CNCWASTWDW
Table 2. Results from measurements of the different technological processes.
Table 2. Results from measurements of the different technological processes.
TP N° 1 CNC_53-WA CNC 15043050TP N° 2 C11-WA
15043057
TP N° 3 C11_47-STW
15043254
TP N° 4 STAMA-DW
15043227
Ra 0.8,
μm
10, mmØ24, mmØ16,
mm
Ra 0.8,
μm
10, mmØ24, mmØ16, mmRa 0.8,
μm
10, mmØ24, mmØ16, mmRa 0.8,
μm
10, mmØ24, mmØ16, mm
10.73210.1423.8616.0050.77710.0424.0816.0010.89.9623.9816.0000.73210.0823.9616.010
20.72910.0424.0016.0010.79410.0224.0216.0050.7599.9624.1016.0020.78310.0623.9816.012
30.75910.0224.0016.0050.72710.0024.0216.0020.759.9824.0816.0030.46910.0424.1016.007
40.810.0224.0216.0060.66810.0224.0816.0030.7779.9623.9616.0070.57110.0223.9016.012
50.71210.0024.0016.0010.69110.0424.0616.0090.77110.1823.9216.0080.76510.0423.9616.013
60.75910.0424.0016.0040.63610.0224.0816.0060.7779.9224.0416.0060.610.0624.0016.012
70.75910.0224.0216.0080.75310.0624.0816.0020.71810.0823.9816.0030.70610.0423.9816.018
80.73810.0024.0216.0130.72410.0424.0816.0080.7249.9224.0816.0080.60610.0224.0216.018
90.7099.9624.0016.0080.6659.9223.9216.0080.7829.9424.0016.0010.5310.0024.0416.017
100.75910.0224.0216.0030.72410.0424.0816.0050.810.1023.9416.0000.48310.0224.0416.004
110.73210.0224.0216.0050.72910.0224.0216.0020.7719.9623.9816.00380.7610.0423.8816.004
120.70610.0024.0216.0090.810.0424.0216.0070.74710.0423.9816.00360.80410.0024.0016.003
130.78210.0424.0516.0060.73210.0224.0416.0050.89.9824.0816.0040.77110.0824.0016.007
140.7510.0224.0016.0010.71810.0424.0216.0030.72110.0824.0216.0030.75910.0623.9816.004
150.810.0424.0216.0110.71510.0624.0816.0040.7189.9224.1416.0010.77110.0423.9616.004
160.72910.0624.0216.0050.64510.0824.0816.0000.7449.9823.9816.00390.610.0824.0016.009
170.78210.0424.0016.0000.66510.0024.0616.0020.7779.9623.9616.0040.810.0824.0216.001
180.73510.0224.0216.0080.63310.0424.0016.0040.7659.8424.0016.0010.6210.0024.0016.003
190.73210.0224.0216.0050.76510.0224.1016.0030.7599.9623.9816.00380.810.0624.0416.004
200.76510.0624.0416.0040.73510.0624.0216.0020.7359.923.9616.0050.80610.0824.0216.008
210.73210.1024.00016.0020.72110.0224.0816.0020.7329.9823.9616.0020.65210.1024.0016.002
220.73510.0624.0216.0020.79410.0024.0216.0040.7299.9224.0816.0010.7810.0823.9816.007
230.78810.0224.0016.0070.59210.0224.0016.0020.7779.8824.0216.0040.6310.0624.0016.003
240.72910.1224.0016.0010.63610.0424.0816.0050.72910.0223.9816.00370.60610.1024.0016.004
250.78810.0424.0216.0030.63610.0224.0416.0010.7249.9223.9816.00390.75310.0824.0016.003
260.79410.0424.0216.0040.63610.0624.0216.0000.75310.0423.9616.0040.77710.0623.9016.004
270.70910.0424.0016.0110.810.0424.0216.0030.7539.9824.1016.0060.7610.0424.0216.003
280.77710.0224.0016.0030.74410.0224.0616.0030.7159.9224.0016.0040.78810.0423.9816.01
290.72110.0224.0216.0070.70910.0624.0216.0050.78210.0224.1016.0110.72910.0824.0216.002
300.78810.0024.0216.0030.75310.0224.0216.0050.7129.9024.0816.0090.75310.1023.9016.003
310.76510.0224.0016.0060.79410.0424.0216.0040.7510.0824.0616.0010.610.0824.0616.005
320.76510.0224.0216.0030.810.0224.0816.0050.7329.9224.0616.0050.71810.0623.9816.004
330.79410.0424.0216.0040.6569.8623.9616.0000.7659.9624.0816.0030.70310.0624.0016.007
340.73510.0424.0216.0010.67410.0224.0816.0030.89.9823.9816.0100.710.0023.9816.007
350.72710.0224.0616.0060.75910.0624.0016.0080.75910.0024.0616.0050.77910.0623.9616.010
360.77110.0424.0016.0120.75310.0424.1416.0080.7949.9224.1016.0100.78310.0824.0016.004
370.75310.0824.0216.0070.73810.0324.0416.0020.78210.1623.9616.0040.70610.1223.9816.002
380.75910.0224.0016.0090.70910.0224.0216.0080.7539.8823.9816.0050.55410.0824.0216.008
390.78210.0224.0216.0080.73210.0224.0416.0090.78810.0224.0416.0030.8239.9823.9616.000
400.70910.0024.0216.0030.58910.0023.9816.0030.7539.9223.9616.0000.79410.0624.0016.003
410.77110.0424.1016.0040.66810.0224.0216.0070.7659.9623.9616.0020.64210.0824.0016.004
420.72710.0424.0216.0140.63910.0623.9816.0020.75310.1423.9416.0020.810.0624.0016.008
430.70910.0424.0016.0090.77110.0424.1016.0020.7329.9223.9616.0060.74110.0623.9816.003
440.89.8624.0216.0060.810.0824.0016.0010.6949.9423.9616.0010.7949.9424.0016.003
450.78210.0424.0216.0080.74410.0624.0216.0090.6979.9624.0216.0020.64210.0823.9016.004
460.74410.0224.0616.0040.77110.0224.0016.0130.7539.9023.8616.0000.69410.0824.0216.006
470.71510.0223.9816.0090.6869.9823.9816.0130.7659.9824.0616.0120.64510.0624.0416.004
480.76510.0423.8816.0020.7949.9024.0816.0000.759.9824.0216.0090.76510.1424.0016.006
490.7299.9224.0016.0060.65610.0024.0216.0140.77110.0623.9616.0060.67410.0623.9616.007
500.72110.1024.0016.0100.69710.0224.0016.0070.7539.9624.0216.0090.54510.0824.0016.003
Table 3. Calculation of warning limits.
Table 3. Calculation of warning limits.
ParameterUWLLWLStandard Deviation—σ2 σ
Ø 16, mm16.01516.0030.0030.006
Ø 24, mm24.1323.870.1330.0667
10, mm10.139.87
Ra 0.8 µm0.780.60.0450.09
Table 4. Results from measurements of different technological processes.
Table 4. Results from measurements of different technological processes.
Technological ProcessTP N° 1 CNC_53-WA CNC 15043050TP N° 2 C11-WA 15043057TP N° 3 C11_47-STW 15043254TP N° 4 STAMA-DW 15043227
Measured parametersRa 0.8, µm10, mmØ24, mmØ16, mmRa 0.8, µm10, mmØ24, mmØ16, mmRa 0.8, µm10, mmØ24, mmØ16, mmRa 0.8, µm10, mmØ24, mmØ16, mm
PN244230202248188440342036
Table 5. Assigning importance to each criterion.
Table 5. Assigning importance to each criterion.
CriterionWeight
C1
Production costs
1
C2
Accuracy of Ø16+0.018 mm
2
C3
Accuracy of Ø24 ± 0.2 mm
3
C4
Accuracy of length 10 ± 0.2 mm
4
C5
Production time, h
5
C6
Roughness Ra 0.8 μm
6
Table 6. Quantitative values of each criterion for evaluation for the specific technological process.
Table 6. Quantitative values of each criterion for evaluation for the specific technological process.
Quantitative DataProduction CostsØ16, mmØ24, mm10, mmProduction Time, hRa 0.8 μm
TP N°1/CNC_539.20 €30440.700624
TP N° 2/C118.56 €48220.669720
TP N° 3/C11_478.47 €40480.444718
TP N° 4/STAMA12.15 €36020.212234
Table 7. Combinations of the importance of the selected criteria and final assessment of the technological process.
Table 7. Combinations of the importance of the selected criteria and final assessment of the technological process.
CriteriaCriterion 1Criterion 2Criterion 3Criterion 4Criterion 5Criterion 6Rational Technological Process
Production CostsØ16Ø2410Time for
Production
Ra 0.8 μm
Importance of criteria1.6451231. TP 1/S(P1) − 9.054
2. TP 2/S(P2) − 9.318
3. TP 4/S(P4) − 9.985
4. TP 3/S(P3) − 10.790
2.5314261. TP 4/S(P4) − 8.450
2. TP 1/S(P1) − 8.649
3. TP 2/S(P2) − 9.747
4. TP 3/S(P3) − 9.898
3.2634511. TP 3/S(P3) − 13.193
2. TP 2/S(P2) − 13.706
3. TP 1/S(P1) − 14.724
4. TP 4/S(P4) − 19.028
4.2134651. TP 1/S(P1) − 17.082
2. TP 4/S(P4) − 20.167
3. TP 3/S(P3) − 20.915
4. TP 2/S(P2) − 23.493
5.6543211. TP 3/S(P3) − 12.776
2. TP 2/S(P2) − 13.277
3. TP 1/S(P1) − 13.966
4. TP 4/S(P4) − 17.958
6.1234561. TP 1/S(P1) − 12.520
2. TP 3/S(P3) − 14.242
3. TP 4/S(P4) − 14.840
4. TP 2/S(P2) − 15.181
7.3451261. TP 1/S(P1) − 8.048
2. TP 4/S(P4) − 8.499
3. TP 2/S(P2) − 8.539
4. TP 3/S(P3) − 10.141
8.4521631. TP 2/S(P2) − 8.783
2. TP 1/S(P1) − 9.150
3. TP 4/S(P4) − 9.635
4. TP 3/S(P3) − 10.690
9.2516341. TP 2/S(P2) − 8.750
2. TP 1/S(P1) − 8.776
3. TP 4/S(P4) − 9.053
4. TP 3/S(P3) − 9.068
10.5621341. TP 2/S(P2) − 7.321
2. TP 4/S(P4) − 7.755
3. TP 1/S(P1) − 7.785
4. TP 3/S(P3) − 9.391
11.3426511. TP 3/S(P3) − 13.978
2. TP 2/S(P2) − 14.825
3. TP 1/S(P1) − 15.254
4. TP 4/S(P4) − 19.357
12.3421651. TP 1/S(P1) − 8.769
2. TP 4/S(P4) − 8.933
3. TP 2/S(P2) − 8.965
4. TP 3/S(P3) − 10.815
13.4653211. TP 3/S(P3) − 12.438
2. TP 2/S(P2) − 12.874
3. TP 1/S(P1) − 13.789
4. TP 4/S(P4) − 17.882
14.6325141. TP 1/S(P1) − 8.585
2. TP 4/S(P4) − 9.444
3. TP 3/S(P3) − 9.506
4. TP 2/S(P2) − 9.999
15.5461321. TP 1/S(P1) − 10.710
2. TP 2/S(P2) − 10.722
3. TP 3/S(P3) − 12.044
4. TP 4/S(P4) − 12.449
16.3425141. TP 4/S(P4) − 5.576
2. TP 1/S(P1) − 5.742
3. TP 3/S(P3) − 6.885
4. TP 2/S(P2) − 6.907
17.1253641. TP 1/S(P1) − 13.245
2. TP 3/S(P3) − 14.902
3. TP 2/S(P2) − 15.812
4. TP 4/S(P4) − 16.062
18.5342611. TP 3/S(P3) − 15.552
2. TP 1/S(P1) − 15.901
3. TP 2/S(P2) − 16.050
4. TP 4/S(P4) − 20.190
19.2435161. TP 1/S(P1) − 7.728
2. TP 3/S(P3) − 8.413
3. TP 2/S(P2) − 8.714
4. TP 4/S(P4) − 8.716
20.4561231. TP 2/S(P2) − 8.602
2. TP 1/S(P1) − 8.701
3. TP 4/S(P4) − 9.664
4. TP 3/S(P3) − 10.207
21.5241361. TP 1/S(P1) − 10.642
2. TP 4/S(P4) − 11.497
3. TP 2/S(P2) − 12.967
4. TP 3/S(P3) − 13.813
22.3165241. TP 1/S(P1) − 16.687
2. TP 4/S(P4) − 20.023
3. TP 3/S(P3) − 20.332
4. TP 2/S(P2) − 23.233
23.3245611. TP 3/S(P3) − 17.754
2. TP 1/S(P1) − 17.952
3. TP 2/S(P2) − 19.537
4. TP 4/S(P4) − 23.055
24.2364511. TP 3/S(P3) − 15.642
2. TP 1/S(P1) − 16.493
3. TP 2/S(P2) − 16.836
4. TP 4/S(P4) − 21.477
25.1635421. TP 3/S(P3) − 11.094
2. TP 2/S(P2) − 11.345
3. TP 1/S(P1) − 11.636
4. TP 4/S(P4) − 14.532
26.4512361. TP 4/S(P4) − 6.929
2. TP 2/S(P2) − 7.468
3. TP 1/S(P1) − 7.565
4. TP 3/S(P3) − 8.680
27.2145631. TP 1/S(P1) − 18.170
2. TP 3/S(P3) − 21.596
3. TP 4/S(P4) − 21.977
4. TP 2/S(P2) − 24.473
28.5143621. TP 1/S(P1) − 18.894
2. TP 3/S(P3) − 22.218
3. TP 4/S(P4) − 22.911
4. TP 2/S(P2) − 24.894
29.6423511. TP 3/S(P3) − 13.946
2. TP 2/S(P2) − 14.378
3. TP 1/S(P1) − 14.901
4. TP 4/S(P4) − 18.667
30.3652411. TP 3/S(P3) − 13.225
2. TP 2/S(P2) − 13.233
3. TP 1/S(P1) − 14.303
4. TP 4/S(P4) − 18.409
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Avramova, T.; Peneva, T.; Ivanov, A. Application of the Multi-Criteria Method FUCOM for Evaluating Technological Processes. Technologies 2025, 13, 537. https://doi.org/10.3390/technologies13110537

AMA Style

Avramova T, Peneva T, Ivanov A. Application of the Multi-Criteria Method FUCOM for Evaluating Technological Processes. Technologies. 2025; 13(11):537. https://doi.org/10.3390/technologies13110537

Chicago/Turabian Style

Avramova, Tanya, Teodora Peneva, and Aleksandar Ivanov. 2025. "Application of the Multi-Criteria Method FUCOM for Evaluating Technological Processes" Technologies 13, no. 11: 537. https://doi.org/10.3390/technologies13110537

APA Style

Avramova, T., Peneva, T., & Ivanov, A. (2025). Application of the Multi-Criteria Method FUCOM for Evaluating Technological Processes. Technologies, 13(11), 537. https://doi.org/10.3390/technologies13110537

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
