TinyML Implementation of CNN-Based Gait Analysis for Low-Cost Motorized Prosthetics: A Proof-of-Concept

Abstract

Real-time gait analysis is essential for the development of responsive and reliable motorized prosthetics. Deploying advanced deep learning models on resource-constrained embedded systems, however, remains a major challenge. This proof-of-concept study presents a TinyML-based approach for knee joint angle prediction using convolutional neural networks (CNNs) trained on inertial measurement unit (IMU) signals. Gait data were acquired from four healthy participants performing multiple stride types, and data augmentation strategies were applied to enhance model robustness. Multi-objective optimization was employed to balance accuracy and computational efficiency, yielding specialized CNN architectures tailored for short, natural, and long strides. A lightweight classifier enabled real-time selection of the appropriate specialized model. The proposed framework achieved an average RMSE of 2.05°, representing a performance gain of more than 35% compared to a generalist baseline, while maintaining reduced inference latency (16.8 ms) on a $40 embedded platform (Sipeed MaixBit with Kendryte K210). These findings demonstrate the feasibility of deploying compact and specialized deep learning models on low-cost hardware, enabling affordable prosthetic solutions with real-time responsiveness. This work contributes to advancing intelligent assistive technologies by combining efficient model design, hardware-aware optimization, and clinically relevant gait prediction performance.

1. Introduction

Lower-limb loss affects millions of individuals worldwide, primarily due to vascular diseases and diabetes [1]. The prevalence of these conditions is rising in low- and middle-income countries, further increasing amputation rates [2]. In Brazil, for example, 31,190 lower-limb amputations were performed in 2022 through the public health system [3]. Yet, an active knee prosthesis can cost around R$100,000 [4], while the average monthly per-capita income in the North region is only R$1107 [5], making such devices inaccessible to most individuals. This disparity underscores the urgent need for affordable and scalable prosthetic technologies, particularly in resource-constrained settings.

Beyond economic barriers, limb loss severely impacts mobility, employability, and overall quality of life [6]. Limited access to prosthetic devices and rehabilitation services further restricts social participation, reinforcing cycles of exclusion [2]. Expanding access to assistive technologies is therefore critical to improving independence and social integration [7].

Building on this need, recent advances in active prostheses with powered joints and control systems have offered substantial improvements over traditional passive devices. By using actuators to generate movement, they closely replicate natural limb function [8], resulting in improved gait symmetry, walking speed, and metabolic efficiency [9]. These devices also offer superior adaptability to diverse terrains and activities, enhancing user mobility and quality of life [10,11]. The effectiveness of such prostheses depends on their ability to predict and adapt to movement intent in real-time. Predictive control systems interpret signals from sensors such as EMG or IMUs to dynamically adjust actuators, ensuring smooth transitions between gait phases and adapting to different walking conditions [12,13]. This kind of approach improves safety, reliability, and user acceptance, making efficient predictive algorithms essential for clinical translation [14,15].

Ensuring responsive and reliable prosthetic control requires models that are not only accurate but also practical for on-device execution. In this context, embedded systems provide a promising platform for real-time signal processing and control [16]. Yet, while architectures such as Recurrent Neural Networks (RNN) and Long Short-Term Memory (LSTM) have demonstrated strong predictive accuracy [17], their computational demands often exceed the capacity of low-power hardware [18]. This gap highlights the need for more efficient alternatives—such as convolutional models optimized for microcontrollers—and for signal processing methods specifically tailored to constrained environments [19].

This proof-of-concept study addressed these challenges by leveraging affordable IMU sensors, computationally efficient CNN-based models, and low-cost embedded hardware with dedicated accelerators for real-time knee angle prediction. The main contributions were:

• Multi-objective optimization of CNN architectures to balance accuracy and efficiency, yielding specialized models for short, natural, and long strides.
• A lightweight gait classifier to select specialized models in real-time.
• Deployment and validation of the optimized framework on a $40 TinyML platform (Sipeed MaixBit with Kendryte K210), demonstrating robust accuracy and low latency suitable for prosthetic applications.

Recent studies in the field have been presented as proof-of-concept investigations, emphasizing technological feasibility as a critical first step toward clinical translation [20,21,22,23]. In line with this approach, our work integrated efficient model design with hardware-aware optimization and established the viability of real-time gait prediction on resource-constrained systems. These findings provided a foundation for larger-scale evaluations and pointed toward the development of prosthetic solutions that are effective and economically accessible.

The remainder of this paper is organized as follows. Section 2 reviews related work on IMU-based gait analysis and predictive modeling for prosthetics. Section 3 presents the materials and methods, including data acquisition, model architectures, and optimization strategies. Section 4 describes the experiments and evaluation procedures. Section 5 reports and discusses the experimental results. Finally, Section 6 concludes the paper with limitations and directions for future work.

2. Related Work

Studies have shown that inertial measurement units (IMUs) can accurately measure joint angles in the sagittal plane, particularly knee flexion/extension, in gait analysis without magnetometers [24]. Achieving this accuracy, however, often requires complex multistep algorithms to extract meaningful parameters from the recorded raw data [25]. To overcome this computational burden, efficient algorithms using only accelerometers and gyroscopes have been developed for precise limb angle estimation [26]. Sensor placement and computational strategies strongly affect the performance of gait event detection, with thigh- and shank-mounted sensors proving effective for temporal analysis [27]. Furthermore, complementary filtering techniques further improve IMU data fusion accuracy [28]. Our approach builds on these advances, focusing specifically on sagittal-plane prediction while addressing cost and complexity considerations.

For predictive modeling, LSTM networks effectively capture temporal dependencies in gait data, showing good predictive accuracy in terms of Root Mean Squared Error (RMSE) and other metrics [29,30]. However, deploying LSTMs on embedded systems remains challenging due to their computational demands. Furthermore, recent efforts in deploying deep learning models on embedded microcontrollers offer promising, cost-effective solutions for active prosthesis control [31]. These studies find that Convolutional Neural Networks (CNN) generally outperform Multi-Layer Perceptrons (MLP) with limited data, although MLPs offer faster, real-time performance. Real-time knee joint angle prediction using RNNs on microcontrollers has also achieved robust predictive performance [32], highlighting the potential of embedded deep learning for gait analysis.

This study advanced prior work by addressing two key gaps: (i) the limited demonstration of CNN-based gait prediction on TinyML platforms [31], and (ii) the dependence on costly or proprietary sensor systems [32]. By leveraging affordable IMUs, multi-objective optimization of CNN architectures, and embedded deployment on a microcontroller, we demonstrate the feasibility of real-time knee angle prediction for accessible motorized prosthetics.

3. Materials and Methods

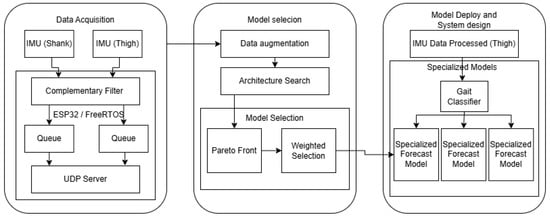

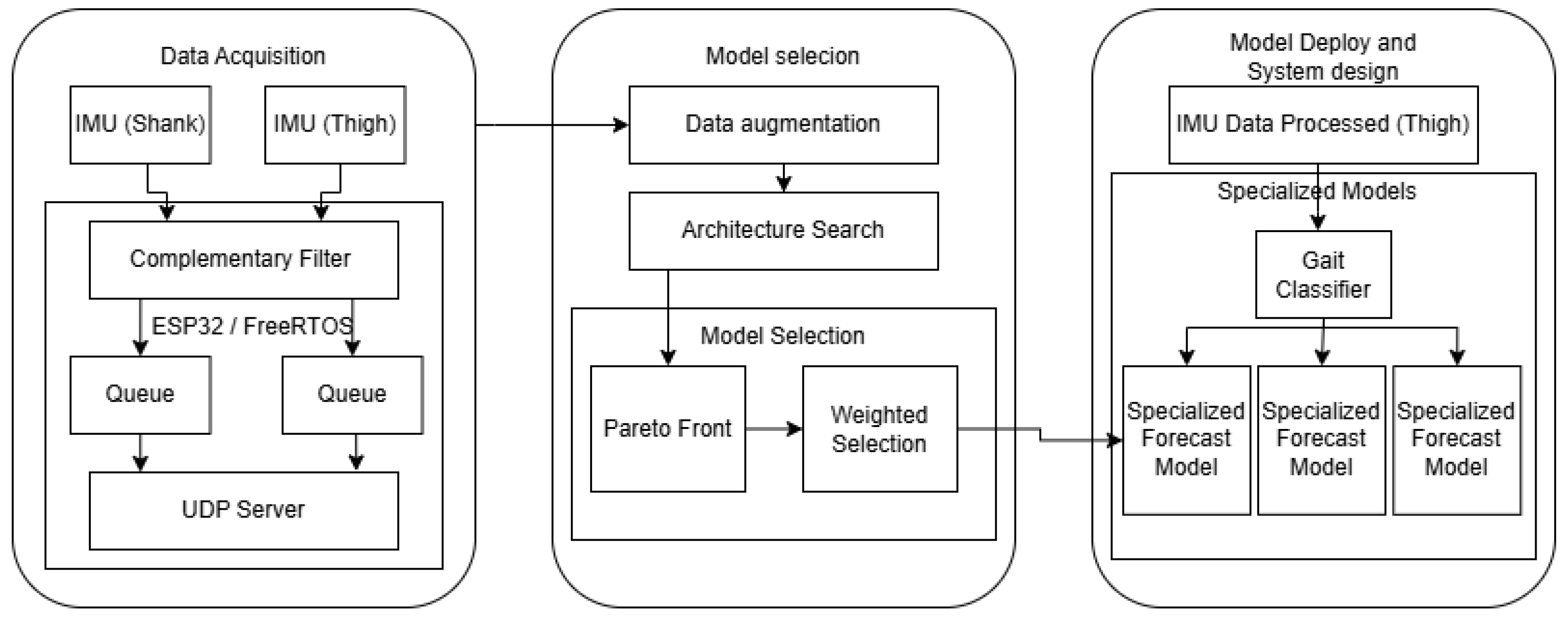

The overall workflow of the proposed framework is summarized in Figure 1. It comprises three main stages: (i) data acquisition, (ii) model selection, and (iii) system deployment. In the first stage, thigh- and shank-mounted IMUs capture motion data, which are filtered and transmitted via an ESP32 microcontroller running FreeRTOS. The second stage involves data augmentation, architecture search, and model selection through a Pareto analysis combined with a weighted evaluation. Finally, the selected models are deployed on embedded hardware, where a gait classifier dynamically assigns input sequences to specialized forecast models optimized for short, natural, and long stride patterns. This modular design ensures both predictive accuracy and computational feasibility on resource-constrained platforms. The subsequent subsections describe each stage in detail.

3.1. Data Acquisition

Our system uses an ESP32 microcontroller running FreeRTOS to interface with two MPU6050 IMU sensors via I2C. Before data acquisition, both MPU6050 inertial sensors were calibrated to remove static bias in acceleration and angular velocity signals. Calibration was performed by placing the sensors on a flat, motionless surface for 10 s while executing the calcOffsets routine of the MPU6050_light Arduino library. This procedure computes and stores gyroscope and accelerometer zero offsets, ensuring that subsequent readings reflect only dynamic motion components. Similar zero-bias calibration approaches are standard in human-movement IMU studies [19,24].

The ESP32 initializes the sensors, establishes a Wi-Fi access point, operates a web server, and manages data transmission to external clients. Leveraging its dual-core architecture, the ESP32 assigns each core to process data from one IMU sensor: Core 1 handles the thigh sensor, calculating angles and queuing the data, while Core 2 processes the shank sensor data similarly. This dual-core processing enables efficient, simultaneous data handling, essential for high-fidelity gait analysis and aligned with best practices in the field [19,24].

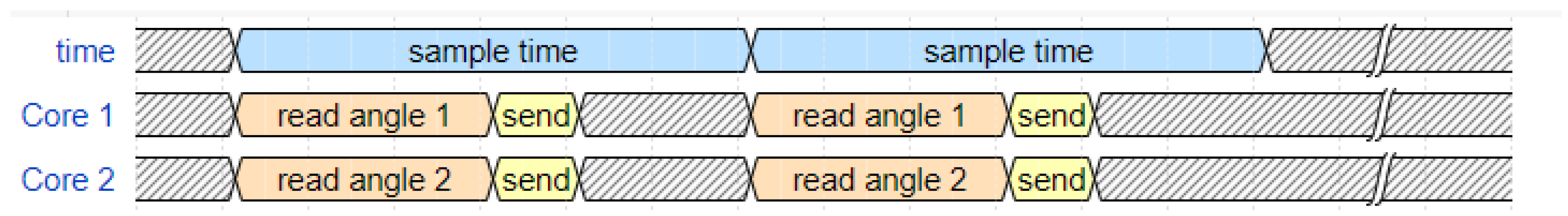

Data collection is managed through structured timers that trigger data-reading functions at precise intervals, ensuring accurate and synchronized acquisition (see Figure 2). To enhance signal quality, we applied a complementary filter in conjunction with first-order low-pass filters, using cutoff frequencies of 44 Hz for the accelerometer and 42 Hz for the gyroscope, matching the MPU6050 on-board digital low-pass filter (DLPF) settings. The complementary filter used weighting factors of 0.98 for the gyroscope and 0.02 for the accelerometer, effectively minimizing noise while preserving motion integrity [28]. This approach aligns with recommended practices for IMU-based gait analysis, maintaining high fidelity in motion tracking [24,33].

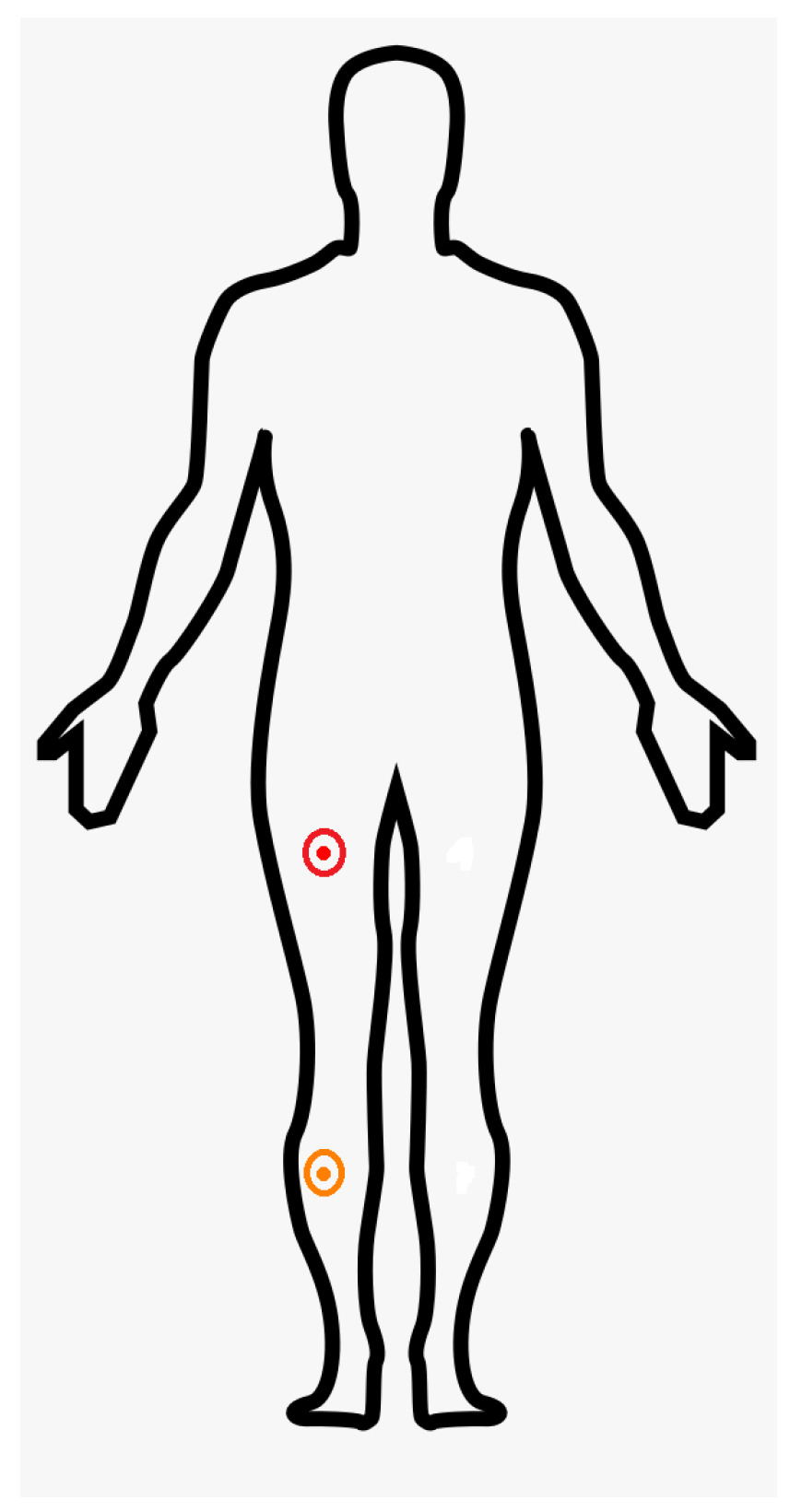

The inertial sensors were positioned by the researchers on the thigh and shank areas (Figure 3) to optimally capture flexion and extension during gait cycles, in accordance with the anatomical placement guidelines described by [27]. The placement procedure followed the recommended alignment of the IMUs with the longitudinal axes of the thigh and shank segments to ensure consistency across participants and enable accurate angle computation.

3.2. Learning Models

3.2.1. Neural Networks

To effectively estimate knee joint angles from thigh motion data in embedded systems, selecting an appropriate neural network architecture is crucial. Each architecture offers different trade-offs in terms of computational efficiency, memory requirements, and ability to model temporal dynamics. In this study, we focused on three well-established types of neural networks—MLP, CNN, and LSTM—based on their relevance in time series prediction tasks and their potential adaptability to low-power microcontrollers:

• Multi-Layer Perceptrons (MLP): Consist of fully or densely connected layers. They are effective for approximating complex functions but may struggle with capturing temporal dependencies inherent in gait data [34]. Despite their simplicity, MLPs often serve as a lightweight baseline in embedded applications.
• Convolutional Neural Networks (CNN): Traditionally applied to two-dimensional image data, they can be adapted for time series analysis by using one-dimensional convolutional layers. In this setup, filters slide across the temporal axis of the input data to extract local sequential patterns. This adaptation allows CNNs to effectively model temporal dependencies in sensor signals, offering structural advantages such as parameter sharing and locality, which contribute to improved performance and reduced computational load on embedded systems [31,35].
• Long Short-Term Memory Networks (LSTM): A type of recurrent neural network designed to model sequential data and capture long-term dependencies through memory cells and gating mechanisms [36]. Nevertheless, LSTMs may not perform optimally in our application due to compatibility issues with TensorFlow Lite on embedded systems like the K210 microcontroller [37] and due to their greater memory footprint compared to feedforward models.

3.2.2. Complexity and Depth Modulation with $\alpha$ and $\beta$

Parameters are defined to control neural network architectures by adjusting their width $\alpha$ and depth $\beta$. This parametrization allows for systematic exploration of model complexity within embedded constraints. Modulating $\alpha$ affects the number of neurons or filters per layer, directly influencing the network’s capacity, which is crucial for performance and generalization, especially in resource-constrained devices [38]. Modulating $\beta$ adjusts the number of layers or blocks, impacting the network’s depth and ability to learn hierarchical representations.

• MLP: Increasing $\alpha$ adds more neurons per hidden layer, enhancing the ability to capture complex nonlinear relationships. Increasing $\beta$ adds more hidden layers, improving modeling of intricate data patterns but may lead to vanishing gradients.
• CNN: A larger value of $\alpha$ increases the number of filters per convolutional layer, allowing learning of more diverse features. Increasing $\beta$ adds more convolutional and pooling blocks, enabling deeper feature extraction but possibly causing training difficulties [38].
• LSTM: $\alpha$ adjusts the number of memory units per layer, improving the capture of temporal dependencies. Increasing $\beta$ stacks more LSTM layers, enhancing pattern learning across different time scales but increases computational complexity.

3.3. Model Selection

3.3.1. Pareto Frontier

This is a method used to identify solutions that achieve optimal trade-offs between objectives that are typically inversely correlated. In this study, it was employed to select models for embedded systems by balancing two critical factors: prediction accuracy and computational efficiency. Given the limited memory and processing power of embedded devices, this approach ensures that any gain in one objective (e.g., reduced error) does not result in an excessive increase in computational cost. The outcome is a set of non-dominated solutions—models that are optimal in terms of both accuracy and efficiency—allowing us to select configurations that maximize performance while respecting the hardware constraints of the embedded system [39].

3.3.2. Weighted Metrics

Complementing the Pareto frontier analysis, weighted metrics allow for prioritization among the optimal choices based on the relative importance of each criterion. After normalizing the metrics to a common scale, we assigned weights reflecting the strategic relevance of each one. The final score for each model was calculated by multiplying each normalized metric by its corresponding weight and summing the results as depicted in Equation (1):

$$\mathrm{Weighted}\mathrm{Score}={\displaystyle \sum _{i=1}^n}{w}_i \times \mathrm{norm}\_{\mathrm{metric}}_i$$

(1)

3.4. Evaluation Metrics

To measure performance, we used the following metrics. In all equations, $y_i$ represents the sampled value, ${\widehat{y}}_i$ the predicted value, and n the number of observations.

3.4.1. Root Mean Squared Error (RMSE)

It measures the average magnitude of prediction errors. It is defined as:

$$\mathrm{RMSE}=\sqrt{{\displaystyle \frac{1}{n}}{\displaystyle \sum _{i=1}^n}{(y_i-{\widehat{y}}_i)}^2}$$

(2)

3.4.2. Mean Squared Error (MSE)

It calculates the average squared differences between predicted and actual values. It is defined as:

$$\mathrm{MSE}={\displaystyle \frac{1}{n}}\sum _{i=1}^n{(y_i-{\widehat{y}}_i)}^2$$

(3)

3.4.3. Coefficient of Determination ($R^2$)

$R^2$ indicates how well the model explains the variability of the data. It is defined as:

$$R^2=1-{\displaystyle \frac{{\sum }_{i=1}^n{(y_i-\widehat{y}i)}^2}{\sum {i=1}^n{(y_i-\overline{y})}^2}}$$

(4)

4. Experiments

4.1. Data Acquisition

Four healthy adult volunteers (two male, two female) participated in this study. Participants were recruited through personal invitation and volunteered to take part without compensation. Inclusion criteria required the absence of any self-reported musculoskeletal or neurological disorders that could affect gait. All participants were adults capable of walking independently without assistive devices. Informed consent was obtained from all participants prior to data collection. The sample size was defined in alignment with the exploratory scope of the study, allowing controlled evaluation while incorporating basic variability in gender and age group (young and middle-aged adults). While the cohort size was limited, this design is consistent with other exploratory studies in biomedical signal processing, where the objective is to establish feasibility of the approach [23].

Table 1. Demographics of the study participants (mean ± standard deviation).

Gender	Age (Years)	Height (cm)	Body Mass (Kg)	BMI (Kg/m2)	Speed (m/s)
Male	21.5 ± 3.5	175 ± 5	90 ± 14.1	29.3 ± 2.3	1.45 ± 0.12
Female	36 ± 13	163 ± 3	57.5 ± 3.5	21.7 ± 0.2	1.4 ± 0.10

summarizes their demographic information.

Participants performed walking trials using three different stride lengths to simulate realistic gait variations:

• Short strides measuring 0.6 m.
• Natural strides, equivalent to the participant’s average step length, at 0.82 m.
• Extended strides of 1 m.

For each stride length, participants performed five walking trials, resulting in approximately 2–3 min of recordings per stride type. All five trials were analyzed, but only segments without signal artifacts or sensor displacement were retained for processing. Noisy or incomplete samples were excluded through visual inspection and stability checks to ensure data quality and reliability.

All tests were conducted on a flat, uniform surface, with participants wearing standardized footwear to minimize external variability. Prior to data collection, participants underwent a familiarization period to ensure consistent execution of each stride length condition.

4.2. Data Processing

In our methodology, the thigh angle served as the independent variable (X), while the knee angle was defined as the dependent variable (Y), computed as the angular difference between the thigh and shank segments at each point in the gait cycle ($Y=\mathrm{Thigh}\mathrm{Angle}-\mathrm{Shank}\mathrm{Angle}$). This approach enabled modeling how variations in thigh movement influence knee behavior across different stride lengths.

4.3. Data Preprocessing and Augmentation

To improve model robustness and generalization, we applied data augmentation techniques, including Gaussian noise addition, scaling, Arbitrary Time Deformation (ATD), and Stochastic Magnitude Perturbation (SMP). These techniques were selected because they preserve the temporal dynamics of gait signals while improving model robustness to inter- and intra-subject variability. Both methods (ATD and SMP) have been shown to effectively expand IMU-based datasets without distorting stride-phase characteristics [40].

These transformations expanded the dataset from 33,800 to 169,000 data points. The data from all participants were then combined into a single dataset before being randomly split into training (70%), validation (20%), and testing (10%) sets.

4.4. Training Methodology

A range of neural network architectures were trained and adapted for deployment using TensorFlow Lite for Microcontrollers (https://www.tensorflow.org/lite/microcontrollers, accessed on 1 September 2025) All training was conducted using an NVIDIA GeForce GTX 960M GPU, with TensorFlow version 2.12.0 and Python version 3.11.1. Each model was trained for a maximum of 1000 epochs, using an EarlyStopping callback with a patience of 20 epochs to prevent overfitting. An adaptive learning rate was employed, starting with an initial value of $0.001$ and utilizing a learning rate decay. Specifically, the ReduceLROnPlateau callback was configured to monitor the validation loss (val_loss). If this metric did not improve after 5 consecutive epochs (patience = 5), the learning rate was reduced by 50% (factor = 0.5). The minimum learning rate was set to $1\times {10}^{-6}$ (min_lr = 1e-6) to prevent it from becoming too small.

4.5. Multi-Objective Optimization

To systematically explore the trade-offs between model complexity and its predictive performance, we conducted a structured hyperparameter search.

Table 2. Hyperparameter variations used in Multi-Objective Optimization.

Parameter	Variations
α	16, 32, 64, 128, 256
β	2, 3, 4, 5, 6
Input Window Size	16, 32, 64, 128
Prediction Horizon	1, 3, 5, 10

summarizes the discrete values tested for $\alpha$ (model width), $\beta$ (model depth), input window size, and prediction horizon during the multi-objective optimization process. By integrating methods outlined in Section 3.3.1 and Section 3.3.2, these hyperparameters were systematically adjusted to select the best model configuration. This approach allowed simultaneous optimization of generalization capabilities, minimization of overfitting, and maintenance of computational efficiency, essential for deployment in embedded environments.

The optimization procedure began with the computation of the Pareto Frontier, capturing the trade-offs between model accuracy and computational complexity. Root Mean Square Error (RMSE) and model size (in bytes) were used as primary metrics, with each model configuration defined by different $\alpha$ and $\beta$ values.

To incorporate additional architectural considerations, such as input window size and forecast horizon, we adopted a weighted metric approach as described in Section 3.3.2.

Table 3. Weights assigned to each metric in the Weighted Method for model selection.

Metric	Weight
RMSE	0.3
Model Size	0.3
Forecast Horizon	0.3
Input Window Size	0.1

details the empirical weights assigned to each metric, reflecting the constraints and priorities defined in [38].

The input window size and forecast horizon are key parameters that significantly impact model performance. Larger input windows can capture more temporal dependencies, potentially enhancing accuracy for long-term patterns [41], but they also increase computational complexity and the risk of overfitting [36]. In contrast, smaller windows reduce computational demands but may overlook essential patterns.

Longer forecast horizons, though more challenging due to increased uncertainty [41], are vital in active prostheses to predict user intentions over sufficient time spans for smooth movements [42]. Short-term predictions may not allow proactive adjustments, leading to delayed responses. Balancing the forecast horizon ensures meaningful predictions with acceptable accuracy, thereby enhancing prosthetic functionality through anticipatory responses.

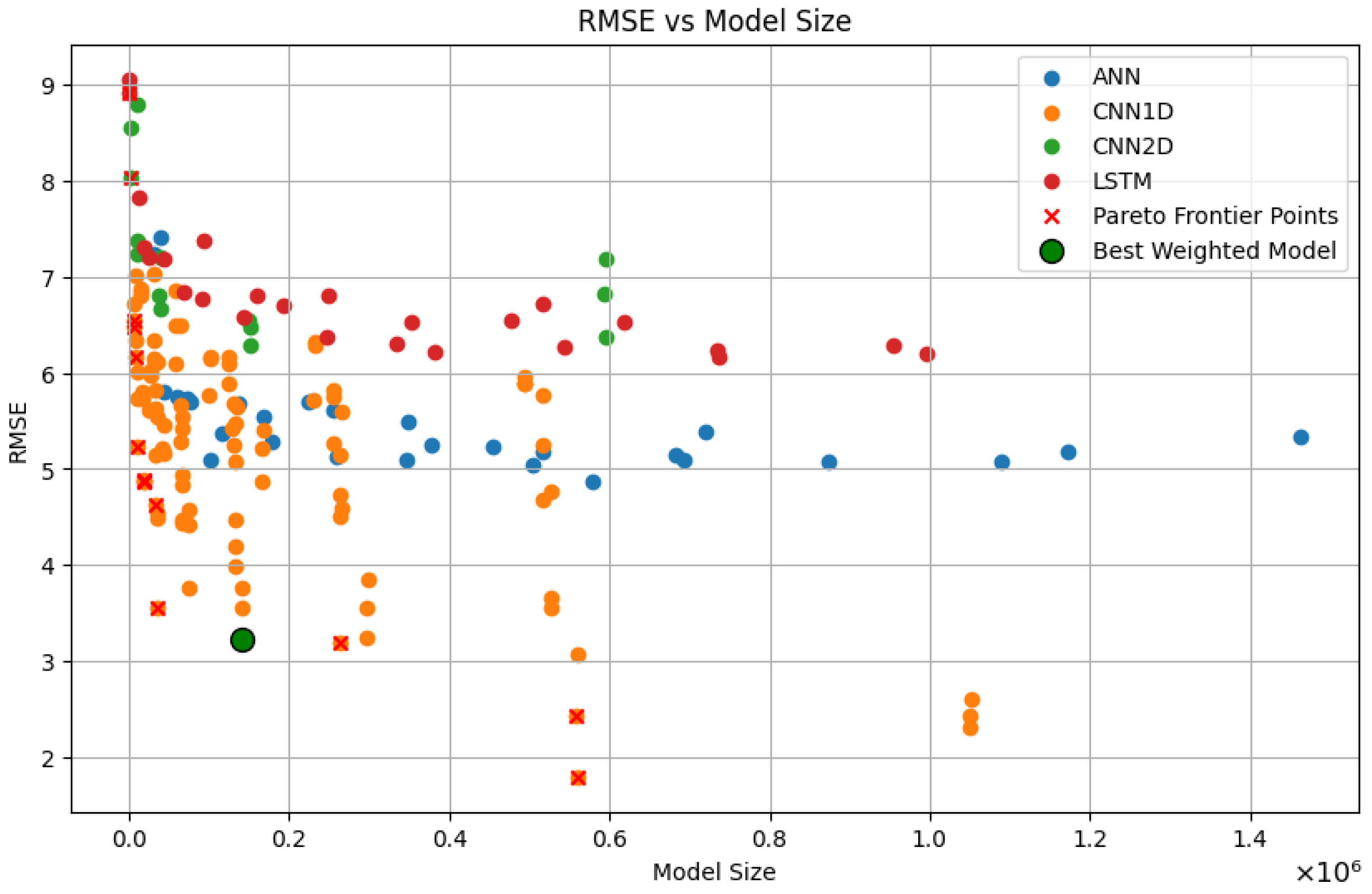

The results of our model selection process are illustrated in Figure 4. Models marked with a red cross (×) represent those on the Pareto Frontier, indicating they offer the most efficient trade-offs between the evaluated metrics. The model highlighted with a green circle is the one selected through this weighted evaluation (knee point).

4.6. Combined vs. Specialized Gait Prediction Models

The combined gait prediction model was trained on a unified dataset comprising short, natural, and long stride data, aiming to predict knee joint angles from thigh motion sequences in a generalized fashion. While this approach captures common temporal and spatial patterns across gait types, it may underperform when facing type-specific variability.

To overcome this limitation, we adopted a dynamic gait adaptation strategy that classifies stride type in real time and routes the input to a specialized model optimized for that pattern. This modular design enables each predictor to capture the distinct dynamics of its respective gait type, thereby enhancing predictive accuracy while maintaining computational efficiency [43,44].

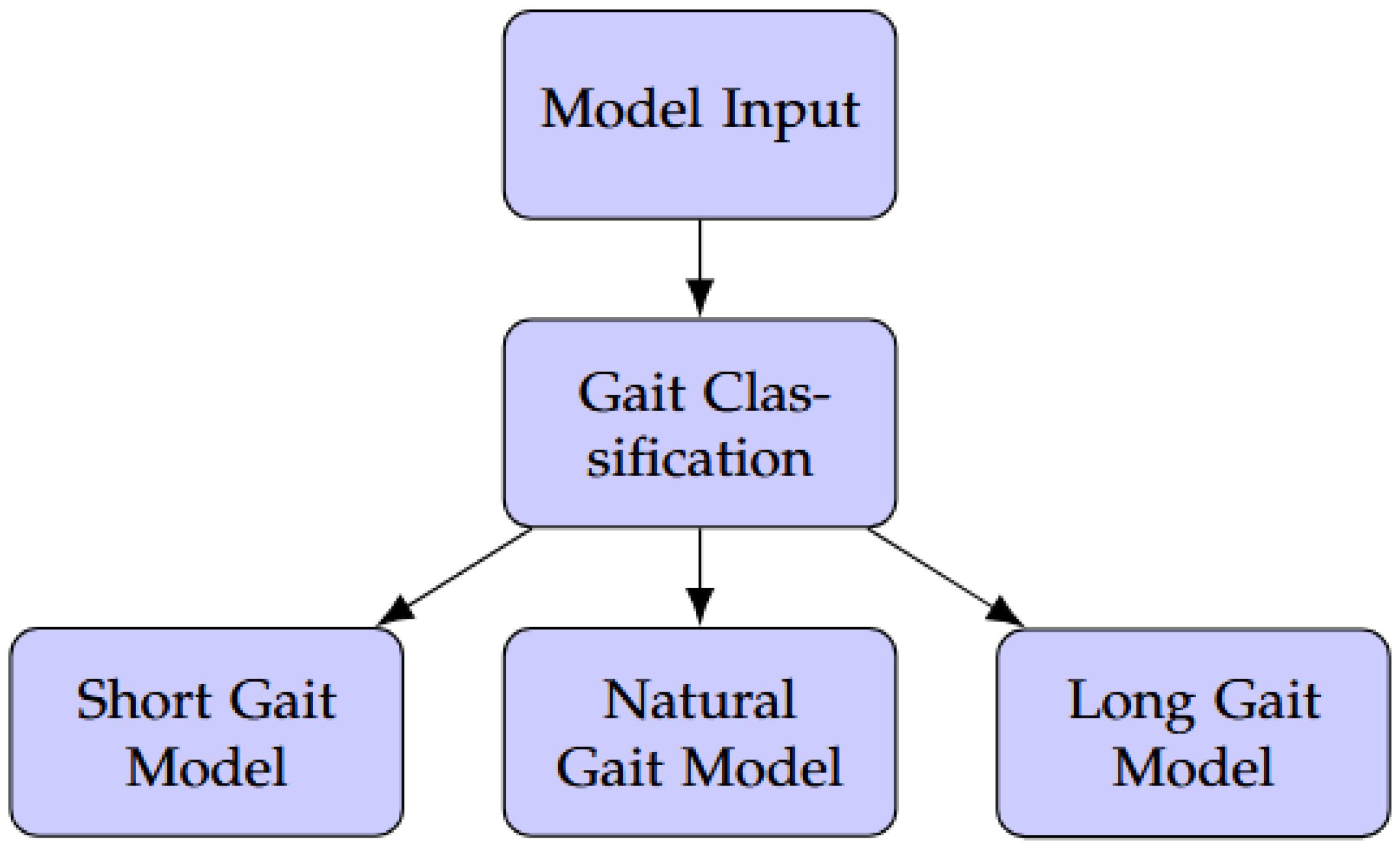

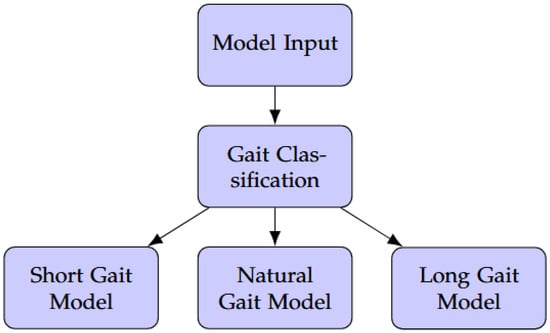

As illustrated in Figure 5, thigh motion data are first processed by a gait classification module. This classifier was implemented as a lightweight MLP model trained to categorize input sequences into short, natural, or long stride types. Each input consisted of time-series windows of filtered thigh IMU signals, with a window size of 64 samples and a stride of 10 samples between windows. According to its output, the system dynamically selects the appropriate specialized predictor. Both the classifier and the specialized models were deployed on the embedded platform, enabling fully on-device end-to-end inference.

Using specialized models for each gait type reduces the learning demand on individual models, enhancing their performance [45]. This approach combined the advantages of model specialization and adaptive selection, resulting in better performance compared to a single, generalized model.

4.7. Embedded Hardware and Implementation

Based on the efficiency of CNNs in embedded scenarios reported in [31], we selected the Sipeed MaixBit (https://wiki.sipeed.com/soft/maixpy/en/develop_kit_board/maix_bit.html, accessed on 1 September 2025) development board for our implementation. This board features the Kendryte K210 (https://cdn.hackaday.io/files/1654127076987008/kendryte_datasheet_20181011163248_en.pdf, accessed on 1 September 2025) system-on-chip, a dual-core 64-bit RISC-V processor integrating a high-performance Neural Network Processor (KPU) designed for efficient execution of convolutional neural networks.

To enable real-time inference, all neural models were converted from TensorFlow to TensorFlow Lite (TFLite) format and optimized through post-training quantization to 8-bit integer precision. The resulting TFLite models were then compiled into Kendryte KModel (.kmodel) format using the nncase toolchain (version 2.10) (https://github.com/kendryte/nncase, accessed on 1 September 2025), which enables hardware acceleration through the KPU. No structured pruning was applied, as the quantized and compiled models already met the real-time execution and memory constraints of the embedded platform. To leverage the dual-core architecture of the Kendryte K210 microcontroller, our system assigned real-time gait classification to one core, while the second core executed the corresponding specialized prediction model. This division of labor allowed for low-latency operation and ensured that the entire pipeline meets real-time processing requirements without excessive computational overhead.

5. Results and Discussion

5.1. Combined Gait Model

We tested combinations of different neural network architectures, including MLP, CNN1D, CNN2D and LSTM, to predict knee joint angles from thigh motion data. The values of $\alpha$ were powers of $2^n$, ranging from 16 to 128, while $\beta$ ranged from 2 to 6. These ranges were selected to balance computational complexity and memory efficiency, based on the analysis of memory alignment and optimization techniques from the literature [38]. The choice of powers of 2 for $\alpha$ leverages efficient memory access, while the range of $\beta$ ensures fine granularity in model tuning without excessively increasing the number of operations.

Table 4. Modelparameters and performance metrics including the Score column.

Alpha	RMSE	Model Size	Model	Wdw. Size	Horizon	Beta	Score
16	7.160	8644	CNN1D	16	1	2	0.418
16	5.630	33,220	CNN1D	64	1	2	0.509
16	7.547	6660	CNN1D	16	1	3	0.402
16	7.484	6796	CNN1D	16	3	3	0.555
16	6.238	10,756	CNN1D	32	1	3	0.469
16	4.894	18,948	CNN1D	64	1	3	0.506
16	4.869	19,084	CNN1D	64	3	3	0.657
16	3.166	19,220	CNN1D	64	10	4	0.807
16	3.105	35,332	CNN1D	128	1	4	0.607
32	3.063	263,044	CNN1D	128	5	2	0.500
32	3.021	140,292	CNN1D	128	3	4	0.564
64	2.424	559,108	CNN1D	128	5	4	0.374
64	1.894	560,148	CNN1D	128	10	4	0.700

lists the models on the Pareto Frontier. We applied a weighted evaluation to these models, considering only non-dominated solutions. The “Score” column reflects overall performance, with the greatest score indicating the optimal model (highlighted row). Every solution on the Pareto frontier was based on CNN architectures, suggesting that LSTM networks were less suitable for embedded deployment due to deployment challenges [37]. Prior studies have shown that CNNs can match LSTM performance [31,46], which was consistent with our findings.

The evaluation of combined models showed that the top-performing configuration achieved an RMSE of $3.{166}^{\circ }$, comparable to results reported for similar CNN architectures [46]. Although more sophisticated approaches have achieved lower RMSE values [47,48], their computational demands make them less practical for real-time embedded deployment. Given these results, we hypothesized that model specialization by gait type could further enhance prediction accuracy without compromising efficiency (see Section 4.6).

5.2. Gait Classification and Specialized Models

Recognizing the variability inherent in different stride types, we developed specialized regression models for short, natural, and long gait patterns. Each model was independently trained using input sequences classified by the gait recognition module described in Section 4.6. This modular design enabled each model to focus on the temporal dynamics specific to its type, improving predictive performance without compromising embedded deployment feasibility.

Table 5. Summary of Short Gait Model.

Parameter	Value
alpha (α)	16
beta (β)	4
rmse	2.558
model_size	19,220
model	CNN1D
window_size	64.0
horizon	10.0

,

Table 6. Summary of Normal Gait Model.

Parameter	Value
alpha (α)	16
beta (β)	4
rmse	1.486
model_size	19,220
model	CNN1D
window_size	64.0
horizon	10.0

and

Table 7. Summary of Long Gait Model.

Parameter	Value
alpha (α)	8
beta (β)	5
rmse	2.108
model_size	15,360
model	CNN1D
window_size	64.0
horizon	10.0

present the best hyperparameter configurations and model sizes for each specialized architecture, reflecting the trade-offs between accuracy and resource usage.

Table 8. The classifier model used for selecting the appropriate gait regression models. The classifier was designed to identify the gait type and route the input to the corresponding specialized model.

Parameter	Value
alpha (α)	16
beta (β)	4
accuracy	0.9183
model_size	9180
model	MLP
window_size	64
horizon	10

details the architecture of the stride classifier responsible for real-time model selection during inference.

The proposed strategy produced substantial improvements in predictive accuracy across all gait types. As shown in Figure 6, the specialized models consistently achieved smaller validation losses than the combined model throughout training. In the final evaluation window, this translated into performance gains of 48.51% for short strides, 66.65% for natural strides, and 45.06% for long strides.

While this approach required additional memory to store three specialized regressors and a gait classification model, it did not introduce any latency overhead during inference. This efficiency was enabled by leveraging the dual-core architecture of the embedded system. Overall, the specialized models offer a considerable performance boost while maintaining efficient computational requirements.

5.3. Model Performance Across Different Stride Types

5.3.1. Local Evaluation

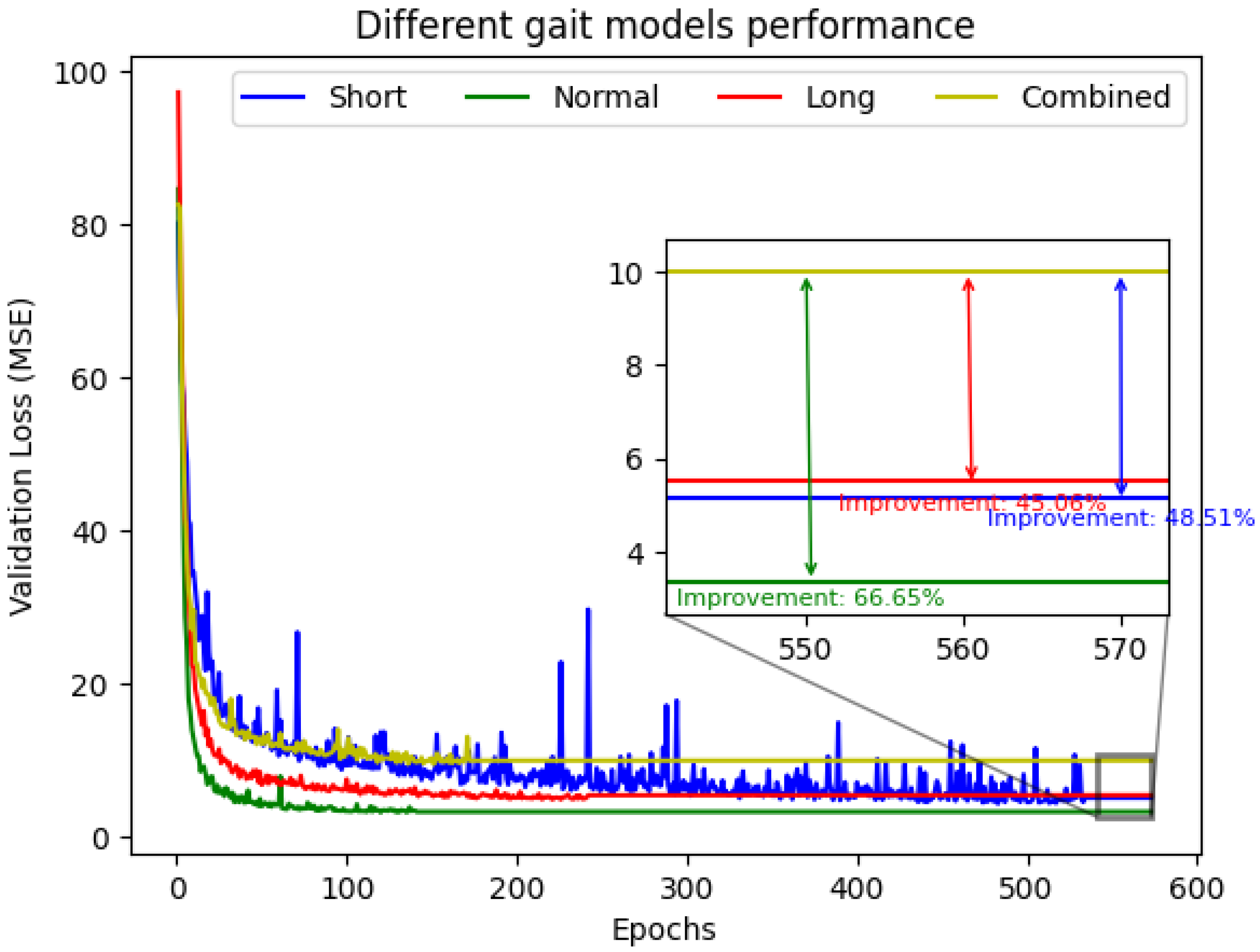

Before deploying the models on the embedded system, we conducted local tests on a standard machine to validate their performance. We compared the performance of the combined model and the specialized models across different stride types.

Table 9. MSE for each gait type using the combined and specialized models.

Gait Type	Combined Model MSE (∘2)	Specialized Model MSE (∘2)	Improvement (%)
Short	13.467	6.543	51.41%
Natural	6.407	2.208	65.53%
Long	9.074	4.443	51.03%

summarizes the MSE values for each gait type obtained from the validation set. The combined model was trained on data encompassing all gait types, whereas the specialized models were tailored to each specific gait pattern. The results showed a notable improvement for all gait types when using specialized models (51.41%, 65.53% and 51.03%), demonstrating the effectiveness of model specialization in capturing the nuances of each gait type. Interestingly, the greatest improvement was observed for natural strides (66.65%), which may be attributed to their more stable and consistent motion patterns compared to short and long strides. Such regularity likely facilitated the ability of specialized models to capture underlying dynamics more effectively.

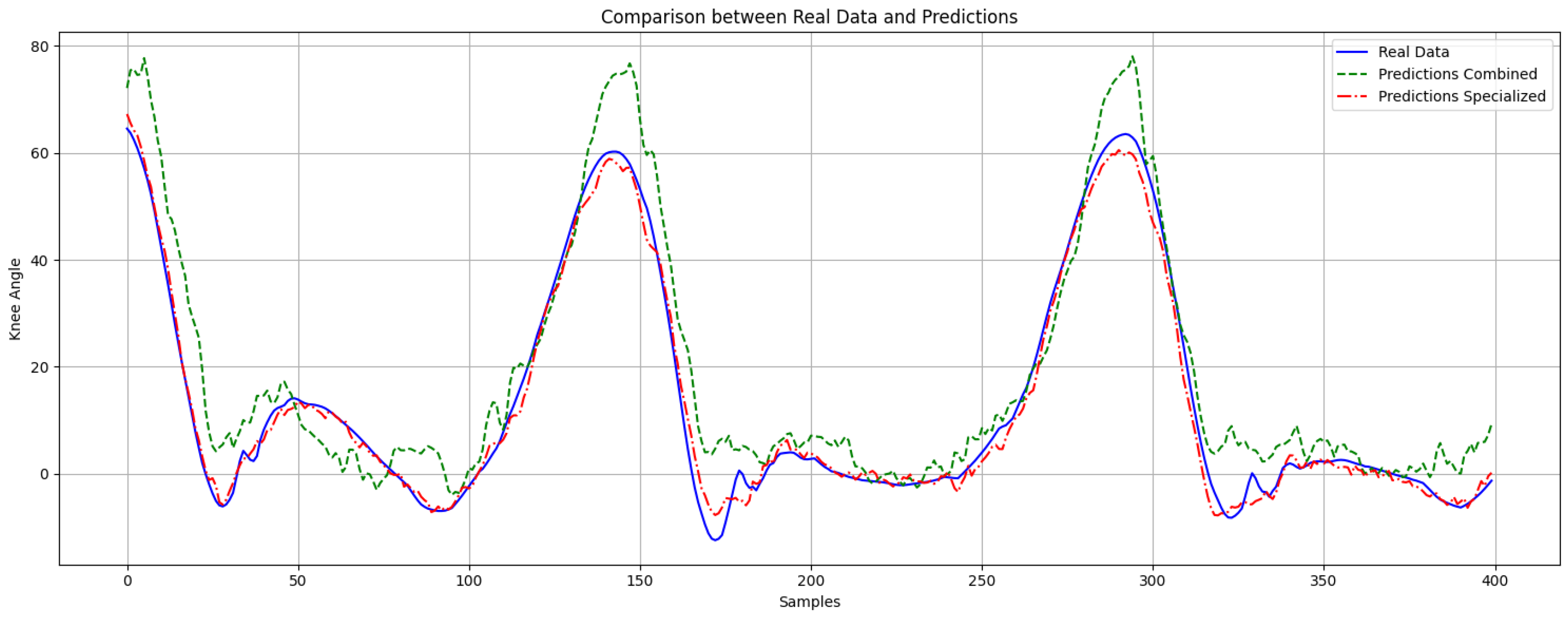

Figure 7 shows the measured knee angle (blue line) alongside the predictions from both the combined model (green line) and the specialized model (red line) throughout complete gait cycles. The specialized model closely followed the actual knee angle, while the combined model showed discrepancies, especially during rapid flexion and extension phases, highlighting the specialized model’s superior predictive capacity.

5.3.2. Embedded Evaluation

As shown in

Table 10. MSE and percentage improvement for each gait type on the embedded system.

Gait Type	Combined Model MSE (∘2)	Specialized Model MSE (∘2)	Improvement (%)
Short	13.665	6.909	49.43%
Natural	6.634	2.552	61.53%
Long	9.350	4.793	48.75%

, the MSE results obtained on the embedded system closely aligned with those from the offline validation phase (Table 9), confirming the system’s ability to preserve predictive accuracy despite limited computational resources.

Specialized models consistently outperformed the combined model across all gait types, yielding MSE improvements of 49.43% for short strides, 61.53% for natural strides, and 48.75% for long strides. The consistent performance between local testing and embedded deployment demonstrated the models’ robustness and suitability for resource-constrained environments, highlighting their potential for real-time sagittal-plane knee motion estimation in lower-limb gait analysis contexts.

5.3.3. Comparison with Prior Work

Table 11. Overview of performance metrics from different studies.

Reference	Approach	R2	RMSE (∘)	Inference Time (ms)
[30]	LSTM	0.98	–	–
[46]	CNN	0.98	3.4	–
[47]	LSTM	0.983	1.80	–
[32]	RNN	–	2.93	–
[48]	Transformer	0.9965	1.794	–
[31]	CNN	0.944	–	27.327
Ours (Comb.)	CNN	0.965	3.166	18.257
Ours (Spec.)	CNN	0.9804	2.050	16.845

summarizes performance metrics from recent studies and compares them with our results. Our specialized models achieved an $R^2$ of 0.9804 and an RMSE of ${2.050}^{\circ }$, placing them within the range of top-performing architectures while remaining deployable on low-power hardware. They also achieved an inference time of 16.845 ms per prediction, well within real-time requirements for embedded applications. While direct comparison across datasets and hardware platforms has limitations, our models outperformed the 27.327 ms inference time reported in [31], suggesting that specialization and optimization can substantially improve computational efficiency.

Approaches based on LSTMs and Transformers [47,48] report slightly smaller RMSE values but require significantly greater computational resources, limiting their suitability for resource-constrained platforms. In contrast, our CNN-based framework achieved an effective balance between predictive accuracy, inference speed, and hardware feasibility, which is particularly important in low-cost prosthetic applications.

These results indicate that model specialization and hardware-aware optimization can enable lightweight CNNs to close much of the gap with more complex architectures, while maintaining affordability and real-time responsiveness. Such characteristics are essential for scaling intelligent prosthetic technologies to broader populations, especially in resource-limited settings.

5.4. Hardware Considerations and Model Deployment

Our specialized CNN models achieved robust predictive accuracy and reduced inference times, making them suitable for deployment on cost-effective hardware such as the $40 Sipeed MaixBit with the Kendryte K210 SoC. The K210 features a CNN accelerator, enabling efficient execution of our models. Complex architectures like LSTMs and Transformers require higher-end platforms like the NVIDIA Jetson Nano, which are less suitable for prosthetic applications due to increased cost and power consumption. In contrast, general-purpose microcontrollers like the ESP32 lack dedicated neural accelerators, leading to significantly longer inference times for CNN-based models [31].

Table 12. Comparison of embedded hardware platforms and suitable models.

Hardware	Price (USD)	Accelerator	Suitable Models/Projects
ESP32	$10	None	Simple ML models
Sipeed MaixBit	$40	KPU (CNN accelerator)	CNNs, Real-time applications
Jetson Nano	$240	128-core Maxwell GPU	LSTMs, Transformers

compares different hardware platforms, their prices, and suitable applications. By deploying our specialized CNN models on the K210, we achieved a balance between performance and cost, facilitating the development of affordable and efficient prosthetic solutions. By achieving accuracy comparable to state-of-the-art methods while remaining deployable on affordable hardware, this study demonstrates the feasibility of extending advanced prosthetic control to economically constrained settings.

6. Conclusions

This proof-of-concept study introduced efficient CNN models for knee angle estimation in lower-limb prosthetics using low-cost IMUs and multi-objective optimization, optimized for deployment on resource-constrained microcontrollers. Specialized CNN models tailored to short, natural, and long strides consistently outperformed a combined baseline model, achieving an average RMSE of $2.{050}^{\circ }$ (over 48% improvement) with inference times of 16.8 ms, thereby demonstrating both competitive predictive accuracy compared to the state-of-the-art and real-time feasibility. Deployment on the $40 Sipeed MaixBit with the Kendryte K210 further validated that advanced deep learning models can be executed on affordable hardware without compromising performance.

As with other exploratory studies, the main limitation lies in the small participant pool, which constrains generalizability. Moreover, the present analysis was restricted to sagittal-plane knee motion estimation, not accounting for multi-planar dynamics such as frontal or transverse movements. Future research will address these limitations by expanding the dataset, incorporating multi-planar analysis, and testing the models in embedded prosthetic prototypes under real-world conditions.

In summary, this work demonstrated the feasibility of specialized CNN-based TinyML models for real-time gait analysis on embedded platforms. By bridging efficient model design with low-cost deployment, it paves the way toward more responsive, adaptive, and accessible prosthetic technologies that can enhance mobility and quality of life for individuals with lower-limb impairments, particularly in resource-constrained communities.
