Article

AI-Powered Biodiversity Assessment: Species Classification via DNA Barcoding and Deep Learning

1
Department of Information Engineering, University of Padova, 35122 Padova, Italy
2
School of Engineering and Physical Sciences, Heriot-Watt University, Edinburgh EH14 4AS, UK
3
Department of Information Technology and Cybersecurity, Missouri State University, 901 S. National Street, Springfield, MO 65804, USA
*
Author to whom correspondence should be addressed.
Technologies 2024, 12(12), 240; https://doi.org/10.3390/technologies12120240
Submission received: 24 September 2024 / Revised: 6 November 2024 / Accepted: 18 November 2024 / Published: 22 November 2024
(This article belongs to the Section Information and Communication Technologies)

Abstract

:
Only 1.2 million out of an estimated 8.7 million species on Earth have been fully classified through taxonomy. As biodiversity loss accelerates, ecologists are urgently revising conservation strategies, but the “taxonomic impediment” remains a significant barrier, limiting effective access to and understanding of taxonomic data for many researchers. As sequencing technologies advance, short DNA sequence fragments increasingly serve as DNA barcodes for species identification. Rapid acquisition of DNA sequences from diverse organisms is now possible, highlighting the increasing significance of DNA sequence analysis tools in species identification. This study introduces a new approach for species classification with DNA barcodes based on an ensemble of deep neural networks (DNNs). Several techniques are proposed and empirically evaluated for converting raw DNA sequence data into images fed into the DNNs. The best-performing approach is obtained by representing each pair of DNA bases with the value of a related physicochemical property. By utilizing different physicochemical properties, we can create an ensemble of networks. Our proposed ensemble obtains state-of-the-art performance on both simulated and real datasets.

1. Introduction

The current scientific consensus estimates the existence of approximately 8.7 million species on Earth, yet a mere 1.2 million of these have been exhaustively classified using taxonomic methods. Documenting species is a race against time; biodiversity loss is increasing at an alarming rate that is now recognized in many quarters as a significant global environmental concern. Ecologists are actively revising strategies for the conservation of biological diversity and the protection of natural resources. A significant hurdle in this endeavor is the “taxonomic impediment”, which refers to the barriers that often hinder researchers, particularly those not specialized in taxonomy, from effectively accessing and understanding taxonomic data. To address this issue, the application of genetic information, especially deoxyribonucleic acid (DNA) barcoding, has been proposed as a novel way to sidestep the taxonomic problem [1,2].
The pioneering concept of DNA barcoding for species identification was first introduced in 2003 by Cywinska et al. [3] and involved employing the mitochondrial cytochrome coxidase subunit I (COI) gene as a DNA marker for species identification. This short sequence provides enough information for categorizing an organism into a specific species. The efficacy of this technique in species classification and identification has been well documented. As the application of DNA barcoding expanded, additional markers were included, such as the chloroplast ribulose-bisphosphate carboxylase gene (rbcL) and maturase K (matK) for plant species and internal transcribed spacers (ITSs) for fungi classification. DNA barcoding combined with a comprehensive reference sequence database is a method that can now efficiently assign a query sequence to a species, thereby classifying unknown specimens with precision.
Various approaches for species identification using DNA barcodes are available today, and new ones continue to be developed. All of these can broadly be categorized into four groups:
  • Tree-based taxonomic methods (e.g., neighbor-joining) [4];
  • Similarity-based taxonomic methods (e.g., BLAST [5]);
  • Character-based taxonomic methods (e.g., BLOG [6]);
  • Machine learning (ML-based) taxonomic methods [7,8].
In bioinformatics, identifying species by analyzing DNA sequences from organisms is highly challenging. The process, however, is typical of any supervised ML problem. What is required is the creation of a reference library of specimens with known DNA barcodes. A set of unknown species is then collected using DNA barcode sequences. This collection is transformed into a format suitable for supervised learning, from which training and testing sets are extracted.
Many machine learning (ML) and deep learning (DL) models require large amounts of labeled data to achieve higher accuracy. However, the availability of high-quality barcode data is often limited, which can restrict the effectiveness of these methods. Deep learning models, in particular, may overfit specific datasets, limiting their ability to generalize to unseen species or to classify sequences from new environments. Moreover, current models sometimes struggle to account for intraspecific variation, which can lead to misclassification within species groups. To address these limitations, our approach integrates different feature engineering technique and neural architecture to improve classification accuracy and generalizability while maintaining computational time feasibility through the use of GPUs.
In this paper, we propose a method based on a set of DNNs, in which each network is trained using a different physicochemical property to represent the nitrogen base pairs.
The contributions of this paper are as follows:
  • Since the methods proposed here are tested on freely downloadable datasets (http://dmb.iasi.cnr.it/supbarcodes.php accessed on 17 November 2024) (split into training and test sets are available), using standard and deep learners (CNN and SVM) fed with various representations of DNA sequences, our system provides a baseline against which future researchers can compare results using ML-based taxonomic methods for classifying species using DNA barcodes;
  • We offer and compare novel methods for representing DNA sequences in a way suitable for DNN training;
  • We propose a method for creating ensembles by varying how the DNA sequence is represented;
  • The datasets and all code developed for this project are available online, accessed on 17 November 2024, at https://github.com/LorisNanni/AI-powered-Biodiversity-Assessment-Species-Classification-via-DNA-Barcoding-and-Deep-Learning.

Related Works

Several standard classifiers have been proposed for species classification using DNA barcodes, including the support vector machine (SVM), naive Bayes (NB), k-nearest neighbor (KNN), multilayer perceptron (MLP), decision tree (DT), random forest (RF) [6,9,10], and hierarchical supervised classifiers [11]. For a recent comparison of standard machine learning algorithms applied to species family classification using DNA barcodes, see [12]. Recently, research involving deep learners, such as convolutional neural networks (CNNs) has produced superior results [8]. In [13] a novel deep learning method is proposed that fuses Elastic Net-Stacked Autoencoder (EN-SAE) with Kernel Density Estimation (KDE), named the ESK model. The effectiveness and superiority of ESK have been validated by experiments on three datasets; those findings confirm that ESK can accurately classify fish from different families based on DNA barcode sequences. In [10], the authors highlight the importance of identifying unknown fungal species to conserve biodiversity, particularly as many species cannot be cultured or identified morphologically. The authors developed a Random Forest (RF)-based model to predict fungal species by mapping DNA sequences onto numeric features. The model achieved over 85% accuracy, improving to 88% with more reference sequences per species, and outperformed several existing models for species identification. In [12], the authors explore the challenges of classifying plant species within the Liliaceae and Amaryllidaceae families, primarily due to their genetic diversity and overlapping traits. It evaluates eleven supervised learning algorithms applied to DNA barcode data (rbcL gene) to enhance classification accuracy. Most models achieve over 97% accuracy and closely align with NCBI classifications in distinguishing species from the two families. In [14], the authors introduce BayesANT, a Bayesian nonparametric taxonomic classifier designed to predict the taxonomic affiliation of DNA sequences, even for organisms lacking reference sequences or previously unknown taxa. BayesANT employs species sampling model priors to identify unobserved taxa across various taxonomic ranks, providing flexible and probabilistic predictions. The algorithm was tested on Finnish arthropod data and demonstrated high accuracy, particularly when predicting taxa not included in the training dataset. In [15], the authors underscore the importance of species inventories for biodiversity monitoring, particularly in protected areas. Researchers conducted the first molecular-based inventory of the insect order Lepidoptera in the Cottian Alps, Italy, using DNA barcoding. From samples collected between 2019 and 2022, they sequenced 1213 morphospecies, organizing them into 1204 barcode index numbers (BINs). The study highlighted taxonomic discrepancies requiring reassessment and identified two cryptic species, along with 16 species newly recorded in Italy. These findings illustrate the value of DNA barcoding in uncovering cryptic species and enhancing faunal research, even in well-studied regions. In [16], the study compares two principal approaches for taxonomic classification: database-based methods and machine learning techniques. Database methods generally provide greater accuracy when supported by extensive reference data, whereas machine learning methods perform better with sparse datasets but tend to be less accurate overall. Combining multiple database-based methods is shown to improve classification accuracy, offering important insights for computational biology. Lastly, [17] addresses the use of specific DNA regions, such as cytochrome c oxidase I (COI), as barcodes to differentiate species. While standard DNA barcodes are typically around 650 base pairs (bp) in length, sequencing challenges and DNA quality issues often prevent the retrieval of full sequences. Recent studies reveal that shorter sequences, known as mini-barcodes (100–300 bp), can also be effective for species identification. The study examined the performance of different barcode lengths using supervised machine learning, demonstrating that even shorter sequences can aid in accurate species identification.

2. Materials and Methods

This section describes the methods used to represent a sequence as an image for training CNNs and the two network topologies used in this work.

2.1. DNA Barcoding Representations

The following methods represent DNA barcodes: 1-hot, 2-Mer, 2-Mer-p, 2-Me-p-All, and FCGR. Each of these is defined below, followed by the method for standardizing the sequence length.

2.1.1. 1-Hot

The 1-Hot preprocessing step is commonly employed in bioinformatics and ML methods for handling DNA sequences. This representation converts the categorical nucleotide data (A, C, G, T) into a numerical form that various machine learning algorithms can process. The 1-Hot representation is obtained by assigning a unique index to each nucleotide in the DNA sequence, as in the following example:
A (Adenine) could be represented as [1, 0, 0, 0]
C (Cytosine) could be represented as [0, 1, 0, 0]
G (Guanine) could be represented as [0, 0, 1, 0]
T (Thymine) could be represented as [0, 0, 0, 1]
Otherwise, [0 0 0 0].
Given a sequence of length L, we represent the sequence with a matrix of size L × 4.

2.1.2. 2-Mer

This method is similar to 1-Hot, except that a unique index is assigned to each pair of nucleotides, as in the following example:
AA = [1, … 0]
AC = [0, 1, … 0]
and so on.
Using this approach, the matrix size representing the sequence is (L − 1) × 16.

2.1.3. 2-Mer-p

This is a variant of 2-Mer, but where each pair of nucleotides is not represented by a vector with a single “1” but rather with a physicochemical representation of the dinucleotide, from a standardized set of ninety different kinds of physicochemical properties [18], i.e., [0, …, p, …0], where p is the value of a given physicochemical representation of a dinucleotide. Using this approach, the size of the matrix that represents the DNA sequence is (L − 1) × 16.
The physicochemical properties are available at http://lin-group.cn/server/iOri-PseKNC2.0/download.html (accessed on 17 November 2024).

2.1.4. 2-Me-p-All

With this method, each pair of nucleotides is represented by a vector that stores the ninety physicochemical properties related to that dinucleotide. Using this approach, the size of the matrix that represents the sequence is (L − 1) × 90.

2.1.5. FCGR

A one-dimensional sequence can be transformed into a two-dimensional sequence using a mapping technique known as Chaos Game Representation (CGR). This method was originally applied to the Sierpinski triangle. The first application of this technique to DNA was presented in [19], where a square was used instead of a triangle.
The steps involved in the CGR based on a square are as follows and are illustrated in Figure 1:
  • The nucleotide bases “A”, “T”, “G”, and “C” correspond to each corner of the square.
  • The starting nucleotide in the sequence is situated midway between the square center and the letter-corresponding corner.
  • The second nucleotide is positioned midway between the first nucleotide location and the letter-associated corner.
  • Until every available space in the matrix is assigned, the process is repeated recursively.
Recently, an extension of CGR known as Frequency-Chaos-Game Representation was introduced [20,21], see Figure 1. In this variant, the CGR is subdivided into a grid, with each k-mer associated with a cell. The value of each cell is determined by counting the points in the CGR and normalizing by the total number of cells, thus producing a frequency. The final matrix has dimensions 2k × 2k, depending on the length k of the k-mer (here we use k = 6).
Motivated by the observation that DNNs perform better with three-channel input images, we introduced a variant of FCGR where the bases are mapped to RGB. The three-dimensional versions potentially carry richer information compared to the two-dimensional versions. To assign a value to each k-mer, each base is associated with a color: red for A (Adenine), green for C (Cytosine), blue for G (Guanine), yellow for T (Thymine), and black for other cases. The proportionate count of each base within it determines the final color. For example, consider the k-mer ‘AAACGT’:
C o l o r R G B = 1 6 × 3 × 1 , 0 , 0 + 1 × 0 , 1 , 0 + 1 × 0 , 0 , 1 + 1 × 1 , 1 , 0 = [ 0.667 ,   0.333 ,   0.167 ]
After computing the RGB color, the final step involves scaling the color by the k-mer’s probability. Let C o l o r R G B be the RGB color computed above and P r o b k m e r be the probability of this k-mer within the sequence; the final color is calculated as follows:
C o l o r f i n a l = C o l o r R G B × P r o b k m e r

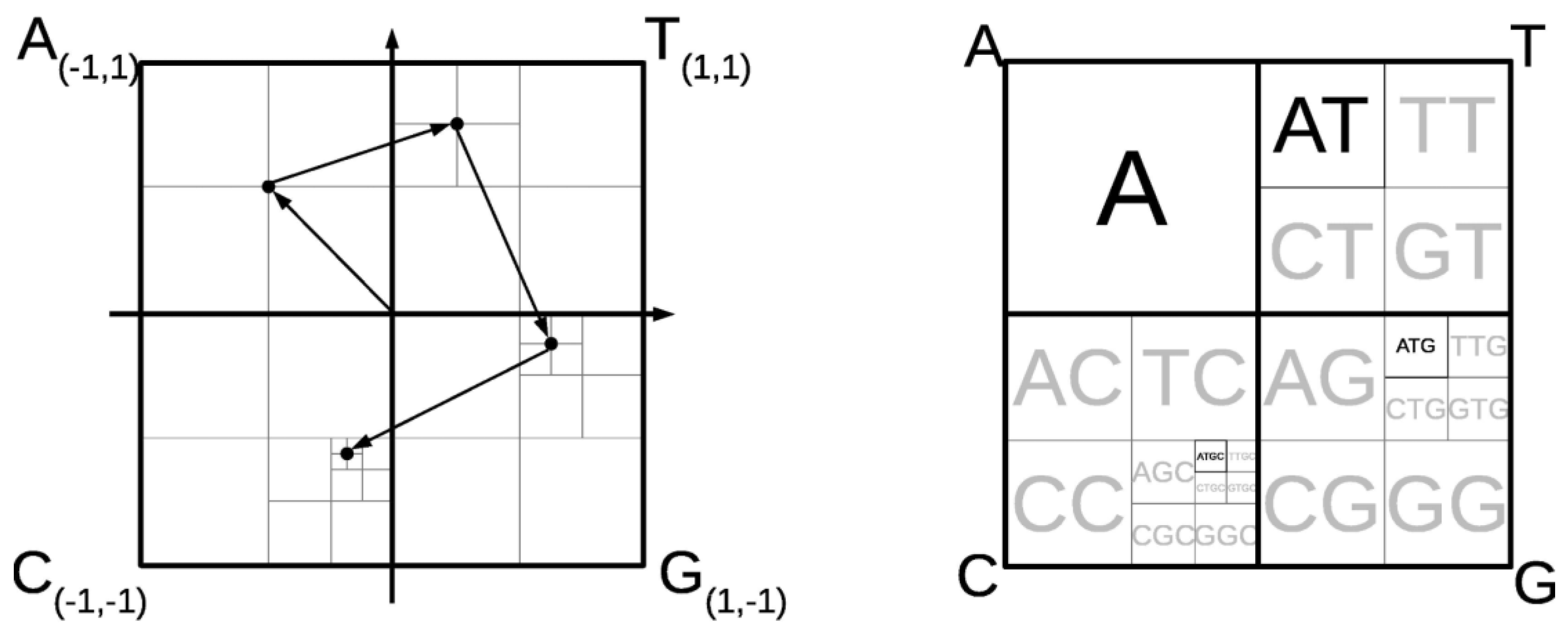

Figure 1. Chaos Game Representation for DNA sequences.
Figure 1. Chaos Game Representation for DNA sequences.
Technologies 12 00240 g001

2.1.6. Standardizing Sequence Length and Ensemble

The values of L vary, but the inputs into the networks must have a uniform size. Standardization can be accomplished by padding the input to the maximum length of the sequences within a given dataset.
Given the different representations, we build ensembles and combine them by sum rule. Out method of ensembling is as follows:
  • For all DNA representations, we train each network twenty times, thereby obtaining different outputs, since the training data are shuffled at every epoch for each training of a given network;
  • For 2-Mer-p, twenty networks are trained, each using a unique physicochemical property to represent a pair of DNA bases. Overfitting is avoided by using only the first twenty properties available at http://lin-group.cn/server/iOri-PseKNC2.0/download.html (accessed on 17 November 2024), i.e., no ad-hoc dataset selection is performed.

2.2. Neural Network Architectures

We tested different topologies, and for all of them, we applied the same learning strategy; the network was trained for 150 epochs using Adam with a mini batch size of 30. A shuffle of the training pattern is applied at each epoch. We start with an initial learning rate value of 0.001, but as training progresses, the learning rate is halved every 50 epochs.
Here are the details of the two CNN topologies (CNN1 and CNN2) used in this work.
CNN1 is made up of the following layers:
  • Convolution2d(3, 16, ‘Padding’, ‘same’): The size of the convolutional kernel/filter is 3 × 3. The number of filters is 16. ‘Padding’, ‘same’ means the padding is set so that the spatial dimensions of the input and output feature maps are the same.
  • Batch normalization: The output of the previous layer is normalized, thus helping with training stability and convergence.
  • Dropout: This CNN introduces dropout, a regularization technique to randomly set a fraction of input units to zero during training. Dropout helps prevent overfitting. The dropout rate is 0.5.
  • Relu: A Rectified Linear Unit (ReLU) activation layer.
  • Fully connected(8): The number of neurons in this fully connected layer is 8.
  • Fully connected: The number of neurons in this layer is equal to the number of classes in the classification task. This layer produces the final output scores before applying softmax.
  • Softmax: The softmax activation function is applied to the output, converting logits into probabilities.
CNN2 is made up of the following layers:
  • Convolution2d(5, 16, ‘Padding’, ‘same’): The size of the convolutional kernel/filter is 5 × 5. The number of filters is 16. ‘Padding’, ‘same’ means the padding is set so that the spatial dimensions of the input and output feature maps are the same.
  • Relu: Rectified Linear Unit activation layer.
  • Convolution2d(5, 36, ‘Padding’, ‘same’): CNN2 has another convolutional layer with size 5 × 5. The number of filters is 36.
  • Relu: Another ReLU activation layer.
  • Max pooling2d(2): This is a max pooling layer with a 2 × 2 pool size. Max pooling helps reduce spatial dimensions.
  • Dropout(0.2): CNN2 also has a dropout layer with a dropout rate 0.2.
  • Relu: Another ReLU activation layer.
  • Fully connected(1024/reduce). A fully connected layer with 1024/reduce output neurons. The value of reduce is related to the dataset. We set it to ‘1’ and increase the value if and when encountering a GPU memory problem.
  • Relu: ReLU activation layer.
  • Fully connectedLayer(1024/reduce). Another fully connected layer/reducer with 1024 output neurons.
  • Relu: Another ReLU activation layer.
  • Fully connected(1024/reduce). Yet another fully connected layer with 1024/reduce output neurons.
  • Relu: Another ReLU activation layer.
  • Fully connected(numClasses): A fully connected layer with the number of neurons equal to the number of classes, as is typical of a CNN output layer.
  • Softmax: The softmax activation layer normalizes the output into a probability distribution over the classes.
Moreover, we have run tests using a network based on an attention layer and Bidirectional Long Short-Term Memory (BiLSTM) named ATT in the experimental section:
  • flattenLayer: Converts the multi-dimensional input (such as a 2D image) into a 1D vector by flattening the spatial dimensions.
  • selfAttentionLayer(8, 64): A layer that applies self-attention, which allows the network to focus on different parts of the input. Parameters: Number of attention heads = 8. Size of the projection = 64.
  • bilstmLayer(100): Bidirectional Long Short-Term Memory layer; a recurrent layer that can process sequences in both forward and backward directions. Each BiLSTM cell has 100 hidden units.
  • batchNormalizationLayer: It improves model convergence and stabilizes the training process by standardizing the inputs to each layer.
  • fullyConnectedLayer(numClasses): A fully connected layer that maps the output from the BiLSTM layer to the number of classes in the classification task.
  • Softmax: The softmax activation layer normalizes the output into a probability distribution over the classes.

3. Datasets

Two sets of datasets are tested in this paper, both initially presented in [8]. One is composed of simulated data, and the other set contains real datasets. Both sets are described below.

3.1. Simulated Dataset

DNA barcode simulation is produced as described in [8]. The simulated dataset was created with Mesquite software v2.73, sourced from http://dmb.iasi.cnr.it/supbarcodes.php (accessed on 17 November 2024). Following the Yule model [9], simulations were performed for three distinct types of datasets: (1) invertebrate, (2) plant, and (3) vertebrate. The simulation process involved the generation of 50 species using a randomly generated ultrametric species tree. This process uses two variables: the timing of species divergence and the effective population size (Ne).
Additionally, 20 specimens were simulated for each species from gene trees, employing Ne values of 1000, 10,000, and 50,000. Each dataset underwent 100 replications, culminating in 300 simulated datasets. The increasing Ne values added complexity to the datasets. The simulations were set to a sequence length of 650 base pairs (bps), mirroring the standard DNA barcode length in actual practice. Details of the simulation data presented in [8] are detailed in Table 1.

3.2. Real Datasets

The real datasets were acquired in [8] from the GenBank nucleotide database, with the curated source data accessible at http://dmb.iasi.cnr.it/supbarcodes.php (accessed on 17 November 2024). These datasets are characterized by three distinct properties: substantial phylogenetic diversity, the absence of significant inter-specific sequence differences (which contribute to the complexity of identification), and variations in genomic compartments [9].
Table 2 summarizes these datasets labeled Cypraeidae, Drosophila, Inga, Bats, Fishes, and Birds, all containing DNA barcode sequences. Biologists conducted these training/test data splits, considering specific sequence compositions (such as polymorphism) and addressing challenges like low species divergences, uneven distribution of specimens across species, and high intraspecies variability.

4. Results

In this section, we present the findings from the experimental assessment, examining various performance metrics to compare the different approaches.
The assessment of the proposed methodologies and the comparison with existing literature are carried out using the following widely employed performance metrics appropriate to this context: error under the ROC curve, F-measure, and accuracy. To extend the application of F-measure to a multiclass problem, the performance metric is evaluated as the two-class value (one-vs-all), averaged across the number of classes.
In this context, considering C confusion matrices Mc associated with the C one-vs-all problems (2 × 2 tables containing true positive samples (TPc), true negatives (TNc), false positives (FPc), and false negatives (FNc) for each class cϵ[1..C]), the multiclass F-measure is defined as the harmonic mean of precision and recall:
F C = P C · R C P C + R C     ,     F = 1 C c F C .
Accuracy is the ratio between the number of true predictions and the total number of samples, thus
A C = T P C + T N C T P C + F N C + F P C + T N C
A = 1 C c A C
The error under the ROC curve (EUC) is equal to 100-area under the ROC curve (representing the area as a percentage). The ROC curve is created by plotting the true positive rate against the false positive rate. Note that we are using the multiclass version.

4.1. Ablation Experiments

In Table 3 and Table 4, the EUC obtained by the ensemble of 20 CNN1 and CNN2 (combined by sum rule) is reported as a first test. The real datasets were used, but due to computation time, only our best approaches were run on the simulated datasets.
The results reported in Table 3 and Table 4 show that the best average performance is obtained by coupling CNN2 and 2-Mer-p; considering CNN1, the different DNA representations obtain similar performance.
In the next test, reported in Table 5, we compare, using EUC, the following approaches:
  • CNN1 + CNN2, the fusion by sum rule between the ensembles of CNN1 and CNN2, both trained using 2-Mer-p;
  • CNN1, CNN2 and ATT, ensemble, combined by sum rule, of 20 CNN1/CNN2 or 20 ATT, coupled with 2-Mer-p;
  • FCGR, the images created using FCGR used for building an ensemble, combined by sum rule, of 20 CNN1;
  • X + Y, the sum between the approaches X and Y.
For 2-Mer-p, we chose to use the first 20 properties simply to avoid making a different selection in each dataset. In this way, we are more confident that the method will work well on any dataset. As a further test, we made a random choice of these 20 properties from the full set. The performance is almost identical to that reported in the Table 3 and Table 4, using a random choice. The performance of 2-Mer-p is as follows:
  • An average EUC obtained by coupling 2-Mer-p and CNN1 of 0.118;
  • An average EUC obtained by coupling 2-Mer-p and CNN2 of 0.090.
As can be seen in the column CNN1 + CNN2, no improvement compared with the single topology is obtained. The best trade-off performance in the set of datasets is obtained by the ensemble CNN1 + ATT + FCGR.
As a further remark, in the Inga dataset, the method ATT does not converge using a batch size of 30. Thus, we used a very large batch size for that dataset (batch size = 512).
Table 5. EUC obtained by different ensembles.
Table 5. EUC obtained by different ensembles.
CNN2CNN1CNN1 + CNN2ATTCNN1 + ATTFCGRCNN1 + ATT + FCGR
Cypraeidae0.0980.0890.0850.0790.0800.1250.091
Drosophila0.1260.1380.1190.1300.1300.2230.130
Inga0.1390.2760.2270.2150.1730.2810.267
Bats0000000
Fishes0.1270.1350.1170.1230.13500
Birds0.0590.0590.0530.0300.0450.1190.045
Average0.0920.1160.1000.0960.0940.1250.088
Table 6 reports the accuracy obtained by the approaches reported in Table 5. The same conclusion follows; the best approach is to combine different methods, i.e., the ensemble CNN1 + ATT + FCGR.
MEGA (Molecular Evolutionary Genetics Analysis) version 11 provides a comprehensive toolkit for analyzing DNA and protein sequence data derived from species and populations. Ensuring the alignment of DNA sequences is crucial, as it allows for comparing homologous sequences at corresponding positions. Additionally, since sequences obtained from different association numbers in GenBank may vary in length, alignment plays a vital role in standardizing these lengths. This standardization facilitates a more straightforward comparison. To achieve fair alignments, the process begins by aligning the training dataset using muscle alignment. Subsequently, the test data are aligned based on the aligned training data.
The accuracy obtained from aligned data is reported in Table 7 for all the approaches reported in Table 6. Using aligned data, the performance improves for all the approaches. As in the previous test, the best result is obtained by CNN1 + ATT + FCGR, but note that it is almost identical to that obtained by CNN1.
To motivate the fusion of the 20 networks, we report the mean and standard deviation of the performance of the set of 20 networks; see Table 8 and Table 9. In these tests, we use CNN1 and CNN2, both coupled with 2-Me-p and trained with unaligned data. The mean performance is lower than the performance obtained by the ensemble, thus motivating the sum rule between the 20 networks for boosting performance.
As a further comparison, in Table 10, we train an SVM using the widely used LibSVM tool, where a 5-fold cross-validation protocol, using only training data, is applied to find the best hyperparameters. The best performance is obtained by inputting 2-Mer-p. Both CNN1 and CNN2 ensembles outperform SVM.
In the next test, in Table 11, we apply the approaches reported in Table 5 and Table 6 to classify the Ne50000 simulated dataset.
Two versions of the dataset (filtered and unfiltered) are available at http://dmb.iasi.cnr.it/supbarcodes.php (accessed on 17 November 2024). We have tested both. To reduce computation time, we ran only a subset of our approaches on the unfiltered data.
In this test, many approaches perform similarly.
As further remark, we did not carry out an in-depth study on the architectures. We ran a 5-fold cross-validation using the first training set of the synthetic dataset Ne50000, and we chose networks that worked best. Since our goal is to avoid any form of overfitting, we propose a method that is as independent as possible from the any of the tested datasets, so that eventual users can be sufficiently certain that such a method works well in their datasets, without having to perform a tuning of hyperparameters. The main disadvantage of this method is that it is an ensemble; therefore, it has higher computational demands than a standalone system. This is not a problem, considering inference time and the prevalence of modern GPUs. For a batch size of 10,000 DNA barcoding, the inference time using a box with an old Titan X with 12 GBRam was 1.4 s for 2-Mer-p used to feed CNN1 and 2.9 s for 2-Mer-p used to feed CNN2. So, even an ensemble of 40 networks, twenty of type CNN1 and twenty of type CNN2, was able to classify 10,000 DNA barcodings in about 86 s. In the last twenty years, nearly twenty million (19,359,536) barcodes have been accumulated in the Barcode of Life Data at http://www.boldsystems.org (accessed 3 November 2024). So the ensemble tested on the Titan X could classify the entire set of DNA barcoding loaded on Bold in about 46 h. Consider as well that these times are obtained using a single GPU. Since all the inferences of the set of networks are parallelizable, using multiple GPUs would reduce inference time almost linearly.
In Table 12, we report the F1-score of the methods of Table 5 and Table 6, considering the aligned data. The different approaches obtain similar F1 scores. When using unaligned data, the usefulness of combining the different approaches is clearer.

4.2. Comparative Studies

In the Table 13 and Table 14, we compare our proposed systems with the current literature. We want to stress that rule-based methods have been tested in [9], where BLOG and RIPPER were compared with the methods proposed in [9]; they have a lower classification performance than ML approaches. In Table 14, we compare our suggested ensemble with current SOTAs, outperforming them, using all the three simulated datasets detailed in Table 1.
Reported tests show that our proposed ML approach for species identification using barcodes outperforms [8,9,12,27]. In our opinion, our proposed approach can be considered a baseline performance for the community. Notice that [9,12] use unaligned data, whereas [8,27] are based on aligned data.
In Table 15, we have reported results of our ensemble in the two datasets detailed in [27]. Both these datasets (named species and genus) utilize DNA sequence data acquired from the Barcode of Life Data System (BOLD) spanning four major Insecta orders: Diptera, Coleoptera, Lepidoptera, and Hymenoptera. Each insect pattern is comprised of a 658 bp DNA barcode sequence (cytochrome oxidase subunit I-COI). Both the datasets use the same training set of 19,420 patterns; one test set is related to species classification (770 different species) and consists of 4965 patterns, and the other test set is related to genus classification (134 different genus) and is composed of 8463 patterns.
As clearly shown in Table 15, the proposed ensemble strongly outperforms the previous SOTA.

5. Conclusions

Utilizing short fragments of DNA sequences as barcodes has become increasingly crucial for species identification, particularly with the advancements in sequencing technologies. The ability to swiftly gather DNA sequences from various organisms underscores the growing significance of DNA sequence analysis tools in species identification. This study presents a novel method for species classification employing an ensemble of convolutional neural networks.
The research reported in this paper involves comparing and suggesting various methods for representing raw DNA sequence data as images. The best approach involves representing each DNA base pair with the value of a corresponding physical property. By utilizing different physicochemical properties, an ensemble of neural networks is created. The proposed ensemble demonstrates state-of-the-art performance across both simulated and real datasets. The code for our proposed approach can be accessed at https://github.com/LorisNanni/AI-powered-Biodiversity-Assessment-Species-Classification-via-DNA-Barcoding-and-Deep-Learning (accessed on 17 November 2024).
In the future, we plan to produce an R code version of our approach, since R is extensively used by biologists.

Author Contributions

Conceptualization, L.N.; methodology, L.N.; software, L.N. and D.C.; formal analysis, L.N. and S.B.; writing—original draft preparation, S.B., L.N. and D.C.; writing—review and editing, S.B., L.N. and D.C. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Acknowledgments

We would like to acknowledge the support that NVIDIA provided us through the GPU Grant Program. We used a donated TitanX GPU to train deep networks used in this work. We thank Yazzed Hussein Younis Abdalla, who worked on this project as a partial fulfillment of his master’s degree.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Chu, K.H.; Li, C.; Qi, J. Ribosomal RNA as molecular barcodes: A simple correlation analysis without sequence alignment. Bioinformatics 2006, 22, 1690–1701. [Google Scholar] [CrossRef] [PubMed]
  2. Mora, C.; Tittensor, D.P.; Adl, S.; Simpson, A.G.; Worm, B. How many species are there on Earth and in the ocean? PLoS Biol. 2011, 9, e1001127. [Google Scholar] [CrossRef] [PubMed]
  3. Hebert, P.D.; Cywinska, A.; Ball, S.L.; DeWaard, J.R. Biological identifications through DNA barcodes. Proc. R. Soc. London Ser. B Biol. Sci. 2003, 270, 313–321. [Google Scholar] [CrossRef] [PubMed]
  4. Hebert, P.D.N.; Stoeckle, M.Y.; Zemlak, T.S.; Francis, C.M. Identification of birds through DNA barcodes. PLoS Biol. 2004, 2, e312. [Google Scholar] [CrossRef]
  5. Blaxter, M.; Mann, J.; Chapman, T.; Thomas, F.; Whitton, C.; Floyd, R.; Abebe, E. Defining operational taxonomic units using DNA barcode data. Philos. Trans. R. Soc. B Biol. Sci. 2005, 360, 1935–1943. [Google Scholar] [CrossRef]
  6. Weitschek, E.; Van Velzen, R.; Felici, G.; Bertolazzi, P. BLOG 2.0: A software system for character-based species classification with DNA Barcode sequences. What it does, how to use it. Mol. Ecol. Resour. 2013, 13, 1043–1046. [Google Scholar] [CrossRef]
  7. Fiannaca, A.; La Rosa, M.; Rizzo, R.; Urso, A. A k-mer-based barcode DNA classification methodology based on spectral representation and a neural gas network. Artif. Intell. Med. 2015, 64, 173–184. [Google Scholar] [CrossRef]
  8. Yang, C.-H.; Wu, K.-C.; Chuang, L.-Y.; Chang, H.-W. Deepbarcoding: Deep learning for species classification using DNA barcoding. IEEE ACM Trans. Comput. Biol. Bioinform. 2021, 19, 2158–2165. [Google Scholar] [CrossRef]
  9. Weitschek, E.; Fiscon, G.; Felici, G. Supervised DNA Barcodes species classification: Analysis, comparisons and results. BioData Min. 2014, 7, 4. [Google Scholar] [CrossRef]
  10. Meher, P.K.; Sahu, T.K.; Gahoi, S.; Tomar, R.; Rao, A.R. funbarRF: DNA barcode-based fungal species prediction using multiclass Random Forest supervised learning model. BMC Genet. 2019, 20, 2. [Google Scholar] [CrossRef]
  11. Sohsah, G.N.; Ibrahimzada, A.R.; Ayaz, H.; Cakmak, A. Scalable classification of organisms into a taxonomy using hierarchical supervised learners. J. Bioinform. Comput. Biol. 2020, 18, 2050026. [Google Scholar] [CrossRef] [PubMed]
  12. Riza, L.S.; Rahman, M.A.F.; Prasetyo, Y.; Zain, M.I.; Siregar, H.; Hidayat, T.; Samah, K.A.F.A.; Rosyda, M. Comparison of Machine Learning Algorithms for Species Family Classification using DNA Barcode. Knowl. Eng. Data Sci. 2023, 6, 231–248. [Google Scholar] [CrossRef]
  13. Jin, L.; Yu, J.; Yuan, X.; Du, X. Fish Classification Using DNA Barcode Sequences through Deep Learning Method. Symmetry 2021, 13, 1599. [Google Scholar] [CrossRef]
  14. Zito, A.; Rigon, T.; Dunson, D.B. Inferring taxonomic placement from DNA barcoding aiding in discovery of new taxa. Methods Ecol. Evol. 2023, 14, 529–542. [Google Scholar] [CrossRef]
  15. Huemer, P.; Wieser, C. DNA Barcode Library of Megadiverse Lepidoptera in an Alpine Nature Park (Italy) Reveals Unexpected Species Diversity. Diversity 2023, 15, 214. [Google Scholar] [CrossRef]
  16. Tian, Q.; Zhang, P.; Zhai, Y.; Wang, Y.; Zou, Q. Application and Comparison of Machine Learning and Database-Based Methods in Taxonomic Classification of High-Throughput Sequencing Data. Genome Biol. Evol. 2024, 16, evae102. [Google Scholar] [CrossRef]
  17. Karim, M.; Abid, R. Efficacy and accuracy responses of DNA mini-barcodes in species identification under a supervised machine learning approach. In Proceedings of the 2021 IEEE Conference on Computational Intelligence in Bioinformatics and Computational Biology (CIBCB), Melbourne, Australia, 13–15 October 2021; pp. 1–9. [Google Scholar] [CrossRef]
  18. Dao, F.Y.; Lv, H.; Wang, F.; Feng, C.Q.; Ding, H.; Chen, W.; Lin, H. Identify origin of replication in Saccharomyces cerevisiae using two-step feature selection technique. Bioinformatics 2018, 35, 2075–2083. [Google Scholar] [CrossRef]
  19. Jeffrey, H.J. Chaos game representation of gene structure. Nucleic Acids Res. 1990, 18, 2163–2170. [Google Scholar] [CrossRef]
  20. Anitas, E.M. Fractal Analysis of DNA Sequences Using Frequency Chaos Game Representation and Small-Angle Scattering. Int. J. Mol. Sci. 2022, 23, 1847. [Google Scholar] [CrossRef]
  21. Löchel, H.F.; Heider, D. Chaos game representation and its applications in bioinformatics. Comput. Struct. Biotechnol. J. 2021, 19, 6263–6271. [Google Scholar] [CrossRef]
  22. Meyer, C.P.; Paulay, G. DNA barcoding: Error rates based on comprehensive sampling. PLoS Biol. 2005, 3, e422. [Google Scholar] [CrossRef] [PubMed]
  23. Lou, M.; Golding, G.B. Assigning sequences to species in the absence of large interspecific differences. Mol. Phylogenet. Evol. 2010, 56, 187–194. [Google Scholar] [CrossRef] [PubMed]
  24. Dexter, K.G.; Pennington, T.D.; Cunningham, C.W. Using DNA to assess errors in tropical tree identifications: How often are ecologists wrong and when does it matter? Ecol. Monogr. 2010, 80, 267–286. [Google Scholar] [CrossRef]
  25. Sujeevan, R.; Hebert, P.D. BOLD: The Barcode of Life Data System. Mol. Ecol. Notes 2007, 7, 355–364. [Google Scholar]
  26. Bertolazzi, P.; Felici, G.; Weitschek, E. Learning to classify species with barcodes. BMC Bioinform. 2009, 10, S7. [Google Scholar] [CrossRef]
  27. Badirli, S.; Picard, C.J.; Mohler, G.; Richert, F.; Akata, Z.; Dundar, M. Classifying the unknown: Insect identification with deep hierarchical Bayesian learning. Methods Ecol. Evol. 2023, 14, 1515–1530. [Google Scholar] [CrossRef]
Table 1. Simulated dataset (Individual is the number of sequences for each species; Seq. Length is the sequence length, and species is the number of species/classes).
Table 1. Simulated dataset (Individual is the number of sequences for each species; Seq. Length is the sequence length, and species is the number of species/classes).
DatasetNeIndividualSeq. LengthSpecies
Ne100010002065050
Ne1000010,0002065050
Ne5000050,0002065050
Table 2. The Six Real Datasets (Note: Training/Test Nums is the number of sequences divided into training and test sets; Seq. Length is the length of the sequences; Species is the number of species/classes; Gene Region is the DNA barcodes obtained from the gene regions).
Table 2. The Six Real Datasets (Note: Training/Test Nums is the number of sequences divided into training and test sets; Seq. Length is the length of the sequences; Species is the number of species/classes; Gene Region is the DNA barcodes obtained from the gene regions).
DatasetTypeTraining/Test NumsSeq. LengthSpeciesGene RegionReference
Cypraeidae Invertebrates 1656/352 614 211COI[22]
Drosophila Invertebrates 499/116 66319COI[23]
Inga Plants 786/122 183863trnD-trnT, ITS[24]
Bats Vertebrates 695/144 65996COI[25]
Fishes Vertebrates 515/111 71882COI[26]
Birds Vertebrates 1306/317 691150COI[4]
Table 3. EUC obtained by CNN1.
Table 3. EUC obtained by CNN1.
EUC-CNN11-Hot2-Mer2-Mer-p2-Me-p-All
Cypraeidae0.1010.1030.0890.088
Drosophila0.1250.1580.1380.221
Inga0.2550.2760.2760.268
Bats0000
Fishes0.1230.1180.1350.135
Birds0.0500.0430.0590.057
Average0.1090.1160.1160.128
Table 4. EUC obtained by CNN2.
Table 4. EUC obtained by CNN2.
EUC-CNN21-Hot2-Mer2-Mer-p2-Me-p-All
Cypraeidae0.1710.1130.0980.104
Drosophila0.1420.1380.1260.130
Inga0.2080.1450.1390.445
Bats0000
Fishes0.1270.1220.1270.110
Birds0.0520.0970.0590.084
Average0.1170.1030.0920.146
Table 6. Accuracy obtained by different ensembles.
Table 6. Accuracy obtained by different ensembles.
AcCNN1CNN2CNN1 + CNN2ATTFCGRCNN1 + ATTCNN1 + ATT + FCGR
Cypraeidae96.8896.3196.5996.3196.3196.5996.59
Drosophila99.1499.1499.1499.1499.1499.1499.14
Inga93.3992.5693.3993.3995.0494.2195.04
Bats100100100100100100100
Fishes95.5095.5095.5095.5010095.5098.20
Birds95.5896.5397.1698.1194.9598.1198.11
Average96.7496.6796.9697.0797.5797.2597.85
Table 7. Accuracy obtained using sequences aligned by MEGA.
Table 7. Accuracy obtained using sequences aligned by MEGA.
AcCNN1CNN2CNN1 + CNN2ATTFCGRCNN1 + ATTCNN1 + ATT + FCGR
Cypraeidae96.5996.0296.5996.3196.5996.5996.59
Drosophila99.1499.1499.1499.1499.1499.1499.14
Inga95.0491.7492.5693.3995.0494.2194.21
Bats100100100100100100100
Fishes100100100100100100100
Birds97.1696.5397.4897.4894.9598.1198.11
Average97.9897.2397.6297.7297.6298.0098.00
Table 8. Mean and standard deviation of the EUC obtained by the 20 networks that belong to the ensemble of CNN1 or CNN2.
Table 8. Mean and standard deviation of the EUC obtained by the 20 networks that belong to the ensemble of CNN1 or CNN2.
EUCCNN1CNN2
MeanStdMeanStd
Cypraeidae0.1680.0480.1580.957
Drosophila0.1620.0430.1160.013
Inga0.5990.2520.6200.214
Bats0000
Fishes0.3490.4460.1300.047
Birds0.7960.2880.3430.188
Average0.3460.1790.2280.236
Table 9. Mean and standard deviation of the accuracy obtained by the 20 networks that belong to the ensemble of CNN1 or CNN2.
Table 9. Mean and standard deviation of the accuracy obtained by the 20 networks that belong to the ensemble of CNN1 or CNN2.
AcCNN1CNN2
MeanStdMeanStd
Cypraeidae95.710.6195.670.61
Drosophila99.050.2499.140
Inga91.982.2492.271.12
Bats99.970.1699.970.16
Fishes95.360.3395.230.54
Birds90.681.5193.641.44
Average95.450.8495.980.64
Table 10. EUC obtained by SVM.
Table 10. EUC obtained by SVM.
SVM1-Hot2-Mer2-Mer-p
Cypraeidae0.1040.1240.115
Drosophila0.4700.4540.430
Inga1.7671.3611.443
Bats000
Fishes0.1350.1440.135
Birds0.0180.1790.021
Average0.4160.3770.357
Table 11. Simulated dataset.
Table 11. Simulated dataset.
SimulatedAcF1
CNN194.5394.68
CNN294.4894.70
ATT94.6394.73
FCGR94.6594.75
CNN1 + CNN294.4794.68
CNN1 + ATT94.5994.79
CNN1 + ATT + FCGR94.6694.68
CNN1 (unfiltered)94.9495.20
ATT (unfiltered)95.2195.43
CNN1 + ATT (unfiltered)95.1895.42
Table 12. F1 score performance.
Table 12. F1 score performance.
F1 Score—Aligned DataCNN1ATTCNN1 + ATTFCGRCNN1 + ATT + FCGR
Cypraeidae98.0097.8298.0097.9398.00
Drosophila99.7599.7599.7599.7599.75
Inga95.3595.3694.6995.8095.35
Bats100100100100100
Fishes100100100100100
Birds97.9498.6798.9997.4998.99
Average98.5098.6098.5798.4998.68
F1 Score—Unaligned DataCNN1ATTCNN1 + ATTFCGRCNN1 + ATT + FCGR
Cypraeidae98.3697.8298.0098.1298.00
Drosophila99.7599.7599.7599.7599.75
Inga94.0494.2194.6996.0895.80
Bats100100100100100
Fishes96.0896.5496.0810099.35
Birds96.9499.1199.1197.3499.11
Average97.5297.9097.9398.5598.67
Table 13. Comparison with SOTA, real dataset.
Table 13. Comparison with SOTA, real dataset.
AccuracyCNN1 + ATT
Unaligned
Data
CNN1 + ATT
Aligned
Data
CNN1 + ATT + FCGR
Unaligned
Data
CNN1 + ATT + FCGR
Aligned
Data
[9][8][27][10]
Cypraeidae96.5996.5996.5996.5994.3296.3195.4596.88
Drosophila99.1499.1499.1499.1498.2899.1499.1499.14
Inga94.2194.2195.0494.2189.8393.4495.1192.62
Bats10010010010010099.7199.3198.61
Fishes95.5010098.2010095.5010010099.10
Birds98.1198.1198.1198.1198.4297.4897.16---
Average97.2698.0097.8598.0096.0697.4997.69---
Table 14. Comparison with SOTA, simulated datasets.
Table 14. Comparison with SOTA, simulated datasets.
CNN1 + ATT + FCGR[9][8][27]
Ne1000Accuracy96.9096.5396.7496.32
F1-score96.80---96.53---
Ne10000Accuracy96.9296.7796.5796.60
F1-score96.85---96.32---
Ne50000Accuracy94.6693.9294.2193.09
F1-score94.68---93.89---
Table 15. Performance in the Species and Genus datasets.
Table 15. Performance in the Species and Genus datasets.
Species, Ac—EUC—F1Genus, Ac—EUC—F1
CNN198.95—0.0053—0.989082.15—1.403—0.8504
ATT98.61—0.0103—0.984690.02—1.063—0.9157
FCGR99.980.00000.999477.93—1.466—0.8462
CNN1 + ATT98.91—0.0064—0.989188.33—0.996—0.9062
CNN1 + ATT + FCGR99.90—0.0001—0.999189.87—0.8980.9270
[27]96.15—not reported—not reported 83.24—not reported—not reported
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Nanni, L.; Cuza, D.; Brahnam, S. AI-Powered Biodiversity Assessment: Species Classification via DNA Barcoding and Deep Learning. Technologies 2024, 12, 240. https://doi.org/10.3390/technologies12120240

AMA Style

Nanni L, Cuza D, Brahnam S. AI-Powered Biodiversity Assessment: Species Classification via DNA Barcoding and Deep Learning. Technologies. 2024; 12(12):240. https://doi.org/10.3390/technologies12120240

Chicago/Turabian Style

Nanni, Loris, Daniela Cuza, and Sheryl Brahnam. 2024. "AI-Powered Biodiversity Assessment: Species Classification via DNA Barcoding and Deep Learning" Technologies 12, no. 12: 240. https://doi.org/10.3390/technologies12120240

APA Style

Nanni, L., Cuza, D., & Brahnam, S. (2024). AI-Powered Biodiversity Assessment: Species Classification via DNA Barcoding and Deep Learning. Technologies, 12(12), 240. https://doi.org/10.3390/technologies12120240

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
