Photovoltaic Inverter Reliability Study through SiC Switches Redundant Structures

by
Ignacio Villanueva
1,
Nimrod Vázquez
1,*,
Joaquín Vaquero
2,
Claudia Hernández
1,
Héctor López-Tapia
1 and
Rene Osorio-Sánchez
3
1
Electrical and Electronics Engineering Department, Tecnológico Nacional de México/Instituto Tecnológico de Celaya, Celaya 38010, Mexico
2
Electronics Technology Department, University Rey Juan Carlos, 28933 Móstoles, Spain
3
Computer Sciences and Engineering Department, Guadalajara University, Ameca 46600, Mexico
*
Author to whom correspondence should be addressed.
Technologies 2023, 11(2), 59; https://doi.org/10.3390/technologies11020059
Submission received: 25 March 2023 / Revised: 11 April 2023 / Accepted: 11 April 2023 / Published: 14 April 2023
(This article belongs to the Collection Electrical Technologies)

Abstract

:
Reliability is a very important issue in power electronics; however, sometimes it is not considered, studied, or analyzed. At present, renewables have become more popular, and more complex setups are required to drive this type of system. In the specific case of inverters in photovoltaic systems, the user’s safety, quality, reliability, and the system’s useful life must be guaranteed. In this paper, the reliability of a full bridge inverter is predicted by calculating metrics such as failure rates and Mean Time Between Failures. Reliability is obtained using different types of structures for SiC MOSFETs: serial systems, active parallel redundant systems, and passive parallel redundant systems. Finally, the reliability study shows that a system with a passive parallel redundant structure is more reliable and has a higher useful life compared to the other structures.

1. Introduction

Nowadays, it is of vital importance to have systems with high reliability. Systems with higher tolerances to failures caused by internal or external interferences to the system are required. These should comply with the characteristics of reliability. Safety is focused on the operational aspect, and the system needs to be in continuous operation and to have a good response in case of unstable conditions. Quality refers to the service provided to the user, and it must satisfy the appropriate electrical characteristics [1].
It is very usual to listen to the adverse effects on the environment caused by the generation and use of conventional energies, such as fossil fuels and nuclear energy. In recent years, alternative energy sources have been significantly developed, such as wind energy and solar energy, contributing to reducing CO2 emissions and the greenhouse effect [1,2].
At present, photovoltaic solar energy is one of the most popular. There are geographic areas with a high solar concentration. In addition, it presents the best relation to the cost of energy produced [3].
Photovoltaic systems include arrays of panel modules, a Maximum Power Point Tracking (MPPT) stage, the DC–AC power conversion stage (inverter), and the filtering/coupling to the grid stage [4].
Transformerless photovoltaic inverters are complex power electronic converters. These are of critical importance because they must supply the appropriate electrical characteristics to deliver active power to the grid. They can present reliability problems and a decreased useful life. An adequate component-level operation would improve the reliability of each component while improving the inverter and the photovoltaic system’s overall reliability [2].
Recent studies reported that MOSFETs are among the most critical devices in inverters. MOSFETs are devices that are characterized by presenting higher failure rates and lower reliability. Previous studies have shown that thermal and electrical stress during switching results in higher losses, provoking a higher failure rate and a reliability reduction in the system in general [5,6].
Different methodologies for the reliability analysis of systems have been studied, based on the evaluation of qualitative characteristics and quantitative parameters. Reliability tests can be classified into different types, some of them measuring and demonstration techniques, based on estimated and statistical data, to approximate the degree of reliability. Parameter variation measurement evaluates the degree of stresses affecting or deteriorating the different components, potentially causing a failure. Additionally, failure mechanisms are evaluated to identify the causes of the physical degradation of components [6,7,8].
Methods that use techniques, tools, and physical/mathematical models with the assistance of computer analysis enable the evaluator to validate a product [7]. The most common employed standards for reliability analysis are from MIL-HDBK-217F [6,8]. They are performance tests to determine if a system operates adequately under specific operating conditions. Stress and environmental tests also exist for the analysis of electronic systems, such as inverters.
The MIL HDBK-217F standards are used, which contain statistical data on failure rates and models for different electronic components [9,10,11,12]. These standards consider a method traditionally used in electronics for measurement and reliability demonstration, was published by the Department of Defense of the United States of America, and it originated after the Second World War to analyze the failures of military electronic equipment [9].
The papers dealing with reliability usually make studies for specific topologies reported in the literature [10,11,12,13,14], but they do not consider the different configuration that a power device should have.
Other standards that are regularly used are from the IEC TR 62380, which is based on the mission profile. This defines the phases and operating environments in which an equipment or system regularly operates. Other studies based on this standard determine which traditional single-phase inverter topologies are the most reliable. The two standards are characterized by using the same metrics and a component stress model for the reliability calculation [14].
According to the literature, the use of coupled systems in structures for different purposes has been proposed. In [5], the authors created hybrid modules with different types of power transistors. Other authors in [15] proposed series connection MOSFETs in order to increase the voltage and support more voltage than any device alone. Other authors in [16] used parallel coupling to increase the nominal current and support more power. However, the reliability of different coupling structures is ignored.
These structures can cause triggering problems, thermal and electrical unbalances, inadequate current and voltage distributions, etc. These factors would cause degradation; the reliability and useful life of devices and systems is reduced.
In another reliability study [17], authors developed a high-reliability photovoltaic inverter with a hybrid power module formed by a Si-IGBT with a SiC anti-parallel diode. They considered an annual mission profile of ambient temperature and solar irradiation at two different locations, giving positive results. To calculate reliability, they used the Monte Carlo simulation method, Weibull distribution, and Miner’s rule.
In [18], the authors analyzed a methodology for calculating reliability, a modular multilevel ANPC inverter, and a fault-tolerant control strategy. The system presented redundancy in the inverters, and, in this way, a failure does not globally affect the performance of the system; the reliability of the system depends on the load. A mission profile and Markov model were used, and the failure rate and the junction temperature were related using the MIL HDBK-217F standard.
All these studies also do not analyze the different redundant structures that can be used in switching devices. The redundancy of systems is more economically expensive than the redundancy in specific devices. In this case, the most critical are the MOSFETs. Due to this, the reliability study of different structures can be made to give an approach that is the most appropriate in photovoltaic systems.
In this paper, a comparative analysis of the reliability of the full-bridge inverter is presented, using different structures in the MOSFET device, such as the serial system, active parallel redundant system, or passive parallel redundant system; this is made to determine the best option based on reliability. The analysis is based on the calculation of the failure rate and in the Mean Time Between Failure (MBTF) indicators for each component, which are adjusted using the component stress model of the MIL HDBK-217F standard. This study can be summarized into:
  • The reliability analysis of the full bridge inverter with different structures showed that the system presented the best reliability and useful life using a passive parallel redundant structure.
  • The redundancy of the switching components in the system with a passive parallel structure allowed a substantial increase of up to 75% in the reliability of the system.
  • The use of SiC switches contributed to increased system reliability due to the material’s performance, such as lower internal resistance and better thermal conductivity. This contributed to reducing switching problems, losses, and, therefore, allows a better thermal balance, higher reliability, and longer useful life.

2. Reliability Theory

Reliability analysis and prediction is a topic concerning modern electronics. Manufacturers and researchers of equipment focus on the economic and technical effects of equipment failures. A reliability study is based on the analysis of failure rates in components or equipment.
Recently, the reliability problem has been increasing due to the technical complexity of electronic systems. In modern systems, the origin of failures is due to several reasons, e.g., systems include n components, the operating conditions are more extreme, and access to maintenance is more complicated, among many others.
Reliability analysis terms and methodologies are important considerations, which are described below.

2.1. Reliability

Reliability is defined as the probability that an electronic system or component will satisfactorily perform the function that has been designed for during a determined period under specific experimental conditions and survive [10,12,19,20]. It is represented as R(t), which is given by (1), and signifies the values reached by a random variable R at t ϵ [0, ∞]. Where λ is the risk of failure of a component in operation.
R ( t ) = 1 F ( t ) = 0 t f ( t ) d t ,
where f(t) is a failure density function. t is the time when the component will fail. Finally, F(t) is the cumulative distribution function.
When an electronic component or system presents a risk of failure, it is called a failure rate. This variable is defined by:
λ ( t ) = f ( t ) 1 F ( t ) = f ( t ) R ( t )
Consequently, the time elapsed before the first failure occurs, given it has survived for a time t ϵ [0, ∞], is called the Mean Time Between Failures (MTBF) and is denoted by [10,12,19,20]:
M T B F = 0 t R ( t ) d t
The exponential probability distribution is used in electronic components in devices that have overcome the initial useful life t > 0. The density function of the exponential distribution is:
f ( t ) = λ e λ t
An electronic component has its own λ = constant.
The reliability function for electronic devices is given in (5). It is obtained by substituting (4) into (1) and integrating from t ϵ [0, ∞].
R ( t ) = e λ t
The MTBF for the exponential distribution is shown in (6). It is obtained by substituting (5) into (3) and integrating from t ϵ [0, ∞].
M T B F = 1 λ

2.2. Reliability Structures

Reliability is considered a stochastic process since it is not considered deterministic; however, it is a random phenomenon, where the later predicted result depends on past conditions.
Electronic systems are composed of a great number of internal components; they are interrelated through different structures. For the reliability analysis of the system, these are divided into subsystems and can be depicted as block diagrams as follows.
The structures to be analyzed are the series system, active parallel redundant system, and passive parallel redundant system. Each block represents a unit or component.

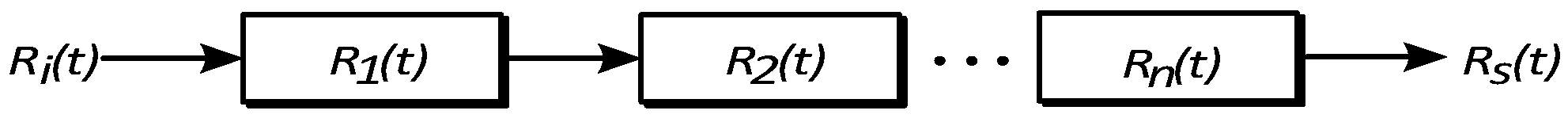

For a serial system to properly operate, as shown in Figure 1, all blocks must work properly; if a single component fails, the complete system will fail.
A system presents a catastrophic failure when any one of the subsystems fails before the process is completed [6,19]:
The reliability of an electronic system is represented by (5), and a serial coupled system is represented as the product of the individual reliabilities in good conditions (7) or the union of the probability of n blocks in good conditions [6,7,10,19].
R S ( t ) = R 1 ( t ) R 2 ( t ) R n ( t )
For an n component electronic system, substituting (5) into (7) results in (8).
R S ( t ) = e ( λ 1 + λ 2 + + λ n ) t
MTBF is represented by (9). It is obtained by substituting the total reliability of the serial system (8) in (3) and integrating
M T B F = 1 λ = 1 i = 1 n λ

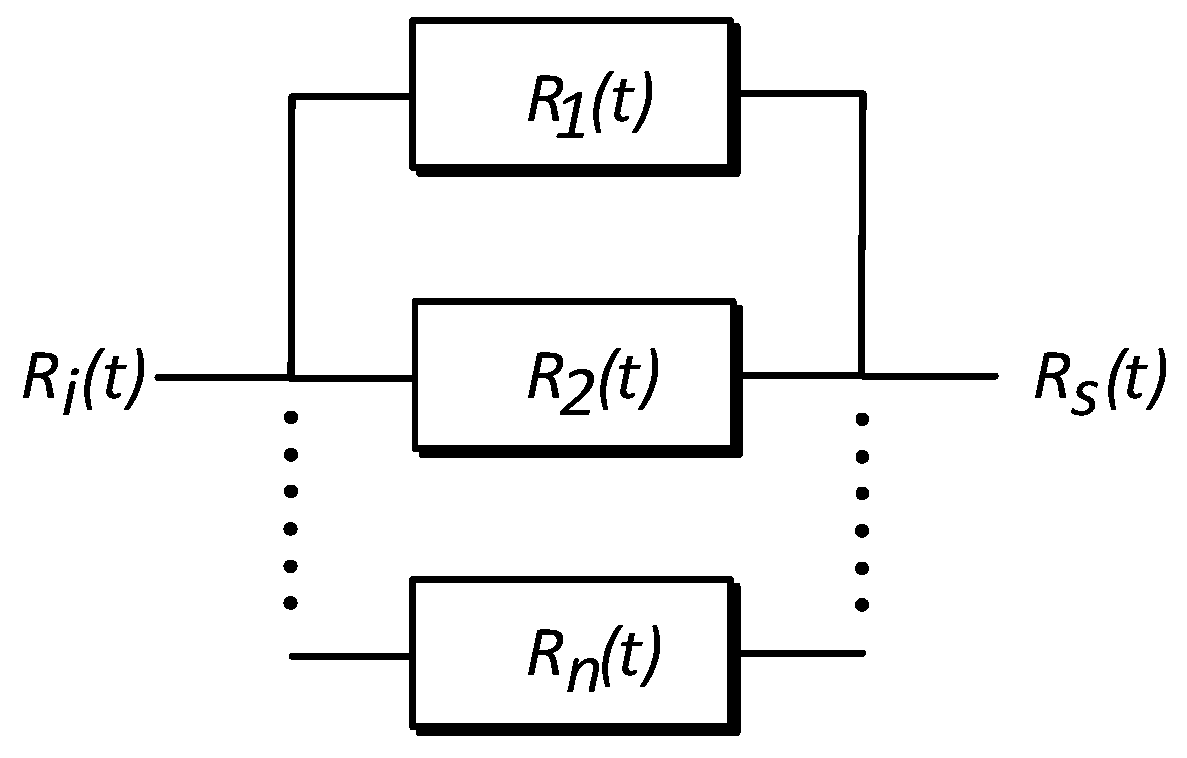

In an active parallel redundant system, as illustrated in Figure 2, one block must be operating properly for the system to succeed; the failure of a block does not imply the catastrophic failure of the system [6,19]:
Therefore, the reliability of a parallel system is the product of n blocks in bad conditions. Reliability is obtained by substituting (1) in (10) and solving, which can be observed in (11).
1 R p ( t ) = ( 1 R 1 ( t ) ) ( 1 R 2 ( t ) ) ( 1 R n ( t ) )
R p ( t ) = 1 ( 1 R 1 ( t ) ) ( 1 R 2 ( t ) ) ( 1 R n ( t ) )
Substituting (11) in (2) obtains the failure rate of the system, supposing that each block of the system is equal and identical.
λ i ( t ) = 1 + 1 2 + 1 3 + + 1 n
Finally, the MTBF of this system is obtained by substituting (11) in (3), resulting in:
M T B F = 1 λ ( 1 + 1 2 + 1 3 + + 1 n )

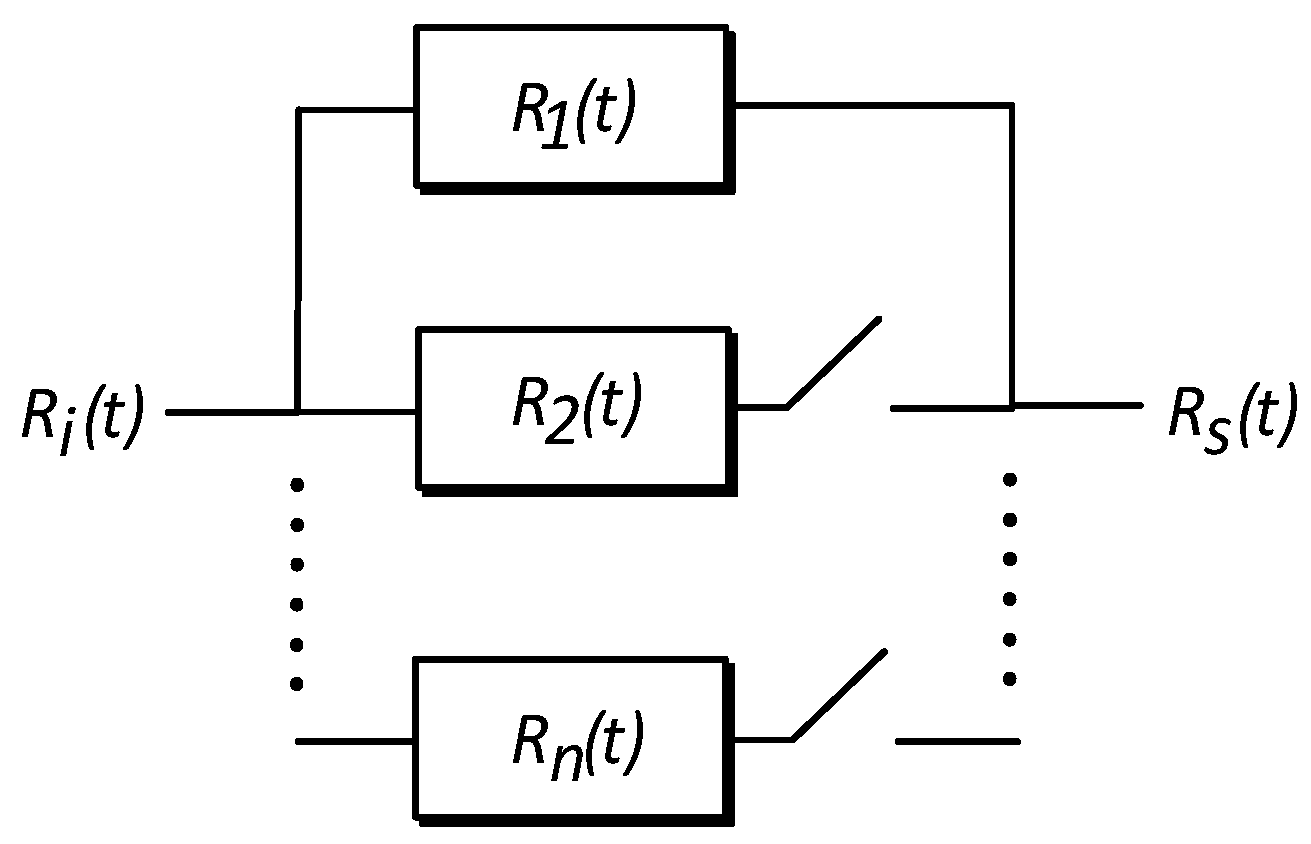

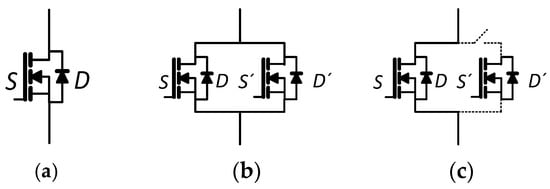

The unrepairable passive redundant parallel system, shown in Figure 3, is similar to the active parallel system. In this case, one block is in operation, while the others are waiting for the first block to fail to start its operation [6,19]:
The reliability of the passive redundant system depends on the Poisson distribution. Where the probability that an event occurs in a given time is determined according to λ, which represents the frequency of occurrence of that event. According to Poisson distribution, the reliability of an n unit system, where (n − 1) units are on standby, is represented by:
R ( t ) = e λ t r = 0 n 1 ( λ t ) r r ! ,
where r = 1, 2,…, and n equals the number of components.
By expanding (14), we obtained:
R ( t ) = e λ t [ 1 + λ t + ( λ t ) 2 2 ! ( λ t ) ( n 1 ) ( n 1 ) ! ]
MTBF of the passive parallel redundant system can be obtained by substituting (15) in (3), giving the result:
M T B F = 1 λ + λ 1 λ 2 + λ 2 1 λ 3 + + n λ

2.3. Standard MIL HDBK-217F

It is a traditional standard, and the most commonly used is based on the experience and observation of events. It includes databases about failure rate models for different components such as transistors, diodes, etc. Other factors affecting reliability are included based on the operating environments for the telecommunications industry, such as Ground Benign (GB), Ground Fixed (GF), Ground Mobile (GM), etc. It uses the component stress calculation method [6,7,8,9,10,11,12]:
λ p = λ b ( π T , π S , π C , π Q , π E , π A , π C V ) ,
where λP is the adjusted component failure rate, λb is the component base failure rate, πT is the encapsulation temperature factor, πS is the electrical stress factor, πC is the construction factor, πQ is the quality factor, πE is the environmental factor, πA is the application factor, and πCV is the capacitance factor.
Table 1 shows the equations for the adjustment of the failure rate λP for each component.
In most components, the factor with the greatest effect on the failure rate is the temperature factor πT, as shown in the table previously described.
The temperature factor πT, which has a considerable weight in the failure rate, is presented in (18) based on the Arrhenius model, which indicates the temperature acceleration in the component [6,9,10,11,12,14]:
π T = exp ( E a k ( 1 T U + 273 1 298 ) ) ,
where Ea is the activation energy in eV; k is Boltzmann’s constant, equal to 8.617 × 10−5 eV/oK; K is the absolute temperature in Kelvin; and TU will be the temperature in use.
Table 2 presents the Arrhenius model of MIL HDBK-217F, used for the temperature adjustment of each component, based on environmental conditions.
The temperature factor is directly related to Ploss in the components (8) [5,9,10,11,12,14]. It depends on the junction temperature Tj for MOSFETs, and TU can be replaced by Tj.
T j = ( T C + θ j c ) . p l o s s
P l o s s ( s t a t i c ) = R D S o n . I r m s 2
P l o s s ( d y n a m i c ) = V a v g . I a v g . ( t o n + t o f f ) . f S W
P l o s s = P l o s s ( s t a t i c ) + P l o s s ( d y n a m i c )
where Tc is the case temperature. Ploss is the sum of the static Ploss(static) and dynamic losses Ploss(dynamic). θjc is the junction thermal resistance of the package. RDSon is the internal resistance at the moment of ignition. Irms represents the effective current. Iavg and Vavg are the average current and voltage values, respectively.
Certain elements such as diodes are directly dependent on the electrical stress factor πS, and it is a function of VS in (23). It also depends on the voltage stress ratio in which the component is stressed, which is the ratio of Va, the applied operating voltage, and the nominal voltage Vn [9,10,12].
V S = V a V n
Therefore, the value that πS will assume is a function of the following conditions.
πS = 0.054 if the condition is satisfied: VS 0.3.
πS = V S 2.43 if the condition is satisfied: 0.3 < VS ≤ 0.3.
Adjustment of λb on the inductor should be made using (24); it is directly dependent on the temperature THS. Therefore, the hot spot temperature THS (25) is obtained according to the temperature change in the component ΔTd, resulting in an average increase in Ta. TU can be replaced by THS and Ta, according to the component to be analyzed [9,10,12].
λ b = 0.0016 e ( T H S + 273 329 ) 15.6
T H S = T a + 1.1 Δ T d
The S parameter, shown in (26), corresponds to the capacitor operating voltage ratio [9,10,12] and is directly dependent on the applied voltage Vo and the nominal operating voltage Vn. Substituting S and Ta, the base failure rate for the capacitor, shown in (27), is calculated.
S = V o V n
λ b = 0.00254 [ ( S 0.5 ) 3 + 1 ] . e [ 5.09 ( T a + 273 358 ) 5 ]
The capacitance factor πCV for the capacitor depends directly on the capacitor value C and is expressed as follows [6,9,10,11,12].
π C V = 0.34 ( C 0.18 )
Reliability is evaluated with MTBF and failure rate (λ) metrics in units of failures by the unit of time. The MIL-HDBK-217F standards express them as 106 h [9,10,21].
As it is a classical standard based on count and component stress, an average ambient temperature, to which the component is exposed during the operating cycle, is considered. The junction temperature in this case depends on the package temperature and this, in turn, on the average ambient temperature around the equipment. This can be seen in (19) and Table 2. There are other types of accelerated tests that are based on a more controlled environment and a specific mission profile. Power cycles and thermal cycles are defined, and different end-of-life criteria are used. However, an accelerated life test model is presented, based on a junction temperature estimation method similar to the standard, which depends on temperature and changes in ambient temperature. It is still complex to have an accurate estimation of the temperature, which, in turn, would have a higher cost, since it requires the monitoring of several variables [22].

3. Power and Reliability Design

Reliability is a great challenge in power electronics, where it is necessary to consider the effects that failures in the components affect the general system.
For this reason, it is important to have a good design and analysis prior to the manufacturing process, based on technical background and experience, to reduce costs and risks.
Complying with reliability, quality, and durability, it contributes to the continuous improvement and better evaluation of these electronic components and systems.
The reliability design and design of the power stage of the system are realized in the following.

3.1. Reliability Design

Reliability is estimated for a full bridge inverter, considered to be one of the most popular inverters. The advantages are high efficiency, low cost, small size, and low weight. They consist of four switches organized in two legs, one composed of S1 and S2 and the other of S3 and S4. These can generate four operating states and three different output voltage levels [10,13,14,23].
The reliability design was performed using the reliability structures in Figure 1, Figure 2 and Figure 3, where each MOSFET in Figure 4 was equivalent to a block. The analysis with a parallel active structure in Figure 2 is presented as a demonstration of the reliability calculation [6,9,10,11,14]. First, the reliability RSW1 of the two MOSFETs in parallel is obtained as a single module that includes the reliability of RS1 y R’S1, which is similarly performed for each of the MOSFET structures. Following this, the serial model should be used to estimate the overall reliability RS(t) of the inverter.

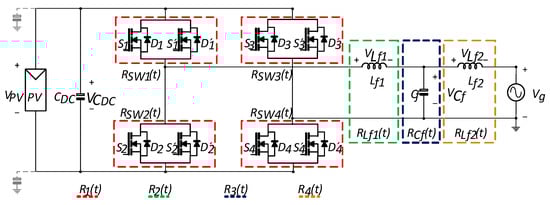

Figure 5 presents the full bridge inverter topology considered for an active power injection system to the grid.
Inverter reliability analysis is realized in different steps. The first step consists of the obtaining of the reliability of the module RSw1 of two parallel active switches presenting an equal failure rate of λS1 = λ’S1 = λ1.

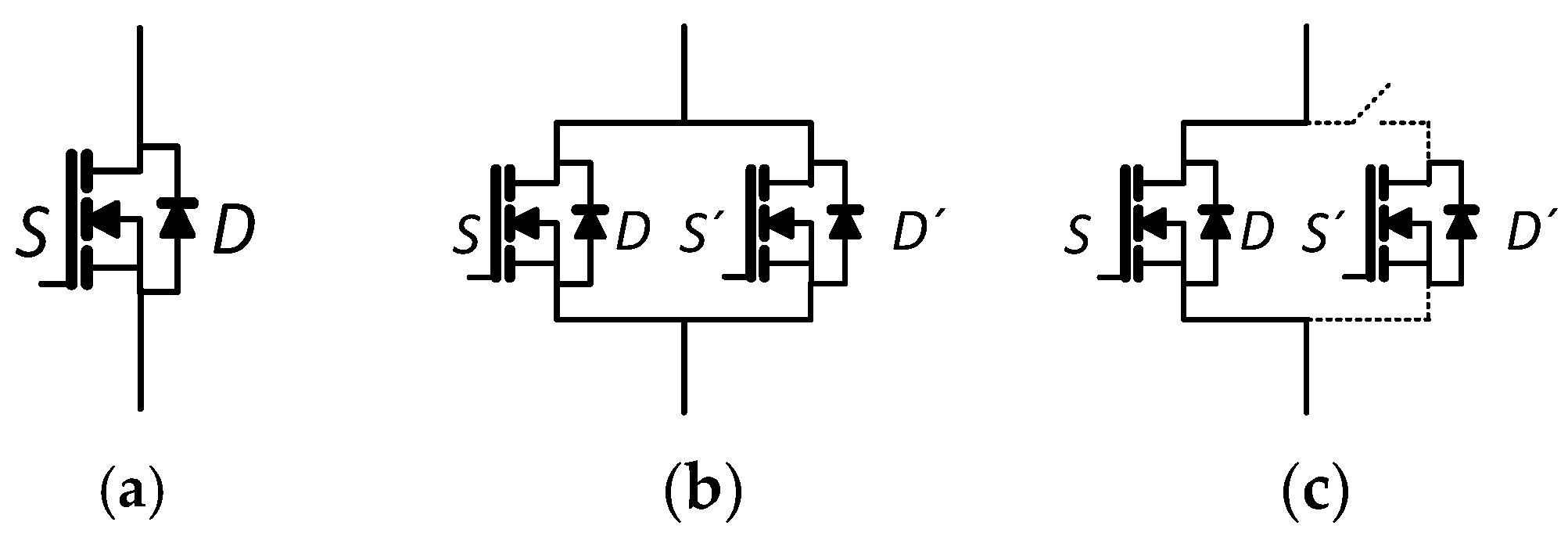

From (11), the two-block parallel (29) is applied, and it is reduced algebraically, resulting in (30). Substituting (4) directly in (30) results in (31).
R p ( t ) = 1 [ ( 1 R 1 ( t ) ) ( 1 R 2 ( t ) ) ]
R p ( t ) = R 1 ( t ) + R 2 ( t ) R 1 ( t ) R 2 ( t )
R p ( t ) = 1 [ ( 1 e λ 1 t ) ( 1 e λ 1 t ) ]
The reliability of two parallel switches is shown in
R p ( t ) = 2 e λ 1 t + e 2 λ 1 t ( e λ 1 t ) ( e λ 1 t ) = 2 e λ 1 t + e 2 λ 1 t
The Mean Time Between Failure of a parallel system is obtained by substituting RP(t) from (32) in R(t) from (3) and integrating from 0 to t when t = ∞ to obtain (34).
M T B F = 0 t 2 e λ 1 t d t 0 t e 2 λ 1 t d t
M T B F = [ 2 e λ 1 t λ 1 e 2 λ 1 t 2 λ 1 ] 0 = 2 λ 1 1 2 λ 1
Following the parallel reliability of each module, the global reliability of the inverter is obtained.
The serial block diagram in Figure 1 is used, performing the reliability product of the four switch modules RSW1(t) = RSW2(t) = RSW3(t) = RSW4(t) = R1(t), the two inductors RLf1(t) = R2(t) and RLf2(t) = R3(t), and, finally, the capacitor RCf(t) = R4(t). The following assumption is considered. Parallel switch modules R1(t) are equal and have an equal failure rate, λSW1 = λSW2 = λSW3 = λSW4 = λ1. The inductor failure rate λLf1 is λLf1 = λ2 for the inductor λLf2 will be λLf2 = λ3. Finally, the capacitor λCf = λ4. The block diagram is simplified, and (35) is obtained.
R S ( t ) = R 1 ( t ) R 2 ( t ) R 3 ( t ) R 4 ( t )
R S ( t ) = ( e 2 λ 1 t ) 4 e λ 2 t e λ 3 t e λ 4 t
The global MTBF of the inverter is calculated by replacing the global inverter reliability (36) in (3).
M T B F = 16 4 λ 1 + λ 2 + λ 3 + λ 4 32 5 λ 1 + λ 2 + λ 3 + λ 4 + 24 6 λ 1 + λ 2 + λ 3 + λ 4 8 7 λ 1 + λ 2 + λ 3 + λ 4 + 1 8 λ 1 + λ 2 + λ 3 + λ 4 ,

3.2. Power Stage Design and Simulation

A numerical simulation of the full bridge inverter with an LCL filter, shown in Figure 6, was designed with the parameters of Table 3 as follows. The LCL filter was selected according to previous studies for a ratio of inductances α = 3, resulting in a smaller size and demonstrating higher reliability for that transformation ratio [10].
Silicon carbide MOSFET C3M0065090D parameters were used. They had low on-resistance, permitting higher current flow with a faster switching response. In addition, the thermal balance of the MOSFET reduced the conduction losses [14,24].
The LCL filter design was performed using the methodology proposed in [10,14,23,25].
The following was considered in the design of the filter: 10f0fresfsw. The resonant frequency fres was between 10 times higher than the grid frequency f0 and 10 times lower than the switching frequency fsw.
In the LCL filter design, the two inductors Lf1 and Lf2 and the capacitor Cf are considered. The output voltage Vg in (38) is a function of the supply voltage VPV and the modulation index m of the inverter.
V g = V p v m
The inductor voltage Lf1 is given by:
L f 1 = V p v ( 1 m ) m Δ i L f 1 f s w ,
where ∆iLf1 is the inductor’s current ripple.
To obtain Lf2, it is necessary to use the following relation:
L f 1 = α L f 2 ,
where α is the inductance ratio for the LCL filter, and α = 3 was selected.
The filter capacitor was selected according to (41), considering ωres as the resonant frequency.
C f = L f 1 + L f 2 L f 1 L f 2 ω r e s
The system was simulated in PSIM® using a unipolar modulation [5,10,26] and silicon carbide MOSFETs C3M0065090D (Manufacturer CREE) [5,14,24].
In this modulation type, the inverter legs switched at a high frequency, permitting high efficiency and small output filter sizes, in addition to producing three voltage levels at the output [5,10,26].
Parameters according to the manufacturer’s technical data sheet were also considered.

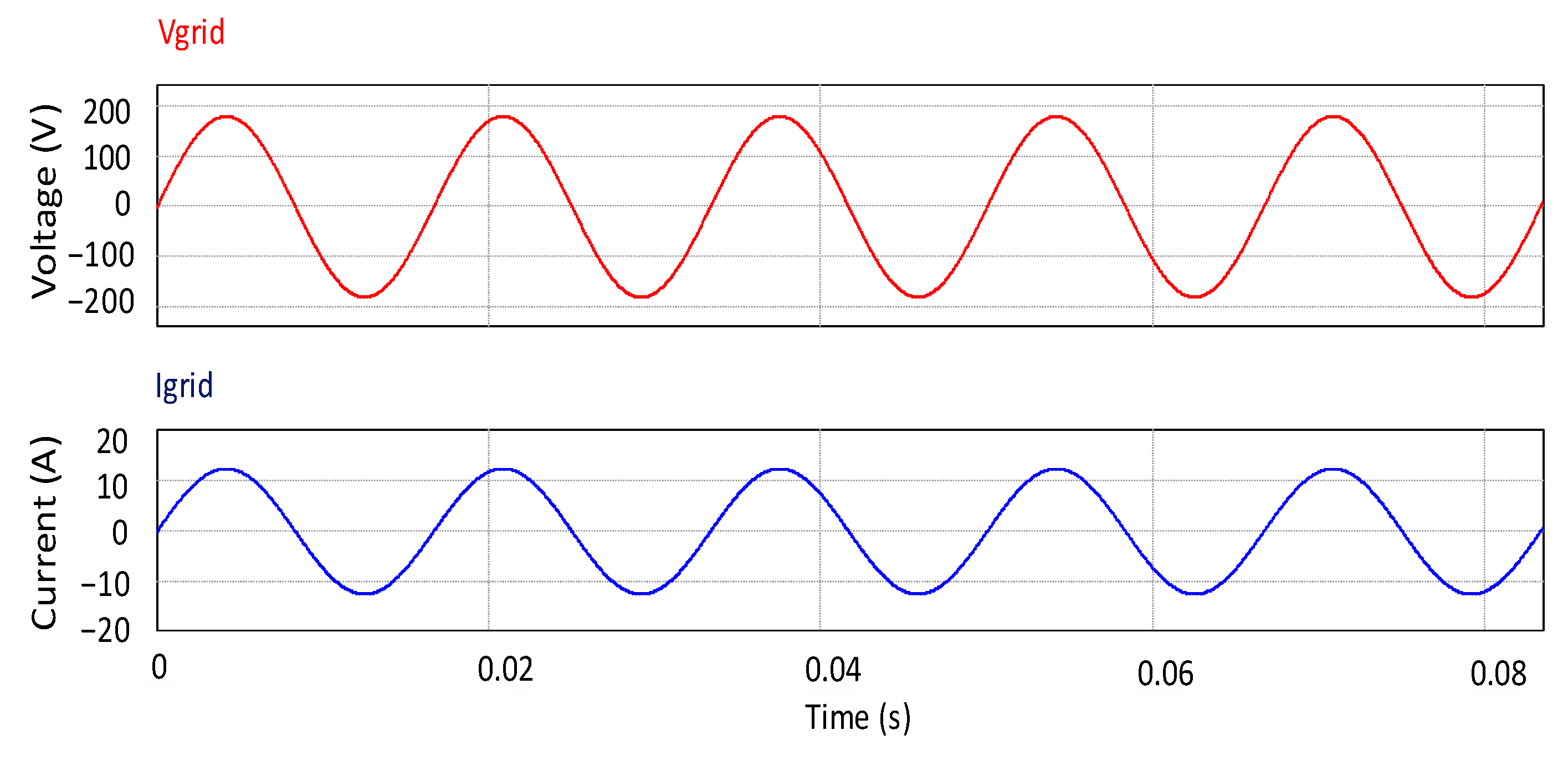

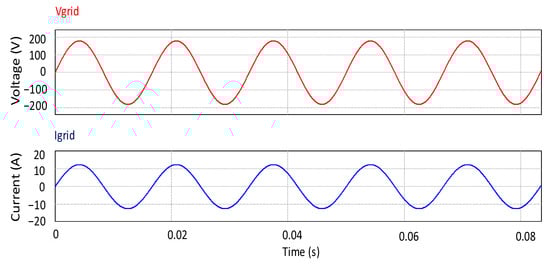

The results showed that the supply of active power to the grid was ensured, given that the voltage of 120 Vrms and a current supplied to the grid of 8.3 Arms were in phase, complying and ensuring the injection of 1 kW of active power to the grid.

4. Reliability Results

The traditional MIL HDBK-217F standard is used for reliability analysis and prediction. Adjustment factors are considered, including the base failure rate, which will result in a component failure rate being adjusted later.
According to the simulation of Section 3.2, the values of average and effective current and voltage are obtained. These values are used for the calculation of the losses and then the junction temperature calculation. This allows us to adjust the temperature factor using the Arrhenius model and, finally, the failure rate in the case of the MOSFET. As a demonstration, the equation used in the calculation of the effective current, which will be used in (20) to calculate the losses, is included.
I r m s = 1 T 0 T i ( t ) 2 d t = I max D ,
where i(t) is the instantaneous current and Imax are the maximum current values. T is the signal period. D is the duty cycle.
The system global λS(t), MTBF, and RS(t) were calculated using the traditional standard MIL HDBK-217F. An ambient temperature of 35 °C and an environmental factor (GB) were considered.
Equations (19)–(22) were used to calculate the losses and average values of the voltage and current flows through the switch during switching.
Adjustment factors for the reliability computation of the four full-bridge inverter switches and the LCL filter components are shown in Table 4.
As shown in Table 5, the analysis presents the total failure rate and the MTBF of the system using the three structures, expressed in failure/106 h.
They were calculated according to the models in Equations (17) to (27) and Table 1, Table 2, and Table 4.
Case 1 (Serial): The MOSFET S1 was on, the flowing current was 6.26 Arms, and the failure rate would be 12.349 failure/106 h for the single MOSFET. Case 2 (Active parallel redundant): MOSFETs S1 and S’1 in parallel were simultaneously active, the total current flowing was equal to Case 1, but this was divided between the two MOSFETs. As a result, 3.13 Arms will flow into each switch, causing the losses and failure rate in each MOSFET to be reduced, giving 5.962 failure/106 h for each pair of active switches. Case 3 (passive parallel redundant): S1 and S’1 were in parallel. State 0: Only S1 was active, and S’1 was on standby. State 1: S1 failed and, consequently, was deactivated, and S’1 was activated. Now, the equivalent failure rate of the pair of MOSFETs in passive parallel redundancy was equal to 3.08725 failure/106 h. This was because it presented a double redundancy.
The global failure rate of the system included the four MOSFETs or four pairs of MOSFETs as the situation required, the failure rate of the two inductors, and the failure rate of the capacitor. The passive parallel redundant system presented the best reliability and MTBF. The disadvantage of this system was the increase in cost and volume, given that the number of MOSFETs increased from four to eight. The analysis with passive parallel structure increased the total system reliability by 75%, and the analysis with active parallel structure improved the reliability by 48.29% in comparison with the reliability of the system with one MOSFET. The parallel active redundant structure, as well as the passive, had the same characteristics in terms of weight, cost, and size, since they had the same number of elements. The advantage of the parallel passive redundant structure was the higher reliability.

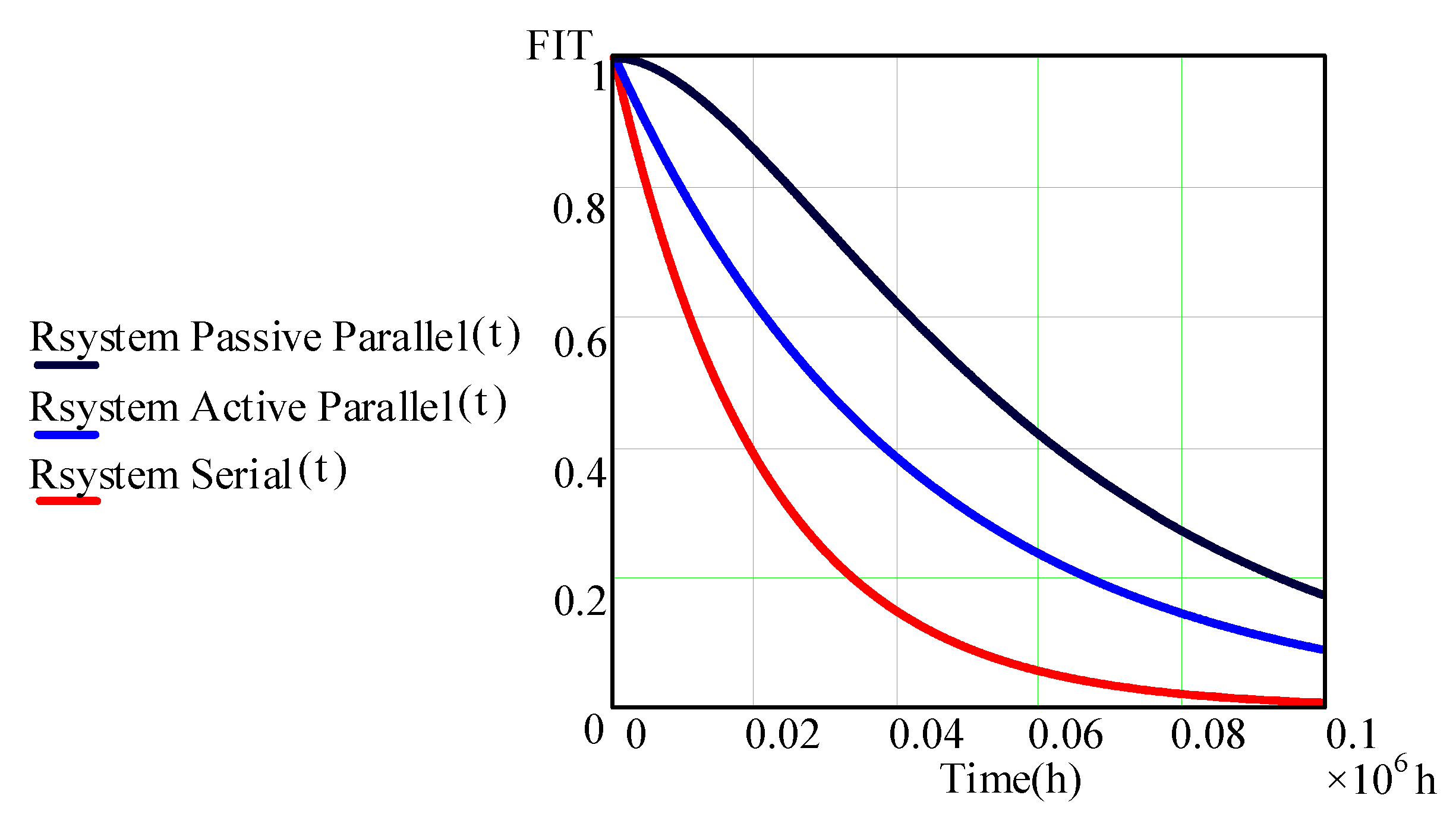

Figure 7 shows how the passive parallel system presents higher reliability compared to the other two structures, showing the passive parallel system had a higher MTBF, which represented a longer operating time before a first failure occurred. Additionally, it can be observed that the worst reliability and MTBF occurred in the system with one MOSFET.

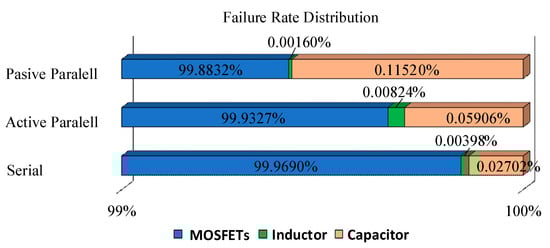

Figure 8 shows the contribution of the failure rate of each component to the inverter’s global rate. For each structure, it can be observed that the higher contributions are from the MOSFETs with over 99% of the total, the capacitor follows, and, finally, the inductor with the lower contribution. Silicon Carbide devices with a good heatsink design and forced cooling are recommended, reducing losses, and resulting in a lower failure rate and higher reliability. It is demonstrated in the parallel configuration, since the MOSFETs, being under lower current, would reduce the thermal stress during switching.

5. Conclusions

In this paper, the reliability prediction of a full bridge inverter with different MOSFET-redundant structures was presented. The reliability calculation was performed based on the MIL HDBK 217F standards, used for calculating the failure rate and the Mean Time Between Failures for the different components and then to obtain the global reliability parameters. The reliability study shows that the best-performing structure was the parallel passive structure, followed by the parallel active structure, and, finally, the serial structure with a single component. As reported in the literature, it was also confirmed that the components that are more susceptible to failure are the MOSFETs with a percentage higher than 99%, followed by the capacitors, and, finally, the inductors.

Author Contributions

Conceptualization, I.V., N.V. and J.V.; methodology, I.V., N.V. and J.V.; software, N.V.; validation, I.V.; investigation, I.V.; writing—original draft preparation, I.V.; writing—review and editing, N.V., J.V., H.L.-T., C.H. and R.O.-S.; supervision, N.V., J.V., H.L.-T., C.H. and R.O.-S.; funding acquisition, N.V., J.V. and C.H. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported partially by TecNM.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data used to support the findings of this study are included within the article.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Sayed, A.; El-Shimy, M.; El-Metwally, M.; Elshahed, M. Reliability, Availability and Maintainability Analysis for Grid-Connected Solar Photovoltaic Systems. Energies 2019, 12, 1213. [Google Scholar] [CrossRef] [Green Version]
  2. Ellabban, O.; Abu-Rub, H.; Blaabjerg, F. Renewable energy resources: Current status, future prospects and their enabling technology. Renew. Sust. Energ. Rev. Renew. Sust. Ener. Rev. 2014, 39, 748–764. [Google Scholar] [CrossRef]
  3. Güney, T. Renewable energy, non-renewable energy and sustainable development. Int. J. Sustain. Dev. World Ecol. 2019, 26, 389–397. [Google Scholar] [CrossRef]
  4. Chakraborty, A. Advancements in power electronics and drives in interface with growing renewable energy resources. Renew. Sust. Energ. Rev. Renew. Sust. Ener. Rev. 2011, 15, 1816–1827. [Google Scholar] [CrossRef]
  5. Peng, Z.; Wang, J.; Liu, Z.; Dai, Y.; Zeng, G.; Shen, Z.J. Fault-Tolerant Inverter Operation Based on Si/SiC Hybrid Switches. IEEE Trans. Emerg. Sel. Topics Power Electron. 2020, 8, 545–556. [Google Scholar] [CrossRef]
  6. Richardeau, F.; Pham, T.T.L. Reliability Calculation of Multilevel Converters: Theory and Applications. IEEE Trans. Ind. Electron. 2013, 60, 4225–4233. [Google Scholar] [CrossRef]
  7. Song, Y.; Wang, B. Survey on reliability of power electronic systems. IEEE Trans. Power Electron. 2013, 28, 591–604. [Google Scholar] [CrossRef]
  8. Cooke, R.; Bedford, T. Reliability databases in perspective. IEEE Trans. Reliab. 2002, 51, 294–310. [Google Scholar] [CrossRef]
  9. Reliability Prediction of Electronic Equipment: Military Handbook 217F; US Department of Defense: Arlington, VA, USA, 1995; Notice 2, December 1991 (Superseding).
  10. Villanueva, I.; Vázquez, N.; Vaquero, J.; Hernández, C.; López, H.; Osorio, R. L vs. LCL Filter for Photovoltaic Grid-Connected Inverter: A Reliability Study. Int. J. Photoenergy 2020, 2020, 7872916. [Google Scholar] [CrossRef] [Green Version]
  11. Ghodsi, M.; Barakati, S.; Sadr, S. Competitive study on reliability of difference voltage levels of NPC multilevel inverters. Electron. Lett. 2018, 54, 1047–1049. [Google Scholar] [CrossRef]
  12. Alavi, O.; Abbas Hooshmand, V.; Sadegh, S. A Comparative Reliability Study of Three Fundamental Multilevel Inverters Using Two Different Approaches. Electronics 2016, 5, 18. [Google Scholar] [CrossRef] [Green Version]
  13. Yu, X.; Khambadkone, A.M. Reliability Analysis and Cost Optimization of Parallel-Inverter System. IEEE Trans. Ind. Electron. 2012, 59, 3881–3889. [Google Scholar] [CrossRef]
  14. Villanueva, I.; Vázquez, N.; Vaquero, J.; Hernández, C.; López, H.; Osorio, R.; Pinto, S. On the Reliability of Transformerless Photovoltaic DC/AC Converters Based on Mission Profile. Int. J. Photoenergy 2021, 2021, 9926316. [Google Scholar] [CrossRef]
  15. Hess, H.L.; Baker, R.J. Transformerless capacitive coupling of gate signals for series operation of power MOS devices. IEEE Trans. Power Electron. 2000, 15, 923–930. [Google Scholar] [CrossRef] [Green Version]
  16. Bęczkowski, S.; Jørgensen, A.B.; Li, H.; Uhrenfeldt, C.; Dai, X.; Munk-Nielsen, S. Switching current imbalance mitigation in power modules with parallel connected SiC MOSFETs. In Proceedings of the 2017 19th European Conference on Power Electronics and Applications (EPE’17 ECCE Europe), Warsaw, Poland, 11–14 September 2017. [Google Scholar]
  17. Kshatri, S.S.; Dhillon, J.; Mishra, S.; Haghighi, A.T.; Hunt, J.D.; Patro, E.R. Comparative Reliability Assessment of Hybrid Si/SiC and Conventional Si Power Module Based PV Inverter Considering Mission Profile of India and Denmark Locations. Energies 2022, 15, 8612. [Google Scholar] [CrossRef]
  18. Peyghami, S.; Abarzadeh, M.; Blaabjerg, F. Reliability Modeling and Assessment of Derated Redundant Power Converters. In Proceedings of the 2022 IEEE International Power Electronics Conference (IPEC-Himeji 2022-ECCE Asia), Himeji, Japan, 15–19 May 2022. [Google Scholar]
  19. Birolini, A. Reliability Engineering: Theory and Practice, 5th ed.; Springer: Berlin/Heidelberg, Germany, 2007. [Google Scholar]
  20. Alharbi, M.; Bhattacharya, S.; Yousefpoor, N. Reliability comparison of fault-tolerant HVDC based modular multilevel converters. In Proceedings of the 2017 IEEE Power & Energy Society General Meeting, Chicago, IL, USA, 16–20 July 2017. [Google Scholar]
  21. Díaz-González, F.; Heredero-Peris, D.; Pagès-Giménez, M.; Prieto-Araujo, E.; Sumper, A. A Comparison of Power Conversion Systems for Modular Battery-Based Energy Storage Systems. IEEE Access. 2020, 8, 29557–29574. [Google Scholar] [CrossRef]
  22. Baba, S.; Gieraltowski, A.; Jasinski, M.; Blaabjerg, F.; Bahman, A.S.; Zelechowski, M. Active Power Cycling Test Bench for SiC Power MOSFETs—Principles, Design, and Implementation. IEEE Trans. Power Electron. 2021, 36, 2661–2675. [Google Scholar] [CrossRef]
  23. Rizzoli, G.; Mengoni, M.; Zarri, L.; Tani, A.; Serra, G.; Casadei, D. Comparative performance evaluation of full-bridge, H5, and H6 topologies for transformer-less solar converters. IET Power Electron. 2019, 12, 22–29. [Google Scholar] [CrossRef]
  24. Wolfspeed, CREE. C3M0065090D Silicon Carbide Power MOSFET C3M TM MOSFET Technology, Datasheet C3M0065090D Rev. D, June 2019. Available online: https://assets.wolfspeed.com/uploads/2020/12/C3M0065090D.pdf (accessed on 5 December 2022).
  25. Jayalath, S.; Hanif, M. Generalized LCL-Filter Design Algorithm for Grid-Connected Voltage-Source Inverter. IEEE Trans. Ind. Electron. 2017, 64, 1905–1915. [Google Scholar] [CrossRef]
  26. Kafle, Y.R.; Town, G.E.; Guochun, X.; Gautam, S. Performance comparison of single-phase transformerless PV inverter systems. In Proceedings of the 2017 IEEE Applied Power Electronics Conference and Exposition (APEC), Tampa, FL, USA, 26–30 March 2017. [Google Scholar]
Figure 1. Reliability structure of a serial system.
Figure 1. Reliability structure of a serial system.
Technologies 11 00059 g001
Figure 2. Reliability structure of the active parallel redundant system.
Figure 2. Reliability structure of the active parallel redundant system.
Technologies 11 00059 g002
Figure 3. Reliability structure of the passive parallel redundant system (Standby).
Figure 3. Reliability structure of the passive parallel redundant system (Standby).
Technologies 11 00059 g003
Figure 4. Reliability structures in MOSFET: (a) A single MOSFET system in serial; (b) Redundant system active in parallel with two MOSFETs; (c) Redundant system passive in parallel with two MOSFETs.
Figure 4. Reliability structures in MOSFET: (a) A single MOSFET system in serial; (b) Redundant system active in parallel with two MOSFETs; (c) Redundant system passive in parallel with two MOSFETs.
Technologies 11 00059 g004
Figure 5. Analysis of full bridge inverter with parallel MOSFET structure.
Figure 5. Analysis of full bridge inverter with parallel MOSFET structure.
Technologies 11 00059 g005
Figure 6. Active power injection filter with LCL filter. From top to bottom: average voltage (100 V/div) and average current (10 A/div).
Figure 6. Active power injection filter with LCL filter. From top to bottom: average voltage (100 V/div) and average current (10 A/div).
Technologies 11 00059 g006
Figure 7. Reliability comparison of the different structures.
Figure 7. Reliability comparison of the different structures.
Technologies 11 00059 g007
Figure 8. Failure rate distribution of different components.
Figure 8. Failure rate distribution of different components.
Technologies 11 00059 g008
Table 1. Mathematical stress model for each component.
Table 1. Mathematical stress model for each component.
DeviceFailure Rate Equation
Diode λ p = λ b ( π T . π S . π C . π Q . π E )
Transistor λ p = λ b ( π T . π A . π Q . π E )
Inductor λ p = λ b ( π Q . π E . π T )
Capacitor λ p = λ b ( π Q . π E . π C V )
Table 2. Arrhenius model for each component.
Table 2. Arrhenius model for each component.
DeviceArrhenius Model
Diode π T = exp ( 3091 ( 1 T j + 273 1 298 ) )
Transistor π T = exp ( 1925 ( 1 T j + 273 1 298 ) )
Inductor π T = exp ( 0.11 0.00008617 ( 1 T H S + 273 1 298 ) )
Capacitor π T = exp ( 0.15 0.00008617 ( 1 T a + 273 1 298 ) )
Table 3. Design parameters.
Table 3. Design parameters.
ParameterValue
PO1 kW
Vg127 Vrms
VPV200 V
α3
Lf1425 µH
Lf2141 µH
Cf6.6 nF
Table 4. Adjustment factors (MIL HDBK-217F standard).
Table 4. Adjustment factors (MIL HDBK-217F standard).
DeviceλbπTπAπQπEπCπV
Transistor (MOSFET)0.0123.65.586--
Inductor0.000031.82-36--
Capacitor0.000371.209-10100.3544926.17
Table 5. Reliability of the different structures.
Table 5. Reliability of the different structures.
Failure/106 hSerialActive ParallelPassive Parallel
λPM(Each module)12.349000005.9620000003.087250000
λPI(Ls)0.0009835500.0009835500.000983550
λPC(C)0.0140925410.0140925410.014092541
λSystem(Total)49.4110000023.8640000012.36500000
MTBF0.0202380000.0419040000.080873000
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Villanueva, I.; Vázquez, N.; Vaquero, J.; Hernández, C.; López-Tapia, H.; Osorio-Sánchez, R. Photovoltaic Inverter Reliability Study through SiC Switches Redundant Structures. Technologies 2023, 11, 59. https://doi.org/10.3390/technologies11020059

AMA Style

Villanueva I, Vázquez N, Vaquero J, Hernández C, López-Tapia H, Osorio-Sánchez R. Photovoltaic Inverter Reliability Study through SiC Switches Redundant Structures. Technologies. 2023; 11(2):59. https://doi.org/10.3390/technologies11020059

Chicago/Turabian Style

Villanueva, Ignacio, Nimrod Vázquez, Joaquín Vaquero, Claudia Hernández, Héctor López-Tapia, and Rene Osorio-Sánchez. 2023. "Photovoltaic Inverter Reliability Study through SiC Switches Redundant Structures" Technologies 11, no. 2: 59. https://doi.org/10.3390/technologies11020059

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
