Numerical Study of Coaxial Main Rotor Aerodynamics in Steep Descent

Abstract

Numerical studies of the aerodynamic characteristics of the coaxial main rotor of the Kamov Ka-32 helicopter in steep descent modes, including the area of the vortex ring state (VRS) modes, have been performed. Used in this paper is an original free vortex wake model of the rotor developed by the authors. The angles of attack of the rotor α_R = 30–90° and the rate of descent in the range of V_y = 0–30 m/s are considered. The calculations have been carried out under the condition of a fixed time-average thrust of the rotor. The visualization of the rotor wake shapes the flow structures using streamlines, and the flow velocities have been received and analyzed. The VRS boundaries in “V_x–V_y” coordinates have been constructed. The criteria used in this paper are: rotor thrust and torque pulsations, rise of rotor torque and induced velocity relative to the hovering mode. The results of the calculations are compared with the experimental and calculated data of other authors, and a satisfactory match has been obtained. The new results presented in this paper can supplement the existing experience of experimental and numerical research in this field.

1. Introduction

The steep descent modes belong to the most complex helicopter flight modes. This is due to the possible falling of the helicopter in the area of the VRS modes of the main rotor. The first flight experiments on steep descent modes were conducted from the late 1940s to the early 1950s. Among them are the works by Brotherhood (1949) [1], Reeder and Gustafson 1949) [2] and Stewart (1951) [3]. Flight tests have covered single-rotor helicopters: Sikorsky R-4B, R-6, S-51, Bell-47 and Bristol-171. In 1958, flight tests were carried out for a tandem scheme helicopter (a modification of the CH-21 helicopter), presented in the work by Yeates [4]. In 1964, Scheiman [5] conducted flight tests of the VRS modes on the H-34 single-rotor helicopter. The works [6,7] contain some results of flight studies of the VRS modes performed in the 1970s and 1980s at the Flight Research Center named after M.M. Gromov (Russia) for the Mi-8 single-rotor helicopter and Kamov coaxial helicopters. In the work by Jimenez et al. (2002) [8], the results of studies of the VRS modes on a single-rotor Dauphin helicopter have been presented. In various flight tests, when a helicopter enters the area of the VRS modes, the following features have been noted: a loss of altitude, an increase in the required power, a high level of vibrations, irregular flywheel movement of the blades and a temporary loss of control of the helicopter. These effects are related to the specifics of the main rotor aerodynamics in the VRS modes.

Not only the flight tests, but some experimental studies of the rotor aerodynamics in the VRS modes have been carried out. In the work by Drees and Hendal (1949) [9], a high-quality smoke visualization of the flow structure around the rotor in the VRS modes has been obtained for the first time. The visualization results observed in a certain range of descent speeds and angles of attack of the rotor have demonstrated an extremely complex picture of the flow around the rotor. In such modes, an “air body” with a powerful circulation flow inside has been formed around the rotor. The vortex wake coming off the rotor blades collapses into a structure similar to a “vortex ring”. In the work by Castles and Gray (1951) [10], studies of rotors with different blade geometries (with and without blade twist) in a wind tunnel (WT) have been performed. It has been demonstrated that the blade twist affects the boundaries of the VRS modes, shifting them by large values of the inflow velocities. The analysis of the aerodynamic characteristics of the rotor in the VRS modes during the experiments has also identified a number of features. In Yaggy and Mort (1963) [11], Washizu et al. (1966) [12], Xin and Gao (1993) [13] and Betzina (2001) [14], there have been specific unsteady pulsations of the rotor’s thrust and torque which were recorded. In the works provided in the 1970s–1990s in TsAGI (Russia), the boundaries of the VRS region have been constructed according to the drop in the thrust [7], and an increase in the rotor torque (power consumption) has been also noted in comparison with the hovering mode [15]. In the works by Empey and Ormiston [16] and Brinson and Ellenrieder [17], as well as in the works mentioned above, a significant increase (two–three times compared to the hover) in the induced velocity of the rotor in the VRS modes has been obtained.

The features of the main rotor aerodynamics discovered in experiments lead to phenomena observed in flight tests which make the VRS modes unsafe for the helicopter. In addition to this, the steep descent modes require special attention. As a result, a special area of steep descent modes in the flight coordinates “V_x–V_y” has been introduced into the helicopter flight operation manuals, where it is possible for the main rotor to fall into the VRS modes. Thus, the determination of the VRS boundaries in the coordinates “V_x–V_y” is an important task.

Studies of the VRS modes by various methods have maintained their relevance for more than 70 years. In addition to WT tests, many different approaches and special experimental stands have been proposed and used for experimental studies of the VRS modes: Stack et al. (2005) [18] used a water tank, Xin and Gao (1993) [13] worked with a whirling beam and Washizu et al. (1966) [12] and Antropov [15] used a moving track. Experimental studies are regularly supplemented with new results that have become available due to the development of new technologies. One of the most important roles in the process of experimental studies of rotor aerodynamics, including the VRS modes, is currently played by modern PIV (particle image velocimetry) visualization techniques. For example, the PIV-visualization performed in the works by Green et al. (2005) [19] and Surmacz et al. (2015) [20] have demonstrated a characteristic picture of the flow around the rotor in the VRS modes without using smoke visualization techniques, which are ineffective in such cases.

It should be noted that a comparative analysis of various results of studies of the rotor aerodynamics in the VRS modes shows a significant dependence on the test conditions and on the rotor’s geometry [21]. This indicates the need for individual studies of different rotors when determining the VRS modes’ boundaries.

The development of computer technology in recent decades has led to the possibility of numerical studies of the rotor aerodynamics in the VRS modes. To solve the presented problem, various mathematical models are used. In Leishman et al. (2002) [22], on the basis of the free-vortex model, steep descent modes for single-rotor, tandem rotor and tiltrotor models have been studied. The boundaries of the VRS modes have been obtained according to the criteria of rotor thrust, torque pulsations and the blade flapping fluctuations. In the work by Celi and Ribera (2007) [23], on the basis of the Leishman’s model, a helicopter descent with a passage through the VRS region has been simulated, taking into account the flight dynamics. Bailey (2010) [24] has also simulated a steep helicopter descent based on the computational models developed in ONERA (Office National d’Etudes et de Researches Aerospatiales). The numerical calculation has been based on the data of Dauphin helicopter flight tests. Research has been focused on the analysis of aerodynamic loads changes. The boundaries of the VRS modes have been determined and compared with the experiment. In the work by Shcheglova (2012) [25], on the basis of the free wake model developed at TsAGI, studies of a steep descent of a single main rotor with an angle of attack α_R ≈ 85° have been performed. Such criteria of the VRS modes as thrust pulsations, growth of torque and induced velocity have been found. In the work by Mohd and Barakos (2017) [26] on the basis of the finite volume method (FVM), using the URANS (Unsteady Reynolds Averaged Navier Stokes Equations), the VRS modes for two model rotors have been studied. This work considers axial flow modes (α_R = 90°). The drop and pulsations in thrust at fixed blade pitch angles have been obtained. In the work by Brown et al. (2002) [27], comparative studies of single-rotor aerodynamics in steep descent modes have been performed using Leishman’s free-vortex model and Brown’s vorticity transport model (VTM). The boundaries of the VRS modes have been found according to the criterion of thrust pulsations. Kinzel et al. (2019) [28] have performed a numerical simulation of the axial descent for the rotors of unmanned aerial vehicles based on the URANS method. The coaxial rotor and equivalent conventional rotor have been considered. In both cases, a decrease in thrust has been obtained, and this indicates the rotor’s falling into the VRS region. It has been shown that, in the case of coaxial rotors, the VRS mode occurs at higher descent speeds, and the thrust drop is less than in case of equivalent conventional rotors.

Thus, numerical modeling can significantly supplement the data of experimental studies and makes it possible to determine the boundaries of VRS modes for particular helicopters, taking into account their individual features. At the same time, computational studies of rotor aerodynamics in the VRS modes require large amounts time and computational resources. On the one hand, this is due to the need to perform a large number of parametric calculations to determine the VRS boundaries in the “V_x–V_y” coordinates. On the other hand, in the VRS modes, the aerodynamic characteristics of the rotor differ in their unsteadiness. Therefore, in order to deeply analyze the rotor aerodynamics in the VRS modes, it is necessary to simulate a large (sometimes up to a hundred or more) number of revolutions of the rotor.

From the above review, it can be seen that the majority of the existing experimental and calculated studies have been performed for conventional rotors (main or tail) and less often for tandem rotor or tiltrotor schemes. Coaxial rotors in steep descent modes, especially by numerical modeling, have been studied only partially.

The presented results continue the research published earlier by the authors [29] and which is dedicated to the numerical modeling of the VRS modes of the Kamov Ka-32 helicopter full-scale coaxial rotor in the hover and vertical descent modes (α_R = 90°). In the proposed study, the simulation of steep descent modes with different angles of attack of the rotor α_R = 70, 50 and 30° has been performed. Together with the results of [29], this made it possible to conduct a comprehensive analysis of the coaxial rotor aerodynamics in the VRS modes and receive their boundaries in the “V_x–V_y” coordinates using various criteria.

2. Method and Object of Study

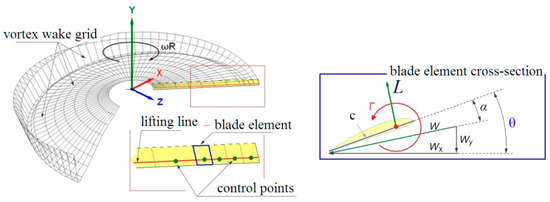

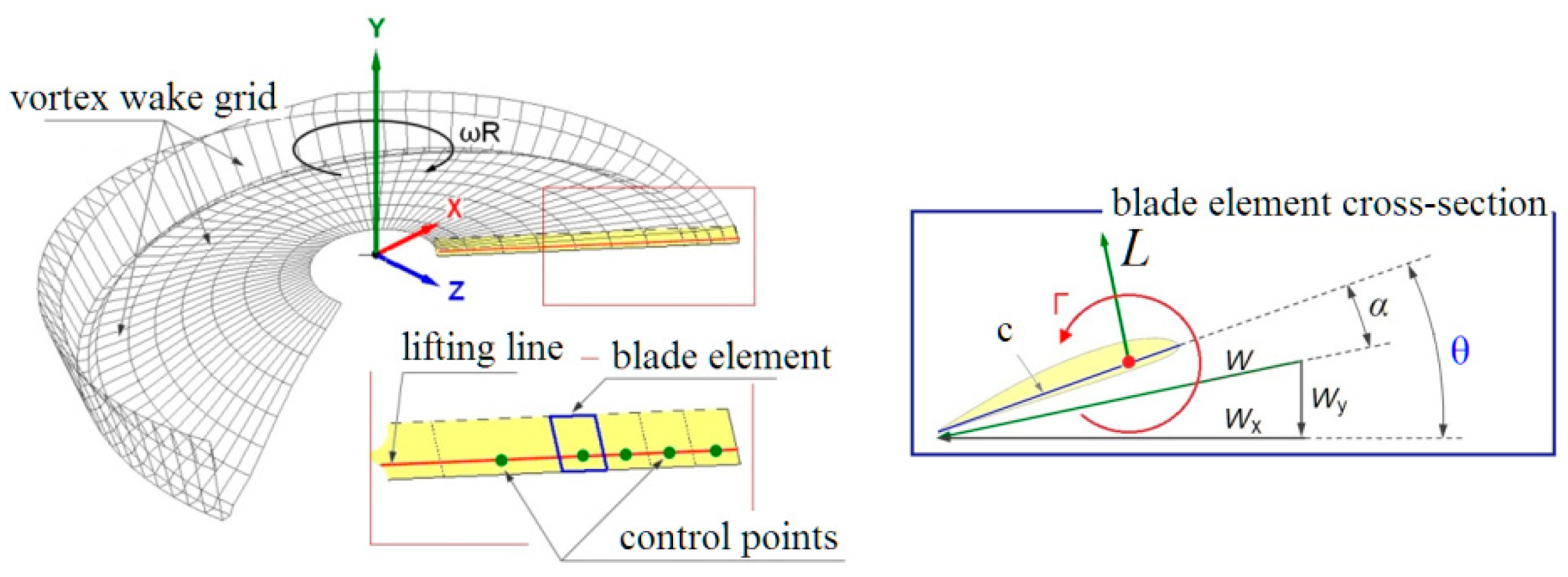

The free wake model of the rotor developed at the Helicopter Design Department of Moscow Aviation Institute is based on the lifting line theory and the blade element theory. Each blade element is modeled by an attached vortex segment located on a quarter of the blade element chord c (see Figure 1) with the control point in the center of the segment. For each time step Δt a quadrangular contour consisting of vortex segments with a constant circulation Γ (equal to the attached vortex circulation) descends from the blade element. The circulation of the attached vortex changes along the blade radius and depends on the blade azimuthal position. Determining of the attached vortex circulation is implemented through an iterative method. The coefficients of the lift force C_L and the drag force C_D of the blade element are determined at the found angle of attack α and the total flow velocity W based on airfoil steady test data in WT. The system of vortex contours creates a free vortex wake in the form of a grid of longitudinal and transverse vortex segments (see Figure 1). The vortex wake grid is deformed at each calculated step under the influence of external and induced velocity fields.

A key part of the model is a calculation of induced velocities from the vortex segment which is an element of the free vortex wake grid. The authors have used an approach that allows for determining the vorticity field from the vortex segment and the induced velocity from this vorticity field on the basis of an exact solution of the vortex source diffusion.

The model, with its basic equations, is described in detail in works [29,30].

An object of the research is the coaxial main rotor of the Kamov Ka-32 helicopter, its characteristics are given in articles [29,31,32] and presented in

Table 1. Characteristics of the coaxial rotor under study [29,31,32].

Name	Value	Measure Unit
Rotor radius, R	7.95	m
Blade tip speed, ωR	226	m/s
UR/LR plane distance	1.495	m
Number of blades, Nb	2 × 3	–
Rotor solidity, σ	0.115	–
Blade chord, c	0.48	m
Blade twist, θtw	−5.8	degree
Blade airfoil	NACA 230-12	–

.

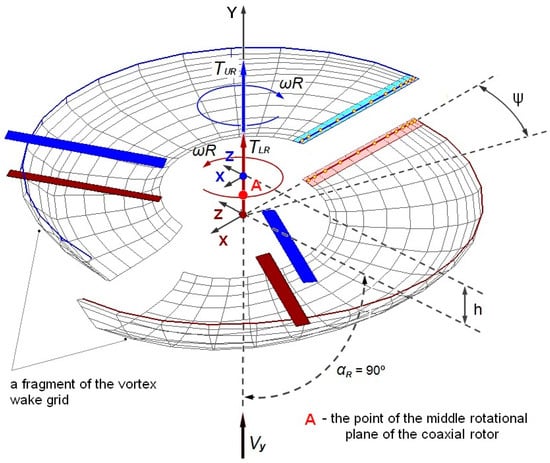

The scheme of the computational model of the coaxial main rotor used in the study is shown in Figure 2. The upper and lower rotors rotate in different directions and consist of three blades each. The direction of rotation of the upper rotor is clockwise (when viewed from above) and the lower rotor is counterclockwise. The model takes into account the blade flapping motions relative to the horizontal hinges.

For the convenience of presenting the results, a special color system has been used in the presented graphs, figures and diagrams. The data on the upper rotor (UR) are blue. The data on the lower rotor (LR) are brown. The total characteristics of the upper and lower rotors (Σ = UR + LR) are green.

It is important to note that the pictures of the main rotor wake visualization given below in the article do not show all the elements of the vortex wake grid. For convenience, only the blade tip vortices are shown.

The calculated time step has been 12 degrees in azimuth. Calculations of all main rotor operational modes have been performed for the number of revolutions equal to n = 160. The time costs for such settings for the calculation of one mode have been about three days. A computer equipped with a central processor with eight computing cores (16 threads) has been used. To speed up the calculations, a network of several such computers has been used in parallel.

To analyze the VRS area in the “V_x–V_y” coordinates, it is necessary to calculate the aerodynamic characteristics of the rotor for a number of operating modes. These modes form a grid in the coordinates of the vertical descent speed V_y and the forward flight speed V_x. Such a grid is shown in Figure 3. The grid includes calculation points for the angles of attack of the rotor α_R = 90, 70, 50 and 30°. Data for α_R = 90° had been previously obtained in work [29]. Calculations for the angles of attack of the rotor α_R = 70, 50 and 30° have been performed in the presented study. In total, more than 70 operating modes have been calculated in this way.

In the presented work, the aerodynamic characteristics of the coaxial main rotor have been studied under the condition of fixed time-averaged total thrust. The thrust coefficient has been corresponded to the hovering mode (C_TΣ = 0.015). This approach requires a lot of time and computational resources compared to the fixed blade pitch angles approach. Meanwhile, it allows obtaining and analyzing a large number of VRS modes criteria including the important criterion of the increase in the required rotor’s power at fixed thrust.

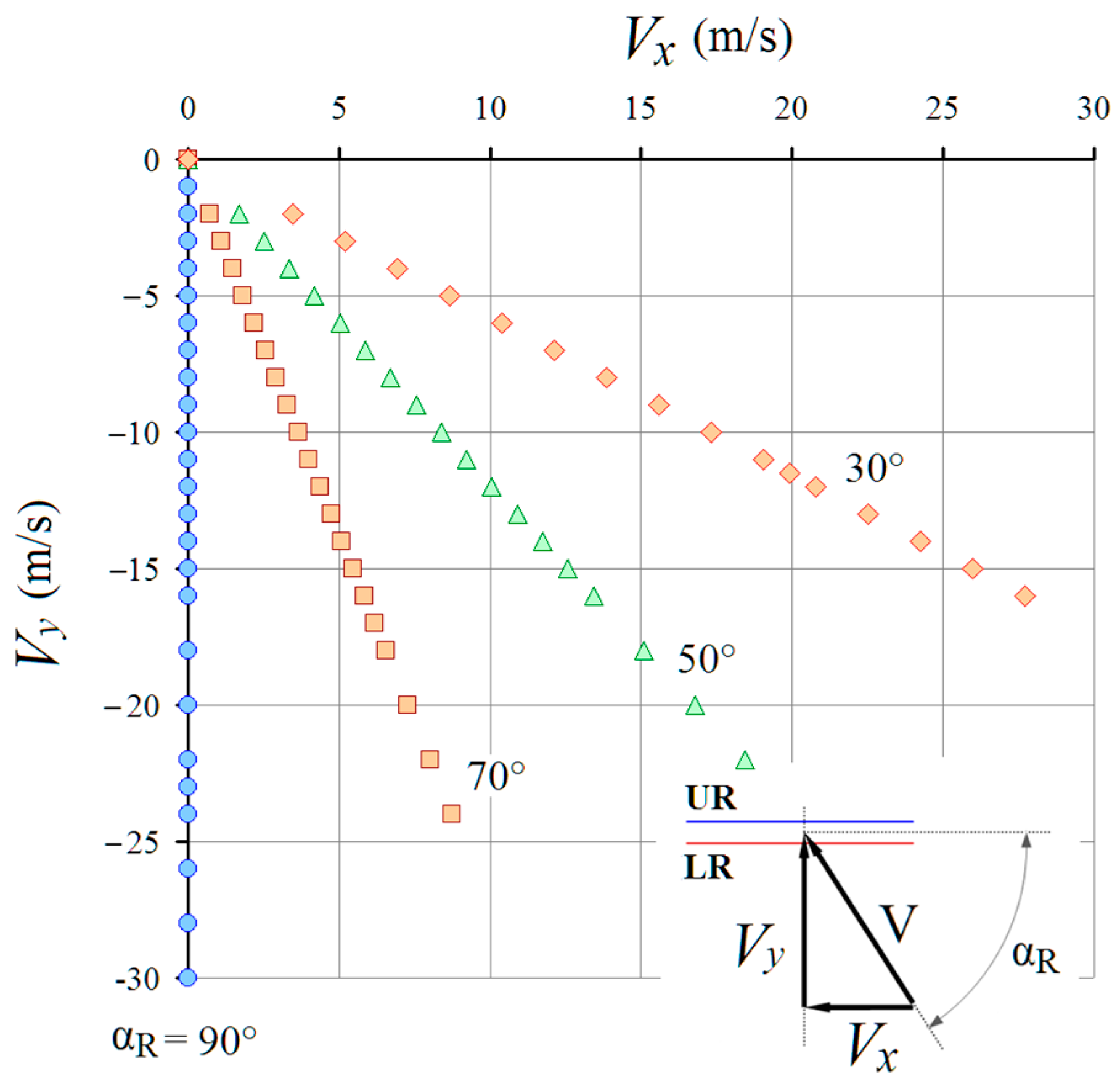

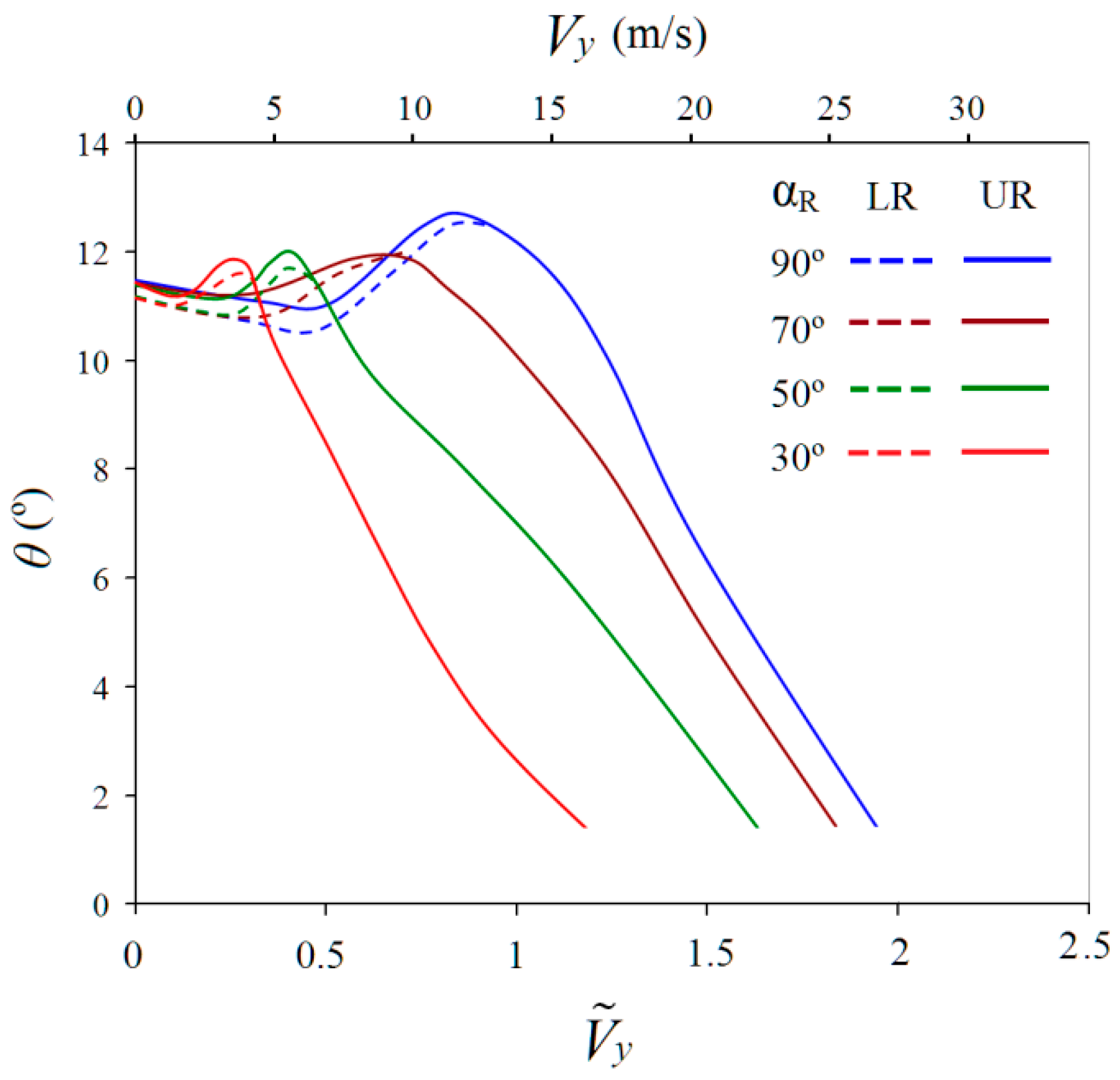

To keep constant thrust at all operating modes (see Figure 3), the relevant blade pitch angles of the UR and LR have been precalculated using the same free wake model with the same setup parameters. The obtained required blade pitch angles are shown in Figure 4. The blade pitch angles of the lower and upper rotors have been selected differently to provide the balancing of the coaxial rotor by the torque: C_QUR = C_QLR. In [29], this approach has been used for vertical descent modeling (α_R = 90°). Taking into account the blade pitch angles’ dependencies, presented in Figure 4, it became possible to ensure the balancing of the rotors in most operating modes, with the exception of high descent speed values close to the “autorotation” mode.

3. Results and Discussion

3.1. Wake and Flow Structures Analysis of Coaxial Rotor in Step Descent

One of the most specific features of the VRS modes is the structure of the flow around the rotor. First of all, this is the formation of an “air body” around the rotor with a powerful circulating flow inside. The first high quality results of smoke visualization of the rotor flow structure in the VRS modes were obtained in 1949 and presented in [9]. However, experimental visualization of the flow around the rotor in the VRS modes has been, for a long time an extremely difficult technical challenge. In recent years, great progress has been achieved in this area with the use of experimental methods of PIV visualization of flows [19,20]. Modern methods of numerical modeling also have wide opportunities to study the rotor flow structure, vortex wake shapes and velocity fields [22,23,24,25,26,27,28]. Such methods include the free wake model used in the presented study.

Figure 5, Figure 6 and Figure 7 show the results of visualization of the flow around the rotor obtained by the free wake model for the angles of attack of the rotor α_R = 70, 50 and 30°. Each figure shows the three most characteristic operating modes of the rotor corresponding to different vertical descent speeds V_y. These operating modes have been identified by a comprehensive analysis of the rotor’s aerodynamic characteristics on the whole studied modes set. The first is the most intensive “peak” VRS mode. The second is one of the TWS modes, which follows the VRS modes with an increase in descent speed. The third is the “autorotation” mode, when the rotor rotates due to an external incoming flow without using the power of the power plant. In this case, the total torque of the coaxial rotor is zero C_QURΣ = 0.

Visualization of the vortex wake shapes has been performed using blade tip vortices trajectories. Other elements of the vortex wake have been hidden. Thus, the picture becomes clearer for visual analysis. The structure of the flow around the rotor has been shown using streamlines. Streamlines have been built for a fixed time moment in the projection on the oXY plane (see Figure 2). In addition to the streamlines, velocity fields have also been presented.

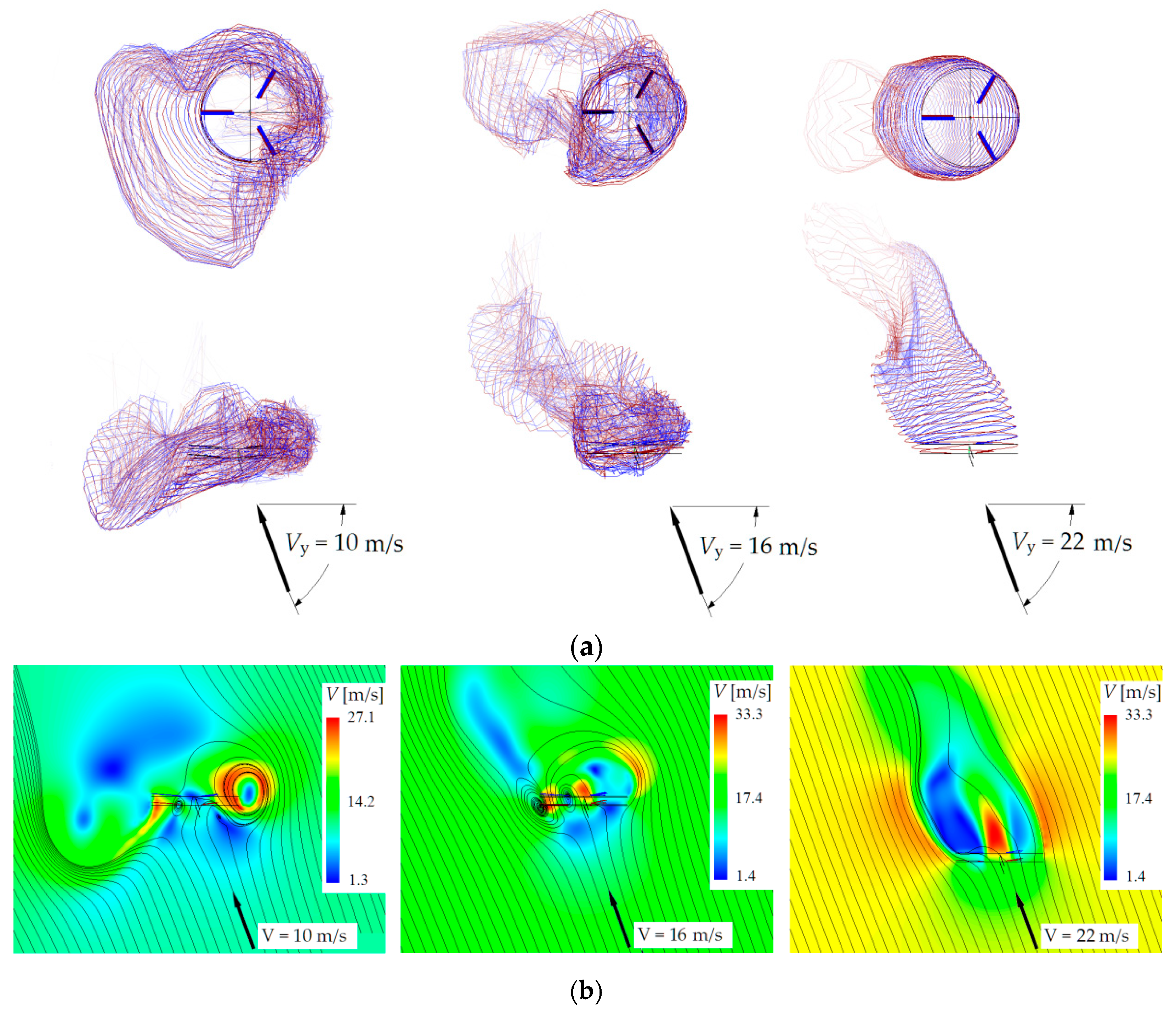

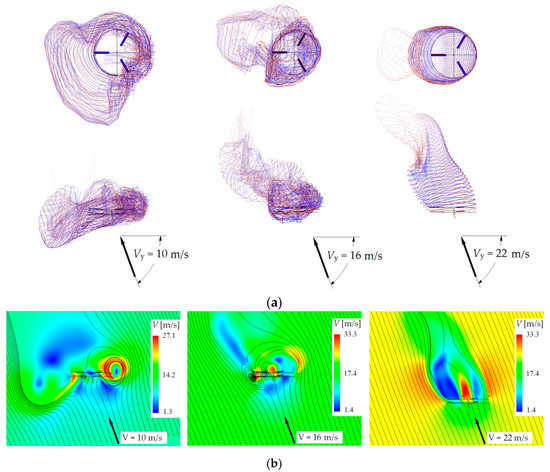

Figure 5 shows the vortex wake shapes and rotor flow structures for α_R = 70°. The following characteristic operating modes are presented: V_y = 10 m/s (VRS mode), V_y = 16 m/s (TWS mode) and V_y = 22 m/s (“autorotation” mode). The characteristic vertical descent rates V_y have less values than for vertical descent (at α_R = 90° characteristic vertical descent rates were V_y = 12, 18 and 23 m/s, respectively [29]). As with α_R = 90°, an “air body” with a circulating flow inside is formed around the rotor in the VRS and TWS modes. However, the flow structure is complicated due to its asymmetry relative to the oY axis. In this case, the flow structure becomes asymmetric not only when viewed from the side, but also when viewed from the top. This asymmetry is especially clearly visible in the vortex wake shapes visualization for V_y = 10 m/s and V_y = 16 m/s (Figure 5a,b). In addition, the front side of the wake maintains a clear structure and the back side is blurred. This is clearly seen in the “vortex ring” mode (Figure 5a, V_y = 10 m/s). Thus, the wake structure in these modes is a “half-vortex-ring”. Another feature is related to the rotor flow structure. Figure 5a,b shows that vortex wake and “air body” are inclined relative to the rotor’s rotational plane and are perpendicular to the incoming flow. This feature is also observed at the other steep descent modes discussed below.

Figure 5. Free vortex wake shapes (a) and flow (b) around the rotor visualization at α_R = 70°.

Figure 5. Free vortex wake shapes (a) and flow (b) around the rotor visualization at α_R = 70°.

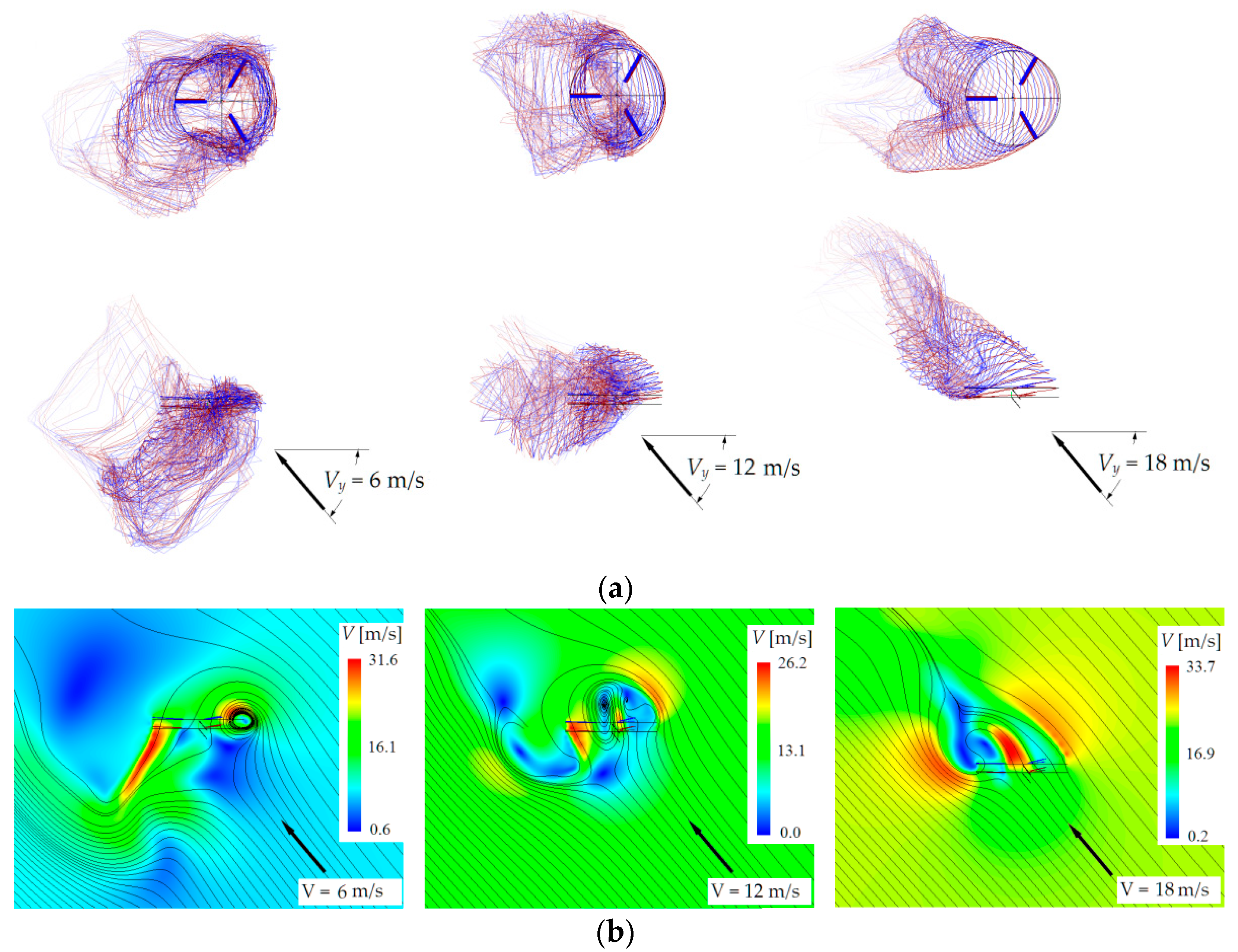

Figure 6 shows the vortex wake shapes and the flow structures for α_R = 50°. The following vertical descent speeds are presented: V_y = 6 m/s (VRS mode), V_y = 12 m/s (TWS mode) and V_y = 18 m/s (“autorotation” mode). The presented “peak” mode of the VRS observed here at the V_y value is less than half of what it is at α_R = 90° [29]. It can be seen that, at V_y = 6 m/s (Figure 6a), the structure of the vortex wake and the flow structure significantly differ from those observed at the α_R = 90° [29] and α_R = 70°. There is no clear “air body” around the rotor (Figure 6b, V_y = 6 m/s). In the front of the rotor, there is a concentration of the vortex wake in the “half-ring”, located directly in the rotor’s rotational plane (Figure 6a, V_y = 6 m/s, top view). This vortex structure causes a powerful circulating flow in the front side of the rotor (Figure 6b, V_y = 6 m/s). On the back side of the rotor, the vortex wake is blurred. There is no concentrated circulating flow, and the flow from the rotor is directed downward, almost as in the hovering mode [29]. Thus, the front and back sides of the rotor actually work in different flow conditions. At V_y = 12 m/s, even more complex flow structures are observed in the TWS mode (Figure 6a,b, V_y = 12 m/s). A few circulating zones are located near the plane of rotation of the rotors at once. In the “autorotation” mode (V_y = 18 m/s), the shape of the wake and the structure of the flow are significantly simplified. The vortex wake, going up, has a fairly regular helix shape. A flow braking zone appears behind the rotor. The flow around the rotor has a similar structure to the flow around a “flat plate” with a hole in the middle.

Figure 6. Free vortex wake shapes (a) and flow around the rotor (b), visualization for α_R = 50°.

Figure 6. Free vortex wake shapes (a) and flow around the rotor (b), visualization for α_R = 50°.

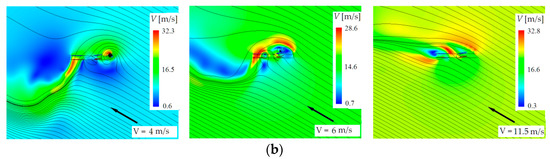

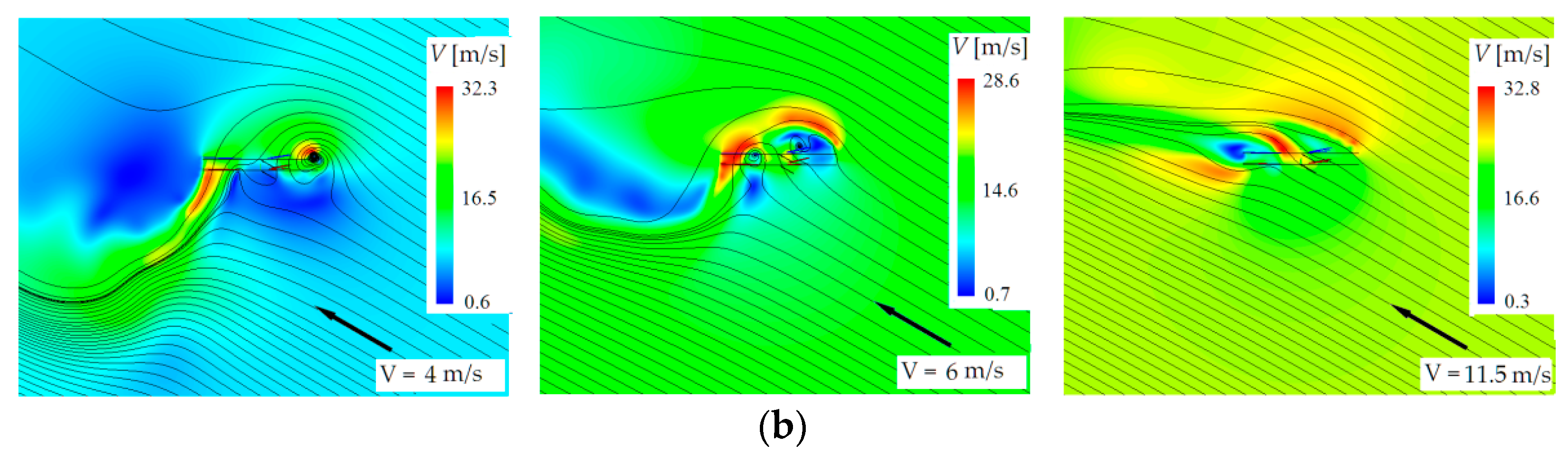

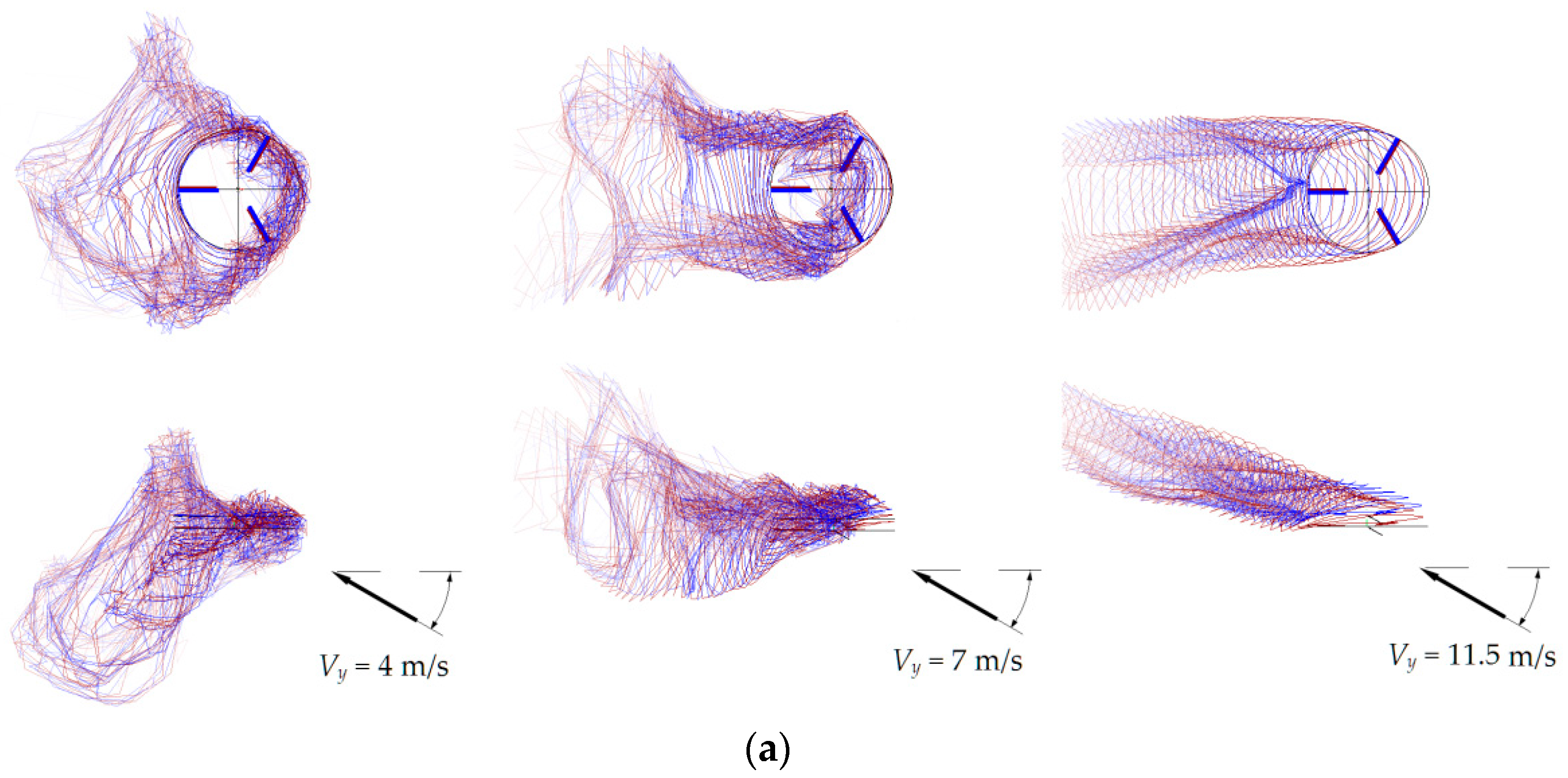

Figure 7 shows the vortex wake shapes and the flow structures for α_R = 30°. Here, are presented the following velocities of descent: V_y = 4 m/s (VRS mode), V_y = 7 m/s (TWS mode) and V_y = 11.5 m/s (“autorotation” mode). It can be noted that the features of the flow and vortex wake structures in these modes mostly repeat the features received for α_R = 50°. At the same time, these characteristic modes have been observed at lower vertical descent velocities. For example, the “peak” of the VRS mode has been registered here at the value of V_y = 4 m/s, which is three times less than at α_R = 90° [29] and almost two times less than at α_R = 70°.

Figure 7. Free vortex wake shapes (a) and flow (b) around the rotor, visualization for α_R = 30°.

Figure 7. Free vortex wake shapes (a) and flow (b) around the rotor, visualization for α_R = 30°.

The vortex wake shapes and the flow structures at the VRS and TWS modes shown in Figure 5, Figure 6 and Figure 7 have been constructed for a fixed moment in time. However, the flow around the rotor and its vortex wake in these modes are significantly unsteady. The vortex wake structure changes over time in its shape, size and position relative to the rotor’s rotational plane. The unsteadiness of the flow around the rotor causes significant pulsations of aerodynamic loads (including total thrust and torque). These pulsations are observed both in experiments [11,12,13,14] and calculations [22,23,24,25,26,27] and are one of the main features of the VRS modes. The total aerodynamic characteristics of the rotor and their unsteady pulsations will be presented and discussed below.

3.2. Coaxial Rotor’s Thrust and Torque Coefficients’ Time-Dependencies in Steep Descent

The analysis of the total aerodynamic characteristics of the rotor, such as thrust and torque coefficients, is one of the main sources for studying the VRS modes and determining their boundaries in the “V_x–V_y” coordinates.

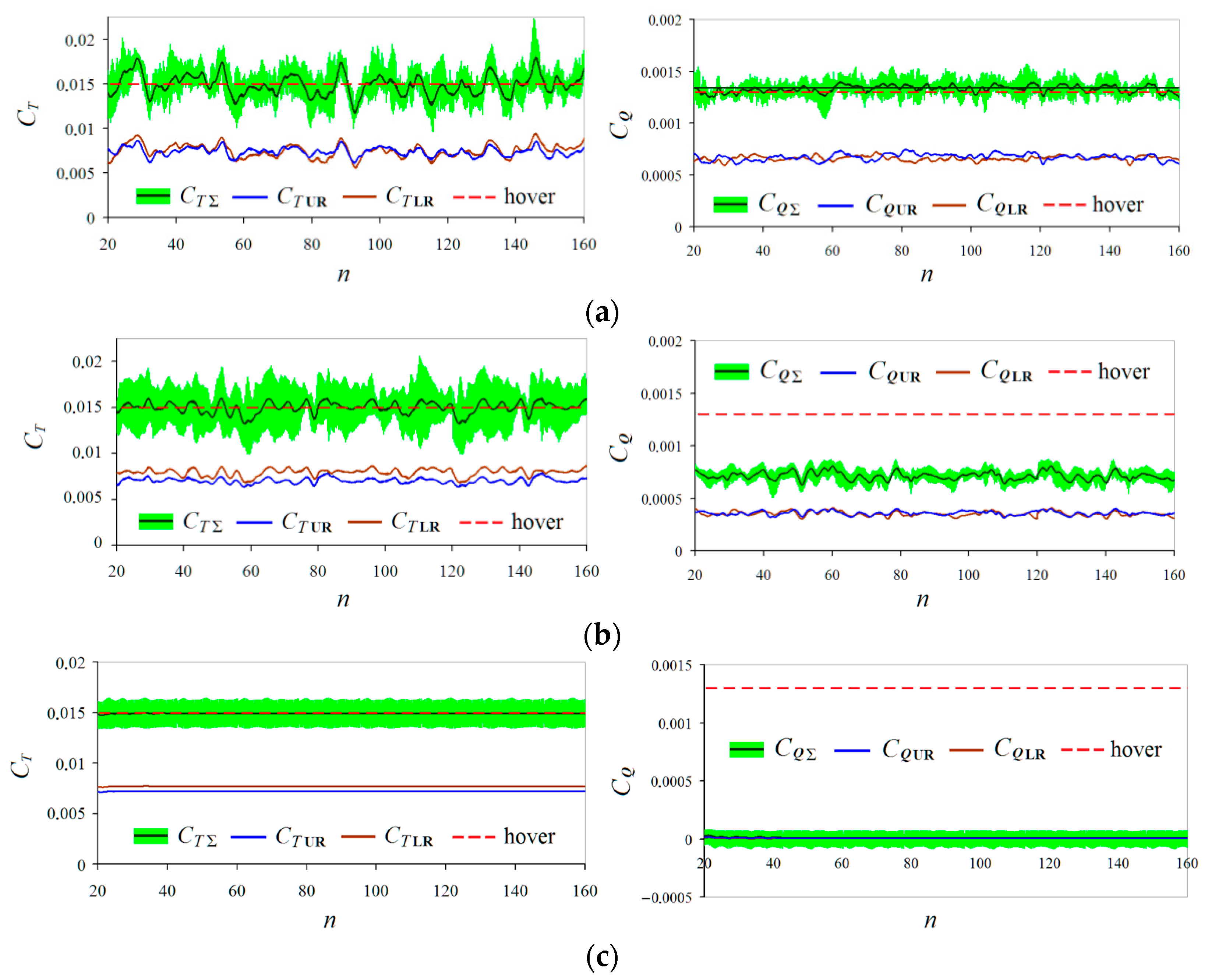

Presented below, in Figure 8, Figure 9, Figure 10 and Figure 11, are the calculated dependencies of the thrust and torque coefficients on the number of the rotor’s revolutions n: C_T = f(n) and C_Q = f(n) for α_R = 70, 50 and 30°. These dependencies are demonstrated for the modes discussed in Section 3.1. For comparison, diagrams in Figure 8, Figure 9, Figure 10 and Figure 11 also include the total thrust and torque coefficients in the hovering mode (red dotted lines). Since the coaxial rotor is considered, thrust and torque dependencies are given both for the UR and LR separately and their sum in total. For the UR and LR, the averaged dependencies of C_T and C_Q are given. For the total curves C_T(UR+LR) and C_Q(UR+LR), in addition, instantaneous pulsations are presented. The instantaneous thrust and torque pulsations at hover and high descent rate V_y (“autorotation” and WBS modes) have a frequency of ≈30 Hz. They are associated with interference between the UR and LR blades [29]. The instantaneous thrust and torque pulsations in the VRS and TWS modes have two–three times greater amplitude than in hovering. They have an irregular character due to the unsteady flow around the rotor and are mainly associated with the rotation of blades inside a complex asymmetric vortex wake structure [29]. Instantaneous thrust and torque pulsations in the VRS modes have a frequency of about ≈15 Hz and, therefore, form continuous regions on the given graphs. Due to the high frequency, instantaneous pulsations form solid areas in the diagrams, colored in light green.

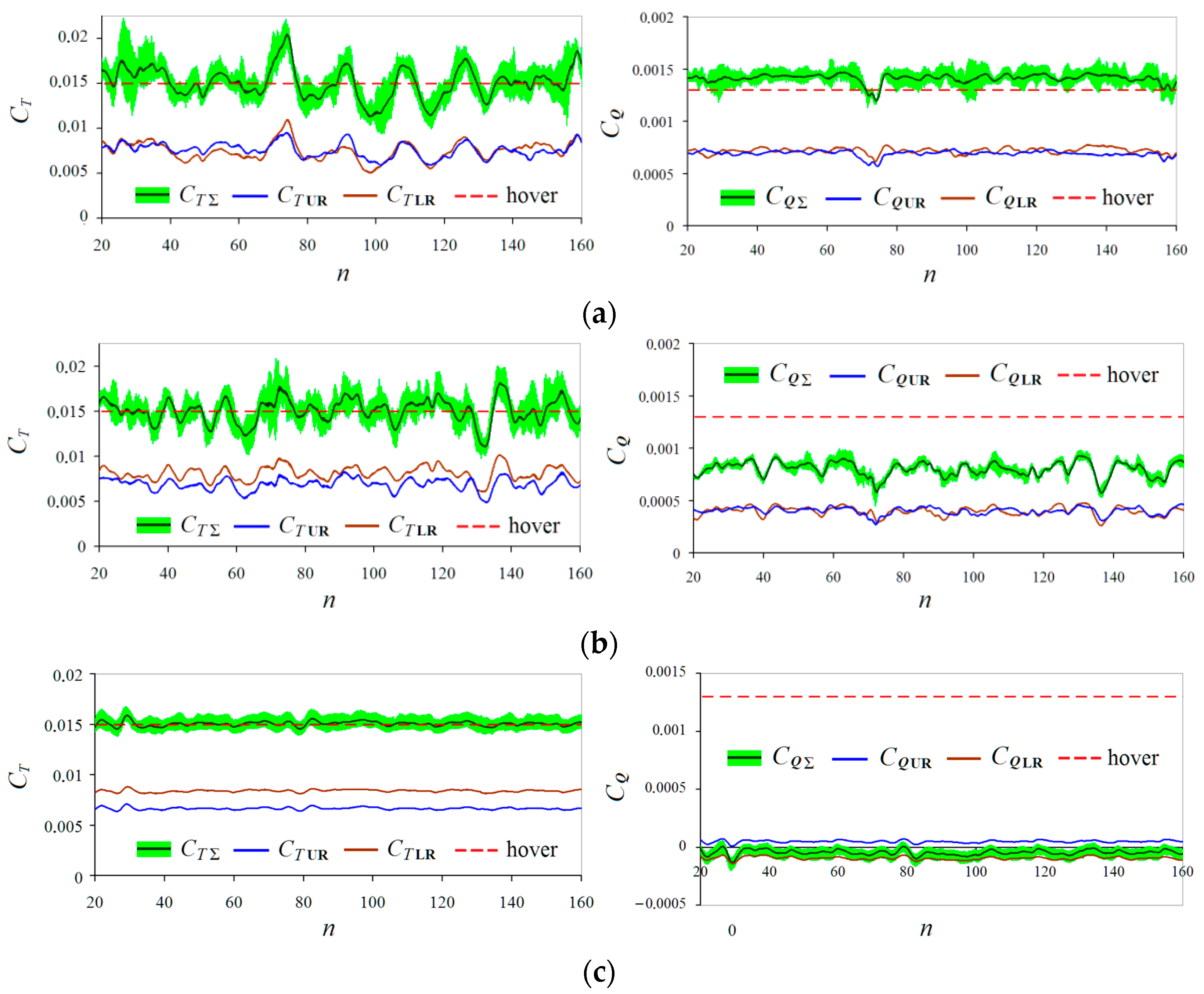

Figure 8 shows the dependencies of C_T = f(n) and C_Q = f(n) obtained at α_R = 70° for velocities V_y = 10 m/s (VRS mode), V_y = 16 m/s TWS mode) and V_y = 22 m/s (“autorotation” mode). Unsteady pulsations of averaged thrust and torque coefficients with a period of several rotor’s revolutions as well as high-frequency pulsations of their instantaneous values are observed. These pulsations are the most significant at the VRS (Figure 8a) and TWS (Figure 8b) modes. It can be noted that, in the VRS mode at α_R = 70°, the amplitude of thrust pulsations increases and the pulsation period decreases compared to α_R = 90° [29]. In the “autorotation” mode (Figure 8c), the thrust and torque pulsations are less significant than in the VRS and TWS modes, and the total torque of the coaxial rotor is zero. It can also be noted that, in the VRS (Figure 8a) and TWS (Figure 8b) modes, the torque of the upper and lower rotors are balanced. Moreover, it follows from the diagrams C_T = f(n) in Figure 8 that the time-averaged (averaged over number of n) thrust coefficient values for each of the modes are constant and amount to C_TΣ ≈ 0.015. As it has been mentioned above, this is achieved by selecting the appropriate blade pitch angles (see Figure 4). Figure 9 and Figure 10 demonstrate, similar to the diagrams in Figure 8, dependencies for the angles of attack α_R = 50 and 30°. At α_R = 50° (Figure 9a) and α_R = 30° (Figure 10a), the amplitude of the pulsations continues decreasing and the pulsations become more complex and aperiodic. In the TWS modes, the amplitude of thrust pulsations decreases with a decrease in the angle of attack of the rotor α_R (Figure 9b and Figure 10b). The torque pulsations in the TWS modes for all angles of attack of the rotor (Figure 8b, Figure 9b and Figure 10b) have greater amplitudes than in the VRS modes. At the “autorotation” modes, small pulsations of the rotor thrust and torque are observed at all considered angles of attack of the rotor, except at α_R = 30° (Figure 10c). The increase in the rotor torque observed in the VRS modes (see Figure 8a, Figure 9a and Figure 10a) is relative to the hovering mode at a fixed thrust and has the following values: 111% at α_R = 70°; 108%, at α_R = 50°; 103% for α_R = 30°.

Thus, from the analysis of the dependencies C_T = f(n) and C_Q = f(n) for α_R = 30–70° in Figure 8, Figure 9 and Figure 10, it follows that, with a decrease in the angle of attack of the rotor α_R, the characteristic indication (criteria) for the VRS modes weakens significantly: the amplitudes of the thrust and torque pulsations decrease; the rise in the rotor torque (required power) in comparison with the hovering mode becomes less.

The analysis of the rotor’s aerodynamic characteristics at all ranges of vertical descent velocities V_y and at all considered angles of attack of the rotor (including the data of work [29]) makes it possible to determine the boundaries of the VRS modes in the coordinates “V_x–V_y”.

3.3. Total Aerodynamic Characteristics of the Rotor Analysis

It is known that the descent of a helicopter in the VRS area at a fixed rotor blade pitch angle can lead to a drop in the rotor thrust. This criterion is often used when analyzing the boundaries of the VRS area in experimental [7,12,15,20] and numerical [26,28] studies. Maintaining a constant thrust of the rotor by increasing the blade pitch angles leads to an increase in the rotor torque (power consumption). In this paper, studies of the steep descent modes of the coaxial main rotor have been performed under the condition of a fixed time-averaged total thrust value C_TΣ ≈ 0.015 = constant. This made it possible to estimate the increase in the rotor torque compared to the hovering mode, which is very important and significant for practical results.

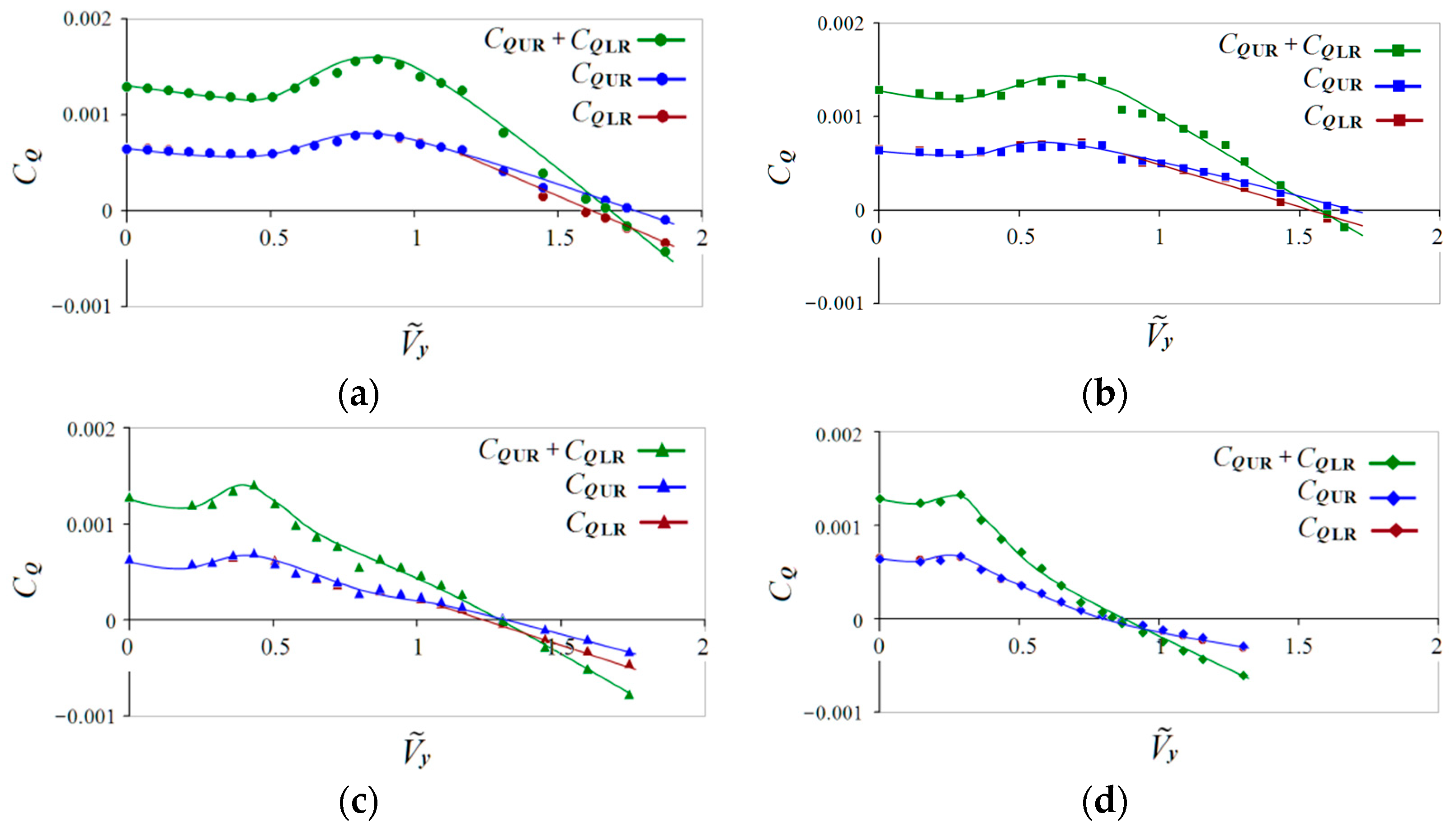

In Figure 11, for the angles of attack of the rotor C_QΣ/C_QΣh = 90, 70, 50 and 30°, the separate dependencies of the torque coefficients of upper C_QUR and lower C_QLR rotors and total torque C_QΣ on the non-dimensional vertical descent speed ${\tilde{V}}_y$ are presented. Here, ${\tilde{V}}_y$ is the vertical descent speed V_y, related to the induced velocity in the hovering mode: ${\tilde{V}}_y=V_y/v$_y. The data used for α_R = 90° (Figure 11a) had been previously obtained in [29]. The data for α_R = 70, 50 and 30° (Figure 11b–d) have been obtained in the presented study. In the VRS modes, a characteristic increase in the rotor’s torque is relative to the hovering mode. It can also be seen from the diagrams in Figure 11 that, with a decrease in the angle of attack of the rotor, the non-dimensional vertical rate of descent ${\tilde{V}}_y$ associated with the “autorotation” mode (C_QΣ = 0) at first occurs slightly, and then sharply decreases. For α_R = 90° and α_R = 70°, these velocities are close and equal to ${\tilde{V}}_y$ ≈ 1.66 and ${\tilde{V}}_y$ ≈ 1.6, respectively. At α_R = 50°, ${\tilde{V}}_y$ ≈ 1.23 (22% less), and at α_R = 30°, the speed of “autorotation” ${\tilde{V}}_y$ ≈ 0.83, which is almost two times less than at α_R = 70°. In addition, from Figure 11a–d, it follows that the use of obtained blade pitch angles laws (see Figure 3) made it possible to balance the coaxial rotor in torque (C_QUR = C_QLR) almost over the entire range of the V_y speeds except the “autorotation” modes. The analysis of the VRS boundaries according to the criterion of rotor torque (power) growth (C_QΣ/C_QΣh > 1) will be given below.

Figure 11. Dependencies of the UR, LR and total (UR + LR) torque coefficients C_Q vs. non-dimensional vertical descent speed ${\tilde{V}}_y$ at α_R = 30–90°. (a) α_R = 90°; (b) α_R = 70°; (c) α_R = 50°; (d) α_R = 30°.

Figure 11. Dependencies of the UR, LR and total (UR + LR) torque coefficients C_Q vs. non-dimensional vertical descent speed ${\tilde{V}}_y$ at α_R = 30–90°. (a) α_R = 90°; (b) α_R = 70°; (c) α_R = 50°; (d) α_R = 30°.

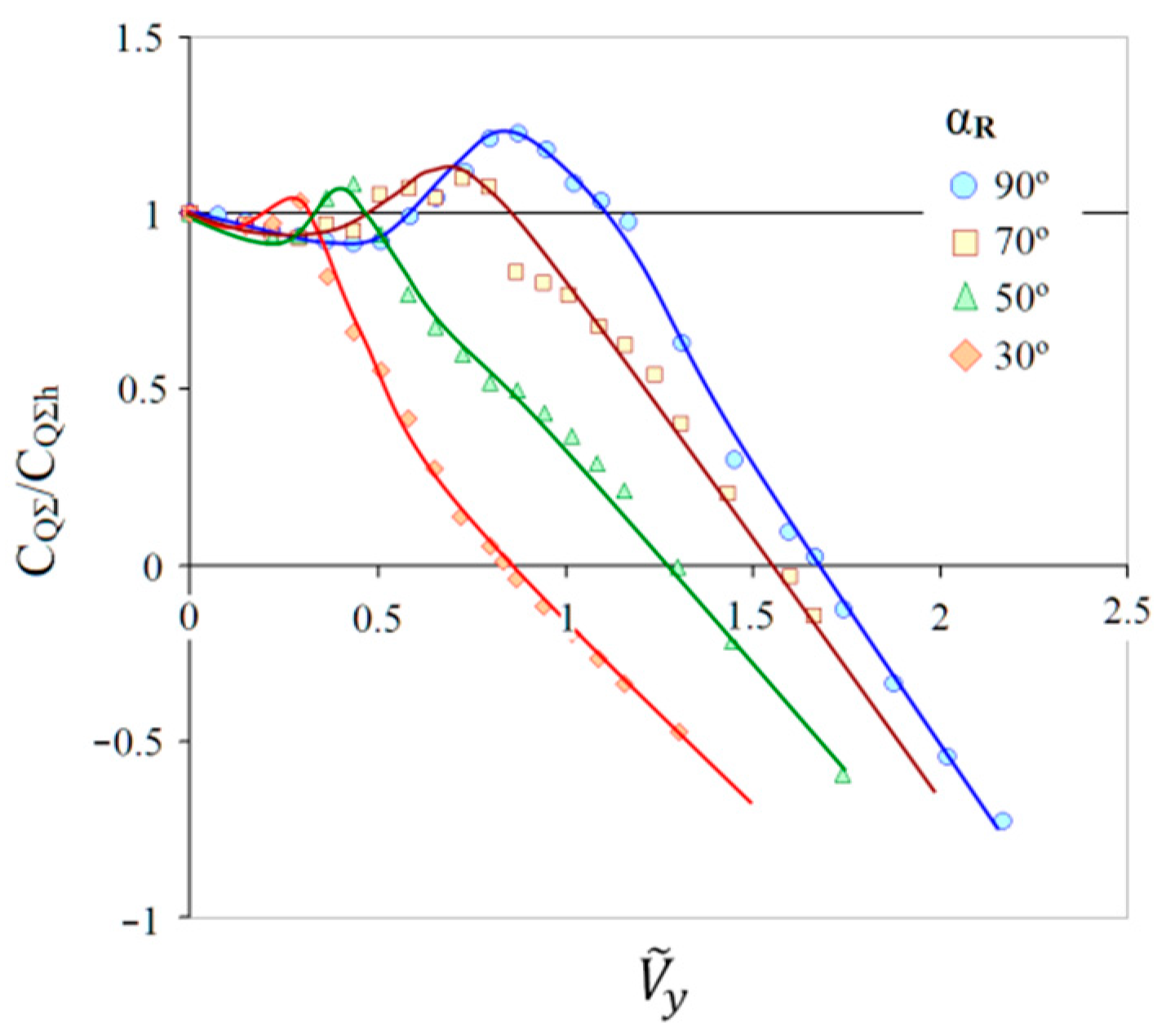

Figure 12 shows the dependencies of relative torque coefficient C_QΣ/C_QΣh on the non-dimensional vertical descent speed ${\tilde{V}}_y$, obtained on the basis of data from Figure 11. From Figure 12, it can be seen that, at first, with an increase in the speed ${\tilde{V}}_y$ (for all α_R values), a decrease in the relative torque coefficient is observed. This means that the power consumption of the rotor decreases, reaching values of ≈0.92 (at α_R = 90° and ${\tilde{V}}_y$ ≈ 0.4) from the power in hovering mode. Further, there is an increase in relative torque coefficient C_QΣ/C_QΣh > 1 in a certain range of vertical descent speed ${\tilde{V}}_y$. The region where C_QΣ/C_QΣh > 1 is the region of the VRS modes. With a further increase in vertical descent speed, the relative torque coefficient decreases again. At C_QΣ/C_QΣh = 0, the rotor enters the “autorotation” mode, and at C_QΣ/C_QΣh <0, the rotor enters to the WBS modes. It can be seen from the presented diagrams that the region of the VRS modes decreases significantly with a decrease in the angle of attack α_R, and also shifts to lower values of the vertical descent speed ${\tilde{V}}_y$. For α_R = 90°, the boundaries of the VRS modes according to the C_QΣ/C_QΣh > 1 criterion observed within ${\tilde{V}}_y$ ≈ 0.6–1.1, for α_R = 70° within ${\tilde{V}}_y$ ≈ 0.48–0.85, for α_R = 50° within ${\tilde{V}}_y$ ≈ 0.34–0.48 and for α_R = 30° within ${\tilde{V}}_y$ ≈ 0.26–0.3. The points of the curves C_QΣ/C_QΣh = f (${\tilde{V}}_y$) where the coefficients C_QΣ/C_QΣh reach maximum values correspond to the “peak” modes of the VRS. These modes have been analyzed in detail in Section 3.1 and Section 3.2 of the article. The maximum increase in the relative torque coefficient reaches 22% (C_QΣ/C_QΣh ≈ 1.22) at α_R = 90° and ${\tilde{V}}_y$ ≈ 0.87. At α_R = 70° and α_R = 50°, the increase in torque is 11% (C_QΣ/C_QΣh ≈ 1.11) and 8% (C_QΣ/C_QΣh ≈ 1.08), respectively. At α_R = 30°, the increase in torque is about 3% (C_QΣ/C_QΣh ≈ 1.03). Thus, in the descent modes with angles α_R = 70–90°, the signs of the VRS modes and the associated negative outcomes such as an increase in the rotor power consumptions are manifested most strongly.

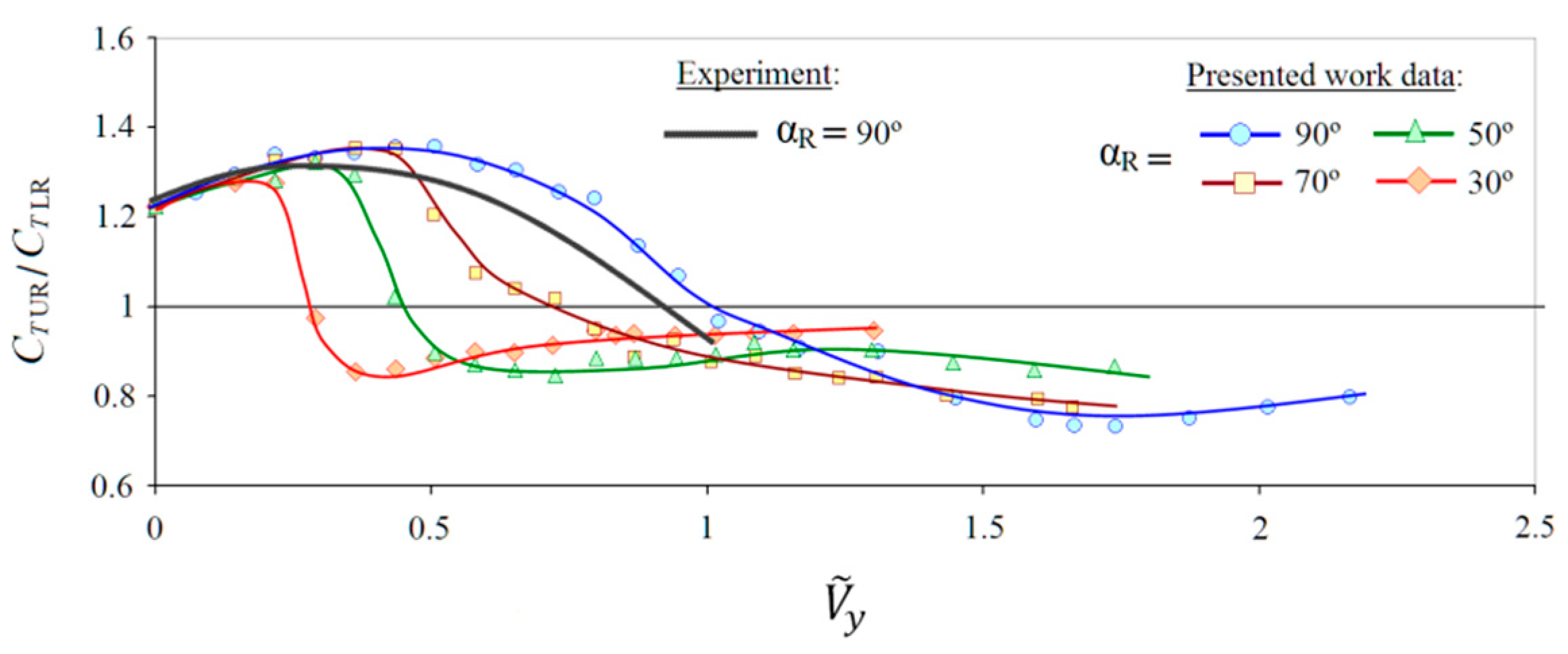

A characteristic feature of the coaxial rotor in the hovering mode is the unequal distribution of thrust between the LR and UR due to aerodynamic interference. If the UR and LR are torque-balanced, the thrust of the UR is usually 20–25% higher than the thrust of the LR [7,31,32]. In this regard, the distribution of thrust between the rotors in vertical and steep descents is of high interest. Figure 13 shows the dependencies of the ratio between UR and LR thrust C_TUR/C_TLR = f(${\tilde{V}}_y$) for α_R = 30–90°. In the hovering mode, the C_TUR/C_TLR ≈ 1.22 [29]. Further, in a certain range of vertical descent speeds ${\tilde{V}}_y$, the value of the C_TUR/C_TLR gradually increases to values of 1.3–1.4. With an increase in the speed of ${\tilde{V}}_y$, when the rotor falls into the VRS modes area, the value of the C_TUR/C_TLR sharply decreases and reaches the value of the C_TUR/C_TLR ≈ 1 in the “peak” modes of the VRS. After that, with a further increase in the speed ${\tilde{V}}_y$, the ratio of the thrust of the UR and LR changes—the thrust of the lower rotor becomes higher than the thrust of the UR. In addition, Figure 13 shows the C_TUR/C_TLR curve obtained for α_R = 90° in [7] for C_TΣ/σ = 0.16. There is a satisfactory agreement with the obtained calculation results.

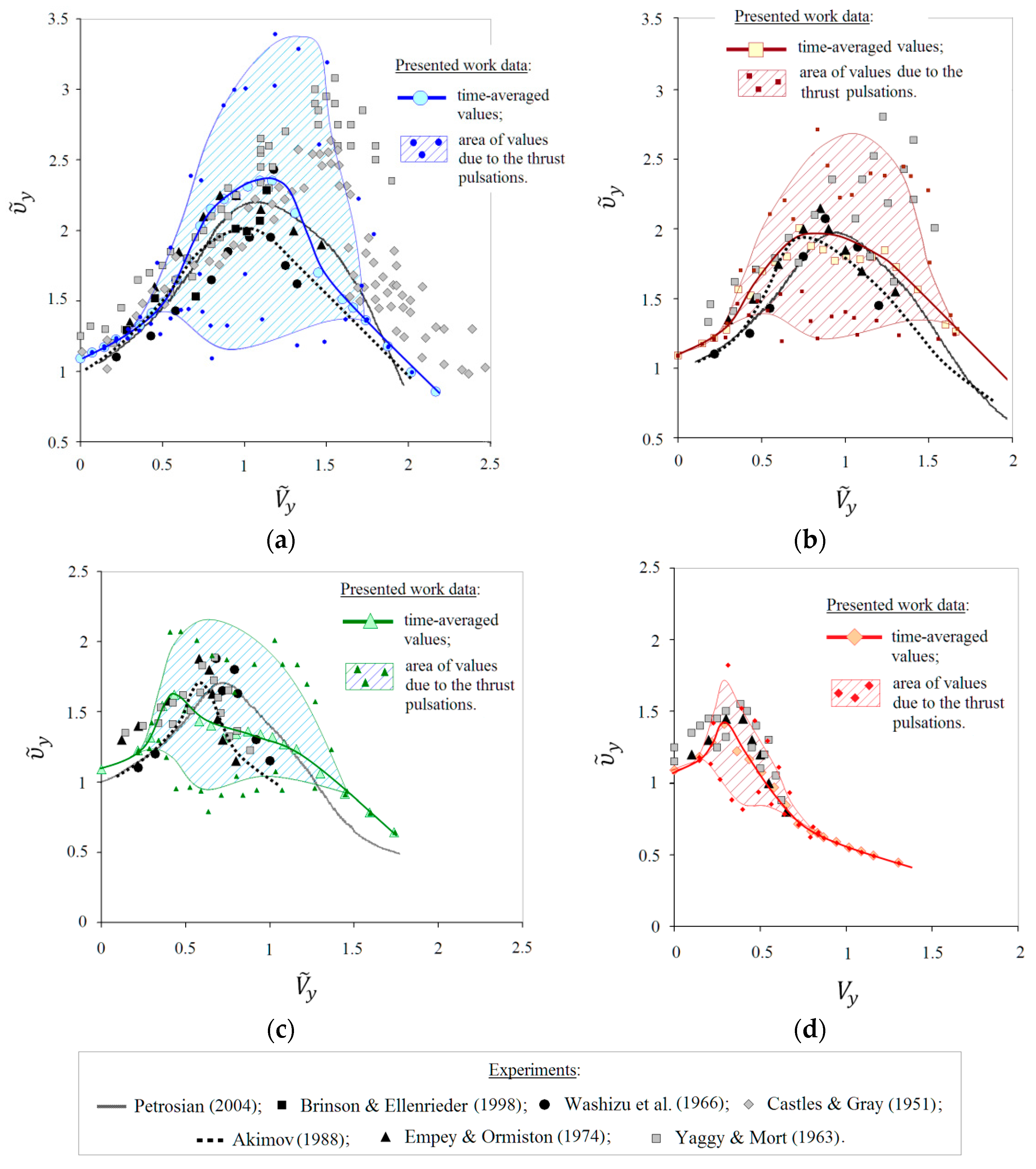

With the increase in the required power in the VRS modes, a significant increase in the induced velocity of the rotor is observed; it reaches two–three times that of the hovering mode. Usually, the results of experimental and numerical studies of the VRS modes include the dependencies of the non-dimensional induced velocity ${\tilde{\upsilon }}_y$ of the rotor on the non-dimensional vertical descent speed ${\tilde{V}}_y$. Such dependencies for the considered modes are shown in Figure 14. The dependence of ${\tilde{\upsilon }}_y$ = f(${\tilde{V}}_y$) for α_R = 90° (see Figure 14a) had been previously obtained in [29], and the dependencies for α_R = 70, 50 and 30° (see Figure 14b–d) have been obtained in the presented study. Taking into account the thrust pulsations, this diagram can be represented as an area, as shown in Figure 14. An increase in the induced velocity ${\tilde{\upsilon }}_y$ above a threshold value can also serve as one of the criteria for the VRS modes boundary. In addition to the calculated curves ${\tilde{\upsilon }}_y$ = f(${\tilde{V}}_y$), Figure 14 also shows a number of experimental dependencies obtained by various authors [6,7,10,11,12,16,17]. These are experiments performed for different conditions, different types and sizes of rotors and various experimental rigs. In [7], a model of a coaxial rotor in the WT has been studied, in [6,12], a model of a single rotor has been installed on a moving track and, in [11], rotors with a large blade twist (not typical for helicopter rotors) have been tested. For this reason, the experimental data have significant differences. Nevertheless, for all the angles of attack of the rotor, there is a good qualitative agreement between the calculation and the experimental data. Based on the analysis of the calculated data (Figure 14), we note that, with a decrease in the angle α_R, the maximum time-averaged value ${\tilde{\upsilon }}_y$ decreases and shifts to the left. Thus, at α_R = 90°, the non-dimensional induced velocity reaches the value of ${\tilde{\upsilon }}_y$ ≈ 2.3 at ${\tilde{V}}_y$ ≈ 1 (Figure 14a), at α_R = 70° of the value of ${\tilde{\upsilon }}_y$ ≈ 2 at ${\tilde{V}}_y$ ≈ 0.7 (Figure 14b), at α_R = 50° of the value of ${\tilde{\upsilon }}_y$ ≈ 1.6 at ${\tilde{V}}_y$ ≈ 0.45 (Figure 14c), and at α_R = 30° of the value of ${\tilde{\upsilon }}_y$ ≈ 1.4 at ${\tilde{V}}_y$ ≈ 0.3 (Figure 14d). The boundaries of the VRS modes for the criterion ${\tilde{\upsilon }}_y$ > 1.5 observed within the limits are: ${\tilde{V}}_y$ ≈ 0.7–1.0 at α_R = 90°, ${\tilde{V}}_y$ ≈ 0.7–1.0 at α_R = 70° and ${\tilde{V}}_y$ ≈ 0.7–1.0 at α_R = 50°. At α_R = 30°, there is no VRS mode within the selected criterion (Figure 14d).

One more criterion used to identify the VRS modes and determine their boundaries is the pulsation of aerodynamic loads on the rotor associated with unsteadiness of these modes. This is expressed in unsteady pulsations of the total aerodynamic characteristics of the rotor such as rotor thrust and torque. The relationship of thrust and torque pulsations with unsteady flow around the rotor has been considered above in Section 3.1 and Section 3.2 on the example of the most characteristic modes from the VRS area. The dependences of the thrust coefficients C_T = f(n) and the torque coefficients C_Q = f(n), taking into account the pulsations, have been presented in Figure 8, Figure 9 and Figure 10. The analysis of such dependencies allows for estimating the changes in the thrust and torque pulsations for all considered operating modes (Figure 3). The amplitude of the thrust coefficient pulsations is defined as ΔC_TΣ/2 = (C_TΣmax − C_TΣmin)/2. It is easy to express this as a percentage of the time-averaged thrust, which is equal for all calculated modes C_TΣ ≈ 0.015 = constant. The amplitude of the torque coefficient pulsations is defined as ΔC_QΣ/2 = (C_QΣmax − C_QΣmin)/2. Here, it is expressed as a percentage of the total torque of the rotor in hovering mode.

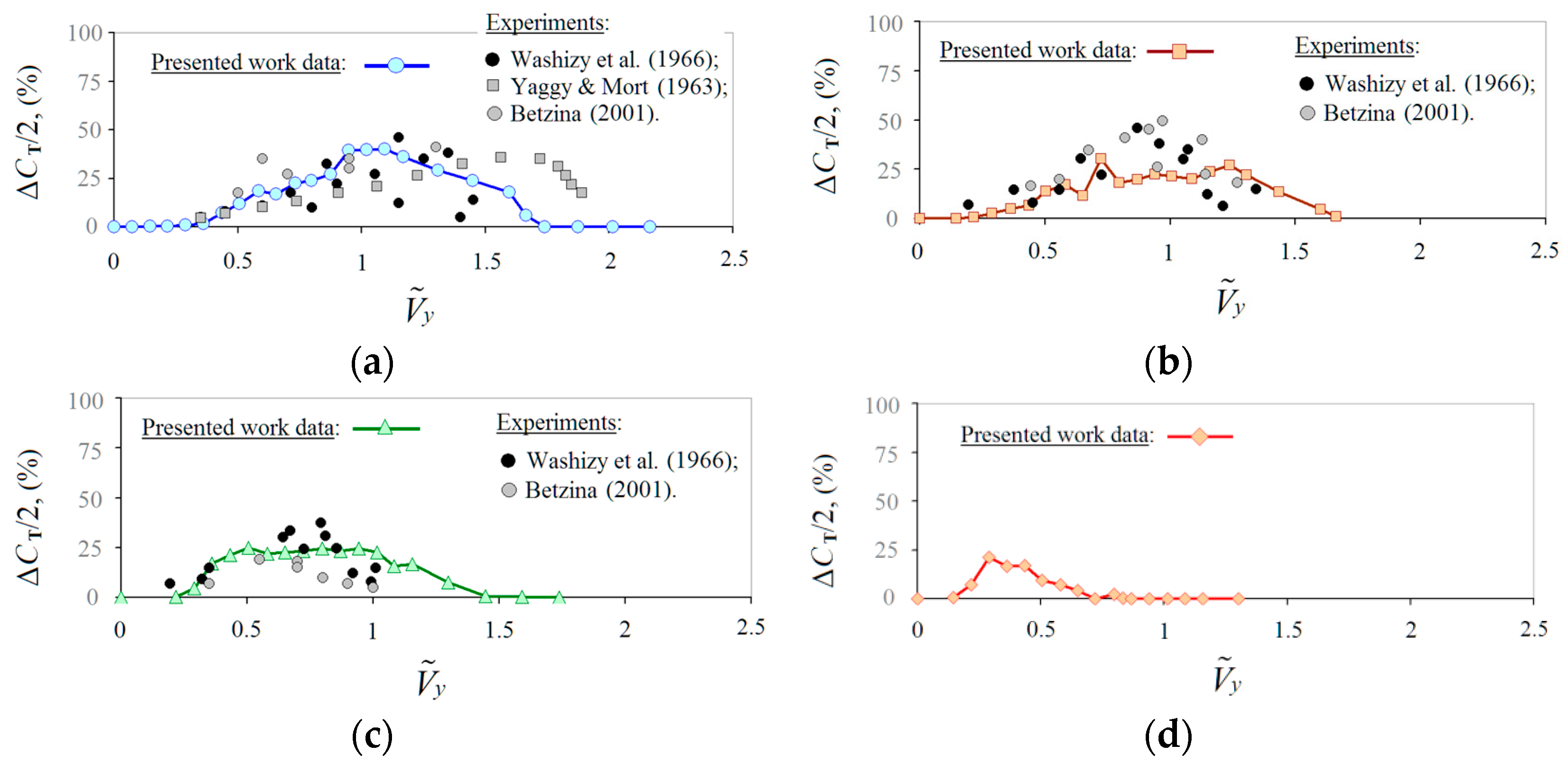

Figure 15 shows the diagram of rotor thrust coefficient pulsations amplitude ΔC_TΣ/2 = (${\tilde{V}}_y$) for α_R = 30–90°. Here, in addition to the calculation results, some experimental data [11,12,14] are also given. These data have been obtained for various experimental conditions and various model-scale single rotors. In the introduction section, it has been shown that, nowadays, there is no such published experimental or calculated data for full-scale coaxial rotors. However, there is a satisfactory qualitative agreement between the results of calculations and the experimental data presented. The greatest thrust pulsations are observed at α_R = 90° (Figure 15a), and they reach an amplitude of ΔC_TΣ/2 = 40% at ${\tilde{V}}_y$ ≈ 1–1.1. With a decrease in the angle α_R, the amplitude of thrust pulsations decreases significantly and shifts to lower values of ${\tilde{V}}_y$. At α_R = 70° (Figure 15b), the maximum amplitude of thrust pulsations reaches the value ΔC_TΣ/2 ≈ 30% at ${\tilde{V}}_y$ ≈ 0.73, at α_R = 50° (Figure 15c) ΔC_TΣ/2 ≈ 24% at ${\tilde{V}}_y$ ≈ 0.5 and ${\tilde{V}}_y$ ≈ 0.95 and at α_R = 30° (Figure 15d) ΔC_TΣ/2 ≈ 20% at ${\tilde{V}}_y$ ≈ 0.3. Further, the criterion ΔC_TΣ/2 > 20% has been taken to determine the boundaries of the VRS modes.

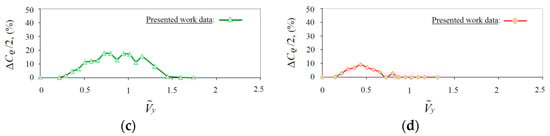

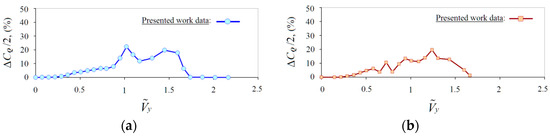

Figure 16 shows the diagram of the rotor torque coefficient pulsations amplitude ΔC_QΣ/2 = (${\tilde{V}}_y$) for α_R = 30–90°. The largest torque pulsations are observed at α_R = 90° (Figure 16a) and reach an amplitude of ΔC_QΣ/2 ≈ 22% at ${\tilde{V}}_y$ ≈ 1. At α_R = 70° (Figure 16b), the point of the maximum amplitude of the torque pulsations is shifted to the right by the value of vertical descent speed ${\tilde{V}}_y$ ≈ 1.24, and reaches a value of ΔC_QΣ/2 ≈ 19%. At α_R = 50° (Figure 16c), the pulsations reach ΔC_QΣ/2 ≈ 18% in the range of ${\tilde{V}}_y$ ≈ 0.7–1. At α_R = 30° (Figure 16d), the torque pulsations decrease by almost two times their original value and reach ΔC_QΣ/2 ≈ 10% at ${\tilde{V}}_y$ ≈ 0.44. Further, the criterion ΔC_QΣ/2 > 10% has been taken to determine the boundaries of the VRS modes.

From the comparison of the diagrams in Figure 15 and Figure 16, it can also be concluded that the regions with large pulsations of the rotor torque are significantly shifted to the right at high speeds ${\tilde{V}}_y$ relative to the regions with large thrust pulsations.

3.4. Total Aerodynamic Characteristics of the Rotor Analysis

In the final part of the study, the boundaries of the VRS modes area have been obtained on the basis of the criteria formulated and analyzed above in Section 3.3.

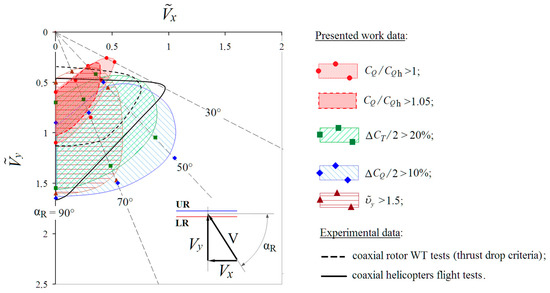

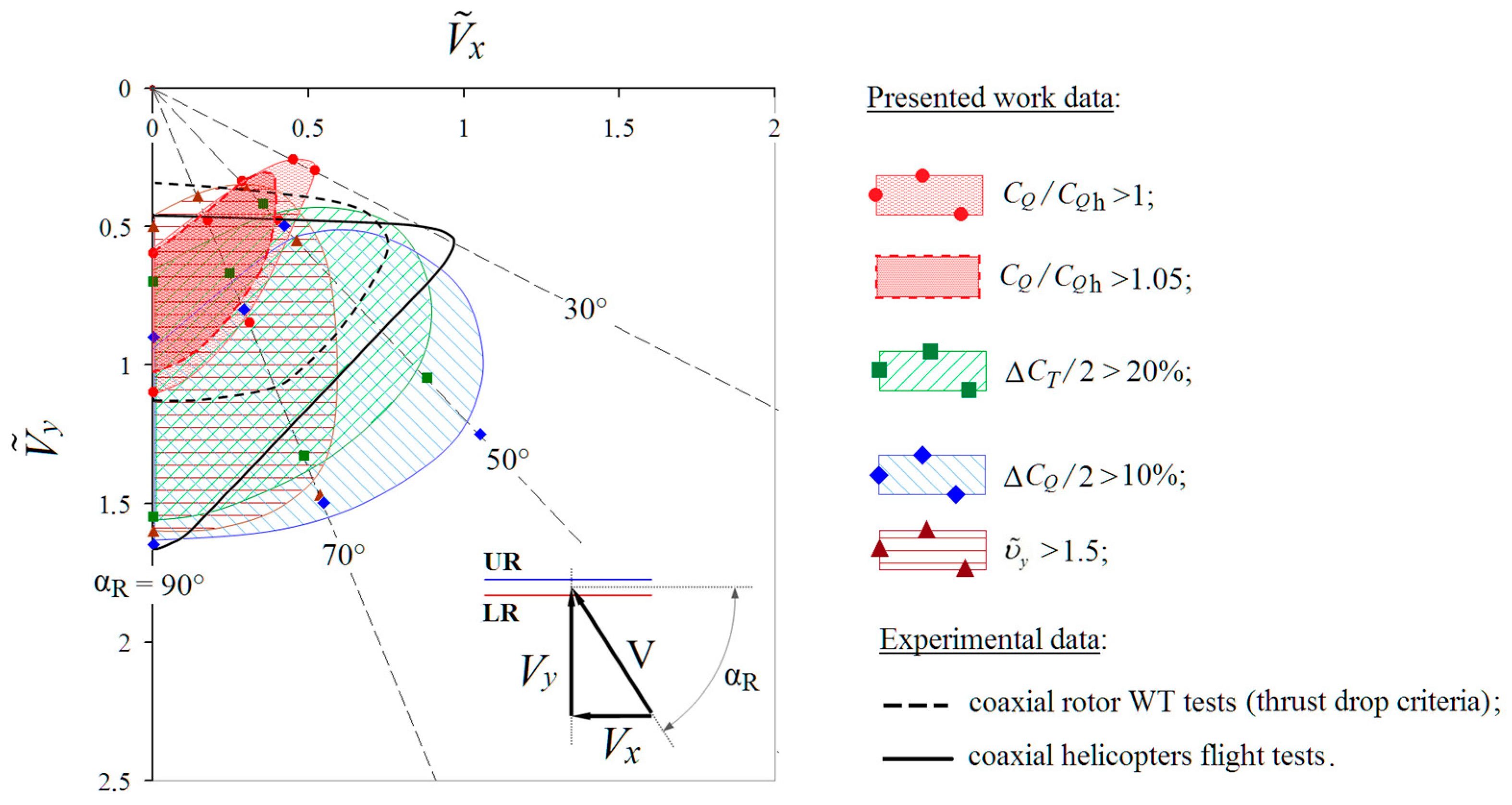

The final diagram with the areas of the VRS modes in non-dimensional flight speed coordinates “${\tilde{V}}_{\mathrm{x}}$ − ${\tilde{V}}_y$” is shown in Figure 17. The following criteria have been used: an increase in the relative torque coefficient of the rotor (required power) C_QΣ/C_QΣh > 1 and C_QΣ/C_QΣh > 1.05; an increase in the non-dimensional induced velocity ${\tilde{\upsilon }}_y$ > 1.5; the amplitude of pulsations of the total thrust coefficient ΔC_TΣ/2 > 20% (compared with the average value of C_TΣ ≈ 0.015 = constant); the amplitude of the pulsations of the total torque coefficient ΔC_QΣ/2 > 10% (compared to the total hovering torque). The diagram in Figure 17 shows that approximate areas with different fills are plotted around the calculated points corresponding to the boundaries of the VRS mode region according to various criteria for various angles α_R = 30–90°.

It should be noted that, when choosing other values for the VRS criteria, the corresponding areas may change. In addition to the calculated areas, Figure 17 shows two experimental dependencies for a coaxial rotor obtained on the basis of model and flight tests published in [7]. The first is an experimental curve obtained for a model of a coaxial rotor in WT according to the criterion of thrust drop at a fixed blade pitch angle. The second is the curve obtained on the basis of flight tests of coaxial scheme helicopters. Here, the entry into the area of the VRS modes has been evaluated by the appearance of vibrations, and with a further increase in the rate of descent by shaking and deterioration of the helicopter’s controllability. It can be seen that the calculated upper border of the VRS mode area, obtained by the criterion of thrust and torque pulsation, is close to the experimental boundary, constructed by the criterion of vibrations and shaking of the helicopter. Since the vibrations and shaking of the helicopter are primarily associated with the pulsations of aerodynamic loads on the rotor, we can conclude that there is a satisfactory agreement between the experimental and calculated data. For the lower border, there is a good coincidence of calculations and experiments with a vertical descent (α_R = 90°). For the steep descent modes (α_R = 50–70°), the calculated boundary of the VRS modes according to the criterion of thrust and torque pulsations is significantly lower than the experimental one, and the calculated boundary of the VRS modes according to the criterion of torque growth is satisfactorily consistent with the experimental curve obtained according to the criterion of the thrust drop. At α_R = 30°, the calculated VRS boundary is located at lower rates of descent.

Thus, the boundaries of the VRS modes shown in Figure 17, according to various criteria, make it possible to assess the areas of occurrence of specific features in the aerodynamic characteristics of the rotor. This fact is extremely important when analyzing the aerodynamics of the rotor in steep descent modes.

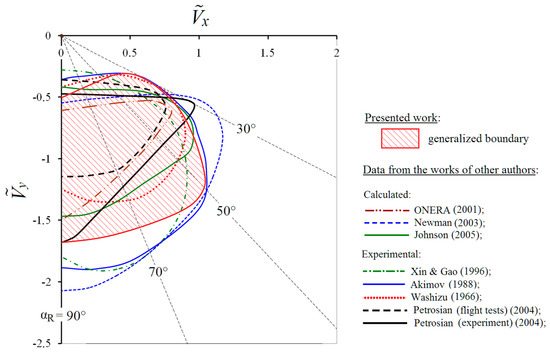

Figure 18 shows a generalized calculated boundary obtained on the basis of a set of VRS boundaries presented in Figure 17. For comparison, the calculated and experimental VRS boundaries obtained by other authors are also given. It should be noted that the boundaries obtained by different authors are based on various criteria and approaches. The boundaries obtained in the works by Akimov [6] (flight tests of a single-rotor Mi-8 helicopter) and Petrosian [7] (flight tests of coaxial helicopters) are built on the basis of flight tests by interpreting the experience of pilots, such as: increased vibrations, shaking and difficulties in controlling the helicopter. The boundary presented in [7] (experimental) is obtained on the basis of experiments of a coaxial rotor in WT. The boundaries obtained in the works by Washizu et al. [12] and Xin and Gao [13] have been obtained on the basis of the analysis of the pulsations of the rotor thrust during experimental studies. The boundary obtained in the work by Newman et al., presented in [21], is obtained on the basis of the analysis of the vortex wake. The boundary obtained by Johnson [21] is based on the developed dynamic model. The boundary presented in [8] is based on numerically simulating a flight experiment for a single-rotor Dauphin helicopter.

In general, it can be noted that there is a good qualitative coincidence of the generalized boundary obtained in the presented research.

4. Conclusions

The paper presents the results of comprehensive studies of the aerodynamics of the Kamov Ka-32 helicopter full-scale coaxial main rotor in steep descent modes, including the VRS modes area. The modes of steep descent for the angles of attack α_R = 70°, 50° and 30° in the range of vertical descent speeds V_y = 0–30 m/s have been considered. The aerodynamic characteristics of the rotor at the fixed time-averaged thrust (C_TΣ = 0.015 = constant) have been calculated. This approach makes it possible to analyze the growth of the required power of the rotor in the VRS modes area in comparison with the hovering mode. The presented work is a continuation of the studies performed earlier for hovering and vertical descent modes (α_R = 90°). This paper is the main and final part of a comprehensive series of studies.

The used free wake model is characterized by low resource consumption and high speed, and allows for solving problems of numerical modeling of the aerodynamic characteristics of the rotor using available personal computers. In the presented paper, a computational grid of 55 rotor’s operating modes is considered. The authors have managed to make a detailed analysis of steep descent modes around the VRS modes area. Each calculated mode is modeled for a period of time corresponding to the number of revolutions of the rotor n = 160. Due to this fact, it has become possible to conduct a qualitative analysis of the time-dependent aerodynamic characteristics of the rotor in the VRS modes.

Significant attention is paid to the analysis of the flow around the rotor in the VRS modes at different descent speeds V_y and the angles of attack of the rotor α_R. The shapes of the vortex wake and the structure of the rotor flow have been presented and analyzed in a number of the most characteristic modes: the “peak” of VRS, TWS and “autorotation”. A number of features in the forming of the vortex wake and the structure of the flow around the rotor associated with different descent speeds and angles of descent have been revealed. For these modes, the dependencies of the thrust and torque coefficients of the upper and lower rotors, as well as their total values of time (the number of revolutions of the rotor n), taking into account their unsteady pulsations, have been obtained and analyzed.

Based on the analysis of the obtained aerodynamic characteristics of the rotor, the boundaries of the VRS mode area in the flight speed coordinates “${\tilde{V}}_{\mathrm{x}}$–${\tilde{V}}_y$” have been found. The set of criteria used for this purpose is directly related to the behavior of the helicopter in the VRS modes observed in flight experiments. It includes the following criteria: an increase in the required power of the rotor (the torque of the rotor) compared to the hovering mode C_QΣ/C_QΣh > 1 and C_QΣ/C_QΣh > 1.05; an increase in the induced velocity in the plane of the rotor disk ${\tilde{\upsilon }}_y$ > 1.5; an amplitude of the pulsation of the rotor thrust coefficient ΔC_TΣ/2 > 20%; an amplitude of the pulsation of the rotor torque coefficient ΔC_QΣ/2 > 10%. If necessary, the boundaries of the VRS area can be refined further by changing the selected criteria values.

The results of calculations of the aerodynamic characteristics of a coaxial rotor in the VRS modes have been compared with the available experimental data for rotors of different geometries. A satisfactory qualitative and quantitative agreement of the results of the presented study, including the VRS modes area boundaries, with the available experimental data is shown.

The presented work demonstrates the possibilities and prospects of the free wake model developed by the authors for studying the aerodynamic characteristics and analyzing the boundaries of the VRS modes of coaxial rotors.

The performed numerical studies of the aerodynamic characteristics of a full-scale coaxial rotor in steep descent modes in a wide range of descent speeds and angles of attack of the rotor can significantly supplement the existing experience of experimental and numerical studies in this field.
