# Design of a Distributedly Active Morphing Wing Based on Digital Metamaterials

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Reversibly Assembled Active Morphing Lattice Structures

#### 2.1. Building-Block Concept

#### 2.2. Fundamental Cells

^{®}is selected here. This material can be additively manufactured through a stereo-lithography process, which has a good fatigue property and a high machining accuracy. Considering the curing process, its specific mechanical properties are shown in Table 1.

#### 2.2.1. Rigid Cell

#### 2.2.2. Compliant Cell

#### 2.2.3. Auxetic Cell

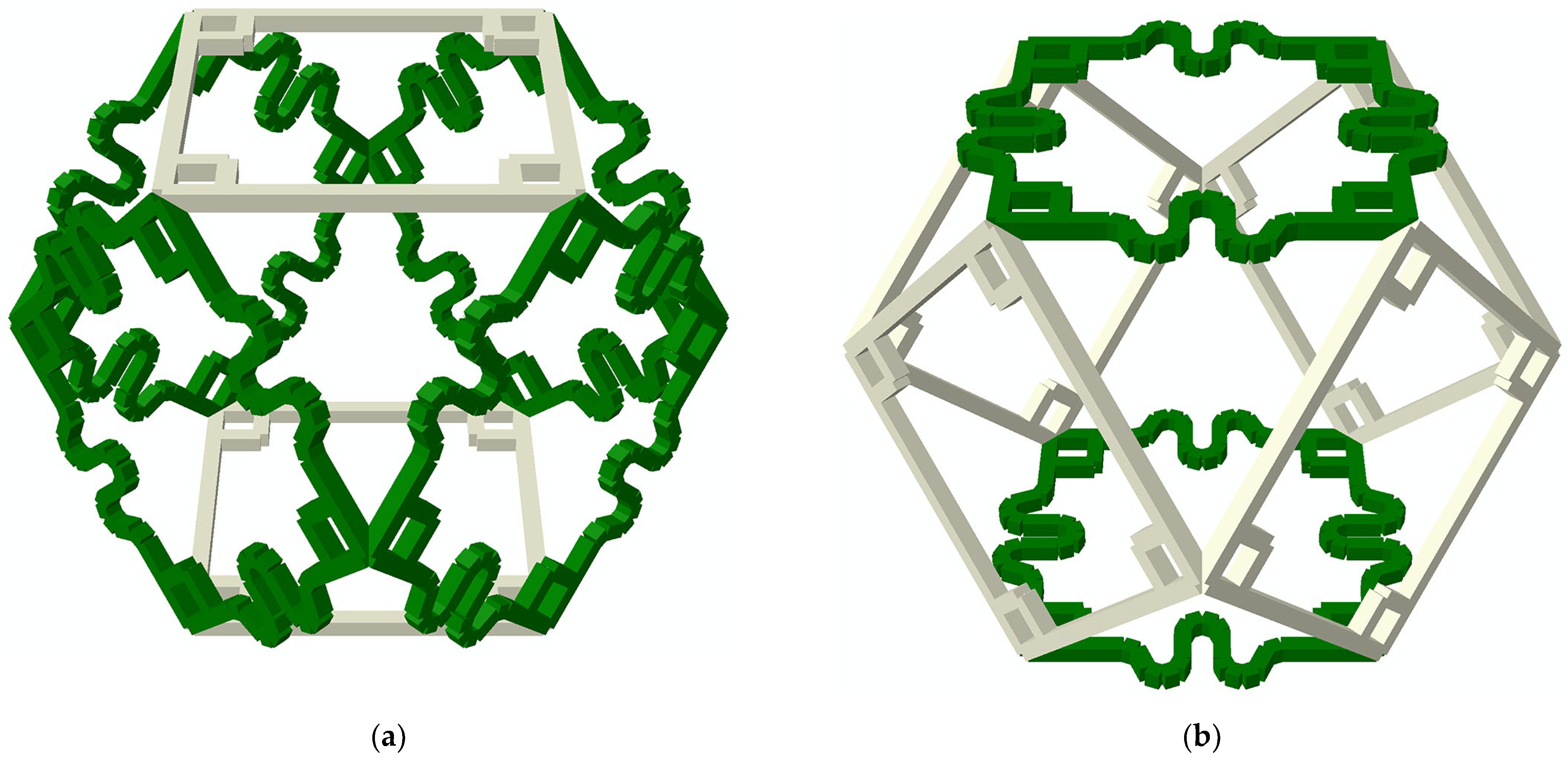

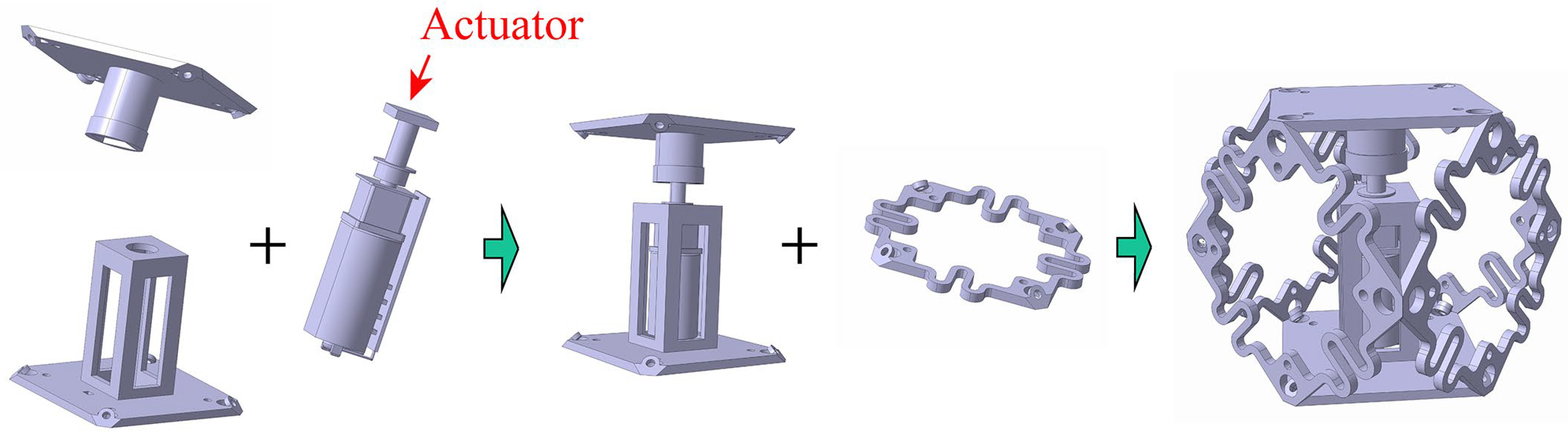

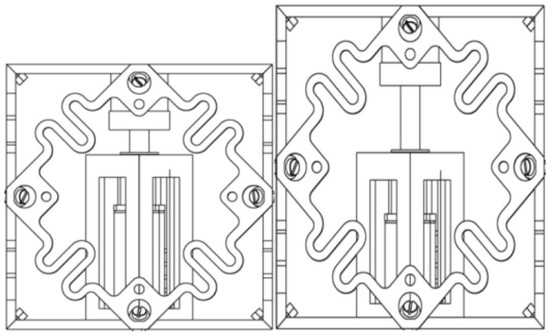

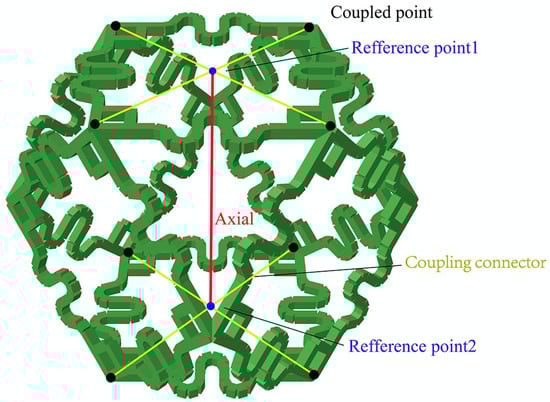

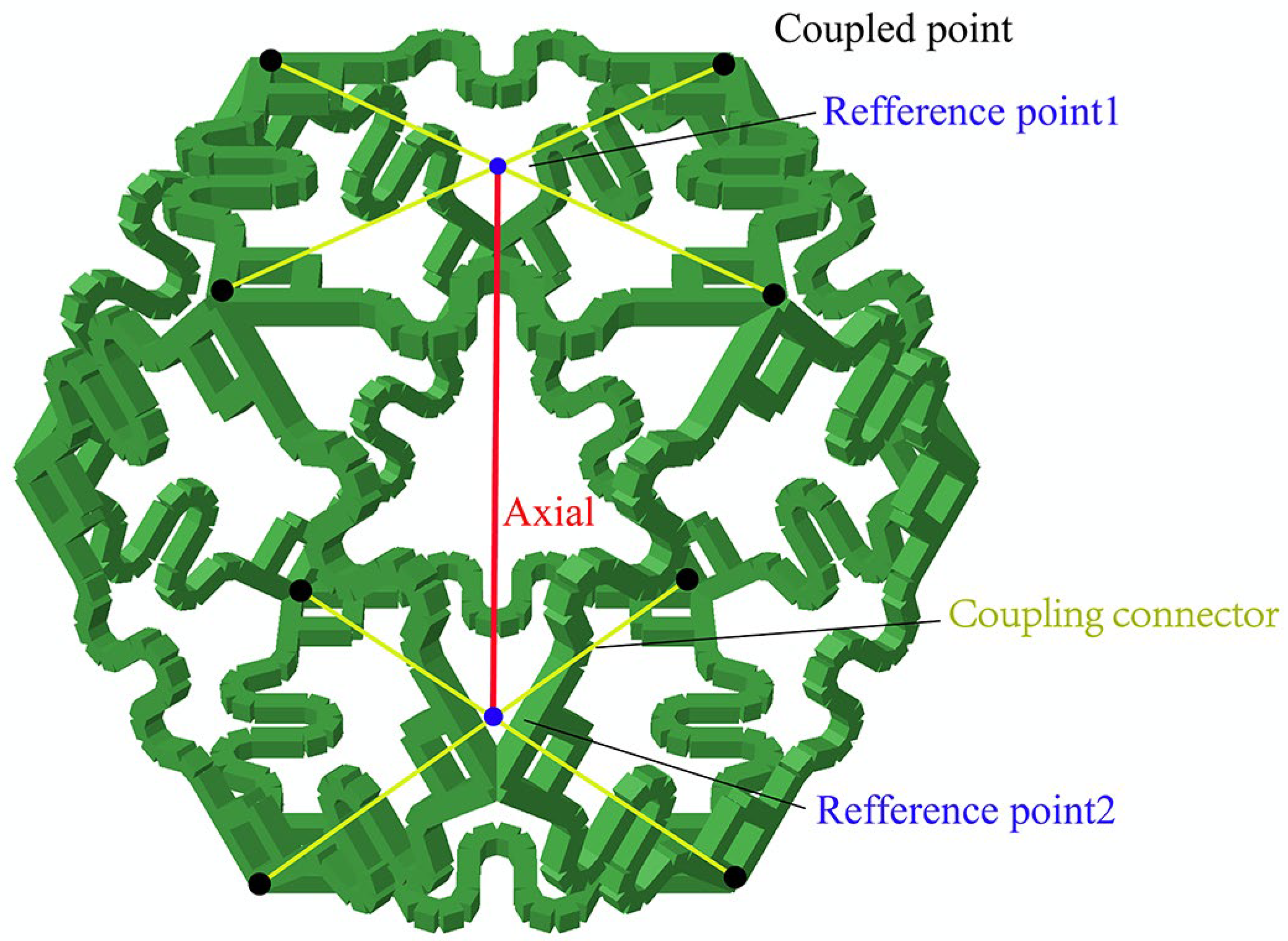

#### 2.3. Derived Cells

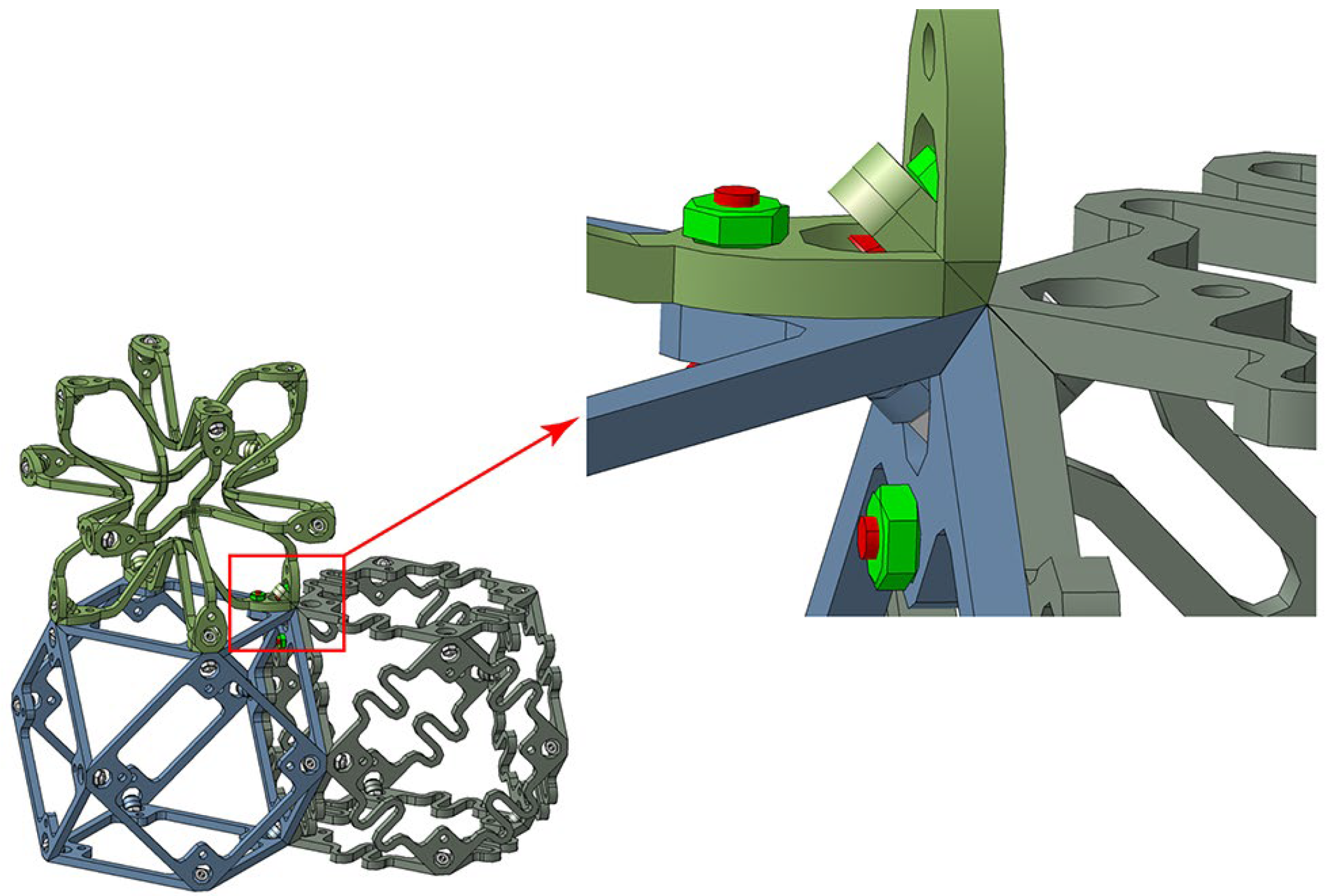

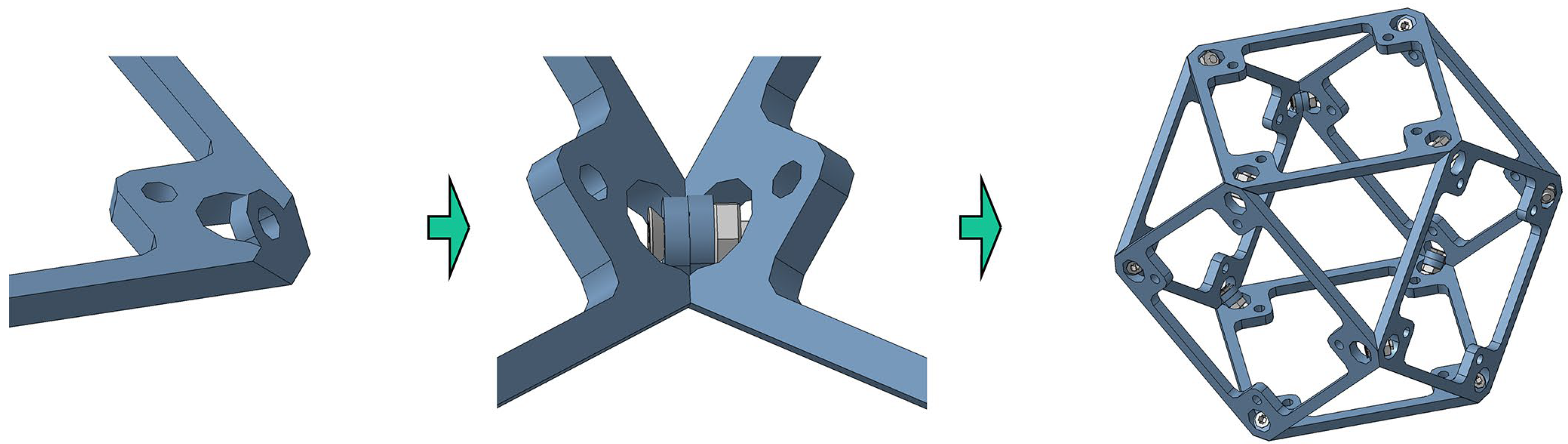

#### 2.4. Reversible Assembly Manner

## 3. Optimization Methodology

#### 3.1. Encoding and Decoding

#### 3.2. Selection

#### 3.3. Crossover

^{(1)}and x

^{(2)}, and the two offspring individuals after the crossover are y

^{(1)}and y

^{(2)}, the crossover process can be illustrated with the following equations:

#### 3.4. Mutation

#### 3.5. Changing Number of Design Variables

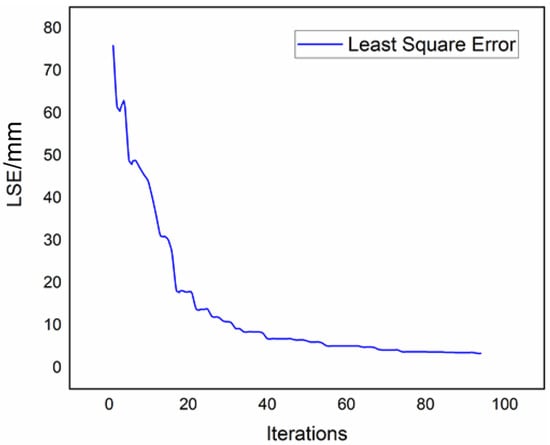

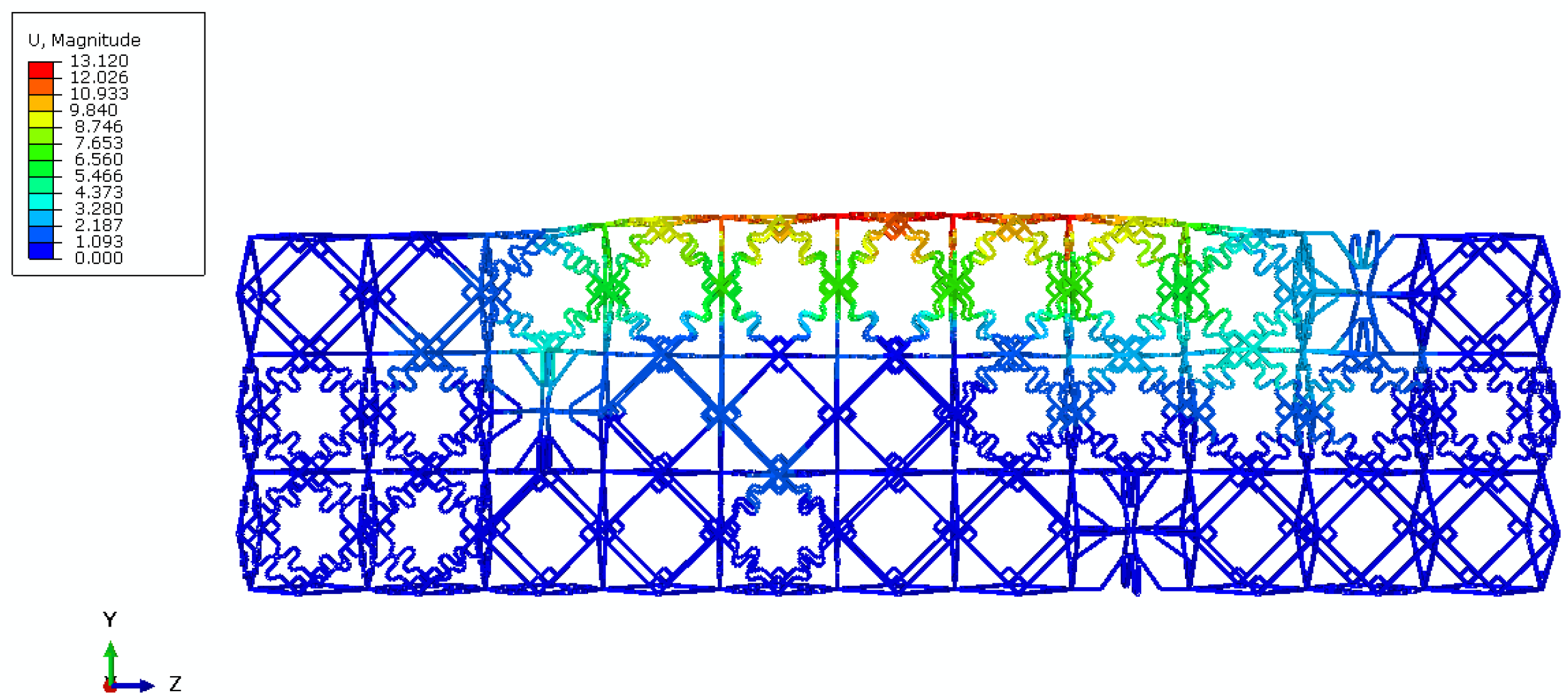

#### 3.6. Optimization Model and Results

^{3}kg/m

^{3}and the weight of a micro-actuator is approximately 0.03 kg, the final overall weight is 0.5602 kg; as the overall space volume is 0.0139 m

^{3}, the final macro density is calculated as 40.4964 kg/m

^{3}, which is very close the critical value of the ultralight materials (below 10 kg/m

^{3}) [46]. Therefore, it can be said that the concept has an obvious weight advantage compared with other traditional metal materials (or non-ultralight structures).

## 4. Conclusions

## Author Contributions

## Funding

## Data Availability Statement

## Conflicts of Interest

## References

- Barbarino, S.; Bilgen, O.; Ajaj, R.M.; Friswell, M.I.; Inman, D.J. A Review of Morphing Aircraft. J. Intell. Mater. Syst. Struct.
**2011**, 22, 823–877. [Google Scholar] [CrossRef] - Li, D.; Zhao, S.; Da Ronch, A.; Xiang, J.; Drofelnik, J.; Li, Y.; Zhang, L.; Wu, Y.; Kintscher, M.; Monner, H.P.; et al. A Review of Modelling and Analysis of Morphing Wings. Prog. Aerosp. Sci.
**2018**, 100, 46–62. [Google Scholar] [CrossRef] [Green Version] - Cramer, N.B.; Cellucci, D.W.; Formoso, O.B.; Gregg, C.E.; Jenett, B.E.; Kim, J.H.; Lendraitis, M.; Swei, S.S.; Trinh, G.T.; Trinh, K.V.; et al. Elastic Shape Morphing of Ultralight Structures by Programmable Assembly. Smart Mater. Struct.
**2019**, 28, 055006. [Google Scholar] [CrossRef] [PubMed] [Green Version] - De Gaspari, A.; Ricci, S. A Two-Level Approach for the Optimal Design of Morphing Wings Based on Compliant Structures. J. Intell. Mater. Syst. Struct.
**2011**, 22, 1091–1111. [Google Scholar] [CrossRef] - Chen, Y.; Yin, W.; Liu, Y.; Leng, J. Structural Design and Analysis of Morphing Skin Embedded with Pneumatic Muscle Fibers. Smart Mater. Struct.
**2011**, 20, 085033. [Google Scholar] [CrossRef] - Cramer, N.B.; Cheung, K.; Swei, S.S.-M. Design and Testing of a Lattice-Based Cellular Component Active Twist Wing. In Proceedings of the American Institute of Aeronautics and Astronautics (AIAA), San Diego, CA, USA, 4 January 2016. [Google Scholar]
- McHale, C.; Telford, R.; Weaver, P.M. Morphing Lattice Boom for Space Applications. Compos. Part B Eng.
**2020**, 202, 108441. [Google Scholar] [CrossRef] - Chen, Q.; Lv, P.; Huang, J.; Huang, T.-Y.; Duan, H. Intelligent Shape-Morphing Micromachines. Research
**2021**, 2021, 9806463. [Google Scholar] [CrossRef] - Özgen, S.; Yaman, Y.; Insuyu, T.; Yilmaz, A.; Şahin, M.; Seber, G.; Ünlüsoy, L.; Sakarya, E.; İnsuyu, T.; Bulvarı, İ.; et al. Morphing Air Vehicle Concepts. In Proceedings of the International Workshop on Unmanned Vehicles-UVW, Istanbul, Turkiye, 10–12 June 2010. [Google Scholar]
- Sun, J.; Guan, Q.; Liu, Y.; Leng, J. Morphing Aircraft Based on Smart Materials and Structures: A State-of-the-Art Review. J. Intell. Mater. Syst. Struct.
**2016**, 27, 2289–2312. [Google Scholar] [CrossRef] - Vasista, S.; Tong, L.; Wong, K.C. Realization of Morphing Wings: A Multidisciplinary Challenge. J. Aircr.
**2012**, 49, 11–28. [Google Scholar] [CrossRef] - Sofla, A.Y.N.; Meguid, S.A.; Tan, K.T.; Yeo, W.K. Shape Morphing of Aircraft Wing: Status and Challenges. Mater. Des.
**2010**, 31, 1284–1292. [Google Scholar] [CrossRef] - Zhu, L.; Sun, G.; Li, H.; Dong, M. Intelligent and Flexible Morphing Wing Technology: A Review. Jixie Gongcheng Xuebao/J. Mech. Eng.
**2018**, 54, 28–42. [Google Scholar] [CrossRef] - Joo, J.J.; Marks, C.R.; Zientarski, L.; Culler, A. Variable Camber Compliant Wing-Design. In Proceedings of the 23rd AIAA/AHS Adaptive Structures Conference, Kissimmee, FL, USA, 5–9 January 2015; American Institute of Aeronautics and Astronautics Inc.: Reston, VA, USA. [Google Scholar]
- Gilbert, W.W. Mission Adaptive Wing System for Tactical Aircraft. J. Aircr.
**1981**, 18, 597–602. [Google Scholar] [CrossRef] - Popov, A.V.; Grigorie, L.T.; Botez, R.; Mamou, M.; Mébarki, Y. Closed-Loop Control Validation of a Morphing Wing Using Wind Tunnel Tests. J. Aircr.
**2010**, 47, 1309–1317. [Google Scholar] [CrossRef] - Schmitz, A.; Horst, P. A Finite Element Unit-Cell Method for Homogenised Mechanical Properties of Heterogeneous Plates. Compos. Part A Appl. Sci. Manuf.
**2014**, 61, 23–32. [Google Scholar] [CrossRef] - Bishay, P.L.; Finden, R.; Recinos, S.; Alas, C.; Lopez, E.; Aslanpour, D.; Flores, D.; Gonzalez, E. Development of an SMA-Based Camber Morphing UAV Tail Core Design. Smart Mater. Struct.
**2019**, 28, 075024. [Google Scholar] [CrossRef] - Rudenko, A.; Hannig, A.; Monner, H.P.; Horst, P. Extremely Deformable Morphing Leading Edge: Optimization, Design and Structural Testing. J. Intell. Mater. Syst. Struct.
**2018**, 29, 764–773. [Google Scholar] [CrossRef] - Vasista, S.; Nolte, F.; Monner, H.P.; Horst, P.; Burnazzi, M. Three-Dimensional Design of a Large-Displacement Morphing Wing Droop Nose Device. J. Intell. Mater. Syst. Struct.
**2018**, 29, 3222–3241. [Google Scholar] [CrossRef] - Wang, C.; Haddad Khodaparast, H.; Friswell, M.I.; Magrini, A.; Ponza, R.; Benini, E.; Landersheim, V.; Laveuve, D.; Contell Asins, C. Conceptual-Level Evaluation of a Variable Stiffness Skin for a Morphing Wing Leading Edge. Proc. Inst. Mech. Eng. Part G J. Aerosp. Eng.
**2019**, 233, 5703–5716. [Google Scholar] [CrossRef] [Green Version] - Sodja, J.; Martinez, M.J.; Simpson, J.C.; De Breuker, R. Experimental Evaluation of the Morphing Leading Edge Concept. In Proceedings of the 23rd AIAA/AHS Adaptive Structures Conference, Kissimmee, FL, USA, 5–9 January 2015; American Institute of Aeronautics and Astronautics Inc.: Reston, VA, USA. [Google Scholar]
- Asins, C.C.; Landersheim, V.; Laveuve, D.; Adachi, S.; May, M.; Wacker, J.D.; Decker, J. Analysis and Design of a Leading Edge with Morphing Capabilities for the Wing of a Regional Aircraft—Gapless Chord-and Camber-Increase for High-Lift Performance. Appl. Sci.
**2021**, 11, 2752. [Google Scholar] [CrossRef] - Baker, D.; Friswell, M.I. Determinate Structures for Wing Camber Control. Smart Mater. Struct.
**2009**, 18, 035014. [Google Scholar] [CrossRef] - Cavalieri, V.; de Gaspari, A.; Ricci, S. Optimization of Compliant Adaptive Structures in the Design of a Morphing Droop Nose. Smart Mater. Struct.
**2020**, 29, 075020. [Google Scholar] [CrossRef] [Green Version] - Trease, B.; Kota, S. Design of Adaptive and Controllable Compliant Systems with Embedded Actuators and Sensors. J. Mech. Des. Trans. ASME
**2009**, 131, 1110011–11100112. [Google Scholar] [CrossRef] - Milojević, A.P.; Pavlović, N.D. Development of a New Adaptive Shape Morphing Compliant Structure with Embedded Actuators. J. Intell. Mater. Syst. Struct.
**2016**, 27, 1306–1328. [Google Scholar] [CrossRef] - Geier, S.; Kintscher, M.; Mahrholz, T.; Wierach, P.; Monner, H.-P.; Wiedemann, M. Experimental and Finite Element Analyses of Multifunctional Skins for Morphing Wing Applications. In Proceedings of the Sensors and Smart Structures Technologies for Civil, Mechanical, and Aerospace Systems 2016, Las Vegas, NV, USA, 20 April 2016; SPIE: Washington, DC, USA; Volume 9803, p. 980328. [Google Scholar]
- Kintscher, M.; Wiedemann, M.; Monner, H.P.; Heintze, O.; Kühn, T. Design of a Smart Leading Edge Device for Low Speed Wind Tunnel Tests in the European Project SADE. Int. J. Struct. Integr.
**2011**, 2, 383–405. [Google Scholar] [CrossRef] - Yang, Y.; Wang, Z.; Wang, B.; Lyu, S. Optimization, Design and Testing for Morphing Leading Edge. Proc. Inst. Mech. Eng. Part C J. Mech. Eng. Sci.
**2020**, 095440622094188. [Google Scholar] [CrossRef] - Alsaidi, B.; Joe, W.Y.; Akbar, M. Computational Analysis of 3D Lattice Structures for Skin in Real-Scale Camber Morphing Aircraft. Aerospace
**2019**, 6, 79. [Google Scholar] [CrossRef] [Green Version] - Spadoni, A.; Ruzzene, M. Static Aeroelastic Response of Chiral-Core Airfoils. J. Intell. Mater. Syst. Struct.
**2007**, 18, 1067–1075. [Google Scholar] [CrossRef] [Green Version] - Fasel, U.; Keidel, D.; Baumann, L.; Cavolina, G.; Eichenhofer, M.; Ermanni, P. Composite Additive Manufacturing of Morphing Aerospace Structures. Manuf. Lett.
**2020**, 23, 85–88. [Google Scholar] [CrossRef] - Keidel, D.; Lienhard, M.; Fasel, U.; Ermanni, P. Design and Testing of a Lattice Morphing Wing. In Proceedings of the ASME 2020 Conference on Smart Materials, Adaptive Structures and Intelligent Systems, Virtual, Online, 15 September 2020; American Society of Mechanical Engineers: New York, NY, USA; p. V001T04A011. [Google Scholar]
- Jenett, B.; Cameron, C.; Tourlomousis, F.; Rubio, A.P.; Ochalek, M.; Gershenfeld, N. Discretely Assembled Mechanical Metamaterials. Sci. Adv.
**2020**, 6, eabc9943. [Google Scholar] [CrossRef] - Zhang, H.; Zhang, Z.; Song, C.; Yang, C. A Morphing Wing with Cellular Structure of Non-Uniform Density. Smart Mater. Struct.
**2021**, 30, 105005. [Google Scholar] [CrossRef] - Youngren, H. Multi-Point Design and Optimization of a Natural Laminar Flow Airfoil for a Mission Adaptive Compliant Wing. In Proceedings of the 46th AIAA Aerospace Sciences Meeting and Exhibit, Reno, NV, USA, 7–10 January 2008. [Google Scholar]
- Wang, Z.-P.; Poh, L.H. Optimal Form and Size Characterization of Planar Isotropic Petal-Shaped Auxetics with Tunable Effective Properties Using IGA. Compos. Struct.
**2018**, 201, 486–502. [Google Scholar] [CrossRef] - Jenett, B.; Cellucci, D. A Mobile Robot for Locomotion through a 3D Periodic Lattice Environment. In Proceedings of the 2017 IEEE International Conference on Robotics and Automation (ICRA), Singapore, 29 May 2017–3 June 2017; IEEE: Singapore; pp. 5474–5479. [Google Scholar]
- Yang, J.; Song, B.; Zhong, X.; Jin, P. Optimal Design of Blended Composite Laminate Structures Using Ply Drop Sequence. Compos. Struct.
**2016**, 135, 30–37. [Google Scholar] [CrossRef] - Yang, Y.; Wang, Z.; Lyu, S. Comparative Study of Two Lay-up Sequence Dispositions for Flexible Skin Design of Morphing Leading Edge. Chin. J. Aeronaut.
**2021**, 34, 271–278. [Google Scholar] [CrossRef] - Wang, Z.; Yang, Y. Design of a Variable-Stiffness Compliant Skin for a Morphing Leading Edge. Appl. Sci.
**2021**, 11, 3165. [Google Scholar] [CrossRef] - Soremekun, G.; Gürdal, Z.; Kassapoglou, C.; Toni, D. Stacking Sequence Blending of Multiple Composite Laminates Using Genetic Algorithms. Compos. Struct.
**2002**, 56, 53–62. [Google Scholar] [CrossRef] - Süli, E.; Mayers, D.F. An Introduction to Numerical Analysis; Cambridge University Press: Cambridge, UK, 2003; ISBN 978-0-521-00794-8. [Google Scholar]
- Wang, D.; Abdalla, M.M. Global and Local Buckling Analysis of Grid-Stiffened Composite Panels. Compos. Struct.
**2015**, 119, 767–776. [Google Scholar] [CrossRef] - Jenett, B.; Calisch, S.; Cellucci, D.; Cramer, N.; Gershenfeld, N.; Swei, S.; Cheung, K.C. Digital Morphing Wing: Active Wing Shaping Concept Using Composite Lattice-Based Cellular Structures. Soft Robot.
**2017**, 4, 33–48. [Google Scholar] [CrossRef]

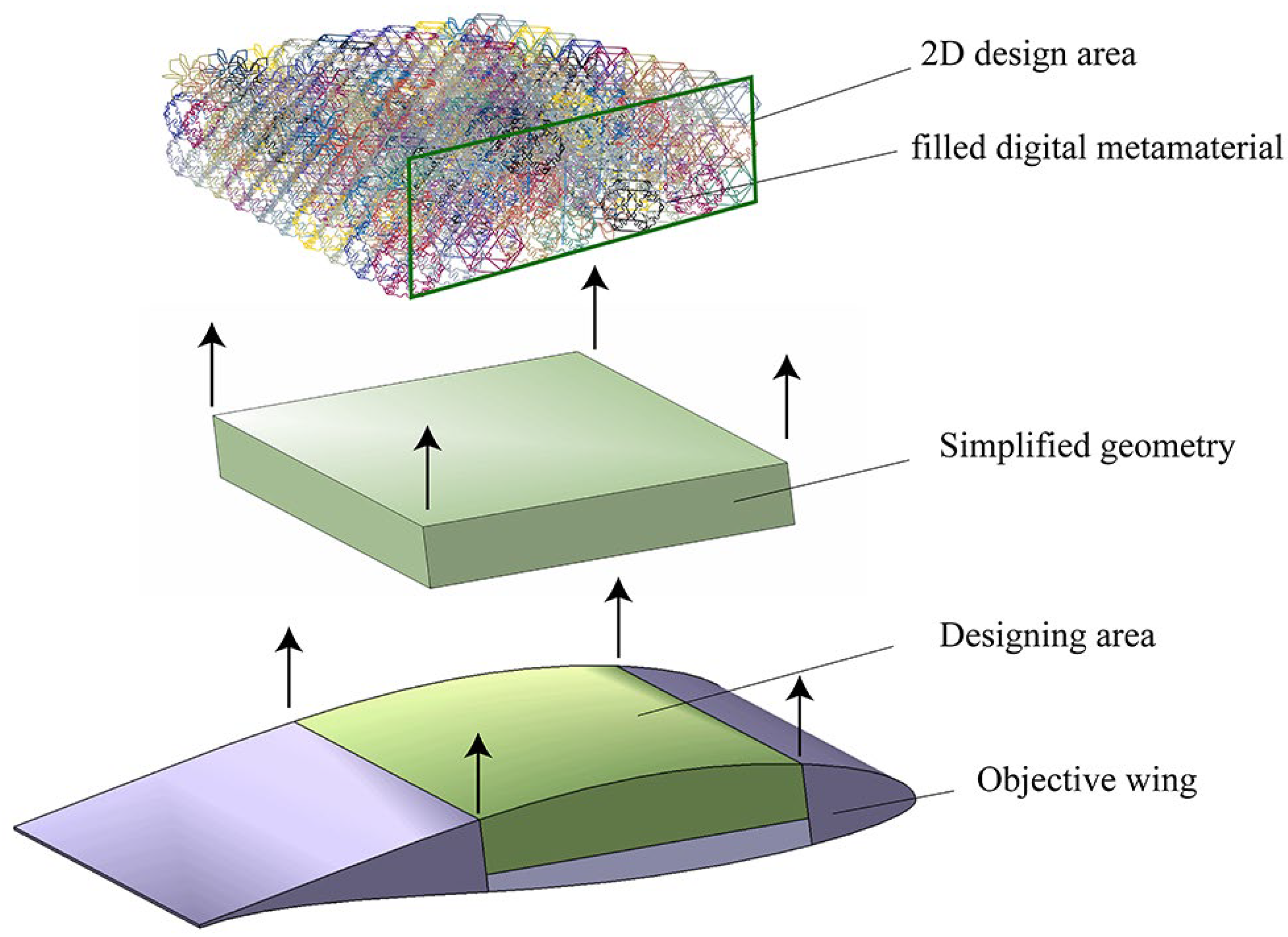

**Figure 1.**Schematic diagram of variable thickness wing based on digital metamaterial with varied cell geometries.

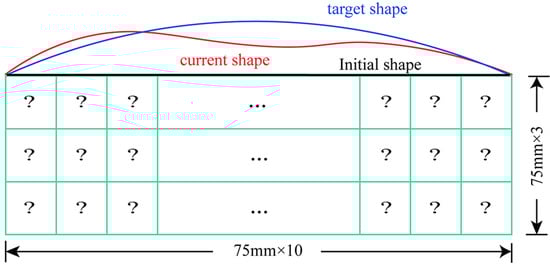

**Figure 2.**Two-dimensional schematic diagram of the design of the distributed variable thickness structure based on digital metamaterials.

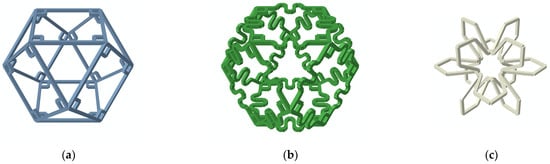

**Figure 3.**Three types of fundamental cells: (

**a**) Rigid cell; (

**b**) Compliant cell; and (

**c**) Auxetic cell.

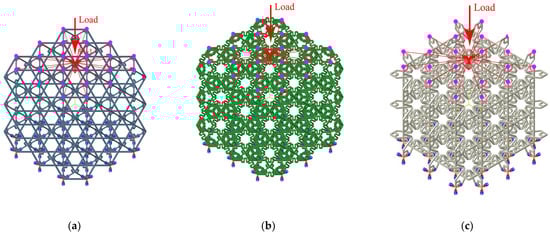

**Figure 4.**The finite element models of the three types of fundamental cells for macro-mechanical performance analysis, for instance, with 3 × 3 × 3 unit cells: (

**a**) Rigid lattice; (

**b**) Compliant lattice; and (

**c**) Auxetic lattice.

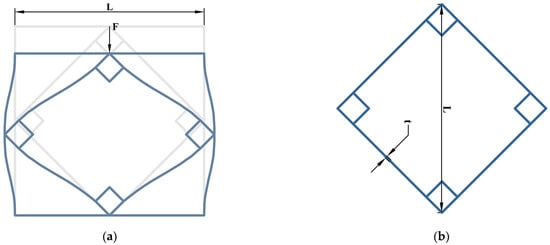

**Figure 5.**The deformation mechanism diagram and geometric parameter of the rigid unit cell: (

**a**) Deformation mechanism of the rigid cell under an external load; (

**b**) The beam section size of the rigid cell (L = 70 mm).

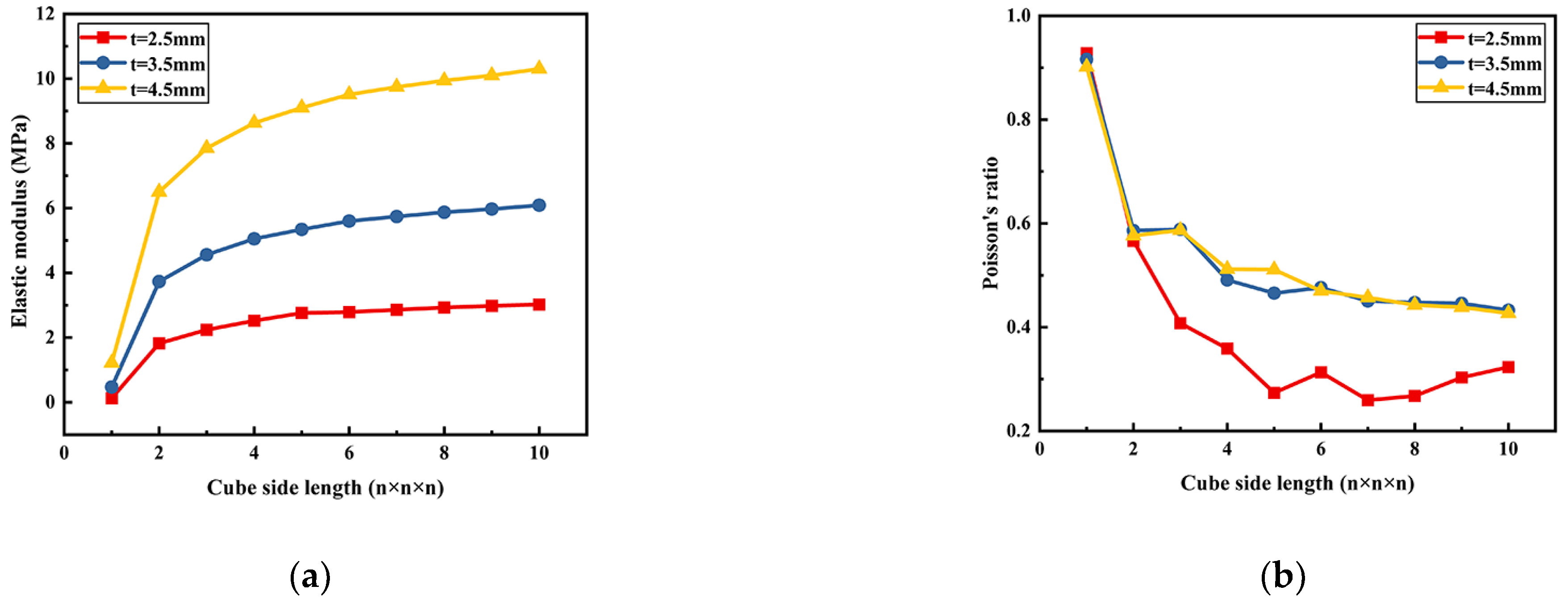

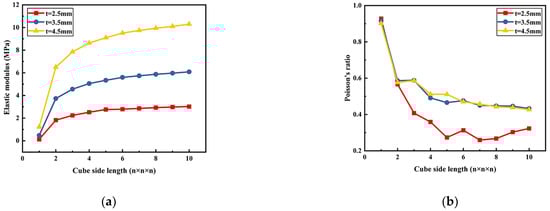

**Figure 6.**Mechanical properties of the rigid lattice. (

**a**) The relationship between the elastic modulus and the cube side length of the rigid lattice (t = 2.5–4.5 mm); (

**b**) The relationship between the Poisson’s ratio the cube side length of the rigid lattice (t = 2.5–4.5 mm).

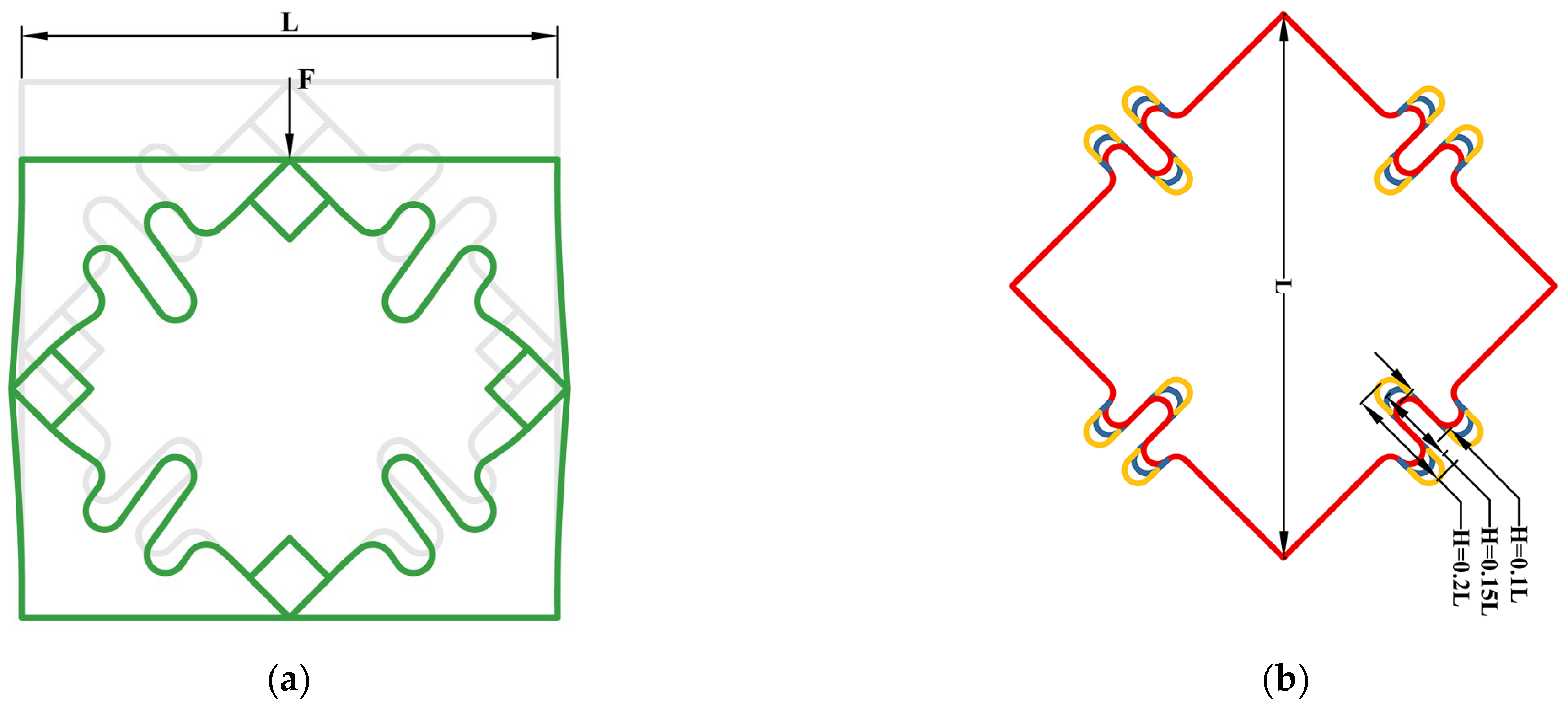

**Figure 7.**The deformation mechanism diagram and one of the geometric parameters of the compliant unit cell: (

**a**) Deformation mechanism of the compliant cell under an external load; (

**b**) Different S-shaped bulge heights of the compliant cell (L = 70 mm).

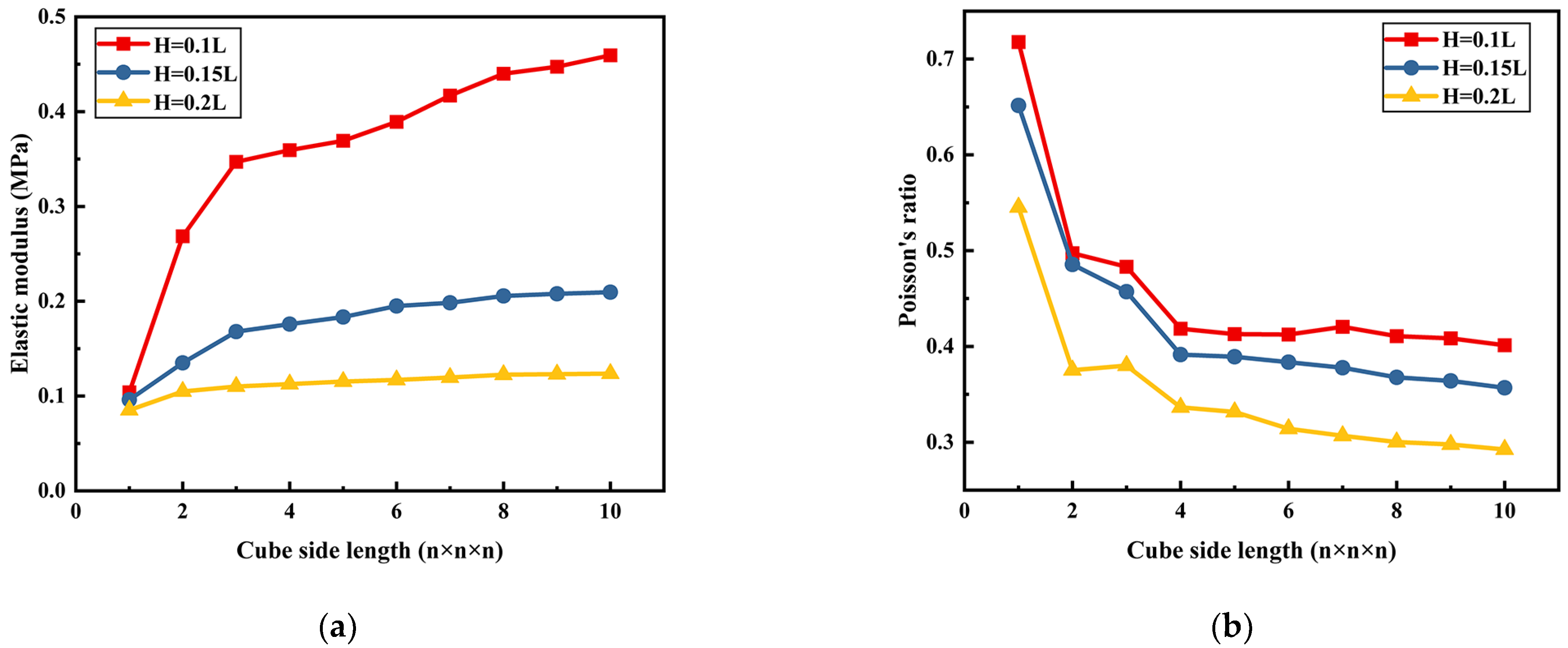

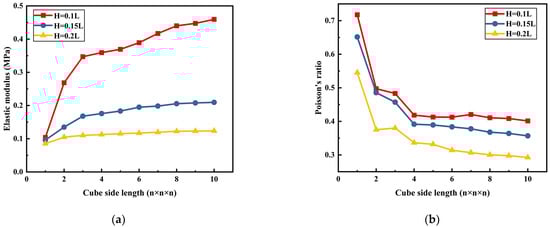

**Figure 8.**Mechanical properties of the compliant lattice with different S-shaped heights: (

**a**) The relationship between the elastic modulus and the cube side length (with H = 0.1–0.2 L); (

**b**) The relationship between the Poisson’s ratio and the cube side length (with H = 0.1–0.2 L).

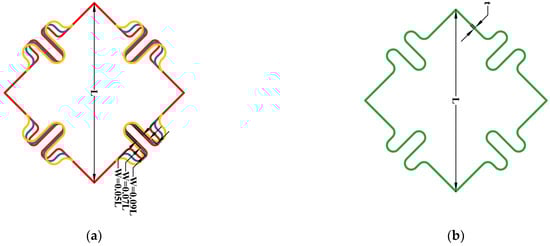

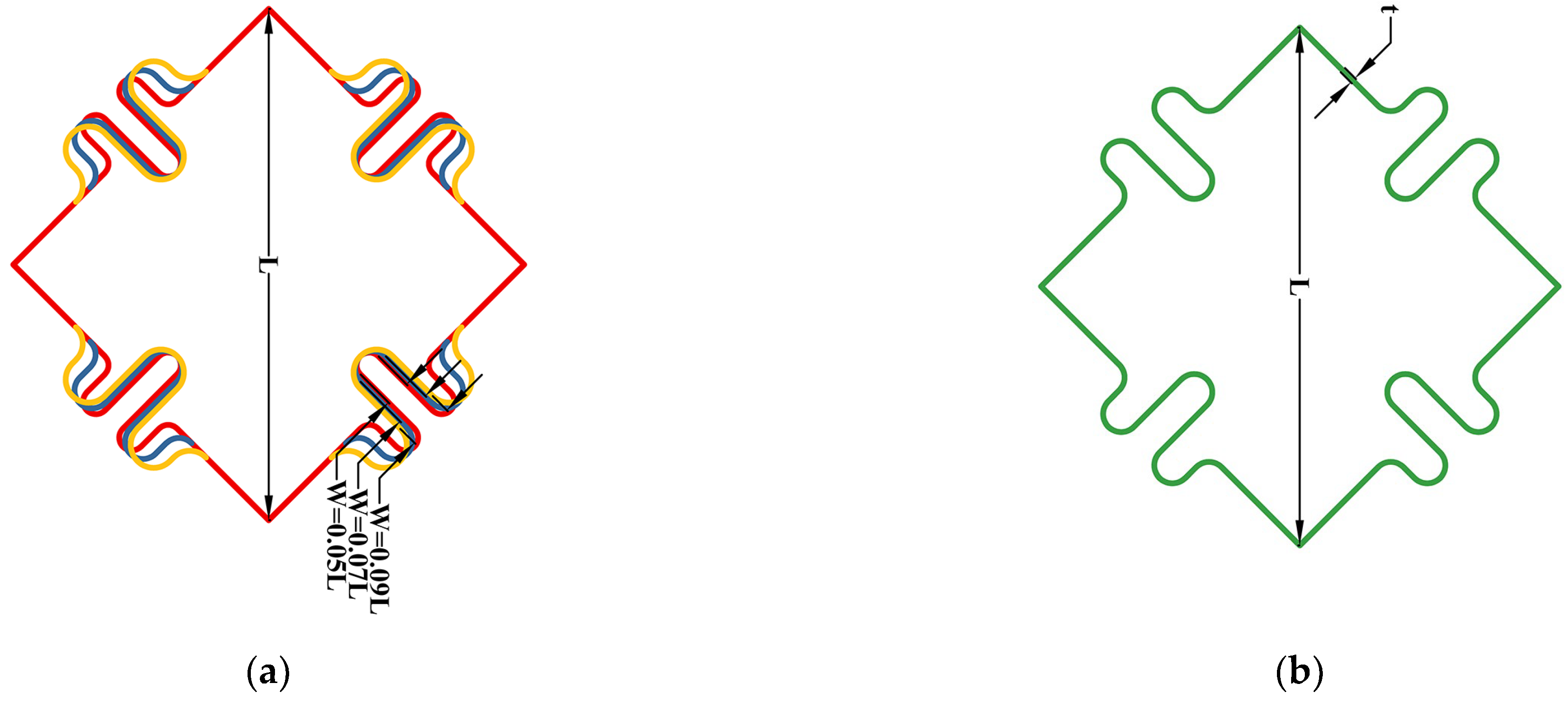

**Figure 9.**Schematic diagram of different geometric parameters of the S-shaped bulge of the facet element of the compliant cell: (

**a**) different widths of the S-shaped bulge; (

**b**) schematic of the beam section size of the compliant cell.

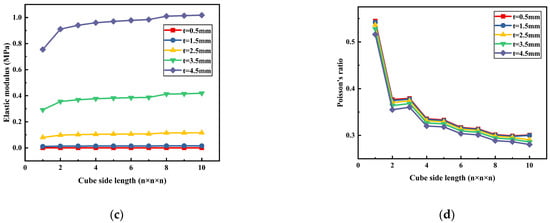

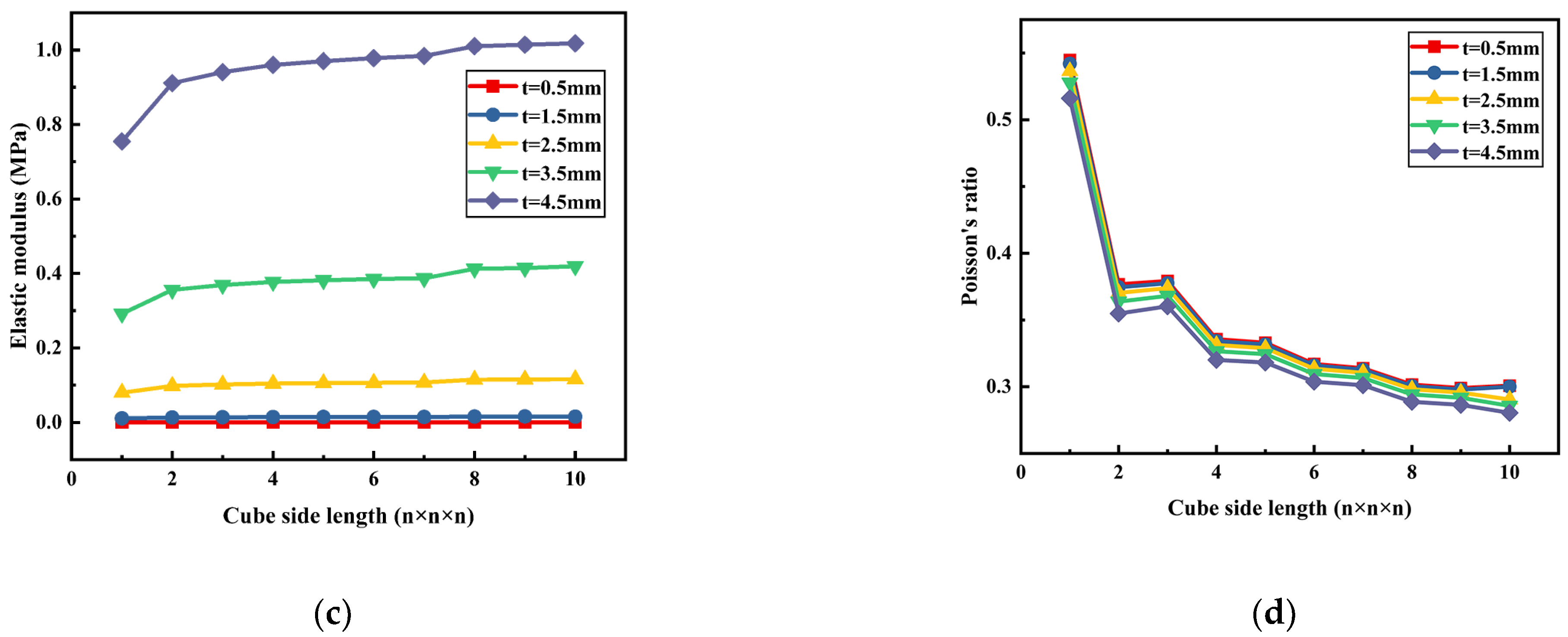

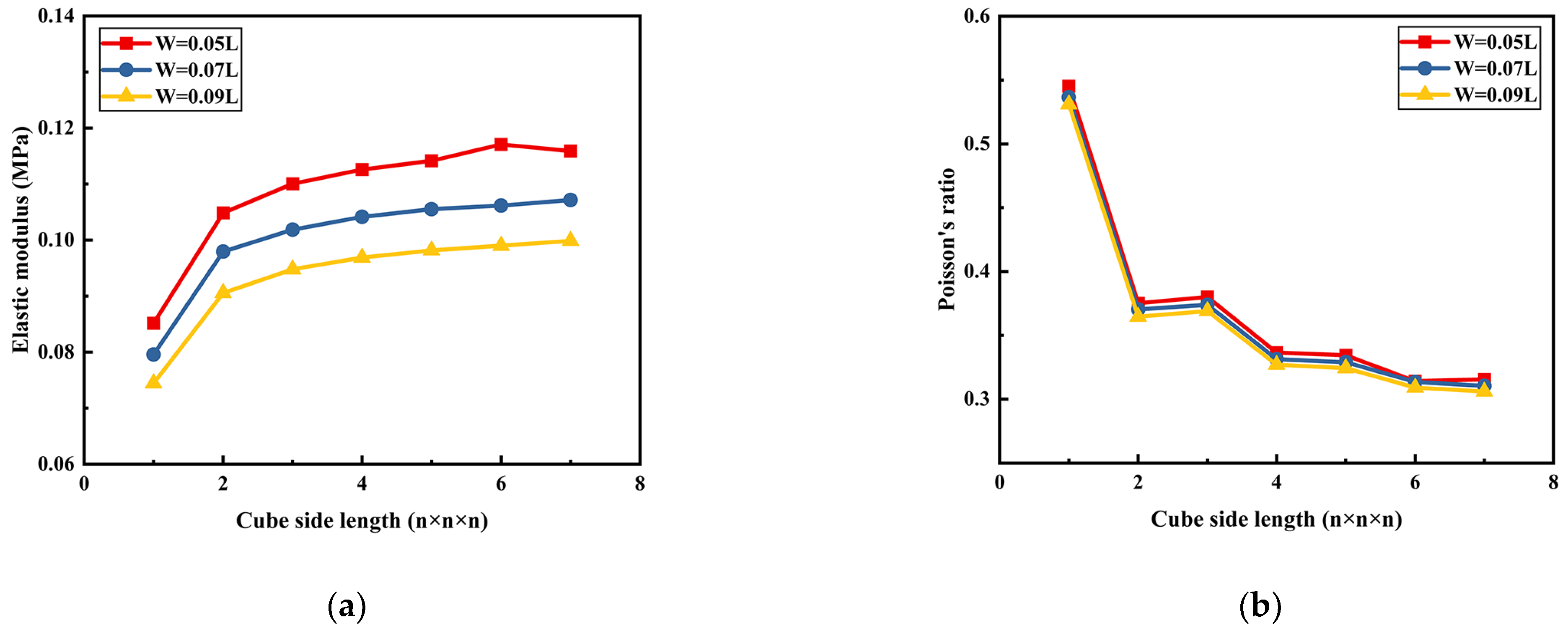

**Figure 10.**Mechanical properties of compliant lattice with different S-shaped bulge widths and beam section sizes: (

**a**) The relationship between the elastic modulus and the cube side length (W = 0.05–0.09 L); (

**b**) The relationship between the Poisson’s ratio and the cube side length (W = 0.05–0.09 L); (

**c**) The relationship between the elastic modulus and the cube side length (t = 0.5–4.5 mm); and (

**d**) The relationship between the Poisson’s ratio and the cube side length (t = 0.5–4.5 mm).

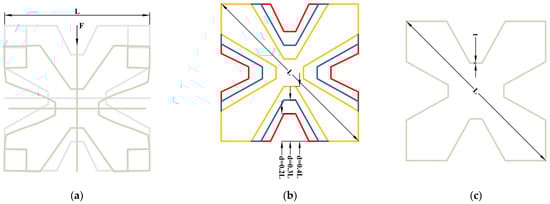

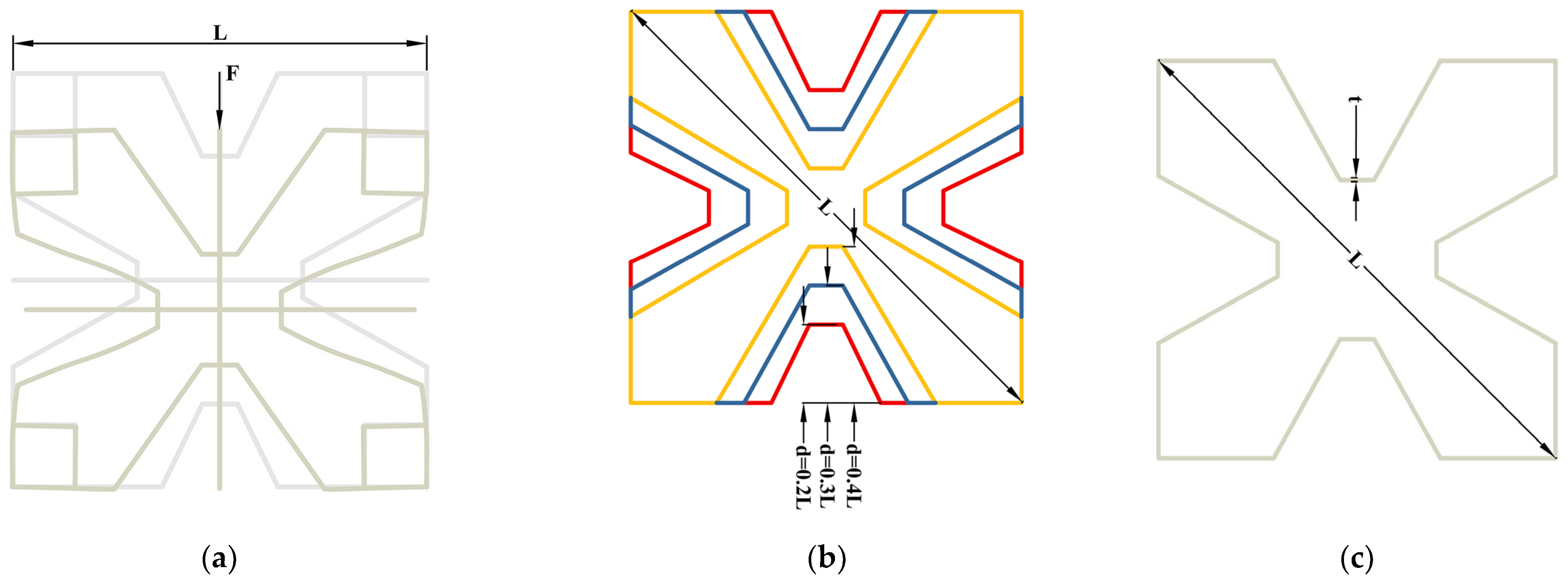

**Figure 11.**The deformation mechanism diagram and different geometric parameters of the auxetic unit cell: (

**a**) Deformation mechanism of the auxetic cell under an external load; (

**b**) Different concave depths of the auxetic cell (L = 70 mm); (

**c**) Shematic diagram of the beam section size of the auxetic cell.

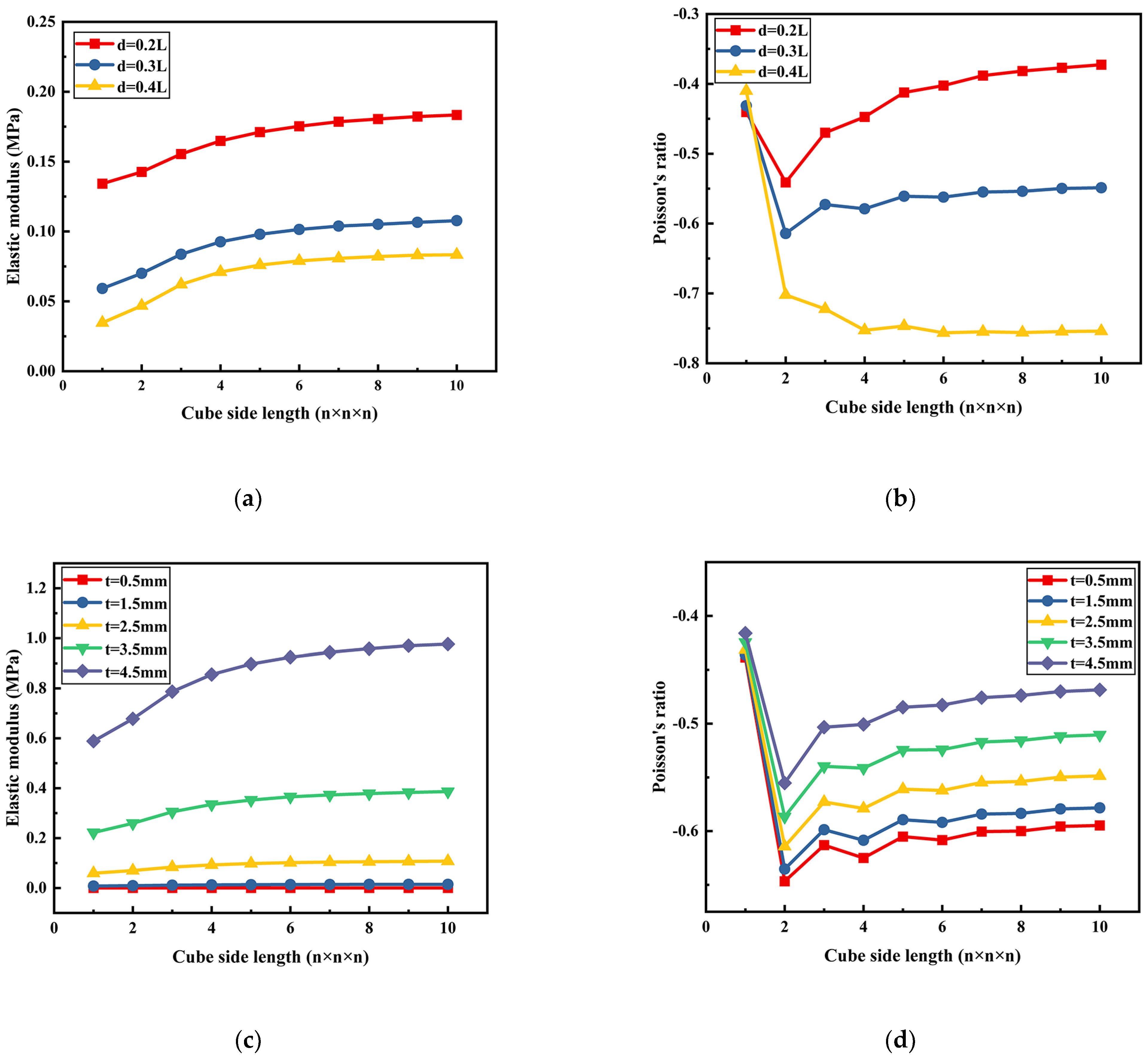

**Figure 12.**Mechanical properties of the auxetic lattice: (

**a**) The relationship between the elastic modulus and the cube side length (d = 0.2 L~0.4 L); (

**b**) The relationship between the Poisson’s ratio and the cube side length (d = 0.2L~0.4 L); (

**c**) The relationship between the elastic modulus and the cube side length (t = 0.5 mm~4.5 mm); and (

**d**) The relationship between the Poisson’s ratio and the cube side length (t = 0.5 mm~4.5 mm).

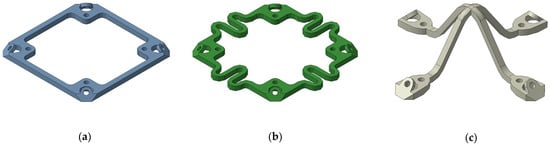

**Figure 17.**Component-level facet elements: (

**a**) Facet element of the rigid cell; (

**b**) Facet element of the compliant cell; (

**c**) Facet element of the auxetic cell.

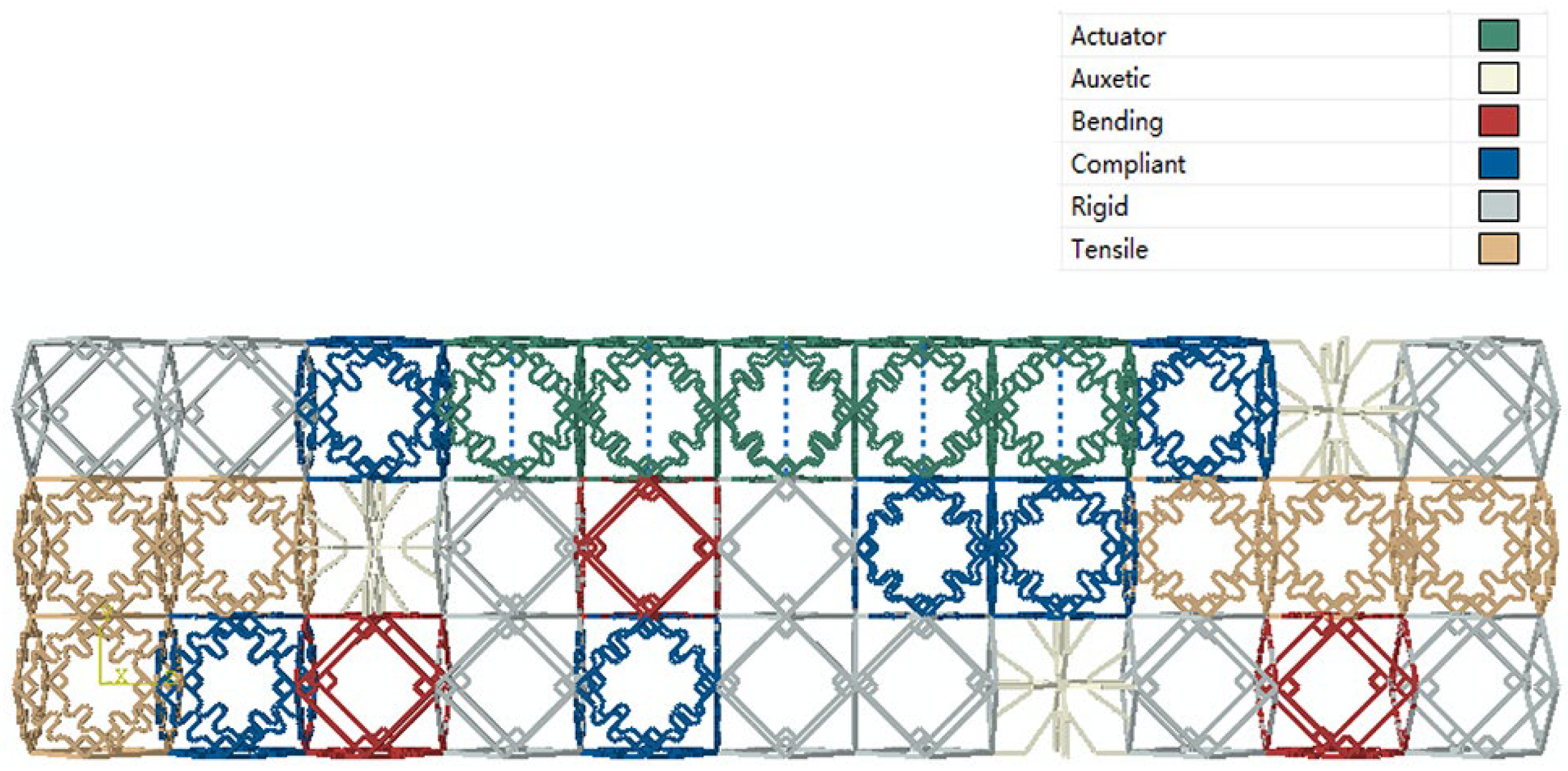

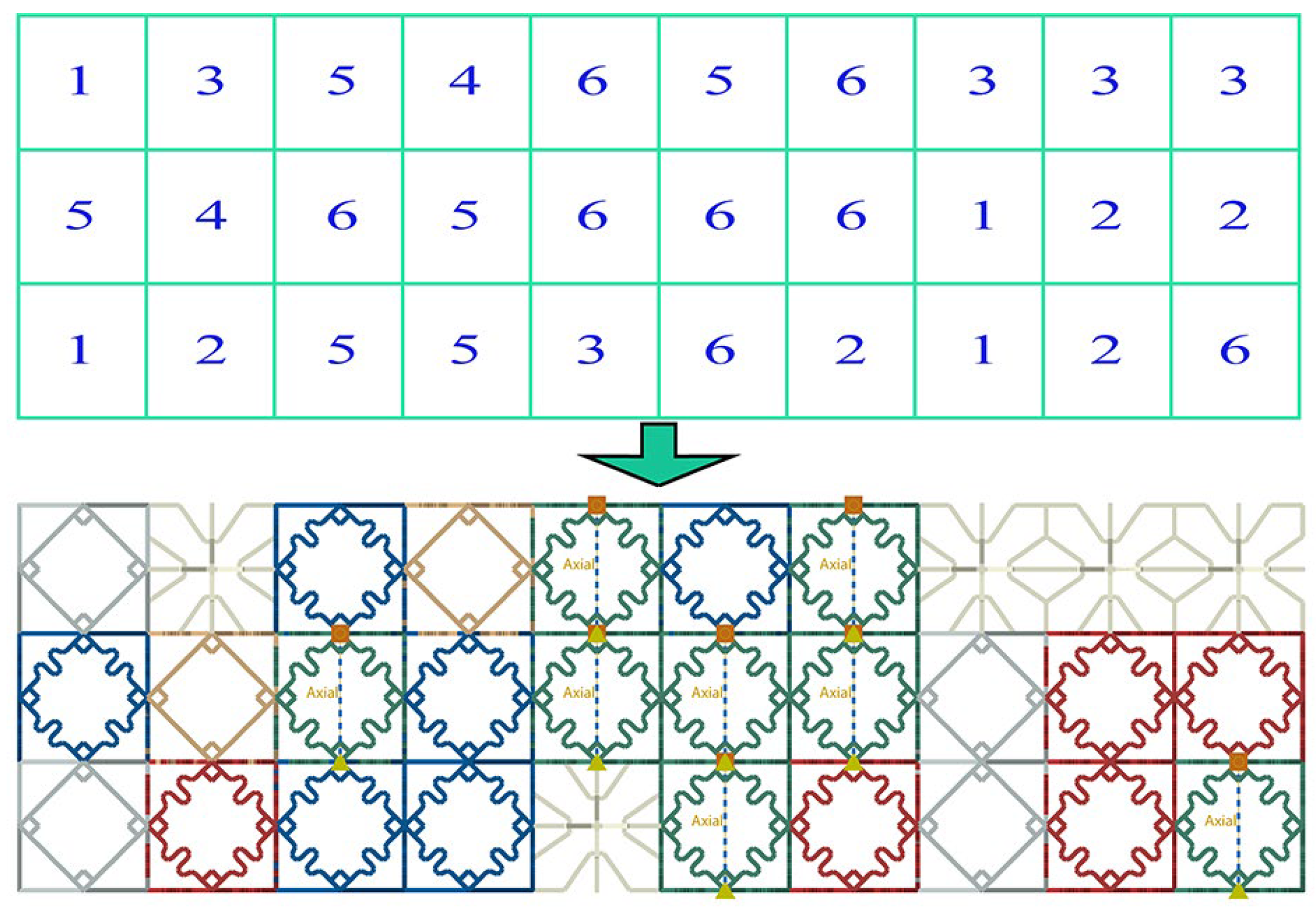

**Figure 20.**Diagram of the corresponding relationship between a specific sequence and its cell combination configuration.

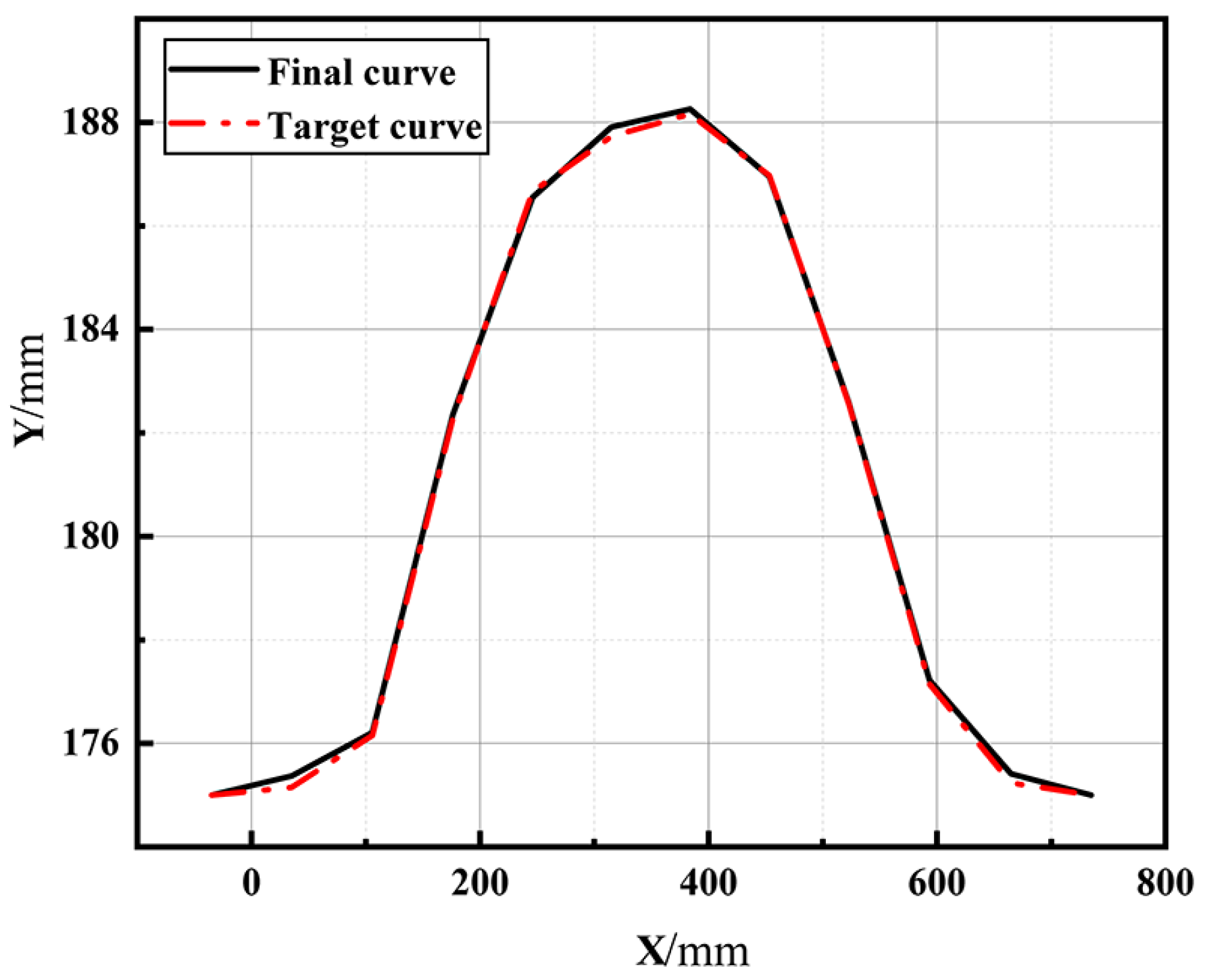

**Figure 24.**The comparison between the target curve and the final curve of the optimal cell arrangement.

Tensile Modulus | Poisson’s Ratio | Ultimate Tensile Strength | Elongation | Method | |
---|---|---|---|---|---|

Non-cured | 0.45 Gpa | 0.3 | 18.6 MPa | 0.67 | ASTM D 638-10 |

Post-cured | 1.26 Gpa | 0.3 | 31.8 Mpa | 0.49 | ASTM D 638-10 |

Rigid Cell | Compliant Cell | Auxetic Cell | Tensile Cell | Bending Cell | Actuator Cell | |
---|---|---|---|---|---|---|

Number of the unit cells | 10 | 6 | 3 | 6 | 3 | 5 |

Material volume of a unit cell (m^{3}) | 1.1090 × 10^{−5} | 1.4110 × 10^{−5} | 0.9059 × 10^{−5} | 1.3103 × 10^{−5} | 1.2096 × 10^{−5} | 1.4110 × 10^{−5} |

Weight of a unit cell (kg) | 1.1145 × 10^{−2} | 1.4180 × 10^{−2} | 0.9104 × 10^{−2} | 1.3168 × 10^{−2} | 1.2156 × 10^{−2} | 6.4180 × 10^{−2} |
