# Three-Surface Model with Redundant Longitudinal Control: Modeling, Trim Optimization and Control in a Preliminary Design Perspective

^{*}

^{†}

## Abstract

**:**

## 1. Introduction

## 2. Flight Mechanics Models for a Three-Surface Aircraft

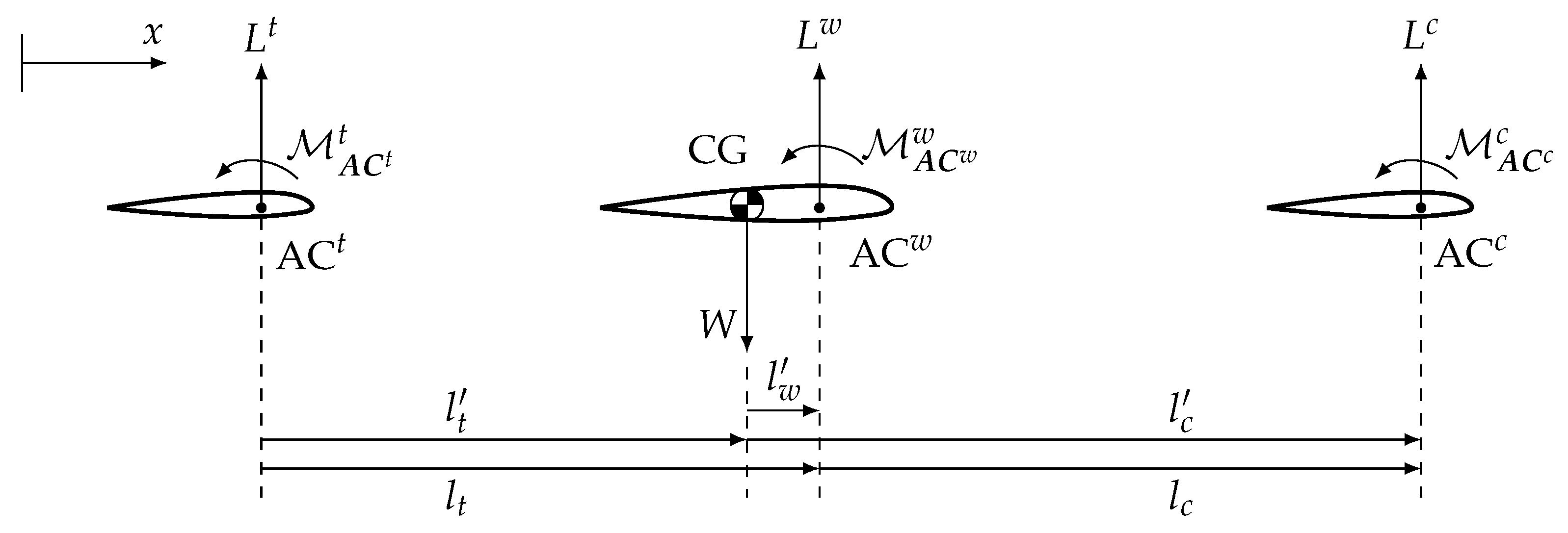

#### 2.1. Static Lumped Model for a Three-Surface Aircraft

#### 2.1.1. Lift for a Three-Surface Aircraft

#### 2.1.2. Drag and Polar for a Three-Surface Aircraft

#### 2.1.3. Pitching Moment for a Three-Surface Aircraft

#### 2.2. Model for the Longitudinal Dynamics of a Three-Surface Aircraft

#### 2.2.1. Derivatives with Respect to the Angle of Attack $\alpha $

#### 2.2.2. Derivatives with Respect to Forward Velocity U

#### 2.2.3. Derivatives with Respect to the Pitch Rate Q

#### 2.2.4. Derivatives with Respect to the Time Rate of the Angle of Attack $\dot{\alpha}$

#### 2.2.5. Control Derivatives

## 3. Optimization of Three-Surface Aircraft with Redundant Control

#### 3.1. Minimum Drag Solution and Optimal Trimmed Polar

**I**is the 3 × 3 identity matrix.

**y***, as

#### 3.2. Optimization of Three-Surface Configuration for Maximum Lift-To-Drag Ratio

#### 3.3. Updating a Twin-Engine, Two-Surface, Propeller Driven Airplane into an Optimal Three-Surface One

## 4. Flying Qualities and Control of a Three-Surface Aircraft: Assessment and Applications

#### 4.1. Emulating the Dynamics of a Back-Tailed Aircraft with a Three-Surface Aircraft via Automatic Control

#### 4.1.1. Control Scheme A

#### 4.1.2. Results of Dynamics Reassignment with Scheme A

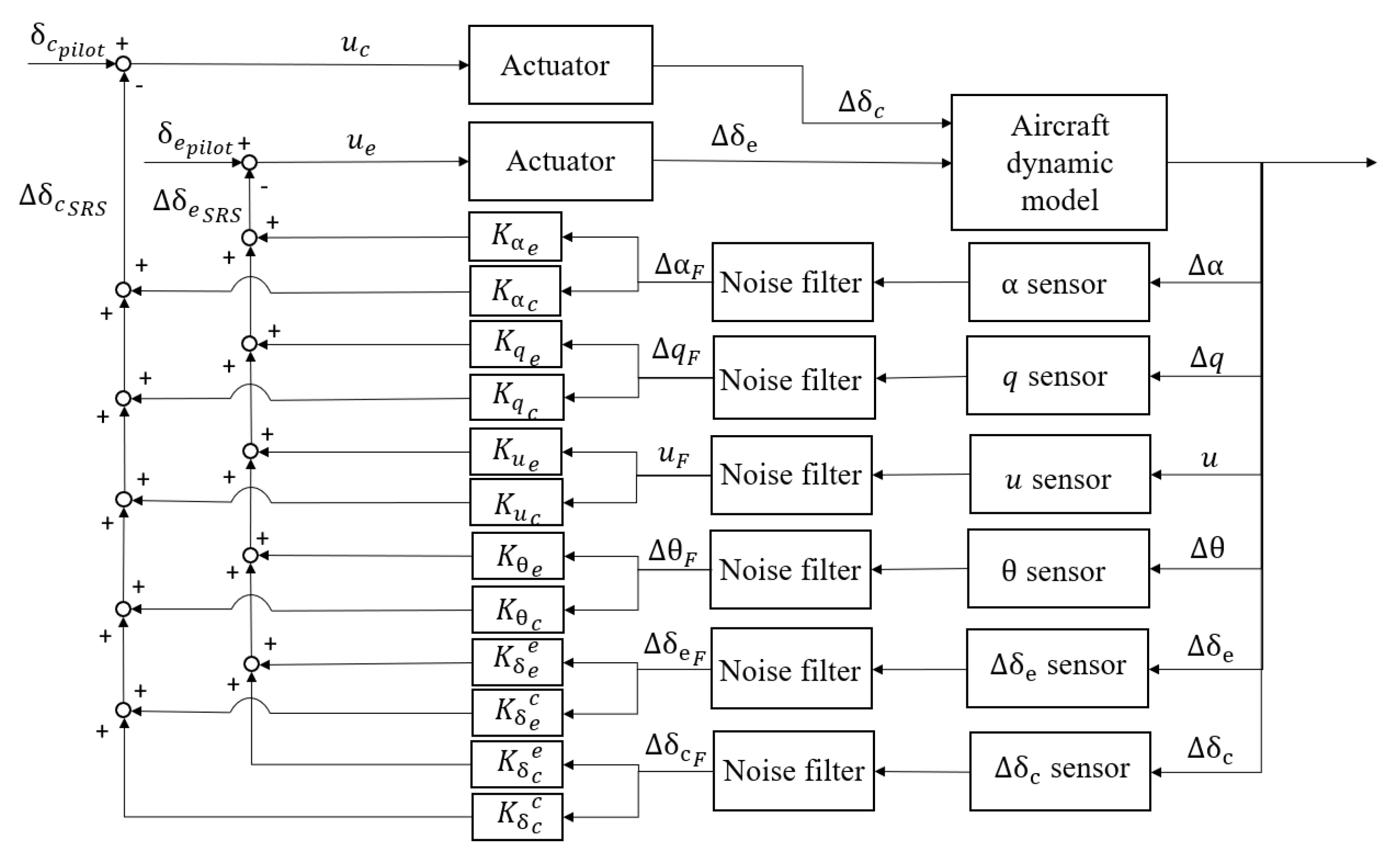

#### 4.1.3. Control Scheme B

#### 4.1.4. Results of Dynamics Reassignment with Scheme B

#### 4.2. Linear-Quadratic Regulator Law for Dynamics Stabilization on a Three-Surface Aircraft

#### Results of LQR Control for Longitudinal Stabilization

#### 4.3. Comparison of Control Loads in Time Domain for Pole-Placement and Lqr Techniques

## 5. Conclusions and Outlook

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Gundlach, J. Designing Unmanned Aircraft Systems: A Comprehensive Approach, 2nd ed.; American Institute of Aeronautics and Astronautics: Reston, VA, USA, 2012. [Google Scholar]
- Agnew, J.; Hess, J. Benefits of aerodynamic interaction to the three-surface configuration. J. Aircr.
**1980**, 17, 823–827. [Google Scholar] [CrossRef] - Kendall, E.R. The minimum induced drag, longitudinal trim and static longitudinal stability of two-surface and three-surface airplanes. In Proceedings of the AIAA 2nd Applied Aerodynamics Conference, Seattle, WA, USA, 21–23 August 1984. [Google Scholar]
- Kendall, E.R. The theoretical minimum of induced drag of three-surface airplanes in trim. J. Aircr.
**1985**, 22, 847–854. [Google Scholar] [CrossRef] - Kroo, I. A general approach to multiple lifting surface design and analysis. In Proceedings of the Aircraft Design Systems and Operations Meeting, San Diego, CA, USA, 31 October–2 November 1984. [Google Scholar]
- Strohmeyer, D.; Seubert, R.; Heinze, W.; Osterheld, C.; Fornasier, L. Three surface aircraft—A concept for future transport aircraft. In Proceedings of the 38th AIAA Aerospace Science Meeting and Exhibit, Reno, NV, USA, 1–3 January 2000. [Google Scholar]
- Ricci, S.; Scotti, A.; Zanotti, D. Control of an all-movable foreplane for a three surface aircraft wind tunnel model. Mech. Syst. Signal Process.
**2006**, 20, 1044–1066. [Google Scholar] [CrossRef] - Mattaboni, M.; Quaranta, G.; Mantegazza, P. Active flutter suppression for a three-surface transport aircraft by recurrent neural networks. J. Guid. Control Dyn.
**2009**, 32, 1295–1307. [Google Scholar] [CrossRef] - Riboldi, C.E.D.; Gualdoni, F. An integrated approach to the preliminary weight sizing of small electric aircraft. Aerosp. Sci. Technol.
**2016**, 58, 134–149. [Google Scholar] [CrossRef] - Riboldi, C.E.D. An optimal approach to the preliminary design of small hybrid-electric aircraft. Aerosp. Sci. Technol.
**2018**, 81, 14–31. [Google Scholar] [CrossRef] - Diamond Aircraft Industries GmbH N.A.-Otto Straße 5, 2700 Wiener Neustadt. Available online: https://www.diamondaircraft.com/en/about-diamond/why-diamond/locations/ (accessed on 7 May 2021).
- Phillips, J.D. Approximate Neutral Point of a Subsonic Canard Aircraft; NASA Technical Memorandum 86694; NASA Ames Research Center: Moffett Field, CA, USA, 1985.
- Levy, D. Prediction of average downwash gradient for canard configurations. In Proceedings of the 30th AIAA Aerospace Science Meeting and Exhibit, Reno, NV, USA, 6–9 January1992. [Google Scholar]
- Pamadi, B.N. Performance, Stability, Dynamics and Control of Aircraft; American Institute of Aeronautics and Astronautics: Reston, VA, USA, 1998. [Google Scholar]
- Roskam, J. Airplane Design; Roskam Aviation and Engineering Corporation: Ottawa, KS, USA, 1988. [Google Scholar]
- Borri, M.; Trainelli, L. Airplane equilibrium and stability: A simplified teaching approach. In Proceedings of the 17th Congresso Nazionale AIDAA, Rome, Italy, 15–17 September 2003. [Google Scholar]
- Gudmundsson, S. General Aviation Aircraft Design: Applied Methods and Procedures; Butterworth-Heinemann: Amsterdam, The Netherlands, 2014. [Google Scholar]

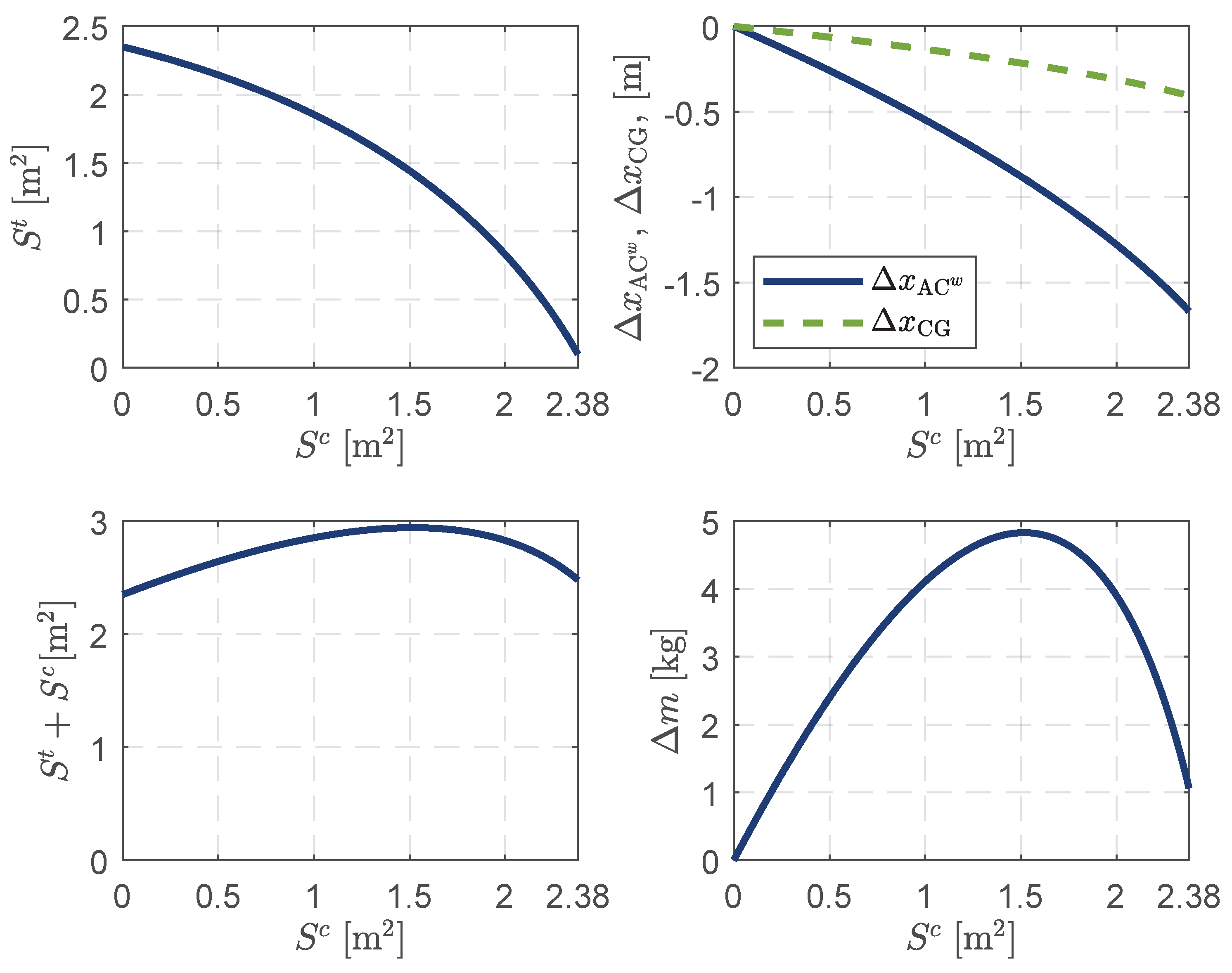

**Figure 3.**Tail surface (

**top-left**), sum of tail and canard surface (

**bottom-left**), variation in main wing location $\Delta {x}_{{\mathit{AC}}^{w}}$ and in center of gravity position $\Delta {x}_{\mathit{CG}}$ (

**top-right**) and increase in mass $\Delta m$ (

**bottom-right**) as functions of the canard size ${S}^{c}$. ${S}^{c}=0$ indicates the traditional two-surface back-tailed configuration. The black thin dashed line at ${S}^{c}=2.38$ refers to the two-surface canard configuration.

**Figure 4.**Maximum lift-to-drag ratio as function of the canard surface. Circle markers: analyzed configurations; solid line: spline interpolation.

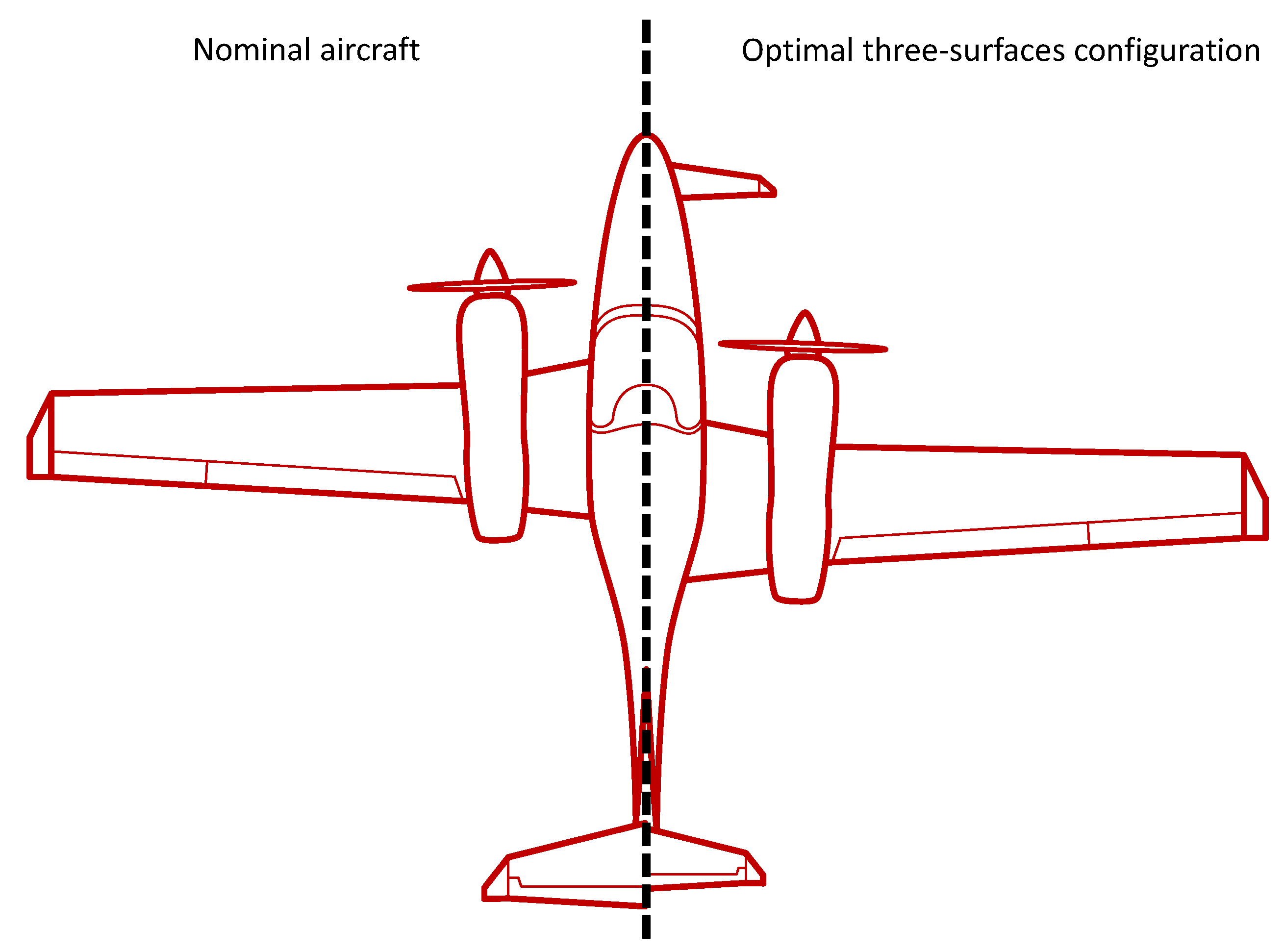

**Figure 5.**Sketch of the nominal DA42 airplane (

**left**) and optimal three-surface equivalent version (

**right**).

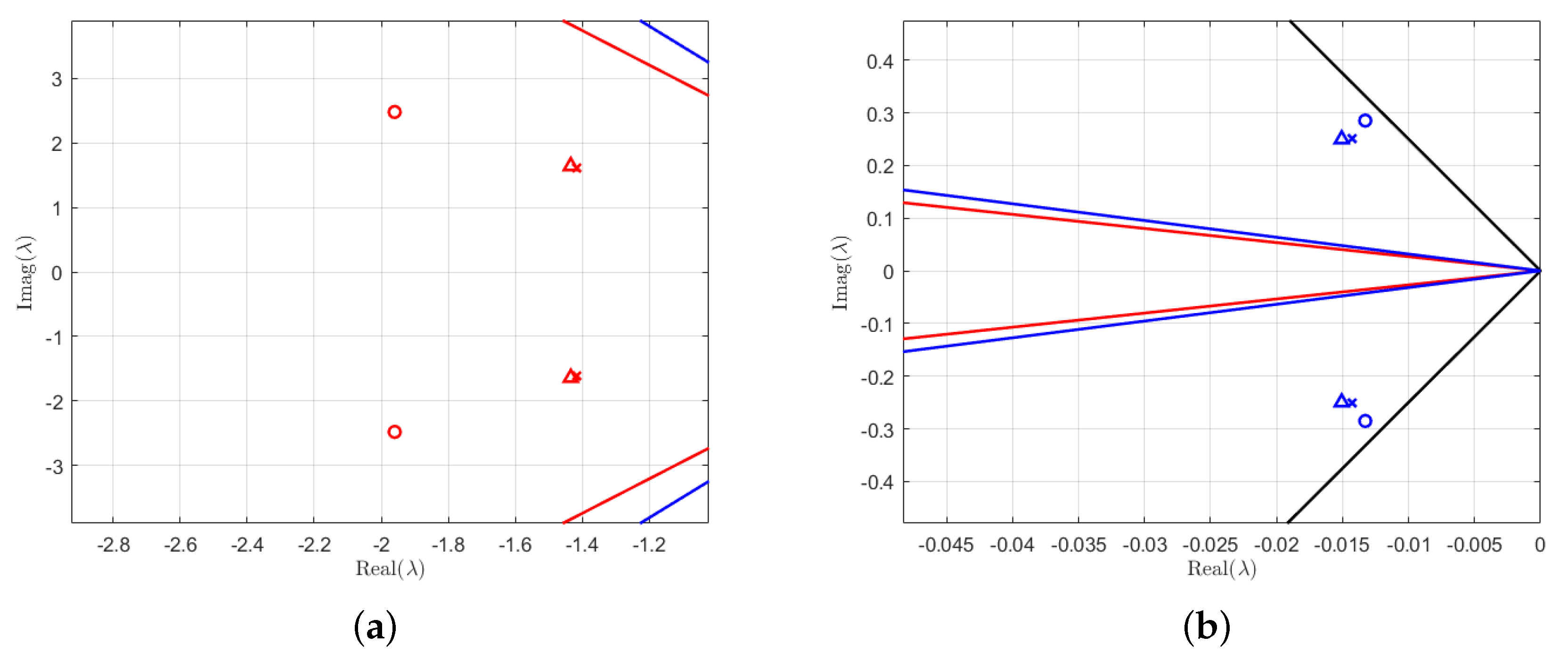

**Figure 7.**Eigenvalues of short period (

**a**) and phugoid (

**b**) for the two-surface testbed (triangles), three-surface testbed (circles) and three-surface with re-assigned dynamics via Scheme A (crosses). Lines represent limits for Level 1 flying qualities (black lines: phugoid, blue lines: Category B short period, red lines: Category A short period.

**Figure 9.**Eigenvalues of short period (

**a**) and phugoid (

**b**) for the two-surface testbed (triangles), three-surface testbed (circles) and three-surface with reassigned dynamics (crosses) via Scheme B. Lines represent limits for Level 1 flying qualities (black lines: phugoid, blue lines: Category B short period, red lines: Category A short period.

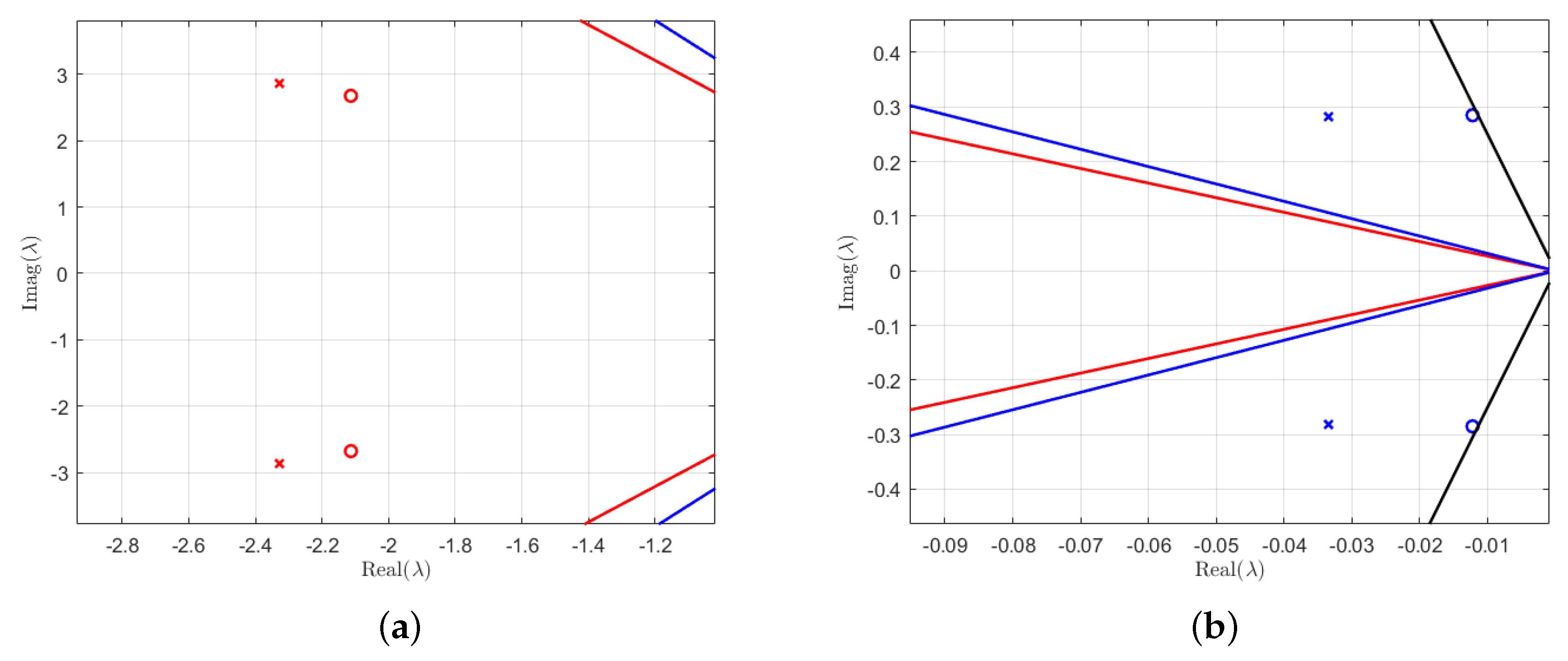

**Figure 10.**Eigenvalues of short period (

**a**) and phugoid (

**b**) for the three-surface testbed (circles) and three-surface with reassigned dynamics (crosses) via LQR. Lines represent limits for Level 1 flying qualities (black lines: phugoid, blue lines: Category B short period, red lines: Category A short period.

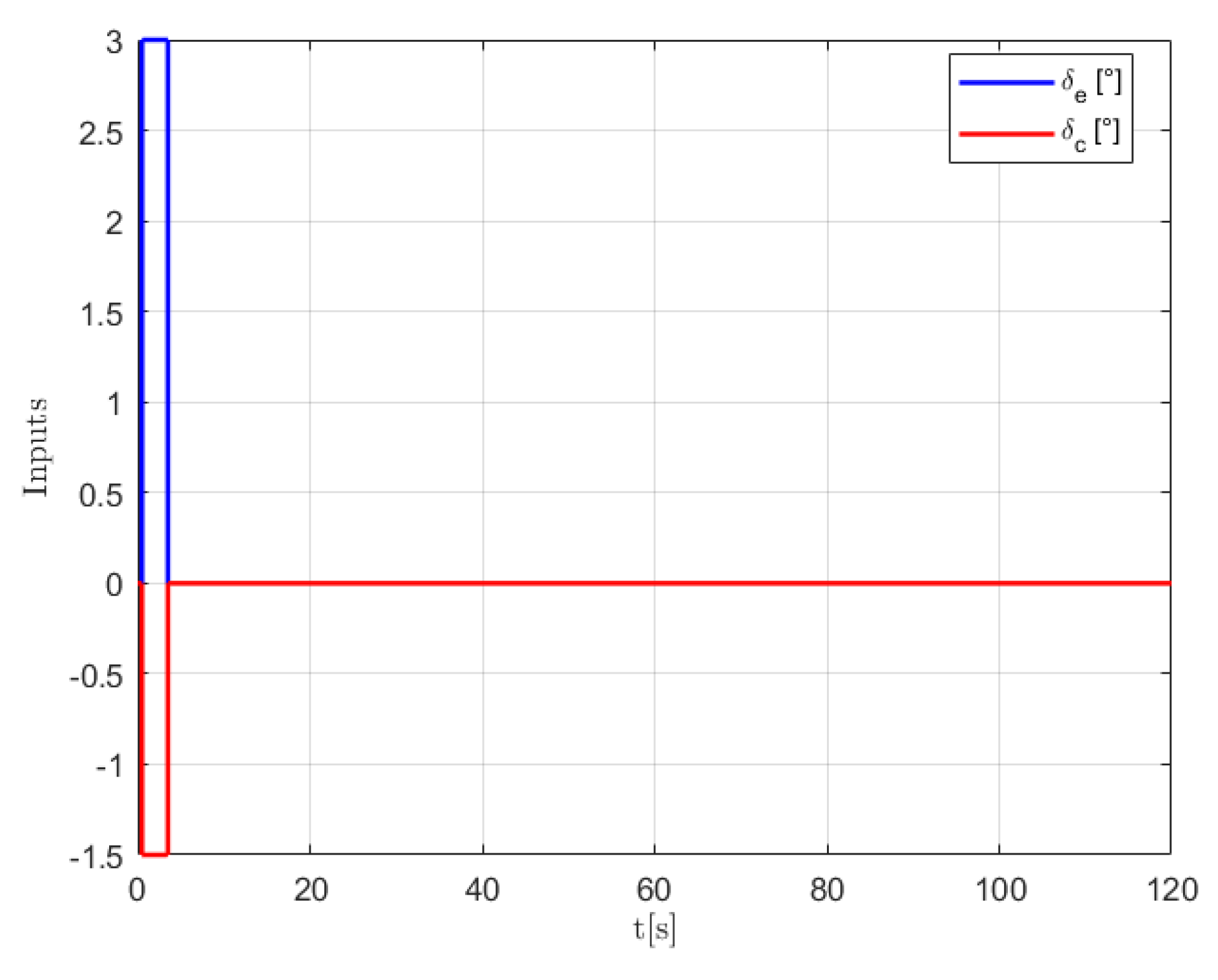

**Figure 11.**Pilot control set-points ${\delta}_{{e}_{pilot}}$ and ${\delta}_{{c}_{pilot}}$ for response comparison.

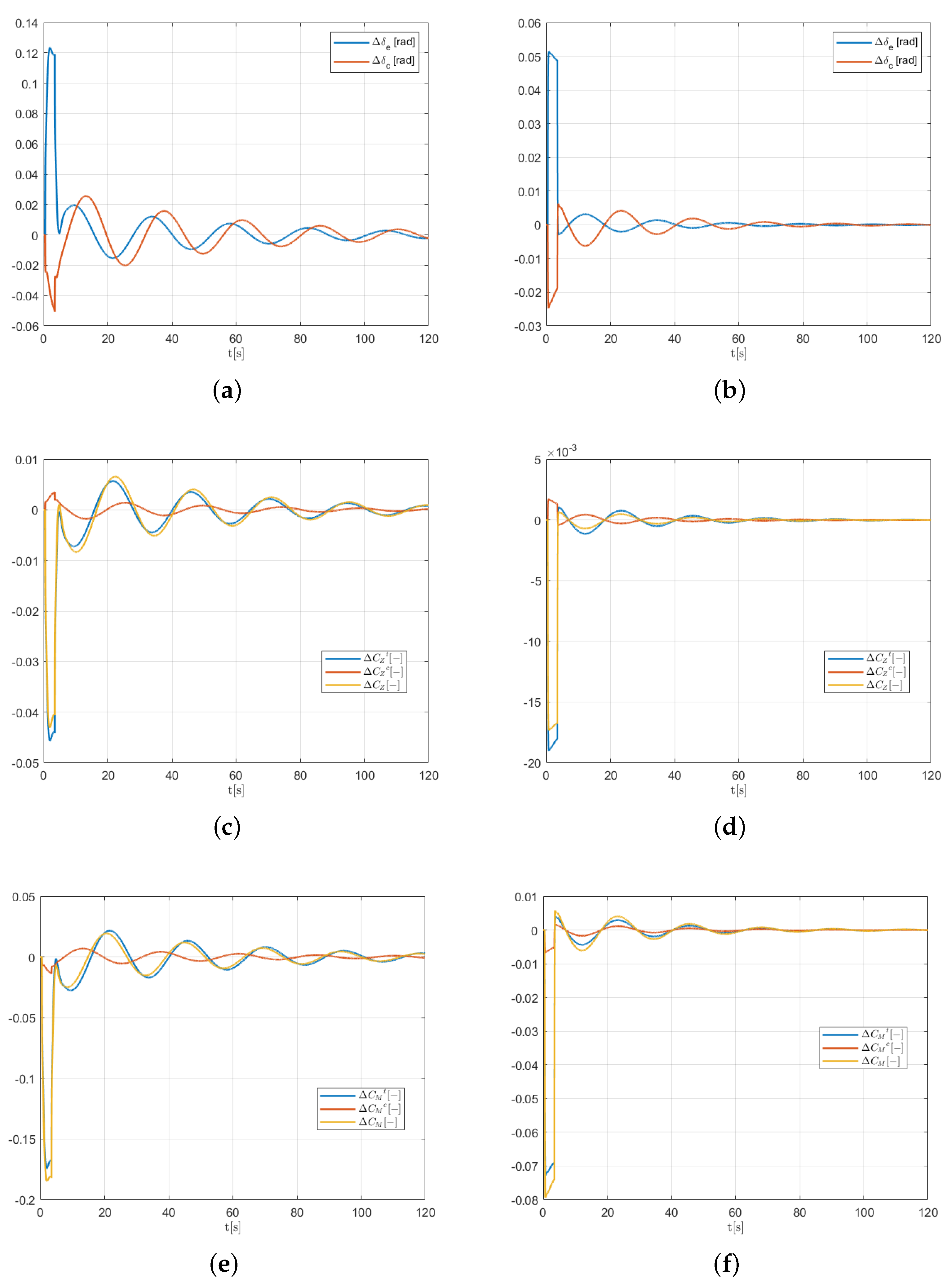

**Figure 12.**Comparison of the time histories of controls (first row,

**a**,

**b**), vertical control force coefficient (mid row,

**c**,

**d**) and control pitching moment (bottom row,

**e**,

**f**), for a control set-point history as in Figure 11, for the three-surface testbed conditioned by a Scheme B, pole placement designed controller (left) and an LQR controller (right).

**Table 1.**Main characteristics of the nominal aircraft model, loosely based on the Diamond DA42 Twin Star. Longitudinal axis is pointing forward and has origin in the aerodynamic center of the tail.

Variable | Value | Unit of Measure |
---|---|---|

Aircraft mass, m | 2000 | $\mathrm{kg}$ |

Wing mass, ${m}^{w}$ | 571.5 | $\mathrm{kg}$ |

Tail mass, ${m}^{t}$ | 20.0 | $\mathrm{kg}$ |

Wing area, S | 16.29 | ${\mathrm{m}}^{2}$ |

Tail area, ${S}^{t}$ | 2.35 | ${\mathrm{m}}^{2}$ |

Wing mean aerodynamic chord $\overline{c}$ | 1.1 | $\mathrm{m}$ |

Tail mean aerodynamic chord ${\overline{c}}^{t}$ | 0.55 | $\mathrm{m}$ |

Wing position, ${x}_{A{C}^{w}}$ | 4.6 | $\mathrm{m}$ |

Maximum forward fuselage extension | 7.35 | $\mathrm{m}$ |

Nominal center of gravity position, ${x}_{CG}$ | 4.11 | $\mathrm{m}$ |

Wing Oswald’s efficiency factor, ${e}^{w}$ | 0.8265 | - |

Tail Oswald’s efficiency factor, ${e}^{t}$ | 0.75 | - |

Wing incidence, ${i}^{w}$ | 0 | $\mathrm{deg}$ |

Tail incidence, ${i}^{w}$ | −1.1 | $\mathrm{deg}$ |

Slope of wing lift curve, ${C}_{{L}_{\alpha}}^{w}$ | 0.0585 | $1/\mathrm{deg}$ |

Slope of tail lift curve, ${C}_{{L}_{\alpha}}^{t}$ | 0.0775 | $1/\mathrm{deg}$ |

Tail lift-to-elevator derivative, ${C}_{{L}_{{\delta}_{e}}}^{t}$ | 0.051 | $1/\mathrm{deg}$ |

Constant drag coefficient of wing-body, ${C}_{{D}_{0}}^{w}$ | 0.03 | - |

Constant drag coefficient of tail, ${C}_{{D}_{0}}^{t}$ | 0.01 | - |

Wing aspect ratio, ${\lambda}^{w}$ | 11.06 | - |

Tail aspect ratio, ${\lambda}^{t}$ | 3.7 | - |

Wing pitching moment coefficient, ${C}_{{\mathcal{M}}_{{\mathit{AC}}^{w}}}$ | −0.03 | - |

Tail pitching moment coefficient, ${C}_{{\mathcal{M}}_{{\mathit{AC}}^{t}}}$ | −0.02 | - |

Constant downwash angle at tail, ${\epsilon}_{{D}_{0}}$ | 0.0 | $\mathrm{deg}$ |

Derivative of downwash angle respect $\alpha $ at tail, ${\epsilon}_{{D}_{{\alpha}^{w}}}$ | 0.33 | - |

**Table 2.**Characteristics of the canard surface common to all considered three-surface configurations.

Canard-Related Variable | Value | Unit of Measure |
---|---|---|

Slope of canard lift curve, ${C}_{{L}_{\alpha}}^{c}$ | 0.098 | $1/\mathrm{deg}$ |

Lift-to-elevator derivative, ${C}_{{L}_{{\delta}_{c}}}^{c}$ | 0.0654 | $1/\mathrm{deg}$ |

Incidence, ${i}^{c}$ | 0 | $\mathrm{deg}$ |

Constant drag coefficient, ${C}_{{D}_{0}}^{c}$ | 0.01 | - |

Oswald’s efficiency factor, ${e}^{c}$ | 0.85 | - |

Aspect ratio, ${\lambda}^{c}$ | 5.5 | - |

Pitching moment coefficient, ${C}_{{\mathcal{M}}_{{\mathit{AC}}^{c}}}$ | −0.02 | - |

Constant downwash angle at wing, ${\epsilon}_{{C}_{0}}$ | 0.0 | $\mathrm{deg}$ |

Derivative wrt. $\alpha $ of downwash angle at wing, ${\epsilon}_{{C}_{{\alpha}^{c}}}$ | 0.02 | - |

Derivative wrt. ${\delta}_{c}$ of downwash angle at wing, ${\epsilon}_{{C}_{{\delta}_{c}}}$ | 0.01 | - |

Wing-induced constant upwash, ${\epsilon}_{{U}_{0}}$ | 0.0 | $\mathrm{deg}$ |

Derivative wrt. $\alpha $ of wing-induced upwash, ${\epsilon}_{{U}_{{\alpha}^{w}}}$ | 0.001 | - |
