Abstract

:
Radio beacons enable measurements of ionospheric radio scintillations and total electron content (TEC). These beacons transmit unmodulated, phase-coherent waves in S-band frequencies. Many satellite applications require circularly polarized (CP) wideband antennas. Their compact size, lightweight, and simple fabrication method make CP antennas suitable for small satellite systems. The slot antenna has wideband impedance, but the 3 dB axial ratio bandwidth (ARBW) is narrower compared to the impedance bandwidth (IBW). In this paper, a circularly polarized circular-slotted antenna (CSA) is proposed to enhance the ARBW and the antenna gain. A pair of asymmetrical rectangular slots, a simple 50 Ω feedline and a parasitic patch were introduced to a CSA to enhance the 3 dB ARBW and the antenna gain. Rectangular slots were inserted on the diagonal axis of the CSA, the feedline was shifted to the left side of the x-axis, and a parasitic patch was attached to the circular slot. The lengths of the rectangular slots correspond to the resonant frequency, and the parasitic patch width corresponds to the higher frequency of the 3 dB ARBW. The asymmetrical rectangular slots, the shifted feedline, and the parasitic patch successfully improved the measured 3 dB ARBW of the antenna by 787.5 MHz or 35.79%. The measured gain of a CSA with left-hand circular polarization (LHCP) was also improved by shifting the feedline and the rectangular slot, achieving a peak gain of 5 dBic.
Keywords:
nanosatellite; microstrip antenna; slot antenna; axial ratio enhancement; circular polarization

1. Introduction

The Josaphat Microwave Remote Sensing Laboratory (JMRSL), Center for Environmental Remote Sensing (CEReS), Chiba University in Chiba, Japan has been conducting research and development related to ionosphere sensors onboard microsatellites since 2015 [1,2]. Developments in space technology have motivated scientists and engineers to consider the idea of a small satellite. The evolution and ongoing miniaturization of technology have led to the emergence of new small satellites, such as nanosatellites capable of performing simple and complex missions in outer space [3].
As a radio wave transmitter and receiver, an antenna is a critical part of a satellite system. Many satellite applications in L-band and S-band, such as Global Navigation Satellite Systems (GNSS) and satellite communication systems, require wideband circularly polarized (CP) antennas. The CP antenna is resilient to multi-path interferences, the Faraday rotation effect, and polarization mismatch, especially for small satellites without attitude and stabilization control.
The proposed satellite antenna for ionospheric monitoring [4] has a quadrifilar helical antenna [5] with a crossed-dipole, but these antennas are an inappropriate size for nanosatellites. The compact size, lightweight, and simple fabrication method make this antenna suitable for a satellite system. CP printed-slot antennas have been broadly developed to achieve wide 3 dB axial ratio bandwidth (ARBW) fed by a coplanar wave (CPW) and microstrip line. A CPW-fed slot antenna with a lightening feed line and inverted-L grounded strips [6] produced a 3 dB ARBW of 48.8% and 4.2 dBic peak gain, whereas a CPW-fed symmetric-aperture antenna [7] produced a broader 3 dB ARBW of 68% and 4 dBic peak gain. Microstrip-line-fed ring slot antennas have lower bandwidth and gain, such as the square-ring slot antenna [8]. Better gains have been achieved by microstrip-line-fed wide-slot antennas, such as the patch-loaded square slot antenna [9] that produces a 3 dB ARBW of 12% with a peak gain of 5.5 dBic, and the L-shaped microstrip-fed circular-shaped slot antenna [10] that achieves a 3 dB ARBW of 44% with a peak gain of 5 dBic. Gain enhancement with substrate-integrated waveguide (SIW) cavity-backed antenna using T E 410 [11] produced a gain of 9.2 dBic with no 3 dB ARBW. Antennas with asymmetrical square-ring slots and a shifted feedline on the x-axis [12] presented a 3 dB ARBW of 4.3% and a gain of 4.3 dBic. Wider ring slots incorporated with grounded hat-shaped patches and a curved feed line [13] significantly enhanced the ARBW with a 3 dB ARBW of 65% and a peak gain of 5.1 dBic. However, the drawbacks are a weaker structure and a much larger size.
The conventional circular-slotted antenna is linearly polarized. Therefore, changing the structure, such as introducing perturbation to the slot, a hybrid coupler [14,15], and two linked slot rings [16], has been proposed to transform the polarization from linear mode to circular mode. However, these modifications yield narrower 3 dB ARBW than impedance bandwidth (IBW). As such, improving the 3 dB ARBW technique is necessary. Many methods have been investigated for this purpose, including a slanted rectangular slot with a circular patch [17] and a narrow horizontal slot on the equilateral triangular patch antenna [18]. However, these modifications did not improve the impedance bandwidth, axial ratio bandwidth, or gain.
The goal of this study was to create a design for enhancing the CP performance of a circular-slotted antenna (CSA) to achieve a wide 3 dB ARBW close to its IBW, and a higher gain. CP radiation was generated by creating two truncations, a simple 50 Ω microstrip feedline, and a parasitic patch. The truncations were created by a pair of asymmetrical rectangular slots on the diagonal axis of the grounded patch to generate AR polarization. The feedline was shifted to the left side on the x-axis to enhance antenna gain and deformed by introducing a stub on the upper edge of the feedline to match the antenna impedance. To improve the 3 dB ARBW of the CSA antenna, a rectangular parasitic patch was loaded into the circular slot, which generated a higher frequency.

2. Circular-Slotted Antenna

The design included a conventional model and model 1, as depicted in Figure 1. The conventional CSA (Figure 1a) applies linear polarization (LP) radiation. The slot radius R determines the resonant frequency of this antenna. The antenna is simulated on a substrate with a relative permittivity ε r of 2.17, thickness h of 1.6 mm, loss tangent of 0.0005, and slot radius R of 26.5 mm. The copper thickness t of 0.035 mm, the antenna width W of 95 mm, and the length L of 100 mm yield a resonant frequency of 2.17 GHz. The feedline length L f 1 is 40 mm, L f 2 is 8 mm, width W f 1 is 4 mm, and W f 2 is 4 mm. Figure 2 depicts the final design, referred to as model 2. The dimensions of the CSA model are provided in Table 1.

3. A Pair of Rectangular Slots and Parasitic Patch for the 3 dB ARBW and the Gain Enhancement

3.1. A Pair of Symmetrical Rectangle Slots (Model 1)

The CP is converted from the LP antenna (conventional model) by modifying the slot structure [16], and its feedline is positioned to the side of the wide slot [19]. In model 1, the feedline is shifted toward the left side of the x-axis, and two symmetrical rectangular slots are introduced on the diagonal of the grounded patch. The feedline is shifted to the left side with X f 1 of 9 mm. The rectangular slots have a length L s 1 of 40.79 mm, W s 1 of 16 mm, L s 2 of 40.79 mm, and W s 2 of 16 mm. This design was used to generate the CP wave and increase the antenna gain, as shown in Figure 1b. The lengths L s 1 and L s 2 also influence the resonant frequency by changing the slot size. The larger the value of L s 1 , the higher the resonant frequency, and the lower the axial ratio. A wider impedance bandwidth compared with the conventional model was produced.
With a slot length of 0 mm, the center frequency S 11 shifts to a higher frequency of 2.37 GHz with an impedance bandwidth of 1.11 GHz. The antenna gain is 1.92 dBic at a frequency of 2.2 GHz, with a peak gain of 2.4 dBic at a frequency of 2.6 GHz. When the slot length is 30 mm, the frequency center shifts to a higher frequency of 2.59 GHz. This model achieves a peak gain of 4.06 dBic, but fails to generate the 3 dB axial ratio. When the rectangular slot length is 40.79 mm, a 3 dB axial ratio is generated at the center frequency of 2.34 GHz with an ARBW of 270 MHz. If the slot length is more than 40.79 mm, the axial ratio is better (lower), but the center frequency S 11 shifts to a higher frequency. The influence of slot lengths L s 1 and L s 2 on S 11 , the axial ratio, and the gain are depicted in Figure 3a–c, respectively.

3.2. A Rectangular Parasitic Patch (Model 2)

CP performance improvement of the CSA model 1 was necessary as its 3 dB ARBW was much narrower than its impedance bandwidth. Many methods have been investigated to enhance the 3 dB ARBW using a parasitic center patch [20] and a coplanar parasitic patch [21]. In this design, a parasitic patch on the circular slot was introduced to model 1 to generate another resonant frequency to broaden the 3 dB ARBW. The performance of the parasitic patch is influenced by a current path that depends on the parasitic length W p , the parasitic width L p , and its parasitic center on the x- and y-axes. In this step, the effect of the parasitic width, patch length, and its center on the x- and y-axes are simulated. Figure 4a–d depict the simulation results. Figure 4a shows the effect of the parasitic widths W p of 0, 20, and 31 mm with a fixed parasitic length L p of 12 mm, X p of 8 mm, and Y p of 5 mm on the 3 dB axial ratio bandwidth. The parasitic widths of 0 and 20 mm produced 3 dB axial ratio bandwidths of 270 and 210 MHz, respectively. The antenna gain was lower, with a value of 3.47 dBic at 2.2 GHz. The parasitic width W p of 31 mm generated a CP in the center frequencies of 2.35 and 3.44 GHz, producing 3 dB axial ratios of 360 and 160 MHz. This antenna design produced an antenna gain of 3.64 dBic at the frequency of 2.2 GHz. This simulation result shows that when the parasitic patch width is 31 mm, a better axial ratio bandwidth is created. Figure 4b shows the effect of the parasitic lengths L p of 2, 6, and 12 mm with a fixed parasitic width W p of 31 mm, X p of 8 mm, and Y p of 5 mm on the 3 dB axial ratio bandwidth. The parasitic length L p of 2 mm generated dual CP frequencies of 2.35 GHz and 2.58 GHz, with 3 dB ARBWs of 229 MHz and 180 MHz, respectively.
When the patch length L p was 6 mm, the 3 dB axial ratios were 300 and 220 MHz at frequencies of 2.37 and 3.55 GHz, respectively. When the patch length L p was 12 mm, the 3 dB axial ratios were 310 and 250 MHz in the center frequencies of 2.38 and 3.49 GHz, respectively. The center frequency of the CP shifted closer to each other and the gain increased by 4.1 dBic.
Figure 4c shows the effect of the parasitic center Y p of −5, 0, and 5 mm with a fixed parasitic width W p of 31 mm, and L p of 12 mm on the 3 dB axial ratio bandwidth. When the parasitic center Y p was −5 mm, the 3 dB center frequencies (CF) were 2.63 and 3.7 GHz. When the parasitic center Y p was 0 mm, the 3 dB CF were 2.56 and 3.56 GHz. When Y p was 5 mm, the 3 dB CF occurred at 2.39 and 3.45 GHz. The simulation result showed that the parasitic center Y p controls the 3 dB CF. Figure 4d shows the effect of the parasitic center X p of −9, 0, and 8 mm with the fixed parasitic width W p of 31 mm and L p of 12 mm on the 3 dB axial ratio bandwidth. When the parasitic center X p was −9, 0, and 8 mm, the 3 dB center frequency generated 3 dB ARBWs of 190 MHz, 290 and 190 MHz, and 340 and 250 MHz, respectively. The simulation result showed that the parasitic center X p generates a higher frequency when its position is on the positive x-axis.
However, a combination of the symmetrical slot length and a rectangular parasitic patch failed to enhance the 3 dB ARBW. The next step was to extend the slot lengths L s 1 to 48.79 mm and L s 2 to 40.79 mm. This modification successfully enhanced the 3 dB axial ratio up to 51.52% in the frequency range of 2.12–3.35 GHz. This design also increased the antenna gain up to 4.71 dBic at the frequency of 2.2 GHz, with a peak gain of 4.8 dBic at the frequency of 2.28 GHz. However, the impedance frequency shifted to a higher frequency of 2.27–3.32 GHz, with the deepest curve of −45 dB at the center frequency of 2.69 GHz. This impedance frequency must have been shifted to a lower frequency; therefore, to overcome this problem, the feedline width was deformed with a W f 2 of 10 mm, as depicted in Figure 2. Model 2 has an impedance bandwidth of 1.84–2.72 GHz, an antenna gain of up to 4.65 dBic, an ARBW of 2.21–3.26 GHz or 51.52%, and a deep curve of 0.28 dB at the frequency of 2.42 GHz. Therefore, proper tuning is critical to determine the best parameters that produce a wider impedance bandwidth, a wider ARBW, and a higher gain. The comparison of the simulation results of the conventional model, model 1, and model 2 is depicted in Figure 5, and the performance is compared in Table 2.
Figure 6a,b show the measured and the simulated axial ratios as a function of theta ( θ ) at the frequencies of 2.2 GHz and 2.4 GHz. At 2.2 GHz, the measured and simulated AR in the E-plane and H-plane produced a good result, even though the measured result was a little higher than the simulated result in the E-plane. At 2.4 GHz in the E-plane and H-plane, the measured and simulated results were also good, even though the line pattern was not entirely similar.
Figure 7 shows the electric field distribution at a frequency of 2.2 GHz at 0, 45, 90, 135, and 180°. The electric field was dominant on the end of the upper feedline. For the electric field phase of 0 and 180°, the amplitude was dominant on the diagonal of the patch and the top right corner. When the electric field phase was 45°, the amplitude was dominant in the middle of the patch aligned with feedline and on the bottom left corner. The electric fields showed the left-hand pattern.

4. Results and Discussion

Model 2 had to be verified to confirm the simulation results. For this purpose, model 2 was manufactured as shown in Figure 8 and was measured using an RF Vector Network Analyzer (E5062A, ENA-L, Agilent) in an anechoic chamber. Figure 9a highlights that the impedance bandwidth of the fabricated antenna was in good agreement with the simulation model. The simulated results produced an impedance bandwidth of 862.5 MHz from 1.85 to 2.71 GHz, whereas the measured result recorded an impedance bandwidth of 1.04 GHz from 1.77 to 2.81 GHz.
The CP performance of the manufactured antenna conformed to the simulated model as illustrated in Figure 9b. The fabricated antenna produced a 3 dB ARBW of 787.5 MHz from 2.1625–2.95 GHz, which was narrower than the simulated 1.13 GHz range of 2.13–3.26 GHz. The measured ARBW was located entirely in the measured impedance bandwidth coverage. Figure 9c shows the antenna gain. The measured average gain generated a peak gain of 5 dBic at the lower frequency of 2.2 GHz and a lower gain of 3 dBic at the higher frequency of 2.8 GHz.
The radiation patterns of the fabricated antenna were also measured in an anechoic chamber to confirm the simulation result. Figure 10 shows the measured and simulated far-field radiation patterns of the CSA when it is radiated by left-hand circular polarization (LHCP) and right-hand circular polarization (RHCP) waves sequentially. The antenna produced bidirectional radiation with both LHCP and RHCP operations radiated toward the +z direction (θ = 0°) and −z direction (θ = 180°), respectively. The measured E-plane far-field radiation patterns for 1.8 GHz, 2 GHz, 2.2 GHz, 2.4 GHz, and 2.6 GHz in Figure 10a–e, respectively, showed good agreement with the simulated results at the corresponding frequencies.
The performance and dimensions of the measured antenna are compared with those of some related wideband CP printed-slot antennas reported in the literature in Table 3. The proposed CSA with two asymmetrical rectangular slots and a parasitic patch had a higher peak gain compared to those reported in previous studies [6,7,8] and a broader 3 dB ARBW compared to those reported by Row et al. [8] and Tseng et al. [10].

5. Conclusions

In this study, a conventional CSA was converted from linear polarization to circular polarization by introducing a shifted feedline and two equal rectangular slots to the circular-slotted patch. This design yielded a 3 dB ARBW narrower than its impedance bandwidth. The proposed method to enhance the 3 dB ARBW involved inserting two asymmetrical rectangular slots and a parasitic patch. Both asymmetrical rectangular slots and the parasitic patch successfully improved the measured 3 dB ARBW of 787.5 MHz by 35.79% from 2.16 to 2.95 GHz. We confirmed that the two asymmetrical rectangular slots and the parasitic patch improved the gain. The measured average gain generated a peak gain of up to 5 dBic at the frequency of 2.2 GHz. The proposed antenna achieved a measured impedance bandwidth of 1.04 GHz, or equal to 47.27%, from 1.77 to 2.81 GHz. Thus, this design can be implemented for applications that require a wideband circularly polarized antenna.

Author Contributions

Conceptualization, P.P.S. and J.T.S.S.; methodology, P.P.S. and F.K.; software, P.P.S. and F.K.; validation, P.P.S. and F.K.; formal analysis, P.P.S.; investigation, P.P.S.; writing and the original draft preparation, P.P.S.; writing, review, and editing, P.P.S., F.K., J.T.S.S. and M.N.; supervision, J.T.S.S.; project administration, J.T.S.S.; funding acquisition, J.T.S.S.

Funding

This research is partially supported by the Chiba University Strategic Priority Research Promotion Program FY2016–FY2018.

Acknowledgments

This work was supported by the Indonesian National Institute of Aeronautics and Space (LAPAN); Ministry of Research, Technology, and Higher Education (RISET-PRO).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Sri Sumantyo, J.T.; Imura, N. Development of GNSS-RO and EDTP sensors onboard microsatellite for Ionosphere monitoring. In Proceedings of the 2015 IEEE International Geoscience and Remote Sensing Symposium (IGARSS), Milan, Italy, 26–31 July 2015. [Google Scholar]
  2. Sri Sumantyo, J.T. Development of Microsatellites for Atmospheric and Land Deformation Observation. In Proceedings of the Asia Oceania Geoscience Symposium (AOGS), Hokkaido, Japan, 28 July–1 August 2014; p. 219. [Google Scholar]
  3. Nugent, R.; Munakata, R.; Chin, A.; Coelho, R.; Puig-Suari, J. The cubesat: The picosatellite standard for research and education. Aerosp. Eng. 2008, 805, 756–5087. [Google Scholar]
  4. Pansomboon, R.; Phongcharoenpanich, C.; Phudpong, R. Design of a Dual-Band Quadrifilar Helical Antenna for Radio Beacon Receiver. In Proceedings of the 2011 International Symposium on Intelligent Signal Processing and Communications Systems (ISPACS), Chiang Mai, Thailand, 7–9 December 2011. [Google Scholar]
  5. Bernhardt, P.A.; Siefring, C.L. New satellite-based systems for ionospheric tomography and scintillation region imaging. Radio Sci. 2006, 41. [Google Scholar] [CrossRef]
  6. Sze, J.Y.; Hsu, C.-I.G.; Chen, Z.-W.; Chang, C.-C. Broadband CPW-fed circularly polarized square slot antenna with lightening-shaped feed-line and inverted-L grounded strips. IEEE Trans. Antennas Propag. 2010, 58, 973–977. [Google Scholar] [CrossRef]
  7. Chen, Z.-N.; Qing, X. Symmetric-aperture antenna for broadband circular polarization. IEEE Trans. Antennas Propag. 2011, 59, 3932–3936. [Google Scholar]
  8. Row, J.S. The design of a squarer-ring slot antenna for circular polarization. IEEE Trans. Antennas Propag. 2005, 53, 1967–1972. [Google Scholar] [CrossRef]
  9. Wong, K.L.; Wu, J.Y.; Wu, C.K. A circular-polarized patch loaded square slot antenna. Microw. Opt. Technol. Lett. 1999, 23, 363–365. [Google Scholar] [CrossRef]
  10. Tseng, L.Y.; Han, T.Y. Microstrip-fed circular slot antenna for circular polarization. Microw. Opt. Technol. Lett. 2008, 50, 1056–1058. [Google Scholar] [CrossRef]
  11. Xu, Z.; Liu, J.; Huang, S.; Li, Y. Gain-enhanced SIW cavity-backed slot antenna by using TE410 mode resonance. Int. J. Electron. Commun. 2019, 98, 68–73. [Google Scholar] [CrossRef]
  12. Wong, K.L.; Huang, C.C.; Chen, W.S. Printed ring slot antenna for circular polarization. IEEE Trans. Antennas Propag. 2002, 50, 75–77. [Google Scholar] [CrossRef]
  13. Sze, J.Y.; Chen, W.H. Axial-ratio-bandwidth enhancement of a microstrip-line-fed circularly polarized annular-ring slot antenna. IEEE Trans. Antennas Propag. 2011, 59, 2450–2456. [Google Scholar] [CrossRef]
  14. Qing, X.M.; Chia, Y.W.M. Circularly polarized circular ring slot antenna fed by stripline hybrid coupler. Electron. Lett. 1999, 35, 2154–2155. [Google Scholar] [CrossRef]
  15. Zhang, J.L.; Yang, X.Q. Integrated compact circular polarization annular ring slot antenna design for RFID reader. Prog. Electromagn. Res. Lett. 2013, 39, 133–140. [Google Scholar] [CrossRef]
  16. Chang, T.N.; Lin, J.M. Circularly polarized antenna having two linked slot-rings. IEEE Trans. Antennas Propag. 2011, 59, 3057–3060. [Google Scholar] [CrossRef]
  17. Aziz, M.Z.A.A.; Mufit, N.A.D.A.; Rahim, M.K.A.; Kamaruddin, M.R. Design X-circular polarized with slant rectangular slot by using single port. In Proceedings of the 2012 International Symposium on Antennas and Propagation, Nagoys, Japan, 29 October–2 November 2012; pp. 555–558. [Google Scholar]
  18. Lu, H.J.; Tang, C.L.; Wong, K.L. Single-feed slotted equilateral-triangular microstrip antenna for circular polarization. IEEE Trans. Antennas Propag. 1999, 47, 1174–1178. [Google Scholar]
  19. Ellis, M.S.; Zhao, Z.; Wu, J.; Ding, X.; Nie, Z.; Liu, Q. A novel simple and compact microstrip-fed circularly polarized wide slot antenna with wide axial ratio bandwidth for C-Band applications. IEEE Trans. Antennas Propag. 2016, 64, 1552–1555. [Google Scholar] [CrossRef]
  20. Sung, Y. Bandwidth enhancement of a microstrip line-fed printed wide-slot antenna with a parasitic center patch. IEEE Trans. Antennas Propag. 2012, 60, 1712–1716. [Google Scholar] [CrossRef]
  21. Fu, S.; Kong, Q.; Fang, S.; Wang, Z. Broadband Circularly Polarized Microstrip Antenna with Coplanar Parasitic Ring Slot Patch for L-Band Satellite System Application. IEEE Antennas Wirel. Propag. Lett. 2014, 13, 943–946. [Google Scholar]
Figure 1. Geometry of a circular-slotted antenna (CSA): (a) conventional model and (b) model 1.
Figure 1. Geometry of a circular-slotted antenna (CSA): (a) conventional model and (b) model 1.
Aerospace 06 00039 g001

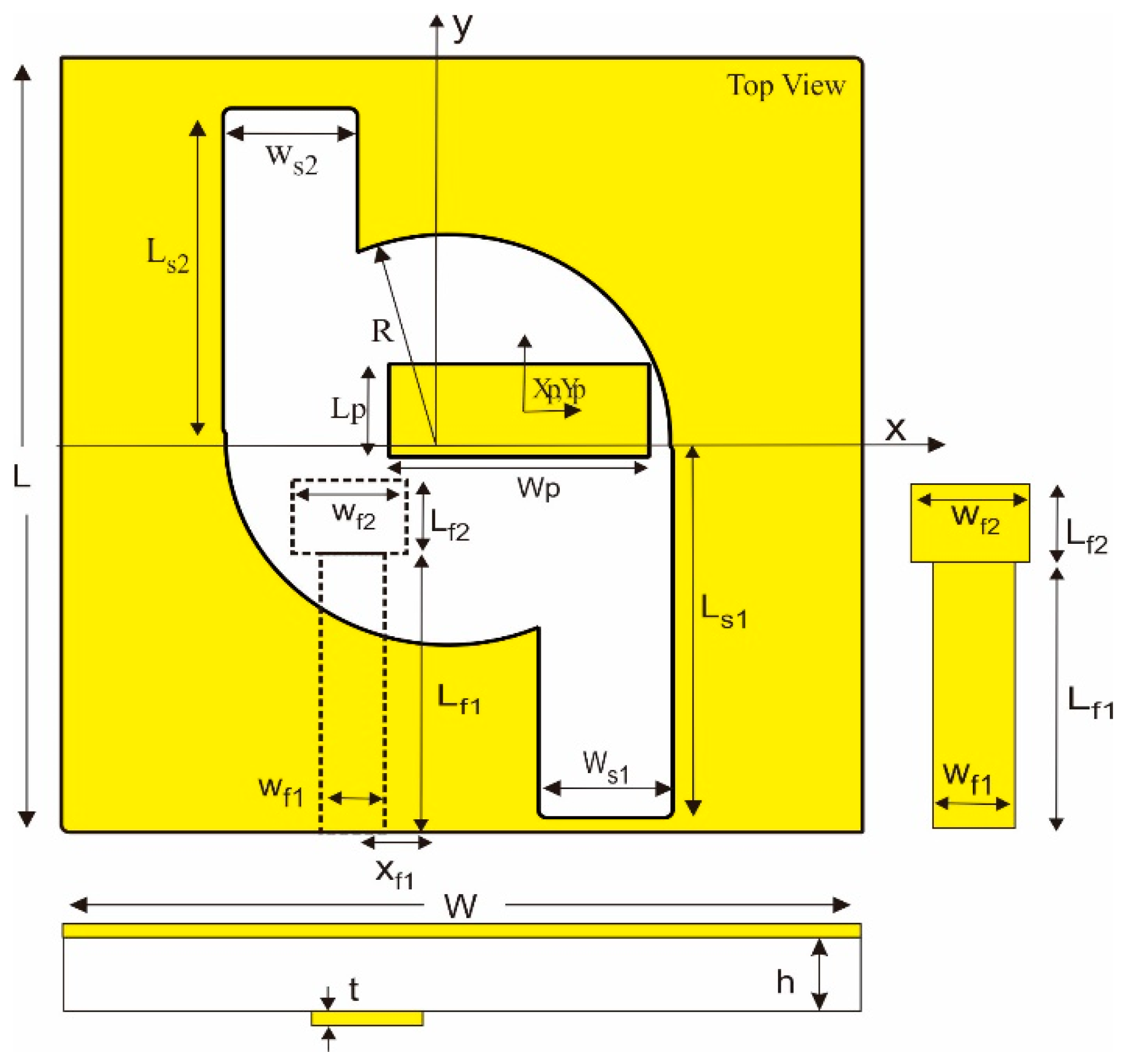

Figure 2. The geometry of model 2. The microstrip feedline is located on the right side, and the edge profile of the antenna is drawn on the bottom.
Figure 2. The geometry of model 2. The microstrip feedline is located on the right side, and the edge profile of the antenna is drawn on the bottom.
Aerospace 06 00039 g002

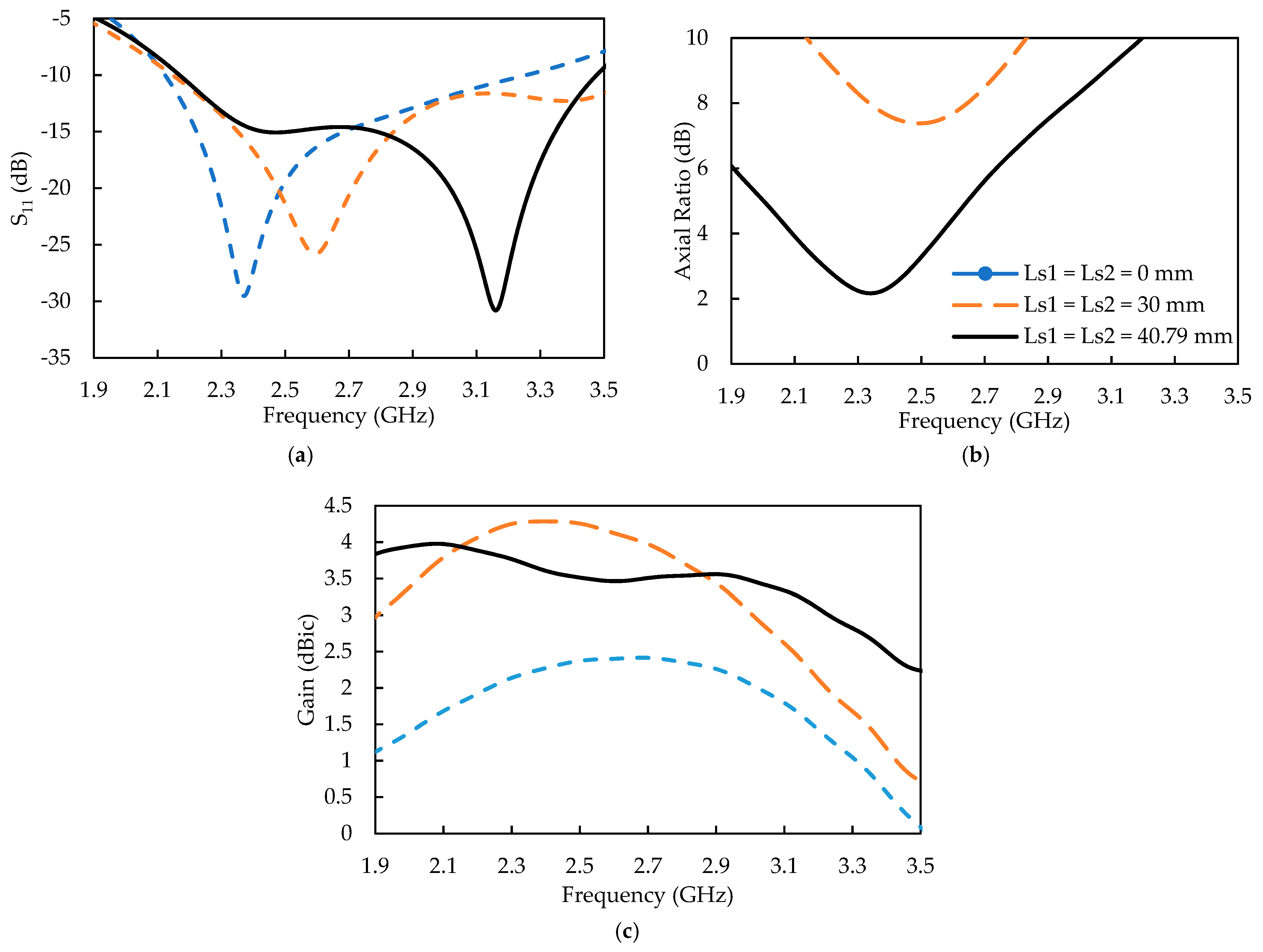

Figure 3. Effect of the symmetrical slot length of 0, 30, and 40.79 mm on (a) S11, (b) axial ratio, and (c) gain.
Figure 3. Effect of the symmetrical slot length of 0, 30, and 40.79 mm on (a) S11, (b) axial ratio, and (c) gain.
Aerospace 06 00039 g003
Figure 4. Variation in the axial ratio in relation to: (a) parasitic length L p , (b) parasitic width W p , (c) parasitic center on the y-axis Y p , and (d) parasitic center on the x-axis X p .
Figure 4. Variation in the axial ratio in relation to: (a) parasitic length L p , (b) parasitic width W p , (c) parasitic center on the y-axis Y p , and (d) parasitic center on the x-axis X p .
Aerospace 06 00039 g004

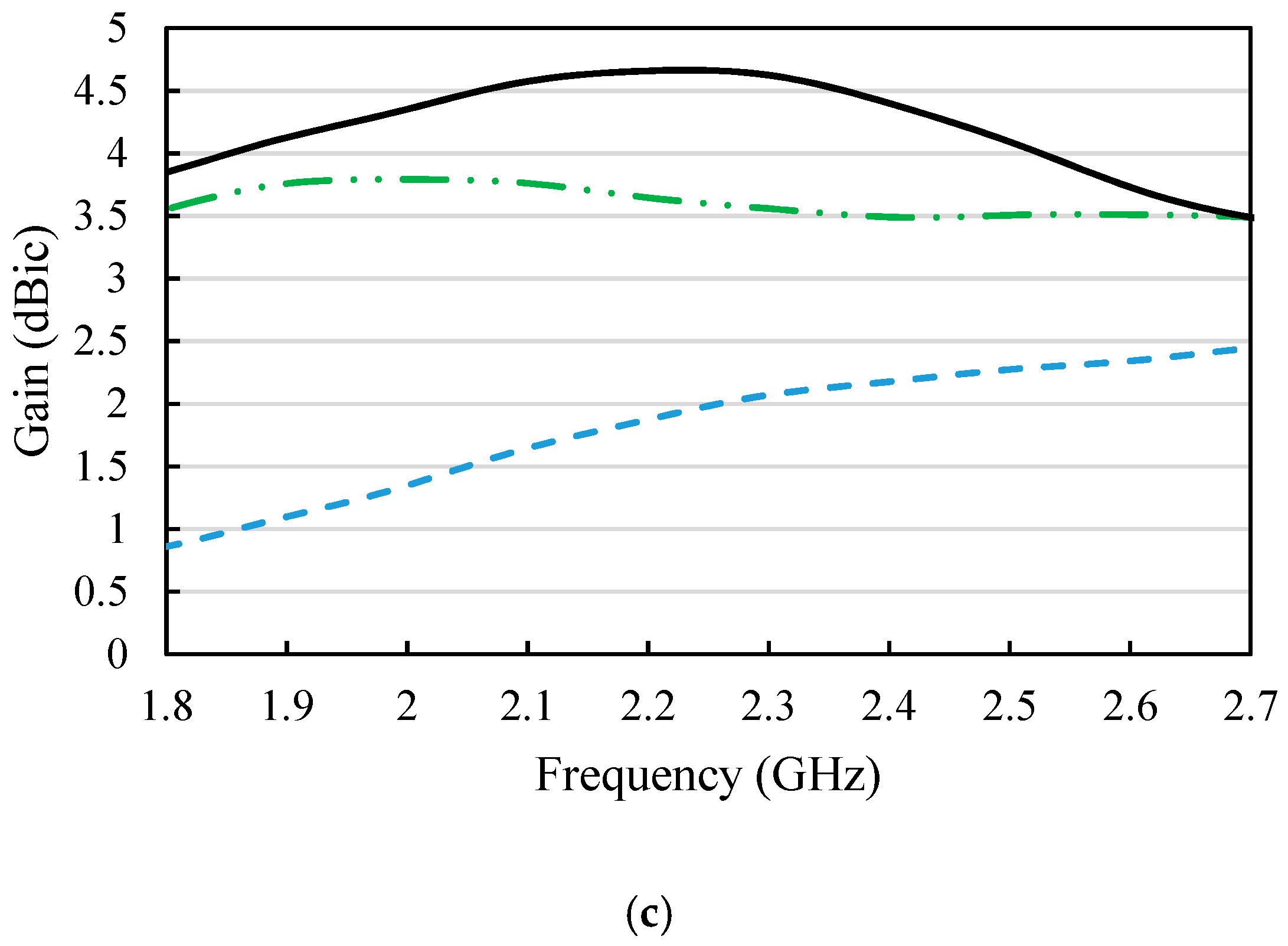

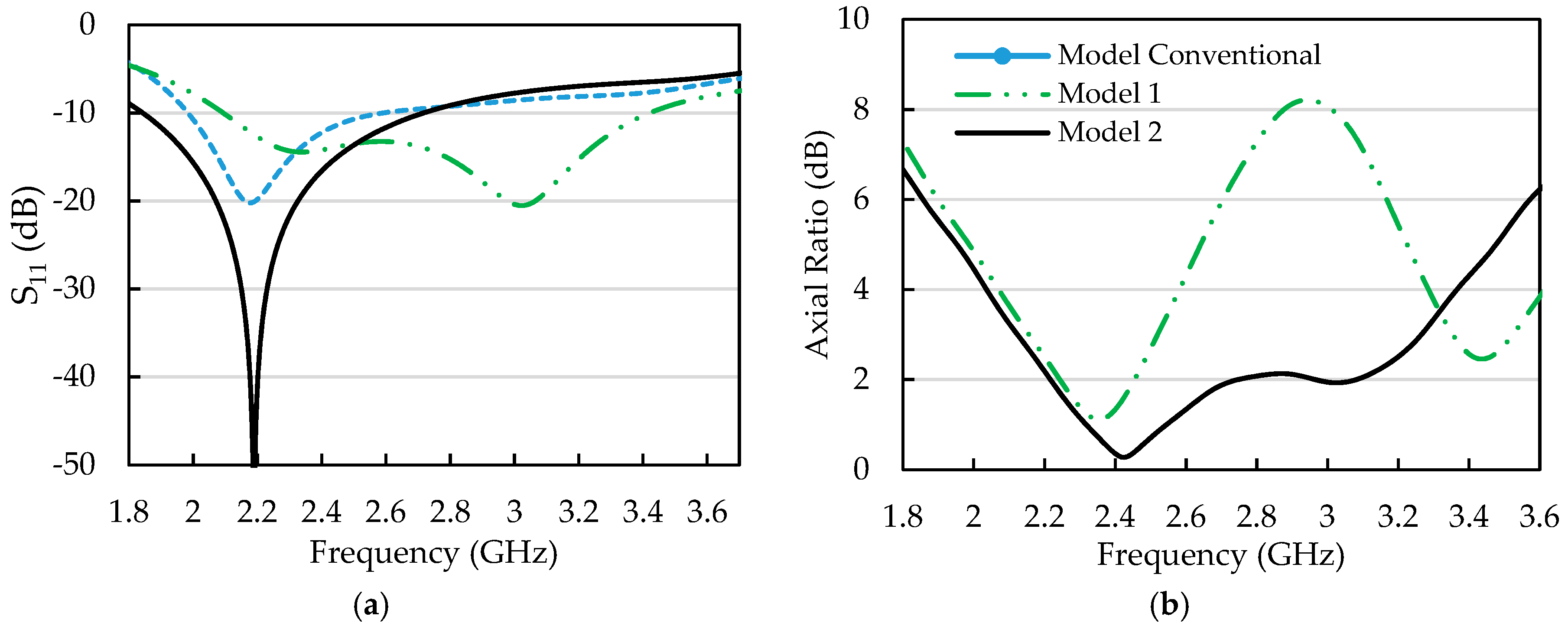

Figure 5. Comparison of the conventional model, model 1, and model 2: (a) S11, (b) axial ratio, and (c) antenna gains.
Figure 5. Comparison of the conventional model, model 1, and model 2: (a) S11, (b) axial ratio, and (c) antenna gains.
Aerospace 06 00039 g005aAerospace 06 00039 g005b
Figure 6. The measured and the simulated axial ratio (AR) vs. theta ( θ ) at frequencies of (a) 2.2 GHz and (b) 2.4 GHz.
Figure 6. The measured and the simulated axial ratio (AR) vs. theta ( θ ) at frequencies of (a) 2.2 GHz and (b) 2.4 GHz.
Aerospace 06 00039 g006

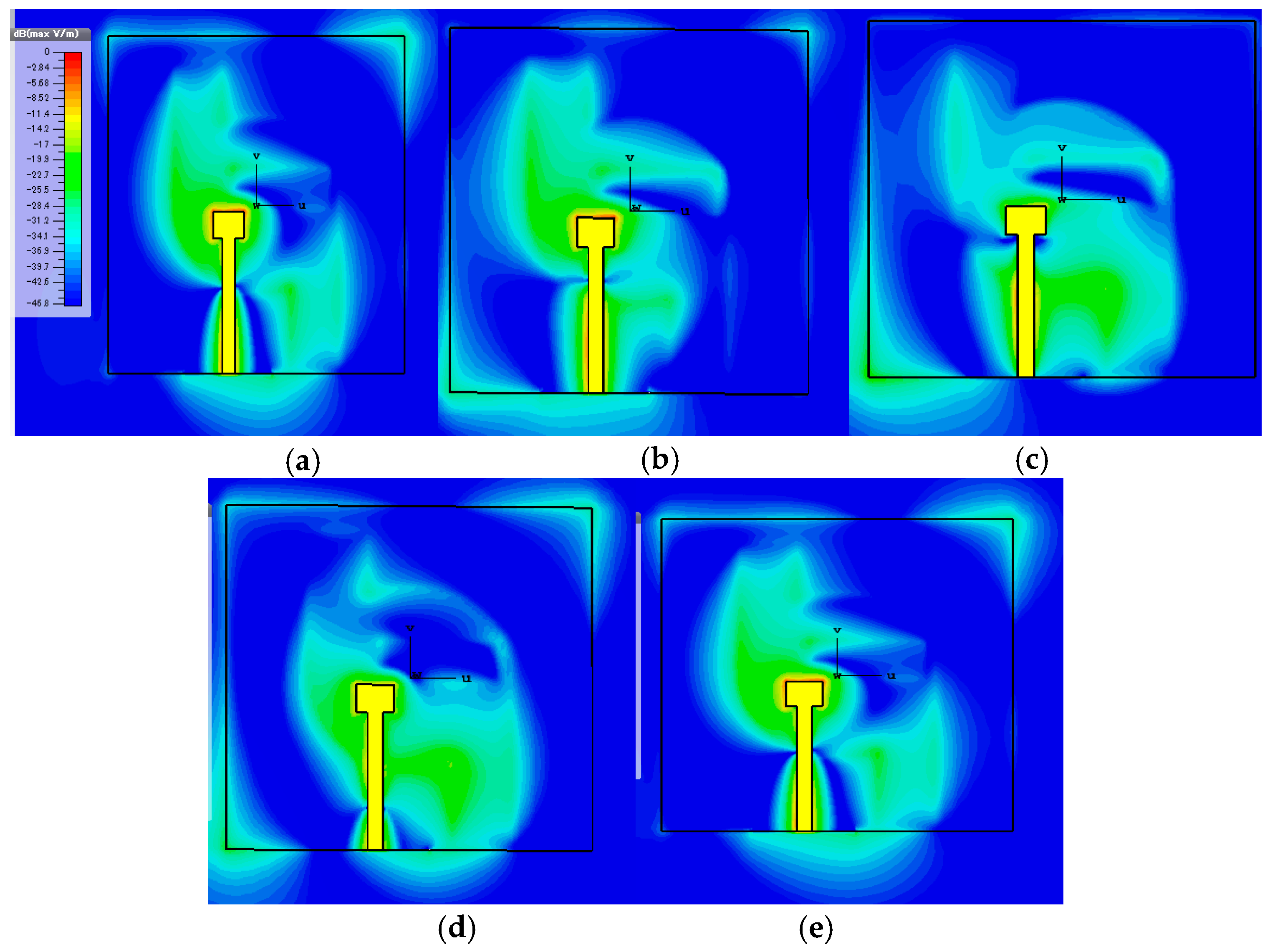

Figure 7. Electric field distribution at a frequency of 2.2 GHz at: (a) 0, (b) 45, (c) 90, (d) 135, and (e) 180 degrees.
Figure 7. Electric field distribution at a frequency of 2.2 GHz at: (a) 0, (b) 45, (c) 90, (d) 135, and (e) 180 degrees.
Aerospace 06 00039 g007

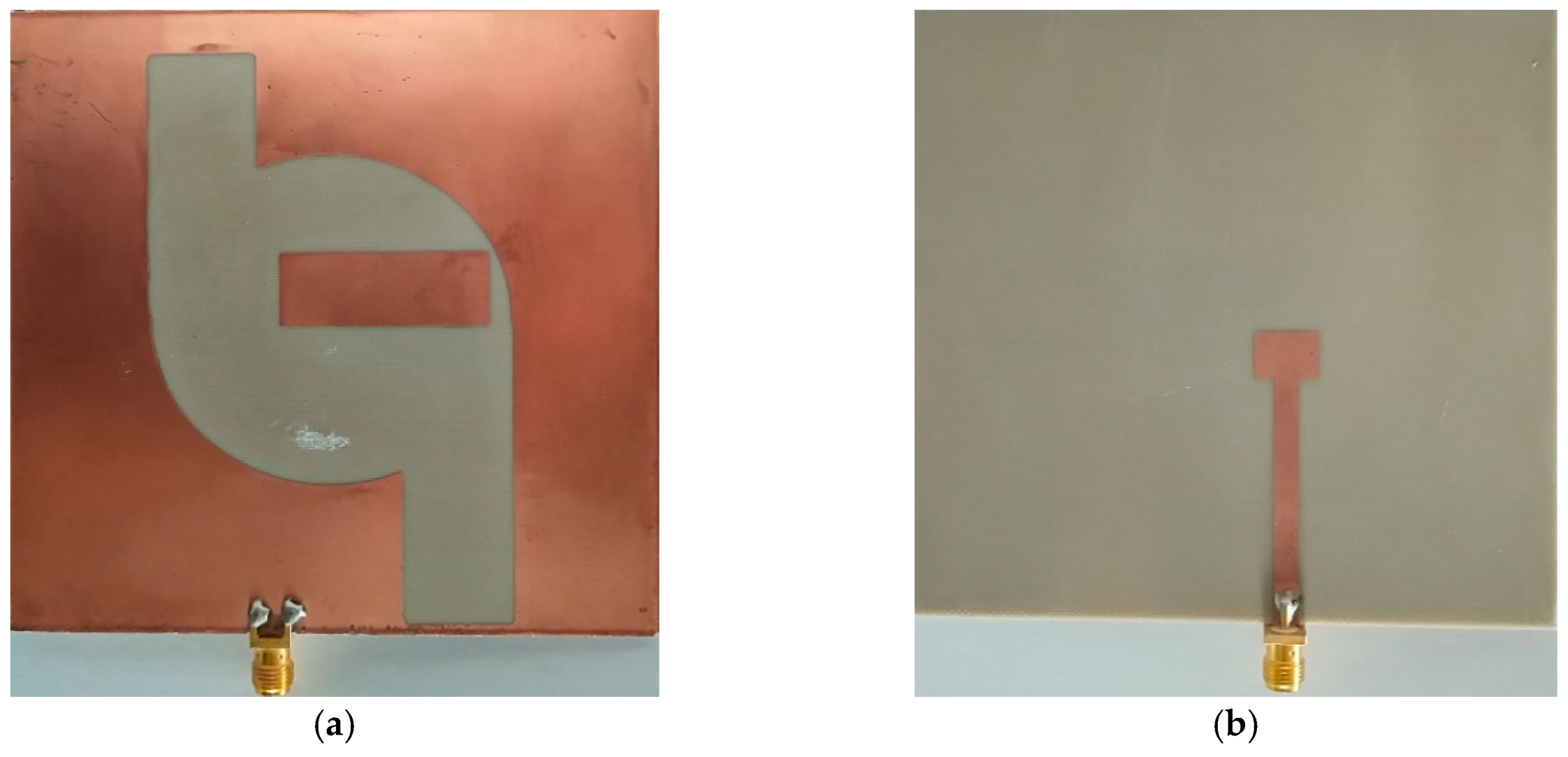

Figure 8. Fabricated antenna: (a) the antenna ground on the front side and (b) the feedline on the back side.
Figure 8. Fabricated antenna: (a) the antenna ground on the front side and (b) the feedline on the back side.
Aerospace 06 00039 g008

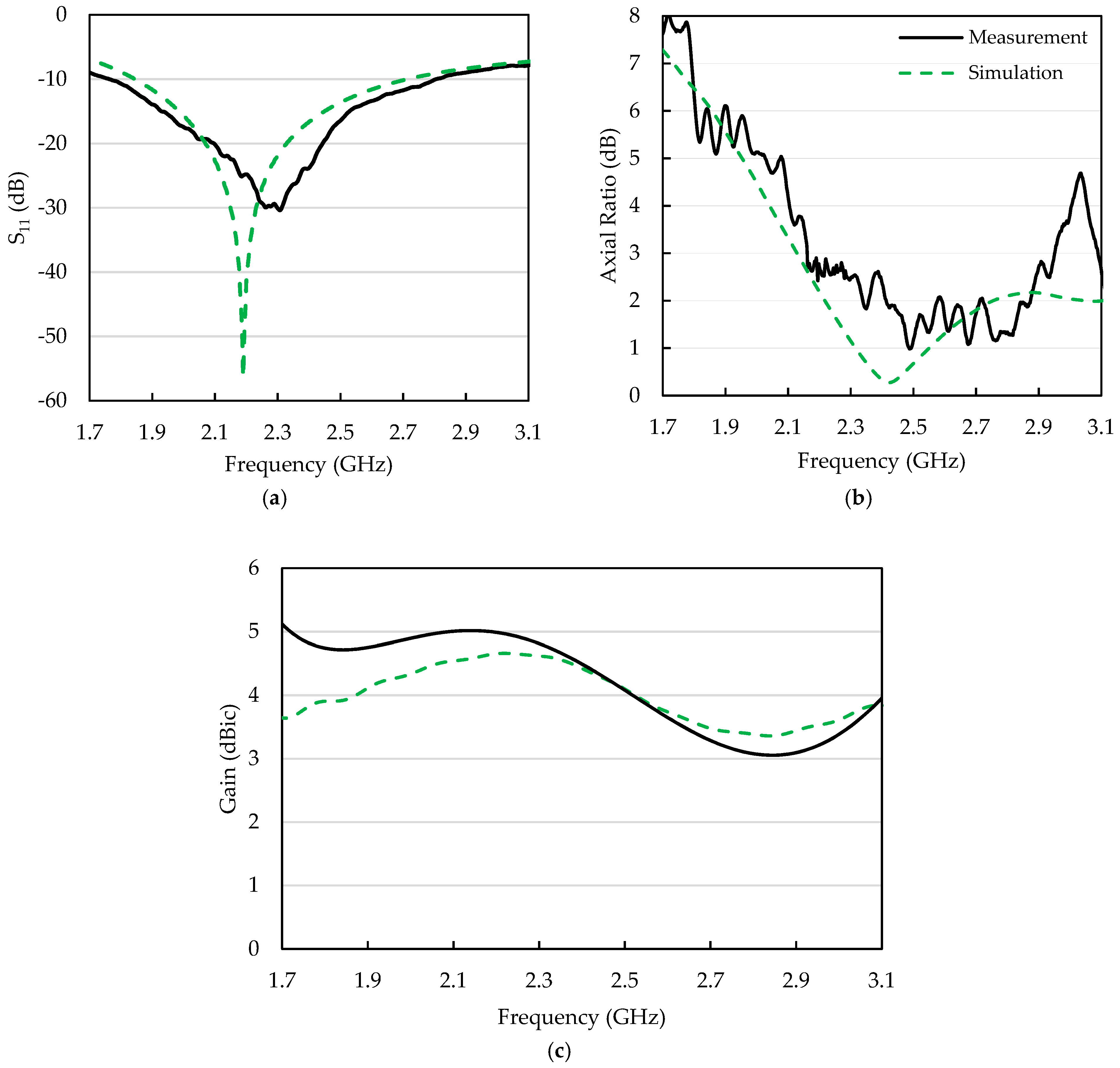

Figure 9. Simulated and measured (a) S 11 , (b) axial ratio, and (c) antenna gain.
Figure 9. Simulated and measured (a) S 11 , (b) axial ratio, and (c) antenna gain.
Aerospace 06 00039 g009

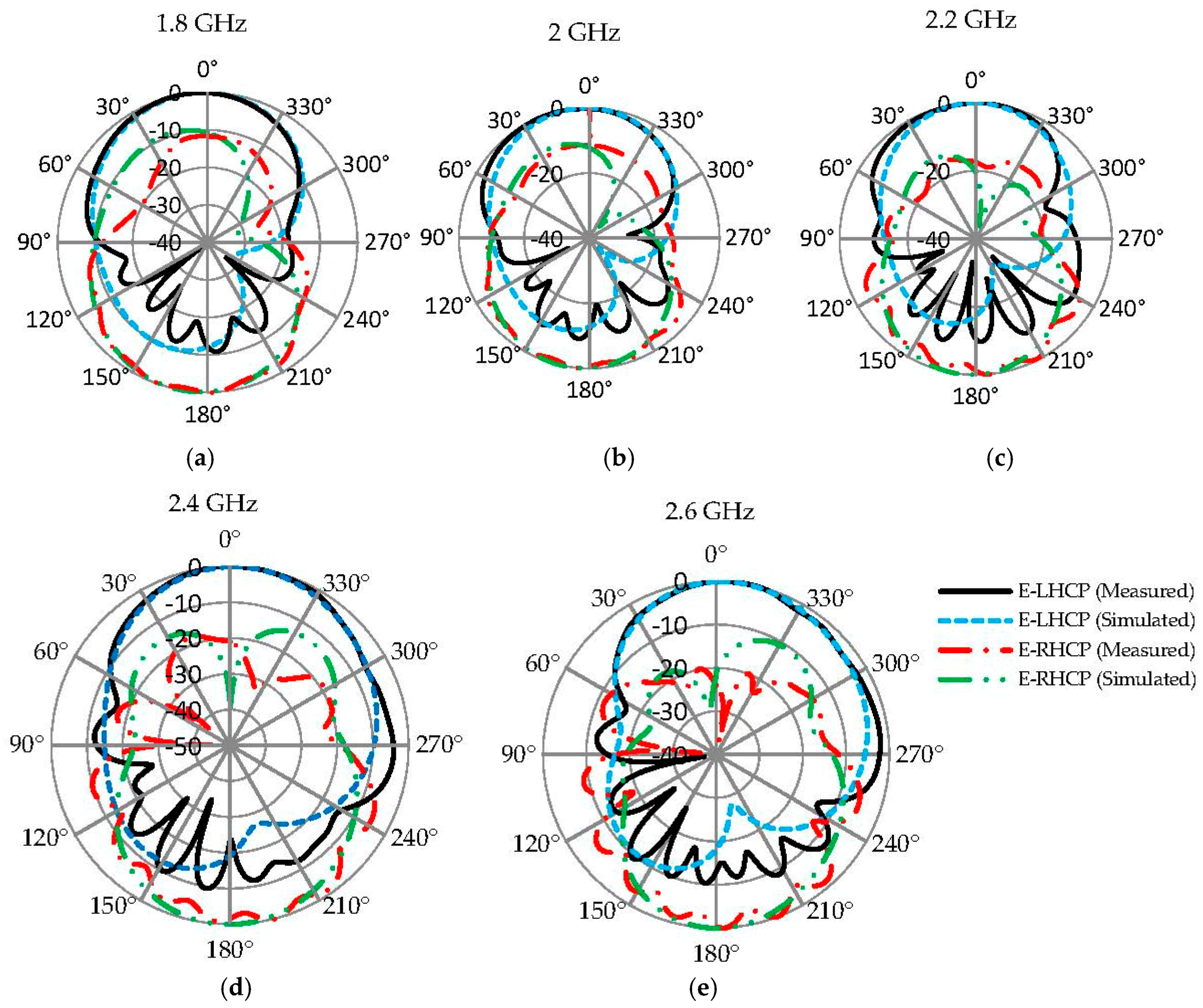

Figure 10. Measured and simulated E-plane radiation patterns of the antenna at (a) 1.8 GHz, (b) 2 GHz, (c) 2.2 GHz, (d) 2.4 GHz, and (e) 2.6 GHz.
