Design of a Facility for Studying Shock-Cell Noise on Single and Coaxial Jets

Abstract

Shock-cell noise occurs in aero-engines when the nozzle exhaust is supersonic and shock-cells are present in the jet. In commercial turbofan engines, at cruise, the secondary flow is often supersonic underexpanded, with the formation of annular shock-cells in the jet and consequent onset of shock-cell noise. This paper aims at describing the design process of the new facility FAST (Free jet AeroacouSTic laboratory) at the von Karman Institute, aimed at the investigation of the shock-cell noise phenomenon on a dual stream jet. The rig consists of a coaxial open jet, with supersonic capability for both the primary and secondary flow. A coaxial silencer was designed to suppress the spurious noise coming from the feeding lines. Computational fluid dynamics (CFD) simulations of the coaxial jet and acoustic simulations of the silencer have been carried out to support the design choices. Finally, the rig has been validated by performing experimental measurements on a supersonic single stream jet and comparing the results with the literature. Fine-scale PIV (Particle Image Velocimetry) coupled with a microphone array in the far field have been used in this scope. Preliminary results of the dual stream jet are also shown.

1. Introduction

This work is aimed at describing the design and the commissioning of a new supersonic coaxial jet rig to investigate experimentally the shock-cell noise on dual stream jets. This kind of noise is nowadays an important component of the total noise emitted by aeronautic engines, particularly affecting cabin noise in cruise conditions. The target maximum achievable Mach number at the outlet of the primary (core) and secondary (fan) nozzle is equal to $M=2.2$, with a baseline operating point being $M_1=0.89$ and $M_2=1.21$. The literature on the shock-associated noise is rich in studies in terms of experiments [1,2,3,4], modeling [5,6,7,8] and, more recently, advanced CFD and CAA studies [9,10,11,12]. Most of this research, however, is focused on single stream supersonic jets. The objective of this facility is to progress further in complexity, making use of a coaxial jet, with subsonic primary flow and supersonic secondary flow, in order to increase the similitude with turbofan engines. It should be stressed at this stage that the primary flow is unheated, leading to a reversed velocity profile to yield the desired Mach numbers in each stream. Nevertheless, it is still a valuable benchmark for physical understanding and validation of theoretical or numerical models because of the annular shock-cells’ pattern confined between two shear layers.

2. Facility Design Process

A first assessment of the requirements has been performed based on the case already investigated experimentally by Viswanathan et al. [13] and numerically by Miller and Morris [14]. The initial flow parameters for the coaxial jet are $M_1=0.71$ and $M_2=1.36$ for the primary and secondary flow, respectively. As a constraint, an indicative total mass flow of $\dot{m}=0.7$ kg/s has been selected.

The chosen solution is a trade-off between a continuous and a blow-down facility. The facility is supplied by the VKI pressure distribution system at 35 bar, for a test duration exceeding 20 min. A single buffer tank is used to damp pressure oscillations from the pipeline and to introduce the seeding particles for the PIV measurements, ensuring a uniform mixing. In order to control the air supply, several pressure regulators have been implemented.

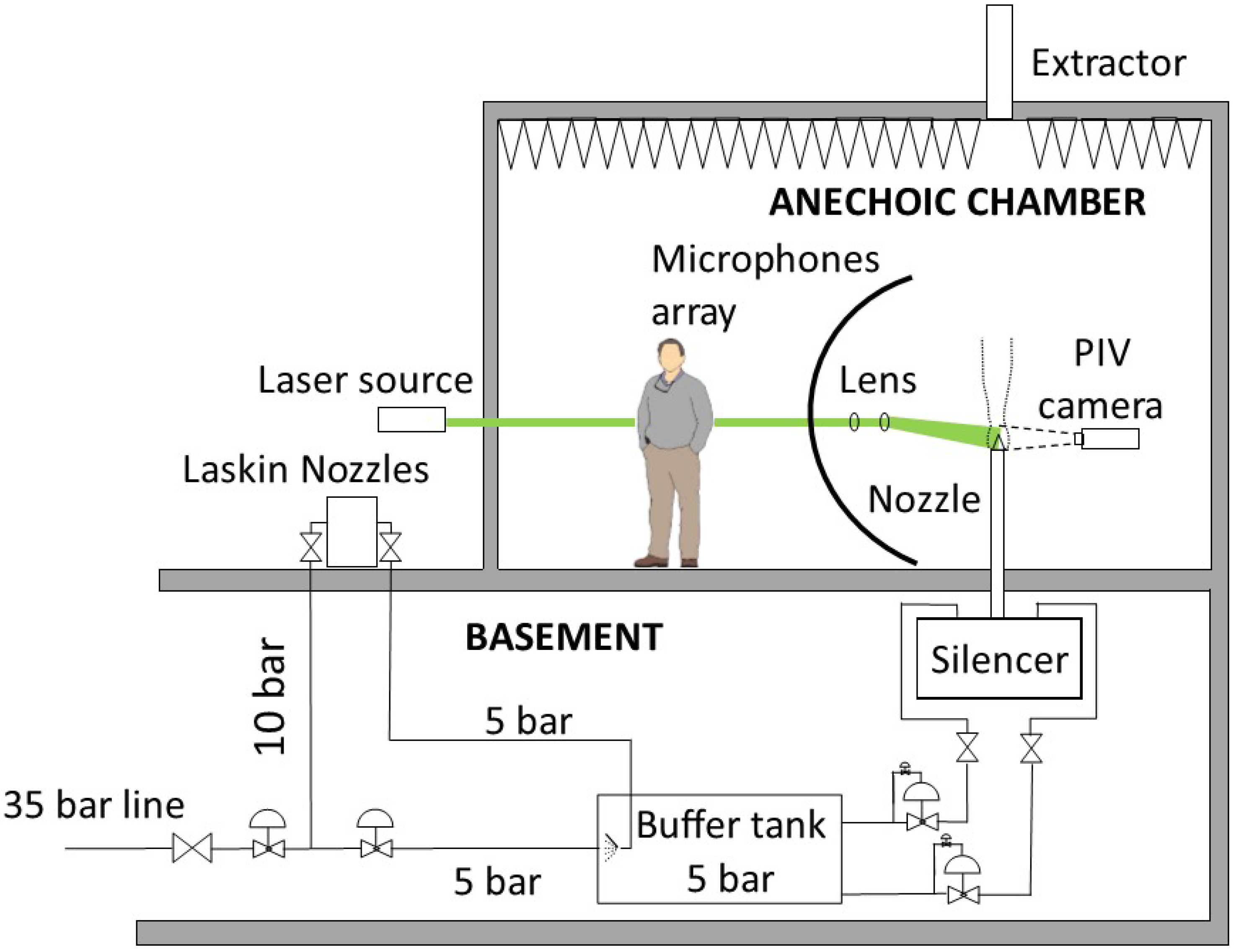

The flow enters the circuit at 35 bar (bottom left of Figure 1). An electrical ball valve with a safety return battery is used as the main ON/OFF shutter. A manual ball valve is placed upstream as backup. Successively, the pressure is decreased from 35 to 10 bar by means of two identical pressure regulators. This solution was necessary to fulfill the required volumetric flow. Downstream the twin regulators, part of the flow is diverted to the seeding generator, while the rest of the flow enters the buffer tank. A pilot-controlled pressure regulator lowers the pressure from 10 to 5 bar.

The seeded flow merges with the main stream flow into the buffer tank, which has a volume of 500 L, guaranteeing a residence time of the flow of the order of $\Delta t\approx 3.5$ s. In this way, the seeding has the time to mix uniformly with the main stream flow. The tank is equipped with a safety rupture disk, which will break in case the pressure exceeds the tank limit of 11 bar.

From the buffer tank, two independent pressure lines are derived, each equipped with the same set of regulators, for commonality. Only on the primary flow line, a conditioning orifice flow meter is installed in order to directly measure the mass flow rate of the primary stream. It has been assessed by means of CFD simulations (described in Section 5). that it is impossible to calculate the primary mass flow rate by simply using the isentropic relations, because of shock-waves present in the secondary flow.

The two streams successively enter a coaxial silencer (described in Section 4), with low pressure losses, and compatible with the passage of oil particles. The purposes of this silencer are two-fold: firstly, to reduce the amount of noise coming from the air supply system, which would otherwise pollute the acoustic measurements; secondly, to prevent spurious, uncontrolled acoustic excitations of the jet. In that respect, the silencer should provide a good upstream anechoic termination for the nozzles, by preventing duct standing modes (not evaluated in this work). The flow enters into the coaxial silencer trough 20 radially-distributed inlets, 10 per each of the two circuits. Two conical flow distributors are used at this scope, each of them mounting 10 flexible pipes of the same length.

Downstream the silencer, the two flows are guided by vertical coaxial ducts into the anechoic chamber. Each duct is equipped with honeycombs and three fine turbulence screens. The ducts’ internal diameters are $D_{duct,1}=80$ mm and $D_{duct,2}=300$ mm for the primary and secondary flows, respectively. For the designed test campaigns, the Mach number in the ducts is lower than M = 0.05, and thus, the static pressure, measured upstream the nozzles, is considered to be the total pressure.

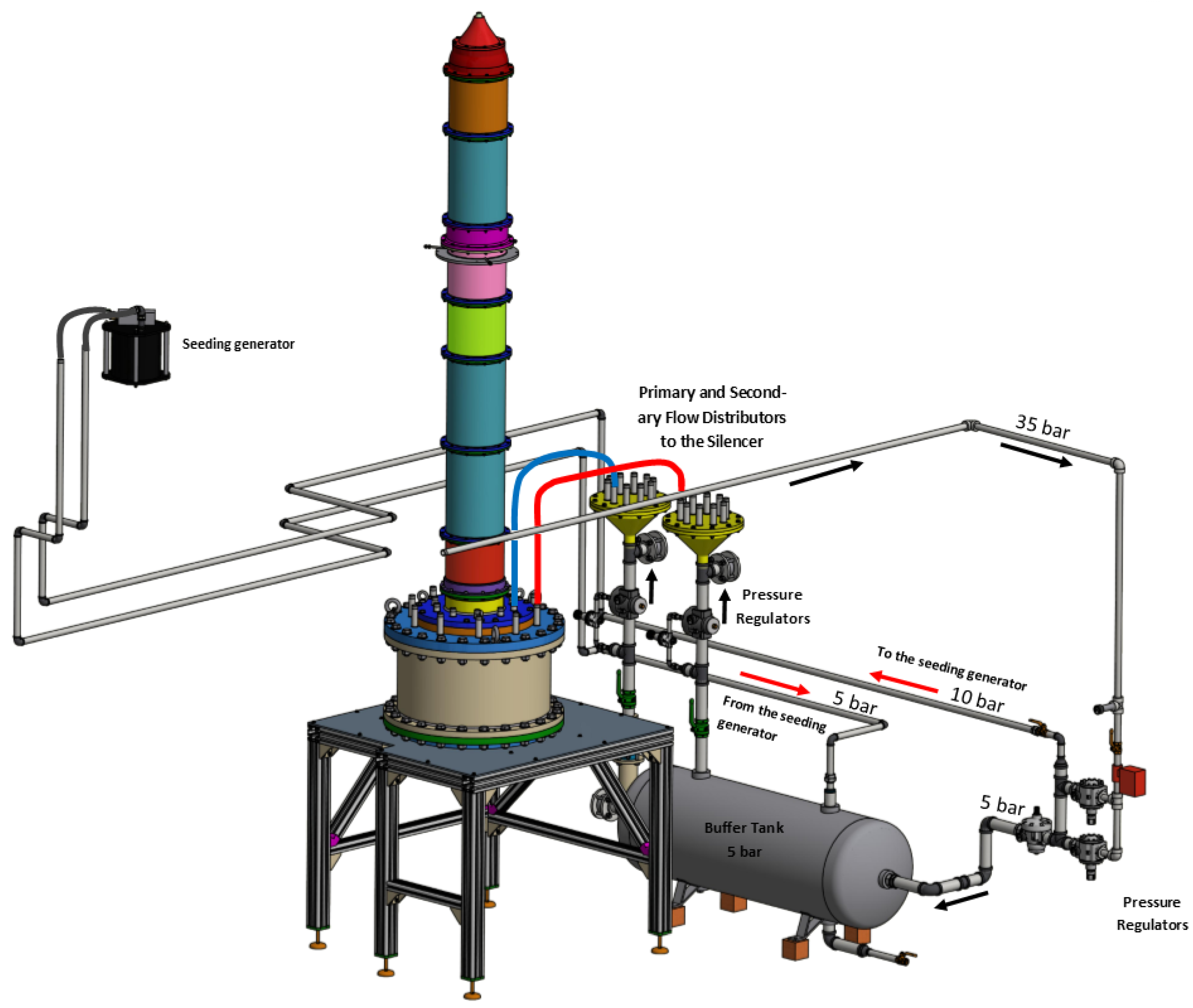

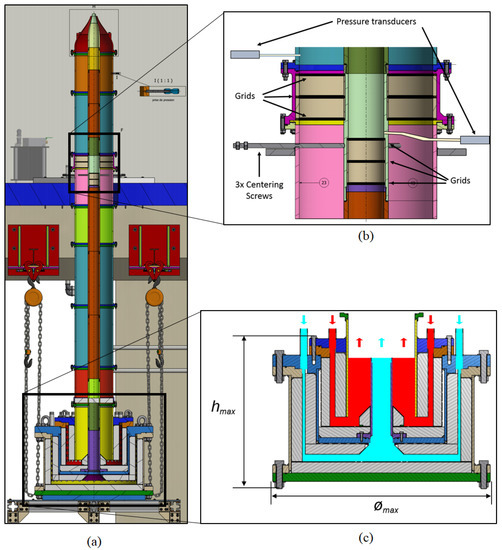

The 3D layout of the complete air supply system is depicted in Figure 2, while sections of the silencer and the ducts are shown in Figure 3. The maximum operative pressure of the whole installation is $p_{max}=11$ bar (except for the seeding generator, which is limited to 5 bar gauge pressure).

3. Facility Components

In this section, two key components of the facility are described: the coaxial nozzles and the silencer. For a complete description of more standard components such as valves, pressure regulators and pressure sensors, the reader is referred to Guariglia [15].

Coaxial Nozzles

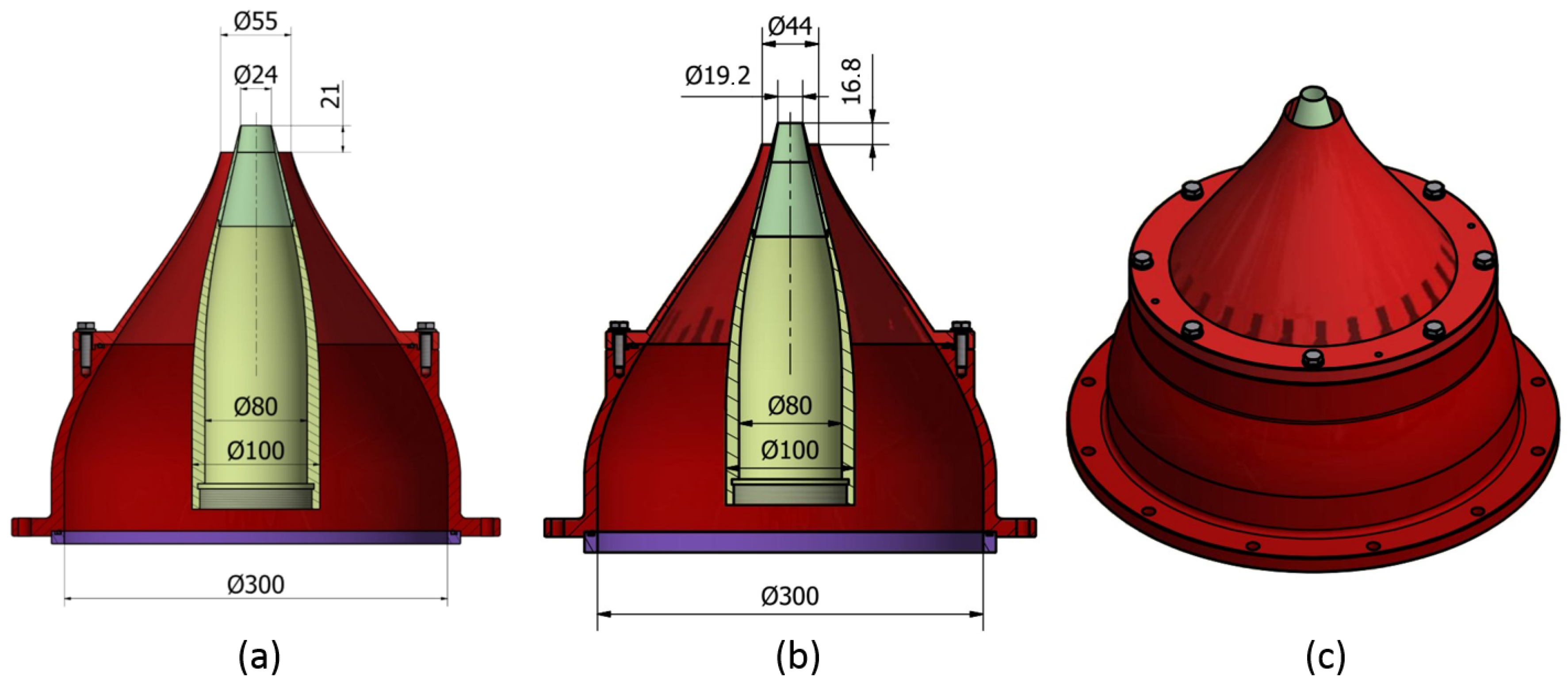

Two sets of coaxial nozzles have been designed and manufactured, following a layout proposed by Airbus, partner of the project. The geometry is representative of the next generation aeronautic engines with a very high by-pass ratio. For the first set, the nozzle diameters are $D_{1,inner}=23.3$ mm and $D_{2,inner}=55$ mm for the primary and secondary jets, respectively. The lip thickness is $t=0.3$ mm for both nozzles. The primary outlet plane is 21 mm downstream of the plane of the secondary outlet, and so, $A_2/A_1=3.35$. The primary jet area contraction ratio is $A_{duct,1}/A_1\simeq 12$, and the secondary jet contraction ratio is $A_{duct,2}/A_2\simeq 44$. The primary nozzle has a simple conical shape, with the semi-aperture angle ${\alpha }_p=14$°. The secondary nozzle profile follows a third order polynomial function, modified ad hoc in the last part to have the sonic throat at the exit plane. The exit semi-aperture angle for the secondary nozzle is ${\alpha }_s=12$°. A section of the nozzles is depicted in Figure 4a. This nozzle set has been simulated with CFD and tested for the initial commissioning of the facility.

The second set of nozzles is just a scaled version of the previous ones. The goal is to assess the experiment repeatability and the jet noise spectra similarity for the single stream jet. The scaling factor is 0.8; thus, $D_{1,inner}=19.2$ mm, $D_{2,inner}=44$ mm, and the primary outlet plane is 16.8 mm downstream of the plane of the secondary outlet (Figure 4b).

Both nozzle sets were realized in stainless steel and painted with matte black paint to avoid reflections in PIV experiments. A metal ring spacer, placed under the secondary nozzle, can be modified in order to adjust the protrusion length of the primary nozzle.

4. Silencer

The design concept is based on having two U-turn annular sections, in order to maximize the area of the damping material exposed to the incident acoustic field, while minimizing the flow velocity and associated pressure losses (Figure 3c). The colored zones represent the clean passage areas, while the gray dashed zones are the acoustic absorbent material, which is a very fine stainless steel wool (Type #000). Due to space constraints, it has been decided to use a fixed thickness for all the layers, equal to $t_{wool}=50$ mm. The clean passage areas have been sized in order to not exceed 10 m/s and reduce both pressure losses and extra noise production. The wool is held by four metal canisters. The relevant dimensions are summarized in

Table 1. Silencer main dimensions and physical quantities used in the acoustic simulations. $D_{sil,max}$ and $h_{sil,max}$ are the main diameter and height, respectively; $m_{sil}$ is the weight; $p_{max}$ is the max operative pressure; $A_{sil,1}$ and $D_{sil,1,eq}$ are the clean passage area and the equivalent diameter for the primary circuit; $A_{sil,2}$ and $D_{sil,2,eq}$ are the clean passage area and the equivalent diameter for the secondary circuit. For Grade #000 fine steel wool, $D_{wool}$ is the mean fiber diameter, and ${\rho }_{wool}$ is the material apparent density. For the metal canisters, ${\sigma }_{canister}$ is the area porosity (the hole’s fraction of the boundary surface area); $t_{canister}$ is the plate thickness; $d_{canister}$ is the hole diameter; ${\delta }_{canister}$ is the end correction to the reactance; and ${\varphi }_{canister}=0$ is the flow resistance.

$D_{max}$	0.98 m	$A_{sil,1}$	2.39 × 10${}^{-2}$ m${}^2$	$D_{wool}$	35 $\mathsf{\mu }$m	${\sigma }_{plate}$	0.4
$h_{max}$	0.76 m	$A_{sil,2}$	2.90 × 10${}^{-2}$ m${}^2$	${\rho }_{wool}$	166 kg/m${}^3$	${\delta }_{canister}$	0.25
$m_{sil}$	∼1200 kg	$D_{sil,1,eq}$	0.192 m	$t_{canister}$	1.5 mm	${\varphi }_{canister}$	0
$p_{max}$	11 bar	$D_{sil,2,eq}$	0.174 m	$D_{canister}$	4 mm

.

Acoustic Performance

To assess the silencer acoustic performance before the manufacturing and to select the most appropriate absorbent material, the commercial solver COMSOL Multiphysics^® 5.0 has been used. The Transmission Loss (TL) between the ten inlets and the nozzles outlet has been computed, including the effects of the acoustic absorbent material, the metal canisters holding it, a limited portion of the ducts (1 m, for computational efficiency) and the nozzles. The honeycomb and screens that are installed in the ducts are not modeled.

It is assumed that the medium is quiescent inside the silencer, so sound production and convection effects are neglected in the model. This hypothesis appears to be justified by the small flow Mach number inside (M$\simeq 0.03$) and considering also the important noise contribution due to the chocked valves upstream of the silencer. For the sake of brevity, the equations implemented in the model are not presented here, and the reader is referred to the COMSOL Multiphysics^® 5.0 User Manual [16]. The physical quantities required to run the simulations are listed in Table 1.

Fifty frequencies in the range 100 Hz ≤ f ≤ 5000 Hz have been tested. Above this frequency interval, practical experience suggests that the noise is efficiently damped by the acoustic absorbent material.

The domain has been meshed with tetrahedral linear elements, with the maximum element length equal to 1/10th of the smallest computed wavelength. The inlet boundary condition is modeled as a harmonic pressure source of amplitude $p_0=1$ Pa, and it is applied to the surface of the 10 inlet pipes. This boundary condition is valid as long as the frequency is kept below the cutoff frequency for the second propagating mode in the tube [17], as happens in the case studied. At the outlet boundary, the model specifies a radiation condition for an outgoing plane wave, a valid assumption in the case studied. The walls are modeled as infinitely rigid boundaries.

The attenuation (in dB) of the acoustic power is defined by the following equation:

$$TL=10\log \left(\frac{P_{in}}{P_{out}}\right),$$

(1)

where $P_{in}$ and $P_{out}$ denote the incoming power at the inlet and the outgoing power at the outlet, respectively.

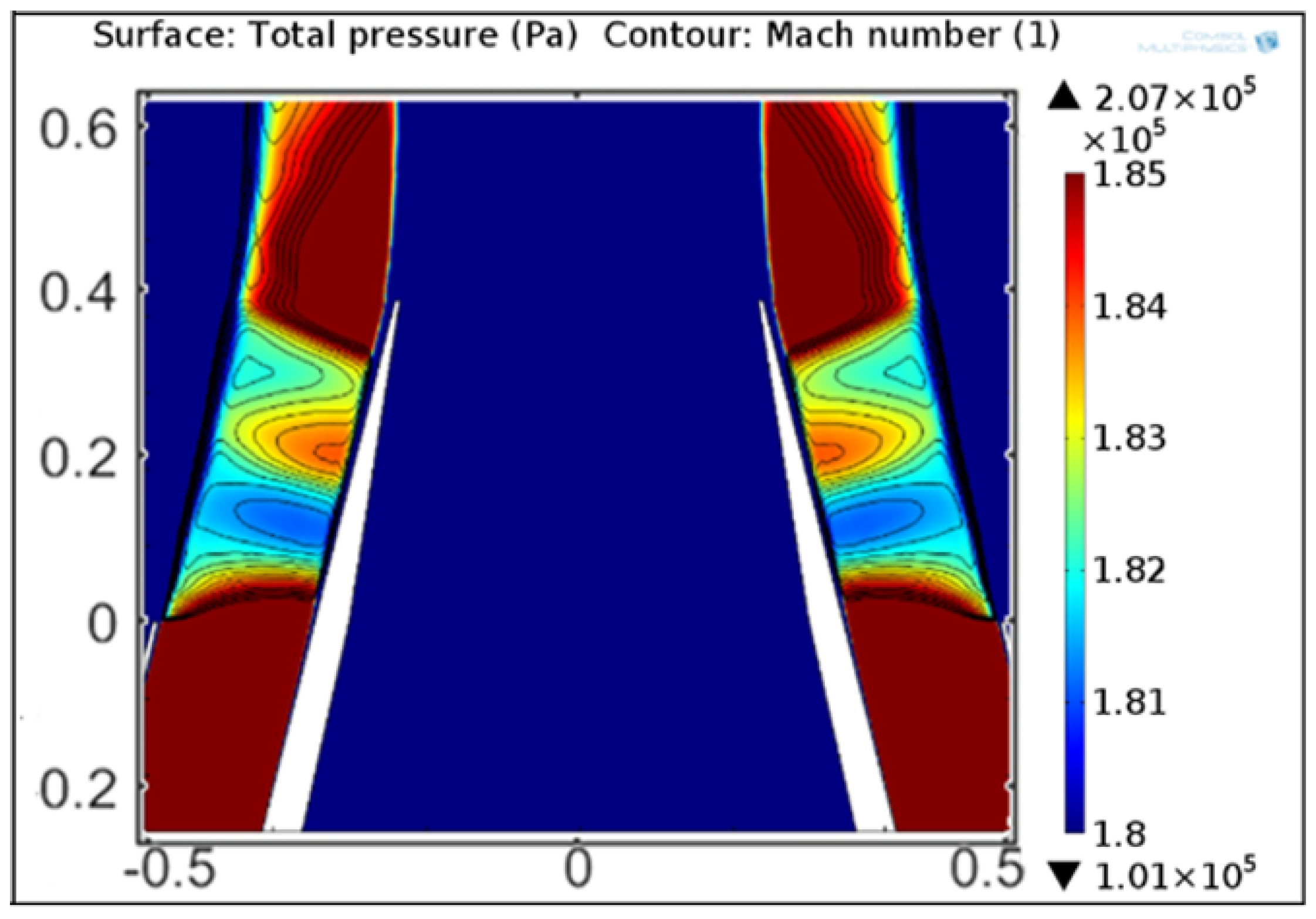

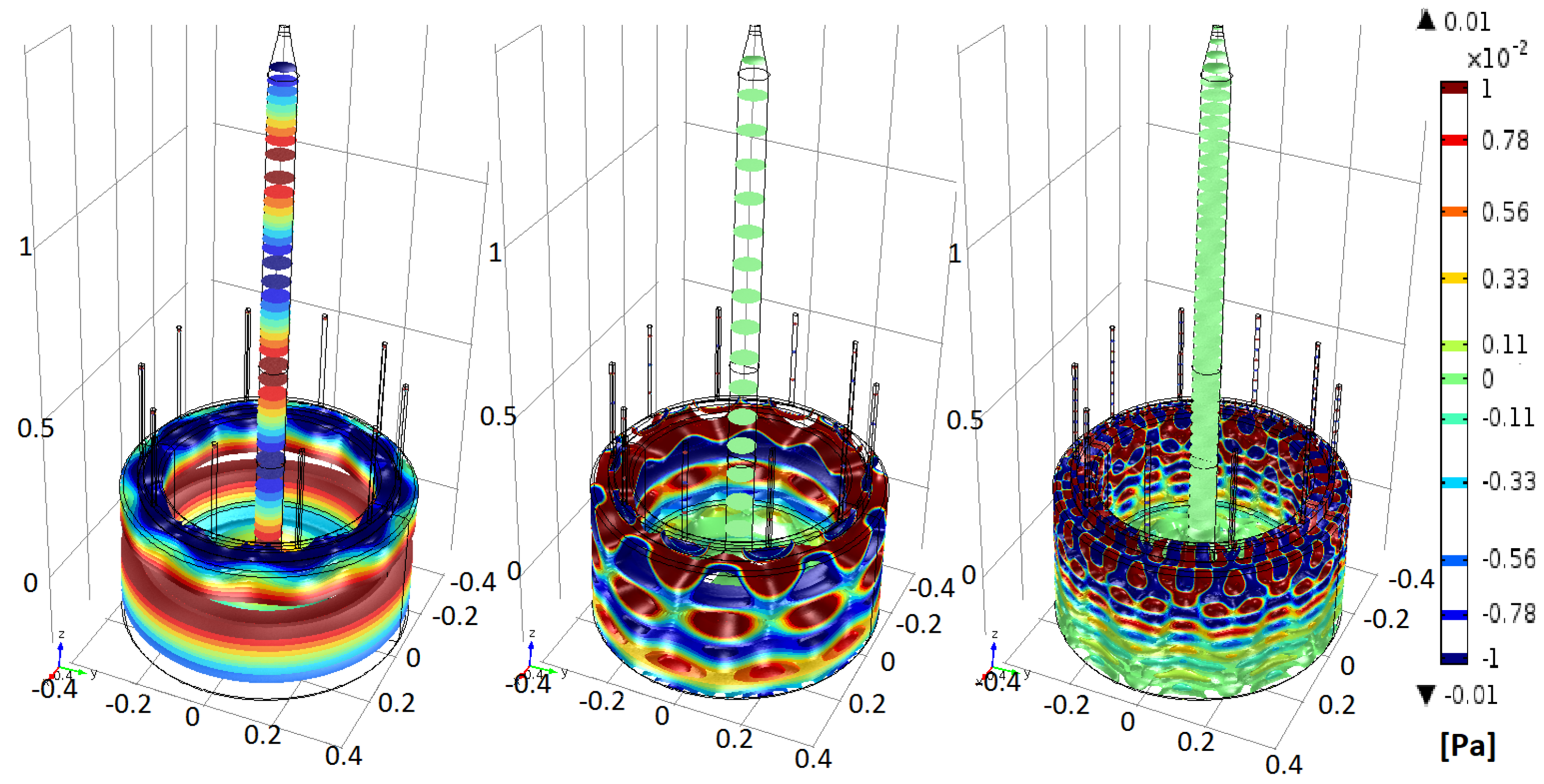

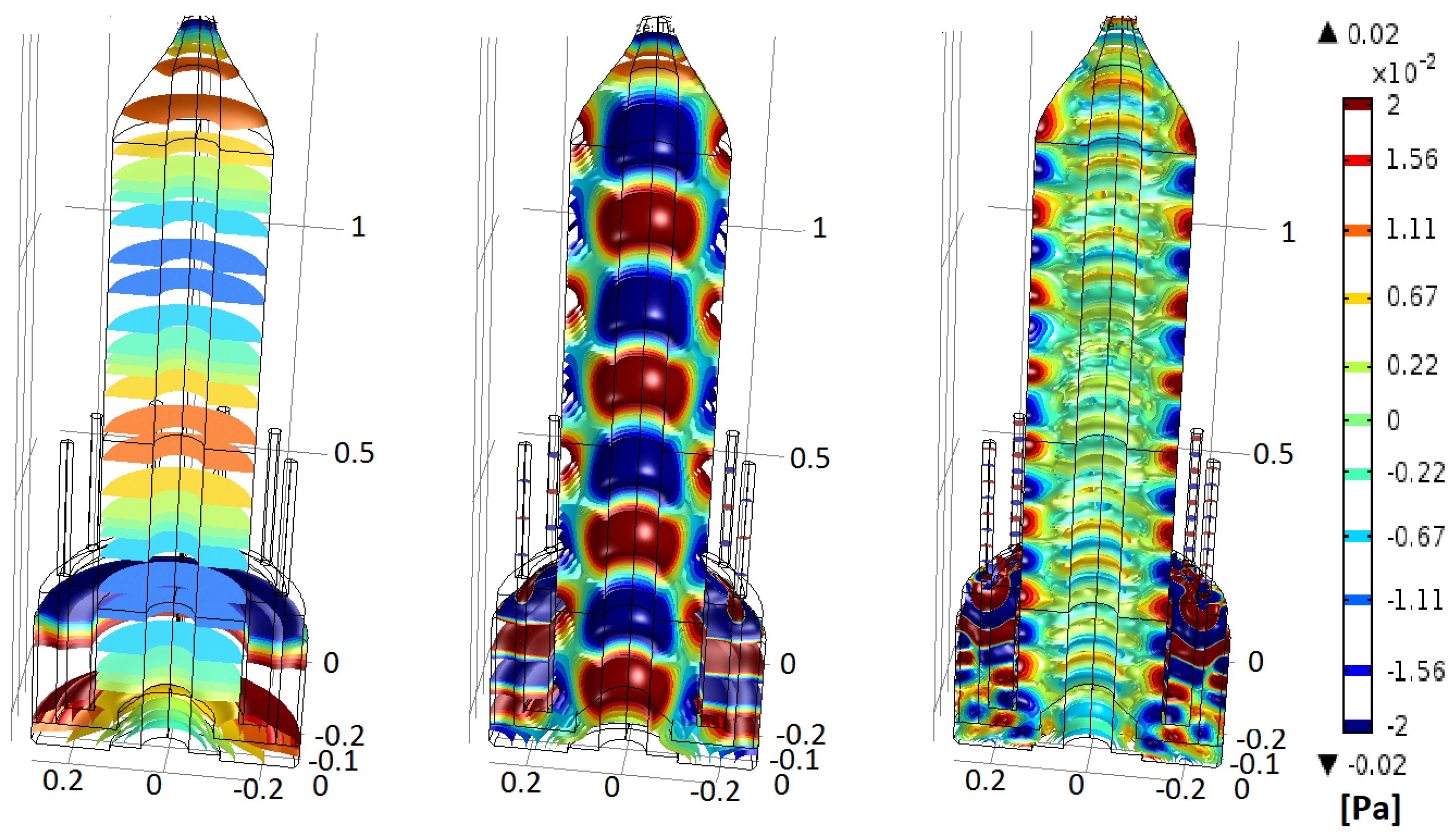

In Figure 5 and Figure 6, three characteristic acoustic fields, per circuit, are shown. The first field, at lower frequency, shows the presence of plane waves in all the domain; while increasing the frequency, more modes appear in the silencer and in the secondary duct. Such modes, however, naturally disappear when approaching the secondary nozzle, thus respecting the outlet boundary conditions. For both circuits, the TL has been computed with and without the absorbent material, and the results are shown in Figure 7 and Figure 8. Overall, the primary circuit appears very effective in damping the acoustic power. Below $f=300$ Hz, the geometry alone is very effective in damping the noise, while above $f=1000$ Hz, the presence of the steel wool contributes significantly to the TL. On the other side, the secondary circuit is less effective, compared to the primary one, and the steel wool is important at all frequencies.

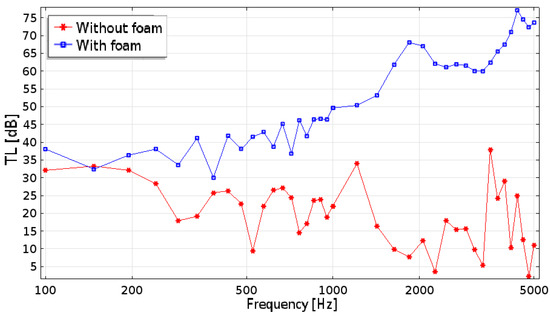

At the end of this acoustic assessment, the predicted levels of TL have been evaluated satisfactorily, in consideration of the frequencies expected during the tests, higher than 5000 Hz.

5. RANS Simulations of the Coaxial Jet

RANS simulations of the dual flow jet have been performed in order to verify that the flow at the nozzles exit matches the design conditions and to have a first insight into the flow field. The simulated geometry represents the Nozzle Set 1 (Figure 4a), and the results are considered extendible also to the scaled geometry. The computations have been carried out with COMSOL Multiphysics^® 4.4 using linear triangular finite elements and 2D axisymmetric flow assumption. It should be stressed here that the goal of these simulations is only to validate the nozzle design and to provide useful insights into the flow fields for the development of the experimental setup.

5.1. Test Conditions

The final test matrix is shown in

Table 2. The pressure parameters of the simulation campaign with the relative fully-expanded Mach number, for several test conditions.

Condition	FNPR	CNPR	${\mathit{M}}_2$	${\mathit{M}}_1$
01	2.450	1.675	1.21	0.89
02	2.500	1.720	1.22	0.91
03	2.425	1.645	1.20	0.87
04	2.400	1.626	1.19	0.86
05	2.350	1.589	1.18	0.84
06	2.250	1.518	1.14	0.80
07	2.150	1.450	1.11	0.75
08	2.050	1.385	1.07	0.70
09	2.000	1.353	1.05	0.67

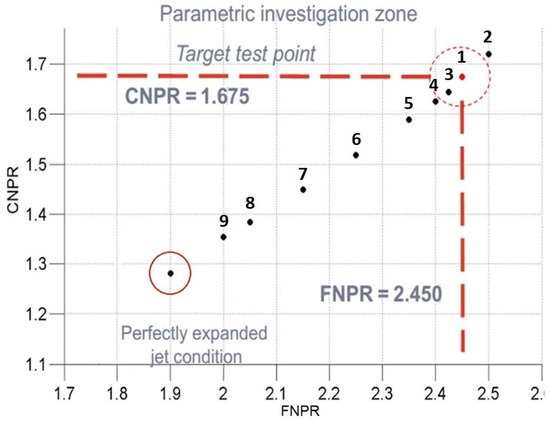

and graphically represented in Figure 9. The ranges of interest are 1.35 < CNPR < 1.72 (Core Nozzle Pressure Ratio) and 2.00 < FNPR < 2.50 (Fan Nozzle Pressure Ratio), where CNPR = $p_{01}/p_{\infty }$ and FNPR = $p_{02}/p_{\infty }$.

5.2. Fluid Dynamics Model

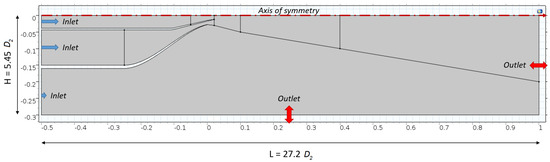

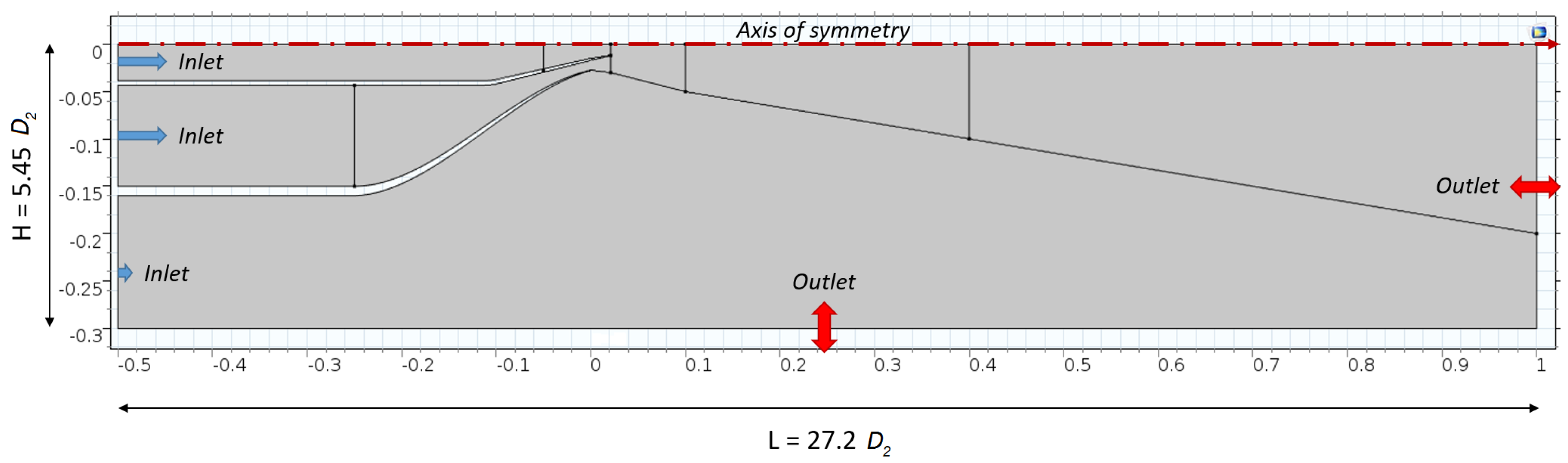

The simulation of the coaxial flow has been carried out using a RANS k-$ϵ$ model. The computational domain is rectangular, extending 18.1 $D_2$ downstream and 9.1 $D_2$ upstream the nozzle in the axial direction, 5.5 $D_2$ in the radial direction. The ambient pressure is $p_a$ = 101,325 Pa, and the initial temperature was set to 293.15 K. Three inlet boundaries are present at the left of the domain, two boundaries inside the nozzles ($p_{01}$, $p_{02}$, $T_{01}=T_{02}=293.15$ K, $M_1=M_2=0.01$) and the third outside ($p_3$ = 101,325 Pa, $T_3=293.15$ K, $M_3=0.01$). The outlet boundaries are the side and bottom edge of the domain with $p_{a,outlet}$ = 101,325 Pa. A no slip boundary condition is applied to all surfaces of the nozzle. A picture of the simulation domain is depicted in Figure 10. The simulations have been carried out varying only the total pressure at the two nozzle inlets.

5.3. Mesh Sensitivity

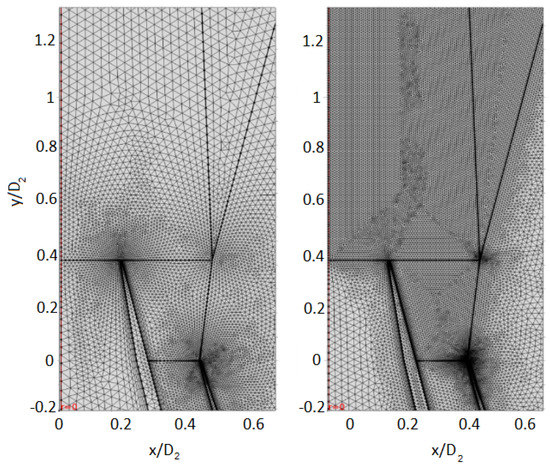

Initially, the COMSOL Multiphysics^® 4.4 setting “Physics Controlled Mesh”, with the “Extremely fine” option, has been used. The software generated a free triangle elements mesh for the flow field and a boundary layer mesh on the walls. However, it has been assessed that this mesh was too coarse in the supersonic region because results showed no shock-cells in the jet. Consequently, another two meshes with higher resolution have been created and tested with the same pressure conditions. The elements maximum size of Mesh 3 is half of Mesh 2. In Figure 11, Mesh 1 and Mesh 2 near the nozzle exit region are compared. Details on the three meshes are shown in

Table 3. Meshes main characteristics.

	Maximum Element Size in the Shock Region (m)	Total Number of Elements
Mesh 1	0.002	3.4 × ${10}^4$
Mesh 2	0.0005	2.7 × ${10}^5$
Mesh 3	0.00025	6.0 × ${10}^5$

.

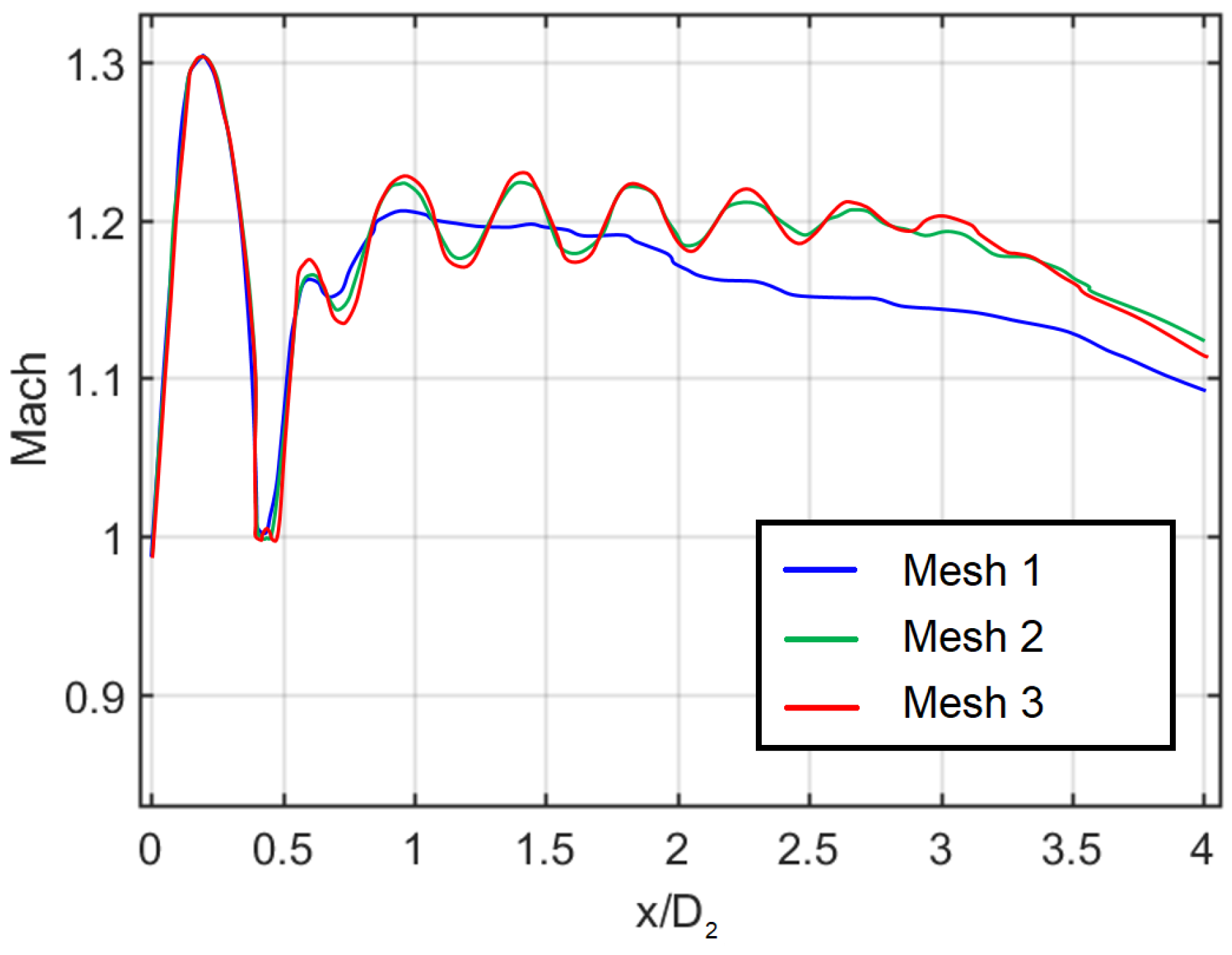

The three meshes have been compared in Figure 12 by plotting the Mach number extracted in the supersonic region over a straight line. The line is arbitrarily defined due to the fact that the maxima and minima of the Mach number in the jet do not lie on the centerline. The line, depicted in Figure 13a, is identified by the extremes A(0.32, 0.00) and B(0.24, 4.00), where the coordinates are non-dimensionalized by the secondary nozzle diameter $D_2$. In this reference system, $x/D_2$ is the radial direction, $y/D_2$ the axial direction and the origin the intersection between the axis of symmetry and the exit plane of the secondary nozzle. The graph shows how the results for Mesh 1 have poor resolution in comparison with Mesh 2 and Mesh 3. The Mesh 2 is capable of calculating the first peak in accord with Mesh 3, but the amplitude for the other peaks is slightly different. In conclusion, because of the relatively high computational cost of Mesh 3, it has been decided to carry out all the simulations using the Mesh 2.

5.4. Results

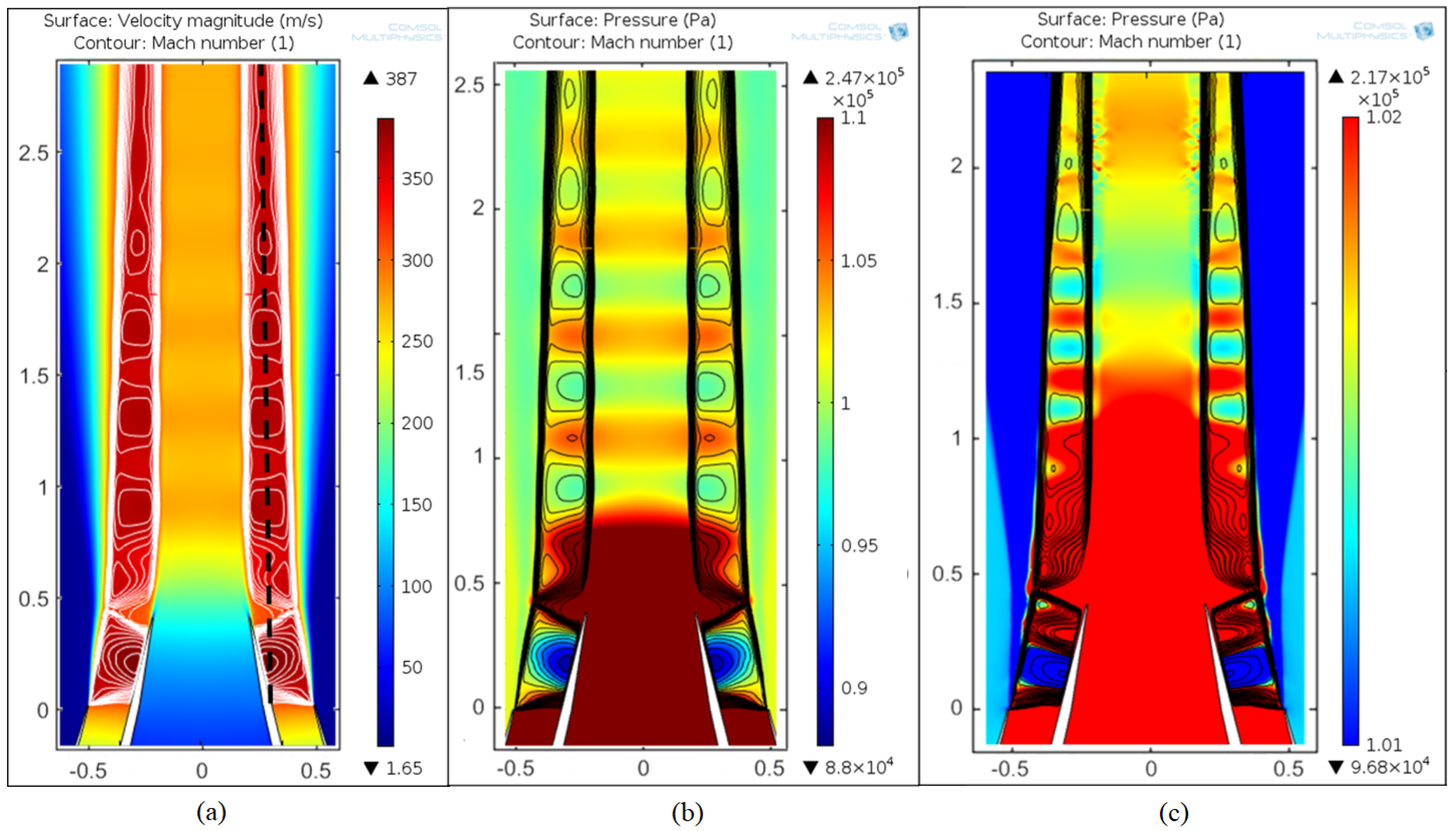

An annular shock-cells system is visible, starting from the exit of the secondary nozzle and surrounding the primary jet. At all the simulated conditions, a strong, conical, shock-wave is present, starting from the lip of the primary nozzle and refracting back into the flow when reaching the external shear layer (Figure 13). After the shock, the flow is locally subsonic, becoming again supersonic after a little distance, leading to the formation of annular shock-cells in the jet, between the internal shear layer and the external shear layer.

In Figure 13b, the pressure field shows a periodic pattern, due to the presence of the annular shock-cells. This causes also the velocity of the inner jet to be modulated according to the annular shock-cell topology. Reducing the total pressure, a progressive reduction on the length of the shock-cells is observable, similar to the single stream jets. For Cond. 07 (Figure 13c), it is possible to recognize the formation of a complete shock-cell also in the region between the external shear layer and the wall of the internal nozzle, while the formation of shock-cells in the jet is shifted downstream. This is caused by a destructive interaction between the oblique shock-wave and the expansion waves due to the underexpansion factor, confirmed by PIV measurements [15]. Further lowering the total pressure, shock-cells are still present between the secondary shear layer and the primary nozzle wall, while a large subsonic region is developing after the oblique shock-wave, becoming supersonic again much downstream the primary nozzle exit (Figure 14). No further shock-cells are visible in the simulations, but they are still present in the experiments [15].

One of the main result of this investigation is the deviation of the computed mass flow rates from the expected ones obtained using the isentropic relations. Especially for the primary nozzle, important differences have been found, with the mass flow rate lower by more than 30% for all the test conditions. The reason for this behavior can be attributed to the strong re-compression at the end of the primary nozzle, due to the conical shock-wave generated by the secondary stream. This analysis led to the choice to directly measure the primary mass flow rate with the orifice plate described in Section 2. Furthermore, the by-pass ratio is sensibly higher than initially estimated.

6. Commissioning

The commissioning phase aimed at two primary goals: firstly, the comparison of experimental results found in the literature and, secondly, the development of a testing methodology to be applied on the coaxial jet.

Unfortunately, very few experimental measurements on supersonic coaxial jets are present in the literature [13,18,19,20,21,22], and none of these examples matched our geometry and test conditions. For this reason, it has been decided to perform a test campaign using only the core nozzle to simulate a supersonic single stream jet. The aim is to compare the acoustic far field, using a microphone antenna, and the velocity field obtained through PIV. The facility would be considered commissioned if it is able to correctly replicate the results already available in the literature, for several test conditions.

A detailed analysis of the single stream jet is beyond the scope of this paper; therefore, only the PIV results obtained from the first test campaign and some of the acoustic results will be shown. The reader is addressed to Rubio Carpio [23] and Guariglia [15] for a more exhaustive analysis.

6.1. Experimental Setup

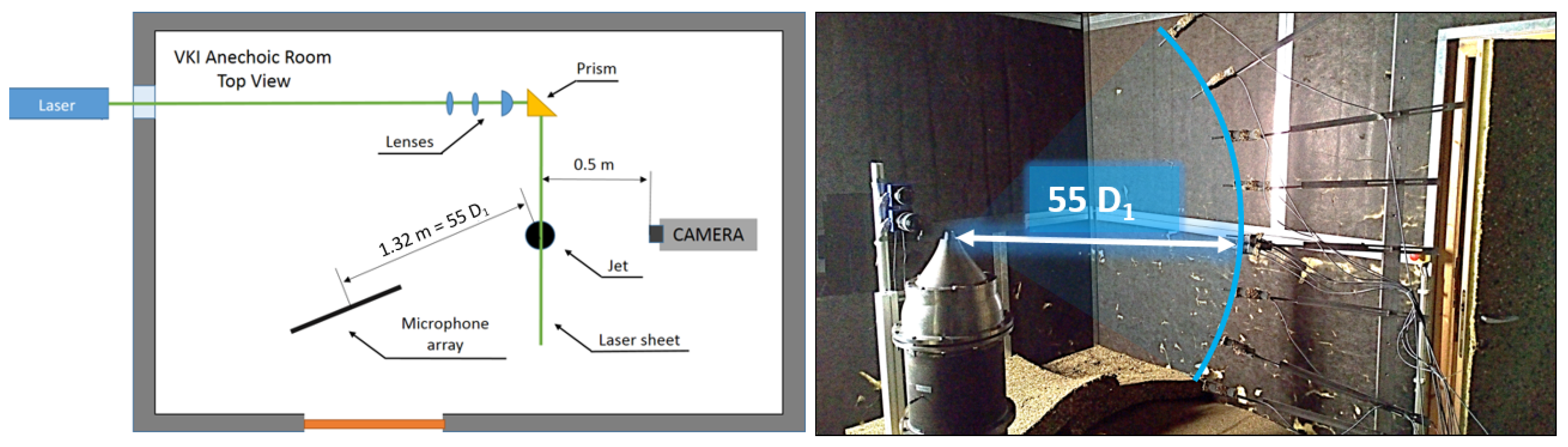

A vertical microphone polar array is located in the anechoic room comprised of 11 microphones, equally spaced to cover a range of polar angles from 30${}^{\circ }$ to 130${}^{\circ }$. The PIV optical bench, containing all the devices necessary to generate the laser light sheet and the cameras to record the images, is also placed inside the anechoic chamber. The laser head and its cooling system are kept outside of the room, since they are sources of spurious noise. A sketch of the final setup of the facility is shown in Figure 15. The nozzles used are the first set built, described in Section 3, with $D_{1,inner}=23.3$ mm and $D_{2,inner}=55$ mm for the primary and secondary jets, respectively. For this study, both the nozzles have been installed, but only the primary flow has been used. The seeding generator is a PivPart-45M, by PIVTEC Gmbh, composed of 45 Laskin nozzles, with 5 bar as the maximum outlet pressure. The manufacturer’s user manual [24] reported a peak in the particle size distribution function around $D=1$ $\mathsf{\mu }$m for vegetable oil. In this work, the seeding used was the industrial oil Shell Ondina-919. The Laser Extinction Spectroscopy [25] (LES) technique has been used at VKI by Mandon [26] to verify the seeding size distributions for this oil. The results show that the distribution is centered around 0.5 $\mathsf{\mu }$m for most of the tested conditions, thus suitable for this investigation.

6.2. Operating Conditions

Three measurement campaigns have been conducted. In the first one, PIV and microphones measurements have been performed synchronously, for the range of CNPR and Mach numbers indicated in

Table 4. Overview of the test conditions investigated during the three campaign carried out using PIV and microphones. Nozzle Set 1 has $D_1=0.0240$ m, while Nozzle Set 2 has $D_1=0.0192$ m.

CNPR	${\mathit{M}}_{\mathit{j}}$	PIV & Nozzles 1	Nozzles 1	Nozzles 2	$\mathbf{\Delta }\mathit{t}$ ($\mathsf{\mu }$s)
1.8	0.96			x
1.9	1.0		x	x
2	1.05		x	x
2.13	1.1		x	x
2.26	1.15		x
2.30	1.16	x	x	x	1.5
2.36	1.18		x	x
2.40	1.19	x	x	x	1.5
2.46	1.21			x
2.50	1.22	x	x	x	1.2
2.60	1.25	x	x	x	1.2
2.70	1.28	x	x	x	1.2
2.96	1.35	x	x	x	1.2
3.67	1.50	x	x	x	1.0
4	1.56			x

. Unfortunately, the spectra retrieved from these measurements resulted in being altered for frequencies above ∼15 kHz. It has been verified a posteriori that the alteration came from the presence of the protective grid, which is normally mounted on this kind of microphones to protect the sensible membrane.

Following the manufacturer’s advise, acoustic measurements, without the protective grid, have been repeated and extended for lower and higher Mach numbers, as indicated in Table 4. The last acoustic measurement campaign has been executed using the Nozzle Set 2, for the sake of verifying the experimental repeatability and acoustic spectra similarity.

6.3. PIV Measurements

6.3.1. PIV Acquisition Procedure

Series of 1800 samples have been acquired for each flow case, with a sampling rate of 15 Hz. Consecutive fields can thus be assumed to be decorrelated. Taking as an example the work of André [27], the turbulence intensity in the mixing layer of the jet is estimated to be less than 20%. Assuming this value as an upper limit, it can be assumed that the number of samples taken allows one to have a $1\%$ error on the velocity mean value with a $95\%$ of confidence level [28].

6.3.2. PIV Equipment

The illumination is provided by laser pulses generated with a double-cavity Quantel CFR200 Nd:YAG system. This system provides a laser wavelength 532 nm (green), with a maximum energy of 200 mJ/pulse and a pulse duration of 12 ns.

After a transmission of approximately 3 m, the laser beam reaches the optical bench where the beam is reshaped as a laser sheet. The optical bench consists of two spherical lenses, one with focal length $l=30$ mm and the other one with $l=80$ mm, a cylindrical lens and a prism to rotate the laser beam. Being that a single lens with a proper focal length was unavailable, the combination of these two different spherical lenses fulfilled the need very well, guaranteeing the compactness of the optical test bench, to avoid disturbances in the acoustic measurements. After the cylindrical lens, the laser light sheet passes through the prism, where it is deviated 90${}^{\circ }$ in order to reach the test section. The distance between the prism and the test section is about 1 m. This setup allowed obtaining a laser sheet of about 1 mm in thickness on a vertical plane containing the jet axis.

The recording system is composed of two LaVision Imager SX4M cameras (2360 × 1776 pixel²) located at a distance of 0.5 m from the jet axis. Acoustic tests have been carried out to ensure that at such a distance, the acoustic field emitted by the jet was not perturbed. The cameras are placed vertically in order to enlarge the total field of view in the axial direction of the jet, although a little overlap between the field of view of both cameras is set up in order to allow the construction of the final one by joining them.

Two Nikkor f/1.8 objectives of 50 mm in focal length are mounted with a focal number $f^{\#}=8$.

The cameras have been slightly de-focused to increase the size of the particles on the sensor, since they have been found to be at the limit of two pixels per particle. A posteriori, this is probably due to the particles’ diameter, which is smaller than 1 $\mathsf{\mu }$m according to the measurements of Mandon [26].

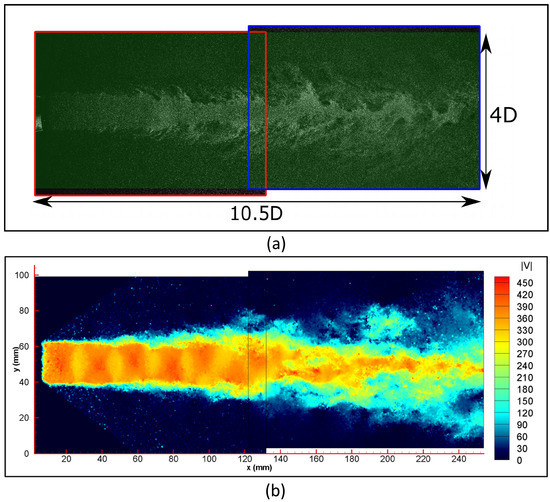

The final Field Of View (FOV) is shown in Figure 16. It has a total extension of 10.5$D_1$× 4 $D_1$ (252 × 96 mm${}^2$) with a resolution of 18 pixels/mm. A parametric study was carried out to choose the optimum separation time and seeding density for each case. The final separation times $\Delta t$ for each case are summarized in Table 4.

Before starting the data acquisition, the test chamber is filled with oil particles to seed the quiescent air surrounding the jet. Despite the different concentrations, this was sufficient to have a good signal to noise ratio in the jet entrainment region [15,23]. Figure 16a,b shows an instantaneous view of the seeded jet and a computed velocity field.

6.3.3. Image Processing

The image pre-processing and cross-correlation have been carried out with in-house PIV software [29,30,31]. WIDIM uses an iterative interrogation procedure with window shifting and deformation. Image interpolation at sub-pixel positions is performed by a standard three-point Gaussian function [32]. According to this, a 64 × 64 pixel² initial interrogation window is used with two iterations, resulting in a final interrogation window of 16 × 16 pixel², with 50% overlap. The spatial resolution is of one vector each of eight pixels (0.44 mm), i.e., 55 vectors across the single supersonic jet diameter. Those instantaneous flow fields with a signal to noise ratio lower than 1.5 or higher than 20 are filtered out.

6.3.4. Results: PIV

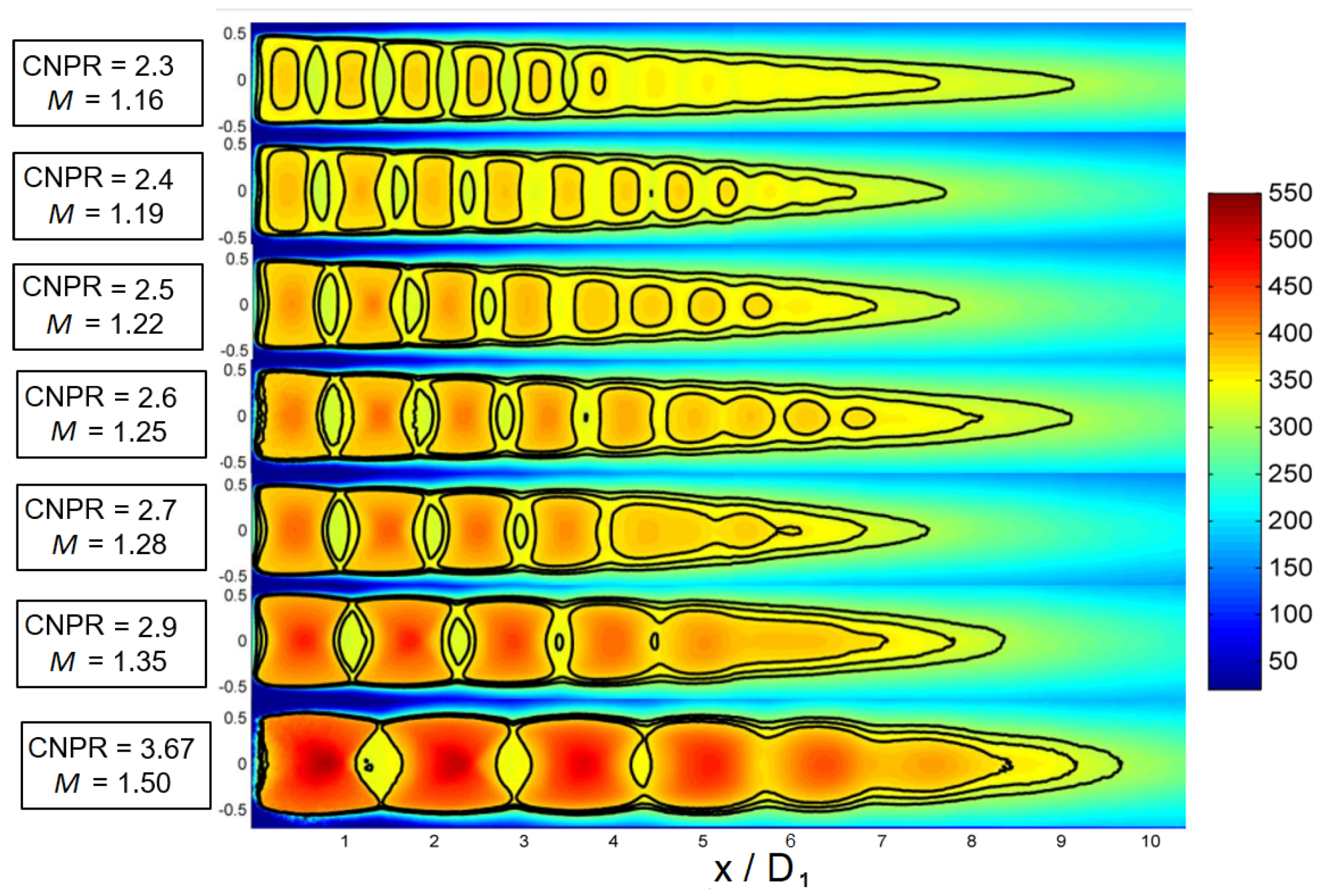

In this section, the results obtained from the PIV measurements are presented and compared with previous research. The main characteristics of the shock-cell pattern have been retrieved from the PIV measurements. Local Mach numbers can be computed from the PIV data assuming the total temperature does not change in the pipes, and it is equal to the reservoir one. With the further assumption of isentropic flow, the Mach number can be computed with the following formula [33]:

$$M=\sqrt{\frac{{\left|\mathbf{V}\right|}^2}{\gamma R{T}_0-{\left|\mathbf{V}\right|}^2(\gamma -1)/2}},$$

(2)

which is less and less valid as the shock-wave strength increases and in the shear layer, as the effect of entropy production. Pérez Arroyo, in his Large Eddy Simulations (LES) on a supersonic coaxial jet [34], found a difference <3% between the Mach number extracted from the simulation and calculated using this method [35]. An overview of the average velocity fields for all the tested condition is presented in Figure 17. The picture shows the progressive increment of the shock-cell length, but sudden reductions of the number of the shock-cells periodically occur. It was already known from the literature [27,36] that this is due to the effect of the screech mode change, which reduces the number of shock-cells by provoking large displacements of the plume. By comparing the screech tone frequency with the literature and by performing a cross-correlation analysis on the PIV fields, it has been assessed that for CNPR = 2.30, an axisymmetric screech mode (A2) is present; from CNPR = [2.40 2.50 2.60], there is the onset of a flapping mode (B); and finally, for CNPR = [2.7 2.96 3.67], there is an ongoing helical mode (C). Further information on the screech modes identification using cross-correlation analysis can be found in Guariglia [15].

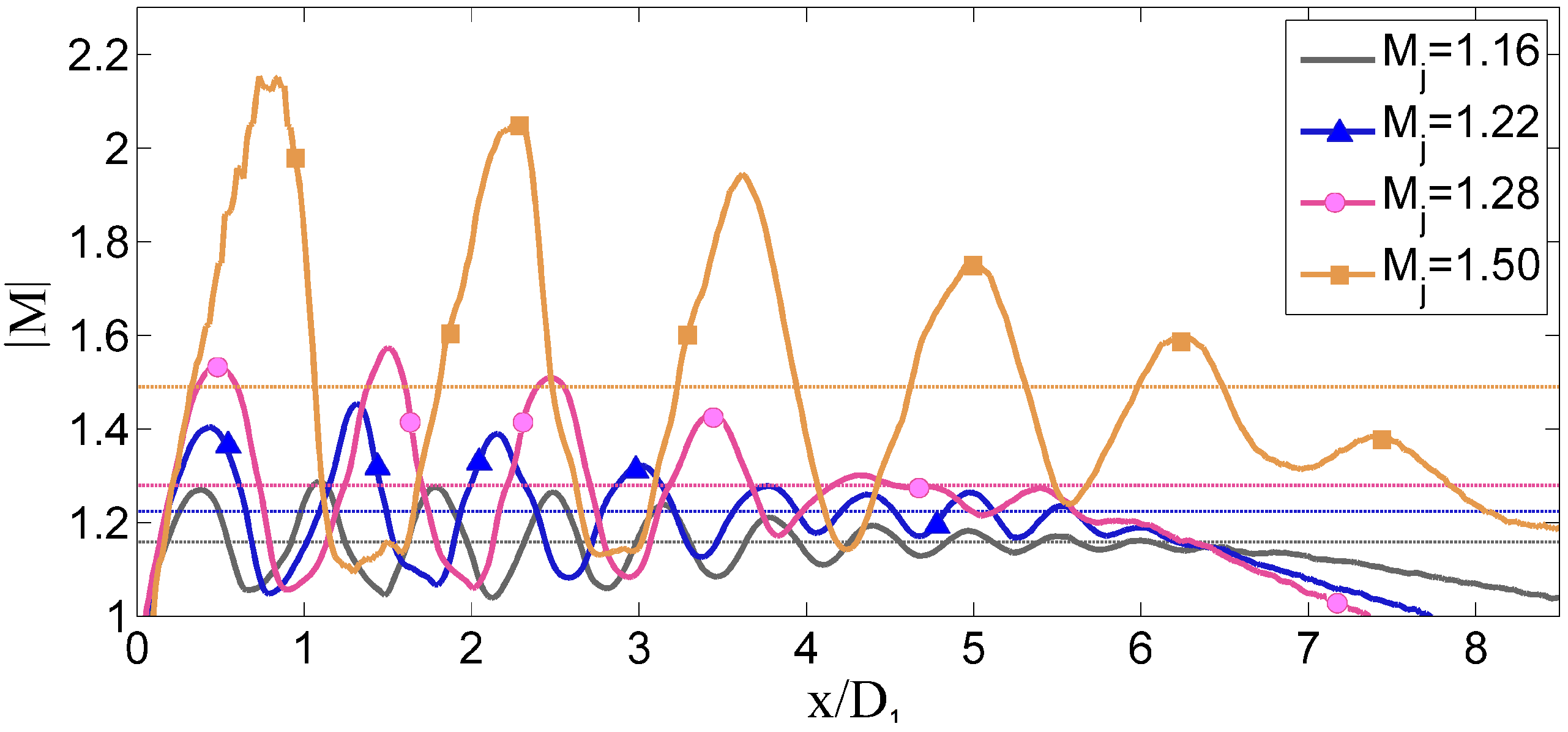

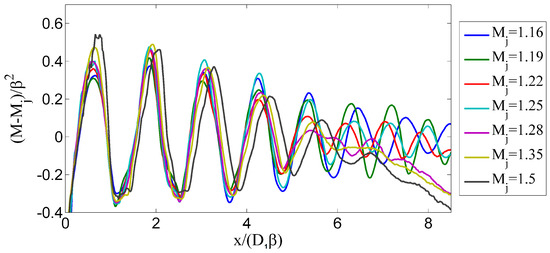

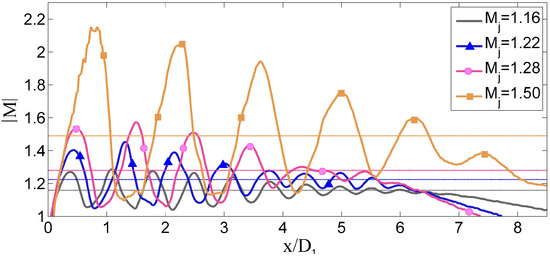

In Figure 18, the variation of the Mach number of the mean flow, in the center line, is shown. The amplitude of the fluctuations depends on the strength of the shocks present in the jet plume and thus on the off-design factor $\beta$, defined as:

$$\beta =\sqrt{M_j^2-M_d^2},$$

(3)

where $M_j$ is the fully-expanded Mach number for the jet and $M_d$ is the nozzle design Mach number (equal to one in this experiment). A method to collapse all the curves has been proposed by Savarese [37] for his non-screeching jet. The shock cell length appears to be proportional to $\beta$, and the amplitude of the fluctuations is proportional the pressure mismatch, which, in turn, appears to be proportional to ${\beta }^2$. Therefore, by dividing the length of the shock cells by the off design factor and the amplitude by ${\beta }^2$, a collapse of all the curves is performed. The raw profiles and the collapsed ones are presented in Figure 18 and Figure 19.

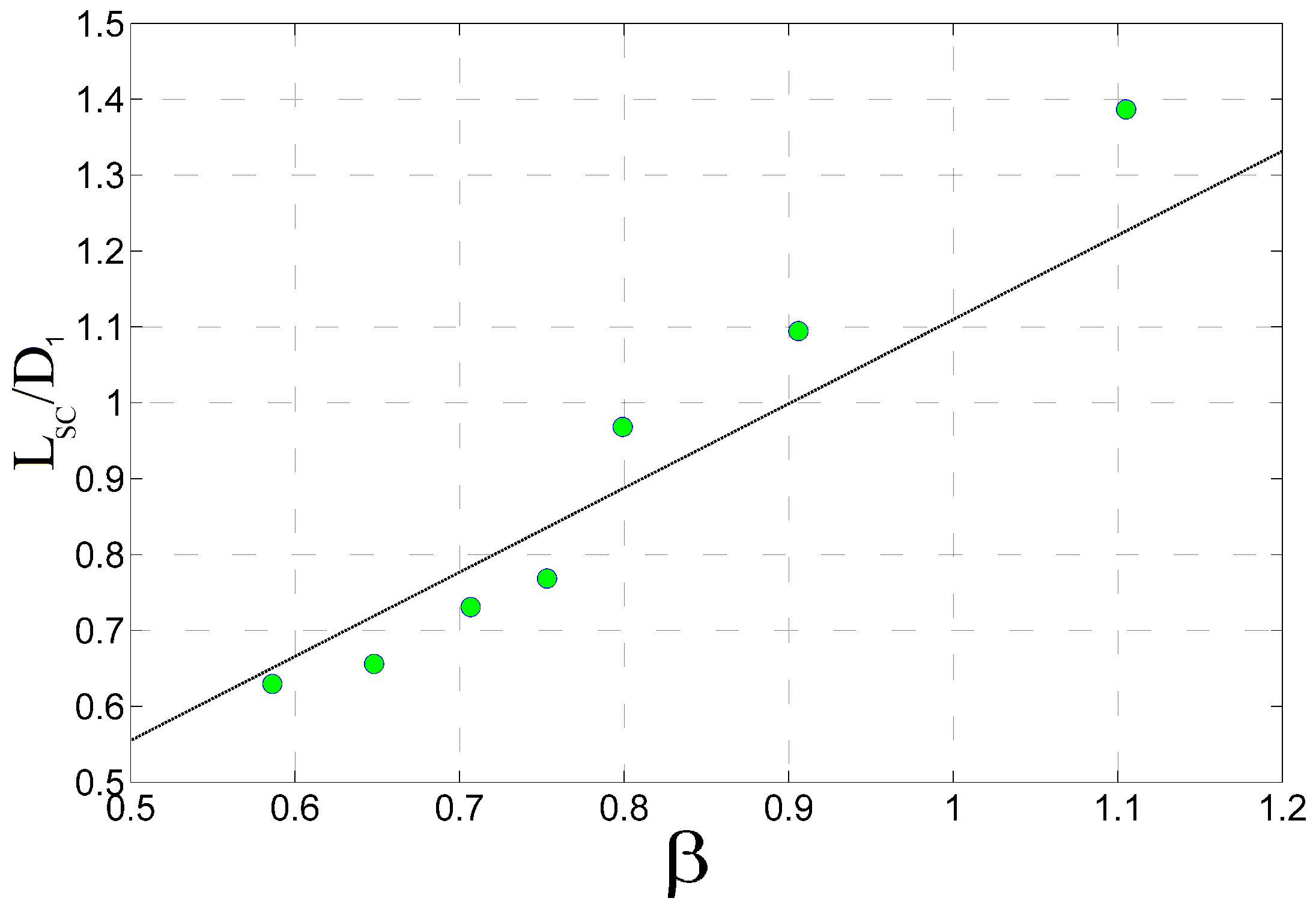

Overall, the behavior is acceptable for $x/\left(D\beta \right)<4$. Above this point, the curves lose coherence. The hypothesis is that the occurring screech is altering the shock-cells sequence, also by virtue of the fact that three different screech modes are present in the measurements. In Figure 20, the averaged shock-cell length has been compared with the semi-empirical relation proposed by Harper-Bourne and Fisher [38]. The mean value for every case is plotted. The measured data follow the proposed trend for all the cases. The sudden change at $\beta =0.8$ is attributed to a change of the jet screech mode.

6.4. Acoustic Measurements

A new microphone polar array has been designed to perform the acoustic measurements. Eleven microphones were positioned, covering an angular range from $\theta ={30}^{°}$ to $\theta ={130}^{°}$ (being $\theta =0^{°}$ the downstream direction), with a microphone every ${10}^{°}$, at a distance of 1.32 m (55 $D_1$).

The microphones used are Bruel & Kjaer 4938, 1/4 inches in diameter with Bruel & Kjaer 2670 preamplifiers. Three Bruel & Kjaer NEXUS Type 2690-A microphone conditioners have been used to amplify and band-pass the signal.

6.4.1. Acquisition System

An NI 5751 14-bit A/D converter together with an NI PXIe-1073 chassis has been used to record the microphones’ signal. The sampling frequency is $f_s=250$ kHz. In all cases, the band-pass filter of the NEXUS system was set from 20 Hz to 100 kHz. The selected acquisition parameters for every test campaign are: acquisition time $T_s=67.11$ s, sampling frequency $f_s=250$ kHz, number of samples $N_s=2^{24}$ and frequency resolution $\Delta f=0.015$ Hz.

6.4.2. Data Processing

Welch’s Sound Pressure Level (SPL) of the signal is calculated. Welch’s SPL divides the whole acquired signal into segments of $N_{PW}=2^{15}$ points using a Hanning window to limit spectral leakage. The final frequency resolution of the Welch averaged signal is $\Delta f_{PW}=7.63$ Hz.

6.4.3. Results: Aeroacoustics

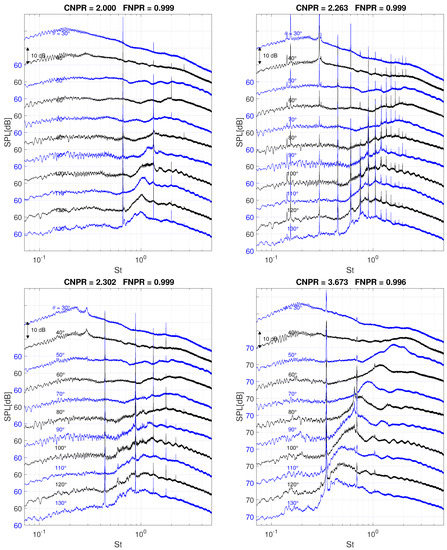

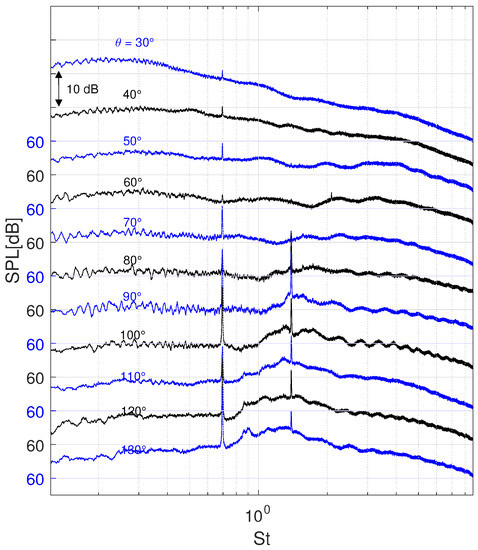

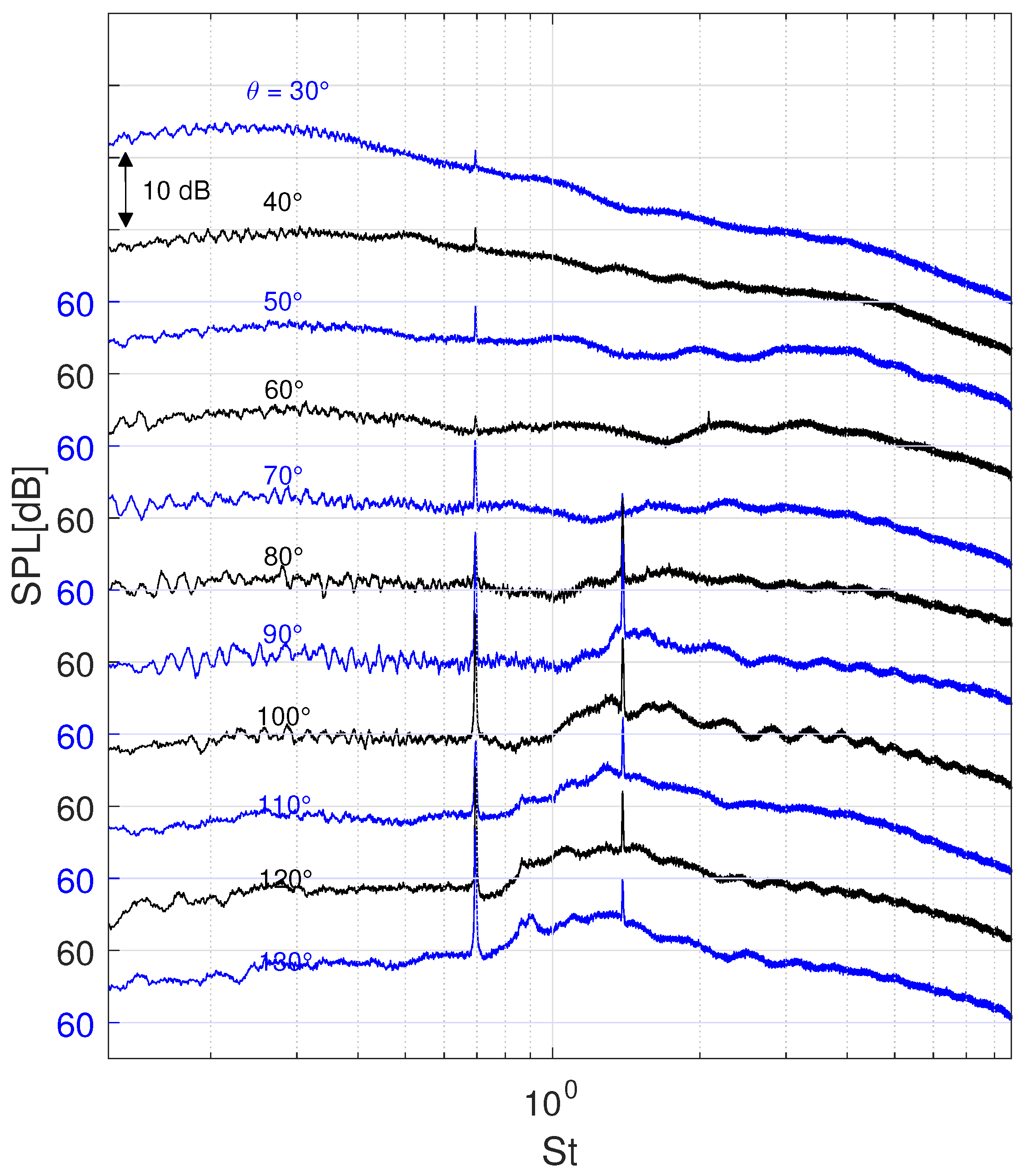

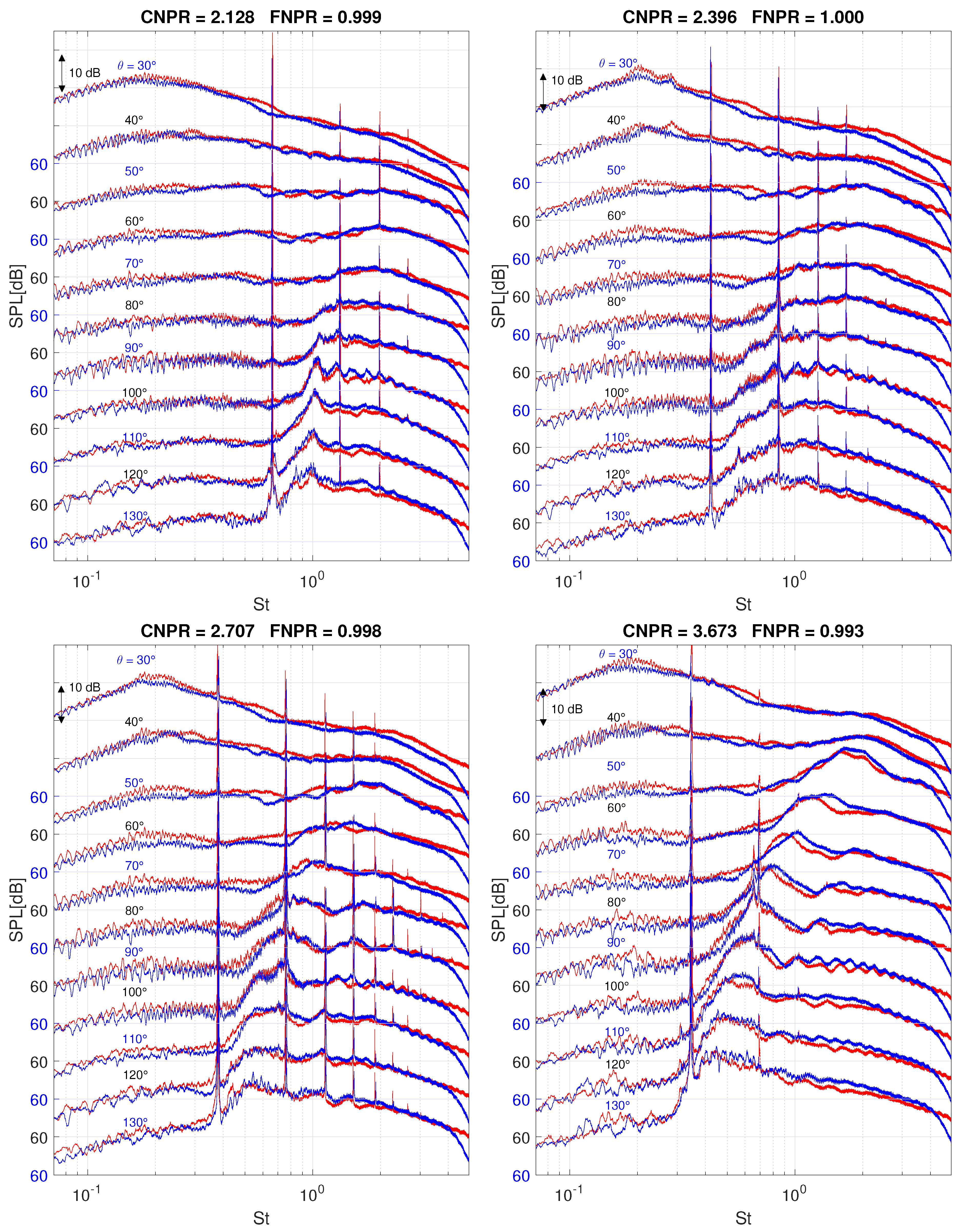

For the sake of brevity, only the cases with Nozzle Set 1 mounted, for CNPR = [2.00 2.26 2.30 3.67], are shown. For a description of the results at all the tested conditions, the reader is referred to Guariglia [15]. An overall view of the SPL measured by the eleven microphones, scaled at a distance $r/D_1=40$, is displayed in Figure 21. The SPL, for each angle, is staggered for better readability.

All the typical acoustic features of the shock-cell noise are present. The hump of broadband shock-cell noise is evident, and the frequency of the broadband spectral peak increases as the listener moves to downstream positions, as was already indicated by Tam [8]. The screech main tone and its harmonics are also present. As general behavior, the screech frequency decreases as the degree of underexpansion increases. This behavior has already been noticed in several publications [4,7,39]. At certain Mach numbers, the screech mode switches from axisymmetric (A2) to flapping mode (B) and then to helical mode (C), evidenced by a marked shift of the screech frequency when the switch is completed. In Figure 21 on the top right-hand side is shown a case where the jet experiences the transition between the modes (A2) and (B), and both screech tones are present at $St\approx 6$ and $St\approx 4$, respectively.

Interestingly, in all conditions, many harmonics of the screech main tone can been counted (in some cases up to the 10th one). These harmonics express also a directivity pattern, intended as marked variation in the SPL at different angles, as pointed out already by Tam [40]. For the cases CNPR = [2.26 2.67], the presence of screech subharmonics, intended as tones at frequency lower than the main tone, has been recorded, together with harmonics of the subharmonic tones. Interestingly, these two cases correspond to when the screech mode is switching from one to another, which may suggest a causality effect. Apart from the study of Tam, little research has been conducted on this topic until now, mainly due to the difficulties in finding screeching jets with many harmonics, and no examples have been found in the literature on screech subharmonics. Further analysis, however, is beyond the scope of this paper, and thus, it will be addressed in future publications. Finally, when the the pressure ratio is sufficiently high to lead to the Mach disk formation, at CNPR = 4.00 $M_j=1.56$, no screech is further encountered (with Nozzle Set 2 [15]).

6.5. Comparison of the Sound Intensity Level

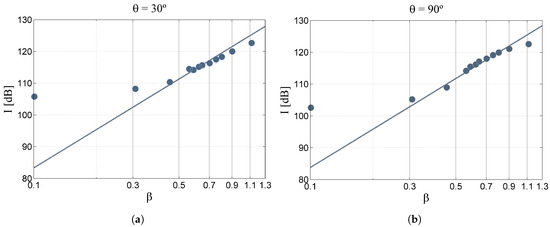

The Sound Intensity Level (SIL), defined as:

$$I=\frac{1}{T}\int \frac{{p^{\prime }}^2}{{\rho }_{\infty }{c}_{\infty }}dt$$

(4)

is a time averaged power flux, where T is the recording time, $p^{\prime }$ is the pressure fluctuation and $c_{\infty }$ and ${\rho }_{\infty }$ are the air speed of sound and density, respectively. The SIL is usually expressed in decibels [dB] by computing $I=10·lo{g}_{10}(I/I_{ref})$, where $I_{ref}={10}^{-12}$${\mathrm{W}/\mathrm{m}}^2$ is the reference intensity. The integration of the SIL on a closed surface leads to the sound power level, which is sometimes found in the literature as SWL. Harper-Bourne and Fisher [38] found out that the shock-cell noise intensity is proportional to the fourth power of the off design parameter $\beta$. Figure 22 illustrates the variation of the measured SIL vs. the off-design parameter $\beta$ for the microphones located at $\theta ={30}^{°}$ and $\theta ={90}^{°}$. Measured data laying in the range $\beta >0.4$, where the shock-cell noise is the main mechanism of noise generation, follow the aforementioned trend. Below this range, the shock-cells pattern is weak, and jet mixing noise becomes dominant, so Lighthill’s M⁸ law is retrieved.

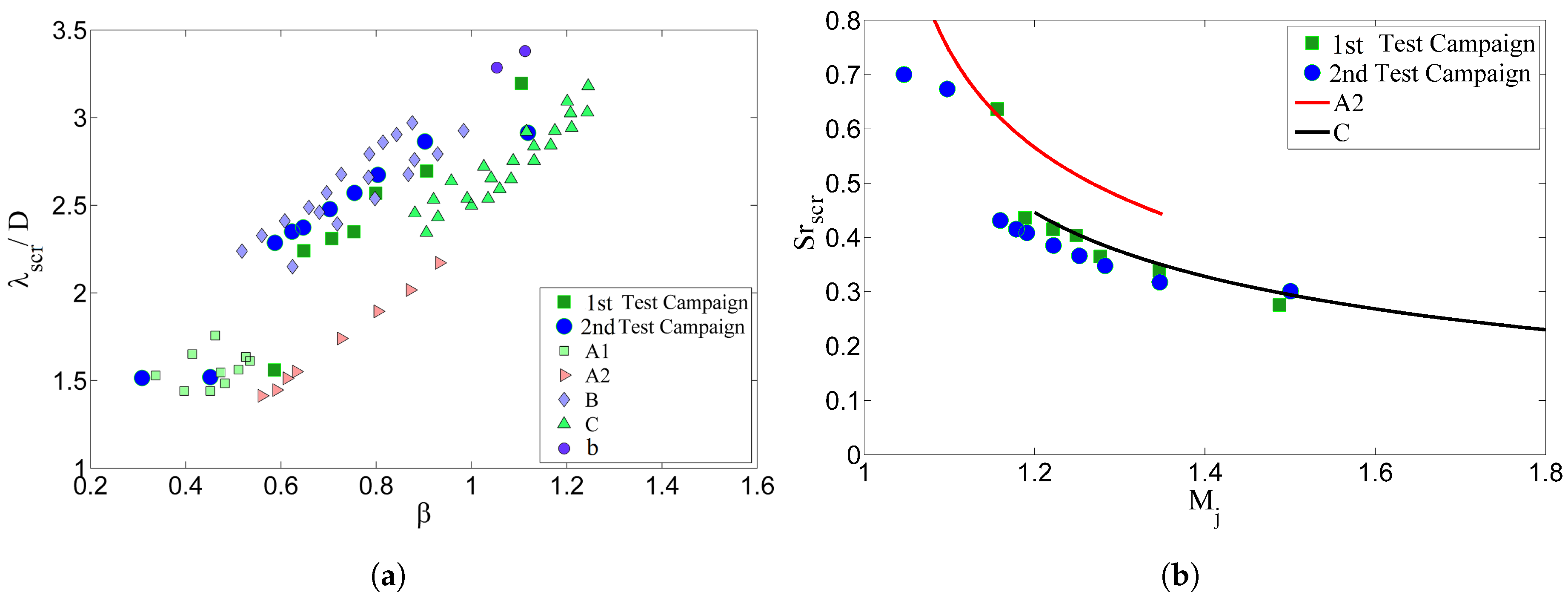

The screech wavelength ${\lambda }_{scr}=c_{\infty }/f_{scr}$ obtained in the measurements was compared with the literature for all the test cases. In Figure 23a, the results of the measurements are plotted together with the data gathered by Raman [41]. It was observed that all measured wavelengths lay in the point cloud retrieved in other research.

The data have also been compared with the correlations proposed by Ahuja [39] for the stable axisymmetric mode (A2) and the helical mode (C). The results are presented in Figure 23b, where the screech Strouhal number was calculated as $S{t}_{scr}=f_{sc}{D}_j/U_j$. Most of the measured data lay near the helical mode (C) correlation, while one point lays in the stable axisymmetric mode (A2). The two points that remain far from any correlation curve belong to the unstable mode (A1) according to the data of Raman.

Summarizing, all the measurements performed in different test campaigns showed that the noise emitted by the supersonic jet in the FAST facility contains all the acoustic features of the shock-associated noise and are in agreement with previous literature results.

6.6. Nozzles Set Comparison

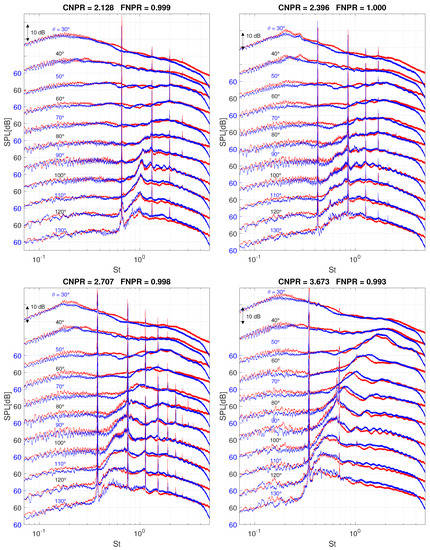

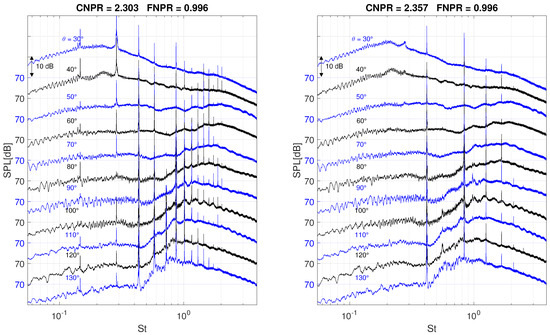

The acoustics results for the Nozzle Set 1 and Nozzle Set 2 have been compared. Spectra are non-dimensionalized by the Strouhal number and scaled as for distance $r/D_1=40$. Figure 24 shows very good agreement among the two test campaigns, for both the BBSAN and the screech tones, in frequency and SPL. Interestingly, the pressure conditions for which there is the switch between the axisymmetric and flapping screech modes is not the same for the two nozzle. The onset of the switch has been determined by monitoring the spectra “live” during the experiments and finely increasing the CNPR until the set of subharmonics first appear. For the larger nozzle, this occurs around CNPR = 2.26 (shown in Figure 21), while for the smaller nozzle at CNPR = 2.30 (Figure 25 on the left). In the same way, it has been assessed that the switch is complete around CNPR = 2.30 for the larger nozzle (Figure 21 bottom left) and CNPR = 2.36 for the smaller one (Figure 25 on the right). This behavior does not change even when starting from CNPR = 2.40 and finely decreasing the pressure. This may suggest a dependency different from the Strouhal number. This aspect, however, has not been investigated further.

6.7. Preliminary Dual Stream Jet Results

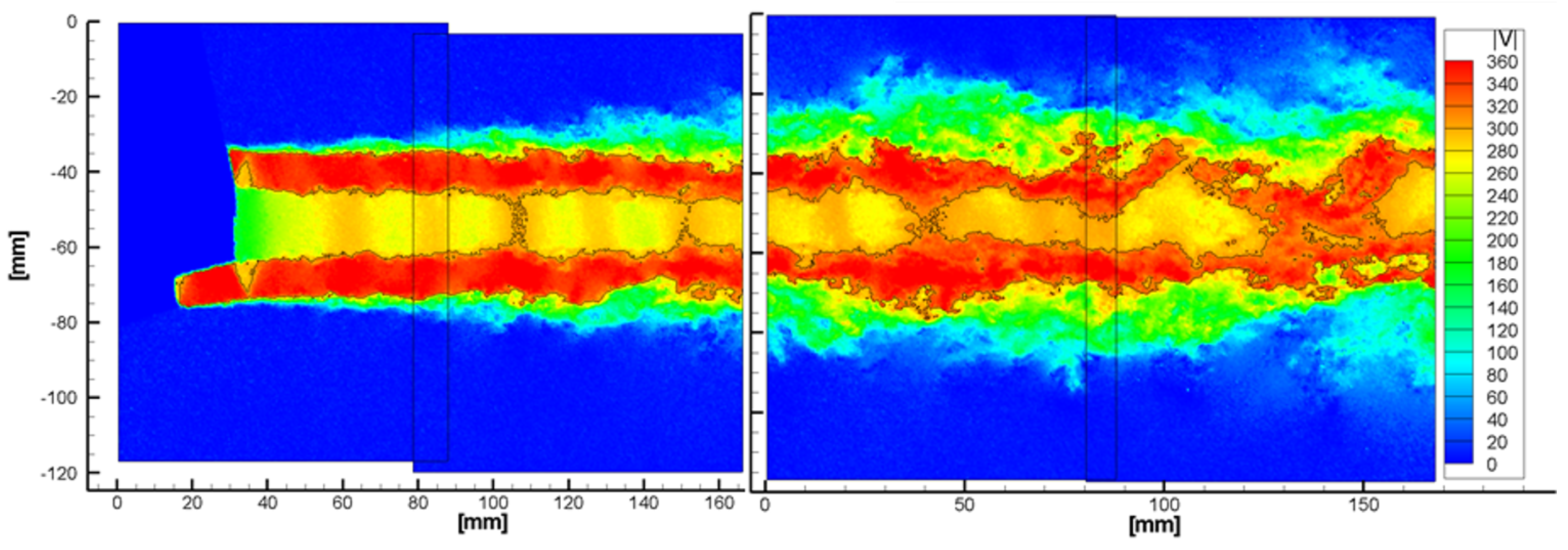

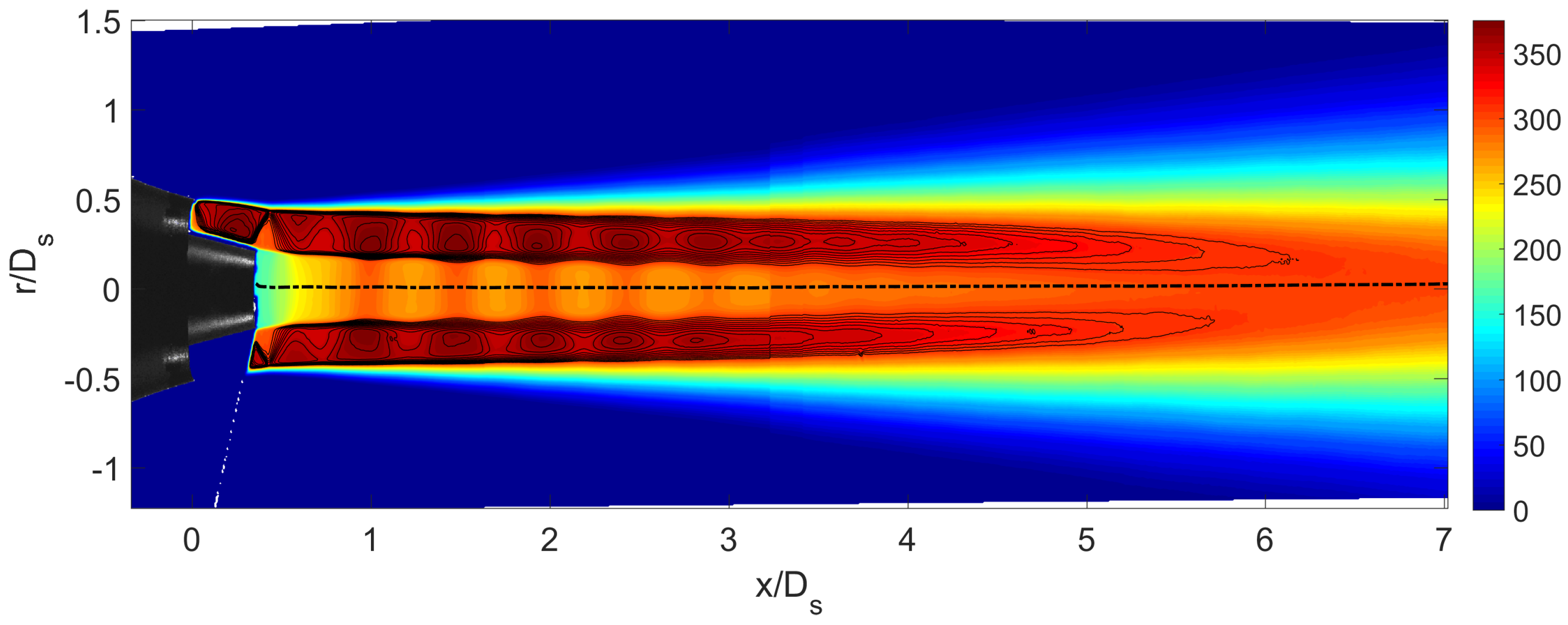

Following the single stream campaign, the dual stream nozzle has also been commissioned, and experiments have been carried out with Nozzle Set 2 for FNPR = 2.450 and CNRP = 1.675 (Condition 01 in Table 2). Preliminary results are shown, leaving a more detailed analysis for a future publication.

The experimental setup for the coaxial jet experiment does not differ significantly from the single jet. The main issue is posed by the longer extension of the jet itself, imposing a compromise between resolution and spatial correlation. The adopted solution consists of using the cameras side by side covering half of the supersonic extension (estimated through CFD), then measuring all points in the test matrix, then moving the laser sheet and the cameras to cover the second half of the supersonic region. The total length of the investigation zone spans for $l=7D_2$ in the axial direction and $l=2.5D_2$ in the radial direction. A second set of measurements investigates a specific portion of the jet with higher resolution. A sketch of the field of views is presented in Figure 26. An example of instantaneous flow field is depicted in Figure 27, while an averaged field of view is shown in Figure 28.

The magnification factor is 0.05 mm/pixel. The pre-processing, cross-correlation and post-processing have been carried out with VKI in-house software [29,30,31], similarly to the single jet. Based on the previous experience, the seeding generator has been used at its maximum capability. For the first investigation area, near the nozzle exit, the laser pulse separation time has been set to $\Delta t$ = 1 $\mathsf{\mu }$s for all the test conditions. For Condition 1 only, $\Delta t$ = 0.4 $\mathsf{\mu }$s and $\Delta t$ = 2 $\mathsf{\mu }$s have been used, as well, in order to verify the effects on the Signal-to-Noise Ratio (SNR) on the jet core (faster region) and on the shear layer (slower region). This assessment confirms that the separation time $\Delta t$ = 1 $\mathsf{\mu }$s is the best compromise between SNR and accuracy of the measurement [15]. For the second area, downstream the first area, the separation time has been increased to $\Delta t$ = 1.5 $\mathsf{\mu }$s. The final windows’ correlation, after two-step refinement and deformation is 12 × 12 pixels${}^2$ with 50% overlap, corresponding to a spatial resolution of ca. 0.60 × 0.60 mm${}^2$ and a vector resolution of ca. 150 vectors/$D_2$.

The aeroacoustic measurements have been carried out using the same microphone antenna used for the single stream jet. Distance has been set to $d=30D_2$, with the acquisition frequency $f_s=250$ kHz, while the number of acquired samples is $2^{24}\simeq 16.7\times {10}^6$. From a qualitative point of view, dual stream spectra are similar to the single stream ones, with the exception that fewer screech tones are observable. An example is given in Figure 29.

7. Conclusions and Perspectives

A new facility to study supersonic coaxial jets has been designed and built for the investigation of shock-cell noise on single and dual stream jets. An innovative coaxial silencer has been realized to eliminate spurious noise from the piping and valve system. The main advantage of this configuration is to mitigate the aerodynamic interference between the inner duct and the outer ducts. The U-turn shape combined with the presence of stainless steel wool leads to an effective sound damping, evaluated by means of acoustic simulations. The nozzle geometry has been verified with RANS simulations, evaluating nine test conditions. The results evidence a complex flow pattern, with a conical shock-wave present at the end of the primary nozzle. This conical shock causes a sensible reduction of the primary mass flow rate, by creating an over-pressurized zone downstream the primary nozzle. This observation justifies the installation of a mass flow meter for the primary stream to directly measure the mass flow rate.

The FAST facility has been commissioned by performing experiments on a supersonic single stream jet in underexpanded conditions and comparing the results with the literature. Several CNPR conditions have been investigated using PIV with microphones mounted on a polar antenna. The velocity fields show the expected shock-cells pattern, with the shock-cell length increasing with the CNPR. The evolution of the mean shock cell length $L_{sc}$ with the design parameter $\beta$ is in agreement with the semi-empirical correlation proposed by Harper Bourne and Fisher.

Acoustic measurements have been compared with the literature, finding good qualitative and quantitative agreement in terms of the sound intensity level trend and screech mode characteristics. Harmonics of the screech, up to the 10th one, have been found in all the conditions where screech was present. In two cases, the presence of many subharmonics of the main screech frequency appears as a specific feature of the present facility. It has been evidenced how such subharmonics are present only in cases when the jet is is switching between two screech modes, suggesting a causality effect for the phenomenon. In all cases, harmonics and subharmonics exhibit a directivity pattern, intended as the marked change of the SPL with the observer angle. Further research on this topic is envisaged, at first by comparing the directivity patterns with the model developed by Tam and secondly by performing wavelet analysis of the acoustic signal in the cases when the jet is exhibiting the subharmonic tones. In this way, it should be possible to determine if the phenomenon is at least continuous or intermittent.

The acoustic measurements for the two manufactured nozzle have been compared, showing a very good match on the SPL-St plane, at a relative distance of $r=40D_1$. This confirms the repeatability of the measurements also in light of the spectral self-similarity for supersonic underexpanded jets. The screech main tones and harmonics coincide in the Strouhal number for all cases, and the screech harmonics’ amplitudes and directivity patterns also maintain reasonably good agreement with the literature in all test conditions.

Finally, preliminary experiments on the dual stream jet have been performed, showing the capability of the facility to reach the nominal conditions also with the secondary flow.

In conclusion, the FAST facility and the experimental methodology have been validated, demonstrating how the rig is capable of fulfilling the objectives for which it has been designed.
