Open AccessArticle
Aerospace 2017, 4(4), 60; https://doi.org/10.3390/aerospace4040060

Winglet Geometry Impact on DLR-F4 Aerodynamics and an Analysis of a Hyperbolic Winglet Concept

Department of Aerodynamics and Heat Transfer, Moscow Aviation Institute (MAI), Volokolamskoe Highway 4, 125080 Moscow, Russia
*
Author to whom correspondence should be addressed.
Received: 18 October 2017 / Revised: 10 December 2017 / Accepted: 11 December 2017 / Published: 15 December 2017
(This article belongs to the Special Issue Bio-Inspired Aerospace System)
Full-Text   |   PDF [28332 KB, uploaded 15 December 2017]   |

Abstract

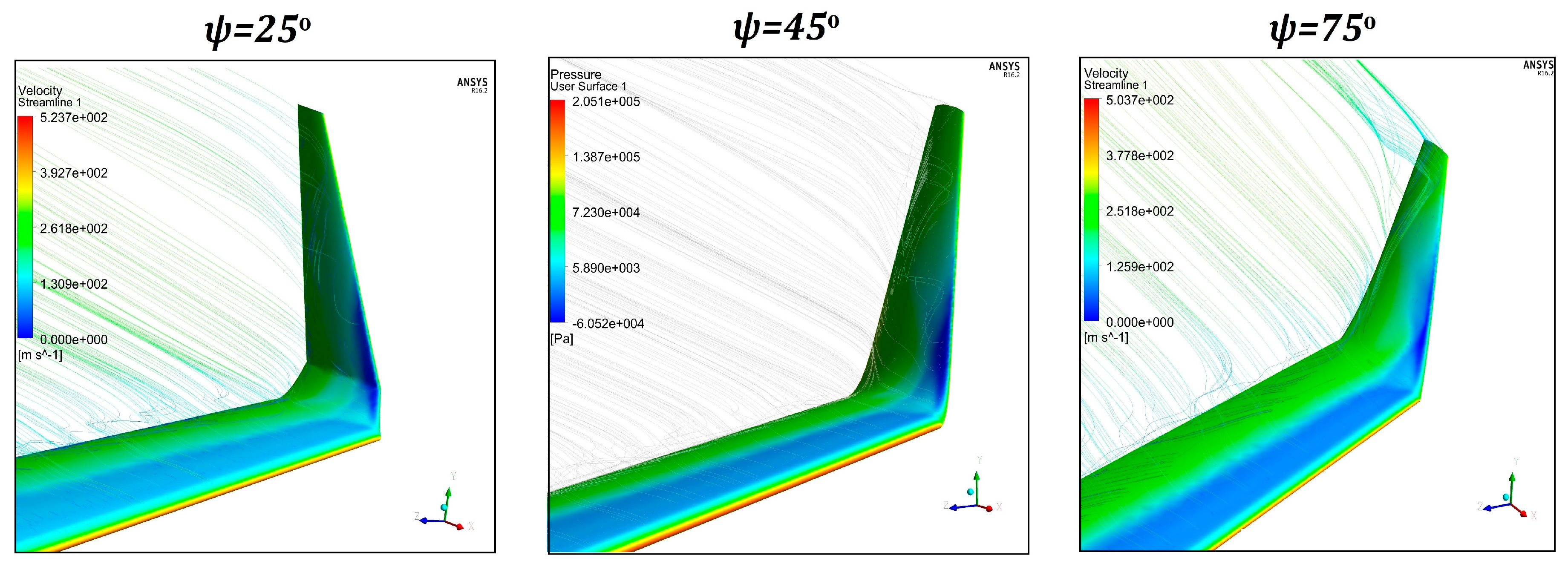

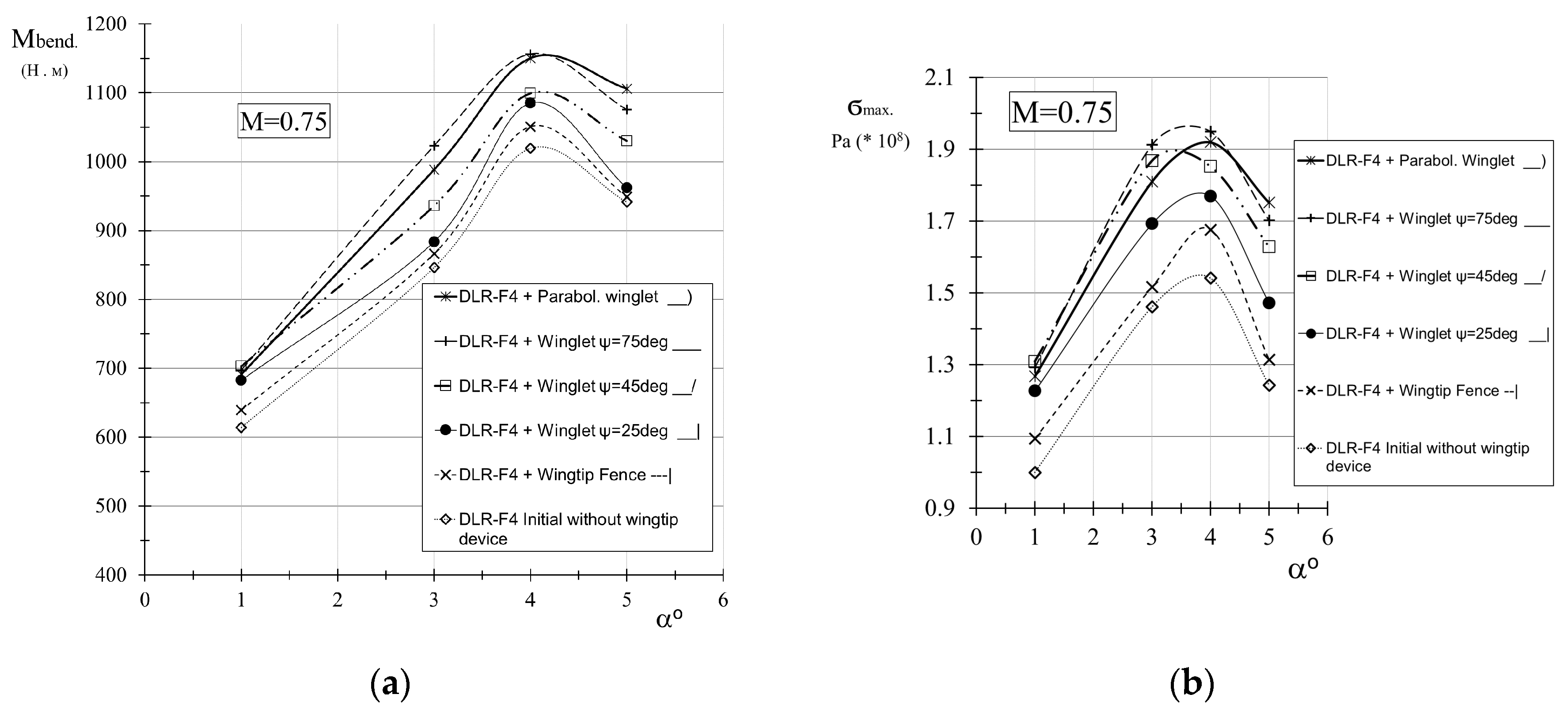

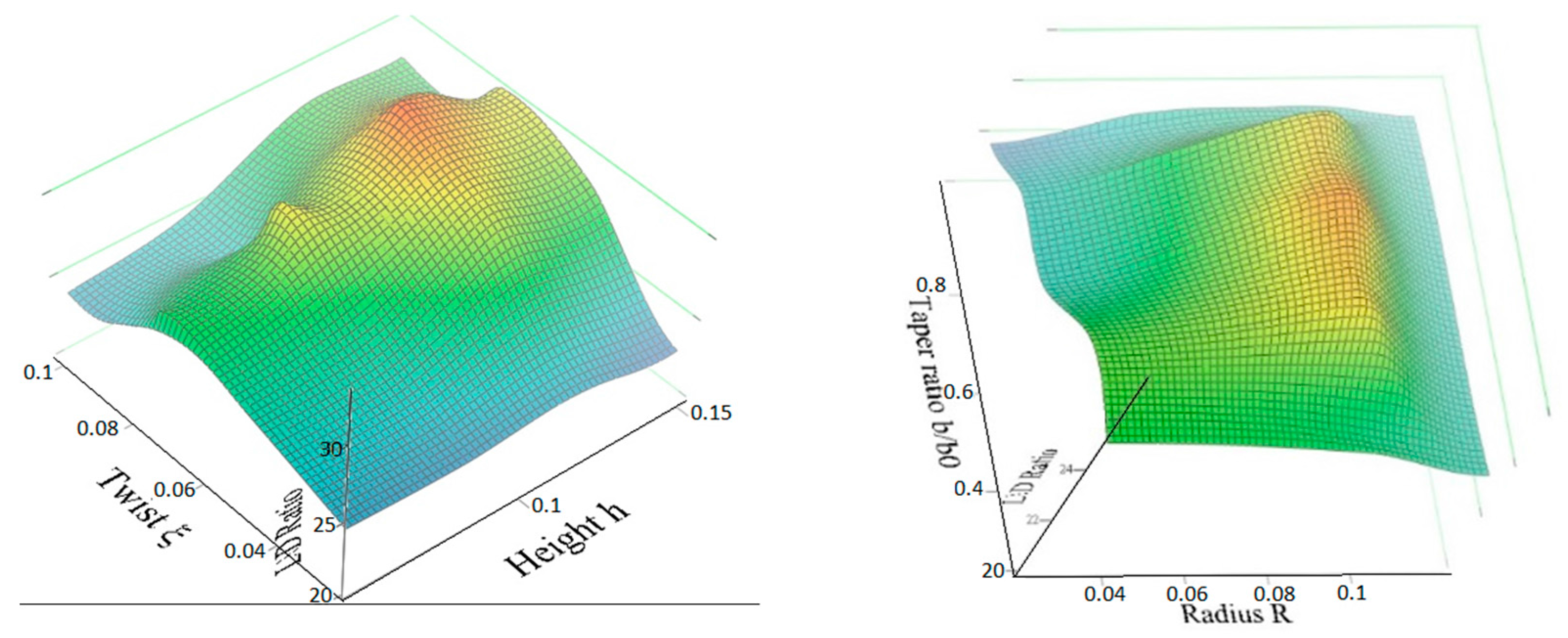

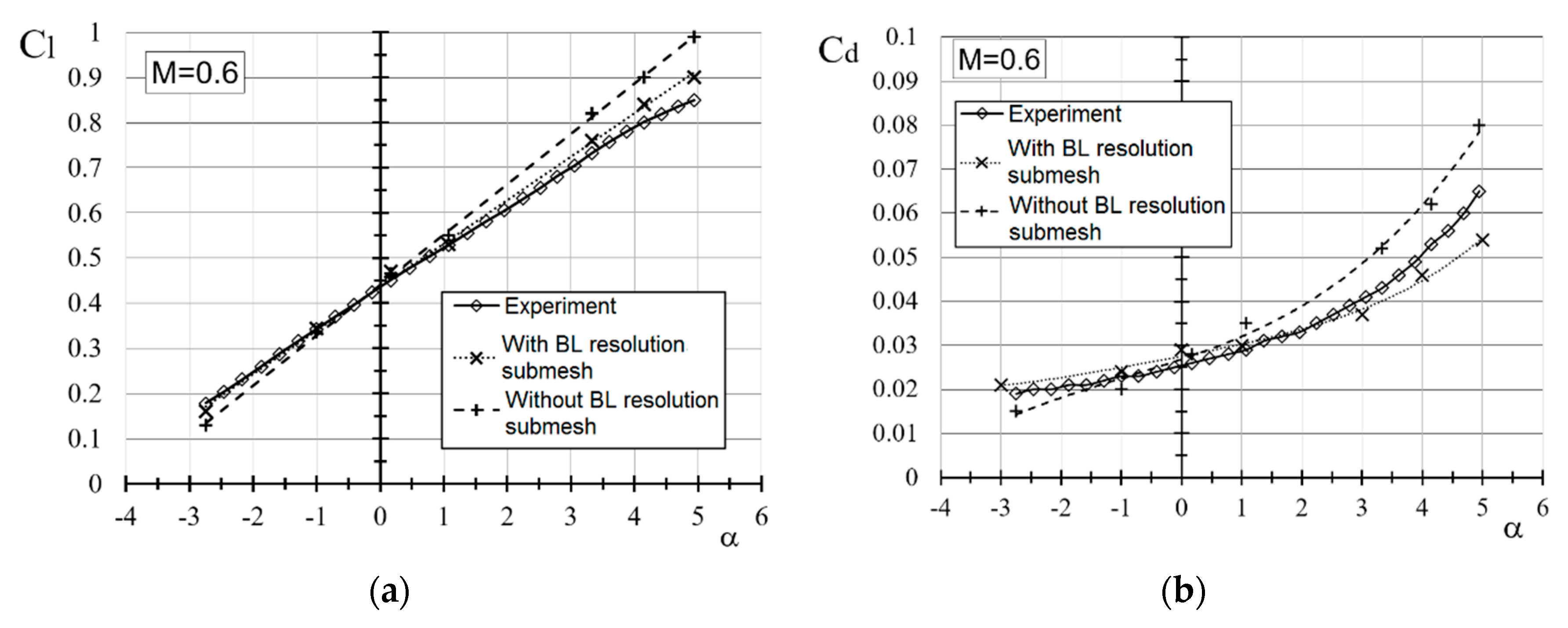

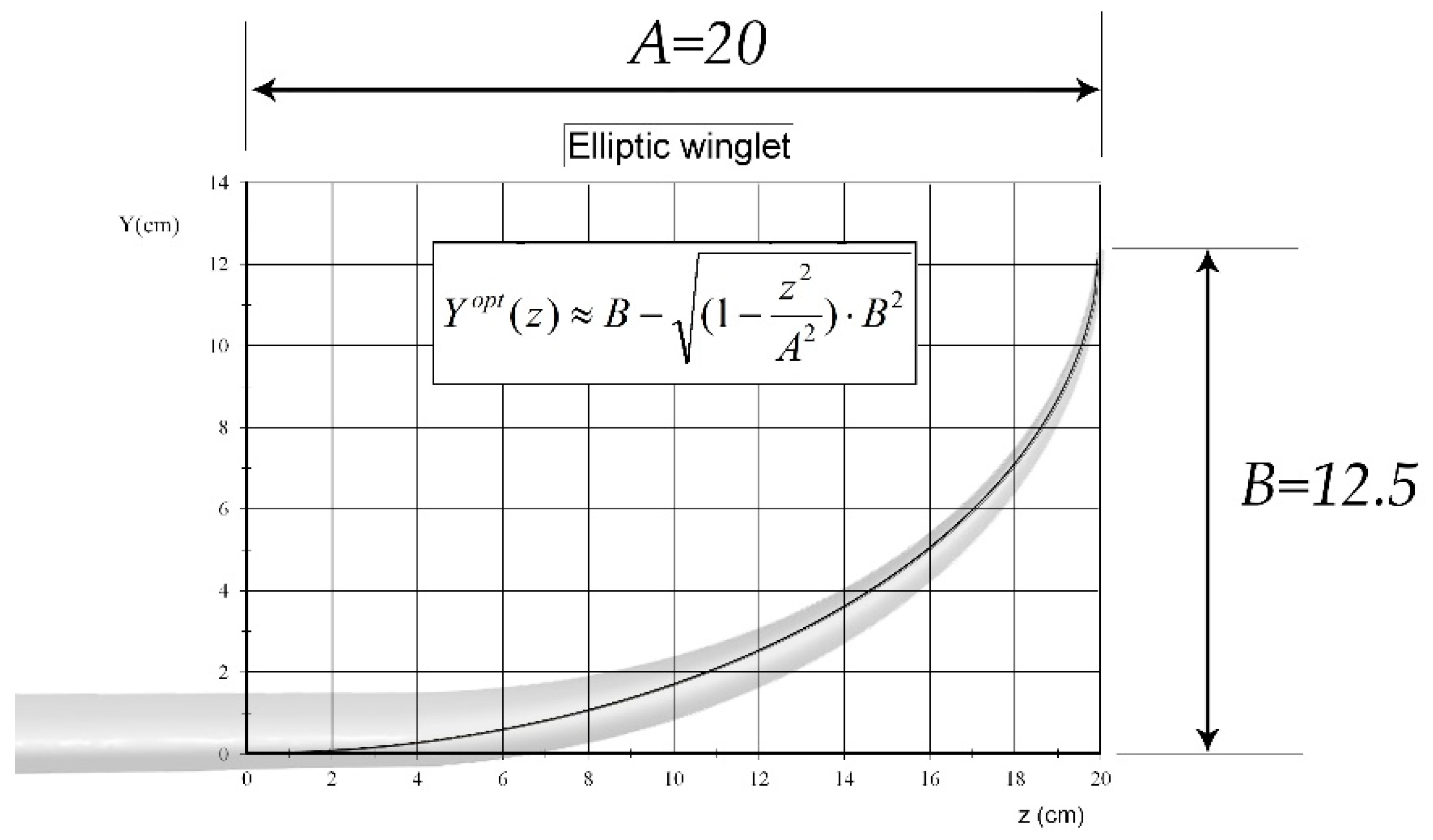

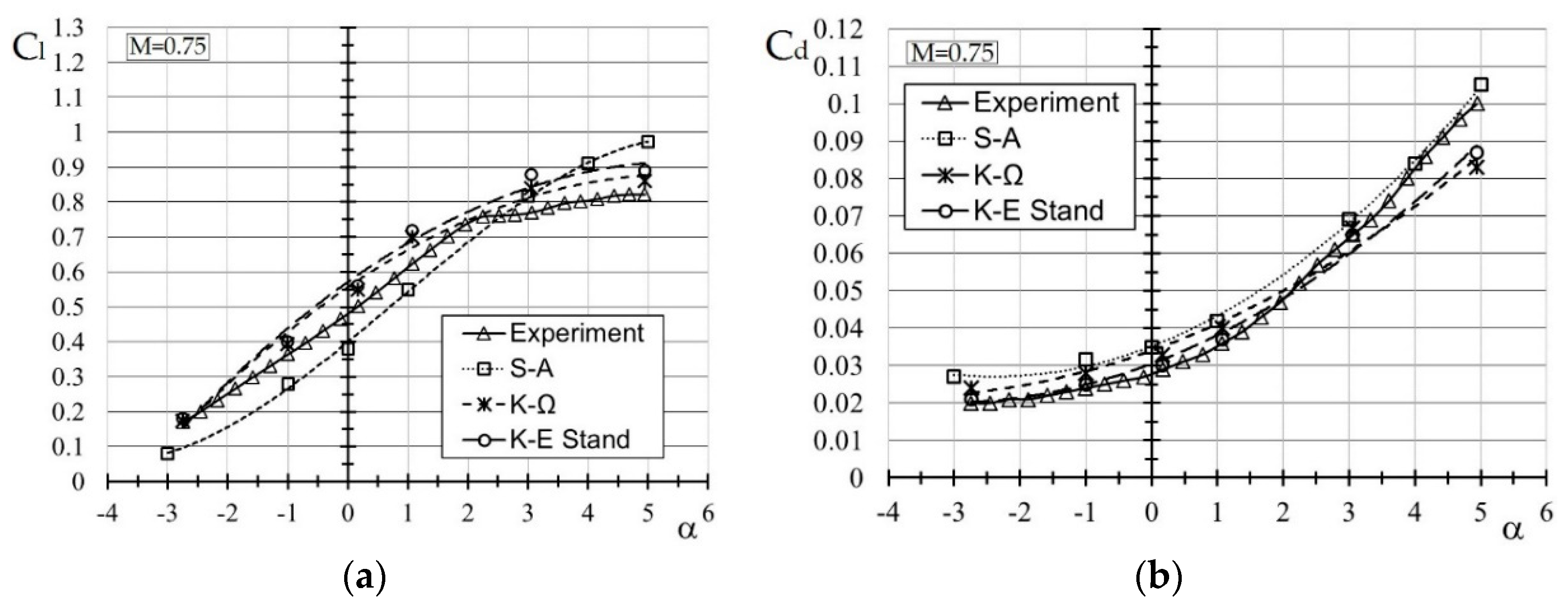

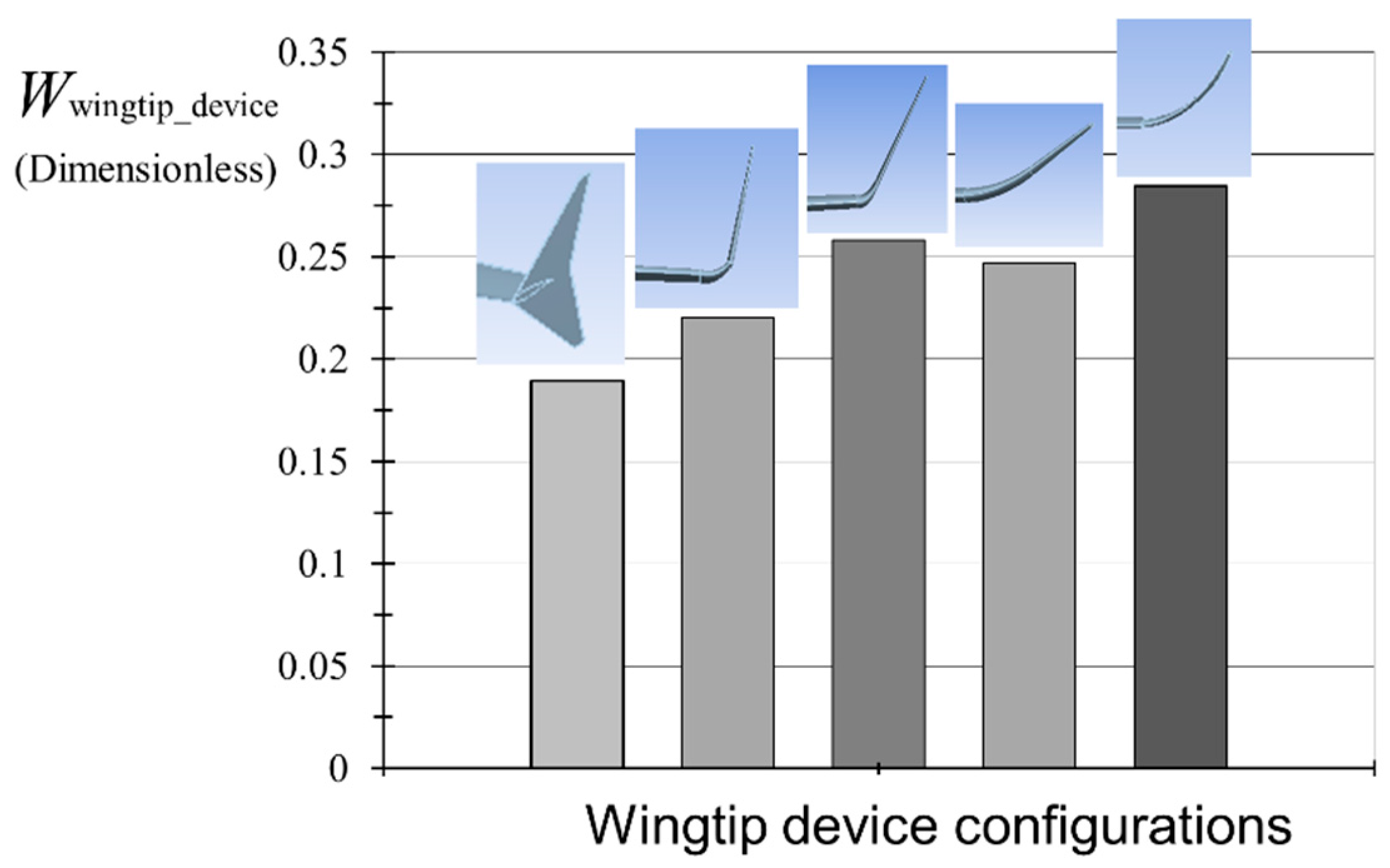

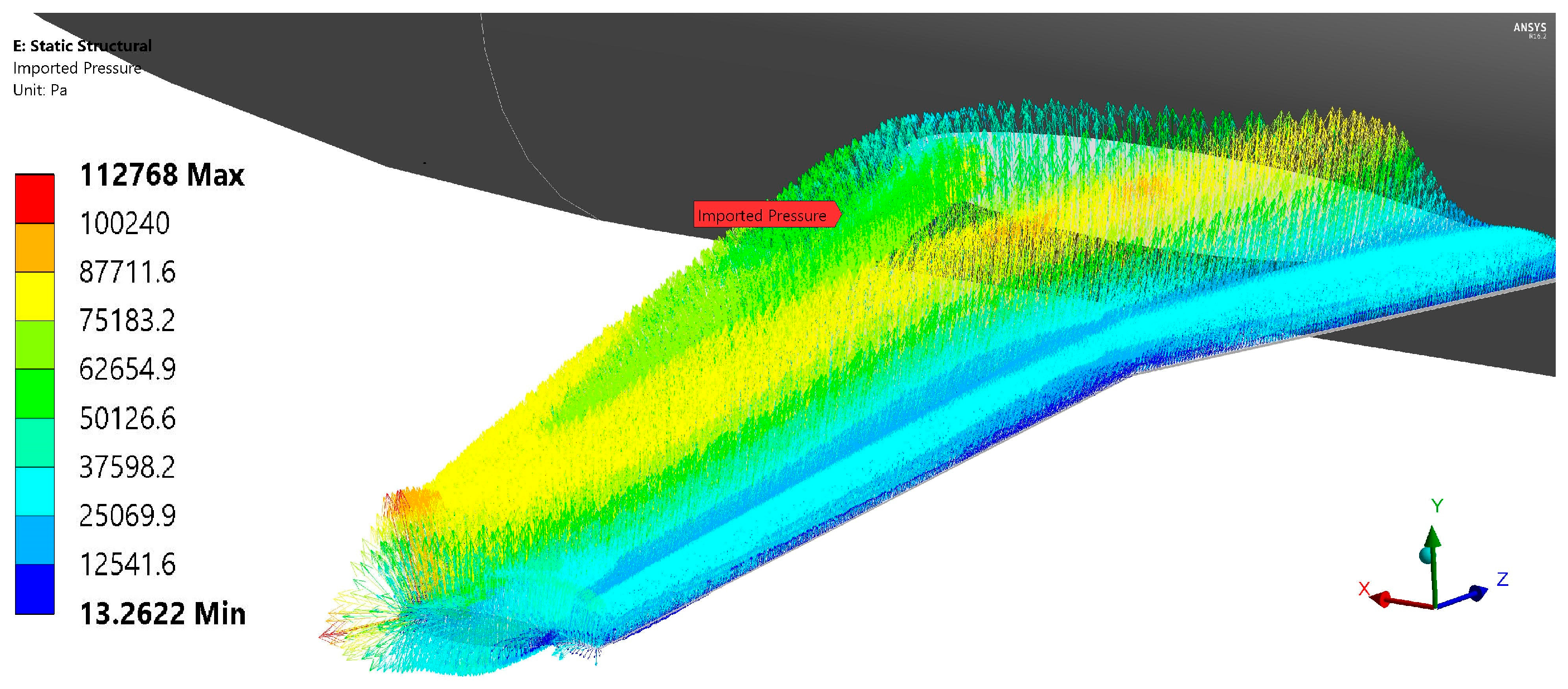

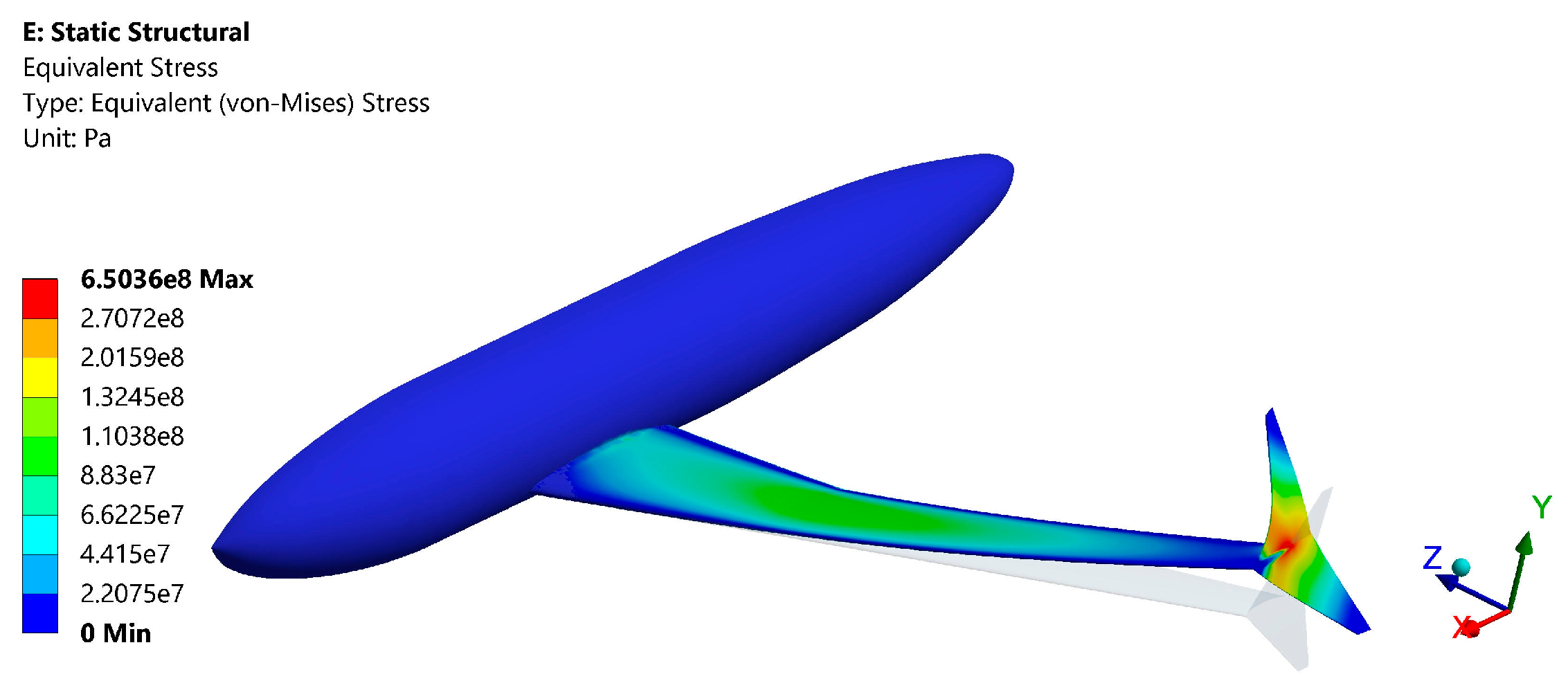

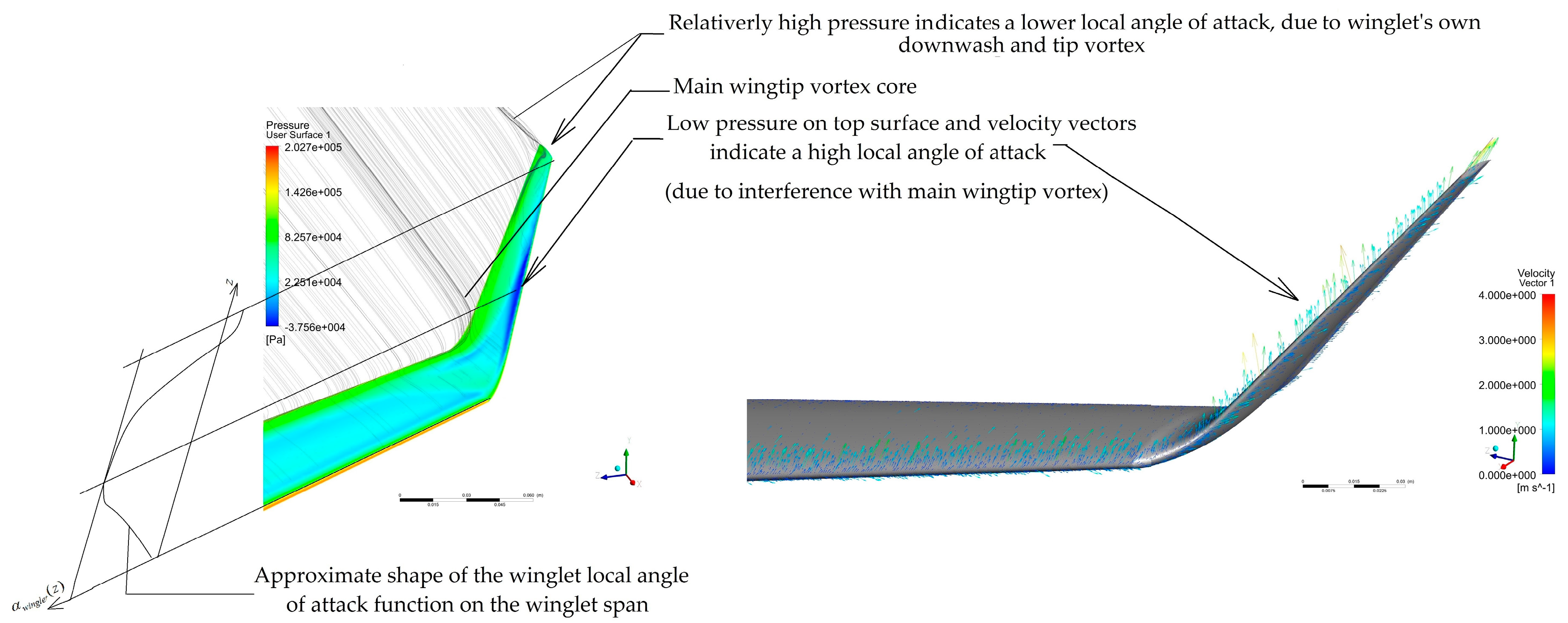

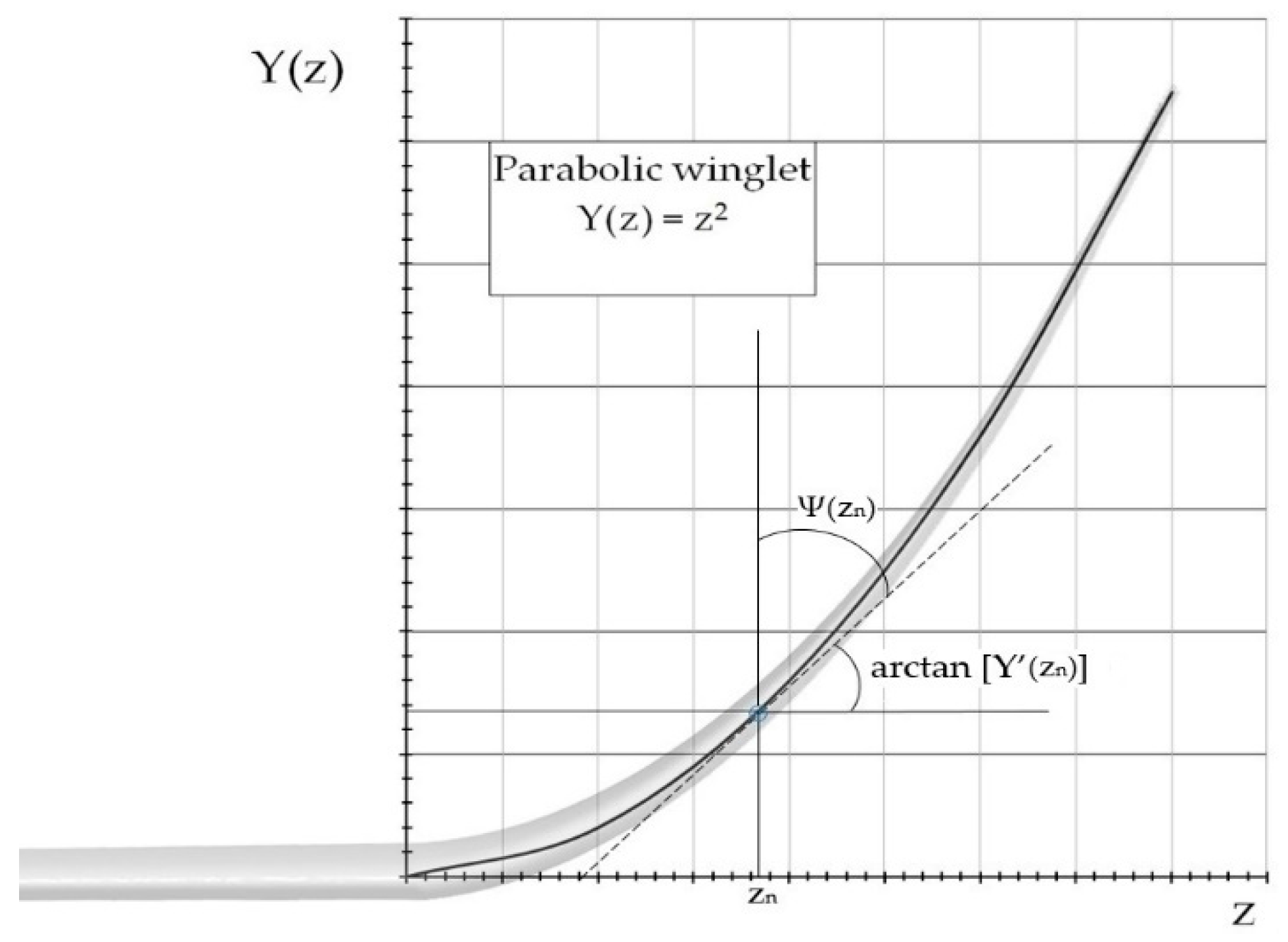

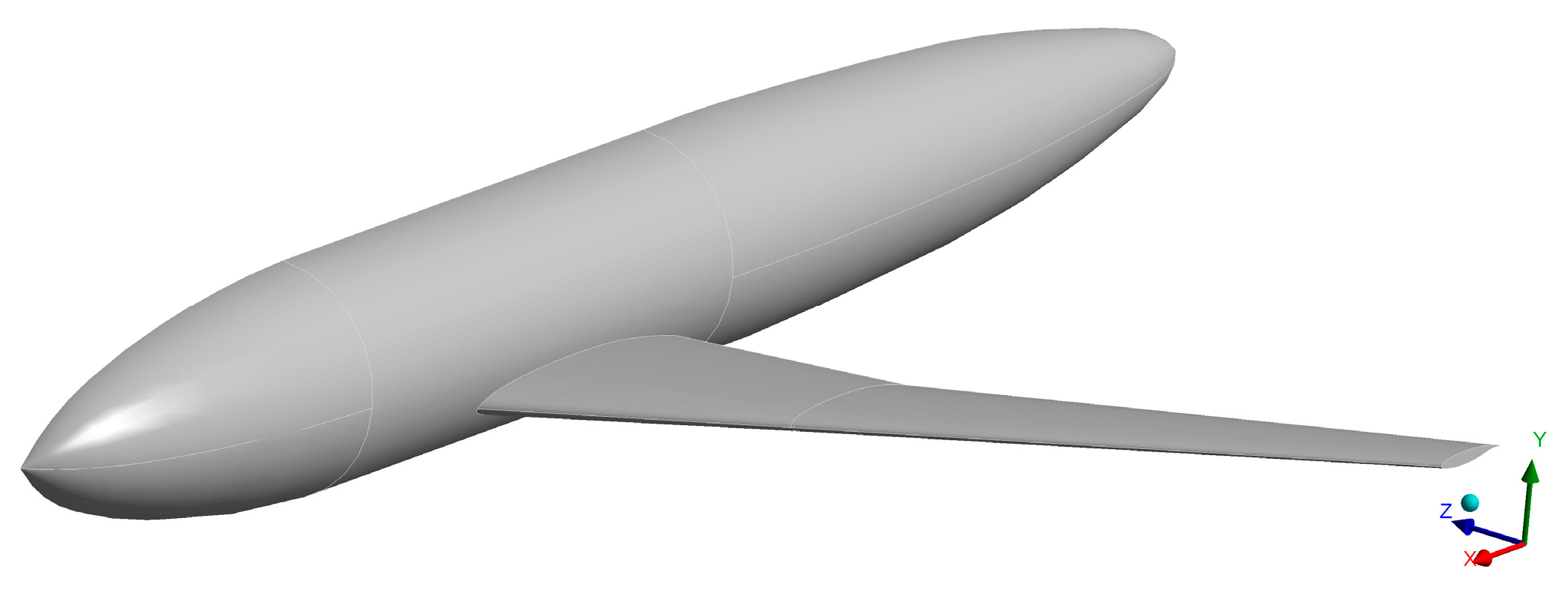

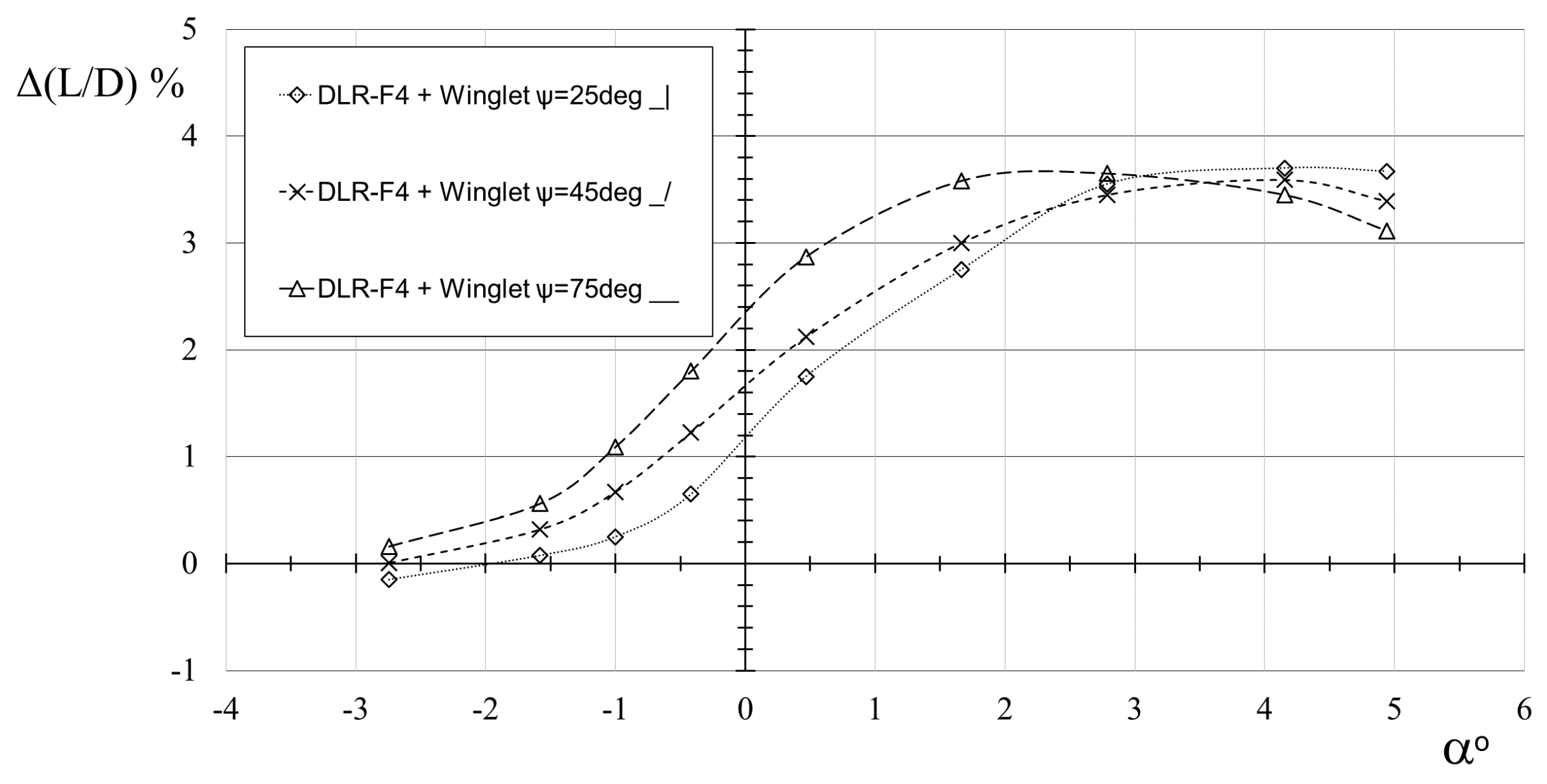

In this article, the growth of aerodynamic efficiency and the growth of the wing structural stress is studied for DLR-F4 typical transport aircraft wing-body, after installing classical Whitcomb winglets of different configurations and a delta wingtip fence. A new-concept curved-span winglet was mathematically developed and approved through Computational Fluid Dynamics (CFD) and static structural experiments, revealing the interaction of sub- and transonic air flow dynamics with the wingtip device geometry. The design space of the winglet geometry was explored briefly, and an evaluation of the lift-to-drag ratio increment depending on various winglet input parameters was performed. In particular, the winglet cant angle effect on lift and drag was thoroughly analyzed at various flow regimes and angles of attack, revealing an ambiguity and a conflicting character of results between highly canted winglets and nearly vertical ones. As a result of cant angle impact analysis, a curved winglet concept is suggested and mathematically parametrized, that could provide an innovative solution, alternative to a morphing winglet, but much simpler with a fixed structure. In conclusion, a multidisciplinary winglet efficiency estimation criterion is suggested for comparing the aerodynamic efficiency of different wingtip devices with respect to their structural weight penalty in real flight conditions. View Full-Text
Keywords: multidisciplinary optimization; wingtip fence; winglet; non-planar lifting surface; subsonic transport; winglet local angle of attack; shape parametrization and optimization; hyperbolic winglet multidisciplinary optimization; wingtip fence; winglet; non-planar lifting surface; subsonic transport; winglet local angle of attack; shape parametrization and optimization; hyperbolic winglet
Figures

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
