Rolling Mechanism of Launch Vehicle during the Prelaunch Phase in Sea Launch

Abstract

During the sea launch of a launch vehicle in low sea state, a rolling phenomenon of the launch vehicle has been observed. In rough sea conditions, launch may failure. This study utilizes dimensionality reduction-driven spatial system projection methods and virtual prototype modeling technology to reveal that the launch vehicle’s rolling is caused by differences in the motion paths of the center of mass. Additionally, during the prelaunch stage, the variation in the trajectory of the launch vehicle’s center of mass caused by the rolling and pitching motions of the transportation vessel has a significant impact on the roll motion of the launch vehicle. The motion in other degrees of freedom has minimal influence on the launch vehicle’s rolling. The minimum rocket rolling occurs when the dynamic coefficient of friction of the launchpad–launch vehicle contact is 0.05, and the dynamic coefficient of friction of the adapters and guideways is 0.4. The conclusions provide a theoretical foundation for optimizing the sea launch system and enhancing the reliability of sea launch in rough sea conditions.

1. Introduction

Sea launch represents a highly efficient and economically viable launch mode, providing substantial flexibility in the selection of launch sites and splashdown regions [1,2]. It ensures the effective mitigation of safety hazards within the flight corridors and debris fields associated with launch vehicles [3]. And it can free up valuable land launch pads for medium to heavy launches [4]. By performing a sea launch, issues related to site acquisition, space separation, population safety, and environmental dissent are reduced [5]. Consequently, extensive research and practical implementation of sea launches have been widely pursued.

Sea launch originated in the 1960s, when the United States and Italy jointly built the world’s first sea launch site—the San Marco Launch Site, completing launch missions such as space exploration satellites and scientific experiment satellites [6]. The Sea Launch Company was established in 1995, using the Zenith 3 SL launch vehicle to launch commercial satellites. Due to the debt and technical issues of the Sea Launch company, its launch work was suspended [7].

During the design phase of a sea launch and the launch process in calm sea states, rolling of the launch vehicle has been observed. Many studies [8,9,10,11] related to sea launches have observed a similar phenomenon, despite the use of different launching platforms and objectives within these research endeavors. During the prelaunch phase, which lasts for at least 5 min with the launch vehicle in an upright position, continuous minor rolling can lead to misalignment with the launchpad’s signal interfaces, resulting in the failure of launch signal transmission. In rough sea conditions, continuous rolling can cause the launch vehicle’s adapters to disengage from the arcuate segment guideway on the launch stand, causing the launch vehicle to lose its restraint, fall from the launch frame, and fail. The rolling of the launch vehicle undermines the reliability of sea launches in rough sea conditions, limiting the optimization and performance improvement of the sea launch system. Currently, launch vehicles can only be launched smoothly under calm sea conditions, and cannot fully leverage the advantages of sea launch. It is urgent to conduct in-depth research on the impact of coupled motion between transportation vessels and launch devices under wave excitation on the dynamic response of launch vehicle launch at sea [2].

Many studies [12,13,14,15,16,17,18] have indicated that the theory of multibody dynamics can be effectively applied to offshore structures, yielding precise computational results due to its mature theoretical foundation. Many scholars have conducted theoretical research on the sea launch process. Lei et al. [19] established a flexible dynamic model of a solid launch vehicle thermal launch system at sea to investigate the impact of launch time under wave excitation on the process of solid launch vehicle thermal launch. On the basis of considering six-degree-of-freedom wave excitation, the launch vehicle launch overload and launch accuracy under different ship states were compared. CAI et al. [20] modeled the wave spectrum and ship motion spectrum during the working process of a missile system, and then used Abaqus and other analysis platforms to conduct the finite element modeling of the shipborne missile system. Finally, a dynamics simulation of the missile system was carried out to obtain the kinematic characteristics of the missile during launch. Wang et al. [21] considered the strain rate of polyurethane foam in the adapter model in a sea launch, establishing, respectively, the dynamic models of the sea launch system with and without adapter strain rate effect for comparative analysis. Pang et al. [22] presented a test method for evaluating the impact response of a seaborne transportation vessel, provided reference data for the structural anti-impact design of seaborne launch systems. Dong et al. [8] established the dynamic models of the warship and its vertical launching system by finite element method, and then studied the influence of ship motion on the attitude parameters of the missiles exiting the silo under a high wave level, ascertaining that the best launch time should be when the ship is in the equilibrium position. Su et al. [23] studied the cooling effect of seawater spraying on the offshore launching platform used by the launch vehicle at different takeoff heights. The study indicated that during the launch of a sea-based launch vehicle, the transportation vessel’s cooling can be achieved through the pumping and spraying of seawater, with the rate of water spray being optimally adjusted based on the launch vehicle’s takeoff altitude to ensure maximum cooling efficiency. Mu et al. [24] proposes a high-precision initial alignment method suitable for maritime launches, based on the optimal combination of anti-sway coarse alignment, retrograde navigation, and reverse Kalman filtering tailored to the characteristics of the marine environment. Xu et al. [25] analyzed the motion performance of satellite launching platform with four different shapes of pontoons. Kong et al. [26] developed a methodology for quantitative risk assessment on hydrogen leak hazards from offshore rocket launching platforms during their filling process. Pua et al. [27] simulated the impact of hydrogen combustion following a hydrogen leak accident on offshore launch platforms and the preventive effect of protective walls, demonstrating that wall design can effectively protect rockets from combustion impacts. Xiong et al. [28] studied the influence of initial crack length and initial tilt angle on fatigue crack propagation on the lower surface of rocket deflector channels of offshore rocket launch platforms using the Extended Finite Element Method (XFEM). Yu et al. [29] indicated that launch vehicle lateral eccentricity during launch can induce significant rolling motion in the platform. In practical offshore launch applications, substantial rolling motion of the launch platform can affect the rocket’s motion attitude during the launch process. Liu et al. [30] pointed out that during offshore launches, the most crucial aspect is controlling the motion of the launch platform to reduce environmental loads acting on the rocket. However, the above studies did not provide a detailed analysis of the launch vehicle rolling mechanism, which poses a threat to the safety of launch vehicle launch under rough sea state and greatly limits the improvement of a launch vehicle’s sea launch capabilities.

The actual sea launch system for launch vehicles is highly complex. The transportation vessel constantly rocks, and factors such as the contact between the adapters and the guideway, whether the bottom of the launch vehicle contacts the launch pad, and the magnitude and direction of the contact load are constantly changing. The combined effect of these factors is nonlinear and coupled, making it difficult to analyze the underlying mechanics of the motion response. Although three-dimensional simulation analysis can provide intuitive insight into the system’s response characteristics and analyze influencing factors, it may not provide a clear understanding of the mechanism behind the rolling formation. Therefore, employing a spatial system projection method driven by dimensionality reduction to study the rolling mechanism.

In this article, we mainly study the mechanism of the launch vehicle rolling phenomenon in the prelaunch stage at sea launch. The main contributions of the current work are summarized as follows.

• Using a dimensionality reduction-driven spatial system projection method, we analyze the rolling mechanism of the prelaunch stage launch vehicle driven by two degrees of freedom in sea launch;
• To establish a multibody dynamics model of the prelaunch stage launch vehicle’s rolling, we utilize a simulation driven by the two degrees of freedom of the transportation vessel’s rolling and pitching. This will be employed to validate the rolling mechanism of the launch vehicle;
• By comparing the simulation driven by six-degree-of-freedom motion and two-degree-of-freedom motion of the transportation vessel, we analyze the impact of transportation vessel’s motion on launch vehicle’s rolling;
• Through a response surface analysis, we examine the influence of the friction coefficients between the launchpad and launch vehicle and between the adapters and guideways on the launch vehicle’s rolling.

2. Framed Sea Launch System

The framed sea launch system consists of a launch vehicle, a frame launcher, a launchpad, a support platform, lifting cylinders, adapters, and a transportation vessel, as shown in Figure 1a. The frame launcher includes front connecting plates, rear connecting plates, adapter guideways, and a lifting bracket, as shown in Figure 1b. There are many adapters arranged at equal intervals on the launch vehicle. The launch vehicle is equipped with three groups of adapters aligned along its axial direction, from top to bottom, with each group comprising four adapters arranged circumferentially. The layout of the adapters are shown in Figure 1c.

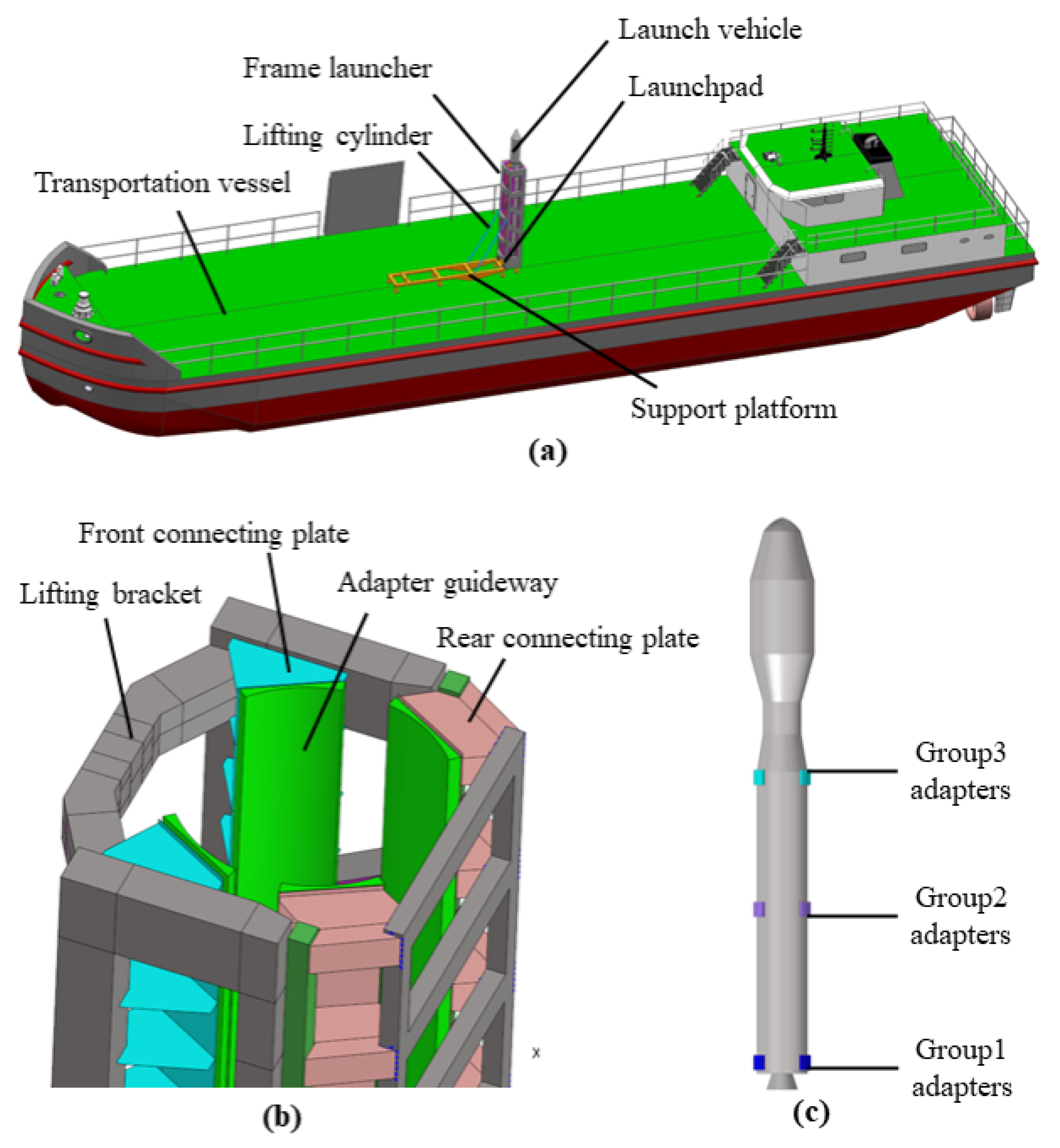

Figure 1. The framed sea launch system: (a) system components; (b) frame launcher; (c) launch vehicle and adapters.

Upon completion of the erection action by the lifting cylinders, the framed sea launch system enters the vertical prelaunch phase. Subsequently, the lifting cylinder remains in a securely locked state. The support platform and launchpad are fixed to transportation. The launch vehicle stands on the launchpad, with eight rivets on the launchpad’s surface inserted into eight corresponding grooves on the bottom of the launch vehicle, constraining the launch vehicle’s horizontal plane motion relative to the launchpad. Adapters distributed on the surface of the launch vehicle press against the guideways, restraining the launch vehicle through friction and normal force.

Figure 2a shows the displacement testing sensor installed on the top of the frame launcher. Figure 2b shows the rolling angles of the launch vehicle in the launch simulation and practical launch mission. In the preliminary simulation phase of launch vehicle development, engineers observed periodic rolling tendencies during the prelaunch stage when employing a framed sea launch system. During the launch phase, the launch vehicle would initially roll and then rotate back. In order to ensure proper docking of the launch signal interface during the prelaunch phase and to ensure the normal launch of the launch vehicle, rivet constraints were implemented at the launchpad–launch vehicle interface. Thus, in practical low-sea state launch missions, the launch vehicle did not roll during the prelaunch phase. Significantly, it should be noted that during the launch phase, the launch vehicle exhibited the phenomenon of rolling and then rotating back. This is consistent with the results predicted by the research and development simulation, confirming the reality of the rolling phenomenon during the prelaunch phase of the launch vehicle at sea.

Figure 2. Rolling angle in low sea state test: (a) the displacement testing sensor installed on the top of the frame launcher in red circle; (b) rolling angle.

During the prelaunch phase in calm sea states, the rivets can effectively restrict the relative horizontal motion of the launch vehicle. However, in rough sea conditions, the limiting effect of the rivets becomes unreliable. Moreover, high-intensity rigid loads can damage the rivets and the bottom structure of the launch vehicle. Hence, understanding the rolling mechanism of the launch vehicle during the vertical prelaunch phase is particularly crucial, laying the foundation for subsequent research on methods to suppress launch vehicle’s rolling.

3. Rolling Analysis of 2-D-Driven Sea-Based Launch Vehicle

3.1. Transportation Vessel Motion

The transportation vessel’s motion are caused by the combination of ocean waves, wind, and prelaunch activities on the framed sea launch system. In case of loading problems, sea waves can be regarded as harmonic waves. The motion of the transportation vessel is driven by sea waves, and these movements constitute a complex spatial process that can be characterized using six degrees of freedom [10]: roll, pitch, yaw, sway, heave, surge, as shown in Figure 3. We use the transportation vessel’s equilibrium coordinate system, with the origin located at the center of gravity of the transportation vessel. Rolling, pitching, and yawing refer to reciprocating rotations around the X, Y, and Z axes, respectively. Meanwhile, surging, swaying, and heaving are linear reciprocating movements along the X, Y, and Z axes of the platform, respectively.

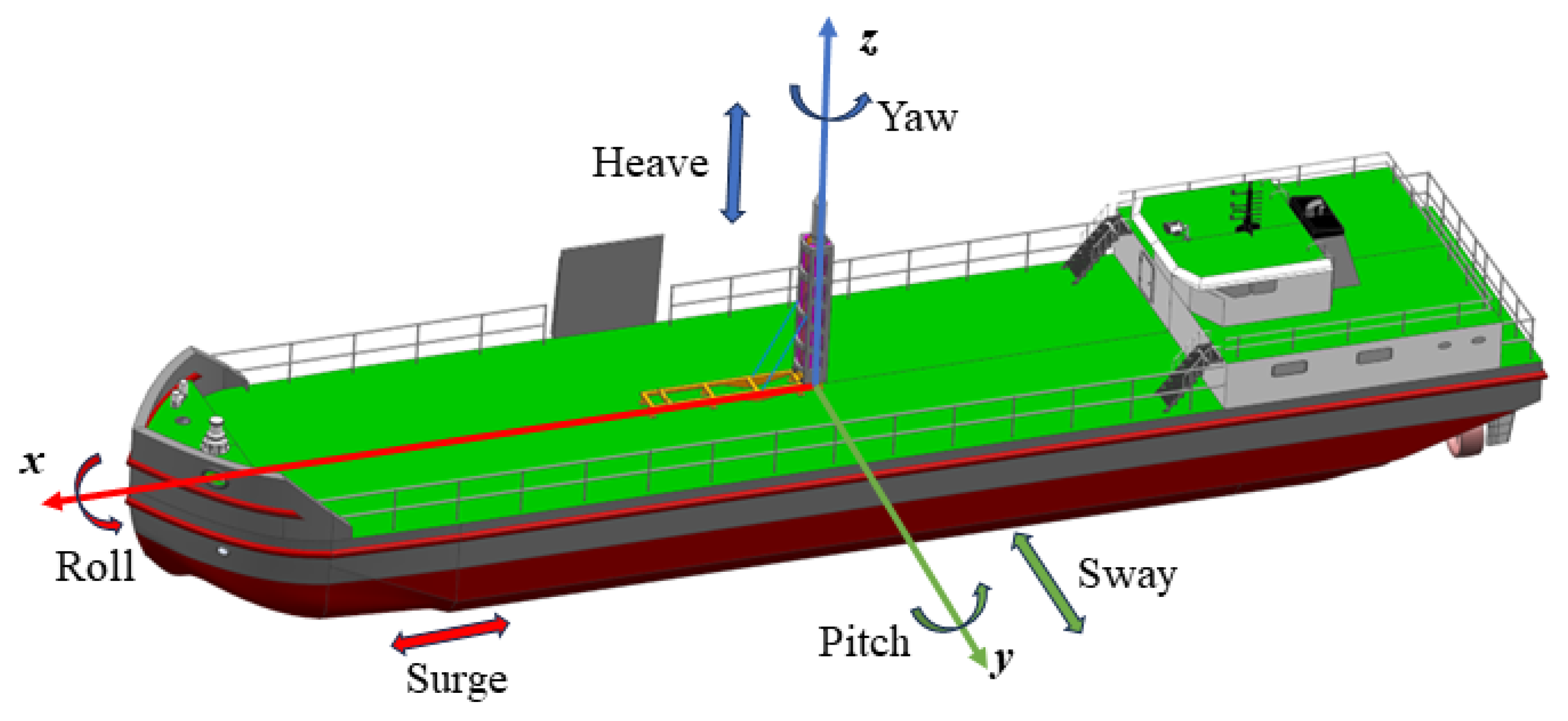

Figure 3. The motion of the transportation vessel.

In practical situations, under the joint action of waves and mooring devices, the motion of the transportation vessel exhibits coupling across its six degrees of freedom, with correlated movements between each degree. Based on research on the motion of transportation vessels at sea, empirical rules have been derived that among the six movements, the main ones that have a significant impact on transportation vessels are rolling, pitching, and heaving. Among them, rolling has the greatest impact on transportation vessels, while the other three movements have smaller numerical values and also have a smaller impact on transportation vessels. In order to derive the motion characteristics of transportation vessels with research value, this article adopts the following assumptions.

• The framed sea launch system is a rigid system;
• Only the three types of motion that have a significant impact on the transportation vessel are considered: rolling, pitching, and heaving;
• The rivet constraints between the bottom of the launch vehicle and the launch pad are ignored, and a reliable contact between them without separation is assumed.

The above assumptions are often used in ship seakeeping analysis and reliable results can be obtained. According to torque balance, the torques acting on the transportation vessel have the following relationship

$$M+M_R+M_S+M_b=0$$

(1)

where $\mathit{M}=-I_x\ddot{\theta }$ is the inertia torque of the transportation vessel, and $I_x$ is the total mass moment of inertia of the platform on the X-axis, including the attached water mass moment of inertia; ${\mathit{M}}_{\mathit{R}}=-n\dot{\theta }$ is the damping moment of the water body on the transportation vessel, and n is the damping torque coefficient; M_S is the stability moment; and M_b is the disturbance moment caused by wave action. M_S can be approximated by the equation ${\mathit{M}}_{\mathit{S}}=-∆gGM\theta$, when performing slight rolling, where GM is the initial stability height of the transportation vessel.

So, under approximately linear rolling on the transportation vessel, its rolling motion differential equation can be written as

$$I_x\ddot{\theta }+n\dot{\theta }+\Delta gGM\theta =M_b$$

(2)

Assuming the initial rolling angle is $\theta ={\theta }_0$, the initial angular velocity is $\dot{\theta }=0$. It can be solved that the damped linear rolling motion of the transportation vessel in a regular wave is

$$\theta ={\theta }_0{e}^{-\mu t}\cos \left({\omega }_{r}t\right)+\frac{{\alpha }_0}{1-{\left(\frac{T_{\theta }}{{\tau }_b}\right)}^2}\cos \left({\omega }_{b}t+{\epsilon }_{\theta }\right)$$

(3)

In Equation (3), ${\theta }_0$ represents the lateral swaying amplitude of the platform in waves; ${\omega }_b$ is the wave frequency; ${\tau }_b$ is the wave period; ${\omega }_x=\sqrt{∆gGM/I_x}$ represents the natural circular frequency of the transportation vessel’s rolling motion; $T_{\theta }=2\pi /{\omega }_x$ is the natural rolling period of the transportation vessel; ${\epsilon }_{\theta }$ is the initial phase; $\mu =n/2I_x$ is the damping and rolling attenuation coefficient, where $n$ is treated as a constant; ${\omega }_r=\sqrt{{\omega }_x^2-{\mu }^2}$ and is the frequency and period of the damped rolling circle; and ${\alpha }_0$ is the maximum wavefront angle.

The solution of Equation (2) is a combination of a rolling solution in still water and a special solution which is the forced motion in regular wave.

Due to the presence of damping, the result includes the attenuation factor ${\mathrm{e}}^{-\mu t}$, and the motion curve is a decaying cosine curve. As the movement time increases, the rolling amplitude gradually decreases.

The research methods and basic assumptions for pitching and heaving motion are basically the same as the process of studying rolling motion mentioned above. Similarly, the differential equations for undamped linear pitching and heaving motion of a launching platform in waves can be derived:

$$\left\{\begin{array}{c}{I}_y\ddot{\phi }+n_y\dot{\phi }+\Delta gG{M}_L\phi =M_b\\ m_z\ddot{z}+n_z\dot{z}+\rho g{A}_{w}z=F_z\end{array}\right.$$

(4)

In Equation (4), $I_y$ is the total mass moment of inertia of the transportation vessel on the y-axis, including the attached water mass moment of inertia; $G{M}_L$ represents the high longitudinal stability of the transportation vessel; m_z is the total mass of the transportation vessel in the vertical oscillation direction; $A_w$ is the waterline area of the transportation vessel; $F_z$ is the vertical main disturbance force; and $n_y$ and $n_z$ are the pitching and heaving damping constant respectively.

The motion equations for damping linear pitching and heaving of the transmitting platform under regular wave excitation are solved as follows.

$$\begin{array}{c}\left\{\begin{array}{c}\phi ={\phi }_0{e}^{-\beta t}\cos \left(\frac{2\pi }{T_{\phi }}t\right)+\frac{{\alpha }_0}{1-{\left(\frac{T_{\phi }}{{\tau }_b}\right)}^2}\cos \left({\omega }_{b}t+{\epsilon }_{\phi }\right)\\ z=z_0{e}^{-\sigma t}\cos \left(\frac{2\pi }{T_z}t\right)+z_h\cos \left({\omega }_{b}t+{\epsilon }_z\right)\end{array}\right.\end{array}$$

(5)

where ${\phi }_0$ is the initial longitudinal inclination angle of the transportation vessel; ${\epsilon }_{\phi }, {\epsilon }_z$ represents the initial phase of pitching and heaving, respectively; $z_0$ is the vertical distance at which the center of gravity of the transportation vessel deviates from the equilibrium position at the initial stage; $z_h$ is the forced displacement of the heaving; $\beta$ and $\sigma$ are damping pitching and heaving attenuation coefficient, respectively; and $T_{\phi }$ and $T_z$ are natural period of pitching and heaving respectively.

3.2. Transportation Vessel Motion Boundary

Based on the theoretical analysis and measured data previously discussed, the rolling, pitching, and heaving motions of the transportation vessel induced by wave excitation can be accurately described using harmonic functions. In practical applications, it is essential to consider the rough sea state. The level 4 sea state represents the most common condition in the ocean. Figure 4 illustrates the maximum rolling and pitching motion functions of the transportation vessel under a level 4 sea state. The amplitude and frequency have been calculated based on the transportation vessel’s parameters. These results closely align with the measured peak values for rolling and pitching.

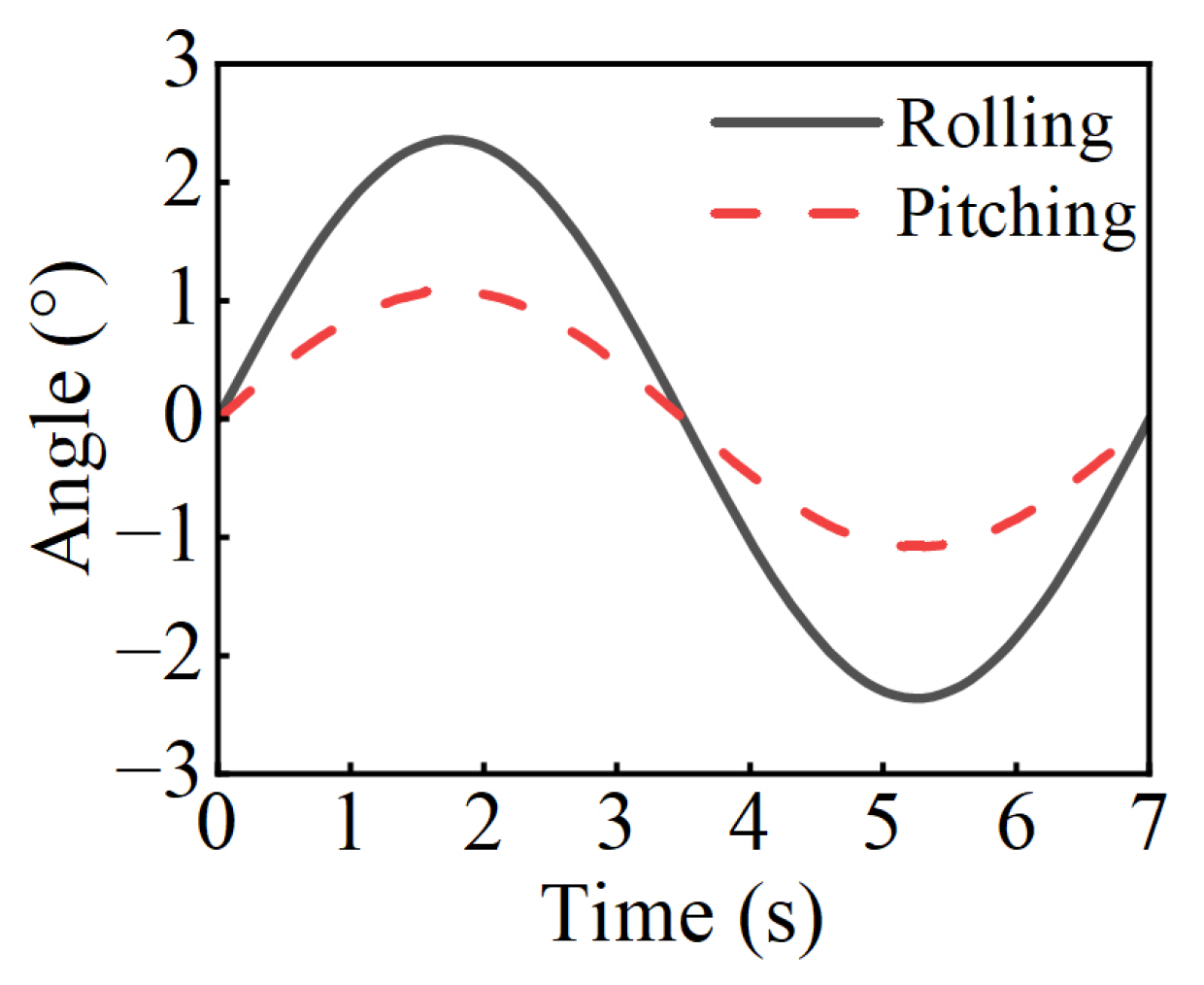

Figure 4. Rolling and pitching driving functions.

Based on the earlier assumption that each motion component is independent within the linear range, we propose three typical modes to utilize rolling and pitching motions, shown in Table 1. α and β represent the displacements of rolling and pitching angles, respectively, while α’ and β’ denote the angular velocities of rolling and pitching. The phase difference between rolling and pitching in these three motion modes increases monotonically from 0 to π/2. This approach simplifies the analysis in the subsequent steps and aids in identifying the cause of launch vehicle rolling more effectively.

Table 1. Two-dimensional driving functions of transportation vessel.

Motion	Mode 1	Mode 2	Mode 3
Rolling velocity	${\alpha }^{\prime }=\frac{2.6°T}{2\pi }\sin \left(\frac{2\pi t}{T}+\frac{\pi }{2}\right)$	${\alpha }^{\prime }=\frac{2.6°T}{2\pi }\sin \left(\frac{2\pi t}{T}+\frac{\pi }{4}\right)$	${\alpha }^{\prime }=\frac{2.6°T}{2\pi }\sin \left(\frac{2\pi t}{T}\right)$
Pitching velocity	${\beta }^{\prime }=\frac{1.1°T}{2\pi }\sin \left(\frac{2\pi t}{T}+\frac{\pi }{2}\right)$	${\beta }^{\prime }=\frac{1.1°T}{2\pi }\sin \left(\frac{2\pi t}{T}+\frac{\pi }{2}\right)$	${\beta }^{\prime }=\frac{1.1°T}{2\pi }\sin \left(\frac{2\pi t}{T}+\frac{\pi }{2}\right)$

3.3. Dynamics Analysis of 2-D-Driven Sea-Based Launch Vehicle

When the transportation vessel only has a heaving motion, the launch vehicle will not roll. The heaving of the transportation vessel coupled with the motion in other degrees of freedom may affect the rolling of the launch vehicle through asymmetric friction. In this section of the analysis, in order to obtain intuitive patterns, the heaving motion of the transportation vessel is not considered. Due to the launch device being arranged at the center of the transportation vessel, the axis of the launch cylinder passes through the center of mass of the launch device. Abstracting the launch device as geometry, the inclination of the launch cylinder axis is used to represent the movement of the launch system. The parameter l in Figure 5 represents the distance from the instantaneous center of the transportation vessel to the center of mass of the launch vehicle. The proportion of vertical displacement generated by rolling and pitching is very small, only pro_ship = 1 − cos(α_max)cos(β_max), α_max represents the maximum rolling angle, and β_max represents the maximum pitching angle. pro_ship = 1 − cos [2.6°] cos [1.1°] ≈ 0.1%, which can be considered as only moving in the horizontal plane.

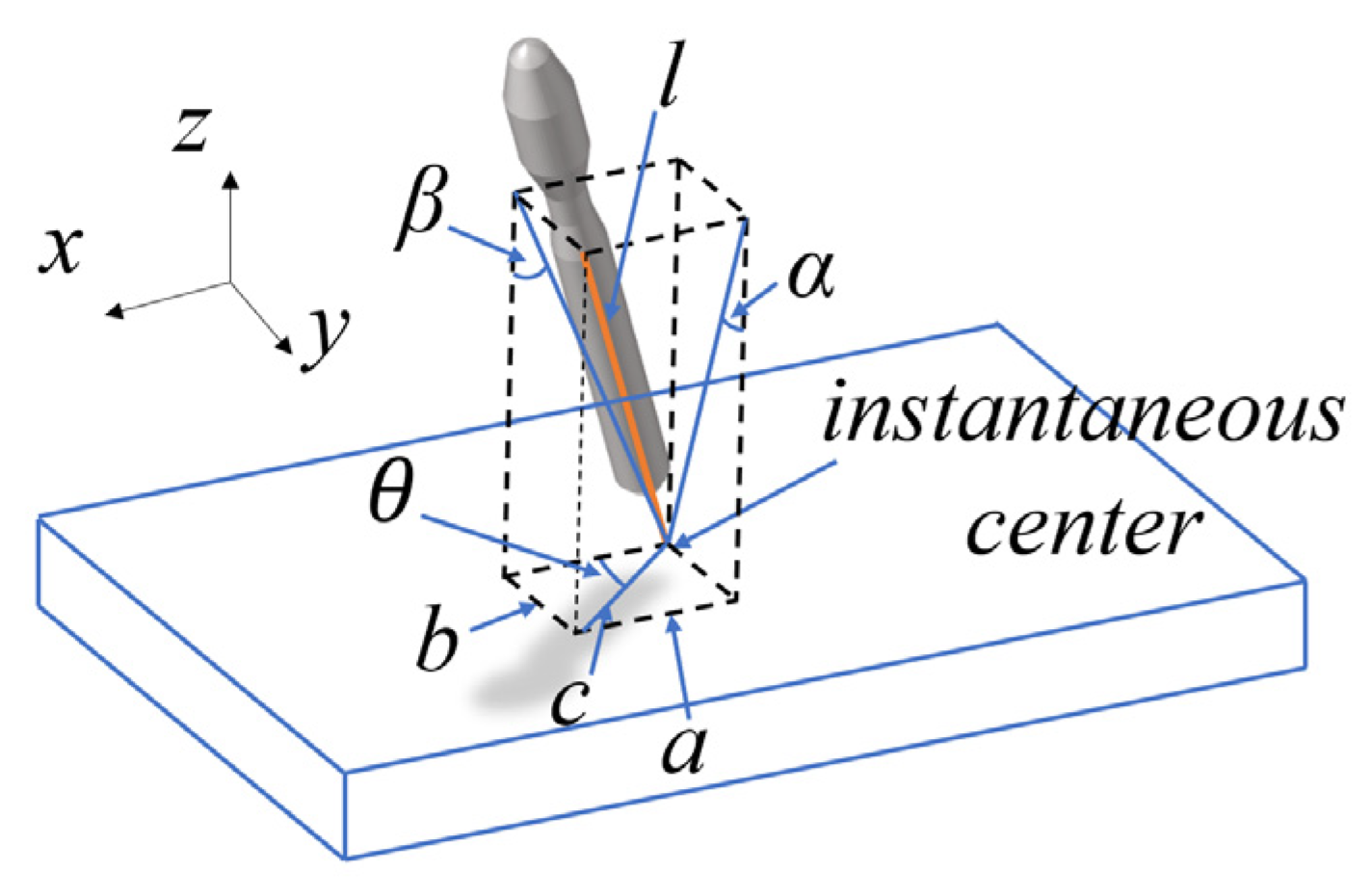

Figure 5. Simplified geometric motion model.

The distance from the vertex of a line segment to the plane is

$$\left\{\begin{array}{l}\frac{a}{\tan \alpha }=\frac{b}{\tan \beta }\\ \theta =\cot \frac{b}{a}=\cot \frac{\tan \beta }{\tan \alpha }\\ c=\frac{a}{\cos \theta }\\ l^2=c^2+{\left(\frac{a}{\tan \alpha }\right)}^2\end{array}\right.$$

(6)

From Equation (6), parameter c can be derived.

$$c=l\times {\left(1+{\left(\frac{\cos \theta }{\tan \alpha }\right)}^2\right)}^{-\frac{1}{2}}$$

(7)

where parameter c is the projection of l in the xy-plane, parameter a is the projection of c on the y-axis, parameter b is the projection of c on the x-axis, parameter θ is the angle between the projection a and the projection c, parameter α is the angle between the projection of l in the yz-plane and the z-axis, and parameter β is the angle between the projection of l in the xz-plane and the z-axis.

The trajectory swept by the vertex of line segment c is the projection of the point trajectory on the axis of the launch cylinder at a distance from the center of mass l of the launch platform on the horizontal plane.

Analyzing the motion of the launch platform using mode 1, with the parameter l = 18 m. The maximum height change in the launch vehicle’s center of mass during motion is $∆H=l\ast (1-{\mathrm{p}ro}_{ship})=0.0185 \mathrm{m}$. The value is very small, indicating that the launch vehicle’s vertical motion caused by the oscillation motion of the launch platform is weak. In the following analysis, it is assumed that launch vehicle cross-section centroid moving in a horizontal plane.

Figure 6 displays the orthogonal decomposition of the acceleration at the centroid of the launch vehicle’s cross-section. The trajectory of the launch vehicle’s centroid is denoted as S. S(0) indicates the initial position of the center of mass of the launch vehicle along its trajectory. As the launch vehicle and launch platform are in periodic motion, their starting and ending points coincide, and their motion is represented by natural coordinates. The position at time t can be determined by $S\left(t\right)$. The velocity of the launch vehicle’s center of mass is $\overrightarrow{V}$:

$$\overrightarrow{V}=\dot{S}\stackrel{\rightharpoonup }{e_t}$$

(8)

where $\dot{S}$ is the derivative of S with respect to $t$, $\stackrel{⃑}{e_t}$ is the unit tangent vector of the trajectory of the point where the launch vehicle’s center of mass is located at time $t$. In Figure 6, we can establish the following equations.

$$\left\{\begin{array}{l}\overrightarrow{a}=\frac{d\overrightarrow{v}}{dt}=\frac{d\left(v{\overrightarrow{e}}_t\right)}{dt}=\dot{v}{\overrightarrow{e}}_t+\frac{v^2}{\rho }{\overrightarrow{e}}_n\\ {\overrightarrow{a}}_t=\dot{v}{\overrightarrow{e}}_t\\ {\overrightarrow{a}}_n=\frac{v^2}{\rho }{\overrightarrow{e}}_n\end{array}\right.$$

(9)

where $\overrightarrow{a}$ is the acceleration of the launch vehicle center of mass, $\stackrel{⃑}{a_n}$ is the normal acceleration, $\stackrel{⃑}{a_t}$ is tangential acceleration, $\stackrel{⃑}{e_n}$ is the unit vector in the normal direction of the trajectory of the point where the center of mass of the launch vehicle is located, $\stackrel{⃑}{e_t}$ is the tangential direction unit vector of the trajectory of the point where the launch vehicle center of mass is located, and $\rho$ is the curvature radius of the trajectory of the point where the center of mass of the launch vehicle is located.

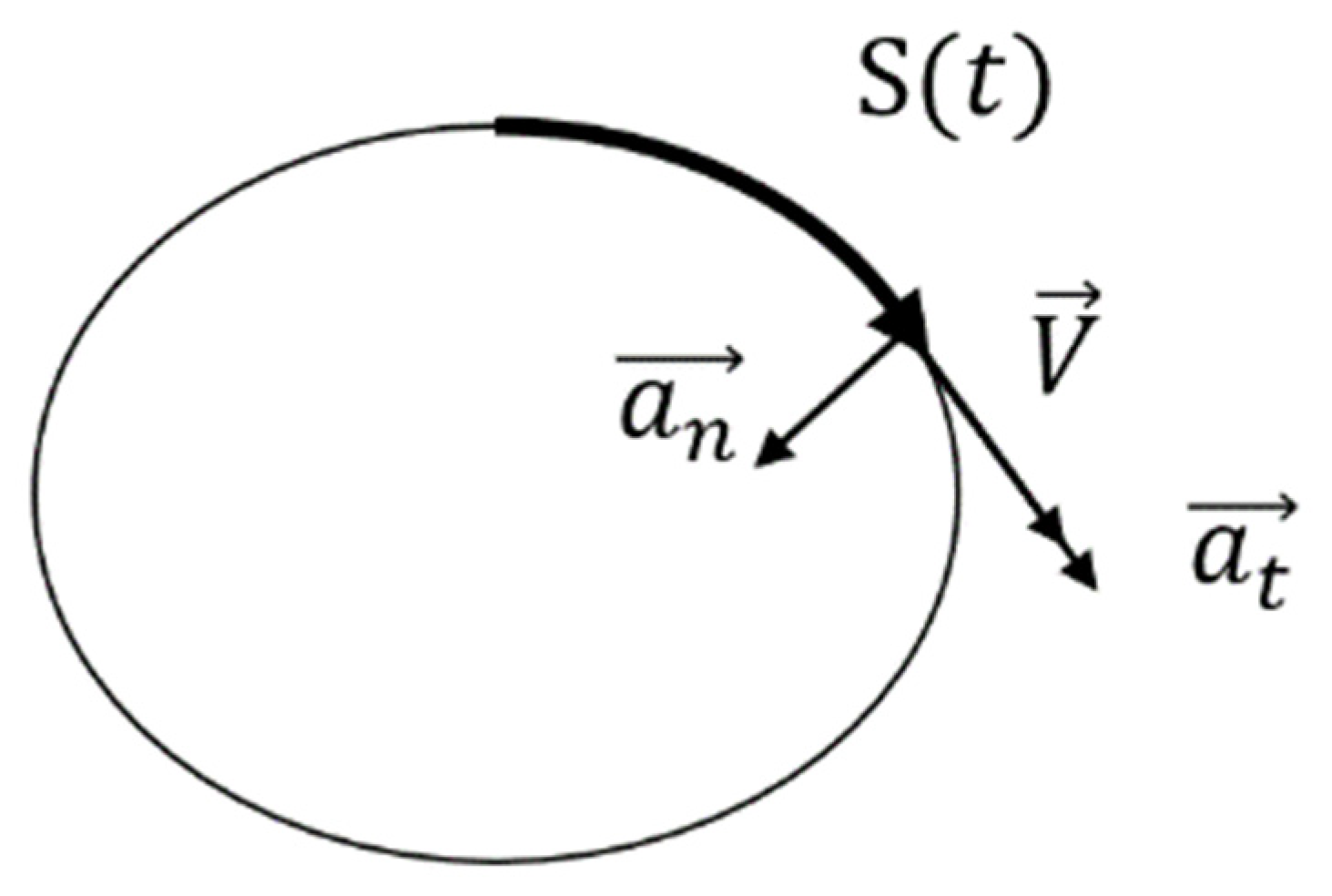

Figure 6. Decomposition of the acceleration at the centroid of the launch vehicle’s cross-section.

The launch vehicle and launcher are in contact through adapters, and the stiffness of the adapters is significantly different from that of the launch vehicle and launcher. The launch vehicle and launcher can be regarded as rigid bodies, and the adapter needs to consider deformation. Figure 7 shows the forces acting on launch vehicle. Using the launch vehicle and guideways as the reference coordinate system, according to the d‘Alembert’s principle, it can be obtained that

$$\overrightarrow{F_{It}}+\overrightarrow{F_{In}}+\overrightarrow{F }=0$$

(10)

where $\overrightarrow{F_{It}}$ and $\overrightarrow{F_{In}}$ are the tangential acceleration and normal acceleration inertial forces corresponding to the acceleration of the launch cylinder, and $F$ is the force generated by the joint action of the deformed adapters and launchpad. The adapters generate force through deformation, indicating that during motion, the launch vehicle axis does not coincide with the frame launcher axis. In the presence of acceleration, there is a distance between the axes of launch vehicle and the frame launcher. This means that the launch vehicle has motion around the axis of the frame launcher, and due to the periodicity of system motion, this trajectory is closed.

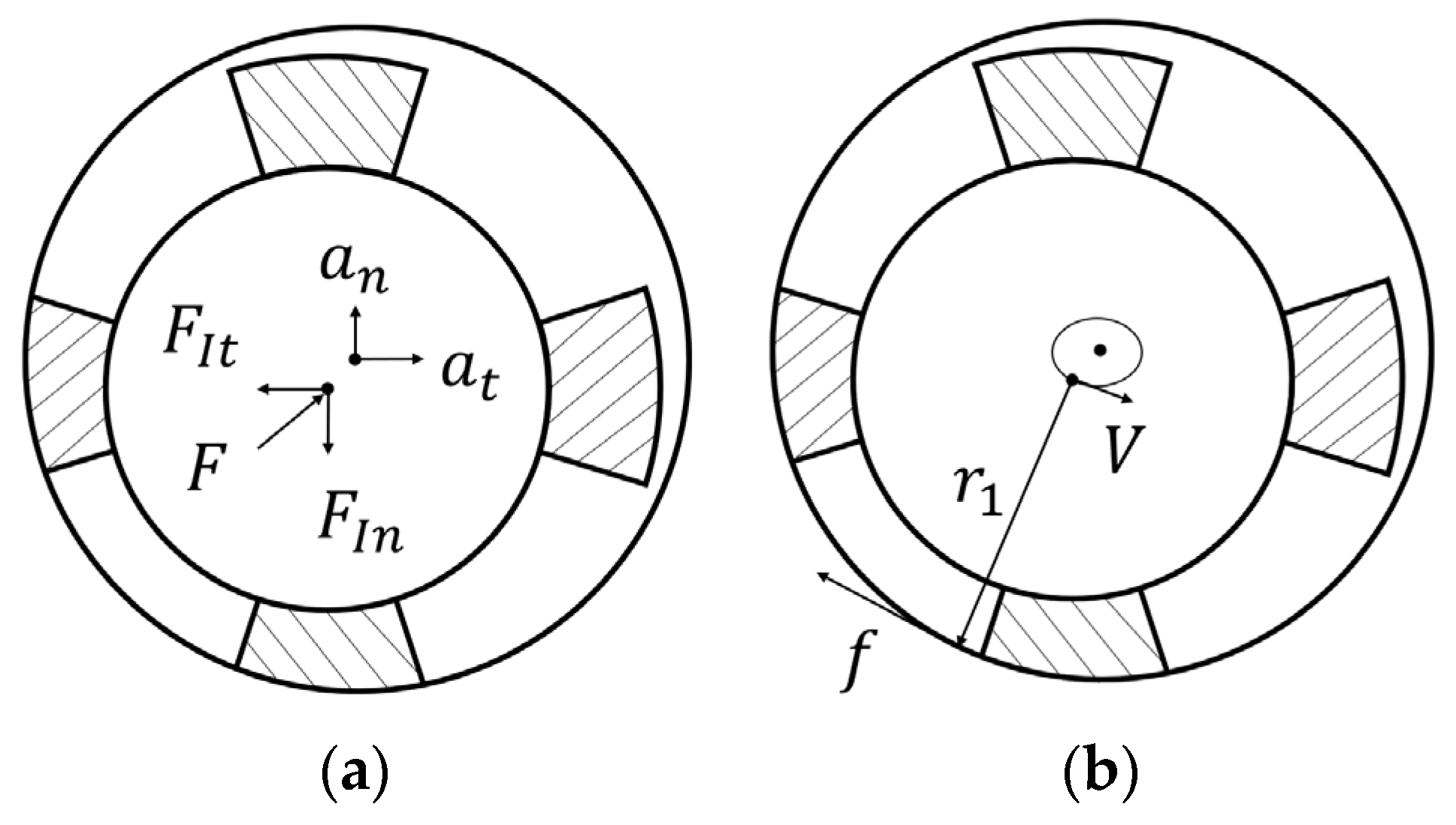

Figure 7. Forces acting on launch vehicle: (a) decomposition of forces acting on launch vehicle; (b) friction torque generation.

Therefore, it can be known that the launch vehicle has a velocity in the guideway reference frame, and there is relative motion between the launch vehicle and the guideway. The guideway inside of the frame launcher will create a frictional resistance f₁ on the adapters. The launch vehicle will generate an angular acceleration ${\alpha }_z$ due to the action of f.

$$\left\{\begin{array}{l}{I}_y\times {\alpha }_z=r_1\times f\\ {\omega }_1=\int {\alpha }_{z}dt=\int r_1\times f_1/I_{y}dt\\ {\omega }_2=\int r_2\times f_2/I_{y}dt\\ \omega ={\omega }_1+{\omega }_2\end{array}\right.$$

(11)

where I_y is the rotational inertia of the launch vehicle about its own axis; r₁ is the point where the center of the guideway points towards the point of frictional resistance, and as the launch vehicle deviates from the center of the guideway by a small distance, an approximation is made here; ω₁ is the angular acceleration; r₂ is the launchpad radius; ω is the angular velocity of the launch vehicle; and f₂ is the fraction force generated by relative motion with the launch vehicle and launchpad.

By solving above equations simultaneously, we obtain

$$\theta =\cot \frac{b}{a}=\cot \frac{\tan \left(1.1°\sin \left(\frac{2\pi t}{T}\right)\right)}{\tan \left(2.6°\sin \left(\frac{2\pi t}{T}\right)\right)}$$

(12)

The variation in the angle theta during motion within half a cycle is depicted in Figure 8. The motion trajectory of the line segment’s endpoint appears to be approximately a straight line. However, the changes in the theta angle indicate that the back-and-forth travel of this point does not follow a straight line, nor does it coincide. For ease of understanding, the trajectory of its motion is enlarged in Figure 8.

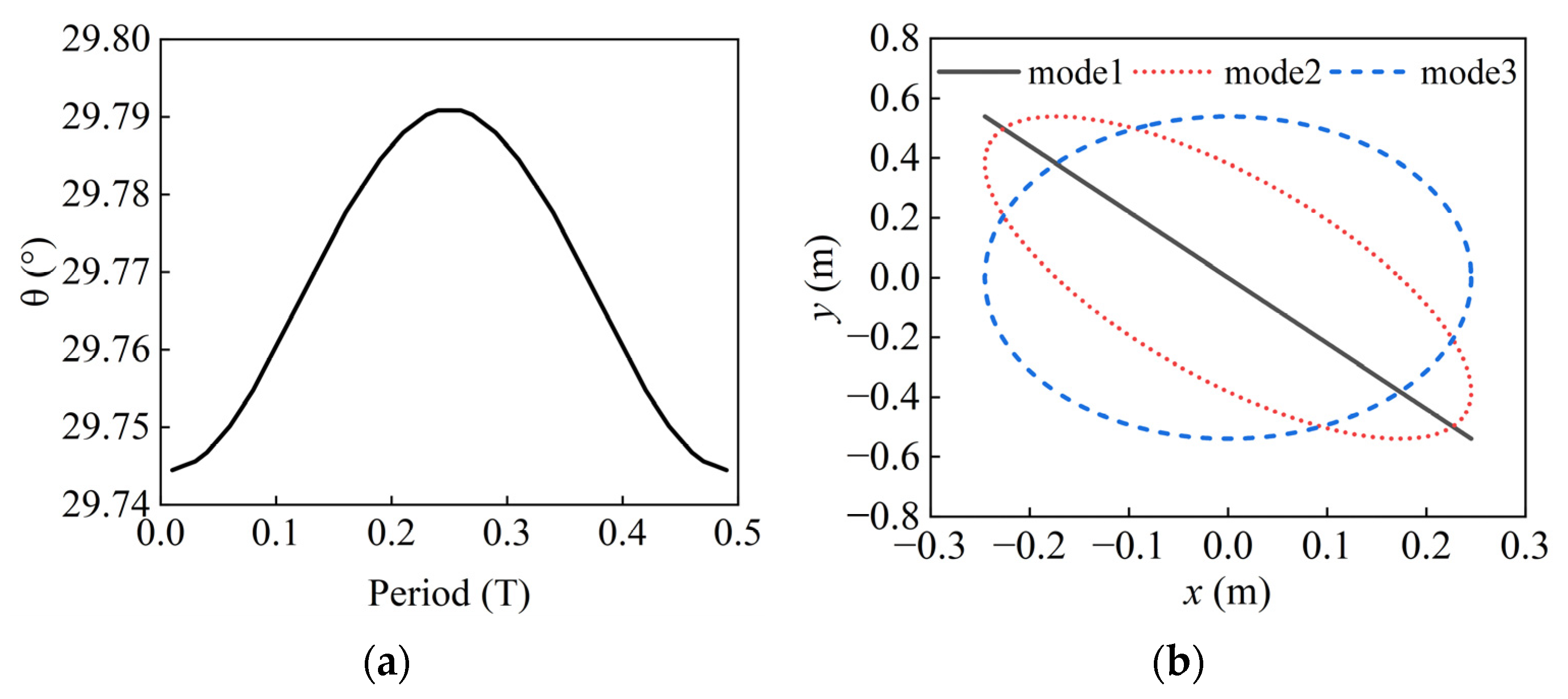

Figure 8. θ and trajectory: (a) θ in half period; (b) horizontal trajectory.

In Figure 9, it can be observed that there is a path difference in the trajectory when moving in mode 1. The projection point moves in a circular motion from the origin, following the sequence from 1 to 4. The motion trajectories of mode 2 and mode 3 within one cycle can be directly obtained through a sine relationship.

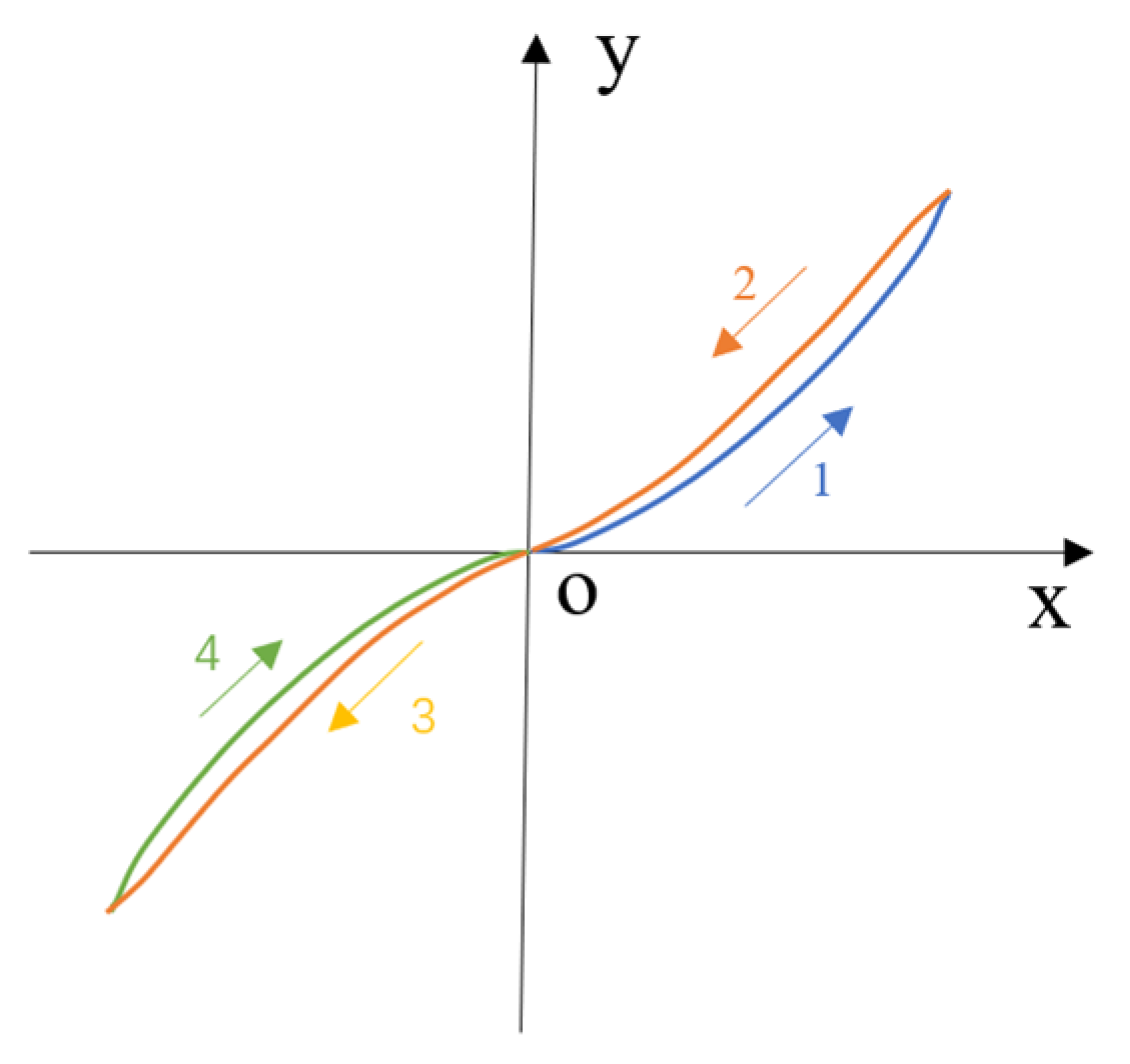

Figure 9. Mode 1 path order.

Considering other motion modes corresponding to the initial phase difference, Figure 10a shows the trajectories corresponding to each motion mode with a difference of π/8, and Figure 10b shows the trajectories corresponding to each motion mode with a difference of π/32. It is obvious that there is an envelope line in the motion trajectory, which is the rectangle of [−lsin2.6°, lsin2.6°] [−lsin1.1°, lsin1.1°]. When the phase difference is 0, that is, in motion mode 1, it approximates a straight line. When the phase difference is π, it approximates a symmetrical straight line about the coordinate axis. As the phase difference gradually increases, the envelope area of the trajectory line gradually increases, and the axis of the trajectory line rotates accordingly. As the phase difference increases, the trajectory tends from a flat ellipse to a positive ellipse. When the phase difference is π/2, it is a symmetric positive ellipse about the coordinate axis. As the phase difference continues to increase, the axis of the trajectory line turns towards another direction, and the envelope area of the trajectory line begins to decrease. This phenomenon is mainly due to the symmetry and periodicity of the sine function about the x-axis. As the phase difference increases, the axis of the trajectory continuously rotates.

Figure 10. Horizontal trajectories with different phase differences:(a) π/8; (b) π/32.

When the angular velocity-induced rolling of the launch vehicle cannot synchronize with its movement around the guideway’s axis, the adapter intervenes by accelerating the launch vehicle’s roll through deformation and friction. Conversely, if the launch vehicle’s roll speed exceeds its movement around the frame launcher’s axis, the adapters act to decelerate the launch vehicle’s roll, again leveraging deformation and friction.

Viewing this from an energy perspective, the deformation and friction experienced by the adapter serve dual roles: they can either contribute kinetic energy to the launch vehicle’s roll or absorb it, leading to variations in the launch vehicle’s angular velocity around zero. Should the time-integrated angular velocity over a cycle not equal zero, the launch vehicle accrues angular displacement, which may ultimately result in its detachment from the guideway, rendering it incapable of launch.

4. Dynamics Simulation Analysis of Sea-Based Launch Vehicle during Prelaunch

4.1. Multibody Dynamics Calculation Methods

Based on the dynamic equation of the first type of Lagrange, the dynamic equation of the multi rigid body system is derived as follows.

$$\frac{d}{dt}{\left(\frac{\partial T}{\partial \dot{q}}\right)}^T-\frac{\partial T}{\partial \dot{q}}+{\mathsf{\Phi }}_q^T\lambda +{\mathsf{\Psi }}_{\dot{q}}^T\mu -Q=0$$

(13)

In Equation (13), the generalized coordinates $q=\left[q_1 q_2 \cdots q_i\right]$ are used to describe the rigid body in the system, and the position and attitude of the $i$-th individual are q_i$.{\mathsf{\Phi }}_q^T\left(q,t\right)=0$ is the complete constraint equation, ${\mathsf{\Psi }}_{\dot{q}}^T\left(q,\dot{q},t\right)=0$ is the incomplete constraint equation, and $Q$ is the generalized force column vector; $\lambda$ is the column vector of the Laplace multiplier corresponding to the complete constraint; and $\mu$ is the column vectors of Laplace multipliers corresponding to nonholonomic constraints.

The normal contact force is composed of elastic force and damping force. The former is generated by the mutual embedding of components, while the latter is caused by the relative cutting speed. The expressions of the normal contact force and tangential contact force are as follows.

$$\left\{\begin{array}{l}{F}_n=k\cdot g^s+c\frac{\mathrm{dg}}{\mathrm{dt}}\\ F_t=\mu F_n\end{array}\right.$$

(14)

where $k$ is the generalized contact stiffness; $g$ indicates the normal embedding depth between two components; $e$ is the force index; and $c$ represents the damping coefficient. The coefficient of friction $\mu$ is related to the relative slip velocity, which can be expressed as follows.

$$\mu =\left\{\begin{array}{ll}0\hfill & V=0\hfill \\ -{\mu }_s\cdot \mathrm{sign}(V)\hfill & \left|V\right|=V_s\hfill \\ -{\mu }_d\cdot \mathrm{sign}(V)\hfill & \left|V\right|\ge V_d\hfill \\ \mathrm{step}(V,-V_s,{\mu }_s,V_s,-{\mu }_s)\hfill & -V_s<\left|V\right|<V_s\hfill \\ -\mathrm{step}(|V|,V_d,{\mu }_d,V_s,{\mu }_s)\cdot \mathrm{sign}(V)\hfill & V_s<\left|V\right|<V_d\hfill \end{array}\right.$$

(15)

where $V$ is the relative slip velocity; $V_s$ is the maximum tangential velocity at which static friction occurs; $V_d$ is the minimum tangential velocity for dynamic friction; and ${\mu }_s$ and ${\mu }_d$ are the static friction coefficient and the dynamic friction coefficient, respectively. The step function is used to introduce a sudden change in a signal or parameter during simulation. For the given function μ = step(V, −V_s, μ_s, V_s, −μ_s), it is used to introduce a sudden change in a signal or parameter during simulation, where the function value transitions from μ_s to −μ_s when the independent variable V exceeds V_s.

$$\mu =\left\{\begin{array}{l}{\mu }_s,\hspace{1em} V\le -V_s\\ {\mu }_i,\hspace{1em}-V_s<V<V_s\\ -{\mu }_s,\hspace{1em}V\ge -V_s\end{array}\right.$$

(16)

where V is the independent variable, usually representing time or a time-related variable; −V_s is the starting value of the independent variable; μ_s is the initial value of the step function; V_s. is the ending value of the independent variable; and −μ_s is the ending value of the step function.

4.2. Framed Sea Launch System during Prelaunch Dynamics Model

According to the structural characteristics of the framed sea launch system and the load transfer relationship of moving parts during prelaunch phase, the following assumptions are put forward without affecting the rationality of the model.

• Ignoring the flexible structural deformation of the framed sea launch system, the primary consideration is the system’s motion response under loading conditions.
• The motion of the transportation vessel is considered a simple harmonic motion without considering the mutual coupling effect between the transportation vessel and the waves.
• The lifting cylinder is locked after the lift-off operation. The lifting cylinder is simplified as a single rigid body cylinder, with its upper end connected to the frame launcher via a ball joint, and its lower end connected to the support platform via a ball joint.
• The launchpad and support platform’s legs are fixed on the transportation vessel.
• Without considering adapter deformation, the load transmission of the adapter is represented through penalty functions and contact embedment depth.
• Without considering the separation process of the adapters, adapters are fixed to the launch vehicle.
• The support platform is connected to the launchpad via a rotational joint.

Based on the simplifications mentioned above, the model of the framed sea launch system in the prelaunch state is established, and the connection topology is shown in Figure 11.

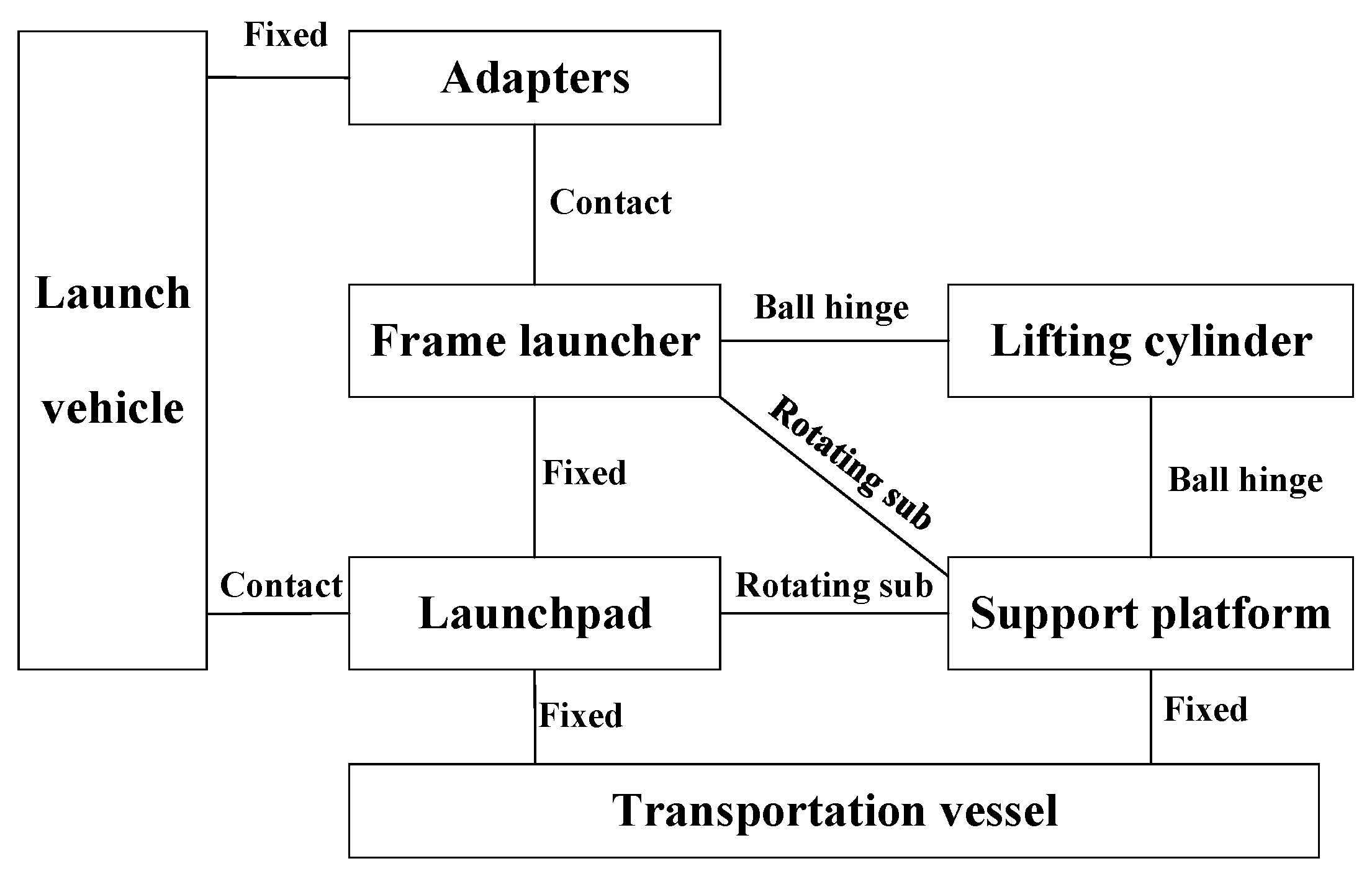

Figure 11. Connection topology of framed sea launch system.

The main dynamics parameters of the framed sea launch system during prelaunch are as follows.

• The main mass characteristics of the launch vehicle are shown in Table 2.
  Table 2. Main mass characteristics of the launch vehicle.

  Parameter	Value	Moment of Inertia	Value
  Mass (kg)	120,000	Ixx (kg·m2)	5,010,550
  Length (m)	30.888	Iyy (kg·m2)	5,010,550
  Distance from barycenter to the tip of rectifier (m)	21.043	Izz (kg·m2)	101,123

2.

The contact coefficients between each contact are shown in Table 3.

Table 3. Contact parameters.

Parameter	Adapters and Launcher	Launch Vehicle and Launchpad
Contact stiffness	2855 N/mm	100,000 N/m
Damping coefficient	0.57 N·s/mm	50 N·s/mm
Power contribution index	1.1	1.5
Maximum penetration depth	0.1 mm	0.1 mm
Static friction coefficient	0.15	0.1
Dynamic friction coefficient	0.1	0.1
Static friction transition speed	0.3 mm/s	0.3 mm/s
Dynamic friction transition speed	0.25 mm/s	0.25 mm/s

3.

Boundary conditions

The boundary of the transportation vessel’s six-degree-of-freedom motion is driven under a level 4 wind and wave environment using harmonic functions. The motion period of the transportation vessel is 7 s, and the oscillation pattern of the transportation vessel in each direction is as shown in Figure 12.

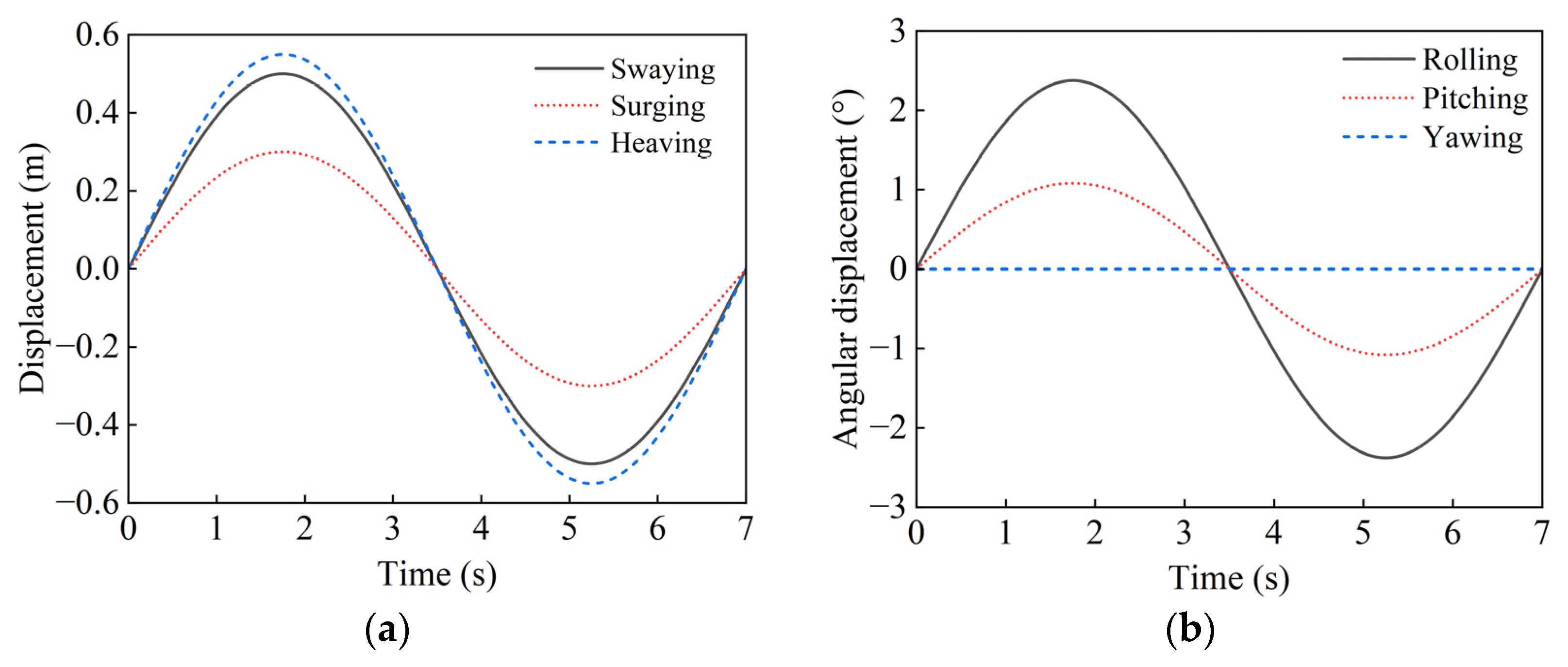

Figure 12. The motion of the transportation vessel: (a) translation motion; (b) rotation motion.

4.

Wind load

During the oscillation of the transportation vessel, the frontal area of the launch vehicle changes minimally, and the wind load almost remains constant in amplitude. The wind load is applied in the form of concentrated forces at the center of mass of the launch vehicle. Wind load is 5948 N (Wind speed is 10 m/s), the direction is along the positive y-axis.

5.

Gravity

The gravity acceleration is set to 9.8 m/s², and applied globally as a gravitational field.

Here, the dynamics simulation model has been established.

4.3. Dynamics Simulation Results and Analysis

To validate the reliability of the 2-D drive theory analysis mentioned above, simulations are conducted for both two-degree-of-freedom (DOF)-driven dynamics and six-degree-of-freedom (DOF)-driven dynamics. The effects of the remaining four degrees of freedom of a vessel on the launch vehicle’s rolling are analyzed through comparison. Following that, based on the six-degree-of-freedom-driven dynamics simulation model, large-scale simulations were conducted using a uniform sampling method to analyze the factors influencing the rolling of the launch vehicle.

4.3.1. Two-Degree-of-Freedom-Driven Dynamics Simulation

In the 2-DOF-driven simulation, inputs are limited to roll and pitch motions, and wind load effects are not considered. The 2-DOF simulation employs three motion modes as outlined in Table 1.

The original simulation results pertain to the unstable oscillation caused by the rocking motion of the transportation vessel. To facilitate a comparison with the Section 3.3 dynamics analysis of a 2-D-driven sea-based launch vehicle, the unstable oscillation segment is removed. Only the subsequent stable motion segment is analyzed. Additionally, the center of the launch vehicle’s motion trajectory obtained from the simulation is translated to the origin of the projection plane. The same processing is applied to all subsequent simulation results. The rolling movement of the three modes is shown in Figure 13.

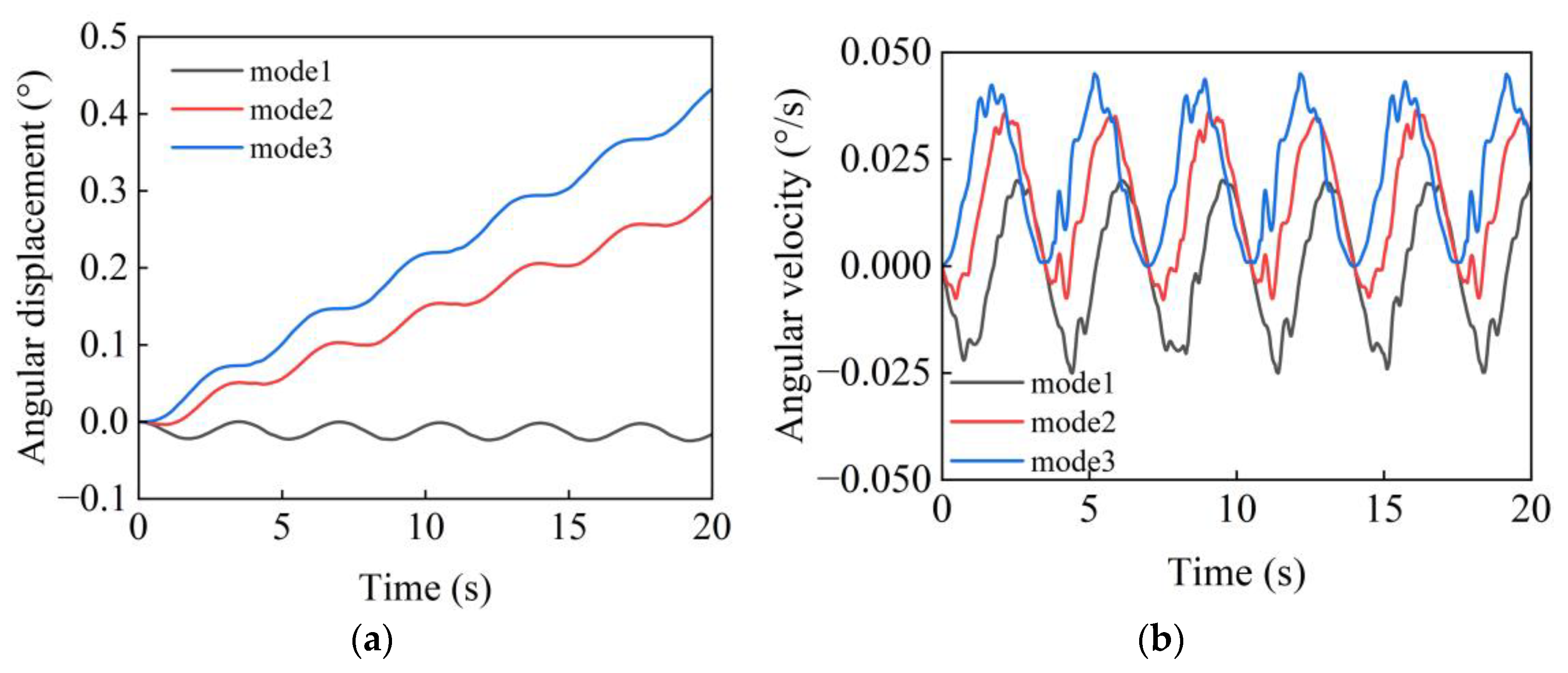

Figure 13. Dynamics simulation under 2-D driving obtained the rolling angle motion laws corresponding to 3 modes: (a) rolling angular displacement; (b) rolling angular velocity.

From Figure 13a, it can be observed that under mode 1 driving, the launch vehicle’s rolling angle cyclically oscillates around −0.012°, while under mode 2 and mode 3 driving, the launch vehicle’s roll angle increases periodically with a certain increment, showing an overall trend of gradually increasing the roll angle. Figure 13b shows that under mode 1 driving, the launch vehicle’s rolling angle velocity cyclically varies around −0.00289°/s, and the integration of rolling angle velocity with respect to time slightly decreases. Under mode 2 and mode 3 driving, the launch vehicle’s rolling angle velocity also varies periodically, and the rolling angle velocity cyclically varies around 0.02126°/s under mode 3 driving, which is greater than that 0.01275°/s under mode 2 driving. Therefore, after integrating the rolling angle velocity over time, the rolling under mode 3 driving is faster than that under mode 2 driving. However, the occurrence of rolling motion is determined by the difference in the path size of the launch vehicle’s center of mass motion, which is also reflected in the simulation results, as shown in Figure 14.

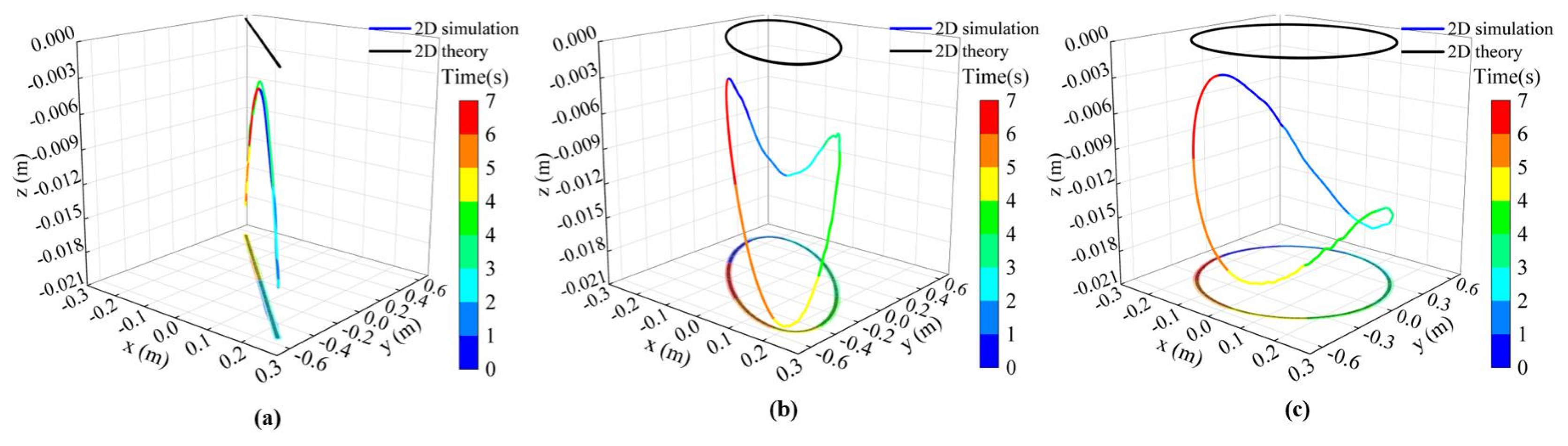

Figure 14. The difference in the path of the launch vehicle’s center of mass motion under 2-D driving: (a) the difference in the path of the rocket’s center of mass motion under mode 1 driving; (b) the difference in the path of the rocket’s center of mass motion under mode 2 driving; (c) the difference in the path of the rocket’s center of mass motion under mode 3 driving.

The motion paths in Figure 14 are driven by the two-dimensional driving corresponding to the three modes listed in Table 1. The black curves (2-D theory) represent the two-dimensional planar motion path of the launch vehicle’s center of mass obtained through theoretical derivation in Section 3. The colored curves (2-D simulation) represent the motion paths of the launch vehicle’s center of mass obtained through simulation based on the established three-dimensional sea-based launch vehicle prelaunch dynamics model, along with their xy-plane projections. The color gradient from blue to red represents the time from 0 s to 7 s, facilitating the identification of the spatial trajectory motion process of the launch vehicle’s center of mass obtained from the 3-D dynamics model simulation. The curves of both the 2-D simulation and 2-D theory are projected onto the plane z = −0.021 m and found to completely overlap. This demonstrates the correctness of the conclusion that the difference in the trajectory of the launch vehicle’s center of mass motion during the dimensional reduction theory analysis leads to the rolling of the launch vehicle.

4.3.2. Six-Degree-of-Freedom-Driven Dynamics Simulation

During the six-degree-of-freedom-driven simulation, wind loads were taken into account to study the rolling of the launch vehicle prelaunch at sea under three modes. The launch vehicle’s rolling motion during the prelaunch stage, driven by six degrees of freedom, is illustrated in Figure 15. For analytical convenience, the launch vehicle’s rolling motion during the prelaunch stage driven by two degrees of freedom are juxtaposed in Figure 15 for comparative purposes.

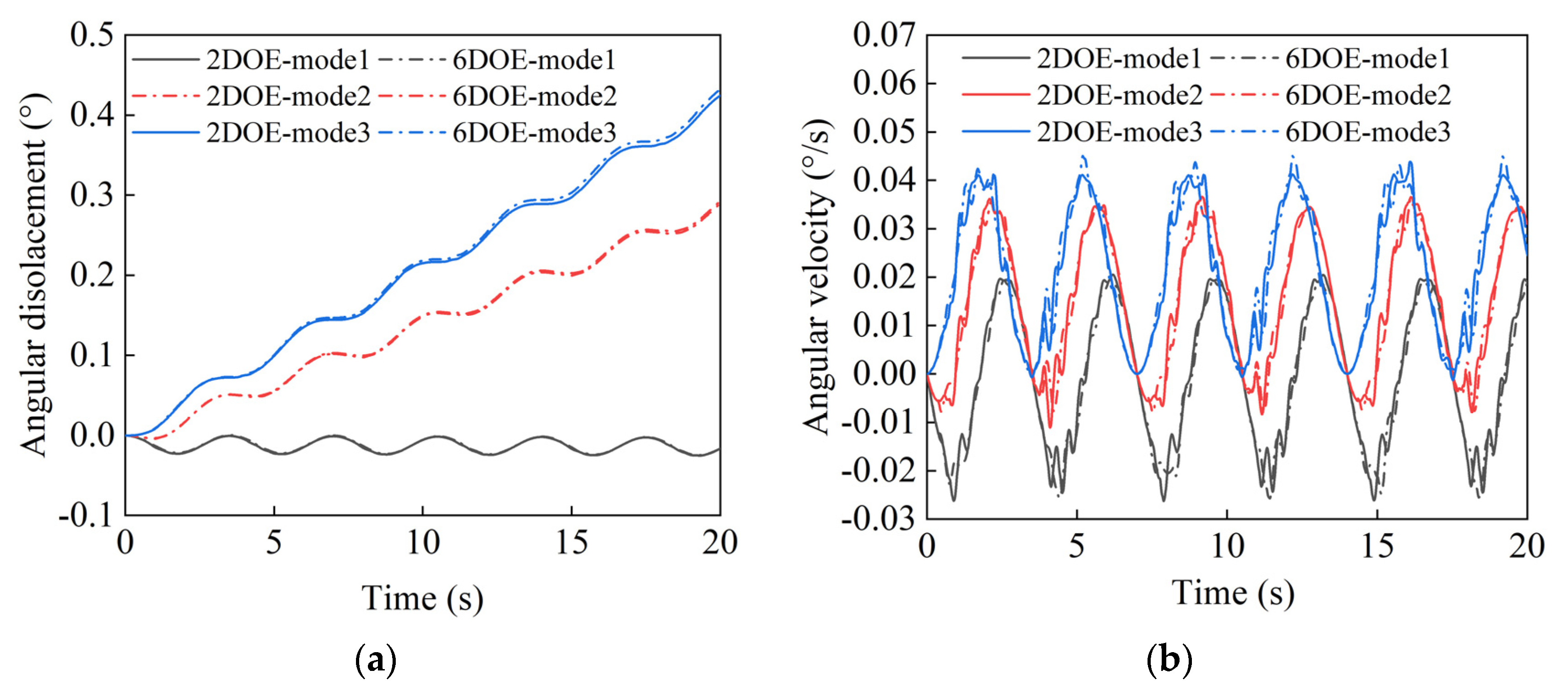

Figure 15. Dynamics simulation under 2-D and 6-D driving obtained the rolling angle motion laws corresponding to 3 modes: (a) rolling angular displacement; (b) rolling angular velocity.

According to Figure 15, it can be observed that during the prelaunch stage, the angular displacement and angular velocity patterns of the launch vehicle’s rolling motion under both two-degree-of-freedom- and six-degree-of-freedom-driven modes exhibit remarkable similarity. This indicates that, under the assumption of rigid body motion, during the prelaunch stage, the variation in the trajectory of the launch vehicle’s center of mass caused by the roll and pitch motions of the transport vessel has a significant impact on the roll motion of the launch vehicle. The yaw, sway, surge and heave motions of the transport vessel, as well as the level 4 wind loads, have negligible effects on the roll motion of the launch vehicle at this stage.

4.3.3. Analysis of the Parameters Influencing Launch Vehicle’s Rolling Loads

From the analysis in Section 3.3, it is evident that during the prelaunch stage, the primary loads influencing the roll motion of the launch vehicle are guideway–adapter contact forces and launchpad–launch vehicle contact forces. These contact forces can both be decomposed into normal contact forces, tangential contact forces, and frictional forces. The normal and tangential contact forces are determined by the relative motion between the structures in contact, while the frictional forces are determined by the normal contact forces and the coefficient of friction. In the scenario where the transportation vessel is already determined and there are no considerations for changing the sea conditions or the structure of the launch system, the relative motion between the contacting objects remains unchanged. In this case, the primary factors influencing the rolling of the launch vehicle is the coefficient of friction at the contact surfaces.

In this section, the dynamic coefficients of friction, denoted as μ₁ between the launchpad and the launch vehicle, and μ₂ between the adapters and the guideways, are considered as variables. The investigation focuses on the rolling angle displacement of the launch vehicle during the prelaunch stage. The static coefficient of friction between the launchpad and the launch vehicle is denoted as (μ₁ + 0.02), while the static coefficient of friction between the adapters and the guideways is denoted as (μ₂ + 0.02). The range of values for μ₁ is [0.05, 0.7], and the range of values for μ₂ is [0.05, 0.4]. Sampling is performed at uniform intervals of 0.01, the total number of sample points is 2376. The response surface of the rolling angle of the launch vehicle during the pre-launch stage with respect to μ₁ and μ₂ is depicted in Figure 16.

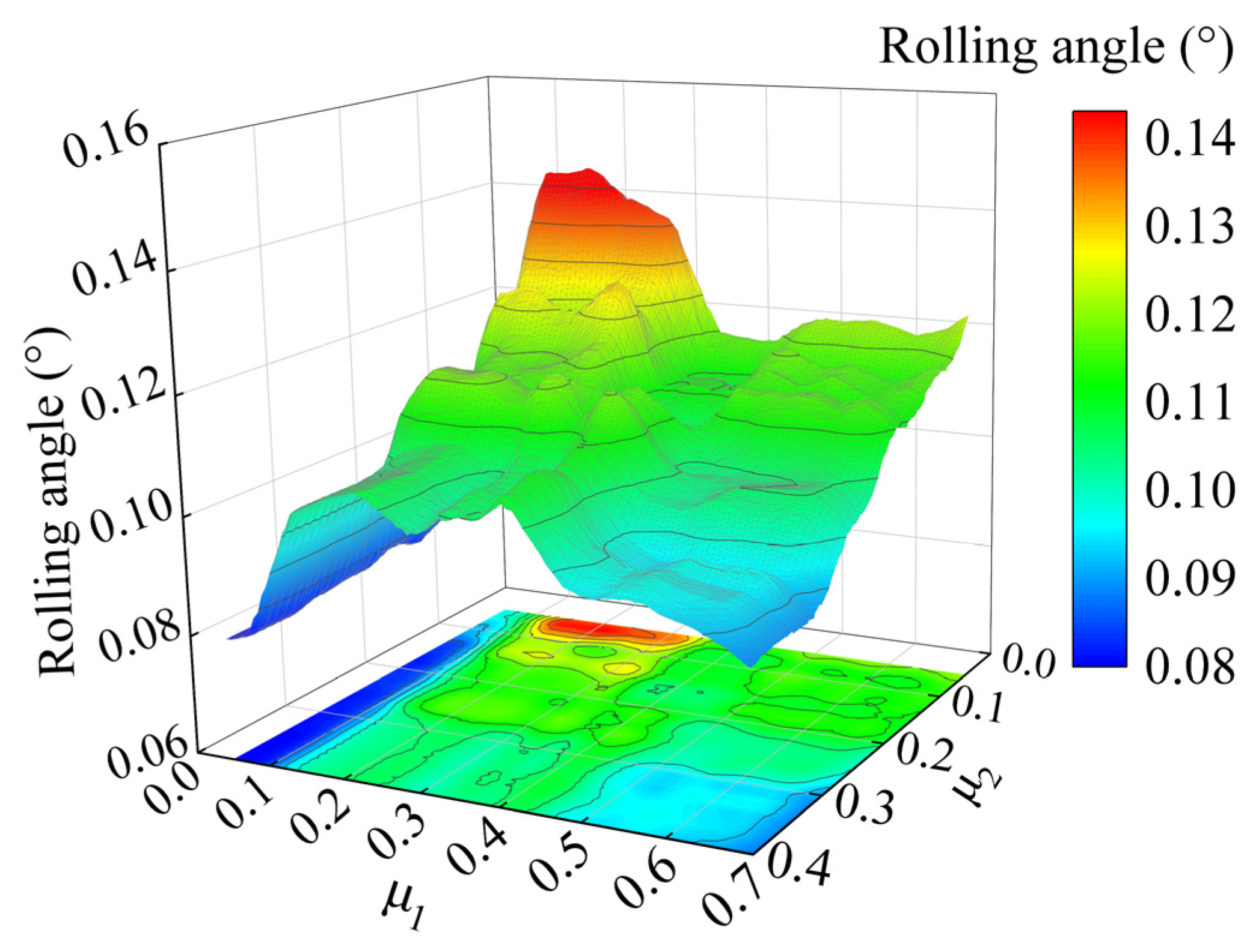

Figure 16. The response surface of the rolling angle of launch vehicle during prelaunch stage.

From Figure 16, it can be inferred that the rolling angle of the launch vehicle exhibits strong nonlinear coupled responses characterized by μ₁ and μ₂. It is evident from the figure that the rolling motion of the launch vehicle is minimal when μ₁ is within the range of [0.05, 0.1] and μ₂ is within the range of [0.14, 0.4]. Conversely, the rolling motion of the launch vehicle is significant when μ₁ falls within [0.13, 0.33] and μ₂ falls within [0.05, 0.1]. When μ₁ is 0.05 and μ₂ is 0.4, the rolling angle of the launch vehicle is at its minimum value of 0.08°. Conversely, when μ₁ is 0.2 and μ₂ is 0.14, the rolling angle of the launch vehicle reaches its maximum value of 0.14°.

5. Conclusions

In this study, we primarily investigated the rolling mechanism of a launch vehicle during the prelaunch stage at sea launch, using dimensionality reduction-driven spatial system projection methods and multibody dynamics simulation methods. The conclusions drawn are as follows:

Both the dimensionality reduction-driven spatial system projection method and the multibody dynamics simulation driven by the two-degree-of-freedom motion of the transportation vessel indicate that the launch vehicle’s rolling is caused by differences in the motion paths of the launch vehicle’s center of mass. A comparative analysis of multibody dynamics simulations driven by two-degree-of-freedom and six-degree-of-freedom motion of the transportation vessel reveals that the variation in the trajectory of the launch vehicle’s center of mass caused by the rolling and pitching motions of the transportation vessel has a significant impact on the roll motion of the launch vehicle, while the motion in other degrees of freedom has little effect on rocket rolling. Through the construction of response surfaces for the launch vehicle’s rolling, it is found that the minimum rolling angle of the launch vehicle during the prelaunch stage occurs when the dynamic coefficient of friction of the launchpad–launch vehicle contact is 0.05, and the dynamic coefficient of friction of the adapter–guideway contact is 0.4.

This study reveals the rolling mechanism of a launch vehicle during the prelaunch stage of sea launch, laying the foundation for subsequent studies aimed at suppressing the launch vehicle’s rolling by reducing the motion path difference in the launch vehicle’s center of mass. This provides theoretical guidance for enhancing sea launch capabilities in rough sea conditions.
