Numerical Simulation of Chemical Propulsion Systems: Survey and Fundamental Mathematical Modeling Approach
Abstract
:1. Introduction
- Shortening the development period and reducing development cost.
- Protect potential problems and predict propulsion performance in various conditions.
- Generate a database for the possible failure modes from FMEA and develop a reliable health monitoring system.
- Reduce maintenance cost for RLVs.

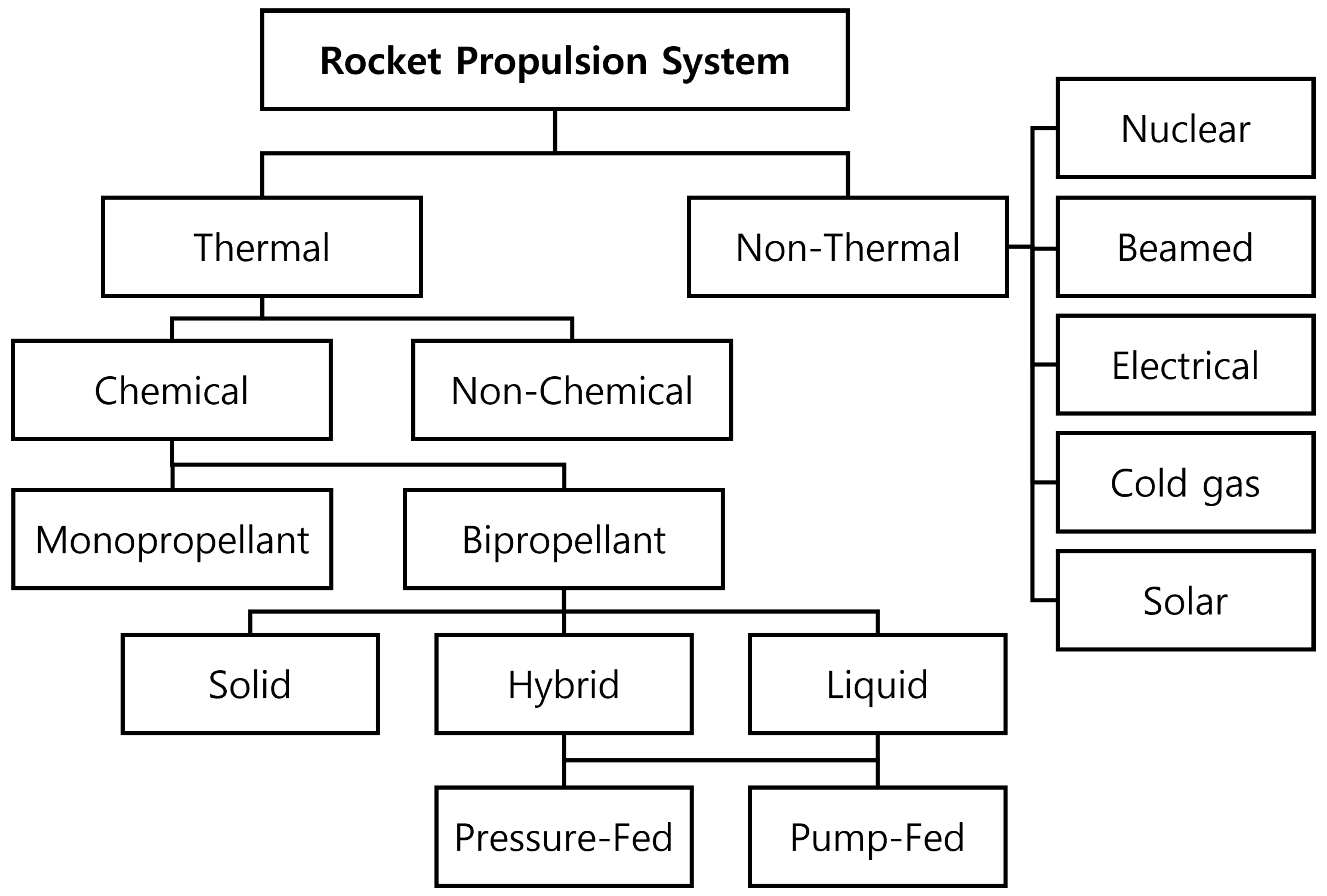

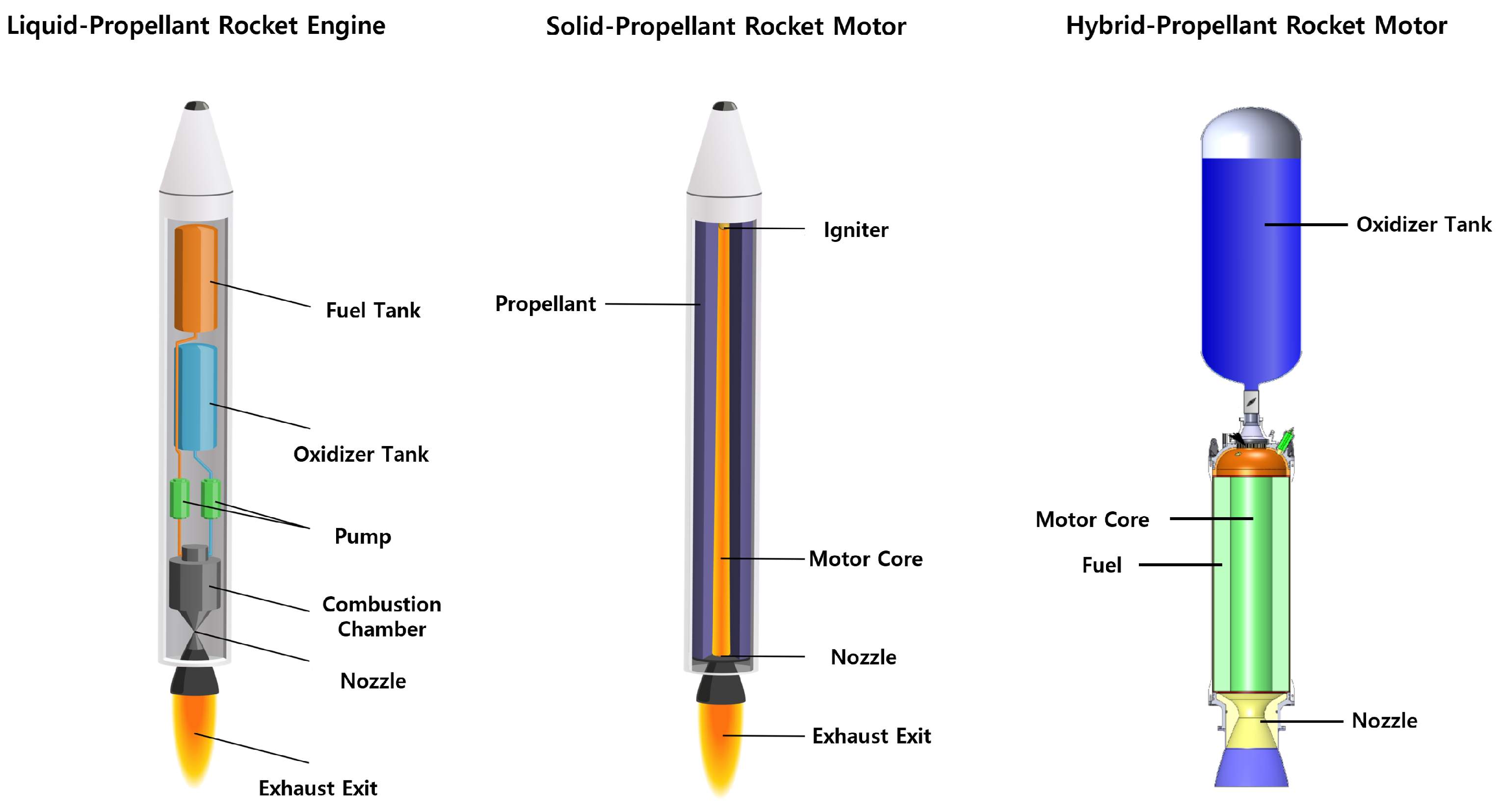

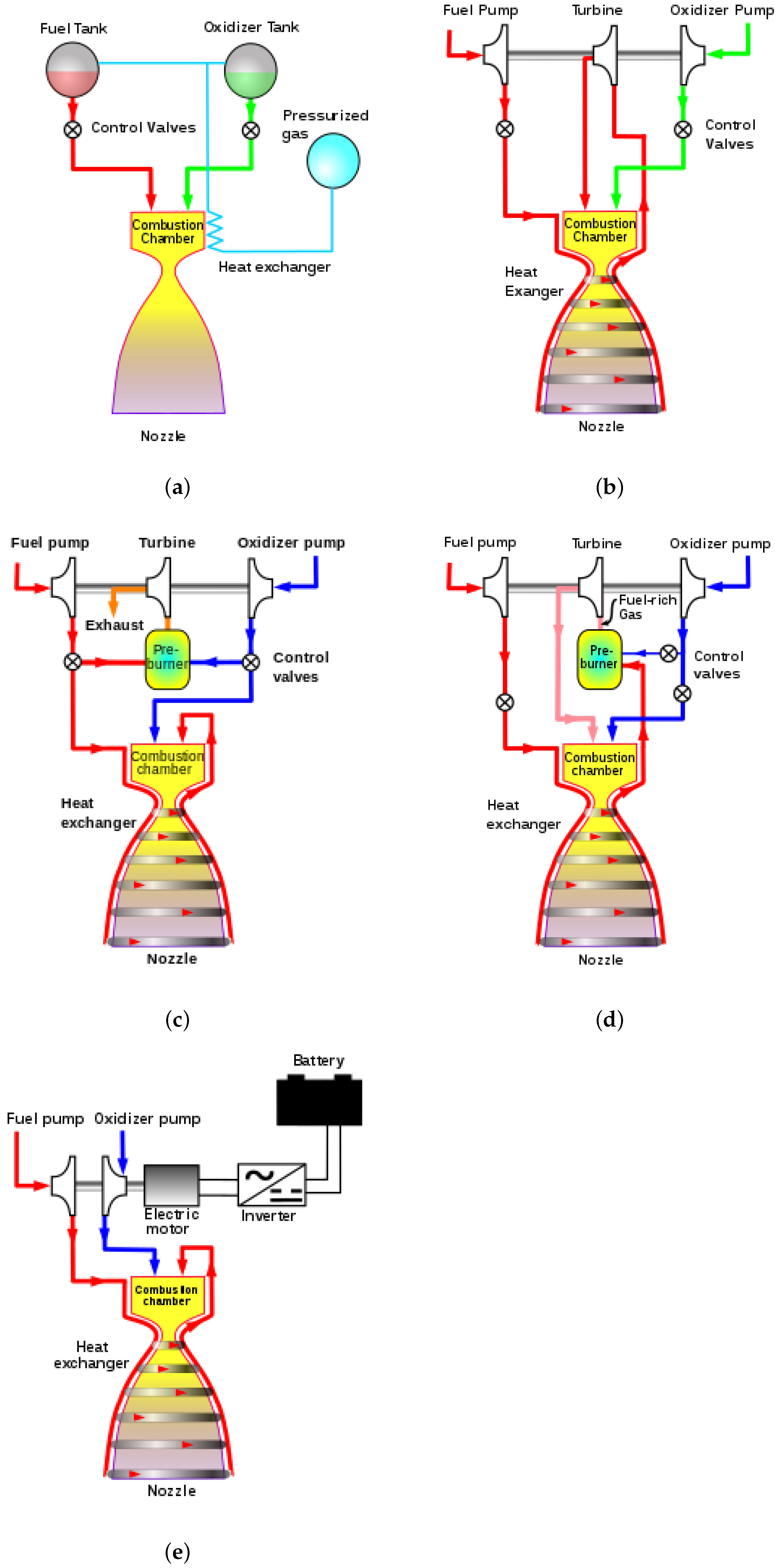

2. Overview of Chemical Propulsion Systems
3. Simulation Modeling Trend of Chemical Propulsion Systems
3.1. Literature Review
3.1.1. Liquid-Propellant Rocket Engines

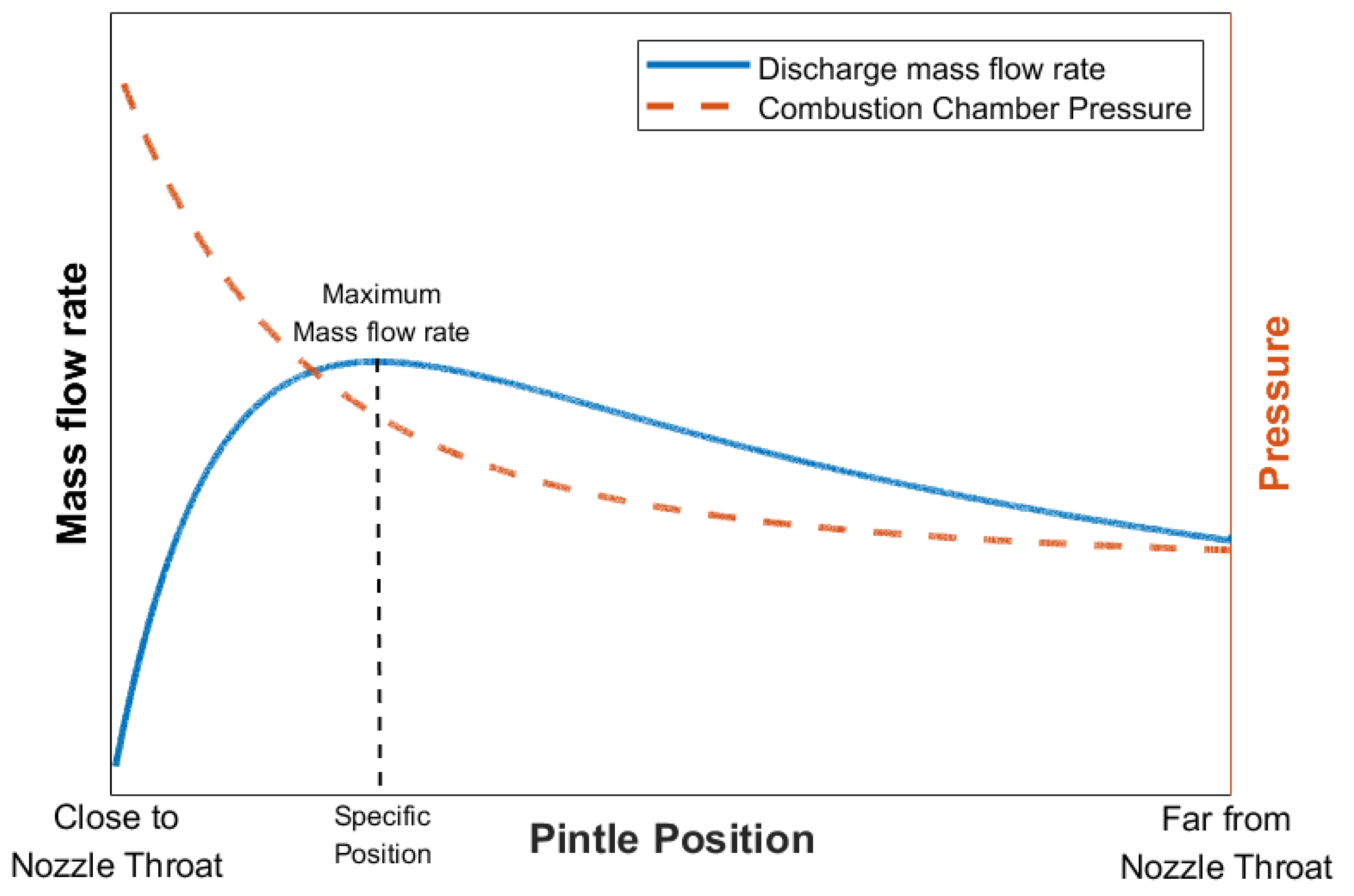

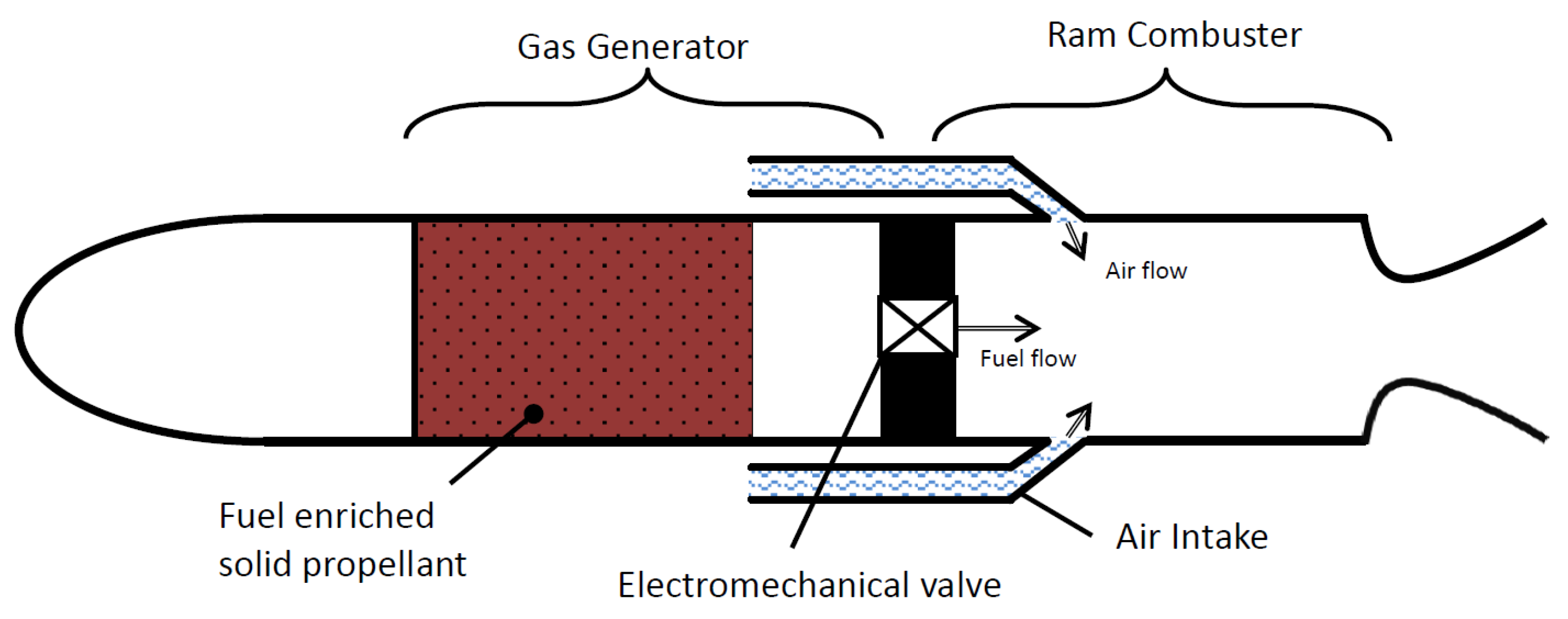

3.1.2. Solid-Propellant Rocket Motor
3.1.3. Hybrid-Propellant Rocket Motor

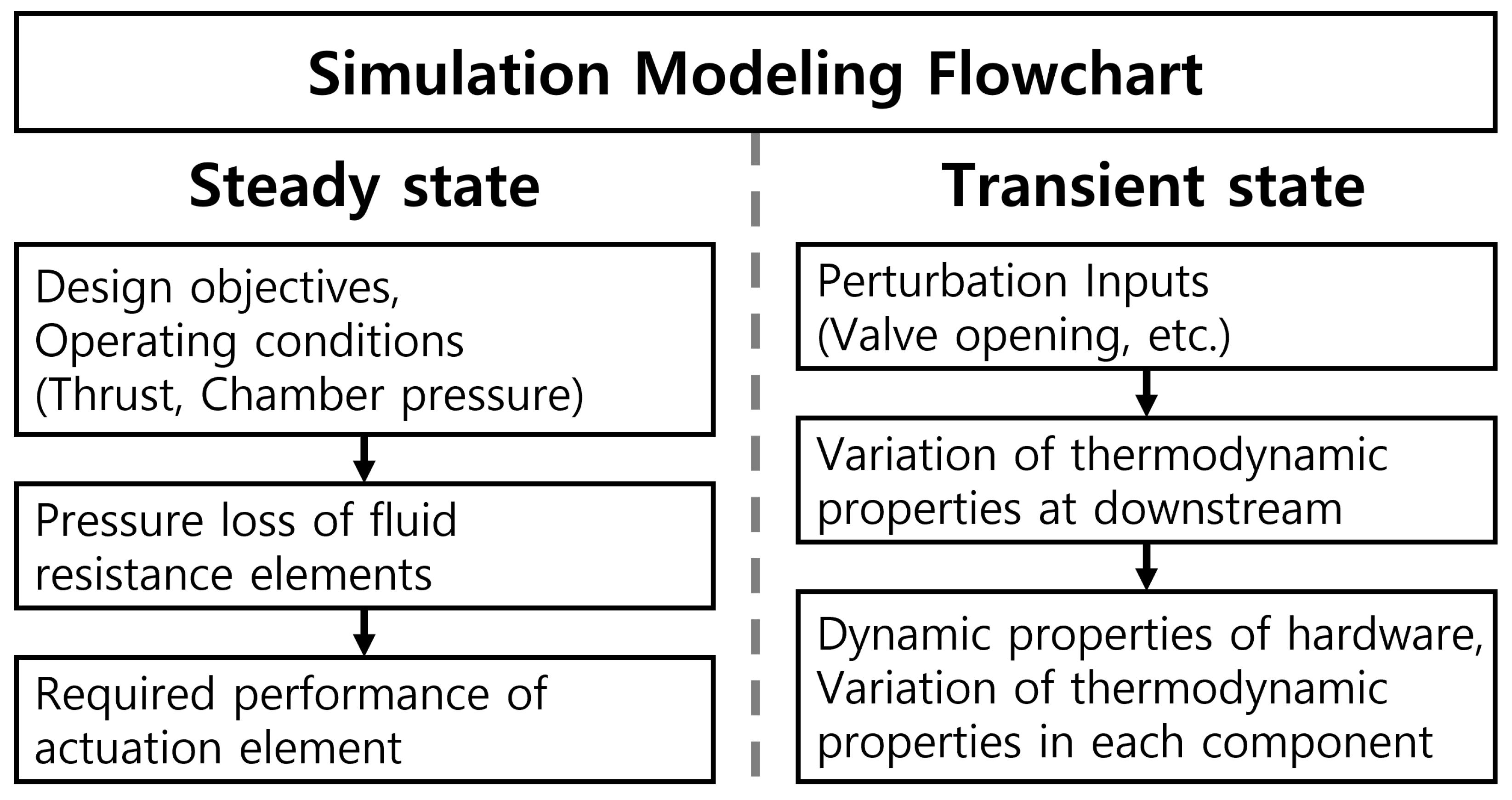

3.1.4. State of a Chemical Propulsion System
3.2. Analysis of the Trend
3.2.1. Perspective of the Modeling Approach
- Nonlinear modeling: In general, nonlinear modeling of CPS models has been used for simulation and analysis. The physics of propulsion system components are generally described using thermo-fluid-dynamic and mechanical conservation equations. Each component is usually not developed to its full complexity since the most accurate model is not the target. The main input data to the model are propellant tank outlet pressure and temperature, geometric and thermal properties, and valve settings. CPS parameters are initially set using design points determined in preliminary design and critical design. After that, they are upgraded and tuned through estimation through generalized residual sum of squares using data obtained from actual tests.
- Linearized modeling: Linearized modeling is the most common modeling by linearizing a nonlinear thermodynamic model (mostly for design control). The approach is linearized around the design points or previously computed equilibrium points. Generally, after each component of a CPS is linearized based on the equilibrium points, all linearized models are combined. However, sometimes parts of all components, which are nonlinear equations that are hard to describe due to complexity or data lack problems, are linearized and combined with other nonlinear forms to make them simple.
- Linear identification: Some researchers have determined a mathematical model using the data obtained from system-level simulations or actual tests rather than developing a model based on thermodynamic equations. The approach mainly considers each valve opening angle as an input and pressure, temperature, and turbopump speed as outputs. The approach requires preliminary information about the nonlinearity and bandwidth of the system. The responses point to valve nonlinearity, which can be isolated and removed to identify the main system. Through this work, the equations by linear identification have the transfer-function structure between the jth input and the ith output as:
- Nonlinear identification: There are several nonlinear identification approaches, including the Volterra series model, block-structured model, neural network model, NARMAX model, and state-space model [125]. However, in the five models, mostly a CPS is modeled using an artificial neural network (ANN) approach, which is adequate for real-time monitoring, diagnosis, and control. Using the ANN approach to represent a CPS requires training with a database from actual tests to provide the correct output determined by the user.
Modeling Approach | Types | Refs. (Selected) |
---|---|---|
Nonlinear modeling | LPRE | [16,34,39,40,53,57,60,61,67] |
SPRM | [77,78,79,84,87] | |
HPRM | [96,98,99,100] | |
Linearized modeling | LPRE | [55,126,127] |
SPRM | [128] | |
HPRM | [97,129,130] | |
Linear identification | LPRE | [131,132,133] |
SPRM | [134] | |
HPRM | [105,111] | |
Neural network approach | LPRE | [135,136] |
SPRM | [137,138] | |
HPRM | [139,140] |
3.2.2. Perspective of Pipe Modeling Method

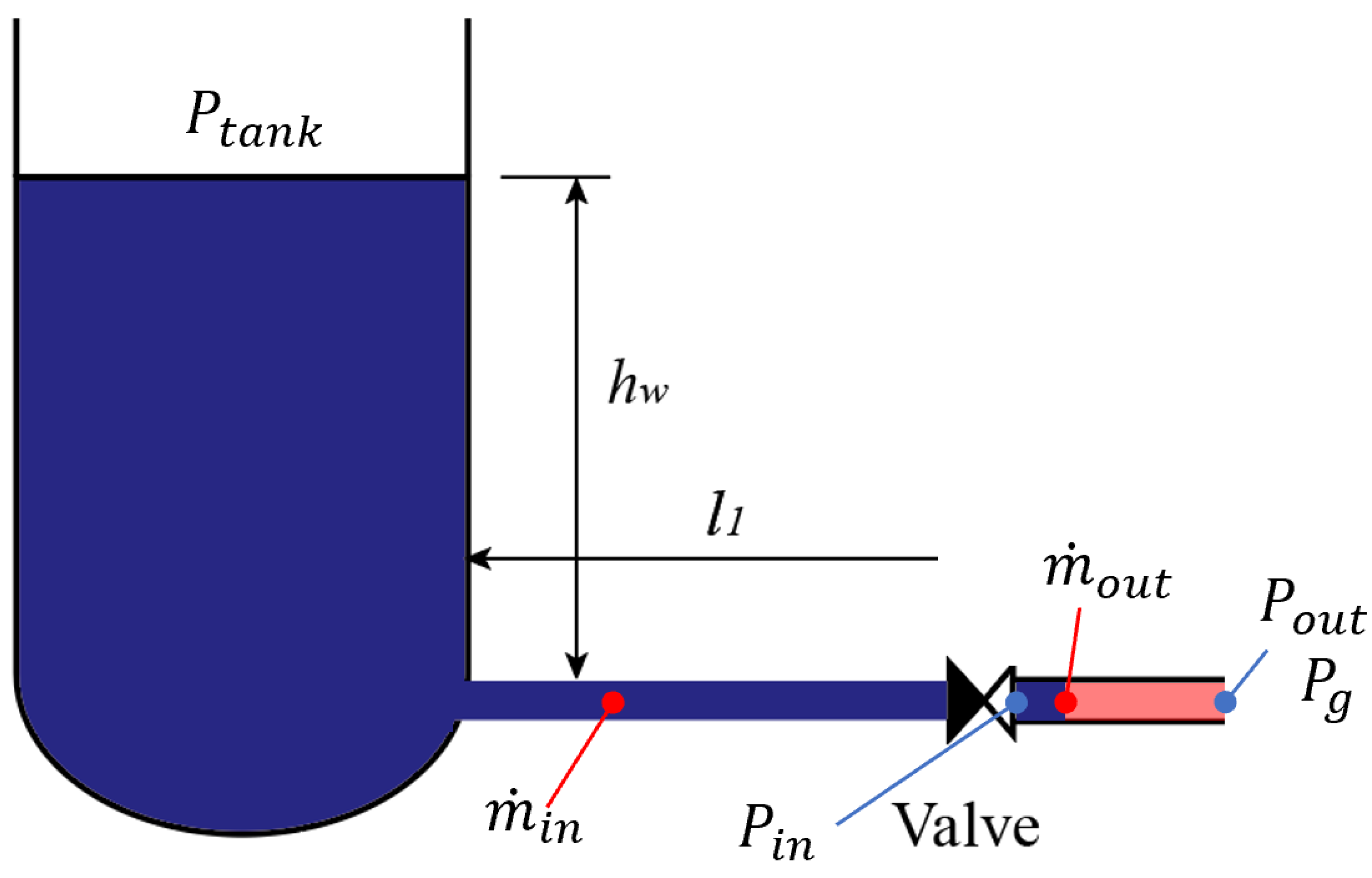

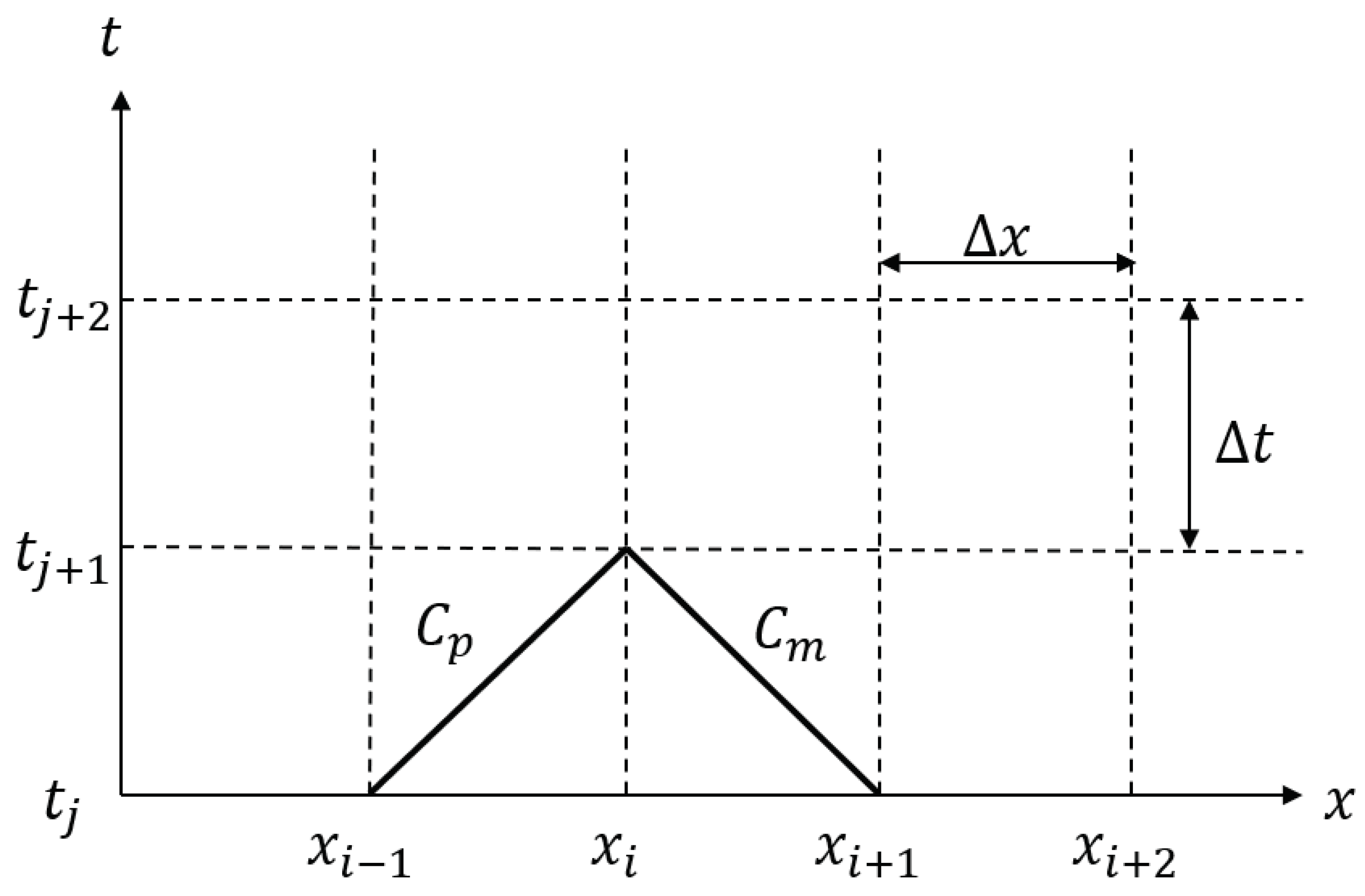

Method | Refs. (Selected) |
---|---|
Lumped model method | [34,40,60,67] |
Method of characteristics | [37,141] |
Volume-junction method (Lumped parameter method) | [29,39,47,142] |
3.2.3. Others
Country | Institute | Simulation Toolbox | Refs. (Selected) |
---|---|---|---|
U.S. | NASA | ROCETS | [28] |
Europe | ESA | EcosimPro + ESPSS | [31,32] |
China | NUDT | LRETMMSS | [47] |
China | HUST | Self-developed Toolbox (Modelica) | [48] |
China | BUAA | Self-developed Toolbox (MATLAB) | [52] |
Iran | KNTU | Self-developed Toolbox (MATLAB) | [52] |
Korea | KAU | Self-developed Toolbox (MATLAB) | [61,62] |

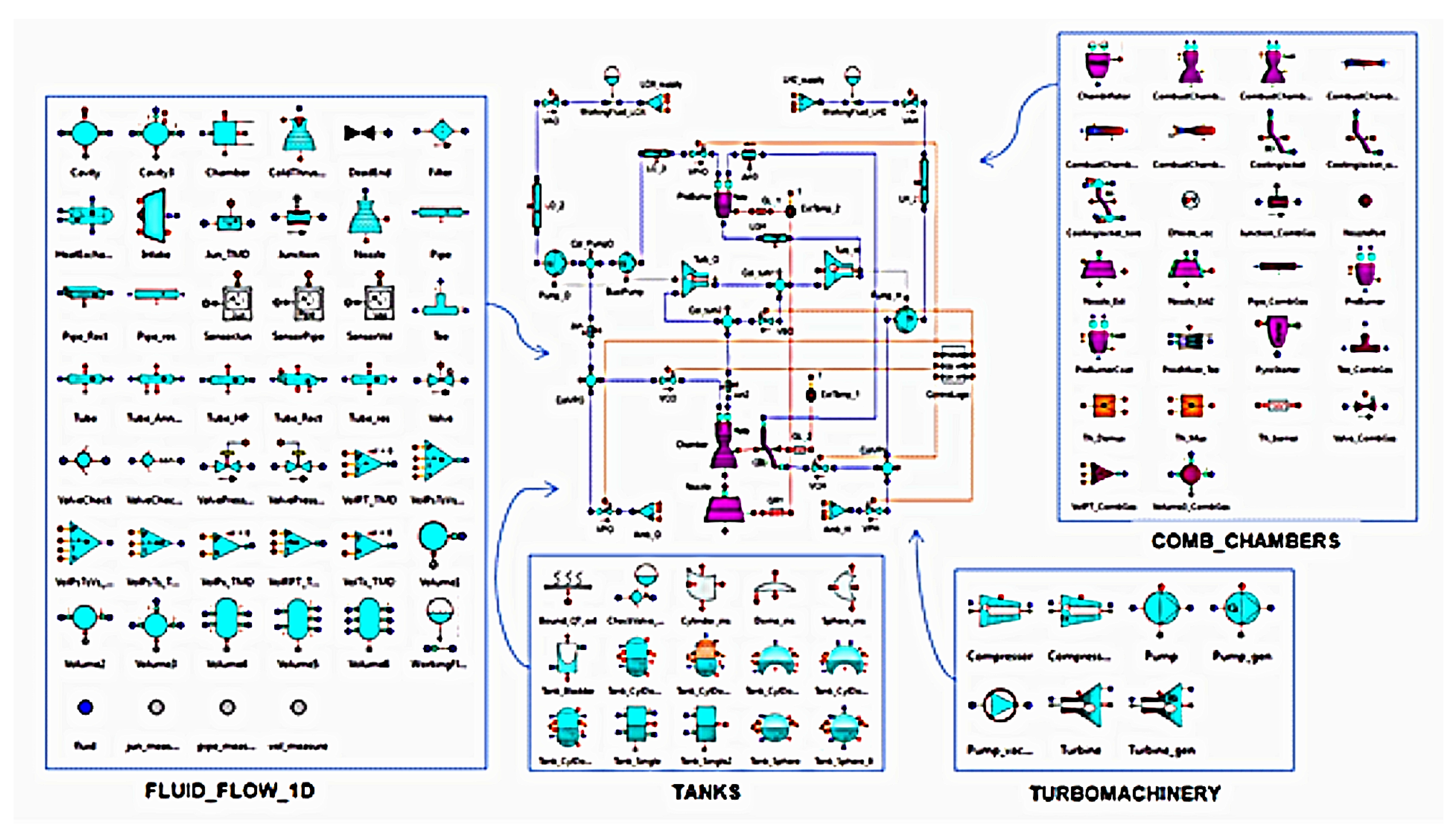

Main Category | Subcategory | Subsubcategory |
---|---|---|
Fluid Properties | - | Ideal gas, Simplified liquids, Real fluids |
Fluid Flow 1D | AbstracJunction | Jun_TMD, DeadEnd, Filter |
Time dependent Boundaries | VolPT_TMD, VolPx_TMD, VolTx_TMD | |
Cavities | Chamber, Volume1, Volume2, Volume5 | |
AbstacJunctionLoss | Juntion, ValveCheck, Valve, ValvePressRegDown, VallvePressRegUp, ValveCheck_Dynamic, VolPsTsVs_TMD | |
Sensor | SensorJun, SensorPipe, SensorVol | |
Channel | Pipe, Tube, Pipe_res, Pipe_Rect, Tube_Rect | |
Etc. | WorkingFluid, VTee, WorkingFluuid, HeatExchanger, Nozzle, ColdThruster | |
Tanks | Propellent Tank | Tank_single, Tank_Sphere, Cylinder_ins, Sphere_ins, Tank_CylDomes, Dome_ins, Tank_Bladder, Tank_CylDomesSph |
Combustion Chambers | Combustor | ABS-Combustor_eq, ABS−Combustor_rate |
Preburner | PreBurnerCoat_eq, PreBurner_eq, PreBurner_rate, reBurnerCoat_rate | |
Nozzle | Nozzle, Nozzle_Ex, Nozzle_Ex2 | |
CobustChamber_Nozzle | CombustChamberNozzle_eq, CombustChambbeerNozzleCoat_eq, CombustChamberNozzle_rate, CombustChambberNozzleCoat_rate | |
Cooling Jacket | CoolingJacket, CoolingJacket_simple, CoolingJacket_tore | |
Injector | - | |
Turbo Machinery | Compressor | Compressor, Compressor_gen |
Pump | Pump, Pump_gen, Pump_vaccum | |
Turbine | Turbine, Turbine_gen |
4. Fundamental Mathematical Modeling Approach
4.1. Governing Equations
4.1.1. Rotational Dynamics
4.1.2. Mass Flow Rate
4.1.3. Pressure Dynamics
4.1.4. Density Equation
4.1.5. Energy Balance in Heat Exchangers
4.1.6. Heat Transfer Equations
4.1.7. Time Delay Equation
4.2. Algebraic Equations
4.2.1. The Combustion Gas Mass Flow Rate
4.2.2. Injector Pressure Decremental Equation
4.2.3. The Power or Torque of the Pump
4.2.4. The Power or Torque of the Turbine and Motor
4.3. Characteristics Equations
4.3.1. Pump Pressure Incremental Equation
4.3.2. Propellant State Equation
4.4. Mathematical Modeling of Chemical Propulsion Systems
5. Conclusions
