Article

Session-Dependent Token-Based Payload Enciphering Scheme for Integrity Enhancements in Wireless Networks

by
Zaid Ameen Abduljabbar
1,2,
Vincent Omollo Nyangaresi
3,
Mustafa A. Al Sibahee
4,5,*,
Mudhafar Jalil Jassim Ghrabat
6,
Junchao Ma
4,*,
Iman Qays Abduljaleel
7 and
Abdulla J. Y. Aldarwish
1
1
Department of Computer Science, College of Education for Pure Sciences, University of Basrah, Basrah 61004, Iraq
2
Technical Computer Engineering Department, Al-Kunooze University College, Basrah 61001, Iraq
3
Faculty of Biological & Physical Sciences, Tom Mboya University, Homabay 40300, Kenya
4
College of Big Data and Internet, Shenzhen Technology University, Shenzhen 518118, China
5
Computer Technology Engineering Department, Iraq University College, Basrah 61004, Iraq
6
IoT Research Center, Department of Pharmacy, Ashur University College, Baghdad 10047, Iraq
7
Department of Computer Science, College of Computer Science and Information Technology, University of Basrah, Basrah 61004, Iraq
*
Authors to whom correspondence should be addressed.
J. Sens. Actuator Netw. 2022, 11(3), 55; https://doi.org/10.3390/jsan11030055
Submission received: 26 August 2022 / Revised: 13 September 2022 / Accepted: 14 September 2022 / Published: 19 September 2022
(This article belongs to the Special Issue Feature Papers on Computer and Electrical Engineering 2022)

Abstract

:
Wireless networks have continued to evolve to offer connectivity between users and smart devices such as drones and wireless sensor nodes. In this environment, insecure public channels are deployed to link the users to their remote smart devices. Some of the application areas of these smart devices include military surveillance and healthcare monitoring. Since the data collected and transmitted to the users are highly sensitive and private, any leakages can have adverse effects. As such, strong entity authentication should be implemented before any access is granted in these wireless networks. Although numerous protocols have been developed for this purpose, the simultaneous attainment of robust security and privacy at low latencies, execution time and bandwidth remains a mirage. In this paper, a session-dependent token-based payload enciphering scheme for integrity enhancements in wireless networks is presented. This protocol amalgamates fuzzy extraction with extended Chebyshev chaotic maps to boost the integrity of the exchanged payload. The security analysis shows that this scheme offers entity anonymity and backward and forward key secrecy. In addition, it is demonstrated to be robust against secret ephemeral leakage, side-channeling, man-in-the-middle and impersonation attacks, among other security threats. From the performance perspective, the proposed scheme requires the least communication overheads and a relatively low execution time during the authentication process.

1. Introduction

Many wireless network technologies have been developed to facilitate data dissemination and the remote monitoring of physical phenomena. Among these technologies are Wireless Sensor Networks (WSNs), which comprise miniature and low-power devices referred to as sensor nodes [1]. These networks find applications in numerous fields such as in agriculture, disaster relief, military surveillance, transportation, industrial automation, wildlife and safety monitoring. In these environments, WSNs offer infrastructure-free data exchanges over shared network channels devoid of centralized access points [2]. A typical WSN comprises dynamic cooperating nodes that employ multi-hop information transfer [3]. According to [4], WSNs are robust networks that have self-managing and healing capabilities. As explained in [5], a WSN is basically made up of sensors, a gateway node (GWN) and the users. Compared with sensors, GWNs have high computation power, energy and memory [5,6]. Due to their ease of deployment and their self-configuring and self-healing nature, WSNs’ deployments are on the rise in multiple fields [7]. For instance, WSNs can monitor climatic conditions such as carbon dioxide, temperature, acidity, light and soil moisture [8].
Despite all the benefits that accrue from the deployment of WSNs, a number of challenges are encountered in these networks. According to [1], the provision of security during data transmission over public wireless channels is an uphill task. This problem is compounded by the fact that WSNs are typically deployed in untrusted environments [9]. As these sensors collect and transmit sensitive and private information, the privacy of users is at risk if leaked to malicious entities [10]. According to [1], attacks in WSN environments include smart card loss, sensor node capture and password guessing. However, authors in [4] identify Sybil, sinkhole and wormhole attacks as the main challenges. Authors in [11] have identified the broadcast nature of WSNs as being the source of numerous security attacks and vulnerabilities in these networks. Another challenge is that sensors in these networks are limited in terms of energy, memory, communication capabilities and processing power. As such, conventional encryption algorithms based on techniques such as Diffie and Hellman (DH) and Rivest–Shamir–Adleman (RSA) are unsuitable in WSNs due to the high overheads incurred during encryption or decryption [1,12].
It is evident that proper user authentication is required in WSN environments to offer security and privacy protection. Since the sensors are resource-constrained, these authentication schemes need to be lightweight. To offer enhanced privacy and thwart any privileged insider attacks, anonymity, untraceability and authorization must be assured during the authentication and data access process. After authentication, the users and the WSN entities must establish a session key to encipher the exchanged packets [1,13]. The specific contributions of this paper include the following:
  • Fuzzy extraction is amalgamated with extended Chebyshev chaotic maps to generate authentication tokens that are shown to be session-specific for integrity enhancement.
  • Symmetric encryption is deployed to generate temporary keys that are utilized during the authentication and key agreement phase to protect against backward and forward key secrecy compromise attacks.
  • The mobile terminal and the gateway node negotiate a session key to encipher the payload exchanged over the public wireless channels.
  • Extensive security analysis is carried out and shows that the proposed scheme offers strong mutual authentication and anonymity. In addition, our scheme is shown to be resilient against impersonation, side-channel, man-in-the-middle (MITM), secret ephemeral leakage and packet replay attacks.
  • Performance evaluation is executed to show that the proposed scheme offers the best security features at relatively low execution time and communication costs.
The rest of this article is organized as follows: Section 2 presents related work regarding wireless network authentication and key agreement while Section 3 details the system model of the proposed scheme. On the other hand, Section 4 presents the comparative and evaluation results, while Section 5 concludes the paper.

2. Related Work

Numerous security and privacy-preserving techniques have been presented in the literature. However, most of these schemes still have security and privacy issues or have high overheads that render them unsuitable for WSN sensors. For instance, the remote user authentication protocol in [14] is susceptible to denial of service (DoS), off-line password guessing, sensor node capture and user impersonation attacks [15,16]. Similarly, the WSN security schemes in [17,18] cannot withstand off-line guessing attacks. On the other hand, the three-factor authentication in [19] does not offer sensor node anonymity and is vulnerable to de-synchronization attacks. The Chebyshev-chaotic-maps-based scheme is presented in [20], while cloud-centric authentication protocol is developed in [21]. Unfortunately, the scheme in [20,21] cannot withstand side-channeling attacks through power analysis. The same security challenges are inherent in the chaotic-map-based protocol presented in [22]. As such, the passwords and identities stored in the smart card can be leaked. In addition, the protocol in [21] cannot offer perfect backward and forward key secrecy.
To protect data exchanged over WSNs, authors in [23] have presented a novel authentication scheme. However, as demonstrated by [24], this protocol is vulnerable to both de-synchronization and user forgery attacks. Similarly, the authentication and key agreement protocol introduced in [25] has security flaws [26,27]. Other sets of authentication protocols are based on three factors such as smart cards (SC), passwords and biometrics. In this regard, authors in [28,29,30] have introduced three-factor authentication (3FA) for enhancing security in wireless networks. However, the protocol in [30] cannot withstand user forgery and off-line password guessing attacks [31]. On the other hand, the schemes in [28,29] fail to offer both strong forward key security and offer anonymity [31]. To address these issues, an improved lightweight 3FA protocol is developed in [32]. Unfortunately, this scheme is still vulnerable to both user tracking and off-line guessing attacks [33]. Another 3FA protocol based on bio-hashing is introduced in [15]. However, this approach cannot uphold user anonymity and is vulnerable to both privileged insider and sensor node capture attacks [28]. To address the security challenges in 3FA schemes, other protocols based on techniques such as elliptic curve cryptography (ECC), exclusive-or (XOR), hash functions and biometric and machine learning, have been introduced. For instance, an ECC-based authentication protocol is presented in [34]. However, this protocol is not resilient against ephemeral secret leakage (ESL) attacks.
Apart from security and privacy issues, most of the conventional WSN authentication techniques have high false positives, long latencies or very high communication and computation costs. For instance, the scheme developed in [35] for malicious behavior detection in WSNs generates excessive false positives. On the other hand, the schemes in [36,37] enhance security but at the expense of increased latencies. On their part, the machine-learning-based protocols in [38,39,40,41] improve anomaly detection in networks. However, these schemes have high computational overheads and hence are not suitable for WSN sensors. On the other hand, the scheme developed in [42] upholds confidentiality, non-repudiation, authentication and integrity. Unfortunately, this protocol deploys bilinear pairing operations, which makes it computationally expensive [1,43] and hence not ideal for WSN environment. On their part, authors in [44] have developed a dynamic key management and authentication protocol based on bilinear pairing operations. Although this approach boosts security in hierarchical sensor networks, the deployed pairing operations inadvertently increase its computational complexity [45].
It is clear from the discussions above that the attainment of robust security and privacy at low computation, latency and communication costs is still an open challenge. In this paper, we leverage fuzzy extraction and extended Chebyshev chaotic maps to develop a scheme that is demonstrated to achieve robust security at the lowest communication costs and relatively lower computation overheads.

3. System Model

In this section, the mathematical primitives of the proposed scheme are discussed followed by the step-by-step discussion of the proposed scheme.

3.1. Mathematical Primitives

As already alluded to above, fuzzy extraction and extended Chebyshev chaotic maps are among the main building blocks of the proposed scheme. The mathematical formulations of these two concepts are elaborated upon in the sub-sections below.

3.1.1. Fuzzy Extraction

In biometric-based authentication systems, a fuzzy extractor is commonly deployed. This extractor has two functions, which include Gen and Rep. Given biometric information βio, the operations of these two functions are as follows:
  • (x1, y1) = Gen (βio) implies that on receiving biometric βio, function Gen(.) generates random string x1 and auxiliary string y1.
  • x1 = Rep(βio*, y1) implies that on receiving a noise biometrics βio* that is fairly similar to βio and auxiliary string y1 of βio, function Rep(.) reproduces random string x1.

3.1.2. Chaotic Maps

The proposed scheme is hinged on an extended Chebyshev polynomial (ECP), from which two computationally complex problems are derived. This ECP is based on the extended Chebyshev chaotic map. The two problems derived from ECP include the chaotic-maps-based Diffie–Hellman problem (CMDHP) and chaotic-maps-based discrete logarithm problem (CMDLP). Taking ń as a large prime number and λ1 and λ2 as positive integers, the ECP is defined as follows:
Definition 1.
Cr(χ) = Cr−1 (χ)Cr-2 (χ) mod ń, r ≥ 2.
Definition 2.
C0(χ) =1, χ (−∞,+∞).
Definition 3.
C1(χ) = χ mod ń, χ (−∞,+∞).
On the other hand, the ECP satisfies the following condition:
C λ 1 ( C λ 2 ( χ ))   =   C λ 2 ( C λ 1 ( χ ))   mod ń
During the security analysis of the authentication protocols, the ECP’s CMDHP and CMDLP form the theoretical basis for guaranteeing the security of these protocols. These ECP problems are defined as follows:
  • CMDHP: Given χ, C λ 1 (χ) mod ń and C λ 2 (χ) mod ń, it is infeasible to derive C λ 1 ( C λ 2 ( χ )) mod ń or C λ 2 ( C λ 1 χ )) using any polynomial time-bounded algorithm.
  • CMDLP: Given χ and C λ 1 (χ) mod ń, it is infeasible to compute integer λ1 using any polynomial time-bounded algorithm.

3.2. Proposed Scheme

Wireless networks make it possible for users to interact with their smart devices in order to access and process data collected from sensors. To accomplish this, mobile terminals such as smart-phones are deployed. As such, in the proposed scheme, the mobile terminal (MT), sensor node (SN), gateway node (GWN) and the trusted authority (TA) are the main components, as shown in Figure 1. The communication between the sensor nodes and their gateway nodes is assumed to be secure. In addition, during the registration phase, the communication between the gateway node and the trusted authority is assumed to be through secure transmission channels. Similarly, the communication between the mobile terminal and the trusted authority during the registration phase is thought to be through secure channels.

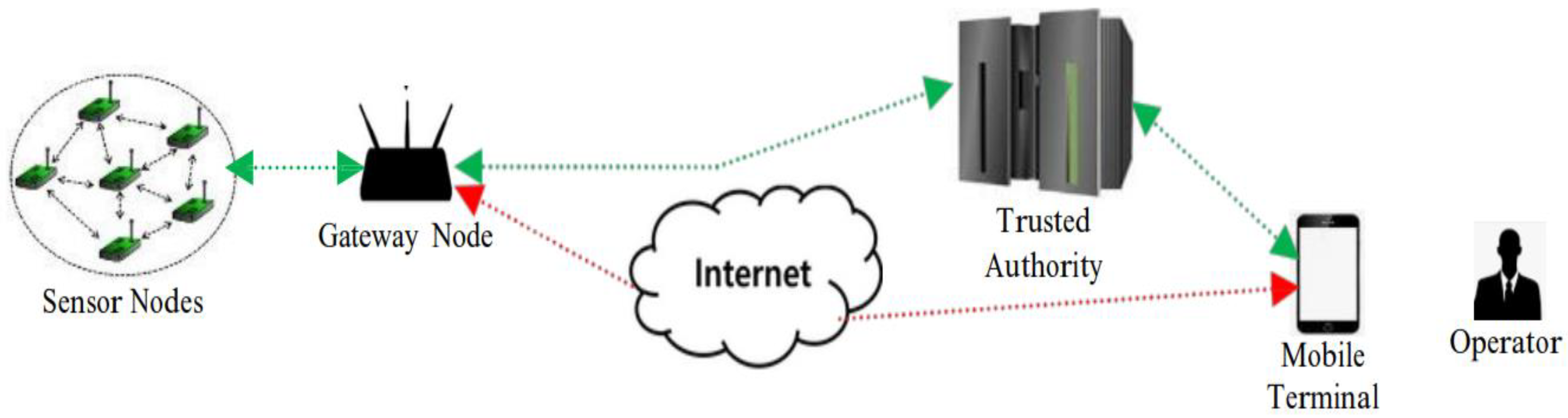

In this architecture, the SN perceives the physical environment and forwards the collected data to the GWN for onward transmission to the remote user. On the other hand, the TA executes the registration of all GWNs and MTs before the commencement of data exchanges. Table 1 presents the symbols used in this paper.
The proposed scheme executes in five main phases, which include system initialization, device registration, authentication, key agreement and data exchange. The description of these phases is presented in the sub-sections below.

3.2.1. System Initialization and Registration Phase

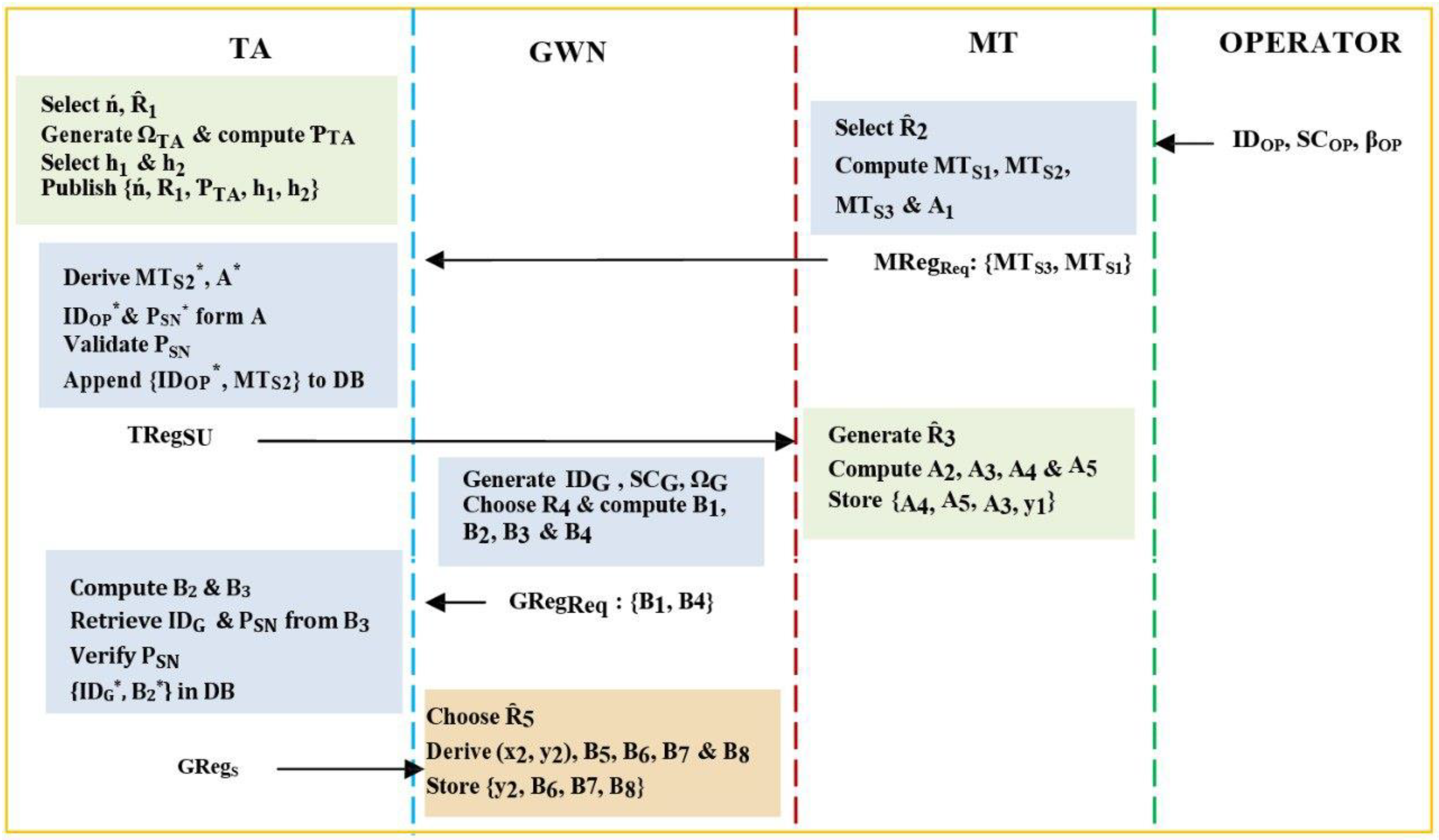

In this phase, the trusted authority (TA) initializes the system parameters, after which both the operator’s MT and the GWN are registered at the TA. To accomplish MT registration, the operator identity, biometrics and password are input to this terminal. Afterwards, the MT submits its pseudonym PSN to the TA through some secure channels. The TA then validates the supplied PSN before storing the MT’s security parameters in its database. The specific steps during initialization and registration are detailed below.
Step 1: The TA chooses a large prime number ń and random nonce Ȓ1 as Chebyshev chaotic map parameters. Next, the trusted authority TA generates nonce ΩTA as its private key before computing its public key ƤTA = C Ω TA 1) mod ń, where ń is a large prime number. Taking m as the privacy message length, the TA selects two one-way hashing functions h1: {0,1}* → {0,1}m and h2: {0,1}* → Z ń * before publishing parameter set {ń, Ȓ1, ƤTA, h1, h2}.
Step 2: The operator inputs identity IDOP and secret code SCOP to the mobile terminal MT before imprinting biometrics βOP on the MT sensor. Thereafter, the MT chooses nonce Ȓ2 Z ń * as its secret key before deriving security parameters MTS1 = C Ȓ 2 1) mod ń, MTS2 = C Ȓ 2 TA) mod ń, A1 = IDOP⊕PSN and MTS3 = h1(MTS2)⊕A1. The MT then sends registration request MRegReq to the TA accompanied by security parameters set {MTS3, MTS1}.
Step 3: After receiving the MT’s registration request, the TA derives security parameters MTS2* = C Ω TA (MTS1) mod ń and A1* = h1(MTS2*)⊕MTS3. It then extracts the operator inputs identity IDOP* and PSN* from A1 before validating pseudonym PSN* by confirming whether PSN* ≟ PSN. Upon successful validation, the TA appends security set {IDOP*, MTS2} to its database. Finally, it transmits a registration successful TRegSU message to the MT, as shown in Figure 2.
Step 4: On receiving TRegSU from the TA, the MT generates nonce Ȓ3 Z ń * followed by the computation of (x1, y1) = Gen (βOP), A2 = h2(SCOP, x1, Ȓ3), A3 = A2⊕Ȓ2, A4 = Ȓ3⊕h2(IDOP, SCOP, x1) and A5 = h2(IDOP, A2). Thereafter, it stores {A4, A5, A3, y1} to its memory.
Step 5: During GWN registration, it generates identity IDG, secret code SCG and nonce ΩG as its private key. It then chooses nonce Ȓ4   Z ń * before computing B1 = C Ȓ 4 1) mod ń, B2 = C Ȓ 4 TA) mod ń, B3 = (IDG||PSN) and B4 = h1(B2)⊕B3. Finally, the GWN sends registration request GRegReq to the TA together with parameter set {B1, B4}.
Step 6: On receiving GRegReq from the GWN, the TA computes B2* = C Ω TA (B1) mod ń and B3* = h1(B2*)⊕B4. Next, it retrieves IDG* and PSN from B3 before verifying PSN* by confirming whether PSN* ≟ PSN. Provided that this validation is successful, the TA stores security parameter set {IDG*, B2*} in its database. This is followed by the transmission of a registration successful GRegSU message back to the GWN.
Step 7: After obtaining GRegSU, the GWN chooses nonce Ȓ5   Z ń * before deriving (x2, y2) = (ΩG||Ȓ5), B5 = h2(SCG, x2, Ȓ5), B6 = B5⊕Ȓ4, B7 = Ȓ5⊕h2(IDG, SCG, x2) and B8 = h2(IDG, B5). Lastly, the GWN stores security parameter set {y2, B6, B7, B8} in its memory.
These two phases can be summarized in the pseudo-code below:
BEGIN
1) Choose ń and Ȓ1.
2) Generate ΩTA and compute ƤTA.
3) Select h1 and h2 and publish {ń, Ȓ1, ƤTA, h1, h2}.
4) Input IDOP and SCOP to the MT.
5) Imprint βOP on the MT sensor.
6) Choose Ȓ2 and compute MTS1, MTS2, A1 and MTS3.
7) MT → TA: {MTS3, MTS1}
  i) Derive MTS2*and A1*.
  ii) Extract IDOP* and PSN* from A1.
  iii) Validate PSN*.
  iv) IF validation is successful, THEN:
     Append {IDOP*, MTS2} to database.
    TA → MT: TRegSU
   ELSE: terminate session.
8) Generate Ȓ3 and compute (x1, y1), A2, A3, A4 and A5.
9) Store {A4, A5, A3, y1} in memory.
10) Generate IDG, SCG and ΩG.
11) Choose Ȓ4 and compute B1, B2, B3 and B4.
12) GWN → TA: {B1, B4}.
13) Compute B2*and B3*.
14) Retrieve IDG* and PSN from B3.
15) Verify PSN*.
16) IF verification is successful, THEN:
17)    Store {IDG*, B2*} in its database.
18)    TA → GWN: GRegSU
19) ELSE: terminate session.
20) Choose Ȓ5 and compute (x2, y2), B5, B6, B7 and B8.
21) Store {y2, B6, B7, B8} in memory.
END

3.2.2. Mutual Authentication and Key Agreement Phase

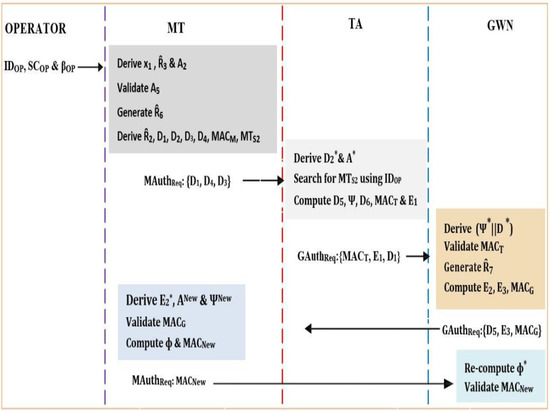

During this phase, the operator supplies the valid identity, secret code and biometrics to the MT, after which a valid signature is generated. This signature is then validated by the TA, after which it derives a temporary key for the GWN. Next, the MT and GWN utilize the TA-generated temporary key to authenticate each other, as described in the steps below.
Step 1: The operator inputs identity IDOP and secret code SCOP before imprinting βOP on the MT sensor. The MT then derives x1 = Rep (βOP, y1), Ȓ3 = A4⊕h2(IDOP, SCOP, x1) and A2 = h2(SCOP, x1, Ȓ3). It then validates whether A5 ≟ h2(IDOP, A2). If this validation succeeds, the MT derives Ȓ2 = A2⊕A3. Next, it generates Ȓ6   Z ń * , which it uses to compute D1 = C Ȓ 6 6) mod ń, D2 = C Ȓ 6 TA) mod ń, D3 = h1(D2)⊕A1, signature MACM = h2(D2, A1), MTS2* = C Ȓ 2 TA) mod ń and D4 = MACM + h2(MTS2, D1). Lastly, the MT constructs authentication request MAuthReq and transmits it to the TA together with {D1, D4, D3}.
Step 2: After receiving MAuthReq, the TA derives D2* = C Ω TA (D1) mod ń and A1* = h1 (D2*)⊕D3. Then the TA uses IDOP* to search for MTS2 so as to validate the MT through checking whether D4 − h2(MTS2*, D1) ≟ h2(D2*, A1*). If this validation is successful, the TA computes D5 = C Ȓ 7 1) mod ń, which it deploys to derive a temporary key for the GWN, Ψ = h2(D2*, A1*, MTS2*, IDG*, D5). It then computes D6 = IDOP*⊕ PSN* and MACT = h2(D1, Ψ, D6). To obscure both D6 and Ψ, the TA derives E1 = h2(B2*, D1)⊕( Ψ||D6). Finally, the TA constructs authentication request GAuthReq, which is sent to the GWN together with parameter set {MACT, E1, D1}, as shown in Figure 3.
Step 3: Upon receiving GAuthReq, the GWN derives (Ψ*||D6*) = h2(B2, D1)⊕E1 followed by the confirmation of whether MACT ≟ h2(D1, Ψ*, D6*). Provided that this verification is successful, the GWN generates nonce Ȓ7   Z ń *   which it uses to derive E2 = C Ȓ 7 (D1) mod ń, E3 = E h 2 ( E 2 ) (A1*), MACG = h2(A1*, Ψ*, D5). Finally, the GWN composes authentication response GAuthRes, which it transmits directly to the MT together with parameter set {D5, E3, MACG}.
Step 4: After obtaining GAuthRes, the MT derives E2* = C Ȓ 6 (D5) mod ń, A1New = D h 2 ( E 2 * ) (E3) and ΨNew = h2(D2, A1, MTS2, IDG*, D5). It then checks whether MACG ≟ h2(A1New, ΨNew, D5). If this verification is successful, the MT derives session key ɸ = h2(E2*, ΨNew) to be utilized with the GWN for traffic enciphering. Lastly, it derives MACNew = h2(ɸ, A1New) before sending it to the GWN together with authentication response message MAuthRes.
Step 5: Once the GWN obtains MAuthRes, it re-computes the session key ɸ* = h2(E2, Ψ* ) and confirms whether MACNew ≟ h2*, A1*). Provided that this verification is successful, the MT and GWN establish a secure channel between them and can now proceed to exchange network traffic. The mutual authentication and key agreement phase can be summarized in the following pseudo-code.
BEGIN
1) Input IDOP and SCOP.
2) Imprint βOP to the MT.
3) Derive x1, Ȓ3 and A2.
4) Validate A5.
5) IF validation is successful, THEN:
6)   Compute Ȓ2 and generate Ȓ6.
7)    Derive D1, D2, D3, MACM, MTS2* and D4.
8)      MT TA: {D1, D4, D3}
9)   Derive D2*and A1*.
10)  Validate MT.
11) IF verification is successful, THEN:
12)  Compute D5, Ψ, D6, MACT and E1.
13)   TA GWN: {MACT, E1, D1}
14) ELSE: terminate session
15) Derive (Ψ*||D6*) and validate MACT.
16) IF validation is successful, THEN:
17)   Generate Ȓ7 and derive E2, E3 and MACG.
18)   GWN MT: {D5, E3, MACG}
19) ELSE: terminate session.
20) Derive E2*, A1New and ΨNew.
21) Validate MACG.
22) IF verification is successful, THEN:
23)  Derive ɸ and MACNew.
24) MT GWN: {MAuthRes}
25) ELSE: terminate session.
26) Re-compute ɸ* and authenticate MACNew.
27) IF authentication is successful, THEN:
28)  Initiate packet transfers.
29) ELSE: terminate session.
END

3.2.3. WSN Node–MT Communication Phase

This phase is triggered whenever the operator through the MT wants to access some data from the wireless sensor network nodes. To accomplish this, the operator supplies valid identity IDOP, secret code SCOP and biometrics βOP on the MT sensor. This is followed by the generation of a legitimate signature for the operator, which is then transmitted to the TA for validation. After this, the TA stores some required information in its database. The steps followed during this phase are elaborated upon below.
Step 1: The operator inputs IDOP and SCOP to the MT before imprinting βOP on the MT sensor. This invokes local authentication, in which the MT derives and validates whether A5 ≟ h2(IDOP, A2), as described in Step 1 of the mutual authentication and key agreement phase. If this local authentication is successful, the MT sends service access request MServReq to the GWN.
Step 2: The GWN then derives x2 = Rep (ΩG, y2), Ȓ5 = B7⊕h2(IDG, SCG, x2) and B5 = h2(SCG, x2, Ȓ5). It then verifies whether B8 ≟ h2(IDG, B5). Provided that this validation is successful, the GWN computes Ȓ4 = B5⊕B6. It then employs nonce Ȓ7 to re-compute D5 =   C Ȓ 7 1) mod ń, F1 =   C Ȓ 7 TA) mod ń, F2 = h1(F1)⊕A1, MACG = h2(F1, A1), B2 =   C Ȓ 4 TA) mod ń and F3 = MACG + h2(B2, D5). Finally, the GWN sends access request GServReq to the WSN node (SN) together with parameter set {D5, F2, F3}.
Step 3: Upon receiving GServReq, the SN derives F1* = C Ω TA (D5) mod ń and A1* = h1(F1*)⊕F2. It then retrieves IDG* from its memory and searches for B2*. It then checks whether F3 − h2(B2*, D5) ≟ h2(F1*, A1*). If this verification is successful, the SN temporarily stores parameters {A1*, D5} in its memory for any subsequent verification with this particular GWN. Finally, the SN packages the requested data and enciphers it using ɸ before forwarding it to the GWN, which delivers it to the operator via the MT. This communication phase is summarized in the pseudo-code below.
BEGIN
1) Input IDOP and SCOP to the MT.
2) Imprint βOP on the MT sensor.
3) Derives and validate A5.
4) IF validation is successful, THEN:
5)     MT GWN: {MServReq}
6)    Derive x2, Ȓ5 and B5.
7) ELSE: terminate session.
8)     Verify B8.
9) IF verification is successful, THEN:
10)     Compute Ȓ4, D5, F1, F2, MACG, B2 and F3.
11)      GWN SN: {D5, F2, F3}
12)      Derive F1*and A1*.
13)     Retrieve IDG* and search B2*.
14) ELSE: terminate session.
15) Validate F3 - h2 (B2*, D5).
16) IF validation is successful, THEN:
17)     Temporarily store {A1*, D5} in memory.
18)      Package and encipher requested data using ɸ.
19)   SN GWN MT: {Data}
20) ELSE: terminate session.
END

4. Comparative Analysis and Evaluation Results

In this section, the first part presents the security analysis of the proposed scheme. In the second part, the performance evaluation of the proposed scheme is given, together with a comparative evaluation of other related protocols.

4.1. Security Analysis

To show that the proposed scheme offers salient security and privacy features, seven hypotheses are formulated and proved as discussed below.
Hypothesis 1.
The proposed scheme offers both backward and forward key secrecy.
Proof.
Suppose that an adversary Å has obtained the secret parameters {D5, E3, MACG} and MACNew exchanged between the MT and GWN. Here, D5 = C Ȓ 7 1) mod ń, E3 = E h 2 ( E 2 ) (A1*), MACG = h2(A1*, Ψ*, D5) and MACNew = h2(ɸ, A1New). The aim is to use these security parameters to compute session key ɸ = h2(E2*, ΨNew), where E2* = C Ȓ 6 (D5) mod ń and ΨNew = h2(D2, A1, MTS2, IDG*, D5). However, without a knowledge of secret parameters IDG*, Ȓ6, D2, A1, MTS2 and Ȓ7, this session key can never be computed. In addition, an adversary is unable to derive ( C Ȓ 7 1)) or C Ȓ 7 ((Ȓ1)) devoid of Ȓ6 or Ȓ7. This is because these parameters are never transmitted over the network. □
Hypothesis 2.
Secret ephemeral leakage attacks are effectively thwarted in the proposed scheme.
Proof.
In the proposed scheme, session key ɸ = h2(E2*, ΨNew) incorporates secret tokens Ψ and C Ȓ 6 ( C Ȓ 7 1)) among other parameters, where Ψ = h2(D2*, A1*, MTS2*, IDG*, D5). Suppose that all these parameters including Ȓ6 and Ȓ7 are compromised. However, the adversary still needs to derive Ψ, which requires knowledge of GWN identity IDG*, D2*, A1* and MTS2*. Since all these security parameters are never sent over the communication channels, they cannot be eavesdropped by Å and hence the leakage of ephemerals Ψ, C Ȓ 7 1) mod ń, C Ȓ 7 (D1) mod ń, Ȓ6 and Ȓ7 does not compromise the generated session key. □
Hypothesis 3.
The proposed scheme provides strong mutual authentication.
Proof.
Upon the input of valid operator identity IDOP, secret code SCOP and biometrics βOP, the MT derives private key Ȓ2 = A2⊕A3, after which it generates signature MACM = h2(D2, A1). Thereafter, the TA authenticates the MT by checking this signature. This is achieved through checking whether D4 – h2(MTS2*, D1) ≟ h2(D2*, A1*). Meanwhile, the TA derives a temporary key for the GWN, Ψ = h2(D2*, A1*, MTS2*, IDG*, D5). To securely transmit this temporary key to the GWN, the TA derives E1 = h2(B2*, D1)⊕(Ψ||D6). At the GWN, Ψ is deployed to generate signature MACG = h2(A1*, Ψ*, D5), which is utilized by the MT to authenticate the GWN and TA. This is achieved by checking whether MACG ≟ h2(A1New, ΨNew, D5). Similarly, the MT generates signature MACNew = h2(ɸ, A1New), which is employed by the GWN to authenticate the MT. This is executed by checking whether MACNew ≟ h2*, A1* ). Consequently, strong mutual authentication between the MT and GWN, the MT and TA and the TA and GWN is attained. □
Hypothesis 4.
Side-channeling attacks are prevented in the proposed scheme.
Proof.
Suppose that an adversary Å manages to capture parameter set {A4, A5, B6, y1} stored in the MT through power analysis. The goal of Å is to use these security tokens to derive IDOP, SCOP and βOP by performing the following: A4 = Ȓ3⊕h2(IDOP, SCOP, x1), A2 = h2(SCOP, x1, Ȓ3) and A5 = h2(IDOP, A2). It is evident that all these computations require either the operator identity IDOP, secret code SCOP or biometric βOP, which are unavailable in the MT’s memory. Similarly, even if an adversary Å uses power analysis to obtain {B7, F1, B6, y2} stored in GWN, all operator details cannot be obtained.  □
Hypothesis 5.
The proposed scheme establishes a session key between the GWN and MT.
Proof.
After mutual authentication, the MT and GWN negotiate key ɸ = h2(E2*, ΨNew ) based on ΨNew = h2(D2, A1, MTS2, IDG*, D5) and C Ȓ 6 ( C Ȓ 7 1)). Here, D5 = C Ȓ 7 1) mod ń, D2 = C Ȓ 6 TA) mod ń, A1 = IDOP⊕ PSN and MTS2 = C Ȓ 2 TA) mod ń. To derive C Ȓ 6 ( C Ȓ 7 1)) from D1 and D5 is equivalent solving the chaotic-maps-based Diffie–Hellman problem or chaotic-maps-based discrete logarithm problem. Since this is computationally infeasible, adversary Å is unable to derive the generated session key. □
Hypothesis 6.
The proposed scheme is resilient against packet replay and MITM attacks.
Proof.
In the proposed scheme, we deploy nonces Ȓ6 and Ȓ7 in each session as elaborated upon in Hypothesis 5. Based on Hypothesis 3, the MT, TA and GWN execute strong mutual authentication before commencing packet exchanges. As such, adversary Å is unable to masquerade as the legitimate MT, GWN or TA so as to mount MITM attacks. □
Hypothesis 7.
The proposed scheme upholds MT anonymity.
Proof.
In the proposed scheme, the MT identity IDOP is masked in A1, where A1 = IDOP⊕ PSN. On the other hand, IDOP is hashed in A4, A5 and Ȓ3, where A4 = Ȓ3⊕h2(IDOP, SCOP, x1), A5 = h2(IDOP, A2) and Ȓ3 = A4⊕h2(IDOP, SCOP, x1). Since A1 is never transmitted over the communication channels, adversary Å cannot capture it. On the other hand, the attacker needs to reverse the one-way hashing functions A4, A5 and Ȓ3 to obtain this identity. Since this is computationally infeasible, the anonymity of the operator is upheld. □

4.2. Performance Analysis

In this sub-section, the cryptographic execution time, communication costs and resilience to attacks are used as the main metrics in the appraisal of the proposed scheme.

4.2.1. Execution Time

In this analysis, consideration is given to the cryptographic operations that are executed only during the mutual authentication and key agreement phase. During this phase, the fuzzy extraction TF, elliptic curve point multiplication TE, one-way hashing TH and Chebyshev map TC operations are executed. Based on the values in [46], TE = 63.08 ms, TC = 21.02 ms, TF = 63.08 ms and TH = 0.5 ms, as shown in Table 2.
For other related schemes, symmetric encryption and decryption TED, the Chinese remainder theorem (CRT) TCR and elliptic curve modular exponential TEE operations are required. Based on [46], TED = 8.70 ms, the execution time for TCR = 11 ms and for TEE = 30 ms. During the mutual authentication and key agreement phase, the 1TF, 6TC and 23 TH operations are executed. Table 3 gives the derivation of the execution times for the proposed scheme as well as other related schemes.
As shown in Table 3, the protocol in [34] has the highest runtime of 452.56 ms followed by the schemes in [20] with a runtime of 238.9 ms. On the other hand, the proposed scheme has the third highest execution time of 200.7 ms, while the protocol in [22] has the second lowest execution time of 200.2 ms. On the other hand, the scheme in [21] has the lowest runtime of only 59.5 ms.
Although the protocol in [21] has excellent execution time, it cannot withstand side-channeling attacks through power analysis and cannot offer both perfect backward and forward key secrecy. In addition, this scheme has extremely high communication costs. On the other hand, the scheme in [22] cannot withstand side-channeling attacks and has very high communication costs. As such, although the proposed scheme has a slightly high execution time, it offers most of the security features required in wireless networks.

4.2.2. Communication Costs

In this analysis, the size of the exchanged messages during mutual authentication and key agreement are taken into consideration. Here, the outputs of nonces, ECC, symmetric encryption and decryption, integer factorization cryptography, hashing, timestamp and Chebyshev chaotic map are 128 bits, 256 bits, 128 bits, 3072 bits, 128 bits, 32 bits and 128 bits, respectively, as shown in Table 4.
During the mutual authentication and key agreement phase, the following four messages are exchanged: {D1, D4, D3}, {MACT, E1, D1}, {D5, E3, MACG} and MACNew. The sizes of these messages are computed as follows:
MAuthReq: {D1 = D4 = D3 = 128} = 384 bits
GAuthReq: {MACT = E1 = D1 = 128} = 384 bits
GAuthRes: {D5 = E3 = MACG = 128} = 384 bits
MAuthRes: MACNew = 128 bits
Based on the computations above, the total size of the four exchanged messages is 1280 bits. On the other hand, the schemes in [20,21,22,34] are 2048 bits, 3200 bits, 4448 bits and 1664 bits, respectively. Table 5 presents the derivation of these message sizes for the various schemes.
As shown in Table 5, the protocol in [21] has the highest communication costs of 4448 bits, followed by the protocol in [34] with communication costs of 3200 bits. The scheme in [20] has the third highest communication costs of 2048 bits, while the protocol in [22] has the highest communication costs of 1664 bits.
On the other hand, the proposed scheme has the lowest communication costs of 1280 bits. Consequently, the proposed scheme is the most ideal for sensor nodes which are limited in terms of computation, energy, memory and communication capabilities.

4.2.3. Attacks Resilience

To show that the proposed scheme offers resilience against most of the typical attacks in wireless networks, its security and privacy features are compared against those provided by the protocols in [20,21,22,34]. Table 6 presents this comparison using backward and forward key secrecy, secret ephemeral leakage, mutual authentication, side-channeling, session key agreement, packet replay, MITM and anonymity as key metrics.
Based on the results in Table 6, the scheme in [21] supports the least security and privacy features, followed by the schemes in [20,22,34], which lack one security feature. On the other hand, the proposed scheme offers support for all the security and privacy features. As such, it offers robust integrity protection in wireless networks.

4.2.4. Complexity Level Comparisons

In the performance evaluation of network security protocols, computation and communication complexities are frequently utilized. Here, the computation complexities indicate the duration it takes for various cryptographic operations to be executed. On the other hand, communication complexity denotes the number or length of the messages exchanged in these protocols. In this paper, computation complexity is measured using the execution time, while communication complexity is measured using the communication costs. These complexities are then compared with those obtained in other related schemes developed in [20,21,22,34].
In terms of computation complexity, it has been shown that the proposed scheme incurs the third highest execution time of 200.7 ms. However, the proposed scheme incurs the lowest communication complexity of only 1280 bits. On the other hand, the scheme developed in [34] has the highest computation complexity of 452.56 ms. Similarly, the scheme presented in [21] has the highest communication complexity of 4448 bits. Among the related schemes, the one developed in [22] has the lowest communication complexity of 1664 bits. As such, the proposed protocol offers a 23.08% improvement in the communication complexity.

5. Conclusions

The literature reviewed has pointed to the existence of many security schemes for the protection of the information exchanged over wireless sensor networks. It has been observed that these protocols are based on techniques such as machine learning, bilinear pairing operations, elliptic curve cryptography, chaotic maps, biometrics and smart cards, among other methods. However, it has been shown that long authentication latencies and execution times, as well as high communication overheads, are major performance issues in these protocols. Although these schemes improve some aspects of WSN security and privacy, the majority of them have been shown to be weak against common attacks in typical wireless networks. To address these issues, the developed scheme incorporates biometrics and extended Chebyshev chaotic maps during the authentication and key agreement process. Thus, the proposed scheme has the lowest execution time of 200.7 milliseconds and the highest security aspect compared to the related methods. In detail, the results show that this effectively renders the developed scheme resilient against numerous attacks such as packet replays, side-channeling and entity impersonations. In terms of performance evaluation, the deployed cryptographic operations are relatively lightweight and hence the execution time as well as the communication overheads of the proposed protocol are relatively low. Compared with other related schemes, the proposed protocol offers the best security features at the lowest communication overheads and a relatively low execution time. Future work could push towards decentralization in authentication, access and authorization. This may facilitate distributed and decentralized security provisioning that could enable direct integration into client end-point devices.

Author Contributions

Z.A.A. and V.O.N.; methodology, and writing—original draft preparation, M.J.J.G.; software, and data curation, I.Q.A.; validation, and writing—review and editing, M.A.A.S. and J.M.; formal analysis, investigation, supervision, project administration, and funding acquisition, A.J.Y.A.; resources, and visualization. All authors have read and agreed to the published version of the manuscript.

Funding

This work is supported by university-enterprise cooperative R&D project of SZTU (grant no.20221061030001).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

All individuals included in this section have consented to the acknowledgement.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Kumar, D.; Singh, H.K.; Ahlawat, C. A secure three-factor authentication scheme for wireless sensor networks using ECC. J. Discret. Math. Sci. Cryptogr. 2020, 23, 879–900. [Google Scholar] [CrossRef]
  2. Peter, S.N.; Nyangaresi, V.O.; Ogara, S.O. Efficient Authentication Algorithm for Secure Remote Access in Wireless Sensor Networks. J. Comput. Sci. Res. 2021, 3, 43–50. [Google Scholar]
  3. Rashid, B.; Rehmani, M.H. Applications of wireless sensor networks for urban areas: A survey. J. Netw. Comput. Appl. 2016, 60, 192–219. [Google Scholar] [CrossRef]
  4. Karakaya, A.; Akleylek, S. A survey on security threats and authentication approaches in wireless sensor networks. In Proceedings of the 2018 6th International Symposium on Digital Forensic and Security (ISDFS), Antalya, Turkey, 22–25 March 2018; pp. 1–4. [Google Scholar]
  5. Wu, F.; Li, X.; Xu, L.; Vijayakumar, P.; Kumar, N. A novel three-factor authentication protocol for wireless sensor networks with IoT notion. IEEE Syst. J. 2020, 15, 1120–1129. [Google Scholar] [CrossRef]
  6. Nyangaresi, V.O. ECC Based Authentication Scheme for Smart Homes. In Proceedings of the 2021 International Symposium ELMAR, Zadar, Croatia, 13–15 September 2021; pp. 5–10. [Google Scholar]
  7. Liu, X.; Li, W.; Han, F.; Xie, Y. An optimization scheme of enhanced adaptive dynamic energy consumption based on joint network-channel coding in wsns. IEEE Sens. J. 2017, 17, 6119–6128. [Google Scholar] [CrossRef]
  8. Ali, R.; Pal, A.K.; Kumari, S.; Karuppiah, M.; Conti, M. A secure user authentication and key-agreement scheme using wireless sensor networks for agriculture monitoring. Future Gener. Comput. Syst. 2018, 84, 200–215. [Google Scholar] [CrossRef]
  9. Miranda, C.; Kaddoum, G.; Bou-Harb, E.; Garg, S.; Kaur, K. A collaborative security framework for software-defined wireless sensor networks. IEEE Trans. Inf. Forensics Secur. 2020, 15, 2602–2615. [Google Scholar] [CrossRef]
  10. Nyangaresi, V.O.; Ogundoyin, S.O. Certificate Based Authentication Scheme for Smart Homes. In Proceedings of the 2021 3rd Global Power, Energy and Communication Conference (GPECOM), Antalya, Turkey, 5–8 October 2021; pp. 202–207. [Google Scholar]
  11. Nyangaresi, V.O.; Rodrigues, A.J.; Abeka, S.O. Efficient Group Authentication Protocol for Secure 5G Enabled Vehicular Communications. In Proceedings of the 2020 16th International Computer Engineering Conference (ICENCO), Cairo, Egypt, 29–30 December 2020; pp. 25–30. [Google Scholar]
  12. Nyangaresi, V.O. Hardware Assisted Protocol for Attacks Prevention in Ad Hoc Networks. In Proceedings of the International Conference for Emerging Technologies in Computing, London, UK, 19–20 August 2021; Springer: Cham, Switzerland; pp. 3–20. [Google Scholar]
  13. Shin, S.; Kwon, T. A privacy-preserving authentication, authorization, and key agreement scheme for wireless sensor networks in 5G-integrated Internet of Things. IEEE Access 2020, 8, 67555–67571. [Google Scholar] [CrossRef]
  14. He, D.; Kumar, N.; Chen, J.; Lee, C.C.; Chilamkurti, N.; Yeo, S.S. Robust anonymous authentication protocol for health-care applications using wireless medical sensor networks. Multimed. Syst. 2015, 21, 49–60. [Google Scholar] [CrossRef]
  15. Li, X.; Niu, J.; Kumari, S.; Liao, J.; Liang, W.; Khan, M.K. A new authentication protocol for healthcare applications using wireless medical sensor networks with user anonymity. Secur. Commun. Netw. 2016, 9, 2643–2655. [Google Scholar] [CrossRef]
  16. Wu, F.; Xu, L.; Kumari, S.; Li, X. An improved and anonymous two-factor authentication protocol for health-care applications with wireless medical sensor networks. Multimed. Syst. 2017, 23, 195–205. [Google Scholar] [CrossRef]
  17. Ostad-Sharif, A.; Arshad, H.; Nikooghadam, M.; Abbasinezhad-Mood, D. Three party secure data transmission in IoT networks through design of a lightweight authenticated key agreement scheme. Future Gener. Comput. Syst. 2019, 100, 882–892. [Google Scholar] [CrossRef]
  18. Chen, Y.; Ge, Y.; Wang, Y.; Zeng, Z. An improved three-factor user authentication and key agreement scheme for wireless medical sensor networks. IEEE Access 2019, 7, 85440–85451. [Google Scholar] [CrossRef]
  19. Adavoudi-Jolfaei, A.; Ash-Talouki, M.; Aghili, S.F. Lightweight and anonymous three-factor authentication and access control scheme for real-time applications in wireless sensor networks. Peer-Peer Netw. Appl. 2019, 12, 43–59. [Google Scholar] [CrossRef]
  20. Abbasinezhad-Mood, D.; Nikooghadam, M. Efficient Anonymous Password-Authenticated Key Exchange Protocol to Read Isolated Smart Meters by Utilization of Extended Chebyshev Chaotic Maps. IEEE Trans. Ind. Inform. 2018, 14, 4815–4828. [Google Scholar] [CrossRef]
  21. Srinivas, J.; Das, A.K.; Kumar, N.; Rodrigues, J.J. Cloud Centric Authentication for Wearable Healthcare Monitoring System. IEEE Trans. Dependable Secur. Comput. 2018, 17, 942–956. [Google Scholar] [CrossRef]
  22. Wang, F.; Xu, G.; Xu, G. A Provably Secure Anonymous Biometrics- Based Authentication Scheme for Wireless Sensor Networks Using Chaotic Map. IEEE Access 2019, 7, 101596–101608. [Google Scholar] [CrossRef]
  23. Jiang, Q.; Ma, J.; Lu, X.; Tian, Y. An efficient two-factor user authentication scheme with unlinkability for wireless sensor networks. Peer-to-Peer Netw. Appl. 2015, 8, 1070–1081. [Google Scholar] [CrossRef]
  24. Wu, F.; Xu, L.; Kumari, S.; Li, X. A new and secure authentication scheme for wireless sensor networks with formal proof. Peer-to-Peer Netw. Appl. 2017, 10, 16–30. [Google Scholar] [CrossRef]
  25. Park, Y. Three-factor user authentication and key agreement using elliptic curve cryptosystem in wireless sensor networks. Sensors 2016, 16, 2123. [Google Scholar] [CrossRef]
  26. Wang, C.; Xu, G.; Sun, J. An enhanced three-factor user authentication scheme using elliptic curve cryptosystem for wireless sensor networks. Sensors 2017, 17, 2946. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  27. Maurya, A.; Sastry, V.N. Fuzzy extractor and elliptic curve based efficient user authentication protocol for wireless sensor networks and Internet of Things. Information 2017, 8, 136. [Google Scholar] [CrossRef]
  28. Das, A.K. A secure and effective biometric-based user authentication scheme for wireless sensor networks using smart card and fuzzy extractor. Int. J. Commun. Syst. 2017, 30, e2933. [Google Scholar] [CrossRef]
  29. Das, A.K. A secure and robust temporal credential-based three-factor user authentication scheme for wireless sensor networks. Peer--Peer Netw. Appl. 2016, 9, 223–244. [Google Scholar] [CrossRef]
  30. Das Kumar, A. A secure and efficient user anonymity-preserving three-factor authentication protocol for large-scale distributed wireless sensor networks. Wirel. Pers. Commun. 2015, 82, 1377–1404. [Google Scholar]
  31. Wu, F.; Xu, L.; Kumari, S.; Li, X. An improved and provably secure three-factor user authentication scheme for wireless sensor networks. Peer--Peer Netw. Appl. 2016, 11, 1–20. [Google Scholar] [CrossRef]
  32. Amin, R.; Islam, S.H.; Biswas, G.; Khan, M.K.; Leng, L.; Kumar, N. Design of an anonymity-preserving three-factor authenticated key exchange protocol for wireless sensor networks. Comput. Netw. 2016, 101, 42–62. [Google Scholar] [CrossRef]
  33. Jiang, Q.; Zeadally, S.; Ma, J.; He, D. Lightweight three-factor authentication and key agreement protocol for internet-integrated wireless sensor networks. IEEE Access 2017, 5, 3376–3392. [Google Scholar] [CrossRef]
  34. Li, X.; Niu, J.; Bhuiyan, M.Z.A.; Wu, F.; Karuppiah, M.; Kumari, S. A Robust ECC-Based Provable Secure Authentication Protocol with Privacy Preserving for Industrial Internet of Things. IEEE Trans. Ind. Inform. 2018, 14, 3599–3609. [Google Scholar] [CrossRef]
  35. Amjad, M.; Qureshi, H.K.; Lestas, M.; Mumtaz, S.; Rodrigues, J.J.P.C. Energy prediction based MAC layer optimization for harvesting enabled WSNs in smart cities. In Proceedings of the 87th IEEE Vehicular Technology Conference, Porto, Portugal, 3–6 June 2018; pp. 1–6. [Google Scholar]
  36. Murugesan, R.; Saravanan, M.; Vijyaraj, M. A node authentication clustering based security for adhoc network. In Proceedings of the 2014 6th International Symposium on Communications, Control and Signal Processing (ISCCSP), online, 21–23 May 2014; pp. 1168–1172. [Google Scholar]
  37. Zhu, C.; Leung, V.C.; Yang, L.T.; Shu, L. Collaborative location based sleep scheduling for wireless sensor networks integrated with mobile cloud computing. IEEE Trans. Comput. 2015, 64, 1844–1856. [Google Scholar] [CrossRef]
  38. Yin, C.; Zhu, Y.; Fei, J.; He, X. A deep learning approach for intrusion detection using recurrent neural networks. IEEE Access 2017, 5, 21954–21961. [Google Scholar] [CrossRef]
  39. Ma, T.; Yu, Y.; Wang, F.; Zhang, Q.; Chen, X. A hybrid methodologies for intrusion detection based deep neural network with support vector machine and clustering technique. Sensors 2016, 16, 1701. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  40. Ambusaidi, M.A.; He, X.; Nanda, P.; Tan, Z. Building an intrusion detection system using a filter-based feature selection algorithm. IEEE Trans. Comput. 2016, 65, 2986–2998. [Google Scholar] [CrossRef]
  41. Kim, J.; Kim, J.; Thu, H.L.T.; Kim, H. Long short term memory recurrent neural network classifier for intrusion detection. In Proceedings of the IEEE 2016 International Conference on Platform Technology and Service (PlatCon), Jeju, South Korea, 15–17 February 2016; pp. 1–5. [Google Scholar]
  42. Li, F.; Xiong, P. Practical secure communication for integrating wireless sensor networks into the internet of things. IEEE Sens. J. 2013, 13, 36773684. [Google Scholar] [CrossRef]
  43. Nyangaresi, V.O. Lightweight Key Agreement and Authentication Protocol for Smart Homes. In Proceedings of the 2021 IEEE AFRICON, Arusha, Tanzania, 13–15 September 2021; pp. 1–6. [Google Scholar]
  44. Chen CL, Shih TF, Tsai YT, Li DK. A bilinear pairing-based dynamic key management and authentication for wireless sensor networks. J. Sens. 2015, 2015, 1–15. [Google Scholar]
  45. Nyangaresi, V.O.; Rodrigues, A.J.; Taha, N.K. Mutual Authentication Protocol for Secure VANET Data Exchanges. In Proceedings of the International Conference on Future Access Enablers of Ubiquitous and Intelligent Infrastructures, Virtula Event, 6–7 May 2021; Springer: Cham, Switzerland; pp. 58–76. [Google Scholar]
  46. Roy, S.; Chatterjee, S.; Das, A.K.; Chattopadhyay, S.; Kumari, S.; Jo, M. Chaotic Map-Based Anonymous User Authentication Scheme with User Biometrics and Fuzzy Extractor for Crowds the proposed cing Internet of Things. IEEE Internet Things J. 2018, 5, 2884–2895. [Google Scholar] [CrossRef]
Figure 1. Network Architecture.
Figure 1. Network Architecture.
Jsan 11 00055 g001
Figure 2. System initialization and registration message flows.
Figure 2. System initialization and registration message flows.
Jsan 11 00055 g002
Figure 3. Authentication and key agreement message flows.
Figure 3. Authentication and key agreement message flows.
Jsan 11 00055 g003
Table 1. Deployed symbols.
Table 1. Deployed symbols.
SymbolDescription
ΩTATA’s private key
ƤTATA’s public key
IDOPOperator identity
SCOPOperator secret code
βOPOperator biometrics
ȒiRandom nonce
IDGGWN identity
SCGGWN secret code
ΩGGWN private key
ΨGWN temporary key
EQEncryption using Q
DQDecryption using Q
ɸSession key shared between MT and GWN
h(.)Hashing operation
||Concatenation operation
XOR operation
Table 2. Cryptographic runtimes.
Table 2. Cryptographic runtimes.
OperationSymbolRuntime (ms)
Fuzzy extractionTF63.08
EC point multiplicationTE63.08
Symmetric encryption/decryptionTED8.70
One-way hashingTH0.5
Chebyshev chaotic mapTC21.02
EC modular exponentialTEE30
CRTTCR11
Table 3. Execution time comparison.
Table 3. Execution time comparison.
SchemeOperationsRuntime (ms)
Abbasinezhad-Mood et al. [20]10TC + 1TED + 40TH238.9
Li et al. [34]1TF + 6TE + 22TH452.56
Srinivas et al. [21]1TEE +1TCR + 37TH59.5
Wang et al. [22]1TF + 6TC + 22TH200.2
Proposed1TF + 6TC + 23TH200.7
Table 4. Message sizes.
Table 4. Message sizes.
OperationSize (Bits)
Nonce128
ECC256
Symmetric encryption/decryption128
One-way hashing128
Chebyshev chaotic map128
Timestamp32
Integer factorization cryptography3072
Table 5. Communication Costs Comparison.
Table 5. Communication Costs Comparison.
Abbasinezhad-Mood et al. [20]Li et al. [34]Srinivas et al. [21]Wang et al. [22]Proposed
M17688963360544384
M2512768544416384
M3512768544416384
M4256768-288128
Total20483200444816641280
Table 6. Security features comparison.
Table 6. Security features comparison.
Abbasinezhad-Mood et al. [20]Li et al. [34]Srinivas et al. [21]Wang et al. [22]Proposed
Backward and forward key secrecyYYNYY
Secret ephemeral leakageYNYYY
Mutual authenticationYYYYY
Side channelingNYNNY
Session key agreementYYYYY
Packet replayYYYYY
MITMYYYYY
AnonymityYYYYY
Key
Y = Security feature supported
N = Security feature not supported
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Abduljabbar, Z.A.; Omollo Nyangaresi, V.; Al Sibahee, M.A.; Ghrabat, M.J.J.; Ma, J.; Qays Abduljaleel, I.; Aldarwish, A.J.Y. Session-Dependent Token-Based Payload Enciphering Scheme for Integrity Enhancements in Wireless Networks. J. Sens. Actuator Netw. 2022, 11, 55. https://doi.org/10.3390/jsan11030055

AMA Style

Abduljabbar ZA, Omollo Nyangaresi V, Al Sibahee MA, Ghrabat MJJ, Ma J, Qays Abduljaleel I, Aldarwish AJY. Session-Dependent Token-Based Payload Enciphering Scheme for Integrity Enhancements in Wireless Networks. Journal of Sensor and Actuator Networks. 2022; 11(3):55. https://doi.org/10.3390/jsan11030055

Chicago/Turabian Style

Abduljabbar, Zaid Ameen, Vincent Omollo Nyangaresi, Mustafa A. Al Sibahee, Mudhafar Jalil Jassim Ghrabat, Junchao Ma, Iman Qays Abduljaleel, and Abdulla J. Y. Aldarwish. 2022. "Session-Dependent Token-Based Payload Enciphering Scheme for Integrity Enhancements in Wireless Networks" Journal of Sensor and Actuator Networks 11, no. 3: 55. https://doi.org/10.3390/jsan11030055

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
