Review

Roles of Aquaporins in Plant-Pathogen Interaction

1
Key Laboratory of Plant Resources, Institute of Botany, Innovation Academy for Seed Design, Chinese Academy of Sciences, Beijing 100093, China
2
University of Chinese Academy of Sciences, Beijing 100049, China
*
Author to whom correspondence should be addressed.
Plants 2020, 9(9), 1134; https://doi.org/10.3390/plants9091134
Received: 31 July 2020 / Revised: 28 August 2020 / Accepted: 30 August 2020 / Published: 1 September 2020
(This article belongs to the Special Issue Plant Aquaporins)

Abstract

Aquaporins (AQPs) are a class of small, membrane channel proteins present in a wide range of organisms. In addition to water, AQPs can facilitate the efficient and selective flux of various small solutes involved in numerous essential processes across membranes. A growing body of evidence now shows that AQPs are important regulators of plant-pathogen interaction, which ultimately lead to either plant immunity or pathogen pathogenicity. In plants, AQPs can mediate H2O2 transport across plasma membranes (PMs) and contribute to the activation of plant defenses by inducing pathogen-associated molecular pattern (PAMP)-triggered immunity and systemic acquired resistance (SAR), followed by downstream defense reactions. This involves the activation of conserved mitogen-activated protein kinase (MAPK) signaling cascades, the production of callose, the activation of NPR1 and PR genes, as well as the opening and closing of stomata. On the other hand, pathogens utilize aquaporins to mediate reactive oxygen species (ROS) signaling and regulate their normal growth, development, secondary or specialized metabolite production and pathogenicity. This review focuses on the roles of AQPs in plant immunity, pathogenicity, and communications during plant-pathogen interaction.
Keywords: aquaporins; plant immunity; pathogenicity; plant-pathogen interaction aquaporins; plant immunity; pathogenicity; plant-pathogen interaction

1. Introduction

Aquaporins (AQPs) are membrane channel proteins that are primarily associated with water transport across cell membranes [1]. Water transportation is extremely important for all living cells to maintain cellular functions and normal vital activities under various conditions. Less than 30 years after the discovery in human red blood cell membranes, AQPs are now known to exist in nearly all living organisms, suggesting their essential role in physiological functions [1,2,3]. In addition to water, some AQPs can also transport small solutes (including urea, ammonium, arsenite, lactic acid, boric acid, and glycerol), micronutrients (including silicon and boron), other small molecules (reactive oxygen species, ROS), and even gas molecules (including CO2, O2 and NO), some of which may function as crucial signaling molecules during various cellular responses under stress conditions [4,5,6,7,8,9,10]. In contrast, non-transporting functions of some AQPs include cell-cell adhesion, membrane polarization, and regulation of interacting proteins, such as ion channels [1]. Compared to the functions of AQPs in symbiotic plant-microbe interaction, it has become increasingly clear that AQPs also play an important role in host-pathogen interaction. The present review focuses on the roles of AQPs in plant immunity, pathogen pathogenicity, and communications during pathogenic plant-microbe interaction.
The numbers of AQP genes vary significantly among different species [11]. Recent genomic sequencing projects have shown that AQPs are more abundant in eukaryotes as compared to prokaryotes [12]. To date, at least 35, 36, 33, 70, 47 aquaporin genes of higher plants have been identified in Arabidopsis, maize, rice, cotton, and tomato, respectively [13,14,15,16,17]. The first reported AQP in the plant was AtTIP1;1, a tonoplast intrinsic protein from Arabidopsis. Its functions have been further analyzed through expression studies in Xenopus oocytes and cell-swelling experiments in hypoosmotic media [18]. Since their discovery in the 1990′s, numerous AQPs have been identified and investigated in plants. Based on their sequence similarity and specific subcellular localization, AQPs in the plant are divided into five major subgroups, including the plasma membrane (PM) intrinsic proteins (PIPs), X intrinsic proteins (XIPs), and nodulin 26 like intrinsic proteins (NIPs) in the PM, tonoplast intrinsic proteins (TIPs) in tonoplast, and small basic intrinsic proteins (SIPs) in the endoplasmic reticulum [19,20]. Each subfamily can be further divided into different subgroups according to their specific locations and functions. For example, PIPs have been classified into two subgroups, namely, the PIP1 subfamily composed of PIP1;1 to PIP1;5 and the PIP2 subfamily composed of PIP2;1 to PIP2;8 [21]. PIPs are mainly in charge of substrate transport between the exterior and interior of cells, whereas the others function in transport between organelles [22,23]. Gene knockout studies have revealed that AQPs participate in regulating the many physiological processes in plants, including water uptake, gas exchange, nutritional elements and heavy metal acquisition, seed formation and germination, calcium, and ROS-mediated signaling and biotic and abiotic stresses responses [19,21]. Some microbes, such as bacteria, show less aquaporin diversity, typically possessing only one or two AQP genes, and the absence of such genes has not revealed any definite phenotype [1]. Moreover, AQP-deletion mutants have also been studied in Botrytis cinerea and Fusarium graminearum, respectively, suggesting that AQPs also have important roles in growth, development, secondary metabolism, and pathogenicity of fungal pathogens [5,24].
AQPs are tightly controlled through multiple mechanisms, mostly including transcriptional control of their expression and post-translational modifications to control their abundance and transport activity [25,26]. Many reports suggest that AQPs are upregulated or downregulated in plants in response to environmental cues [27,28,29]. Nevertheless, the post-translational regulation (such as phosphorylation, methylation, deamidation, and acetylation) that regulates PM delivery and the activity of PIPs is still unexplored [19,30]. These regulation mechanisms can influence the conformation of AQP monomers, their stability in PMs, and their trafficking or subcellular localization [26,31]. Phosphorylation is a common mode of post-translational modification that acts as a molecular ‘switch’ to regulate protein activity in response to various stresses. It has been proven that phosphorylation of AtPIP2;1 at multiple sites in the C-terminal occurs under salt stress conditions, leading to the switch of AtPIP2;1 from PMs to intracellular regions, reducing the hydraulic conductivity of Arabidopsis [32].

2. The Function of Aquaporins in Plant-Pathogen Interaction

Plants are constantly under attack by pathogens, including viruses, bacteria, and fungi, which leads to various diseases in economically important plants and significant economic losses [33,34]. Plant pathogens have developed efficient strategies to attack the hosts, whereas plants also employ functional innate immune systems for defenses against pathogens [35]. The PM is one of the first compartments where plant-pathogen interaction occurs, which mainly depends on the functions of membrane proteins and other biomacromolecules. Increasing evidence suggests that AQPs play key roles in plant-pathogen interaction involved in plant immunity and pathogen pathogenicity.

2.1. AQPs Regulation of Plant Immunity

To protect themselves against attack by pathogens, plants perceive conserved pathogen-associated molecular patterns (PAMPs) from various pathogens, such as bacterial flagellin, harpin or fungal chitin, which further trigger PAMP-triggered immunity (PTI) and activate various defense reactions, including the production of ROS, the activation of ion fluxes and conserved mitogen-activated protein kinase (MAPK) signaling cascades, the secretion of antimicrobial secondary metabolites, stomatal closure, and cell wall strengthening [36,37]. Pathogens can suppress PTI by delivering effector proteins into plant cells, resulting in successful infection. In turn, plants have developed another stronger and faster immunity response called effector-triggered immunity (ETI), which involves localized cell death, also termed hypersensitive response (HR) and systemic acquired resistance (SAR) in the whole plant to limit pathogen spreading [38,39].
The oxidative burst is an early defense reaction of plants to pathogen attack, leading to the generation of ROS around the infection site [40,41]. The rapid and transient generation of ROS, particularly H2O2, reflects a successful recognition of pathogen invasion, which further triggers a variety of immune responses, such as PTI and SAR, to regulate plant disease resistance [42]. The PM-localized NADPH oxidase is a main factor responsible for the PAMP-induced ROS burst in plants, which catalyzes the production of superoxide by transferring electrons from cytosolic NADPH to apoplastic oxygen, and finally, the production of H2O2 by superoxide dismutases [43]. Apoplastic H2O2 is then rapidly translocated into the cytoplasm across the PM. Recently, it has been demonstrated that AtPIP1;4, one of the PIP family members in Arabidopsis, was involved in the transport of H2O2 across the PM [44]. Meanwhile, several downstream defense reactions were observed following this process, including the activation of conserved MAPK signaling cascades by inducing the expression of MPK3, the production of callose by inducing the expression of GSL5, and the activation of NPR1 and PR genes [44] (Figure 1). In AtPIP1;4 knockout mutants, H2O2 was prevented from being transported into the cells, and high concentrations of H2O2 accumulated within apoplastic regions, leading to hypersensitivity to the pathogen. These findings indicated AtPIP1;4 in Arabidopsis links the translocation of apoplastic H2O2 to the activation of the PTI and SAR pathways in response to PAMPs. Furthermore, several other AQPs in plants, including the PIPs and TIPs, were also shown to mediate H2O2 transport across the membrane between cells [45,46]. Importantly, the structural configuration may greatly facilitate the elucidation of the functions of AQPs. A recent, excellent review has provided some details on the structural features of AQPs for regulating H2O2 transport, which may add more values to the understandings of sophisticated mechanisms involving AQPs in host-pathogen interaction [22]. In turn, H2O2 also regulates the expression, activity, and localization of specific AQPs and affects the capacity of AQPs to transport H2O2, thus contributing to H2O2-induced immune responses in plants [47,48,49].
As a part of plant innate immunity, plants have the capacity to close their stomata after the perception of PAMP to restrict pathogen invasion [50,51]. Stomatal opening and closing are precisely controlled by various endogenous and environmental stimuli [50]. It has been known that the stress hormone ABA participates in the regulation of stomatal closure [52]. AtPIP1;2 was found to facilitate the transport of water and H2O2 across the PM of guard cells to trigger ABA- and pathogen-induced stomatal closure in Arabidopsis [50]. Phosphorylation of AtPIP1;2 at Ser121 by Brassinosteroid Insensitive 1-associated Receptor Kinase 1 (BAK1) and/or Open Stomata 1 (OST1) may activate H2O2 transport activity of AtPIP1;2 in response to ABA signaling and PAMP recognition (Figure 1). These results clearly showed that AQPs were involved in the opening and closing of stomata leading to PAMP-triggered immunity.
Harpin is a PAMP elicitor secreted by the type III secretion system in pathogenic bacteria [53]. It has the ability to create pores through cell membranes by directly binding to membrane components, and thus, promoting the translocation of effector proteins into plant cells [54]. Recent results indicated that the translocator function of bacterial harpin protein Hpa1 depended on their interaction with aquaporin PIP1;3 in rice, which participated in the regulation of PthXo1 effector translocation [55] (Figure 1). Knockout or overexpression of PIP1;3 did not affect Hpa1-induced immune responses, but substantially affected the susceptibility of rice to bacterial blight pathogen [55,56]. In A. thaliana, Hpa1 also interacted with the H2O2 transport channel AtPIP1;4, which facilitated apoplastic H2O2 entry into the cytoplasm and may lead to the initiation of an immune response [22,57]. There is no evidence to indicate whether PIP1;2 participates in effector translocation that needs further investigation.
Evidence for the participation of AQPs in plant immunity has been drawn from the transcript profiling of plants infected by pathogens [29]. In addition to increased expression of defense-related genes, a decline in the expression of a number of aquaporin-encoding genes was observed in cotton [29]. In citrus plants and soybean leaves, several AQPs were also found to be differentially expressed exclusively following the pathogen infection—indicating that these genes may be involved in disease development [58,59]. Based on the above observations, further studies are required to determine whether these AQPs have a specific role in plant resistance to the pathogen. In addition, it is noteworthy that a number of other solutes or gases, such as nitric oxide and silicon, have been reported to be transported across the membrane via AQP channels. In contrast, these small molecules are involved in a variety of metabolic processes or function associated with plant immunity [4,10].

2.2. AQPs Regulation of Fungal Pathogen Pathogenicity

Plant fungal pathogens efficiently colonize the hosts to obtain the necessary nutrients for their growth and survival [33]. During the initial phases of infection, fungal pathogens regulate their growth and development tightly and develop specialized infection structures (such as appressoria, infection cushions, and hyphae) for penetrating hosts and absorbing nutrients [60]. To further colonize hosts and cause disease, fungal pathogens usually produce and secrete a number amount of extracellular virulence factors, including effectors, ROS, and toxic secondary metabolites [33,61]. Effectors can directly suppress host immunity, while toxic secondary metabolites and ROS may contribute to killing host cells.
Fungal pathogens have the capability to produce various small molecules called secondary metabolites, which have been shown to function as virulence factors in the interactions with plants [62]. Fungal pathogens secrete toxic secondary metabolite inducing programmed cell death of host cells [61]. Deoxynivalenol (DON) is an important trichothecene mycotoxin and virulence factor produced by several Fusarium spp. [63]. DON can interfere with normal cellular functions through inhibition of protein translation by binding to the ribosomes. In F. graminearum, the AQP protein FgAQP1 localized at the nuclear membrane was crucial for hyphal growth, sexual and asexual development, stress responses, and secondary metabolism [24]. The deletion of FgAQP1 significantly affected DON production and the expression of related genes, indicating that FgAQP1 may play key roles in F. graminearum-host interaction (Figure 2).
ROS are known to be involved in plant defense, but also for pathogen attack. Increasing evidence indicated that fungal pathogens could also generate ROS as signaling components, which are important for hyphal growth, development, infection structure formation, and fungal pathogenicity [64,65]. Similar to plants, the primary enzymatic ROS generating systems in fungal pathogens is the NADPH oxidase complex, and mitochondria are major sources of intracellular ROS [66,67,68]. B. cinerea is an economically important necrotrophic fungal pathogen that can cause devastating diseases, especially on fresh fruits and vegetables. An et al. identified eight AQP genes in B. cinerea, among which the only AQP8 participates in ROS production, distribution, and transport across the PM [5] (Figure 2). It has been proven that specific AQPs can regulate H2O2 membrane permeability and signaling and facilitate the transport of H2O2 across the PM in living organisms [69]. These studies indicated that AQP8 could mediate H2O2 uptake through its capacity to act as a membrane channel for H2O2, and therefore, affect the ROS signal pathway. In B. cinerea, the deletion of AQP8 obviously suppressed the expression of the noxR gene, indicating that AQP8 may affect the function of the NADPH oxidase complex and the production of ROS. In addition, the disruption of both AQP8 and noxR changed the distribution of mitochondria in B. cinerea hypha. Moreover, AQP8 disruption significantly impaired mycelial growth, conidiation, infection structures formation, and virulence. The results imply that AQP8 was indispensable for normal growth, development, and pathogenicity through their mediation of ROS signaling transduction in B. cinerea.

3. Prospects for Future Research

AQPs are membrane channel proteins that primarily transport water and small solutes across membranes in nearly all living organisms [1]. Recent studies have shown that AQPs play pivotal roles both in plant immunity and pathogen pathogenicity during plant-pathogen interaction. Although diverse classes of AQPs in plants are differentially regulated upon pathogen attack, their roles, especially the intracellular AQPs (such as TIPs, NIPs, and SIPs), in plant-pathogen interaction, are largely unknown. Apart from expression analysis, abundance, activity, gating, trafficking, and subcellular relocalization of AQPs should be further evaluated by integrating physiological, biochemical, and molecular genetic methods. Notably, plants may employ tissue- or cell type-specific AQP genes in different biological contexts, thus responding to diversified environmental conditions [70]. Further studies are still required to go into details to decipher the assembly of protein complexes and underlying mechanisms.
AQPs are tightly regulated at multiple levels in their expression, abundance, and transport activity, but the molecular mechanisms involving transcriptional, post-translational regulatory mechanisms, and molecular interactions need to be further deciphered. It may appeal to great interests to determine how AQPs are involved in endocytic activities and how effectors are simultaneously internalized with PM protein via membrane trafficking. Answers to these questions may provoke new ideas for efficiently protecting crops and controlling pathogens. Moreover, further characterization of upstream signaling events and their cross-talks also represents significant challenges for future research. Although accumulating evidence has shown that AQPs are indispensable for growth, development, and pathogenicity of pathogens, a more comprehensive understanding of the interacting partners and regulations on cellular redox homeostasis of AQPs still requires further investigation.

Author Contributions

Conceptualization, G.L., S.T.; Supervision, S.T.; Visualization, G.L.; Writing—original draft, G.L., T.C.; Writing—review and editing, T.C., Z.Z., B.L., and S.T. All authors have read and agreed to the published version of the manuscript.

Funding

We are sorry for inadvertent omission of any pertinent reference due to space limitation. This work is supported by National Natural Science Foundation of China (31930086; 31530057; 31722043; 31672210).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Verkman, A.S. Aquaporins. Curr. Biol. 2013, 23, R52–R55. [Google Scholar] [CrossRef] [PubMed]
  2. Preston, G.M.; Carroll, T.P.; Guggino, W.B.; Agre, P. Appearance of water channels in Xenopus oocytes expressing red-cell Chip28 Protein. Science 1992, 256, 385–387. [Google Scholar] [CrossRef] [PubMed]
  3. Gena, P.; Pellegrini-Calace, M.; Biasco, A.; Svelto, M.; Calamita, G. Aquaporin membrane channels: Biophysics, classification, functions, and possible biotechnological applications. Food Biophys. 2011, 6, 241–249. [Google Scholar] [CrossRef]
  4. Yusupov, M.; Razzokov, J.; Cordeiro, R.M.; Bogaerts, A. Transport of reactive oxygen and nitrogen species across aquaporin: A molecular level picture. Oxid. Med. Cell Longev. 2019, 2019, 1–11. [Google Scholar] [CrossRef]
  5. An, B.; Li, B.Q.; Li, H.; Zhang, Z.Q.; Qin, G.Z.; Tian, S.P. Aquaporin8 regulates cellular development and reactive oxygen species production, a critical component of virulence in Botrytis cinerea. New Phytol. 2016, 209, 1668–1680. [Google Scholar] [CrossRef] [PubMed]
  6. Uehlein, N.; Lovisolo, C.; Siefritz, F.; Kaldenhoff, R. The tobacco aquaporin NtAQP1 is a membrane CO2 pore with physiological functions. Nature 2003, 425, 734–737. [Google Scholar] [CrossRef]
  7. Loque, D.; Ludewig, U.; Yuan, L.X.; von Wiren, N. Tonoplast intrinsic proteins AtTIP2;1 and AtTIP2;3 facilitate NH3 transport into the vacuole. Plant Physiol. 2005, 137, 671–680. [Google Scholar] [CrossRef]
  8. Garneau, A.P.; Carpentier, G.A.; Marcoux, A.A.; Frenette-Cotton, R.; Simard, C.F.; Remus-Borel, W.; Caron, L.; Jacob-Wagner, M.; Noel, M.; Powell, J.J.; et al. Aquaporins mediate silicon transport in humans. PLoS ONE 2015, 10, e0136149. [Google Scholar] [CrossRef]
  9. Quiroga, G.; Erice, G.; Aroca, R.; Delgado-Huertas, A.; Ruiz-Lozano, J.M. Elucidating the possible involvement of maize aquaporins and arbuscular mycorrhizal symbiosis in the plant ammonium and urea transport under drought stress conditions. Plants 2020, 9, 148. [Google Scholar] [CrossRef]
  10. Ma, J.F.; Yamaji, N. Silicon uptake and accumulation in higher plants. Trends Plant Sci. 2006, 11, 392–397. [Google Scholar] [CrossRef]
  11. Madeira, A.; Moura, T.F.; Soveral, G. Detecting aquaporin function and regulation. Front. Chem. 2016, 4, 3. [Google Scholar] [CrossRef] [PubMed]
  12. Tanghe, A.; Van Dijck, P.; Thevelein, J.M. Why do microorganisms have aquaporins? Trends Microbiol. 2006, 14, 78–85. [Google Scholar] [CrossRef] [PubMed]
  13. Chaumont, F.; Barrieu, F.; Wojcik, E.; Chrispeels, M.J.; Jung, R. Aquaporins constitute a large and highly divergent protein family in maize. Plant Physiol. 2001, 125, 1206–1215. [Google Scholar] [CrossRef] [PubMed]
  14. Johanson, U.; Karlsson, M.; Johansson, I.; Gustavsson, S.; Sjovall, S.; Fraysse, L.; Weig, A.R.; Kjellbom, P. The complete set of genes encoding major intrinsic proteins in Arabidopsis provides a framework for a new nomenclature for major intrinsic proteins in plants. Plant Physiol. 2001, 126, 1358–1369. [Google Scholar] [CrossRef]
  15. Sakurai, J.; Ishikawa, F.; Yamaguchi, T.; Uemura, M.; Maeshima, M. Identification of 33 rice aquaporin genes and analysis of their expression and function. Plant Cell Physiol. 2005, 46, 1568–1577. [Google Scholar] [CrossRef]
  16. Park, W.; Scheffler, B.E.; Bauer, P.J.; Campbell, B.T. Identification of the family of aquaporin genes and their expression in upland cotton (Gossypium hirsutum L.). BMC Plant Biol. 2010, 10, 142. [Google Scholar] [CrossRef]
  17. Reuscher, S.; Akiyama, M.; Mori, C.; Aoki, K.; Shibata, D.; Shiratake, K. Genome-Wide identification and expression analysis of aquaporins in tomato. PLoS ONE 2013, 8, e79052. [Google Scholar] [CrossRef]
  18. Maurel, C.; Reizer, J.; Schroeder, J.I.; Chrispeels, M.J. The vacuolar membrane-protein γ-Tip creates water specific channels in Xenopus oocytes. EMBO J. 1993, 12, 2241–2247. [Google Scholar] [CrossRef]
  19. Srivastava, A.K.; Penna, S.; Nguyen, D.V.; Tran, L.S.P. Multifaceted roles of aquaporins as molecular conduits in plant responses to abiotic stresses. Crit. Rev. Biotechnol. 2016, 36, 389–398. [Google Scholar] [CrossRef]
  20. Ishibashi, K.; Kondo, S.; Hara, S.; Morishita, Y. The evolutionary aspects of aquaporin family. Am. J. Physiol. Integr. Comp. Physiol. 2011, 300, R566–R576. [Google Scholar] [CrossRef]
  21. Afzal, Z.; Howton, T.C.; Sun, Y.; Mukhtar, M.S. The roles of aquaporins in plant stress responses. J. Dev. Biol. 2016, 4, 9. [Google Scholar] [CrossRef] [PubMed]
  22. Zhang, L.Y.; Chen, L.; Dong, H.S. Plant aquaporins in infection by and immunity against pathogens—A critical review. Front. Plant Sci. 2019, 10, 632. [Google Scholar] [CrossRef] [PubMed]
  23. Maurel, C.; Verdoucq, L.; Luu, D.T.; Santoni, V. Plant Aquaporins: Membrane Channels with Multiple Integrated Functions. Annu. Rev. Plant Boil. 2008, 59, 595–624. [Google Scholar] [CrossRef] [PubMed]
  24. Ding, M.; Li, J.; Fan, X.; He, F.; Yu, X.; Chen, L.; Zou, S.; Liang, Y.; Yu, J. Aquaporin1 regulates development, secondary metabolism and stress responses in Fusarium graminearum. Curr. Genet. 2018, 64, 1057–1069. [Google Scholar] [CrossRef] [PubMed]
  25. Chaumont, F.; Moshelion, M.; Daniels, M.J. Regulation of plant aquaporin activity. Biol. Cell 2005, 97, 749–764. [Google Scholar] [CrossRef]
  26. Hachez, C.; Chaumont, F. Aquaporins: A family of highly regulated multifunctional channels. Adv. Exp. Med. Biol. 2010, 679, 1–17. [Google Scholar]
  27. Alexandersson, E.; Danielson, J.A.H.; Rade, J.; Moparthi, V.K.; Fontes, M.; Kjellbom, P.; Johanson, U. Transcriptional regulation of aquaporins in accessions of Arabidopsis in response to drought stress. Plant J. 2010, 61, 650–660. [Google Scholar] [CrossRef]
  28. Kawasaki, S.; Borchert, C.; Deyholos, M.; Wang, H.; Brazille, S.; Kawai, K.; Galbraith, D.; Bohnert, H.J. Gene expression profiles during the initial phase of salt stress in rice. Plant Cell 2001, 13, 889–905. [Google Scholar] [CrossRef]
  29. Dowd, C.; Wilson, I.W.; McFadden, H. Gene Expression Profile Changes in Cotton Root and Hypocotyl Tissues in Response to Infection with Fusarium oxysporum f. sp. vasinfectum. Mol. Plant-Microbe Interact. 2004, 17, 654–667. [Google Scholar] [CrossRef]
  30. Hachez, C.; Besserer, A.; Chevalier, A.S.; Chaumont, F. Insights into plant plasma membrane aquaporin trafficking. Trends Plant Sci. 2013, 18, 344–352. [Google Scholar] [CrossRef]
  31. Maurel, C.; Santoni, V.; Luu, D.T.; Wudick, M.M.; Verdoucq, L. The cellular dynamics of plant aquaporin expression and functions. Curr. Opin. Plant Biol. 2009, 12, 690–698. [Google Scholar] [CrossRef]
  32. Prak, S.; Hem, S.; Boudet, J.; Viennois, G.; Sommerer, N.; Rossignol, M.; Maurel, C.; Santoni, V. Multiple phosphorylations in the C-terminal tail of plant plasma membrane aquaporins: Role in subcellular trafficking of AtPIP2;1 in response to salt stress. Mol. Cell Proteom. 2008, 7, 1019–1030. [Google Scholar] [CrossRef] [PubMed]
  33. Tian, S.; Torres, R.; Ballester, A.-R.; Li, B.; Vilanova, L.; González-Candelas, L. Molecular aspects in pathogen-fruit interactions: Virulence and resistance. Postharvest Boil. Technol. 2016, 122, 11–21. [Google Scholar] [CrossRef]
  34. Savary, S.; Willocquet, L.; Pethybridge, S.J.; Esker, P.; McRoberts, N.; Nelson, A. The global burden of pathogens and pests on major food crops. Nat. Ecol. Evol. 2019, 3, 430–439. [Google Scholar] [CrossRef] [PubMed]
  35. Delaunois, B.; Jeandet, P.; Clement, C.; Baillieul, F.; Dorey, S.; Cordelier, S. Uncovering plant-pathogen crosstalk through apoplastic proteomic studies. Front. Plant Sci. 2014, 5, 249. [Google Scholar] [CrossRef]
  36. Jones, J.D.G.; Dangl, J.L. The plant immune system. Nature 2006, 444, 323–329. [Google Scholar] [CrossRef]
  37. Hematy, K.; Cherk, C.; Somerville, S. Host-pathogen warfare at the plant cell wall. Curr. Opin. Plant Biol. 2009, 12, 406–413. [Google Scholar] [CrossRef]
  38. Dodds, P.N.; Rathjen, J.P. Plant immunity: Towards an integrated view of plant-pathogen interactions. Nat. Rev. Genet. 2010, 11, 539–548. [Google Scholar] [CrossRef]
  39. Fu, Z.Q.; Dong, X.N. Systemic acquired resistance: Turning local infection into global defense. Annu. Rev. Plant Biol. 2013, 64, 839–863. [Google Scholar] [CrossRef]
  40. Pitzschke, A.; Forzani, C.; Hirt, H. Reactive oxygen species signaling in plants. Antioxid Redox Sign. 2006, 8, 1757–1764. [Google Scholar] [CrossRef]
  41. Wang, Y.; Ji, D.C.; Chen, T.; Li, B.Q.; Zhang, Z.Q.; Qin, G.Z.; Tian, S.P. Production, signaling, and scavenging mechanisms of reactive oxygen species in fruit-pathogen interactions. Int. J. Mol. Sci. 2019, 20, 2994. [Google Scholar] [CrossRef] [PubMed]
  42. Torres, M.-A. ROS in biotic interactions. Physiol. Plant 2010, 138, 414–429. [Google Scholar] [CrossRef] [PubMed]
  43. Liu, Y.; He, C. Regulation of plant reactive oxygen species (ROS) in stress responses: Learning from AtRBOHD. Plant Cell Rep. 2016, 35, 995–1007. [Google Scholar] [CrossRef] [PubMed]
  44. Tian, S.; Wang, X.B.; Li, P.; Wang, H.; Ji, H.T.; Xie, J.Y.; Qiu, Q.L.; Shen, D.; Dong, H.S. Plant aquaporin AtPIP1;4 links apoplastic H2O2 induction to disease immunity pathways. Plant Physiol. 2016, 171, 1635–1650. [Google Scholar] [CrossRef]
  45. Dynowski, M.; Schaaf, G.; Loque, D.; Moran, O.; Ludewig, U. Plant plasma membrane water channels conduct the signalling molecule H2O2. Biochem. J. 2008, 414, 53–61. [Google Scholar] [CrossRef]
  46. Maurel, C.; Boursiac, Y.; Luu, D.T.; Santoni, V.; Shahzad, Z.; Verdoucq, L. Aquaporins in plants. Physiol. Rev. 2015, 95, 1321–1358. [Google Scholar] [CrossRef]
  47. Hooijmaijers, C.; Rhee, J.Y.; Kwak, K.J.; Chung, G.C.; Horie, T.; Katsuhara, M.; Kang, H. Hydrogen peroxide permeability of plasma membrane aquaporins of Arabidopsis thaliana. J. Plant Res. 2011, 125, 147–153. [Google Scholar] [CrossRef]
  48. Ye, Q.; Holbrook, N.M.; Zwieniecki, M.A. Cell-to-cell pathway dominates xylem-epidermis hydraulic connection in Tradescantia fluminensis (Vell. Conc.) leaves. Planta 2008, 227, 1311–1319. [Google Scholar] [CrossRef]
  49. Van Wilder, V.; Miecielica, U.; Degand, H.; Derua, R.; Waelkens, E.; Chaumont, F. Maize plasma membrane aquaporins belonging to the PIP1 and PIP2 subgroups are in vivo phosphorylated. Plant Cell Physiol. 2008, 49, 1364–1377. [Google Scholar] [CrossRef]
  50. Rodrigues, O.; Reshetnyak, G.; Grondin, A.; Saijo, Y.; Leonhardt, N.; Maurel, C.; Verdoucq, L. Aquaporins facilitate hydrogen peroxide entry into guard cells to mediate ABA-and pathogen-triggered stomatal closure. Proc. Natl. Acad. Sci. USA 2017, 114, 9200–9205. [Google Scholar] [CrossRef]
  51. Melotto, M.; Underwood, W.; Koczan, J.; Nomura, K.; He, S.Y. Plant stomata function in innate immunity against bacterial invasion. Cell 2006, 126, 969–980. [Google Scholar] [CrossRef]
  52. Kim, T.-H.; Böhmer, M.; Hu, H.; Nishimura, N.; Schroeder, J. Guard cell signal transduction network: Advances in understanding abscisic acid, CO2, and Ca2+ signaling. Annu. Rev. Plant Boil. 2010, 61, 561–591. [Google Scholar] [CrossRef]
  53. Wei, Z.M.; Beer, S.V. HrpI of Erwinia amylovora functions in secretion of harpin and is a member of a new protein family. J. Bacteriol. 1993, 175, 7958–7967. [Google Scholar] [CrossRef]
  54. Choi, M.-S.; Kim, W.; Lee, C.; Oh, C.-S. Harpins, Multifunctional Proteins Secreted by Gram-Negative Plant-Pathogenic Bacteria. Mol. Plant-Microbe Interact. 2013, 26, 1115–1122. [Google Scholar] [CrossRef]
  55. Li, P.; Zhang, L.Y.; Mo, X.Y.; Ji, H.T.; Bian, H.J.; Hu, Y.Q.; Majid, T.; Long, J.Y.; Pang, H.; Tao, Y.; et al. Rice aquaporin PIP1;3 and harpin Hpa1 of bacterial blight pathogen cooperate in a type III effector translocation. J. Exp. Bot. 2019, 70, 3057–3073. [Google Scholar] [CrossRef]
  56. Zhang, L.Y.; Hu, Y.Q.; Li, P.; Wang, X.B.; Dong, H.S. Silencing of an aquaporin gene diminishes bacterial blight disease in rice. Aust. Plant Pathol. 2018, 48, 143–158. [Google Scholar] [CrossRef]
  57. Li, L.; Wang, H.; Gago, J.; Cui, H.; Qian, Z.; Kodama, N.; Ji, H.; Tian, S.; Shen, D.; Chen, Y.; et al. Harpin Hpa1 Interacts with Aquaporin PIP1;4 to Promote the Substrate Transport and Photosynthesis in Arabidopsis. Sci. Rep. 2015, 5, 17207. [Google Scholar] [CrossRef]
  58. Aritua, V.; Achor, D.; Gmitter, F.G.; Albrigo, G.; Wang, N. Transcriptional and microscopic analyses of citrus stem and root responses to Candidatus Liberibacter asiaticus infection. PLoS ONE 2013, 8, e73742. [Google Scholar] [CrossRef]
  59. Zou, J.; Rodriguez-Zas, S.; Aldea, M.; Li, M.; Zhu, J.; Gonzalez, D.O.; Vodkin, L.O.; DeLucia, E.; Clough, S.J. Expression Profiling Soybean Response to Pseudomonas syringae Reveals New Defense-Related Genes and Rapid HR-Specific Downregulation of Photosynthesis. Mol. Plant-Microbe Interact. 2005, 18, 1161–1174. [Google Scholar] [CrossRef]
  60. Doehlemann, G.; Okmen, B.; Zhu, W.J.; Sharon, A. Plant pathogenic fungi. Microbiol. Spectr. 2017, 5, 701–726. [Google Scholar]
  61. Howlett, B.J. Secondary metabolite toxins and nutrition of plant pathogenic fungi. Curr. Opin. Plant Boil. 2006, 9, 371–375. [Google Scholar] [CrossRef] [PubMed]
  62. Macheleidt, J.; Mattern, D.J.; Fischer, J.; Netzker, T.; Weber, J.; Schroeckh, V.; Valiante, V.; Brakhage, A.A. Regulation and Role of Fungal Secondary Metabolites. Annu. Rev. Genet. 2016, 50, 371–392. [Google Scholar] [CrossRef]
  63. Van De Walle, J.; Sergent, T.; Piront, N.; Toussaint, O.; Schneider, Y.-J.; Larondelle, Y. Deoxynivalenol affects in vitro intestinal epithelial cell barrier integrity through inhibition of protein synthesis. Toxicol. Appl. Pharmacol. 2010, 245, 291–298. [Google Scholar] [CrossRef] [PubMed]
  64. Tian, S.; Qin, G.; Li, B. Reactive oxygen species involved in regulating fruit senescence and fungal pathogenicity. Plant Mol. Boil. 2013, 82, 593–602. [Google Scholar] [CrossRef]
  65. Tudzynski, P.; Heller, J.; Siegmund, U. Reactive oxygen species generation in fungal development and pathogenesis. Curr. Opin. Microbiol. 2012, 15, 653–659. [Google Scholar] [CrossRef]
  66. Heller, J.; Tudzynski, P. Reactive oxygen species in phytopathogenic fungi: Signaling, development, and disease. Annu. Rev. Phytopathol. 2011, 49, 369–390. [Google Scholar] [CrossRef]
  67. Li, H.; Tian, S.; Qin, G. NADPH Oxidase Is Crucial for the Cellular Redox Homeostasis in Fungal Pathogen Botrytis cinerea. Mol. Plant-Microbe Interact. 2019, 32, 1508–1516. [Google Scholar] [CrossRef]
  68. An, B.; Li, B.; Qin, G.; Tian, S. Function of small GTPase Rho3 in regulating growth, conidiation and virulence of Botrytis cinerea. Fungal Genet. Boil. 2015, 75, 46–55. [Google Scholar] [CrossRef]
  69. Bienert, G.P.; Chaumont, F. Aquaporin-facilitated transmembrane diffusion of hydrogen peroxide. Biochim. Biophys. Acta Gen. Subj. 2014, 1840, 1596–1604. [Google Scholar] [CrossRef]
  70. Li, X.; Wang, X.; Yang, Y.; Li, R.; He, Q.; Fang, X.; Luu, D.T.; Maurel, C.; Lin, J. Single-Molecule Analysis of PIP2;1 Dynamics and Partitioning Reveals Multiple Modes of Arabidopsis Plasma Membrane Aquaporin Regulation. Plant Cell 2011, 23, 3780–3797. [Google Scholar] [CrossRef]

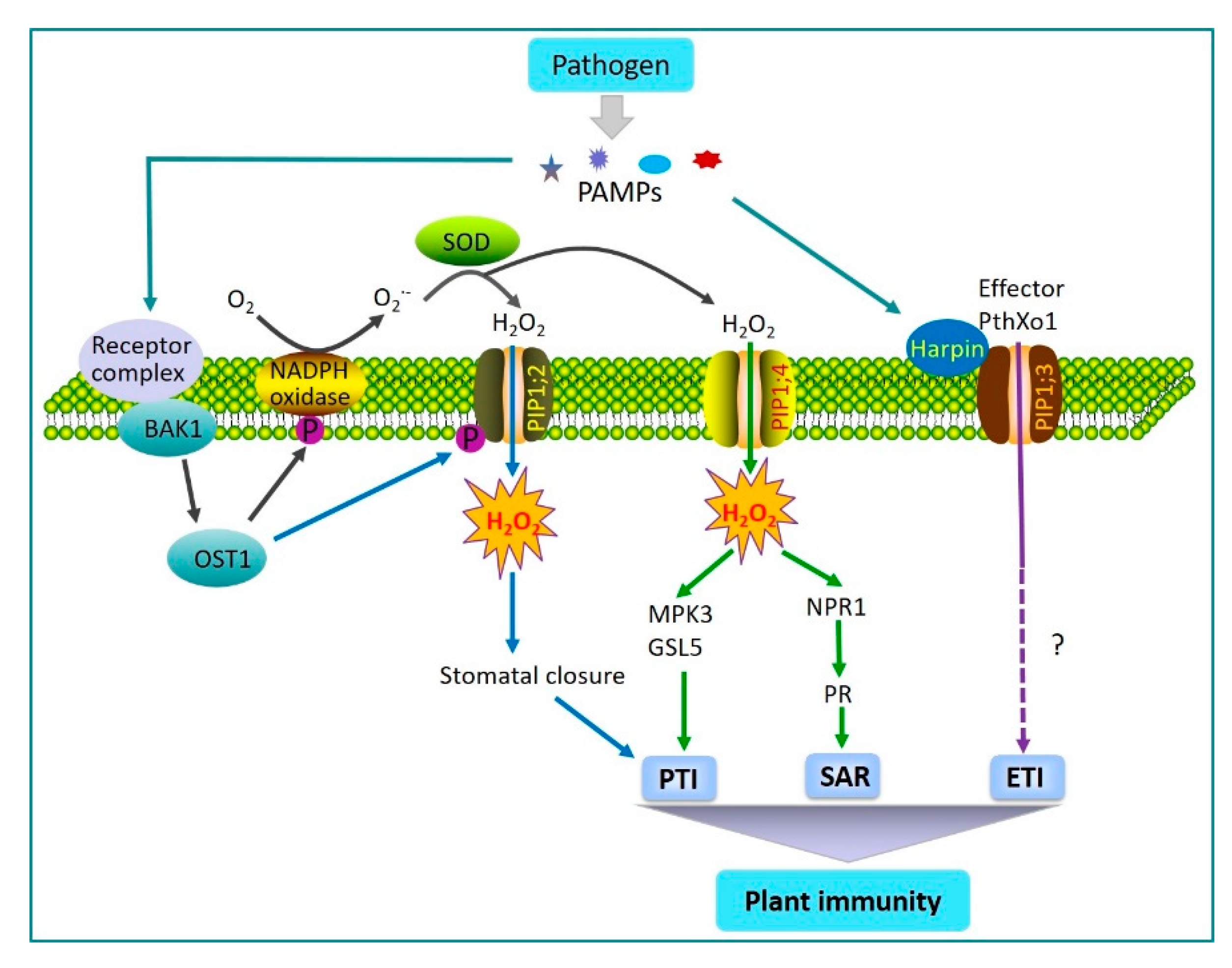

Figure 1. A working model for the involvement of aquaporins in mediating plant immunity. The perception of pathogen-associated molecular patterns (PAMPs) leads to the activation of the immune receptor complex. Brassinosteroid insensitive 1-associated receptor kinase 1 (BAK1) and open stomata 1 (OST1) may further activate membrane-localized NADPH oxidase and PIP1;2. Phosphorylation at Ser121 in PIP1;2 by BAK1 and/or OST1 activates the H2O2 transport activity of PIP1;2, further inducing stomatal closure and leading to PAMP-triggered immunity (PTI). Alternatively, PIP1;4 is also involved in the transport of apoplastic H2O2 into the cytoplasm, further orchestrated by SAR or PTI, to counteract pathogen invasion. In addition, PIP1;3 directly interacts with harpin Hpa1 at the PM to mediate the translocation of the effector PthXo1 into host cells.
Figure 1. A working model for the involvement of aquaporins in mediating plant immunity. The perception of pathogen-associated molecular patterns (PAMPs) leads to the activation of the immune receptor complex. Brassinosteroid insensitive 1-associated receptor kinase 1 (BAK1) and open stomata 1 (OST1) may further activate membrane-localized NADPH oxidase and PIP1;2. Phosphorylation at Ser121 in PIP1;2 by BAK1 and/or OST1 activates the H2O2 transport activity of PIP1;2, further inducing stomatal closure and leading to PAMP-triggered immunity (PTI). Alternatively, PIP1;4 is also involved in the transport of apoplastic H2O2 into the cytoplasm, further orchestrated by SAR or PTI, to counteract pathogen invasion. In addition, PIP1;3 directly interacts with harpin Hpa1 at the PM to mediate the translocation of the effector PthXo1 into host cells.
Plants 09 01134 g001
Figure 2. A working model for the involvement of aquaporins in modulating pathogen pathogenicity. As important second messengers, ROS are generally produced in mitochondria or at PM, in which NADPH oxidase (Nox) complexes have crucial functions. Aquaporin8 (AQP8) is involved in ROS production by influencing noxR expression, mitochondrial distribution, and H2O2 transport across membranes. Consequently, ROS-mediated signaling is activated and functions in regulating the growth, development, and pathogenicity of pathogens. In addition, AQP1 is localized to the nuclear membrane and plays an important role in hyphal growth, sexual and asexual development, stress responses, and secondary metabolism.
Figure 2. A working model for the involvement of aquaporins in modulating pathogen pathogenicity. As important second messengers, ROS are generally produced in mitochondria or at PM, in which NADPH oxidase (Nox) complexes have crucial functions. Aquaporin8 (AQP8) is involved in ROS production by influencing noxR expression, mitochondrial distribution, and H2O2 transport across membranes. Consequently, ROS-mediated signaling is activated and functions in regulating the growth, development, and pathogenicity of pathogens. In addition, AQP1 is localized to the nuclear membrane and plays an important role in hyphal growth, sexual and asexual development, stress responses, and secondary metabolism.
Plants 09 01134 g002
