Article

Genome-Wide Association Analysis Identifies Candidate Genes Regulating Seed Number per Silique in Arabidopsis thaliana

by
Huan-Li Jiang
1,†,
Jun Hong
1,†,
Yu-Tong Jiang
1,
Shi-Xia Yu
1,
Yan-Jie Zhang
1,
Jian-Xin Shi
1 and
Wen-Hui Lin
1,2,*
1
School of Life Sciences and Biotechnology, The Joint International Research Laboratory of Metabolic & Developmental Sciences, Shanghai Jiao Tong University, Shanghai 200240, China
2
Joint Center for Single Cell Biology, Shanghai Jiao Tong University, Shanghai 200240, China
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Plants 2020, 9(5), 585; https://doi.org/10.3390/plants9050585
Submission received: 20 March 2020 / Revised: 10 April 2020 / Accepted: 15 April 2020 / Published: 2 May 2020
(This article belongs to the Special Issue Genomewide SNP Identification and Use for Resolving Population Structure and GWAS of Traits of Interest)
Browse Figures
Versions Notes

Abstract

:
Seed weight and number ultimately determine seed yield. Arabidopsis seed number comprised of silique number and seed number per silique (SNS). Comparing seed development and weight, determinants of seed number remain largely uncharacterized. In this study, taking advantage of 107 available Arabidopsis accessions, genome-wide association analysis (GWAS) was employed to identify the candidate genes regulating SNS. GWAS-based genotype and phenotype association analysis identified 38 most significant SNPs marker sites that were mapped to specific chromosomal positions and allowed us to screen for dozens of candidate genes. One of them (PIN3) was selected for functional validation based on gene expression analysis. It is a positive regulator of Arabidopsis SNS. Although silique length of PIN3 loss of function mutant was not significantly changed, its SNS and seed density (SD) were significantly reduced as compared with the wild type. Notably, PIN3 overexpression lines driven by a placenta-specific promoter STK exhibited significantly shorter siliques, slightly reduced SNS, but significant increased SD compared with wild type, suggesting that PIN3 positively regulates SD through inducing ovule primordia initiation regardless of the placenta size. Ovule initiation determines the maximal possibility of SNS, and new genes and mechanism regulating SNS through modulating ovule initiation is worth further investigated.

1. Introduction

Seeds are reproductive organs of gymnosperms and angiosperms plants, and are also the main harvest in agricultural crops [1]. Seed yield is a key trait that directly determines crop yield, and increasing seed quantity is an effective way to increase crop yield [2]. Compared with the investigation of seed development and seed weight, the regulatory mechanism of seed quantity has not been systematically studied, especially for dicotyledon crops. Rapeseed and soybean are important dicotyledonous crops, and their harvesting organs are all seeds. Increasing fruit number and the number of seeds of single fruit (siliques and pods) are two ways to increase the total number of rapeseed and soybean seeds [3]. Arabidopsis thaliana, a model plant of the Brassicaceae family, is a good material for studying the regulatory mechanism of dicotyledonous seed numbers, in which the seed number is determined by both seed number per silique (SNS) and the silique number [4].
Silique number is determined by fertilized flower number, and the seed number produced by each flower is determined by many factors. Factors, such as floral organ development, ovule identity, ovule primordia initiation, male gametophyte and female gametophyte development, double fertilization, and zygotic development all affect the final SNS, and each of these processes is regulated by different genes and signaling pathways [5,6,7,8,9,10,11,12]. The maximum possibility of SNS depends on ovule number, while the maximum possibility of ovule number depends on the ovule identity and ovule primordia initiation. It is well-known that ovule initiation is regulated by genes regulating floral organ development [13,14,15], hormone signals [16,17,18], and environmental factors [19,20].
The ABC model of Arabidopsis flower organ development [21,22] suggested that the normal differentiation of flower organs is regulated by three types of genes: A, B, and C, and they act on adjacent two rounds of flower organs antagonistically [5]. Further investigations have modified the ABC model to the ABCDE model [6]. Functions of Class D genes and class C genes partially overlap, jointly regulating the ovule development; these genes include SEEDSTICK (STK), SHATTERPROOF 1 (SHP1), and SHP2 [23,24]. STK is specifically expressed in the placenta and ovules even before ovule primordium initiation [25,26], the marker line pSTK::GUS constructed with the STK promoter can specifically indicate ovule primordia initiation and ovule development. Class E genes act as a protein backbone to assist other types of genes in functioning and affect the development of all floral organs [27,28,29,30].
The abnormal development of floral organs, ovules, male and female gametes, will affect the fertilization and zygote development and lead to a reduction in SNS. There are two different ways for increasing SNS, one is keeping the normal process of development and preventing abortion of ovule and seed; the other is increasing ovule initiation to maximize the possible SNS. The latter one could increase SNS absolutely if the developmental process were normal. In Arabidopsis, the ovule initiates from placenta that developed from carpel margin meristem (CMM). The subepidermal tissue of the placenta undergoes anticlinal division to form ovule primordia. A relatively homogeneous cell population then forms three different regions of the ovule along the paraxial-distal axis in order: the ovule, the junction, and the nucleus [31,32]. Several negative regulators of this process have been reported. For example, ovule number is reduced in seu mutants [14] and the pistils of the ant seu bipod are cracked and no ovule primordia are formed [15], indicating that pistil development and CMM production and maintenance are prerequisites for ovule formation. The process of ovule primordia initiation is affected by the above-mentioned class D genes (such as STK, SHP1, and SHP2) [25,26], plant hormones (such as auxin, cytokinin and brassinosteroids), and some transcription factors (for example ANT, HLL, and AP2) [33,34,35,36,37].
Previous studies have shown that the initiation and number of ovule primordia are greatly affected by the size of the placenta. The flowers and placentae of the ckx3 ckx5 double mutants are larger than those of wild type, so is ovule number, indicating a possible positive correlation between placenta size and ovule number [16]. In addition, BR signaling pathway is involved in SNS regulation in Arabidopsis. In the bzr1-1D mutant, a higher SNS is accompanied with a higher level of non-phosphorylated BZR1. However, although the placenta of the bzr1-1D is also increased, it does not apply enough space for increased ovule, resulting in more seeds in crowded ovules [3]. This result indicated putative new mechanisms beyond the placenta space-mediated ovule initiation, which is rarely studied at present. Finding genes that enhance ovule initiation without being restricted by placental size is of great significance for increasing SNS, total seed quantity, and total seed yield.
Here we present our results in the identification of loci associated with SNS through a genome-wide association analysis (GWAS) using 107 Arabidopsis ecotypes from different geographic locations. Combined with further genetic analysis, we found that PIN3 is involved in the positive regulation of ovule primordia initiation. PIN3, together with other genes discovered in this study, provides genetic resources for the breeding of high-yield crops in agricultural production.

2. Results

2.1. Seed Number Per Silique Vary Significantly Among Arabidopsis Accessions

To identify new genes that regulate seed yield in Arabidopsis, we recorded yield relevant phenotypes including silique length, silique number, seed number per silique (SNS), and seed density (SD) in 260 natural accessions of Arabidopsis germplasm with different genetic backgrounds and geographical origins provided by Nottingham Arabidopsis Stock Centre (NASC) [38] (Table S1). Our preliminary results revealed that SNS phenotype was worthy further investigations. Thus, to ensure the accuracy of the data, 153 accessions with delayed flowering, poor growth, and reduced plant vegetative organs were removed. In the remaining 107 accessions, only five well-developed siliques were collected from the 6th to 12th siliques in the main inflorescence axis of each plant used for statistical analysis. Our statistical data revealed that these tested Arabidopsis accessions showed significant variations in SNS when grown under the same condition (Figure 1A). In summary, for all 107 accessions, the SNS exhibited a wide range of 15 to 69, with a mean value of 49. Obvious natural variations in silique length, silique numbers, and SD were also observed (Figure 1B). Notably, SNS was not likely related to their origin locations of those 107 Arabidopsis accessions (Figure 1C).

2.2. 38 SNP-SNS Associations Indentified in GWAS

In order to identify genetic mechanisms underlying the observed natural variation in SNS, GWAS was used to correlate phenotype and genotype using single nucleotide polymorphisms (SNP) data obtained from public databases [39,40]. GWAS were performed for each SNP using a linear mixed model and the results were analyzed using FaST-LMM [41]. Manhatten and Q-Q plots of GWAS result are illustrated in Figure 2A,C. A significance cutoff p-values < 4.7 × 10−6 (1/number of markers) detected totally 38 significant SNPs, which were mapped to specific chromosomal positions to screen for dozens of possible candidate genes (Table S2). According to gene expression data from the TAIR database [42], we selected a plausible candidate gene among 38 SNP-trait associations, located besides the most significant GWAS signal in each local region and are highly expressed in flowers and pistils, for further verification (Figure 2B).

2.3. PIN3 Is a Positive Regulator of SNS

Among the three putative candidate genes that regulate SNS in Arabidopsis, PIN3 stood out as a priority for further study mainly because of its multiple functions in auxin transport mediated growth and development in plants [43,44]. The in silica data of PIN3 (Figure S1) [45] implied a putative role for PIN3 in silique development.
To investigate further the function of the PIN3 gene in SNS, we searched the SALK homozygous T-DNA insertion mutant library [46] and obtained two homozygous T-DNA insertion lines: SALK_113246 and SALK_126753. The molecular characterization of these two T-DNA mutants at both DNA (Figure 3A,B) and mRNA levels (Figure 3C) verified their homozygous status, in which the expression of PIN3 gene in both mutants was significantly reduced as compared to wild-type Col-0 (Figure 3C). Therefore, these two mutants were named as pin3-1 and pin3-2, respectively. Silique length in pin3-1 and pin3-2 mutants did not differ significantly from that of wild type (Figure 4A), however, SNS in both mutants were significantly lower than that of wild type (Figure 4B). In addition, SDs of the two mutants were also significantly lower than that of wild type, as evidenced by looser and sparser seed arrangement inside the siliques (Figure 4C,D).
We also complemented pin3-1 or pin3-2 with a pPIN3::PIN3-GFP construct, and the positive transgenic plants with pin3-1 background (PIN3-Com, Figure 3C) rescued the SNS and SD phenotypes in pin3-1 or pin3-2 (Figure 4B–D). The genetic complementation result indicated that PIN3 acts as a positive regulator of SNS and SD in Arabidopsis.

2.4. Overexpression of PIN3 Increases SNS

Because PIN3 is an auxin polar transporter, the ectopic overexpression of PIN3 might induce a constitutive response. To detect the specific regulation of PIN3 in SNS, we transformed Col-0 plants with a PIN3-GUS fusion construct driven by the placental-specific promoter STK. Interestingly, siliques in positive overexpression lines (PIN3-OX, Figure 3C) were shorter than those of Col-0 wild type (Figure 4C). Although PIN3 overexpression lines exhibited a reduction in the average SNS due to different degrees of abortion (Figure 4D), the overexpression of PIN3 significantly increased the SD in fully fertilized siliques. Even in siliques with aborted seeds, the SD ratio (of the total number of both aborted and fertile seeds to the length of silique) in PIN3 overexpression was higher than that of wild type (Figure 4C,D). Furthermore, although silique length was shortened because of unknown reasons, SNS was not decreased proportionally. Importantly, SD in these overexpression mutants increased significantly (Figure 4D).

3. Discussion

Seed number and seed weight (Thousand Grain Weight, TGW) is reported to be negatively correlated with seed number in many crops because of limited space and nutrition [47,48], and both seed weight and number contribute to seed yield. Currently there are also reports showing that the seed number and weight are not absolutely negatively correlated [2,3,16], suggesting that increased seed number would be a new way to enhance seed yield if seed weight would not be significantly decreased.
As we mentioned above, the development of Arabidopsis floral organs, ovules, male and female gametes, will affect the fertilization and zygote development. The abnormality in these processes will lead to reduced SNS through adversely influencing fertility and seed set. Previous studies reveal genes negatively regulating SNS through decreasing seed fertility and seed set, including those involved in female gametophyte development [49,50]. Female gametophyte is formed in the nucleus, and the process from macrospore mother cells and functional macrospores to seven-cell and eight-nucleus mature embryo sacs is a continuous process that is generally divided into seven periods of FG1 to FG7 [51,52] with different regulatory genes at each period. For example, development of female gametophytes in the double mutant of rhf1a rhf2a stops at the FG1 stage [53]; the development of embryo sac in prl mutants stops at the tetranuclear (FG4) stage [54]; and the development of the embryo sac in nomega mutants stays in the binuclear (FG2) stage [55,56]. Male gamete development also affects SNS in Arabidopsis, which includes two processes: microsporogenesis and male gametogenesis. After mature pollen grains are formed, the male and female gametes complete fertilization in the embryo sac after a process of sperm delivery. These processes are jointly regulated by different genes [57,58,59]. Any abnormality of these genes may indirectly affect SNS finally. Overexpression of genes regulating fertility and seed set does not increase SNS because they do not enhance the ovule initiation and ovule number. Although GWAS analysis of ovule number identified NERD, which positively regulates ovule number and SNS, it still regulated ovule number through helping ovule development and fertility [60]. However, only a few genes were reported to positively regulate SNS mainly through increasing ovule number by elongating placenta size [16].
In this study, we used phenotypes of SNS, in a population of natural accessions of Arabidopsis for GWAS analysis. To ensure the accuracy of the data, 153 accessions with delayed flowering, poor growth, and reduced plant vegetative organs were removed and only 107 accessions were further investigated. We identified 38 potential causal loci/genes for SNS regulation. Among the dozens of the genes screened by GWAS, one is AGM (ABNORMAL GAMETOPHYTES) (Table S2), a known gene that is involved in the regulation of seed set and SNS [61], indicating that additional candidate genes identified through GWAS are likewise involved in SNS regulation.
Here we presented one of the examples, which is not connected to SNS in previous research. One SNP that was located at 26745404 in chromosome 1 with a significant association with SNS in At1g70940, which is also known as PIN3, encodes a regulator of auxin efflux. Interestingly, auxin transport has been implied to be associated with ovule development in many plant species such as cucumber, cotton, and rice [18,62,63,64]. In Arabidopsis, cytokinin also regulates ovule development through its regulation of PIN1 and PIN3, leading to altered auxin distribution. PIN3 is reported to be involved in medial tissue development, and its function can be partially complemented by PIN1 or PIN7 [65,66]. Thus, PIN3, identified by our GWAS study established a potential connection between variation of auxin distribution and ovule initiation in Arabidopsis natural accessions.
The functional characterization of PIN3 through loss-of-function mutant illustrated that it could play an essential role in SD because there were less seed in mutant silique although the silique length and placenta size have no significant difference between mutant and wild type. The more sparse alignment of seeds in pin3 siliques indicated the reduced SD in the mutant, which prompted us to investigate whether overexpression of PIN3 enhances SD. Because PIN3 is an important auxin polar transporter, the ectopic expression of PIN3 possibly led to abnormal growth and development, thus, we used a placenta-specific promoter to overexpress PIN3 in placenta. qRT-PCR results illustrated that the expression level of PIN3 in PIN3-Com (using native promoter) was higher than Col-0, but PIN3-Com did not have phenotype of higher seed density (SD). According to the prediction (Figure S1) and previous publication, PIN3 showed low expression in placenta (Friml et al. 2002; Ceccato et al. 2013; Chen et al. 2015), indicating that PIN3 increased SD only if it is overexpressed in placenta [66,67,68]. Although both silique length and SNS were reduced, SD ratio was significantly higher in overexpression lines than in wild type, indicating that specifically overexpression of PIN3 in placenta increases seed number per unit of silique length. In addition, although aborted seeds were observed in some PIN3 overexpression siliques, there was no significant difference in silique length between siliques with lower or higher abortion ratio, indicating the observed silique length reduction in PIN3 overexpression lines is not the consequence of seed abortion. Taken together, these results indicated that PIN3 positive regulates ovule initiation and ovule number without increasing placenta size.
There are two ways to increase SNS in Arabidopsis. One is to increase silique length and the other to increase SD by promoting ovule initiation and ovule number. Compared with increasing the silique length, increasing SD is worth more investigation. Previous studies identified many genes, such as BZR1, CKX3 and CKX5, that regulate SNS through their functions on silique length and ovule initiation [3,16]. Different from those genes, PIN3 regulates SNS through increasing SD by promoting ovule initiation without increasing placenta size. The shortened silique could be the consequence of altered auxin distribution in the placenta tissue in these mutants caused for altered PIN3 activity. Although pSTK-PIN3 caused problems of shortened placenta and aborted seed setting by unknown reasons, the functional study of PIN3 in this study revealed a potential new regulatory mechanism for increasing ovule initiation and SNS, which is worth further investigation through a systematic approach.

4. Materials and Methods

4.1. Plant Material and Growth Conditions

The 107 Arabidopsis thaliana accessions used in this study were kindly shared from the Chao laboratory [69], and the relevant information is listed in Table S1. Arabidopsis T-DNA insertion mutants pin3-1 (SALK_113246) and pin3-2 (SALK_126753) were ordered from the SALK Institute (Salk Institute for Biological Studies). We used the Col ecotype as a wild-type control for the above mutants.
Many of the Arabidopsis accessions require vernalization for flowering [70], so we chose to vernalize all different Arabidopsis ecotypes in this study for 3–28 days at 4 °C. After vernalization, they were grown in a light incubator (constant temperature 22 °C, light 16 h, dark 8 h). T-DNA insertion mutants and Col seeds were sterilized, plated on 1/2 MS medium, vernalized for 2–3 days, and transferred to the above-mentioned light incubator for cultivation. After one week, the seedlings were transplanted into the soil (22 °C greenhouse, 16 h light, 8 h dark). The seeds of the transgenic lines were sterilized and seeded on 1/2 MS medium containing 20 mg /L hygromycin to screen transgenic seedlings, which were then transplanted into soil and grown under the above-mentioned long-day conditions.

4.2. Phenotypic Analysis of Seed Number

In order to count the average silique number of 107 Arabidopsis ecotypes, we adopt a more convenient statistical method. Three plants of each ecotype were taken. After the siliques matured, the first five incompletely developed siliques of the main inflorescence axis of the Arabidopsis thaliana were removed. Five siliques were counted. The mature seeds were tiled on A4 paper, photographed with a digital camera (Canon 600D), and counted using ImageJ software. In the calculation of seed density, the above method was still used to obtain the material. The length of the caryopsis was measured with ImageJ software, and then the carpel wall was removed with a dissecting needle. The total number of seeds (including unfertilized and aborted ones) was measured with the aid of a stereo microscope (Leica DFC290).

4.3. Genome-Wide Association Study

The average trait value for each accession was used for the GWAS in this study. 214,051 single nucleotide polymorphisms (SNPs) from 107 accessions were obtained from the 1001 Genomes Project website for Arabidopsis thaliana. A GWAS was conducted using a mixed linear model method in Fast-LMM software using the default parameters. The population structure was controlled using the relatedness matrix generated from Fast-LMM. The P-values < 4.7 × 10−6 (1/number of markers) were considered significant.

4.4. Vector Construction and Transformation Processes of Overexpression and Complementation Lines

The STK promoter sequence was amplified using primer pairs STK XBal-F’/R’ together with KOD high-fidelity DNA polymerase (TOYOBO). Candidate genes PIN3 sequences: Using the inflorescence cDNA as a template, using primer pairs PIN3- F’/R’, amplification was established by KOD enzyme. The STK promoter sequence was ligated into the pBI101.3 vector, and the amplified candidate gene was inserted into the pSTK-GUS vector to obtain pSTK::PIN3-GUS (pBI101.3) vector.
Vector construction of complementation lines: The PIN3 candidate gene (including its own promoter) was amplified using primer pairs PIN3C-F’/R’ together with KOD enzyme. The candidate gene was ligated into a pHB vector to obtain pPIN3::PIN3-GFP (pHB) vector.
The pSTK::PIN3-GUS (pBI101.3) vector was transformed into Col-0 plants and placed in the pistil. Transgenic plants with specific high expression of PIN3 were obtained. The pPIN3::PIN3-GFP (pHB) vector was transformed into pin3 mutant plants to obtain mutant complementation lines.
Agrobacterium-mediated transformation was done by floral dipping. The positive clones were inoculated into a YEP medium containing 50 mg/L rifampicin and 50 mg/L kanamycin, cultured at 28 °C for 12 h. Agrobacterium was collected, and transformation solution (500 mL containing 100 µL Silwet L-77, 25 g sucrose, 1.1 g MS) was adjusted to OD600 = 0.8–1.0. At full flowering stage, Arabidopsis was cut to remove the mature siliques, and the inflorescence was immersed in the transformation solution for about 60 s, sealed, and left overnight in the dark.

4.5. Identification of Mutants, Overexpression and Complementary Lines

T-DNA insertion mutants pin3-1 and pin3-2 were extracted separately; pistil-specific overexpression lines pSTK::PIN3-GUS (pBI101.3), genomic DNA of the complemented lines pPIN3::PIN3-GFP (pHB), identified with different primer pairs. Refer to Supplementary Table S3 for related primer combinations.

4.6. Quantitative Real-time RT-PCR

Flowers of individual plants of independent transgenic lines of Col, mutants, over-expression (heterozygous) and complementation lines were collected, grounded in liquid nitrogen, and total RNA was extracted with TRIZOL (T9424, Sigma-Aldrich). FastKing RT Kit (with gDNase) kit (KR104, TIANGEN) was used for cDNA synthesis. qRT-PCR reaction system was prepared using SYBR Green Realtime PCR Master Mix (QPK-201, TOYOBO), and qRT-PCR was performed using a quantitative PCR instrument (Thermo Fisher & Quan Studio 3). The internal reference gene is ANTIN. All qRT-PCR primers used are listed in the Table S3.

Supplementary Materials

The following are available online at https://www.mdpi.com/2223-7747/9/5/585/s1, Figure S1: Gene Expression Patterns of PIN3. Table S1: List of Arabidopsis accessions used in the study and their seed number data. Table S2: Details of potential candidate gene functions harboring SNPs affecting seed number per silique in Arabidopsis. Table S3: Primer sequences used in this paper.

Author Contributions

Conceptualization, W.-H.L.; Data curation, H.-L.J., J.H. and Y.-T.J.; Formal analysis, H.-L.J. and J.H.; Funding acquisition, W.-H.L.; Investigation, H.-L.J.; Methodology, H.-L.J., J.H., S.-X.Y., Y.-J.Z. and J.-X.S.; Project administration, W.-H.L.; Resources, W.-H.L.; Software, J.H. and J.-X.S.; Supervision, W.-H.L.; Validation, H.-L.J. and J.H.; Writing—original draft, H.-L.J., J.H. and W.-H.L.; Writing—review & editing, H.-L.J., J.H., J.-X.S. and W.-H.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China (31771591 and 31761163003), the Agri-X Interdisciplinary Fund of Shanghai Jiao Tong University (Agri-X20200204 and Agri-X2017006), and the Scientific and Technological Innovation Funds of Shanghai Jiao Tong University (19X160020009).

Acknowledgments

We thank Dai-Yin Chao (SIPPE, CAS) for kindly providing the 260 Arabidopsis accessions.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

GWASGenome-wide association analysis
SNSSeed number per silique
SDSeed density
STKSEEDSTICK
CMMCarpel margin meristem
SNPSingle nucleotide polymorphisms
ODOvule density
TGWThousand grain weight

References

  1. Tong, H.; Chu, C. Functional Specificities of Brassinosteroid and potential utilization for crop improvement. Trends Plant Sci. 2018, 23, 1016–1028. [Google Scholar] [CrossRef] [PubMed]
  2. Zhang, Y.; Yu, Y.; Wang, C.; Li, Z.; Liu, Q.; Xu, J.; Liao, J.; Wang, X.; Qu, L.; Chen, F.; et al. Overexpression of microRNA OsmiR397 improves rice yield by increasing grain size and promoting panicle branching. Nat. Biotechnol. 2013, 31, 848–852. [Google Scholar] [CrossRef] [PubMed]
  3. Huang, H.; Jiang, W.; Hu, Y.; Wu, P.; Zhu, J.; Liang, W.; Wang, Z.; Lin, W. BR signal influences Arabidopsis ovule and seed number through regulating related genes expression by BZR. Mol. Plant 2013, 6, 456–469. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Jiang, W.; Lin, W. Brassinosteroid functions in Arabidopsis seed development. Plant Signal. Behav. 2013, 8, e25928. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Theissen, G. Development of floral organ identity: Stories from the MADS house. Curr. Opin. Plant Biol. 2001, 4, 75–85. [Google Scholar] [CrossRef]
  6. Theissen, G.; Saedler, H. Floral quartets. Nature 2001, 409, 469–471. [Google Scholar] [CrossRef]
  7. Twell, D.; Park, S.K.; Hawkins, T.J.; Schubert, D.; Schmidt, R.; Smertenko, A.; Hussey, P.J. MOR1/GEM1 plays an essential role in the plant-specific cytokinetic phragmoplast. Nat. Cell Biol. 2002, 4, 711–714. [Google Scholar] [CrossRef] [Green Version]
  8. Nowack, M.K.; Grini, P.E.; Jakoby, M.J.; Lafos, M.; Koncz, C.; Schnittger, A. A positive signal from the fertilization of the egg cell sets off endosperm proliferation in angiosperm embryogenesis. Nat. Genet. 2006, 38, 63–67. [Google Scholar] [CrossRef]
  9. Springer, P.S.; Holding, D.R.; Groover, A.; Yordan, C.; Martienssen, R.A. The essential Mcm7 protein PROLIFERA is localized to the nucleus of dividing cells during the G (1) phase and is required maternally for early Arabidopsis development. Development 2000, 127, 1815–1822. [Google Scholar]
  10. Moll, C.; Lyncker, L.V.; Zimmermann, S.; Kägi, C.; Baumann, N.; Twell, D.; Grossniklaus, U.; Gross-Hardt, R. CLO/GFA1 and ATO are novel regulators of gametic cell fate in plants. Plant J. 2008, 56, 913–921. [Google Scholar] [CrossRef]
  11. Chaudhury, A.M.; Koltunow, A.; Payne, T.; Luo, M.; Tucker, M.R.; Dennis, E.S.; Peacock, W.J. Control of Early Seed Development. Annu. Rev. Cell Dev. Biol. 2010, 17, 677–699. [Google Scholar] [CrossRef] [PubMed]
  12. Agarwal, P.; Kapoor, S.; Tyagi, A.K. Transcription factors regulating the progression of monocot and dicot seed development. BioEssays 2011, 33, 189–202. [Google Scholar] [CrossRef] [PubMed]
  13. Sridhar, V.V.; Surendrarao, A.; Liu, Z. APETALA1 and SEPALLATA3 interact with SEUSS to mediate transcription repression during flower development. Development 2006, 133, 3159–3166. [Google Scholar] [CrossRef] [Green Version]
  14. Franks, R.G.; Wang, C.; Levin, J.Z.; Liu, Z. SEUSS, a member of a novel family of plant regulatory proteins, represses floral homeotic gene expression with LEUNIG. Development 2002, 129, 253–263. [Google Scholar] [PubMed]
  15. Azhakanandam, S.; Nole-Wilson, S.; Bao, F.; Franks, R.G. SEUSS and AINTEGUMENTA mediate patterning and ovule initiation during gynoecium medial domain development. Plant Physiol. 2008, 146, 1165–1181. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Bartrina, I.; Otto, E.; Strnad, M.; Werner, T.; Schmülling, T. Cytokinin regulates the activity of reproductive meristems, flower organ size, ovule formation, and thus seed yield in Arabidopsis thaliana. Plant Cell 2011, 23, 69–80. [Google Scholar] [CrossRef] [Green Version]
  17. Higuchi, M.; Pischke, M.S.; Mähönen, A.P.; Miyawaki, K.; Hashimoto, Y.; Seki, M.; Kobayashi, M.; Shinozaki, K.; Kato, T.; Tabata, S.; et al. In planta functions of the Arabidopsis cytokinin receptor family. Proc. Natl. Acad. Sci. USA 2004, 101, 8821–8826. [Google Scholar] [CrossRef] [Green Version]
  18. Bencivenga, S.; Simonini, S.; Benková, E.; Colombo, L. The transcription factors BEL1 and SPL are required for cytokinin and auxin signaling during ovule development in Arabidopsis. Plant Cell 2012, 24, 2886–2897. [Google Scholar] [CrossRef] [Green Version]
  19. Sita, K.; Sehgal, A.; Kumar, J.; Kumar, S.; Singh, S.; Siddique, K.H.M.; Nayyar, H. Identification of high-temperature tolerant Lentil (Lens culinaris Medik.) genotypes through leaf and pollen traits. Front. Plant Sci. 2017, 8, 744. [Google Scholar] [CrossRef] [Green Version]
  20. Jiang, Y.; Lahlali, R.; Karunakaran, C.; Warkentin, T.D.; Davis, A.R.; Bueckert, R.A. Pollen, ovules, and pollination in pea: Success, failure, and resilience in heat. Plant Cell Environ. 2019, 42, 354–372. [Google Scholar] [CrossRef] [Green Version]
  21. Bowman, J.L.; Smyth, D.R.; Meyerowitz, E.M. Genetic interactions among floral homeotic genes of Arabidopsis. Development 1991, 112, 1–20. [Google Scholar] [PubMed]
  22. Coen, E.S.; Meyerowitz, E.M. The war of the whorls: Genetic interactions controlling flower development. Nature 1991, 353, 31–37. [Google Scholar] [CrossRef] [PubMed]
  23. Favaro, R.; Pinyopich, A.; Battaglia, R.; Kooiker, M.; Borghi, L.; Ditta, G.; Yanofsky, M.F.; Kater, M.M.; Colombo, L. MADS-Box Protein Complexes Control Carpel and Ovule Development in Arabidopsis. Plant Cell 2003, 15, 2603–2611. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Pinyopich, A.; Ditta, G.S.; Savidge, B.; Liljegren, S.J.; Baumann, E.; Wisman, E.; Yanofsky, M.F. Assessing the redundancy of MADS-box genes during carpel and ovule development. Nature 2003, 424, 85–88. [Google Scholar] [CrossRef] [PubMed]
  25. Kooiker, M.; Airoldi, C.A.; Losa, A.; Manzotti, P.S.; Finzi, L.; Kater, M.M.; Colombo, L. BASIC PENTACYSTEINE1, a GA binding protein that induces conformational changes in the regulatory region of the homeotic Arabidopsis gene SEEDSTICK. Plant Cell 2005, 17, 722–729. [Google Scholar] [CrossRef] [Green Version]
  26. Zu, S.; Jiang, Y.; Hu, L.; Zhang, Y.; Chang, J.; Xue, H.; Lin, W. Effective Modulating Brassinosteroids signal to study their specific regulation of reproductive development and enhance yield. Front. Plant Sci. 2019, 10, 980. [Google Scholar] [CrossRef] [Green Version]
  27. Pelaz, S.; Ditta, G.S.; Baumann, E.; Wisman, E.; Yanofsky, M.F. B and C floral organ identity functions require SEPALLATA MADS-box genes. Nature 2000, 405, 200–203. [Google Scholar] [CrossRef]
  28. Pelaz, S.; Gustafson-Brown, C.; Kohalmi, S.E.; Crosby, W.L.; Yanofsky, M.F. APETALA1 and SEPALLATA3 interact to promote flower development. Plant J. 2001, 26, 385–394. [Google Scholar] [CrossRef]
  29. Tzeng, T.; Hsiao, C.; Chi, P.; Yang, C. Two lily SEPALLATA-like genes cause different effects on floral formation and floral transition in Arabidopsis. Plant Physiol. 2003, 133, 1091–1101. [Google Scholar] [CrossRef] [Green Version]
  30. Ferrario, S.; Immink, R.G.; Angenent, G.C. Conservation and diversity in flower land. Curr. Opin Plant Biol. 2003, 7, 84–91. [Google Scholar] [CrossRef]
  31. Reyes-Olalde, J.I.; Zuñiga-Mayo, V.M.; Chávez Montes, R.A.; Marsch-Martníez, N.; de Folter, S. Inside the gynoecium: At the carpel margin. Trends Plant Sci. 2013, 18, 644–655. [Google Scholar] [CrossRef] [PubMed]
  32. Cucinotta, M.; Colombo, L.; Roig-Villanova, I. Ovule development, a new model for lateral organ formation. Front. Plant Sci. 2014, 5, 117. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Hagen, G.; Guilfoyle, T. Auxin-responsive gene expression: Genes, promoters and regulatory factors. Plant Mol. Biol. 2002, 49, 373–385. [Google Scholar] [CrossRef] [PubMed]
  34. Venglat, S.P.; Sawhney, V.K. Benzylaminopurine induces phenocopies of floral meristem and organ identity mutants in wild-type Arabidopsis plants. Planta 1996, 198, 480–487. [Google Scholar] [CrossRef] [PubMed]
  35. Kunst, L.; Klenz, J.E.; Martinez-Zapater, J.; Haughn, G.W. AP2 Gene determines the identity of perianth organs in flowers of Arabidopsis thaliana. Plant Cell 1989, 1, 1195–1208. [Google Scholar] [CrossRef] [PubMed]
  36. Jofuku, K.D.; den Boer, B.G.; Van Montagu, M.; Okamuro, J.K. Control of Arabidopsis flower and seed development by the homeotic gene APETALA2. Plant Cell 1994, 6, 1211–1225. [Google Scholar] [PubMed] [Green Version]
  37. Galbiati, F.; Roy, D.S.; Simonini, S.; Cucinotta, M.; Ceccato, L.; Cuesta, C.; Simaskova, M.; Benkova, E.; Kamiuchi, Y.; Aida, M.; et al. An integrative model of the control of ovule primordia formation. Plant J. 2013, 76, 446–455. [Google Scholar] [CrossRef]
  38. Nottingham Arabidopsis Stock Centre (NASC). Available online: http://arabidopsis.info/ (accessed on 10 October 2018).
  39. Baxter, I.; Brazelton, J.N.; Yu, D.; Huang, Y.; Lahner, B.; Yakubova, E.; Li, Y.; Bergelson, J.; Borevitz, J.O.; Nordborg, M.; et al. A coastal cline in sodium accumulation in Arabidopsis thaliana is driven by natural variation of the sodium transporter AtHKT1;1. PLoS Genet. 2010, 6, e1001193. [Google Scholar] [CrossRef] [Green Version]
  40. Platt, A.; Horton, M.; Huang, Y.; Li, Y.; Anastasio, A.E.; Mulyati, N.W.; Agren, J.; Bossdorf, O.; Byers, D.; Donohue, K.; et al. The scale of population structure in Arabidopsis thaliana. PLoS Genet. 2010, 6, e1000843. [Google Scholar] [CrossRef] [Green Version]
  41. Lippert, C.; Listgarten, L.; Liu, Y.; Kadie, C.M.; Davidson, R.I.; Heckerman, D. FaST linear mixed models for genome-wide association studies. Nat. Methods 2011, 8, 833–835. [Google Scholar] [CrossRef]
  42. TAIR Database. Available online: https://www.arabidopsis.org/ (accessed on 15 March 2020).
  43. Abbas, M.; Hernández-García, J.; Pollmann, S.; Samodelov, S.L.; Kolb, M.; Friml, J.; Hammes, U.Z.; Zurbriggen, M.D.; Blázquez, M.A.; Alabadía, D. Auxin methylation is required for differential growth in Arabidopsis. Proc. Natl. Acad. Sci. USA 2018, 115, 6864–6869. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Grones, P.; Abas, M.; Hajný, J.; Jones, A.; Waidmann, S.; Kleine-Vehn, J.; Friml, J. PID/WAG-mediated phosphorylation of the Arabidopsis PIN3 auxin transporter mediates polarity switches during gravitropism. Sci. Rep. 2018, 8, 10279. [Google Scholar] [CrossRef] [PubMed]
  45. Winter, D.; Vinegar, B.; Nahal, H.; Ammar, R.; Wilson, G.V.; Provart, N.J. An “Electronic Fluorescent Pictograph” Browser for Exploring and Analyzing Large-Scale Biological Data Sets. PLoS ONE 2007, 2, e718. [Google Scholar] [CrossRef] [PubMed]
  46. T-DNA Express: Arabidopsis Gene Mapping Tool. Available online: http://signal.salk.edu/cgi-bin/tdnaexpress (accessed on 4 January 2019).
  47. Zhai, H.; Feng, Z.; Du, X.; Song, Y.; Liu, X.; Qi, Z.; Song, L.; Li, J.; Li, L.; Peng, H.; et al. A novel allele of TaGW2-A1 is located in a finely mapped QTL that increases grain weight but decreases grain number in wheat (Triticum aestivum L.). Theor. Appl. Genet. 2018, 131, 539–553. [Google Scholar] [CrossRef] [Green Version]
  48. Guan, P.; Di, N.; Mu, Q.; Shen, X.; Wang, Y.; Wang, X.; Yu, K.; Song, W.; Chen, Y.; Xin, M.; et al. Use of near-isogenic lines to precisely map and validate a major QTL for grain weight on chromosome 4AL in bread wheat (Triticum aestivum L.). Theor. Appl. Genet. 2019, 132, 2367–2379. [Google Scholar] [CrossRef]
  49. Wang, Y.; Hou, Y.; Gu, H.; Kang, D.; Chen, Z.; Liu, J.; Qu, L. The Arabidopsis anaphase-promoting complex/cyclosome subunit 1 is critical for both female gametogenesis and embryogenesis. J. Integr. Plant Biol. 2012, 55, 64–74. [Google Scholar] [CrossRef]
  50. Makkena, S.; Lee, E.; Sack, F.D.; Lamb, R.S. The R2R3 MYB transcription factors FOUR LIPS and MYB88 regulate female reproductive development. J. Exp. Bot. 2012, 63, 5545–5558. [Google Scholar] [CrossRef] [Green Version]
  51. Schneitz, K.; Hulskamp, M.; PruittR, E. Wild-type ovule development in Arabidopsis thaliana-A light microscope study of cleared whole-mount tissue. Plant J. 1995, 7, 731–749. [Google Scholar] [CrossRef]
  52. Christensen, C.A.; King, E.J.; Jordan, J.R.; Drews, G.N. Megagametogenesis in Arabidopsis wild type and the Gf mutant sexual. Plant Reprod. 1997, 10, 49–64. [Google Scholar] [CrossRef]
  53. Liu, J.; Zhang, Y.; Qin, G.; Tsuge, T.; Sakaguchi, N.; Luo, G.; Sun, K.; Shi, D.; Aki, S.; Zheng, N.; et al. Targeted degradation of the cyclin-dependent kinase inhibitor ICK4/KRP6 by RING-Type E3 ligases is essential for mitotic cell cycle progression during Arabidopsis gametogenesis. Plant Cell 2008, 20, 1538–1554. [Google Scholar] [CrossRef] [Green Version]
  54. Springer, P.S.; McCombie, W.R.; Sundaresan, V.; Martienssen, R.A. Gene trap tagging of PROLIFERA, an essential MCM2-3-5-like gene in Arabidopsis. Science 1995, 268, 877–880. [Google Scholar] [CrossRef] [PubMed]
  55. Capron, A.; Serralbo, O.; Fülöp, K.; Frugier, F.; Parrnentier, Y.; Dong, A.; Lecureuil, A.; Guerche, P.; Kondorosi, E.; Scheres, B. The Arabidopsis anaphase-promoting complex or cyclosome: Molecular and genetic characterization of the APC2 subunit. Plant Cell 2019, 31, 1386–1387. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  56. Kwee, H.S.; Sundaresan, V. The Nomega gene required for female gametophyte development encodes the putative APC6/CDC16 component of the Anaphase promoting complex in Arabidopsis. Plant J. 2003, 36, 853–866. [Google Scholar] [CrossRef]
  57. Lee, Y.J.; Li, Y.; Liu, B. Two Arabidopsis phragmoplast-associated kinesins play a critical role in cytokinesis during male gametogenesis. Plant Cell 2007, 19, 2595–2605. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  58. Chen, Y.; McCormick, S. Sidecar pollen, an Arabidopsis thaliana male gametophytic mutant with aberrant cell divisions during pollen development. Development 1996, 122, 3243–3253. [Google Scholar] [PubMed]
  59. Mukhtar, M.S.; Liu, X.; Somssich, I.E. Elucidating the role of WRKY27 in male sterility in Arabidopsis. Plant Signal. Behav. 2018, 13, e1363945. [Google Scholar] [CrossRef] [Green Version]
  60. Yuan, J.; Kessler, S.A. A genome-wide association study reveals a novel regulator of ovule number and fertility in Arabidopsis thaliana. PLoS Genet. 2019, 15, e1007934. [Google Scholar] [CrossRef] [Green Version]
  61. Sorensen, A.M.; Kroeber, S.; Saedler, H. The ABNORMAL GAMETOPHYTES (AGM) gene product of Arabidopsis demonstrates a role in mitosis during gamete development. Plant Cell Physiol. 2004, 45, 905–913. [Google Scholar] [CrossRef] [Green Version]
  62. Liu, X.; Hao, N.; Li, H.; Ge, D.; Du, Y.; Liu, R.; Wen, C.; Li, Y.; Zhang, X.; Wu, T. PINOID is required for lateral organ morphogenesis and ovule development in cucumber. J. Exp. Bot. 2019, 70, 5715–5730. [Google Scholar] [CrossRef]
  63. Zeng, J.; Zhang, M.; Hou, L.; Bai, W.; Yan, X.; Hou, N.; Wang, H.; Huang, J.; Zhao, J.; Pei, Y. Cytokinin inhibits cotton fiber initiation by disrupting PIN3a-mediated asymmetric accumulation of auxin in the ovule epidermis. J. Exp. Bot. 2019, 70, 3139–3151. [Google Scholar] [CrossRef]
  64. Xu, M.; Tang, D.; Cheng, X.; Zhang, J.; Tang, Y.; Tao, Q.; Shi, W.; You, A.; Gu, M.; Cheng, N.; et al. OsPINOID regulates stigma and ovule initiation through maintenance of the floral meristem by auxin signaling. Plant Physiol. 2019, 180, 952–965. [Google Scholar] [CrossRef] [PubMed]
  65. Reyes-Olalde, J.I.; Zúñiga-Mayo, V.M.; Serwatowska, J.; Chavez Montes, R.A.; Lozano-Sotomayor, P.; Herrera-Ubaldo, H.; Gonzalez-Aguilera, K.L.; Ballester, P.; Ripoll, J.J.; Ezquer, I.; et al. The bHLH transcription factor SPATULA enables cytokinin signaling, and both activate auxin biosynthesis and transport genes at the medial domain of the gynoecium. PLoS Genet. 2017, 13, e1006726. [Google Scholar] [CrossRef] [PubMed]
  66. Ceccato, L.; Masiero, S.; Roy, D.S.; Bencivenga, S.; Roig-Villanova, I.; Ditengou, F.A.; Palme, K.; Simon, R.; Colombo, L. Maternal control of PIN1 is required for female gametophyte development in Arabidopsis. PLoS ONE 2013, 8, e66148. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  67. Friml, J.; Wiśniewska, J.; Benková, E.; Mendgen, K.; Palme, K. Lateral relocation of auxin efflux regulator PIN3 mediates tropism in Arabidopsis. Nature 2002, 415, 806–809. [Google Scholar] [CrossRef] [Green Version]
  68. Chen, Q.; Liu, Y.; Maere, S.; Lee, E.; Isterdael, G.V.; Xie, Z.; Xuan, W.; Lucas, J.; Vassileva, V.; Kitakura, S.; et al. A coherent transcriptional feed-forward motif model for mediating auxin-sensitive PIN3 expression during lateral root development. Nat. Commun. 2015, 6, 8821. [Google Scholar] [CrossRef] [Green Version]
  69. Chao Laboratory. Available online: http://sippe.ac.cn/dycao/ (accessed on 10 March 2020).
  70. Lempe, J.; Balasubramanian, S.; Sureshkumar, S.; Singh, A.; Schmid, M.; Weigel, D. Diversity of flowering responses in wild Arabidopsis thaliana strains. PLoS Genet. 2005, 1, 109–118. [Google Scholar] [CrossRef]
Plants 09 00585 g001 550

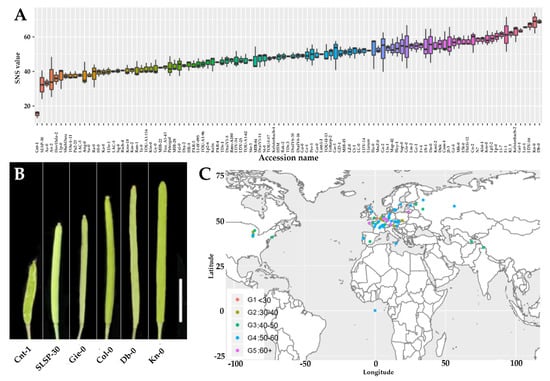

Figure 1. Arabidopsis accessions display significant natural variations in seed number per silique (SNS). (A) Boxplot of seed number in 107 Arabidopsis accessions. (B) Siliques of low, medium, and high SNS accessions (Bar = 5 mm). (C) Geographic distribution of accessions. Groups 1 to 5 correspond to seed number ranking (from low to high).
Figure 1. Arabidopsis accessions display significant natural variations in seed number per silique (SNS). (A) Boxplot of seed number in 107 Arabidopsis accessions. (B) Siliques of low, medium, and high SNS accessions (Bar = 5 mm). (C) Geographic distribution of accessions. Groups 1 to 5 correspond to seed number ranking (from low to high).
Plants 09 00585 g001
Plants 09 00585 g002 550

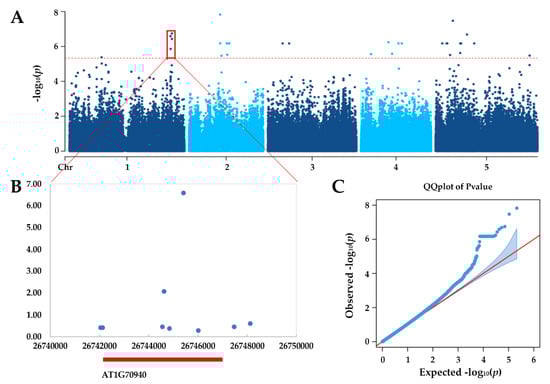

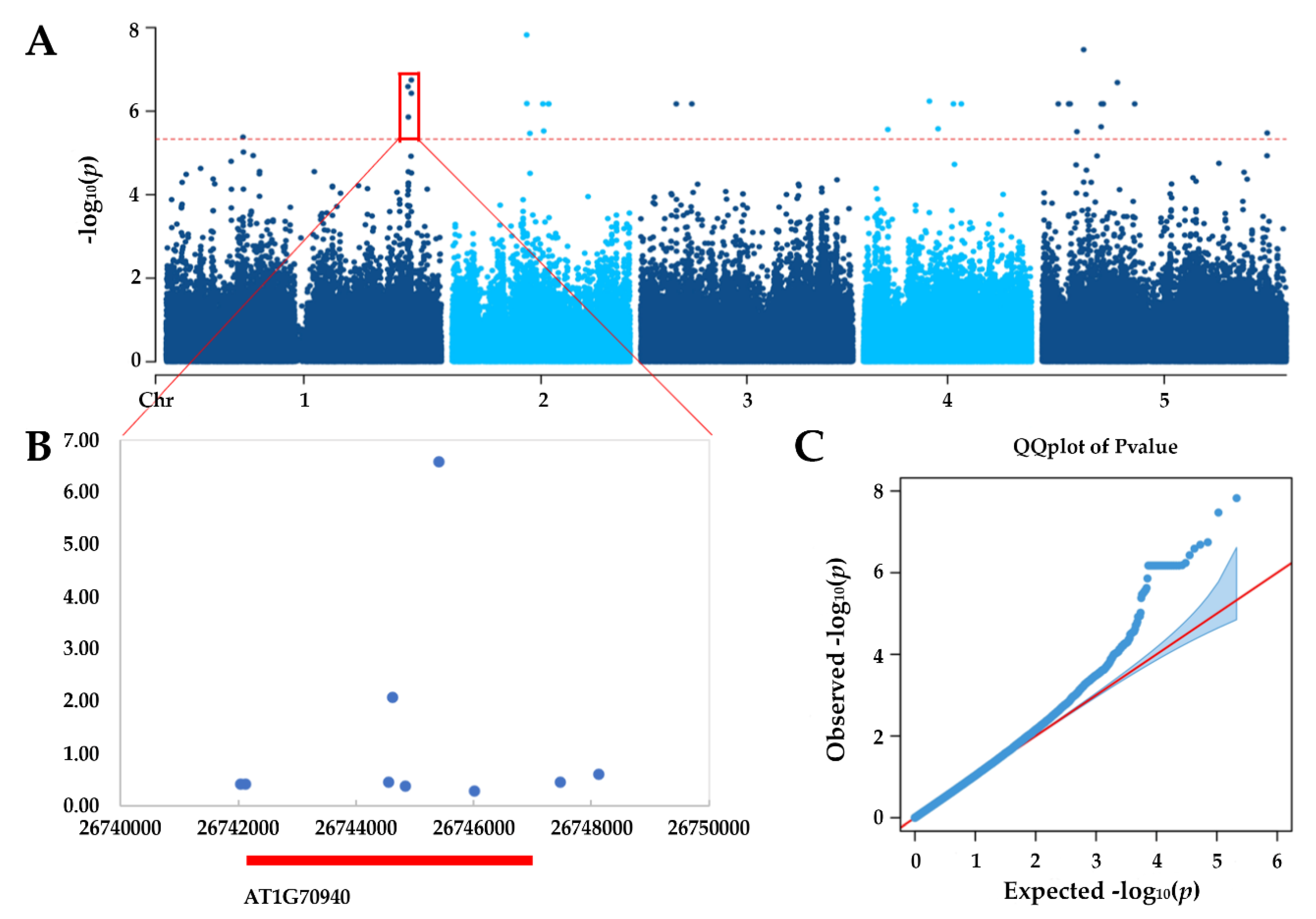

Figure 2. Genome-wide association studies (GWAS) of seed number per silique (SNS) in Arabidopsis. (A) Manhattan plots of the Fast-LMM model. Red dashed line corresponds to–log10 (p-values) > 5.327. (B) Local region of significant GWAS signal with predict gene annotation show GWAS signals concentrate upon PIN3 gene. (C) Q-Q plot of the Fast-LMM mode.
Figure 2. Genome-wide association studies (GWAS) of seed number per silique (SNS) in Arabidopsis. (A) Manhattan plots of the Fast-LMM model. Red dashed line corresponds to–log10 (p-values) > 5.327. (B) Local region of significant GWAS signal with predict gene annotation show GWAS signals concentrate upon PIN3 gene. (C) Q-Q plot of the Fast-LMM mode.
Plants 09 00585 g002
Plants 09 00585 g003 550

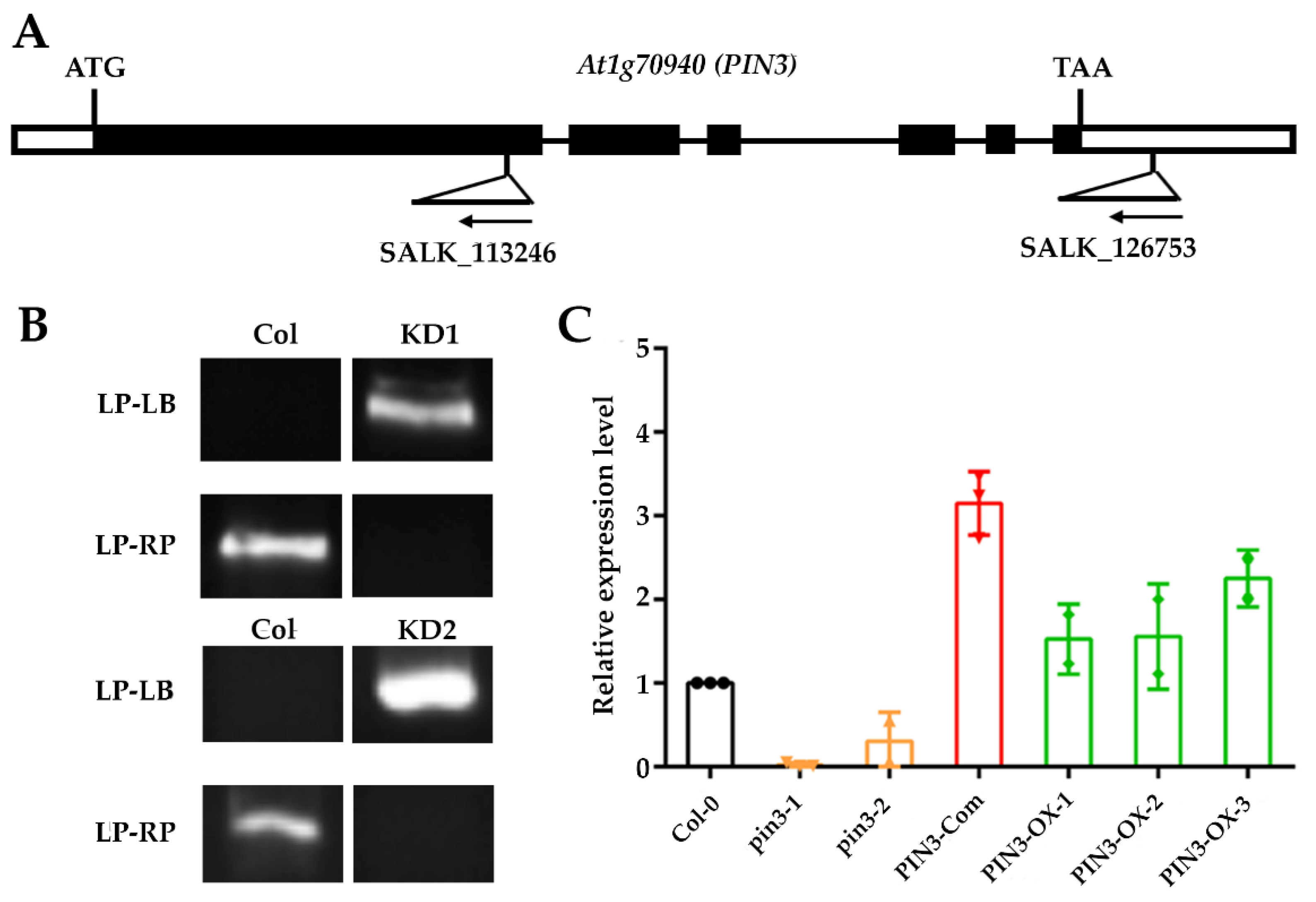

Figure 3. Identification of homozygous T-DNA insertion knockdown (KD) lines and PIN3 gene expression levels in the inflorescences of different lines. (A) Homozygous T-DNA insertion knockdown (KD) lines used in this study. The figure shows location of T-DNA insertion in the gene. The arrow indicates the direction of T-DNA insertion (reverse). (B) The left and right genomic primers LP and RP, and the T-DNA border primer LB used for validation of homozygous KD lines. The gel photo shows that the LP-LB primer pair was amplified, while the genomic primer pair LP-RP was not amplified, confirming that the KD mutants was homozygous. (C) qRT-PCR of PIN3 genes in pin3-1, pin3-2, PIN3-Com (complementation lines), PIN3-OX-1 (overexpression lines), PIN3-OX-2, and PIN3-OX-3 flowers.
Figure 3. Identification of homozygous T-DNA insertion knockdown (KD) lines and PIN3 gene expression levels in the inflorescences of different lines. (A) Homozygous T-DNA insertion knockdown (KD) lines used in this study. The figure shows location of T-DNA insertion in the gene. The arrow indicates the direction of T-DNA insertion (reverse). (B) The left and right genomic primers LP and RP, and the T-DNA border primer LB used for validation of homozygous KD lines. The gel photo shows that the LP-LB primer pair was amplified, while the genomic primer pair LP-RP was not amplified, confirming that the KD mutants was homozygous. (C) qRT-PCR of PIN3 genes in pin3-1, pin3-2, PIN3-Com (complementation lines), PIN3-OX-1 (overexpression lines), PIN3-OX-2, and PIN3-OX-3 flowers.
Plants 09 00585 g003
Plants 09 00585 g004 550

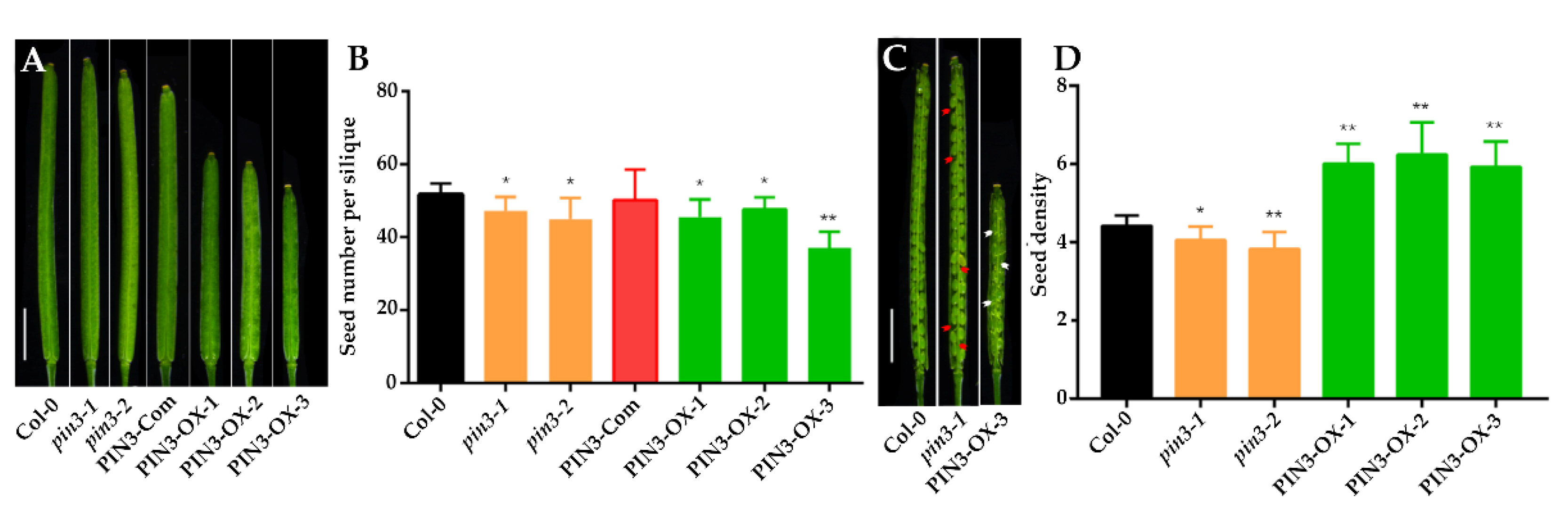

Figure 4. Siliques, seed number per silique (SNS) and seed density (SD) of wild type, pin3, PIN3-Com (complementation lines) and PIN3-OX (overexpression lines). (A) The silique of Col-0, pin3-1 and pin3-2 mutants, PIN3-Com, and PIN3-OXs (Bar = 2mm). (B) SNS of Col-0, pin3-1 and pin3-2 mutants, PIN3-Com, and PIN3-OXs. (C) Dissected siliques of Col-0, pin3-1 and PIN3-OX-3. Red and white arrows indicate sparsely arranged and crowdedly arranged seed region, respectively (Bar = 2 mm). (D) SD of wild type, pin3 and PIN3-OX. “**” indicates statistical significance at p-value < 0.01, “*” indicates statistical significance at p-value < 0.05, p-value determined by Student’s t-test.
Figure 4. Siliques, seed number per silique (SNS) and seed density (SD) of wild type, pin3, PIN3-Com (complementation lines) and PIN3-OX (overexpression lines). (A) The silique of Col-0, pin3-1 and pin3-2 mutants, PIN3-Com, and PIN3-OXs (Bar = 2mm). (B) SNS of Col-0, pin3-1 and pin3-2 mutants, PIN3-Com, and PIN3-OXs. (C) Dissected siliques of Col-0, pin3-1 and PIN3-OX-3. Red and white arrows indicate sparsely arranged and crowdedly arranged seed region, respectively (Bar = 2 mm). (D) SD of wild type, pin3 and PIN3-OX. “**” indicates statistical significance at p-value < 0.01, “*” indicates statistical significance at p-value < 0.05, p-value determined by Student’s t-test.
Plants 09 00585 g004
