Article

Identification of Candidate Genes Involved in Fruit Ripening and Crispness Retention Through Transcriptome Analyses of a ‘Honeycrisp’ Population

Department of Horticultural Science, University of Minnesota, Saint Paul, MN 55108, USA
*
Author to whom correspondence should be addressed.
Plants 2020, 9(10), 1335; https://doi.org/10.3390/plants9101335
Received: 12 August 2020 / Revised: 23 September 2020 / Accepted: 2 October 2020 / Published: 10 October 2020

Abstract

:
Crispness retention is a postharvest trait that fruit of the ’Honeycrisp’ apple and some of its progeny possess. To investigate the molecular mechanisms of crispness retention, progeny individuals derived from a ’Honeycrisp’ × MN1764 population with fruit that either retain crispness (named “Retain”), lose crispness (named “Lose”), or that are not crisp at harvest (named “Non-crisp”) were selected for transcriptomic comparisons. Differentially expressed genes (DEGs) were identified using RNA-Seq, and the expression levels of the DEGs were validated using nCounter®. Functional annotation of the DEGs revealed distinct ripening behaviors between fruit of the “Retain” and “Non-crisp” individuals, characterized by opposing expression patterns of auxin- and ethylene-related genes. However, both types of genes were highly expressed in the fruit of “Lose” individuals and ’Honeycrisp’, which led to the potential involvements of genes encoding auxin-conjugating enzyme (GH3), ubiquitin ligase (ETO), and jasmonate O-methyltransferase (JMT) in regulating fruit ripening. Cell wall-related genes also differentiated the phenotypic groups; greater numbers of cell wall synthesis genes were highly expressed in fruit of the “Retain” individuals and ’Honeycrisp’ when compared with “Non-crisp” individuals and MN1764. On the other hand, the phenotypic differences between fruit of the “Retain” and “Lose” individuals could be attributed to the functioning of fewer cell wall-modifying genes. A cell wall-modifying gene, MdXTH, was consistently identified as differentially expressed in those fruit over two years in this study, so is a major candidate for crispness retention.

Graphical Abstract

1. Introduction

’Honeycrisp’ (Malus domestica Borkh.), known for its exceptional fruit crispness, is an apple cultivar developed by the University of Minnesota [1]. Since its release in 1991, ’Honeycrisp’ has become the fourth most produced apple cultivar in Washington state, the major USA apple producer, with the highest increase in growing acreage over years [2]. A crisp apple fruit texture is desired by consumers [3,4]. Unlike most commercial apple cultivars with fruit that lose crispness during ripening and postharvest storage, ’Honeycrisp’ fruit retain their crisp texture for at least six-months of cold storage [5].
Ethylene, a plant hormone essential for the ripening of climacteric fruit [6], could be related to ’Honeycrisp’ fruit crispness retention. Typically, a burst of ethylene production can be observed in apple fruit at the onset of fruit ripening, which triggers a series of physiological changes, including losses in two related traits, firmness (compression force) and crispness (fracturability) [7]. However, ethylene concentrations in ’Honeycrisp’ fruit are relatively low and stable during ripening, especially compared with ’McIntosh’, a variety that exhibits the usual climacteric ethylene production and rapid fruit softening [8]. Low ethylene production is a feature of apple varieties other than ’Honeycrisp’ with fruit that retain higher firmness (less softening) during postharvest storage [9,10]. MdACS1 and MdACO1, the major genes responsible for climacteric ethylene production in apple fruit, are also correlated with postharvest changes in fruit firmness [9]. In particular, MdACS1, with two allelotypes, MdACS1-1 and MdACS1-2 associated with different ethylene production rates and fruit softening patterns, has been used as a molecular marker for long shelf life apples [11,12].
The cell wall, responsible for the crisp texture of apple fruit [13], is another focus of crispness retention research. Tong et al. [5] showed that ’Honeycrisp’ fruit were able to maintain integrity of the cell wall after long-term storage without obvious degradation of the middle lamella, a region important for cell-to-cell adhesion and fruit crispness [13,14]. Pectin is the main component of middle lamella, and thus lack of middle lamella degradation of ’Honeycrisp’ fruit can be related to genes involved in pectin degradation. As pectin is the most structurally complex plant cell wall polysaccharide [15], the degradation of pectin is accomplished by the synergistic functions of various genes. In apples, the expression patterns of several pectolytic genes, such as Mdα-AF1, Mdα-AF2, Mdα-AF3, Mdβ-GAL2, MdPG1, and MdPME1, have been correlated with fruit softening in specific varieties [16,17,18,19,20]. Among these genes, MdPG1 may have major effects on crispness retention, since its gene expression was consistently low in ’Honeycrisp’ fruit during ripening and storage [8,21]. In addition, the correlation between MdPG1 and crispness retention was supported by its low enzyme activity in ’Honeycrisp’ fruit [22].
In addition to pectin, cellulose and hemicellulose are other major structural polysaccharides in the plant cell wall. Non-pectolytic genes, such as MdEXPs and MdXTHs, involved in reorganizing the cellulose–hemicellulose network, could also affect the texture of apple fruit [23,24,25], but their roles in ’Honeycrisp’ crispness retention have not been clearly established. In a genetic study, Harb et al. [8] showed that MdEXP2 and MdXTH2 had lower gene expression in ’Honeycrisp’ fruit during fruit ripening compared with ’McIntosh’ fruit, while MdXTH10 exhibited an opposite expression pattern. Trujillo et al. [26], on the other hand, found that MdEXP2 was not strongly related to crispness retention by examining the gene expression and effects of allelotype in fruit of several apple varieties and ’Honeycrisp’ progeny individuals. So far, there has been no additional study to validate the functions of MdXTHs in ’Honeycrisp’ fruit, and thus the MdXTH gene family is a potential target for further analysis.
Toward a more comprehensive understanding of the molecular mechanisms behind apple fruit crispness retention, the transcriptomes of fruit from a population derived from ’Honeycrisp’ × MN1764 were studied. MN1764 is an advanced breeding selection in the apple breeding program at the University of Minnesota. Unlike ’Honeycrisp’, the fruit of MN1764 were less crisp at harvest and lose crispness during storage [27]. This cross between ’Honeycrisp’ × MN1764 generated progeny individuals with fruit that differ in the ability to retain postharvest crispness [27]. RNA-Seq, as a high-throughput sequencing-based method [28], was first applied to identify differentially expressed genes (DEGs) associated with the crispness retention of the ’Honeycrisp’ × MN1764 population. The expression patterns of the DEGs were then validated using nCounter®, a mid-throughput hybridization-based method [29], by including second-year samples. With the uses of a genetically-related apple population and transcriptomic approaches, candidate genes for crispness retention can be more reliably identified.

2. Results

2.1. Phenotype and Transcriptome Variations Among the Individuals

Fruit of the selected progeny individuals and parents were distinct in puncture force (PF), force linear distance (FLD), and acoustic pressure (AUX) (Figure 1). Crisp fruit were characterized with higher force (FLD and PF) and acoustic (AUX) values compared with the non-crisp fruit. As reported in our previous study [27], the average PF, FLD, and AUX of this breeding population at harvest were 5.1 kg, 2144, and 72.6 dB. Using these numbers as the thresholds, fruit with all three instrumental measures higher than these numbers were considered as crisp. Among the six individuals with crisp fruit at harvest, three of them retained their force and acoustic values after 8-week cold storage while the others did not. Based on the instrumental measures, three phenotypes were distinguishable: 1) individuals with fruit that retained crispness (CL136, EF129, and EF138), 2) individuals with fruit that lost crispness (CF117, CL156, and EF117), and 3) individuals with fruits that were not crisp at harvest (CL121 and CL124). The terms “Retain”, “Lose”, and “Non-crisp” were used to designate the three phenotypes. Based on the instrumental measures, ’Honeycrisp’ fruit retained, while MN1764 fruit lost, crispness.
Differences among the “Retain”, “Lose”, and “Non-crisp” individuals were observed at the transcriptomic level. A multidimensional scaling (MDS) plot (Figure 2) showed that samples with the same phenotypes had similar gene expression patterns. A separation was detected between freshly-harvested and stored samples. Freshly-harvested “Non-crisp” samples clustered apart from the “Retain” and “Lose” individuals, but after storage, the individuals were not as widely separated as at harvest. ’Honeycrisp’ samples clustered with other crisp individuals, while MN1764 replicates were spread between crisp and non-crisp samples.
There were 4129, 2030, and 6870 DEGs identified in comparisons between ’Honeycrisp’ and MN1764, the “Retain” and “Lose” individuals, and the “Retain” and “Non-crisp” individuals, respectively (Figure 3). A total number of 107 genes were found in all three comparisons. Of these, 67 genes were commonly expressed in fruit of ’Honeycrisp’ and the “Retain” individuals, and therefore potentially related to the trait of retaining crispness (Figure 3a). Additionally, 40 genes were commonly expressed in fruit of MN1764 and the “Non-crisp” and “Lose” individuals and are therefore possibly related to losing crispness (Figure 3b).

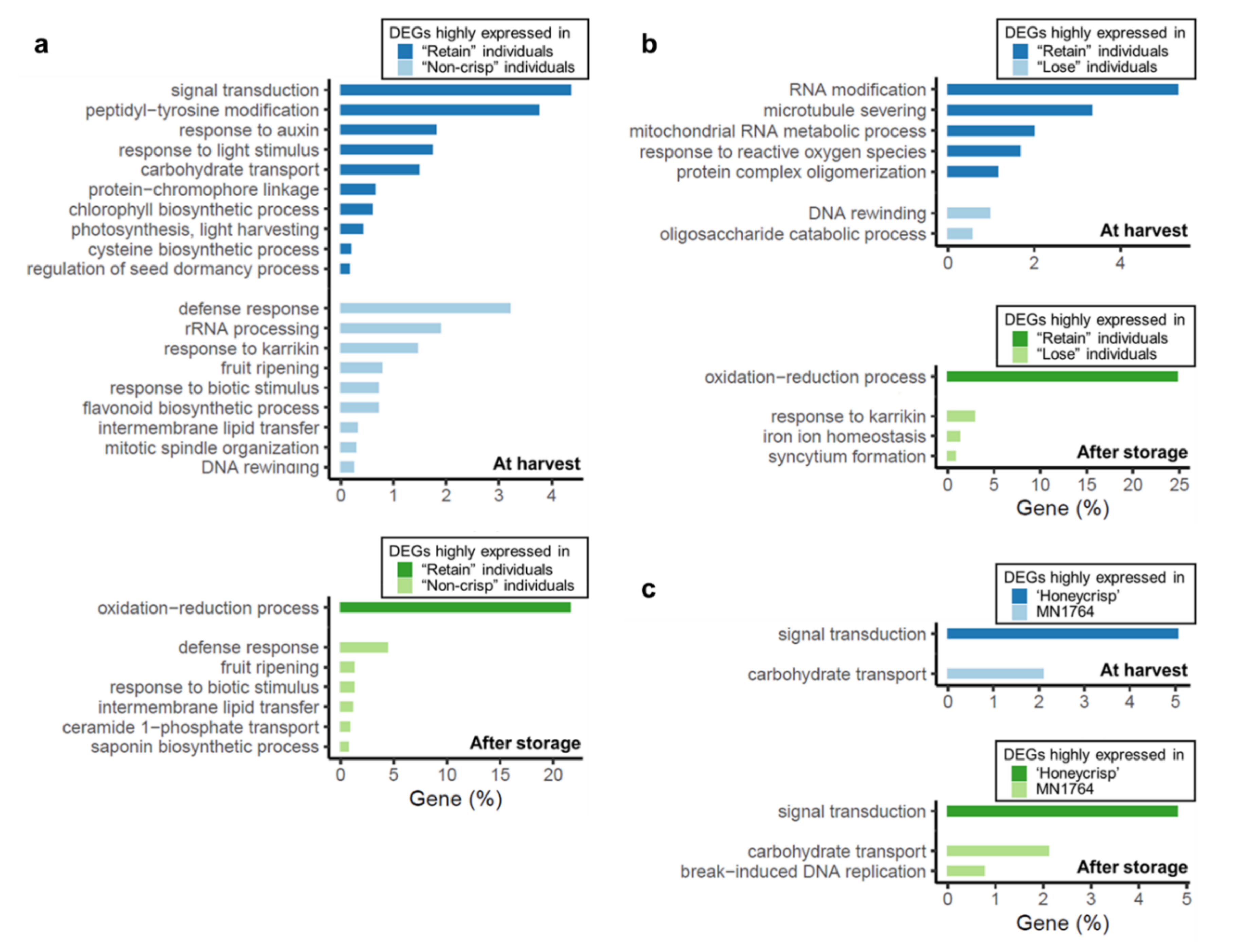

2.2. Functional Annotation of Differentially Expressed Genes

The larger transcriptomic variations between fruit of the “Non-crisp” and ”Retain” individuals also were reflected in the higher number of enriched Gene Ontology (GO) terms (Figure 4a). Most differentially expressed genes (DEGs) highly expressed in fruit of the “Retain” but not in the “Non-crisp” individuals were associated with the oxidation-reduction process (GO:0055114), signal transduction (GO:0007165) and peptidyl-tyrosine modification (GO:0018212). For the enriched GO terms with more specific biological functions, the response to auxin (GO:0009733), response to light stimulus (GO:0009416), and carbohydrate transport (GO:0008643) represented about 2% of the differentially expressed genes (DEGs). On the other hand, DEGs highly expressed in fruit of the “Lose” but not in the “Retain” individuals were mainly enriched in the defense response (GO:0006952), rRNA processing (GO:0006365), response to karrikin (GO:0080167), and fruit ripening (GO:0009835).
A different group of GO terms were identified between fruit of the “Retain” and “Lose” individuals at harvest compared with the “Retain” versus “Non-crisp” individuals (Figure 4b). The most enriched GO terms were the RNA modification (GO:0009451), and microtubule severing (GO:0051013) for the “Retain” fruits, and the DNA rewinding (GO:0036292) and oligosaccharide catabolic process (GO:0009313) for the “Lose” fruits. Functional similarity of the DEGs were observed after storage. Two of the significantly enriched GO terms, the oxidation-reduction process (GO:0055114) and response to karrikin (GO:0080167), for fruit of the “Retain” and “Lose” individuals respectively, were also identified between fruit of the “Retain” and “Non-crisp” individuals.
There were only three GO terms identified between ’Honeycrisp’ and MN1764 fruit (Figure 4c). The DEGs highly expressed in ’Honeycrisp’ and MN1764 fruit were consistently enriched in signal transduction (GO:0007165) and carbohydrate transport (GO:0008643) at harvest and storage, and the number of genes within each term were similar. These two GO terms were also identified in comparison of fruit of the “Retain” and “Non-crisp” individuals (Figure 4a).

2.3. The Expression Patterns of Auxin- and Ethylene-Related Genes

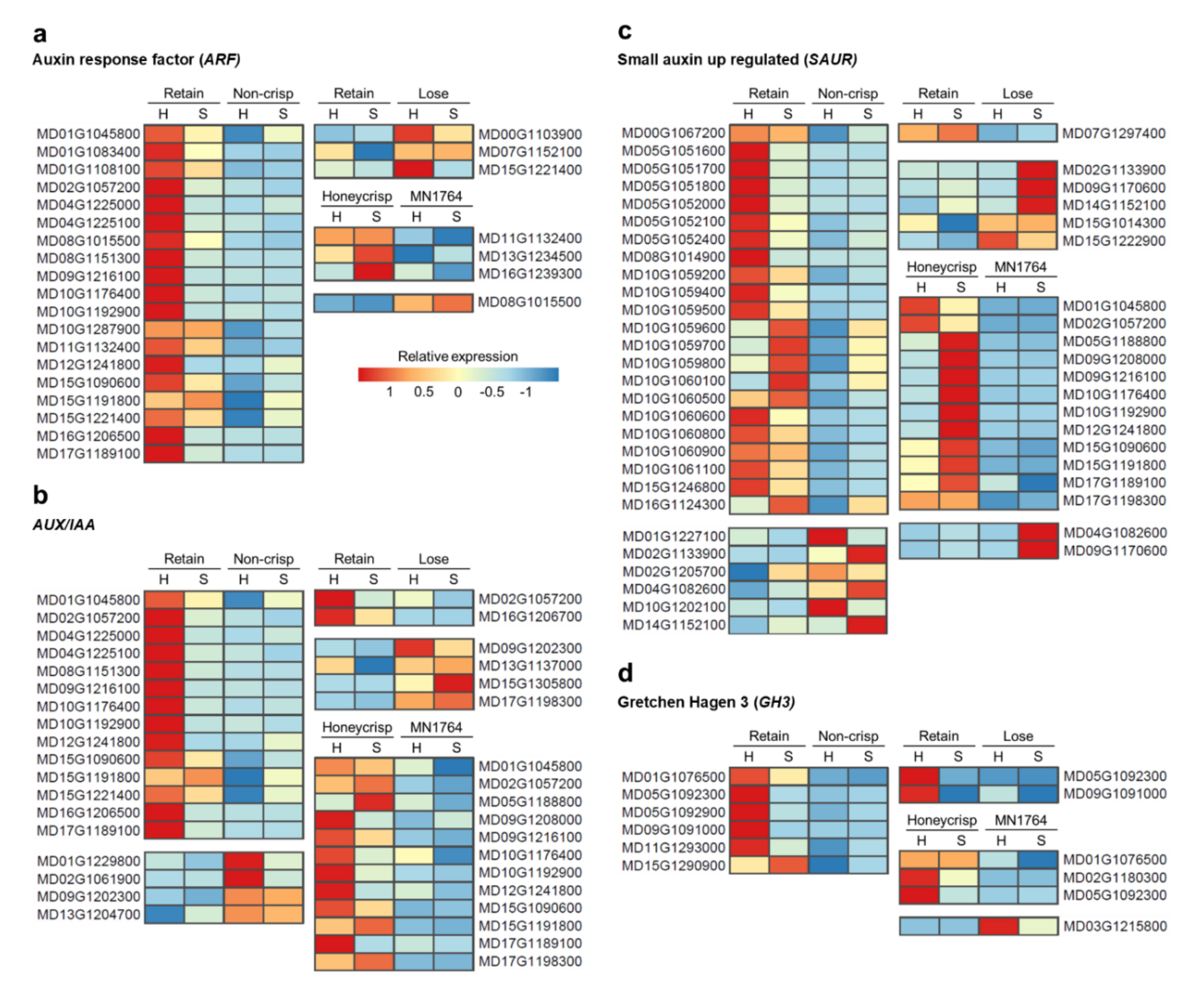

Genes involved in the auxin signaling pathway, due to their potential roles in fruit ripening, were analyzed to extend the results of the functional annotation where genes associated with response to auxin (GO:0009733) were enriched (Figure 5a). In the comparison between fruit of the “Retain” and “Non-crisp” individuals, most auxin-related genes, including ARF, AUX/IAA, SAUR, and GH3, were highly expressed in the “Retain” fruits, especially at harvest (Figure 5). Higher expression of auxin-related genes was also found in ’Honeycrisp’ fruit compared with MN1764 fruit, but some of them were differentially expressed after storage (Figure 5). In contrast, fewer auxin-related genes were differentially expressed between fruit of the “Retain” and “Lose” individuals, and most of them were highly expressed in the “Lose” fruits (Figure 5a–c) except for the GH3 groups, which were highly expressed in the “Retain” fruits (Figure 5d). IAA/AUX (MD02G1057200) and GH3 (MD05G1092300) were the only auxin-related genes identified in all three comparisons. Additionally, three SAUR genes, MD02G1133900, MD04G1082600, and MD14G1152100, were differentially expressed in two of three comparisons.

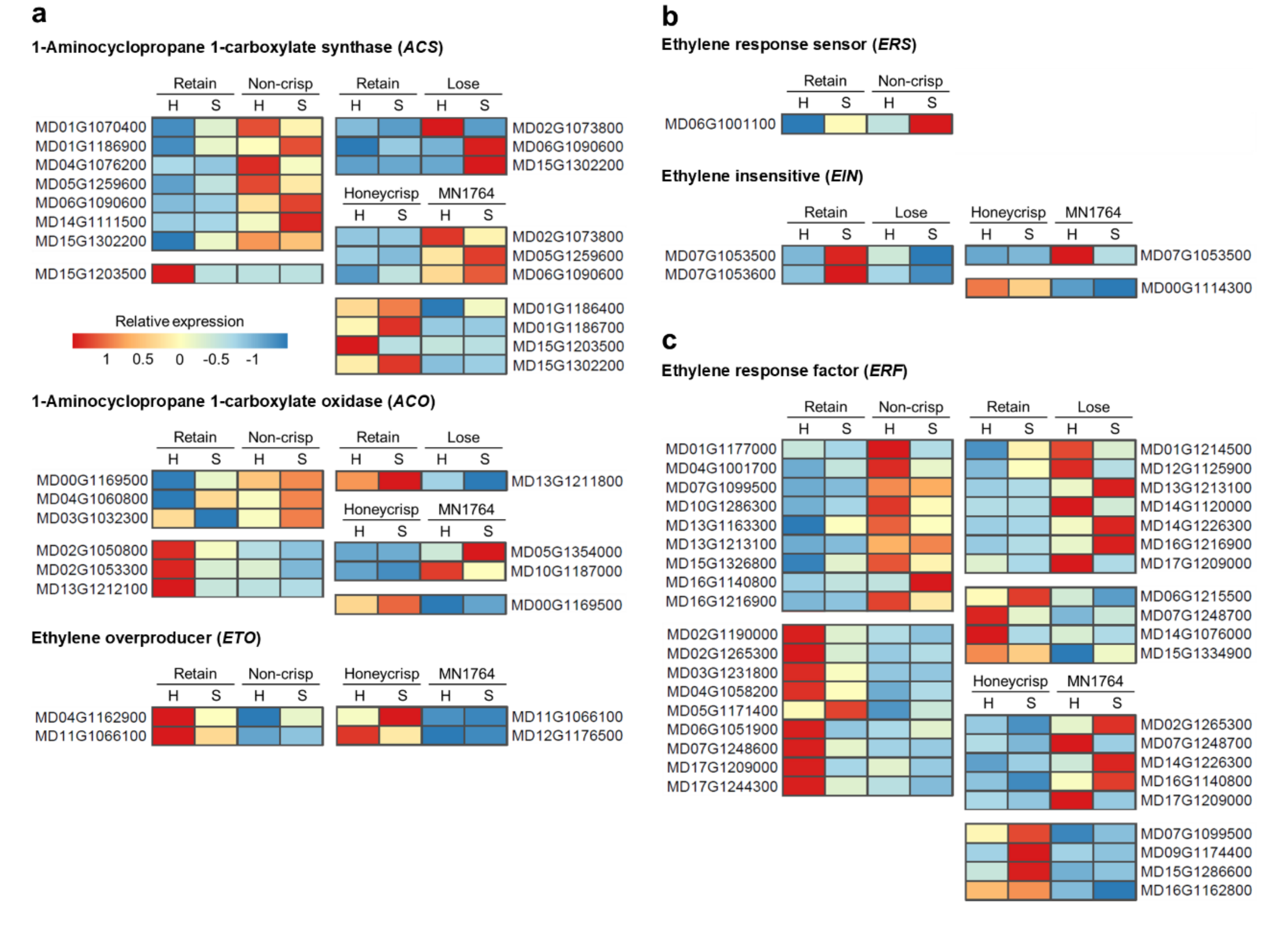

For ethylene-related genes, the major difference was the higher number of 1-aminocyclopropane 1-carboxylate synthases (ACSs) genes expressed in fruit of the “Non-crisp” and “Lose” individuals compared to that of the “Retain” individuals (Figure 6a). Among them was MdACS1 (MD15G1302200), the ACS responsible for climacteric ethylene production in apple fruit (Figure 6a). However, the number of ACSs differentially expressed between the parents were similar and MdACS1 was highly expressed in ’Honeycrisp’ fruit (Figure 6a). Two types of genes displayed specific expression patterns in the “Non-crisp” fruit: low expression of two ethylene overproducer genes (ETOs) (Figure 6a) and high expression of one ethylene response sensor (ERS) gene (Figure 6b). The other two types of ethylene-related genes, 1-aminocyclopropane 1-carboxylate oxidases (ACOs) and ethylene response factors (ERFs), were differentially expressed across comparisons, but there was no consistent pattern in terms of the number of DEGs identified in specific individuals (Figure 6a and c). For example, about half of the differentially expressed ACOs were highly expressed in “Non-crisp” fruit, while another half were highly expressed in “Retain” fruits. MdACO1 (MD10G1328100), another gene involved in climacteric ethylene production, was not differentially expressed among the individuals in this study.
Two ACS genes, MdACS6 (MD06G1090600) and MdACS3a (MD15G1203500), were identified in all three comparisons (Figure 6a). MdACS6 was highly expressed in fruit of MN1764 and the “Lose”, and “Non-crisp” individuals, while MdACS3a was highly expressed in ’Honeycrisp’ fruit and those of the “Retain” individuals. Three ERF genes, ERF1B-like (MD13G1213100), MdERF3 (MD14G1226300), and SHN1 (MD17G1209000) were differentially expressed in two of the three comparisons (Figure 6c).

2.4. The Expression Patterns of Cell Wall-Related Genes

Major cell wall-related genes associated with the texture of apple fruit were studied (Table 1). Based on the total number of DEGs, cell wall-related genes were more highly expressed in fruit of the “Retain” individuals compared with the “Non-crisp” individuals (Table 1a). At harvest, cellulose synthase, galacturonosyltransferase (GAUT), pectin methylesterase (PME), and xyloglucan endotransglucosylase/hydrolase (XTH) were more highly expressed in fruit of the “Retain” individuals compared to “Non-crisp”, while α-arabinofuranosidases (α-AFs) were highly expressed in fruit of the “Non-crisp” individuals (Table 1a). After storage, most cellulose synthases and GAUTs maintained higher expression in fruit of the ’Retain’ than ’Non-crisp’ individuals (Table 1a). Similar patterns of gene expression were detected between ’Honeycrisp’ and MN1764. There was higher expression of cellulose synthases and GAUTs in ’Honeycrisp’ fruit and α-AF in MN1764 fruit, but these patterns were observed only after storage and not at harvest (Table 1c).
In the comparison between fruit of the “Retain” and “Lose” individuals, expression patterns of the cell wall-genes were not as clear as in the comparison between those of the “Retain” and “Non-crisp” individuals (Table 1b). At harvest, most XTHs were identified in fruit of the “Retain” individuals but not in those of the “Lose” individuals, while β-galactosidase (β-GAL), and cellulose synthase genes were mostly identified in the “Lose”, but not “Retain”, individual’s fruit. After storage, one GAUT was identified in fruit of the “Retain”, but not “Lose”, individuals, while expansin genes and PGs were mainly identified in the fruit of the “Lose”, but not “Retain”, individuals.

2.5. RNA-Seq Results Validation Using nCounter® Technology and qRT-PCR

To validate the RNA-Seq results, nCounter® data were generated from the same RNA samples used for RNA-Seq analyses, as well as samples harvested in 2019. Results depicted in Figure S1 showed that gene expression measured by RNA-Seq (in FPKM) and nCounter® (in gene count) were correlated (r = 0.8). Higher correlations were obtained for genes with high expression levels and inconsistencies occurred mostly for genes with low expression levels.
qRT-PCR was performed to further probe the gene expression discrepancies between RNA-Seq and nCounter® results. Figure S3 shows that RNA-Seq and nCounter® both failed to detect gene expression in some cases, in contrast with qRT-PCR results. For MD02G1057200 (auxin-responsive protein), MD10G1315100 (XTH), and MD11G1230200 (unknown gene), qRT-PCR results agreed with the RNA-Seq data, but for MD05G1098700 (AMP-dependent synthetase) and MD12G1164900 (pentatricopeptide repeat-containing protein), qRT-PCR results agreed with nCounter® data. One of the tested genes encoding a CASP-like protein 1F2 (MD14G1150200) was not correctly detected using RNA-Seq and nCounter® technology. Expressions of two cell wall-modifying genes, XTH (MD16G1091200) and PG (MD10G1179100), were well correlated among the three methods.
Among the 47 tested genes using nCounter® (Table S2), 26 genes were differentially expressed in the parent and progeny samples (primary candidate gene) and 14 genes were differentially expressed only in the parent or progeny samples (secondary candidate gene) (Table 2). The other 7 genes identified as differentially expressed by RNA-Seq were not differentially expressed over both years in which fruit were harvested. These candidates included those involved in cell wall modification, as well as plant hormone signaling and biosynthesis. The cell wall-modifying genes were Mdα-AF3 (MD16G1158300), GAUT (MD17G1141200), MdPG1 (MD10G1179100), and XTHs (MD10G1315100, MD16G1091200), and the hormone-related genes were AUX/IAA (MD02G1057200), GH3.1 (MD05G1092300), ACSs (MD06G1090600, MD15G1203500), and jasmonate methyltransferase (JMT, MD15G1023600).

3. Discussion

3.1. Fruit Ripening and Crispness Retention

Different ripening characteristics could be one factor causing crisp and non-crisp phenotypes at harvest. Based on the transcriptomic data, fruit of the “Non-crisp” individuals exhibited the typical climacteric ripening processes of apple fruit, in which ethylene plays a crucial role. Genes highly expressed in the “Non-crisp” fruit were enriched in expression of fruit ripening (Figure 4a) genes, and ACS genes encoding the rate-limiting enzyme of ethylene biosynthesis [30] were the major DEGs in this GO term (Figure 6a). One member of the ACS family, MdACS1 (MD15G1302200), which is essential for increased ethylene production during apple fruit ripening [11], was highly expressed in the “Non-crisp” fruit. Another important ACS in apple fruit, MdACS3a (MD15G1203500), associated with relatively stable ethylene production before climacteric ripening [31], was highly expressed in the “Retain” fruit. MdACS6 (MD06G1090600) also displayed greater expression in “Non-crisp”, “Lose”, and MN1764 fruit compared to “Retain” and ’Honeycrisp’ fruit. This gene was reported by An et al. [32] and Zhao et al. [33] to be up-regulated during fruit ripening or following ethylene production due to salt stress.
The differential-expression patterns of several auxin-related genes further indicated that the fruit of the “Retain” and “Non-crisp” individuals are under different physiological control mechanisms (Figure 5). Auxins have been reported to both promote and inhibit fruit ripening. For example, exogenous auxin application induces ethylene production in ’Golden Delicious’ apple fruit before harvest [34]. In contrast, the delayed-ripening phenotype of the transgenic MADS8/9-suppressed apple was attributed to the maintenance of high auxin concentrations in the fruit [35]. Although the two reports are seemingly contradictory, they both hypothesize that auxin is critical at the onset of fruit ripening. A fruit ripening model for apple established by Busatto et al. [36] demonstrates that after fruit enter advanced ripening stages, auxin-related genes are downregulated along with increased expression of ethylene-related genes. Thus, the higher expression of auxin-related genes observed in this study suggests that fruit of the “Retain” individuals were harvested at relatively early ripening stages.
Gretchen Hagen 3 (GH3) genes, which encode auxin-conjugating enzymes, could be alternative ripening indicators for fruit of the “Retain” individuals wherein ethylene-related genes did not show a differential response. It has been proposed that GH3 initiates the ripening processes of apple fruit due to its capacity to convert biologically active auxin to inactive amino acid [37]. Among the GH3 genes identified in this study (Figure 5d, Table 2a), GH3.1 (MD05G1092300) was also observed to increase in expression in ’Royal Gala’ apples during fruit maturation and ripening [38], and homologous genes have been correlated with the ripening of other fruits, such as grape (Vitis vinifera L.) [39] and pungent pepper (Capsicum chinense L.) [40].
The softening phenotype of fruit of “Lose” individuals, characterized as being crisp at harvest and non-crisp after storage, could result from interactions between auxin and ethylene. Ethylene appeared to be involved in ripening of the “Lose” fruits, since several ACS genes were highly expressed in fruit of the “Lose” individuals compared with those of the “Retain” individuals (Figure 6a). MdACS1 (MD15G1302200) was not differentially expressed at harvest but during storage of the “Lose” fruits, which correlated with the period during which they started to lose crispness. The delayed-ripening characteristic of the “Lose” fruits might be attributed to auxin. In the comparison between the “Retain” and “Lose” fruits, auxin related-genes, except for the GH3 group, were more highly expressed in fruit of the “Lose” individuals. It is possible that the lower expression of GH3 genes caused higher concentrations of active auxin in fruit of the “Lose” individuals, which in turn inhibited climacteric ethylene biosynthesis and fruit ripening.
Defense response genes also differentiated the postharvest ripening statuses of the individuals. Fruit ripening and defense responses are closely connected. For example, Shi et al. [41] found that proteins differentially expressed in stored ’Golden Delicious’ fruit mostly belonged to stress and defense response categories. Zheng et al. [42] also reported increases in defense response proteins in ’Golden Delicious’ fruit during ripening and after ethylene treatment. In this study, most of the DEGs between “Retain” and “Non-crisp” fruits were enriched in the GO term “defense response”. Three of the DEGs, including chitinase (MD01G1213100), glucan endo-1,3-β-glucosidase (MD11G1189000), and jasmonate methyltransferase (JMT, MD15G1023600), showed consistently higher expression in fruit of the “Lose” compared with the “Retain” individuals (Table 2b). Chitinases and glucan endo-1,3-β-glucosidases are fungi and bacteria cell wall-degrading enzymes [43], while JMTs are involved in the biosynthesis of methyl jasmonate (MeJA), a plant volatile that regulates defense responses [44]. In addition to roles in defense responses, MeJA is also related to fruit ripening. Exogenous application of MeJA enhanced climacteric ethylene production and softening of ’Golden Delicious’ fruit [45], as well as expression of the transcription factors, MdMYC2 (MD16G1274200) and MdERF3 (MD14G1226300), that regulate ethylene biosynthesis [46]. In this study, MdMYC2 was not differentially expressed, but MdERF3 displayed matching expression patterns (Figure 6c) to the JMT gene (Table 2b). As a result of its biological function, and the timing of expression, the JMT gene is one of the candidate genes associated with fruit ripening of MN1764 fruit and that of the “Lose” individuals.
’Honeycrisp’ fruit has a mechanism of ripening distinct from that of the phenotypically-similar “Retain” individuals based on high expression of MdACS1 (MD15G1302200) (Figure 6a). In apples, there are two MdACS1 allelotypes, MdACS1-1 and MdACS1-2. MdACS1-1 is associated with high ethylene production and softer fruit, while MdACS1-2 is associated with low ethylene production and firmer fruit [12]. The high expression of MdACS1 in ’Honeycrisp’ fruit corresponds to its heterozygous allelotype, including both MdACS1-1 and MdACS1-2, in contrast to that of the homozygous (MdACS1-2/2) MN1764 [26], but is inconsistent with its ripening behavior, including crispness retention. Despite exhibiting high MdACS1 expression, ’Honeycrisp’ fruit produce low amounts of ethylene during ripening compared with ’McIntosh’ fruit, that show climacteric ripening characteristics [8]. Thus, MdACS1 expression is unrelated with the crispness retention of ’Honeycrisp’ fruit, but low ethylene production could still be an important factor in its ripening characteristic.
An explanation for low ethylene production in ’Honeycrisp’ fruit is post-transcriptional regulation of MdACS1. Among genes involved in ethylene biosynthesis, ethylene overproducers (ETOs) were DEGs identified in fruit of ’Honeycrisp’ and the “Retain” individuals as having higher expression levels than fruit of MN1764 or “Non-crisp” individuals (Figure 6a). ETOs are ubiquitin ligases, which target type 2 ACSs to the proteasome for degradation [47,48]. The classification of ACSs is based on the C-terminal amino acid sequences, and MdACS1 belongs to the type 2 ACSs [49]. In Arabidopsis, overexpression of AtETO1 inhibits AtACS5 enzyme activity and promotes its degradation [50], but the roles of ETOs in fruit ripening have not been reported. Without differential expression of the other ethylene synthesis genes, for example MdACO1 (MD10G1328100), the ETOs could be candidates for further elucidating the relationship between ethylene and ripening of ’Honeycrisp’ fruit.

3.2. Cell Wall-Related Genes and Crispness Retention

The continuing expression of cell wall synthesis genes during storage could be related to the crispness retention of ’Honeycrisp’ fruit. Cellulose synthase and Galacturonosyltransferase (GAUT) are the two types of cell wall synthesis genes investigated in this study, and there were greater numbers of the two genes highly expressed in fruit of ’Honeycrisp’ and the “Retain” individuals after storage when compared with those of MN1764 and the “Non-crisp” individuals (Table 1a,c). The cellulose synthase gene family in plants includes cellulose synthase and cellulose synthase-like genes, which mediate the synthesis of cellulose and hemicellulose, respectively [51,52]. In climacteric apple fruit, the amount of cellulose and hemicellulose are relatively constant during ripening [53], and cellulose synthase and cellulose synthase-like genes have not been the main foci to postharvest textural changes. In a recent study by Win et al. [54], degradation of cellulose and hemicellulose, correlating with fruit softening, was observed in fruit of ’Summer King’ and ’Green Ball’ apples during long-term storage. Whether the continuous expression of cellulose synthase and cellulose synthase-like genes in fruit of ’Honeycrisp’ during storage contributes to crispness retention can be further evaluated in future research by measuring the cellulose and hemicellulose content in ’Honeycrisp’ fruit. From another point of view, the higher expression of cellulose synthases during ’Honeycrisp’ fruit storage is an additional indicator showing the slow ripening behaviors of ’Honeycrisp’ fruit, because cell wall synthesis genes were usually active during fruit growth and are down-regulated as fruit mature [55]. Unlike typical climacteric ripening, a lack of clear transition between development and ripening could result in minimal changes in the expression patterns of cell wall genes—a possible mechanism that results in ’Honeycrisp’ fruit crispness retention.
GAUTs, key enzymes in pectin biosynthesis, are potentially involved in crispness retention by acting against the pectin-modifying enzymes that cause fruit softening. One of the GAUT genes (MD17G1141200) was identified as a candidate favorable for crispness retention (Table 2a), showing consistently higher levels of gene expression in ’Honeycrisp’ than MN1764 fruit. Dheilly et al. [55] showed that this GAUT was more active before than after harvest, similar to the expression patterns of most cell wall synthesis genes. The high expression levels of several GAUTs in ’Honeycrisp’ fruit at harvest and after storage further emphasized the close relationships between the ripening behaviors of ’Honeycrisp’ fruit and the expression of cell wall-related genes. It should be pointed out that the GAUT gene (MD17G1141200) was not differentially expressed between fruit of “Retain” and “Lose” individuals (Table 2a), implying the involvement of additional genes in crispness retention.
The expression patterns of cell wall-modifying genes were more consistent than those of cell wall synthesis genes in differentiating fruit of the “Retain” and “Lose” individuals, since the cell wall synthesis genes, cellulose synthases and GAUTs, were not specifically expressed in fruit of the “Retain” individuals (Table 1b). Several cell wall-modifying genes that have been previously reported to affect postharvest fruit texture were observed in the current study to differentiate crispness phenotypes of fruit of the ’Honeycrisp’ × MN1764 population. Among them, MdPG1 (MD10G1179100) was the most prominent gene associated with losing crispness, as significantly high expression of MdPG1 was consistently observed in fruit of MN1764, the “Lose”, and the “Non-crisp” individuals (Table 1 and Table 2b). Polygalacturonases (PGs) catalyze the hydrolysis of pectin, and the expression of MdPG1 during fruit ripening has been correlated with increased pectin solubilization, which leads to softening of apple fruit [20,54,56]. Many studies have illustrated the roles of MdPG1 through different approaches, including the examination of MdPG1 in fruit of varieties with different firmness [16] and the study of transgenic apple with suppressed MdPG1 [57]. In this study, while high expression of MdPG1 correlated with softening of the non-crisp fruit of the studied population, low or no expression of this gene alone cannot completely explain crispness retention. Despite differential expression, there was also an abundance of MdPG1 mRNA accumulation in fruit of the “Retain” individuals after storage (Table 2b), which did not result in a significant decrease in fruit crispness, suggesting that PG protein synthesis or activity may differ between fruit with different crispness retention phenotypes.
Other pectin-modifying enzymes, such as pectin methylesterase (PME), α-arabinofuranosidase (α-AF), and β-galactosidase (β-GAL), could have partial effects on fruit crispness retention. The function of PMEs is to remove the methyl groups from pectin [58], while α-AFs and β-GALs are responsible for the cleavage of sugar residues from the side chains of pectin polymers [59]. Together, these enzymes have been hypothesized to facilitate pectin degradation during fruit ripening [20]. MdPME1 (MD08G1195600), Mdα-AF3 (MD16G1158300), and Mdβ-GAL2 (MD02G1079200) were the genes corresponding to the pectin-modifying proteins identified in this study (Table 1). Each of these genes has been previously reported to relate to fruit texture. For example, MdPME1 in ’Jonagold’ apple is related to its postharvest softening [19], Mdα-AF3 is highly expressed in individuals with mealy fruit [18], and Mdβ-Gal2 is associated with the softer texture of ’Fuji’ compared with ’Qinguan’ fruit [60]. However, in our study, the relationships between the three pectin-modifying genes and fruit crispness were not strong. After including samples from a second year in our analyses, the only significant difference observed in our study was the expression levels of Mdα-AF3 between fruit of the “Retain” and “Lose” individuals (Table 2). As a result of the inconsistencies between the parents and progeny individuals and year-to-year variations, MdPME1 (MD08G1195600), Mdα-AF3 (MD16G1158300), and Mdβ-GAL2 (MD02G1079200) were deemed as low- or non-priority candidate genes.
MdXTH (MD16G1091200), with consistently higher expression in fruit of ’Honeycrisp’ and the “Retain” individuals over two years (Table 1 and Table 2a), has the characteristics of a good candidate gene underlying crispness retention. Xyloglucan is the most abundant hemicellulose in plant cell walls [61], and xyloglucan endotransglucosylase/hydrolase (XTH) is a key enzyme controlling wall strength and extensibility through its modification of the interactions between cellulose and hemicellulose xyloglucan [62]. There are eleven identified members of MdXTH, named MdXTH1 to MdXTH11 [63], but the specific MdXTH (MD16G1091200) identified in this study, with sequence similarity to the Arabidopsis AtXTH33, has not been formally named. Although not a focus in previous studies, there are clues suggesting that this MdXTH may have a role in regulating fruit crispness. In a study comparing ripening-associated gene expression between ’Golden Delicious’ and ’Fuji’ fruit, a consistently higher expression of this MdXTH was observed in ’Fuji’ fruit, which are crisper at harvest, with better crispness retention than ’Golden Delicious’ fruit [64]. In addition, the physical position of MdXTH (6.3 Mb) on chromosome 16 is within a QTL region (3.2 to 6.9 Mb) previously identified using five ’Honeycrisp’ populations including ’Honeycrisp’ × MN1764 and associated with apple fruit crispness [65]. Previous reports indicate that different members of XTHs gene family could either cause fruit softening [24] or maintain fruit firmness [66]. In the current study, this MdXTH was favorable for retaining crispness texture properties. The highest expression of MdXTH was at harvest (Table 2a), which indicated that this MdXTH was activated before the difference in crispness occurred between fruit of the “Retain” and “Lose” individuals. Based on its expression patterns, previously reported QTL results, and its biological functions, MdXTH could contribute significantly to both at harvest crispness and crispness retention of ’Honeycrisp’ fruit. It is not clear how MdXTH is regulated, but regulation may be independent of gene sequence differences, since fruit of the “Retain” and “Lose” individuals shared the same QTL allelotype.

4. Conclusions

By comparing the transcriptomes among the phenotypic groups (“Retain”, “Lose”, and “Non-crisp”), we observed that several ethylene- and auxin-related genes associated with fruit ripening were differentially expressed. The ethylene synthesis gene, MdACS1, responsible for the climacteric ethylene production of apple fruit was related to the lower crispness of the “Non-crisp” fruit at harvest and the “Lose” fruit after storage. In contrast, the expression of MdACS1 was lower in the “Retain” fruit, where auxin-conjugating genes (GH3.1), rather than ethylene genes could be more important in their ripening. A JMT, which was consistently differentially expressed over two years, could also be involved in fruit ripening through a different pathway that eventually enhances ethylene production. ’Honeycrisp’ fruit differed from those of the “Retain” individuals in having higher expression of several MdACS1 genes, suggesting a possible post-transcriptional regulation of MdACS1 by ETOs.
The investigation of cell wall genes revealed some number of cell wall synthesis genes, such as cellulose synthases and GAUTs, that were highly expressed in fruit of the “Retain” individuals and ’Honeycrisp’ compared to those of the ’Non-crisp’ individuals and MN1764. Among the cell wall-modifying genes, the expression patterns of MdPG1 and MdXTH were the most closely correlated with crispness retention. In summary, low expression of MdACS1, MdPG1, and JMT along with high expression of ETO, MdXTH, and other cell wall synthesis genes were favorable for crispness retention of the “Retain” members of the ’Honeycrisp’ × MN1764 population.

5. Materials and Methods

5.1. Plant Materials

The cultivar ’Honeycrisp’ and an unnamed breeding selection, MN1764, were the parents of the breeding population studied. ’Honeycrisp’ fruit retain crispness during storage, while MN1764 fruit lose crispness. This breeding population is comprised of 170 progeny individuals, and each individual had 2 to 4 replicated trees. The trees were grown at the University of Minnesota Horticultural Research Center in Victoria, Minnesota. Fruit were harvested from late August to early October 2018 and 2019 when the starch index reached the score of four based on an eight-point starch-iodine index chart [67].
Eight progeny individuals derived from the ’Honeycrisp’ × MN1764 population with distinct crispness traits were further selected for transcriptome comparisons. There were 1) three individuals with fruit that retained crispness through 8-week cold storage (named “Retain” individuals); 2) three individuals producing fruit that lost crispness after two months of cold storage (named “Lose” individuals); and 3) two individuals that had non-crisp fruit at harvest (named “Non-crisp” individuals). Three instrumental measures including puncture force (PF), force linear distance (FLD), and maximum acoustic pressure (AUX), that were highly correlated with sensory crispness of this studied apple population were used as the major indicators of fruit crispness [27,68]. PF was generated using the penetrometer (FT 30, Wagner Instruments, Greenwich, CT) mounted on a drill press and equipped with a FT716 size plunger, while FLD and AUX were generated using a TA.XTplus texture analyzer (Stable Micro Systems, Hamilton, MA) that measures force and acoustic properties of the fruit. A detailed description of the instrumental methods was described in Chang et al. [27]. The selection of the individuals was based on 3-years of instrumental data (2016–2018). Ten fruit of each progeny individual were harvested each year.
Fruit were peeled, and cortex samples were collected at two time points, at harvest and after 8-week cold storage (0  ±  1 °C and 95% relative humidity). Diced fruit pieces from individual fruit were packaged in aluminum foil and frozen with liquid nitrogen, then kept at −80 °C for later RNA extraction.

5.2. RNA Sample Preparation and RNA Sequencing

RNA was extracted from 10 g of cortex tissue from each fruit. An RNA extraction method developed by Lopez-Gomez and Gomez-Lim [69] for fruit with high polysaccharides was used with modification [21,22]. The extracted RNA was further purified with the RNeasy Midi kit (Qiagen, Valencia, CA) following manufacturer protocols. DNase I (New England Biolabs, Ipswich, MA) was applied to eliminate genomic DNA contamination in the RNA extracts.
RNA-Seq of samples harvested in 2018 was performed at the University of Minnesota Genomic Center. The RNA integrity and concentration were measured with the RNA ScreenTape System (Agilent Technologies, Santa Clara, CA) and RiboGreen RNA quantification kit (Molecular Probes, Eugene, OR). The concentrations of the RNA samples were from 40 to 100 ng/μL, with RNA integrity number (RIN) larger than eight. cDNA libraries were constructed using Illumina TruSeq RNA sample preparation protocol. The parent samples were sequenced in 2014 on an Illumina HiSeq 2000 platform with eight libraries pooled into one lane of an Illumina flowcell. The progeny samples were sequenced in 2018 on an Illumina HiSeq 2500 platform with 12 libraries pooled in one lane. A total number of 60 paired-end RNA-Seq datasets were generated including the two parents and the eight individuals sampled at two time-points (at harvest and after storage) with three biological replicates (i.e., three fruit from the same tree) of each individual and time-point (Table S1 and Figure S1).
Quality control of the sequence reads was performed using FastQC [70] (version 0.11.9). Adapter contamination and low-quality reads (with Phred quality score < 30) were filtered using Trimmomatic [71] (version 0.39). The filtered reads were mapped to the apple reference genome GDDH13 v1.1 [72] using HISAT [73] (version 2.1.0). SAMTools [74] (version 1.9) was used to sort the aligned reads based on their locations in the genome, while featureCounts [75] (version 1.5.2) was used to count the number of the sorted reads as the expression level of each gene. The results of RNA sequencing and read alignments are shown in the Supplementary Materials (Table S1).

5.3. Differential Expression Analysis

Statistical analyses of gene expression were performed using edgeR software [76] (version 3.11). Genes with low counts across all datasets were removed using default settings in the “filterByExpr” function. The trimmed mean of M-value (TMM) method was applied for data normalization using the “calNormFactor” function to reduce technical variations. A multidimensional scaling (MDS) plot was generated from the top 500 genes with the largest standard deviation between samples using the limma R package [77] (version 3.11) to examine the relationships among samples.
Gene expression was normalized to counts per million mapped reads (CPM). The significance level was set at FDR < 0.05, and genes with log2-fold difference > 1 and CPM values > 1 were considered as differentially expressed. Three comparisons were made: (1) ’Honeycrisp’ vs. MN1764, (2) “Retain” vs. “Lose”, and (3) “Retain” vs. “Non-crisp” (Figure S1). To identify differentially expressed genes (DEGs) that commonly occurred in all the comparisons, a Venn diagram was generated using the “vennDiagram” function in the limma R package. Heatmaps visualizing the expression patterns of the DEGs was generated using the pheatmap R package [78].
Gene functional annotation was obtained from the Genome Database of Rosaceae Species (GDR, https://www.rosaceae.org/species/malus/all). Gene Ontology terms for each gene were assigned using the PANNZER2 webservice with default settings [79]. GO enrichment analyses were conducted using goseq software [80] (version 1.40.0), which was specifically designed to minimize length-derived bias that may affect RNA-Seq data. GO terms with FDR < 0.05 were considered as significantly enriched.

5.4. Gene Validation Using NanoString nCounter® and qRT-PCR

A subset of the DEGs that showed > 1.5 log2-fold difference were further validated using the nCounter® analysis system (NanoString Technology, Seattle, WA) with a customized CodeSet designed and created to target the 47 genes of interest (Table S2). Three housekeeping genes including casein kinase 1 isoform delta like (CKL, MD09G119011), type 1 membrane protein like (TMp1, MD04G1005300), and dihydrolipoamide dehydrogenase (DLD, MD16G1145800) that were consistently expressed in apple fruit over storage were selected for normalizing expression of the genes of interest [81]. To evaluate the consistency of the genes, RNA samples from two different harvest years were included in this experiment. A total of 96 samples consisting of the two parents and six progeny individuals (three each from the “Retain” and “Lose” individuals), each collected at two time-points (at harvest and after two months of cold storage) and from two years (2018 and 2019) with three biological replicates each, were analyzed. The nCounter® data was adjusted using the manufacturer-provided spiked positive and negative controls.
Eight genes, including two cell wall-related genes and six genes that showed inconsistent expression between RNA-Seq and nCounter® results, were further examined using qRT-PCR. DLD (MD16G1145800) was selected as the housekeeping gene used to compare to genes of interest that were tested. The primers for the genes were designed (Table S3) using the Integrated DNA Technologies (IDT) online tool (https://www.idtdna.com). Reverse transcription reactions were performed using GoScriptTM Reverse Transcriptase (Promega, Madison, WI) following manufacturer protocols using Oligo(dT)15 and random primers. Real-time PCR was performed on a CFX96TM thermal cycler (Bio-Rad, Hercules, CA), with SYBR® Green Supermix (Bio-Rad, Hercules, CA) as the fluorescence reagent. Reactions for the target and housekeeping genes were performed in duplicate with a total volume of 20 μL. PCR was conducted with the following conditions: initial incubation at 95 °C for 5 min, followed by 40 cycles of denaturation at 95 °C for 20 s, annealing at 60 °C for 30 s, extension at 72 °C for 30 s, and finishing with 72 °C for 5 min. Gene expression levels were calculated using the 2−ΔΔCt method [82].

Supplementary Materials

The following are available online at https://www.mdpi.com/2223-7747/9/10/1335/s1, Figure S1: A schematic description of the workflow of this study, Figure S2: Correlation between gene expression levels using RNA-Seq and nCounter® platforms, Figure S3: Comparisons among the expression of selected genes using RNA-Seq, nCounter®, and qRT-PCR methods, Table S1: Alignment summary of the RNA-Seq reads to the apple reference genome, Table S2: nCounter® CodeSet Design.

Author Contributions

H.-Y.C. conducted the experiment, analyzed the data and wrote the original draft. C.B.S.T. designed the experiment, edited the manuscript, and acquired funding. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Minnesota Experiment Station for project MN 21-028.

Acknowledgments

We thank James Luby and David Bedford for providing the ’Honeycrisp’ germplasm, Kevin Silverstein for recommending NanoString® Technology, Joshua Baller and Thomas Kono for bioinformatics advice, James Bradeen and Mathew Clark for reviewing the manuscript and providing valuable suggestions.

Conflicts of Interest

The authors declare that they have no conflict of interest.

Data Availability

The raw sequence data were deposited into NCBI Sequence Read Archive and can be accessed with the accession number PRJNA645625.

References

  1. Luby, J.J.; Bedford, D.S. rep. Honeycrisp apple. In Minnesota Report; Minnesota Agricultural Experiment Station: Saint Paul, MN, USA, 1992. [Google Scholar]
  2. Washington Tree Fruit Acreage Report. Available online: https://www.nass.usda.gov/Statistics_by_State/Washington/Publications/Fruit/2017/FT2017.pdf (accessed on 12 August 2020).
  3. Hampson, C.; Quamme, H.; Hall, J. Using Sensory Evaluation Panels to Screen Apple Breeding Selections. Acta Horticulturae 2000, 538, 201–205. [Google Scholar] [CrossRef]
  4. Péneau, S.; Hoehn, E.; Roth, H.R.; Escher, F.; Nuessli, J. Importance and Consumer Perception of Freshness of Apples. Food Qual. Prefer. 2006, 17, 9–19. [Google Scholar] [CrossRef]
  5. Tong, C.; Krueger, D.; Vickers, Z.; Bedford, D.; Luby, J.; El-Shiekh, A.; Shackel, K.; Ahmadi, H. Comparison of Softening-Related Changes during Storage of ’Honeycrisp’ Apple, Its Parents, and ’Delicious’. J. Am. Soc. Hort. Sci. 1999, 124, 407–415. [Google Scholar] [CrossRef][Green Version]
  6. Barry, C.S.; Giovannoni, J.J. Ethylene and Fruit Ripening. J. Plant Growth Regul. 2007, 26, 143–159. [Google Scholar] [CrossRef]
  7. Johnston, J.W.; Hewett, E.W.; Hertog, M.L. Postharvest Softening of Apple (Malus Domestica) Fruit: A Review. N. Z. J. Crop Hort. Sci. 2002, 30, 145–160. [Google Scholar] [CrossRef]
  8. Harb, J.; Gapper, N.E.; Giovannoni, J.J.; Watkins, C.B. Molecular Analysis of Softening and Ethylene Synthesis and Signaling Pathways in a Non-Softening Apple Cultivar, ’Honeycrisp’ and a Rapidly Softening Cultivar, ’McIntosh’. Postharvest Biol. Technol. 2012, 64, 94–103. [Google Scholar] [CrossRef]
  9. Costa, F.; Stella, S.; Weg, W.E.V.D.; Guerra, W.; Cecchinel, M.; Dallavia, J.; Koller, B.; Sansavini, S. Role of the Genes Md-ACO1 and Md-ACS1 in Ethylene Production and Shelf Life of Apple (Malus Domestica Borkh). Euphytica 2005, 141, 181–190. [Google Scholar] [CrossRef]
  10. Costa, F.; Peace, C.P.; Stella, S.; Serra, S.; Musacchi, S.; Bazzani, M.; Sansavini, S.; Weg, W.E.V.D. QTL Dynamics for Fruit Firmness and Softening around an Ethylene-Dependent Polygalacturonase Gene in Apple (Malusxdomestica Borkh.). J. Exp. Bot. 2010, 61, 3029–3039. [Google Scholar] [CrossRef][Green Version]
  11. Harada, T.; Sunako, T.; Wakasa, Y.; Soejima, J.; Satoh, T.; Niizeki, M. An Allele of the 1-Aminocyclopropane-1-Carboxylate Synthase Gene (Md-ACS1) Accounts for the Low Level of Ethylene Production in Climacteric Fruits of Some Apple Cultivars. Theor. Appl. Genet. 2000, 101, 742–746. [Google Scholar] [CrossRef]
  12. Dougherty, L.; Zhu, Y.; Xu, K. Assessing the Allelotypic Effect of Two Aminocyclopropane Carboxylic Acid Synthase-Encoding Genes MdACS1 and MdACS3a on Fruit Ethylene Production and Softening in Malus. Hort. Res. 2016, 3, 1–10. [Google Scholar] [CrossRef][Green Version]
  13. Harker, F.; Stec, M.G.; Hallett, I.C.; Bennett, C.L. Texture of Parenchymatous Plant Tissue: a Comparison between Tensile and Other Instrumental and Sensory Measurements of Tissue Strength and Juiciness. Postharvest Biol. Technol. 1997, 11, 63–72. [Google Scholar] [CrossRef]
  14. Wakabayashi, K. Changes in Cell Wall Polysaccharides During Fruit Ripening. J. Plant Sci. 2000, 113, 231–237. [Google Scholar] [CrossRef]
  15. Caffall, K.H.; Mohnen, D. The Structure, Function, and Biosynthesis of Plant Cell Wall Pectic Polysaccharides. Carbohydr. Res. 2009, 344, 1879–1900. [Google Scholar] [CrossRef] [PubMed]
  16. Wakasa, Y.; Kudo, H.; Ishikawa, R.; Akada, S.; Senda, M.; Niizeki, M.; Harada, T. Low Expression of an Endopolygalacturonase Gene in Apple Fruit with Long-Term Storage Potential. Postharvest Biol. Technol. 2006, 39, 193–198. [Google Scholar] [CrossRef]
  17. Goulao, L.; Oliveira, C. Cell Wall Modifications during Fruit Ripening: When a Fruit Is Not the Fruit. Trends Food Sci. Technol 2008, 19, 4–25. [Google Scholar] [CrossRef][Green Version]
  18. Nobile, P.M.; Wattebled, F.; Quecini, V.; Girardi, C.L.; Lormeau, M.; Laurens, F. Identification of a Novel α-L-Arabinofuranosidase Gene Associated with Mealiness in Apple. J. Exp. Bot. 2011, 62, 4309–4321. [Google Scholar] [CrossRef][Green Version]
  19. Gwanpua, S.G.; Mellidou, I.; Boeckx, J.; Kyomugasho, C.; Bessemans, N.; Verlinden, B.E.; Hertog, M.L.; Hendrickx, M.; Nicolai, B.M.; Geeraerd, A.H. Expression Analysis of Candidate Cell Wall-Related Genes Associated with Changes in Pectin Biochemistry during Postharvest Apple Softening. Postharvest Biol. Technol. 2016, 112, 176–185. [Google Scholar] [CrossRef]
  20. Gwanpua, S.; Verlinden, B.; Hertog, M.; Nicolaï, B.; Hendrickx, M.; Geeraerd, A. Understanding the Regulation of Texture Degradation during Apple Softening—A Kinetic Modelling Approach. Acta Horticulturae 2018, 1194, 1399–1406. [Google Scholar] [CrossRef]
  21. Mann, H.S.; Alton, J.J.; Kim, S.; Tong, C.B. Differential Expression of Cell-Wall–Modifying Genes and Novel CDNAs in Apple Fruit During Storage. J. Am. Soc. Hortic. Sci. 2008, 133, 152–157. [Google Scholar] [CrossRef][Green Version]
  22. Trujillo, D. Molecular and enzymatic examination of cell wall-modifying proteins in relation to apple crispness maintenance. Master’s Thesis, University of Minnesota, Minneapolis, MN, USA, September 2012. [Google Scholar]
  23. Atkinson, R.G.; Johnston, S.L.; Yauk, Y.K.; Sharma, N.N.; Schröder, R. Analysis of Xyloglucan Endotransglucosylase/Hydrolase (XTH) Gene Families in Kiwifruit and Apple. Postharvest Biol. Technol. 2009, 51, 149–157. [Google Scholar] [CrossRef]
  24. Muñoz-Bertomeu, J.; Miedes, E.; Lorences, E. Expression of Xyloglucan Endotransglucosylase/Hydrolase (XTH) Genes and XET Activity in Ethylene Treated Apple and Tomato Fruits. J. Plant Physiol. 2013, 170, 1194–1201. [Google Scholar] [CrossRef] [PubMed][Green Version]
  25. Ireland, H.S.; Gunaseelan, K.; Muddumage, R.; Tacken, E.J.; Putterill, J.; Johnston, J.W.; Schaffer, R.J. Ethylene Regulates Apple (Malus × Domestica) Fruit Softening Through a Dose × Time-Dependent Mechanism and Through Differential Sensitivities and Dependencies of Cell Wall-Modifying Genes. Plant Cell Physiol. 2014, 55, 1005–1016. [Google Scholar] [CrossRef] [PubMed][Green Version]
  26. Trujillo, D.I.; Mann, H.S.; Tong, C.B.S. Examination of Expansin Genes as Related to Apple Fruit Crispness. Tree Genet. Genomes 2011, 8, 27–38. [Google Scholar] [CrossRef]
  27. Chang, H.Y.; Vickers, Z.M.; Tong, C.B.S. The Use of a Combination of Instrumental Methods to Assess Change in Sensory Crispness during Storage of a “Honeycrisp” Apple Breeding Family. J. Texture Stud. 2018, 49, 228–239. [Google Scholar] [CrossRef] [PubMed]
  28. Wang, Z.; Gerstein, M.; Snyder, M. RNA-Seq: A Revolutionary Tool for Transcriptomics. Nat. Rev. Genet. 2009, 10, 57–63. [Google Scholar] [CrossRef] [PubMed]
  29. Kulkarni, M.M. Digital Multiplexed Gene Expression Analysis Using the NanoString NCounter System. Curr. Protoc. Mol. Biol. 2011, 94, 25B.10.1–25B.10.17. [Google Scholar]
  30. Kende, H. Ethylene Biosynthesis. Annu. Rev. Plant Biol. 1993, 44, 283–307. [Google Scholar] [CrossRef]
  31. Tan, D.; Li, T.; Wang, A. Apple 1-Aminocyclopropane-1-Carboxylic Acid Synthase Genes, MdACS1 and MdACS3a, Are Expressed in Different Systems of Ethylene Biosynthesis. Plant Mol. Biol. Rep. 2012, 31, 204–209. [Google Scholar] [CrossRef]
  32. An, J.P.; Yao, J.F.; Xu, R.R.; You, C.X.; Wang, X.F.; Hao, Y.J. An Apple NAC Transcription Factor Enhances Salt Stress Tolerance by Modulating the Ethylene Response. Physiol. Plant 2018, 164, 279–289. [Google Scholar] [CrossRef][Green Version]
  33. Zhao, J.; Quan, P.; Liu, H.; Li, L.; Qi, S.; Zhang, M. Transcriptomic and Metabolic Analyses Provide New Insights into the Apple Fruit Quality Decline during Long-Term Cold Storage. J. Agric. Food Chem. 2020, 68, 4699–4716. [Google Scholar] [CrossRef]
  34. Yue, P.; Lu, Q.; Liu, Z.; Lv, T.; Li, X.; Bu, H.; Liu, W.; Xu, Y.; Yuan, H.; Wang, A. Auxin-Activated MdARF5 Induces the Expression of Ethylene Biosynthetic Genes to Initiate Apple Fruit Ripening. New Phytol. 2020, 226, 1781–1795. [Google Scholar] [CrossRef] [PubMed][Green Version]
  35. Schaffer, R.J.; Ireland, H.S.; Ross, J.J.; Ling, T.J.; David, K.M. SEPALLATA1/2-Suppressed Mature Apples Have Low Ethylene, High Auxin and Reduced Transcription of Ripening-Related Genes. AoB PLANTS 2013, 5, pls047. [Google Scholar] [CrossRef] [PubMed][Green Version]
  36. Busatto, N.; Tadiello, A.; Trainotti, L.; Costa, F. Climacteric Ripening of Apple Fruit Is Regulated by Transcriptional Circuits Stimulated by Cross-Talks between Ethylene and Auxin. Plant Signal. Behav. 2016, 12, e1268312. [Google Scholar] [CrossRef] [PubMed][Green Version]
  37. Shin, S.; Lee, J.; Rudell, D.; Evans, K.; Zhu, Y. Transcriptional Regulation of Auxin Metabolism and Ethylene Biosynthesis Activation During Apple (Malus × Domestica) Fruit Maturation. J. Plant Growth Regul. 2016, 35, 655–666. [Google Scholar] [CrossRef]
  38. Devoghalaere, F.; Doucen, T.; Guitton, B.; Keeling, J.; Payne, W.; Ling, T.; Ross, J.; Hallett, I.; Gunaseelan, K.; Dayatilake, G.; et al. A Genomics Approach to Understanding the Role of Auxin in Apple (Malus × Domestica) Fruit Size Control. BMC Plant Biol. 2012, 12, 7. [Google Scholar] [CrossRef][Green Version]
  39. Bottcher, C.; Keyzers, R.A.; Boss, P.K.; Davies, C. Sequestration of Auxin by the Indole-3-Acetic Acid-Amido Synthetase GH3-1 in Grape Berry (Vitis Vinifera L.) and the Proposed Role of Auxin Conjugation during Ripening. J. Exp. Bot. 2010, 61, 3615–3625. [Google Scholar] [CrossRef][Green Version]
  40. Liu, K.; Kang, B.C.; Jiang, H.; Moore, S.L.; Li, H.; Watkins, C.B.; Setter, T.L.; Jahn, M.M. A GH3-Like Gene, CcGH3, Isolated from Capsicum Chinense L. Fruit Is Regulated by Auxin and Ethylene. Plant Mol. Biol. Rep. 2005, 58, 447–464. [Google Scholar] [CrossRef]
  41. Shi, Y.; Jiang, L.; Zhang, L.; Kang, R.; Yu, Z. Erratum: Dynamic Changes in Proteins during Apple (Malus × Domestica) Fruit Ripening and Storage. Hort. Res. 2014, 1, 1–21. [Google Scholar] [CrossRef][Green Version]
  42. Zheng, Q.; Song, J.; Campbell-Palmer, L.; Thompson, K.; Li, L.; Walker, B.; Cui, Y.; Li, X. A Proteomic Investigation of Apple Fruit during Ripening and in Response to Ethylene Treatment. J. Proteomics 2013, 93, 276–294. [Google Scholar] [CrossRef]
  43. Leubner-Metzger, G.; Meins, F. Functions and Regulation of Plant β-(PR-2). In Pathogenesis-related proteins in plants; Datta, S.K., Muthukrishnan, S., Eds.; CRC Press: Boca Raton, FL, USA, 1999; pp. 58–85. [Google Scholar]
  44. Bai, S.; Dong, C.; Li, B.; Dai, H. A PR-4 Gene Identified from Malus Domestica Is Involved in the Defense Responses against Botryosphaeria Dothidea. Plant Physiol. Biochem. 2013, 62, 23–32. [Google Scholar] [CrossRef]
  45. Lv, J.; Zhang, M.; Zhang, J.; Ge, Y.; Li, C.; Meng, K.; Li, J. Effects of Methyl Jasmonate on Expression of Genes Involved in Ethylene Biosynthesis and Signaling Pathway during Postharvest Ripening of Apple Fruit. Sci. Hortic. 2018, 229, 157–166. [Google Scholar] [CrossRef]
  46. Li, T.; Xu, Y.; Zhang, L.; Ji, Y.; Tan, D.; Yuan, H.; Wang, A. The Jasmonate-Activated Transcription Factor MdMYC2 Regulates ETHYLENE RESPONSE FACTOR and Ethylene Biosynthetic Genes to Promote Ethylene Biosynthesis during Apple Fruit Ripening. Plant Cell 2017, 29, 1316–1334. [Google Scholar] [CrossRef] [PubMed][Green Version]
  47. Chae, H.S.; Kieber, J.J. Eto Brute? Role of ACS Turnover in Regulating Ethylene Biosynthesis. Trends Plant Sci. 2005, 10, 291–296. [Google Scholar] [CrossRef] [PubMed]
  48. Yoshida, H.; Nagata, M.; Saito, K.; Wang, K.L.; Ecker, J.R. Arabidopsis ETO1 specifically interacts with and negatively regulates type 2 1-aminocyclopropane-1-carboxylate synthases. BMC Plant Biol. 2005, 5, 14. [Google Scholar] [CrossRef] [PubMed][Green Version]
  49. Shi, H.; Wang, Y.; Qi, A.; Zhang, Y.; Xu, J.; Wang, A.; Zhang, Y. PpACS1b, a Pear Gene Encoding ACC Synthase, Is Regulated during Fruit Late Development and Involved in Response to Salicylic Acid. Sci. Hort. 2013, 164, 602–609. [Google Scholar] [CrossRef]
  50. Wang, K.L.C.; Yoshida, H.; Lurin, C.; Ecker, J.R. Regulation of Ethylene Gas Biosynthesis by the Arabidopsis ETO1 Protein. Nature 2004, 428, 945–950. [Google Scholar] [CrossRef]
  51. Delmer, D.P.; Amor, Y. Cellulose Biosynthesis. Plant Cell 1995, 7, 987–1000. [Google Scholar]
  52. Pauly, M.; Gille, S.; Liu, L.; Mansoori, N.; Souza, A.D.; Schultink, A.; Xiong, G. Hemicellulose Biosynthesis. Planta 2013, 238, 627–642. [Google Scholar] [CrossRef]
  53. Bartley, I.M. Changes in the Glucans of Ripening Apples. Phytochemistry 1976, 15, 625–626. [Google Scholar] [CrossRef]
  54. Win, N.M.; Yoo, J.; Kwon, S.I.; Watkins, C.B.; Kang, I.K. Characterization of Fruit Quality Attributes and Cell Wall Metabolism in 1-Methylcyclopropene (1-MCP)-Treated ’Summer King’ and ’Green Ball’ Apples During Cold Storage. Front. Plant Sci. 2019, 10, 1513. [Google Scholar] [CrossRef][Green Version]
  55. Dheilly, E.; Gall, S.L.; Guillou, M.C.; Renou, J.P.; Bonnin, E.; Orsel, M.; Lahaye, M. Cell Wall Dynamics during Apple Development and Storage Involves Hemicellulose Modifications and Related Expressed Genes. BMC Plant Biol. 2016, 16, 201. [Google Scholar] [CrossRef] [PubMed][Green Version]
  56. Brummell, D.A. Cell Wall Disassembly in Ripening Fruit. Funct. Plant Biol. 2006, 33, 103–119. [Google Scholar] [CrossRef] [PubMed]
  57. Atkinson, R.G.; Schröder, R.; Hallett, I.C.; Cohen, D.; MacRae, E.A. Overexpression of Polygalacturonase in Transgenic Apple Trees Leads to a Range of Novel Phenotypes Involving Changes in Cell Adhesion. Plant Physiol. 2002, 129, 122–133. [Google Scholar] [CrossRef] [PubMed][Green Version]
  58. Brummell, D.A.; Harpster, M.H. Cell Wall Metabolism in Fruit Softening and Quality and Its Manipulation in Transgenic Plants. Plant Cell Walls 2001, 47, 311–340. [Google Scholar]
  59. Yoshioka, H.; Kashimura, Y.; Kaneko, K. β-D-Galactosidase and α-L-Arabinofuranosidase Activities during the Softening of Apples. J. Japan. Soc. Hort. Sci. 1995, 63, 871–878. [Google Scholar] [CrossRef][Green Version]
  60. Yang, H.; Liu, J.; Dang, M.; Zhang, B.; Li, H.; Meng, R.; Qu, D.; Yang, Y.; Zhao, Z. Analysis of β-Galactosidase During Fruit Development and Ripening in Two Different Texture Types of Apple Cultivars. Front. Plant Sci. 2018, 9, 539. [Google Scholar] [CrossRef]
  61. Hayashi, T. Xyloglucans in the Primary Cell Wall. Annu. Rev. Plant Biol. 1989, 40, 139–168. [Google Scholar]
  62. Rose, J.K.C.; Braam, J.; Fry, S.C.; Nishitani, K. The XTH Family of Enzymes Involved in Xyloglucan Endotransglucosylation and Endohydrolysis: Current Perspectives and a New Unifying Nomenclature. Plant Cell Physiol. 2002, 43, 1421–1435. [Google Scholar] [CrossRef][Green Version]
  63. Miedes, E.; Lorences, E.P. Apple (Malus Domestica) and Tomato (Lycopersicum Esculentum) Fruits Cell-Wall Hemicelluloses and Xyloglucan Degradation DuringPenicillium ExpansumInfection. J. Agric. Food Chem. 2004, 52, 7957–7963. [Google Scholar] [CrossRef]
  64. Busatto, N.; Farneti, B.; Tadiello, A.; Velasco, R.; Costa, G.; Costa, F. Candidate Gene Expression Profiling Reveals a Time Specific Activation among Different Harvesting Dates in ’Golden Delicious’ and ’Fuji’ Apple Cultivars. Euphytica 2015, 208, 401–413. [Google Scholar] [CrossRef]
  65. Schmitz, C.A. Enabling Marker-Assisted Breeding for Fruit Texture Traits in Progeny of the Apple Cultivar Honeycrisp. Master’s Thesis, University of Minnesota, Minneapolis, MN, USA, July 2013. [Google Scholar]
  66. Miedes, E.; Herbers, K.; Sonnewald, U.; Lorences, E.P. Overexpression of a Cell Wall Enzyme Reduces Xyloglucan Depolymerization and Softening of Transgenic Tomato Fruits. J. Agric. Food Chem. 2010, 58, 5708–5713. [Google Scholar] [CrossRef] [PubMed]
  67. Blanpied, G.D.; Silsby, K.J. Predicting Harvest Date Windows for Apples. Cornell Cooperative Extension 1992, 7, 2–12. [Google Scholar]
  68. Costa, F.; Cappellin, L.; Longhi, S.; Guerra, W.; Magnago, P.; Porro, D.; Soukoulis, C.; Salvi, S.; Velasco, R.; Biasioli, F.; et al. Assessment of Apple (Malus×Domestica Borkh.) Fruit Texture by a Combined Acoustic-Mechanical Profiling Strategy. Postharvest Biol. Technol. 2011, 61, 21–28. [Google Scholar] [CrossRef]
  69. López-Gómez, R.; Gómez-Lim, M.A. A Method for Extracting Intact RNA from Fruits Rich in Polysaccharides Using Ripe Mango Mesocarp. HortScience 1992, 27, 440–442. [Google Scholar]
  70. Andrews, S. FastQC: A quality control tool for high throughput sequence data. Available online: https://userinfo.surfsara.nl/systems/lisa/software/fastqc (accessed on 12 August 2020).
  71. Bolger, A.M.; Lohse, M.; Usadel, B. Trimmomatic: A Flexible Trimmer for Illumina Sequence Data. Bioinformatics 2014, 30, 2114–2120. [Google Scholar] [CrossRef] [PubMed][Green Version]
  72. Daccord, N.; Celton, J.M.; Linsmith, G.; Becker, C.; Choisne, N.; Schijlen, E.; Geest, H.V.D.; Bianco, L.; Micheletti, D.; Velasco, R.; et al. High-Quality De Novo Assembly of the Apple Genome and Methylome Dynamics of Early Fruit Development. Nat. Genet. 2017, 49, 1099–1106. [Google Scholar] [CrossRef] [PubMed]
  73. Kim, D.; Langmead, B.; Salzberg, S.L. HISAT: A Fast Spliced Aligner with Low Memory Requirements. Nat. Methods 2015, 12, 357–360. [Google Scholar] [CrossRef] [PubMed][Green Version]
  74. Li, H.; Handsaker, B.; Wysoker, A.; Fennell, T.; Ruan, J.; Homer, N.; Marth, G.; Abecasis, G.; Durbin, R. The Sequence Alignment/Map Format and SAMtools. Bioinformatics 2009, 25, 2078–2079. [Google Scholar] [CrossRef][Green Version]
  75. Liao, Y.; Smyth, G.K.; Shi, W. FeatureCounts: An Efficient General Purpose Program for Assigning Sequence Reads to Genomic Features. Bioinformatics 2013, 30, 923–930. [Google Scholar] [CrossRef][Green Version]
  76. Robinson, M.D.; Mccarthy, D.J.; Smyth, G.K. EdgeR: A Bioconductor Package for Differential Expression Analysis of Digital Gene Expression Data. Bioinformatics 2009, 26, 139–140. [Google Scholar] [CrossRef][Green Version]
  77. Smyth, G.K.; Ritchie, M.; Thorne, N.; Wettenhall, J. LIMMA: Linear Models for Microarray Data. In Bioinformatics and computational biology solutions using R and bioconductor; Gentleman, R., Carey, V.J., Irizarry, R.A., Dudoit, S., Huber, W., Eds.; Springer: New York, NY, USA, 2006; pp. 397–420. [Google Scholar]
  78. Kolde, R.; Kolde, M. R. Package ’pheatmap’. R package version 1.0.12. Available online: https://CRAN.R-project.org/package=pheatmap (accessed on 12 August 2020).
  79. Koskinen, P.; Törönen, P.; Nokso-Koivisto, J.; Holm, L. PANNZER: High-Throughput Functional Annotation of Uncharacterized Proteins in an Error-Prone Environment. Bioinformatics 2015, 31, 1544–1552. [Google Scholar] [CrossRef] [PubMed]
  80. Young, M.D.; Wakefield, M.J.; Smyth, G.K.; Oshlack, A. Gene Ontology Analysis for RNA-Seq: Accounting for Selection Bias. Genome Biol. 2010, 11, R14. [Google Scholar] [CrossRef] [PubMed][Green Version]
  81. Perini, P.; Pasquali, G.; Margis-Pinheiro, M.; Oliviera, P.R.D.D.; Revers, L.F. Reference Genes for Transcriptional Analysis of Flowering and Fruit Ripening Stages in Apple (Malus × Domestica Borkh.). Mol. Breed. 2014, 34, 829–842. [Google Scholar] [CrossRef]
  82. Livak, K.J.; Schmittgen, T.D. Analysis of Relative Gene Expression Data Using Real-Time Quantitative PCR and the 2−ΔΔCT Method. Methods 2001, 25, 402–408. [Google Scholar] [CrossRef] [PubMed]
Figure 1. Three instrumental texture measures, including (a) puncture force, (b) force linear distance, and (c) acoustic pressure, of the parents (Honeycrisp and MN1764) and the progeny individuals at harvest and after 2-month cold storage. The results were obtained from three-year measurements (2016–2018). For each time point, five fruit were sampled from each parent and individual. The symbols indicate statistical significances between fresh and stored fruit of an individual: ns = not significant, * p < 0.05, ** p < 0.01, *** p < 0.001, **** p < 0.0001.
Figure 1. Three instrumental texture measures, including (a) puncture force, (b) force linear distance, and (c) acoustic pressure, of the parents (Honeycrisp and MN1764) and the progeny individuals at harvest and after 2-month cold storage. The results were obtained from three-year measurements (2016–2018). For each time point, five fruit were sampled from each parent and individual. The symbols indicate statistical significances between fresh and stored fruit of an individual: ns = not significant, * p < 0.05, ** p < 0.01, *** p < 0.001, **** p < 0.0001.
Plants 09 01335 g001

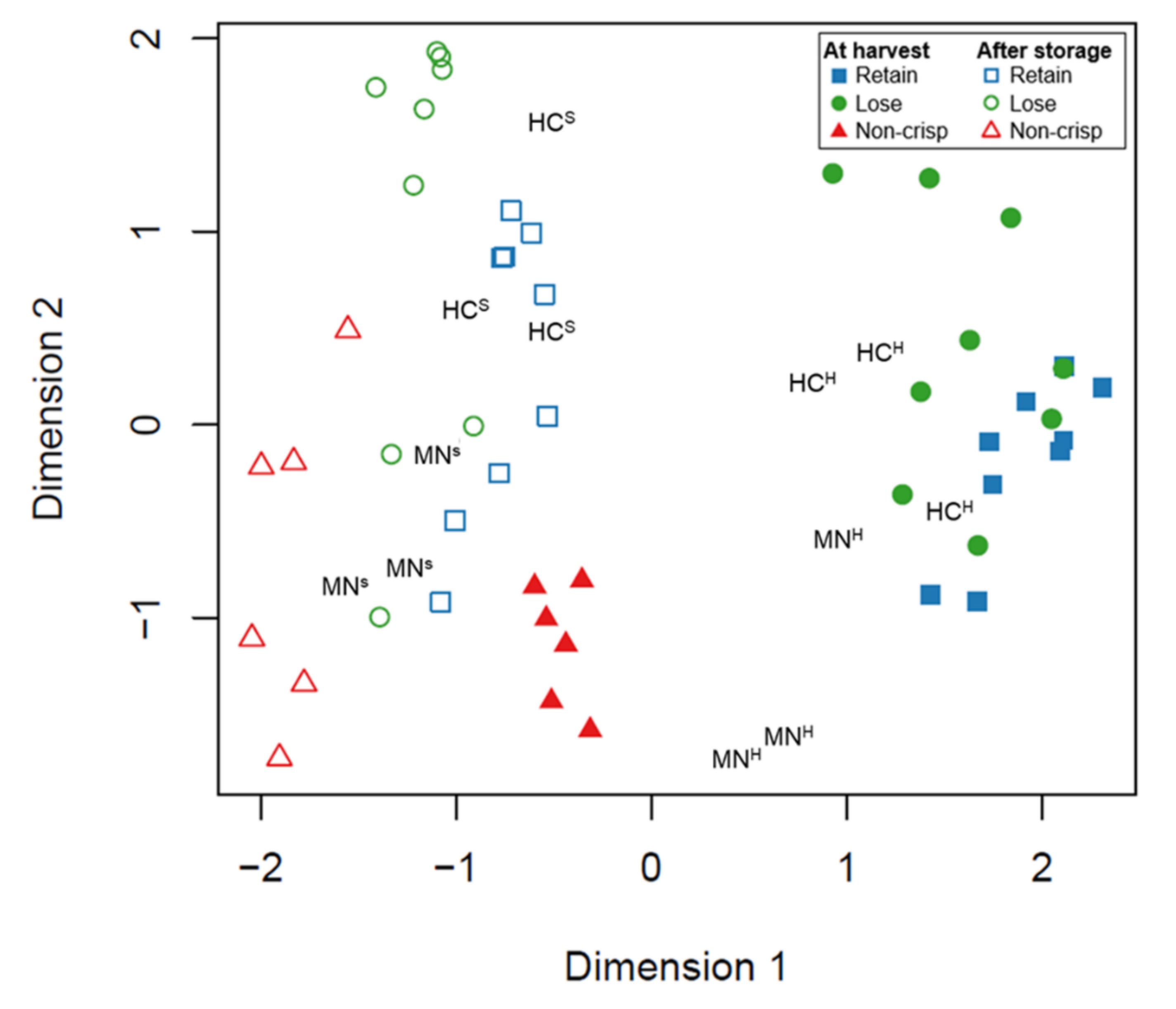

Figure 2. Multidimensional scaling (MDS) plot based on the expression levels of the top 500 most divergent genes. The distance between each pair of samples is the root-mean-square deviation for the top genes. HCH = ’Honeycrisp’ at harvest, HCS = ’Honeycrisp’ after 8-week cold storage, MNH = MN1764 at harvest, MNS = MN1764 after 8-week cold storage. Each symbol represents a replicate sample.
Figure 2. Multidimensional scaling (MDS) plot based on the expression levels of the top 500 most divergent genes. The distance between each pair of samples is the root-mean-square deviation for the top genes. HCH = ’Honeycrisp’ at harvest, HCS = ’Honeycrisp’ after 8-week cold storage, MNH = MN1764 at harvest, MNS = MN1764 after 8-week cold storage. Each symbol represents a replicate sample.
Plants 09 01335 g002
Figure 3. Venn diagram showing the numbers of differentially expressed genes (DEGs) commonly identified between the three comparisons. (a) Up-regulated gene = DEGs highly expressed in ’Honeycrisp’ (HC) and “Retain” group, and (b) down-regulated genes = DEGs highly expressed in MN1764 (MN), “Lose”, and “Non-crisp” groups.
Figure 3. Venn diagram showing the numbers of differentially expressed genes (DEGs) commonly identified between the three comparisons. (a) Up-regulated gene = DEGs highly expressed in ’Honeycrisp’ (HC) and “Retain” group, and (b) down-regulated genes = DEGs highly expressed in MN1764 (MN), “Lose”, and “Non-crisp” groups.
Plants 09 01335 g003
Figure 4. Enriched Gene Ontology (GO) terms associated with the differentially expressed genes (DEGs) distinguished between the (a) “Retain” and “Non-crisp” groups, (b) “Retain” and “Lose” groups, and (c) ’Honeycrisp’ and MN1764 at harvest and after 2-month storage. A false discovery rate (FDR) < 0.05 was used as the threshold for identifying significantly enriched GO terms.
Figure 4. Enriched Gene Ontology (GO) terms associated with the differentially expressed genes (DEGs) distinguished between the (a) “Retain” and “Non-crisp” groups, (b) “Retain” and “Lose” groups, and (c) ’Honeycrisp’ and MN1764 at harvest and after 2-month storage. A false discovery rate (FDR) < 0.05 was used as the threshold for identifying significantly enriched GO terms.
Plants 09 01335 g004
Figure 5. The expression patterns of the differentially expressed genes (DEGs) involved in the auxin-activated signaling pathway. Two genes, (a) ARF and (b) AUX/IAA, that are associated with auxin signaling, and two genes, (c) SAUR, and (d) GH3, that are associated with auxin response were studied. The relative expression is the ratio of gene expression compared to the average. H = at harvest, and S = after 8-week cold storage.
Figure 5. The expression patterns of the differentially expressed genes (DEGs) involved in the auxin-activated signaling pathway. Two genes, (a) ARF and (b) AUX/IAA, that are associated with auxin signaling, and two genes, (c) SAUR, and (d) GH3, that are associated with auxin response were studied. The relative expression is the ratio of gene expression compared to the average. H = at harvest, and S = after 8-week cold storage.
Plants 09 01335 g005
Figure 6. The expression patterns of the differentially expressed genes (DEGs) involved in (a) ethylene biosynthesis, (b) signaling, and (c) response. The relative expression is the ratio of gene expression compared to the average. H = at harvest, and S = after 8-week cold storage.
Figure 6. The expression patterns of the differentially expressed genes (DEGs) involved in (a) ethylene biosynthesis, (b) signaling, and (c) response. The relative expression is the ratio of gene expression compared to the average. H = at harvest, and S = after 8-week cold storage.
Plants 09 01335 g006
Table 1. Differentially expressed genes (DEGs) with functions associated with cell wall synthesis or modification identified at harvest, or after 2-month cold storage. The expression levels of selected cell wall-genes were compared between (a) “Retain” vs. “Non-crisp”, (b) “Retain” vs. “Lose”, and (c) ’Honeycrisp’ vs. MN1764. The Gene IDs listed in the table were DEGs highly expressed in the corresponding phenotypic group. - = no DEGs.
Table 1. Differentially expressed genes (DEGs) with functions associated with cell wall synthesis or modification identified at harvest, or after 2-month cold storage. The expression levels of selected cell wall-genes were compared between (a) “Retain” vs. “Non-crisp”, (b) “Retain” vs. “Lose”, and (c) ’Honeycrisp’ vs. MN1764. The Gene IDs listed in the table were DEGs highly expressed in the corresponding phenotypic group. - = no DEGs.
(a)At harvestAfter Storage
RetainNon-crispRetainNon-crisp
α-Arabinoglucosidase-MD08G1221800
MD16G1158300
--
β-GalactosidaseMD08G1023600
MD15G1251100
MD00G1018700
MD02G1079200
MD15G1251100-
Cellulose synthase/Cellulose synthase- like MD01G1236500
MD01G1236600
MD02G1311600
MD03G1133700
MD07G1309200
MD08G1147200
MD10G1029800
MD15G1123200
MD15G1340200
MD17G1099800
MD03G1028900
MD03G1178600
MD13G1209200
MD15G1150300
MD01G1236500
MD01G1236600
MD08G1076900
MD08G1126200
MD09G1037900
MD15G1064400
MD15G1415100
MD15G1415200
MD17G1144800
MD03G1028900
MD08G1147200
ExpansinMD00G1125400
MD01G1166700
MD04G1129800
MD07G1233100
MD09G1279500
MD03G1090700
MD05G1130300
MD06G1041000
MD06G1195100
MD00G1125400
MD01G1166700
MD04G1052600
-
GalacturonosyltransferaseMD04G1181600
MD05G1363900
MD09G1041100
MD09G1061900
MD11G1318000
MD13G1084900
MD17G1141200
MD16G1084000
-MD09G1041100
MD10G1140000
MD13G1084900
MD16G1084000
MD17G1141200
-
Pectate lyaseMD14G1167100--MD01G1100600
Pectin methylesteraseMD00G1105300
MD04G1198000
MD07G1289200
MD12G1198000
MD15G1222000
MD08G1195600MD02G1104600
MD13G1149800
MD15G1222000
MD06G1064700
MD07G1255000
MD08G1195600
MD09G1054900
MD16G1150200
PolygalacturonaseMD01G1068900
MD01G1069000
MD06G1105300
MD09G1290500
MD12G1064100
MD16G1161800
MD00G1140300
MD03G1162500
MD07G1279000
MD09G1030100
MD09G1030200
MD10G1179100
MD00G1140300
MD06G1105300
-
Xyloglucan endotransglucosylase/
hydrolase
MD02G1192600
MD09G1102600
MD10G1315100
MD15G1303500
MD16G1014000
MD16G1091200
MD16G1145200
MD17G1140000
MD04G1020100
MD15G1303500
MD16G1091200
MD13G1237300
MD16G1278900
(b)At harvestAfter Storage
RetainLoseRetainLose
α-Arabinoglucosidase---MD16G1158300
β-Galactosidase-MD00G1018700
MD02G1079200
--
Cellulose synthase/
Cellulose synthase- like
MD05G1296600
MD13G1209200
MD03G1028900
MD15G1415100
MD15G1415200
MD16G1145200
MD17G1038900
MD05G1296600
MD13G1209200
MD03G1028900
MD17G1099500
MD17G1099600
ExpansinMD05G1130300MD11G1054500
MD16G1070600
MD05G1130300
MD17G1271500
MD01G1166700
MD06G1195100
MD07G1233100
MD13G1070200
Galacturonosyltransferase--MD17G1141200-
Pectate lyase---MD06G1161400
Pectin methylesteraseMD06G1191000MD13G1149800-MD08G1195600
PolygalacturonaseMD06G1105300MD10G1179100MD13G1092000MD00G1087900
MD09G1030100
MD09G1030200
Xyloglucan endotransglucosylase/
hydrolase
MD10G1315100
MD13G1237300
MD15G1303500
MD16G1091200
MD16G1145200MD15G1303500
MD16G1091200
MD13G1268900
MD16G1145200
(c)At harvestAfter Storage
HoneycrispMN1764HoneycrispMN1764
α-Arabinoglucosidase---MD08G1221800
MD16G1158300
β-Galactosidase--MD08G1139000
MD09G1192500
MD11G1133400
Cellulose synthase/
Cellulose synthase- like
MD03G1029100
MD03G1178600
MD04G1173700
MD15G1340200
MD03G1029000
MD03G1133700
MD15G1415100
MD15G1415200
MD03G1029100
MD03G1178600
MD04G1173700
MD11G1156200
MD13G1209200
MD15G1340200
MD17G1099600
MD03G1133700
Expansin-MD16G1070600-MD04G1052600
MD10G1133200
GalacturonosyltransferaseMD10G1140000
MD17G1141200
MD00G1136600
MD04G1181600
MD09G1093100
MD10G1140000
MD11G1318000
-
Pectate lyase-MD05G1179500--
Pectin methylesteraseMD01G1220700
MD06G1191000
MD09G1172600
MD06G1191000
MD08G1195600
MD11G1307500
MD01G1220700
MD09G1172600
MD11G1307500
MD16G1150200
PolygalacturonaseMD03G1292400
MD15G1441700
--MD07G1279000
MD10G1179100
Xyloglucan endotransglucosylase/
hydrolase
MD10G1315100
MD16G1091200
-MD16G1091200MD09G1152600
MD09G1152700
MD13G1237300
MD17G1140000
Table 2. The numbers of gene counts in the fruit samples at harvest and after 8-week cold storage measured using NanoString nCounter® technology. (a) Genes that were highly expressed in ’Honeycrisp’ (HC) and/or the “Retain” group fruit, and (b) genes that were highly expressed in MN1764 (MN) and/or “Lose” group fruit. The genes that were differentially expressed in both parent and progeny samples were the primary candidates, while the genes that were only differentially expressed in the parent or the progeny samples were the secondary candidates.
Table 2. The numbers of gene counts in the fruit samples at harvest and after 8-week cold storage measured using NanoString nCounter® technology. (a) Genes that were highly expressed in ’Honeycrisp’ (HC) and/or the “Retain” group fruit, and (b) genes that were highly expressed in MN1764 (MN) and/or “Lose” group fruit. The genes that were differentially expressed in both parent and progeny samples were the primary candidates, while the genes that were only differentially expressed in the parent or the progeny samples were the secondary candidates.
(a) Gene IDAt harvestAfter storageAt harvestAfter storageGene function
HCMNDiff. 1HCMNDiff.RetainLoseDiff.RetainLoseDiff.
Primary candidate gene
MD01G1062800605258510.0 NS67312135−1.7 **97205414−0.8 **448857130.3 NSPIP1 | aquaporin
MD03G1019900143−2.1 *93−1.5 *2713−1.1 **116−0.8 **RLK1 | receptor-like protein kinase
MD05G109230012824−2.4 *226−1.9 NS1019−3.4 **128−0.6 NSGH3 | auxin-responsive protein
MD07G123750065944−3.9 **90912−6.3 **600253−1.2 **269149−0.9 **RPL | ribosomal protein
MD07G1247100561179−1.7 **545154−1.8 **448274−0.7 **377293−0.4 *PMSR | peptide met S-oxide reductase
MD07G12592001323−5.3 **13815−3.2 **14162−1.2 **14584−0.8 **RPM | disease resistance protein
MD07G127080019027−2.8 *4023−0.8 NS209129−0.7 **8110.4 NSTUB | tubulin
MD07G1274100122−3.0 **92−2.1 **85−0.8 **179−0.9 **SK | SKP1-like protein
MD08G11066001096−4.2 **2415−0.7 NS5834−0.8 **16200.3 NSscpl | serine carboxypeptidase
MD14G105660010738−1.5 **173139−0.3 NS13239−1.8 **253107−1.2 **function unknown
MD14G1110100822−5.4 **574−3.7 **6626−1.3 **8219−2.1 **function unknown
MD15G12970009110−3.3 **806−3.7 **12325−2.3 **8024−1.7 **APK | adenylyl-sulfate kinase
MD16G109120027412−4.5 **837−3.5 **29136−3.0 **9022−2.0 **XTH | xyloglucan endotransglucosylase
Secondary candidate gene
MD01G10425004111.4 NS780.2 NS261.4 **4182.1 **ELI | elicitor-activated gene
MD02G105720012160.4 NS177−1.3 *87−0.2 NS98−0.2 NSAUX/IAA | auxin-responsive protein
MD05G1098700367111−1.7 *490357−0.5 NS1401380.0 NS2883170.1 NSLACS | AMP-dependent synthetase
MD10G131510015576−1.0 NS239−1.3 *1011200.2 NS16190.2 NSXTH | xyloglucan endotransglucosylase
MD11G12302003813−1.5 **3118−0.7 *3832−0.3 NS7156−0.3 NSfunction unknown
MD15G1203500282377−5.2 *17933−2.4 NS3055310.8 NS5151.6 **ACS | ACC synthase
MD17G11412009232−1.5 **11043−1.4 *8875−0.2 NS8055−0.6 NSGAUT | galacturonosyltransferase
(b) Gene IDAt harvestAfter storageAt harvestAfter storageGene function
HCMNDiff.HCMNDiff.RetainLoseDiff.RetainLoseDiff.
Primary candidate gene
MD00G1036800521231.2 NS24962.0 *441722.0 **45921.0 **ABCG | ABC transporter G
MD01G121310078915871.02 NS219372741.7 **85910410.3 NS2259114922.3 **CHIA | chitinase
MD03G1108400621941.6 **1248192.7 **12371.6 **1344441.7 **GLTP | glycolipid transfer protein
MD05G13104001723577.1 **2315856.1 **39120232.4 **337694.5 **protein E6-like
MD05G1313300105−1.0 *15802.4 *480.9 **11602.5 **function unknown
MD06G1233800511461.52 NS781531.0 *901550.8 **892281.4 **monoacylglycerol lipase-like
MD08G11279008342.02 NS15501.7 **5232.3 **10652.8 **AFR | F-box protein AFR-like
MD10G1179100307485771.52 NS1602645805.3 **30870924.5 **42086766870.9 **PG | polygalacturonase
MD11G11890004607340.72 NS162635511.1 *2729221.8 **662102984.0 **BG | glucan endo−1,3-β-glucosidase
MD12G1164900412082.32 NS221612.9 **581851.7 **30841.5 **PPR | pentatricopeptide repeat protein
MD12G118300046660.52 NS802501.6 **35450.3 NS771380.8 **LURP-one-related 15-like
MD13G1112700168−1.0 NS9362.0 **12261.1 **17270.7 *CYP | cytochrome P450
MD15G1023600896817−0.1 NS1433134173.2 *895002.5 **248579471.7 **JMT | jasmonate O-methyltransferase
Secondary candidate gene
MD03G10601007258−0.3 NS441221.5 NS26410.6 *27831.6 **LBD | LOB domain-containing protein
MD05G129790011401.9 NS111724.0 **10391.9 NS147140−0.1 NSEFR | EF-TU receptor
MD05G134980018371358−0.4 NS20451726−0.2 NS143422840.7 **138220550.6 **WRKY | WRKY transcription factor
MD06G109060014451.7 NS461121.3 NS5101.1 NS765072.7 **ACS | ACC synthase
MD16G1158300223157691.4 NS13467237480.8 NS506674630.6 NS19752277230.5 *α -AF | α -arabinofuranosidase
MD16G12778003132.1 NS5100.9 NS3101.9 **10170.8 **NRT | nitrate transporter
MD17G125610019561.5 NS34671.0 NS27420.6 NS812861.8 **SFBB | F-box family protein
NS not significant, * p < 0.05, ** p < 0.01; 1 Diff. = Log2 fold-diffe.

Share and Cite

MDPI and ACS Style

Chang, H.-Y.; Tong, C.B.S. Identification of Candidate Genes Involved in Fruit Ripening and Crispness Retention Through Transcriptome Analyses of a ‘Honeycrisp’ Population. Plants 2020, 9, 1335. https://doi.org/10.3390/plants9101335

AMA Style

Chang H-Y, Tong CBS. Identification of Candidate Genes Involved in Fruit Ripening and Crispness Retention Through Transcriptome Analyses of a ‘Honeycrisp’ Population. Plants. 2020; 9(10):1335. https://doi.org/10.3390/plants9101335

Chicago/Turabian Style

Chang, Hsueh-Yuan, and Cindy B. S. Tong. 2020. "Identification of Candidate Genes Involved in Fruit Ripening and Crispness Retention Through Transcriptome Analyses of a ‘Honeycrisp’ Population" Plants 9, no. 10: 1335. https://doi.org/10.3390/plants9101335

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
